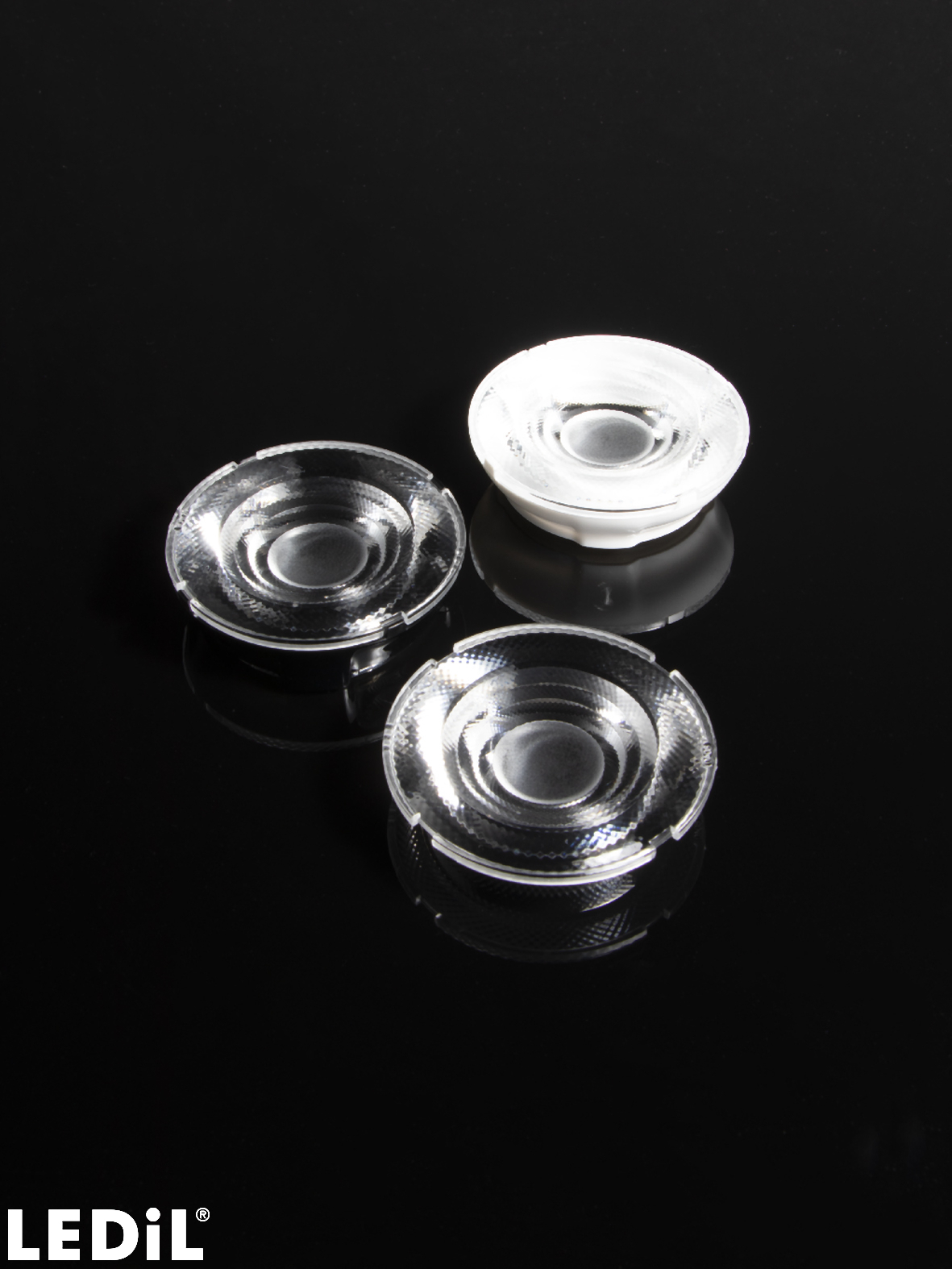

AMY-50-S2

Print

~15° spot beam with soft cutoff

This product consists of multiple buying options. See ordering information

Specification
  • Dimensions:
    50 mm
  • Height:
    10.80 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials
  • AMY-50-S2
    PMMA
  • AMY-50-HLD2-C-WHT
    PC
  • AMY-50-HLD2-C
    PC
  • AMY-50-HLD2-B-WHT
    PC
  • AMY-50-HLD2-B
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Single lens
  • C18040_AMY-50-S2
    clear
  • Quantity in box:
    690 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.10 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 80 mm
  • MOQ Weight:
    1.70 kg
  • Assembly
  • CP19127_AMY-50-S2-C2
    black,Holder C
  • CP19136_AMY-50-S2-B2
    black,Holder B
  • CP19145_AMY-50-S2-C2-WHT
    white,Holder C
  • CP19154_AMY-50-S2-B2-WHT
    white,Holder B
  • Quantity in box:
    510 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.10 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    2.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C18040_AMY-50-S2
    CP19127_AMY-50-S2-C2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

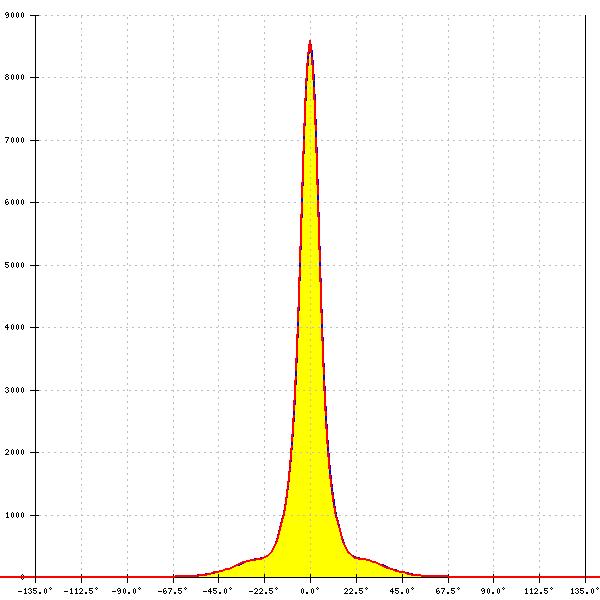

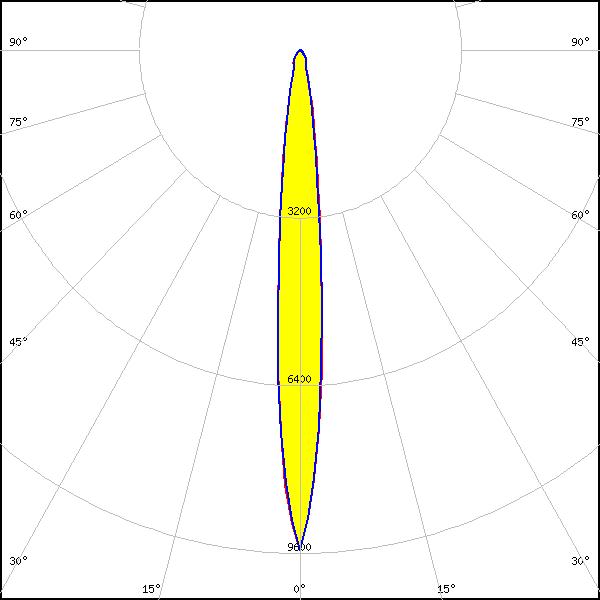

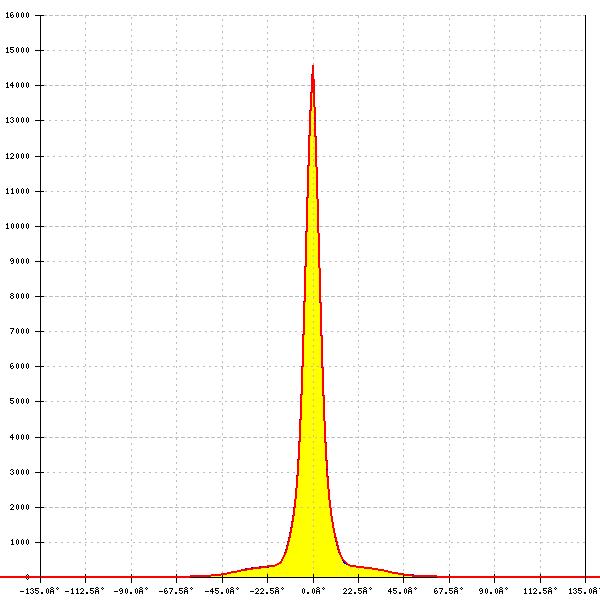

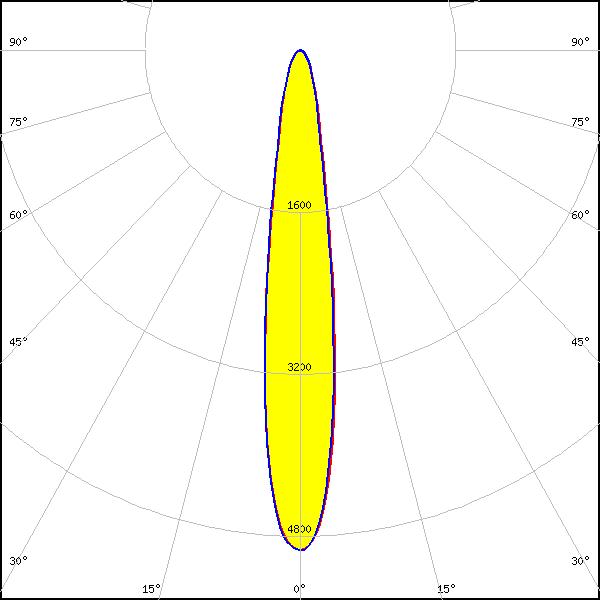

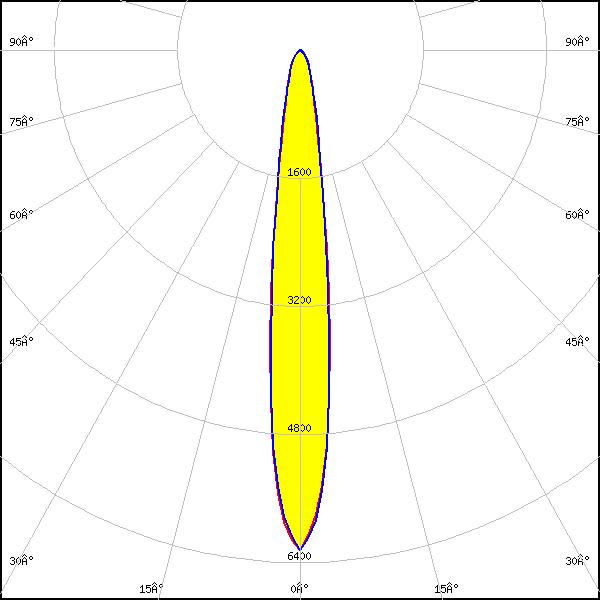

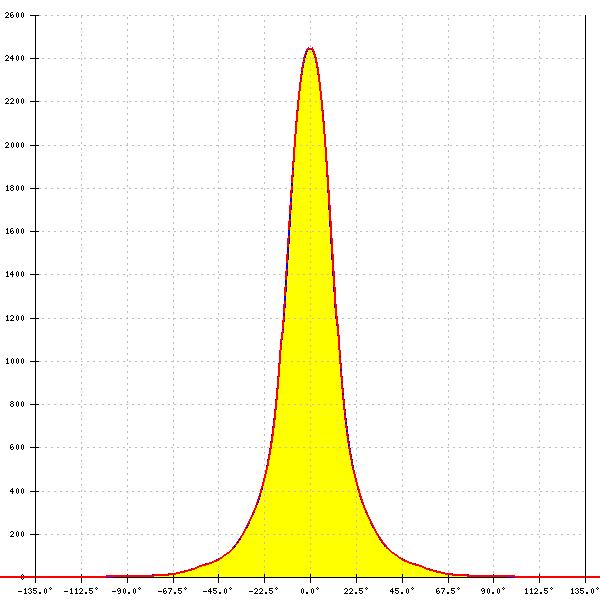

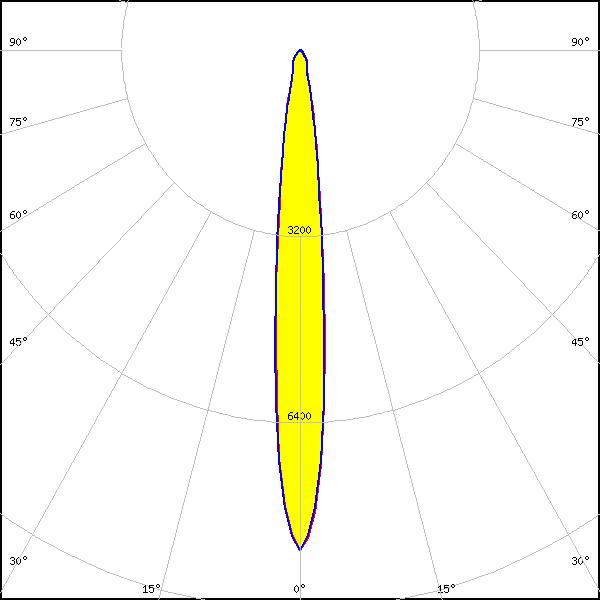

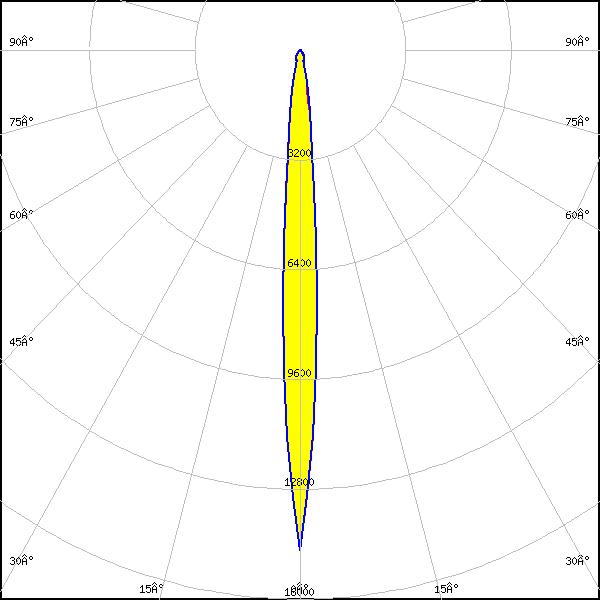

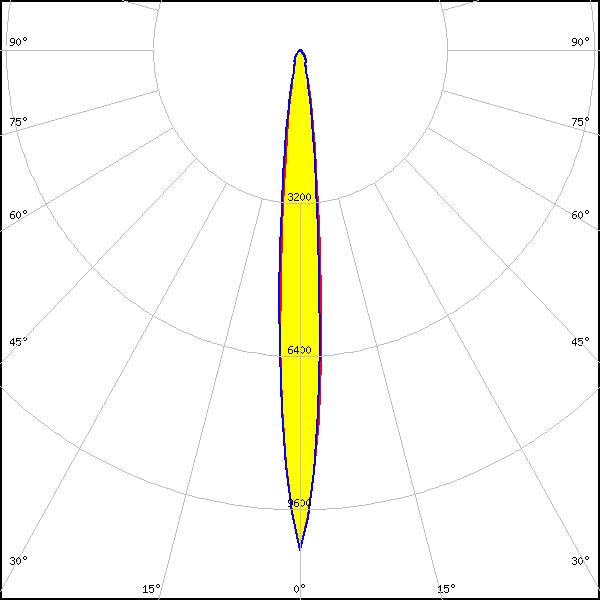

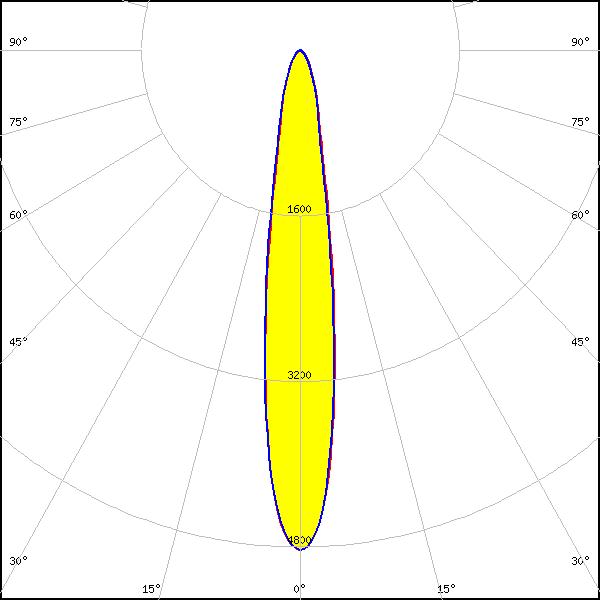

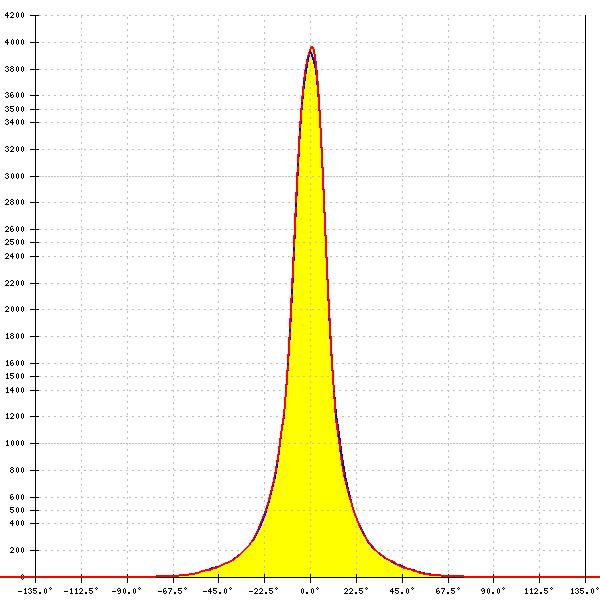

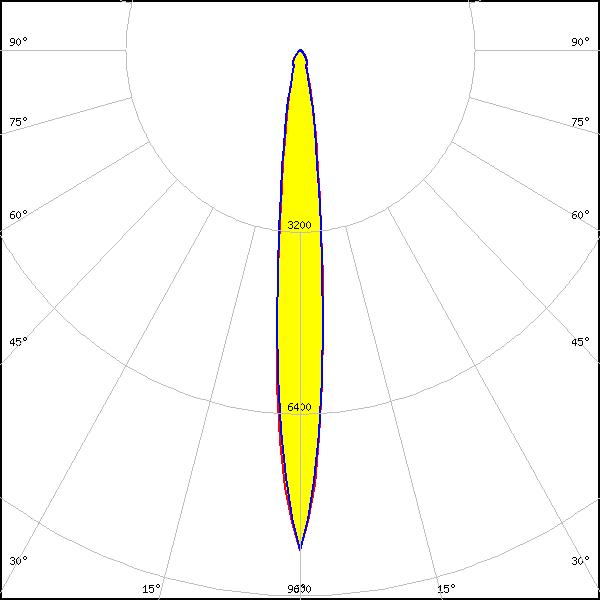

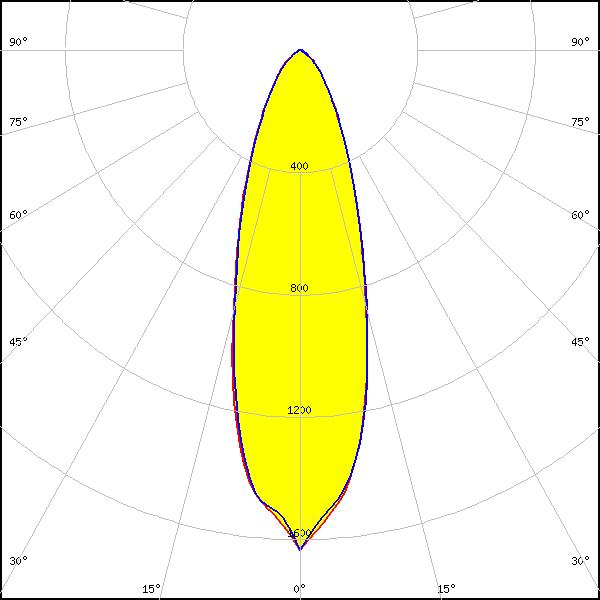

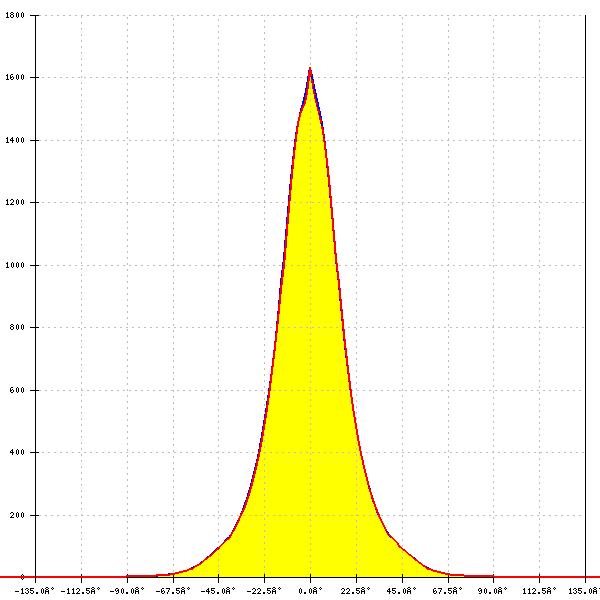

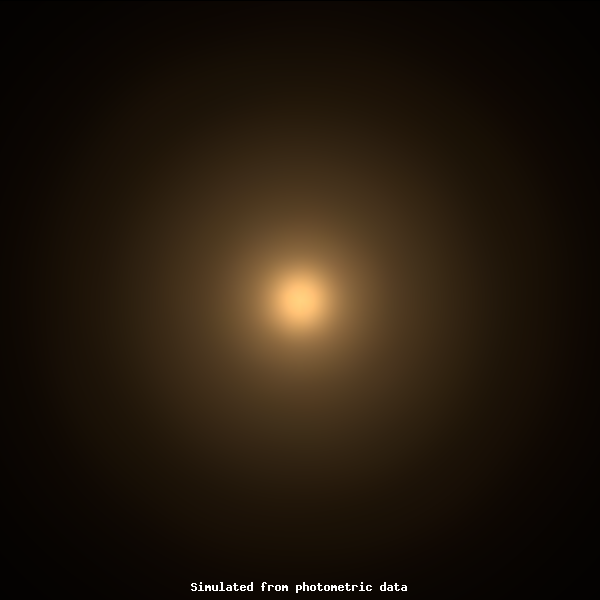

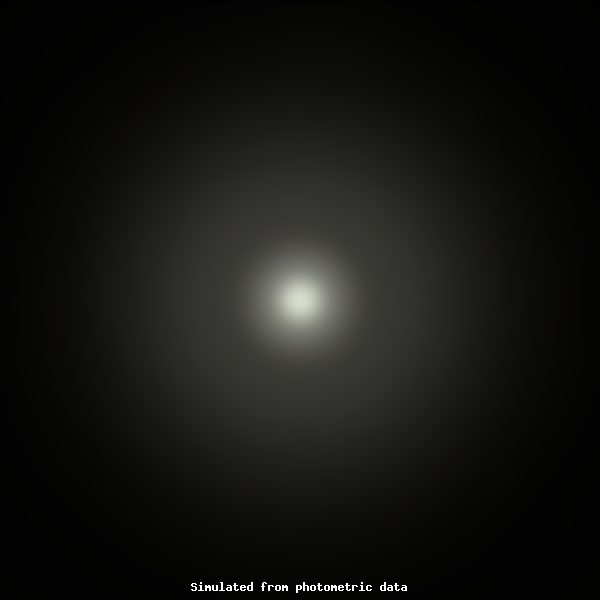

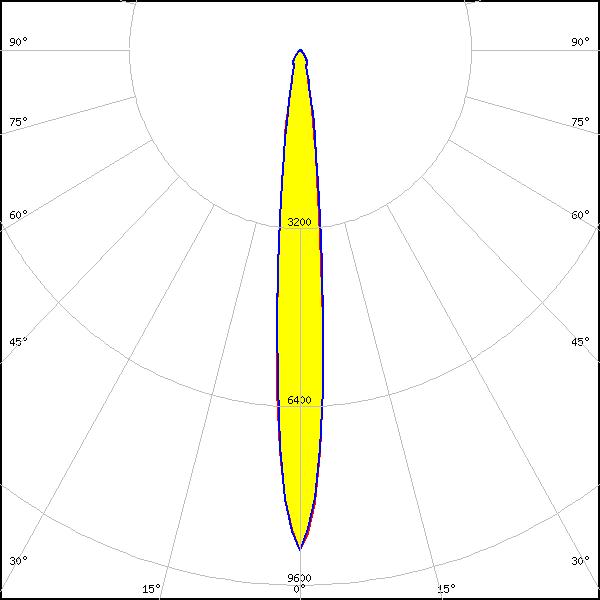

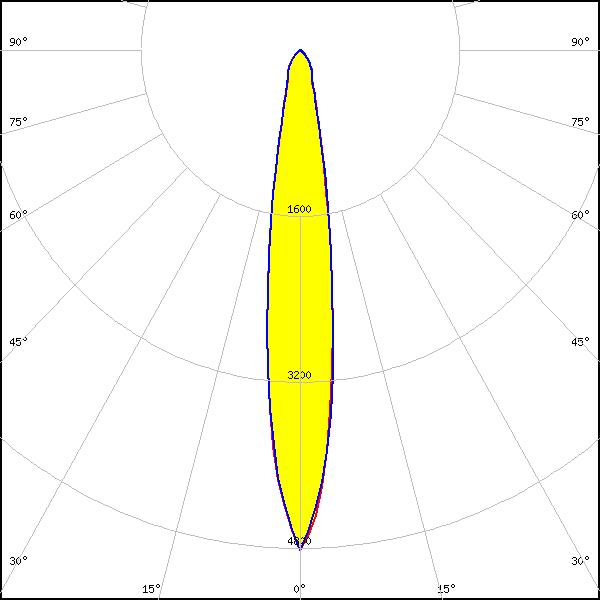

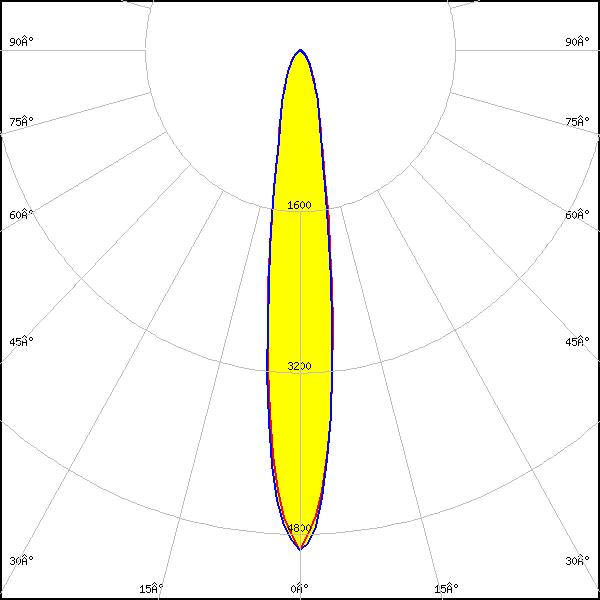

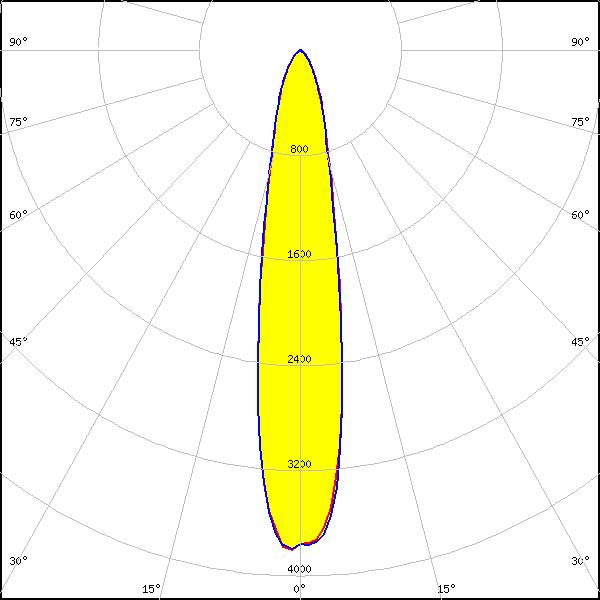

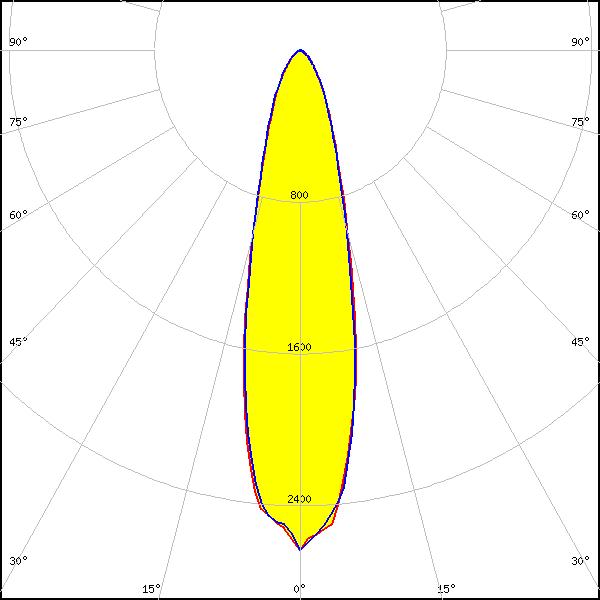

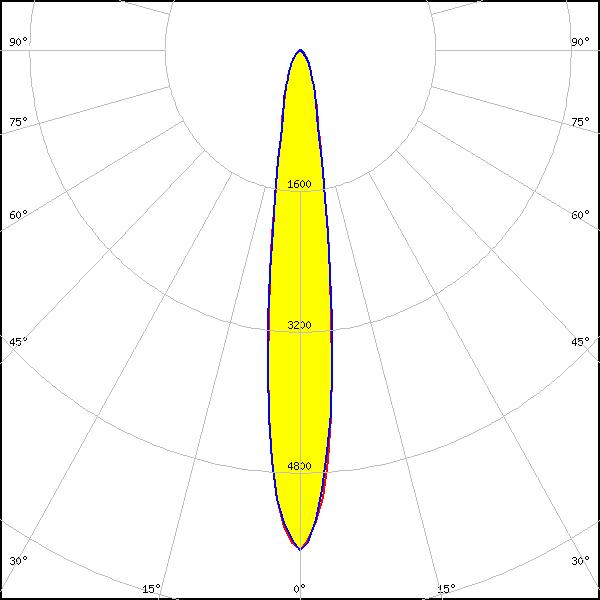

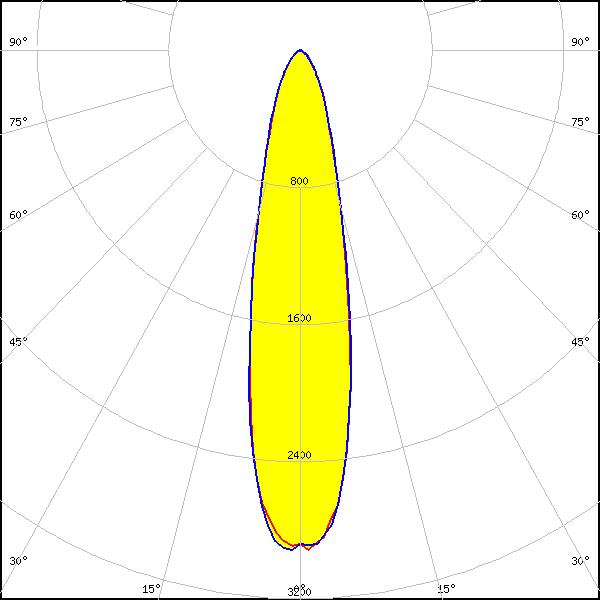

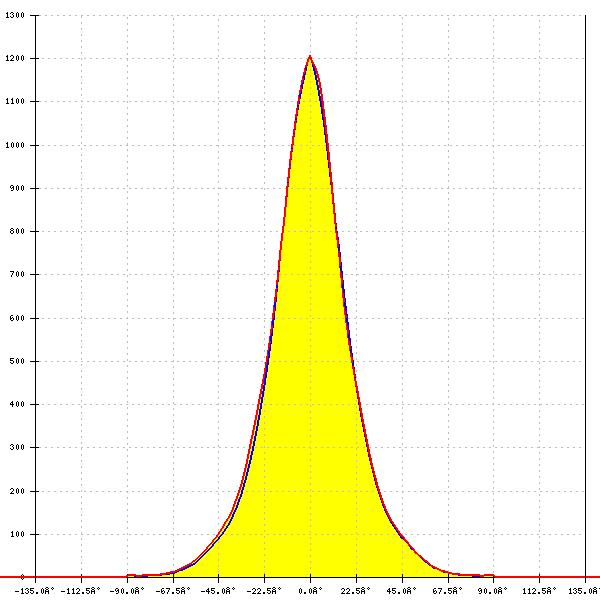

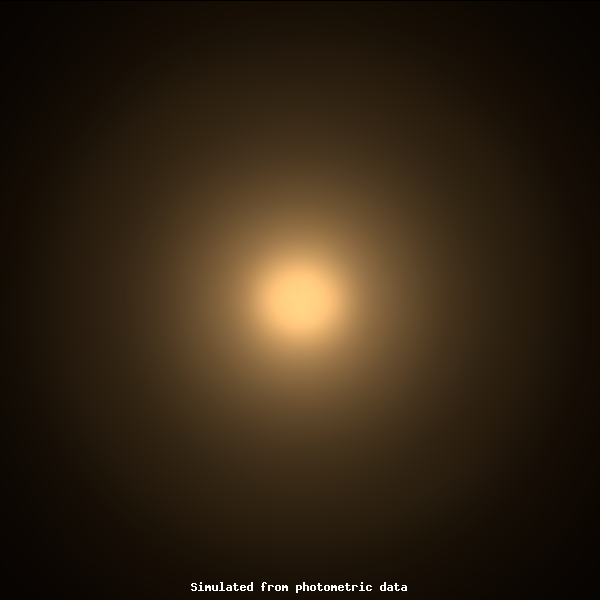

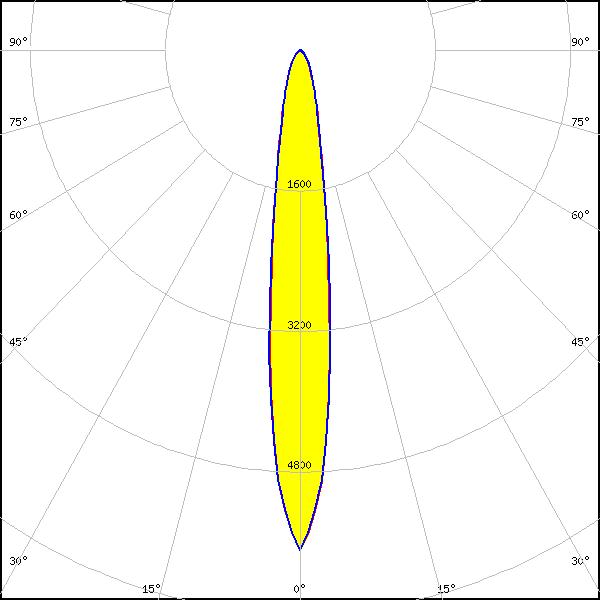

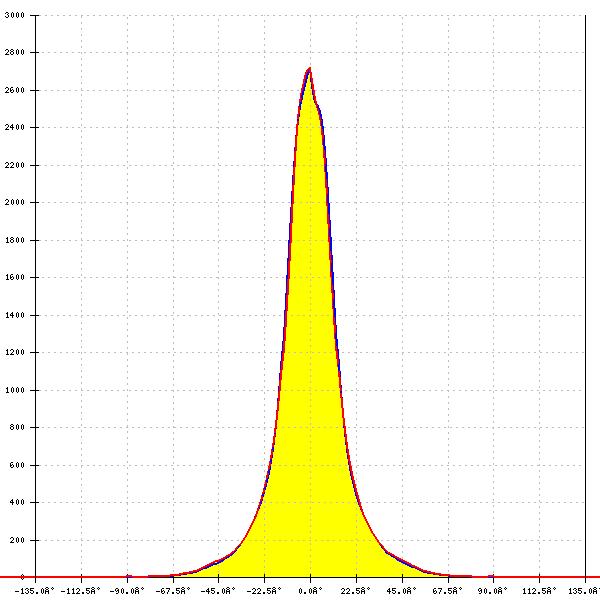

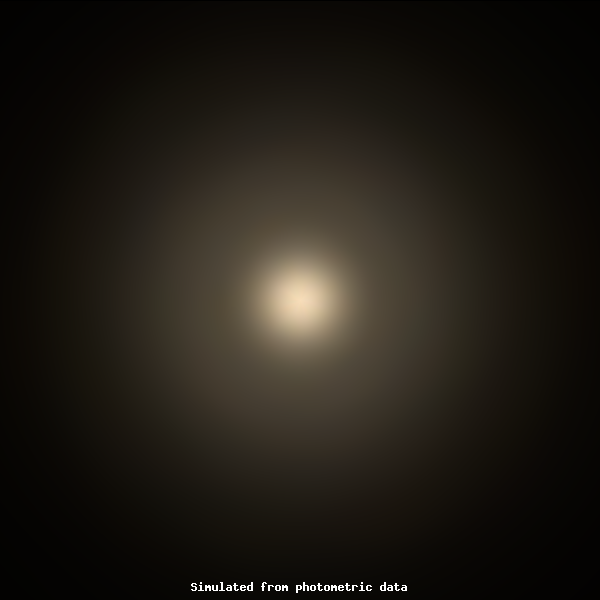

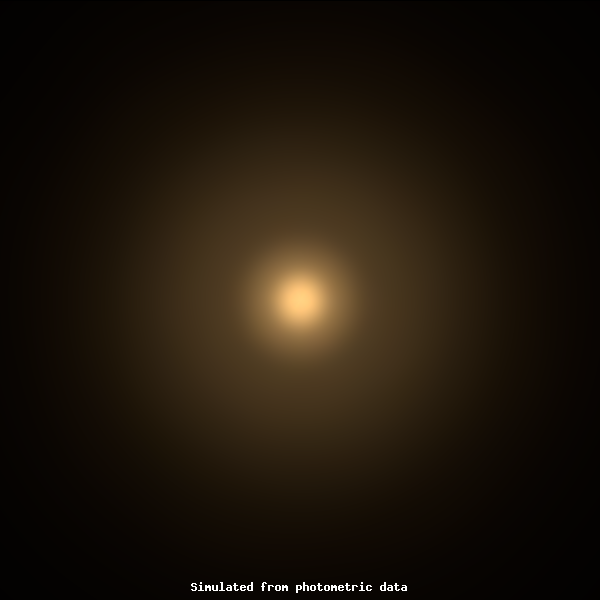

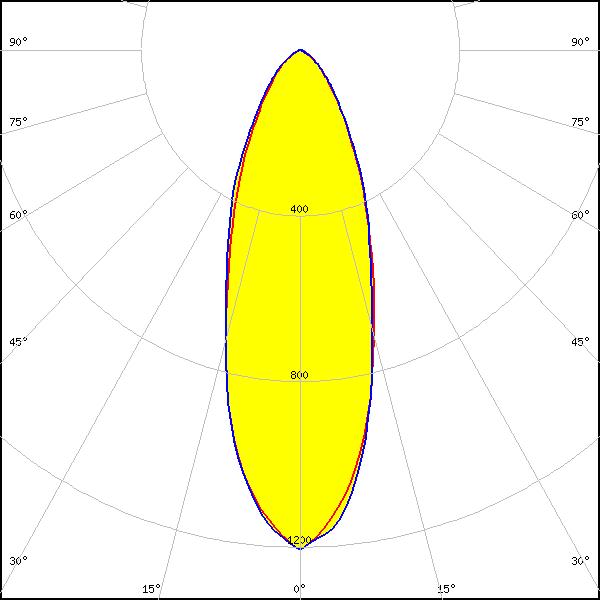

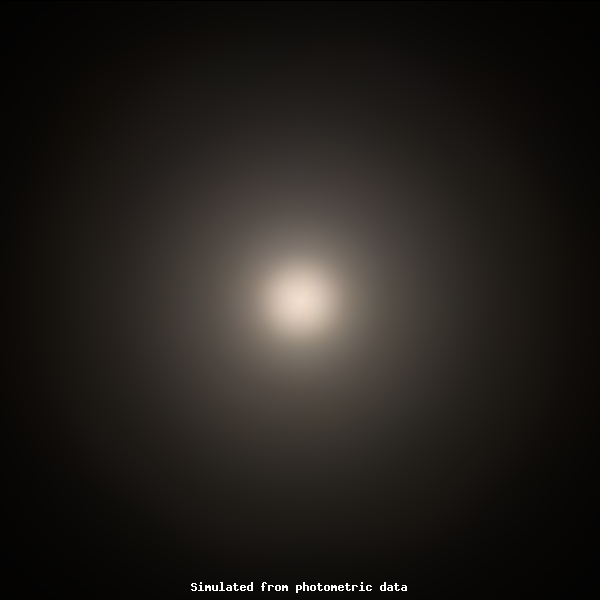

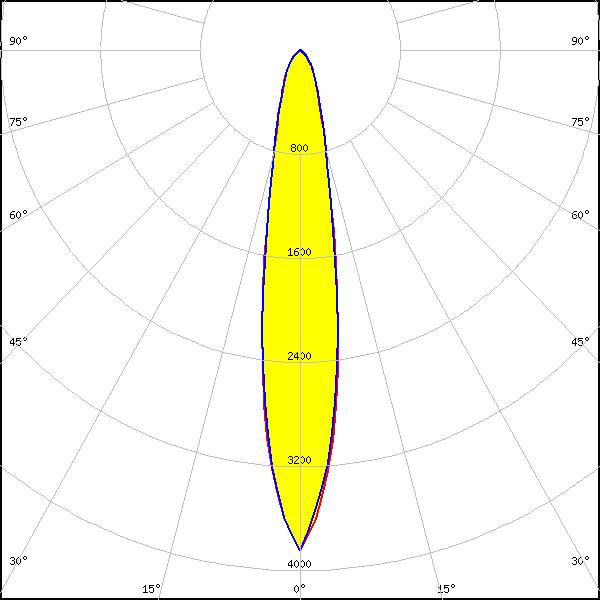

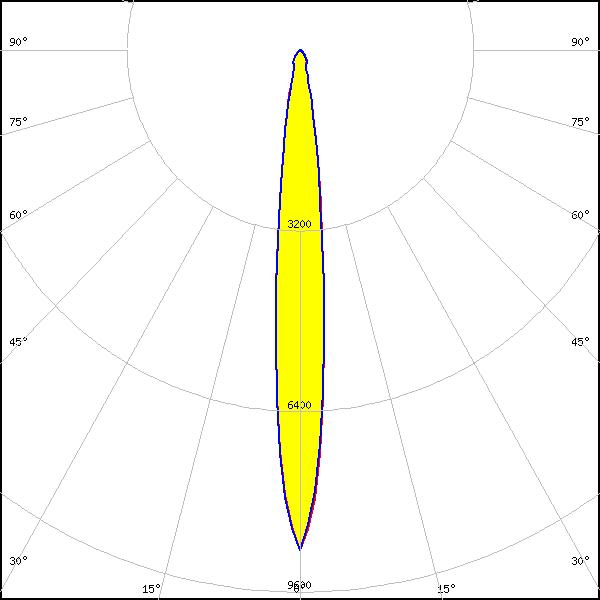

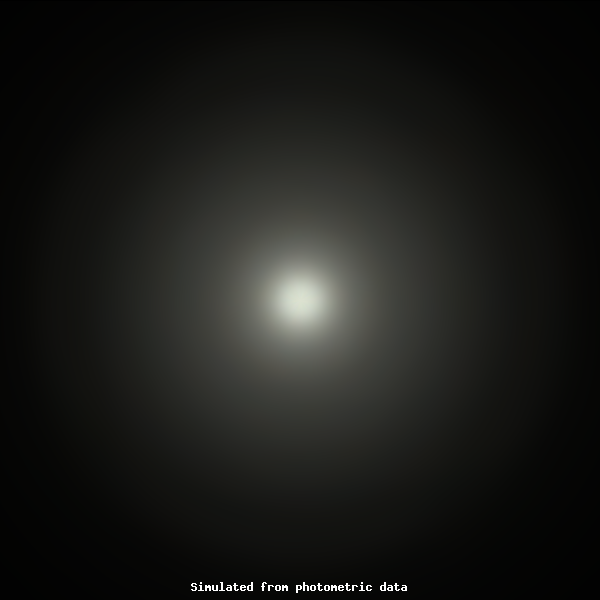

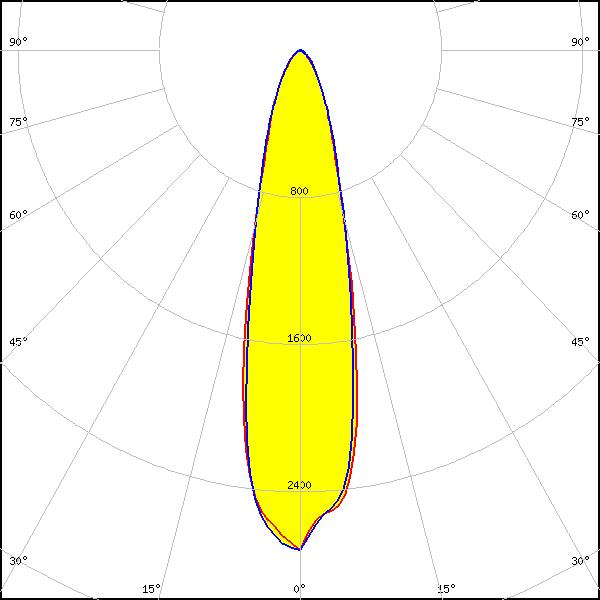

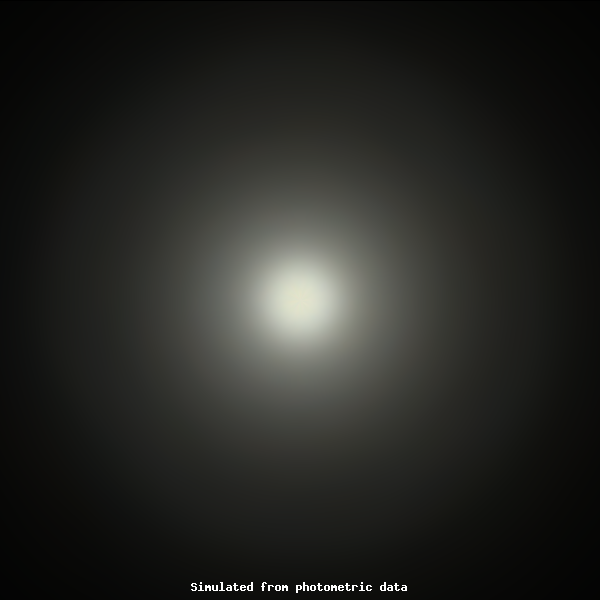

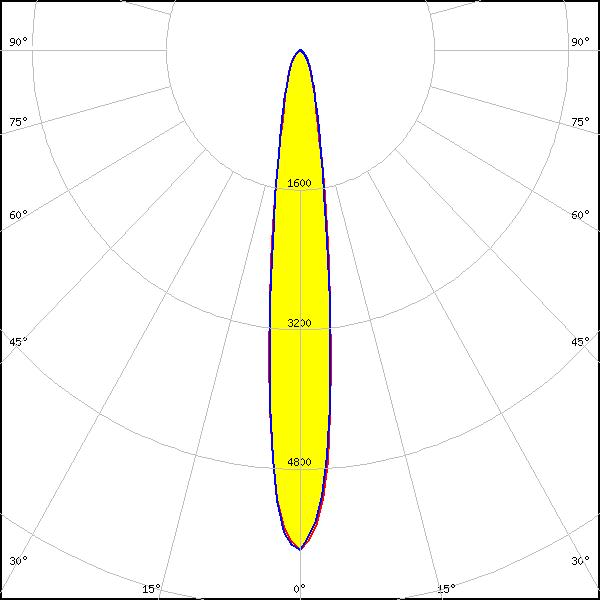

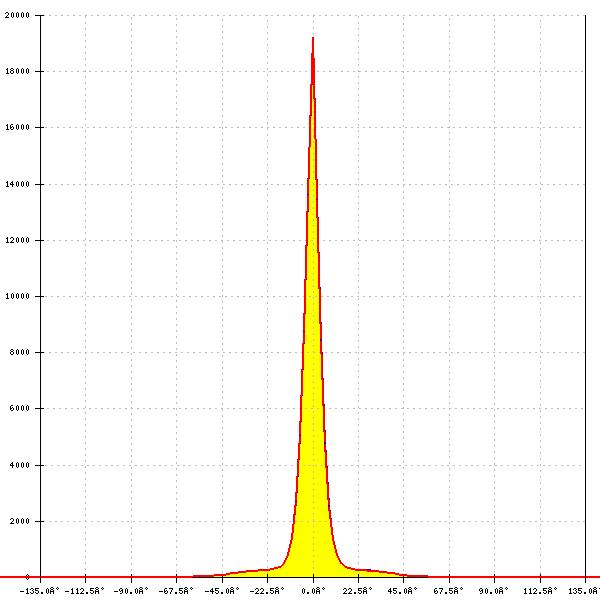

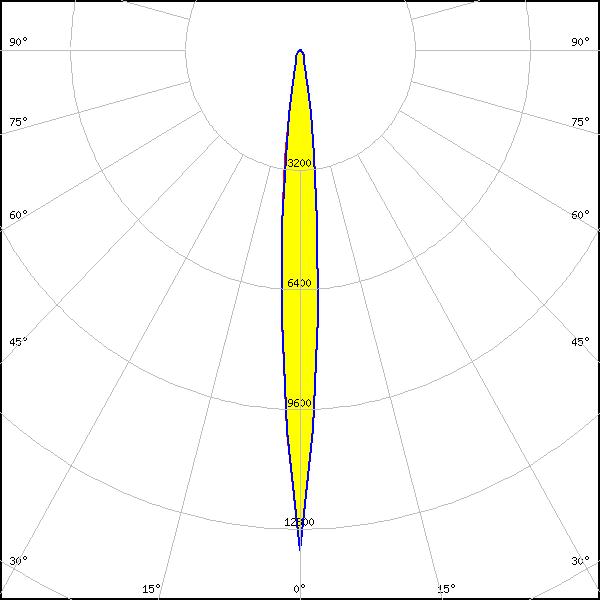

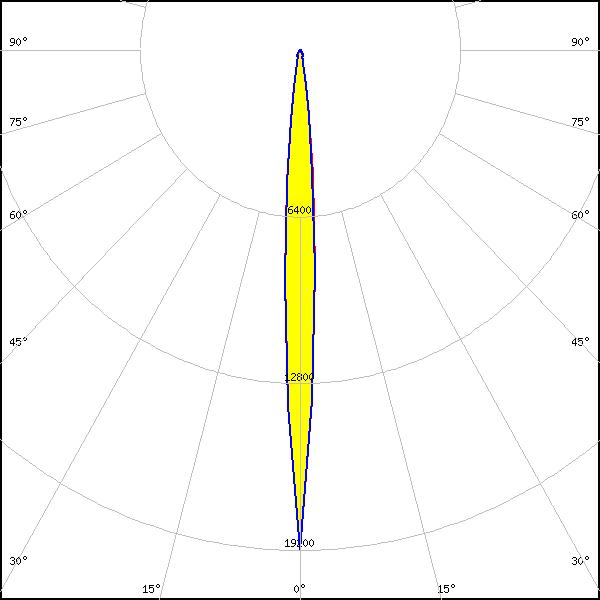

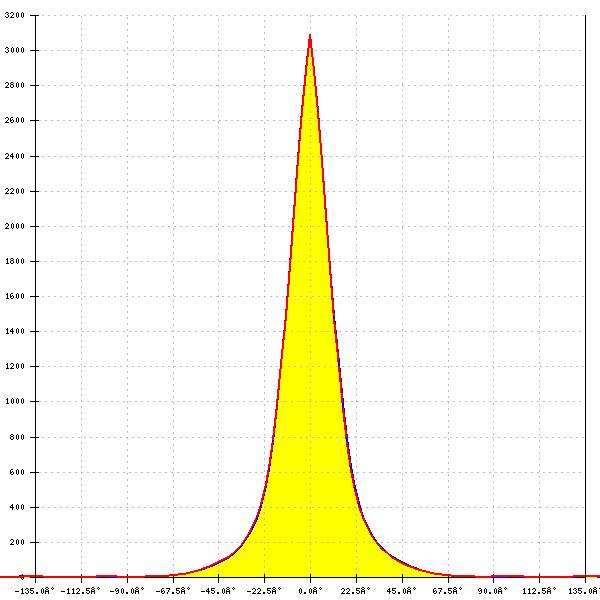

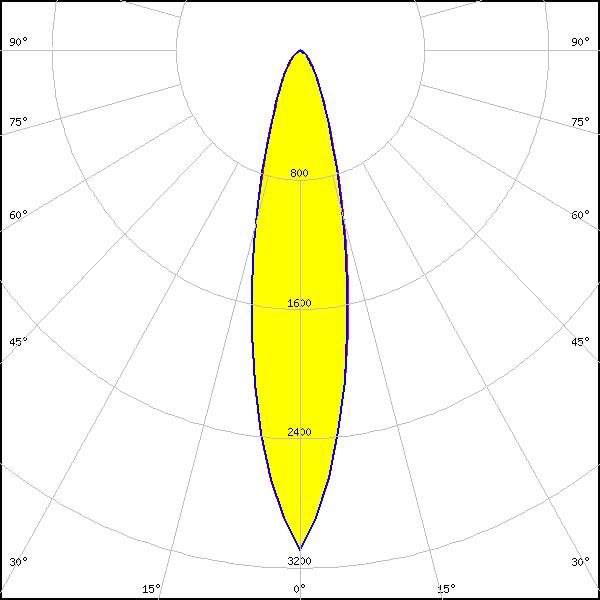

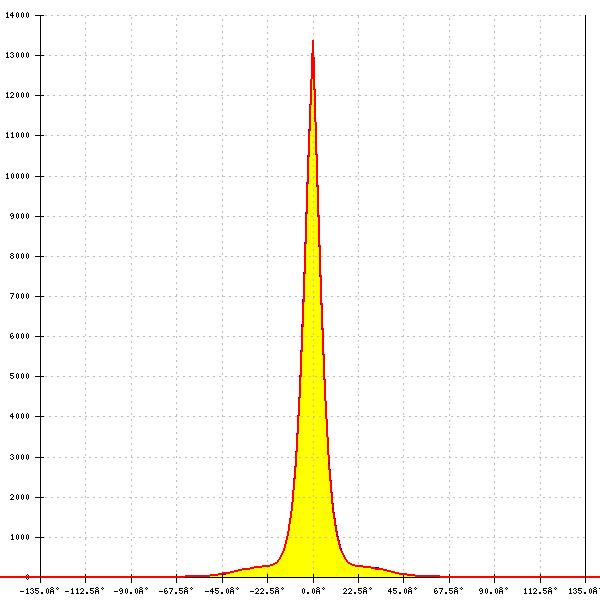

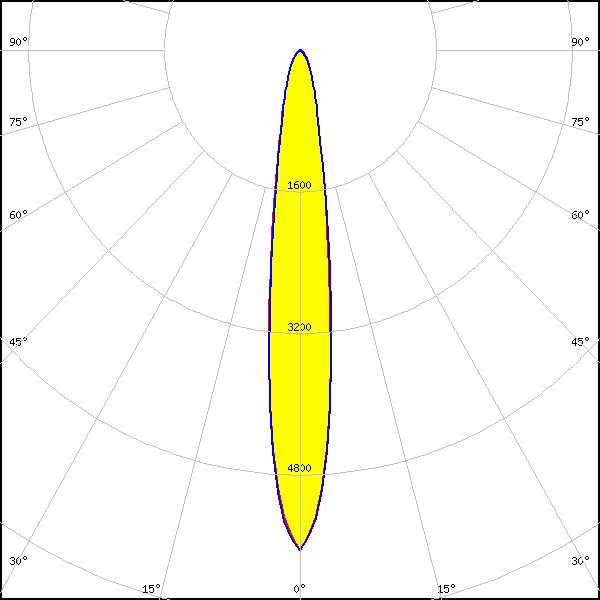

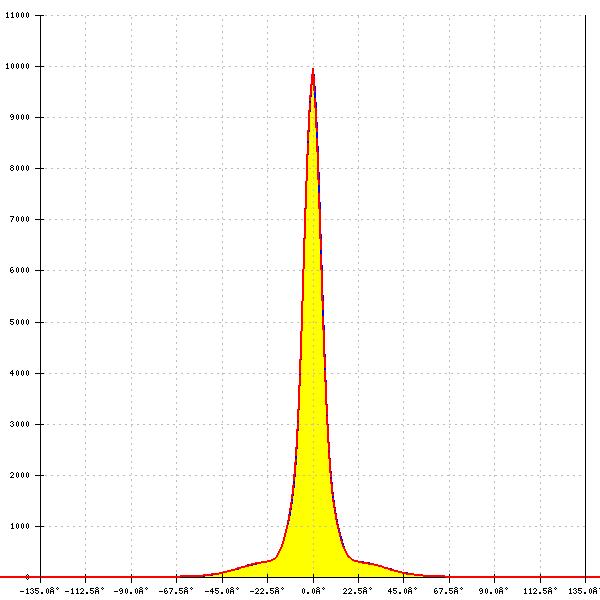

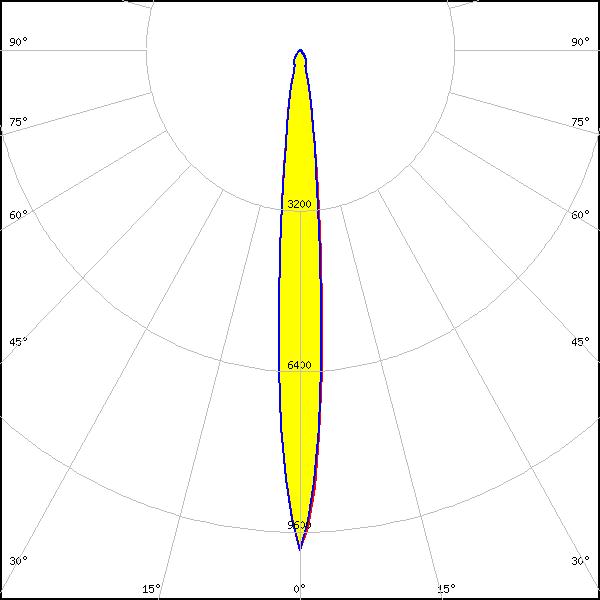

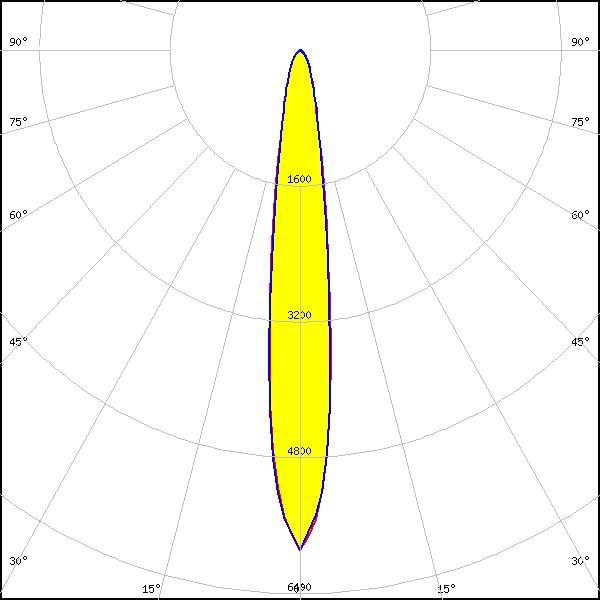

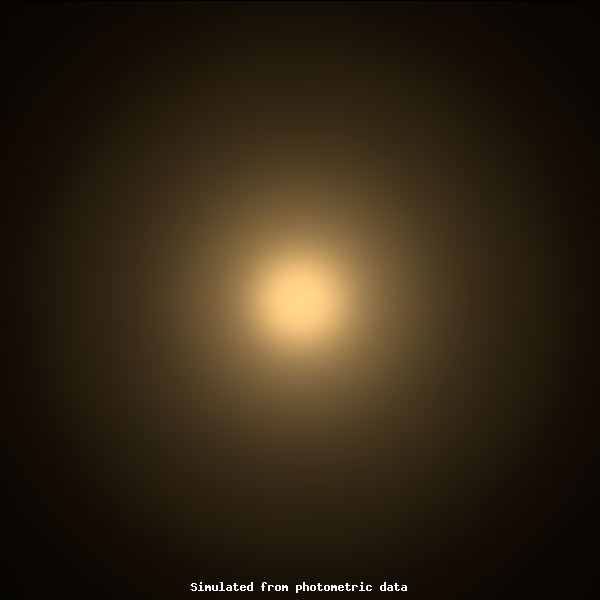

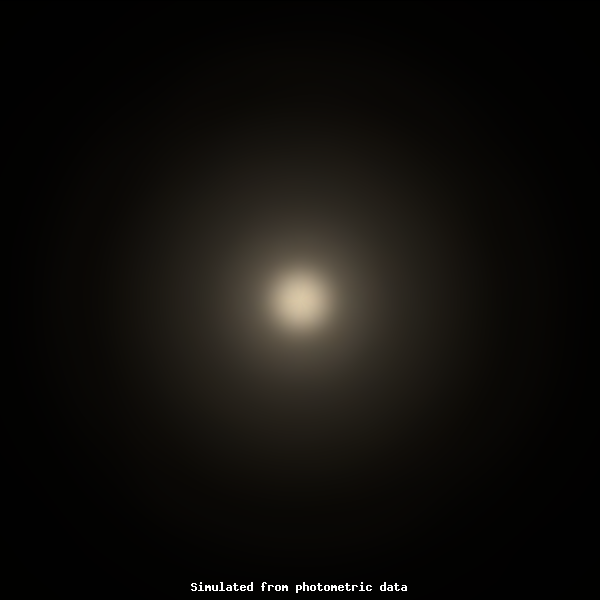

Optical results

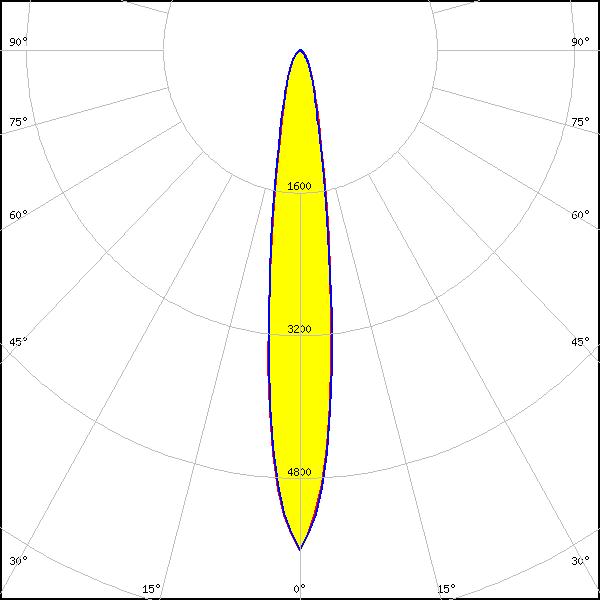

LED: V10 Gen 8-9
Ordering code: CP19136_AMY-50-S2-B2
LES size: 10.0 mm
Required components:
BJB: 47.360.1020
FWHM: 14°
FWTM: 38°
Peak intensity: 5.607 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

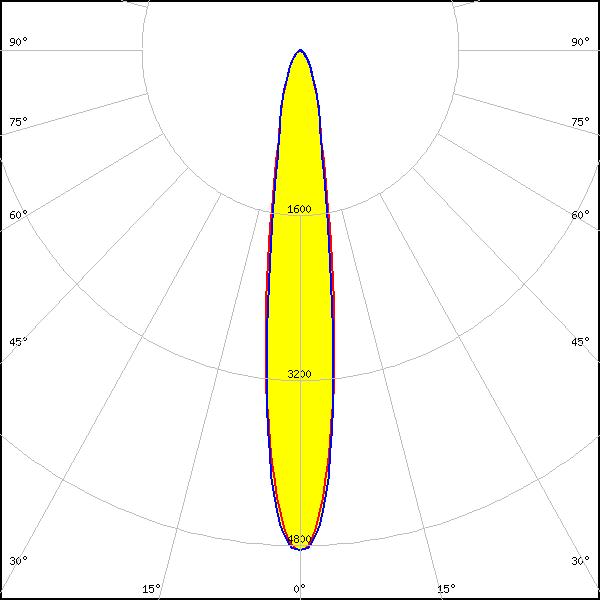

LED: V10 Gen 8-9
Ordering code: CP19127_AMY-50-S2-C2
LES size: 10.0 mm
Required components:
FWHM: 16°
FWTM: 42°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

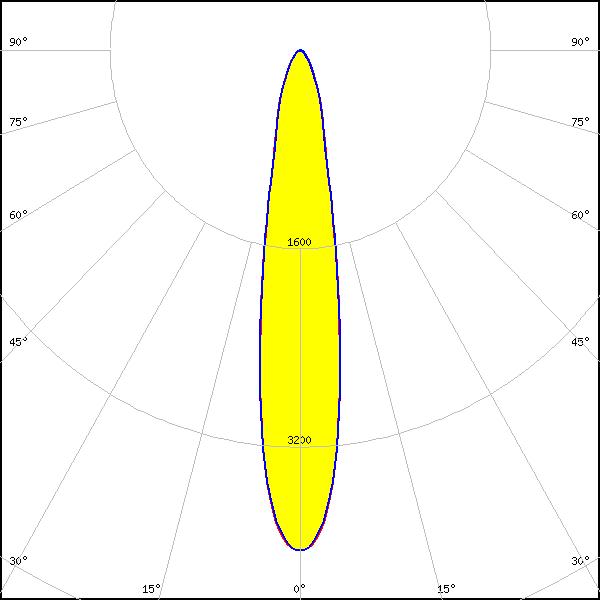

LED: V11 HD Gen 8

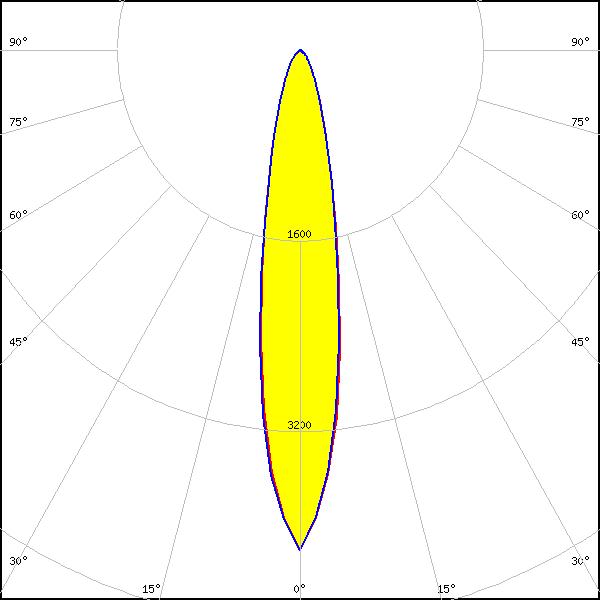

Ordering code: CP19127_AMY-50-S2-C2
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM: 19°
FWTM: 47°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

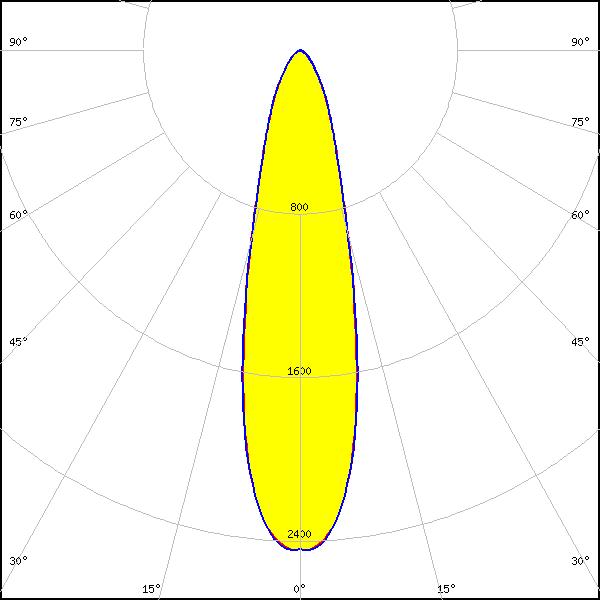

LED: V13 Gen 8-9
Ordering code: CP19127_AMY-50-S2-C2
LES size: 14.8 mm
Required components:
FWHM: 26°
FWTM: 61°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

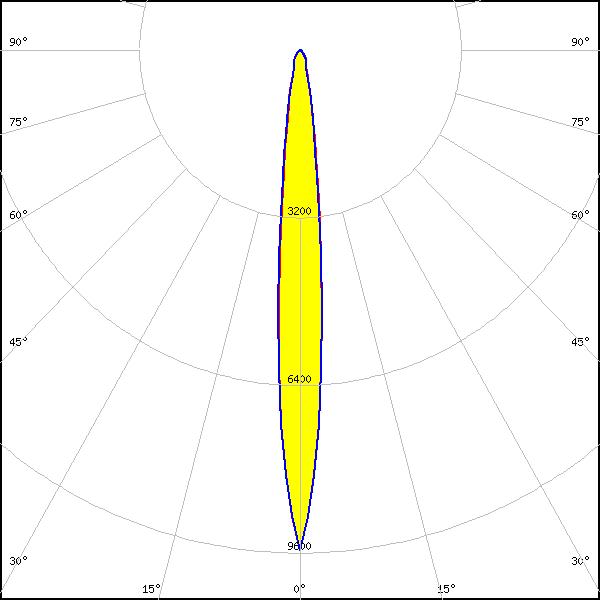

LED: V6 HD Gen 8
Ordering code: CP19127_AMY-50-S2-C2
LES size: 6.6 mm
Required components:
FWHM: 11°
FWTM: 28°
Peak intensity: 8.802 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

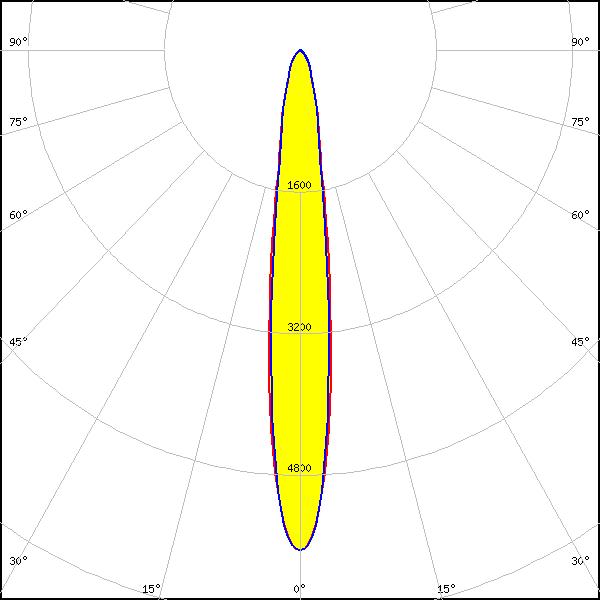

LED: V8 Gen 8-9
Ordering code: CP19127_AMY-50-S2-C2
LES size: 8.5 mm
Required components:
FWHM: 14°
FWTM: 37°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

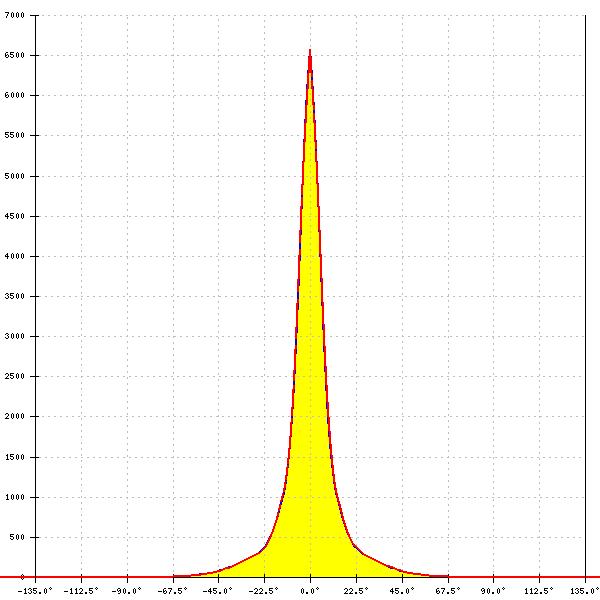

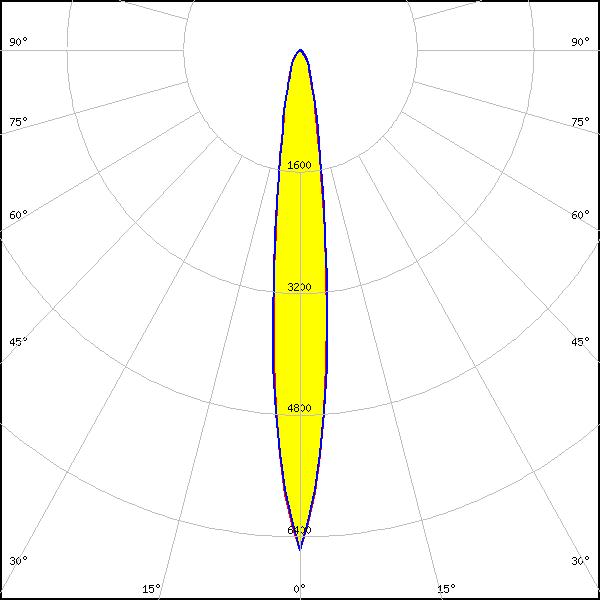

LED: V8 Gen7
Ordering code: CP19127_AMY-50-S2-C2
LES size: 8.1 mm
Required components:
FWHM: 13°
FWTM: 34°
Peak intensity: 6.578 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

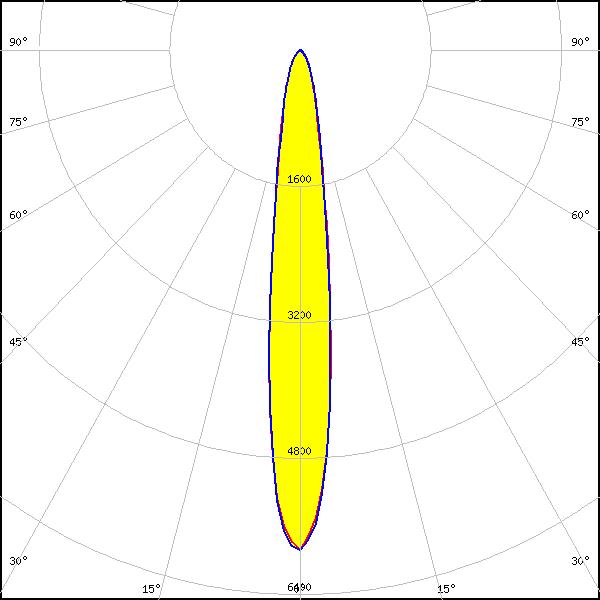

LED: VERO10
Ordering code: CP19127_AMY-50-S2-C2
LES size: 9.9 mm
Required components:
FWHM: 14°
FWTM: 37°
Peak intensity: 5.882 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

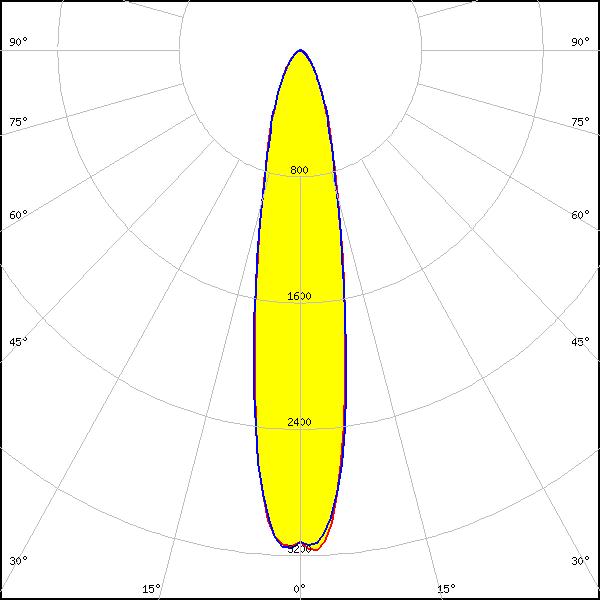

LED: VERO13
Ordering code: CP19127_AMY-50-S2-C2
LES size: 13.4 mm
Required components:
FWHM: 22°
FWTM: 56°
Peak intensity: 3.223 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

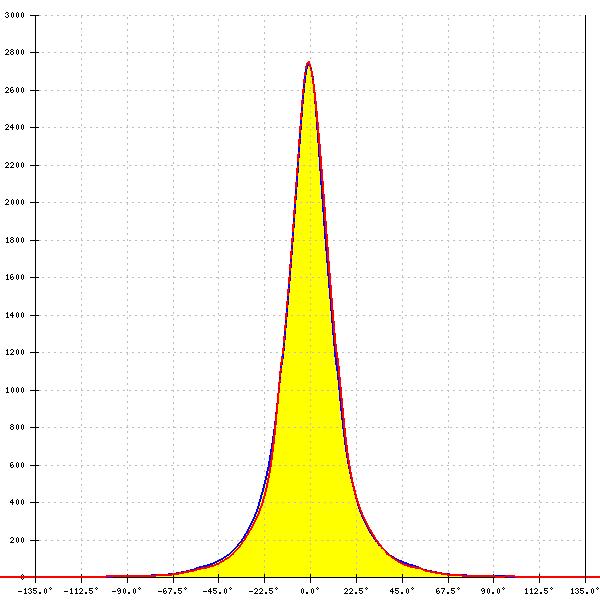

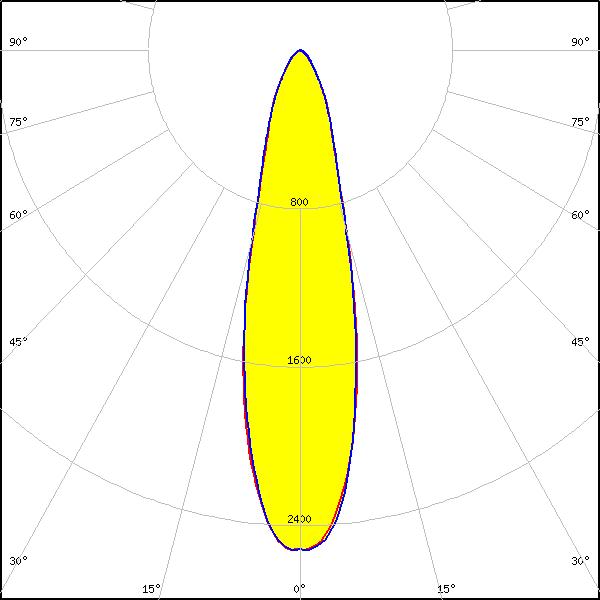

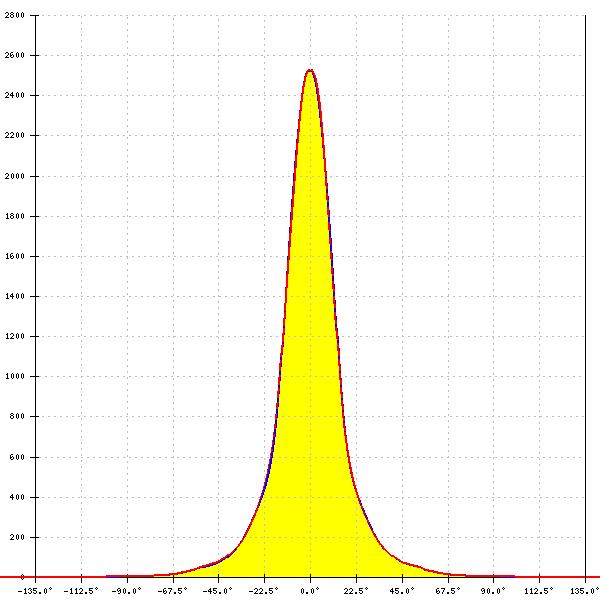

LED: Vesta DTW 13mm (21W)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 26°
FWTM: 60°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

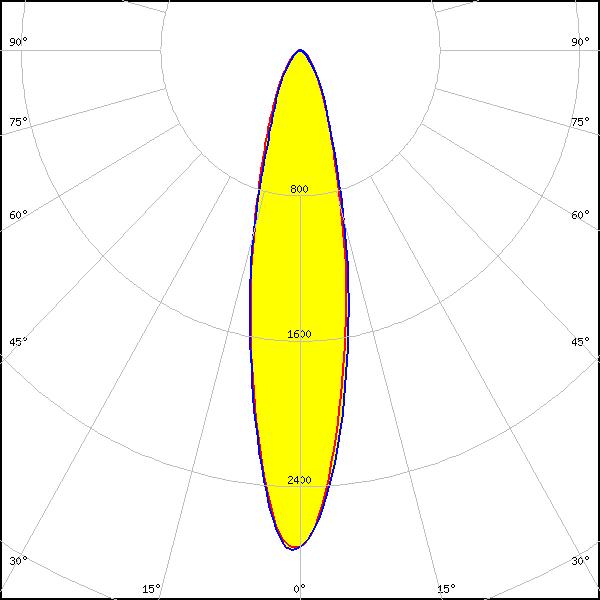

LED: Vesta DTW 15mm (33W)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 16.2 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 23°
FWTM: 57°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

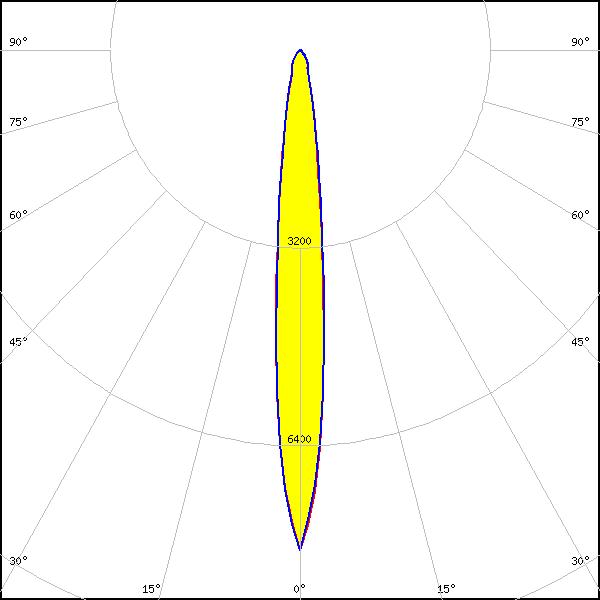

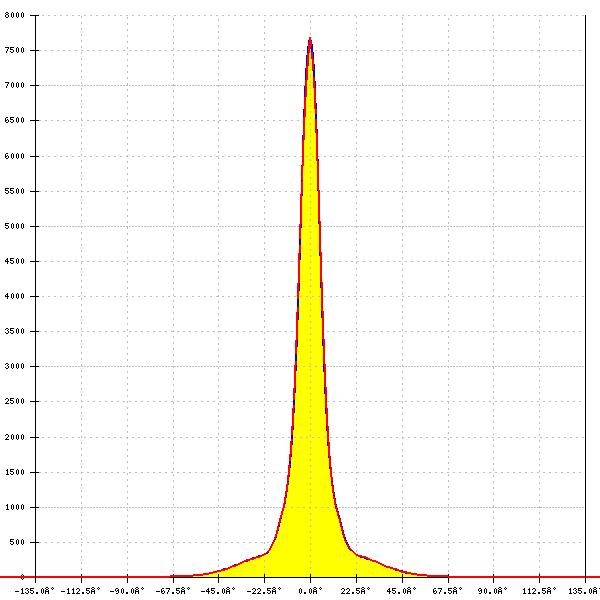

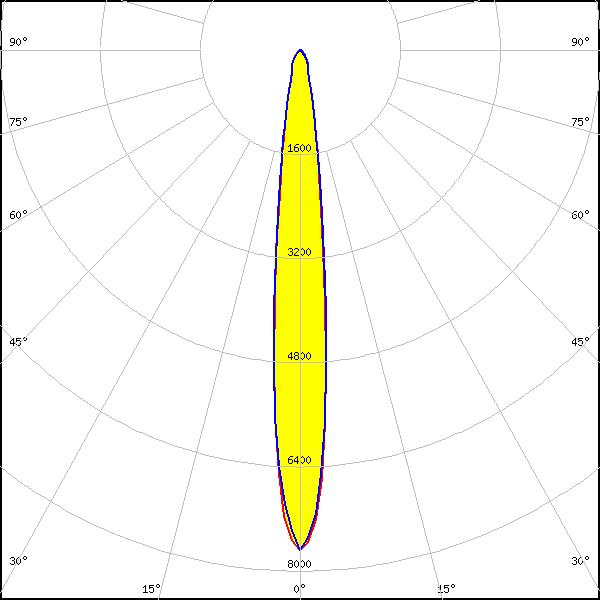

LED: Vesta DTW 6mm
Ordering code: CP19127_AMY-50-S2-C2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 12°
FWTM: 30°
Peak intensity: 8.091 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

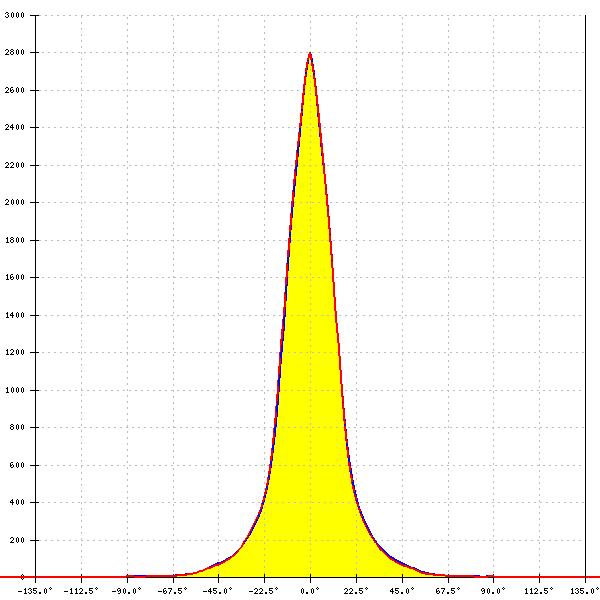

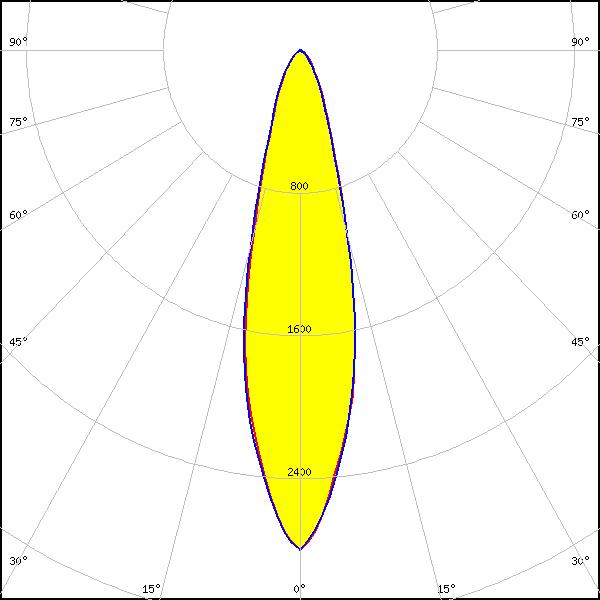

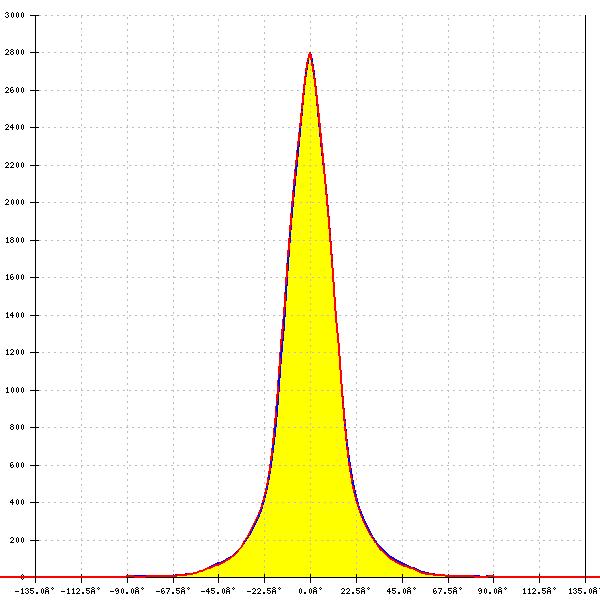

LED: Vesta SE 13mm TW
Ordering code: CP19127_AMY-50-S2-C2
LES size: 14.3 mm
Required components:
FWHM: 26°
FWTM: 55°
Peak intensity: 2.803 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: Tunable White

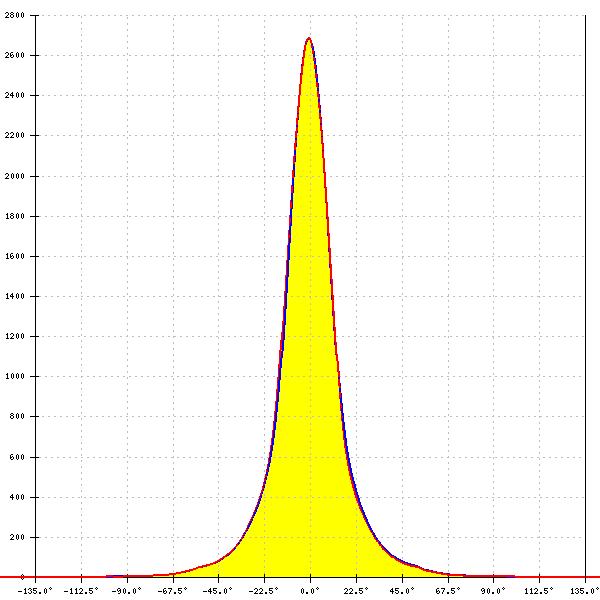

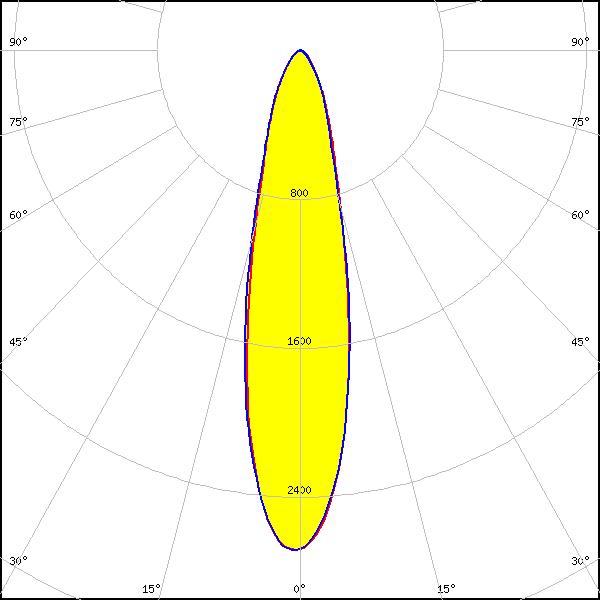

LED: Vesta TW 13mm (18W) DP
Ordering code: CP19127_AMY-50-S2-C2
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 492 Typ L8
FWHM: 24°
FWTM: 58°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

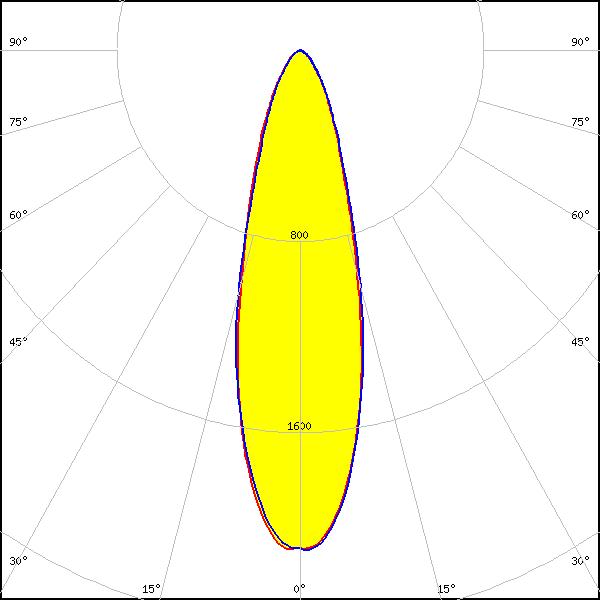

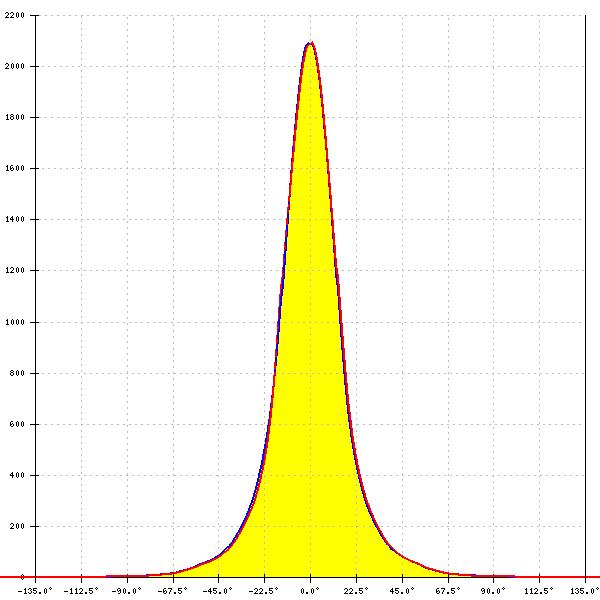

LED: Vesta TW 15mm DP
Ordering code: CP19127_AMY-50-S2-C2
LES size: 16.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 482 Typ L8
FWHM: 29°
FWTM: 65°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

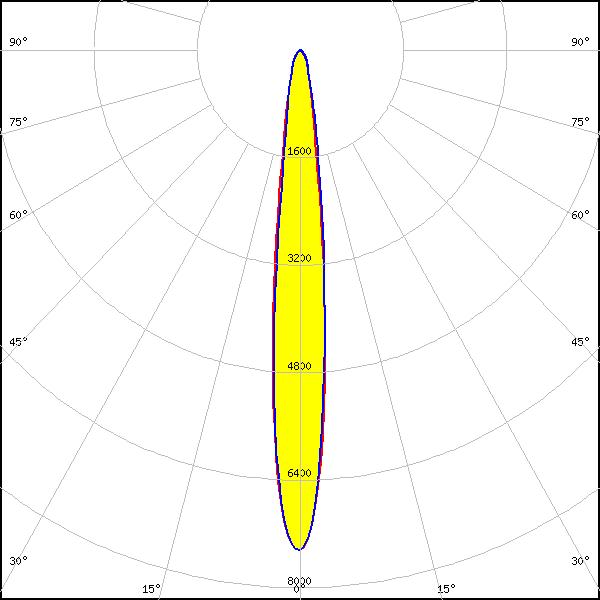

LED: Vesta TW 6mm DP
Ordering code: CP19127_AMY-50-S2-C2
LES size: 6.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 12°
FWTM: 29°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 9mm (9W) DP
Ordering code: CP19127_AMY-50-S2-C2
LES size: 10.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 16°
FWTM: 41°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
Ordering code: CP19145_AMY-50-S2-C2-WHT
LES size: 9.8 mm
Required components:
FWHM: 16°
FWTM: 40°
Peak intensity: 4.958 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

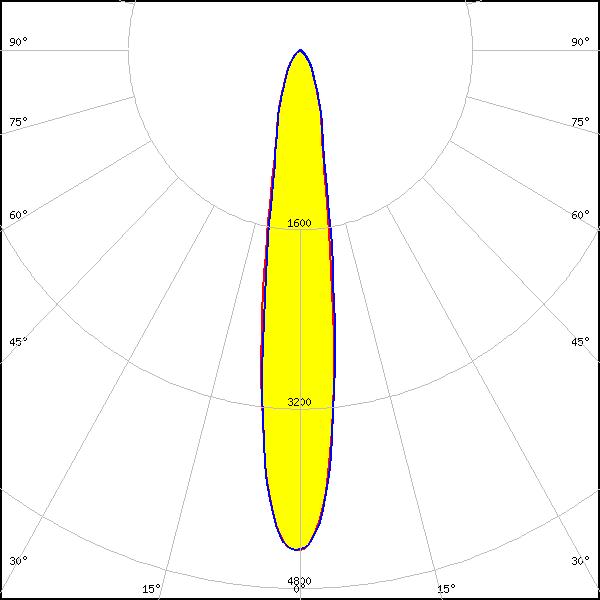

LED: CLL02x/CLU02x (LES10)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 9.8 mm
Required components:
FWHM: 17°
FWTM: 45°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

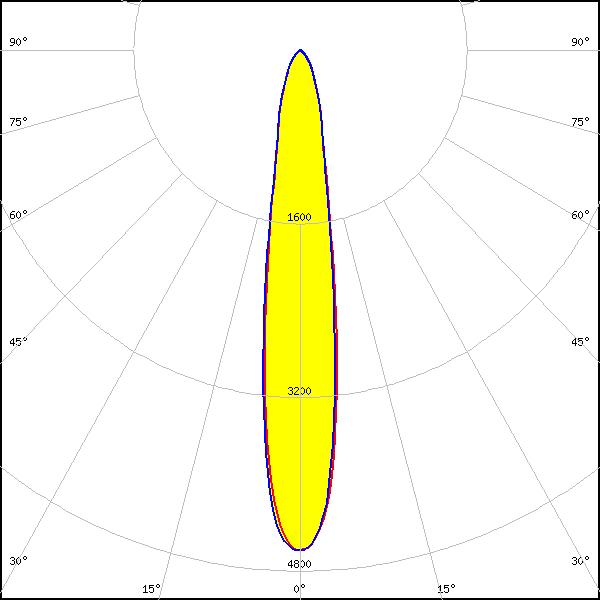

LED: CLL02x/CLU02x (LES10)
Ordering code: CP19136_AMY-50-S2-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 17°
FWTM: 44°
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
Ordering code: C18040_AMY-50-S2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 17°
FWTM: 44°
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

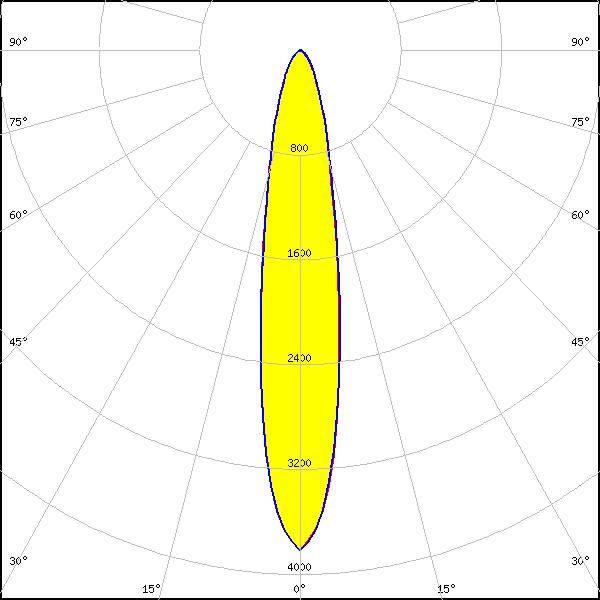

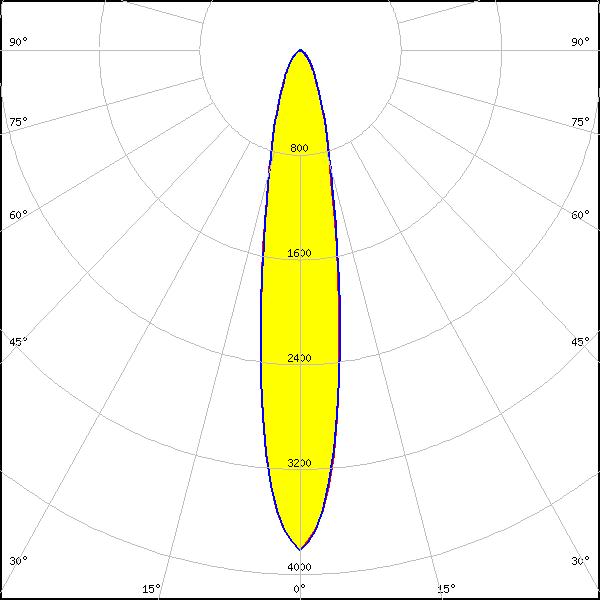

LED: CLU02Q Type-F
Ordering code: CP19127_AMY-50-S2-C2
LES size: 9.7 mm
Required components:
FWHM: 18°
FWTM: 48°
Peak intensity: 3.825 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

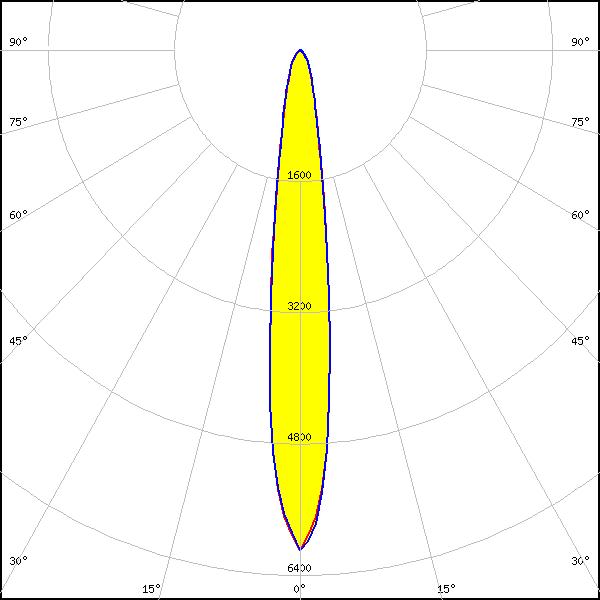

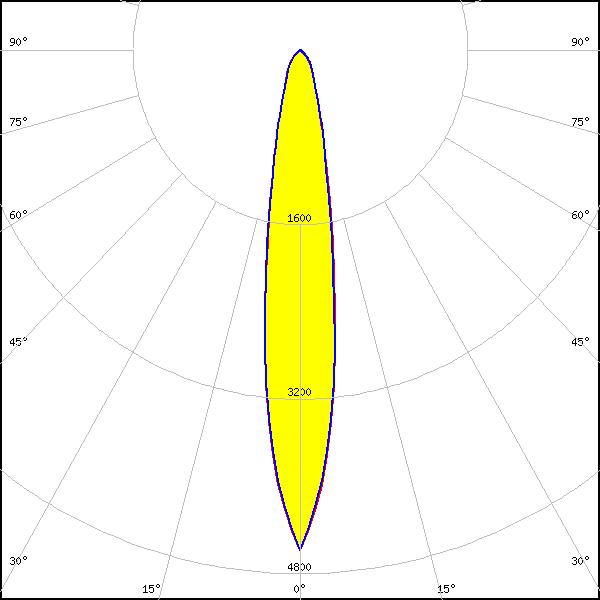

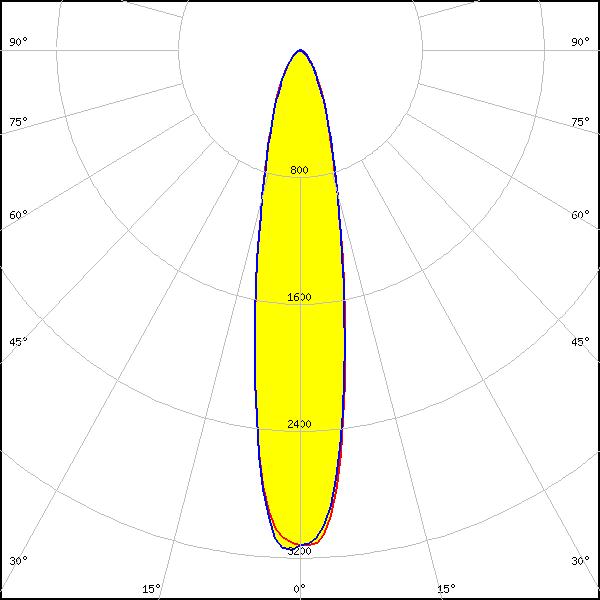

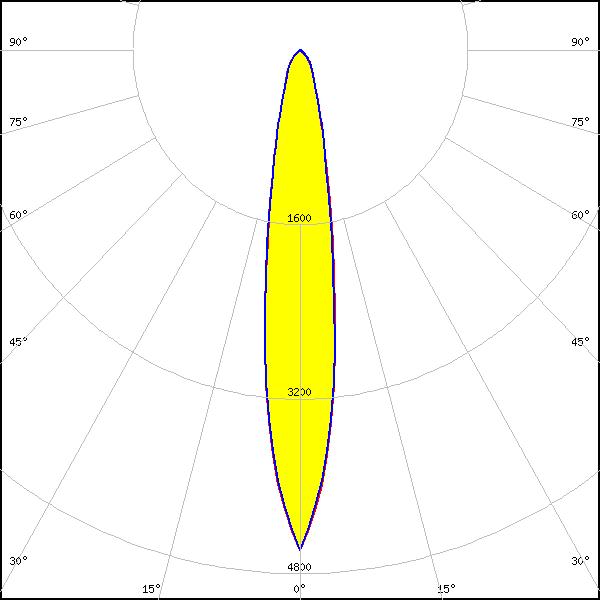

LED: CLU712/713
Ordering code: CP19127_AMY-50-S2-C2
LES size: 8.5 mm
Required components:
FWHM: 14°
FWTM: 34°
Peak intensity: 6.097 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

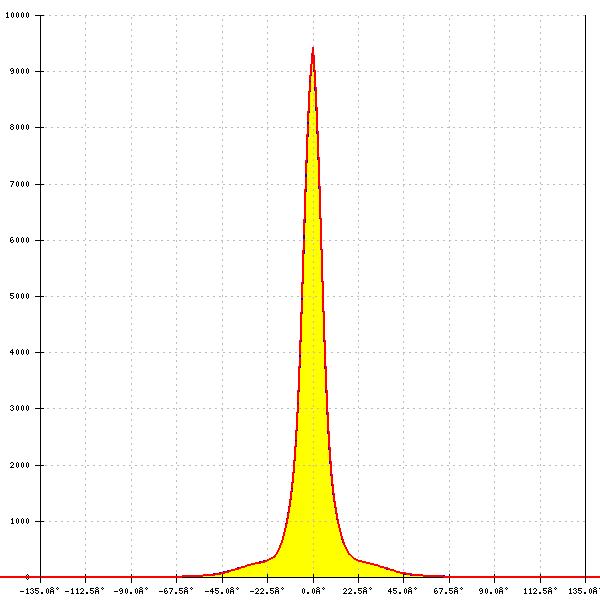

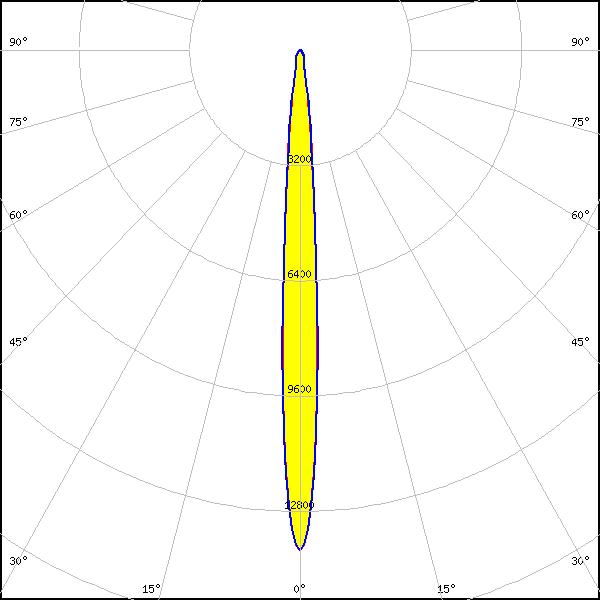

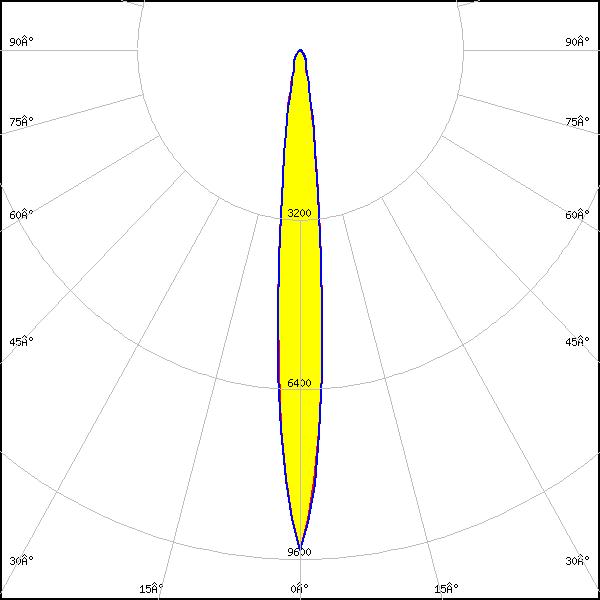

LED: CLU7S3
Ordering code: CP19136_AMY-50-S2-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 667a Bayonet35
FWHM: 8°
FWTM: 20°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

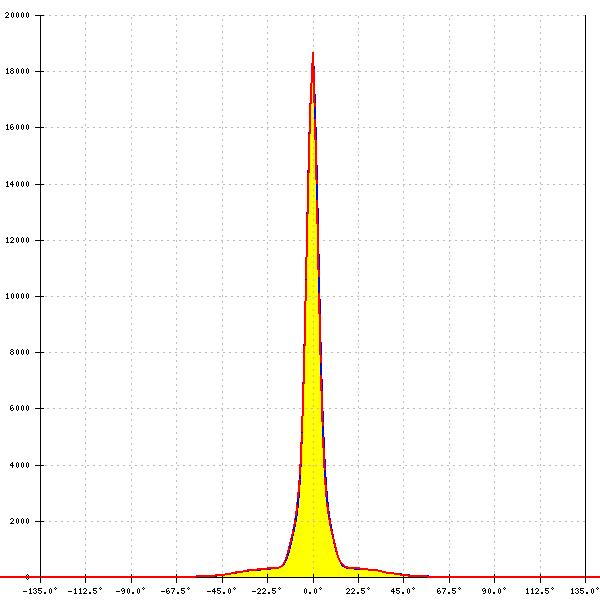

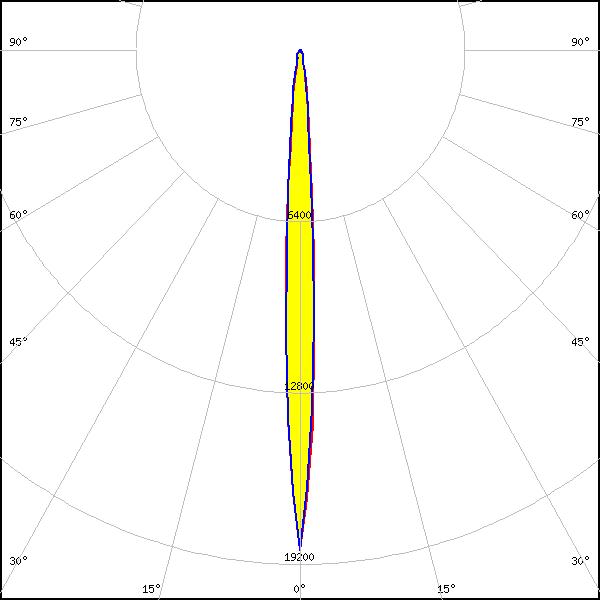

LED: CHA0304
Ordering code: CP19127_AMY-50-S2-C2
LES size: 3.3 mm
Required components:
FWHM: 6°
FWTM: 18°
Peak intensity: 18.683 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

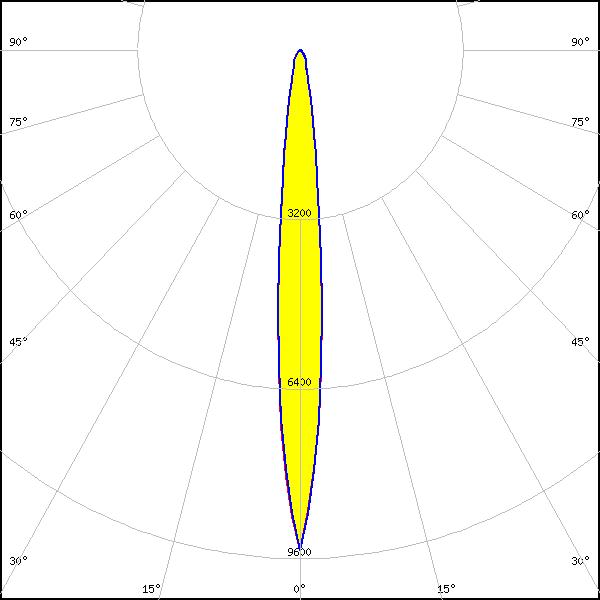

LED: CHA0612
Ordering code: CP19127_AMY-50-S2-C2
LES size: 6.0 mm
Required components:
FWHM: 10°
FWTM: 26°
Peak intensity: 9.445 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

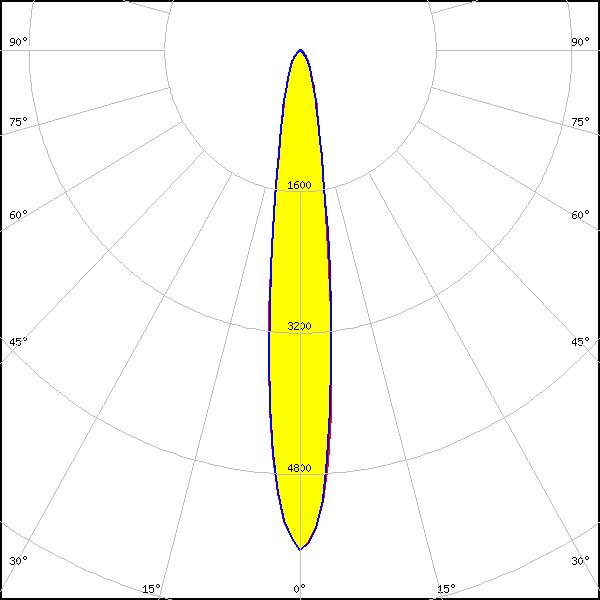

LED: CHA0825
Ordering code: CP19127_AMY-50-S2-C2
LES size: 8.5 mm
Required components:
FWHM: 14°
FWTM: 37°
Peak intensity: 5.659 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

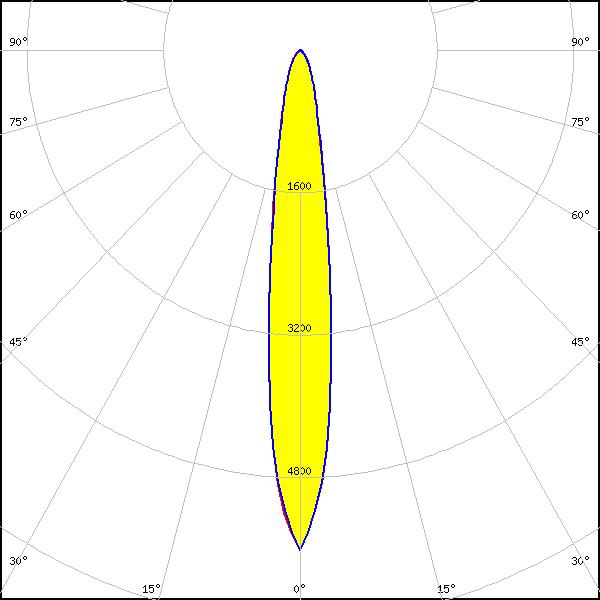

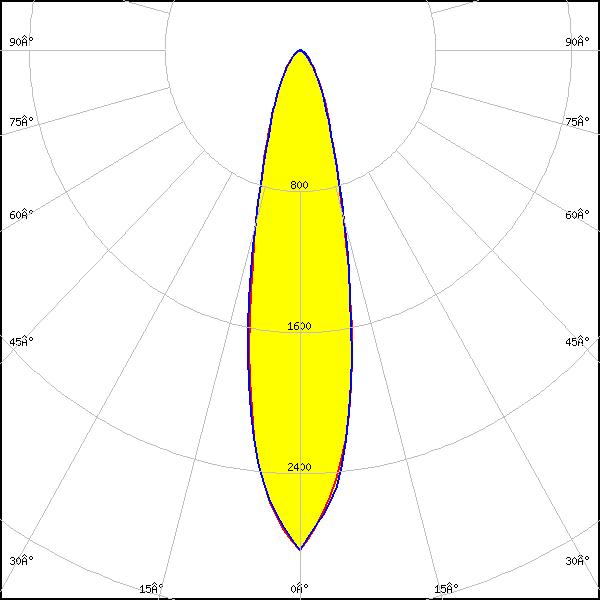

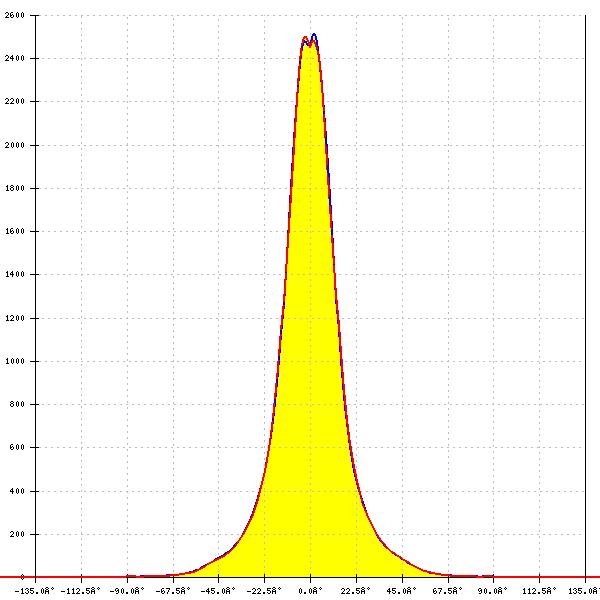

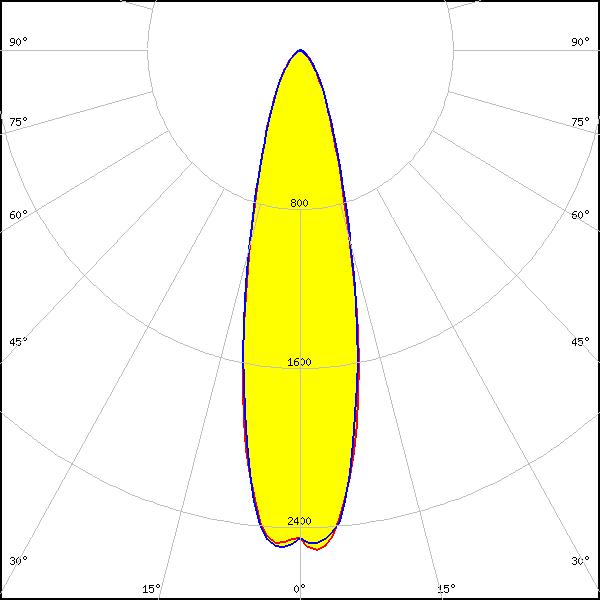

LED: CMU10xx
Ordering code: CP19136_AMY-50-S2-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 14°
FWTM: 38°
Peak intensity: 5.618 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

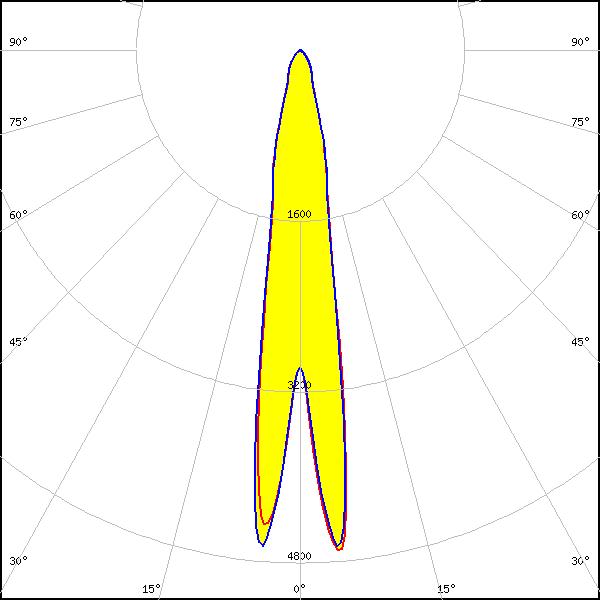

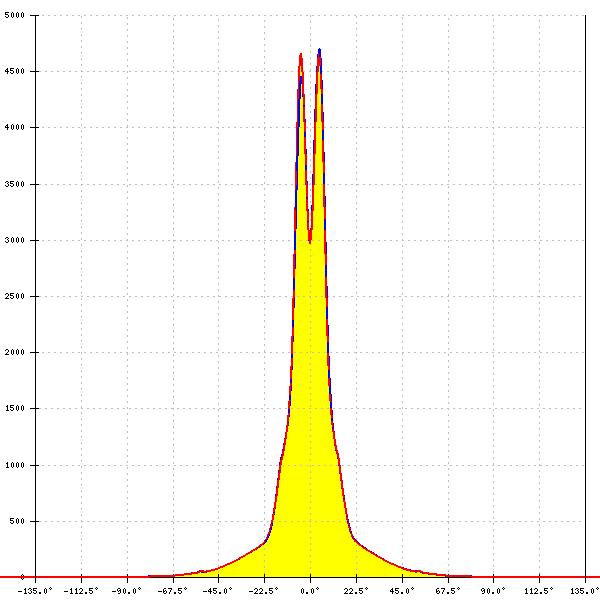

LED: LEDIM/C6
Ordering code: CP19127_AMY-50-S2-C2
LES size: 8.0 mm
Required components:
FWHM: 17°
FWTM: 38°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

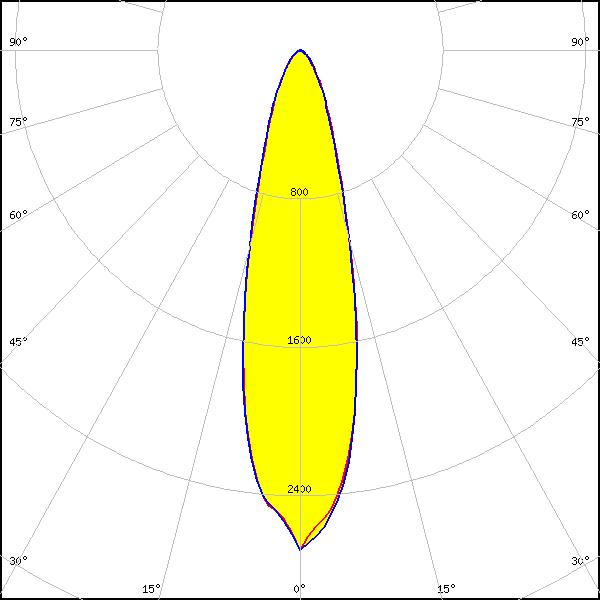

LED: LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 26°
FWTM: 58°
Peak intensity: 2.694 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

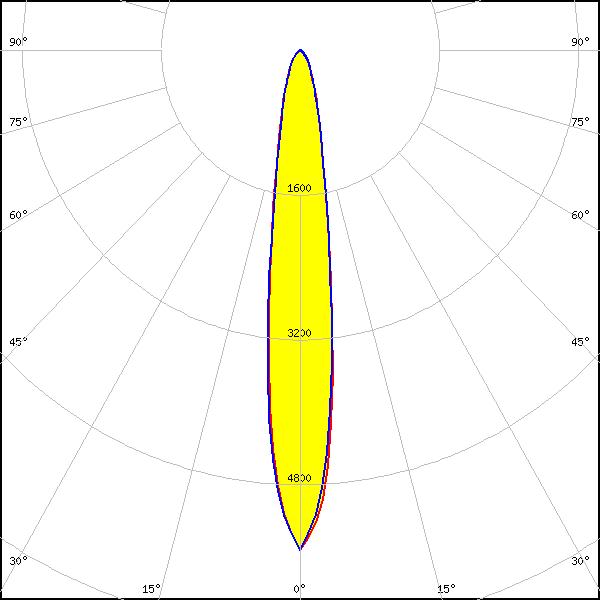

LED: LUXEON CoB 1204HD
Ordering code: CP19127_AMY-50-S2-C2
LES size: 9.0 mm
Required components:
FWHM: 15°
FWTM: 39°
Peak intensity: 5.525 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1205HD
Ordering code: CP19127_AMY-50-S2-C2
LES size: 11.0 mm
Required components:
FWHM: 20°
FWTM: 48°
Peak intensity: 3.971 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

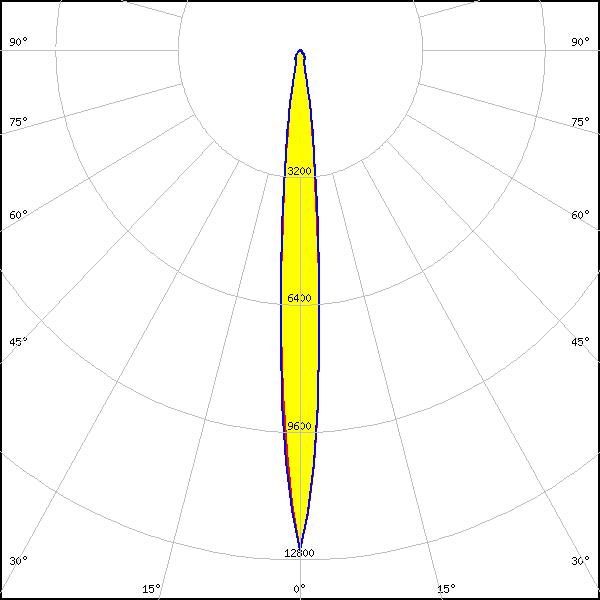

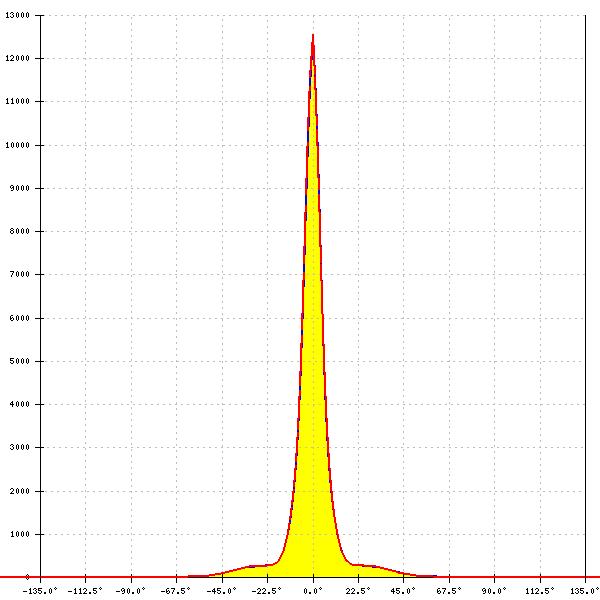

LED: LUXEON CX Plus CoB - HD S01H4
Ordering code: CP19136_AMY-50-S2-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 10°
FWTM: 22°
Peak intensity: 12.562 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

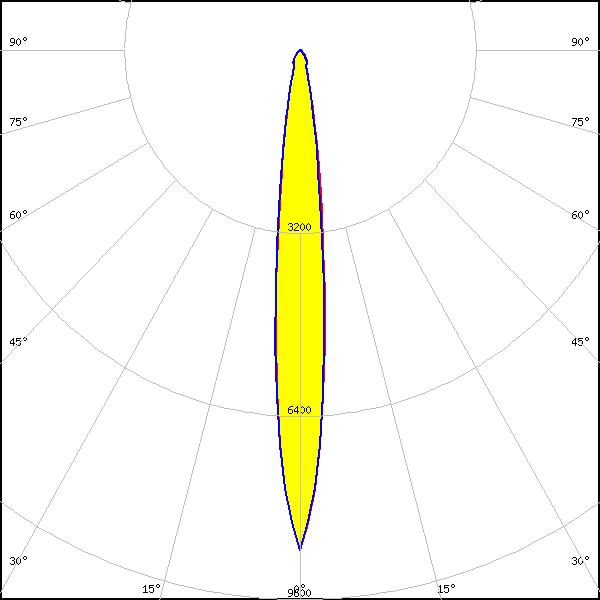

LED: LUXEON CX Plus CoB - HD S02H6
Ordering code: CP19136_AMY-50-S2-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 12°
FWTM: 28°
Peak intensity: 8.742 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

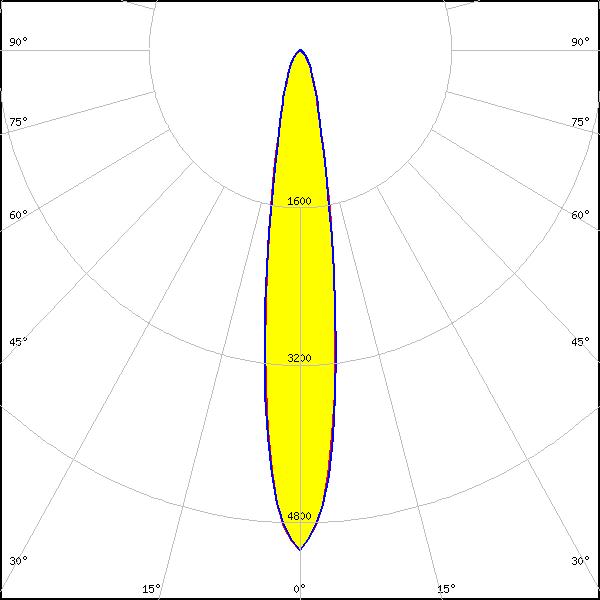

LED: LUXEON CX Plus CoB - HD S04H9
Ordering code: CP19136_AMY-50-S2-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 16°
FWTM: 40°
Peak intensity: 5.079 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

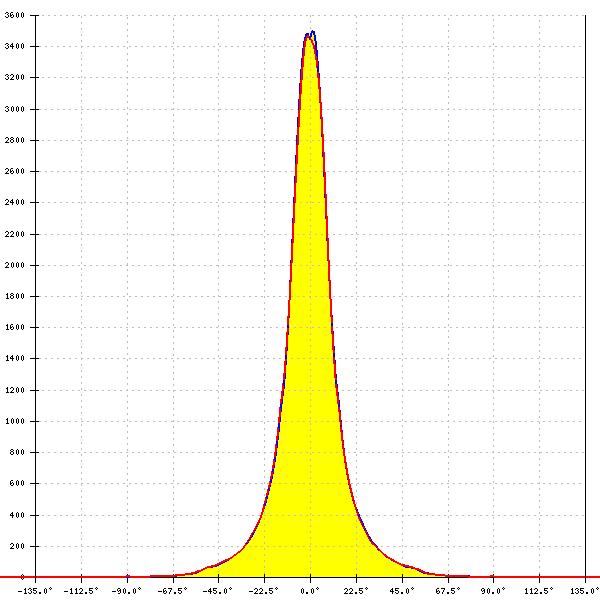

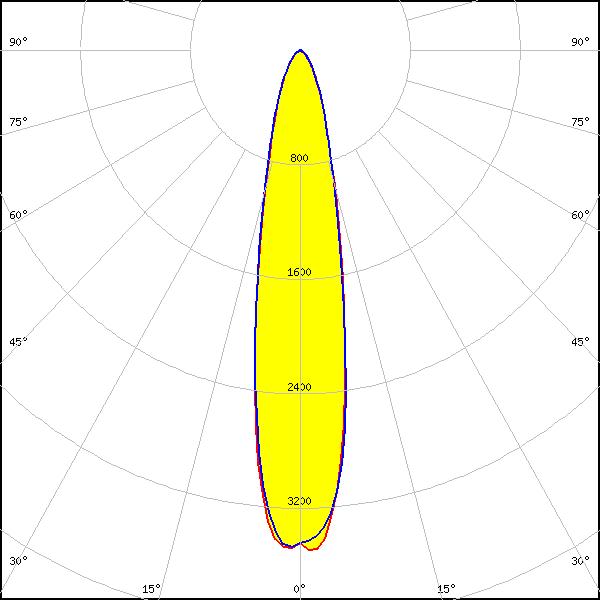

LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 12.0 mm
Required components:
FWHM: 20°
FWTM: 51°
Peak intensity: 3.535 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

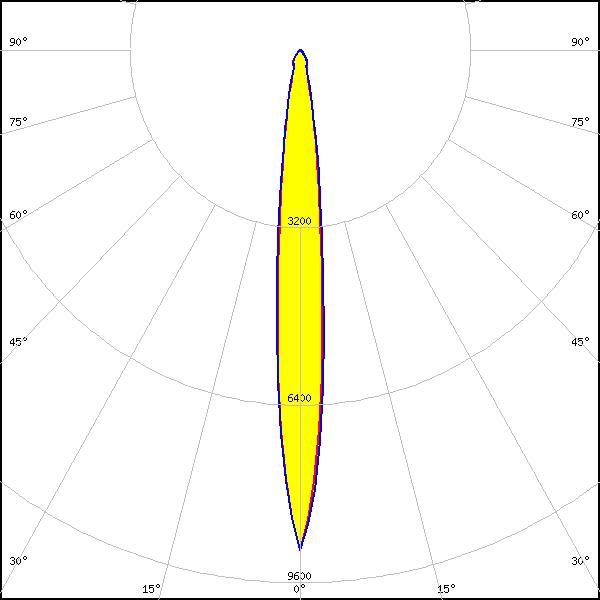

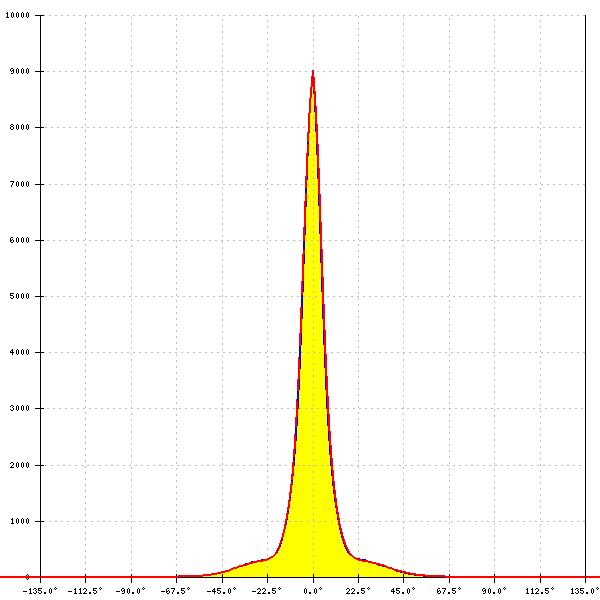

LED: LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 6.0 mm
Required components:
FWHM: 11°
FWTM: 27°
Peak intensity: 9.015 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

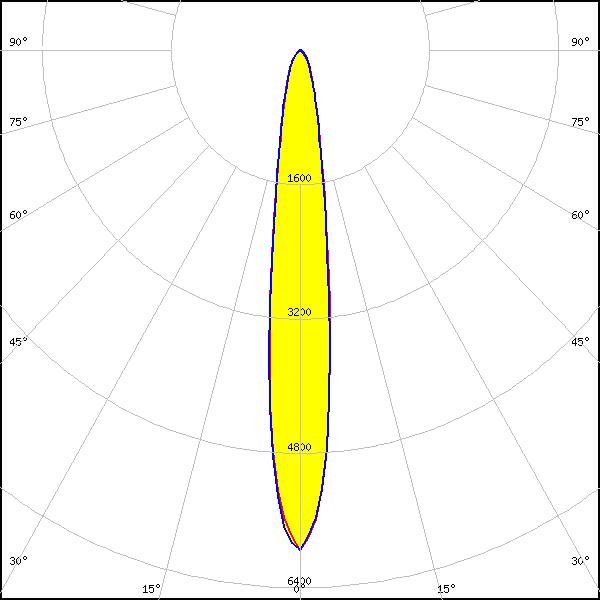

LED: CHM-9 XH (19x19)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 9.0 mm
Required components:
FWHM: 14°
FWTM: 37°
Peak intensity: 5.955 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

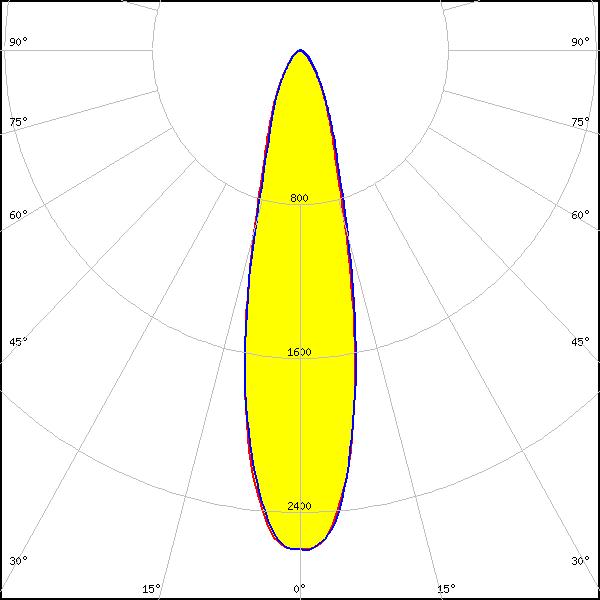

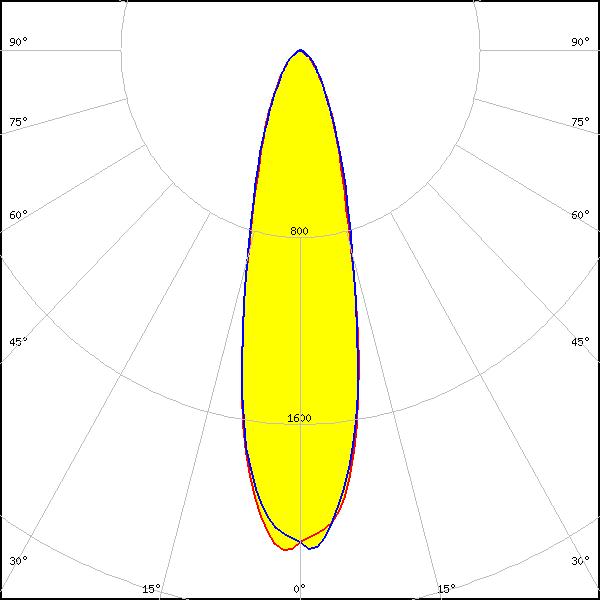

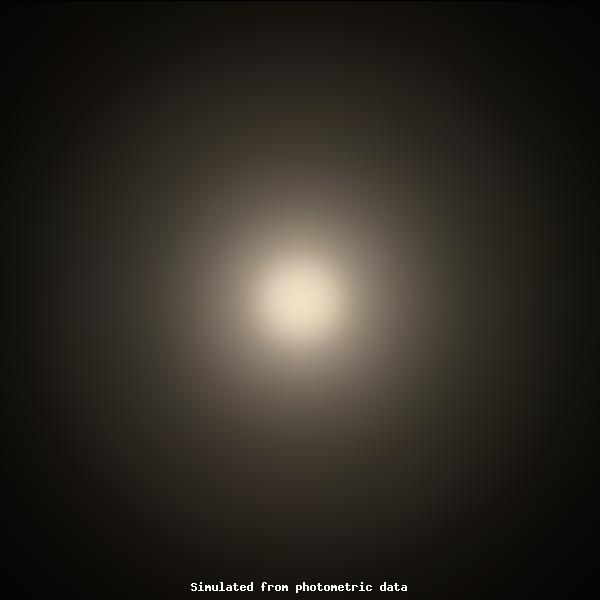

LED: CTM-14 (Tunable White) Gen2
Ordering code: CP19127_AMY-50-S2-C2
LES size: 13.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 25°
FWTM: 58°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

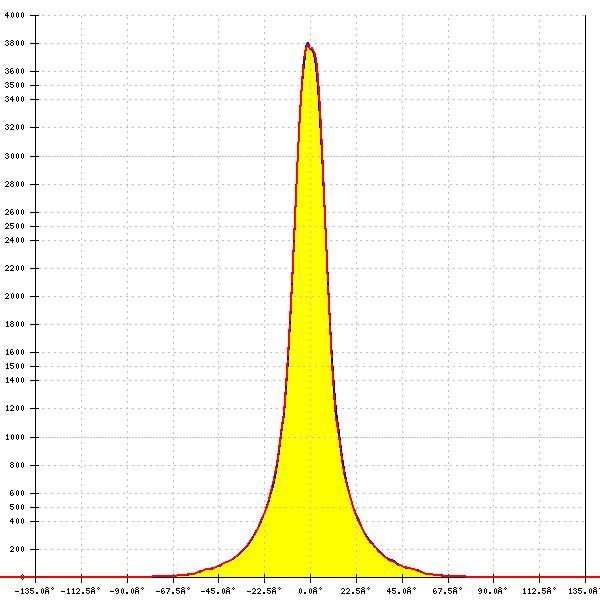

LED: CxM-6 (13.5x13.5)
Ordering code: CP19136_AMY-50-S2-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM: 12°
FWTM: 28°
Peak intensity: 8.592 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

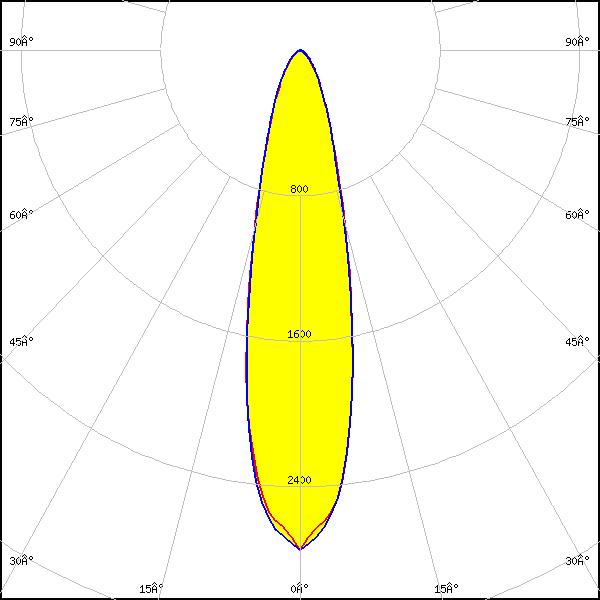

LED: COB J-Type
Ordering code: CP19127_AMY-50-S2-C2
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM: 24°
FWTM: 57°
Peak intensity: 2.750 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

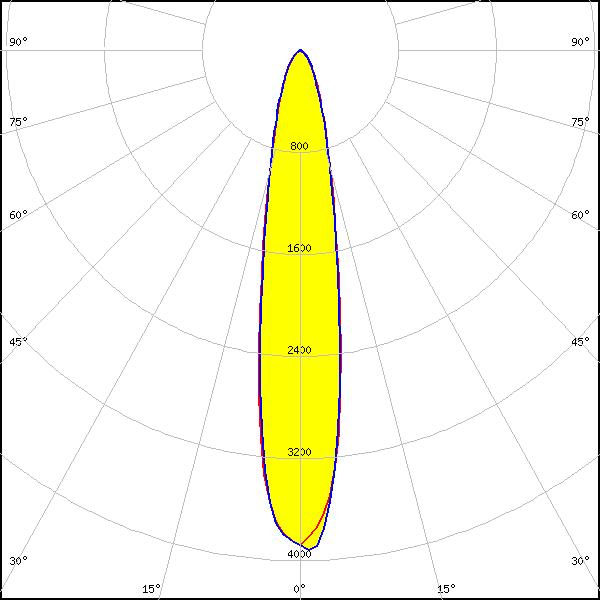

LED: COB L-Type (LES 11)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 11.5 mm
Required components:
FWHM: 19°
FWTM: 48°
Peak intensity: 3.928 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

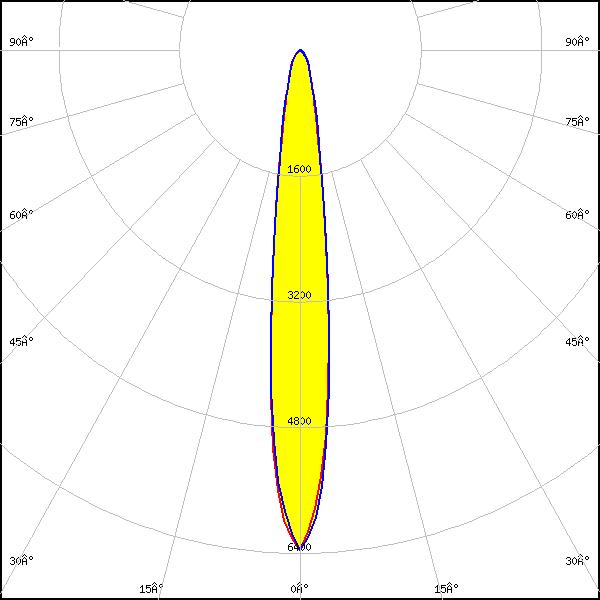

LED: COB L-Type (LES 9)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 8.7 mm
Required components:
Bender Wirth: 638a Hekla
FWHM: 14°
FWTM: 34°
Peak intensity: 6.360 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

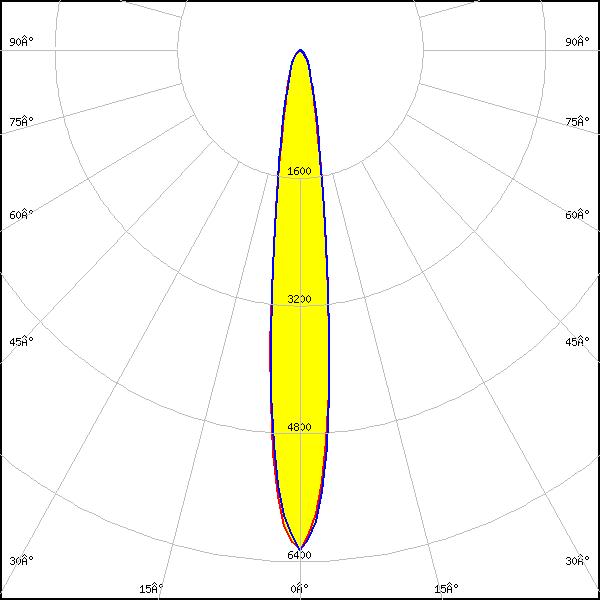

LED: COB L-Type (LES 9)
Ordering code: CP19136_AMY-50-S2-B2
LES size: 8.7 mm
Required components:
BJB: 47.360.1110
FWHM: 14°
FWTM: 34°
Peak intensity: 6.259 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 8.7 mm
Required components:
FWHM: 14°
FWTM: 34°
Peak intensity: 6.248 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 6)
Ordering code: CP19136_AMY-50-S2-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 10°
FWTM: 26°
Peak intensity: 9.861 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

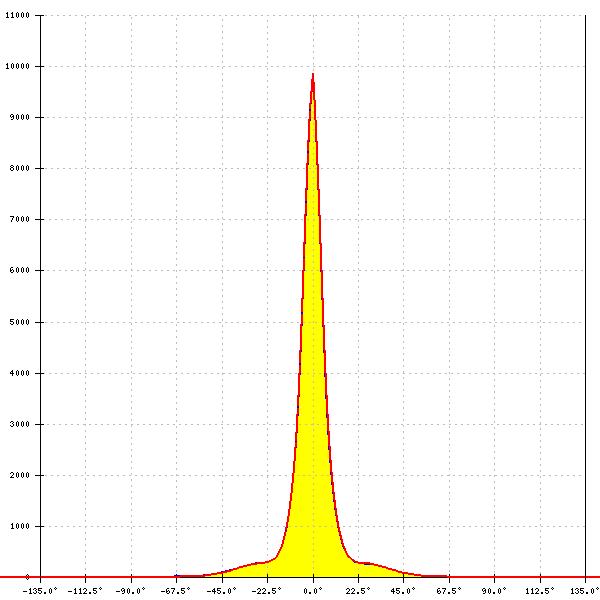

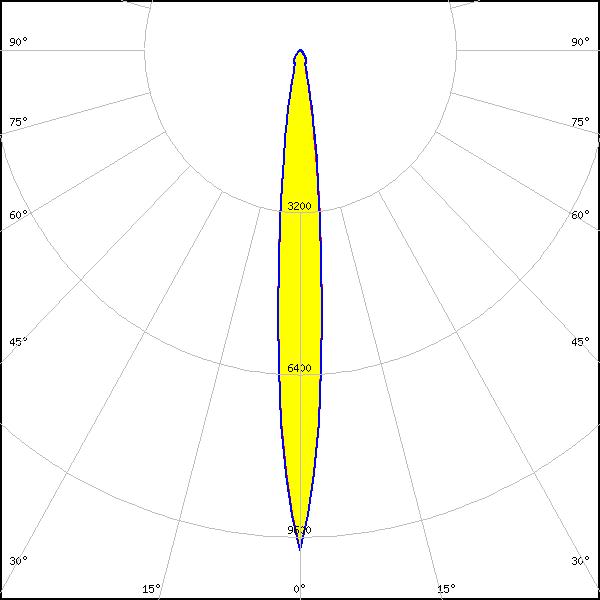

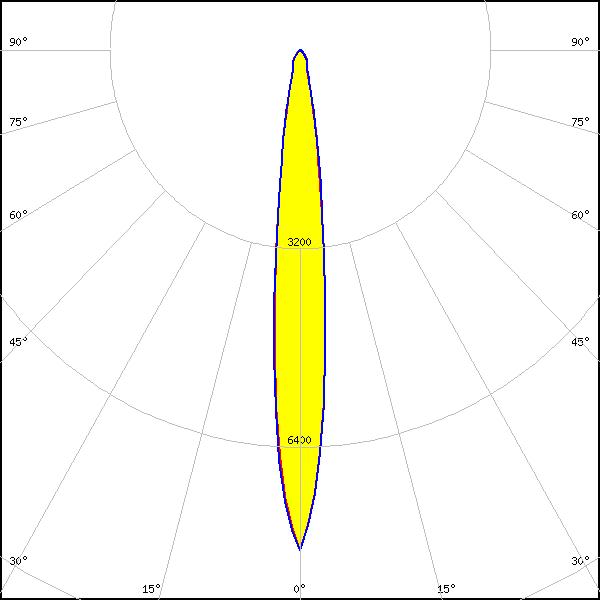

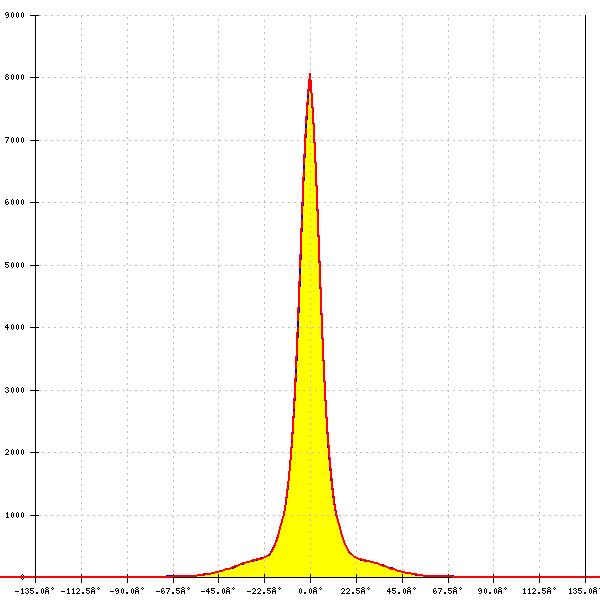

LED: COB S-Type (LES 7)
Ordering code: CP19136_AMY-50-S2-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 12°
FWTM: 28°
Peak intensity: 8.064 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

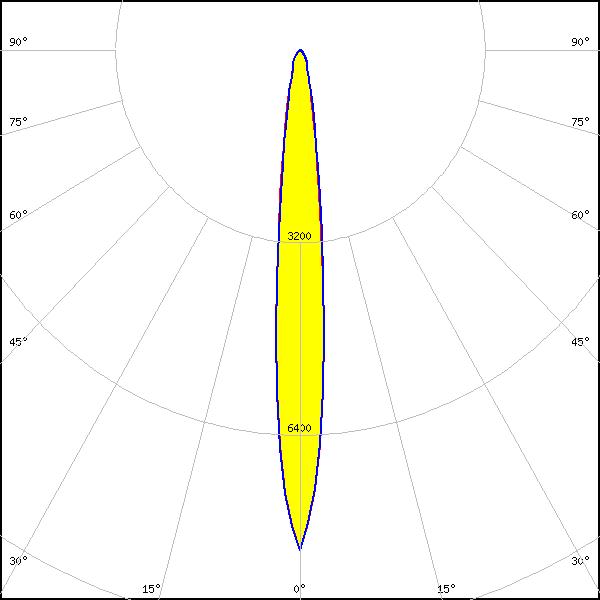

LED: COB S-Type (LES 7)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Hekla
FWHM: 12°
FWTM: 28°
Peak intensity: 8.315 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Ordering code: CP19136_AMY-50-S2-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 12°
FWTM: 27°
Peak intensity: 8.863 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

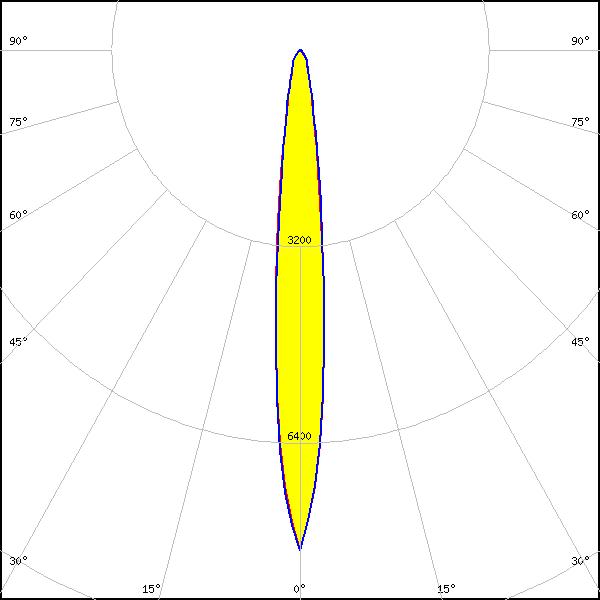

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP19127_AMY-50-S2-C2
LES size: 7.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8 HV
FWHM: 12°
FWTM: 30°
Peak intensity: 8.145 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White

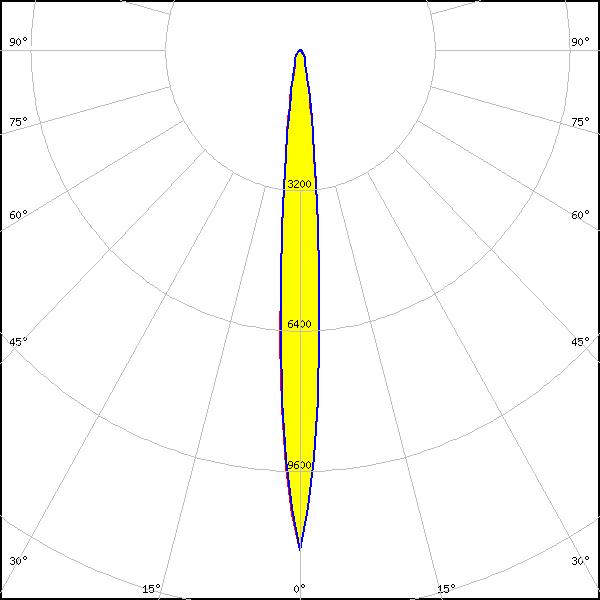

LED: NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP19127_AMY-50-S2-C2
LES size: 5.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8 HV
FWHM: 10°
FWTM: 24°
Peak intensity: 11.399 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White

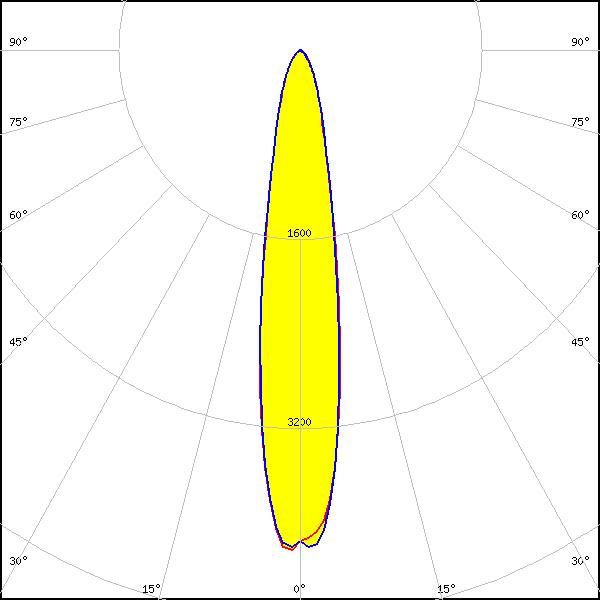

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP19127_AMY-50-S2-C2
LES size: 10.6 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8 HV
FWHM: 18°
FWTM: 46°
Peak intensity: 4.293 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: LC010C G2
Ordering code: CP19136_AMY-50-S2-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 10°
FWTM: 26°
Peak intensity: 9.541 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

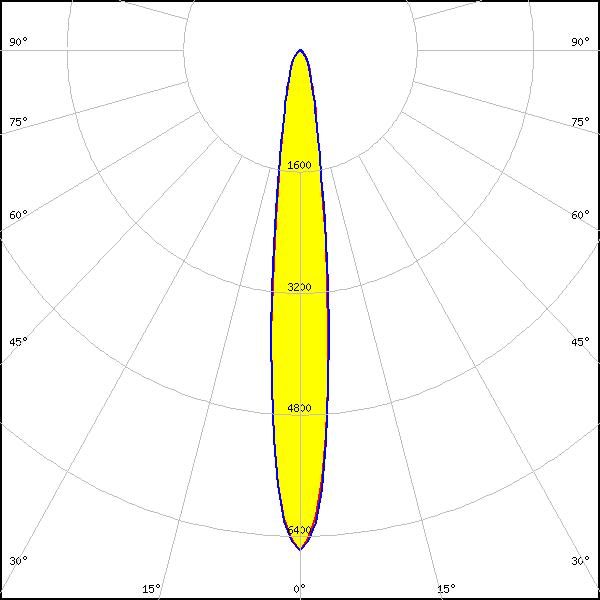

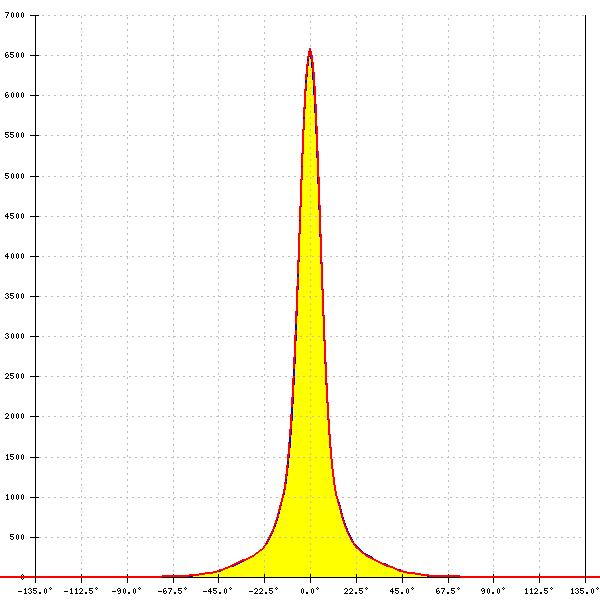

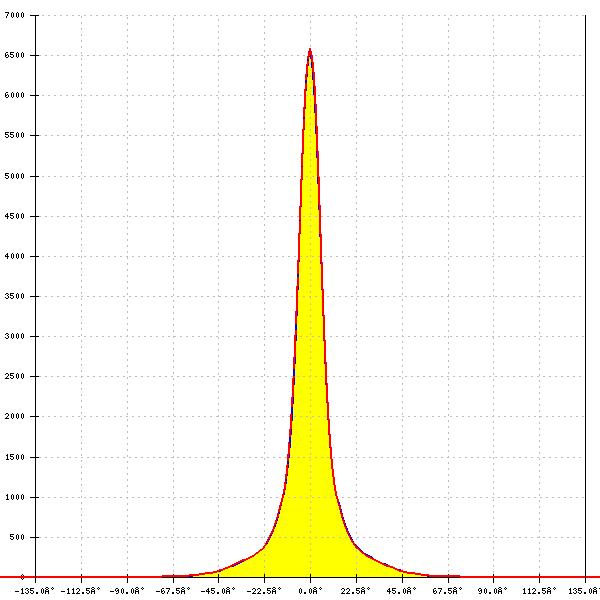

LED: LC010T (Tunable White)
Ordering code: CP19127_AMY-50-S2-C2
LES size: 9.8 mm
Required components:
Bender Wirth: 501 Typ L8
FWHM: 14°
FWTM: 34°
Peak intensity: 6.583 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White

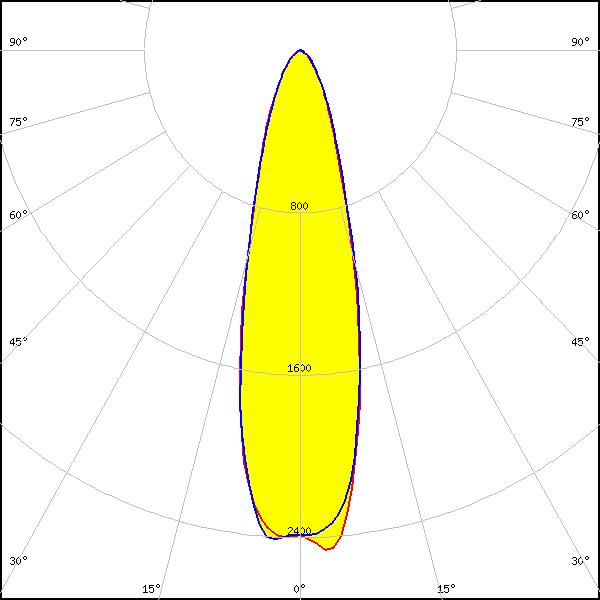

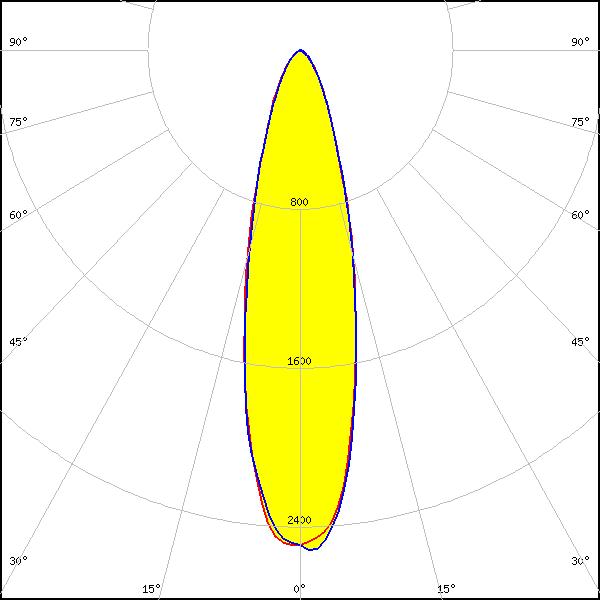

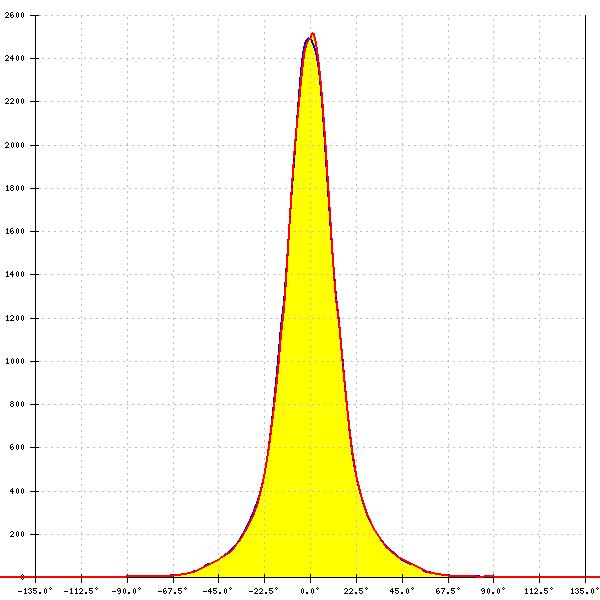

LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP19136_AMY-50-S2-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM: 26°
FWTM: 60°
Peak intensity: 2.535 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

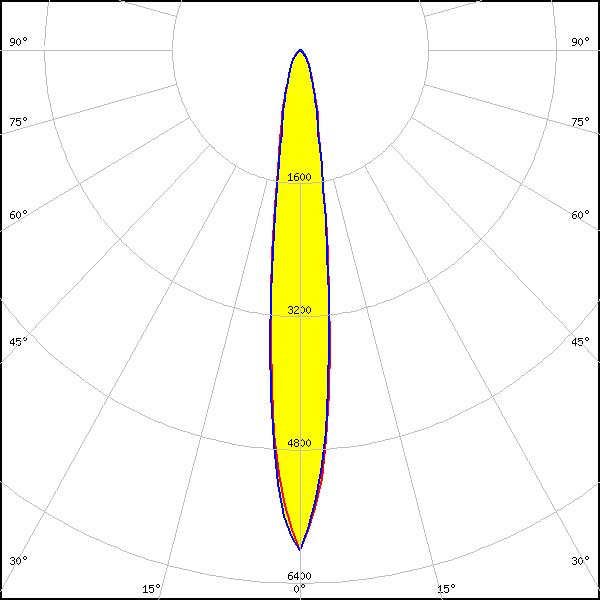

LED: LC020C G2
Ordering code: CP19136_AMY-50-S2-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM: 14°
FWTM: 37°
Peak intensity: 6.006 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

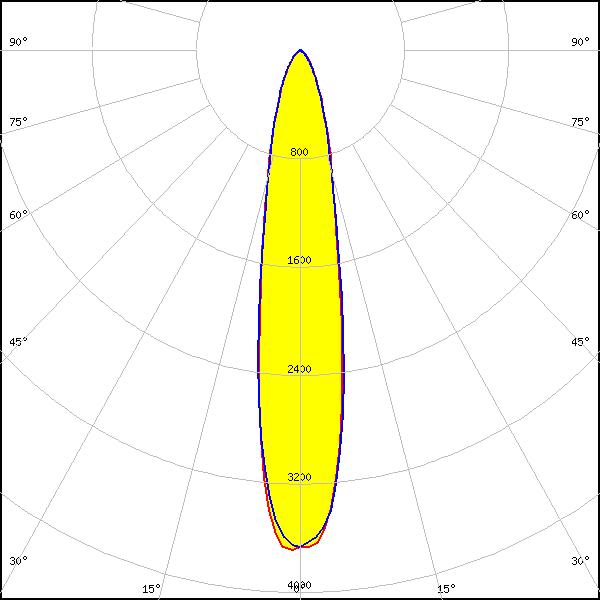

LED: LC030C/040C G2
Ordering code: CP19136_AMY-50-S2-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM: 20°
FWTM: 50°
Peak intensity: 3.710 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

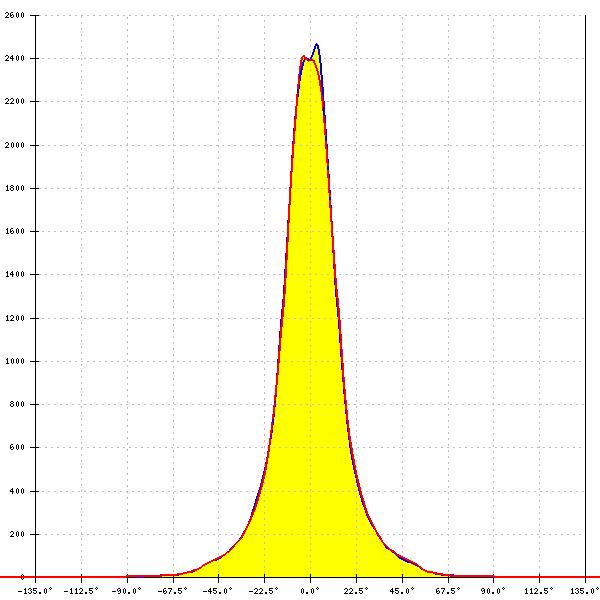

LED: MJT COB LES 14.5
Ordering code: CP19127_AMY-50-S2-C2
LES size: 14.5 mm
Required components:
FWHM: 28°
FWTM: 61°
Peak intensity: 2.486 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 6
Ordering code: CP19127_AMY-50-S2-C2
LES size: 6.0 mm
Required components:
FWHM: 10°
FWTM: 24°
Peak intensity: 10.448 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

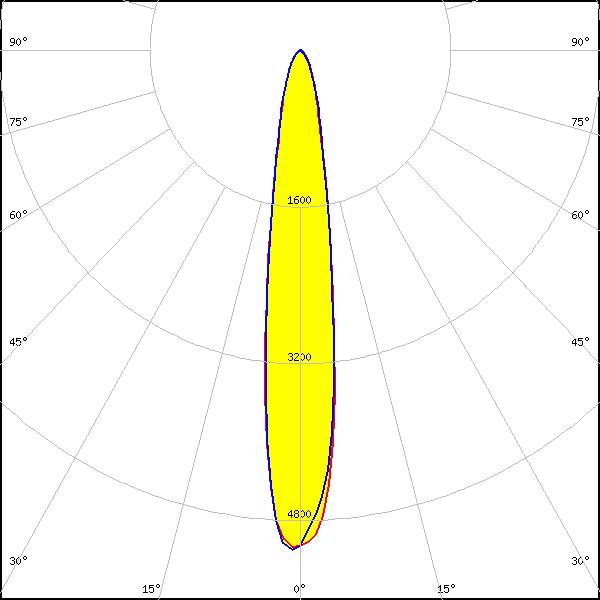

LED: MJT COB LES 9.8
Ordering code: CP19127_AMY-50-S2-C2
LES size: 9.8 mm
Required components:
FWHM: 16°
FWTM: 40°
Peak intensity: 5.105 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
