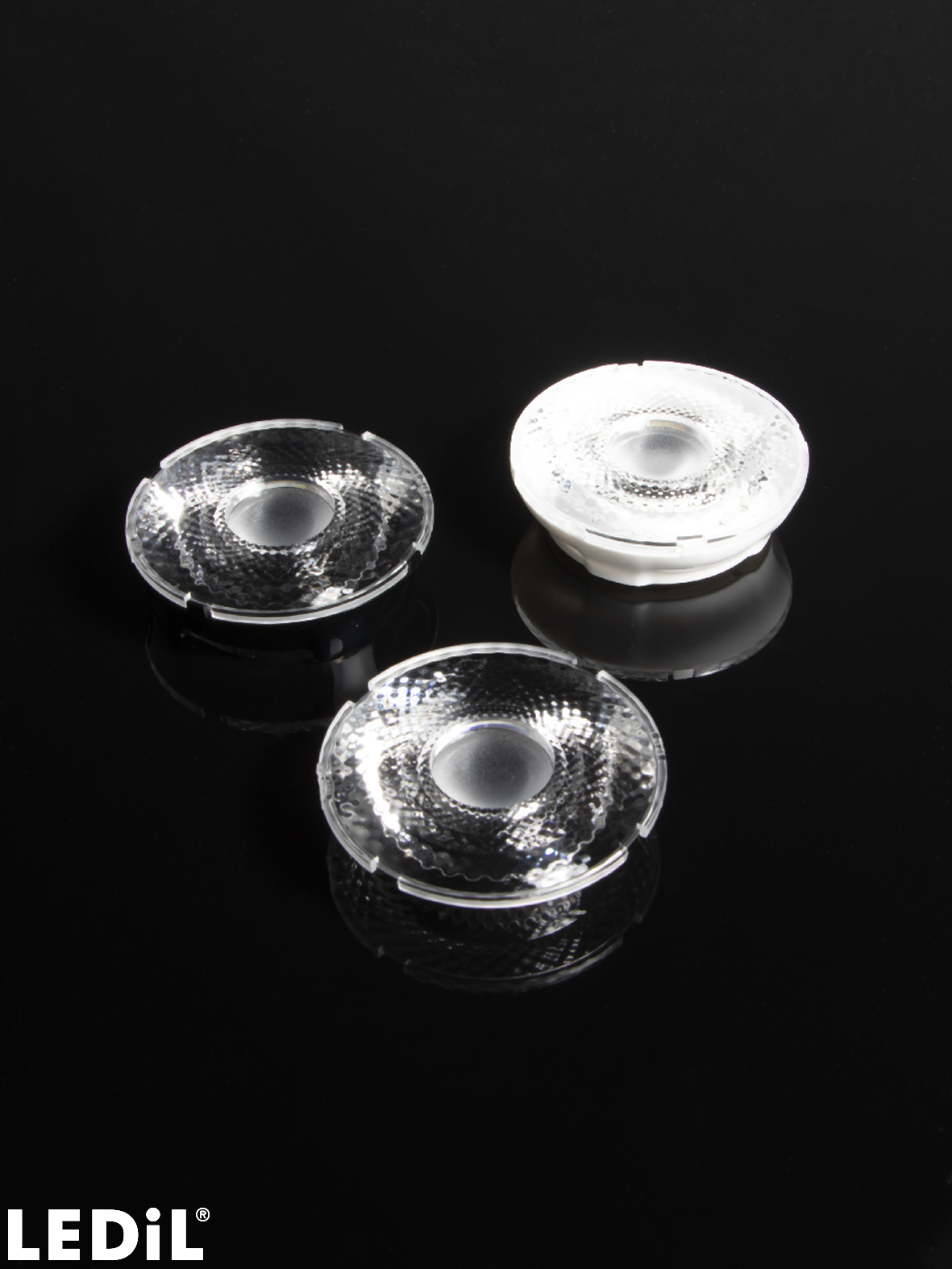

AMY-50-S

Print

~18° spot beam

This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

Specification
  • Dimensions:
    50 mm
  • Height:
    10.80 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials
  • AMY-50-S
    PMMA
  • AMY-50-HLD2-C-WHT
    PC
  • AMY-50-HLD2-C
    PC
  • AMY-50-HLD2-B-WHT
    PC
  • AMY-50-HLD2-B
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Single lens
  • C17686_AMY-50-S
  • Quantity in box:
    690 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.50 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 80 mm
  • MOQ Weight:
    1.80 kg
  • Assembly
  • CP19123_AMY-50-S-C2
    black,Holder C
  • CP19132_AMY-50-S-B2
    black,Holder B
  • CP19141_AMY-50-S-C2-WHT
    white,Holder C
  • CP19150_AMY-50-S-B2-WHT
    white,Holder B
  • Quantity in box:
    510 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.30 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    2.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17686_AMY-50-S
    CP19123_AMY-50-S-C2
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

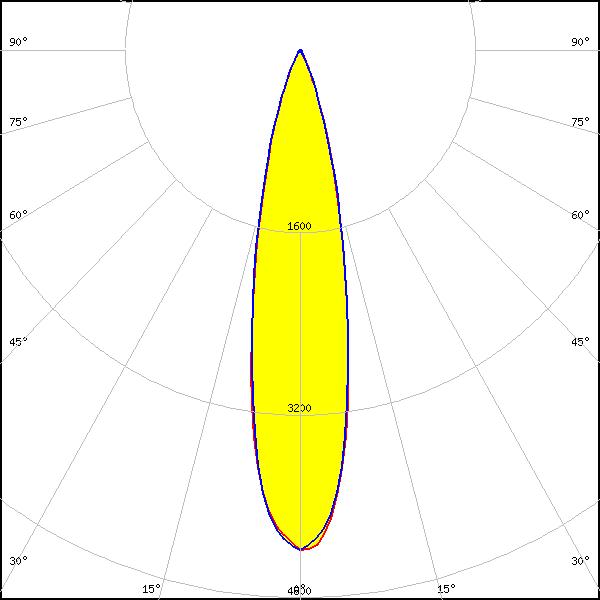

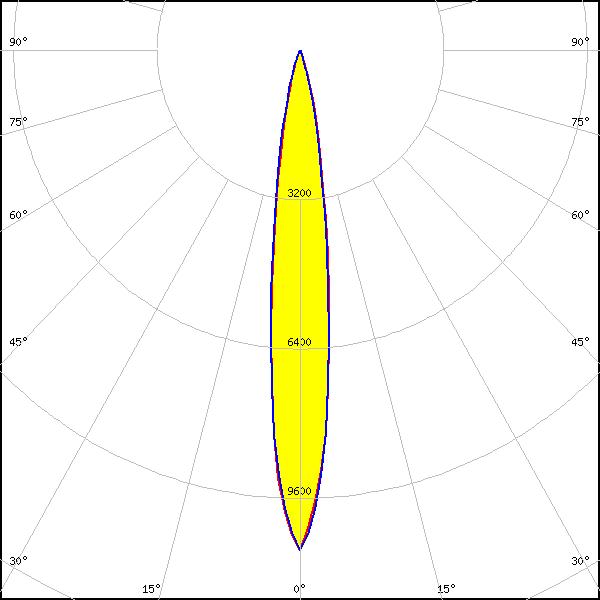

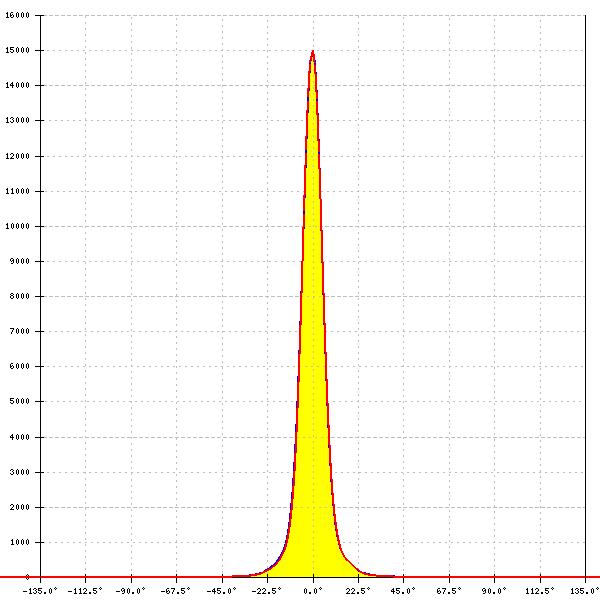

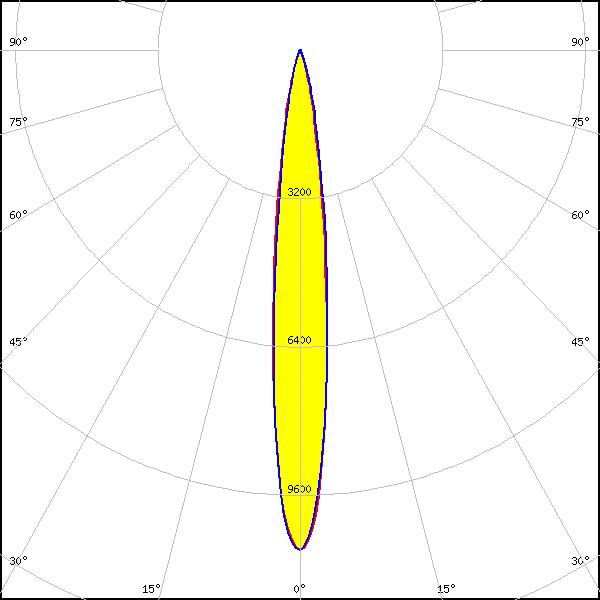

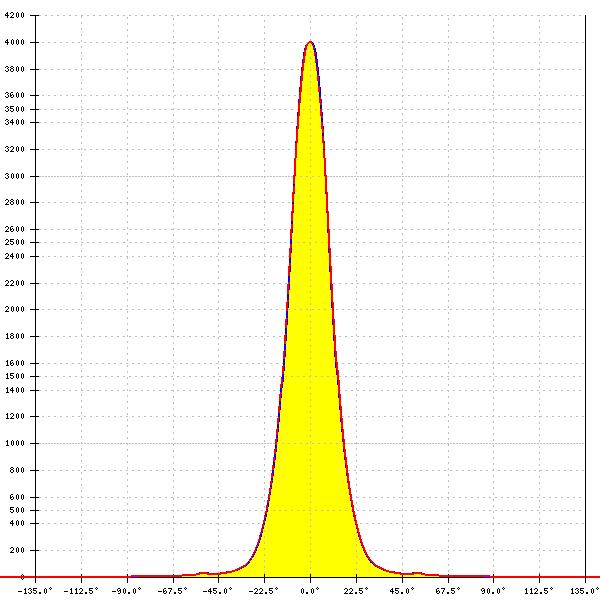

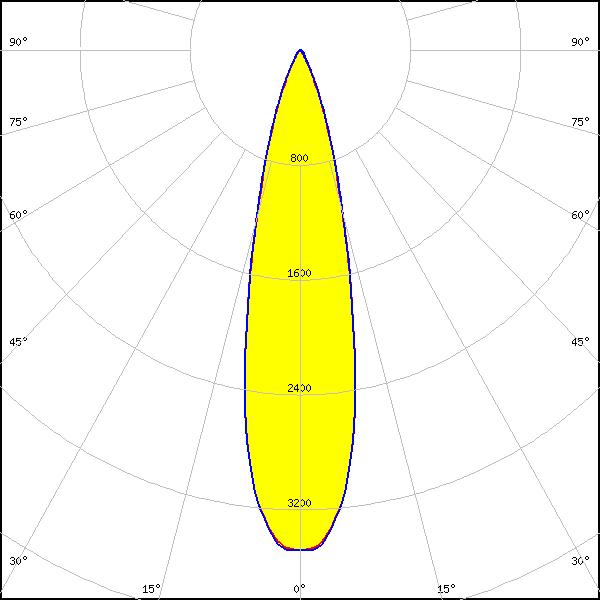

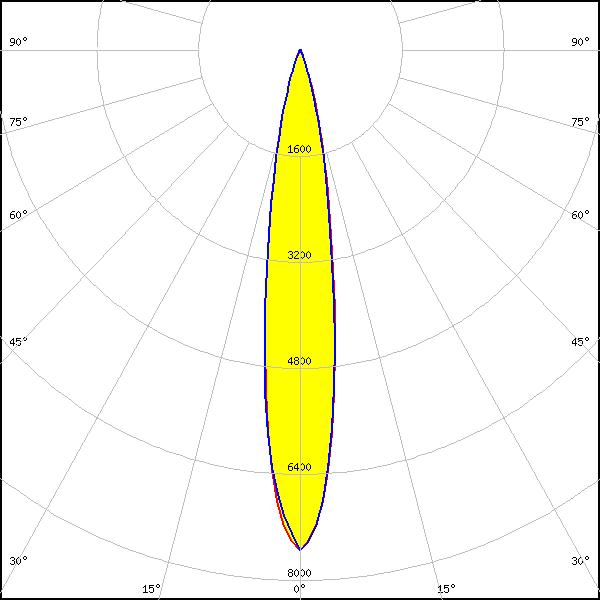

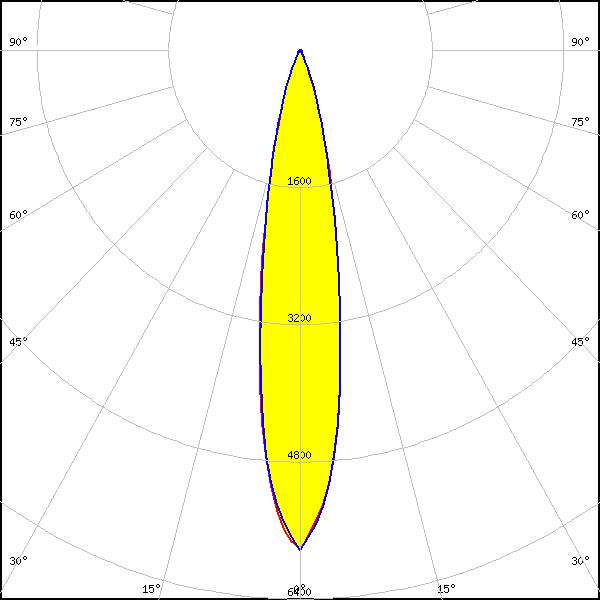

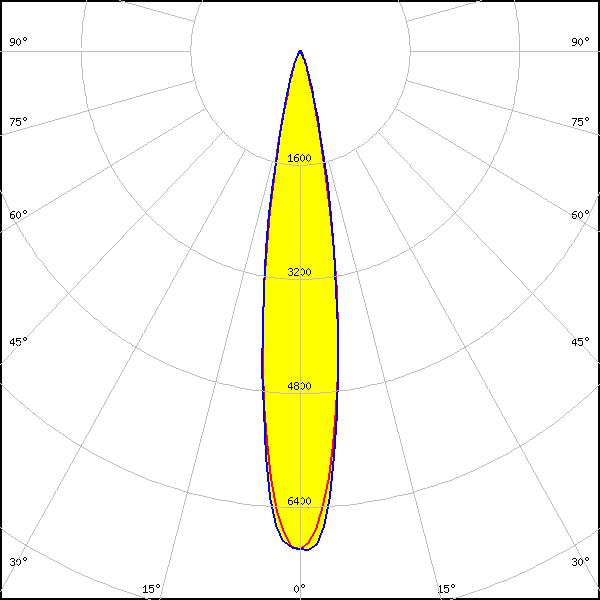

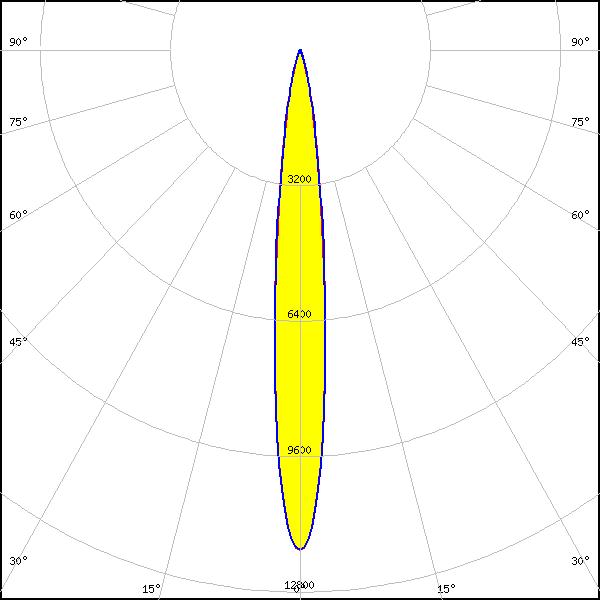

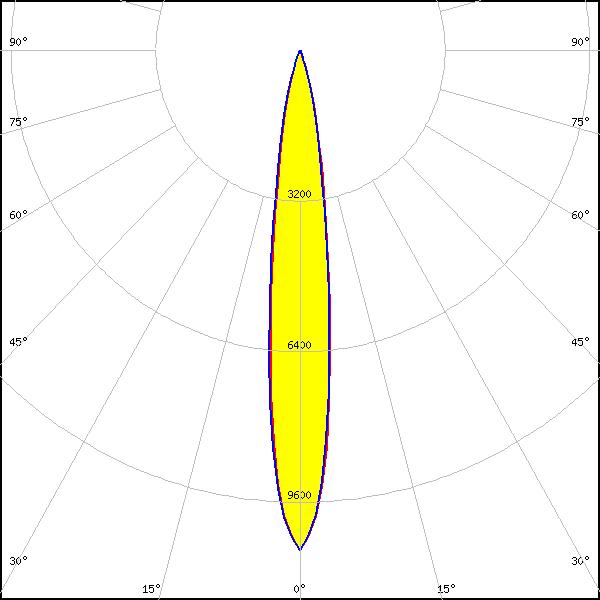

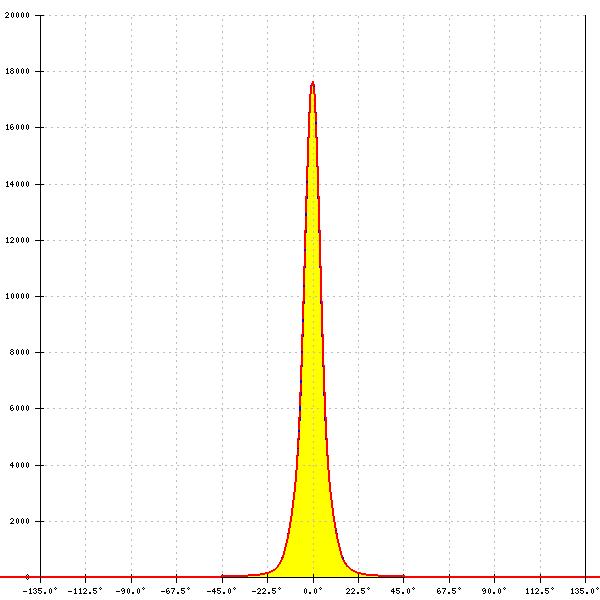

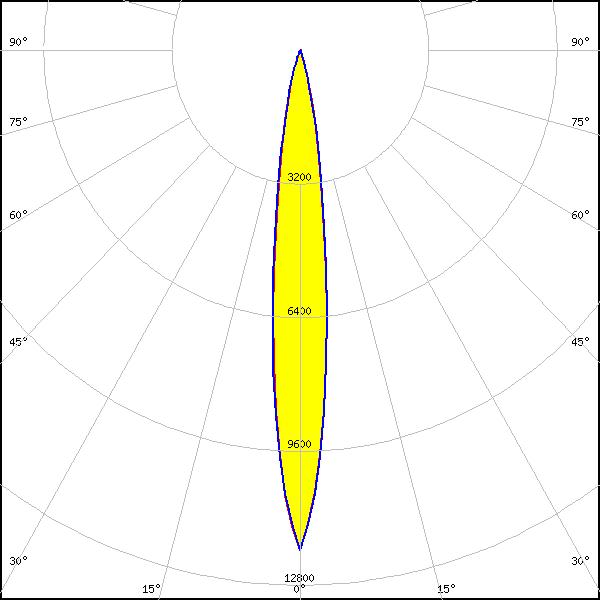

Optical results

LED: V10 Gen 8-9

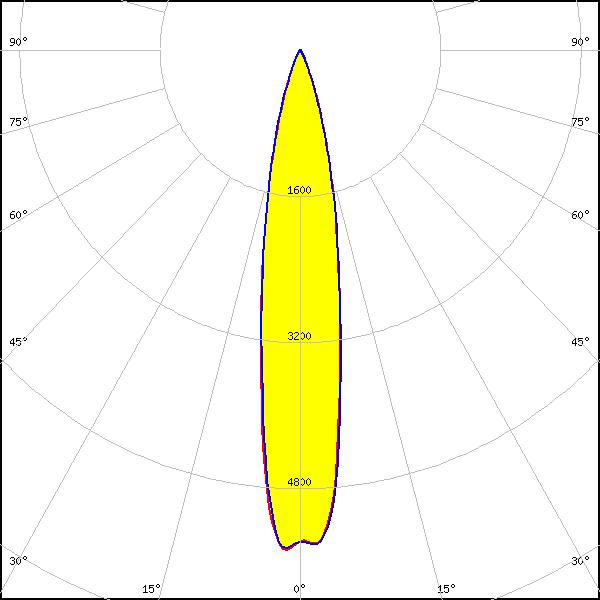

Ordering code: CP19132_AMY-50-S-B2
LES size: 10.0 mm
Required components:
BJB: 47.360.1020
FWHM: 17°
FWTM: 36°
Peak intensity: 6.969 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

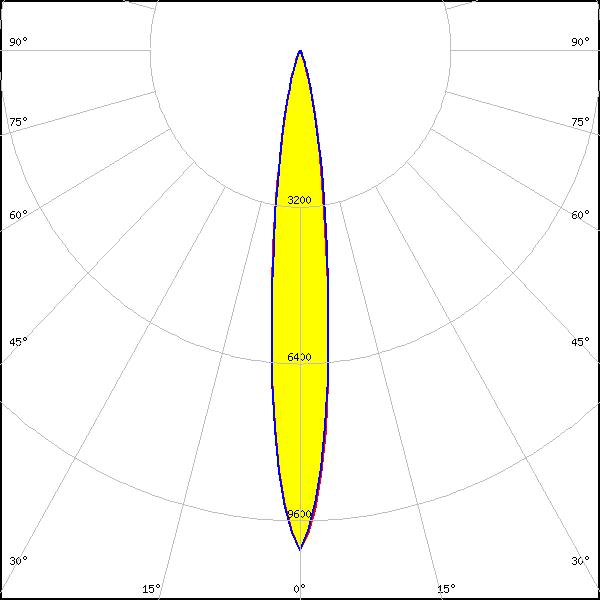

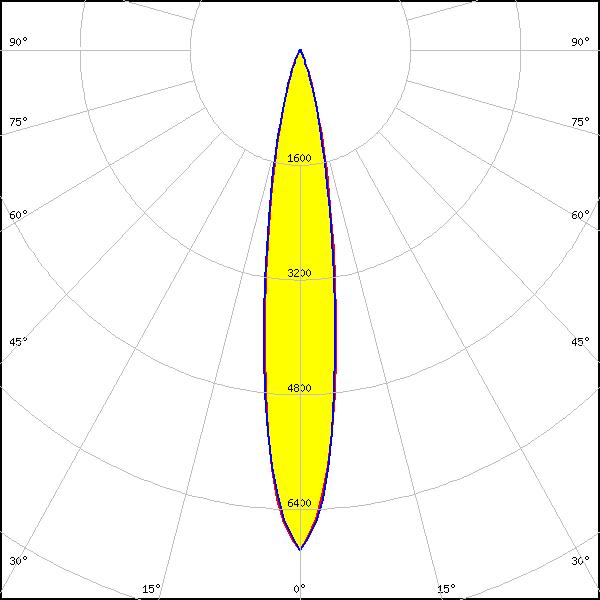

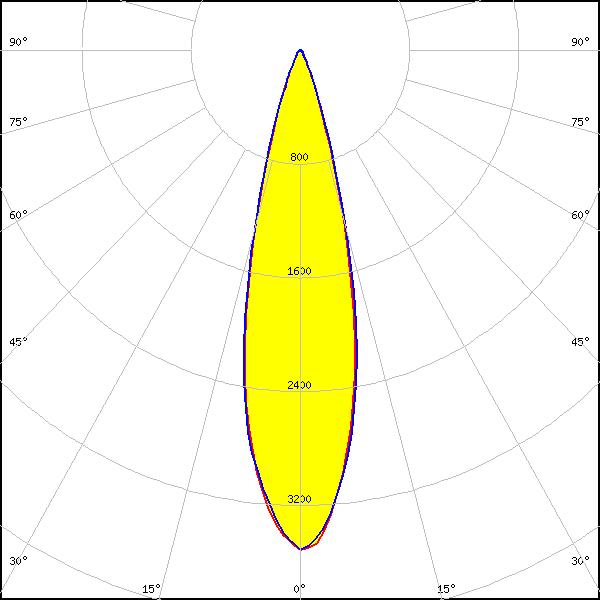

LED: V10 Gen 8-9
Ordering code: CP19123_AMY-50-S-C2
LES size: 10.0 mm
Required components:
FWHM: 18°
FWTM: 38°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

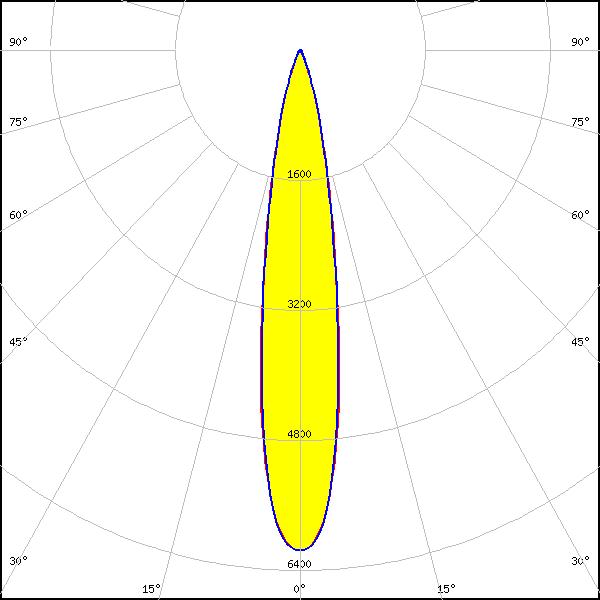

LED: V11 HD Gen 8
Ordering code: CP19123_AMY-50-S-C2
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM: 20°
FWTM: 41°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

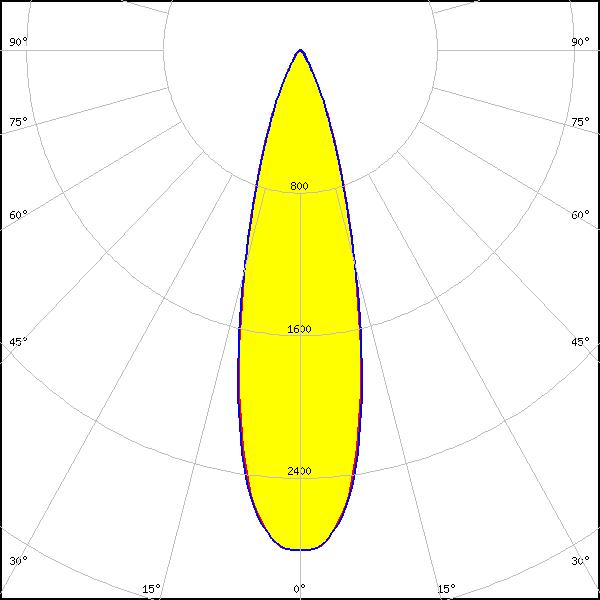

LED: V13 Gen 8-9
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.8 mm
Required components:
FWHM: 28°
FWTM: 53°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

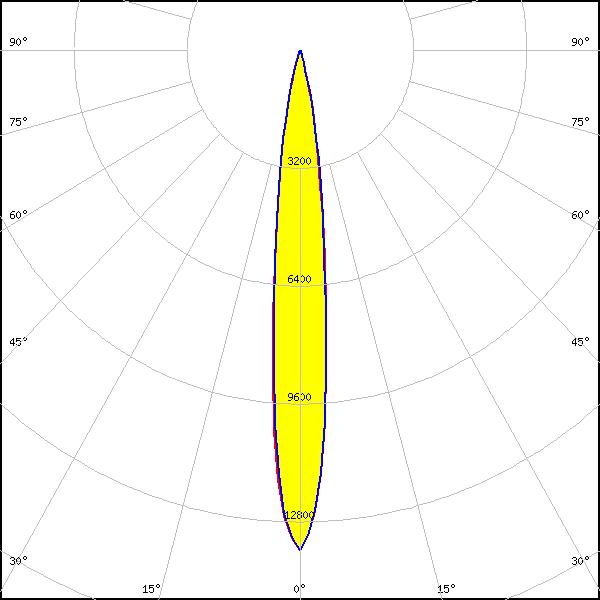

LED: V3 HD Gen 8
Ordering code: CP19123_AMY-50-S-C2
LES size: 3.8 mm
Required components:
FWHM: 12°
FWTM: 26°
Peak intensity: 13.573 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

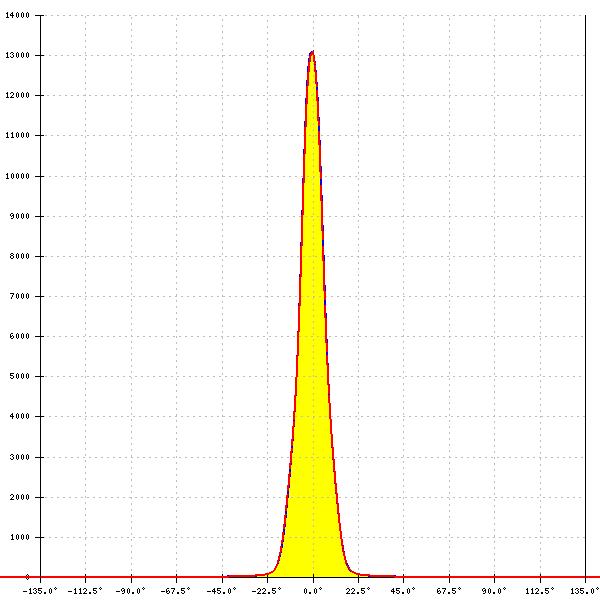

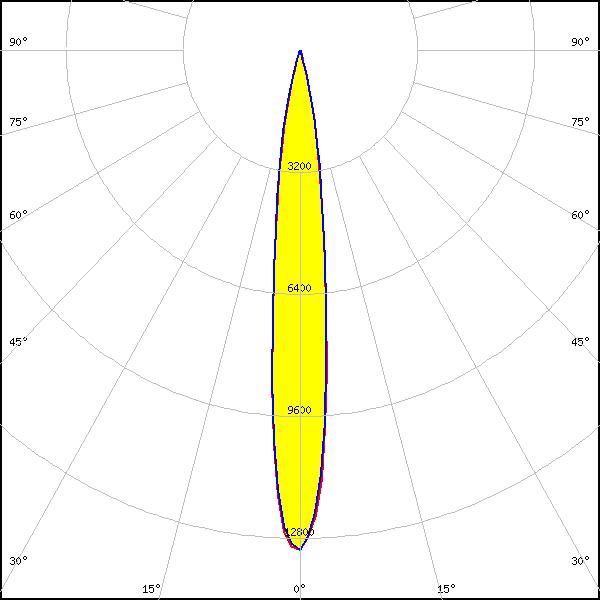

LED: V3 HD Gen 8 FC
Ordering code: CP19123_AMY-50-S-C2
LES size: 2.9 mm
Required components:
FWHM: 12°
FWTM: 27°
Peak intensity: 13.111 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

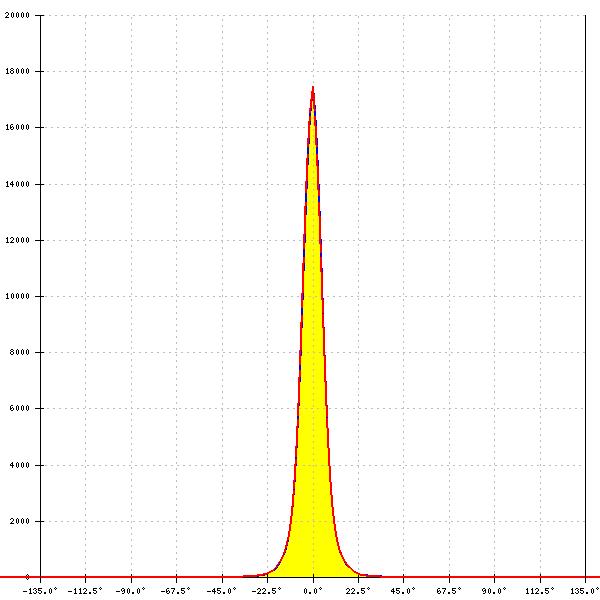

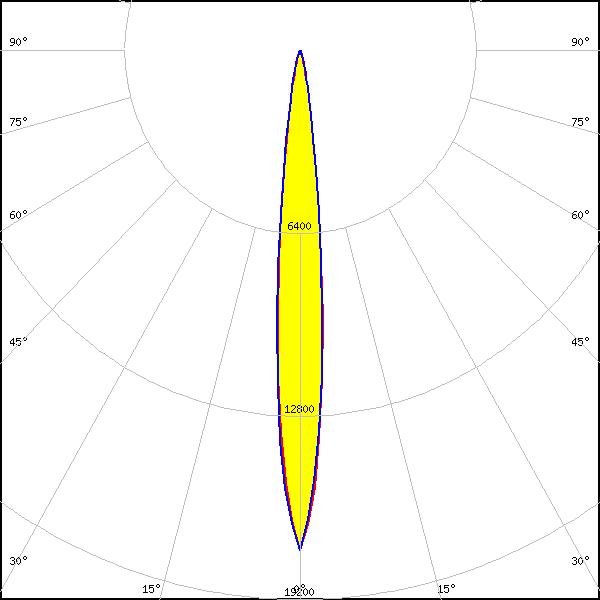

LED: V4 HD Gen 7
Ordering code: CP19123_AMY-50-S-C2
LES size: 5.2 mm
Required components:
FWHM: 10°
FWTM: 24°
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

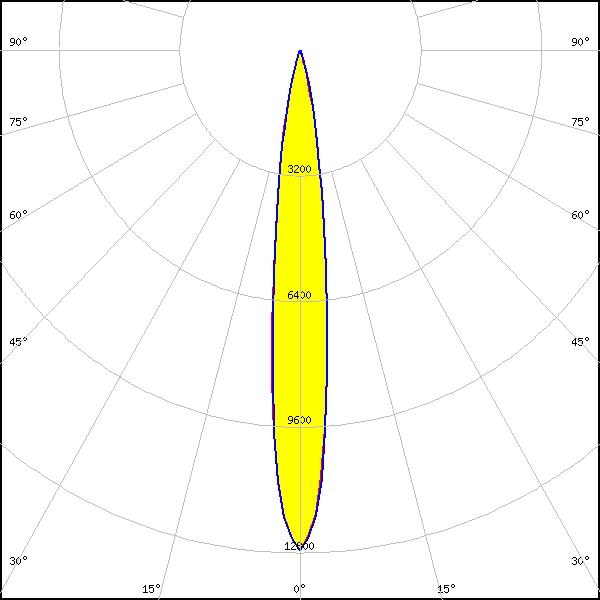

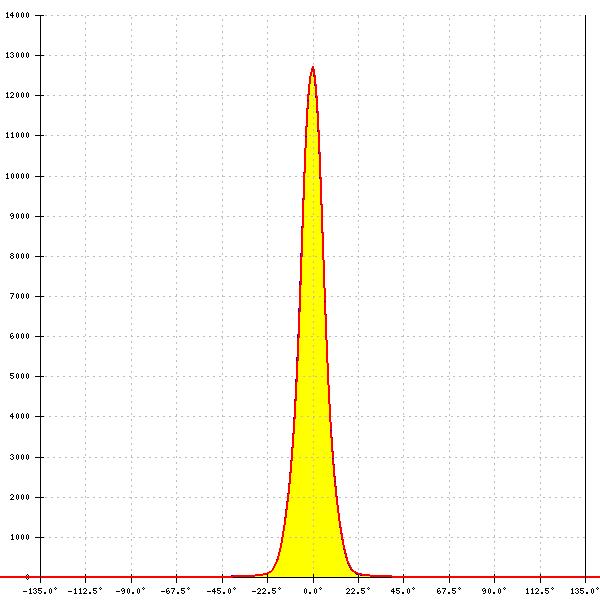

LED: V4 HD Gen 8
Ordering code: CP19123_AMY-50-S-C2
LES size: 4.8 mm
Required components:
FWHM: 13°
FWTM: 28°
Peak intensity: 12.735 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 Gen 8-9
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.3 mm
Required components:
FWHM: 14°
FWTM: 30°
Peak intensity: 10.621 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

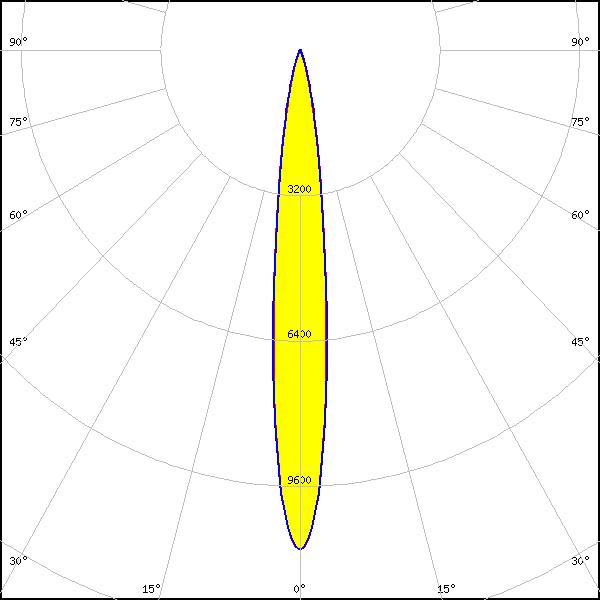

LED: V6 HD Gen 7
Ordering code: CP19123_AMY-50-S-C2
LES size: 7.0 mm
Required components:
FWHM: 12°
FWTM: 28°
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 HD Gen 8
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.6 mm
Required components:
FWHM: 14°
FWTM: 30°
Peak intensity: 10.715 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

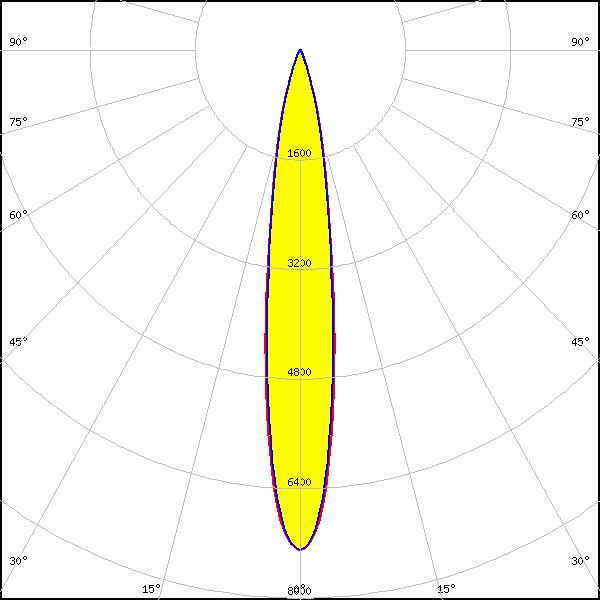

LED: V8 Gen 8-9
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.5 mm
Required components:
FWHM: 16°
FWTM: 35°
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

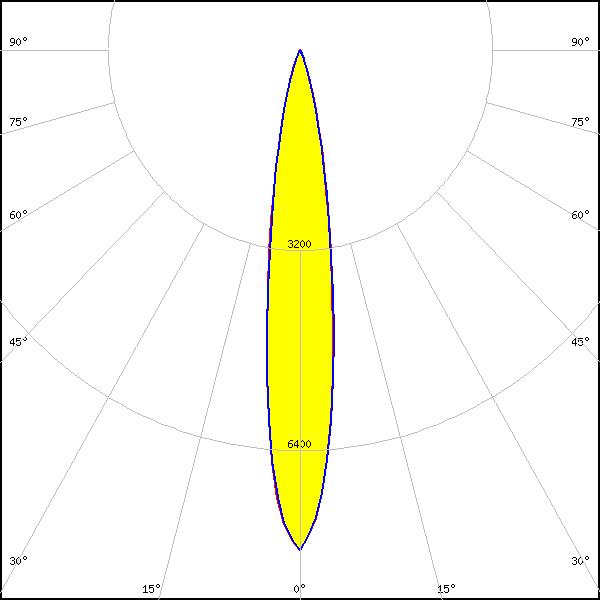

LED: V8 Gen7
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.1 mm
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 7.996 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: V9 HD Gen 8
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.8 mm
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 8.533 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

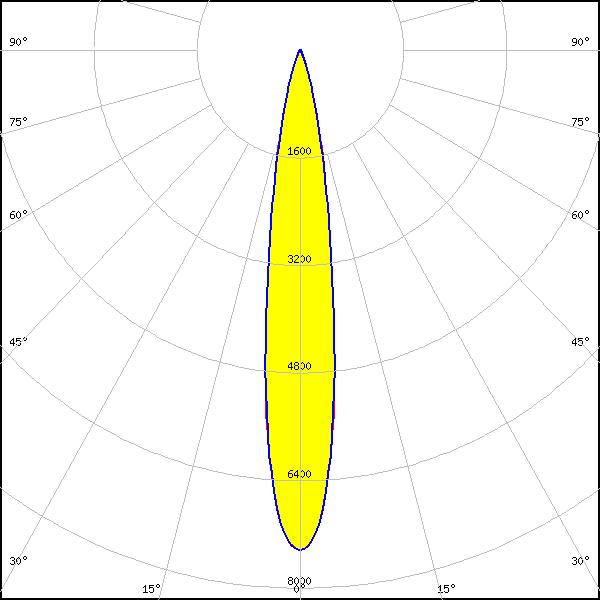

LED: V9 HD Gen7
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.2 mm
Required components:
FWHM: 16°
FWTM: 33°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: Vero SE 13
Ordering code: CP19123_AMY-50-S-C2
LES size: 13.4 mm
Required components:
FWHM: 26°
FWTM: 44°
Peak intensity: 3.530 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

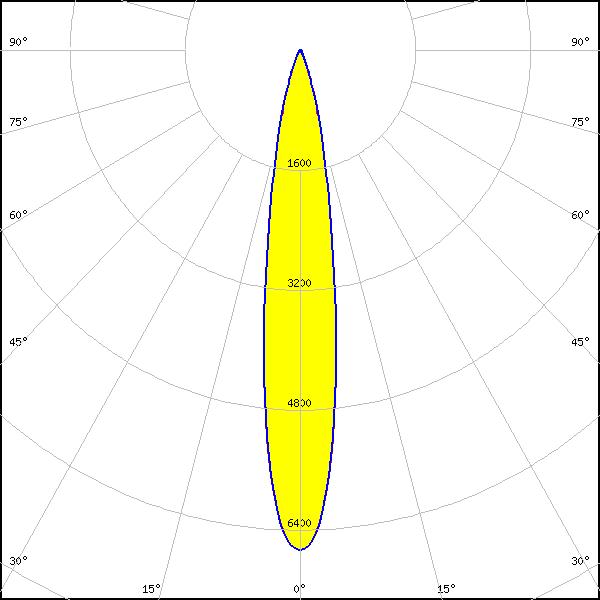

LED: VERO10
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.9 mm
Required components:
FWHM: 17°
FWTM: 36°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
Ordering code: CP19123_AMY-50-S-C2
LES size: 13.4 mm
Required components:
FWHM: 23°
FWTM: 47°
Peak intensity: 4.165 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

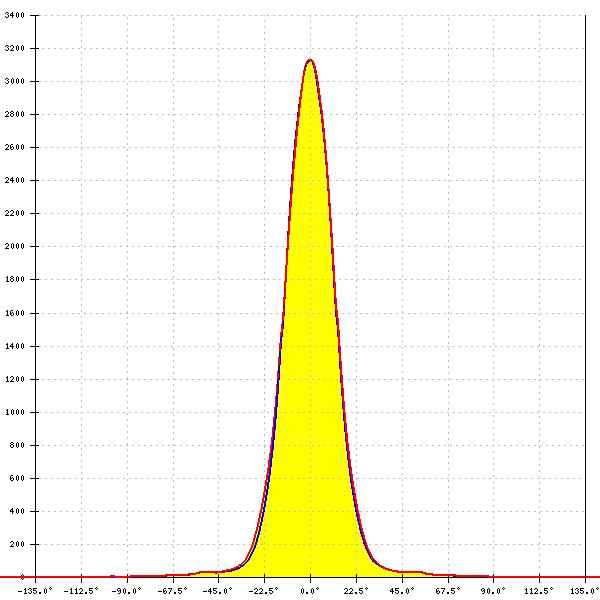

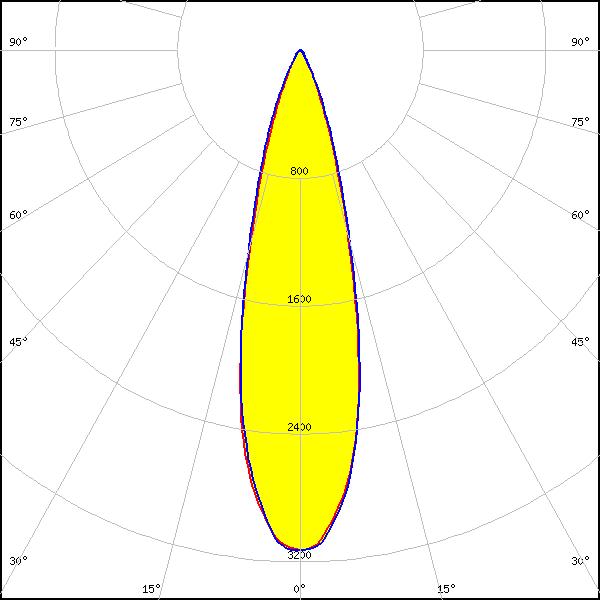

LED: Vesta DTW 13mm (21W)
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 27°
FWTM: 49°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

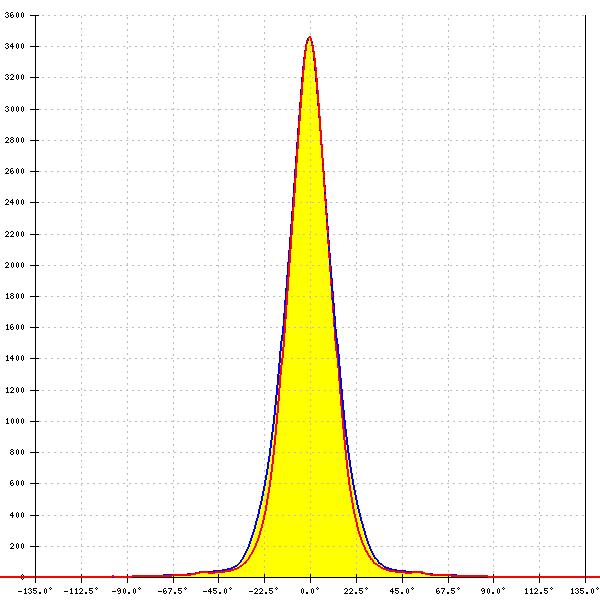

LED: Vesta DTW 15mm (33W)
Ordering code: CP19123_AMY-50-S-C2
LES size: 16.2 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 24°
FWTM: 49°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

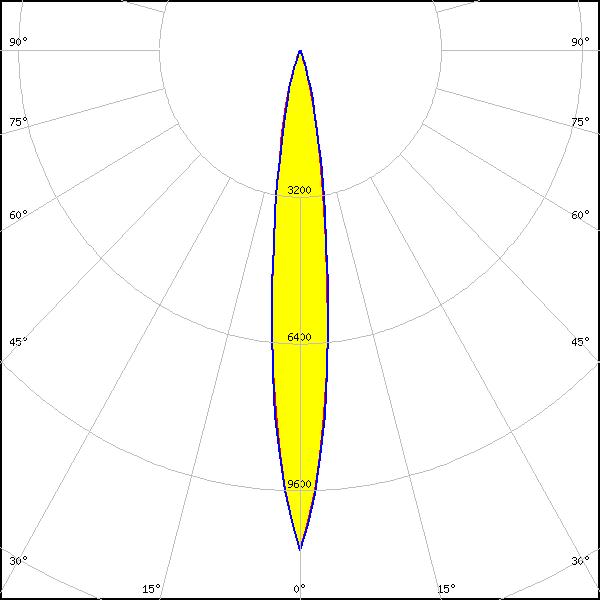

LED: Vesta DTW 6mm
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 14°
FWTM: 30°
Peak intensity: 10.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
F18158_HEKLA-RZ-LENS
FWHM: 18°
FWTM: 35°
Peak intensity: 6.480 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 16°
FWTM: 31°
Peak intensity: 8.793 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

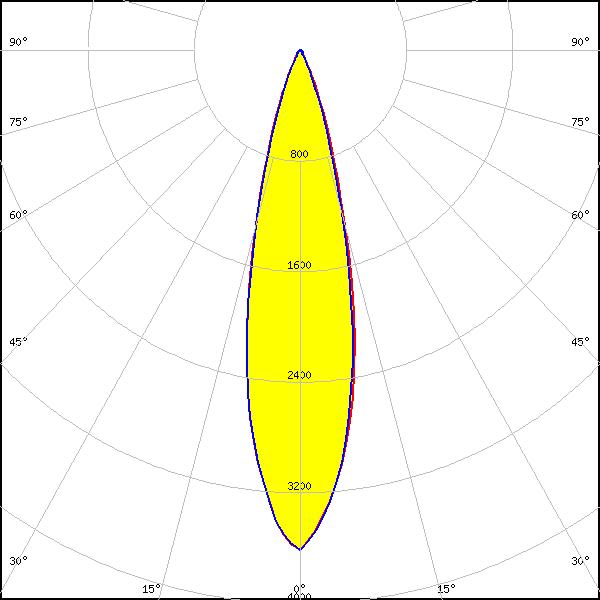

LED: Vesta SE 13mm TW
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.3 mm
Required components:
FWHM: 25°
FWTM: 45°
Peak intensity: 3.616 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: Tunable White

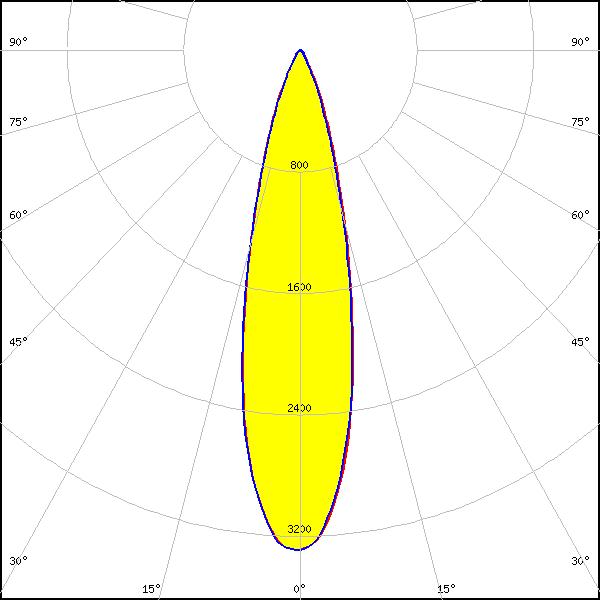

LED: Vesta TW 13mm (18W) DP
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 492 Typ L8
FWHM: 25°
FWTM: 49°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

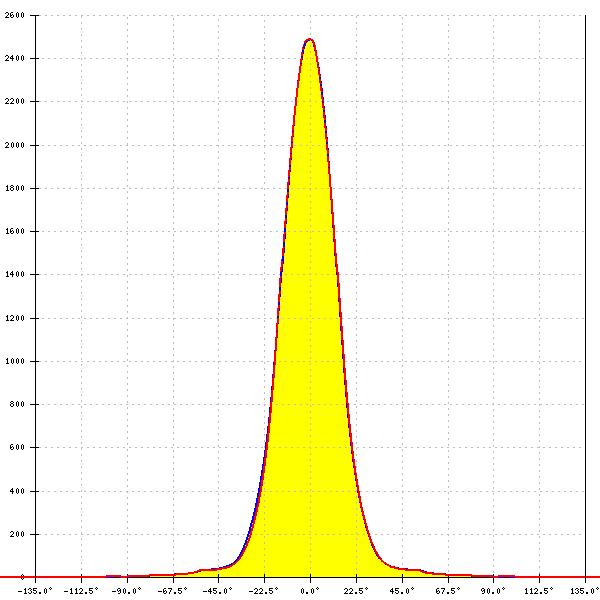

LED: Vesta TW 15mm DP
Ordering code: CP19123_AMY-50-S-C2
LES size: 16.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 482 Typ L8
FWHM: 30°
FWTM: 55°
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 6mm DP
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 13°
FWTM: 28°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

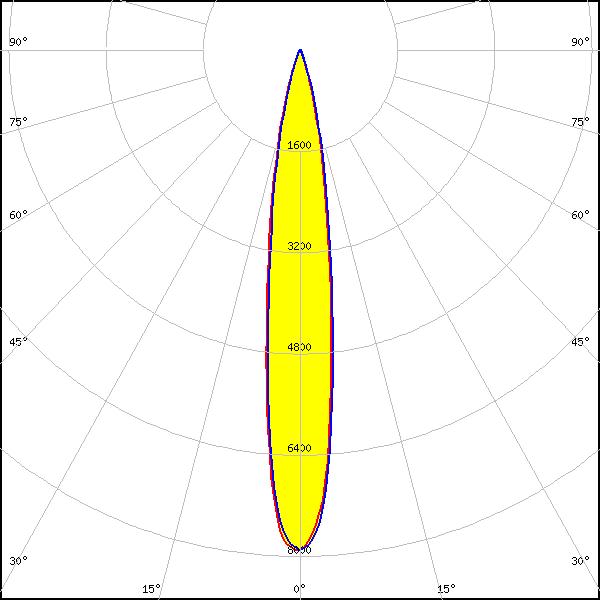

LED: Vesta TW 6mm DP
Ordering code: CP19132_AMY-50-S-B2
LES size: 6.3 mm
Required components:
Bender Wirth: 504 Typ B35L
FWHM: 16°
FWTM: 33°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

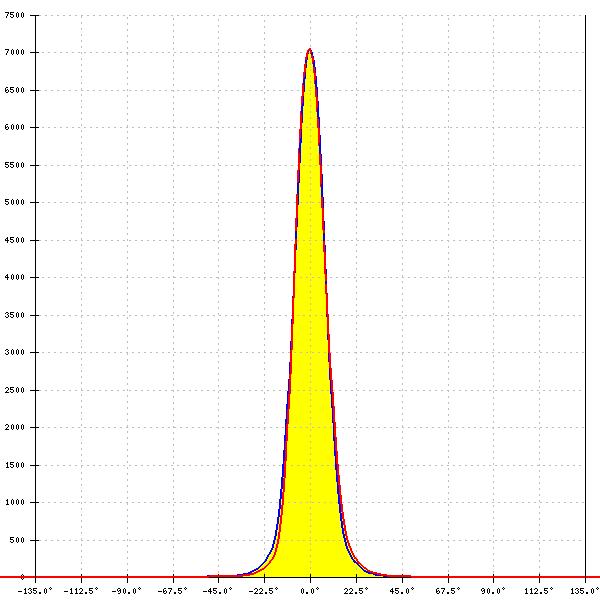

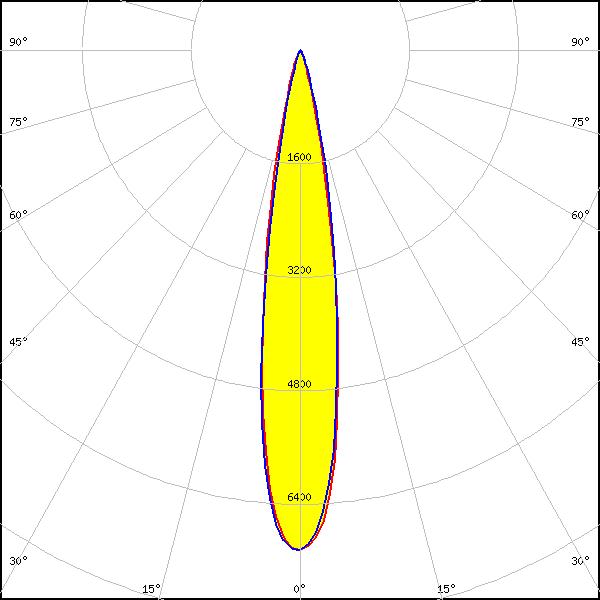

LED: Vesta TW 9mm (12W) CSP
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.8 mm
Required components:
FWHM: 18°
FWTM: 32°
Peak intensity: 7.056 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

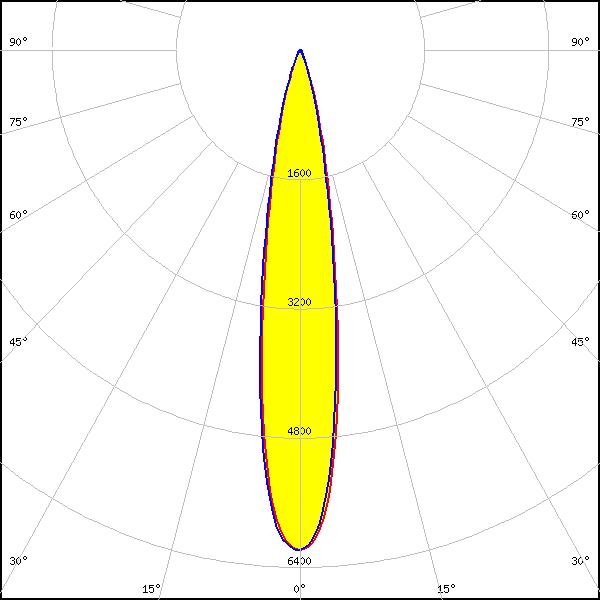

LED: Vesta TW 9mm (9W) DP
Ordering code: CP19123_AMY-50-S-C2
LES size: 10.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 18°
FWTM: 36°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

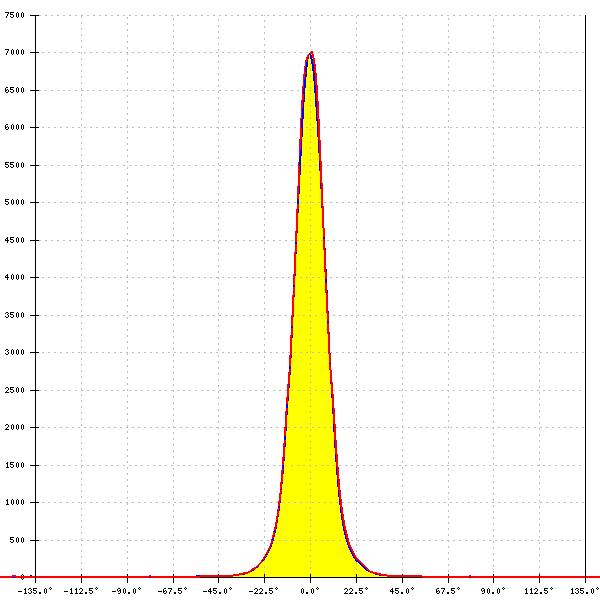

LED: CLL02x/CLU02x (LES10)
Ordering code: CP19132_AMY-50-S-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 18°
FWTM: 33°
Peak intensity: 7.002 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
Ordering code: CP19141_AMY-50-S-C2-WHT
LES size: 9.8 mm
Required components:
FWHM: 19°
FWTM: 37°
Peak intensity: 5.842 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

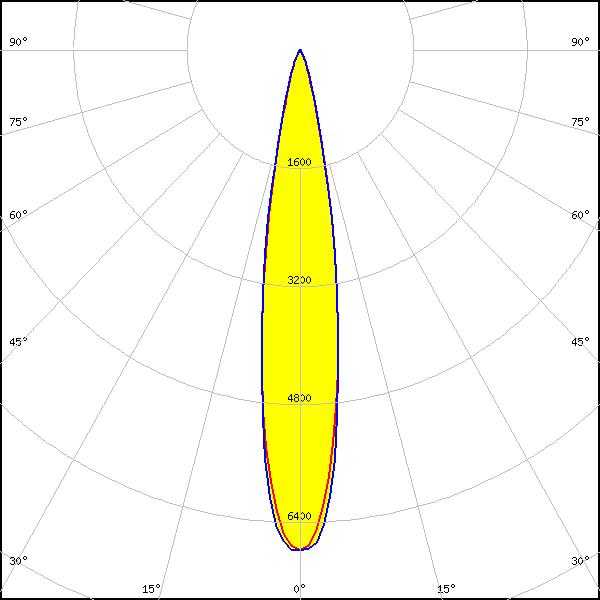

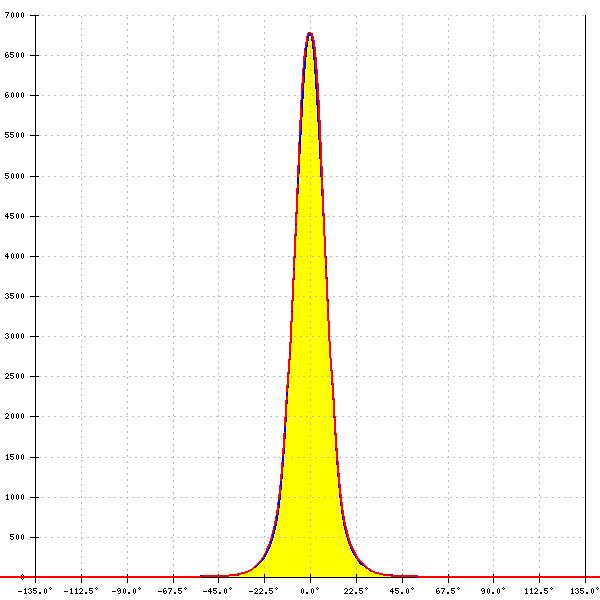

LED: CLL02x/CLU02x (LES10)
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.8 mm
Required components:
FWHM: 18°
FWTM: 36°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
Ordering code: CP19132_AMY-50-S-B2
LES size: 9.8 mm
Required components:
Green Gems: GH27d
FWHM: 17°
FWTM: 38°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

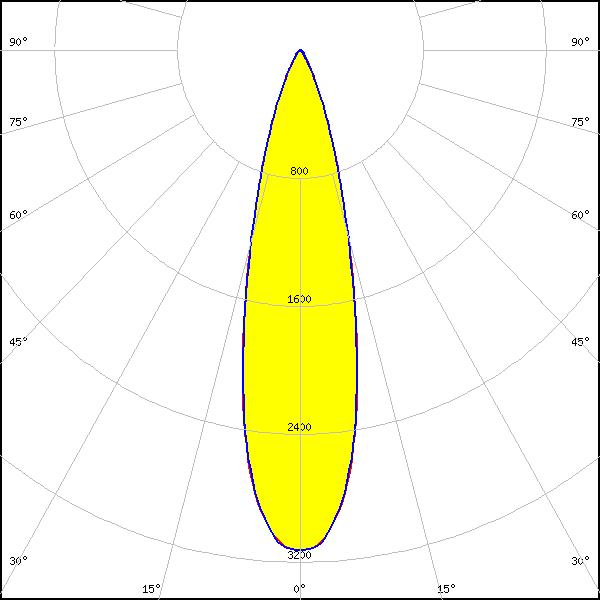

LED: CLL03x/CLU03x
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.5 mm
Required components:
FWHM: 26°
FWTM: 50°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

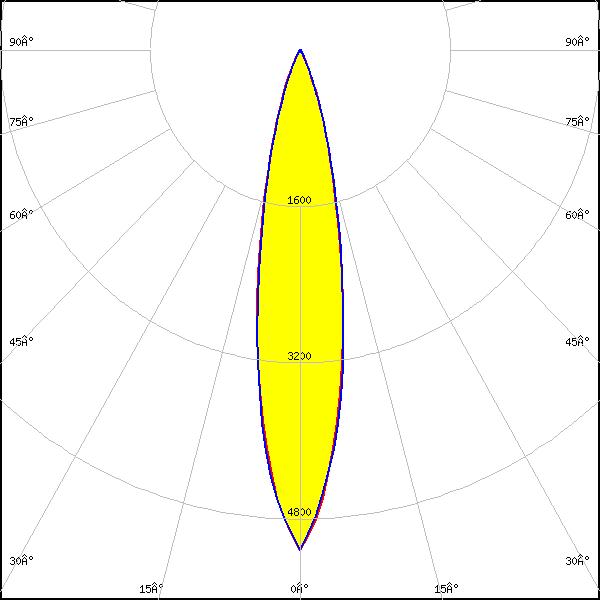

LED: CLU02Q Type-F
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.7 mm
Required components:
FWHM: 20°
FWTM: 43°
Peak intensity: 5.121 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

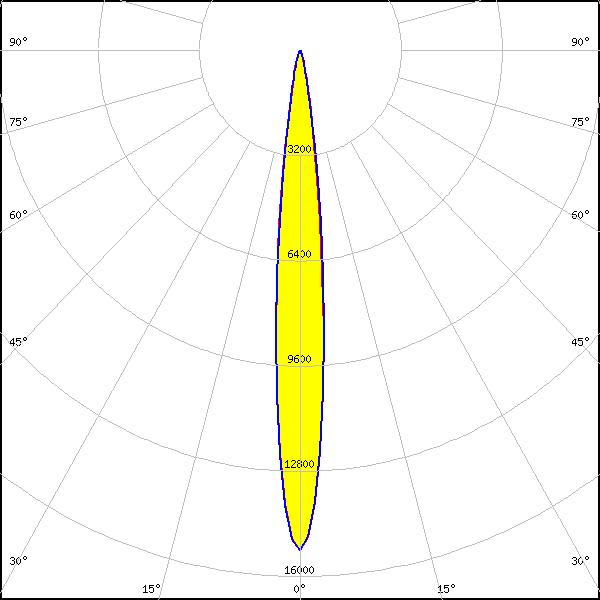

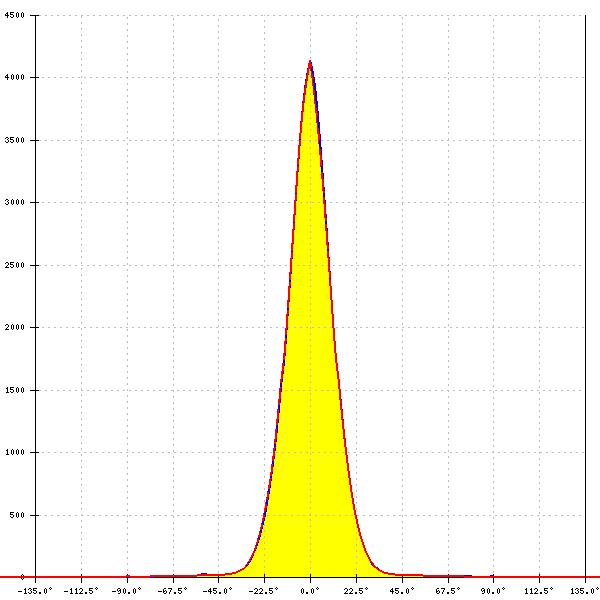

LED: CLU700/701/702/703
Ordering code: CP19132_AMY-50-S-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 12°
FWTM: 22°
Peak intensity: 15.205 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

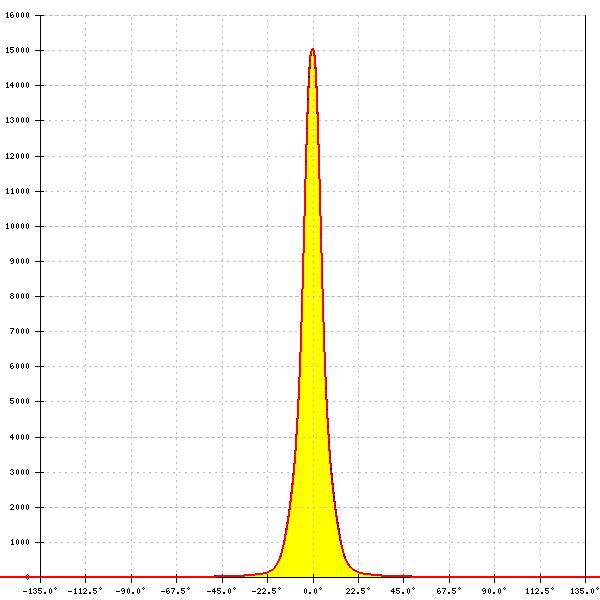

LED: CLU700/701/702/703
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.0 mm
Required components:
FWHM: 13°
FWTM: 28°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

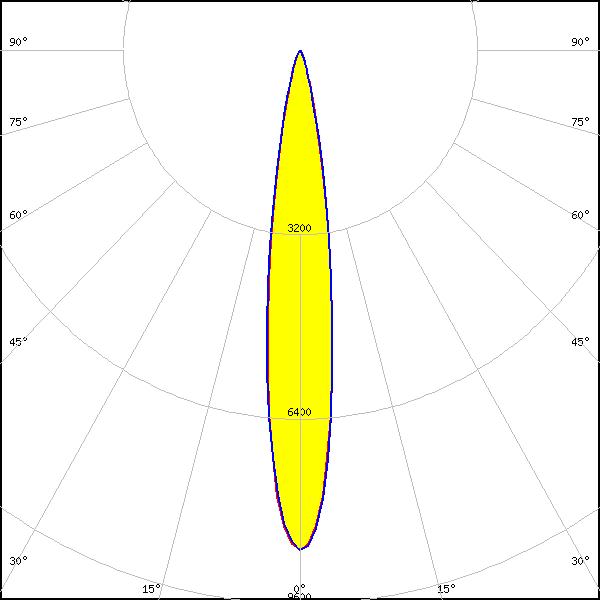

LED: CLU710/711
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.5 mm
Required components:
FWHM: 16°
FWTM: 30°
Peak intensity: 8.676 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

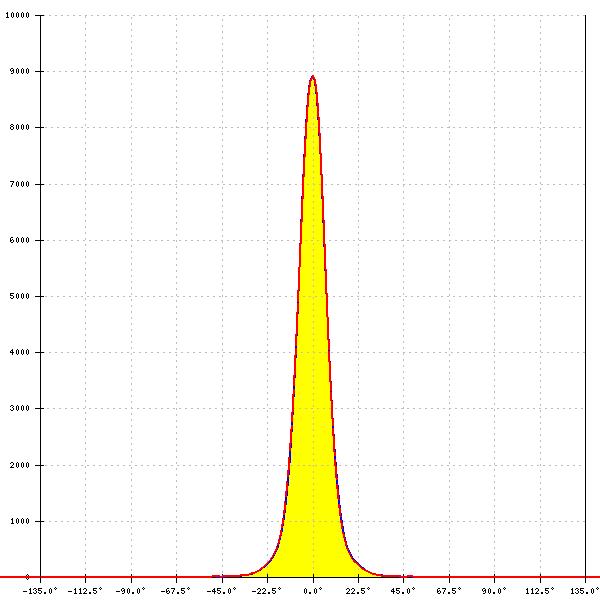

LED: CLU710/711
Ordering code: CP19132_AMY-50-S-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM: 15°
FWTM: 30°
Peak intensity: 8.931 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

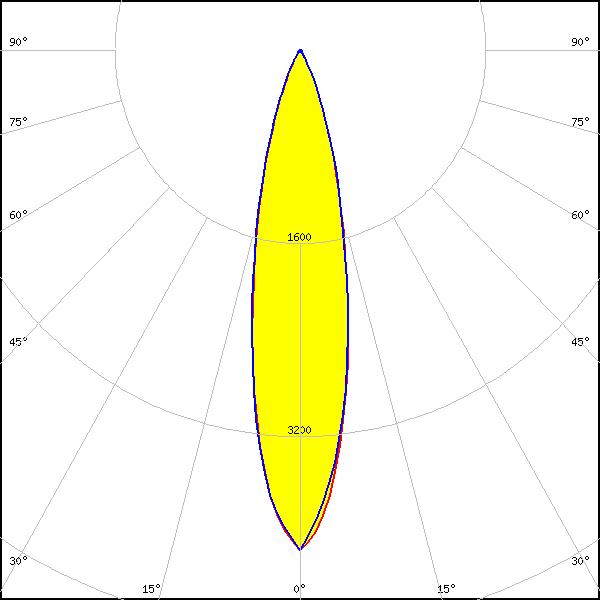

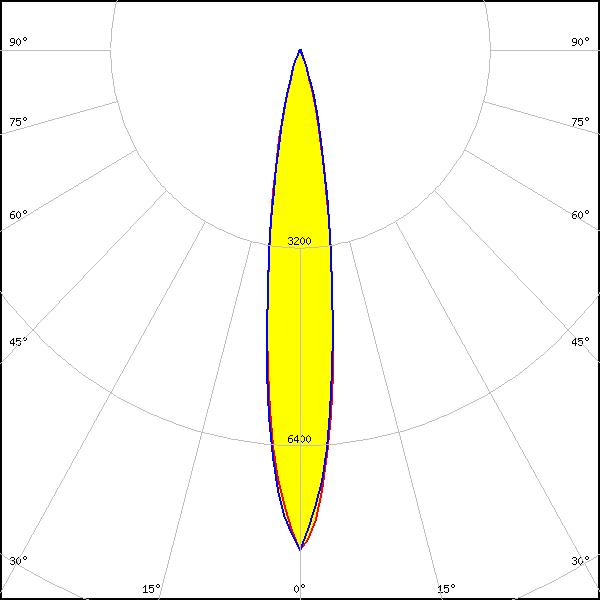

LED: CLU712/713
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.5 mm
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 8.099 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

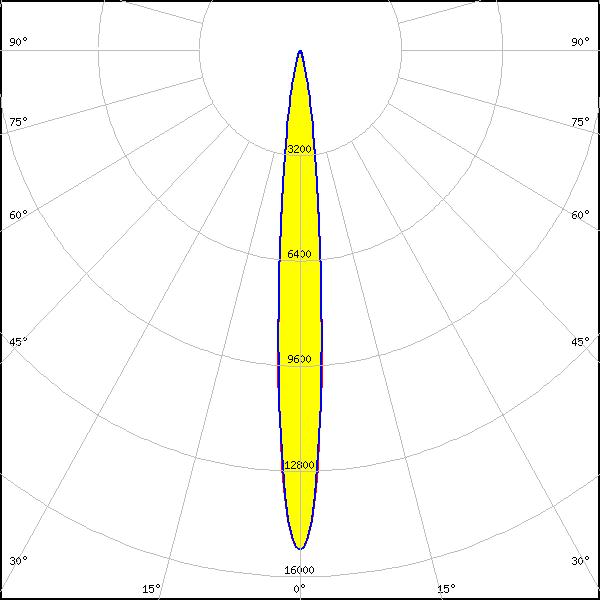

LED: CLU7A2/7A3
Ordering code: CP19123_AMY-50-S-C2
LES size: 4.2 mm
Required components:
FWHM: 10°
FWTM: 23°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

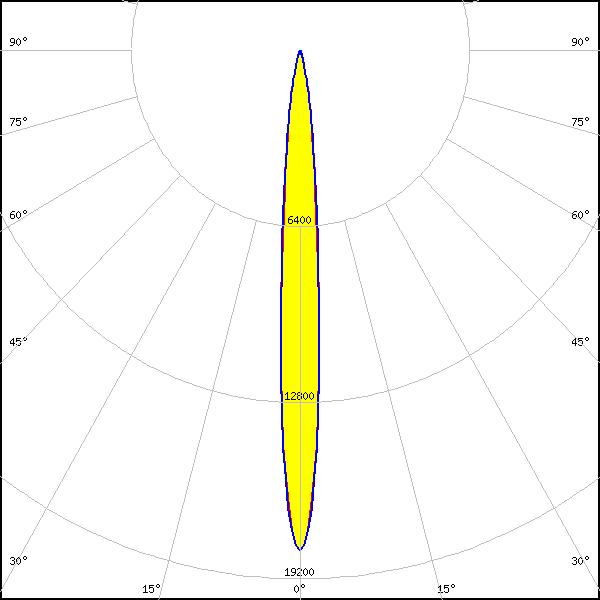

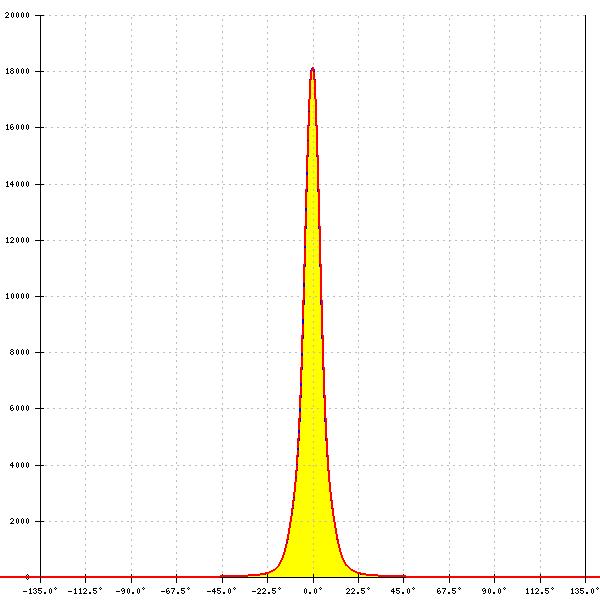

LED: CLU7B2
Ordering code: CP19123_AMY-50-S-C2
LES size: 3.3 mm
Required components:
FWHM: 9°
FWTM: 22°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

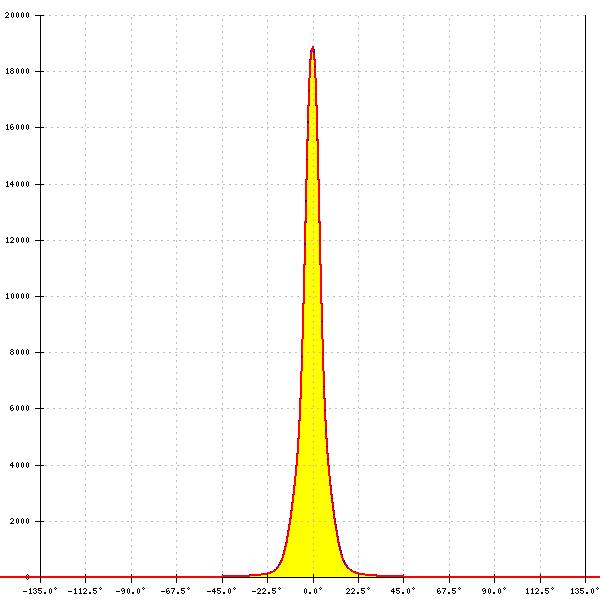

LED: CLU7L3
Ordering code: CP19132_AMY-50-S-B2
LES size: 2.4 mm
Required components:
Bender Wirth: 667a Bayonet35
FWHM: 9°
FWTM: 23°
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

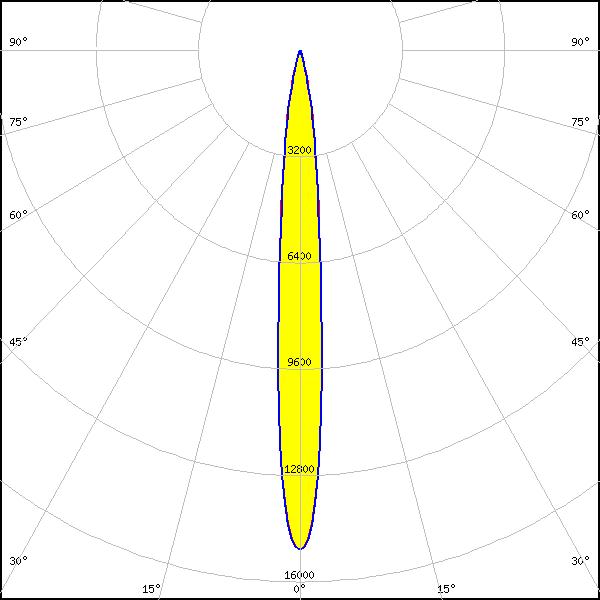

LED: CLU7S3
Ordering code: CP19132_AMY-50-S-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 667a Bayonet35
FWHM: 10°
FWTM: 25°
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

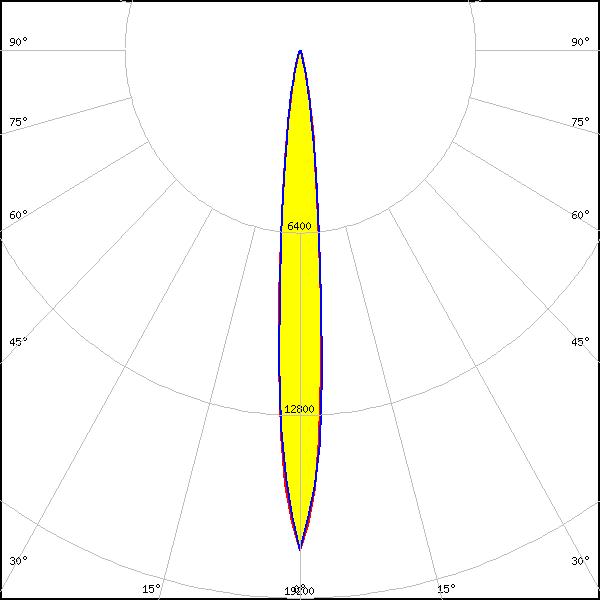

LED: CHA0304
Ordering code: CP19123_AMY-50-S-C2
LES size: 3.3 mm
Required components:
FWHM: 10°
FWTM: 22°
Peak intensity: 17.531 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

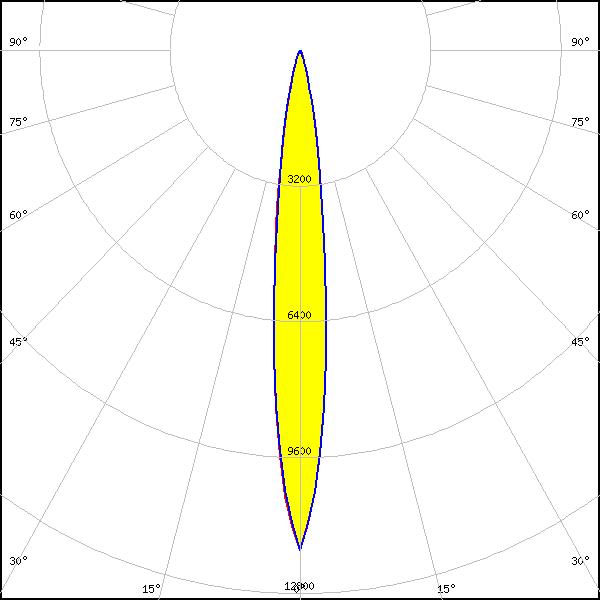

LED: CHA0612
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.0 mm
Required components:
FWHM: 12°
FWTM: 28°
Peak intensity: 11.789 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

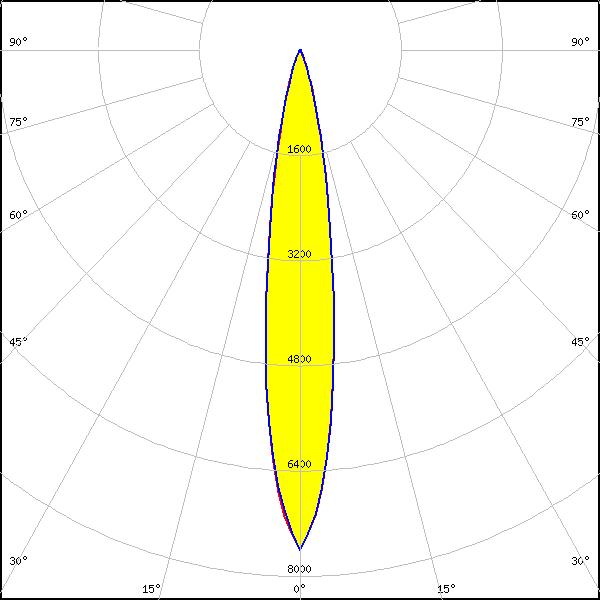

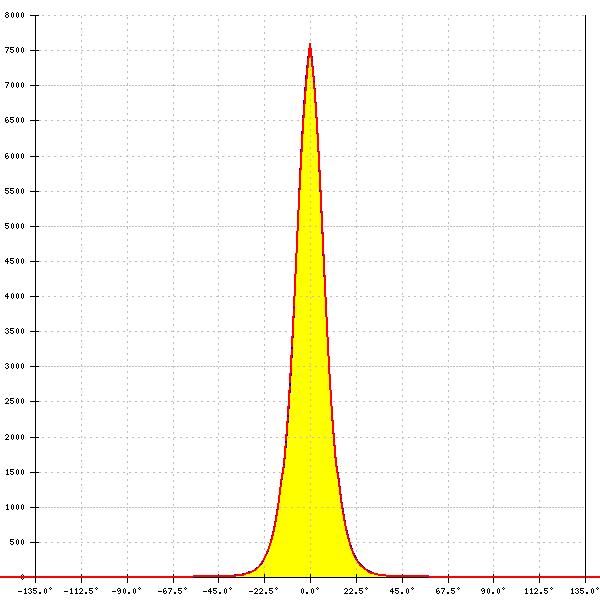

LED: CHA0825
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.5 mm
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 7.607 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

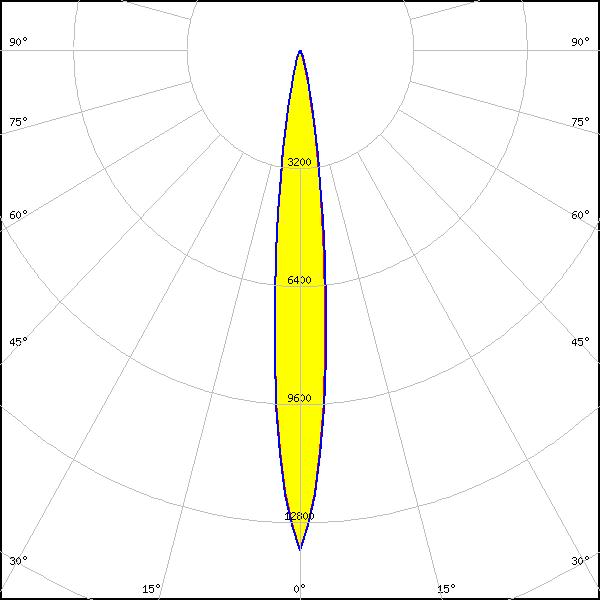

LED: CMA1306
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.0 mm
Required components:
FWHM: 12°
FWTM: 26°
Peak intensity: 13.545 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

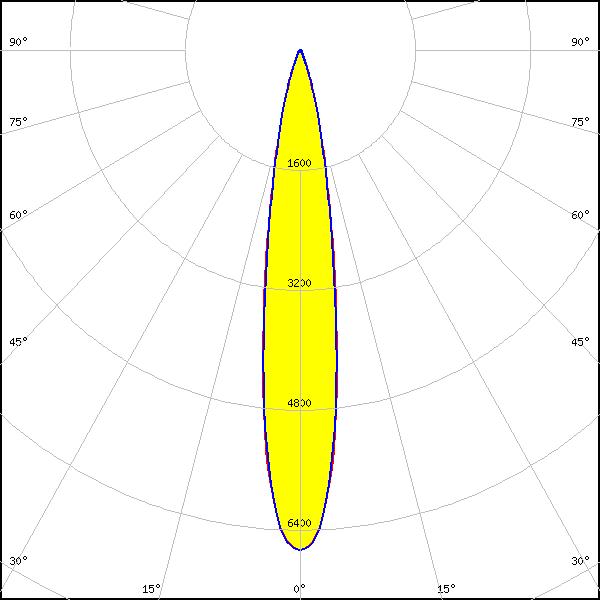

LED: CMA1516
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.0 mm
Required components:
FWHM: 17°
FWTM: 35°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

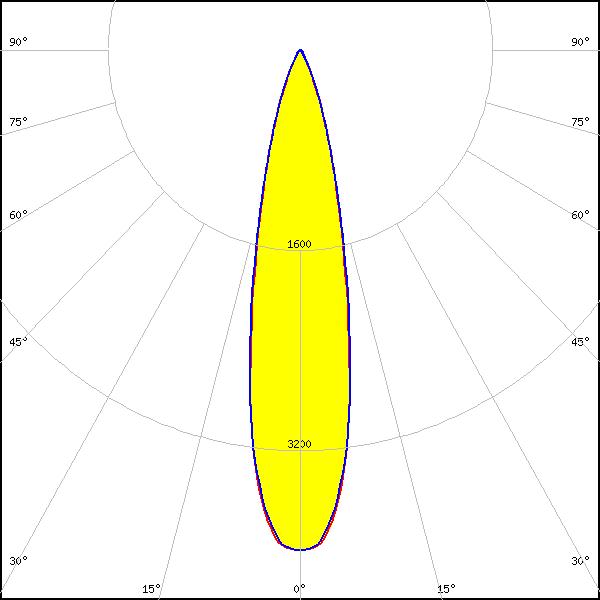

LED: CMA1825
Ordering code: CP19123_AMY-50-S-C2
LES size: 12.0 mm
Required components:
FWHM: 23°
FWTM: 45°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT14xx
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.8 mm
Required components:
FWHM: 18°
FWTM: 37°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

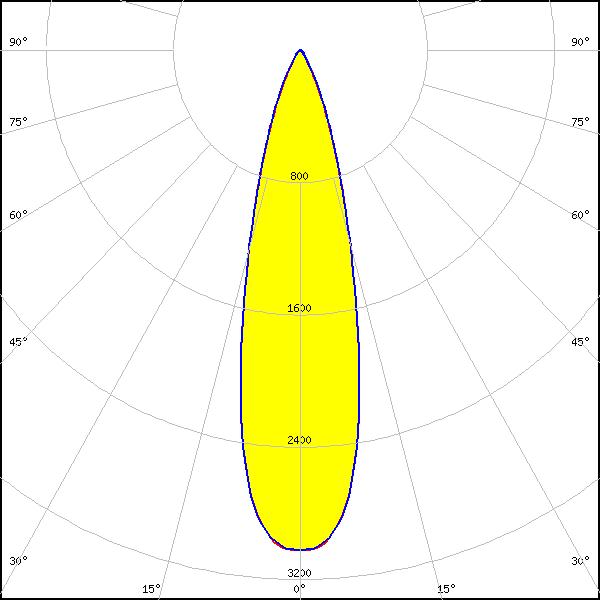

LED: CMT19xx
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.5 mm
Required components:
FWHM: 26°
FWTM: 51°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

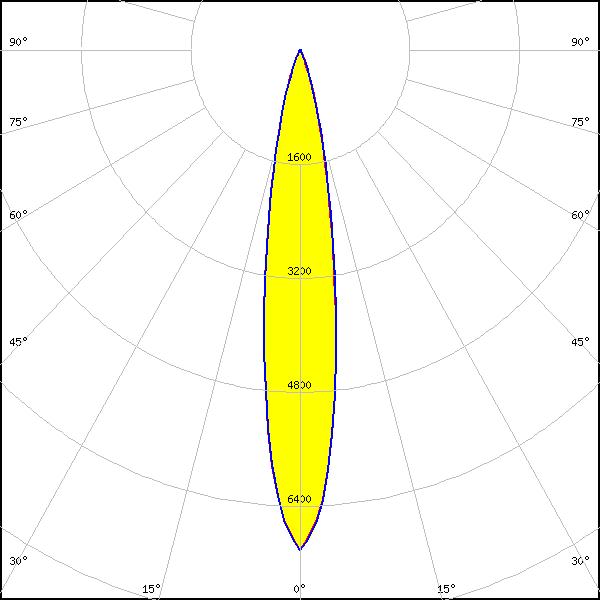

LED: CMU10xx
Ordering code: CP19132_AMY-50-S-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 16°
FWTM: 36°
Peak intensity: 7.019 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

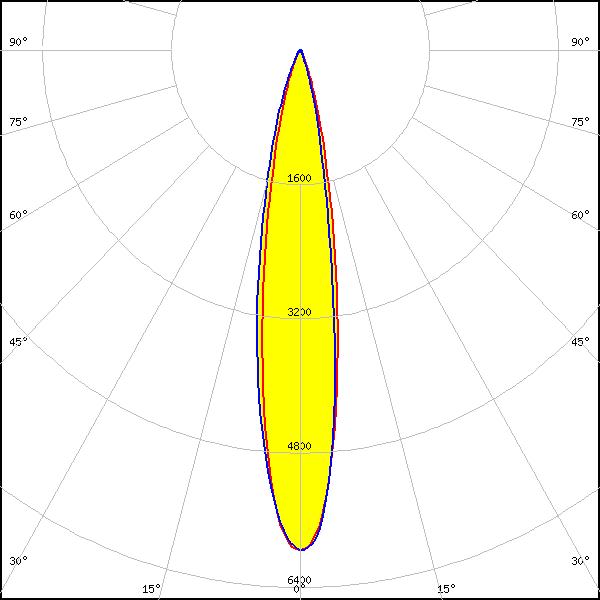

LED: CMU10xx
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.8 mm
Required components:
FWHM: 18°
FWTM: 37°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

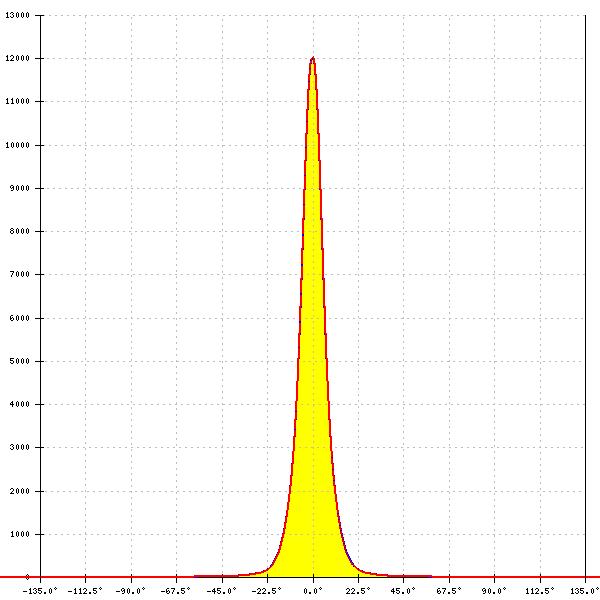

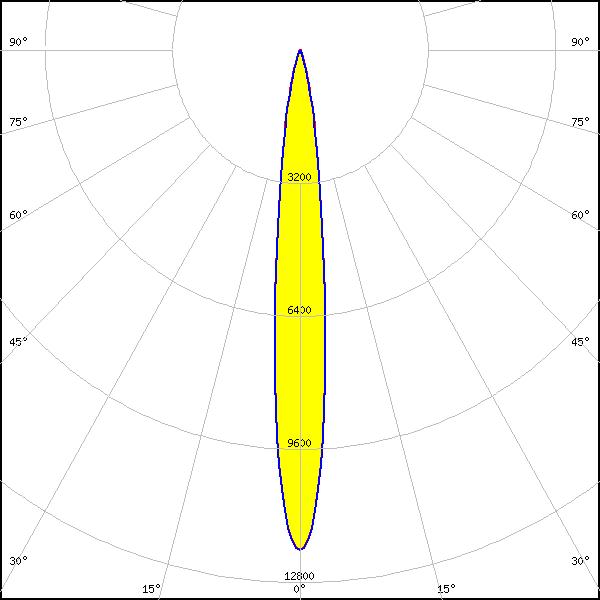

LED: CXA/B 13xx
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.0 mm
Required components:
FWHM: 12°
FWTM: 27°
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

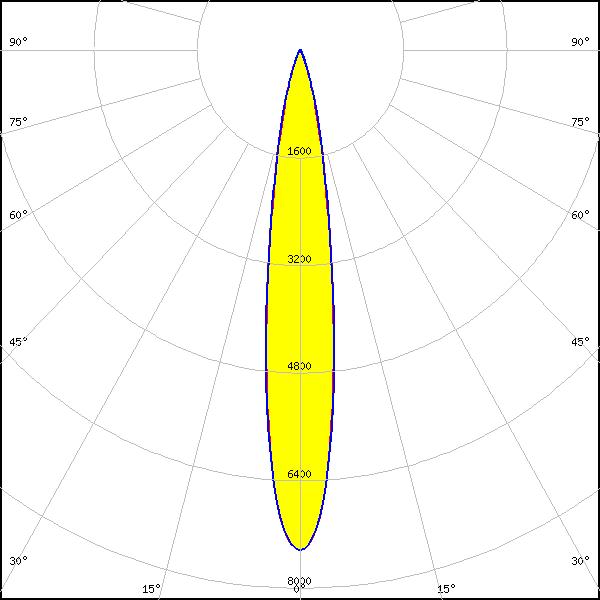

LED: CXA/B 15xx
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.9 mm
Required components:
FWHM: 15°
FWTM: 34°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

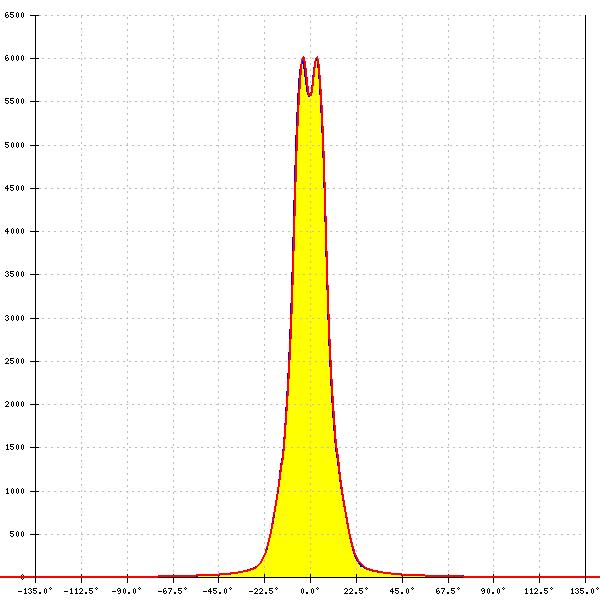

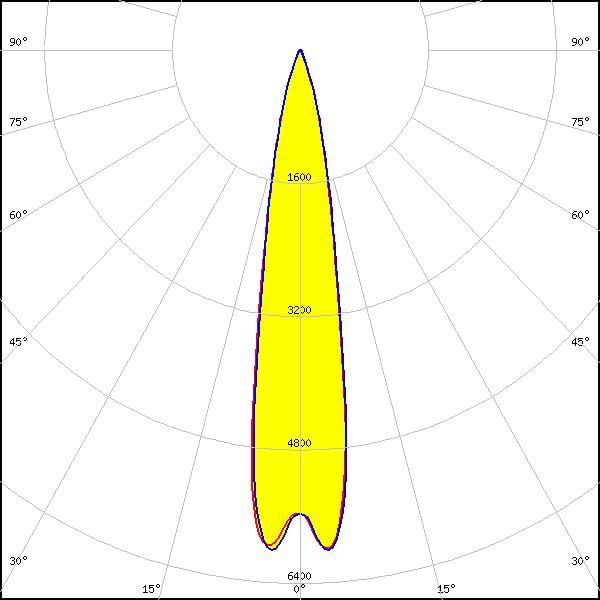

LED: LEDIM/C6
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.0 mm
Required components:
FWHM: 19°
FWTM: 37°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

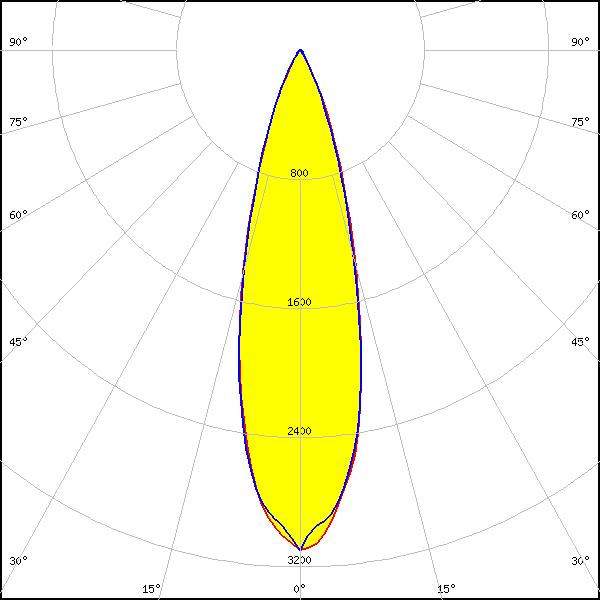

LED: LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 28°
FWTM: 52°
Peak intensity: 3.098 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

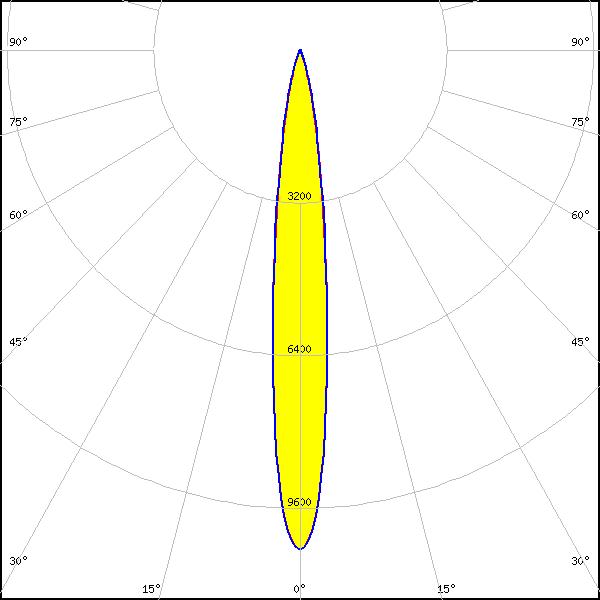

LED: LUXEON 7070
Ordering code: CP19132_AMY-50-S-B2
LES size: 0.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 13°
FWTM: 29°
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

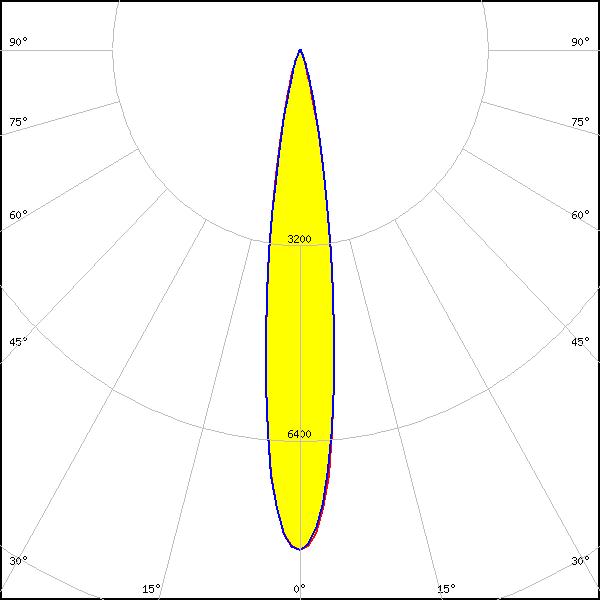

LED: LUXEON CoB 1202/1203
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.0 mm
Required components:
FWHM: 17°
FWTM: 35°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

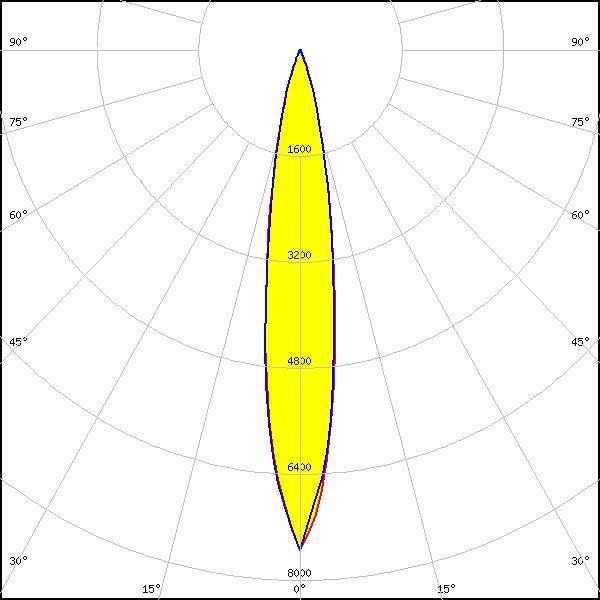

LED: LUXEON CoB 1204HD
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.0 mm
Required components:
FWHM: 17°
FWTM: 35°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

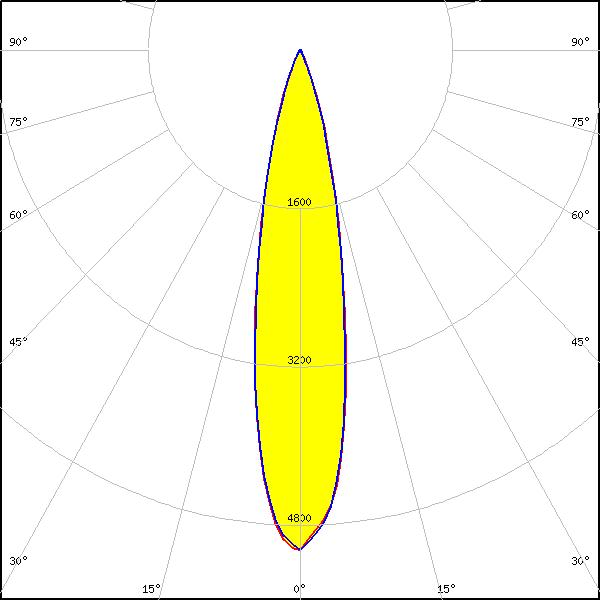

LED: LUXEON CoB 1205HD
Ordering code: CP19123_AMY-50-S-C2
LES size: 11.0 mm
Required components:
FWHM: 22°
FWTM: 42°
Peak intensity: 5.053 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

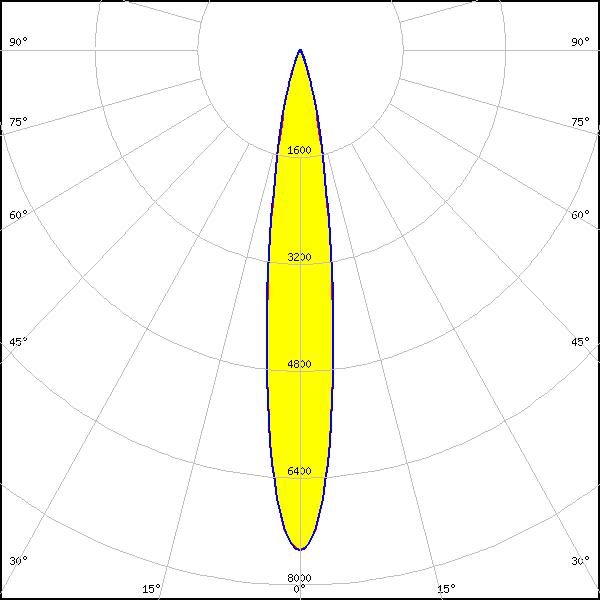

LED: LUXEON CoB M02/M03
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.5 mm
Required components:
FWHM: 16°
FWTM: 34°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

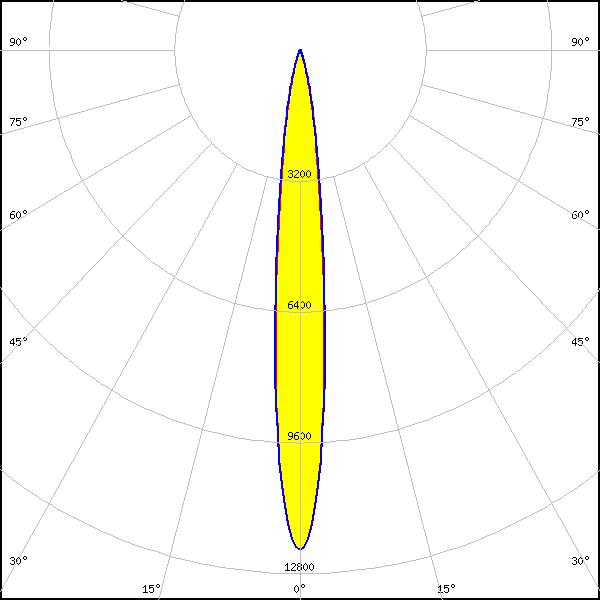

LED: LUXEON CoB S01
Ordering code: CP19123_AMY-50-S-C2
LES size: 5.5 mm
Required components:
FWHM: 12°
FWTM: 27°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

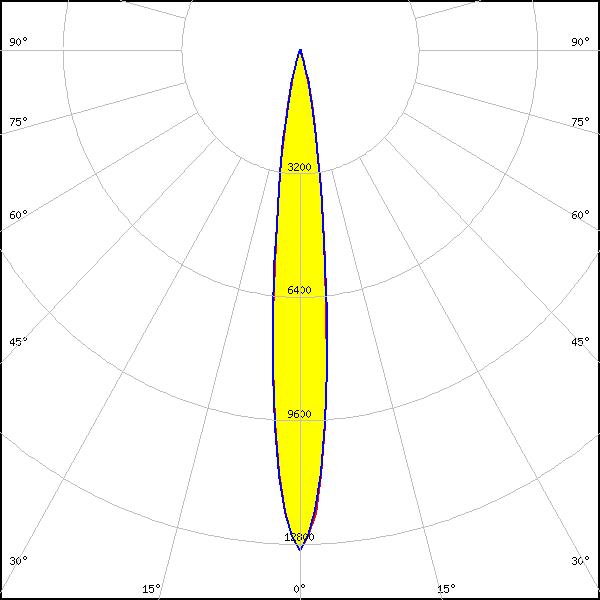

LED: LUXEON CX Plus CoB - HD S01H4
Ordering code: CP19132_AMY-50-S-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 12°
FWTM: 27°
Peak intensity: 12.958 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

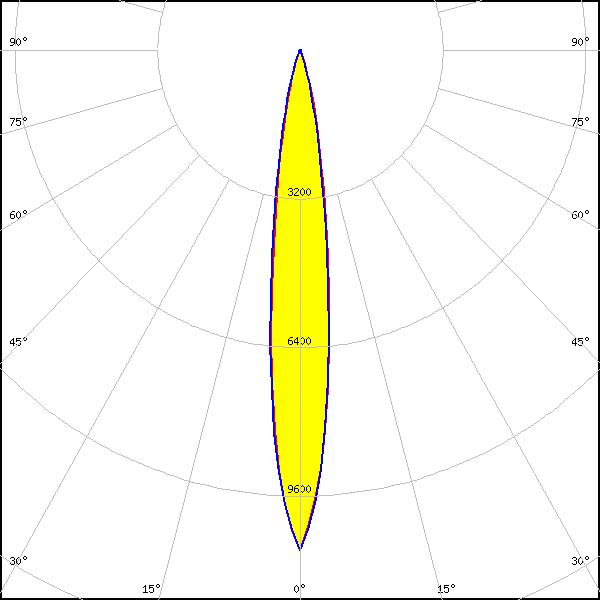

LED: LUXEON CX Plus CoB - HD S02H6
Ordering code: CP19132_AMY-50-S-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 14°
FWTM: 30°
Peak intensity: 10.768 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

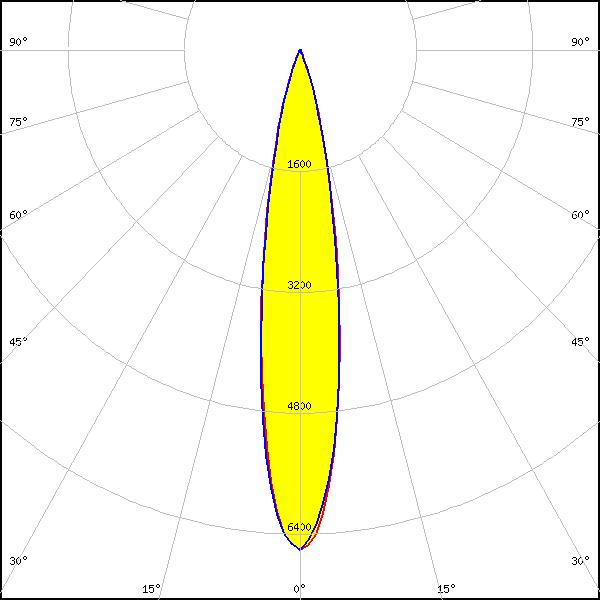

LED: LUXEON CX Plus CoB - HD S04H9
Ordering code: CP19132_AMY-50-S-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 18°
FWTM: 37°
Peak intensity: 6.615 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP19123_AMY-50-S-C2
LES size: 12.0 mm
Required components:
FWHM: 22°
FWTM: 44°
Peak intensity: 4.441 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

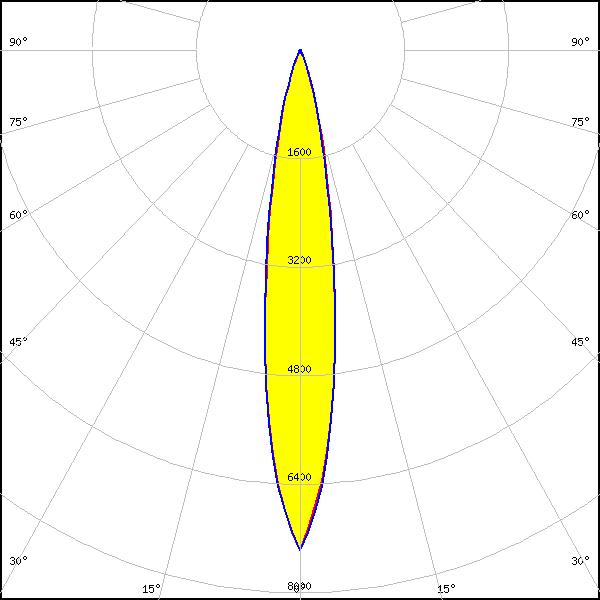

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.0 mm
Required components:
FWHM: 16°
FWTM: 36°
Peak intensity: 7.375 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

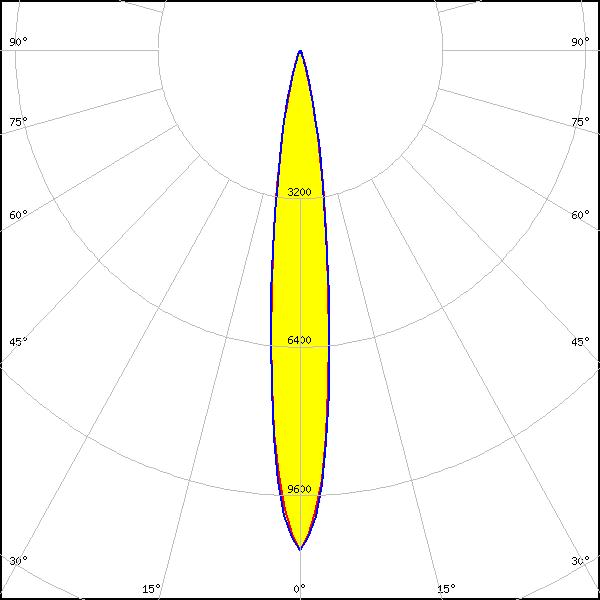

LED: LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.0 mm
Required components:
FWHM: 14°
FWTM: 30°
Peak intensity: 10.780 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

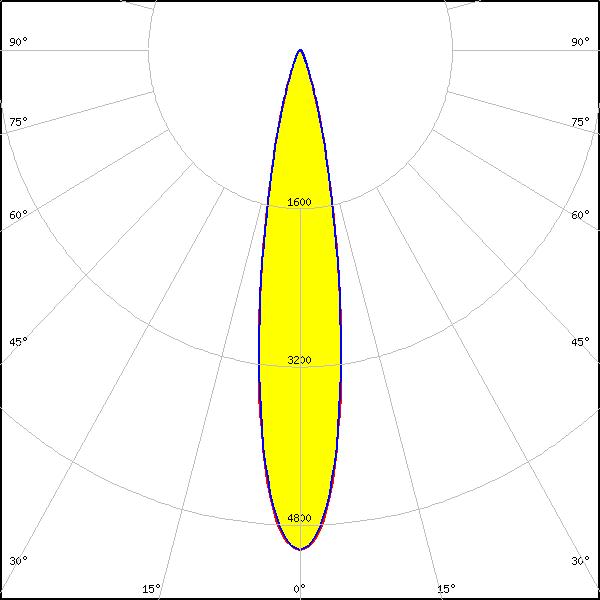

LED: LUXEON Fusion 12-up (20x24)
Ordering code: CP19123_AMY-50-S-C2
LES size: 7.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
F18158_HEKLA-RZ-LENS
FWHM: 19°
FWTM: 38°
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

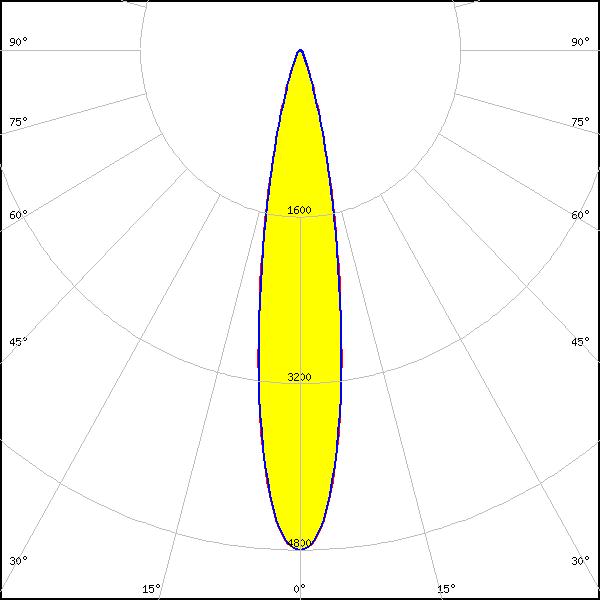

LED: LUXEON Fusion 21-up (20x24)
Ordering code: CP19123_AMY-50-S-C2
LES size: 7.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
F18158_HEKLA-RZ-LENS
FWHM: 19°
FWTM: 38°
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

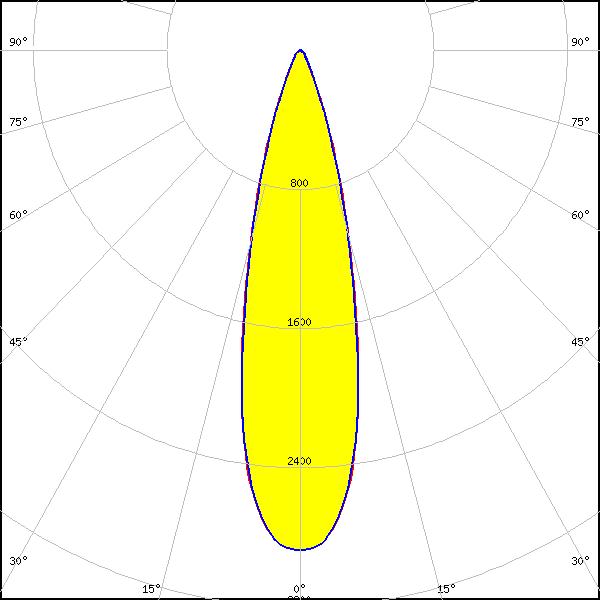

LED: LUXEON Fusion 27-up (20x24)
Ordering code: CP19123_AMY-50-S-C2
LES size: 10.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
F18158_HEKLA-RZ-LENS
FWHM: 26°
FWTM: 48°
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

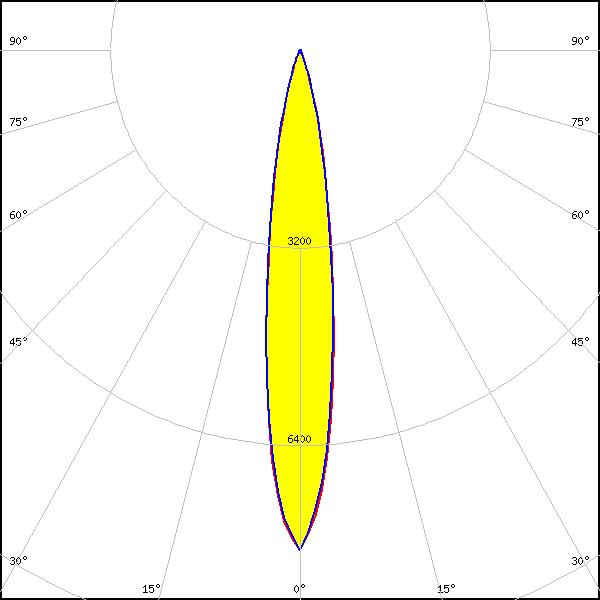

LED: CHM-9 XH (19x19)
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.0 mm
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 8.095 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

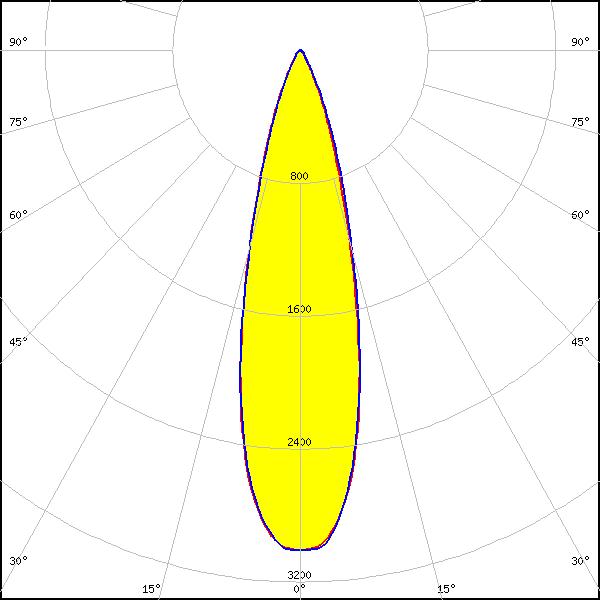

LED: CTM-14 (Tunable White) Gen2
Ordering code: CP19123_AMY-50-S-C2
LES size: 13.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 27°
FWTM: 50°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

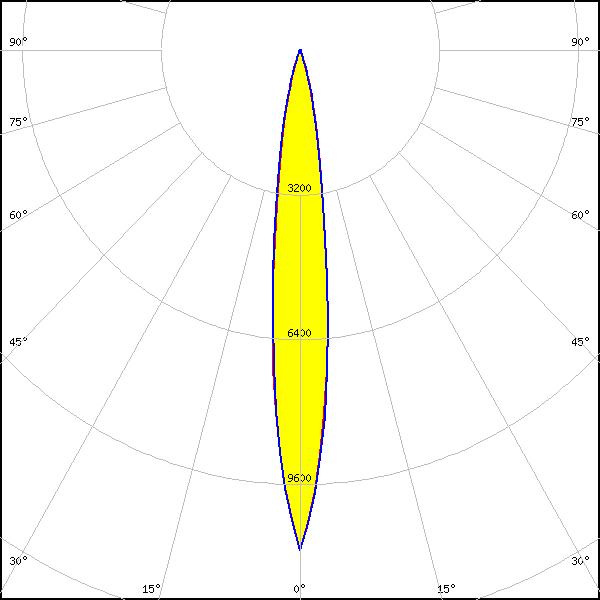

LED: CTM-6 (Tunable White) Gen2
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 14°
FWTM: 30°
Peak intensity: 11.056 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: CTM-9 (Tunable White)
Ordering code: CP19132_AMY-50-S-B2
LES size: 9.5 mm
Required components:
Bender Wirth: 495 Typ B35L
FWHM: 19°
FWTM: 41°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-9 (Tunable White) Gen2
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 16°
FWTM: 34°
Peak intensity: 7.548 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: Tunable White

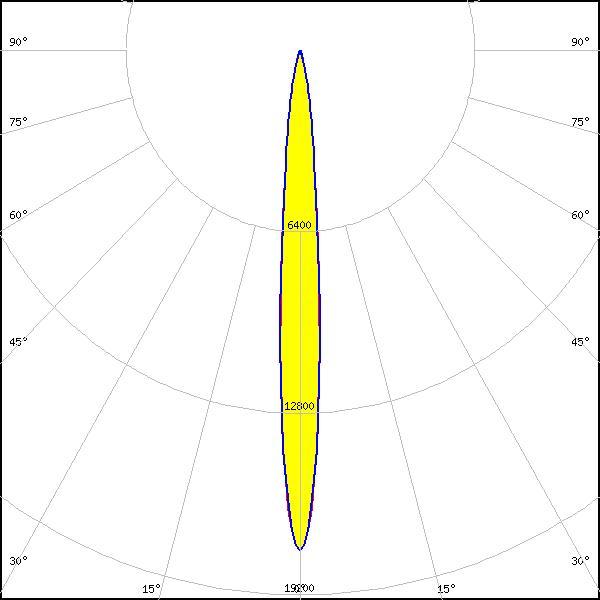

LED: CXM-3
Ordering code: CP19123_AMY-50-S-C2
LES size: 3.5 mm
Required components:
FWHM: 10°
FWTM: 22°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

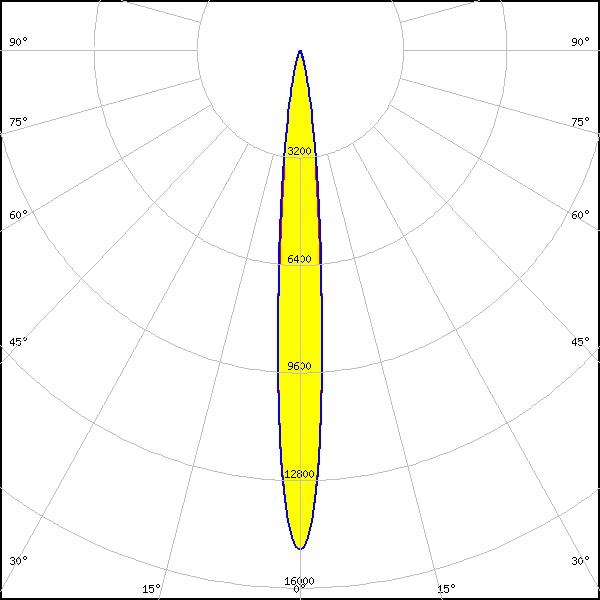

LED: CXM-4
Ordering code: CP19123_AMY-50-S-C2
LES size: 4.5 mm
Required components:
FWHM: 10°
FWTM: 24°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-6 (13.5x13.5)
Ordering code: CP19132_AMY-50-S-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM: 13°
FWTM: 28°
Peak intensity: 11.972 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
Ordering code: CP19150_AMY-50-S-B2-WHT
LES size: 9.8 mm
Required components:
FWHM: 18°
FWTM: 38°
Peak intensity: 6.333 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

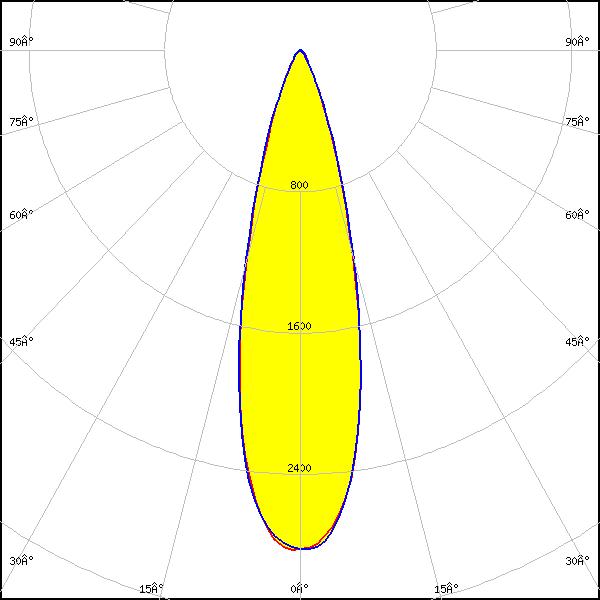

LED: COB J-Type
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM: 28°
FWTM: 50°
Peak intensity: 2.852 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

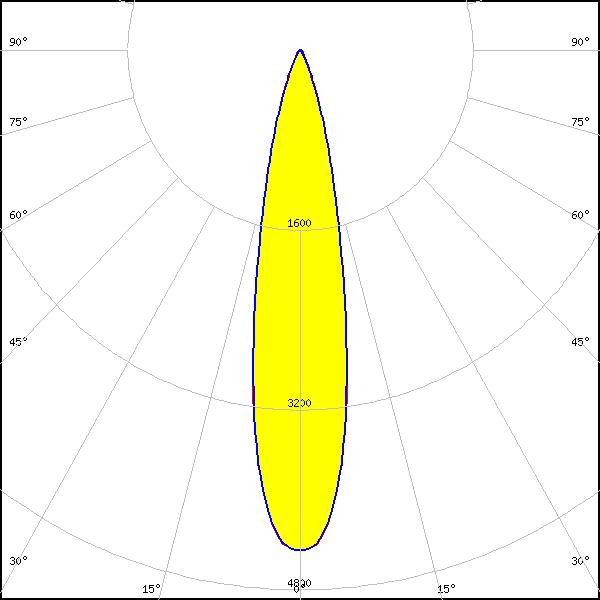

LED: COB L-Type (LES 11)
Ordering code: CP19123_AMY-50-S-C2
LES size: 11.5 mm
Required components:
FWHM: 22°
FWTM: 43°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

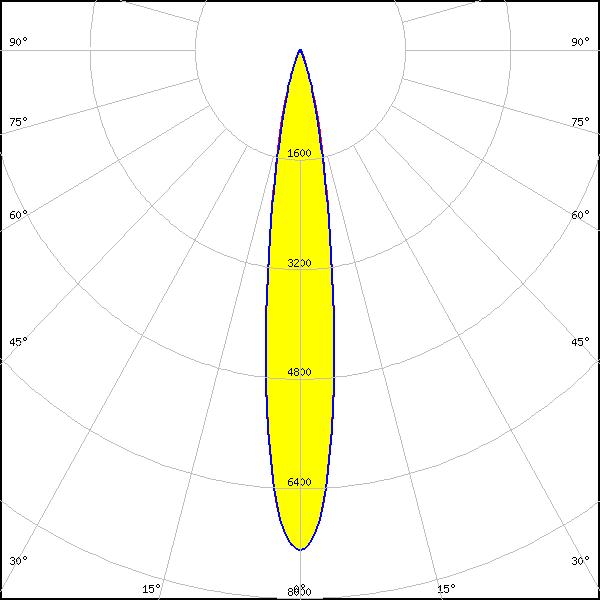

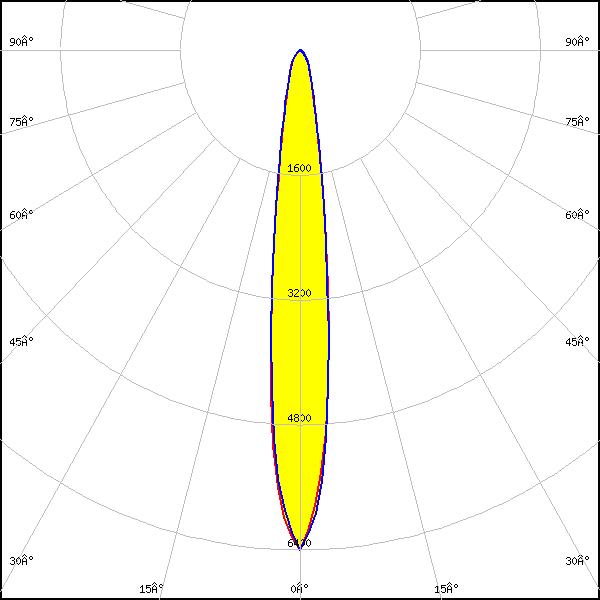

LED: COB L-Type (LES 9)
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.7 mm
Required components:
Bender Wirth: 638a Hekla
FWHM: 14°
FWTM: 34°
Peak intensity: 6.408 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
Ordering code: CP19132_AMY-50-S-B2
LES size: 8.7 mm
Required components:
BJB: 47.360.1110
FWHM: 16°
FWTM: 34°
Peak intensity: 8.139 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
Ordering code: CP19123_AMY-50-S-C2
LES size: 8.7 mm
Required components:
FWHM: 16°
FWTM: 34°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 6)
Ordering code: CP19132_AMY-50-S-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 14°
FWTM: 30°
Peak intensity: 10.987 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Ordering code: CP19132_AMY-50-S-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 14°
FWTM: 30°
Peak intensity: 9.854 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

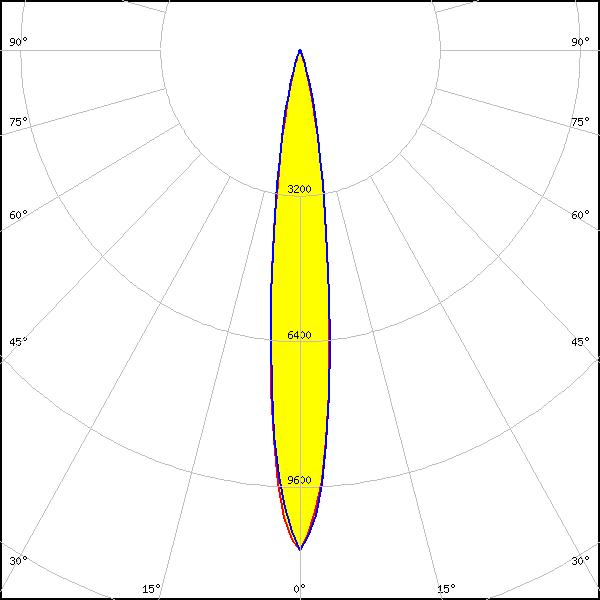

LED: COB S-Type (LES 7)
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Hekla
FWHM: 14°
FWTM: 30°
Peak intensity: 10.206 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

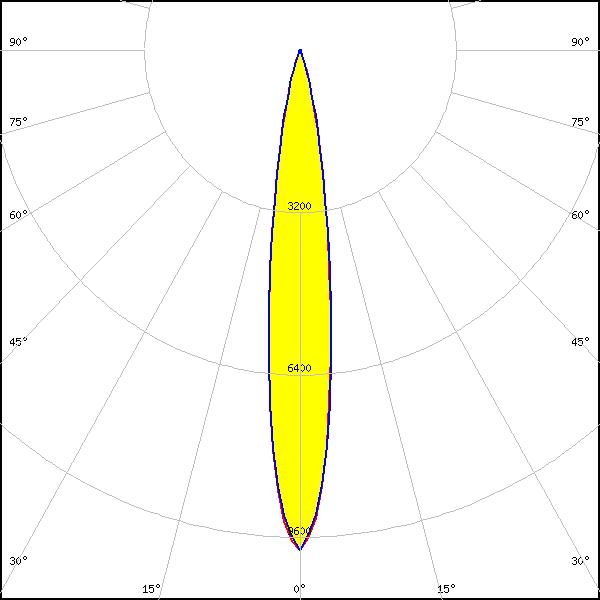

LED: COB S-Type (LES 7)
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.7 mm
Required components:
FWHM: 13°
FWTM: 29°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

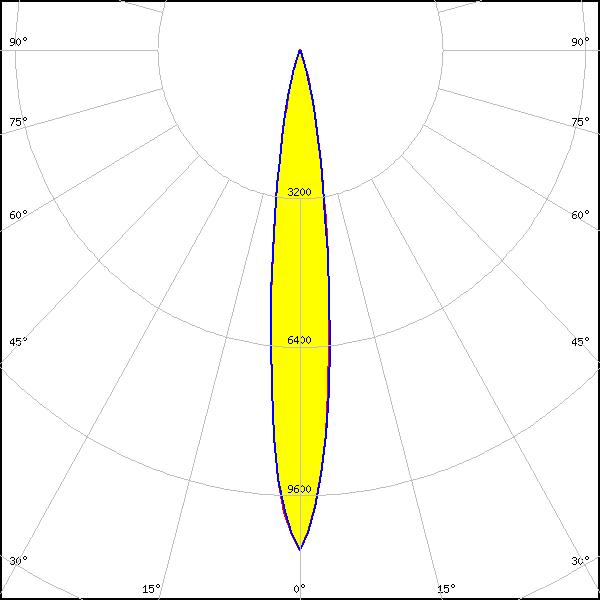

LED: COB T-Type
Ordering code: CP19132_AMY-50-S-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 14°
FWTM: 30°
Peak intensity: 10.777 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

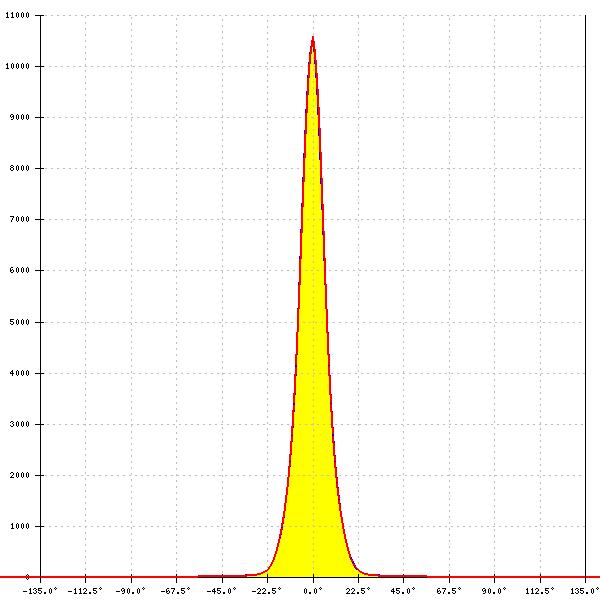

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP19123_AMY-50-S-C2
LES size: 7.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8 HV
FWHM: 14°
FWTM: 30°
Peak intensity: 10.592 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: Tunable White

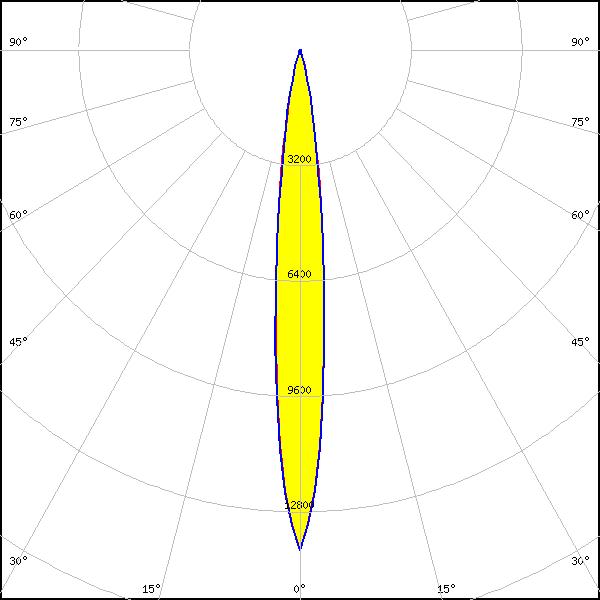

LED: NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP19123_AMY-50-S-C2
LES size: 5.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8 HV
FWHM: 12°
FWTM: 26°
Peak intensity: 13.865 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP19123_AMY-50-S-C2
LES size: 10.6 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8 HV
FWHM: 18°
FWTM: 38°
Peak intensity: 5.831 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Fortimo SLM C TW L06A 1313 G7N
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 508 Typ L8
FWHM: 13°
FWTM: 27°
Peak intensity: 10.922 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Fortimo SLM C TW L09A 1919 G7N
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 18°
FWTM: 36°
Peak intensity: 6.077 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: Tunable White

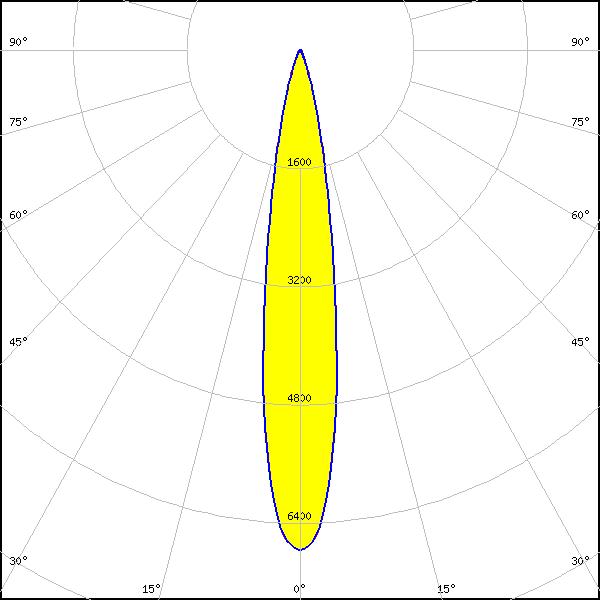

LED: Fortimo SLM L09 CoB
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.0 mm
Required components:
FWHM: 17°
FWTM: 35°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

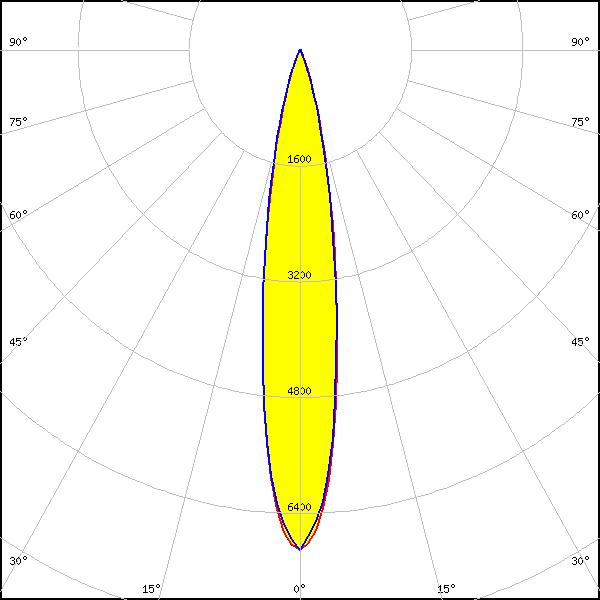

LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP19132_AMY-50-S-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 18°
FWTM: 36°
Peak intensity: 6.911 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

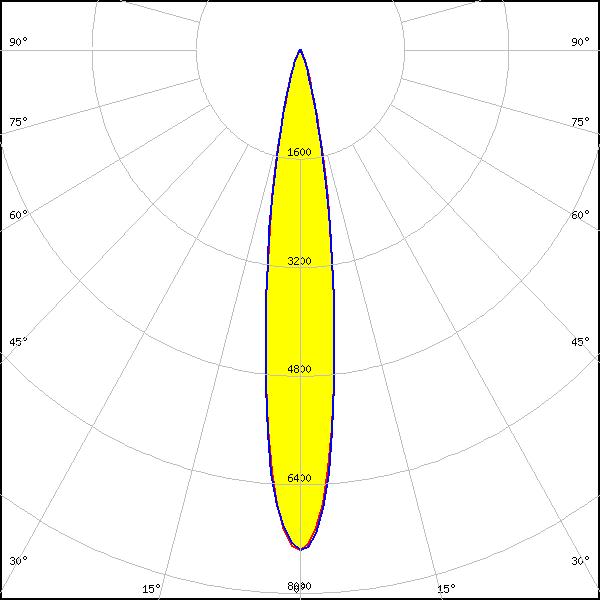

LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.8 mm
Required components:
FWHM: 17°
FWTM: 36°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LC010C G2
Ordering code: CP19132_AMY-50-S-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 12°
FWTM: 28°
Peak intensity: 12.016 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LC010T (Tunable White)
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 15°
FWTM: 32°
Peak intensity: 8.861 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.5 mm
Required components:
FWHM: 28°
FWTM: 55°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

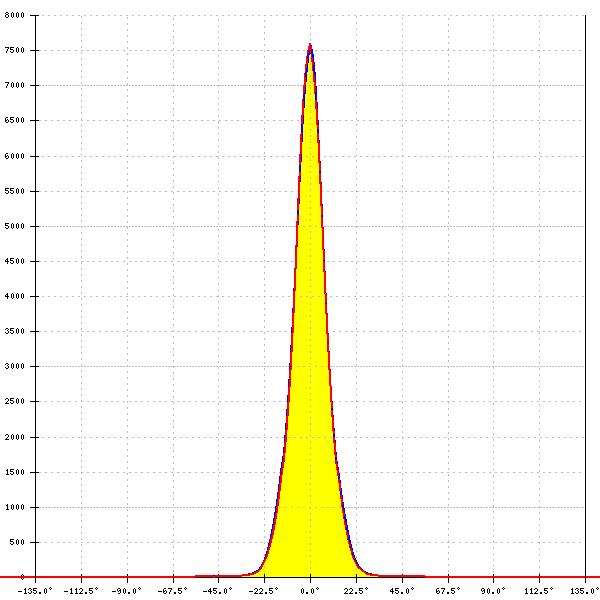

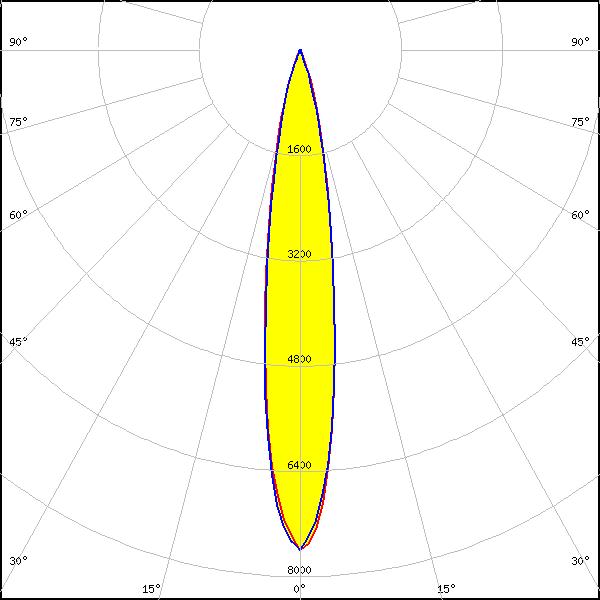

LED: LC020C G2
Ordering code: CP19132_AMY-50-S-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM: 16°
FWTM: 35°
Peak intensity: 7.599 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

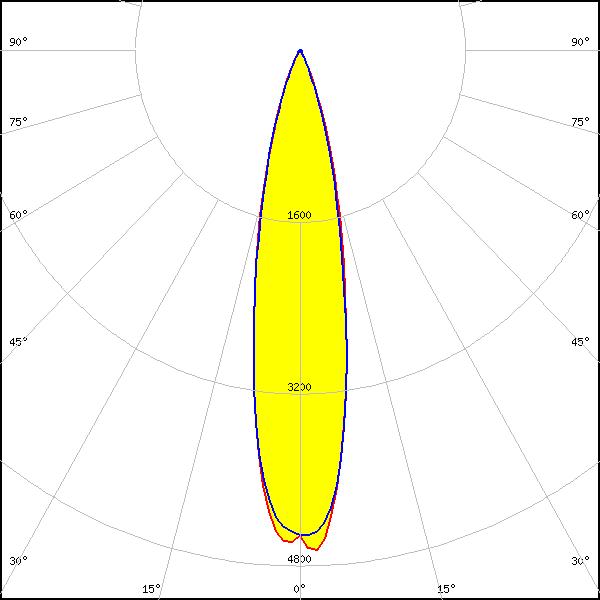

LED: LC030C/040C G2
Ordering code: CP19132_AMY-50-S-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM: 22°
FWTM: 44°
Peak intensity: 4.670 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

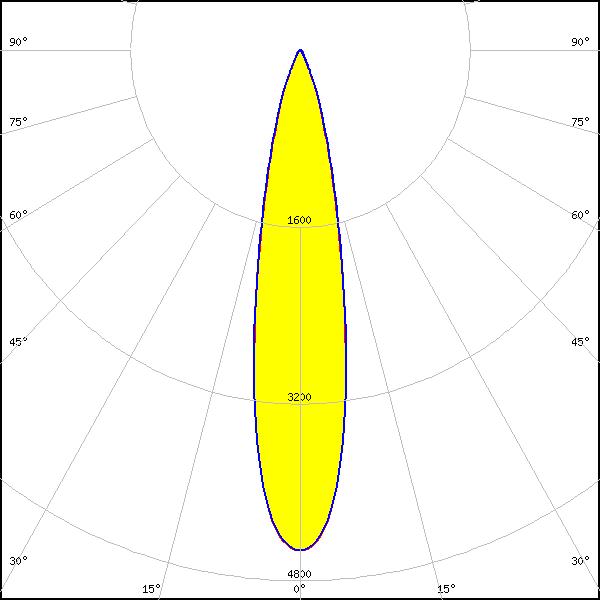

LED: LC030C/040C G2
Ordering code: CP19123_AMY-50-S-C2
LES size: 11.5 mm
Required components:
FWHM: 21°
FWTM: 42°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

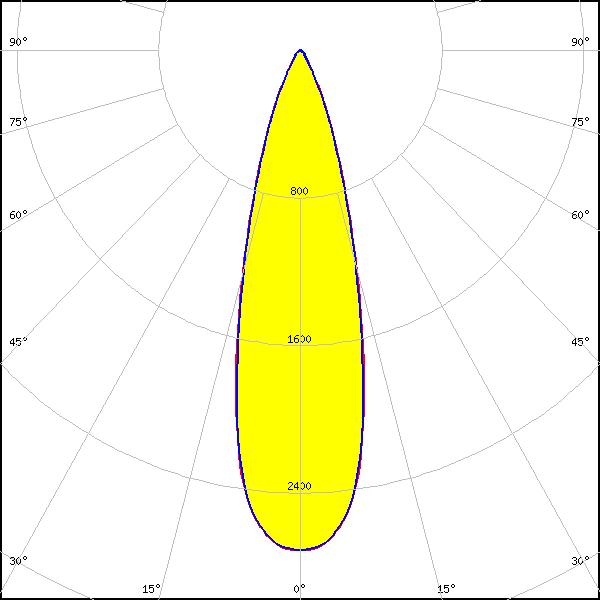

LED: MJT COB LES 14.5
Ordering code: CP19123_AMY-50-S-C2
LES size: 14.5 mm
Required components:
FWHM: 28°
FWTM: 53°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 6
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.0 mm
Required components:
FWHM: 12°
FWTM: 27°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 9.8
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.8 mm
Required components:
FWHM: 18°
FWTM: 37°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

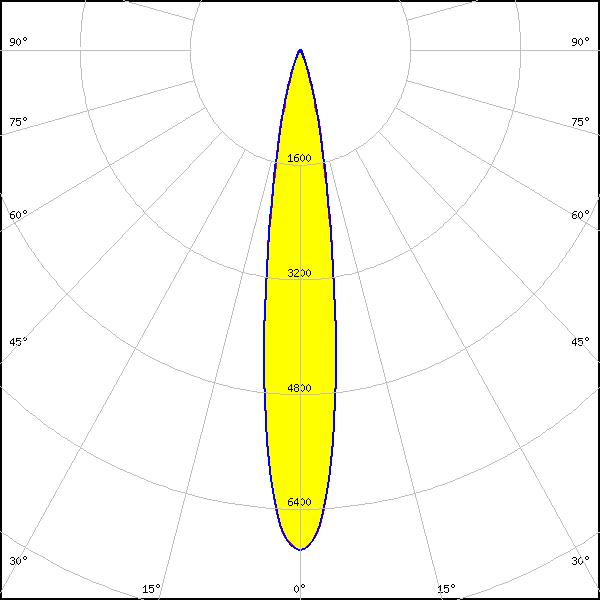

LED: SLE G7 LES09
Ordering code: CP19123_AMY-50-S-C2
LES size: 9.0 mm
Required components:
FWHM: 16°
FWTM: 34°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES13
Ordering code: CP19123_AMY-50-S-C2
LES size: 13.0 mm
Required components:
FWHM: 25°
FWTM: 48°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

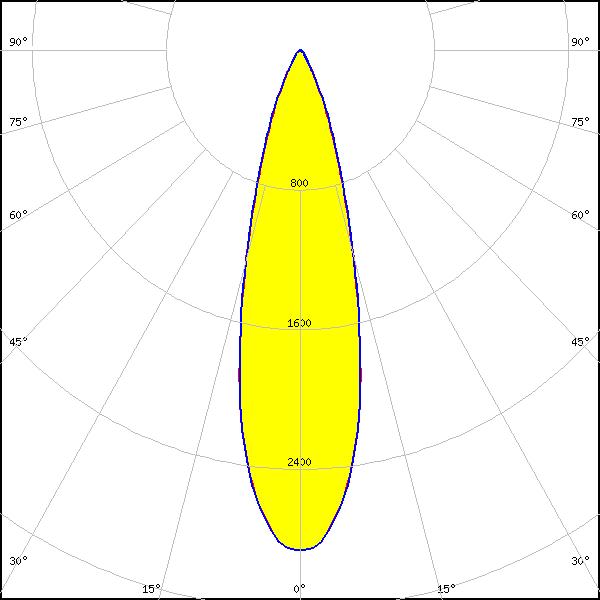

LED: SLE G7 LES15
Ordering code: CP19123_AMY-50-S-C2
LES size: 15.0 mm
Required components:
FWHM: 27°
FWTM: 53°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE SNC8 LES06
Ordering code: CP19123_AMY-50-S-C2
LES size: 6.0 mm
Required components:
FWHM: 12°
FWTM: 28°
Peak intensity: 12.170 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
