AMY-50-WW
Print
~60° wide beam
Variants in PC are also available.
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Component Materials
- AMY-50-WWSingle lensPMMA
- AMY-50-HLD2-C-WHTHolderPC
- AMY-50-HLD2-CHolderPC
- AMY-50-HLD2-B-WHTHolderPC
- AMY-50-HLD2-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

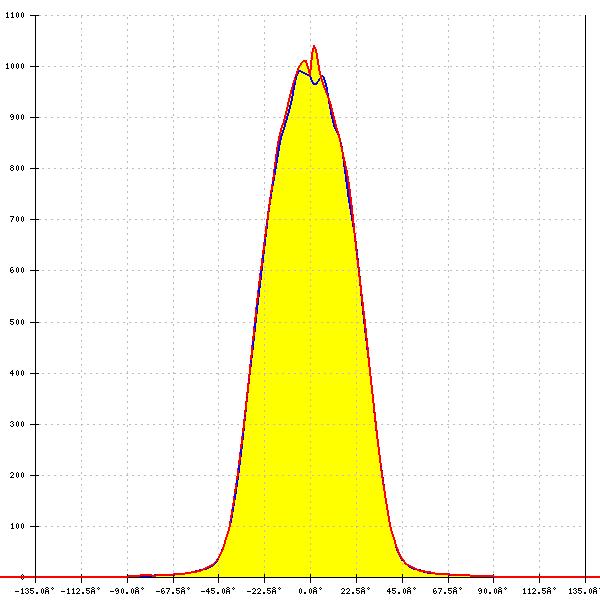

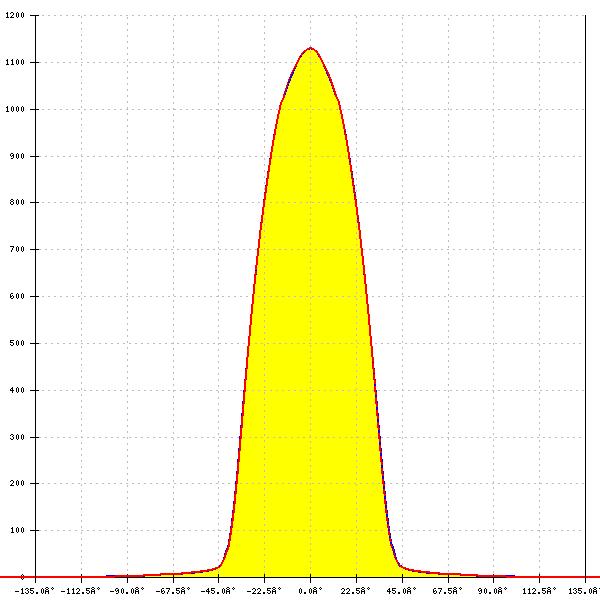

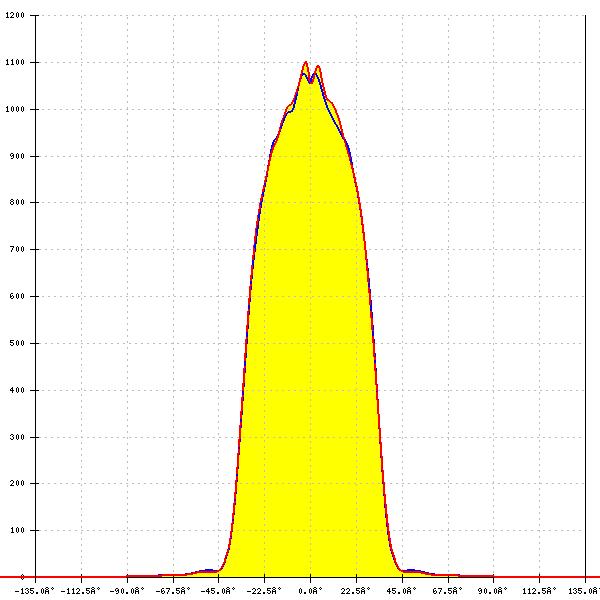

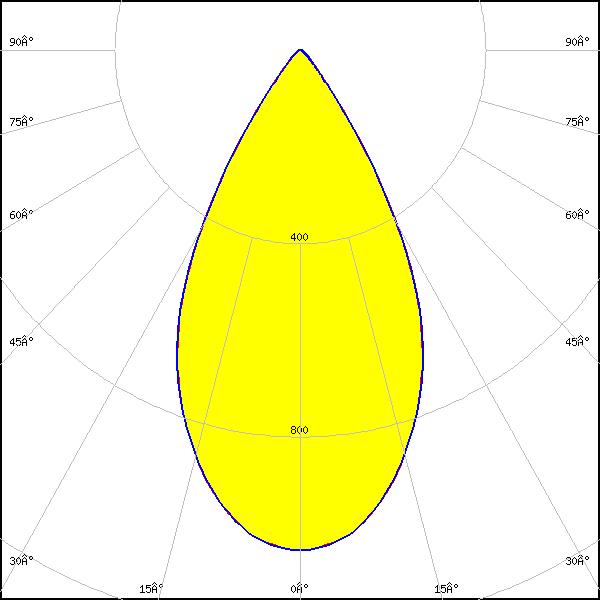

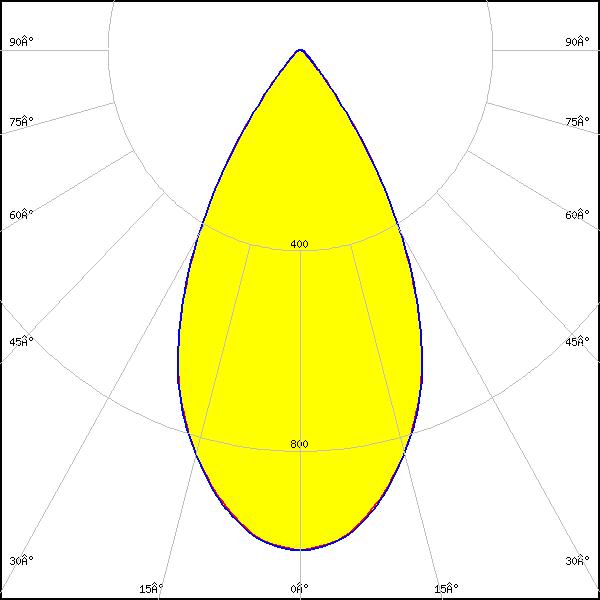

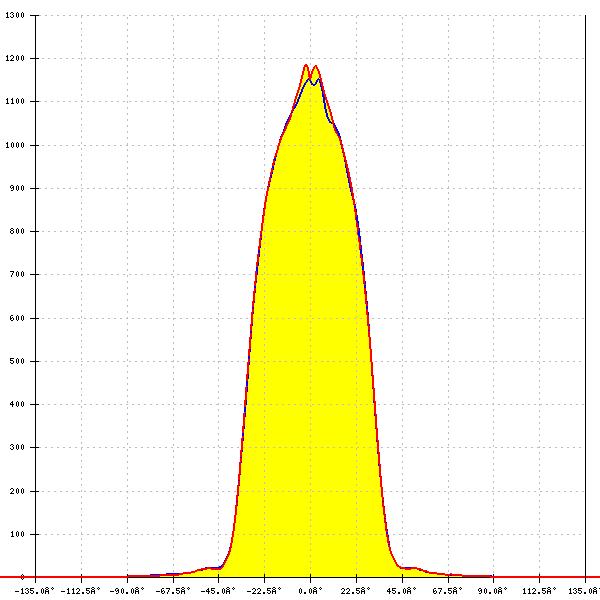

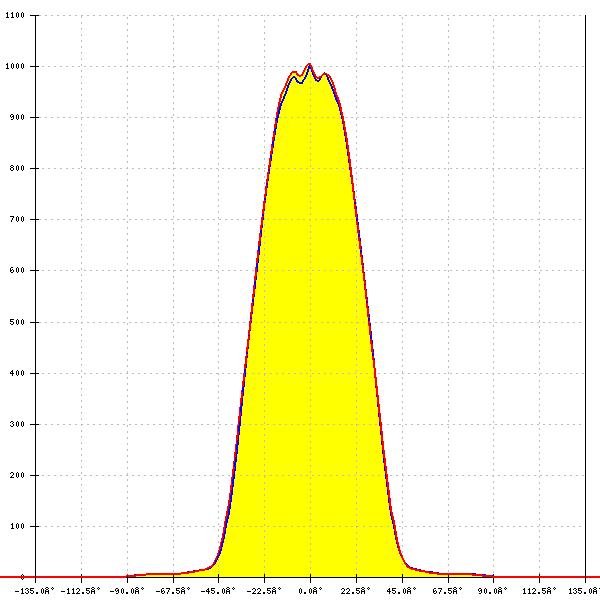

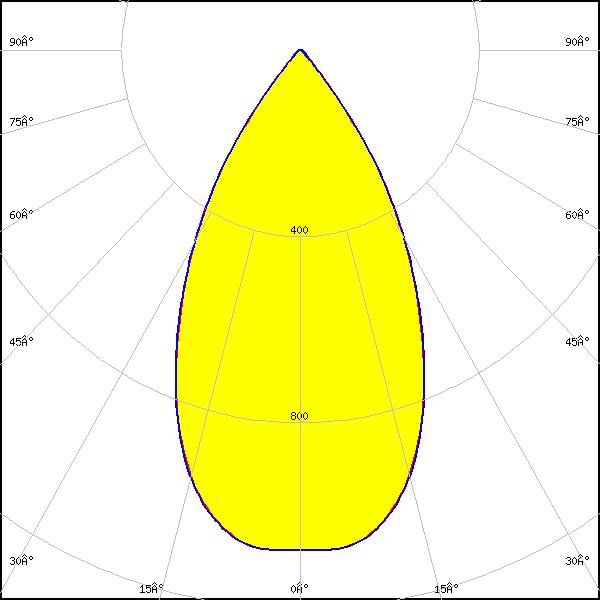

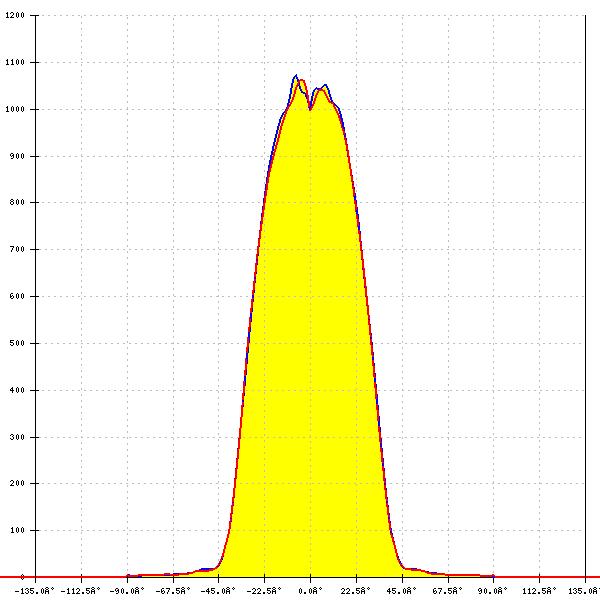

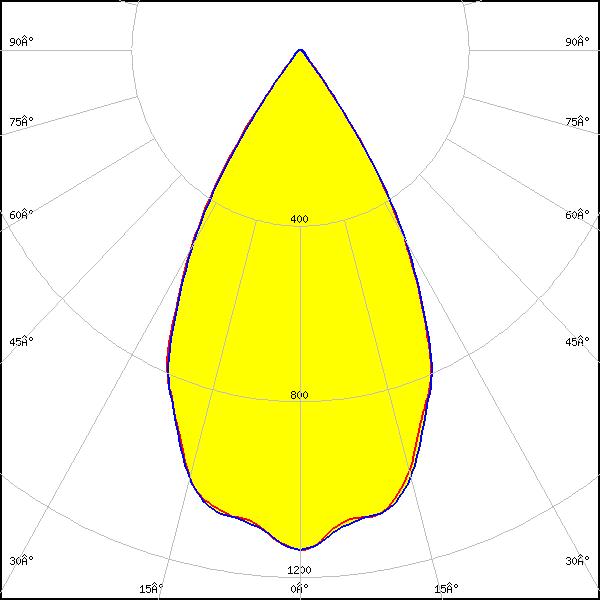

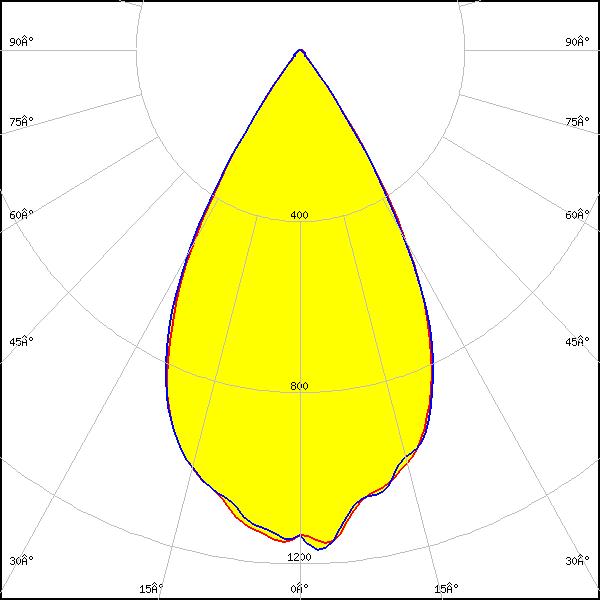

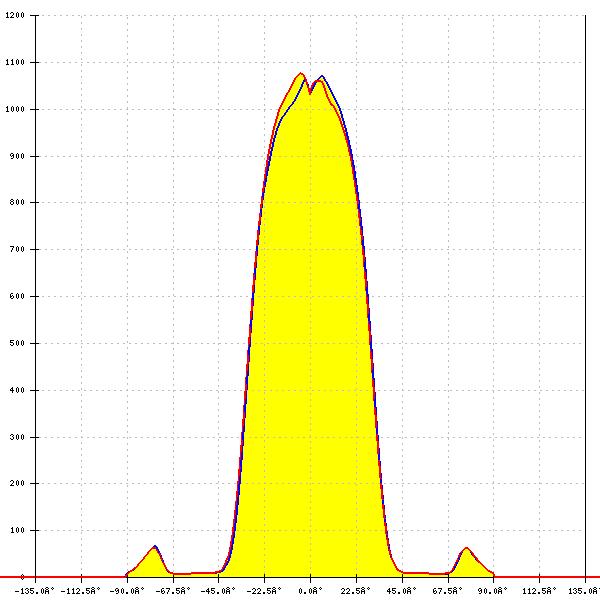

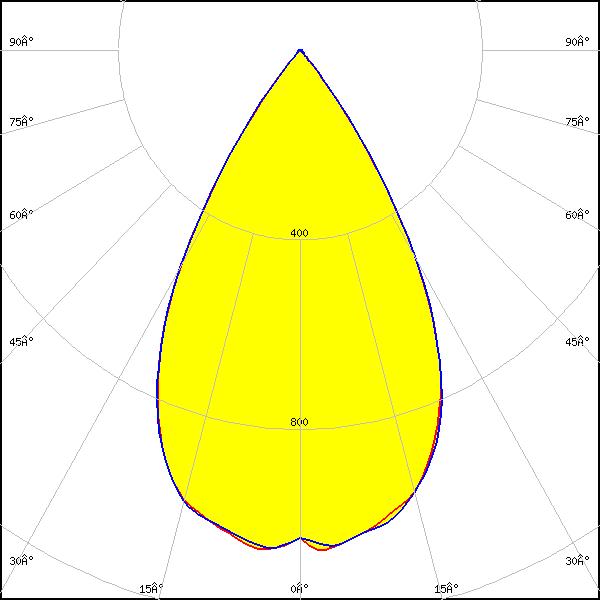

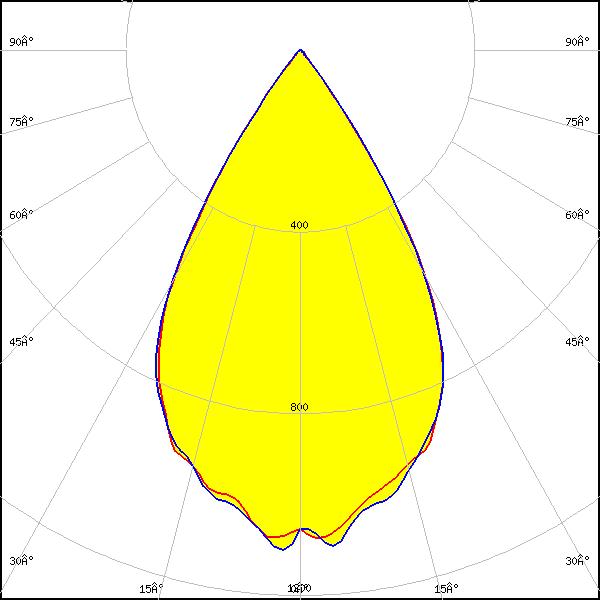

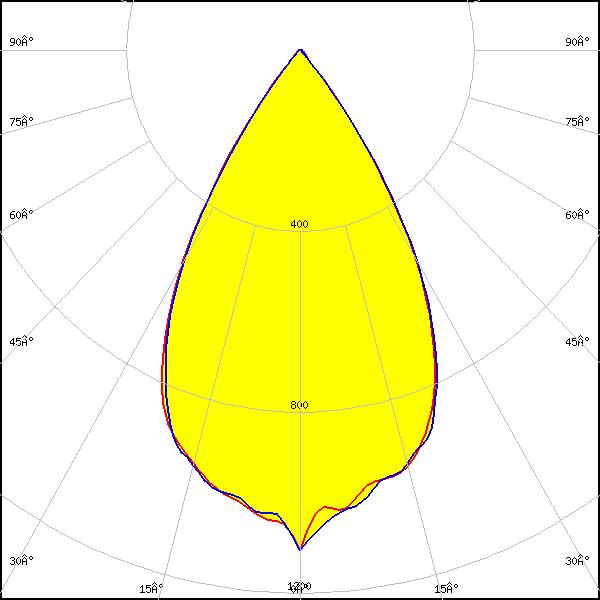

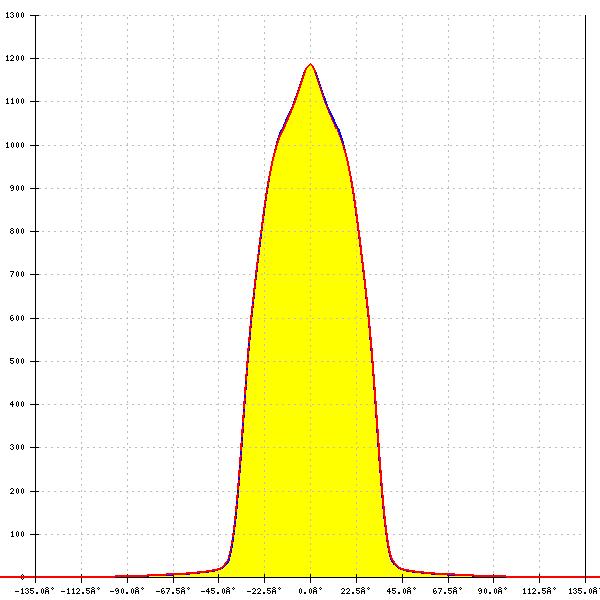

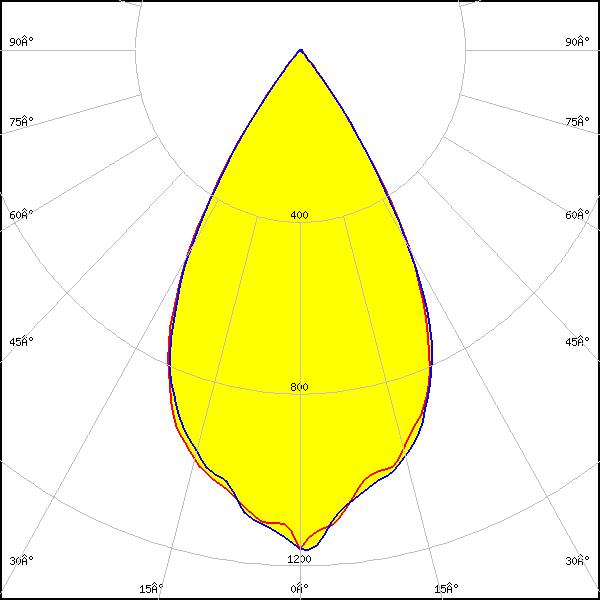

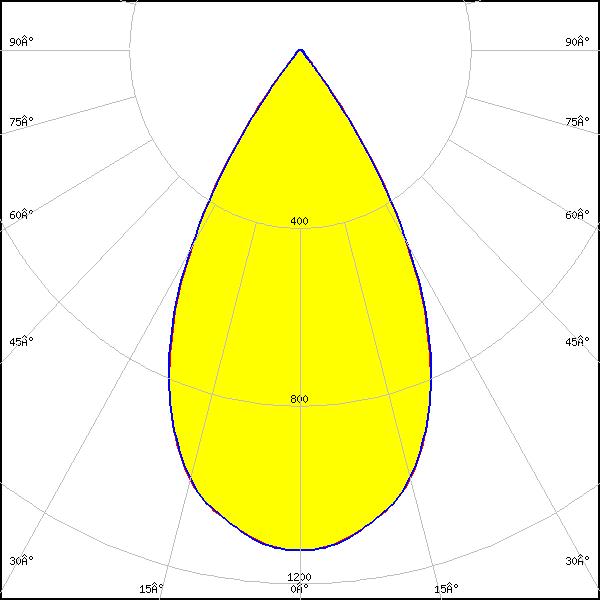

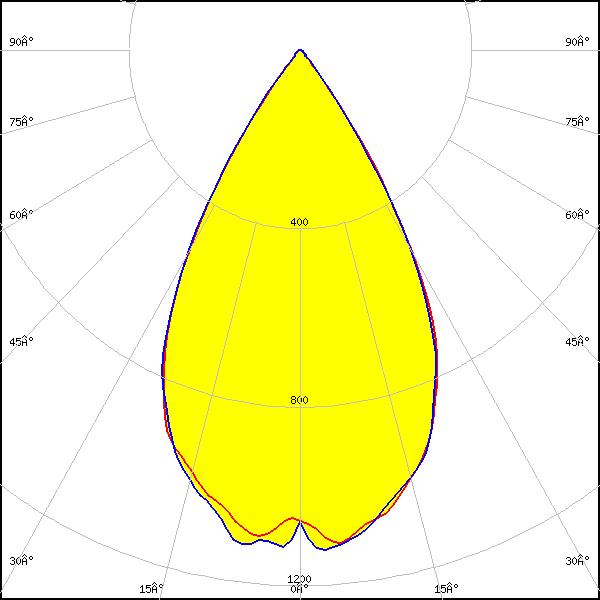

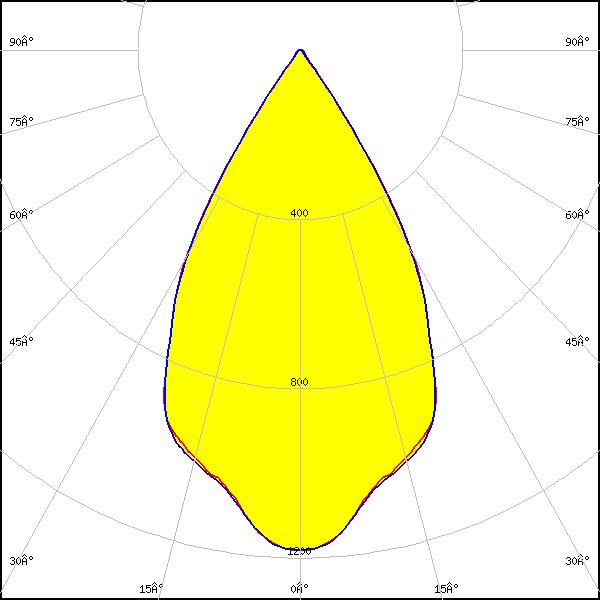

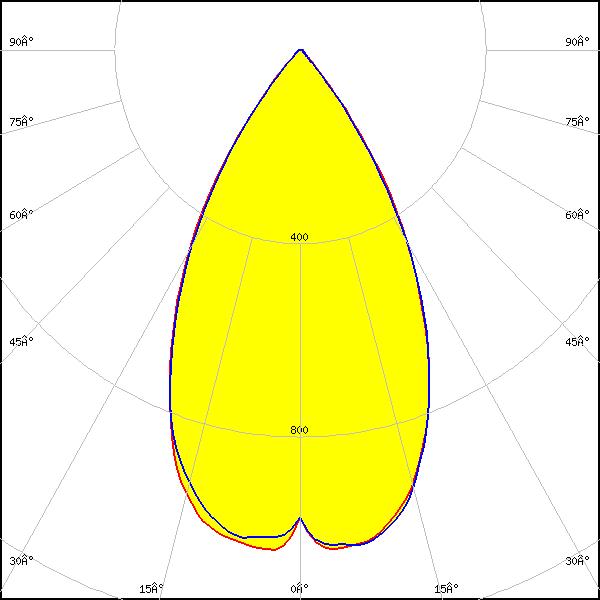

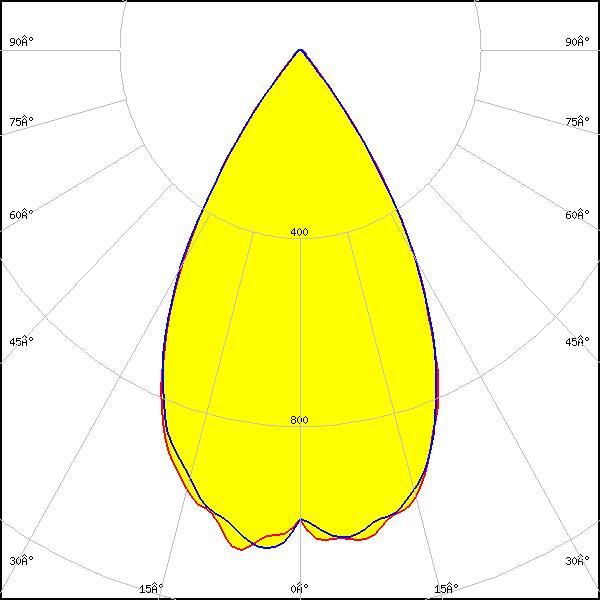

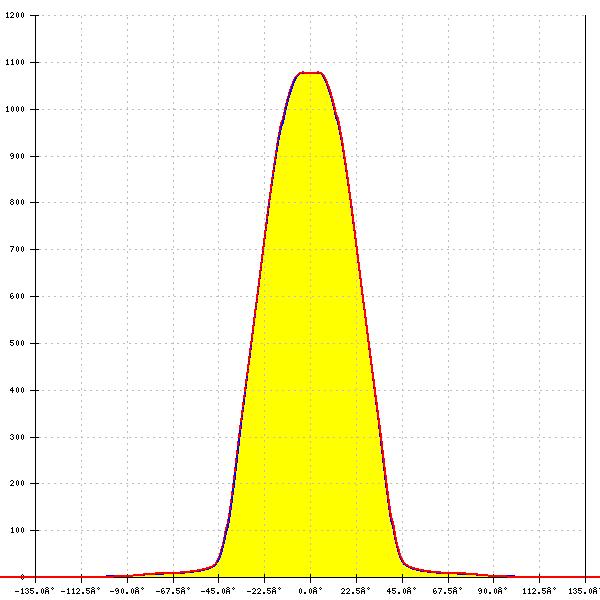

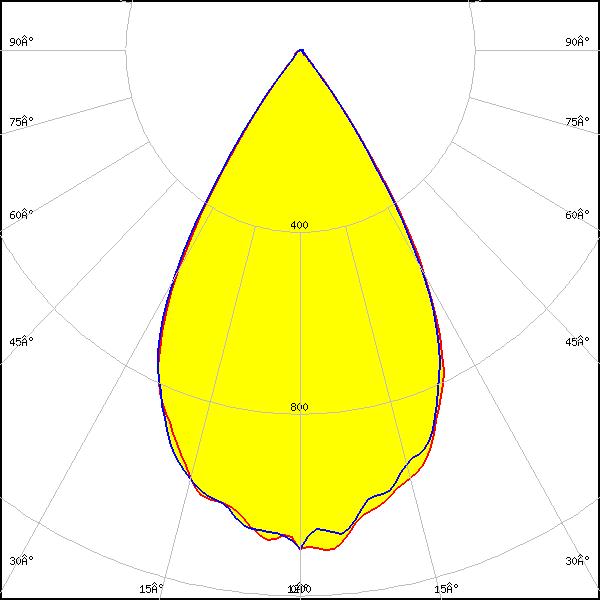

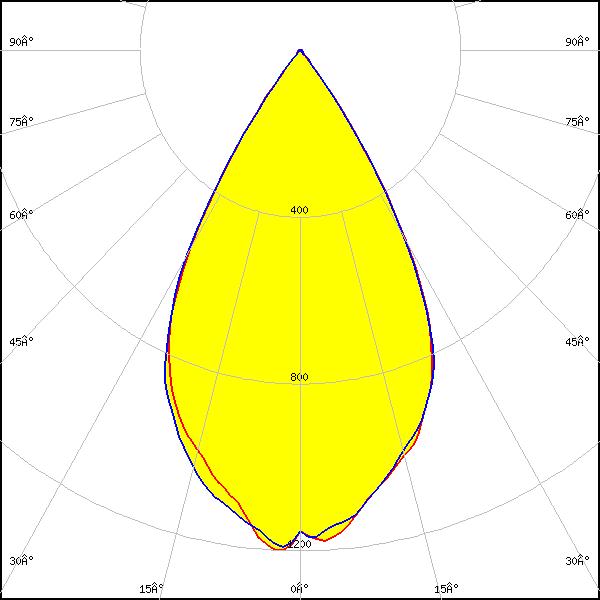

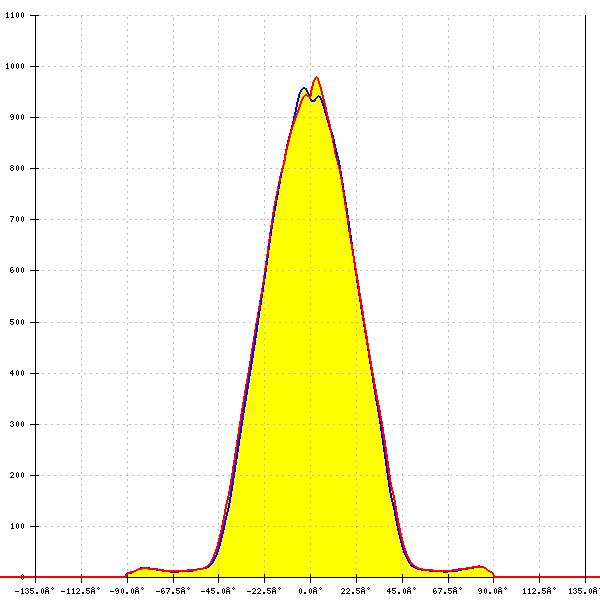

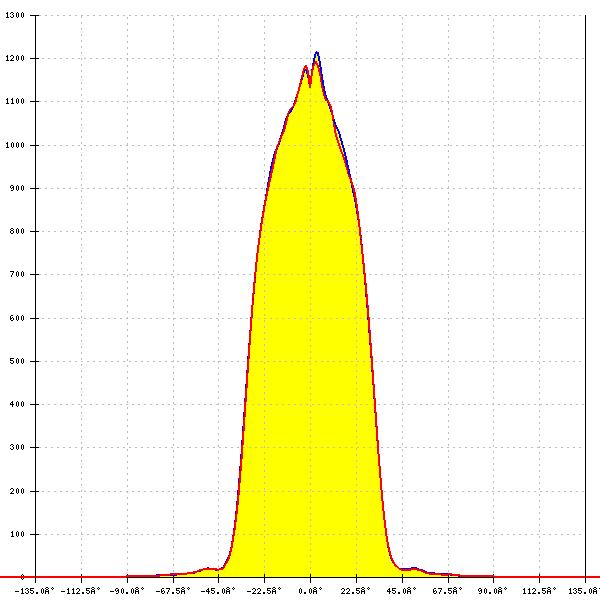

Optical results
LED:
BXRV-D10-RGBW2000-A3
Ordering code: CP19126_AMY-50-WW-C2
LES size: 10.0 mm
Required components:
FWHM:
58°
FWTM:
81°
Peak intensity:
0.909 cd/lm
Efficiency:
81 %
LEDs/each optic:
28
Light colour/type:
RGBW

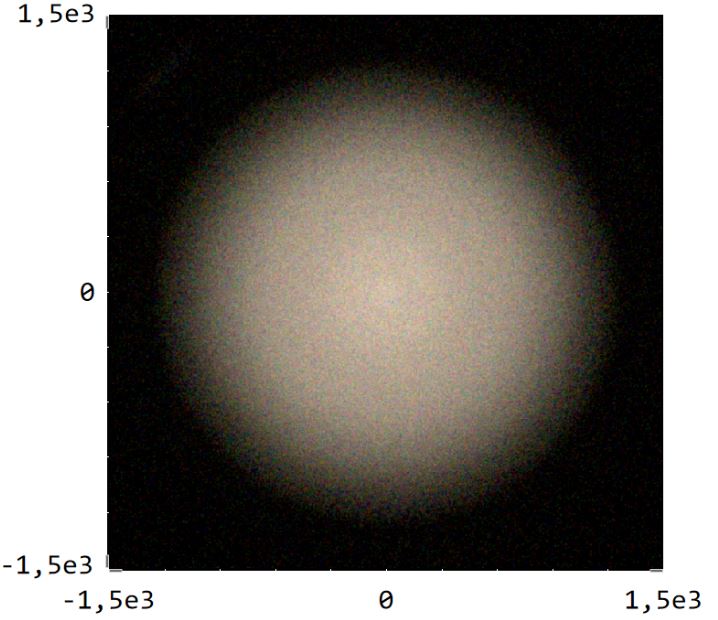

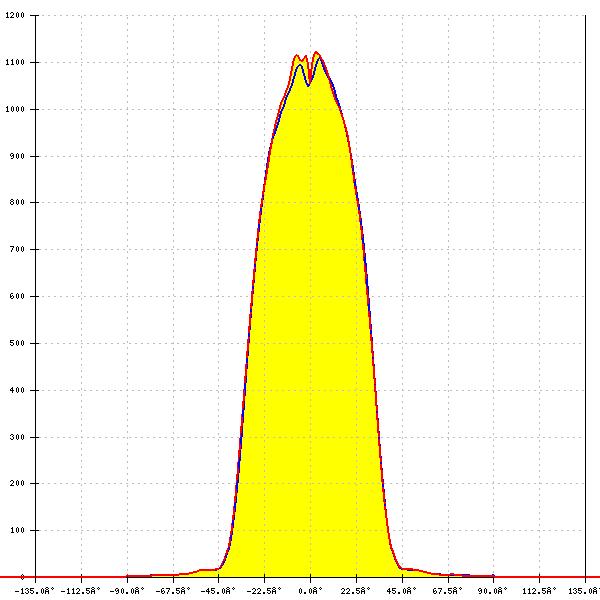

LED:
CSP 1111 (BXCP)
Ordering code: C17689_AMY-50-WW
LES size: 0.0 mm
FWHM:
58°
FWTM:
74°
Peak intensity:
1.177 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

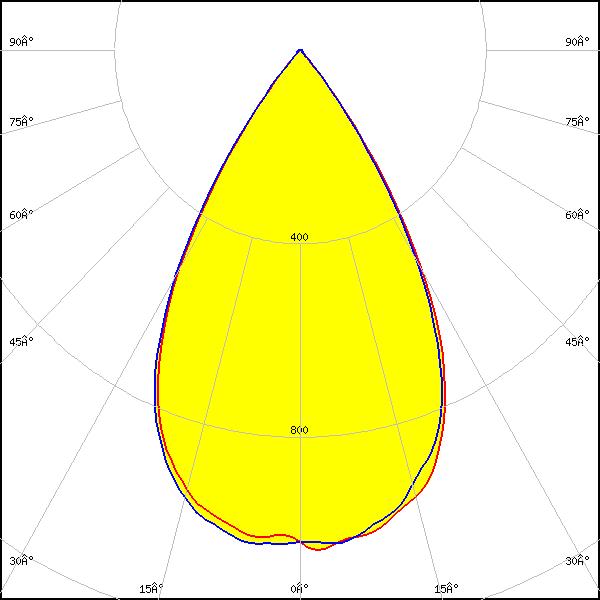

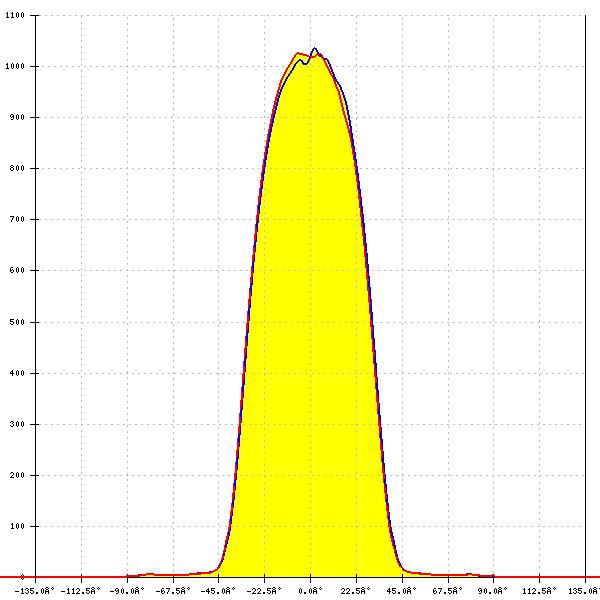

LED:
V10 Gen 8-9
Ordering code: CP19135_AMY-50-WW-B2
LES size: 10.0 mm
Required components:
BJB: 47.360.1020
FWHM:
60°
FWTM:
79°
Peak intensity:
1.049 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen 8-9
Ordering code: CP19126_AMY-50-WW-C2
LES size: 10.0 mm
Required components:
FWHM:
59°
FWTM:
78°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V11 HD Gen 8
Ordering code: CP19126_AMY-50-WW-C2
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
56°
FWTM:
78°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

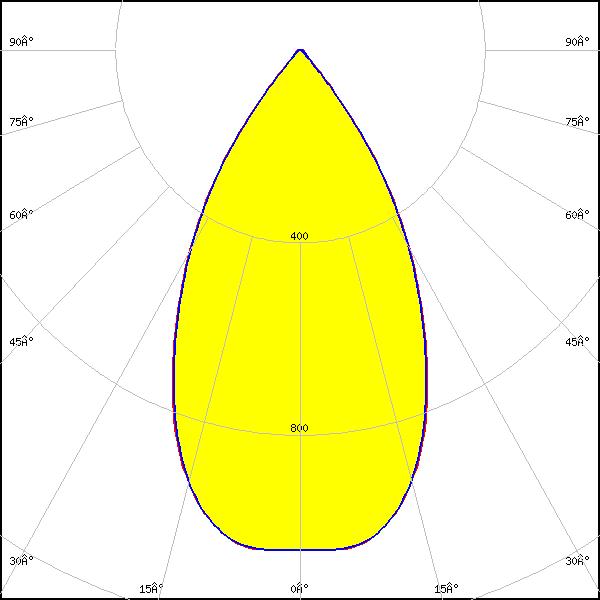

V13 Gen 8-9
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.8 mm
Required components:
FWHM:
57°
FWTM:
82°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V3 HD Gen 8
Ordering code: CP19126_AMY-50-WW-C2
LES size: 3.8 mm
Required components:
FWHM:
59°
FWTM:
76°
Peak intensity:
1.233 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

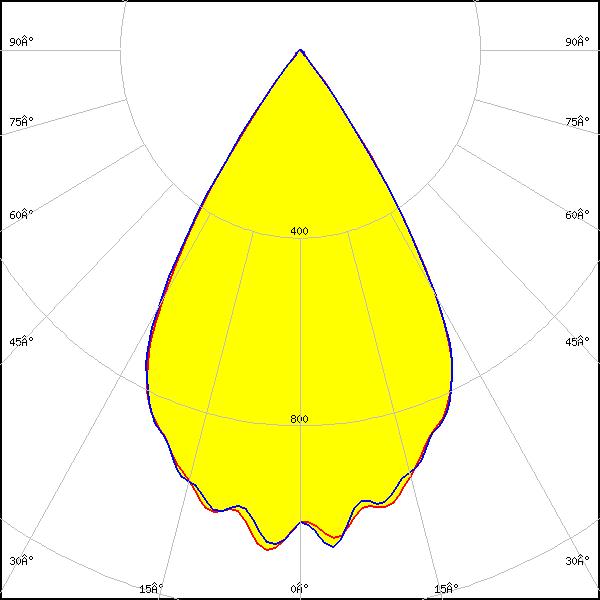

LED:
V3 HD Gen 8 FC
Ordering code: CP19126_AMY-50-WW-C2
LES size: 2.9 mm
Required components:
FWHM:
63°
FWTM:
76°
Peak intensity:
1.091 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

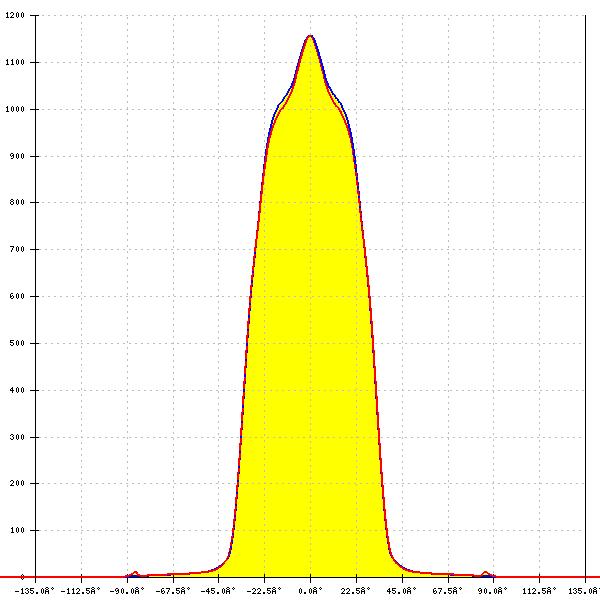

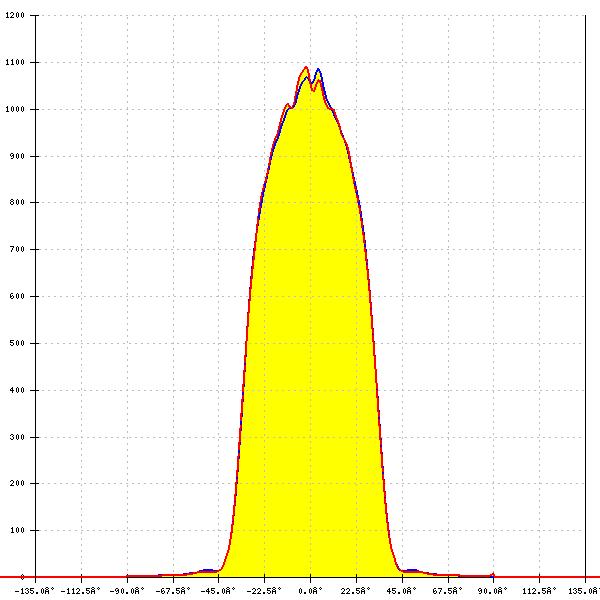

LED:

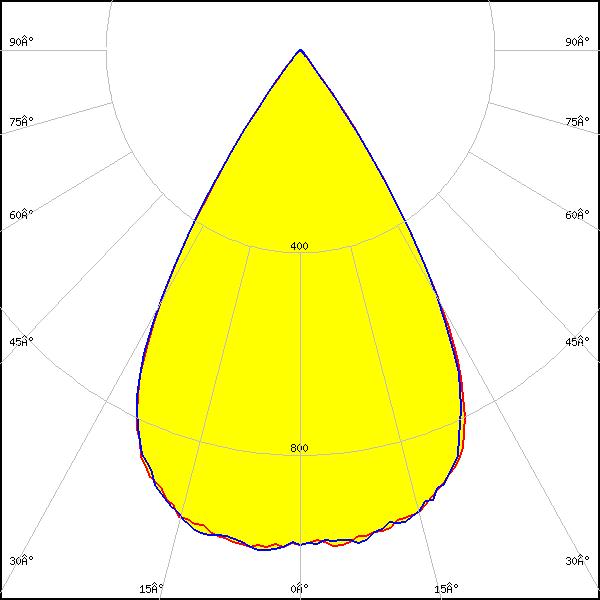

V4 HD Gen 7
Ordering code: CP19126_AMY-50-WW-C2
LES size: 5.2 mm
Required components:
FWHM:
59°
FWTM:
75°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

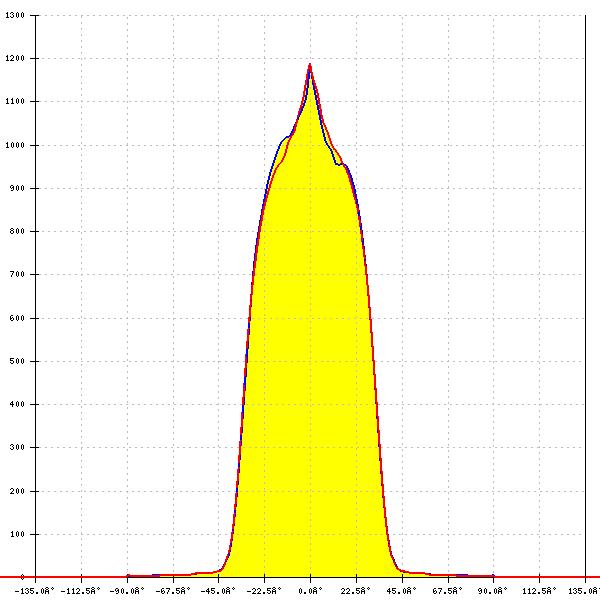

LED:

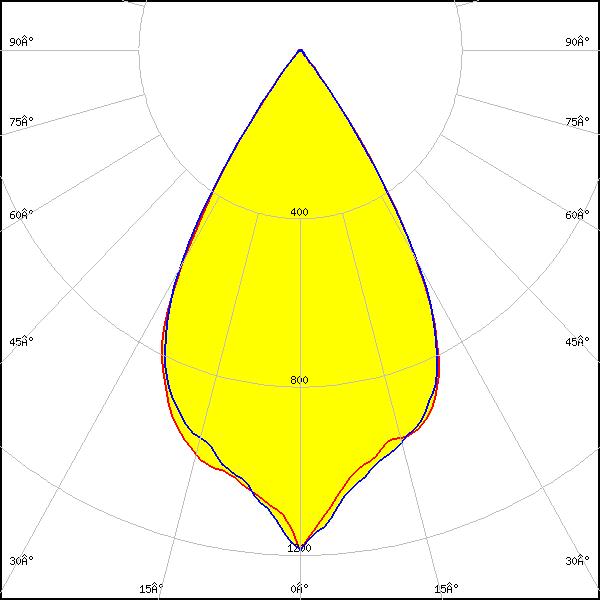

V4 HD Gen 8
Ordering code: CP19126_AMY-50-WW-C2
LES size: 4.8 mm
Required components:
FWHM:
60°
FWTM:
76°
Peak intensity:
1.189 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

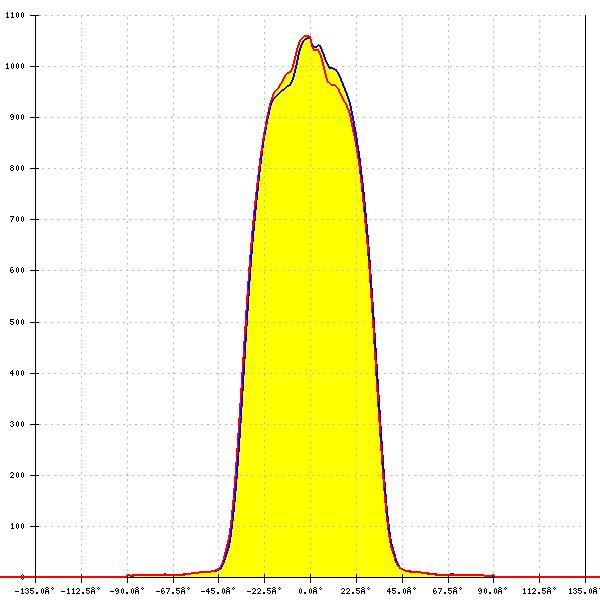

LED:
V6 Gen 8-9
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.3 mm
Required components:
FWHM:
62°
FWTM:
77°
Peak intensity:
1.074 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

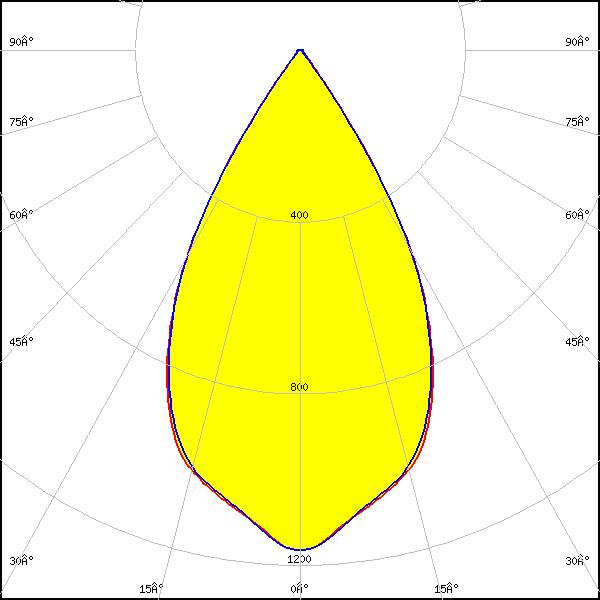

LED:
V6 HD Gen 7
Ordering code: CP19126_AMY-50-WW-C2
LES size: 7.0 mm
Required components:
FWHM:
58°
FWTM:
75°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

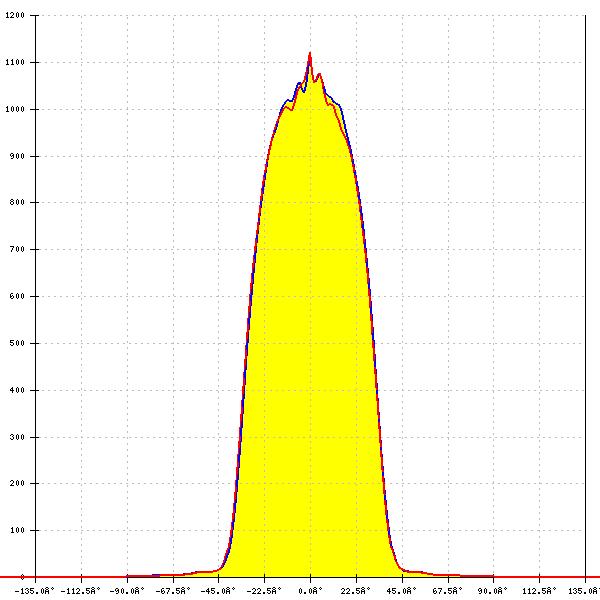

LED:

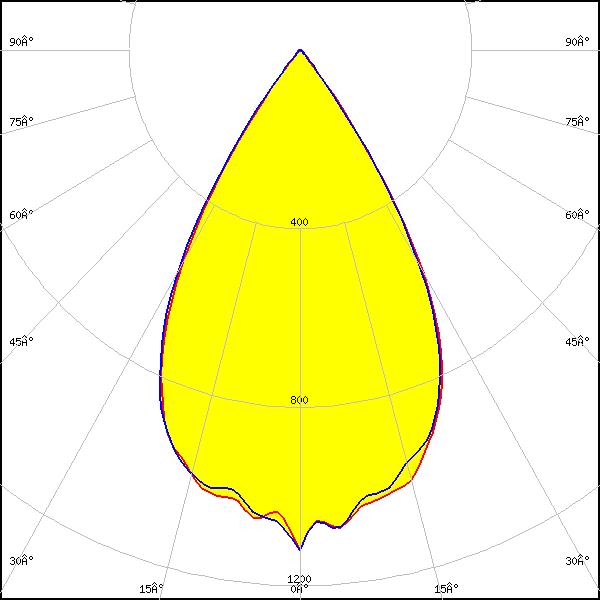

V6 HD Gen 8
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.6 mm
Required components:
FWHM:
60°
FWTM:
77°
Peak intensity:
1.121 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

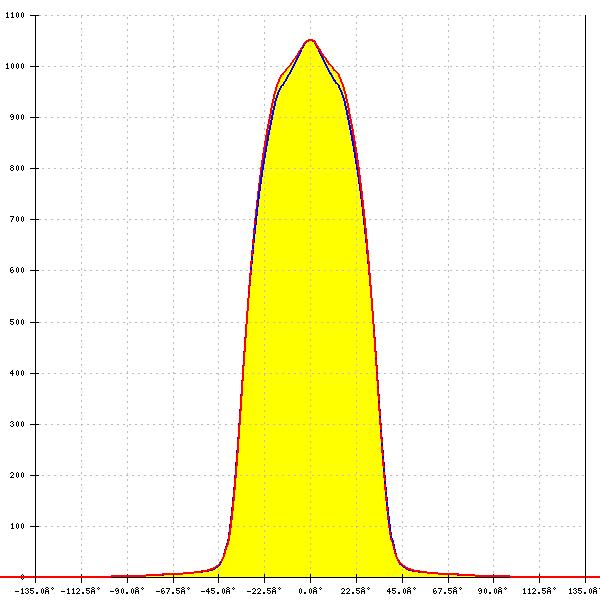

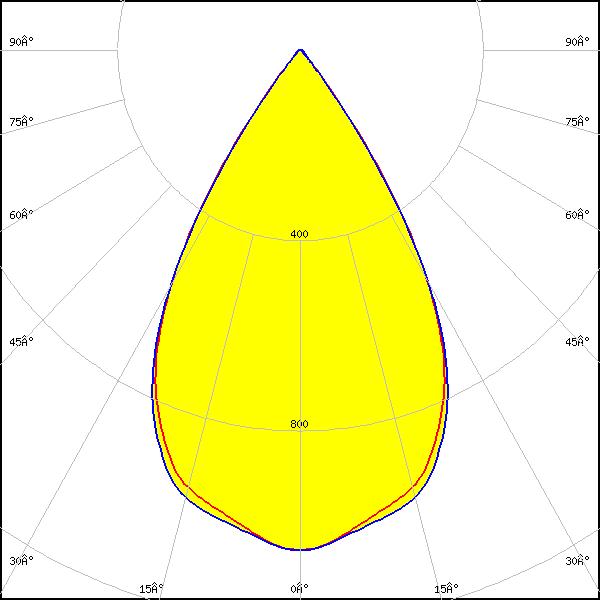

LED:
V8 Gen 8-9
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.5 mm
Required components:
FWHM:
61°
FWTM:
78°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

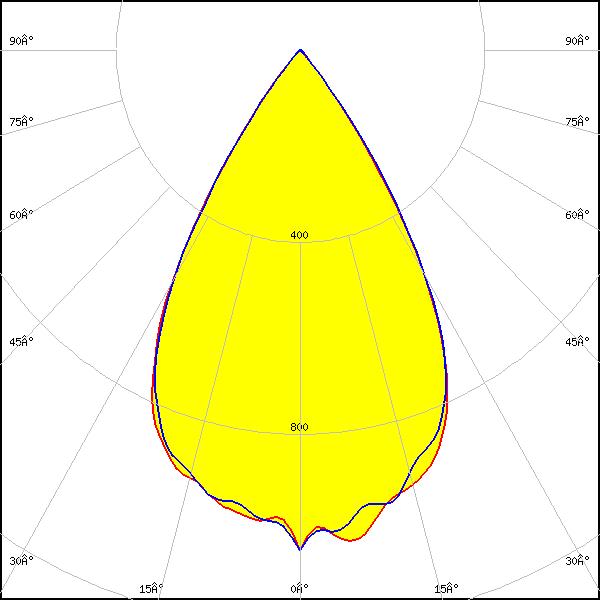

V8 Gen7
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.1 mm
Required components:
FWHM:
61°
FWTM:
78°
Peak intensity:
1.051 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

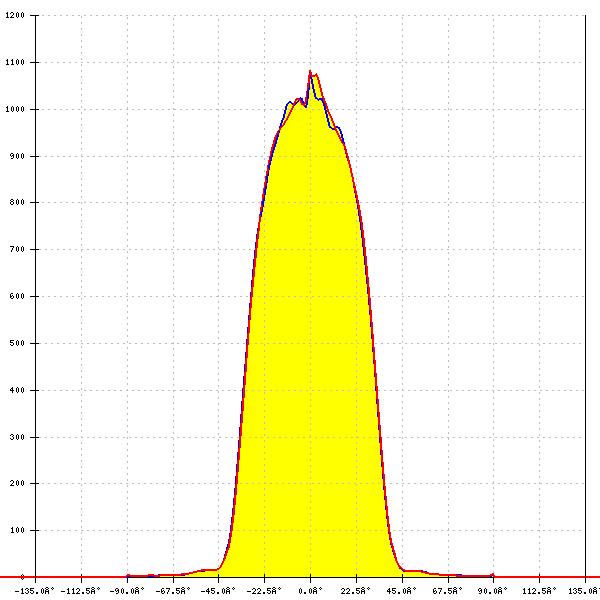

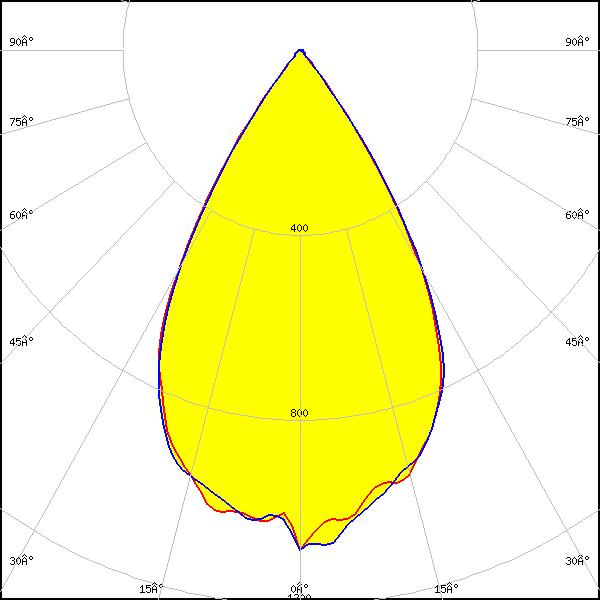

LED:
V9 HD Gen 8
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.8 mm
Required components:
FWHM:
60°
FWTM:
78°
Peak intensity:
1.096 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

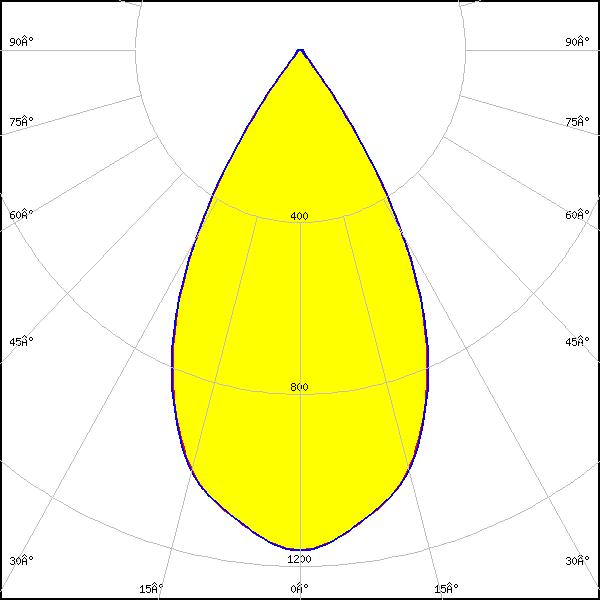

V9 HD Gen7
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.2 mm
Required components:
FWHM:
57°
FWTM:
76°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

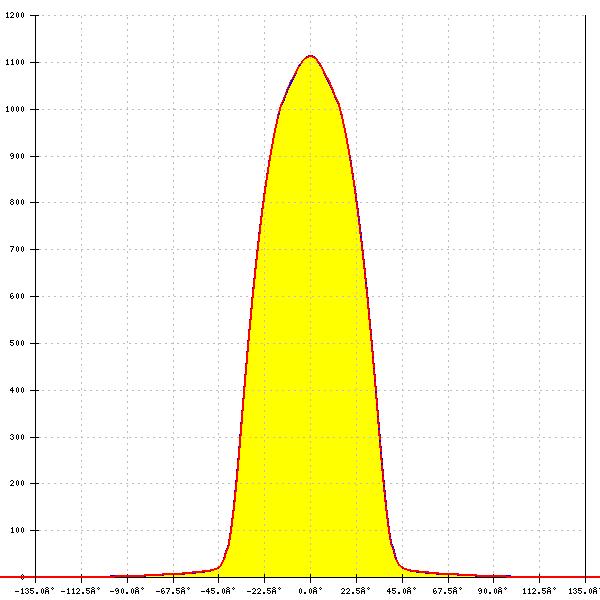

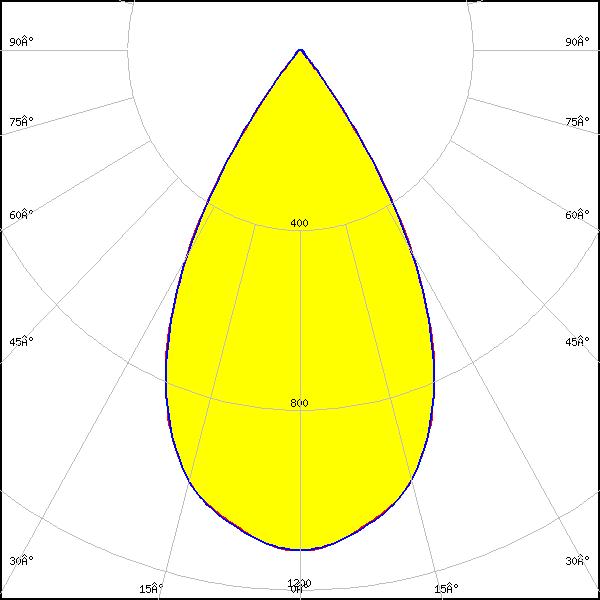

VERO10
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.9 mm
Required components:
FWHM:
58°
FWTM:
77°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

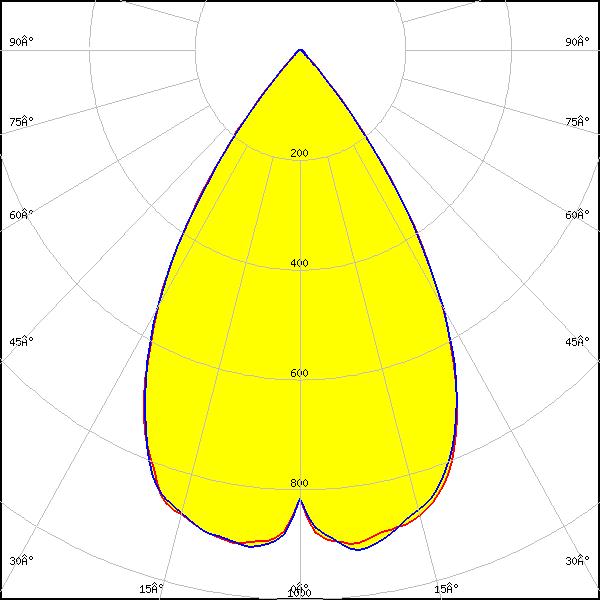

LED:

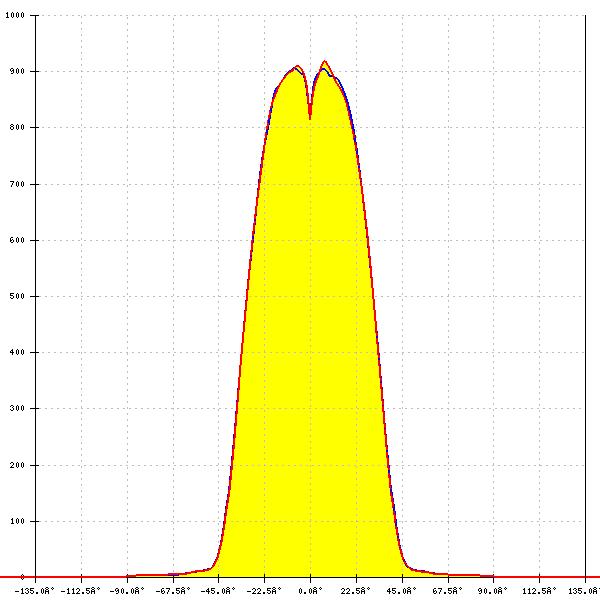

VERO13
Ordering code: CP19126_AMY-50-WW-C2
LES size: 13.4 mm
Required components:
FWHM:
64°
FWTM:
84°
Peak intensity:
0.917 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

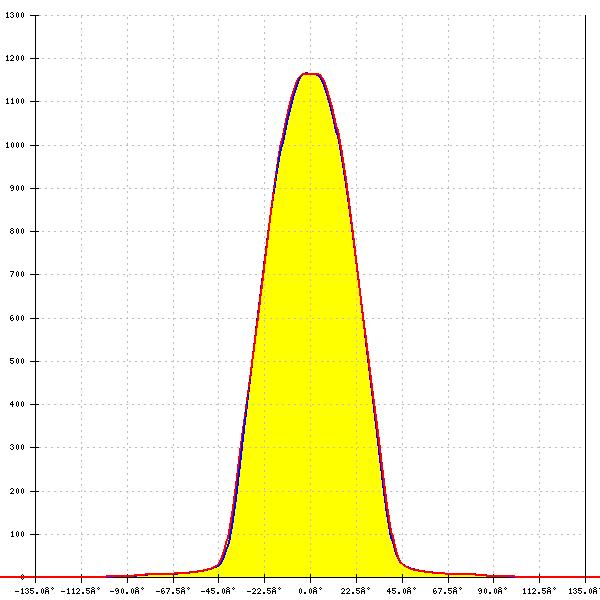

LED:
Vesta DTW 13mm (21W)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.0 mm
Required components:
FWHM:
53°
FWTM:
78°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

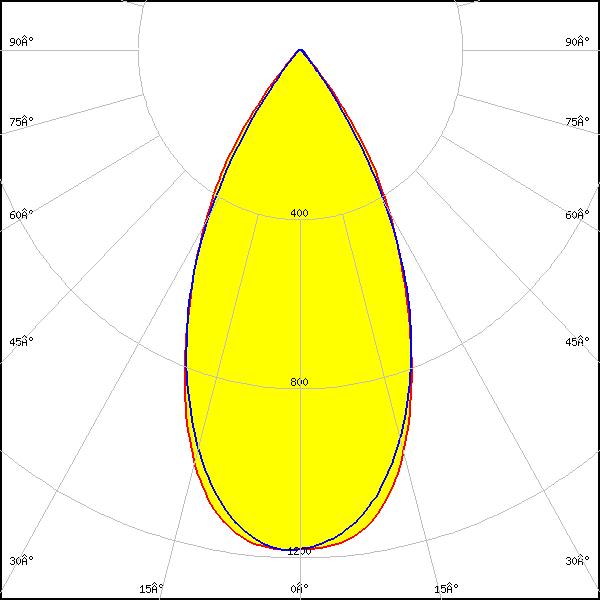

Vesta DTW 15mm (33W)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 16.2 mm
Required components:
FWHM:
52°
FWTM:
78°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

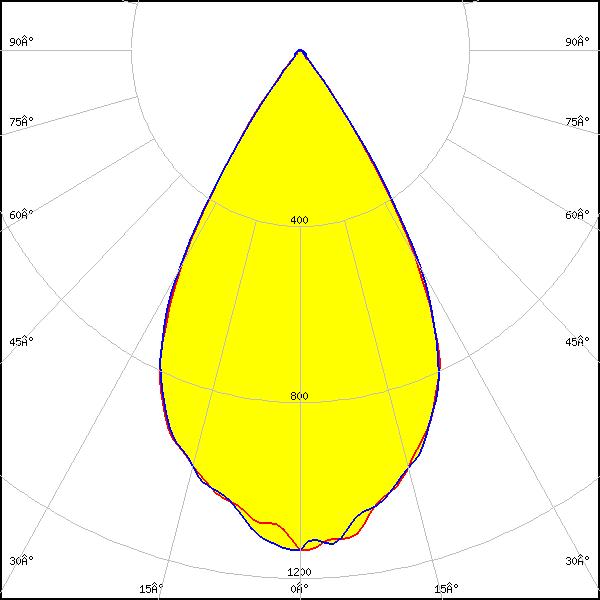

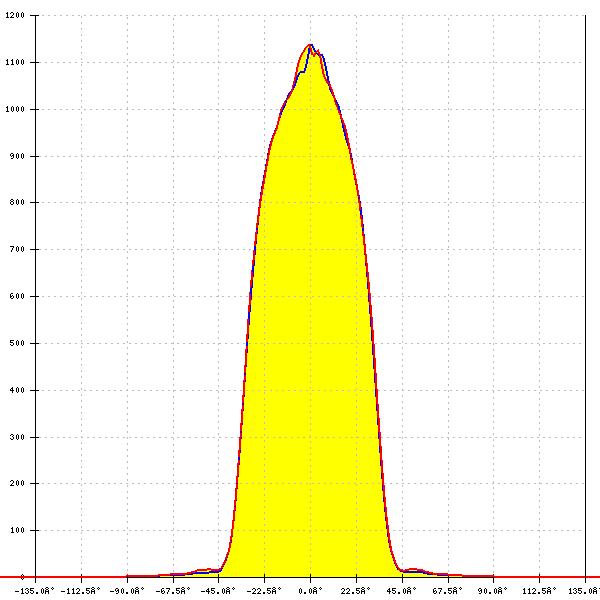

Vesta DTW 6mm
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
60°
FWTM:
76°
Peak intensity:
1.178 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

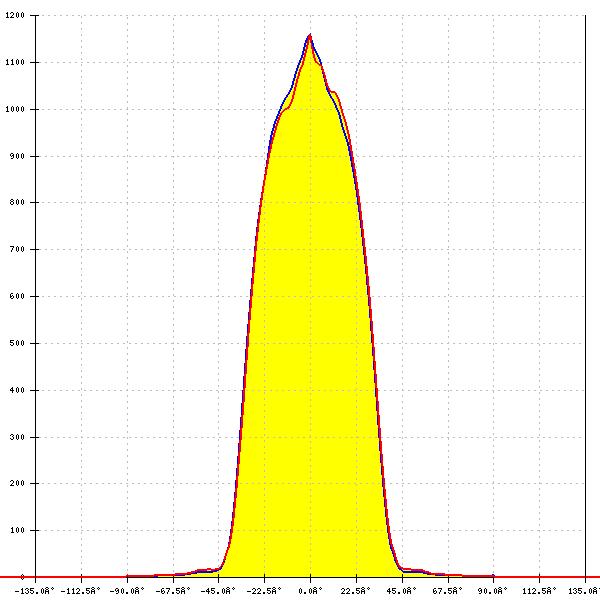

LED:

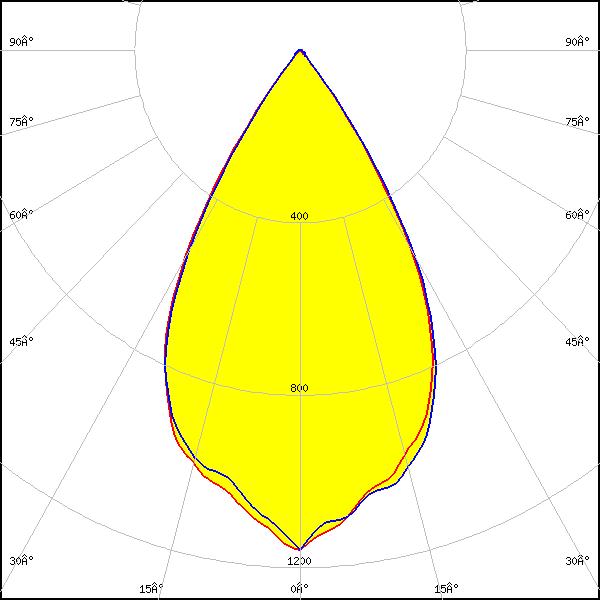

Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
59°
FWTM:
77°
Peak intensity:
1.160 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta SE 13mm TW
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.3 mm
Required components:
FWHM:
50°
FWTM:
75°
Peak intensity:
1.285 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

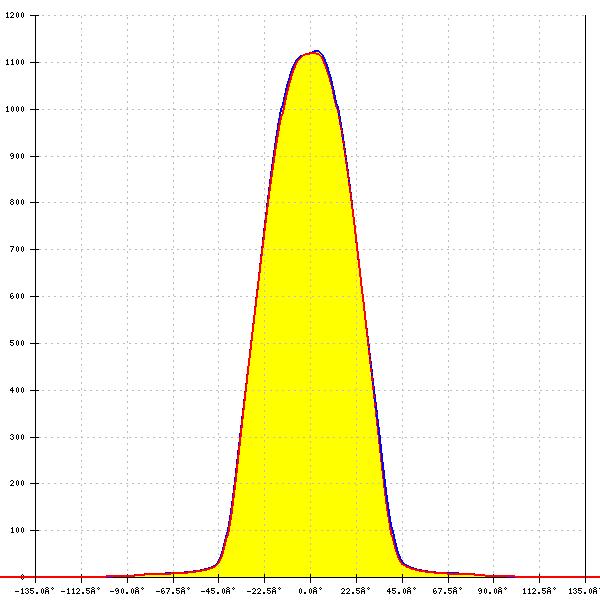

Vesta TW 13mm (18W) DP
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.0 mm
Required components:
FWHM:
54°
FWTM:
80°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

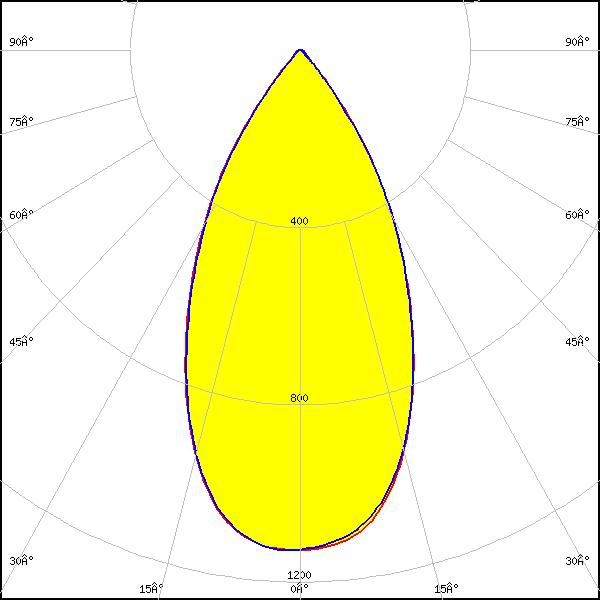

LED:
Vesta TW 15mm DP
Ordering code: CP19126_AMY-50-WW-C2
LES size: 16.3 mm
Required components:
FWHM:
52°
FWTM:
81°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

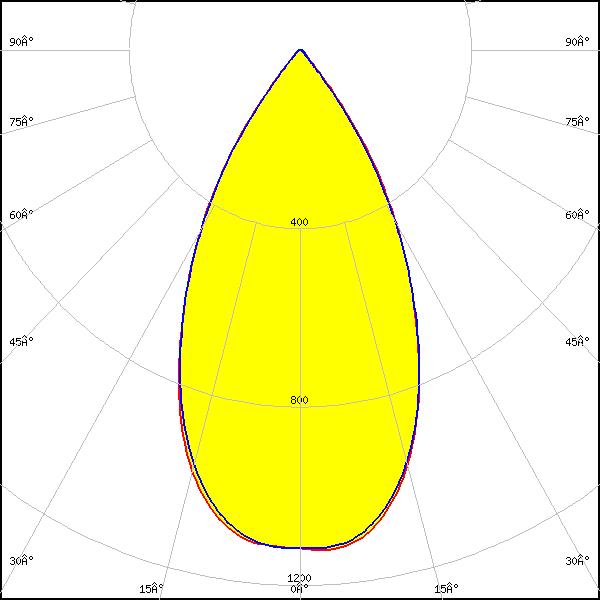

LED:
Vesta TW 6mm DP
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.3 mm
Required components:
FWHM:
57°
FWTM:
74°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
Ordering code: CP19135_AMY-50-WW-B2
LES size: 6.3 mm
Required components:
Bender Wirth: 504 Typ B35L
FWHM:
65°
FWTM:
78°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

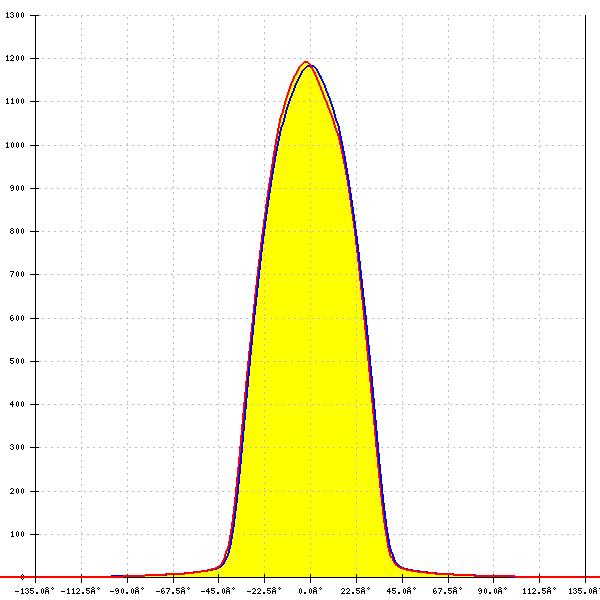

LED:
Vesta TW 9mm (9W) DP
Ordering code: CP19126_AMY-50-WW-C2
LES size: 10.3 mm
Required components:
FWHM:
55°
FWTM:
75°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

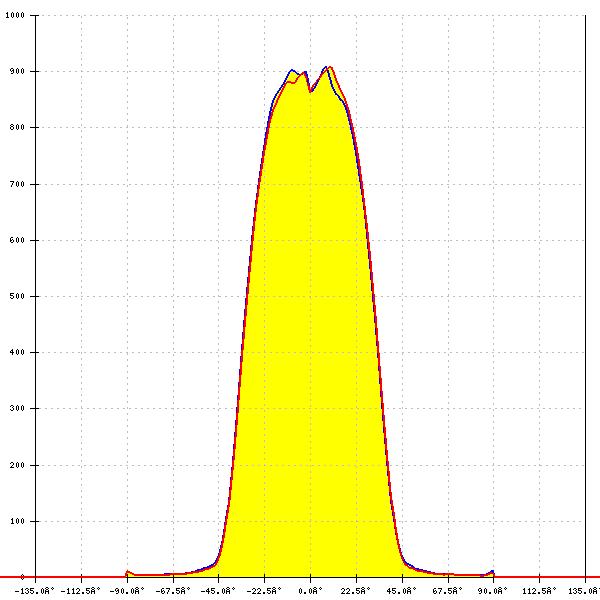

LED:
CLU02Q Type-F
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.7 mm
Required components:
FWHM:
64°
FWTM:
84°
Peak intensity:
0.925 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP19135_AMY-50-WW-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
60°
FWTM:
78°
Peak intensity:
1.020 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

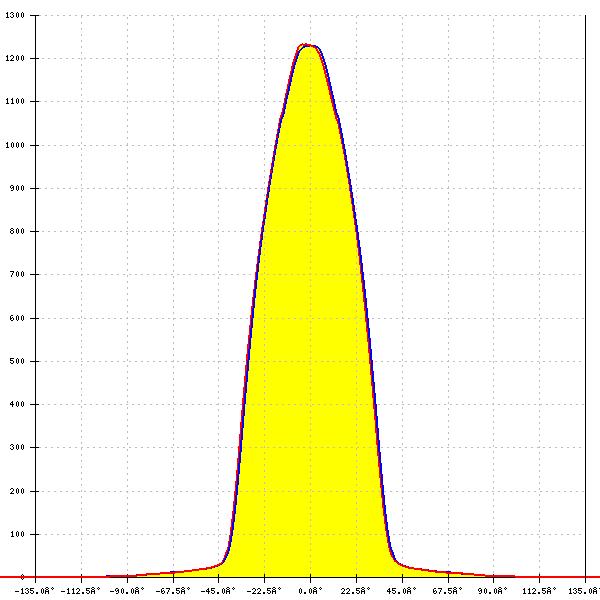

LED:
CLU02x (LES10)
Ordering code: CP19144_AMY-50-WW-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
56°
FWTM:
76°
Peak intensity:
1.242 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

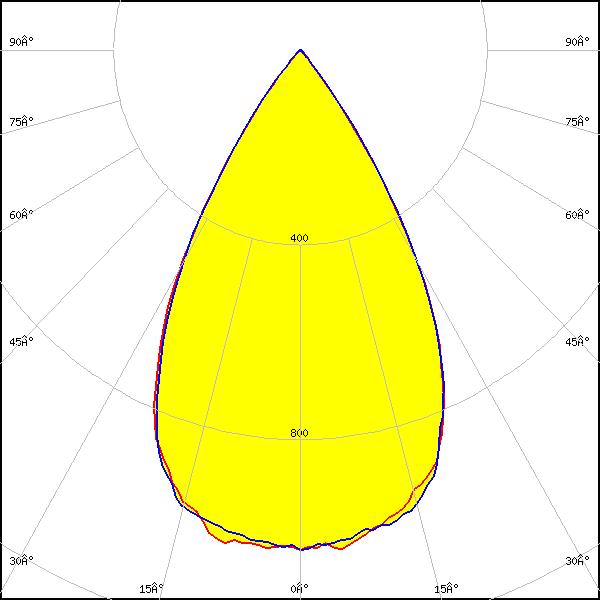

CLU02x (LES10)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
77°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP19135_AMY-50-WW-B2
LES size: 9.8 mm
Required components:
Green Gems: GH27d
FWHM:
59°
FWTM:
78°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

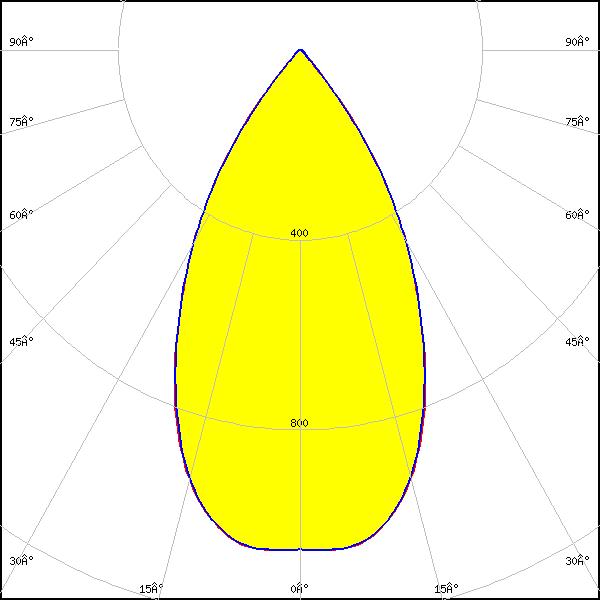

LED:

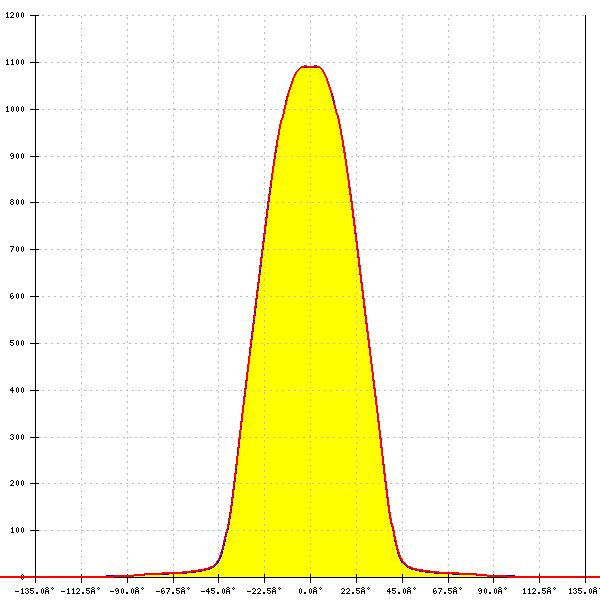

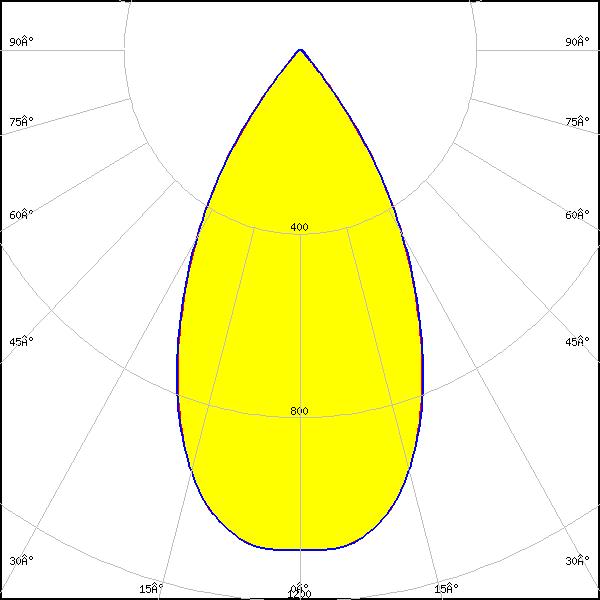

CLU03x
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.5 mm
Required components:
FWHM:
55°
FWTM:
80°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

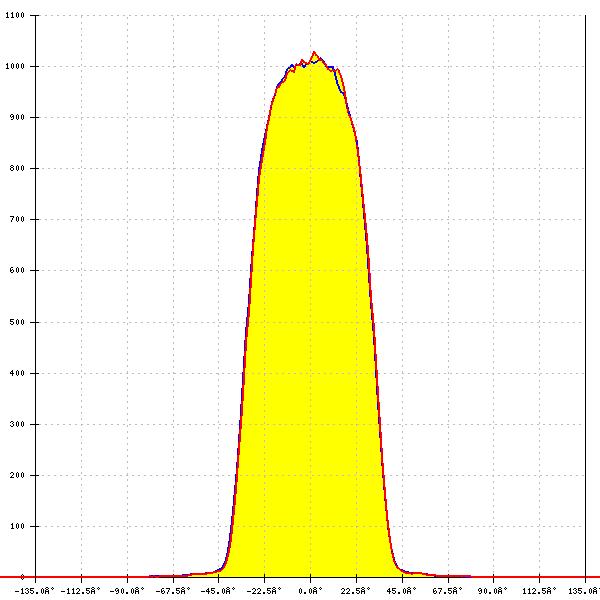

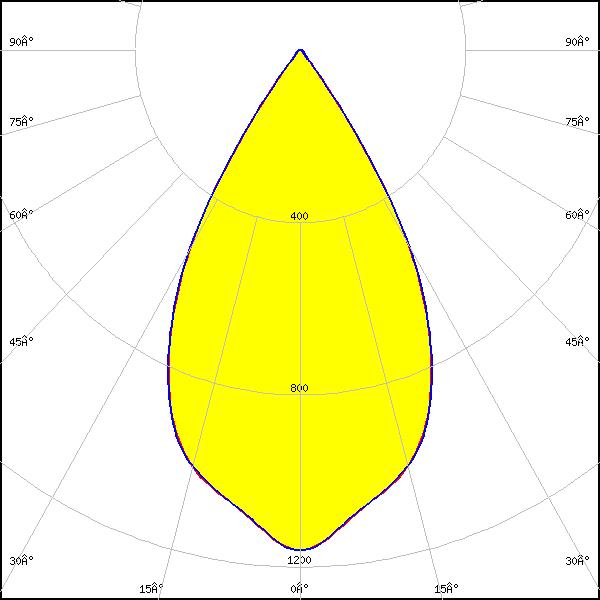

LED:
CLU700/701/702/703
Ordering code: CP19135_AMY-50-WW-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
61°
FWTM:
76°
Peak intensity:
1.033 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

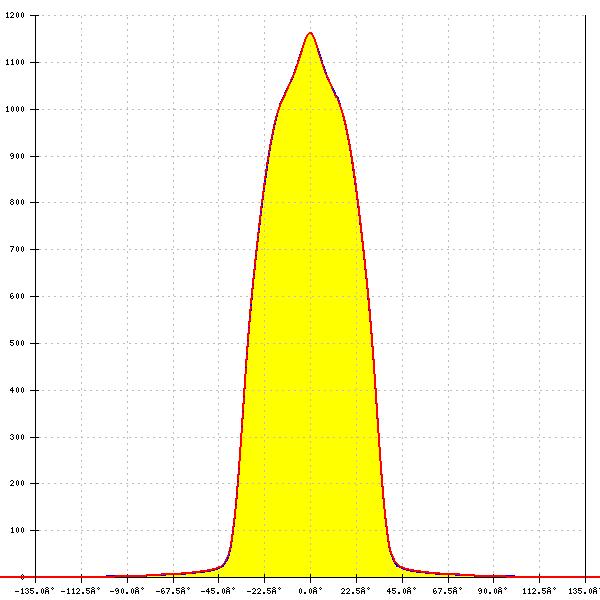

CLU700/701/702/703
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.0 mm
Required components:
FWHM:
58°
FWTM:
75°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
Ordering code: CP19135_AMY-50-WW-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
60°
FWTM:
78°
Peak intensity:
1.057 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

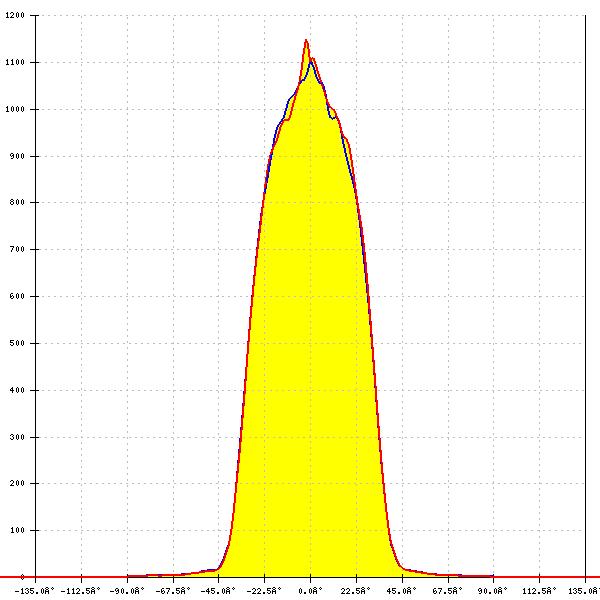

LED:
CLU712/713
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.5 mm
Required components:
FWHM:
59°
FWTM:
77°
Peak intensity:
1.148 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU713 Type-F
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.5 mm
Required components:
FWHM:
66°
FWTM:
82°
Peak intensity:
0.899 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

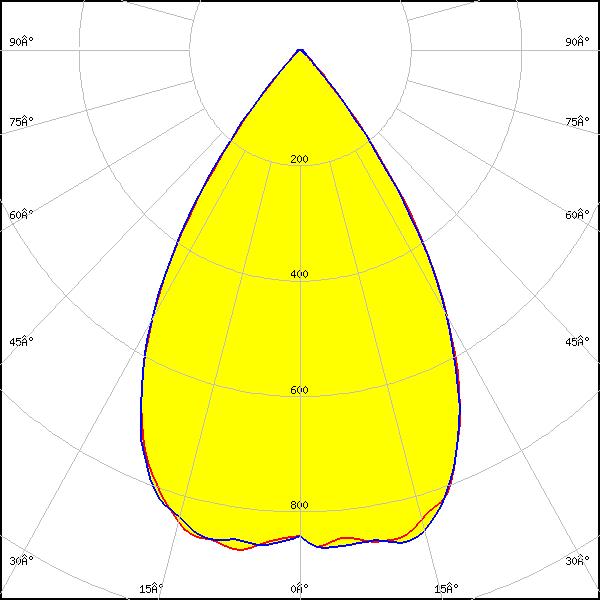

CLU723 Type-F
Ordering code: CP19126_AMY-50-WW-C2
LES size: 11.0 mm
Required components:
FWHM:
66°
FWTM:
85°
Peak intensity:
0.893 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

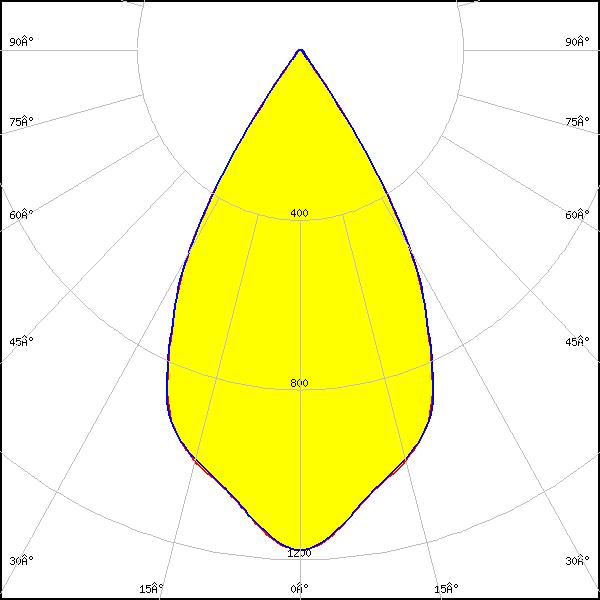

LED:

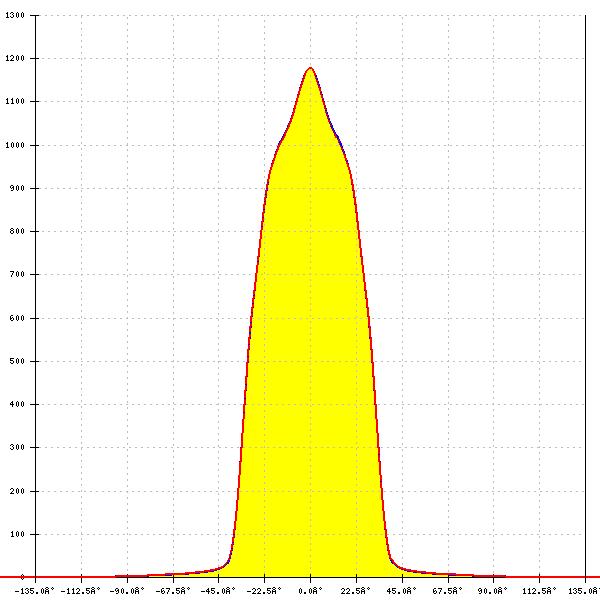

CLU7A2/7A3
Ordering code: CP19126_AMY-50-WW-C2
LES size: 4.2 mm
Required components:
FWHM:
58°
FWTM:
74°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
Ordering code: CP19126_AMY-50-WW-C2
LES size: 3.3 mm
Required components:
FWHM:
58°
FWTM:
73°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7L3
Ordering code: CP19135_AMY-50-WW-B2
LES size: 2.4 mm
Required components:
Bender Wirth: 667a Bayonet35-20
FWHM:
55°
FWTM:
73°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

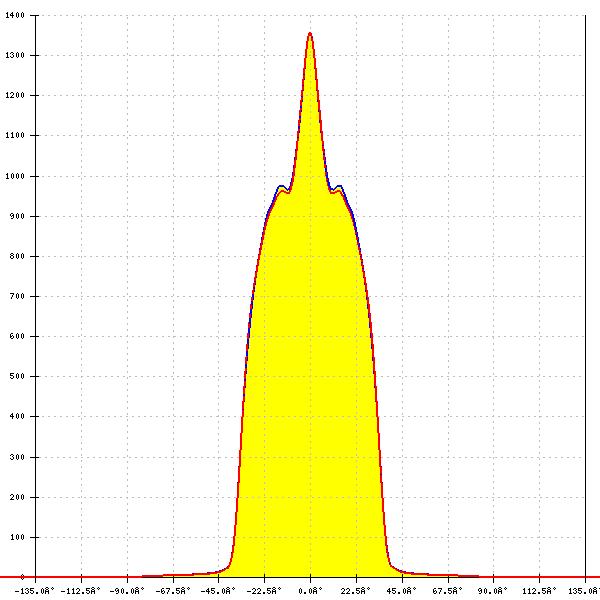

LED:
CLU7S3
Ordering code: CP19135_AMY-50-WW-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 667a Bayonet35-20
FWHM:
58°
FWTM:
73°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

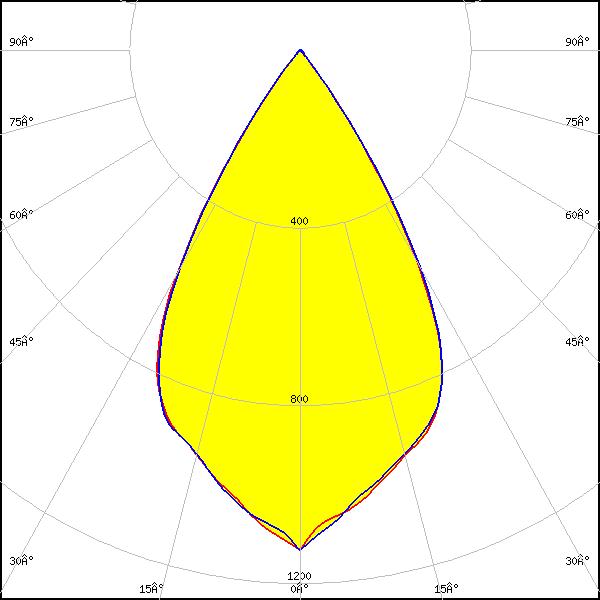

CHA0410
Ordering code: CP19126_AMY-50-WW-C2
LES size: 4.2 mm
Required components:
FWHM:
60°
FWTM:
76°
Peak intensity:
1.126 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHA0612
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.0 mm
Required components:
FWHM:
60°
FWTM:
76°
Peak intensity:
1.110 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1516
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.0 mm
Required components:
FWHM:
57°
FWTM:
77°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

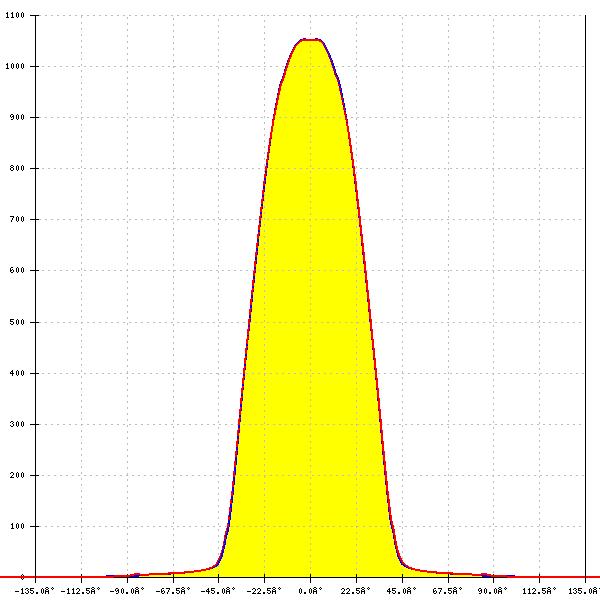

LED:
CMA1825
Ordering code: CP19126_AMY-50-WW-C2
LES size: 12.0 mm
Required components:
FWHM:
58°
FWTM:
80°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

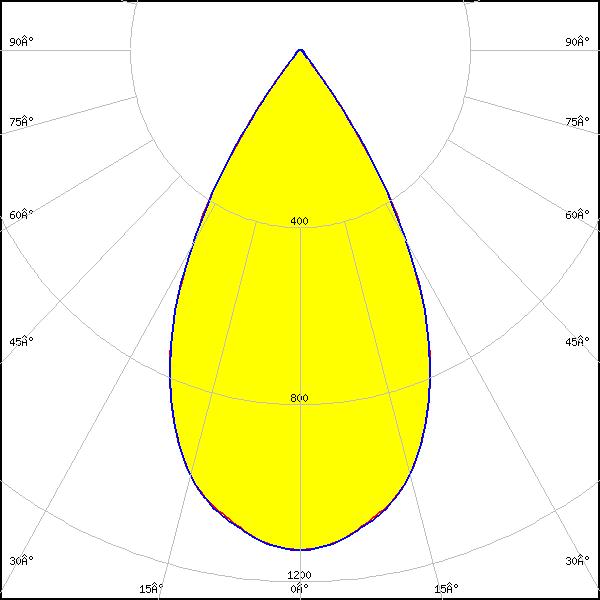

CMT14xx
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
77°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.5 mm
Required components:
FWHM:
56°
FWTM:
81°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

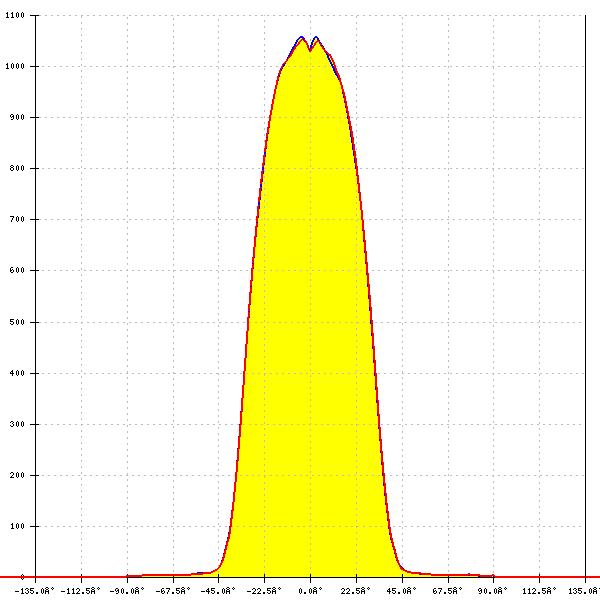

CMU10xx
Ordering code: CP19135_AMY-50-WW-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
60°
FWTM:
78°
Peak intensity:
1.082 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

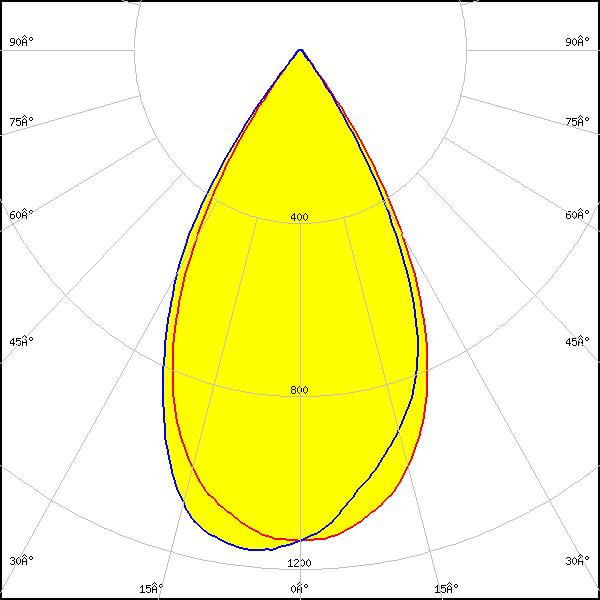

LED:
CMU10xx
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
76°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

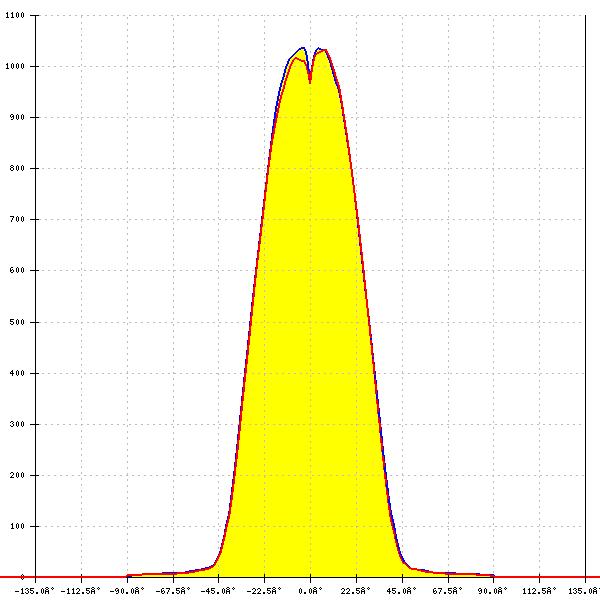

CMU15xx
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.5 mm
Required components:
FWHM:
58°
FWTM:
82°
Peak intensity:
1.050 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU15xx
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.5 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.071 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU22xx
Ordering code: CP19126_AMY-50-WW-C2
LES size: 22.0 mm
FWHM:
54°
FWTM:
87°
Peak intensity:
0.953 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

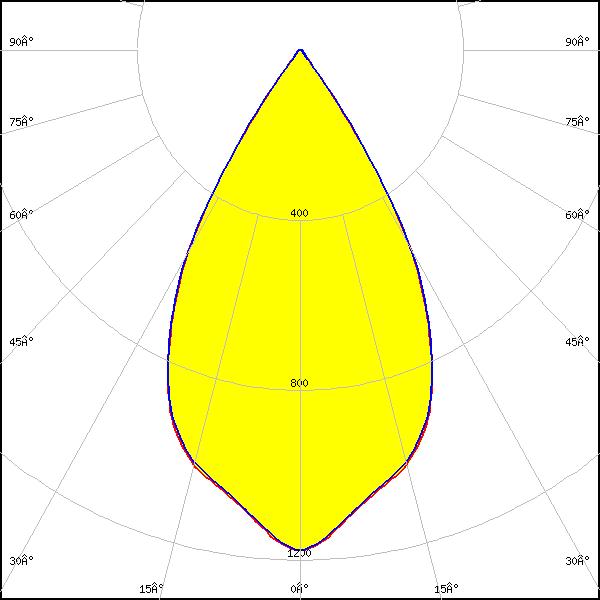

CXA/B 13xx
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.0 mm
Required components:
FWHM:
58°
FWTM:
75°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

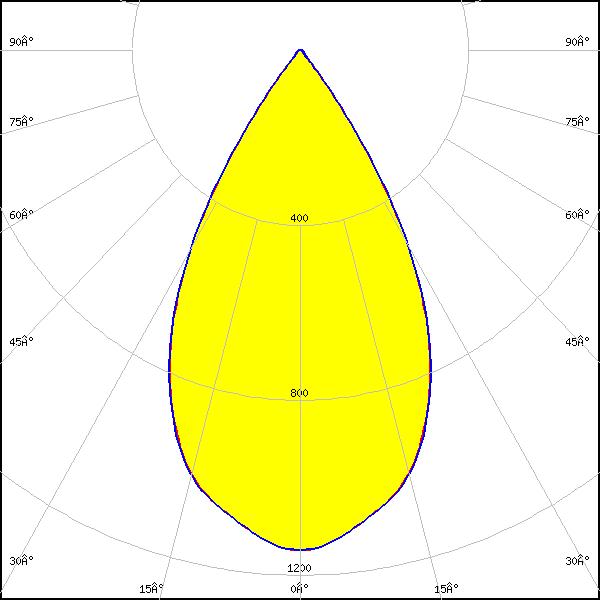

LED:
CXA/B 15xx
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.9 mm
Required components:
FWHM:
58°
FWTM:
77°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

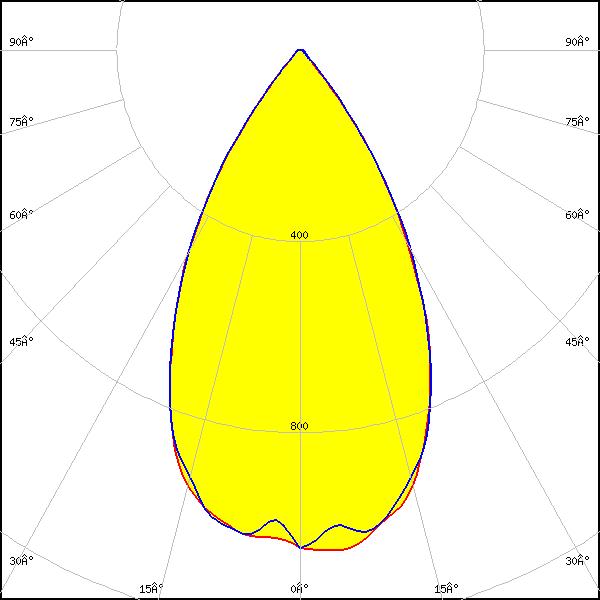

CXA/B 1830
Ordering code: C17689_AMY-50-WW
LES size: 14.0 mm
Required components:
Bender Wirth: 637b Hekla
FWHM:
58°
FWTM:
82°
Peak intensity:
1.062 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

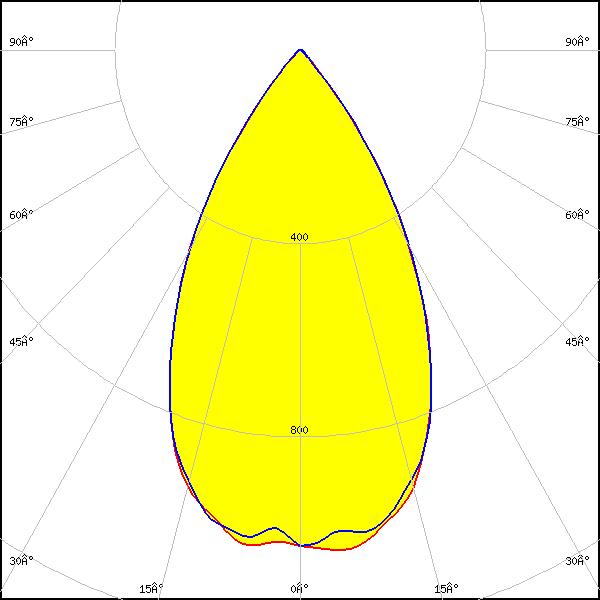

CXA/B 1830
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637b Hekla
FWHM:
58°
FWTM:
82°
Peak intensity:
1.056 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

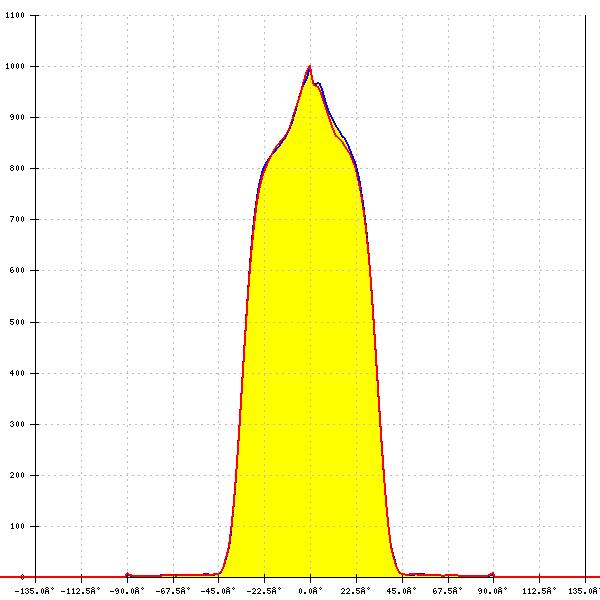

LED:
XHP35.2 HI
Ordering code: C17689_AMY-50-WW
LES size: 0.0 mm
FWHM:
62°
FWTM:
78°
Peak intensity:
1.001 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LEDIM/C6
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.0 mm
Required components:
FWHM:
57°
FWTM:
76°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

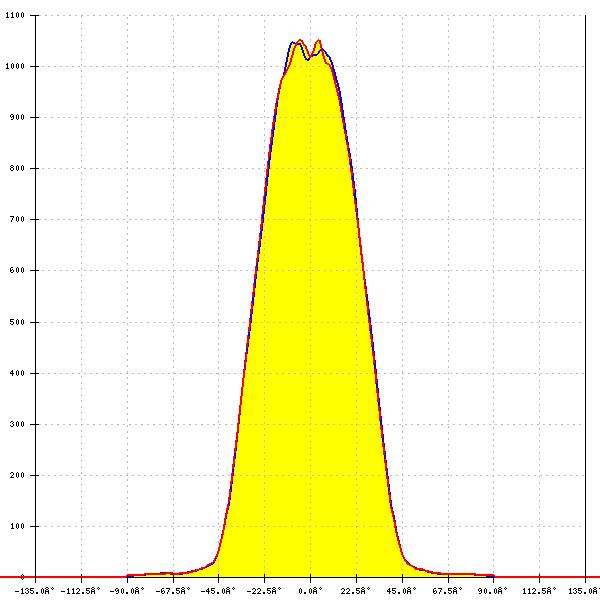

LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
58°
FWTM:
84°
Peak intensity:
1.069 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
LES size: 0.0 mm
FWHM:
58°
FWTM:
75°
Peak intensity:
1.081 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

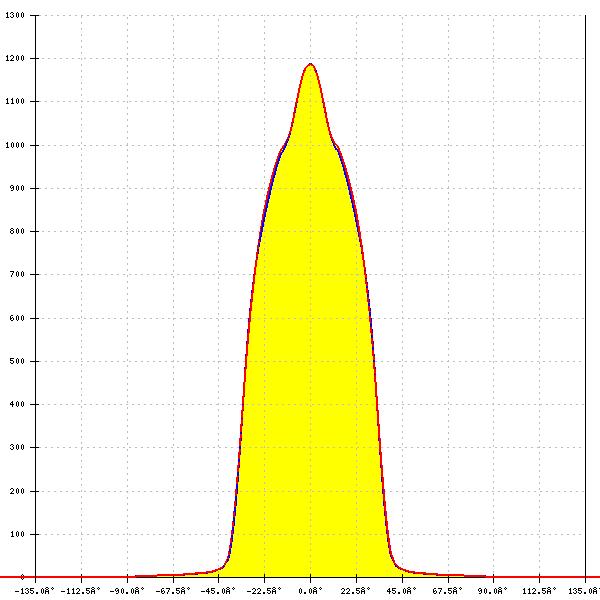

LUXEON 7070
Ordering code: CP19135_AMY-50-WW-B2
LES size: 0.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
60°
FWTM:
76°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

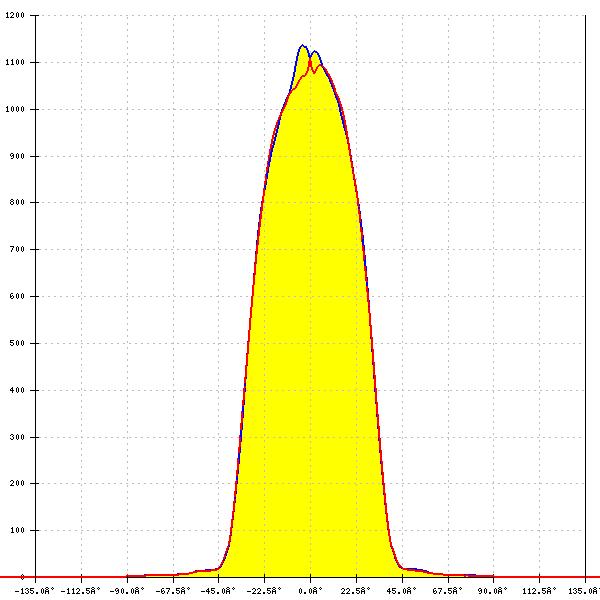

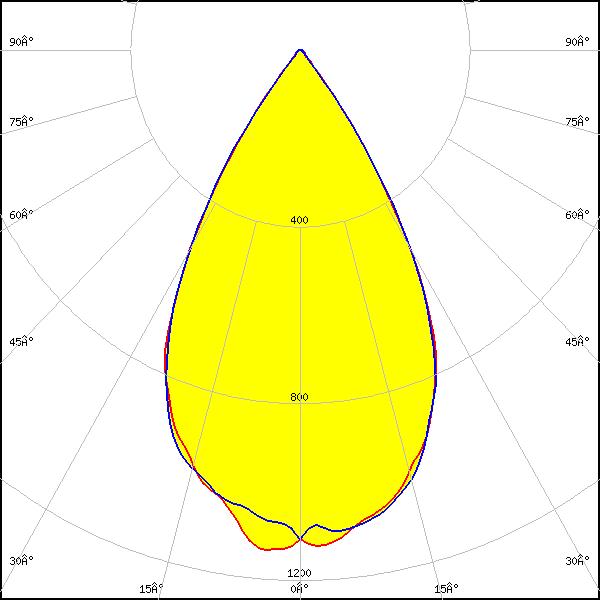

LUXEON CoB 1202/1203
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.0 mm
Required components:
FWHM:
56°
FWTM:
75°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

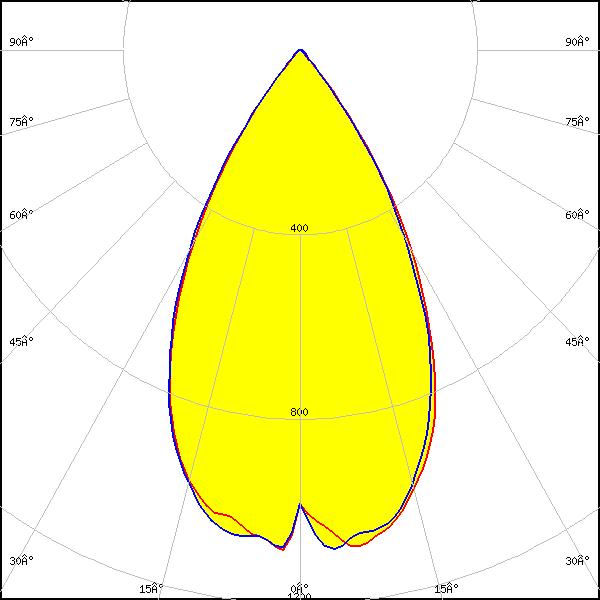

LUXEON CoB 1204/1205
Ordering code: CP19126_AMY-50-WW-C2
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
57°
FWTM:
80°
Peak intensity:
1.114 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

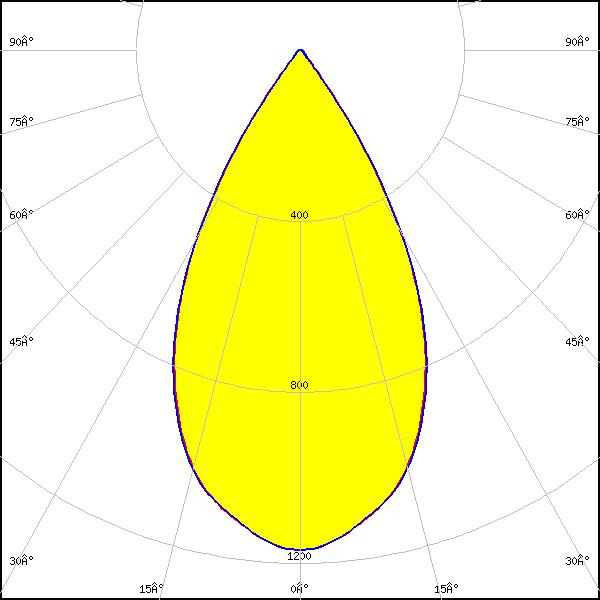

LUXEON CoB 1204HD
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.0 mm
Required components:
FWHM:
56°
FWTM:
76°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
Ordering code: CP19126_AMY-50-WW-C2
LES size: 11.0 mm
Required components:
FWHM:
59°
FWTM:
80°
Peak intensity:
1.090 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

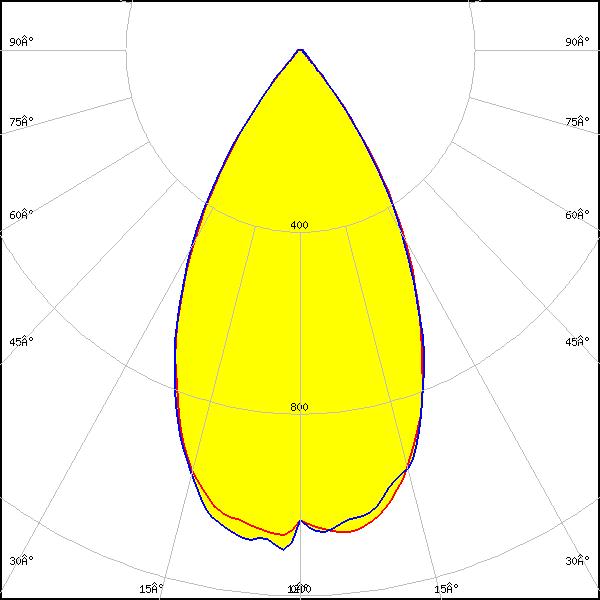

LUXEON CoB 1208
Ordering code: CP19126_AMY-50-WW-C2
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
57°
FWTM:
82°
Peak intensity:
1.101 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

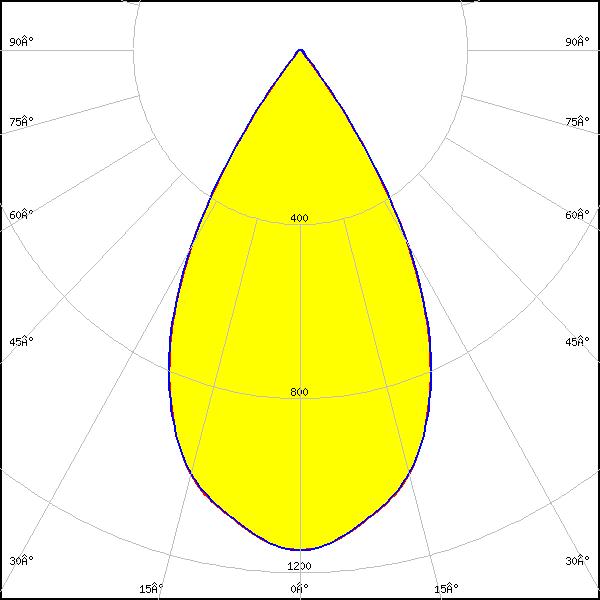

LUXEON CoB M02/M03
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.5 mm
Required components:
FWHM:
58°
FWTM:
77°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB S01
Ordering code: CP19126_AMY-50-WW-C2
LES size: 5.5 mm
Required components:
FWHM:
58°
FWTM:
75°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S01H4
Ordering code: CP19135_AMY-50-WW-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
60°
FWTM:
76°
Peak intensity:
1.169 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

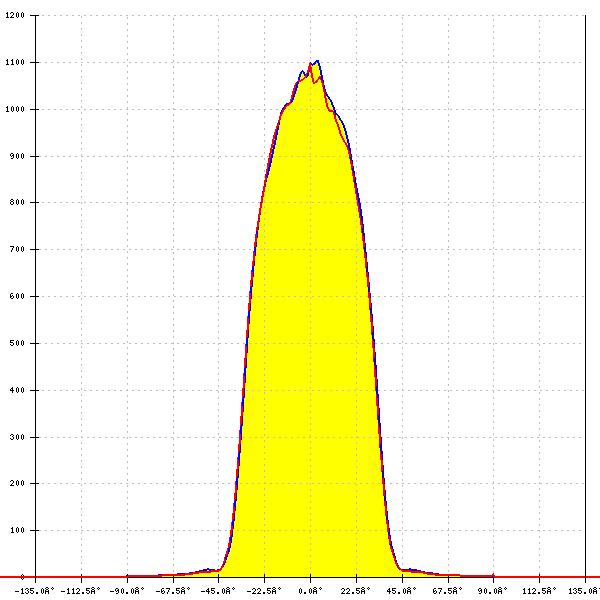

LUXEON CX Plus CoB - HD S02H6
Ordering code: CP19135_AMY-50-WW-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
60°
FWTM:
77°
Peak intensity:
1.102 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
Ordering code: CP19135_AMY-50-WW-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
60°
FWTM:
78°
Peak intensity:
1.106 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

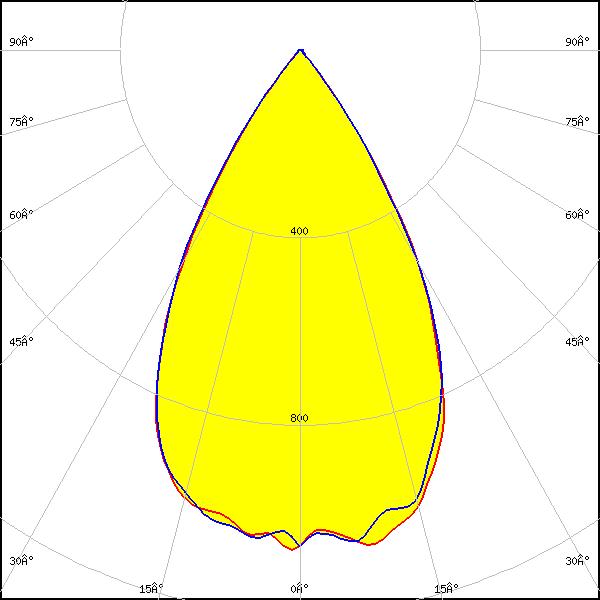

LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.0 mm
Required components:
FWHM:
60°
FWTM:
78°
Peak intensity:
1.095 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.0 mm
Required components:
FWHM:
62°
FWTM:
78°
Peak intensity:
1.110 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

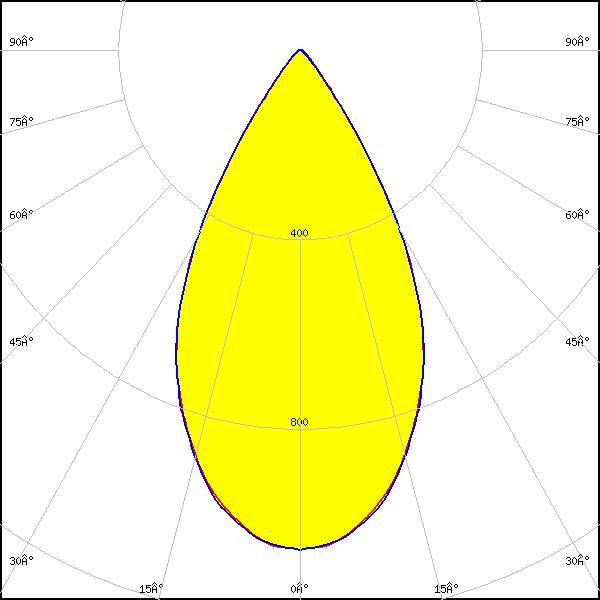

LUXEON Fusion 12-up (20x24)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 7.3 mm
Required components:
FWHM:
56°
FWTM:
78°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Fusion 21-up (20x24)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 7.5 mm
Required components:
FWHM:
56°
FWTM:
78°
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

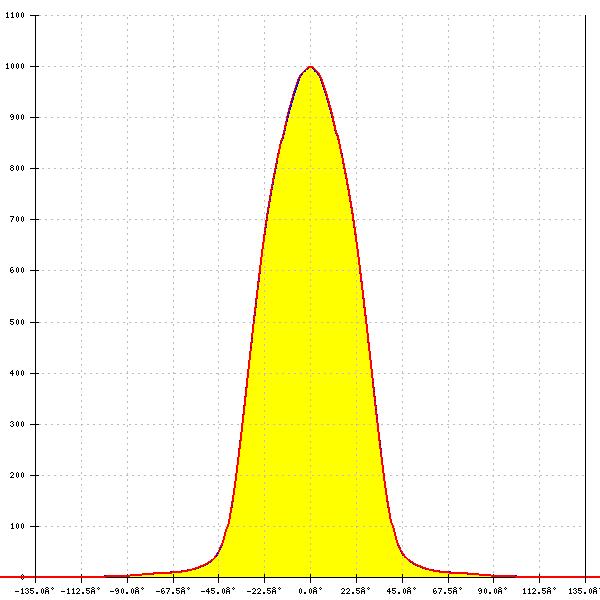

LUXEON Fusion 27-up (20x24)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 10.5 mm
Required components:
FWHM:
55°
FWTM:
81°
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHM-9 XH (19x19)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.0 mm
Required components:
FWHM:
58°
FWTM:
76°
Peak intensity:
1.161 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White) Gen2
Ordering code: CP19126_AMY-50-WW-C2
LES size: 13.9 mm
Required components:
FWHM:
53°
FWTM:
79°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-6 (Tunable White) Gen2
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.8 mm
Required components:
FWHM:
58°
FWTM:
76°
Peak intensity:
1.190 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

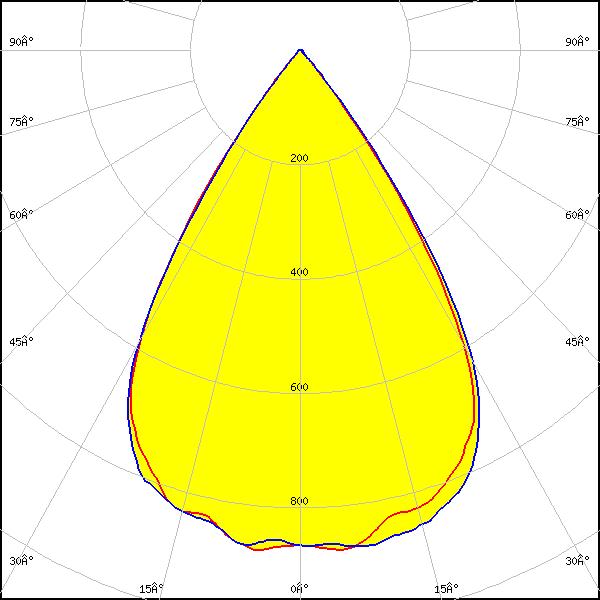

CTM-9 (Tunable White)
Ordering code: CP19135_AMY-50-WW-B2
LES size: 9.5 mm
Required components:
Bender Wirth: 495 Typ B35L
FWHM:
67°
FWTM:
81°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

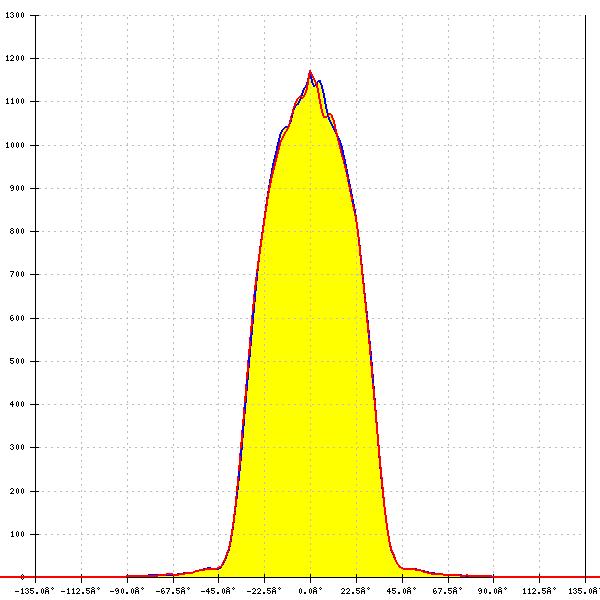

CTM-9 (Tunable White) Gen2
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.5 mm
Required components:
FWHM:
57°
FWTM:
76°
Peak intensity:
1.180 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CXM-3
Ordering code: CP19126_AMY-50-WW-C2
LES size: 3.5 mm
Required components:
FWHM:
58°
FWTM:
74°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
Ordering code: CP19126_AMY-50-WW-C2
LES size: 4.5 mm
Required components:
FWHM:
58°
FWTM:
74°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (13.5x13.5)
Ordering code: CP19135_AMY-50-WW-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
58°
FWTM:
75°
Peak intensity:
1.223 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

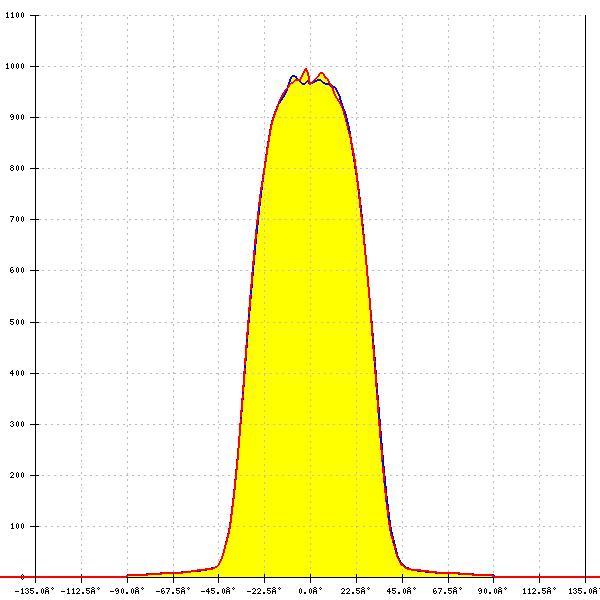

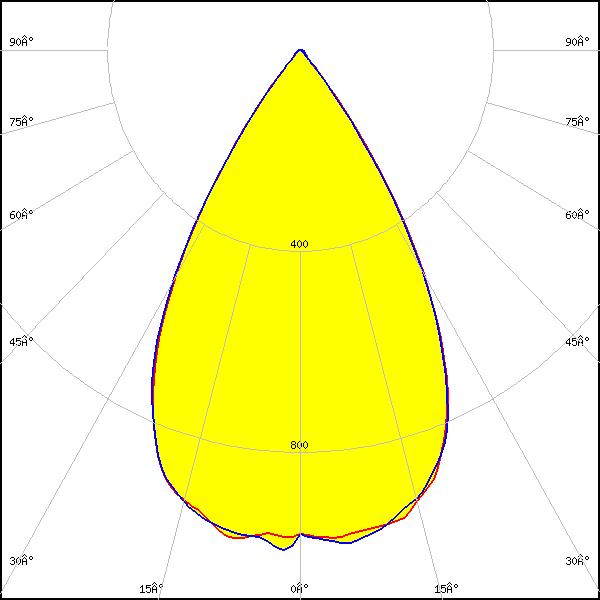

CxM-9 (13.5x13.5)
Ordering code: CP19153_AMY-50-WW-B2-WHT
LES size: 9.8 mm
Required components:
FWHM:
60°
FWTM:
80°
Peak intensity:
1.015 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM:
58°
FWTM:
83°
Peak intensity:
1.043 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 11.5 mm
Required components:
FWHM:
56°
FWTM:
78°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 8.7 mm
Required components:
FWHM:
57°
FWTM:
76°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP19135_AMY-50-WW-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
62°
FWTM:
76°
Peak intensity:
1.132 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP19135_AMY-50-WW-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
61°
FWTM:
78°
Peak intensity:
1.102 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

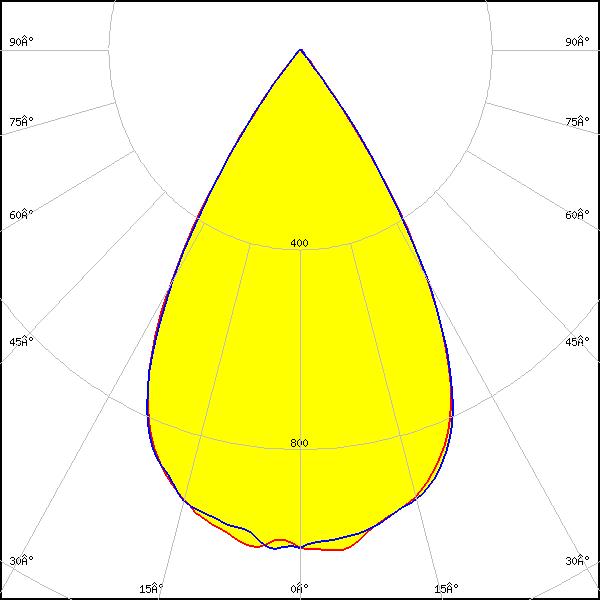

COB S-Type (LES 7)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Hekla
FWHM:
62°
FWTM:
78°
Peak intensity:
1.033 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.7 mm
Required components:
FWHM:
59°
FWTM:
76°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP19135_AMY-50-WW-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
62°
FWTM:
77°
Peak intensity:
1.111 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP19126_AMY-50-WW-C2
LES size: 7.0 mm
Required components:
FWHM:
58°
FWTM:
75°
Peak intensity:
1.198 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP19126_AMY-50-WW-C2
LES size: 5.9 mm
Required components:
FWHM:
58°
FWTM:
74°
Peak intensity:
1.245 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

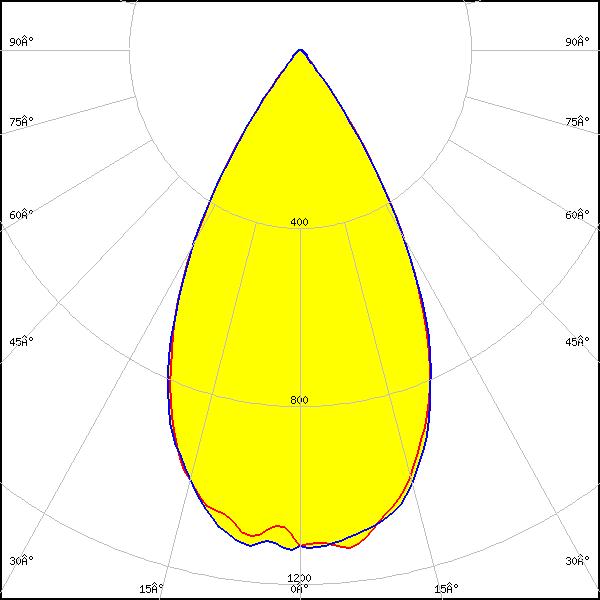

NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP19126_AMY-50-WW-C2
LES size: 10.6 mm
Required components:
FWHM:
56°
FWTM:
78°
Peak intensity:
1.167 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

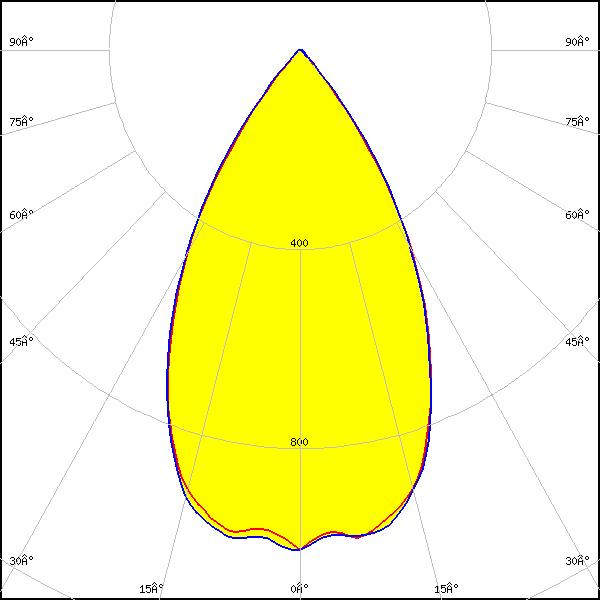

Soleriq S15
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.7 mm
Required components:
FWHM:
58°
FWTM:
83°
Peak intensity:
1.016 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM C TW L06A 1313 G7N
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.5 mm
Required components:
FWHM:
55°
FWTM:
73°
Peak intensity:
1.262 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Fortimo SLM C TW L09A 1919 G7N
LES size: 9.3 mm
Required components:
FWHM:
55°
FWTM:
76°
Peak intensity:
1.198 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

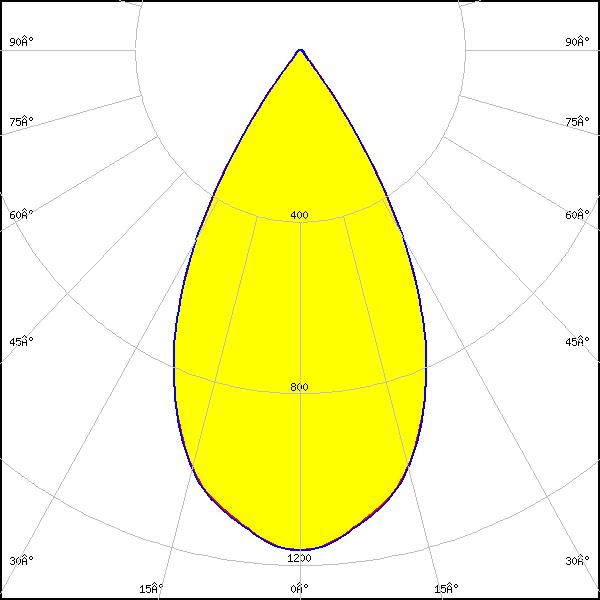

Fortimo SLM L09 CoB
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.0 mm
Required components:
FWHM:
56°
FWTM:
76°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

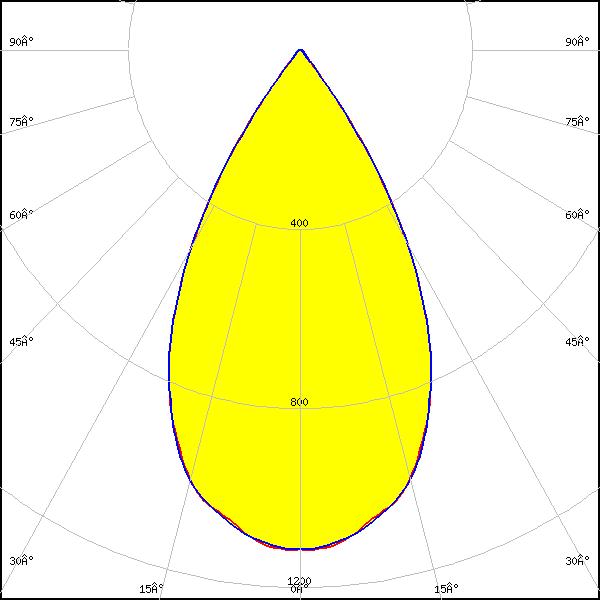

LC003D / LC006D / LC009D / LC013D
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
77°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2
Ordering code: CP19135_AMY-50-WW-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
59°
FWTM:
76°
Peak intensity:
1.213 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010T (Tunable White)
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.8 mm
Required components:
Bender Wirth: 501 Typ L8
FWHM:
58°
FWTM:
76°
Peak intensity:
1.184 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

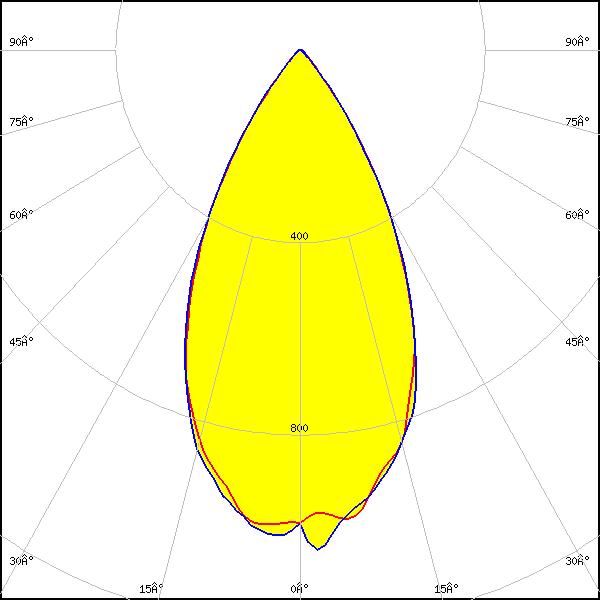

LC016D / LC019D / LC026D / LC033D
Ordering code: CP18733_YASMEEN-50-WW-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
53°
FWTM:
80°
Peak intensity:
1.041 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

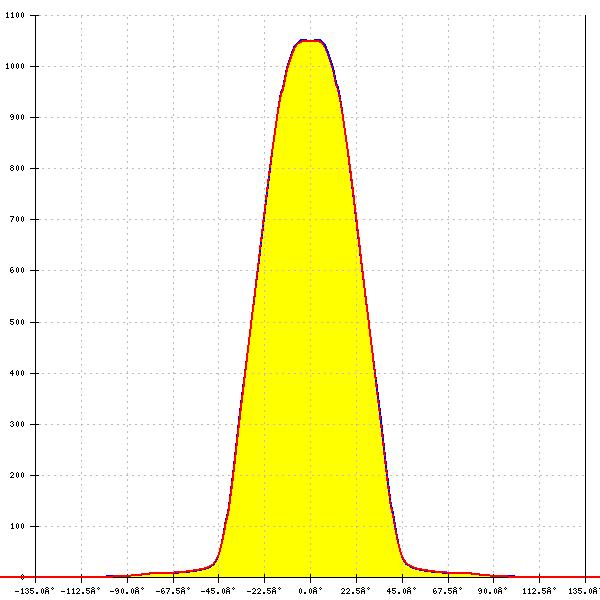

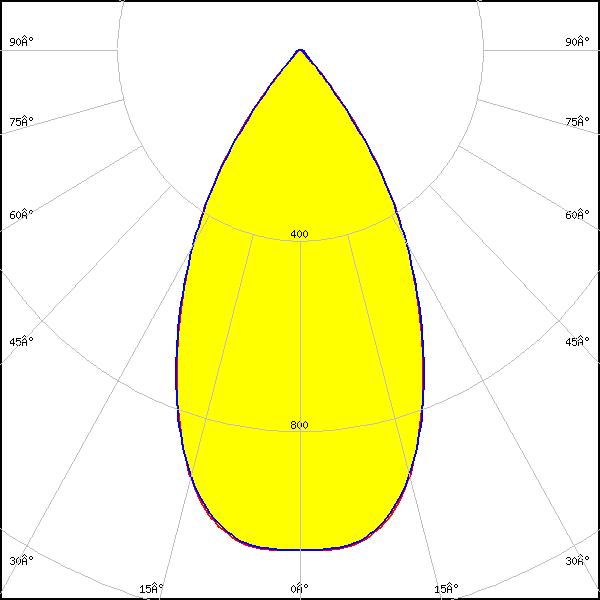

LC016D / LC019D / LC026D / LC033D
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.5 mm
Required components:
FWHM:
56°
FWTM:
82°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
Ordering code: CP19135_AMY-50-WW-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
58°
FWTM:
76°
Peak intensity:
1.166 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

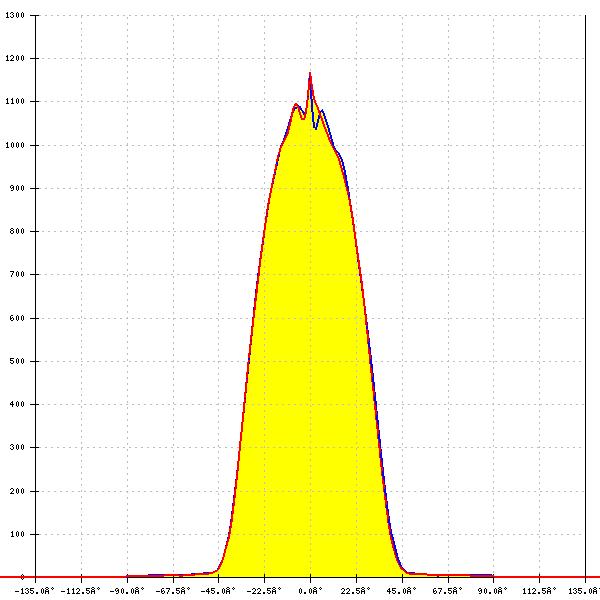

LC030C/040C G2
Ordering code: CP19135_AMY-50-WW-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
56°
FWTM:
79°
Peak intensity:
1.169 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC030C/040C G2
Ordering code: CP19126_AMY-50-WW-C2
LES size: 11.5 mm
Required components:
FWHM:
56°
FWTM:
78°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

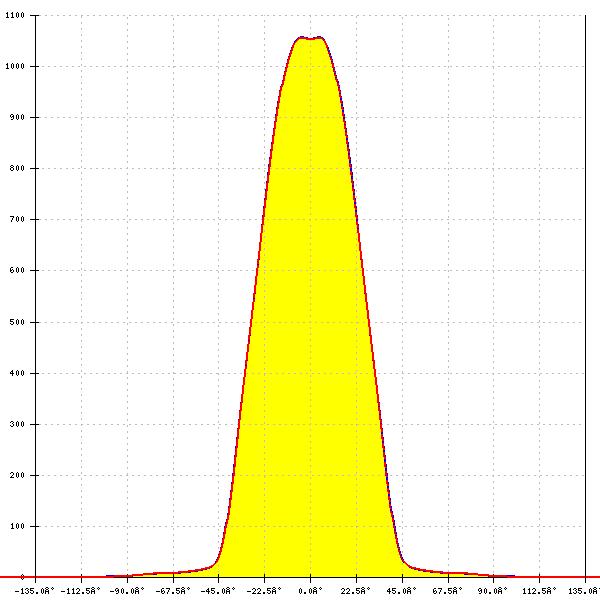

MJT COB LES 14.5
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.5 mm
Required components:
FWHM:
56°
FWTM:
82°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

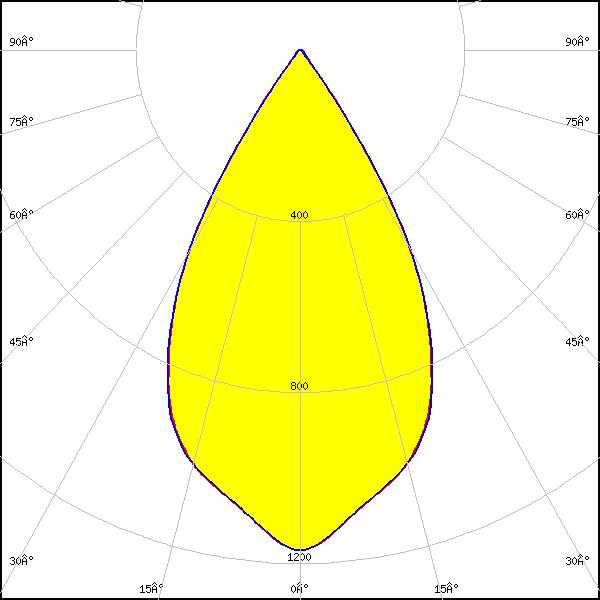

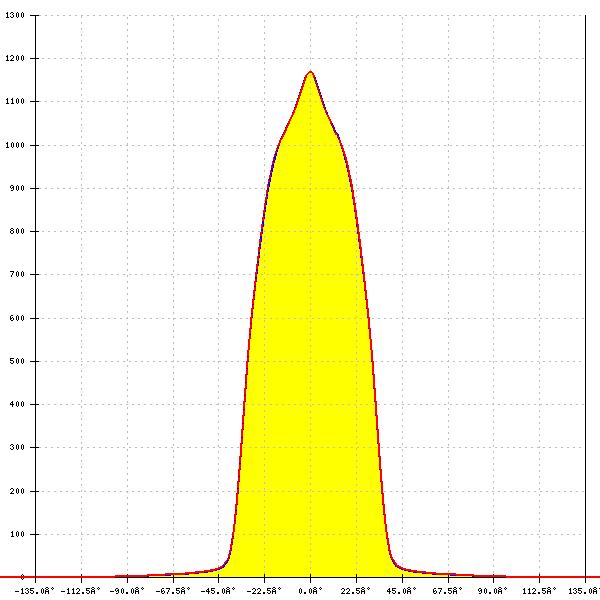

MJT COB LES 6
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.0 mm
Required components:
FWHM:
58°
FWTM:
75°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
77°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
Ordering code: CP19126_AMY-50-WW-C2
LES size: 9.0 mm
Required components:
FWHM:
57°
FWTM:
76°
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES13
Ordering code: CP19126_AMY-50-WW-C2
LES size: 13.0 mm
Required components:
FWHM:
56°
FWTM:
80°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
Ordering code: CP19126_AMY-50-WW-C2
LES size: 15.0 mm
Required components:
FWHM:
55°
FWTM:
81°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES21
Ordering code: CP19126_AMY-50-WW-C2
LES size: 20.5 mm
FWHM:
54°
FWTM:
87°
Peak intensity:
0.979 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

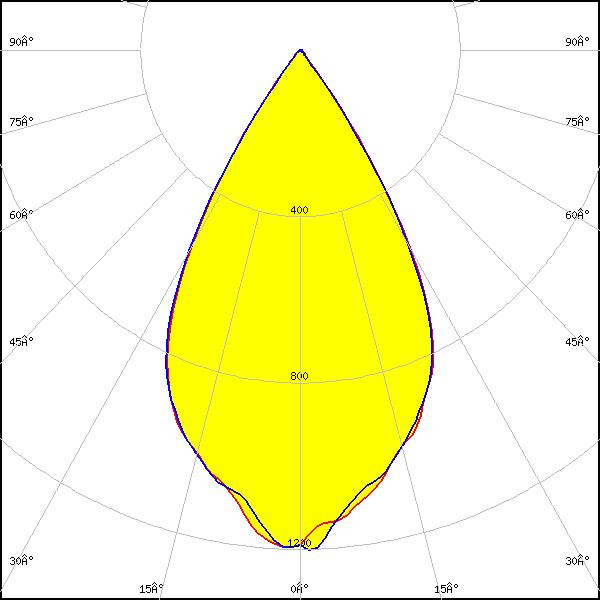

SLE SNC8 LES06
Ordering code: CP19126_AMY-50-WW-C2
LES size: 6.0 mm
Required components:
FWHM:
58°
FWTM:
75°
Peak intensity:
1.207 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
