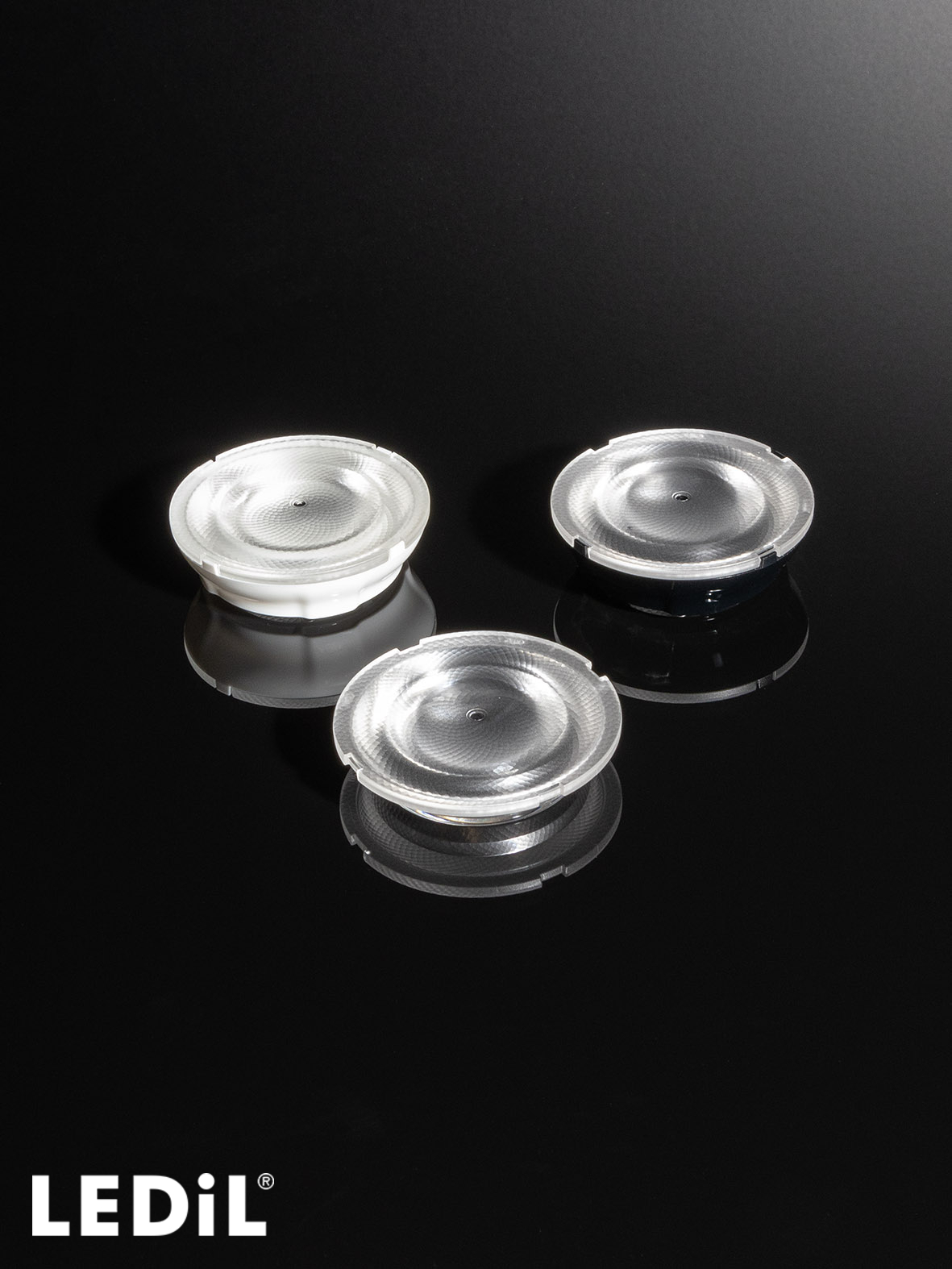

    AMY-50-WWW

    Print

    ~80° wide beam

    This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.

    Specification
    • Dimensions:
      50 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C19712_AMY-50-WWW
    • Assembly

      (single lens, holder)

    • CP19716_AMY-50-WWW-B2
      black,Holder B
    • CP19717_AMY-50-WWW-B2-WHT
      white,Holder B
    • CP19714_AMY-50-WWW-C2
      black,Holder C
    • CP19715_AMY-50-WWW-C2-WHT
      white,Holder C
    • Packaging information in the product datasheet
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C19712_AMY-50-WWW
      CP19714_AMY-50-WWW-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products – January 2025

    Compatibility guide

    LEDiL connector and socket compatibility guide

    Catalogue

    LEDiL Latest products catalogue 2026

    News

    HEKLA-SOCKET-RZ ‒ Your effortless entry to the RGBW world

    News

    Illuminate with elegance – discover the versatility of AMY

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    News

    AMY-50 – low profile COB lens for compact luminaires

    Luminaire, example

    Track light luminaire with AMY-50

    Application guide

    Guide for Architectural lighting optics

    Application guide

    Guide for Office Lighting Optics

    Application guide

    Guide for Retail Lighting Optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

    HEKLA-KONNTAKT-C

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    KONNTAKT-1

    KONNTAKT parts for HEKLA-KONNTAKT connectors. Two pieces are needed for one HEKLA-KONNTAKT.

    HEKLA-KONNTAKT-I

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-I2

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-I3

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-A

    Version compatible with COBs of 12.5 x 12.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    Optical results

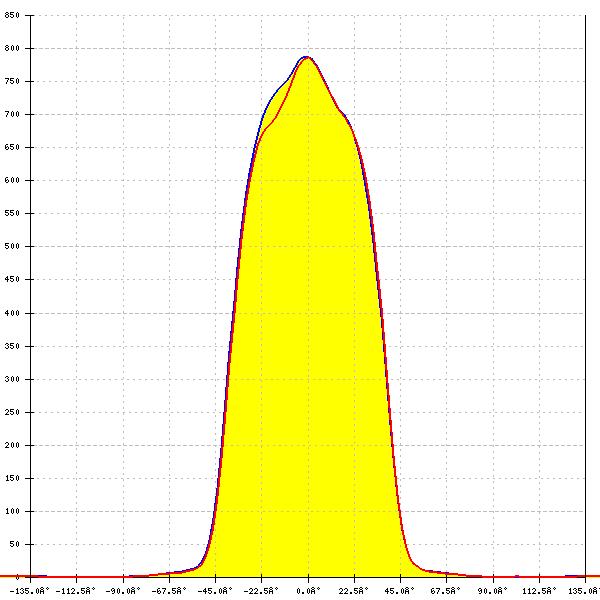

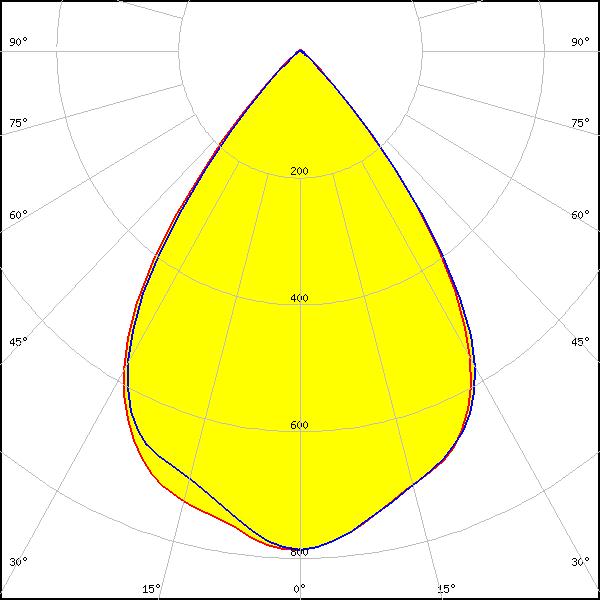

    LED: V10 Gen 8-9
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 10.0 mm
    Required components:
    L20758_HEKLA-KONNTAKT-C2
    FWHM: 72°
    FWTM: 92°
    Peak intensity: 0.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

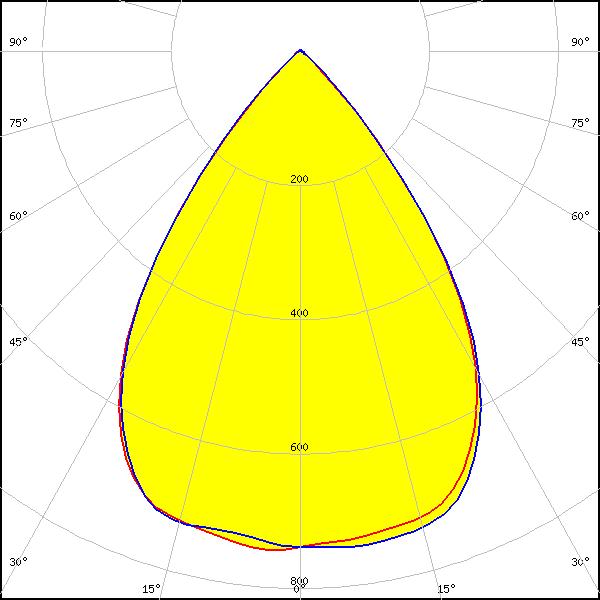

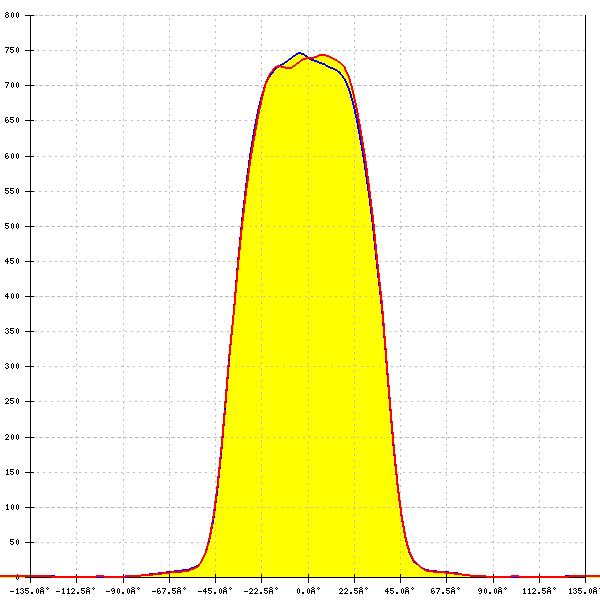

    LED: V11 HD Gen 8
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 11.3 mm
    Required components:
    L20761_HEKLA-KONNTAKT-I3
    FWHM: 72°
    FWTM: 92°
    Peak intensity: 0.747 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

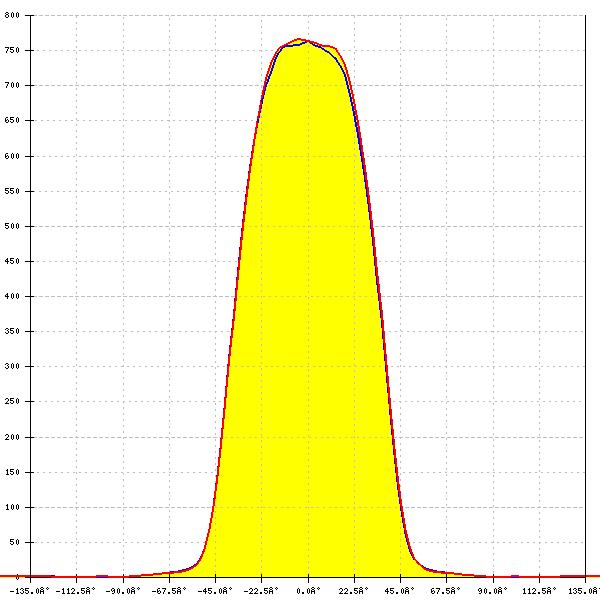

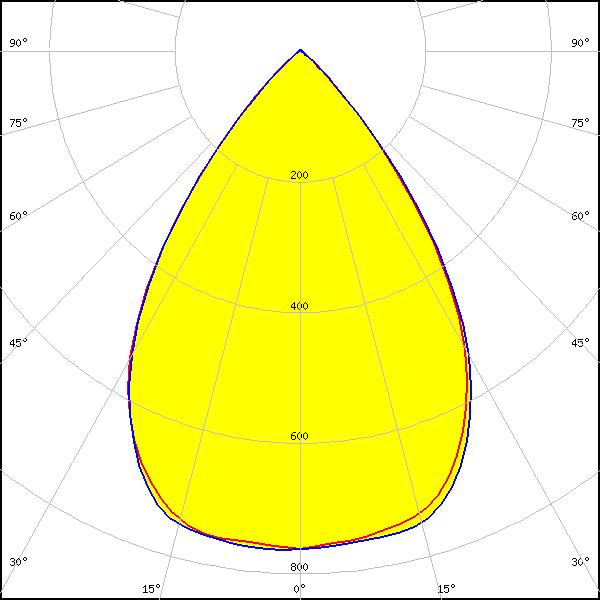

    LED: V13 Gen 8-9
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 14.8 mm
    Required components:
    L20760_HEKLA-KONNTAKT-I2
    FWHM: 72°
    FWTM: 95°
    Peak intensity: 0.766 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

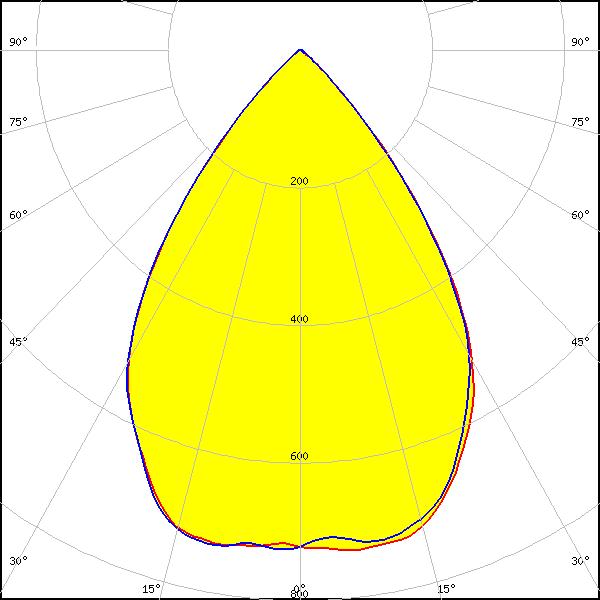

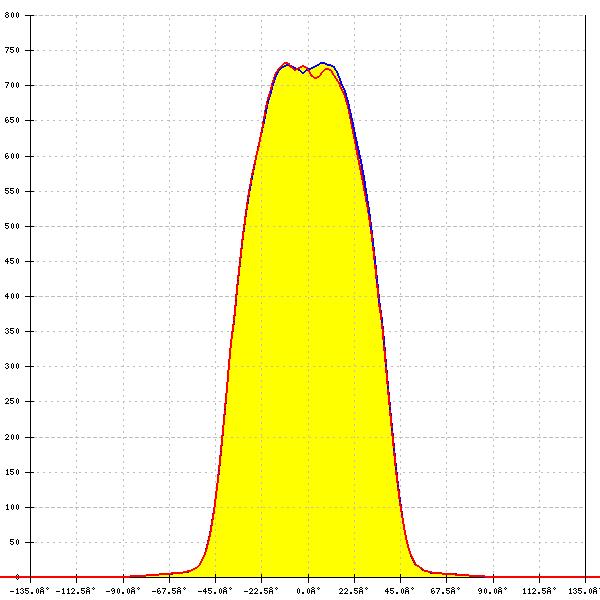

    LED: V13 Gen 8-9
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 72°
    FWTM: 94°
    Peak intensity: 0.735 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

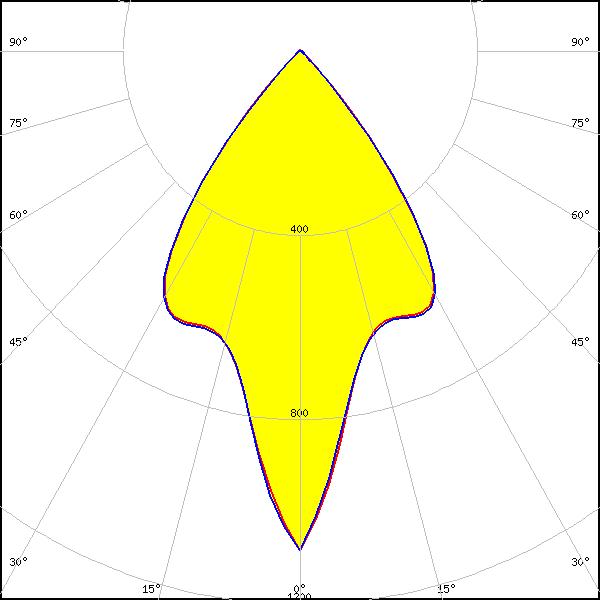

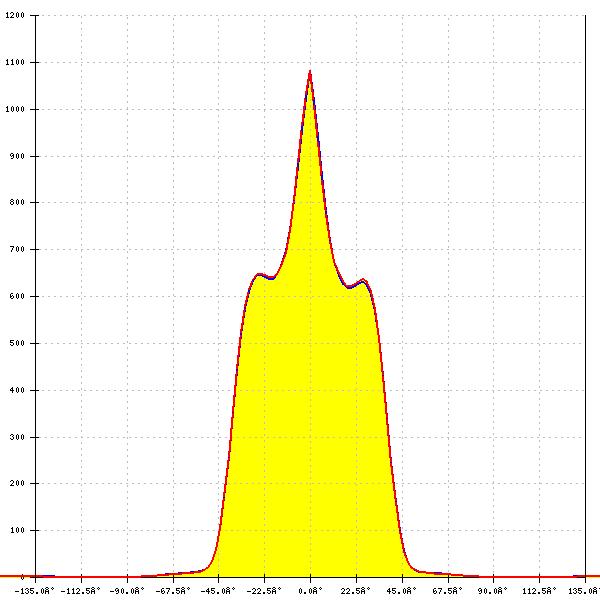

    LED: V3 HD Gen 8 FC
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 2.9 mm
    Required components:
    L20759_HEKLA-KONNTAKT-C3
    FWHM: 66°
    FWTM: 88°
    Peak intensity: 1.084 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

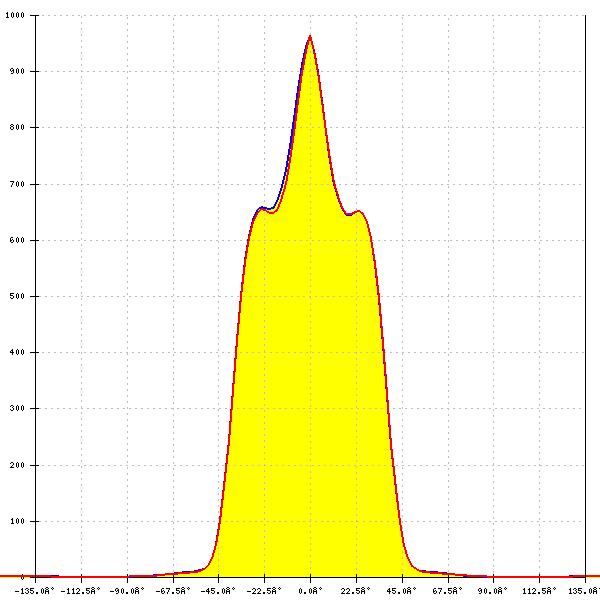

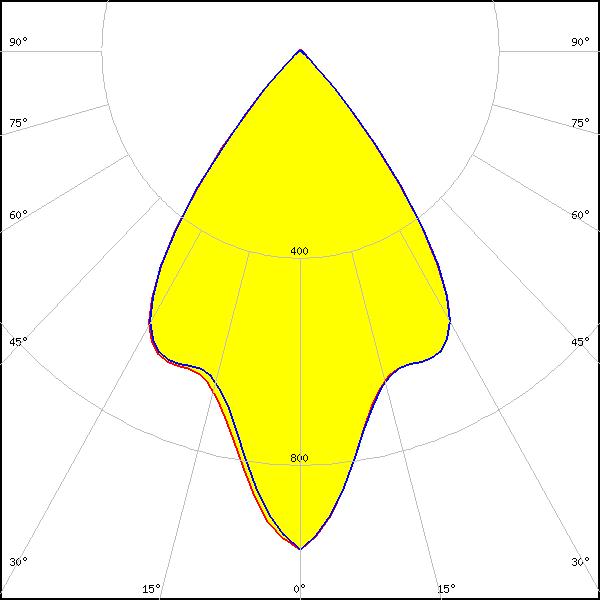

    LED: V4 HD Gen 8
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 4.8 mm
    Required components:
    L20762_HEKLA-KONNTAKT-A
    FWHM: 68°
    FWTM: 88°
    Peak intensity: 0.965 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

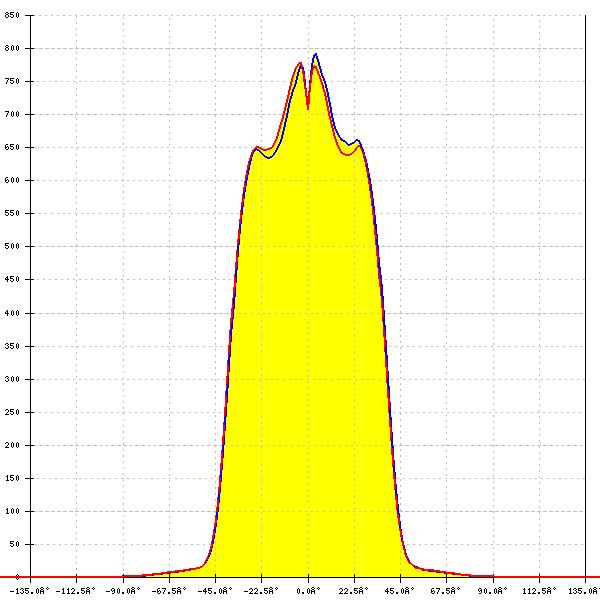

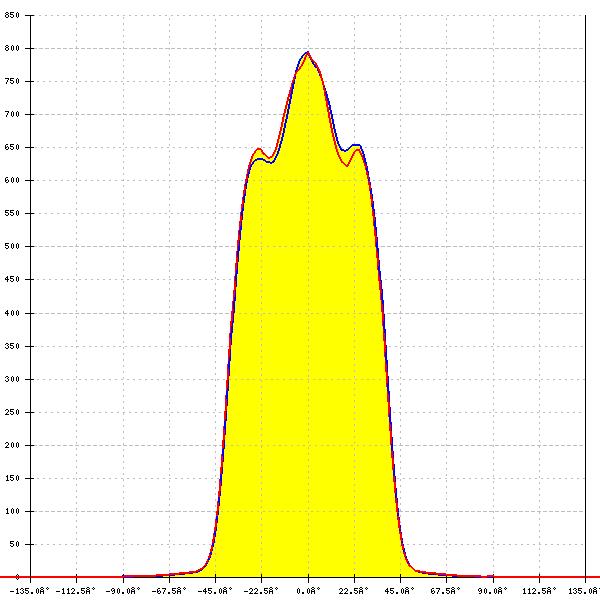

    LED: V6 HD Gen 8
    Ordering code: CP19715_AMY-50-WWW-C2-WHT
    LES size: 6.6 mm
    Required components:
    F19858_HEKLA-G2B-C3
    FWHM: 74°
    FWTM: 90°
    Peak intensity: 0.800 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

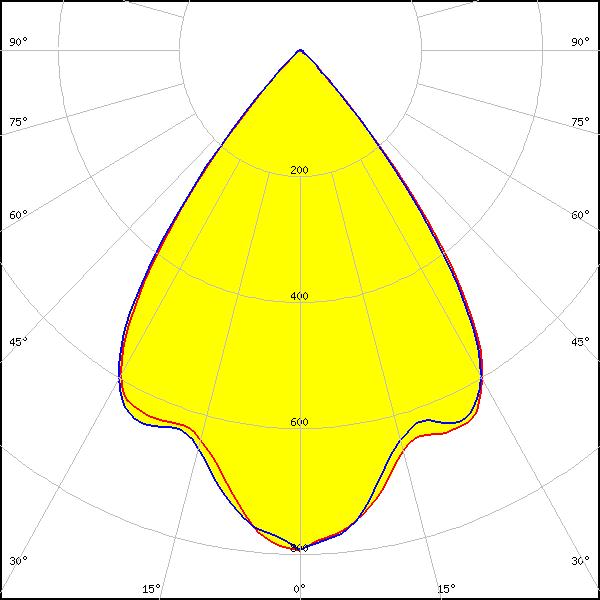

    LED: V6 HD Gen 8
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 6.6 mm
    Required components:
    F19858_HEKLA-G2B-C3
    FWHM: 73°
    FWTM: 90°
    Peak intensity: 0.799 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02Q-1203E1 Type-M
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 9.7 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 72°
    FWTM: 90°
    Peak intensity: 0.777 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

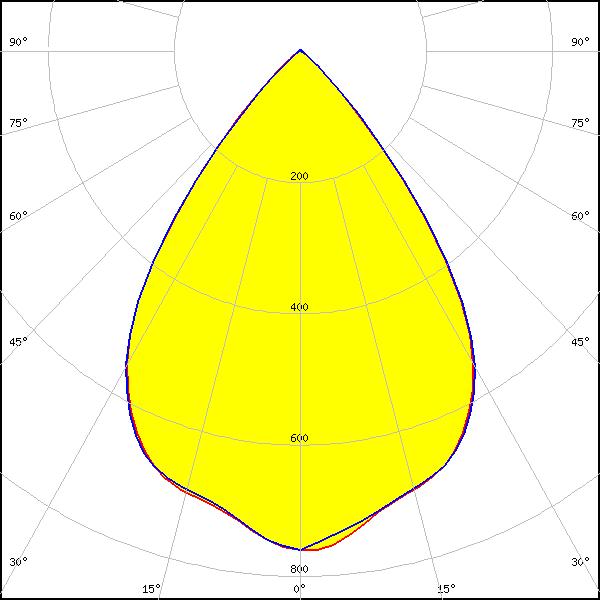

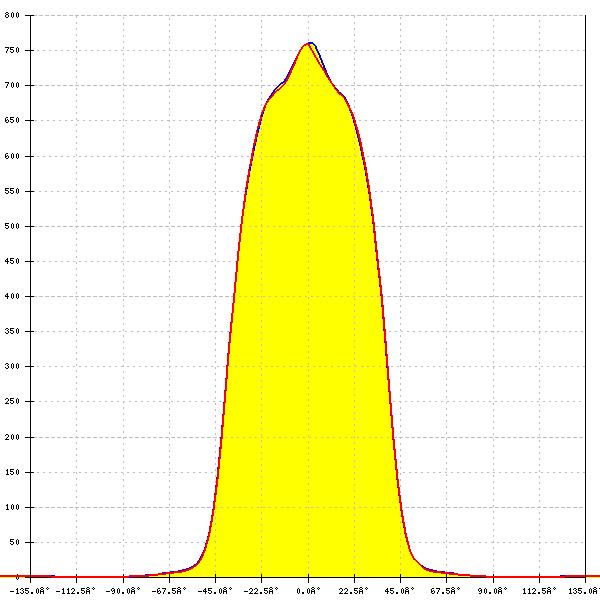

    LED: CLU02Q-1204E1 Type-M
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 9.7 mm
    Required components:
    L20675_HEKLA-KONNTAKT-C
    FWHM: 72°
    FWTM: 93°
    Peak intensity: 0.764 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

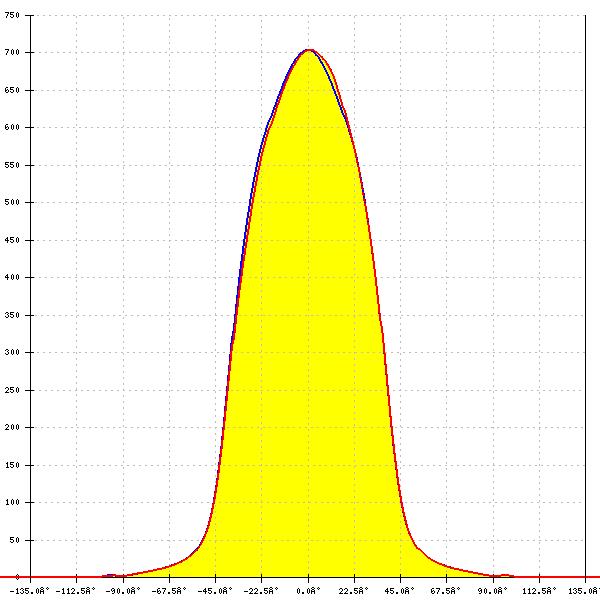

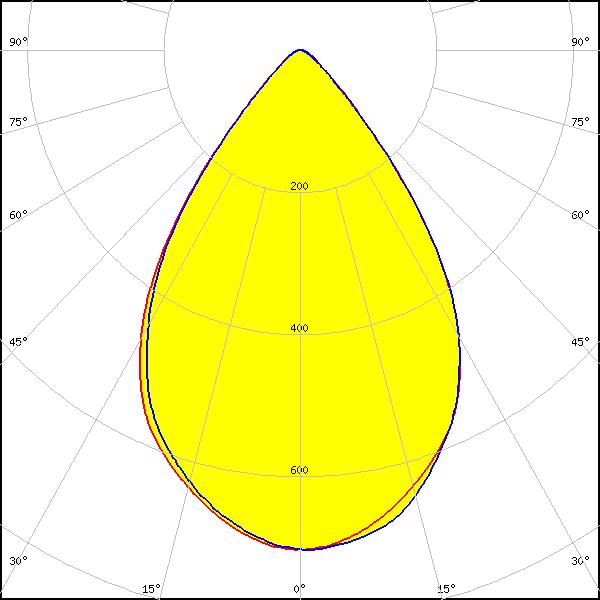

    LED: CLU02x (LES10)
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 70°
    FWTM: 96°
    Peak intensity: 0.704 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

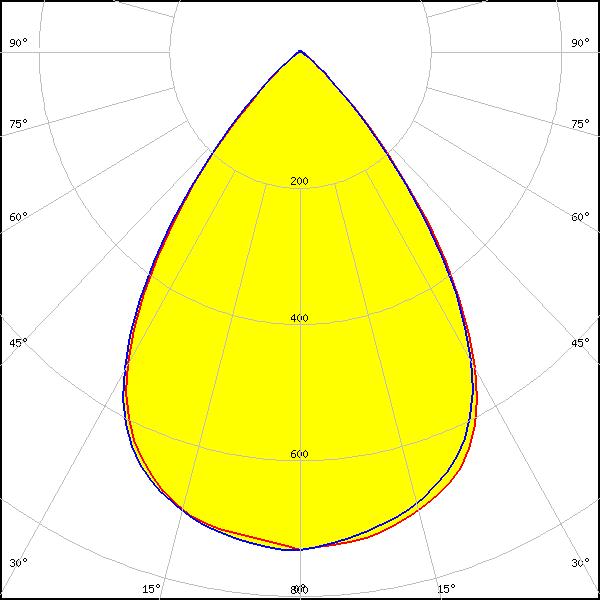

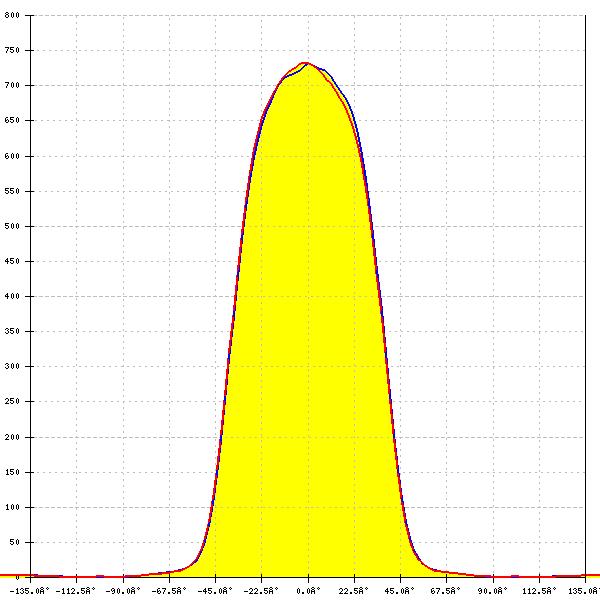

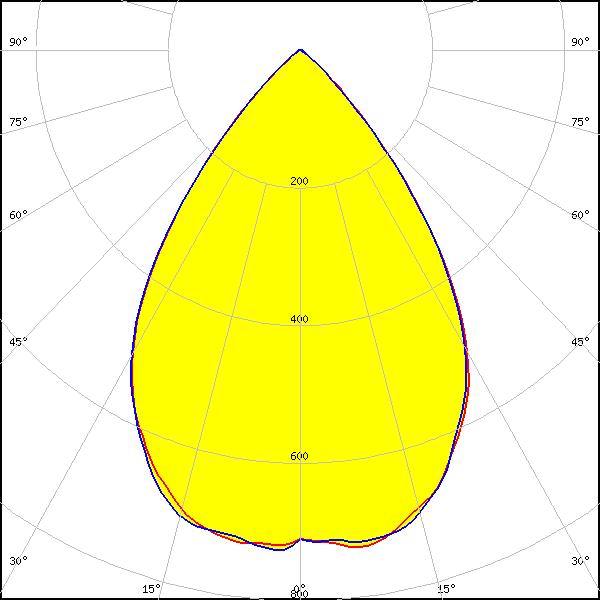

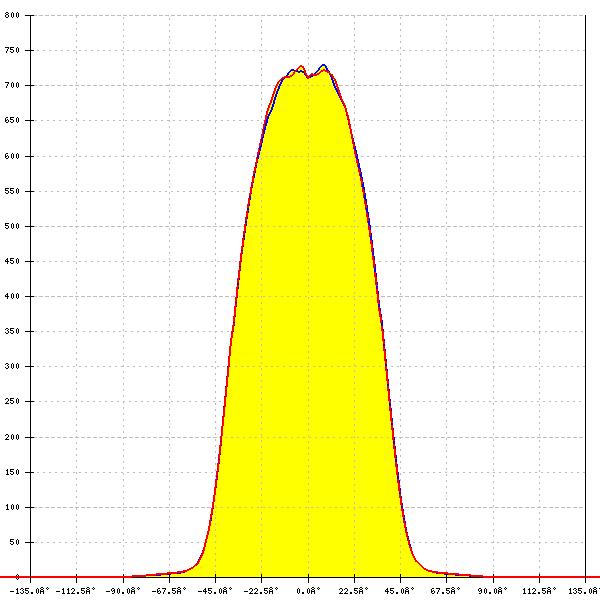

    LED: CLU03Q-1210E1 Type-M
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 14.5 mm
    Required components:
    L20752_HEKLA-KONNTAKT-I
    FWHM: 72°
    FWTM: 96°
    Peak intensity: 0.733 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

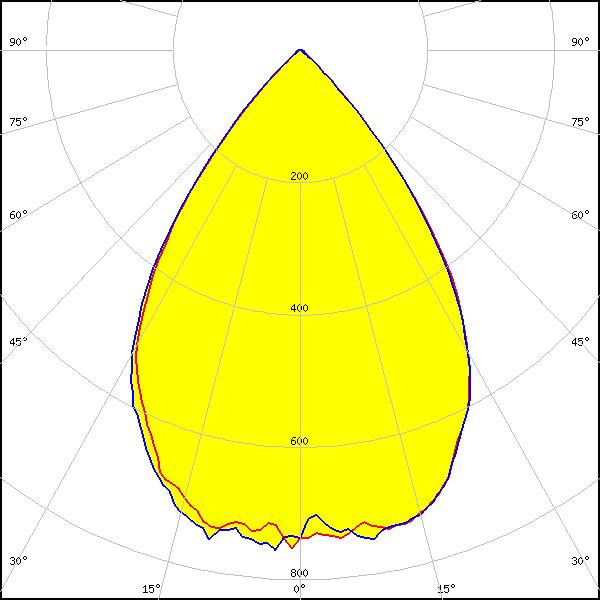

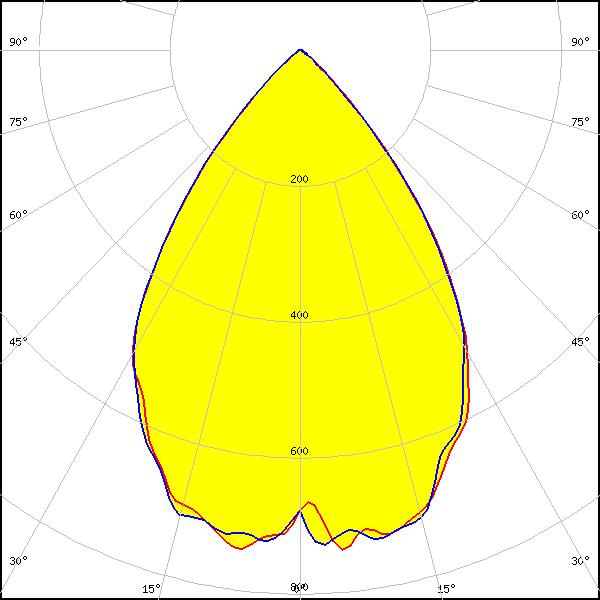

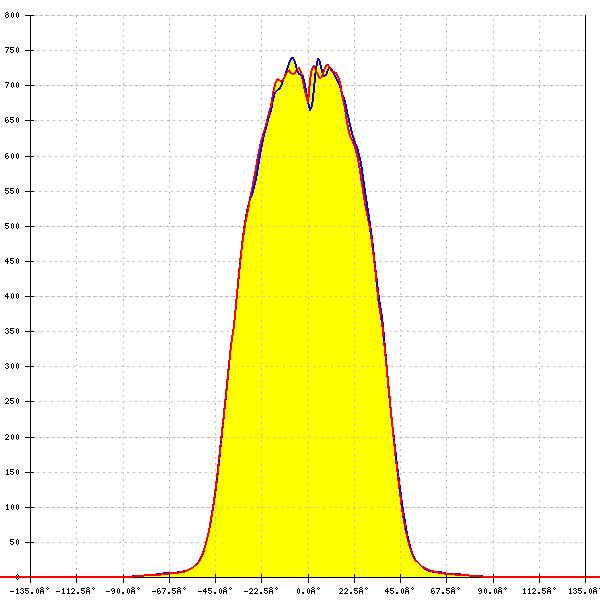

    LED: CLU03Q-1210E1 Type-M
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 72°
    FWTM: 94°
    Peak intensity: 0.771 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 72°
    FWTM: 95°
    Peak intensity: 0.783 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

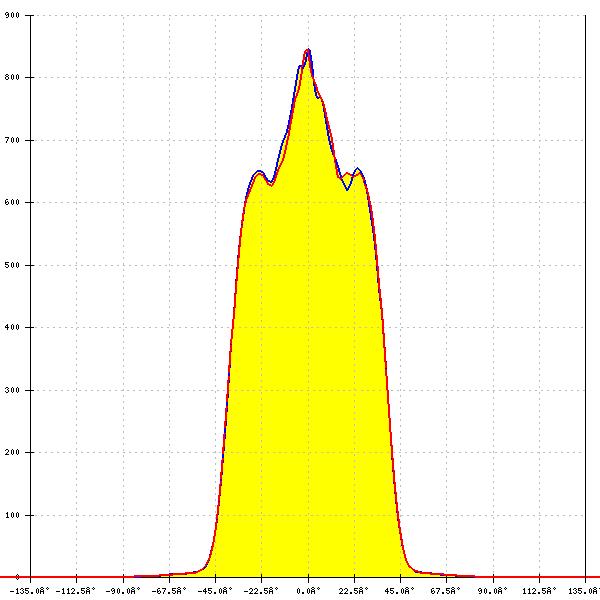

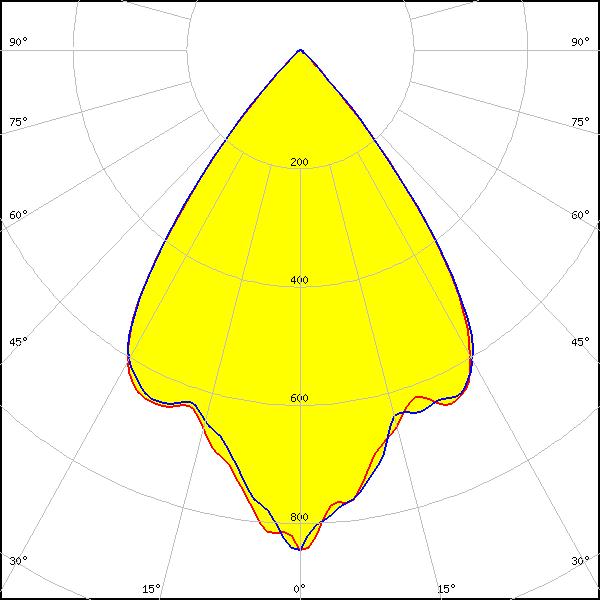

    LED: CLU700/701/702/703
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 72°
    FWTM: 89°
    Peak intensity: 0.862 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

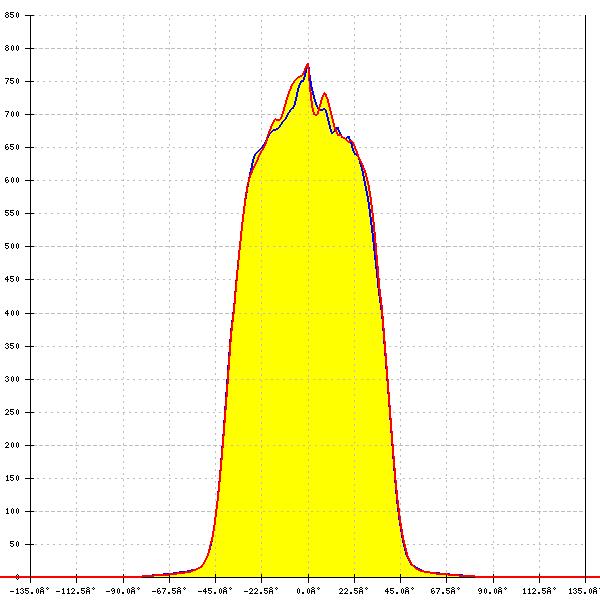

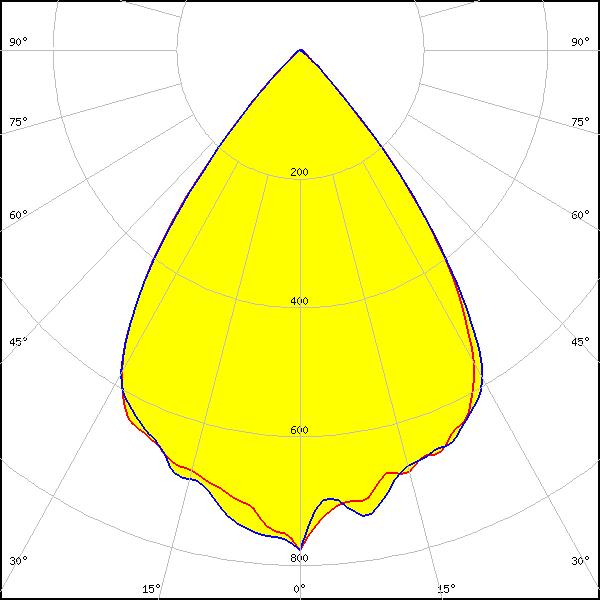

    LED: CLU712/713
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 72°
    FWTM: 90°
    Peak intensity: 0.801 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

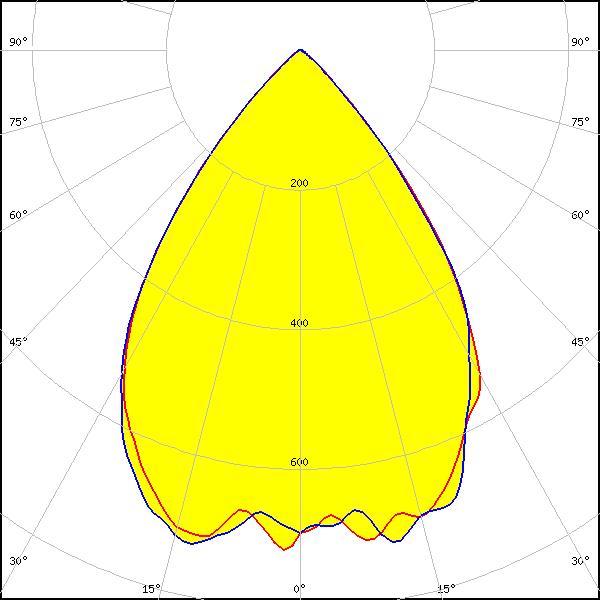

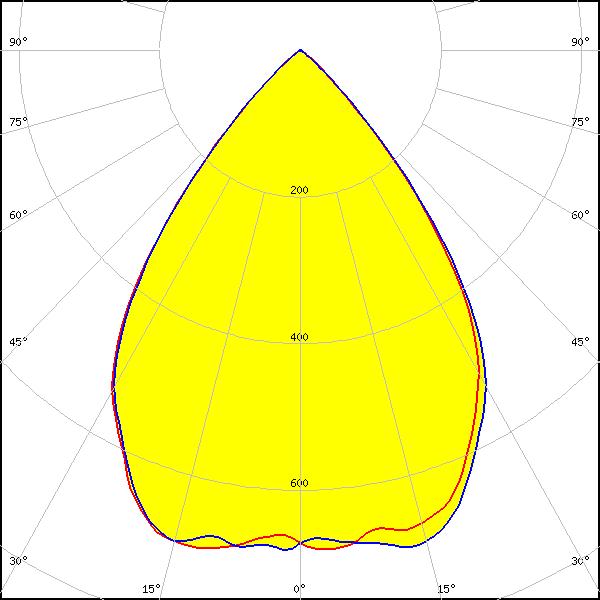

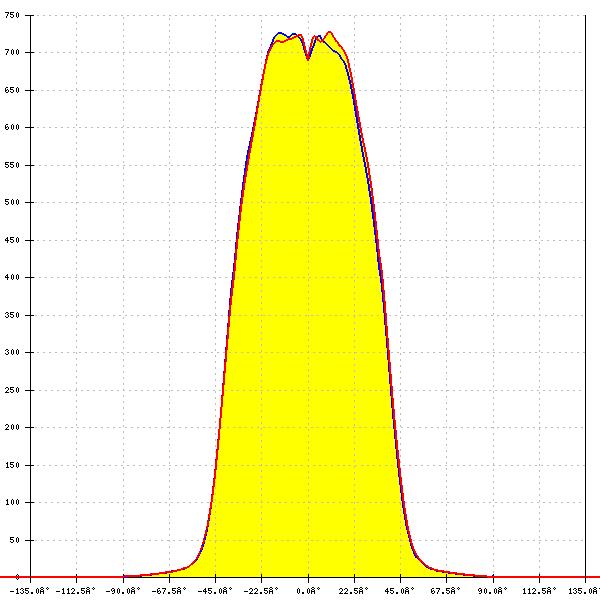

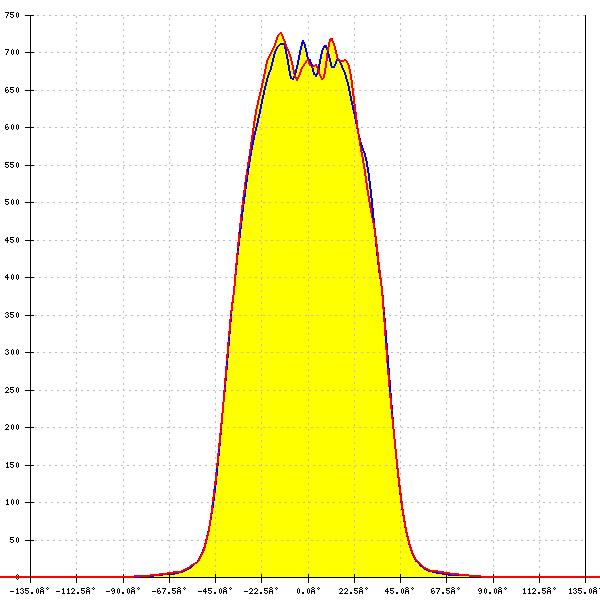

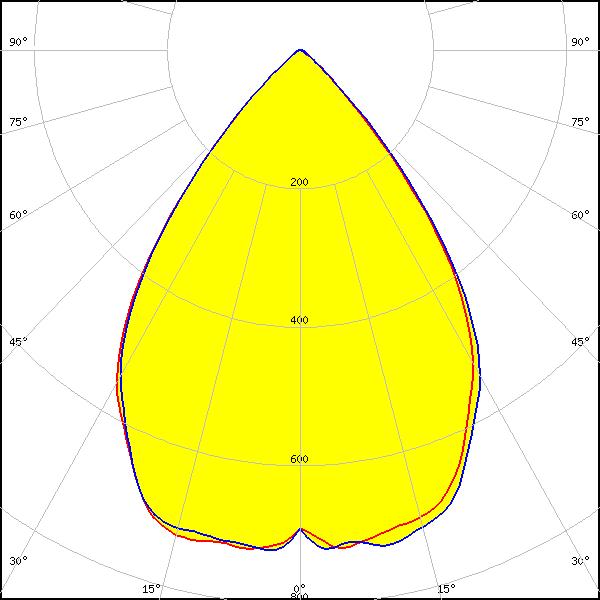

    LED: CLU730/731/733
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 74°
    FWTM: 95°
    Peak intensity: 0.727 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

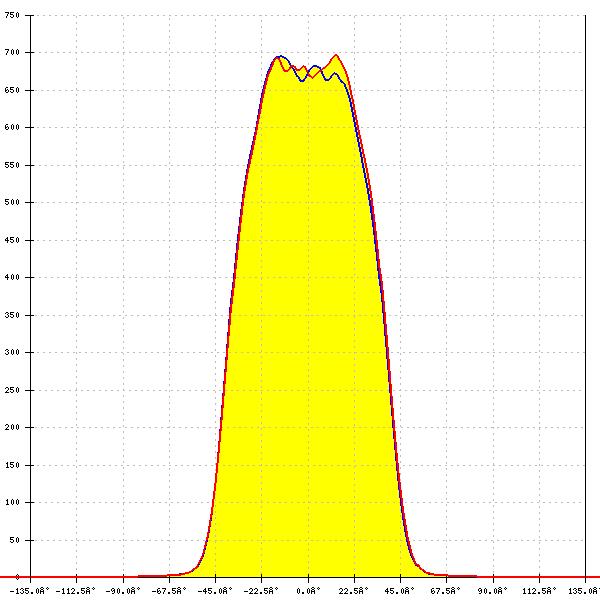

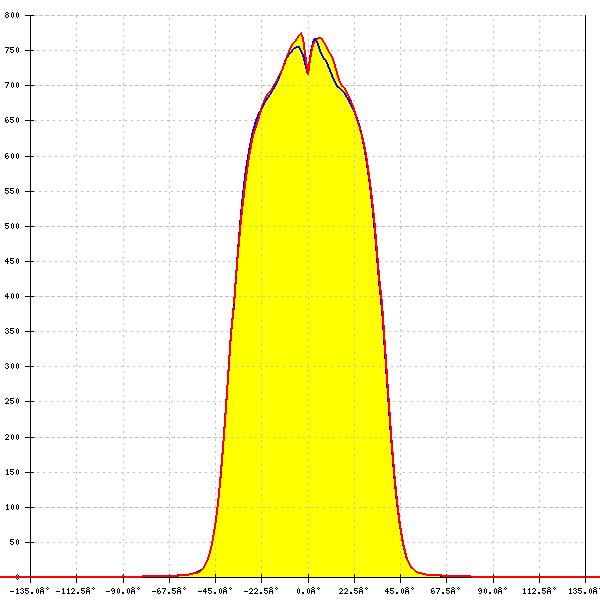

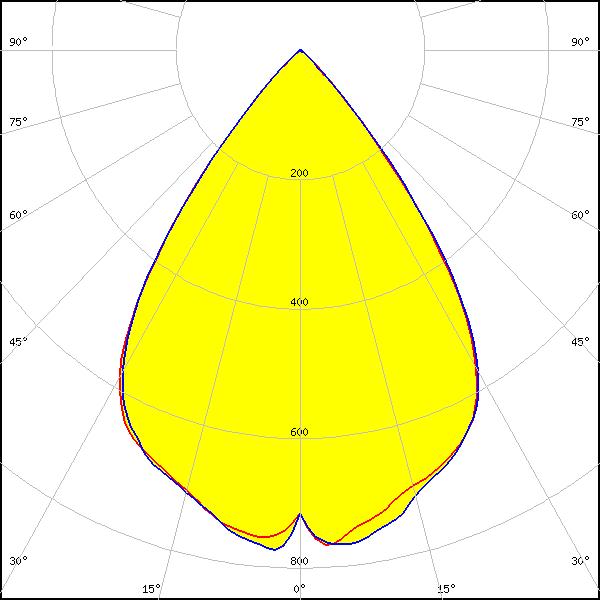

    LED: CMB15xx
    Ordering code: CP19716_AMY-50-WWW-B2
    LES size: 9.0 mm
    Required components:
    BJB: 47.360.1030
    FWHM: 72°
    FWTM: 90°
    Peak intensity: 0.783 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

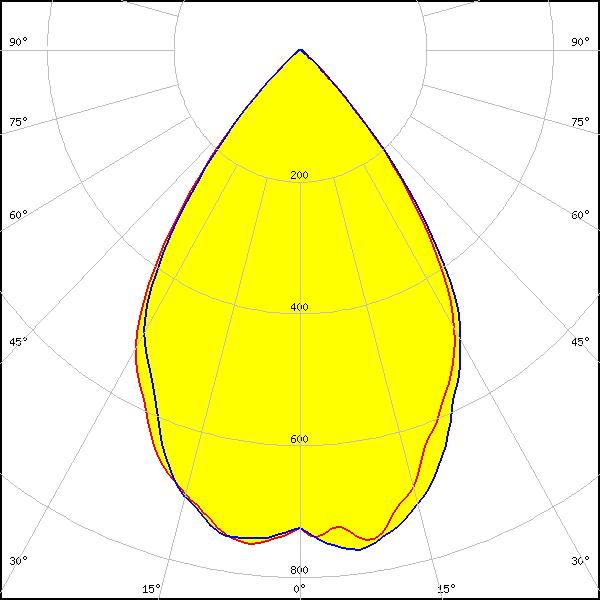

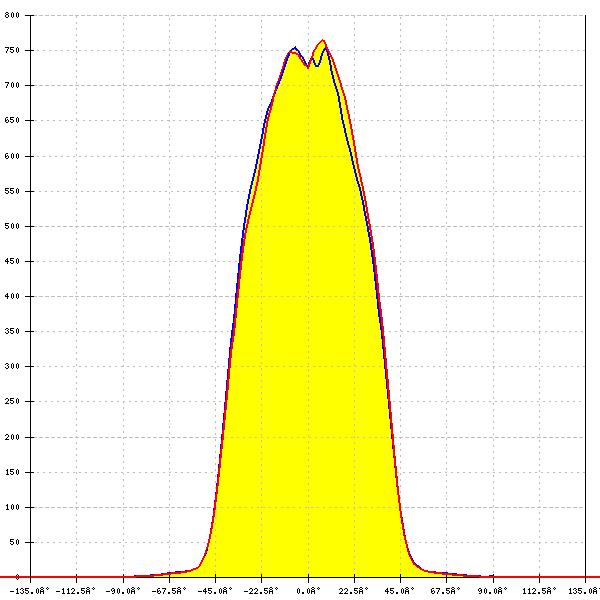

    LED: CMU15xx
    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 71°
    FWTM: 92°
    Peak intensity: 0.780 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTW0607

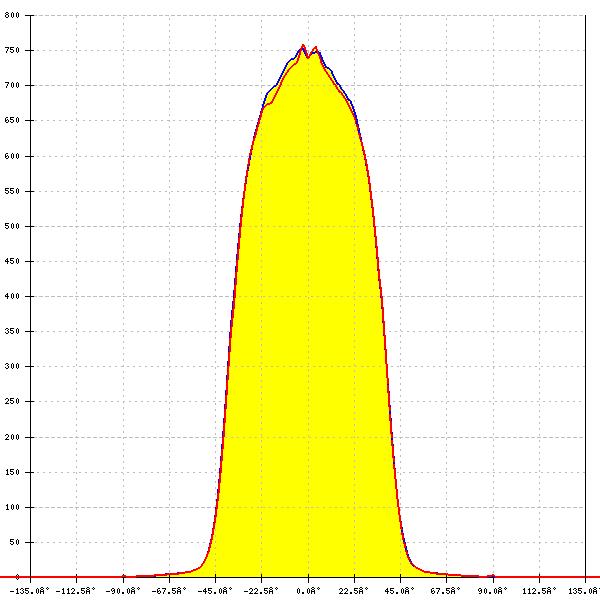

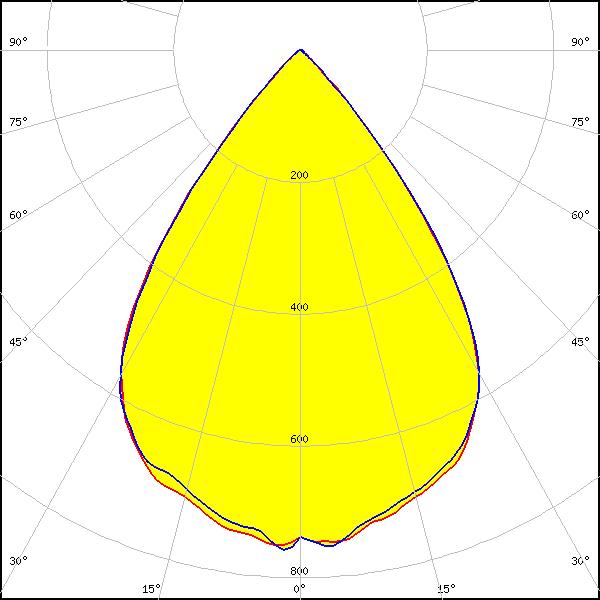

    Ordering code: CP19714_AMY-50-WWW-C2
    LES size: 6.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 511 Typ L8
    FWHM: 70°
    FWTM: 84°
    Peak intensity: 0.932 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTW1325
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 513 Typ L8
    FWHM: 70°
    FWTM: 90°
    Peak intensity: 0.798 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

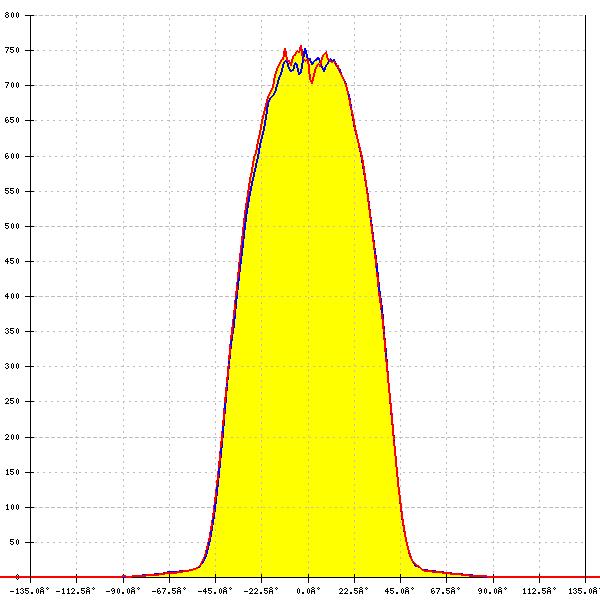

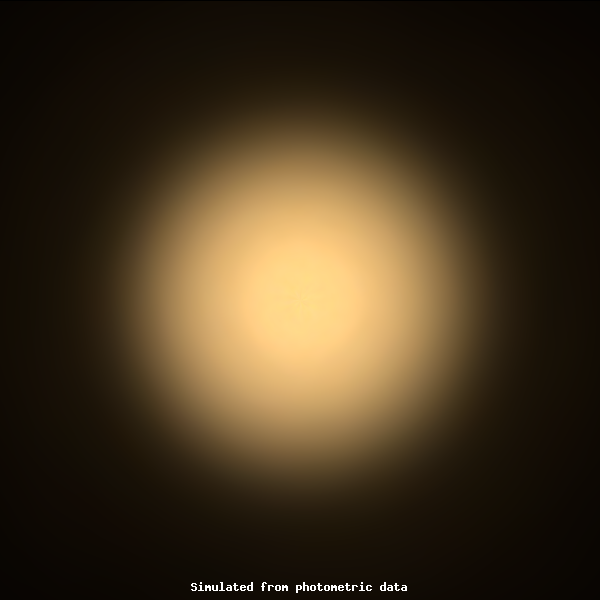

    LED: CxM-14 (19x19)
    LES size: 14.3 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 71° + 72°
    FWTM: 93° + 94°
    Peak intensity: 0.769 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE 13mm 3000lm xxx R ADV8
    Ordering code: CP19716_AMY-50-WWW-B2
    LES size: 13.0 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 75°
    FWTM: 95°
    Peak intensity: 0.697 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE 13mm 3000lm xxx R ADV8
    Ordering code: CP19717_AMY-50-WWW-B2-WHT
    LES size: 13.0 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 75°
    FWTM: 96°
    Peak intensity: 0.729 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
