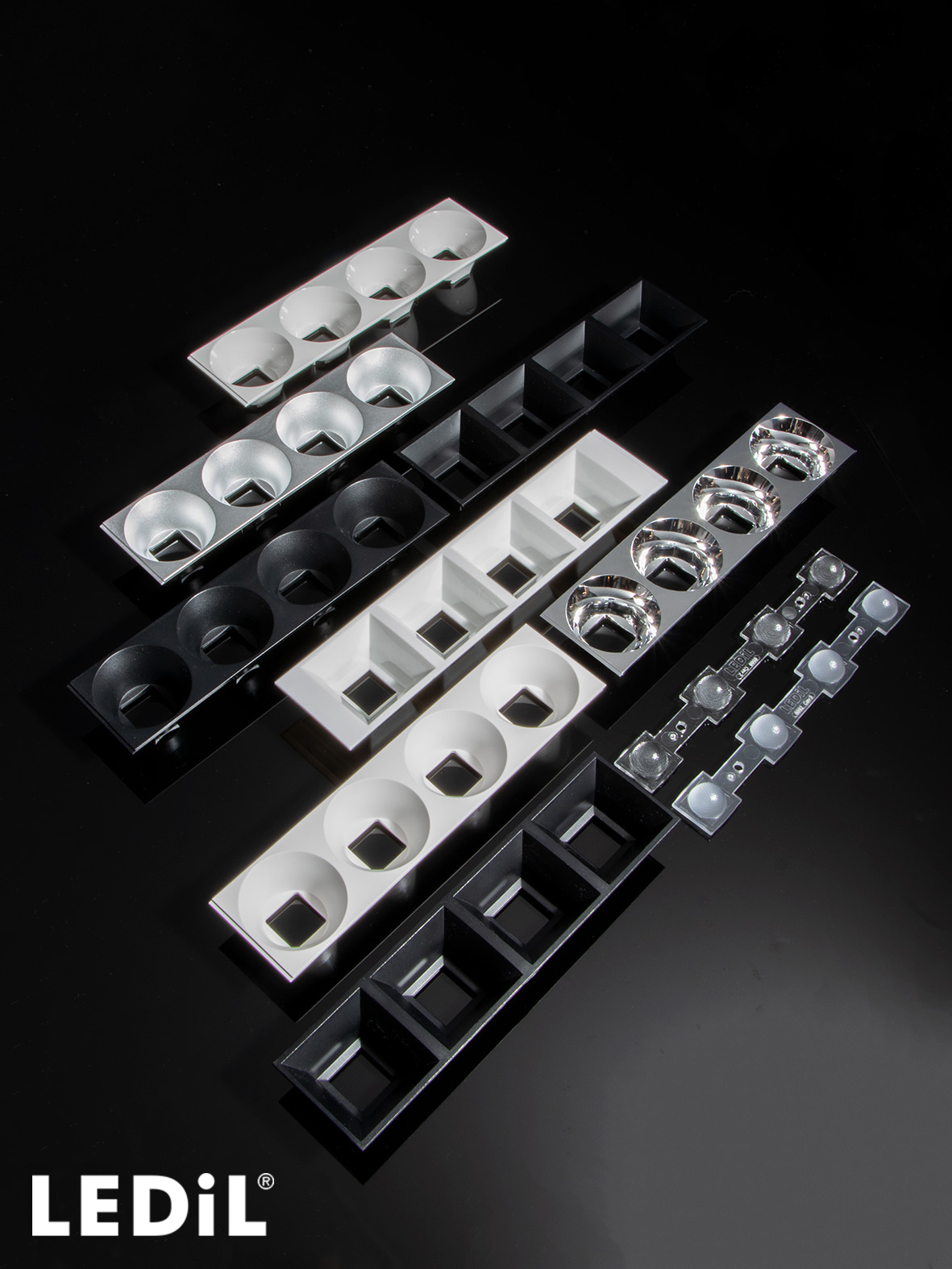

DAISY-4X1-WW

Print

~80° wide beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    182 x  40 mm
  • Height:
    20.20 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C16584_DAISY-4X1-WW
    clear
  • Quantity in box:
    504 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.60 kg
  • MPQ:
    21 pcs
  • MOQ:
    336 pcs
  • MOQ Size:
    480 x 280 x 220 mm
  • MOQ Weight:
    3.90 kg
  • Shade
  • C16590_DAISY-4X1-SHD
    black,gloss
  • C16784_DAISY-4X1-SHD-WHT
    white,gloss
  • C17422_DAISY-4X1-SHD2-MATT
    black,matt
  • C17423_DAISY-4X1-SHD2-WHT-MATT
    white,matt
  • C18407_DAISY-4X1-SHD-MET
    metal,gloss
  • C18411_DAISY-4X1-SHD2-MET-MATT
    metal,matt
  • C18412_DAISY-4X1-SHD2-MET
    metal,gloss
  • C18414_DAISY-4X1-SHD-MET-MATT
    metal,matt
  • C19075_DAISY-4X1-SHD2
    black,gloss
  • Quantity in box:
    168 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.90 kg
  • MPQ:
    42 pcs
  • MOQ:
    336 pcs
  • MOQ Size:
    480 x 280 x 300 mm
  • MOQ Weight:
    9.80 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C16584_DAISY-4X1-WW
    C16590_DAISY-4X1-SHD
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

NOTE! See 2D mechanical drawings for SHD and SHD2 differences.

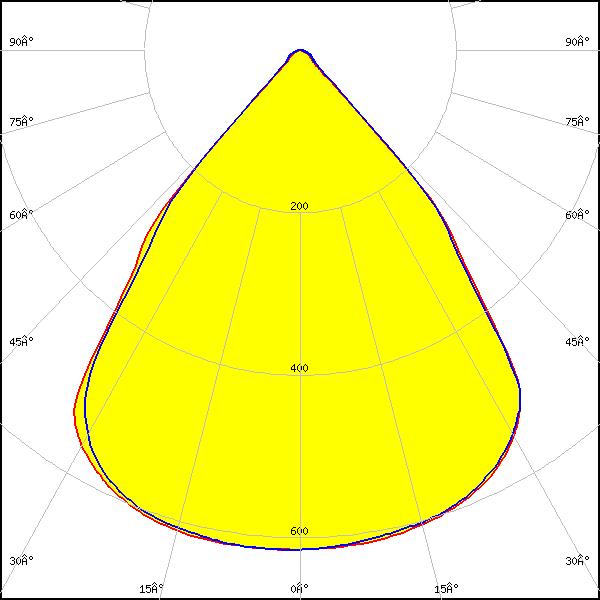

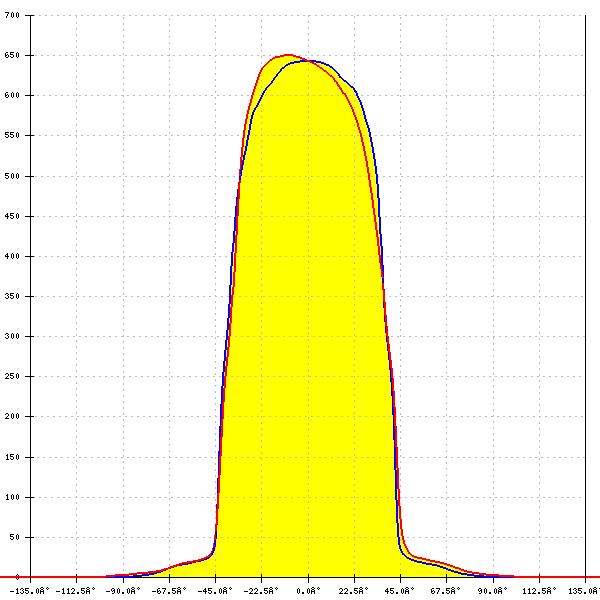

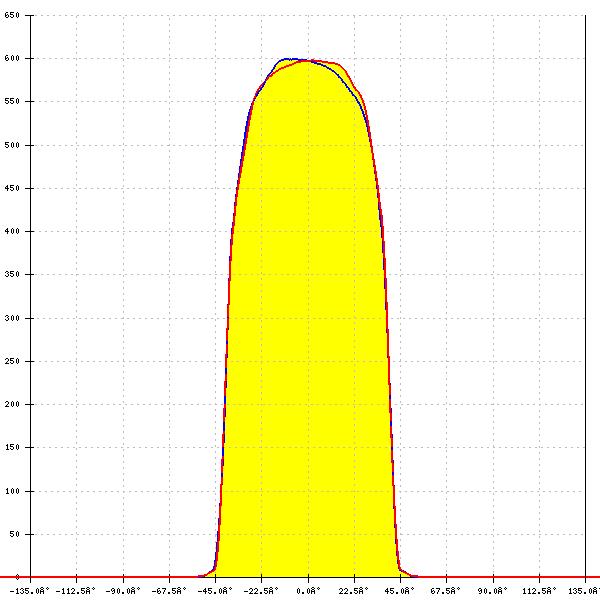

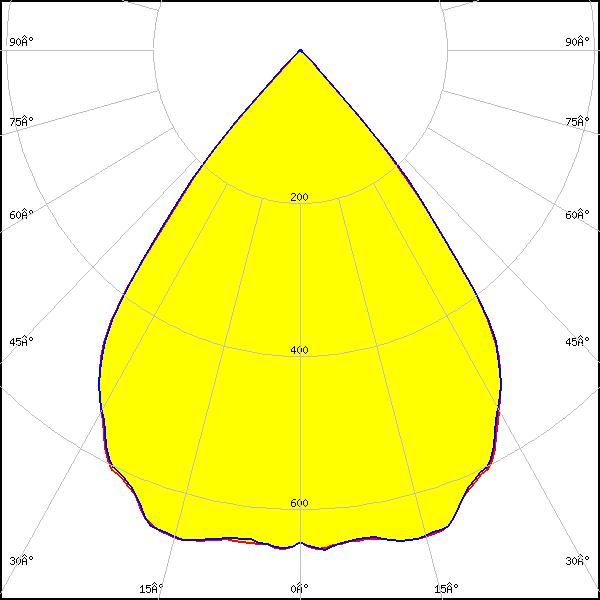

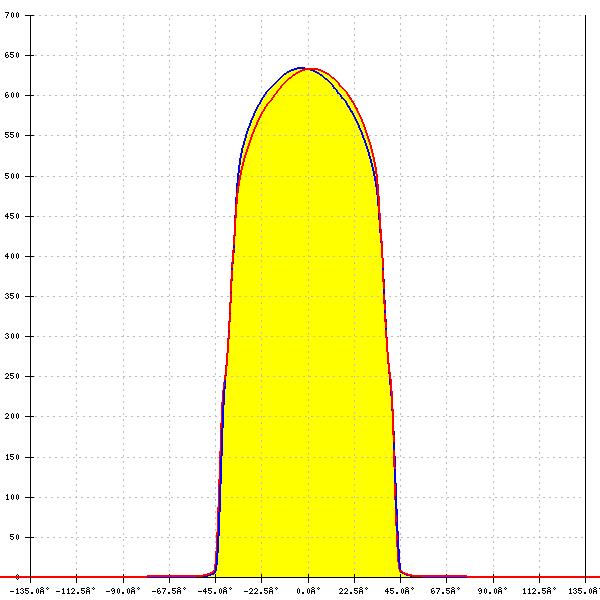

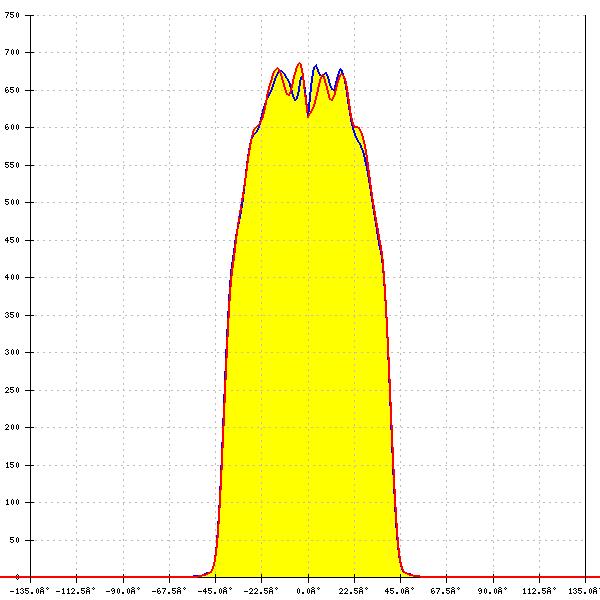

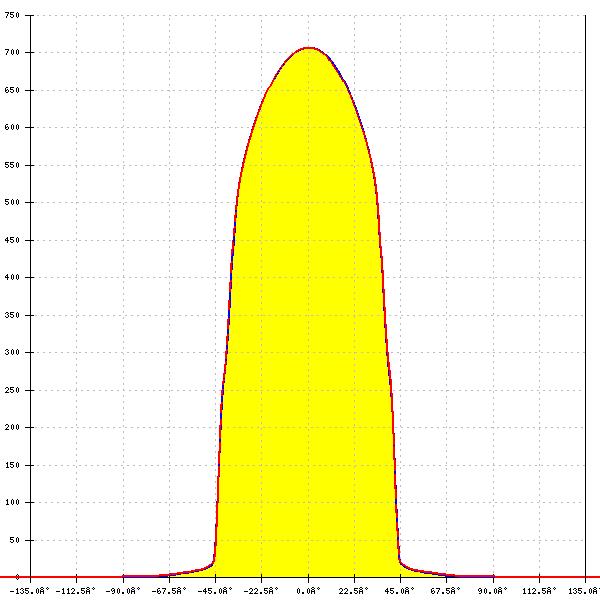

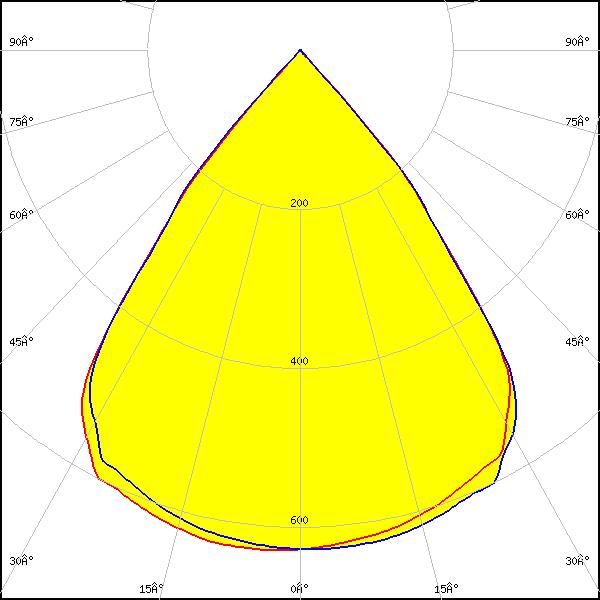

Optical results

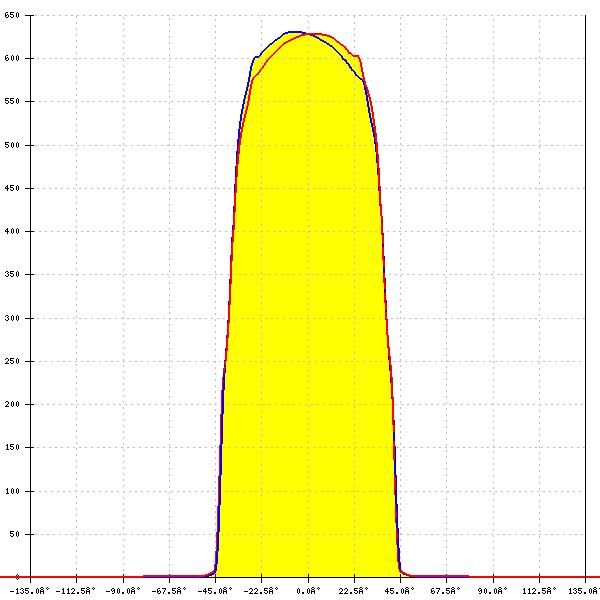

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 87°
Peak intensity: 0.631 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White

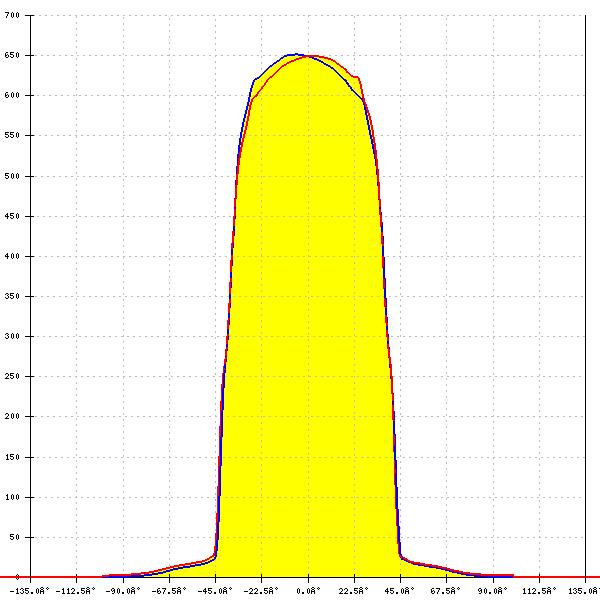

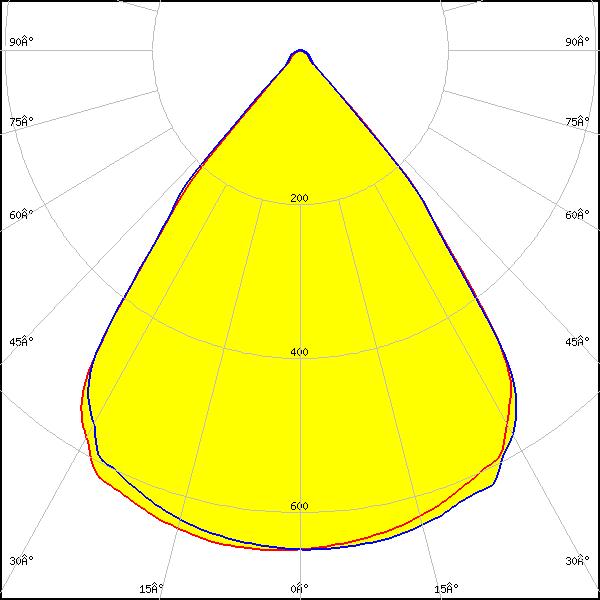

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.651 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: White

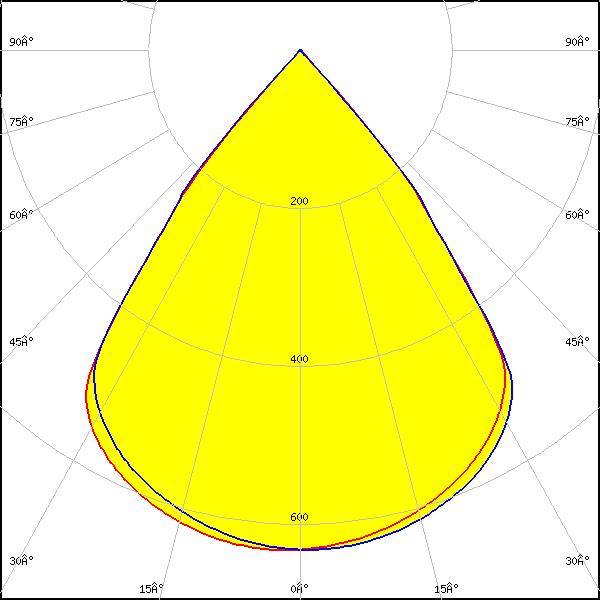

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 76°
FWTM: 87°
Peak intensity: 0.634 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: White

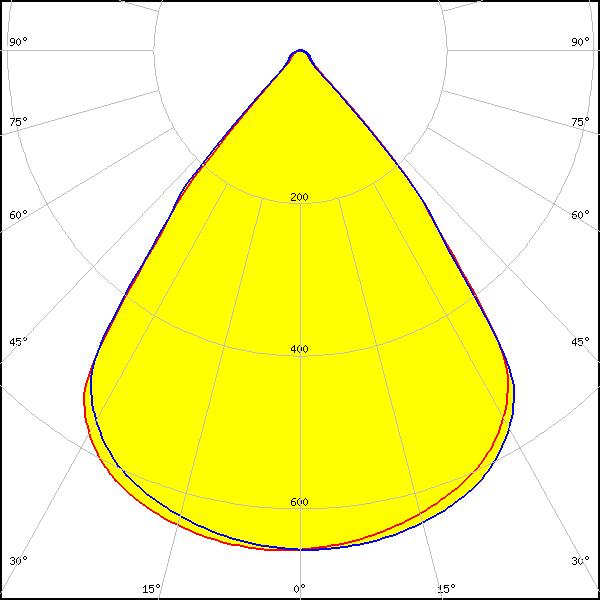

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.656 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: White

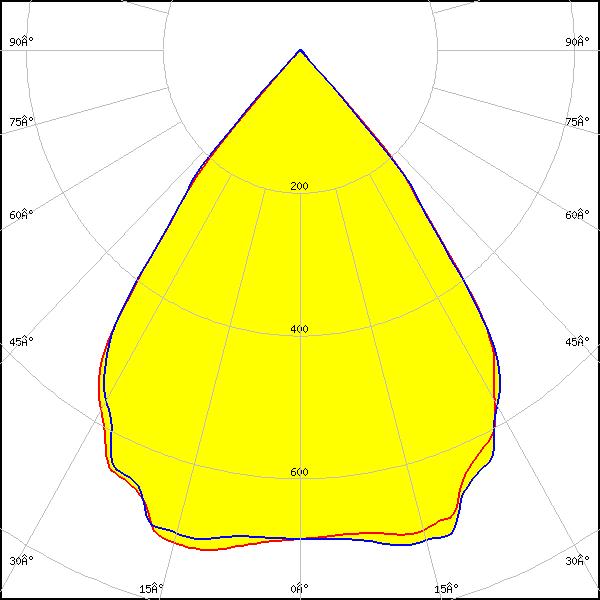

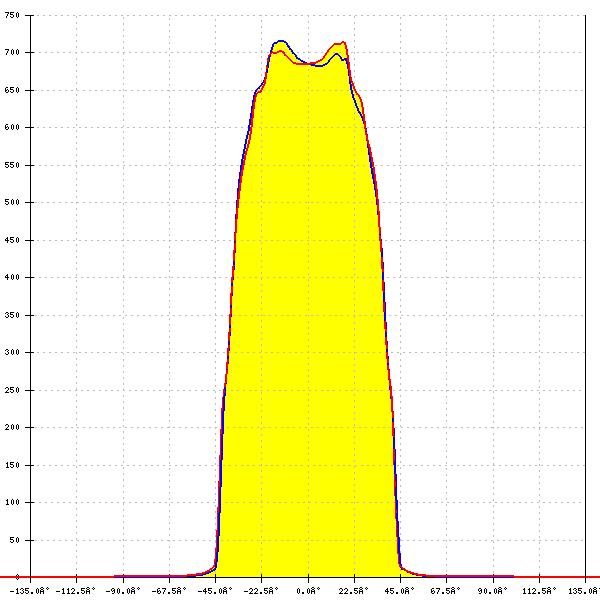

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM: 74°
FWTM: 87°
Peak intensity: 0.725 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour/type: White

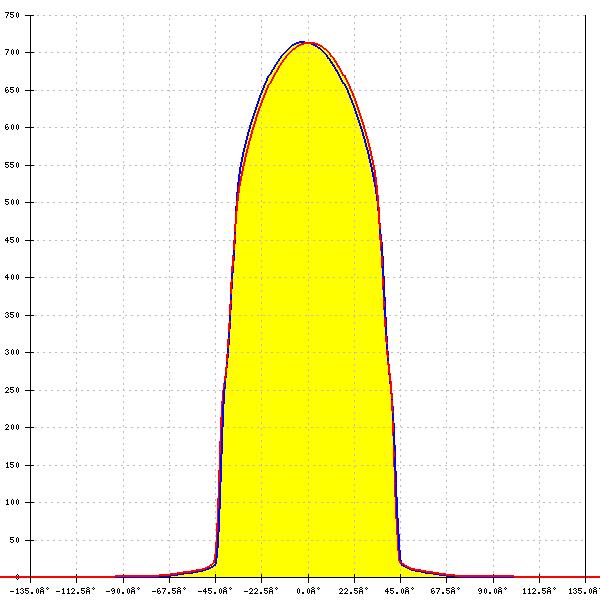

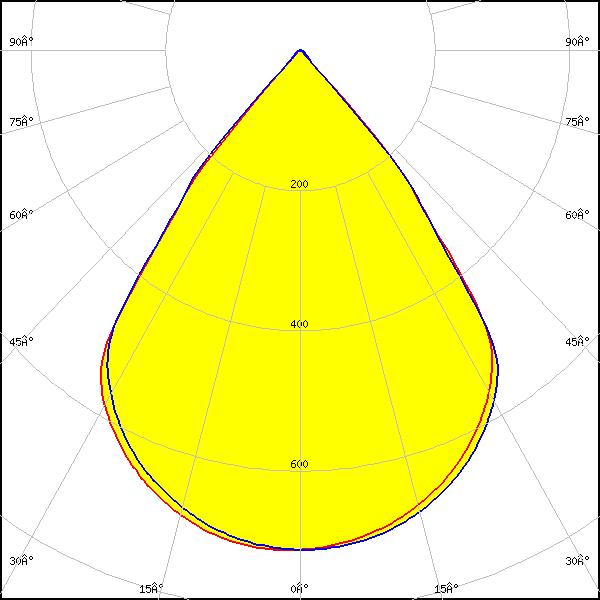

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM: 75°
FWTM: 87°
Peak intensity: 0.714 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: Bridgelux SMD 2835
Required components:
C16590_DAISY-4X1-SHD
LEDs/each optic: 1
Light colour/type: White

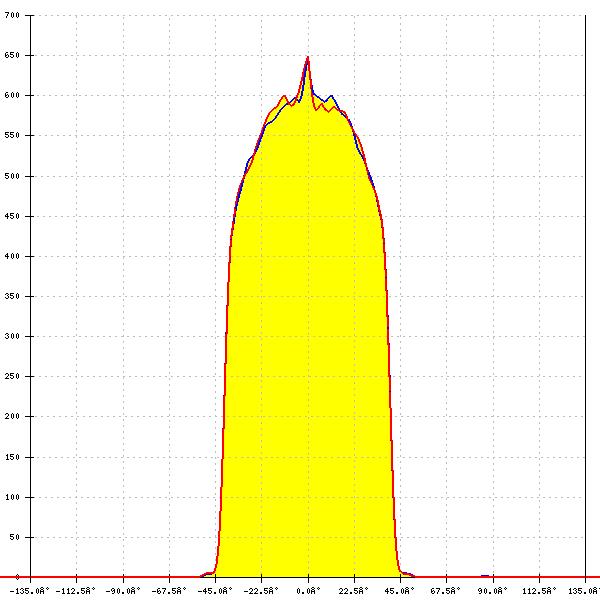

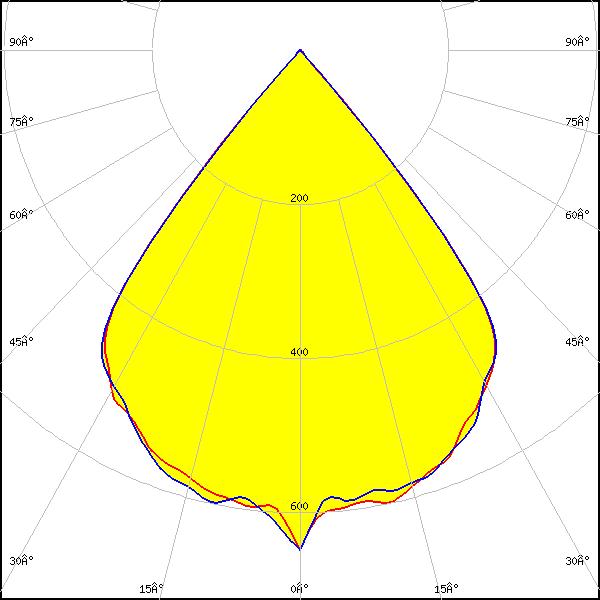

LED: J Series 2835
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 78°
FWTM: 85°
Peak intensity: 0.649 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

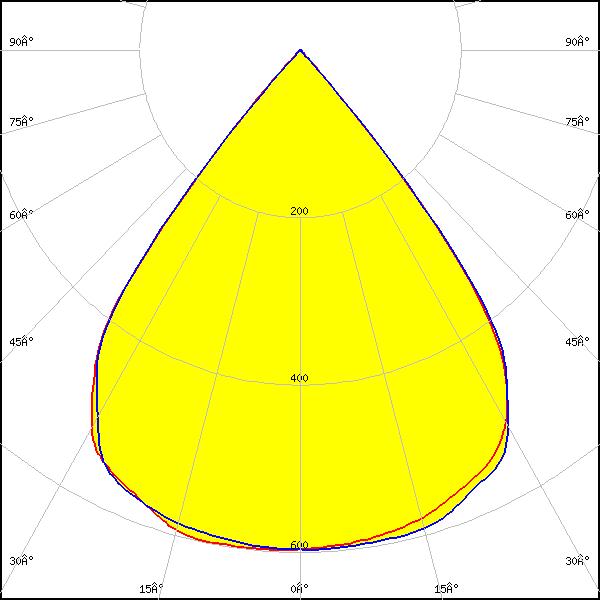

LED: J Series 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM: 77°
FWTM: 86°
Peak intensity: 0.600 cd/lm
Efficiency: 86 %
LEDs/each optic: 2
Light colour/type: White

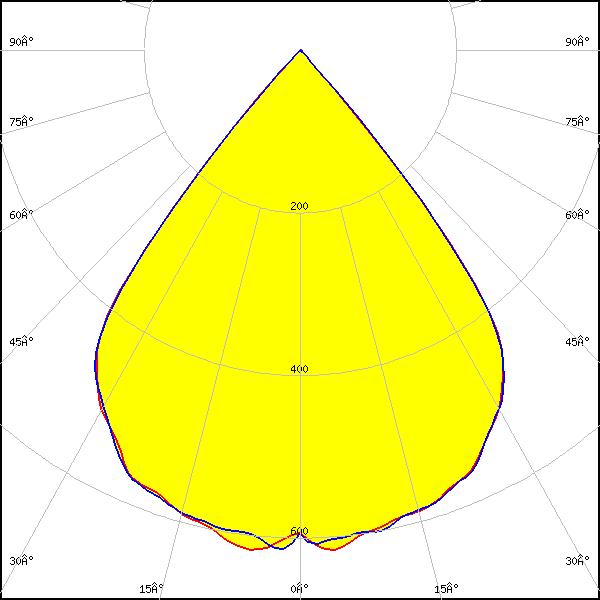

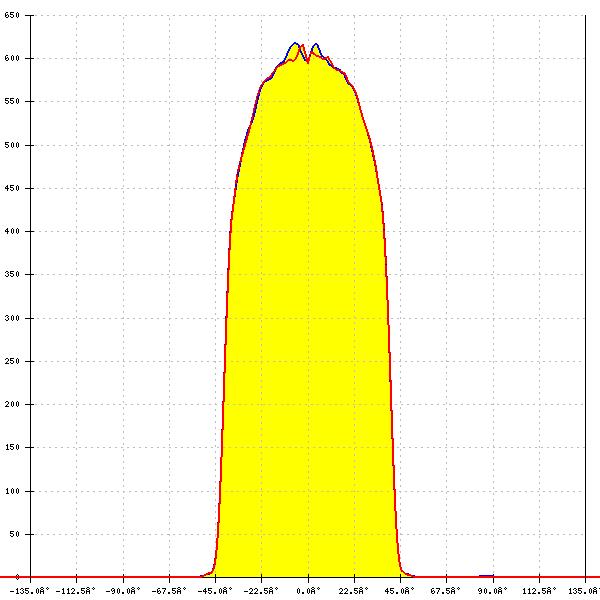

LED: J Series 5050 Round LES
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 78°
FWTM: 86°
Peak intensity: 0.620 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

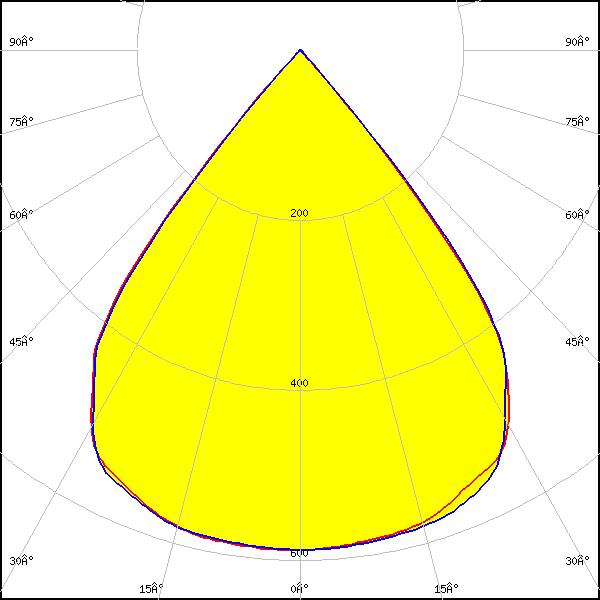

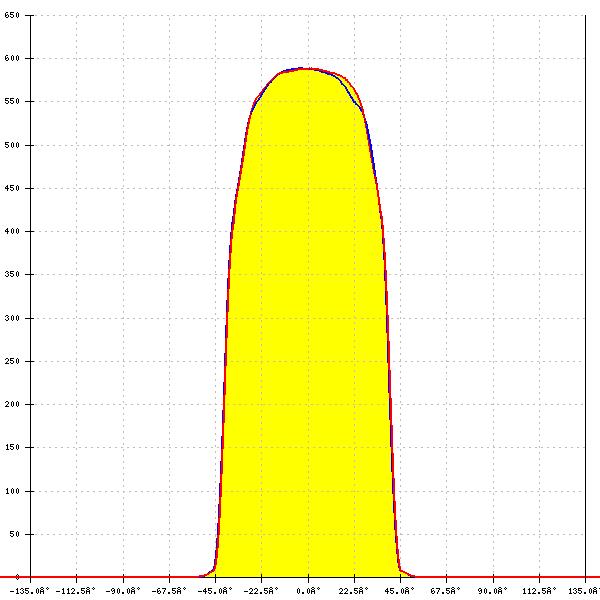

LED: LUXEON 2835 Line
Required components:
C16590_DAISY-4X1-SHD
FWHM: 78°
FWTM: 86°
Peak intensity: 0.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour/type: White

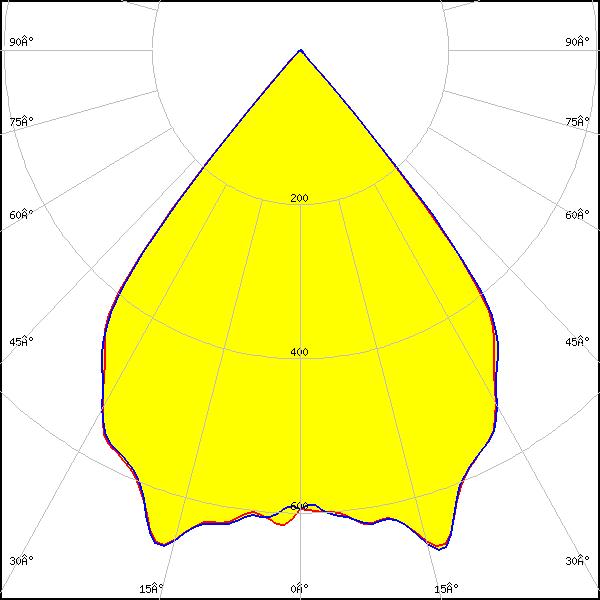

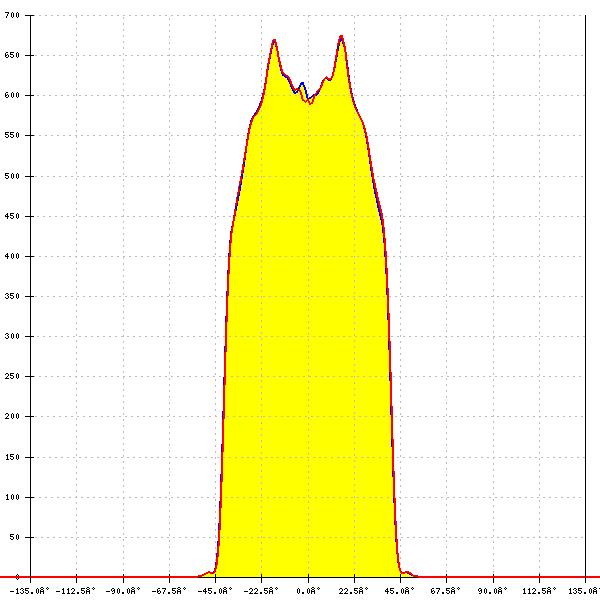

LED: LUXEON 3535L
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 85°
Peak intensity: 0.670 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

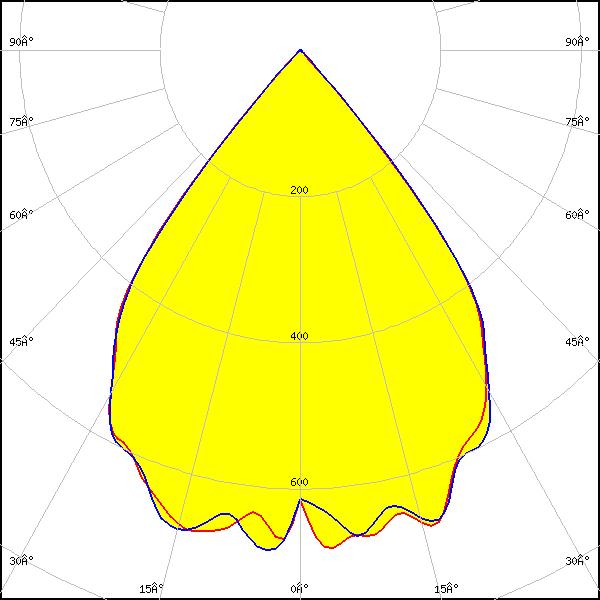

LED: LUXEON 5050 Round LES
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 88°
Peak intensity: 0.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

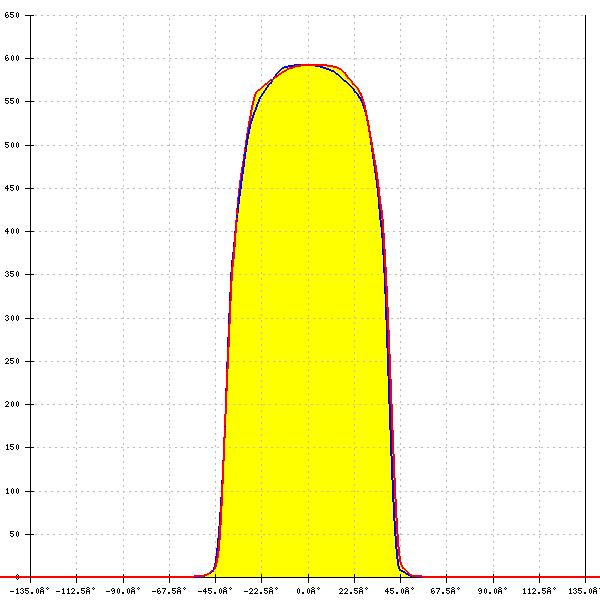

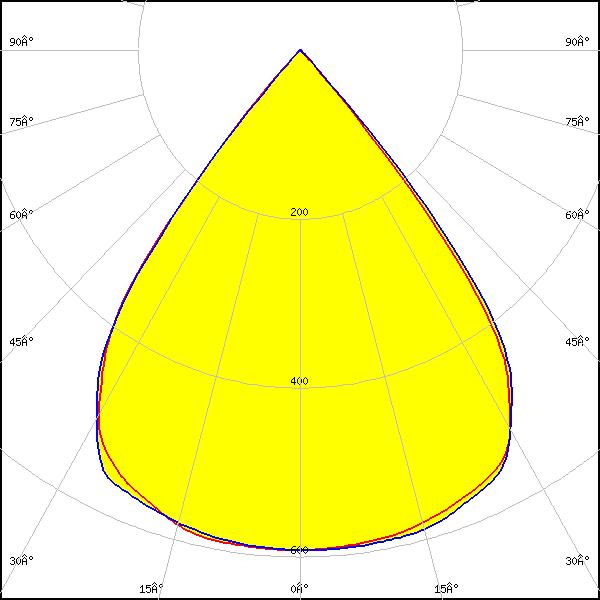

LED: LinLED 156x28mm 2x200lm 827-865 2x2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 77°
FWTM: 85°
Peak intensity: 0.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 2
Light colour/type: Tunable White

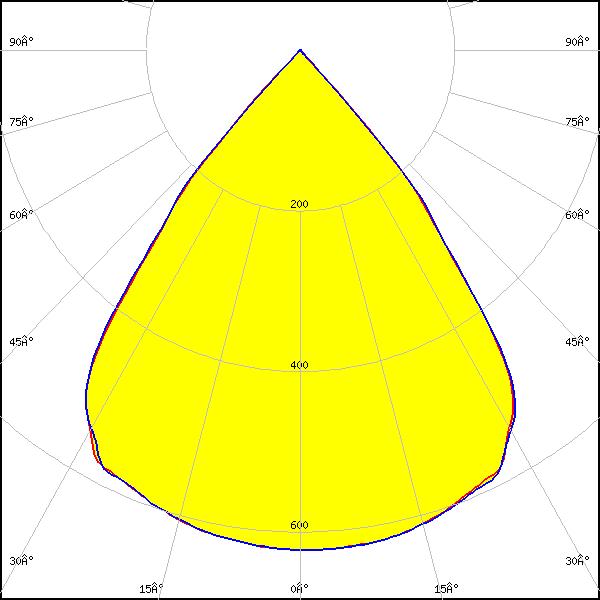

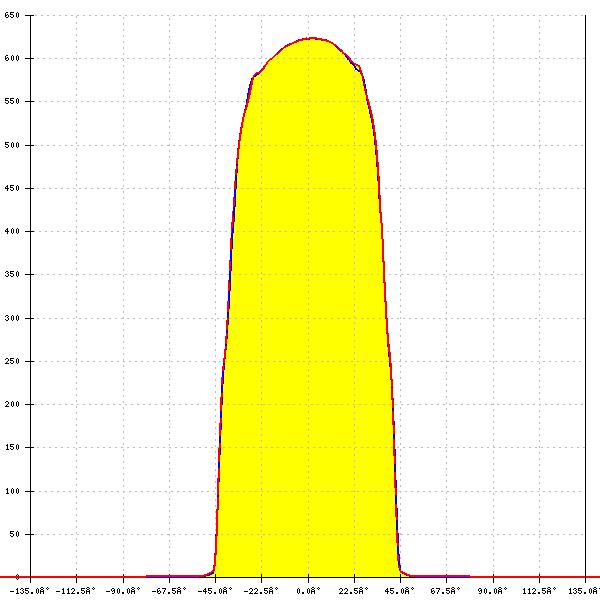

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76° + 77°
FWTM: 88° + 88°
Peak intensity: 0.623 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: Tunable White

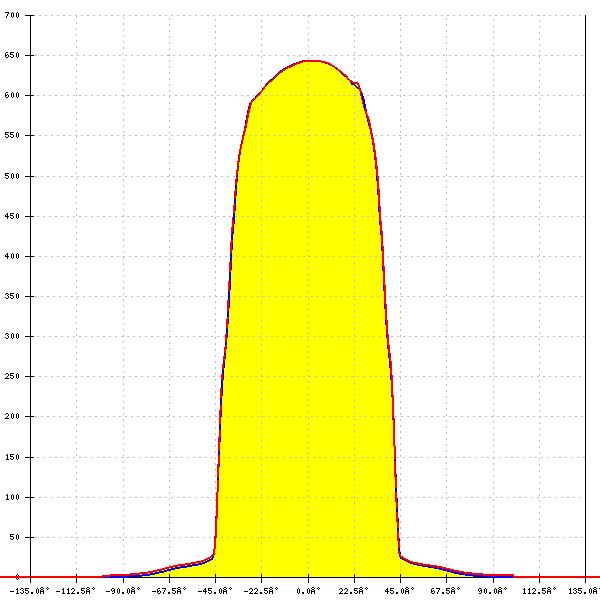

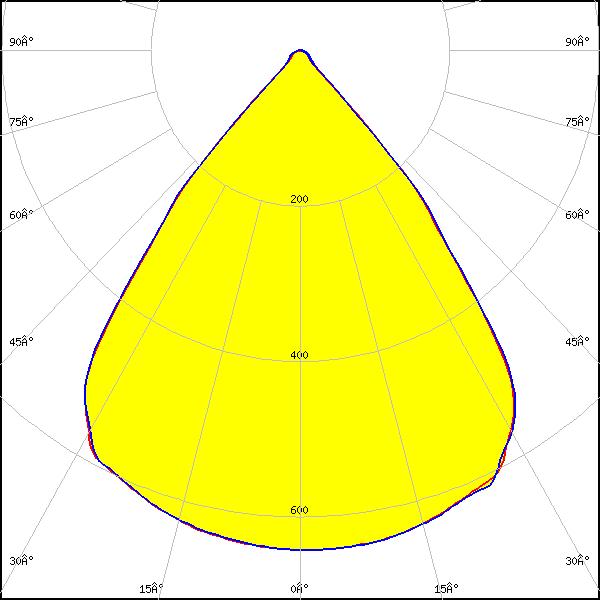

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 77° + 77°
FWTM: 89° + 89°
Peak intensity: 0.644 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: Tunable White

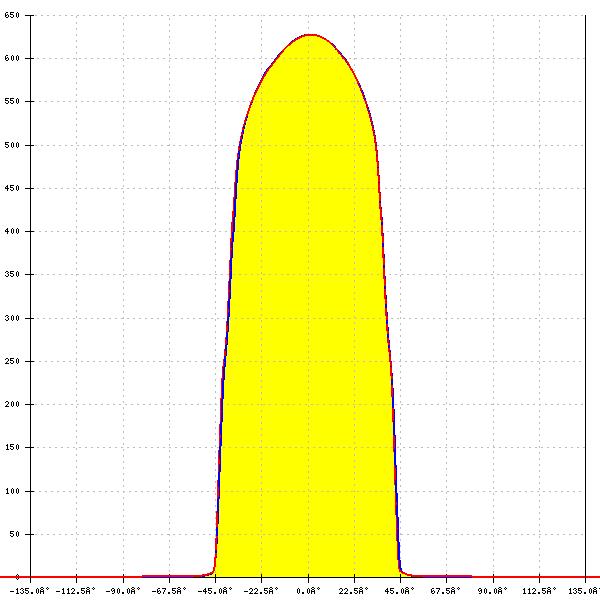

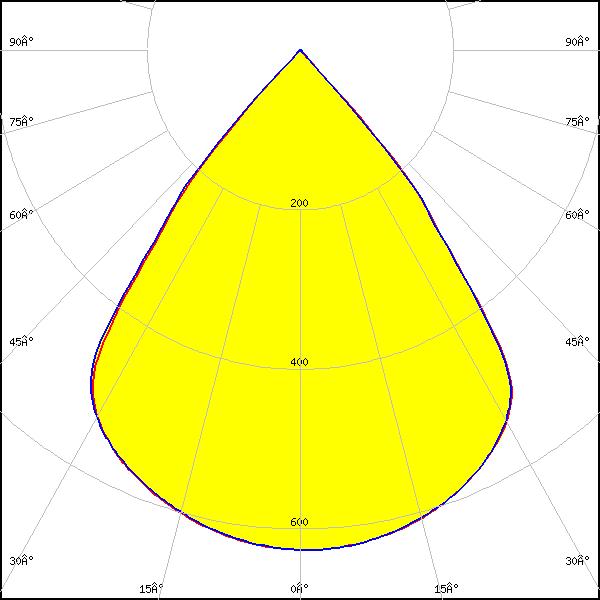

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 76° + 77°
FWTM: 88° + 88°
Peak intensity: 0.628 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: Tunable White

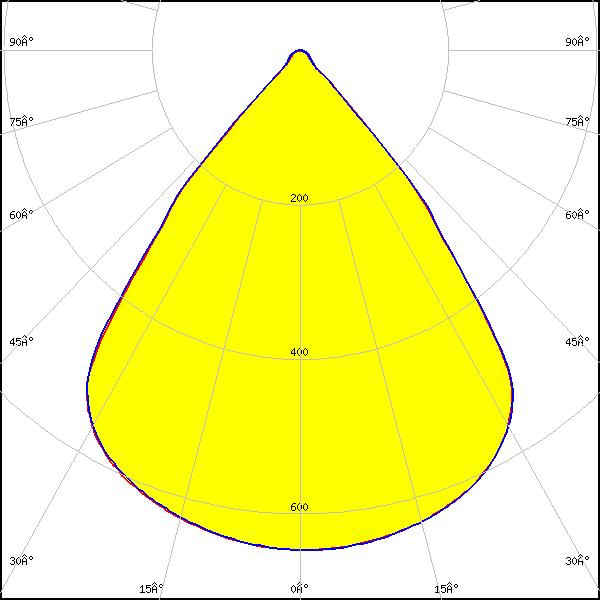

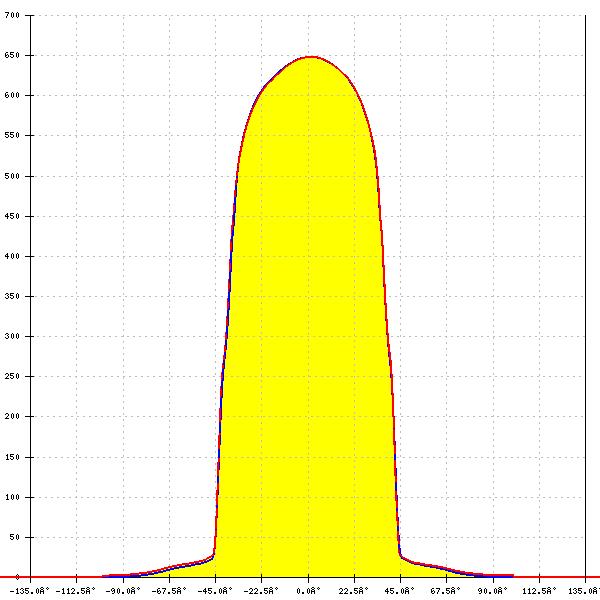

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 77° + 77°
FWTM: 89° + 89°
Peak intensity: 0.648 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: Tunable White

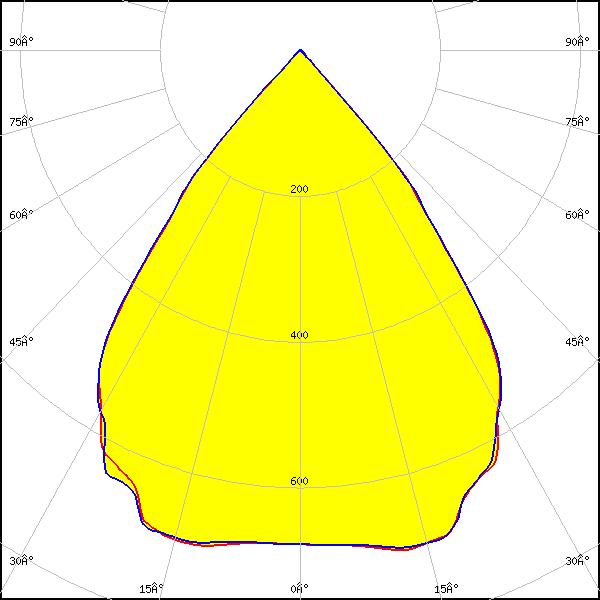

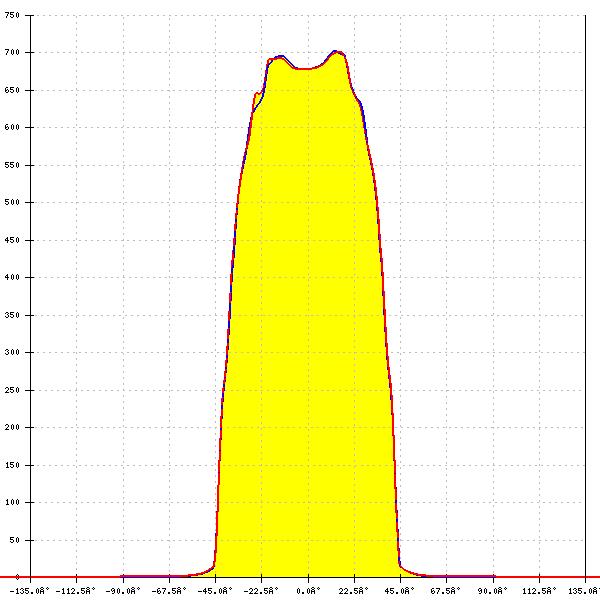

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM: 75° + 76°
FWTM: 88° + 88°
Peak intensity: 0.708 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: Tunable White

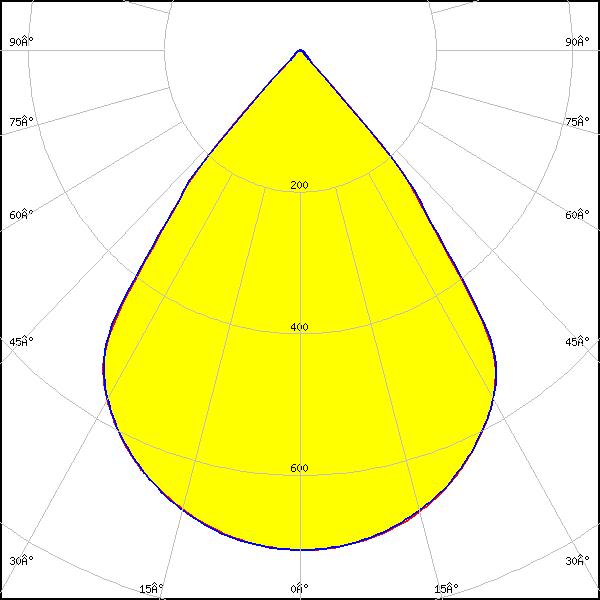

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.706 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: Tunable White
LED: LinLED 156x28mm 400lm 8x0 2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 77°
FWTM: 86°
Peak intensity: 0.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76° + 76°
FWTM: 88° + 87°
Peak intensity: 0.622 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 77°
FWTM: 89°
Peak intensity: 0.642 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 76° + 76°
FWTM: 88° + 88°
Peak intensity: 0.624 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 76° + 77°
FWTM: 88° + 88°
Peak intensity: 0.647 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM: 75°
FWTM: 88°
Peak intensity: 0.712 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM: 75°
FWTM: 88°
Peak intensity: 0.712 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

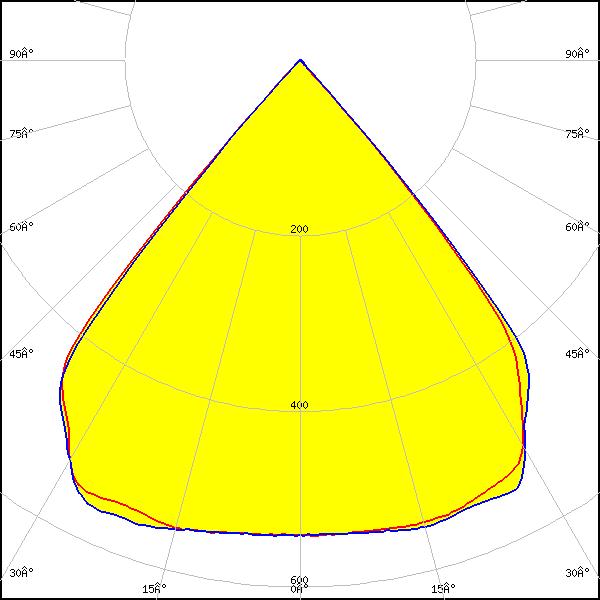

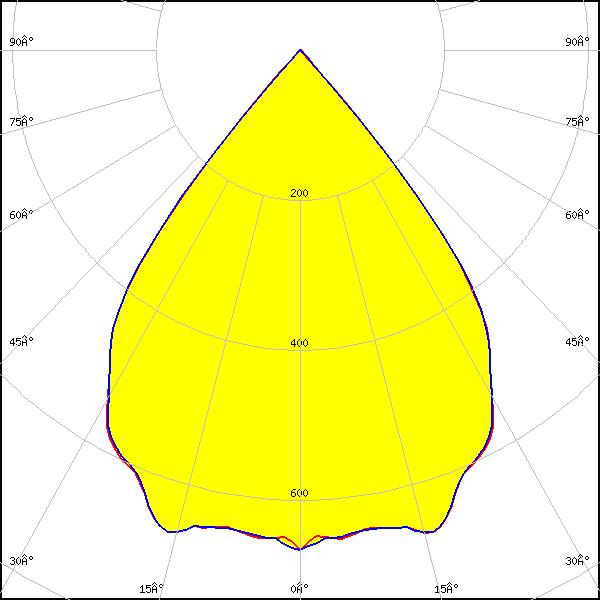

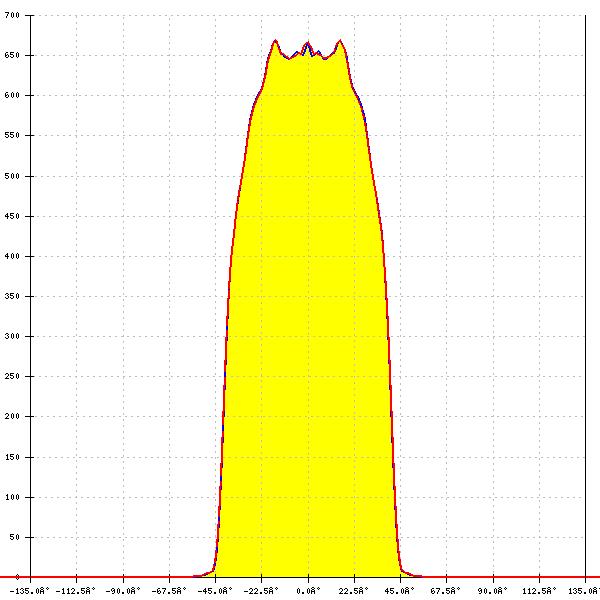

LED: NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76° + 78°
FWTM: 86° + 86°
Peak intensity: 0.670 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: Tunable White

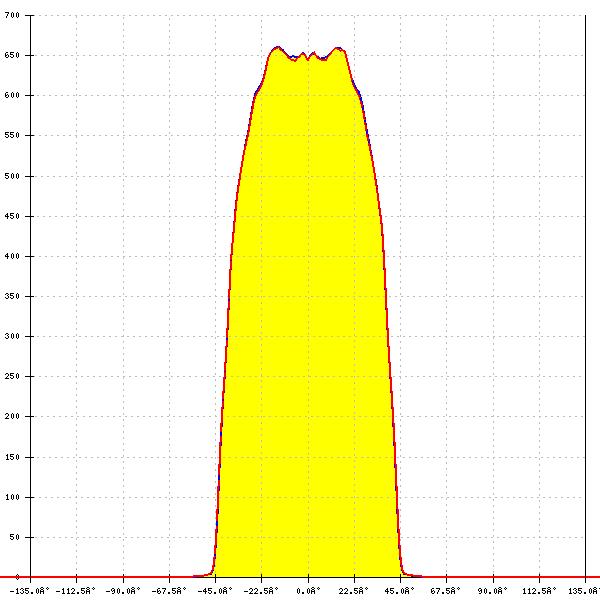

LED: NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 88°
Peak intensity: 0.660 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: Tunable White

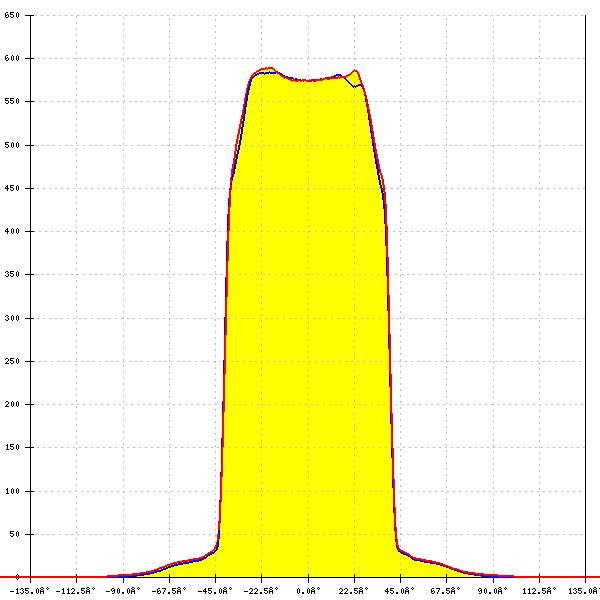

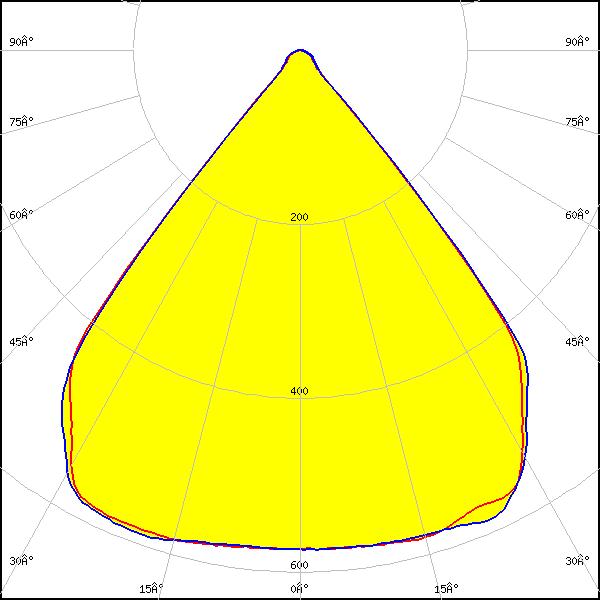

LED: NF2W757G-MT (Tunable White)
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 79°
FWTM: 86°
Peak intensity: 0.589 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: Tunable White

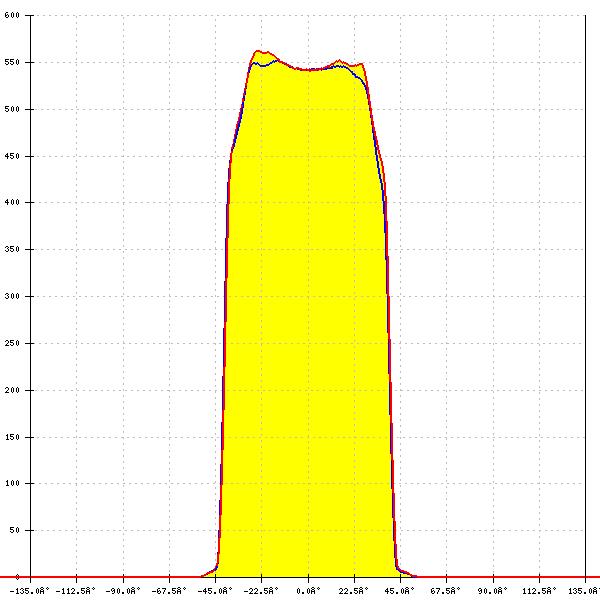

LED: NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM: 79°
FWTM: 85°
Peak intensity: 0.562 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: Tunable White

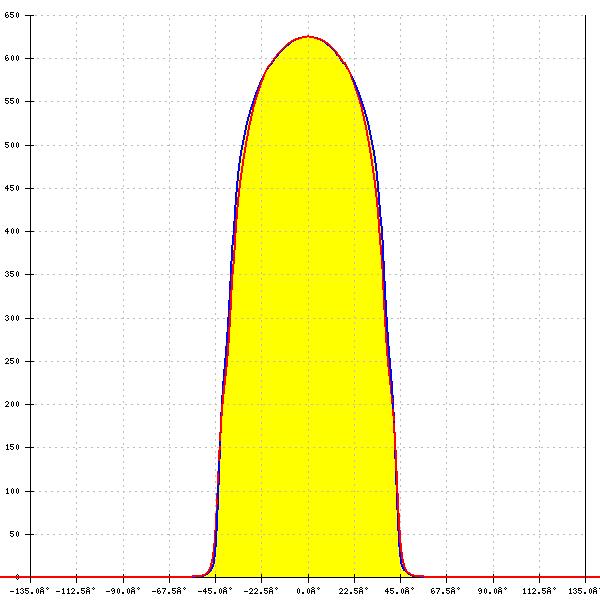

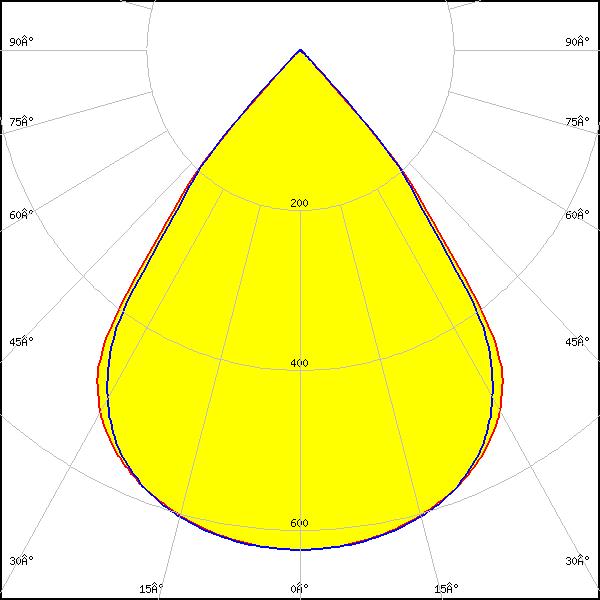

LED: PL-LIN-1000 140x24mm
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 75°
FWTM: 89°
Peak intensity: 0.625 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour/type: White

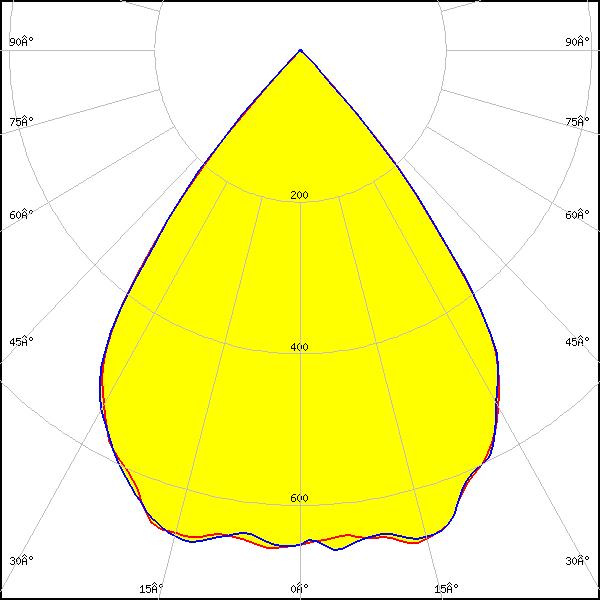

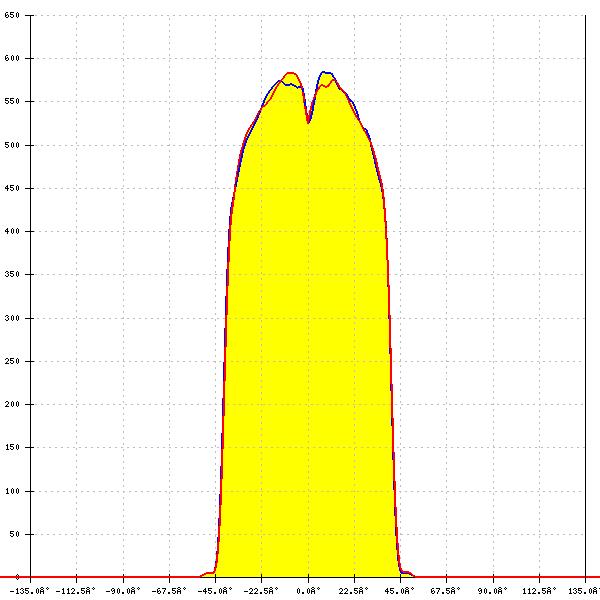

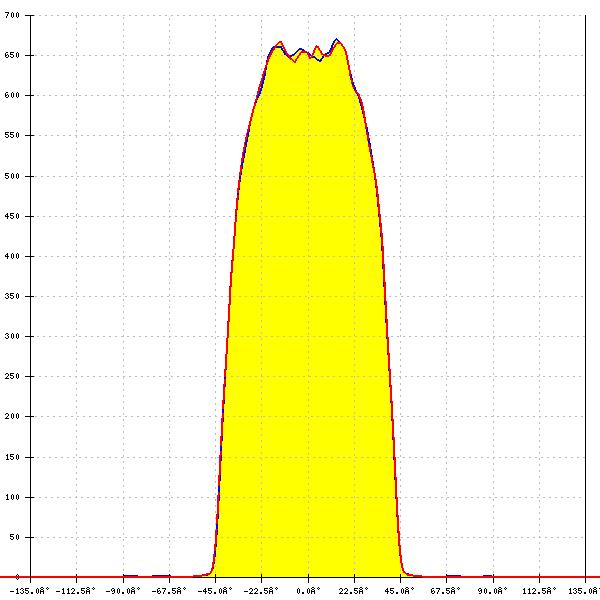

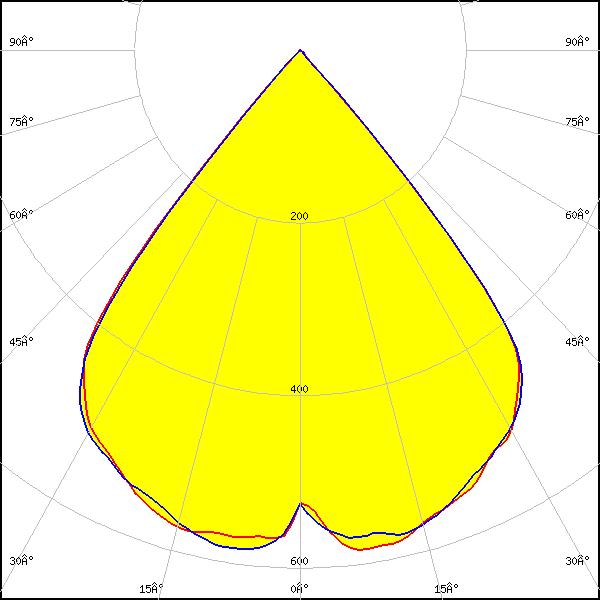

LED: Duris E 2835
Required components:
C16585_DAISY-28X1-SHD
FWHM: 76°
FWTM: 88°
Peak intensity: 0.675 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White
LED: Duris E 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM: 80°
FWTM: 86°
Peak intensity: 0.589 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

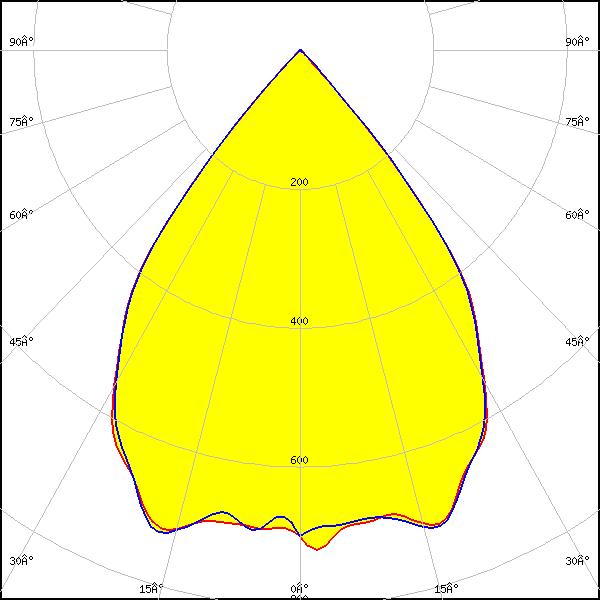

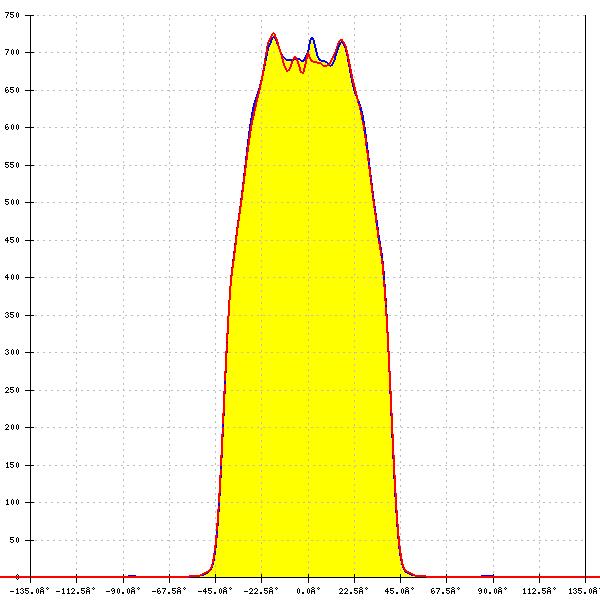

LED: Duris E 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 88°
Peak intensity: 0.726 cd/lm
Efficiency: 95 %
LEDs/each optic: 2
Light colour/type: White

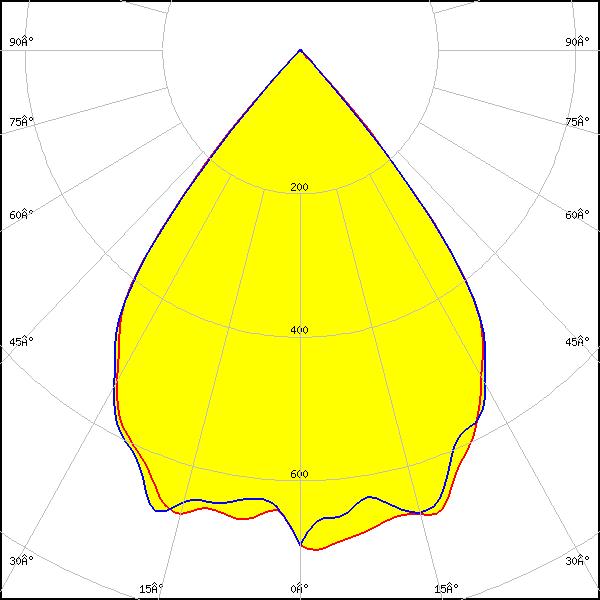

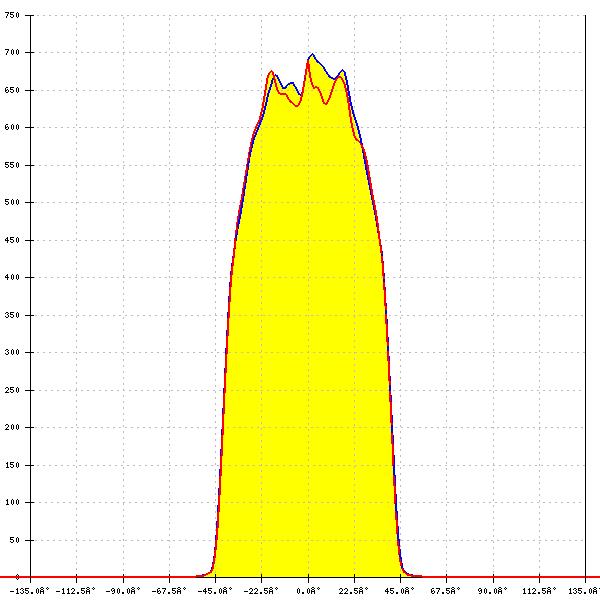

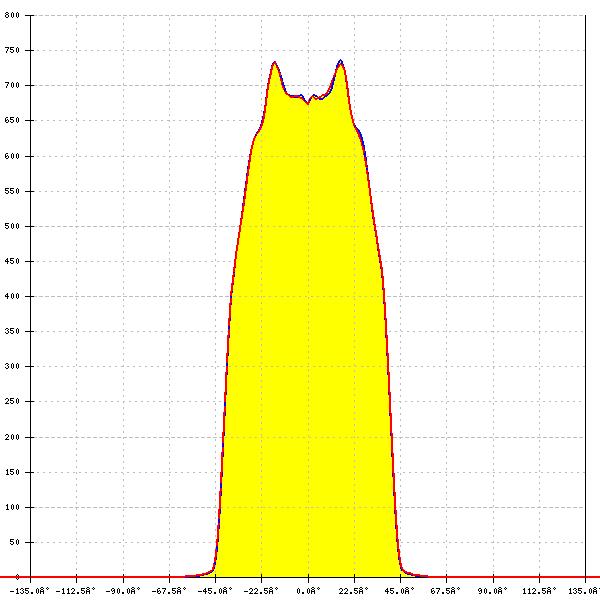

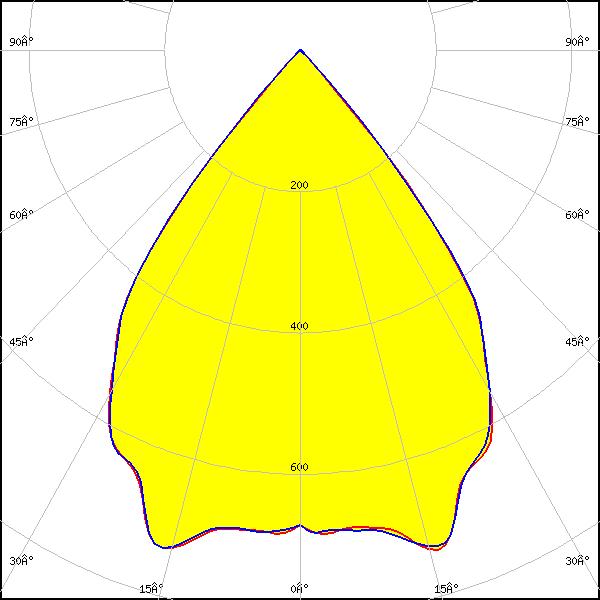

LED: Duris S8
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 76°
FWTM: 86°
Peak intensity: 0.737 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 88°
Peak intensity: 0.707 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

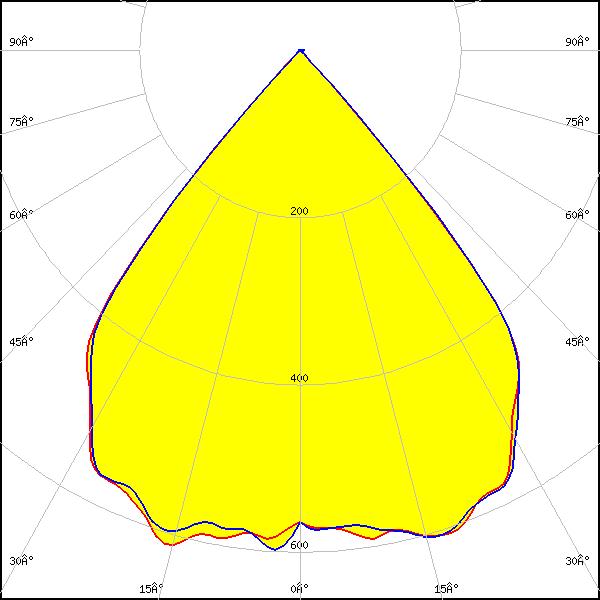

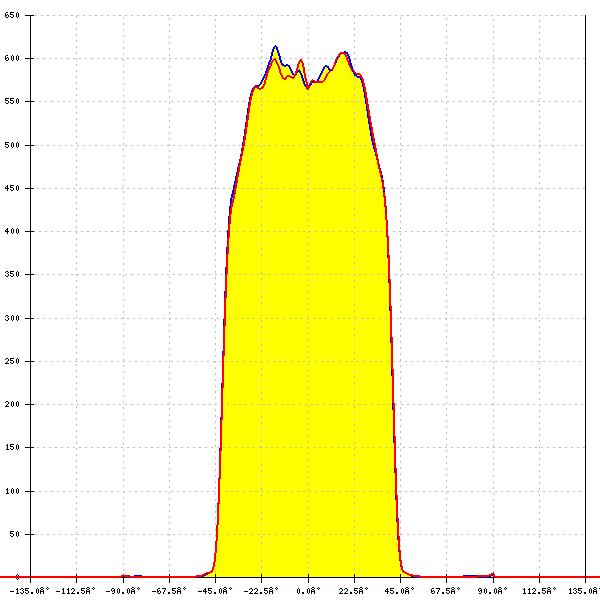

LED: LH351B
Required components:
C16590_DAISY-4X1-SHD
FWHM: 79°
FWTM: 88°
Peak intensity: 0.610 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

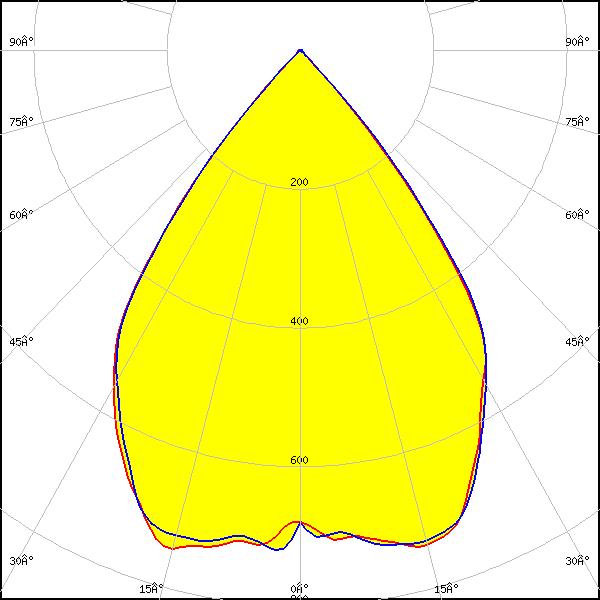

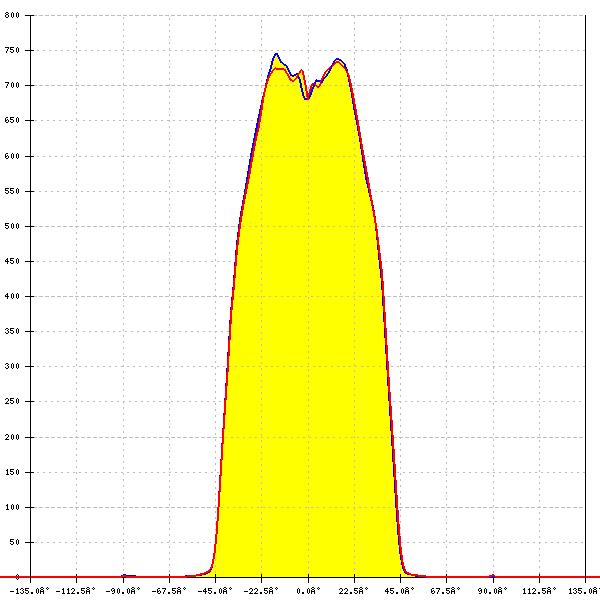

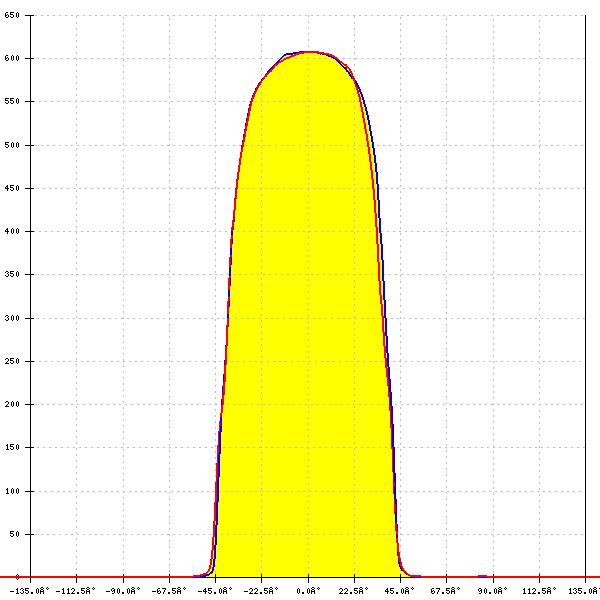

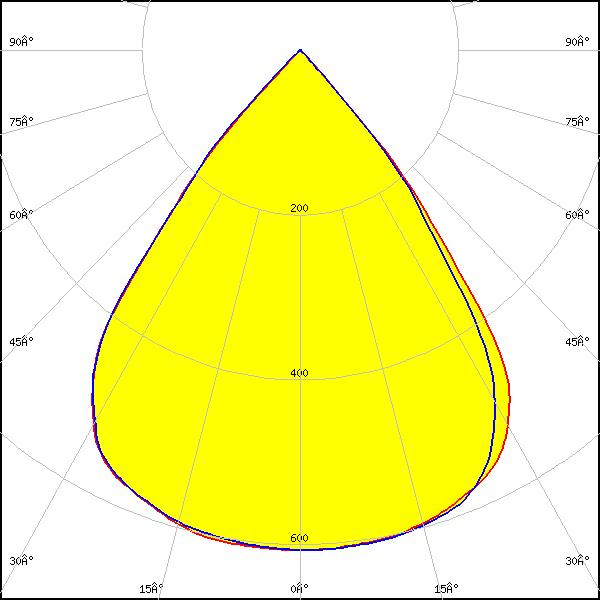

LED: LM28xB Series
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 75°
FWTM: 88°
Peak intensity: 0.755 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: White

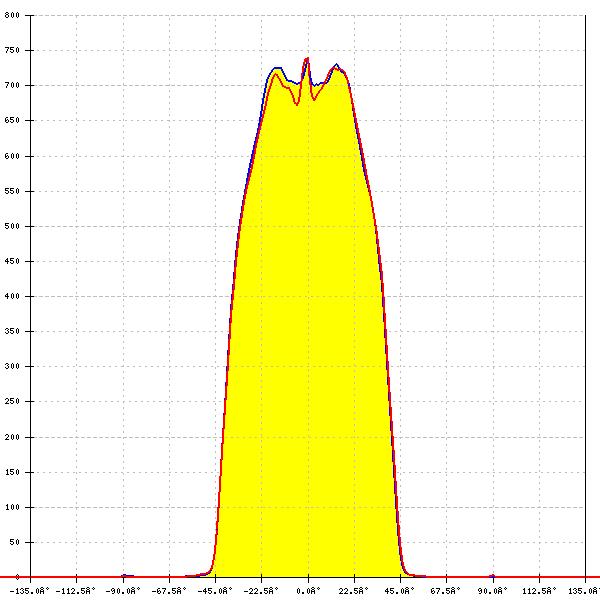

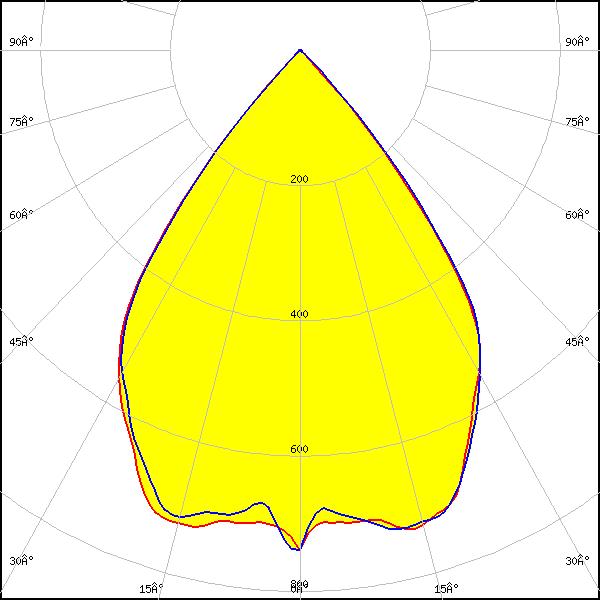

LED: LM28xB Series
Required components:
C18411_DAISY-4X1-SHD2-MET-MATT
FWHM: 74°
FWTM: 88°
Peak intensity: 0.739 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White

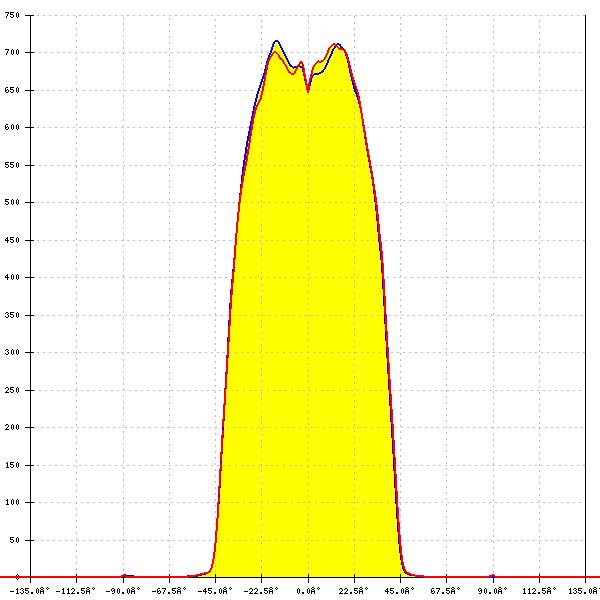

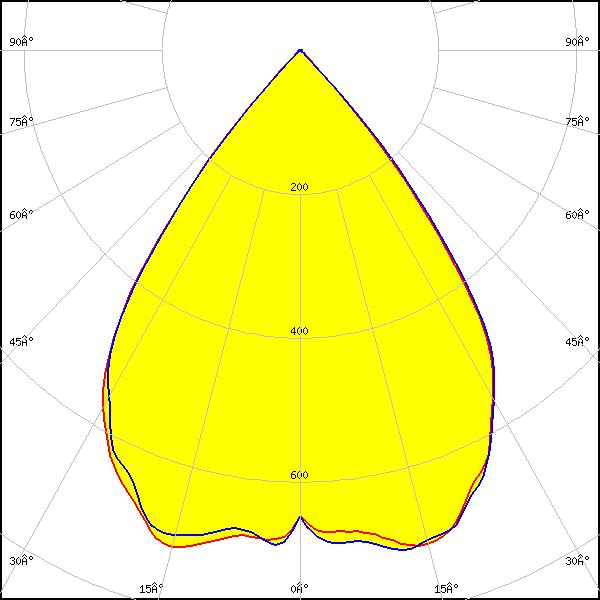

LED: LM28xB Series
Required components:
C18412_DAISY-4X1-SHD2-MET
FWHM: 75°
FWTM: 88°
Peak intensity: 0.731 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White

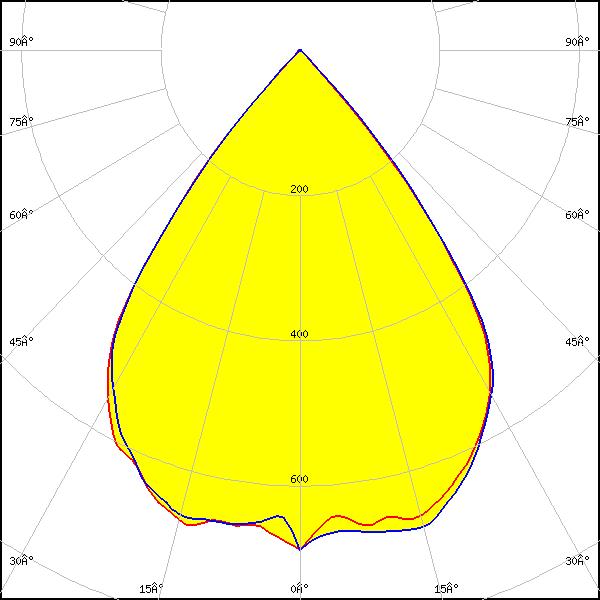

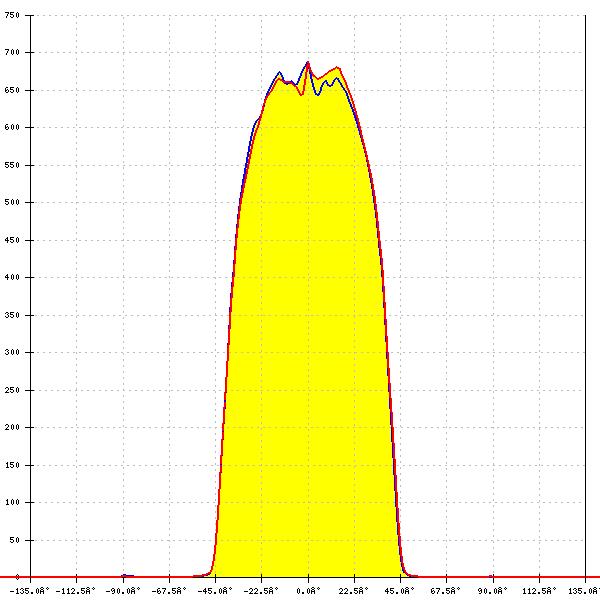

LED: LM28xB Series
Required components:
C19075_DAISY-4X1-SHD2
FWHM: 76°
FWTM: 88°
Peak intensity: 0.692 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

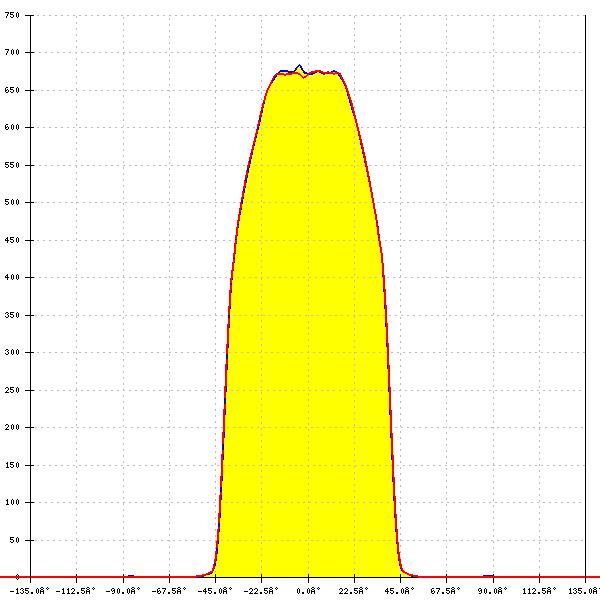

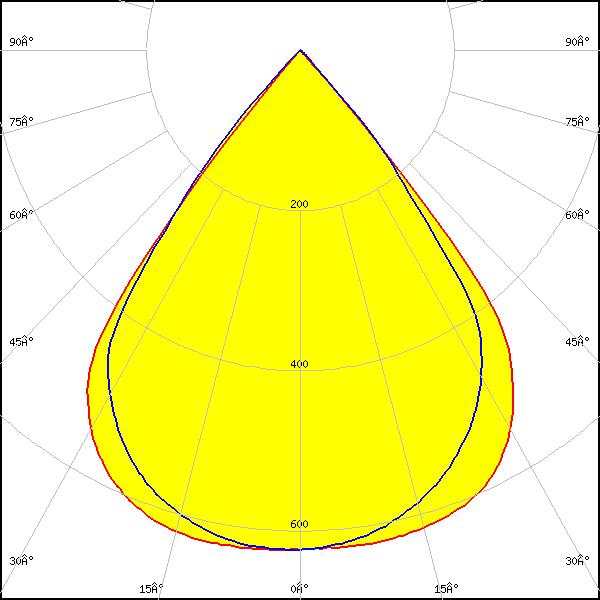

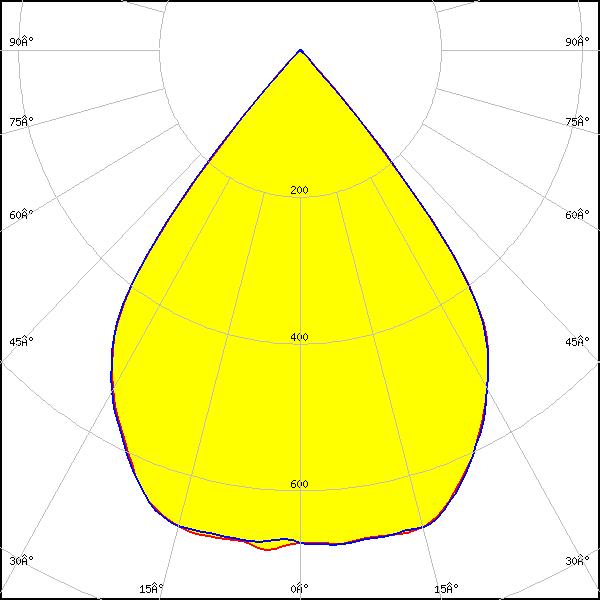

LED: LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 76°
FWTM: 86°
Peak intensity: 0.689 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

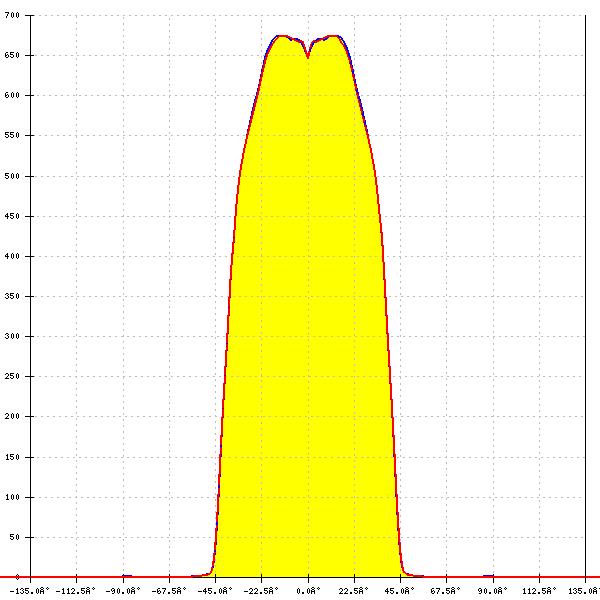

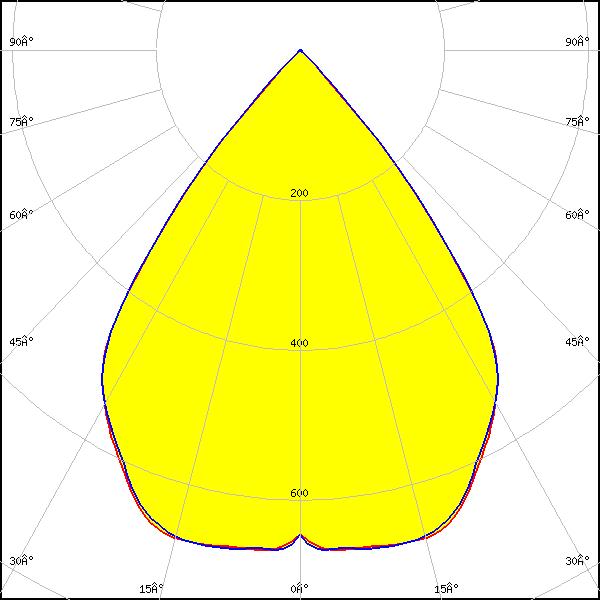

LED: LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.678 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White

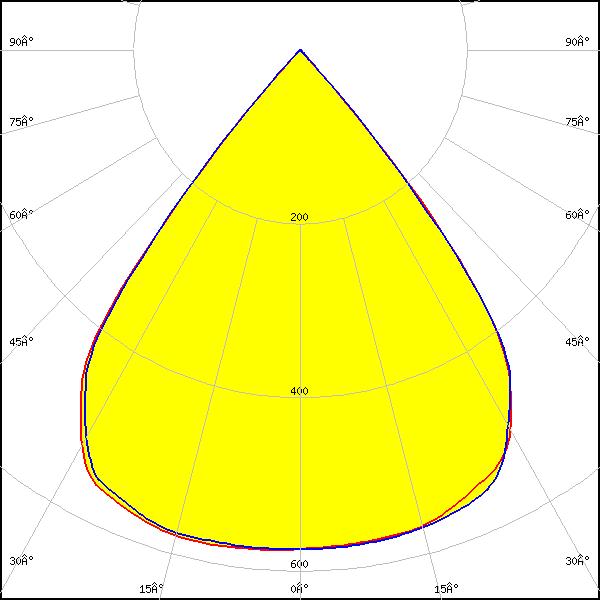

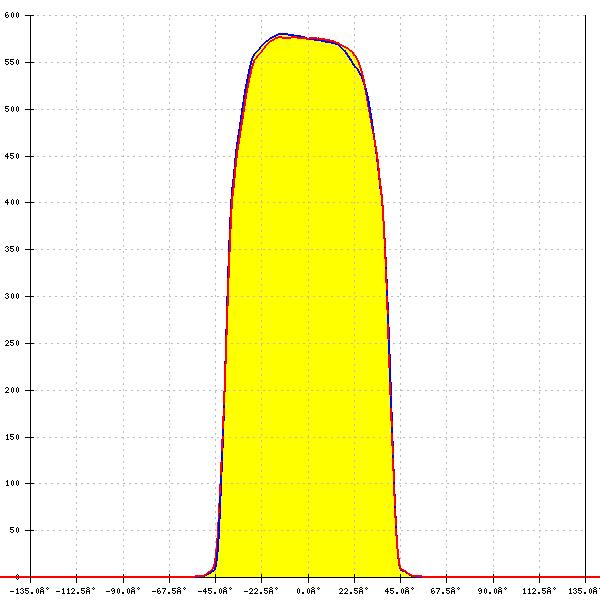

LED: LM28xB Series
Required components:
C16590_DAISY-4X1-SHD
FWHM: 78°
FWTM: 86°
Peak intensity: 0.580 cd/lm
Efficiency: 84 %
LEDs/each optic: 2
Light colour/type: White

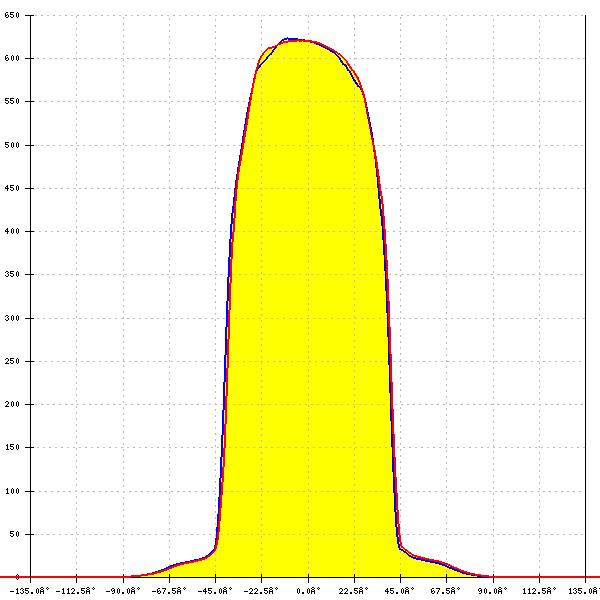

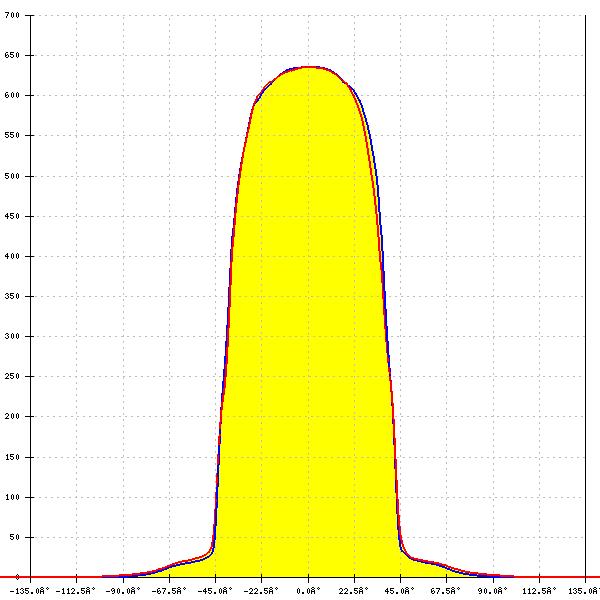

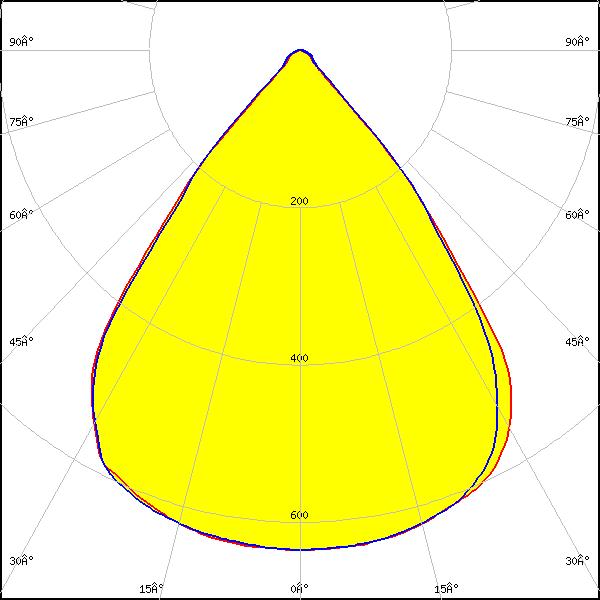

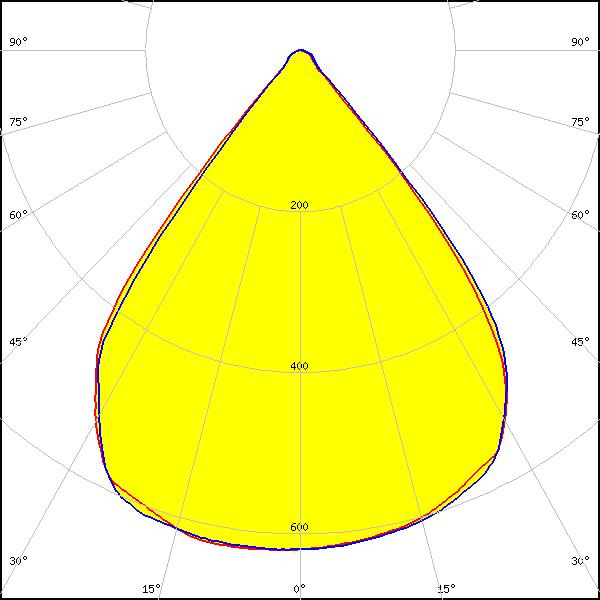

LED: LM28xB Series
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 77°
FWTM: 87°
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour/type: White
LED: LM28xB Series
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 76°
FWTM: 89°
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

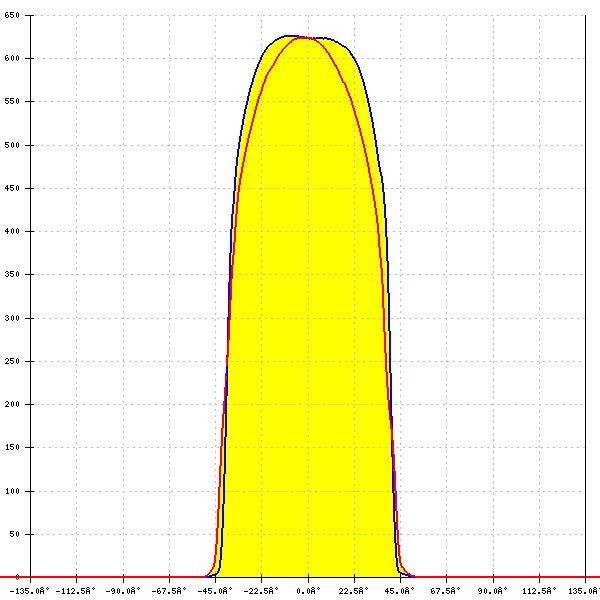

LED: LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 76°
FWTM: 85°
Peak intensity: 0.627 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LM28xB Series
Required components:
C16590_DAISY-4X1-SHD
FWHM: 75°
FWTM: 88°
Peak intensity: 0.610 cd/lm
Efficiency: 84 %
LEDs/each optic: 4
Light colour/type: White

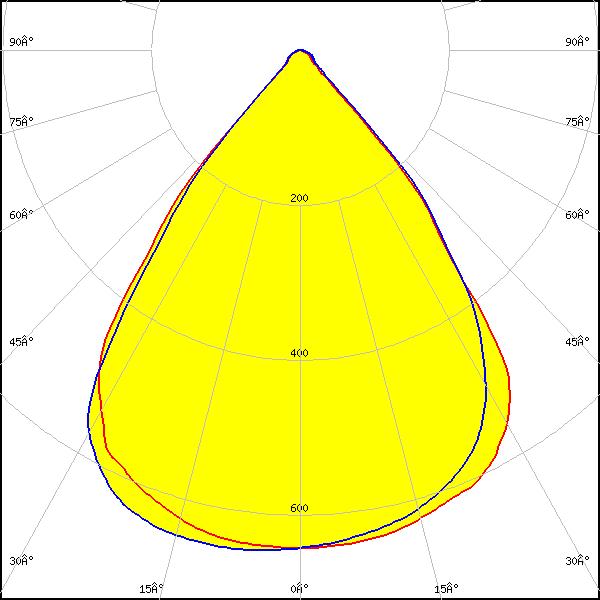

LED: SEOUL DC 3030
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 75°
FWTM: 89°
Peak intensity: 0.651 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: Tunable White

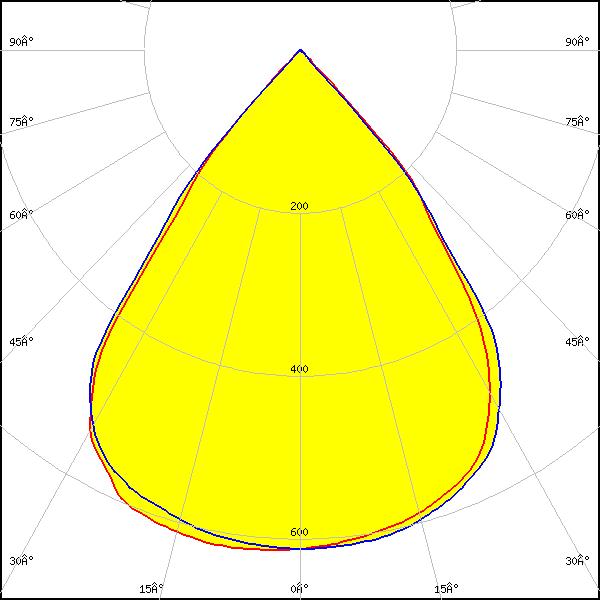

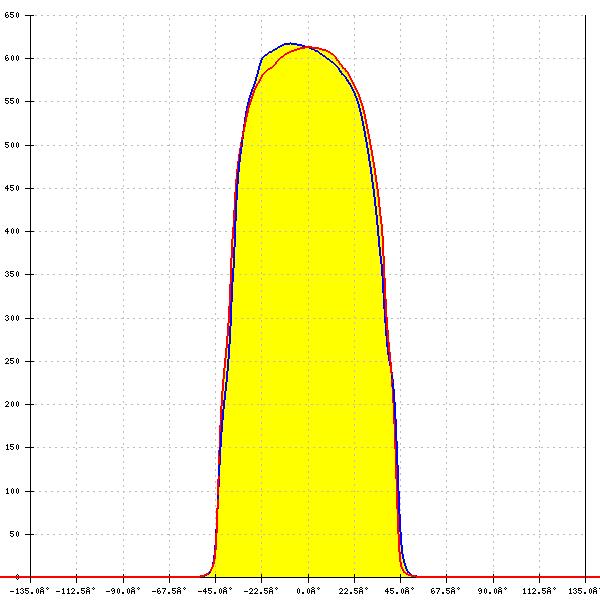

LED: SEOUL DC 3030
Required components:
C16590_DAISY-4X1-SHD
FWHM: 75°
FWTM: 89°
Peak intensity: 0.617 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour/type: Tunable White

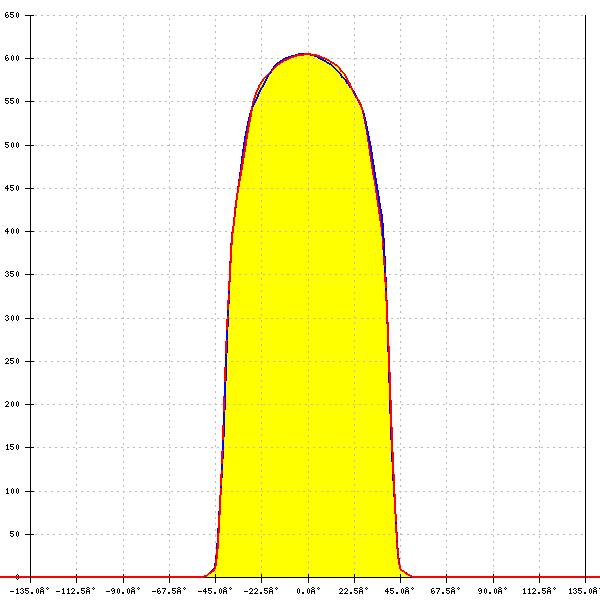

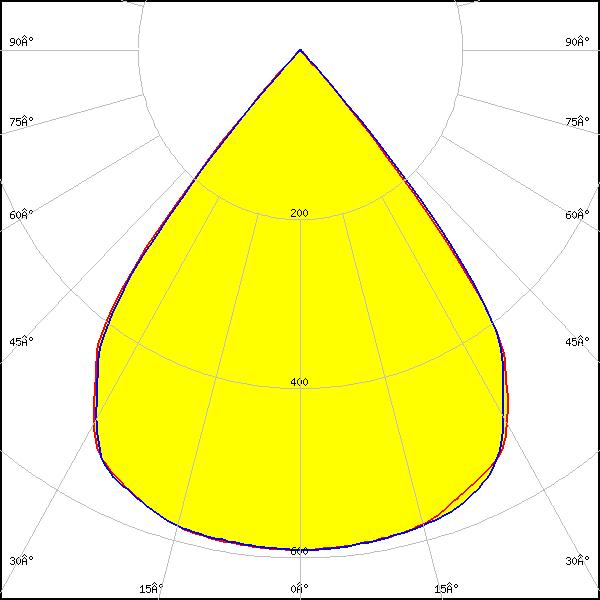

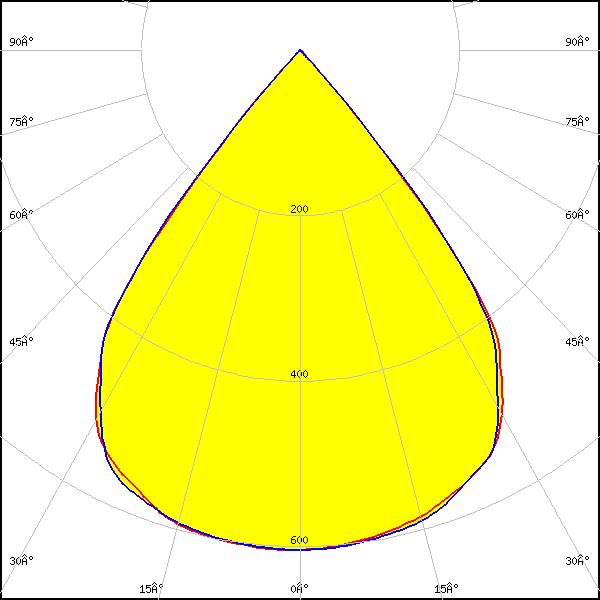

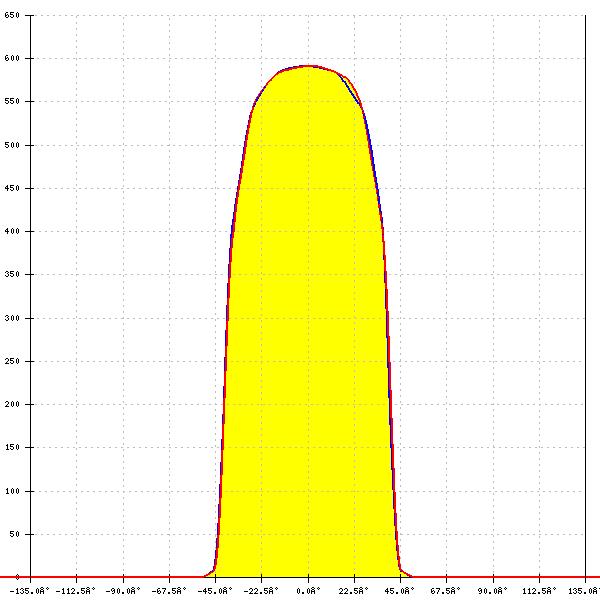

LED: SEOUL DC 3528
Required components:
C16590_DAISY-4X1-SHD
FWHM: 78°
FWTM: 86°
Peak intensity: 0.590 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour/type: White
LED: SEOUL DC 3528
Required components:
C16590_DAISY-4X1-SHD
FWHM: 77°
FWTM: 86°
Peak intensity: 0.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour/type: White

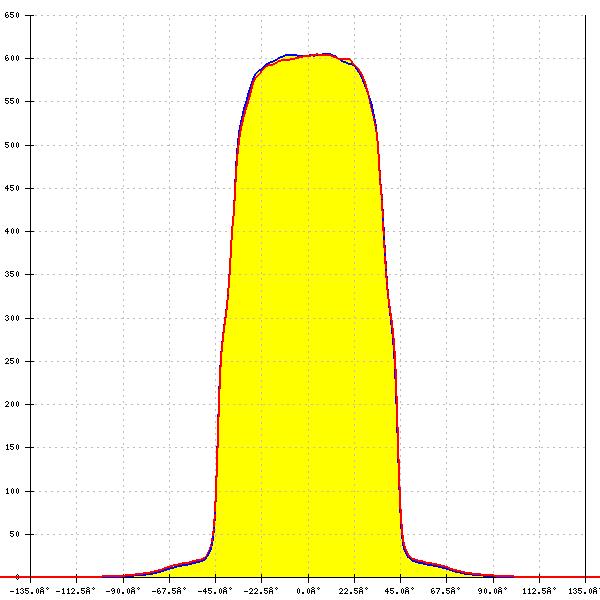

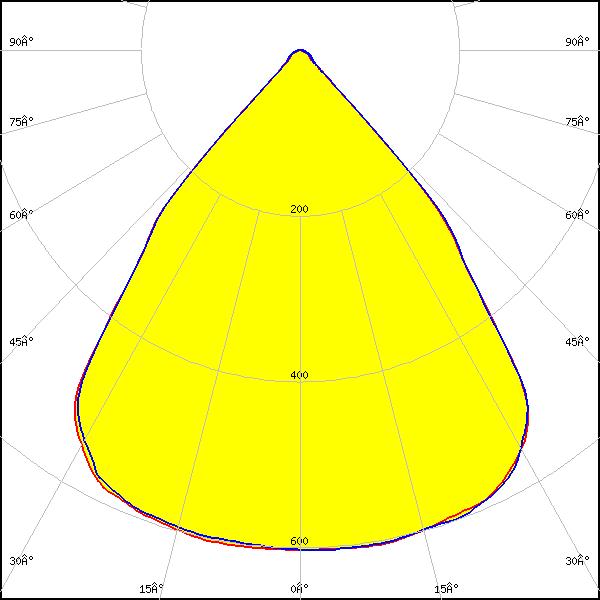

LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 80°
FWTM: 91°
Peak intensity: 0.607 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

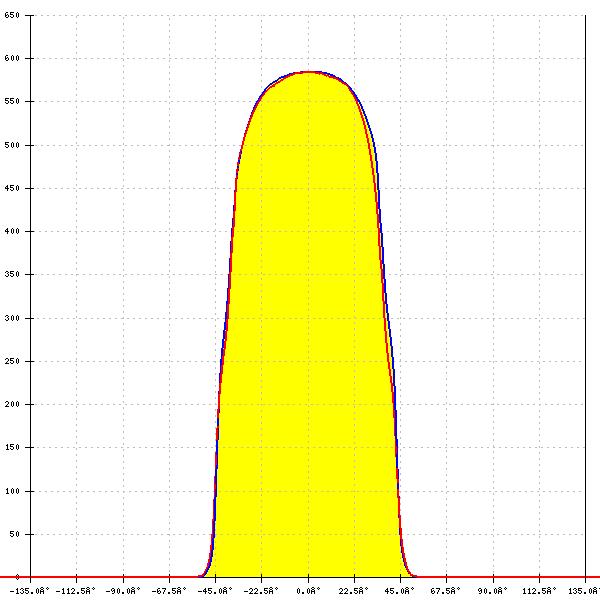

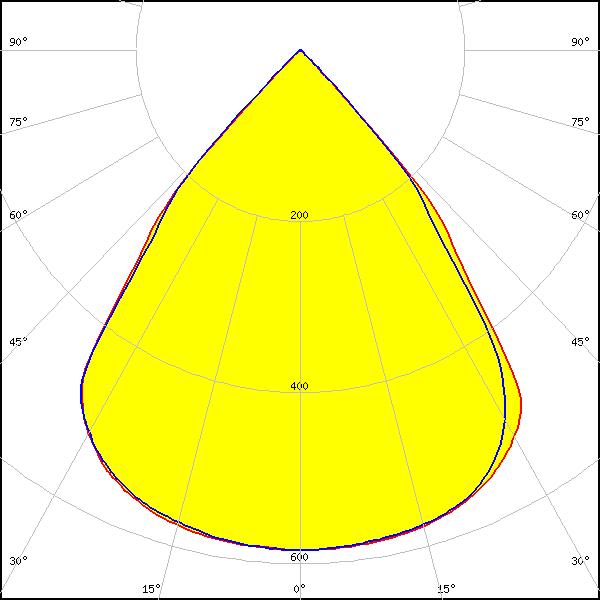

LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 80° + 77°
FWTM: 91° + 91°
Peak intensity: 0.585 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour/type: White

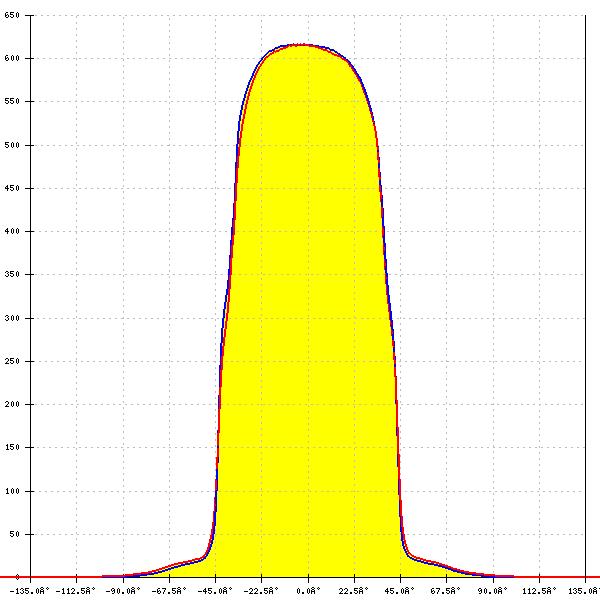

LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 79°
FWTM: 91°
Peak intensity: 0.617 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

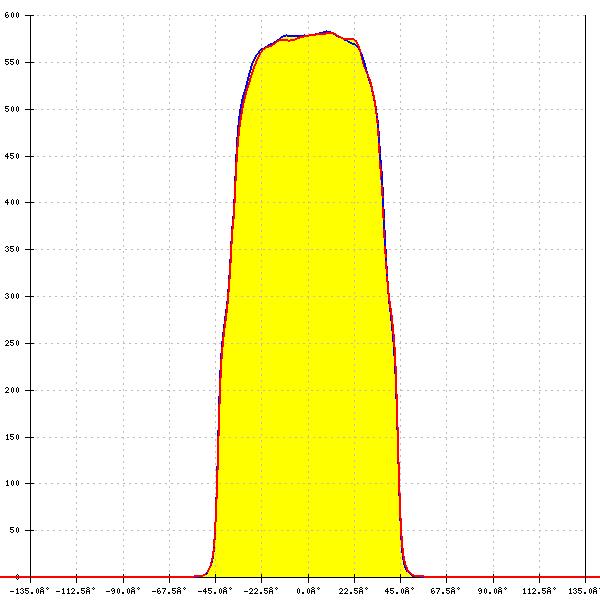

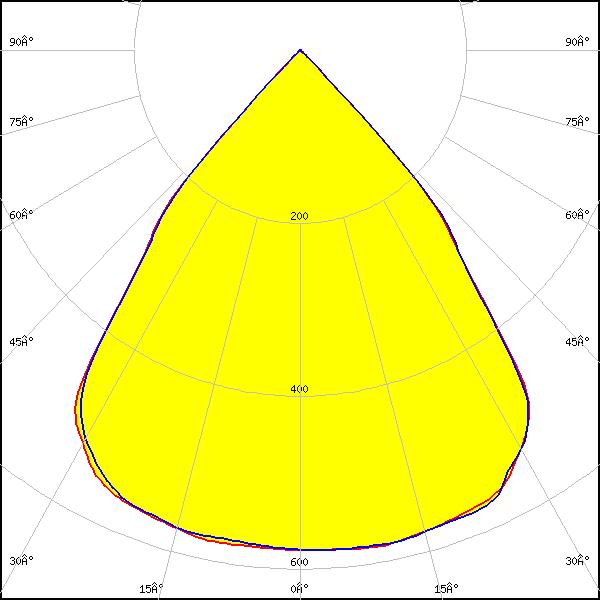

LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C16590_DAISY-4X1-SHD
FWHM: 79°
FWTM: 91°
Peak intensity: 0.584 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour/type: White

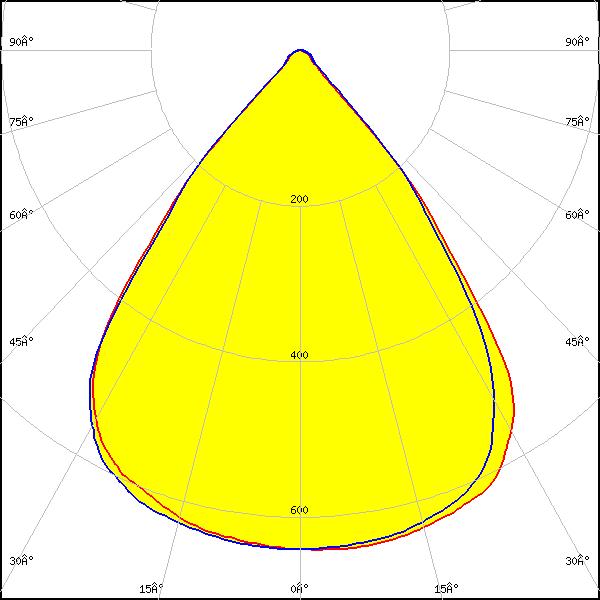

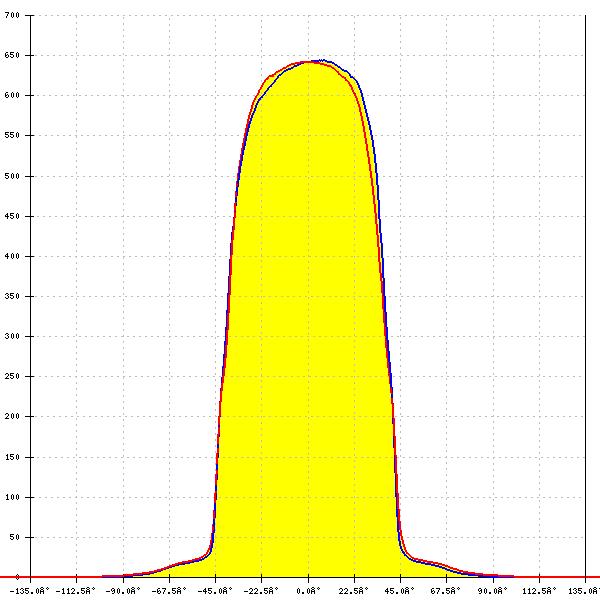

LED: LLE 24x140mm 400lm 827-865 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 76°
FWTM: 90°
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

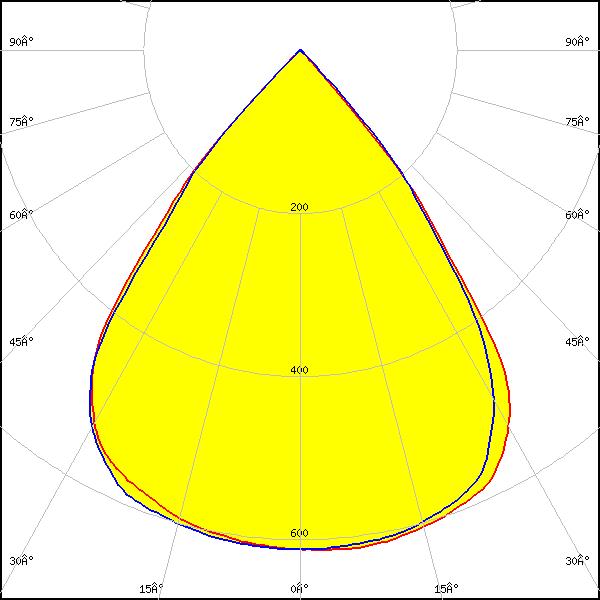

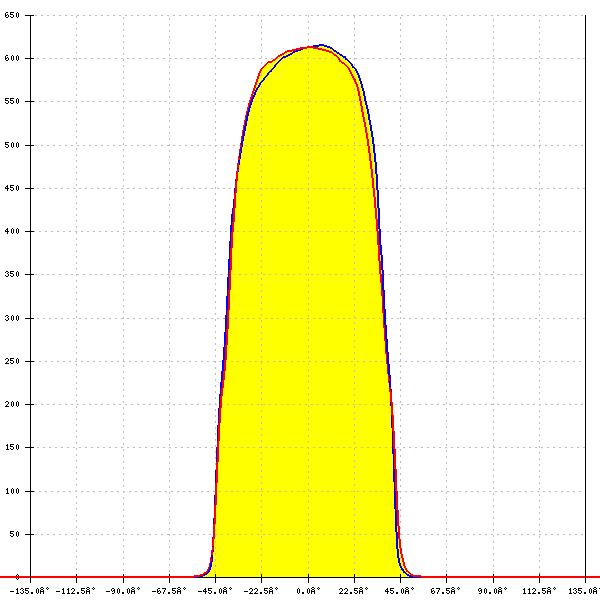

LED: LLE 24x140mm 400lm 827-865 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 89°
Peak intensity: 0.620 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour/type: White

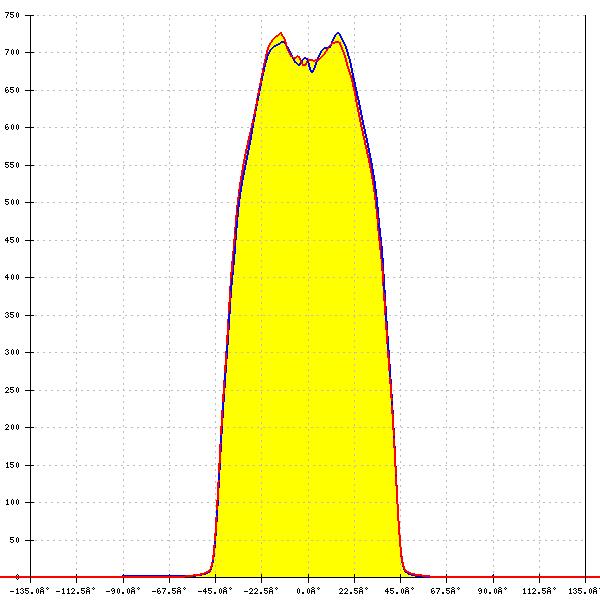

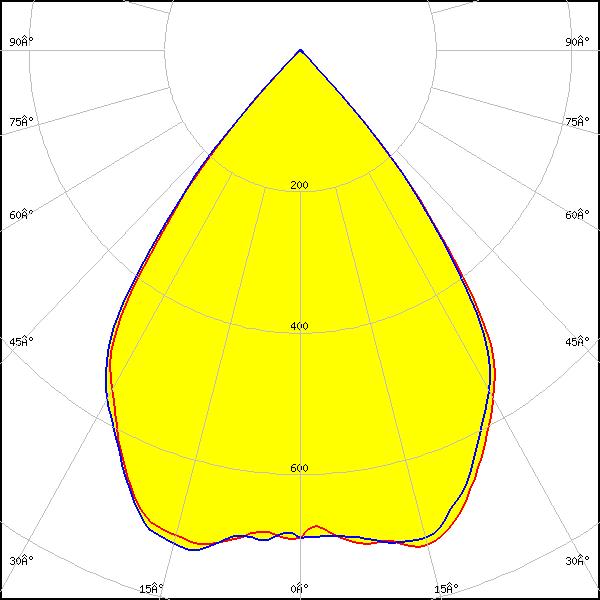

LED: LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 75°
FWTM: 88°
Peak intensity: 0.734 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

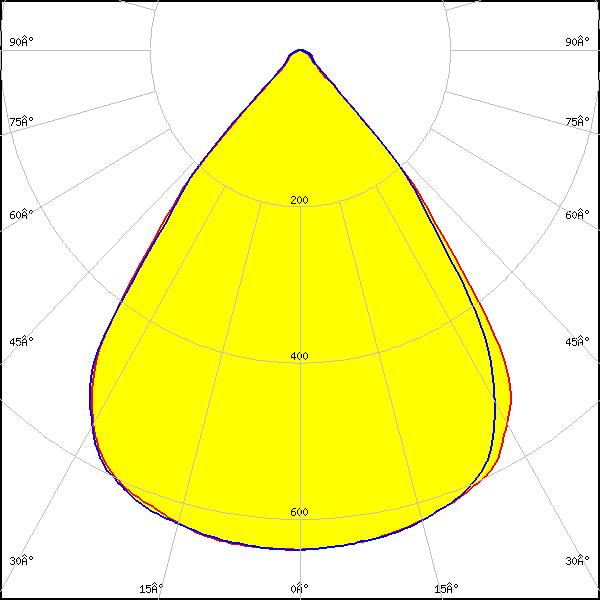

LED: LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 77°
FWTM: 90°
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

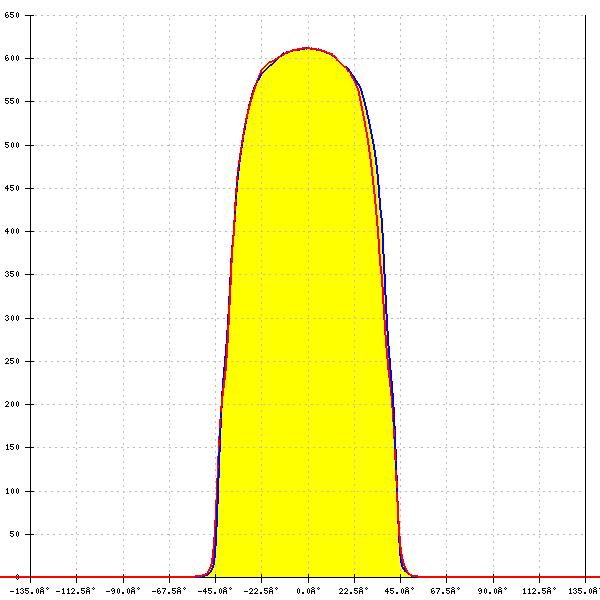

LED: LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 89°
Peak intensity: 0.610 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour/type: White

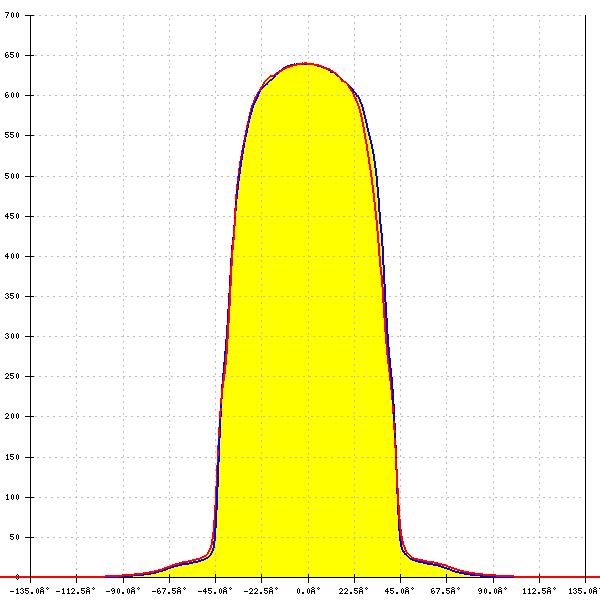

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 76°
FWTM: 90°
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

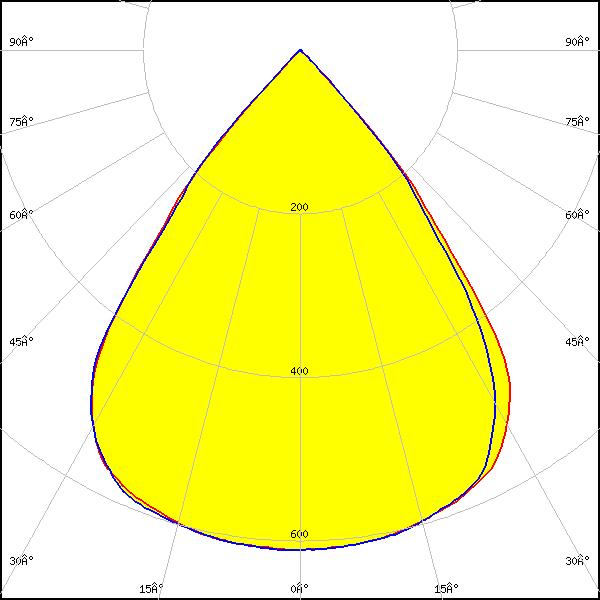

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 76°
FWTM: 89°
Peak intensity: 0.612 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
