DAISY-2X2-WW

Print

~80° wide beam

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    80 x  80 mm
  • Height:
    21.0 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes

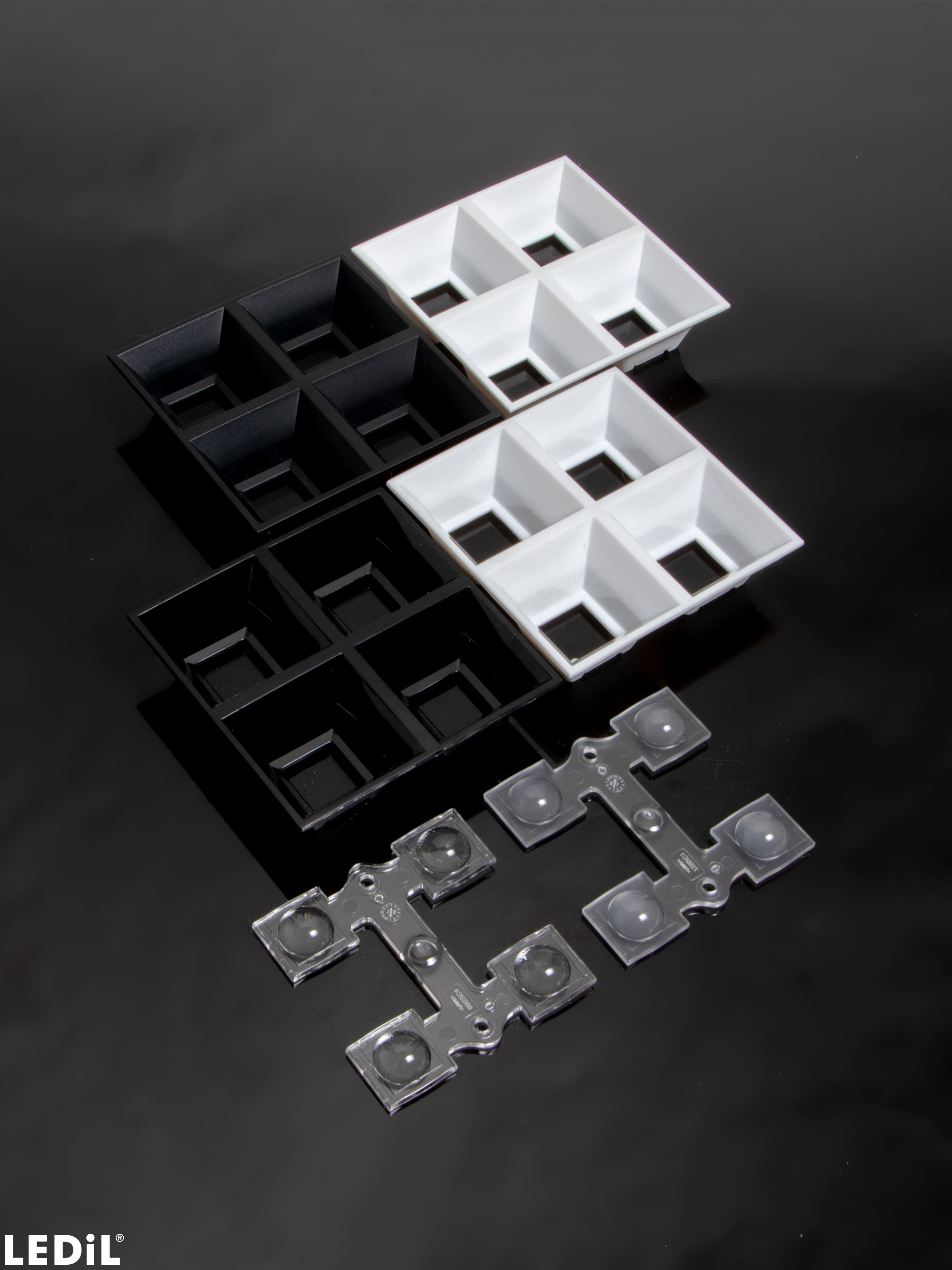

Materials
  • Multi-lens
  • C16862_DAISY-2X2-WW
    PMMA
  • Shade
  • C16866_DAISY-2X2-SHD
    PC
  • C16875_DAISY-2X2-SHD-WHT
    PC
  • C17483_DAISY-2X2-SHD-MATT
    PC
  • C17484_DAISY-2X2-SHD-WHT-MATT
    PC
  • C17530_DAISY-2X2-SHD-MET
    PC
  • C17536_DAISY-2X2-SHD-MET-MATT
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Multi-lens
    1 pcs
  • Shade
    1 pcs
  • Multi-lens
  • C16862_DAISY-2X2-WW
    clear
  • Quantity in box:
    440 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    5.00 kg
  • MPQ:
    20 pcs
  • MOQ:
    440 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    5.00 kg
  • Shade
  • C16866_DAISY-2X2-SHD
    black,gloss
  • C16875_DAISY-2X2-SHD-WHT
    white,gloss
  • C17483_DAISY-2X2-SHD-MATT
    black,matt
  • C17484_DAISY-2X2-SHD-WHT-MATT
    white,matt
  • C17530_DAISY-2X2-SHD-MET
    metal,gloss
  • C17536_DAISY-2X2-SHD-MET-MATT
    metal,matt
  • Quantity in box:
    186 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    4.80 kg
  • MPQ:
    20 pcs
  • MOQ:
    440 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    4.80 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C16862_DAISY-2X2-WW
    C16866_DAISY-2X2-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

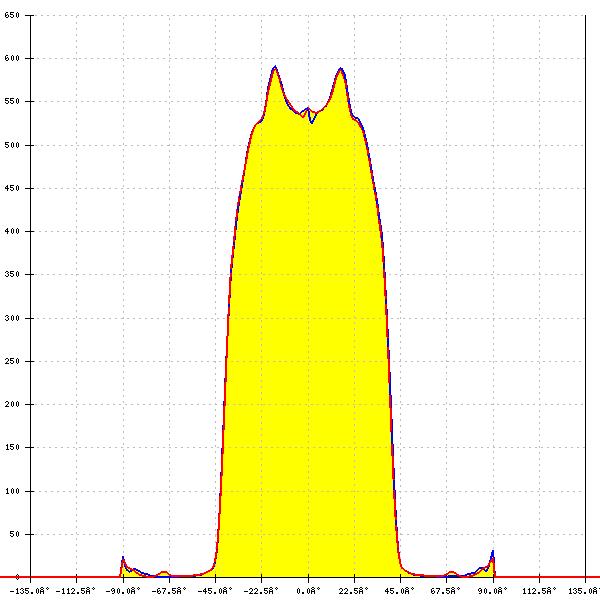

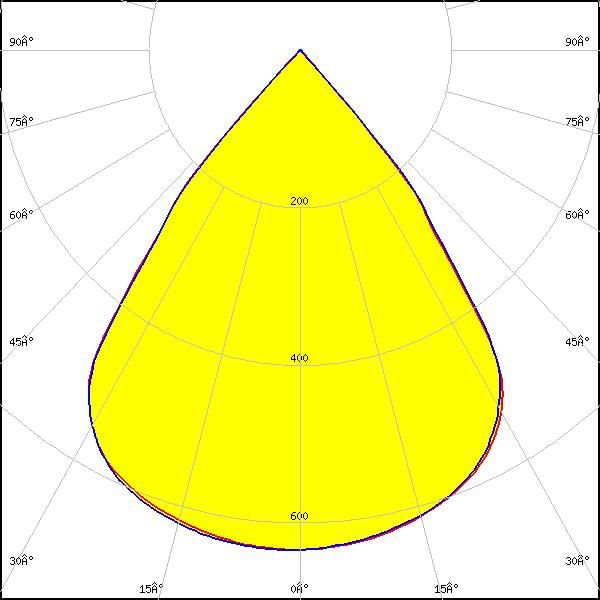

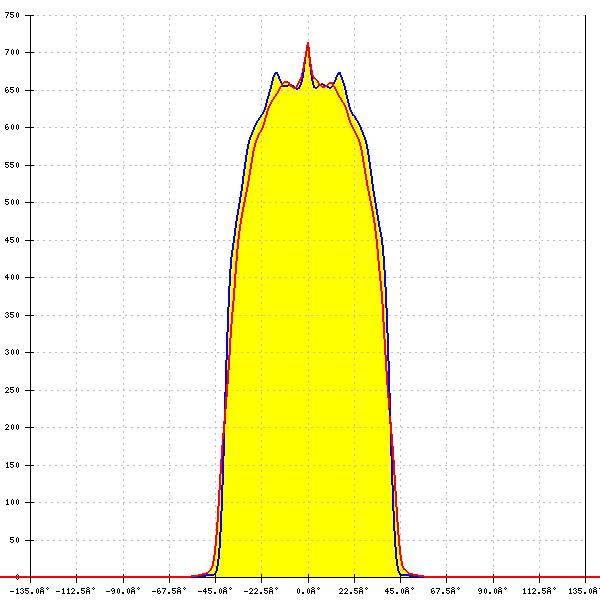

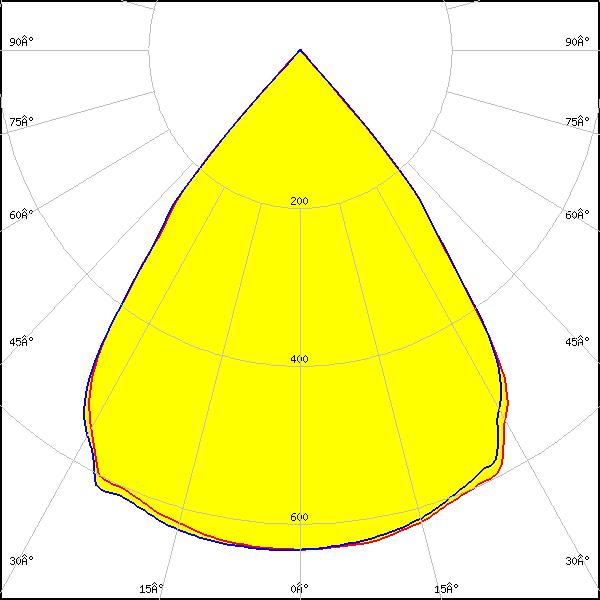

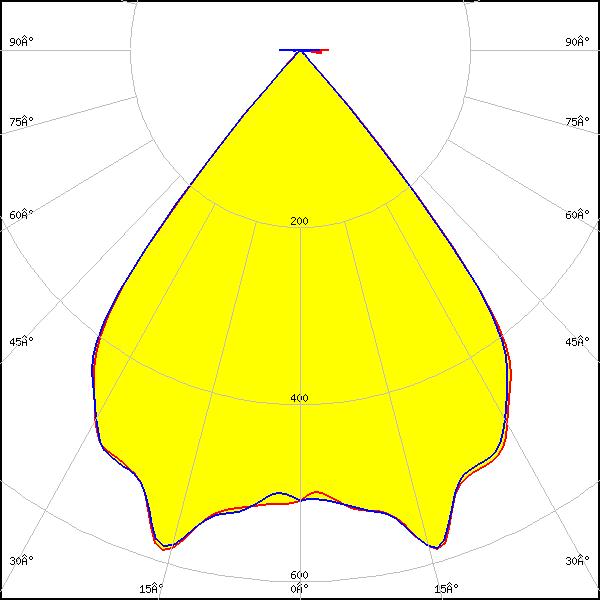

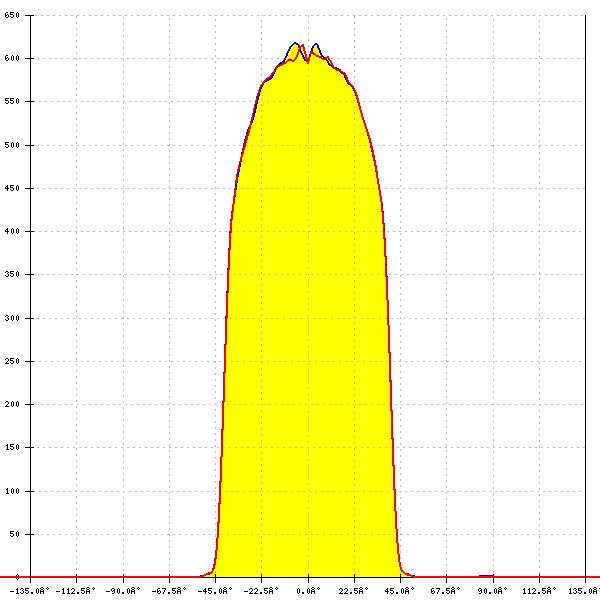

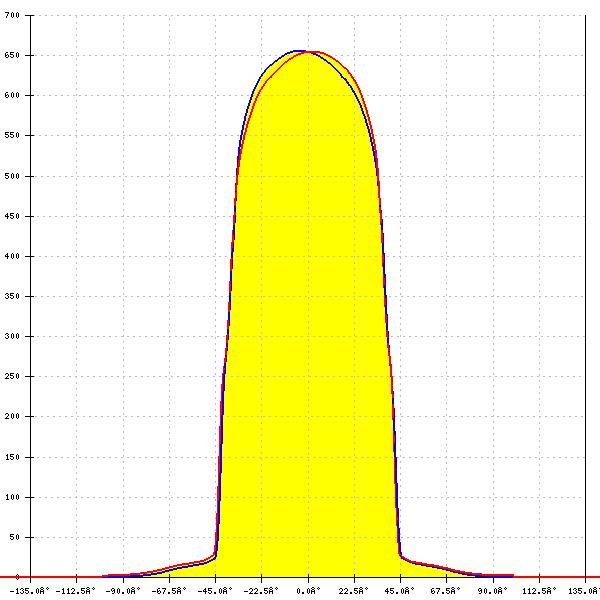

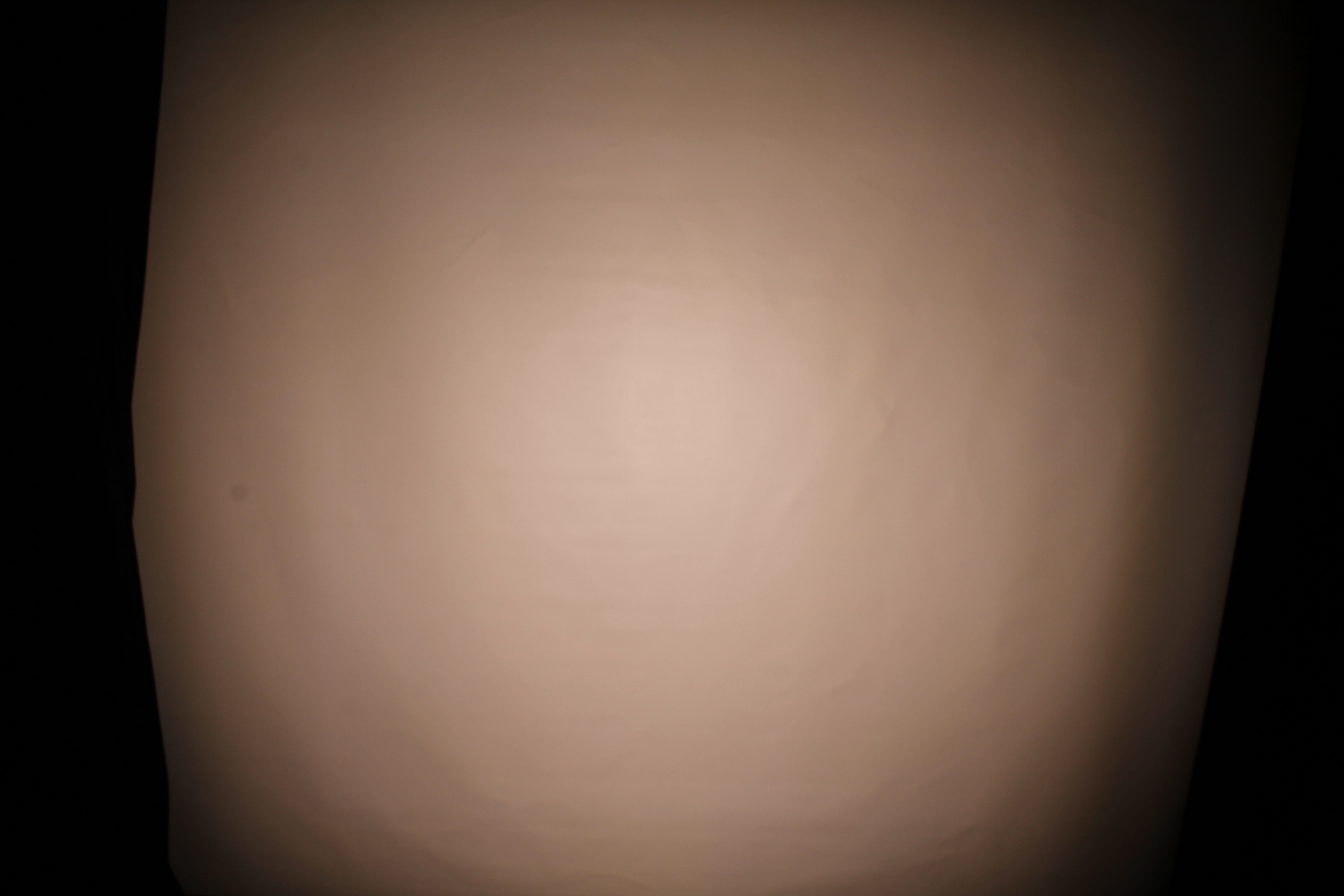

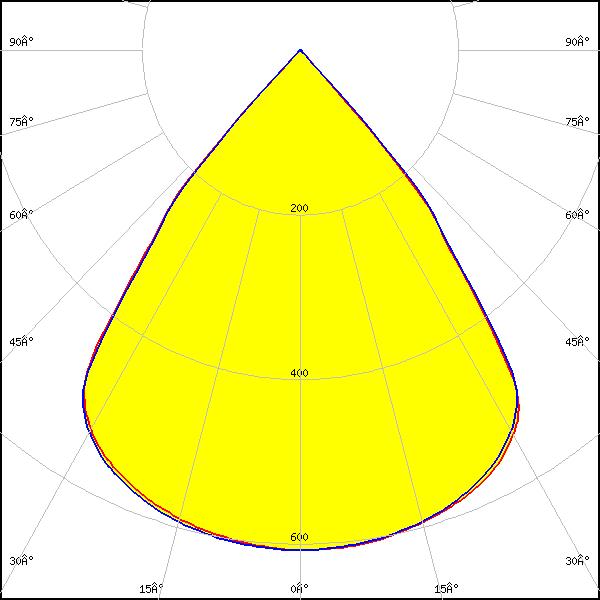

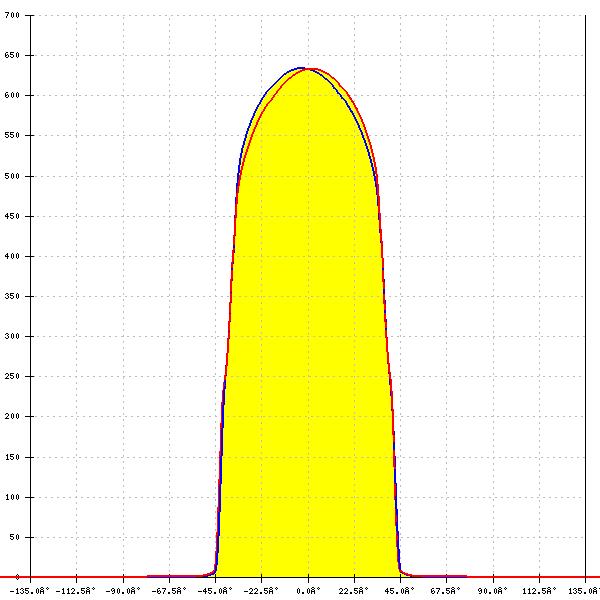

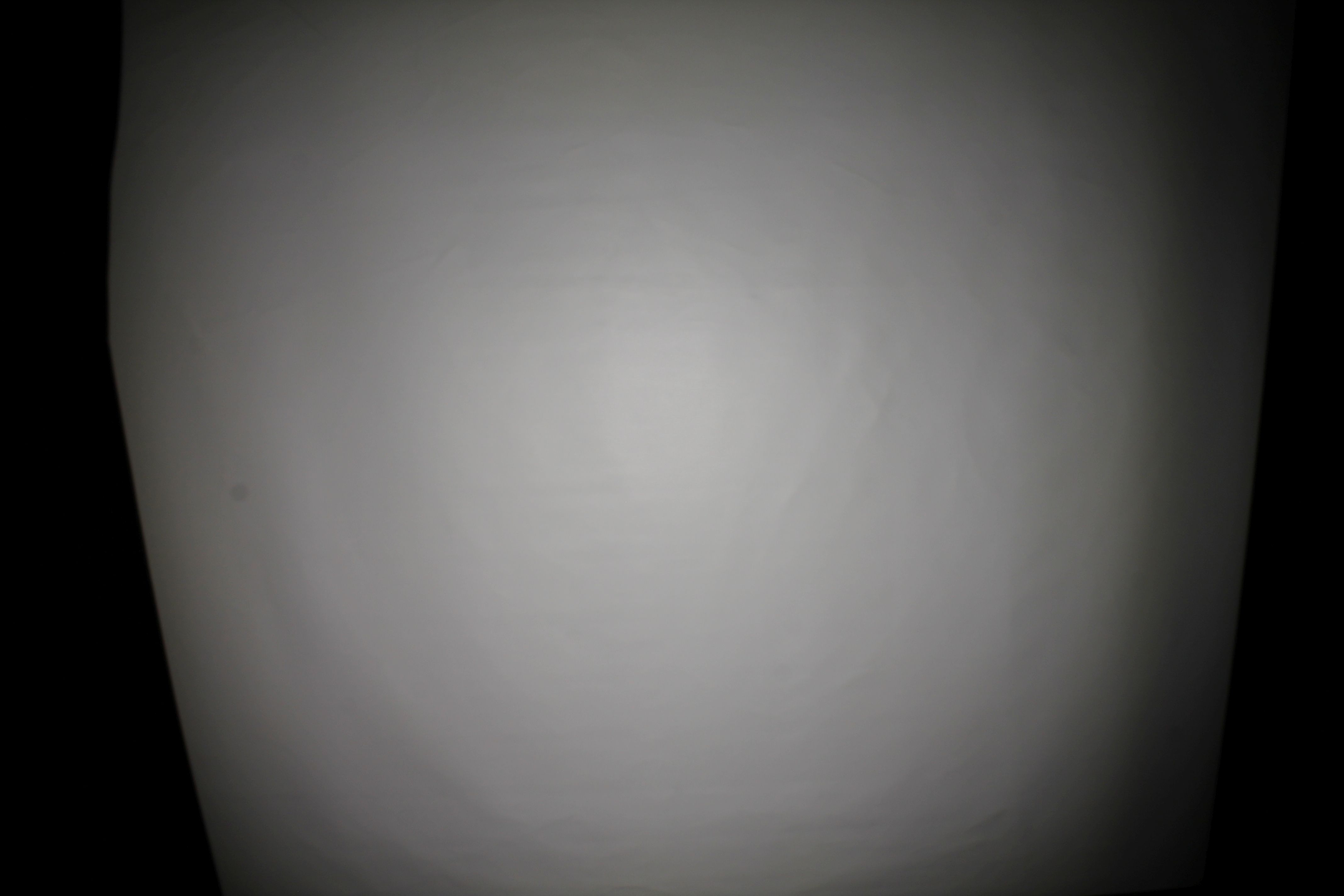

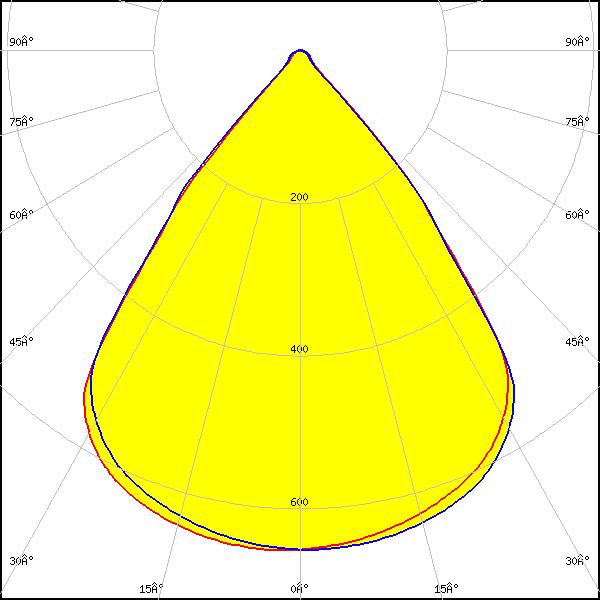

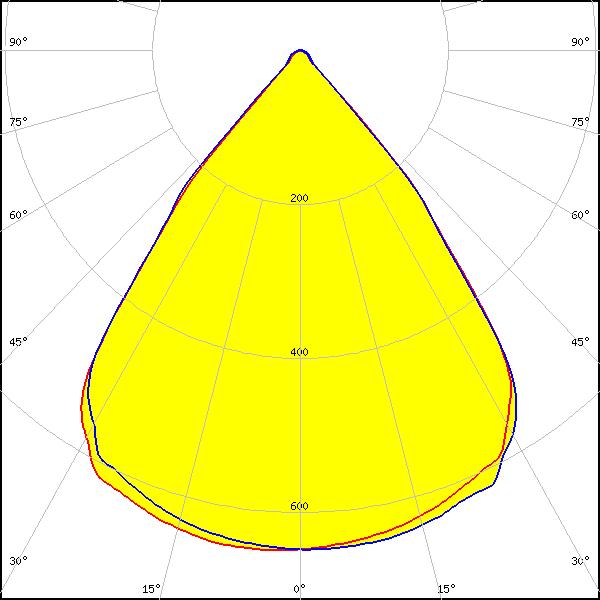

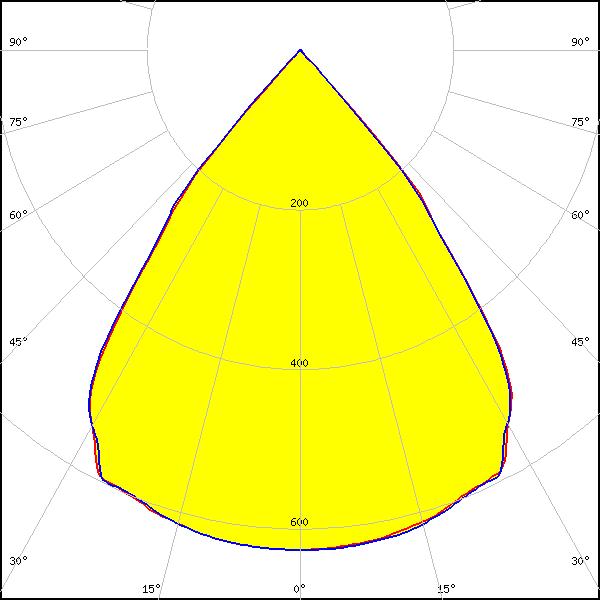

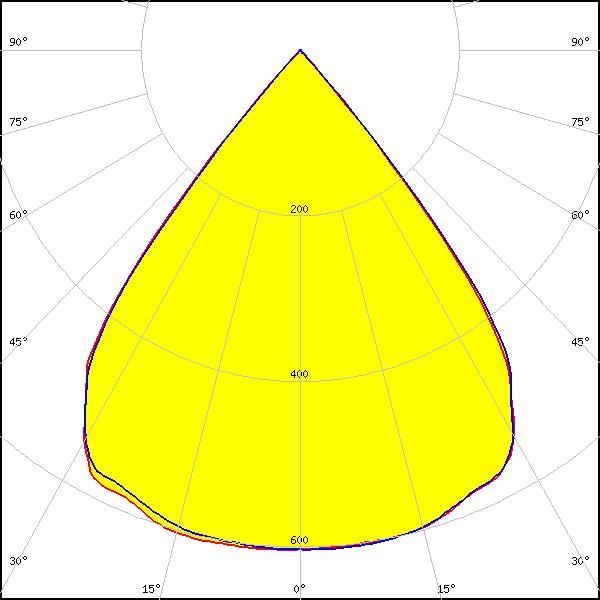

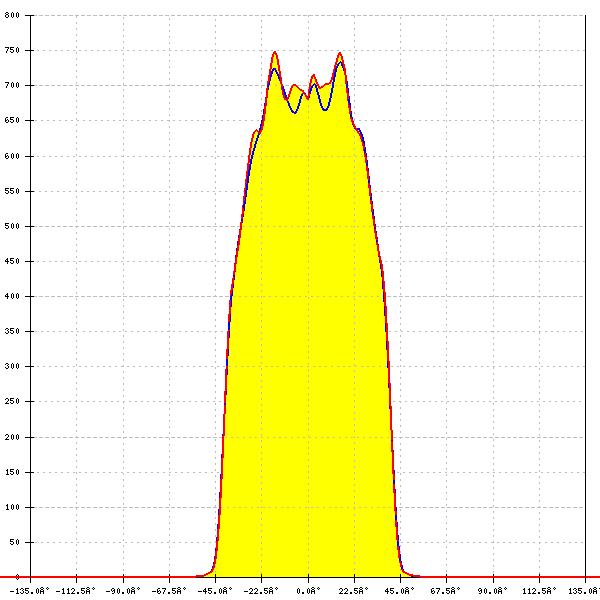

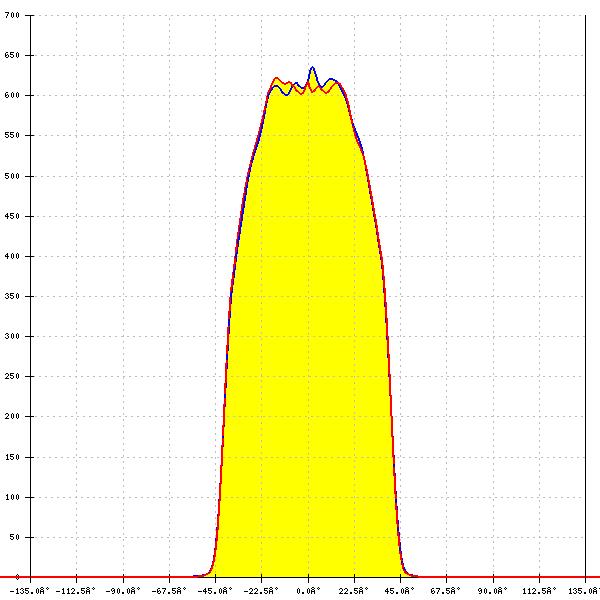

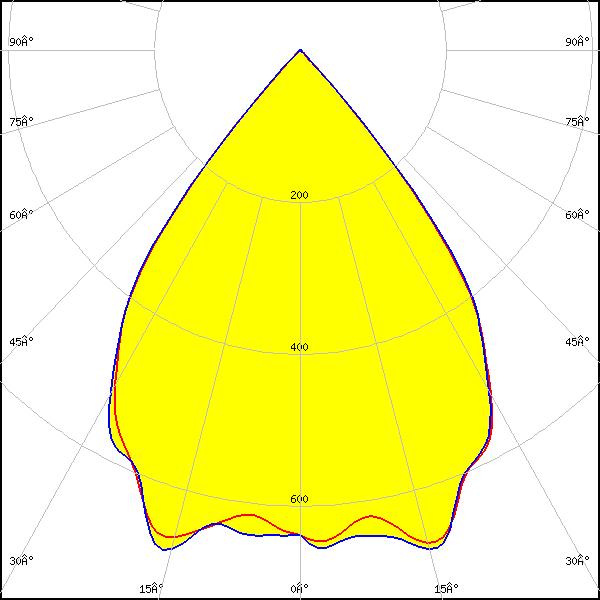

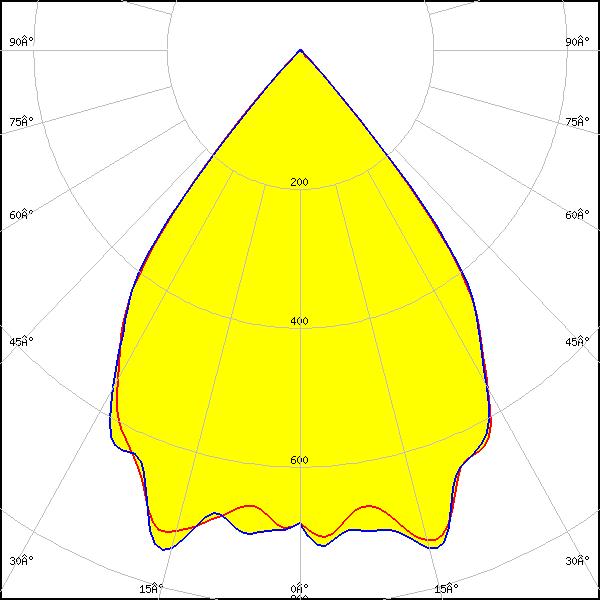

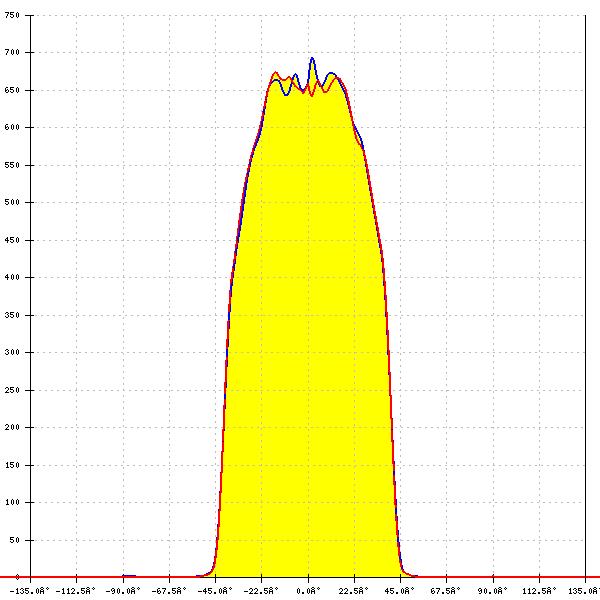

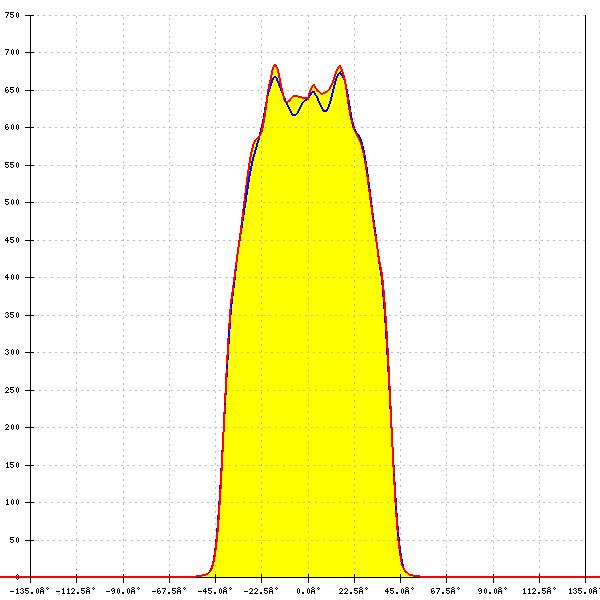

Optical results

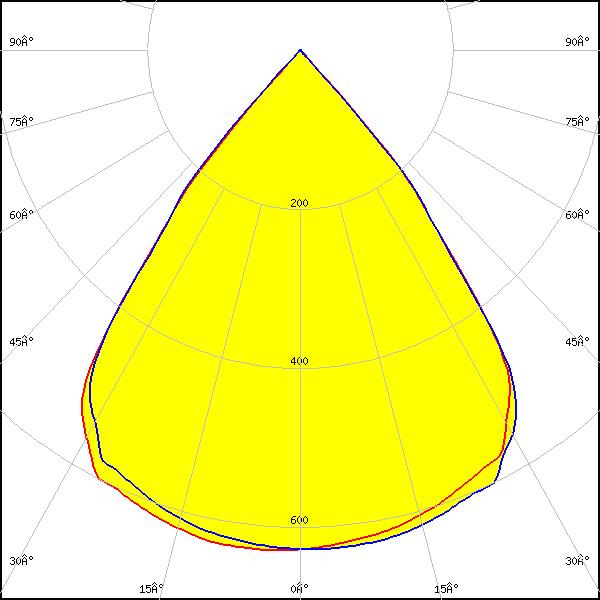

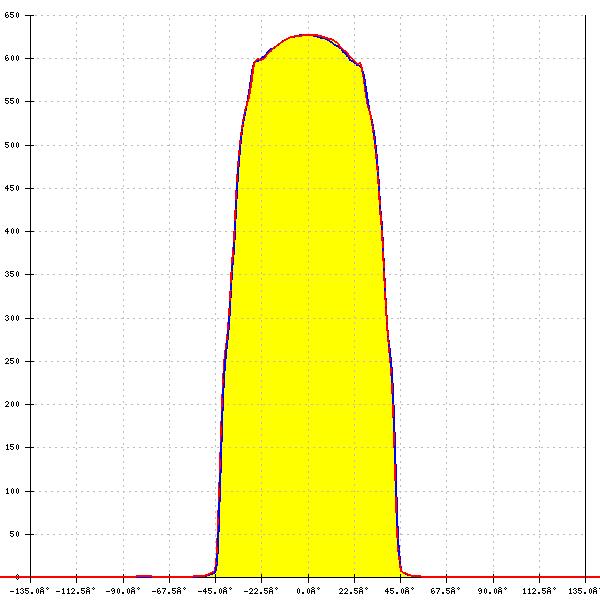

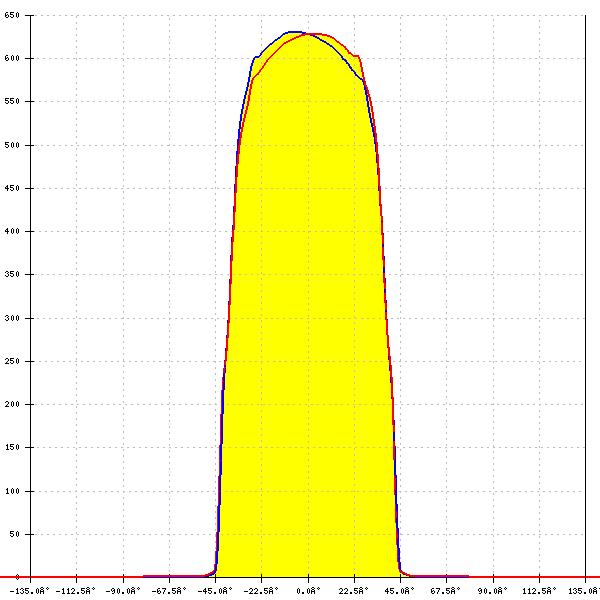

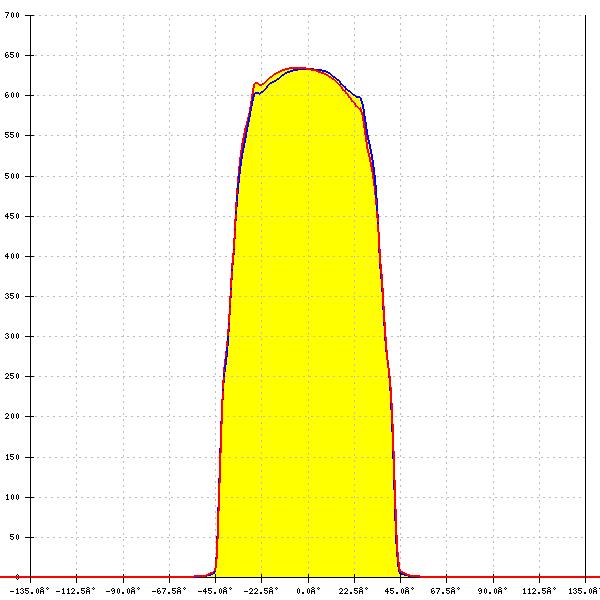

LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
Required components:
C16866_DAISY-2X2-SHD
FWHM: 76°
Peak intensity: 0.6 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White

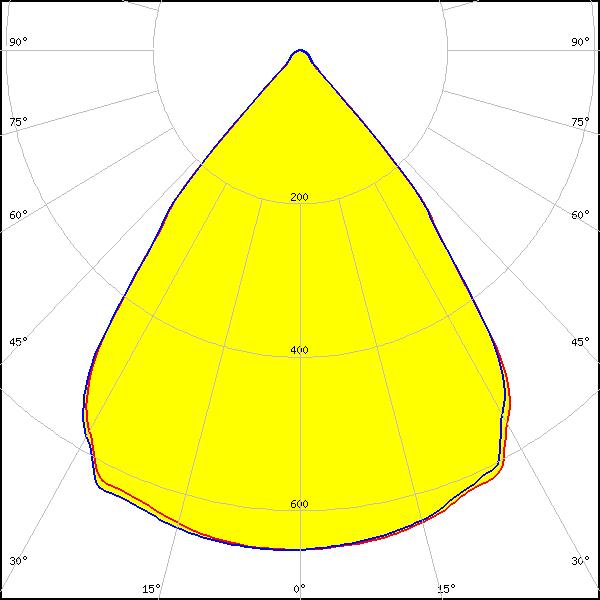

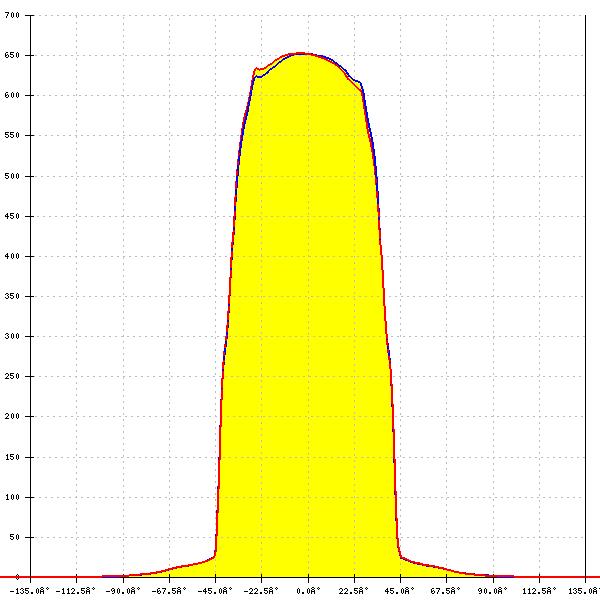

LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
Required components:
C16875_DAISY-2X2-SHD-WHT
FWHM: 76°
Peak intensity: 0.7 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White

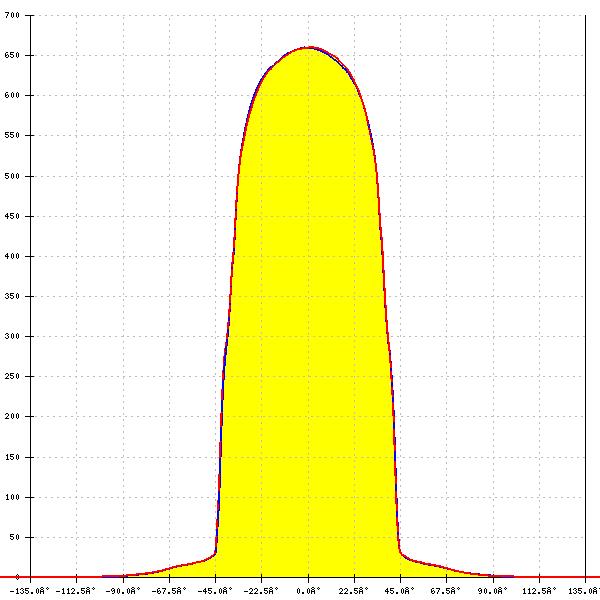

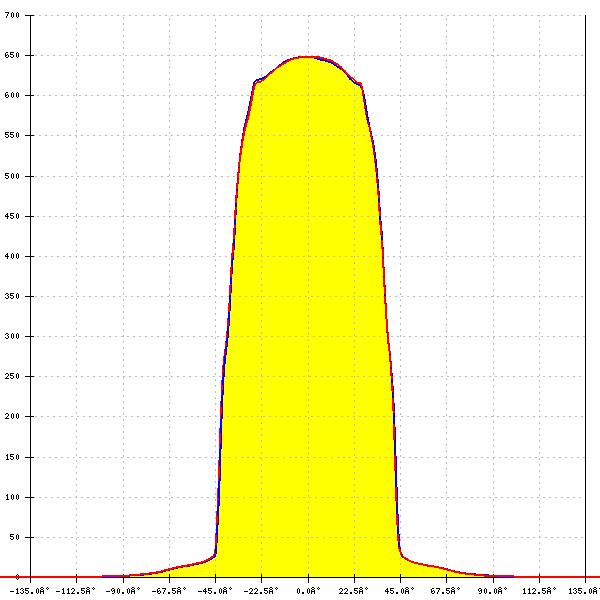

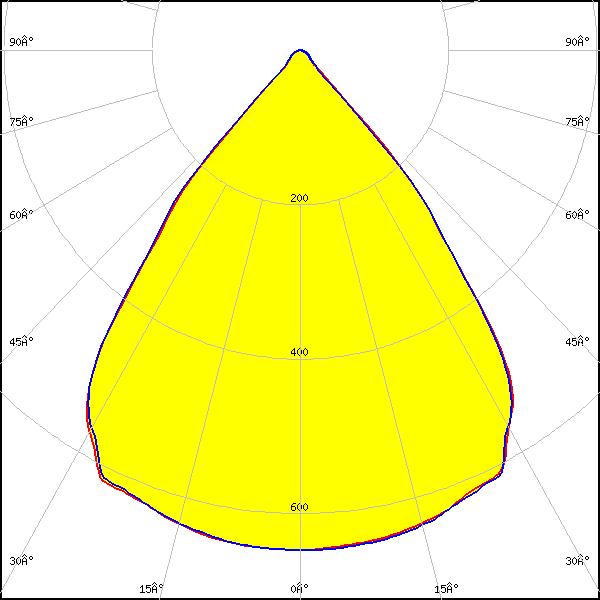

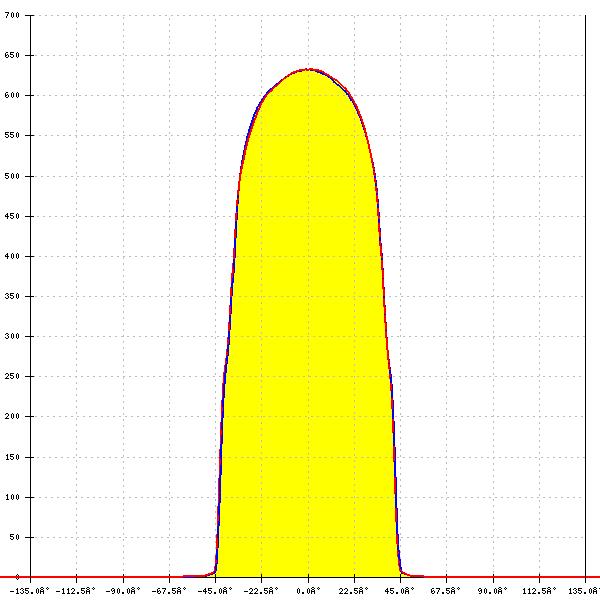

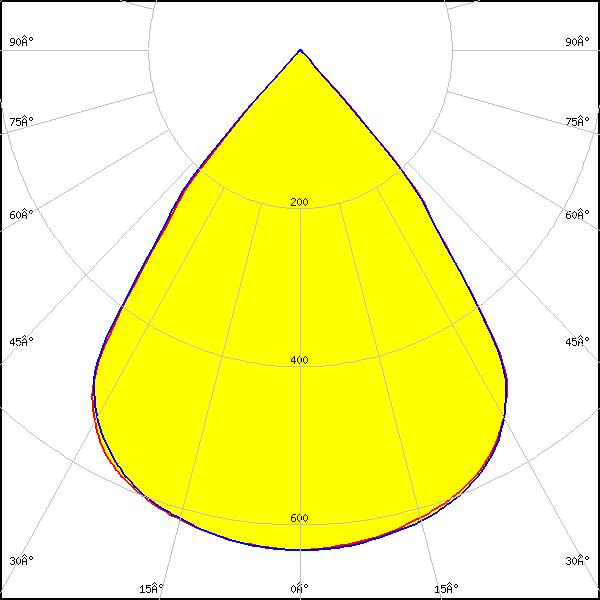

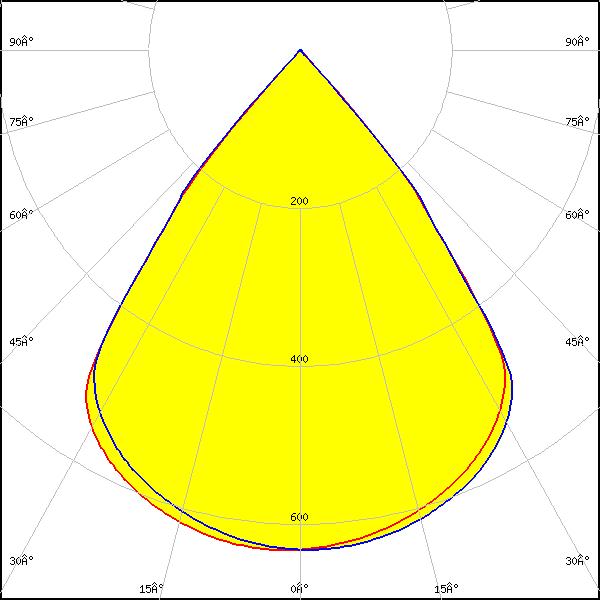

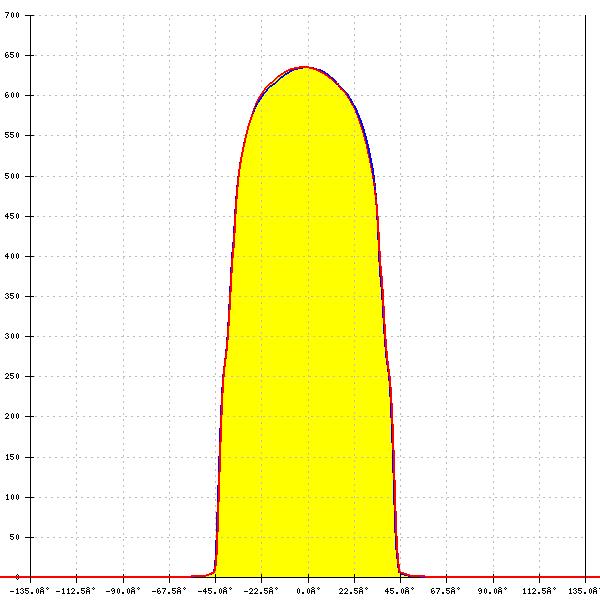

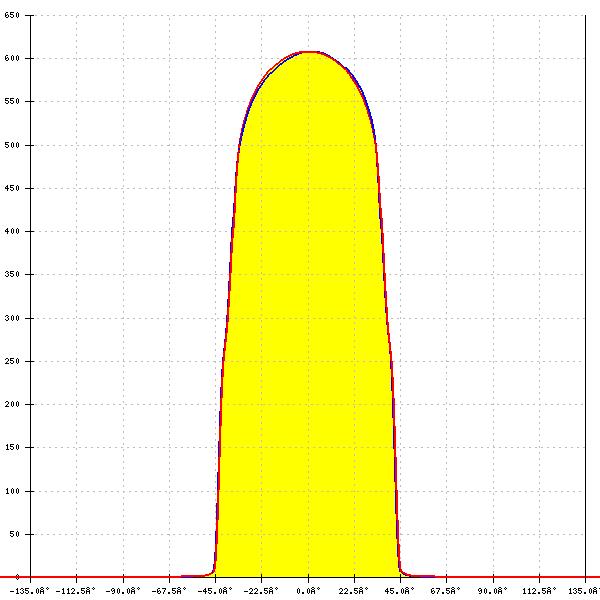

LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
Required components:
C17483_DAISY-2X2-SHD-MATT
FWHM: 76°
Peak intensity: 0.6 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White

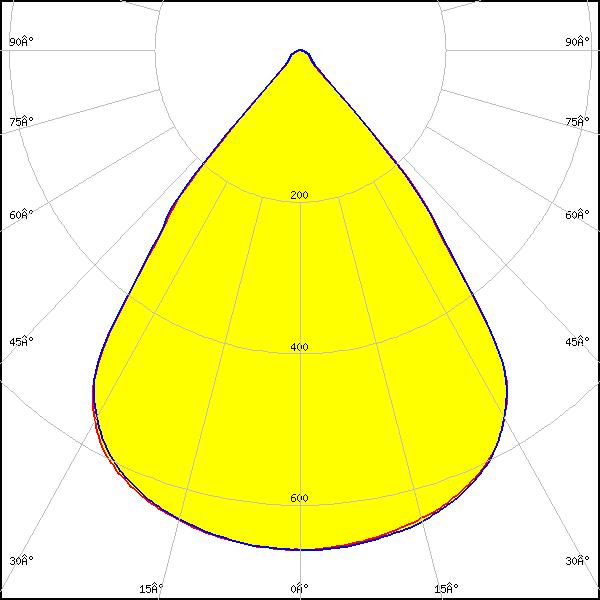

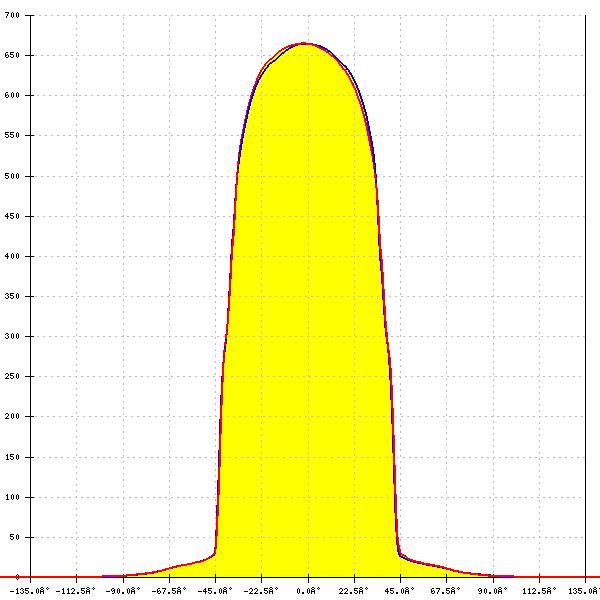

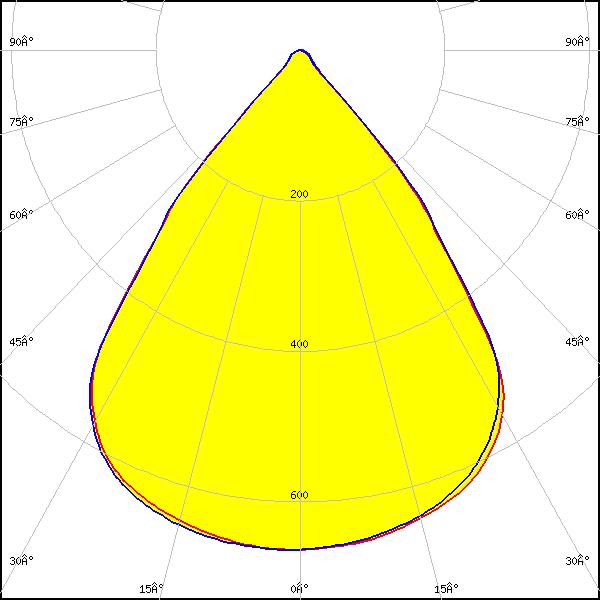

LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
Required components:
C17484_DAISY-2X2-SHD-WHT-MATT
FWHM: 76°
Peak intensity: 0.7 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White
LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
Required components:
C17530_DAISY-2X2-SHD-MET
FWHM: 74°
Peak intensity: 0.7 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour: White

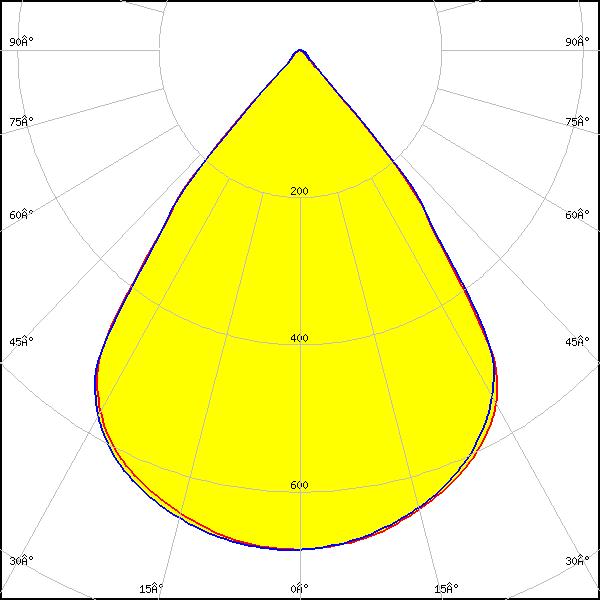

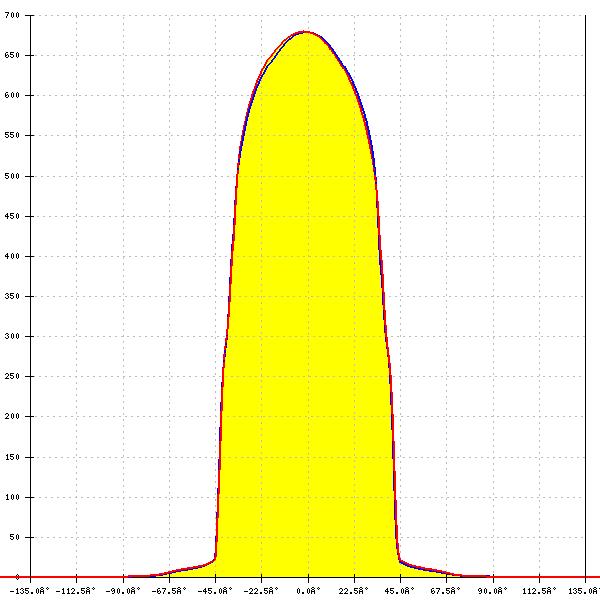

LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
Required components:
C17536_DAISY-2X2-SHD-MET-MATT
FWHM: 75°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

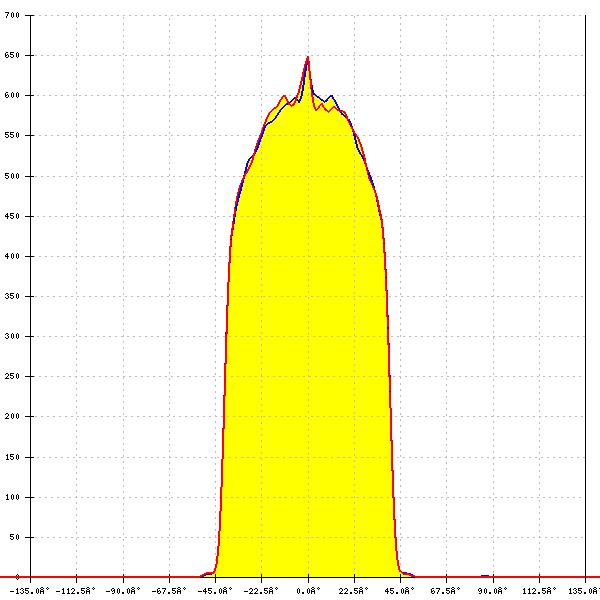

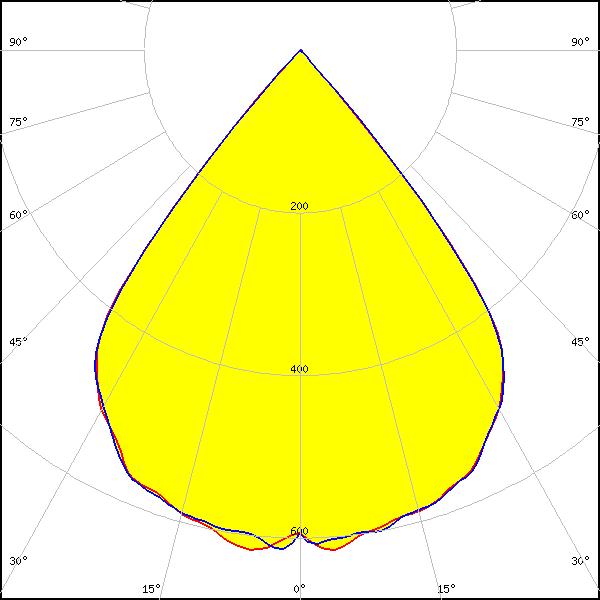

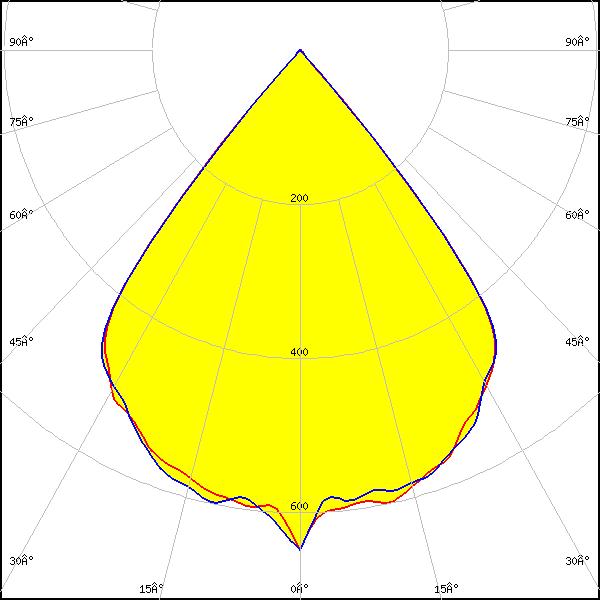

LED: J Series 2835
Required components:
C17483_DAISY-2X2-SHD-MATT
FWHM: 78°
Peak intensity: 0.6 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

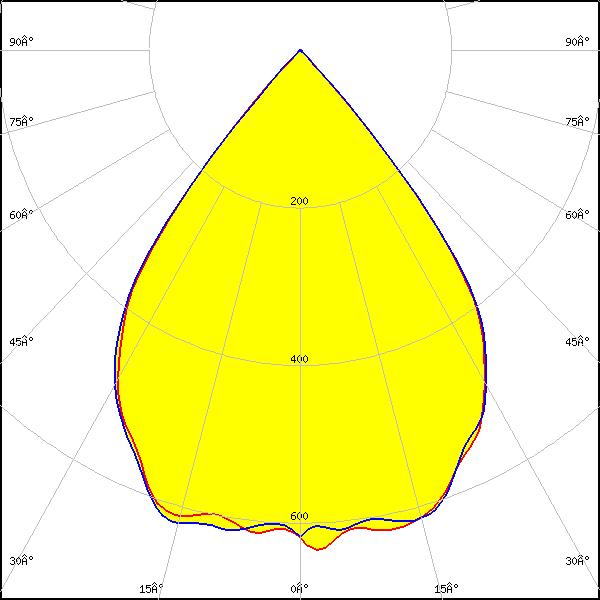

LED: J Series 5050

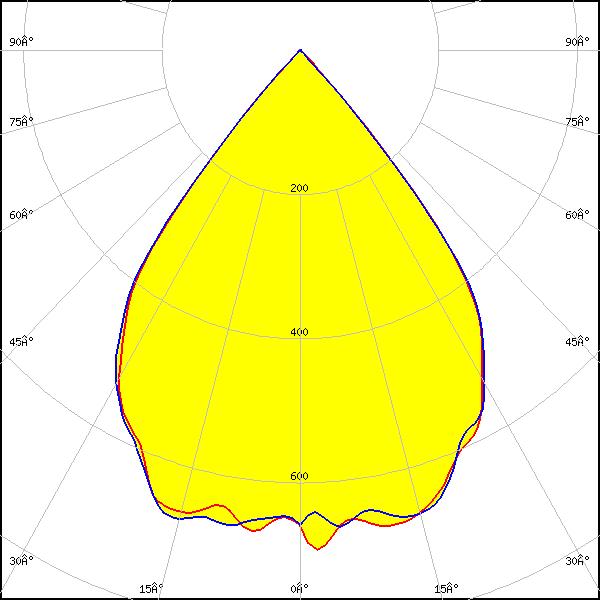

Required components:
C17483_DAISY-2X2-SHD-MATT
FWHM: 78°
Peak intensity: 0.6 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

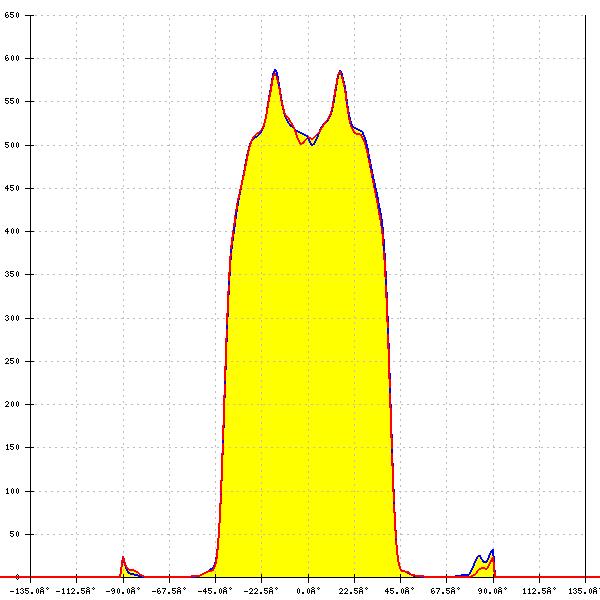

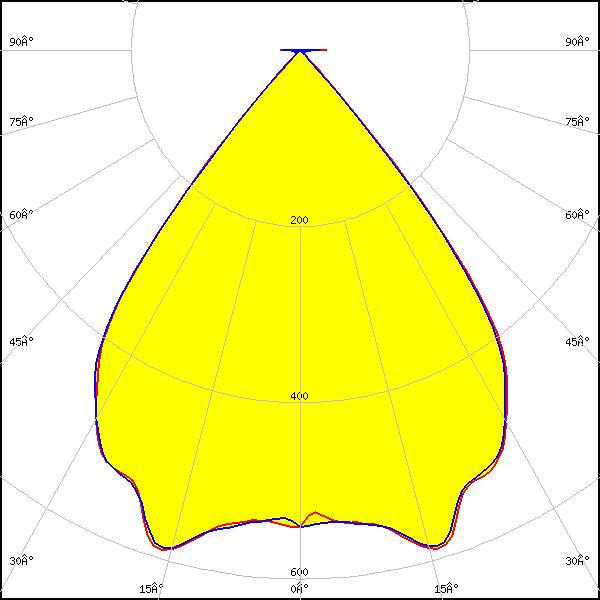

LED: XD16
Required components:
C16866_DAISY-2X2-SHD
FWHM: 77°
Peak intensity: 0.6 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: XD16
Required components:
C16866_DAISY-2X2-SHD
FWHM: 78°
Peak intensity: 0.6 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour: White

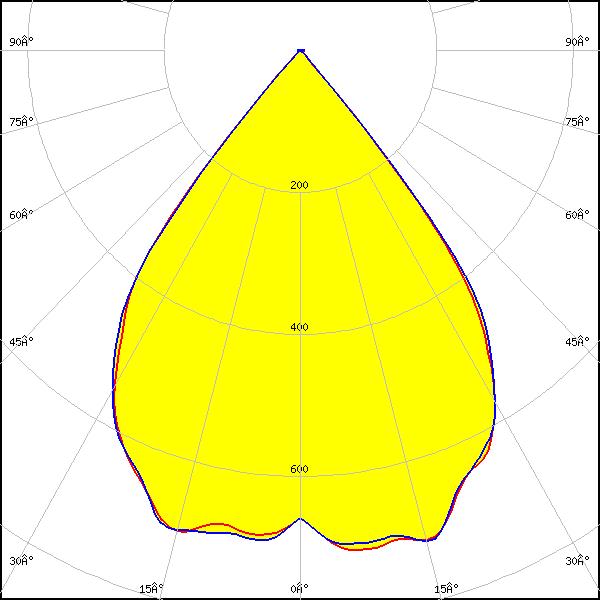

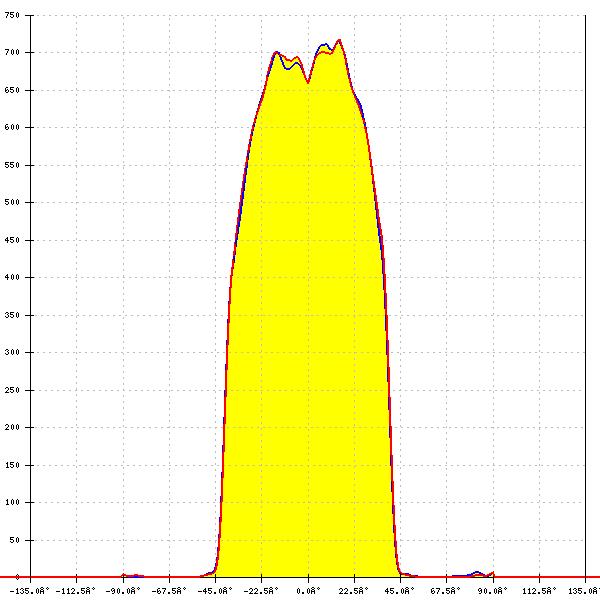

LED: XQ-E HD
Required components:
C16866_DAISY-2X2-SHD
FWHM: 76°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: White

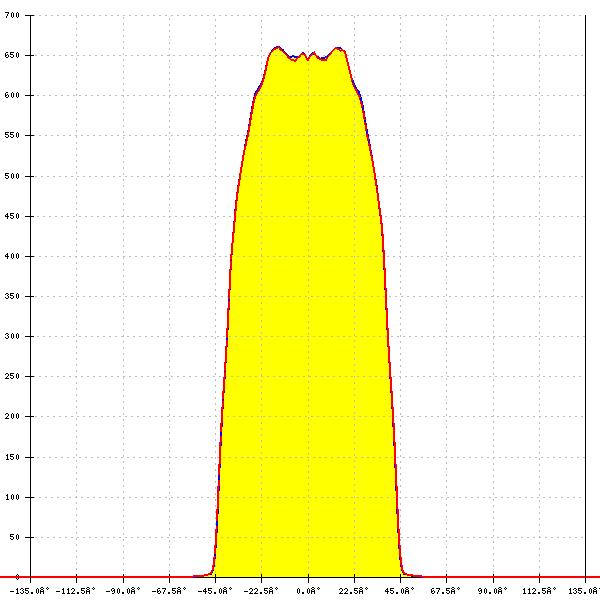

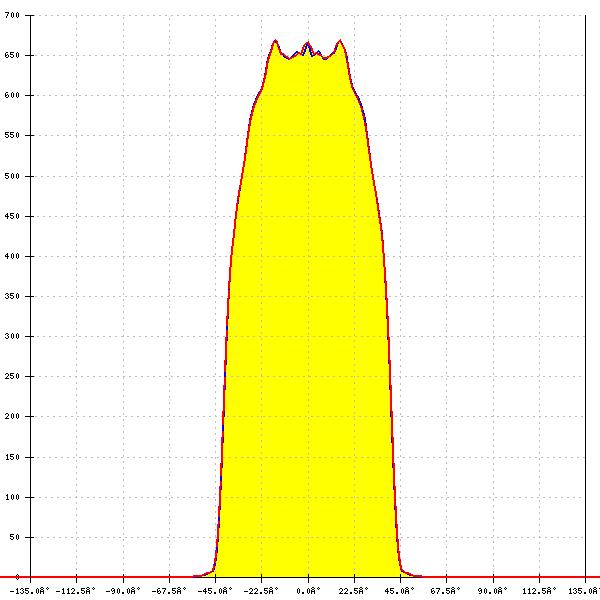

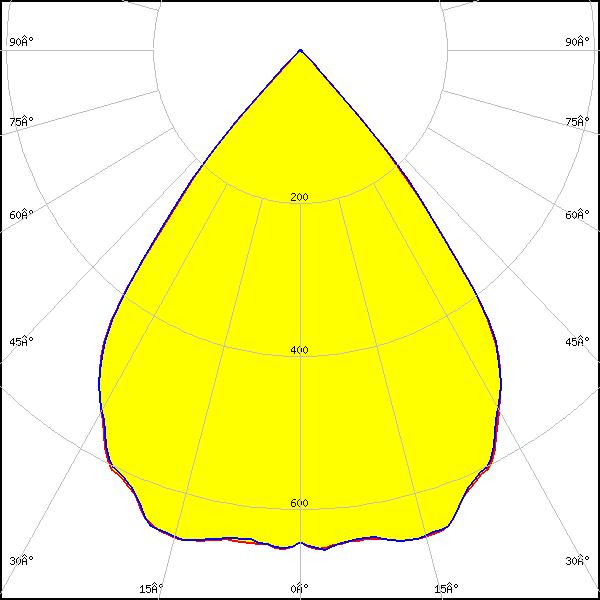

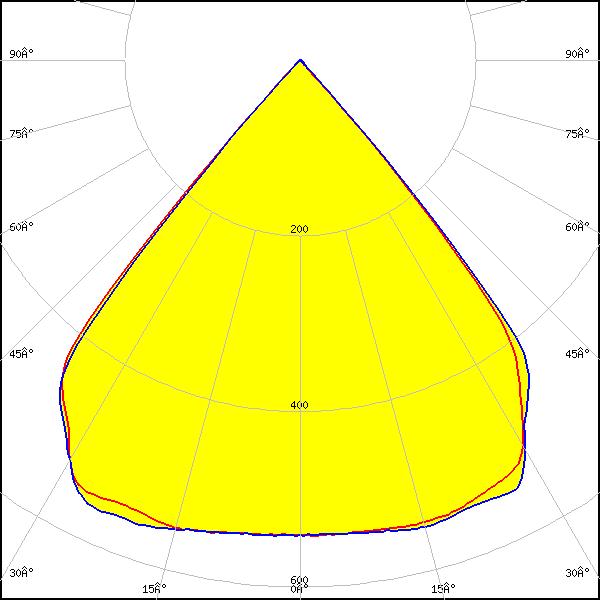

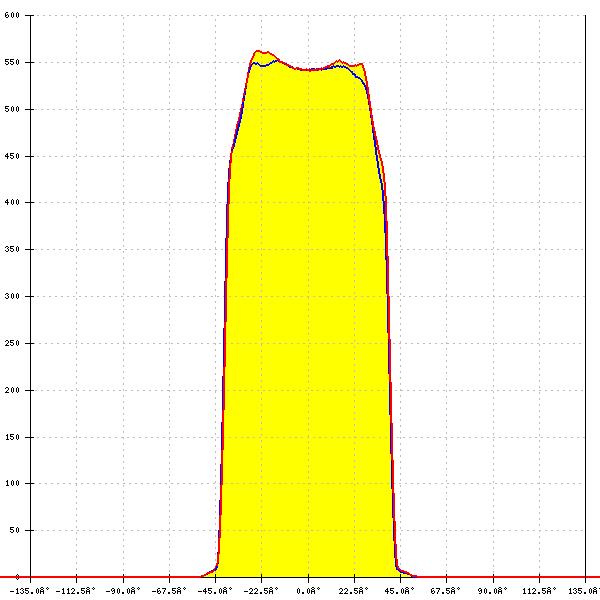

LED: NF2W757G-MT (Tunable White)
Required components:
C16866_DAISY-2X2-SHD
FWHM: 76°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: Tunable White

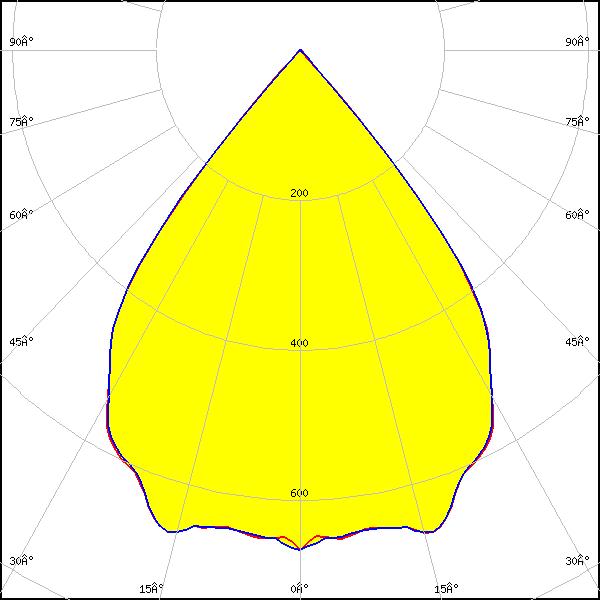

LED: NF2W757G-MT (Tunable White)
Required components:
C16866_DAISY-2X2-SHD
FWHM: 76° + 78°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour: Tunable White
LED: NF2W757G-MT (Tunable White)
Required components:
C16866_DAISY-2X2-SHD
FWHM: 79°
Peak intensity: 0.6 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: Tunable White

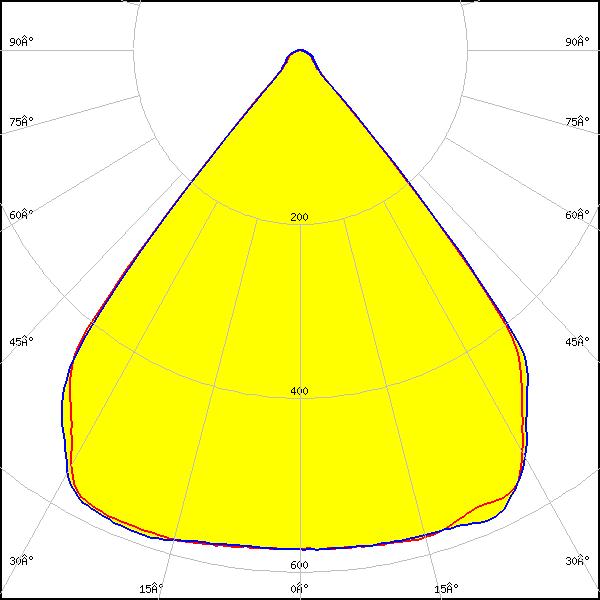

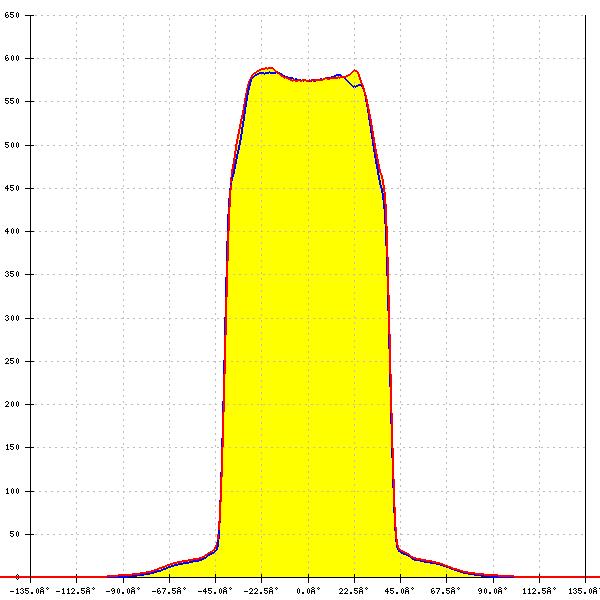

LED: NF2W757G-MT (Tunable White)
Required components:
C16875_DAISY-2X2-SHD-WHT
FWHM: 80°
Peak intensity: 0.6 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: Tunable White

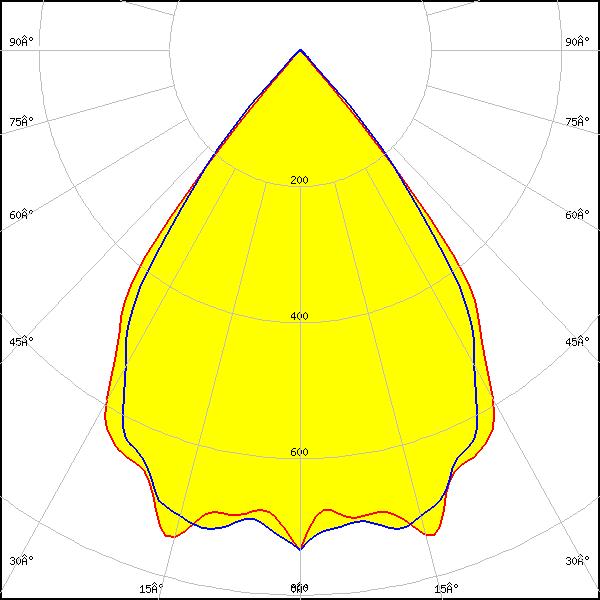

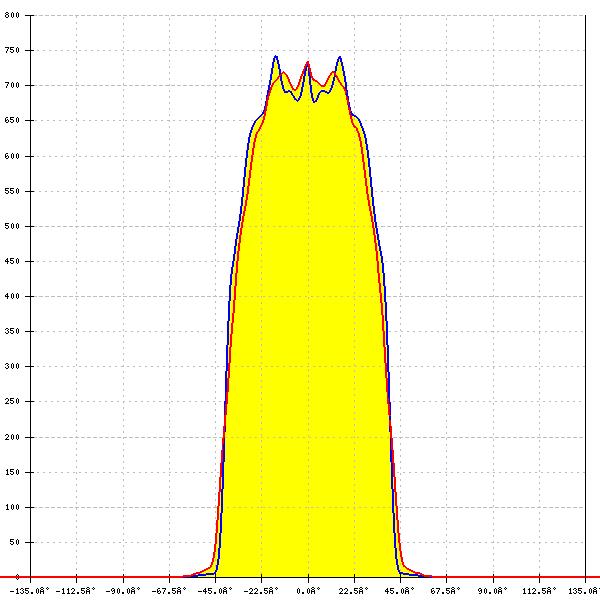

LED: Duris E 2835
Required components:
C16875_DAISY-2X2-SHD-WHT
FWHM: 74°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour: White

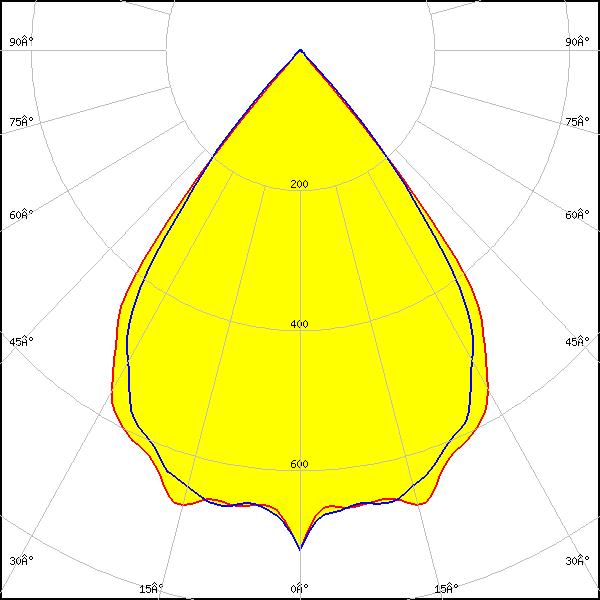

LED: Duris E 2835
Required components:
C16866_DAISY-2X2-SHD
FWHM: 74°
Peak intensity: 0.7 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour: White

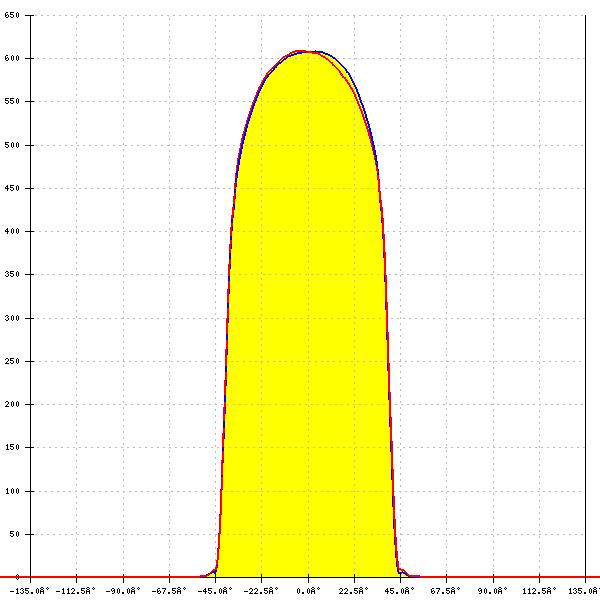

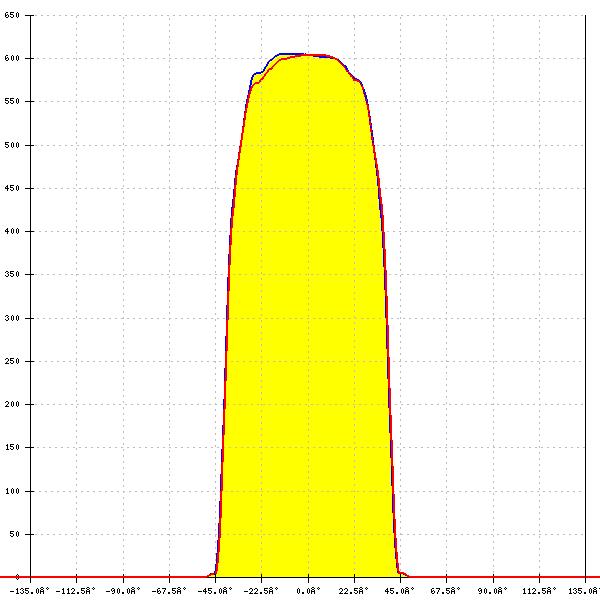

LED: LM28xB Series
Required components:
C16866_DAISY-2X2-SHD
FWHM: 77°
Peak intensity: 0.6 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

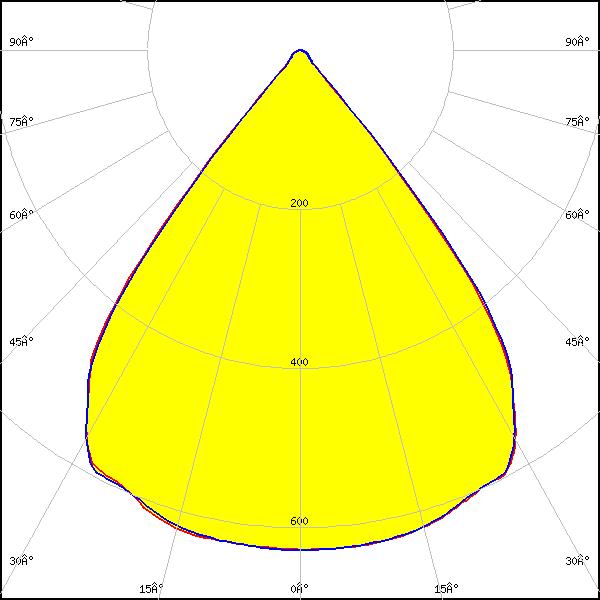

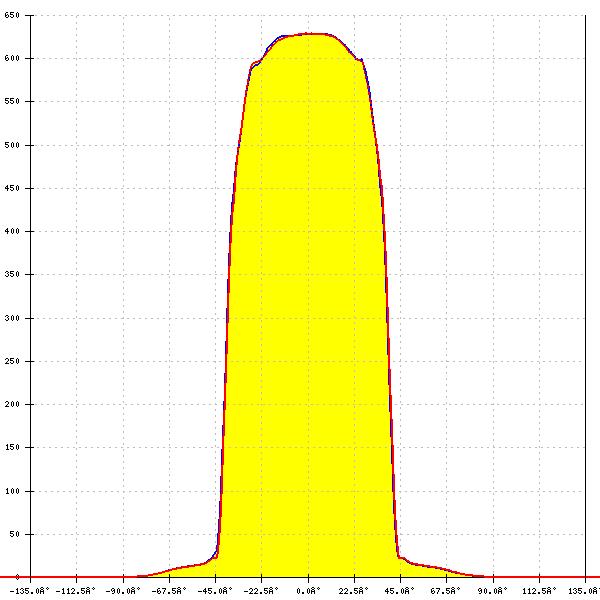

LED: LM28xB Series
Required components:
C16875_DAISY-2X2-SHD-WHT
FWHM: 77°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

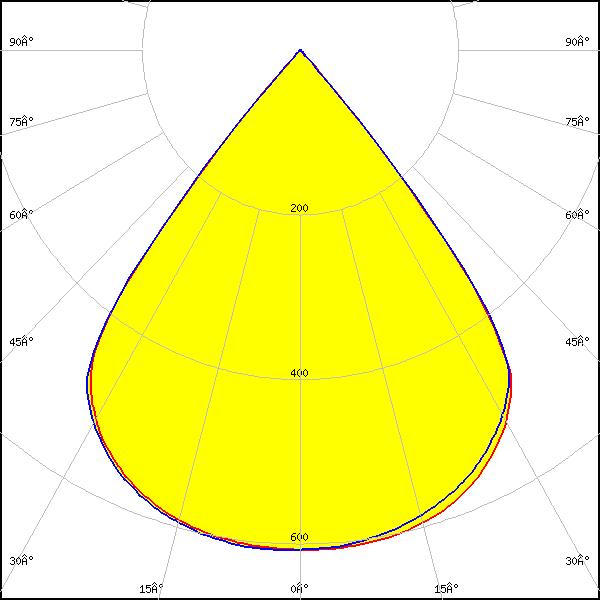

LED: LM28xB Series
Required components:
C17483_DAISY-2X2-SHD-MATT
FWHM: 77°
Peak intensity: 0.6 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
