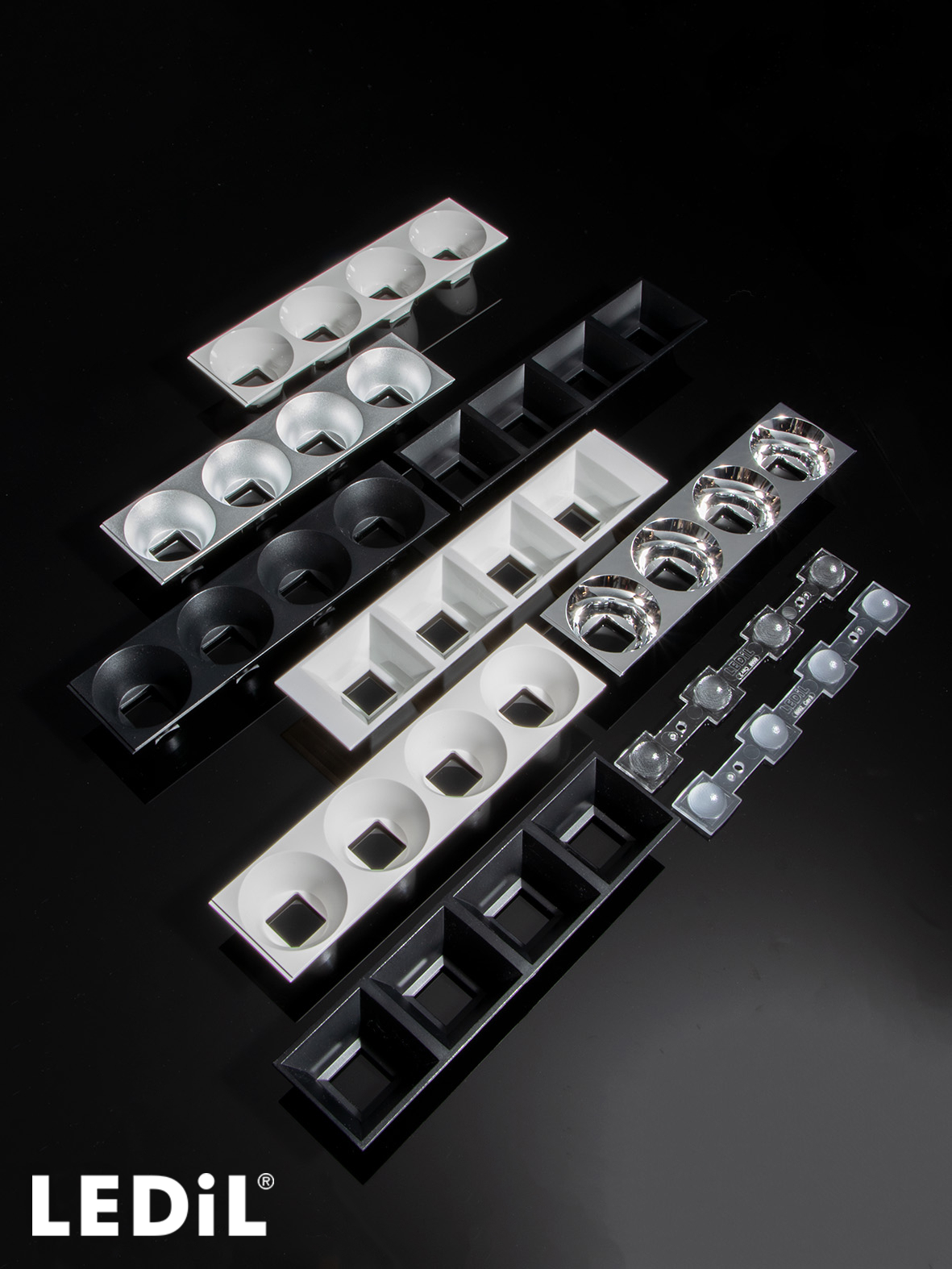

    DAISY-4X1-W-D

    Print

    ~50° wide beam. Variant with diffused lenses.

    Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
    Specification
    • Dimensions:
      182 x  40 mm
    • Height:
      20.2 mm
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • Linear lens
    • C16992_DAISY-4X1-W-D
      PMMA
    • Shade
    • C16590_DAISY-4X1-SHD
      PC-ABS
    • C16784_DAISY-4X1-SHD-WHT
      PC
    • C17422_DAISY-4X1-SHD2-MATT
      PC
    • C17423_DAISY-4X1-SHD2-WHT-MATT
      PC
    • C17528_DAISY-4X1-SHD-MET
      PC
    • C17535_DAISY-4X1-SHD2-MET-MATT
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C16992_DAISY-4X1-W-D
      milky
    • Quantity in box:
      504 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.30 kg
    • MPQ:
      21 pcs
    • MOQ:
      336 pcs
    • MOQ Size:
      480 x 280 x 220 mm
    • MOQ Weight:
      4.30 kg
    • Shade
    • C16590_DAISY-4X1-SHD
      black,gloss
    • C16784_DAISY-4X1-SHD-WHT
      white,gloss
    • C17422_DAISY-4X1-SHD2-MATT
      black,matt
    • C17423_DAISY-4X1-SHD2-WHT-MATT
      white,matt
    • C17528_DAISY-4X1-SHD-MET
      metal,gloss
    • C17535_DAISY-4X1-SHD2-MET-MATT
      metal,matt
    • Quantity in box:
      168 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.30 kg
    • MPQ:
      42 pcs
    • MOQ:
      336 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      8.60 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16992_DAISY-4X1-W-D
      C16590_DAISY-4X1-SHD

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    NOTE! See 2D mechanical drawings for SHD and SHD2 differences.

    Related Content

    Installation Guide

    General installation guide

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    Luminaire, example

    Troffer luminaire with DAISY-4X1

    PCN

    Product change notification NR159 - Change of product ordering method in Daisy family

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    Reference product

    Dazzle light office lighting

    Article

    Office luminaire examples from LEDiL

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    Application guide

    Guide_for_Retail_Lighting_Optics_v.1.0_2021_WEB

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

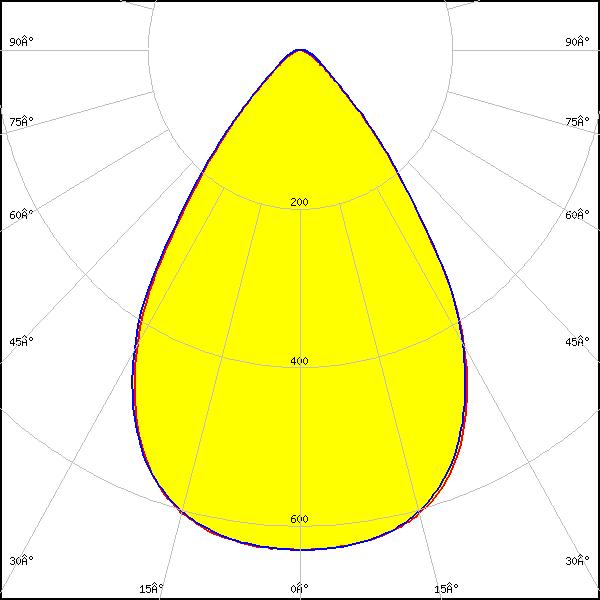

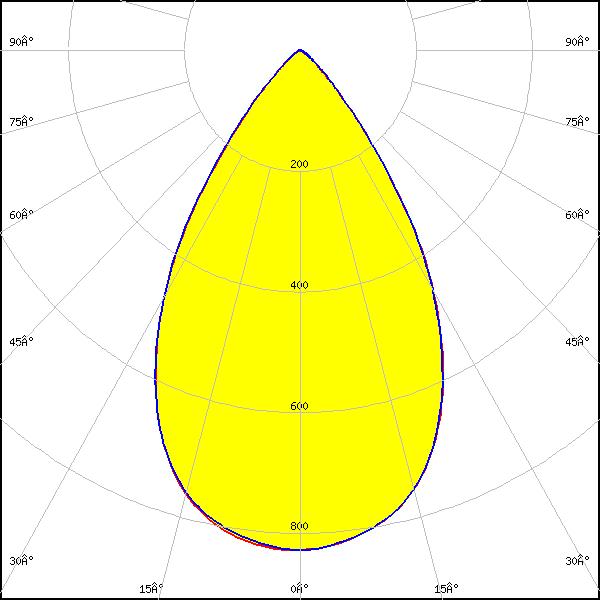

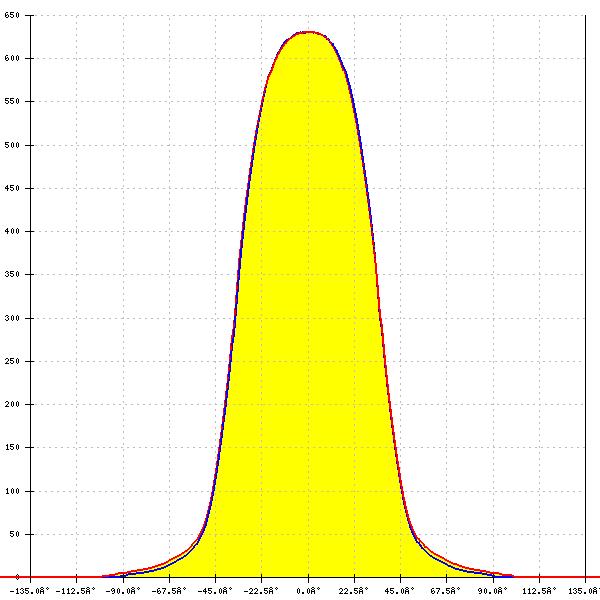

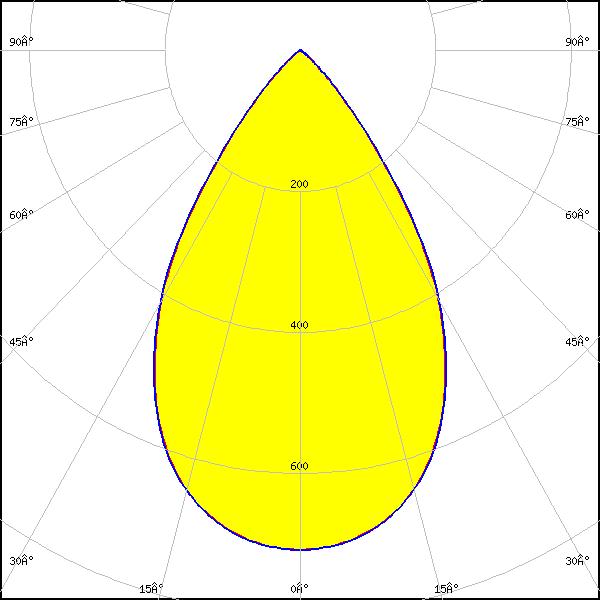

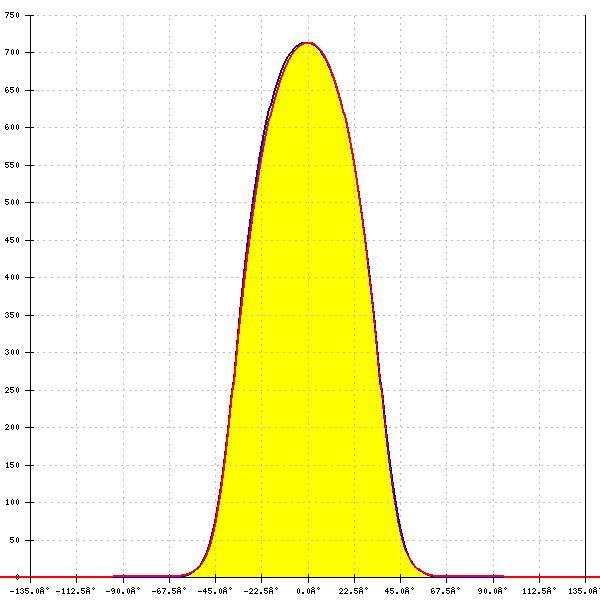

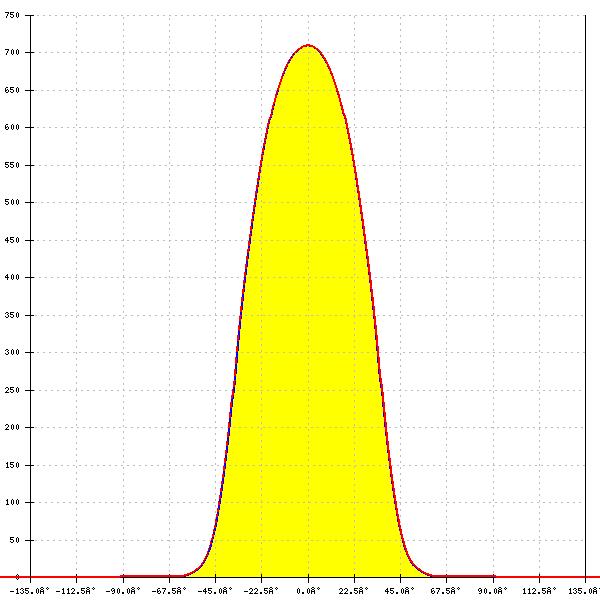

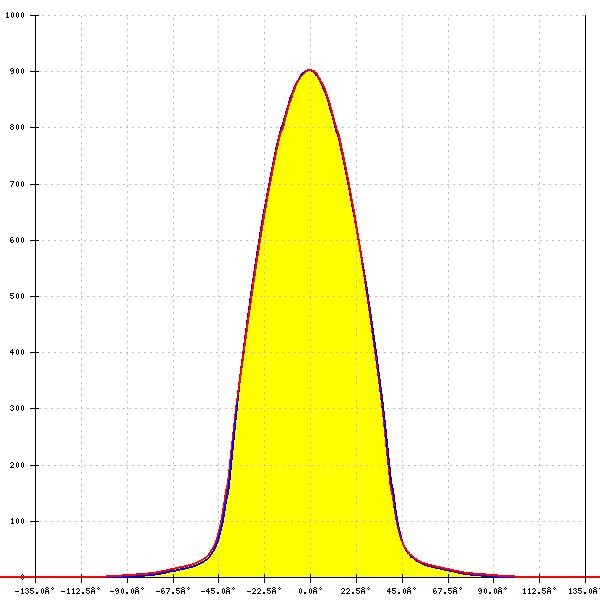

    Optical results

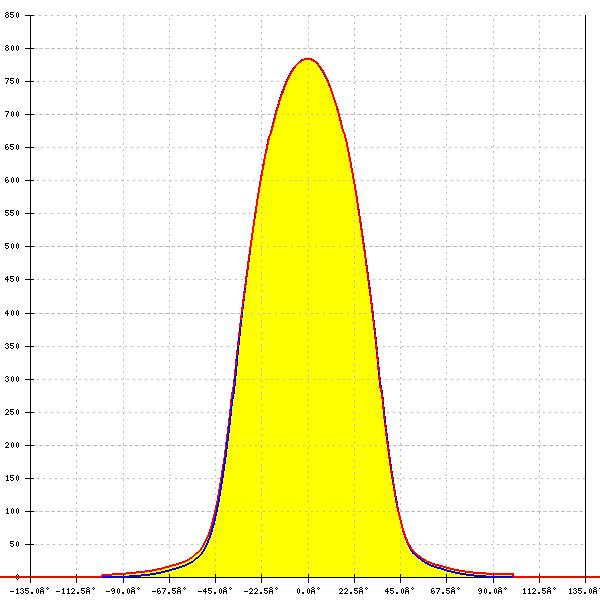

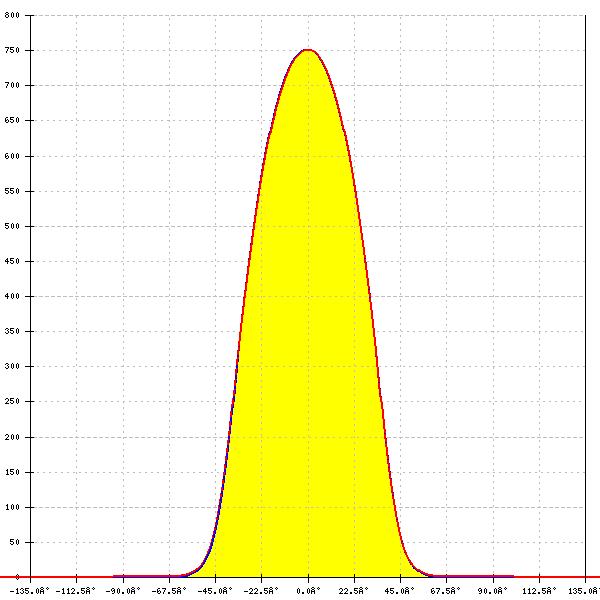

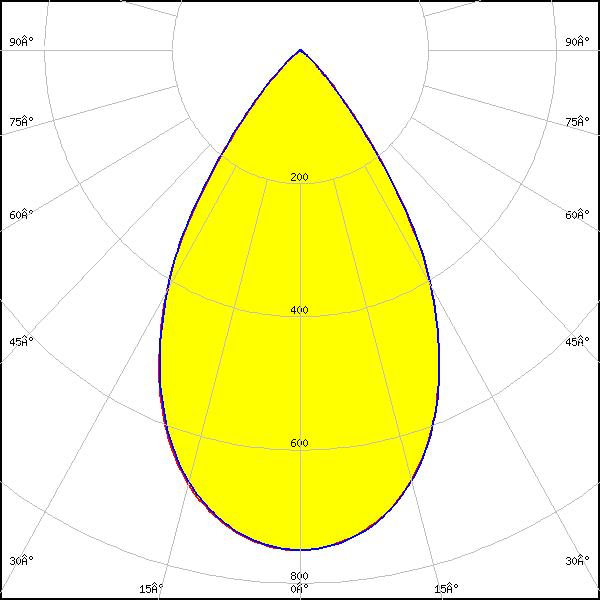

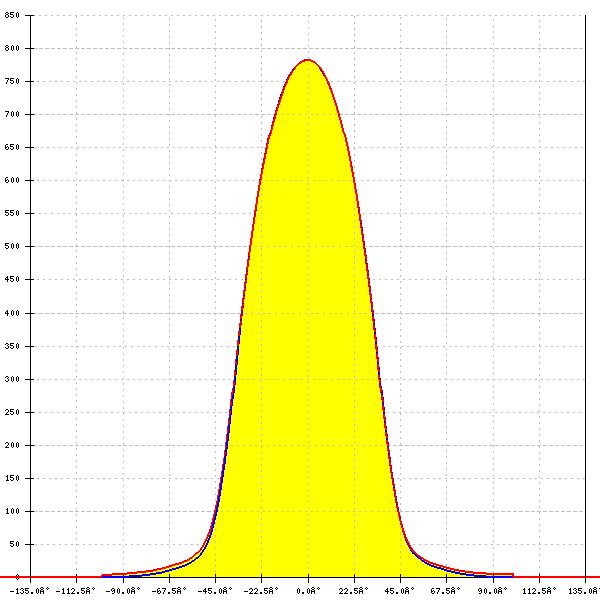

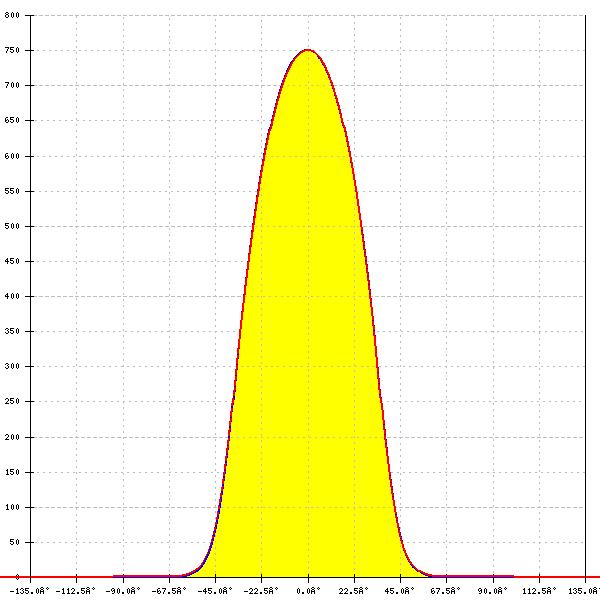

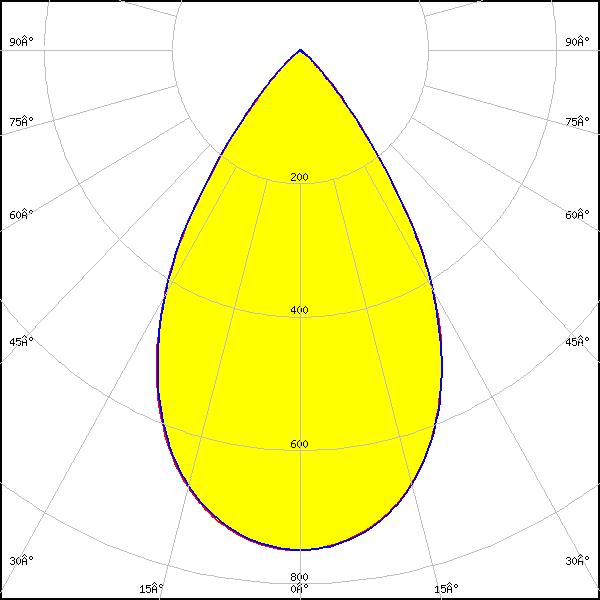

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:

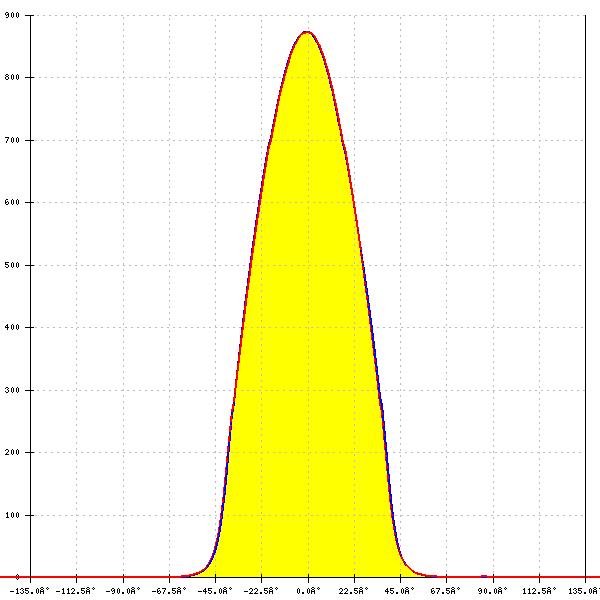

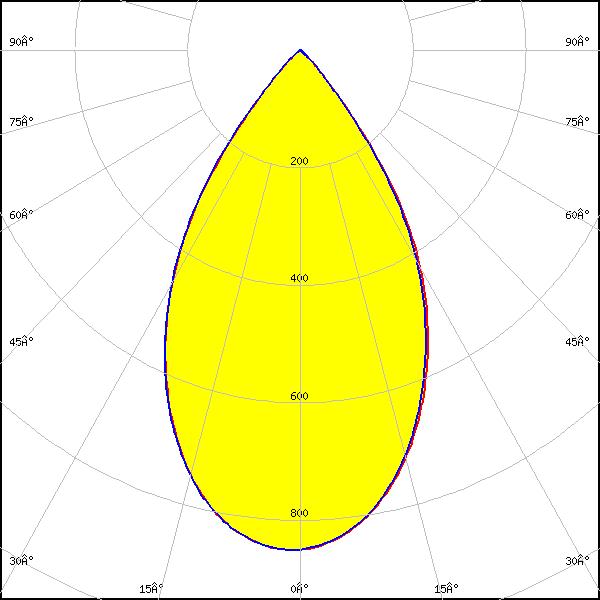

    C16590_DAISY-4X1-SHD
    FWHM: 64°
    FWTM: 89°
    Peak intensity: 0.8 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 4
    Light colour: White

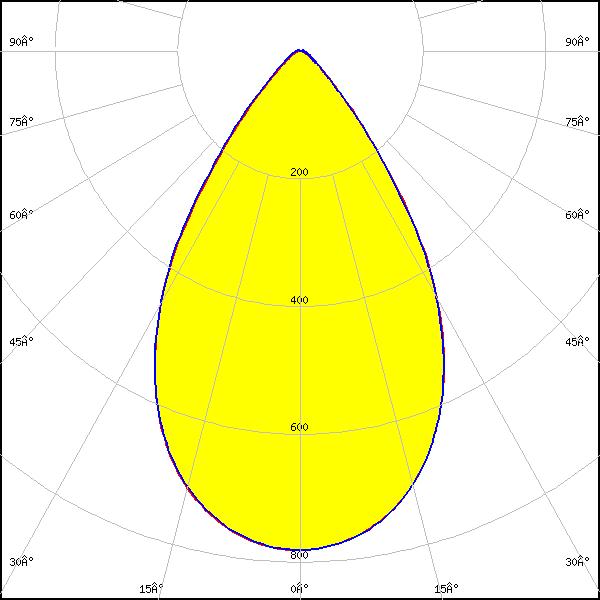

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm

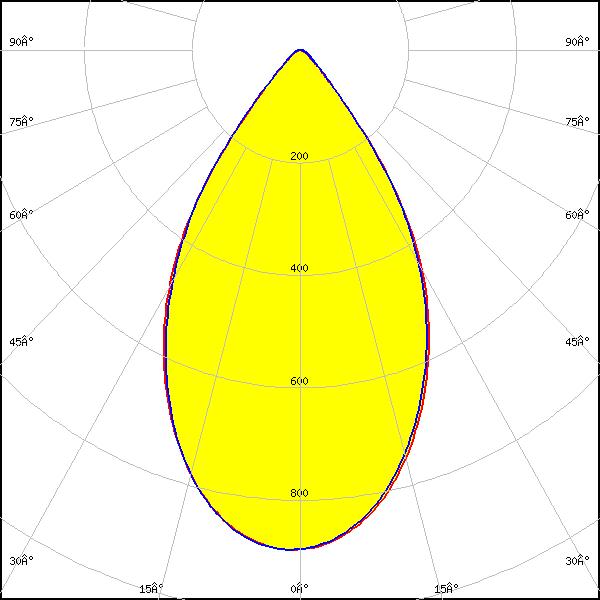

    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 65°
    FWTM: 93°
    Peak intensity: 0.8 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour: White
    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 63°
    FWTM: 88°
    Peak intensity: 0.8 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour: White
    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C17423_DAISY-4X1-SHD2-WHT-MATT
    FWHM: 65°
    FWTM: 92°
    Peak intensity: 0.8 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour: White

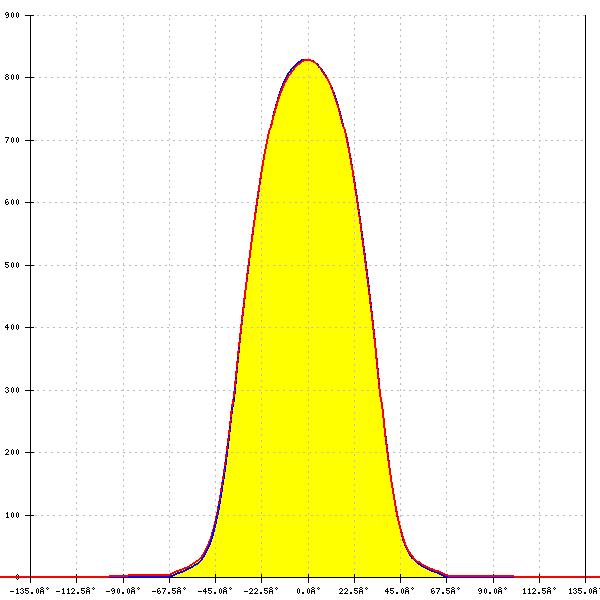

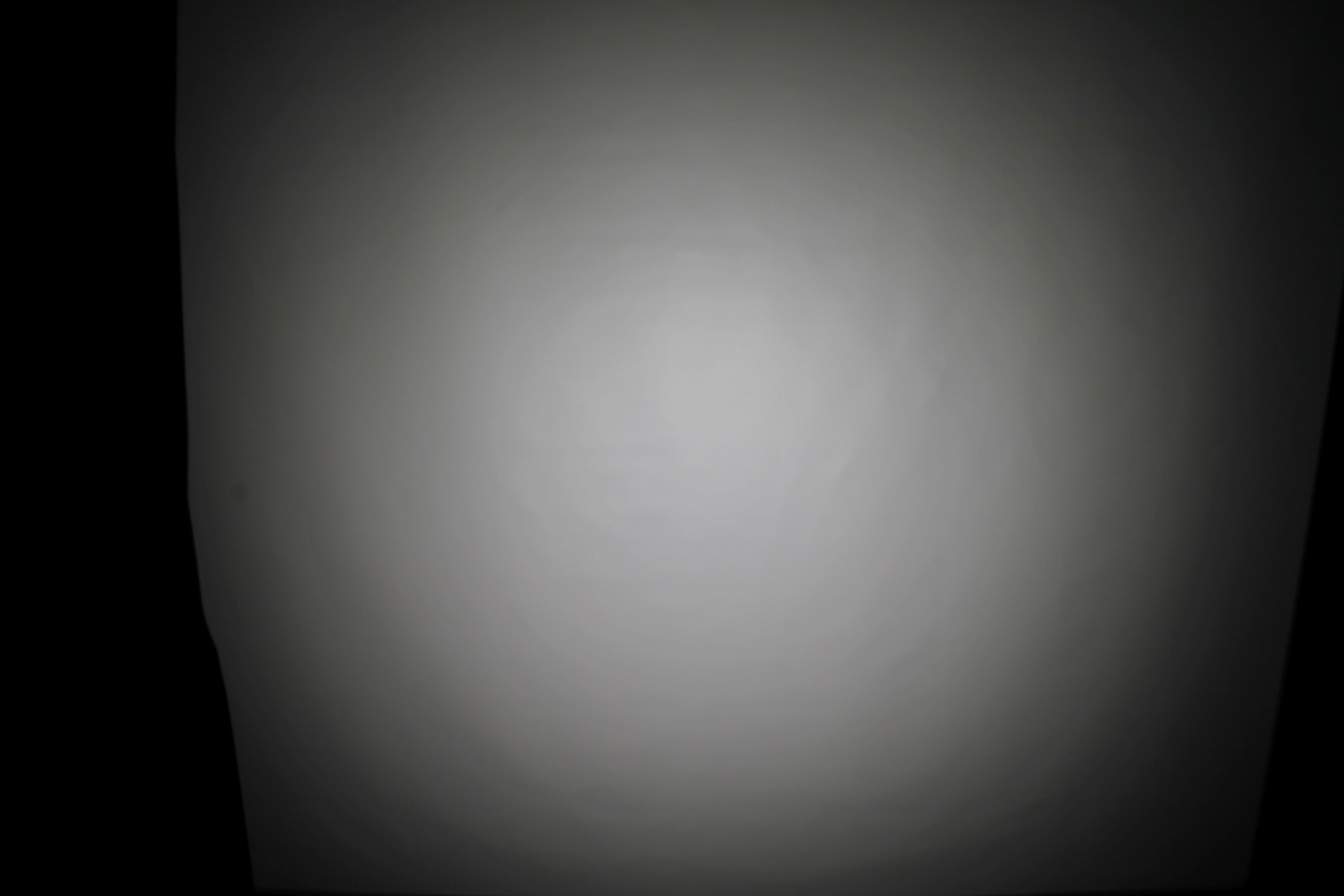

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C17528_DAISY-4X1-SHD-MET
    FWHM: 64°
    FWTM: 90°
    Peak intensity: 0.8 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour: White

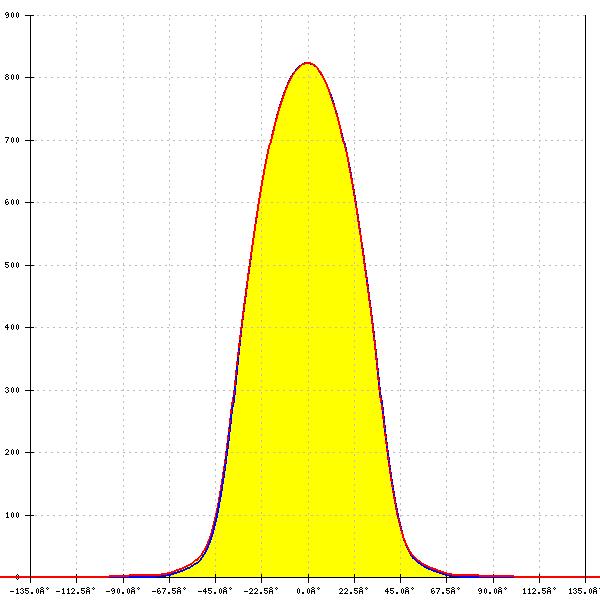

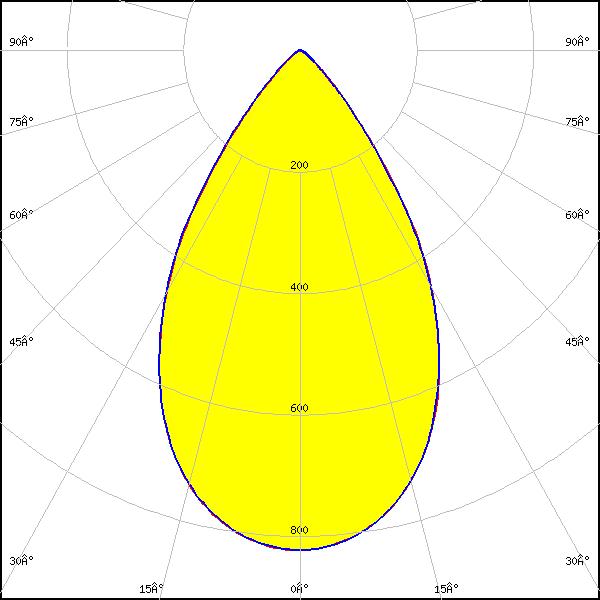

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C17535_DAISY-4X1-SHD2-MET-MATT
    FWHM: 64°
    FWTM: 90°
    Peak intensity: 0.8 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour: White
    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 65° + 65°
    FWTM: 90° + 90°
    Peak intensity: 0.7 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour: Tunable White

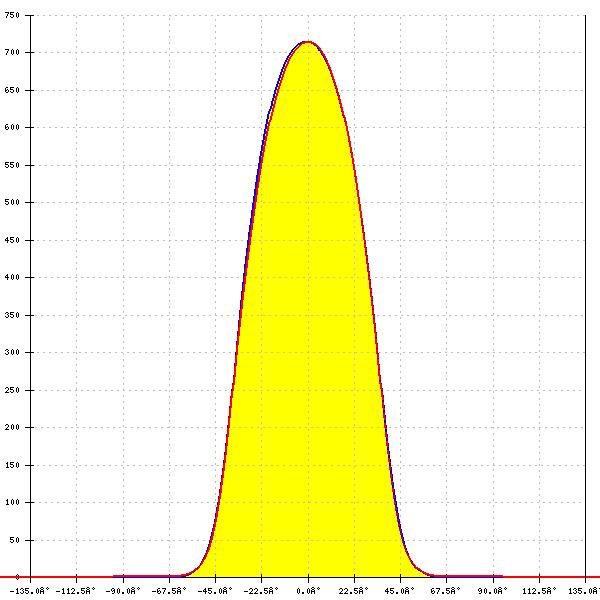

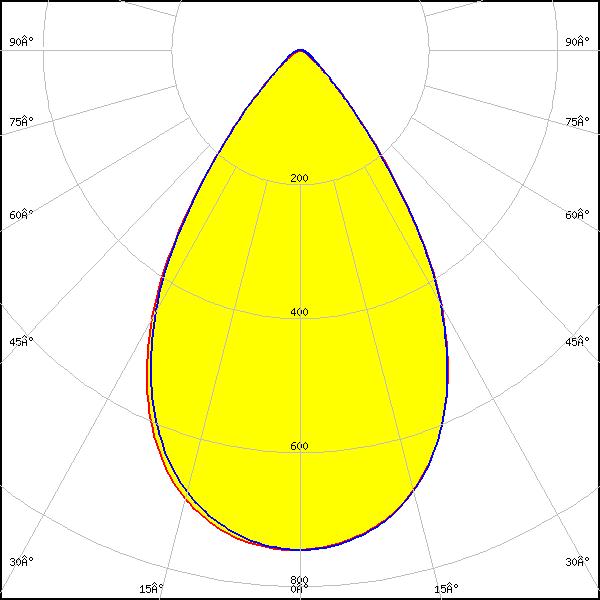

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 66° + 66°
    FWTM: 94° + 94°
    Peak intensity: 0.7 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour: Tunable White

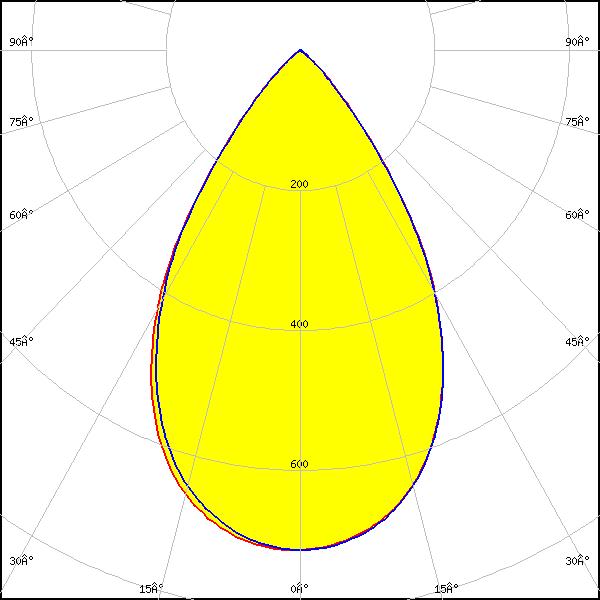

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 65°
    FWTM: 90°
    Peak intensity: 0.7 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour: Tunable White

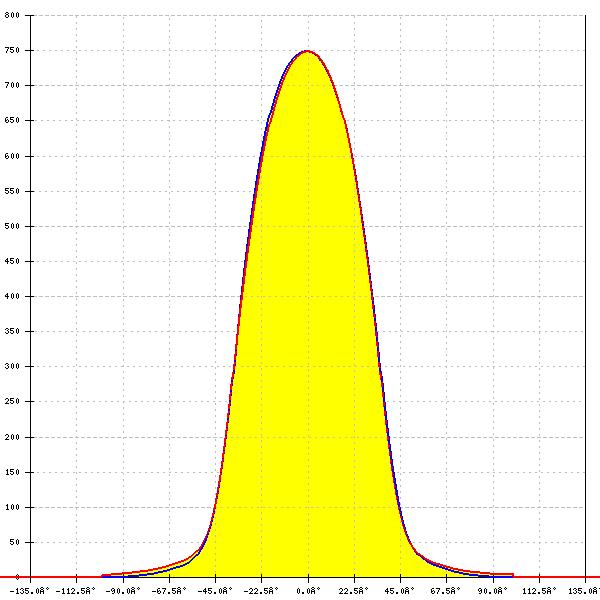

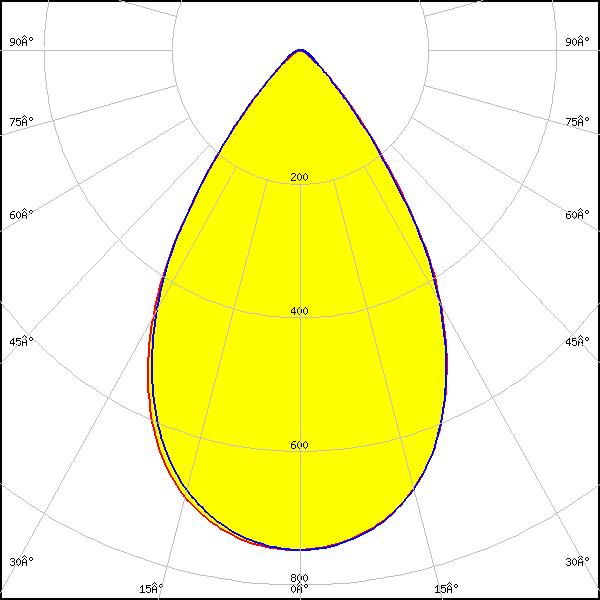

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C17423_DAISY-4X1-SHD2-WHT-MATT
    FWHM: 67° + 66°
    FWTM: 94° + 94°
    Peak intensity: 0.7 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour: Tunable White

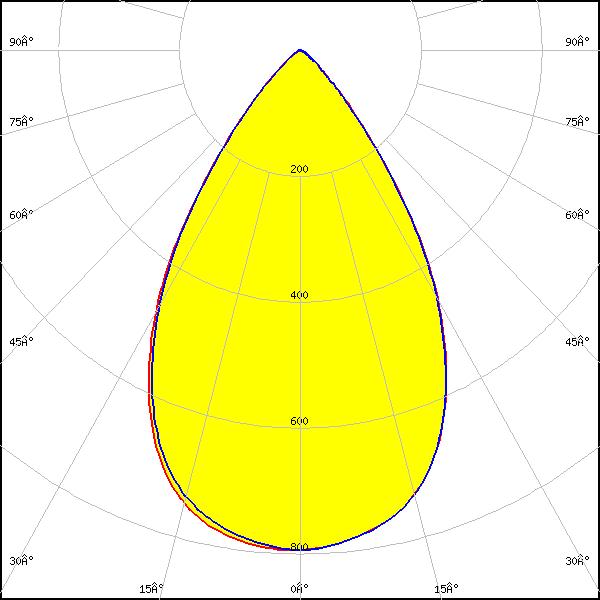

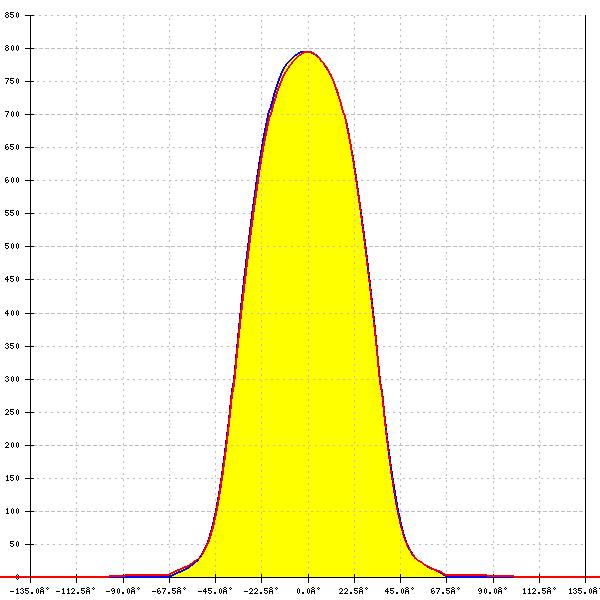

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C17528_DAISY-4X1-SHD-MET
    FWHM: 65° + 65°
    FWTM: 92° + 91°
    Peak intensity: 0.8 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour: Tunable White

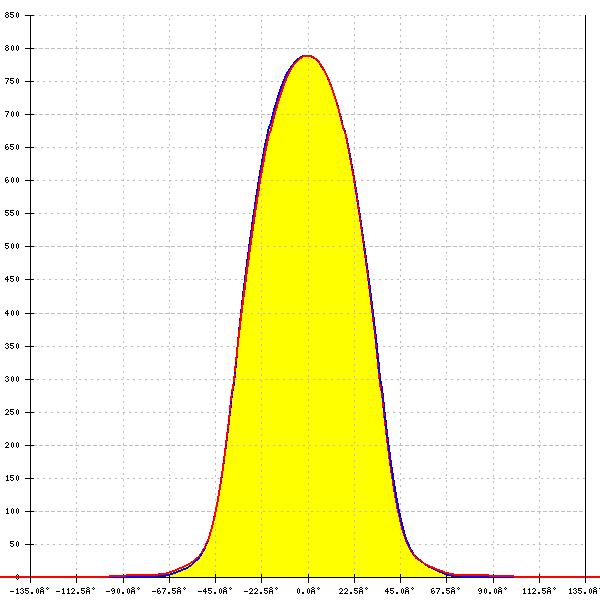

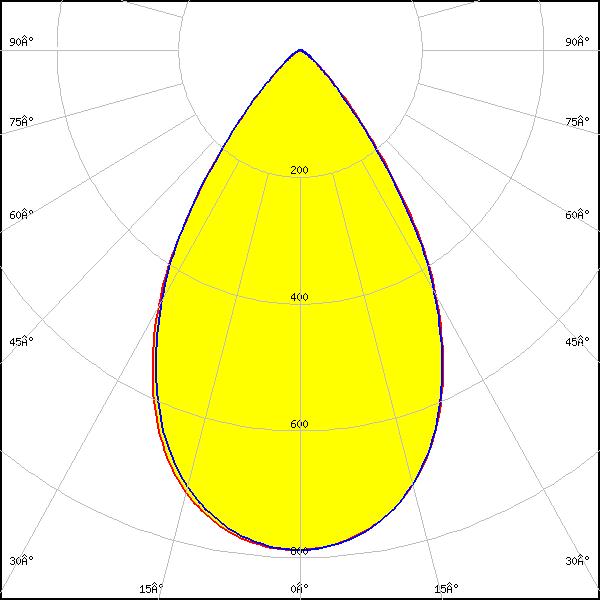

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C17535_DAISY-4X1-SHD2-MET-MATT
    FWHM: 65°
    FWTM: 93°
    Peak intensity: 0.8 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour: Tunable White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 64°
    FWTM: 89°
    Peak intensity: 0.7 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 66° + 65°
    FWTM: 93° + 94°
    Peak intensity: 0.8 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 64° + 64°
    FWTM: 90° + 89°
    Peak intensity: 0.7 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C17423_DAISY-4X1-SHD2-WHT-MATT
    FWHM: 65°
    FWTM: 93°
    Peak intensity: 0.8 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C17528_DAISY-4X1-SHD-MET
    FWHM: 64°
    FWTM: 91°
    Peak intensity: 0.8 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C17535_DAISY-4X1-SHD2-MET-MATT
    FWHM: 64°
    FWTM: 92°
    Peak intensity: 0.8 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour: White

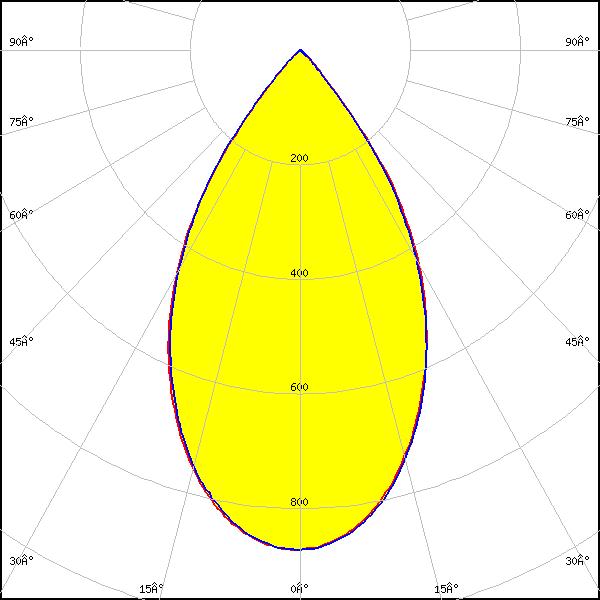

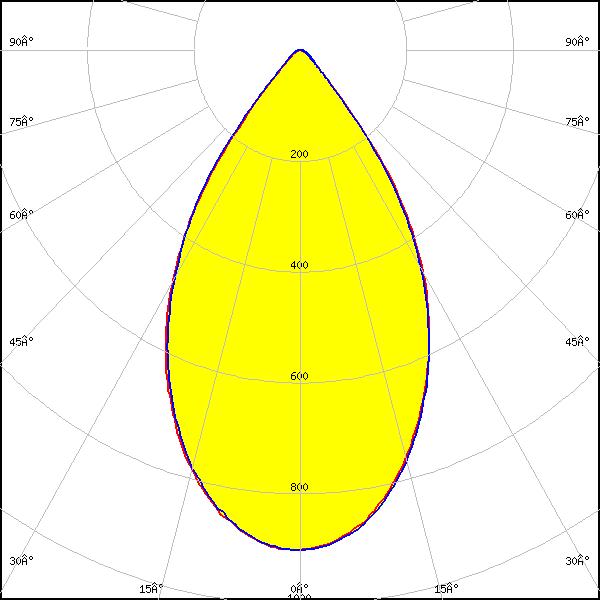

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 61°
    FWTM: 86°
    Peak intensity: 0.9 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 60°
    FWTM: 84°
    Peak intensity: 0.9 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour: Tunable White

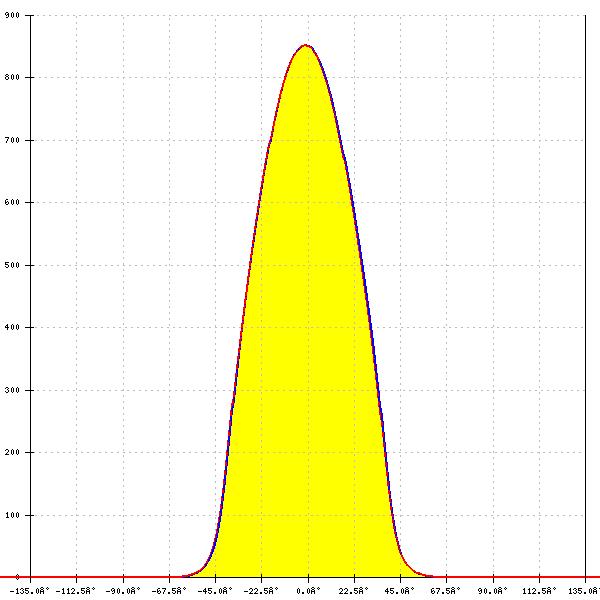

    LED: LM28xB Series
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 61°
    FWTM: 85°
    Peak intensity: 0.9 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour: White

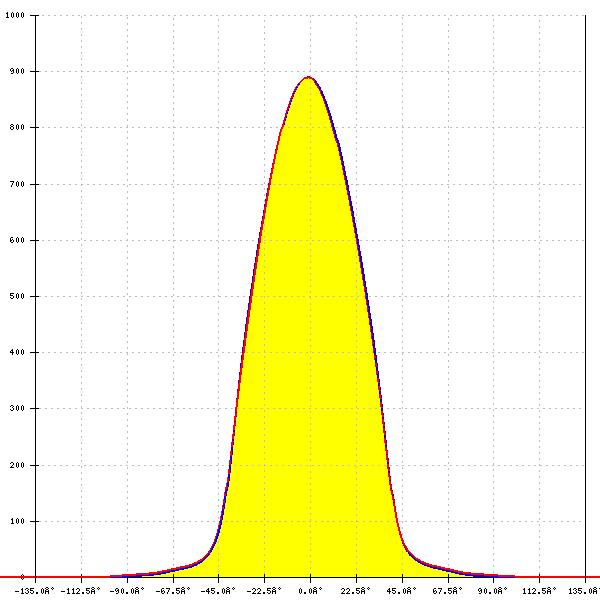

    LED: LM28xB Series
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 62°
    FWTM: 87°
    Peak intensity: 0.9 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

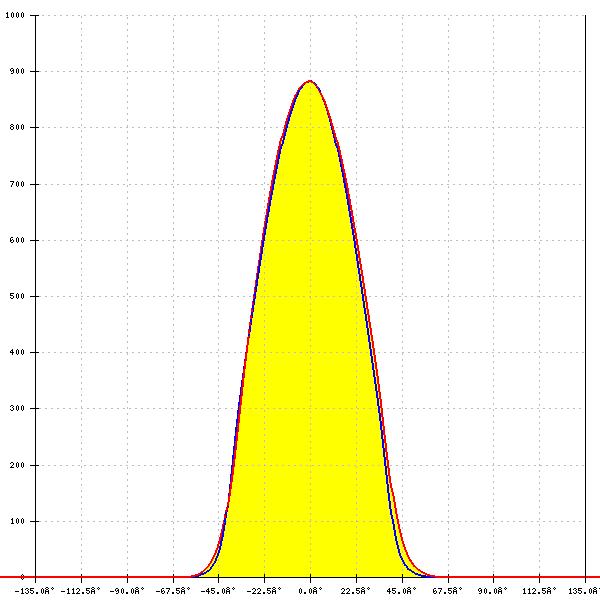

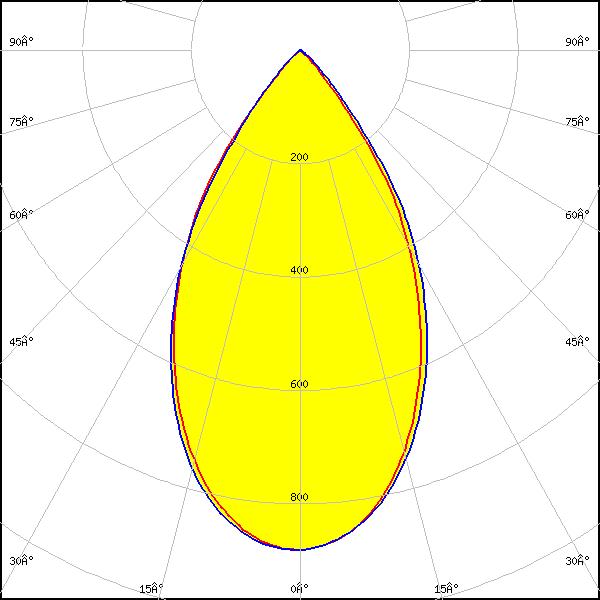

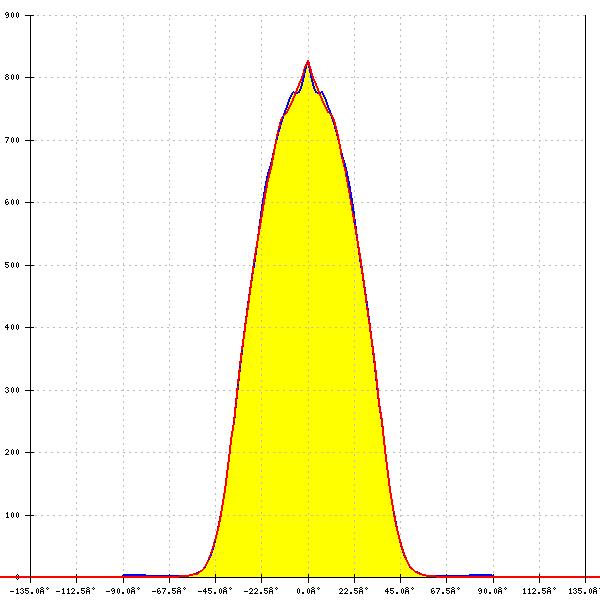

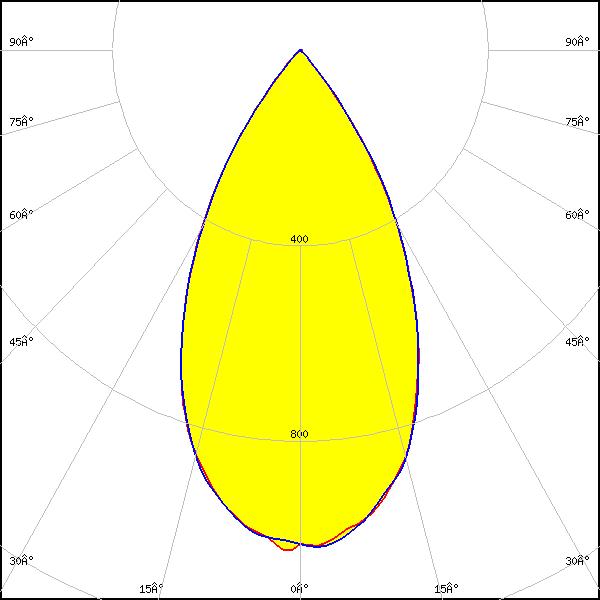

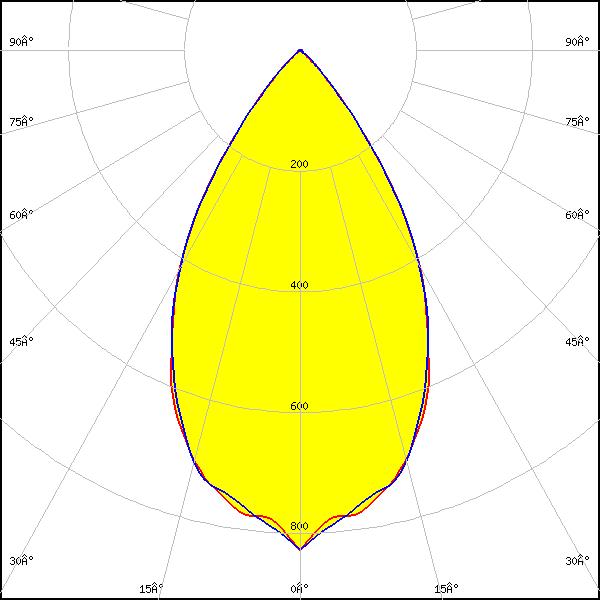

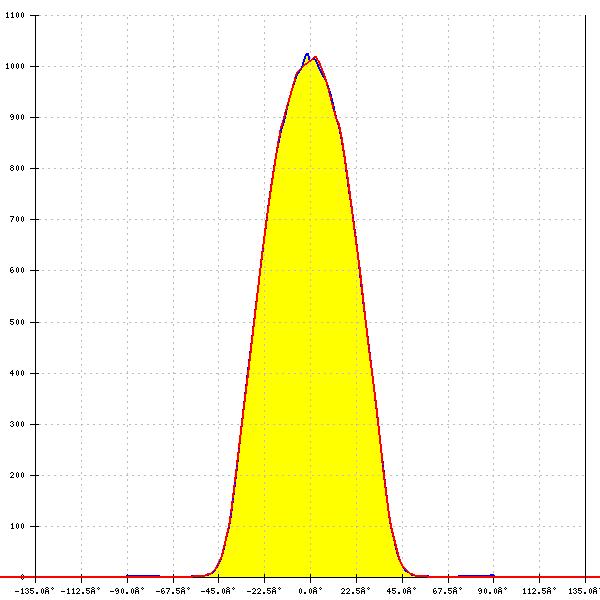

    LED: LM28xB Series
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 59°
    FWTM: 85°
    Peak intensity: 0.9 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour: White

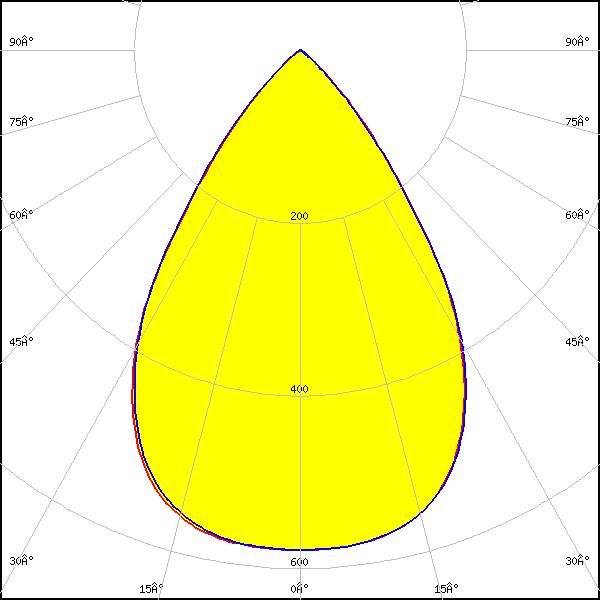

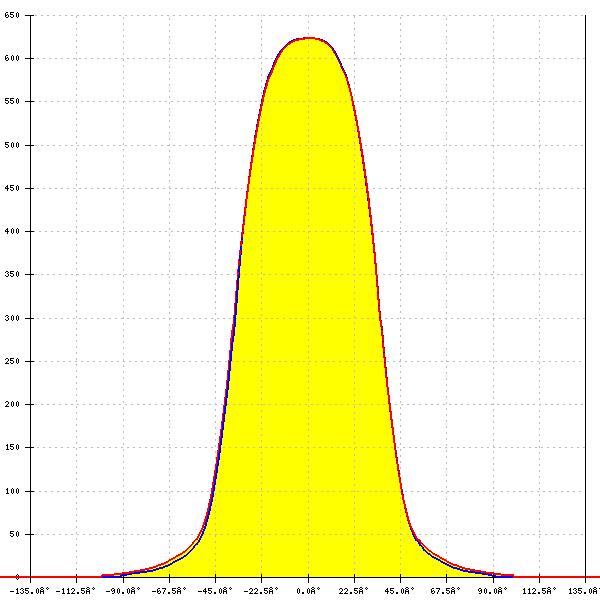

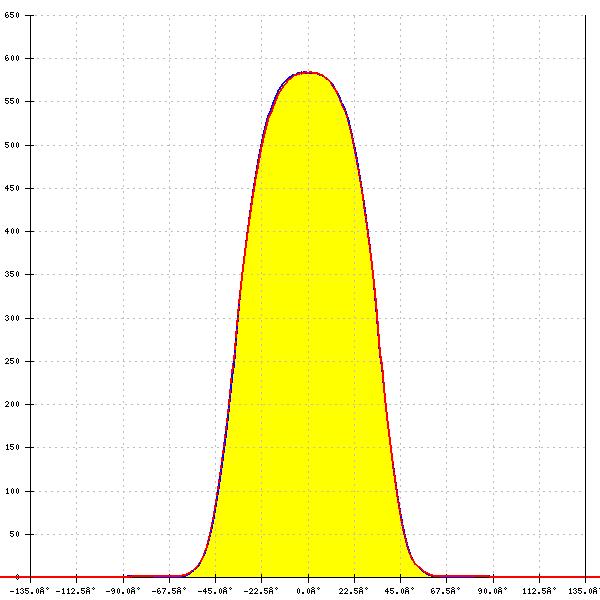

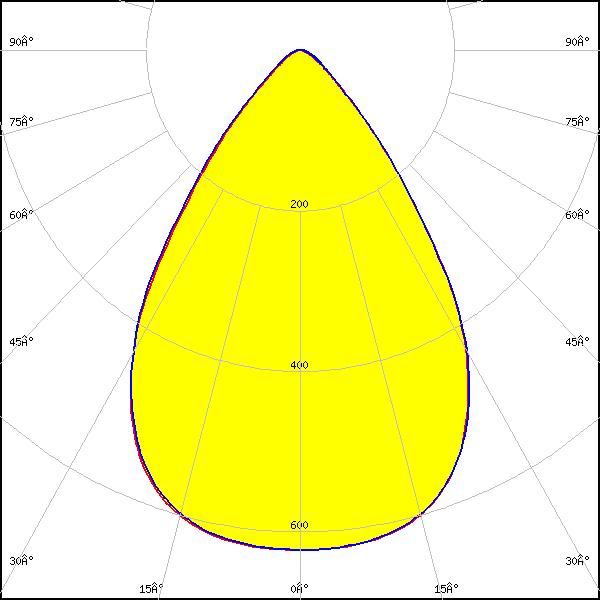

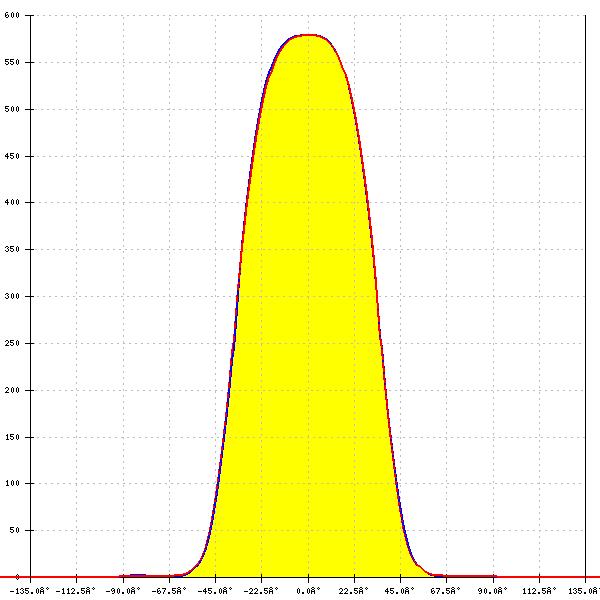

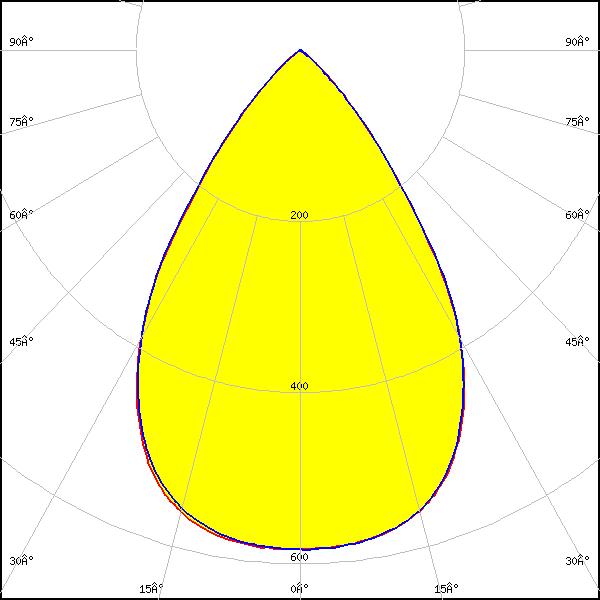

    LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
