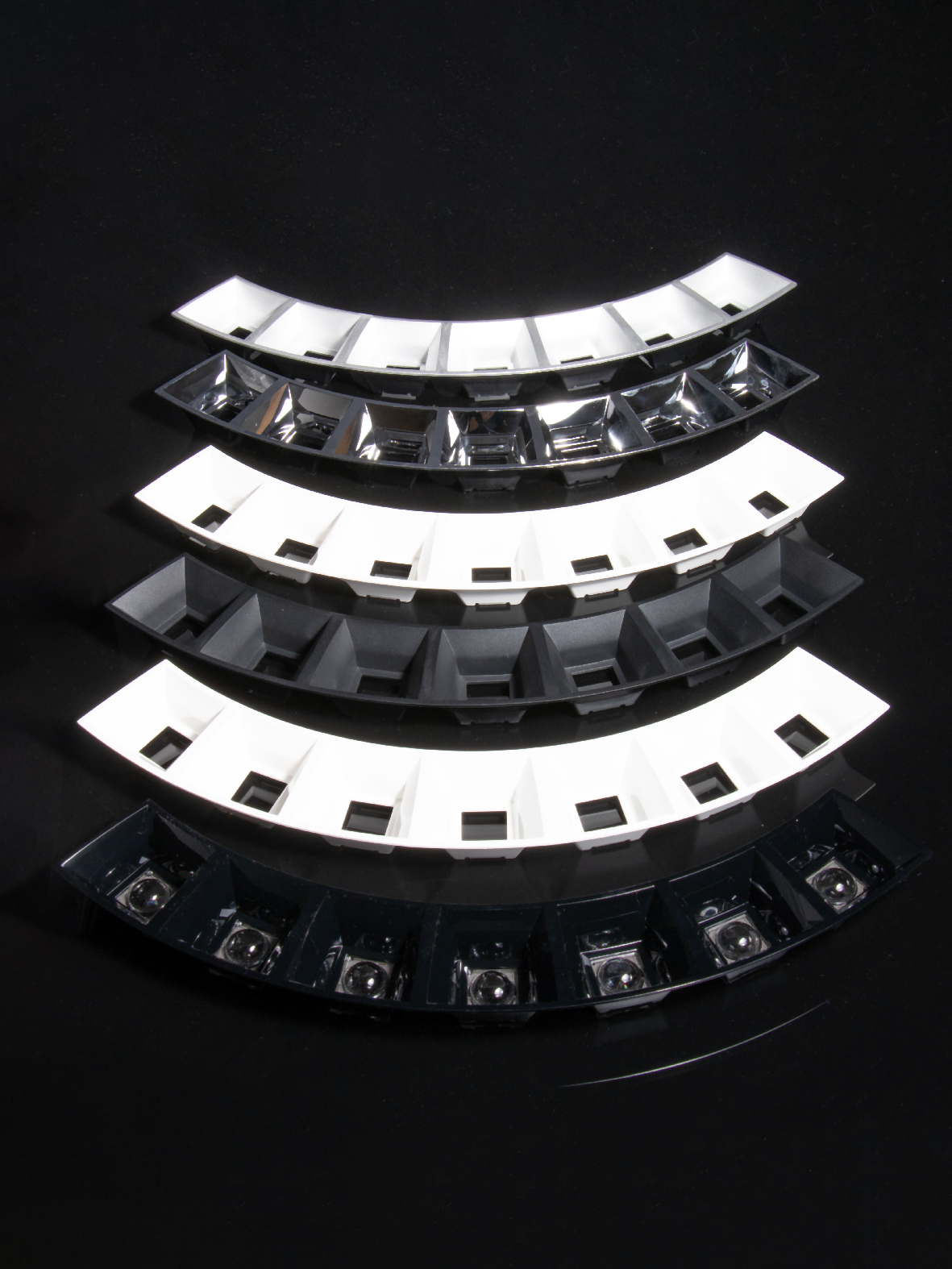

DAISY-7X1-CRV-W

Print

~50° wide beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Fastening:
    clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Shade
    1 pcs
  • Assembly
    7 pcs
  • Shade
  • C19053_DAISY-7X1-SHD-CRV
    black
  • C19054_DAISY-7X1-SHD-CRV-WHT
    white
  • C19055_DAISY-7X1-SHD-CRV-MATT
    black
  • C19056_DAISY-7X1-SHD-CRV-MET
    metal
  • C19057_DAISY-7X1-SHD-CRV-MET-MATT
    metal
  • Quantity in box:
    72 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    3.80 kg
  • MPQ:
    72 pcs
  • MOQ:
    288 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    3.80 kg
  • Assembly
  • CA19070_DAISY-1X1-W
  • Quantity in box:
    2016 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    4.50 kg
  • MPQ:
    112 pcs
  • MOQ:
    112 pcs
  • MOQ Size:
    400 x 300 x 50 mm
  • MOQ Weight:
    0.60 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C19053_DAISY-7X1-SHD-CRV
    CA19070_DAISY-1X1-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

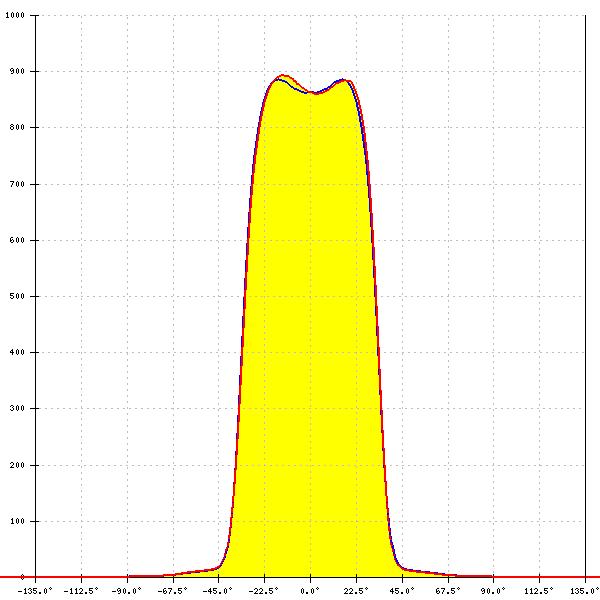

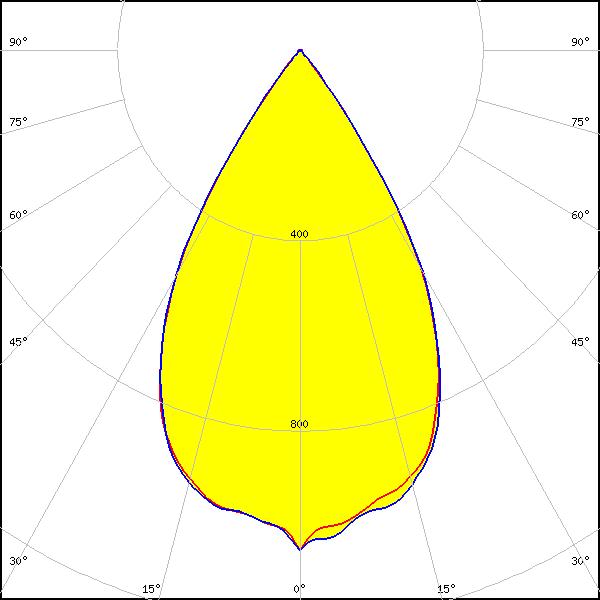

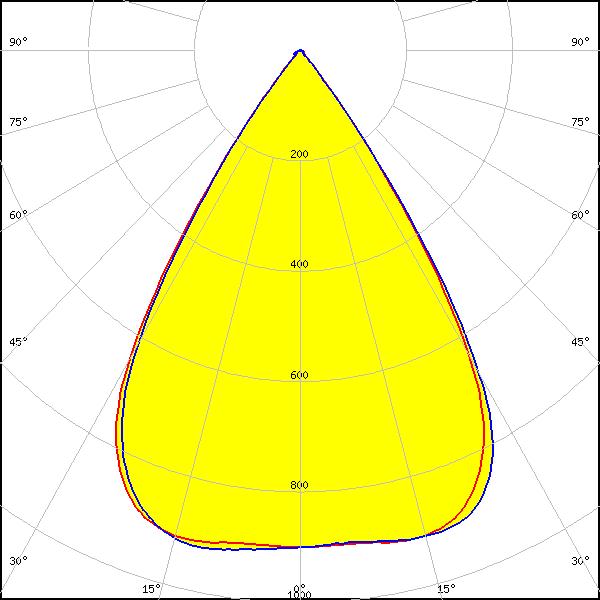

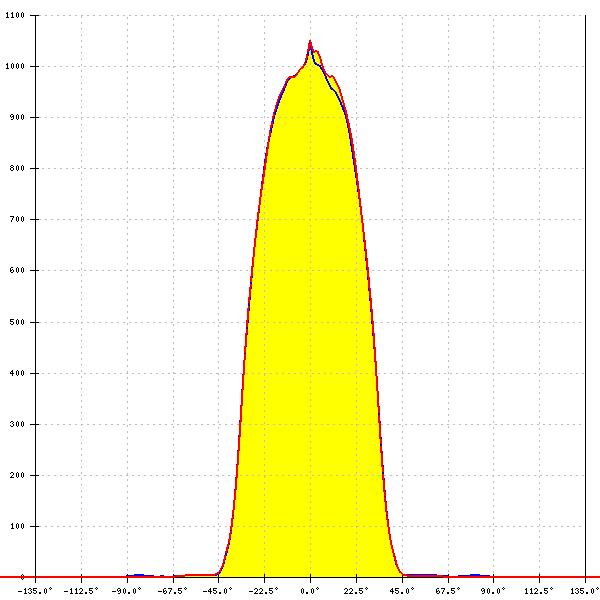

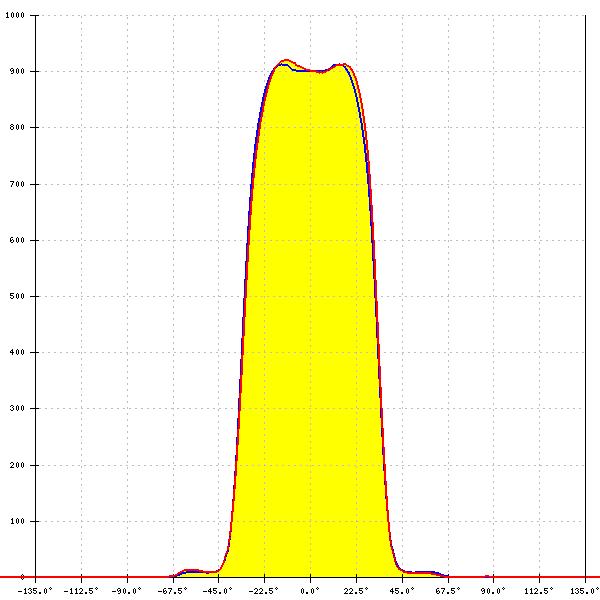

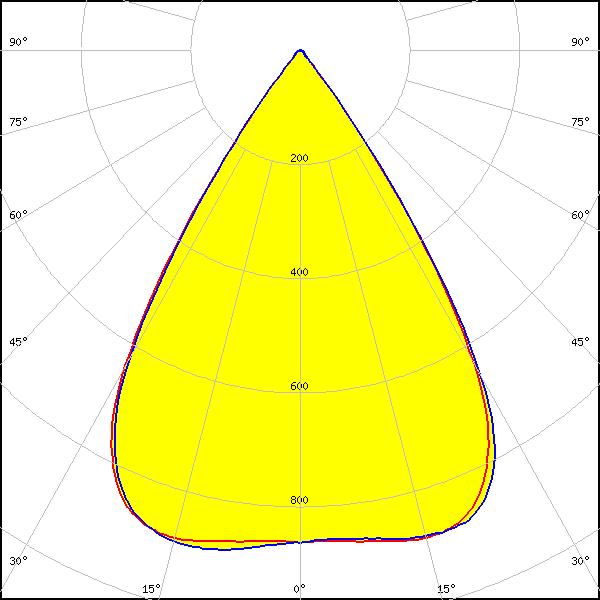

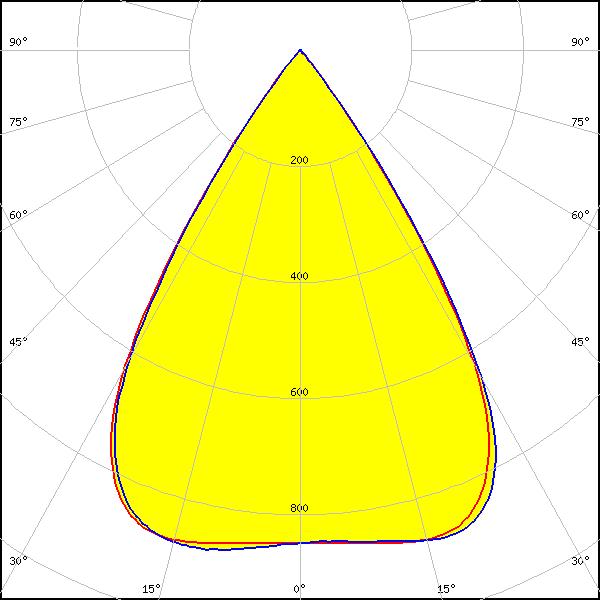

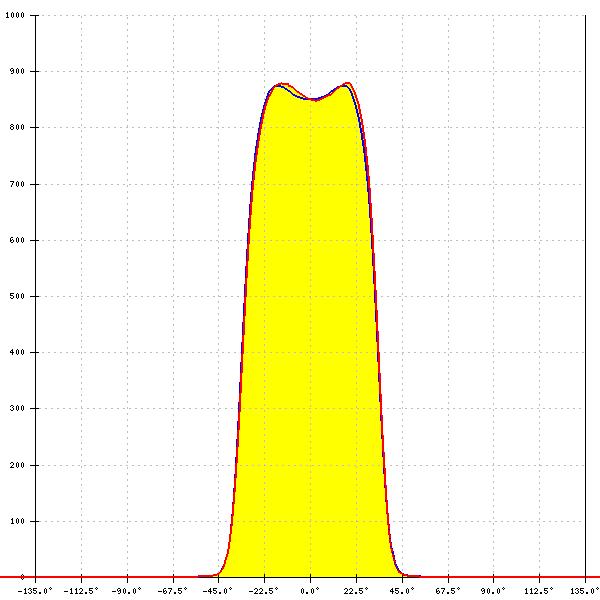

Optical results

LED: LM28xB Series
Required components:
C19055_DAISY-7X1-SHD-CRV-MATT
FWHM: 60°
FWTM: 78°
Peak intensity: 1.051 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White
