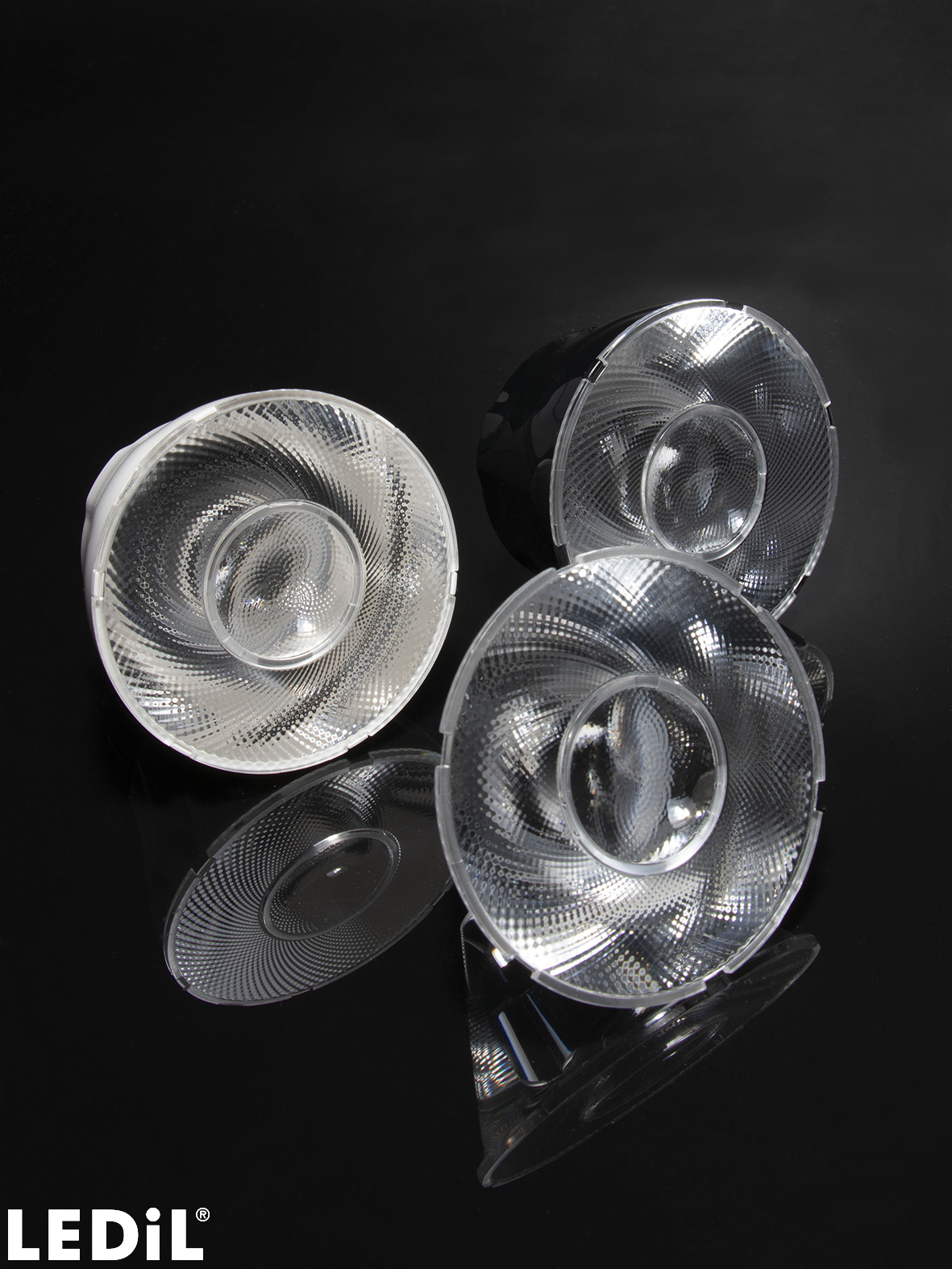

    YASMEEN-70-RS

    Print

    ~10° spot beam

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      70 mm
    • Height:
      38.44 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    • YASMEEN-70-RS
      Single lens
      PMMA
    • YASMEEN-70-HLD2-C-WHT
      Holder
      PC
    • YASMEEN-70-HLD2-C
      Holder
      PC
    • YASMEEN-70-HLD2-B50-WHT
      Holder
      PC
    • YASMEEN-70-HLD2-B50
      Holder
      PC
    • YASMEEN-70-HLD2-B-WHT
      Holder
      PC
    • YASMEEN-70-HLD2-B
      Holder
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • CP18579_YASMEEN-70-RS
      clear
    • Quantity in box:
      105 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      9.30 kg
    • MPQ:
      15 pcs
    • MOQ:
      105 pcs
    • MOQ Size:
      476 x 273 x 305 mm
    • MOQ Weight:
      9.30 kg
    • Assembly

      (single lens, holder)

    • CP18774_YASMEEN-70-RS-B2
      black,Holder B
    • CP18788_YASMEEN-70-RS-B2-WHT
      white,Holder B
    • CP19960_YASMEEN-70-RS-B50
      black,Holder B
    • CP19967_YASMEEN-70-RS-B50-WHT
      white,Holder B
    • CP18767_YASMEEN-70-RS-C2
      black,Holder C
    • CP18781_YASMEEN-70-RS-C2-WHT
      white,Holder C
    • Quantity in box:
      105 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      11.00 kg
    • MPQ:
      15 pcs
    • MOQ:
      105 pcs
    • MOQ Size:
      476 x 273 x 305 mm
    • MOQ Weight:
      11.00 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP18579_YASMEEN-70-RS
      CP18767_YASMEEN-70-RS-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    Article

    Finding the perfect spot – The art and science of narrowing beam angles

    News

    The real spot beams with YASMEEN and AMY

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    New beams and products – December 2024

    News

    YASMEEN – redefining track lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Regiolux Changy luminaire

    News

    New products – May, 2023

    PCN

    Product change notification NR192 - Change of YASMEEN-50 and -70 holder design

    News

    Our bright star YASMEEN now features a new, improved holder

    Compatible product

    B+W 630 Bayonet35 datasheet

    News

    YASMEEN zoom optics receive BrightStar Award

    News

    YASMEEN zoom optics win Design Plus award

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatible product

    B+W 630 Hekla datasheet

    Application example

    Track light luminaires with YASMEEN

    Application example

    Spot lighting with YASMEEN

    News

    YASMEEN – supreme light quality and beam control

    Application area

    Indoor Architectural Lighting

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

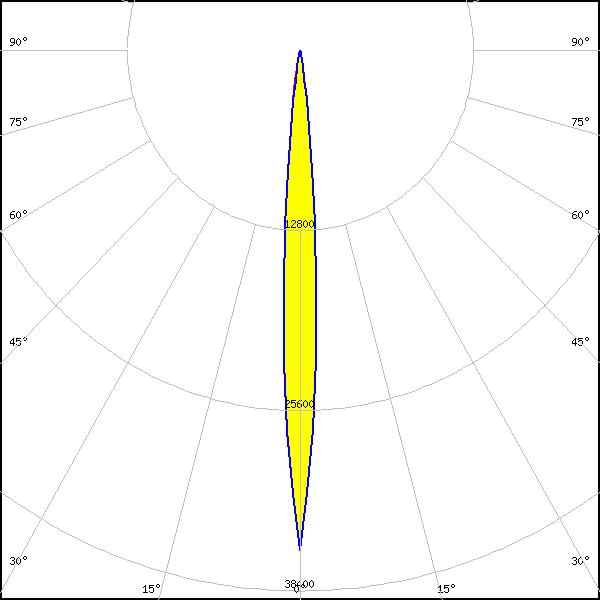

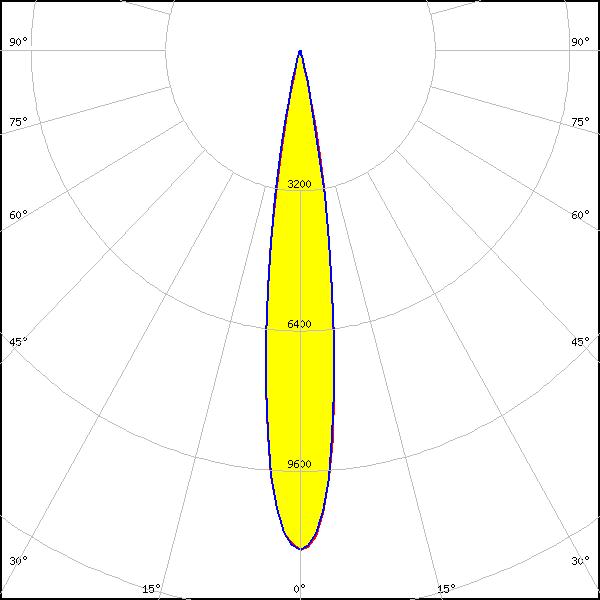

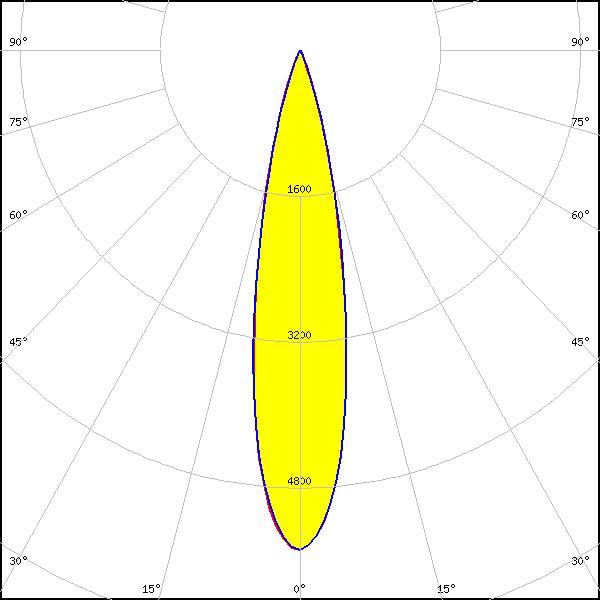

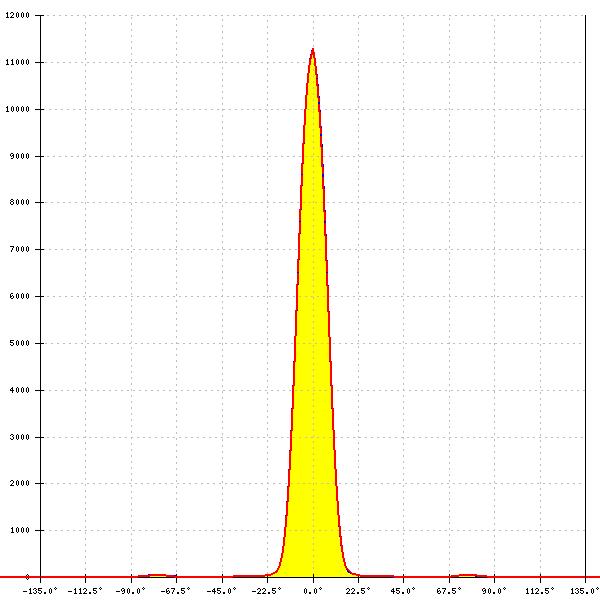

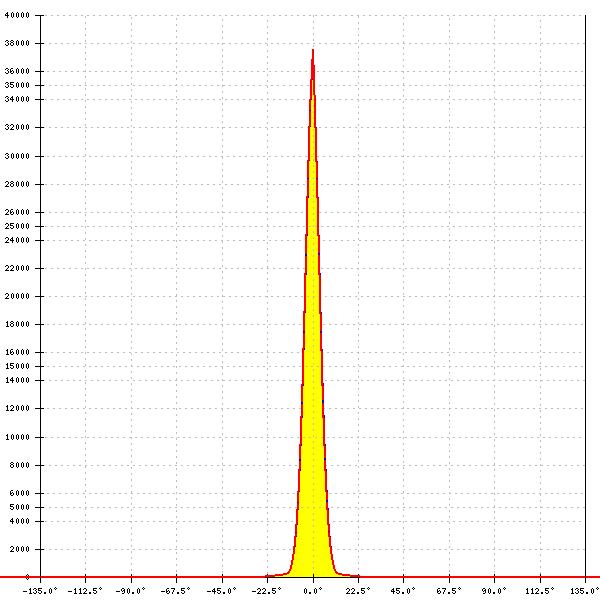

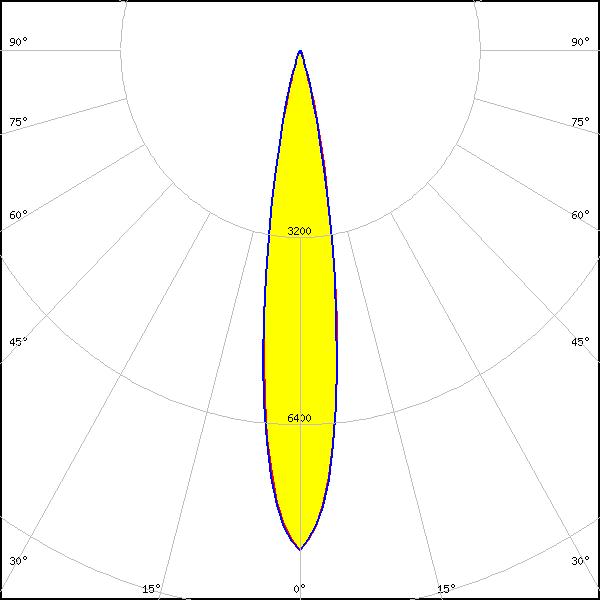

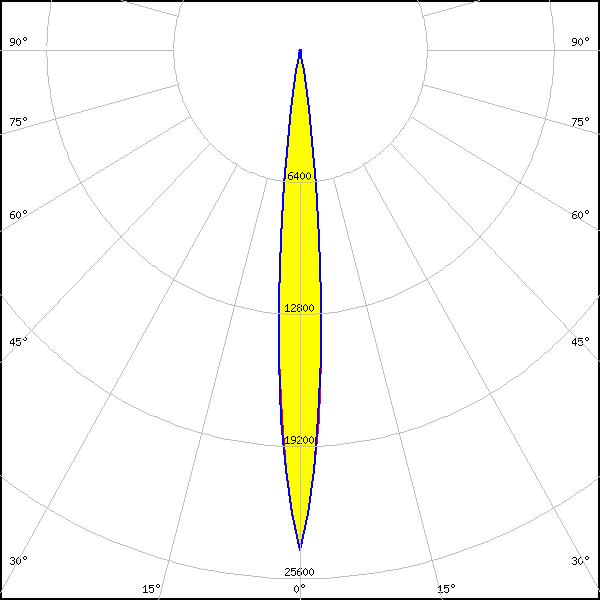

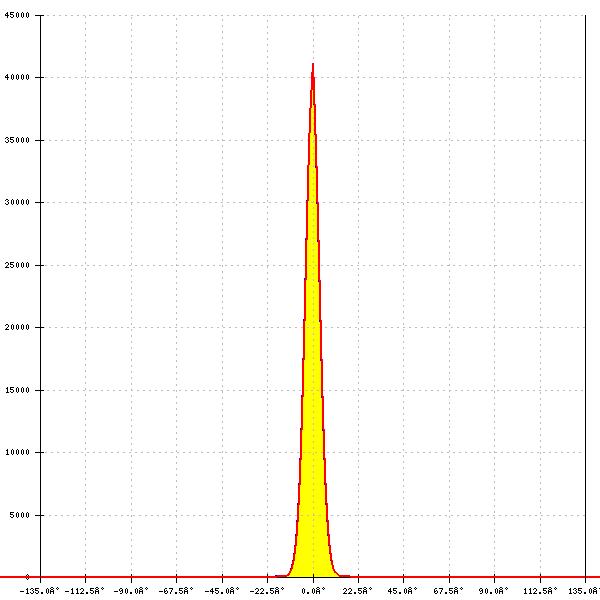

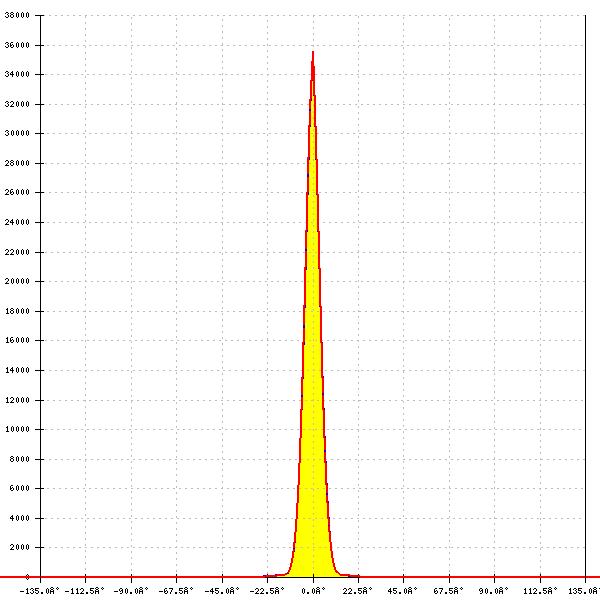

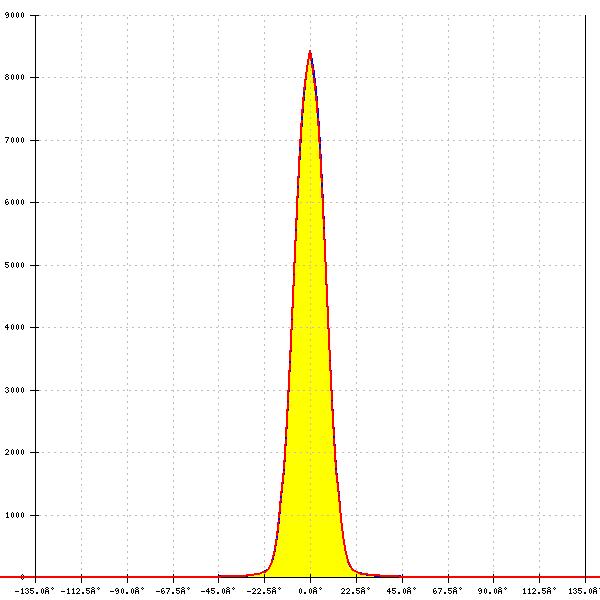

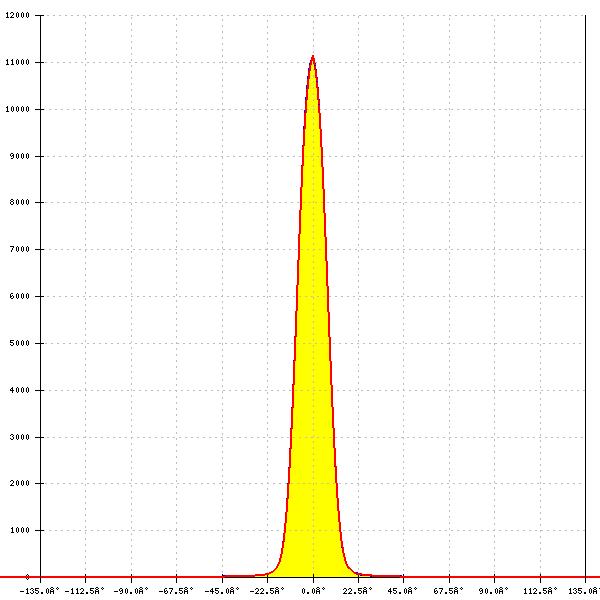

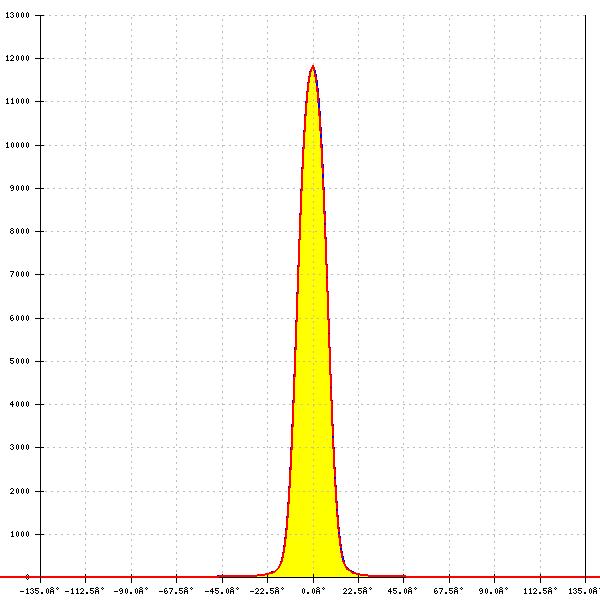

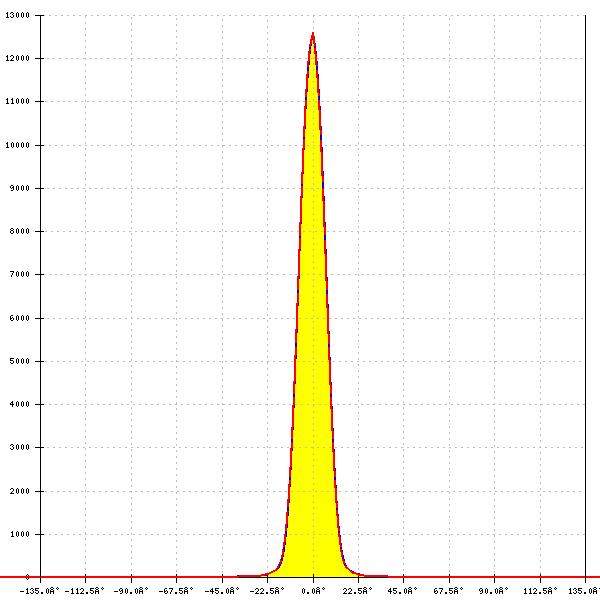

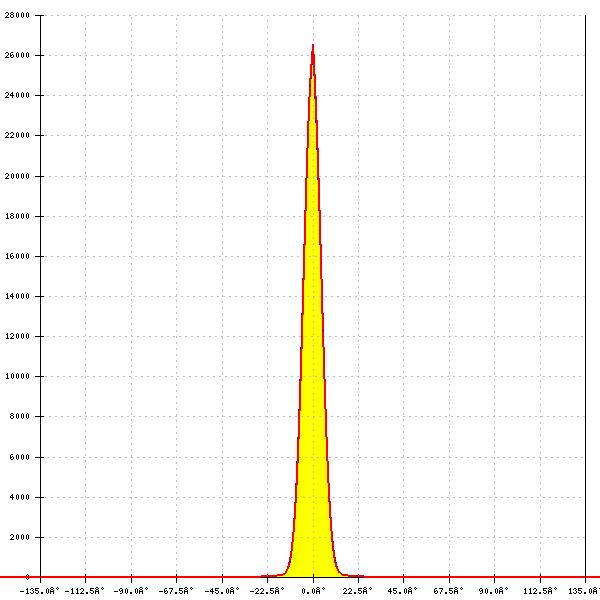

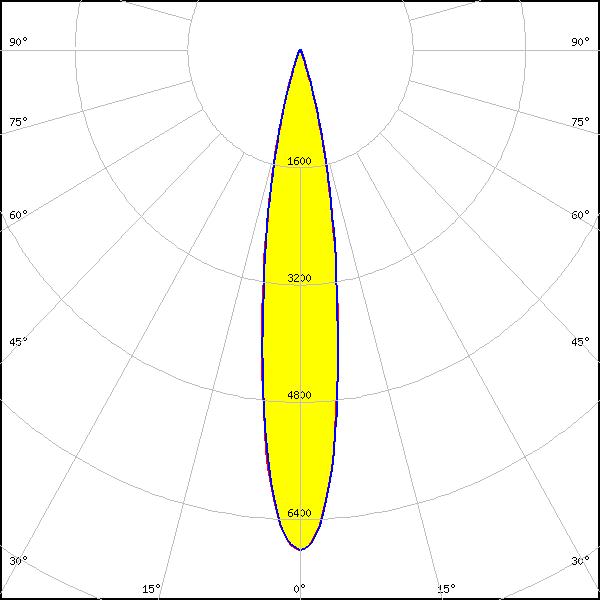

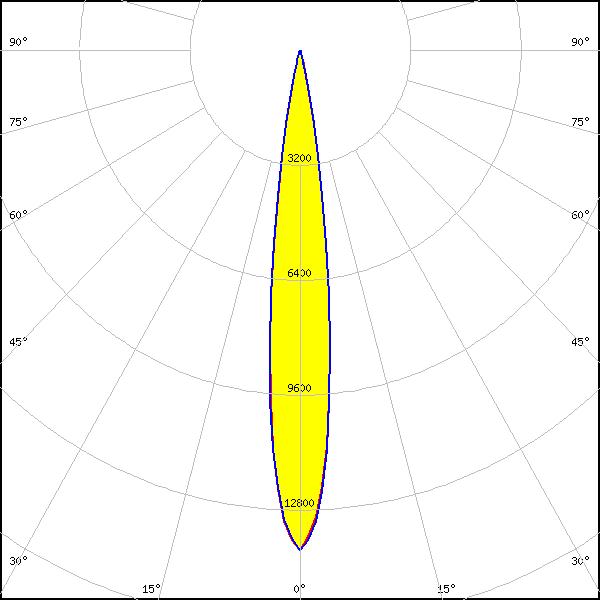

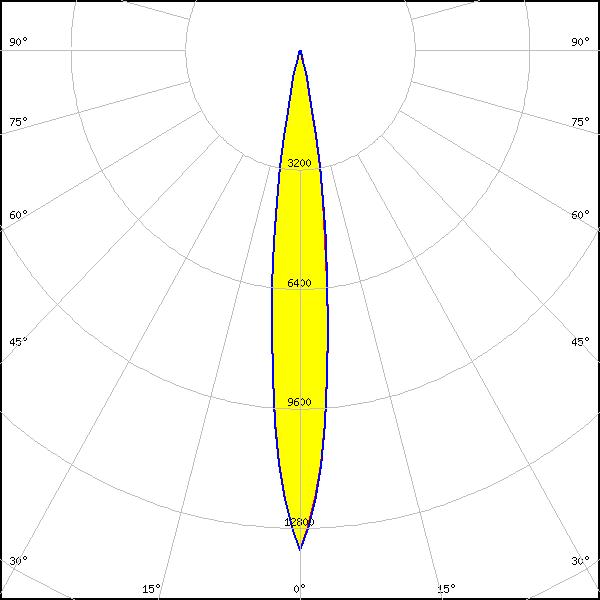

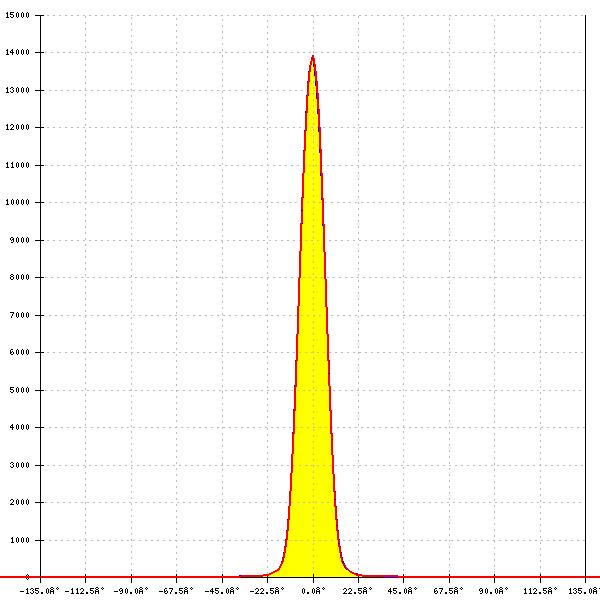

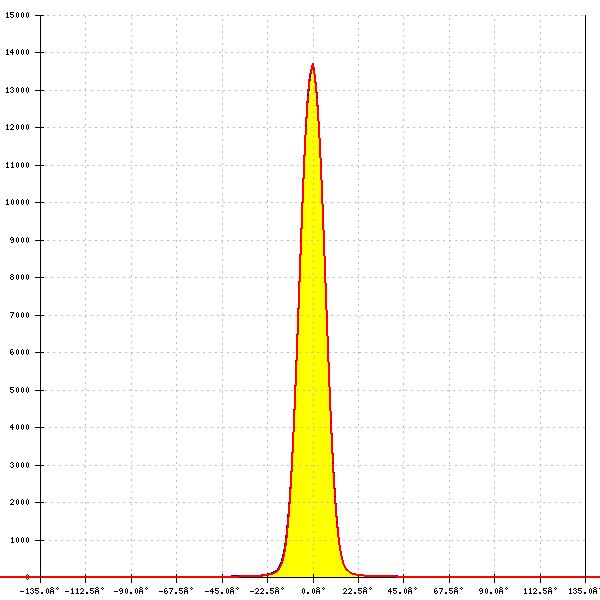

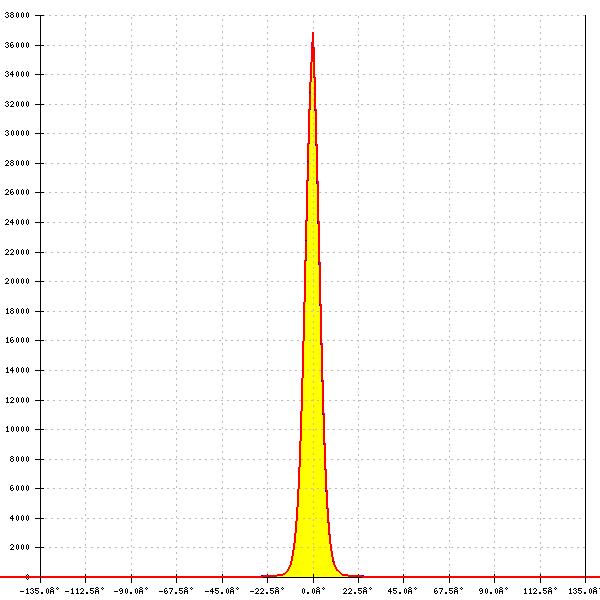

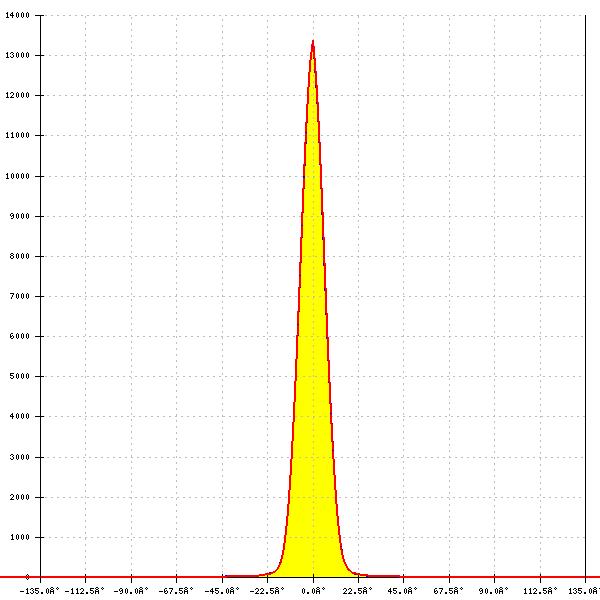

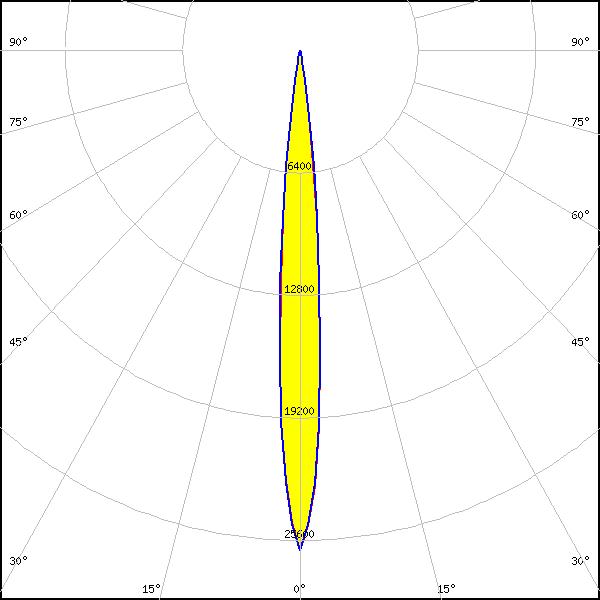

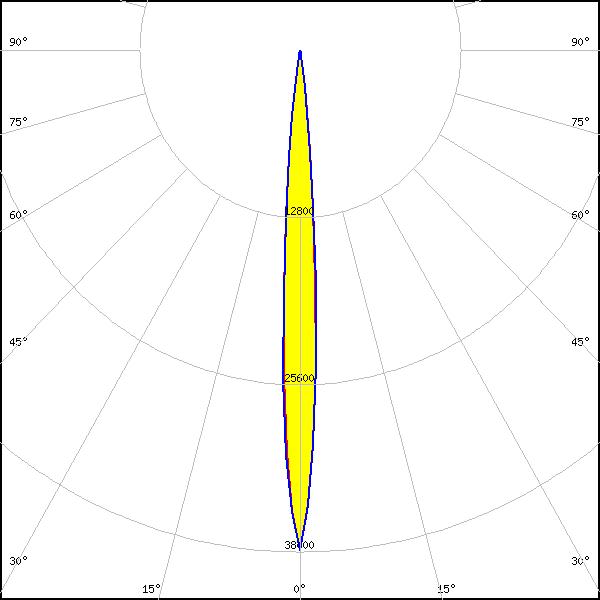

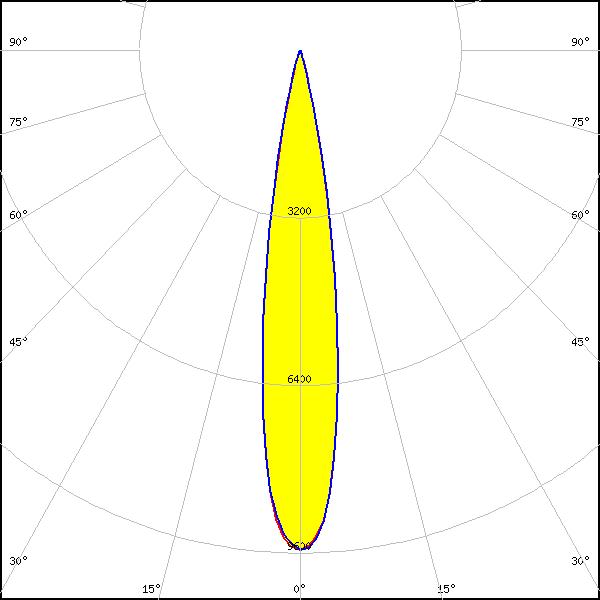

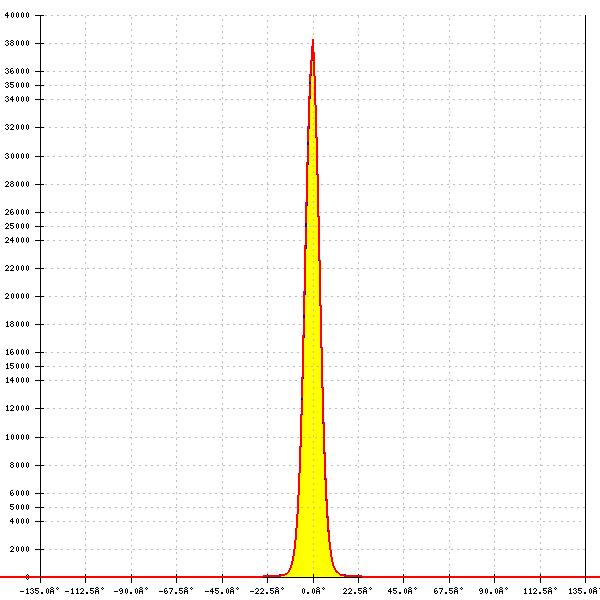

    Optical results

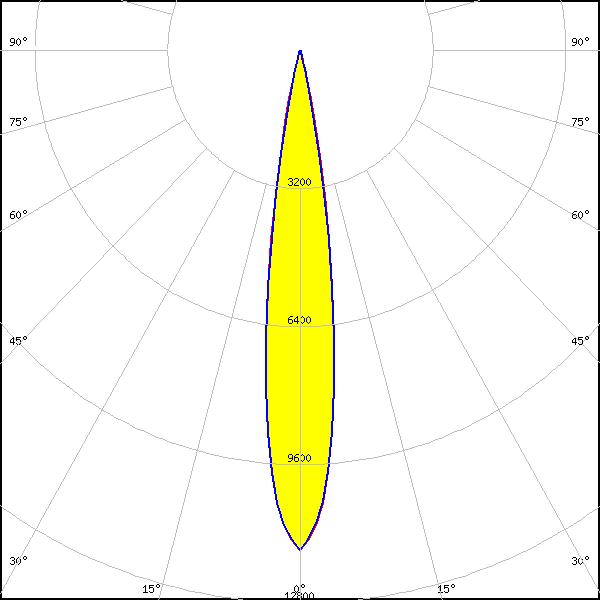

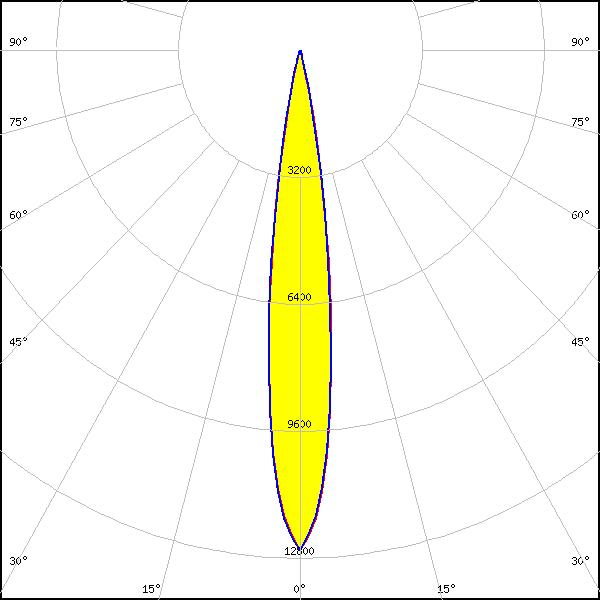

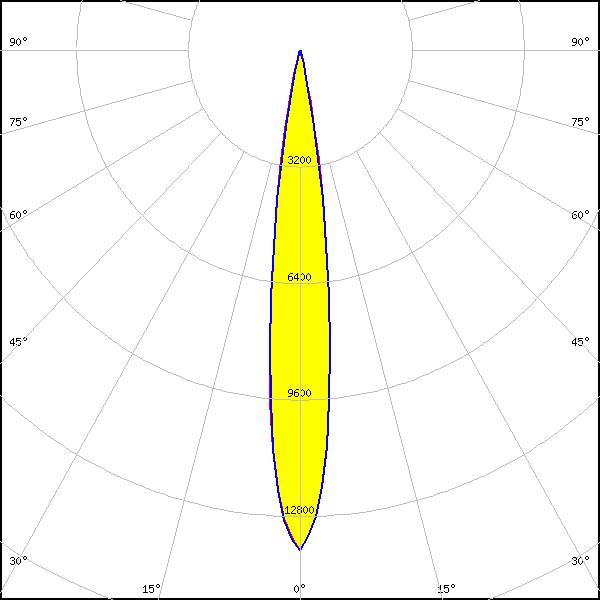

    LED: V10 Gen 8-9
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.605 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

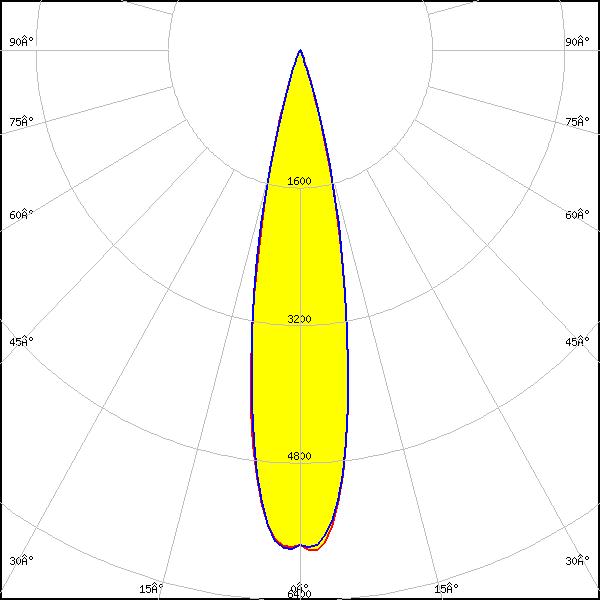

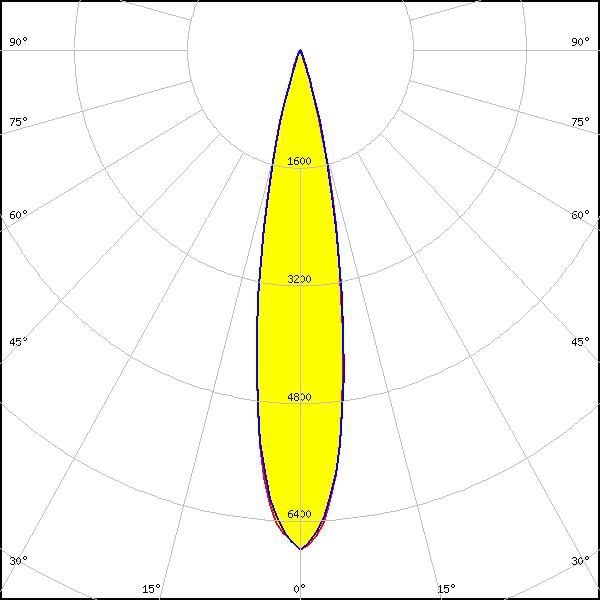

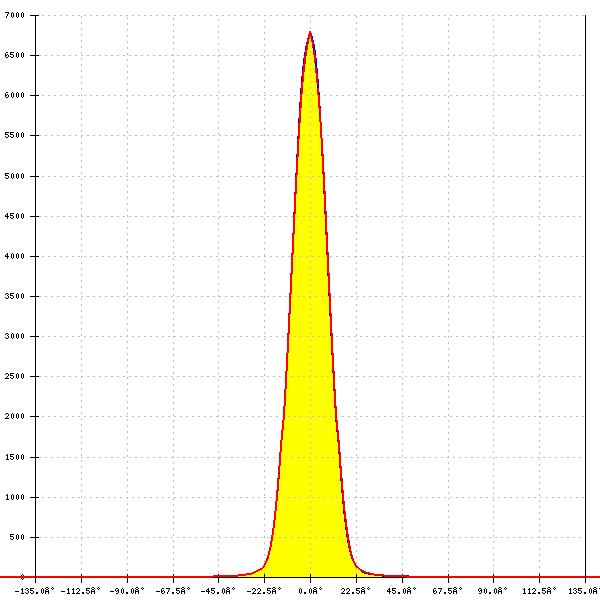

    LED: V13 Gen 8-9
    LES size: 14.8 mm
    Required components:
    F19859_HEKLA-G2B-I2
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 5.838 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

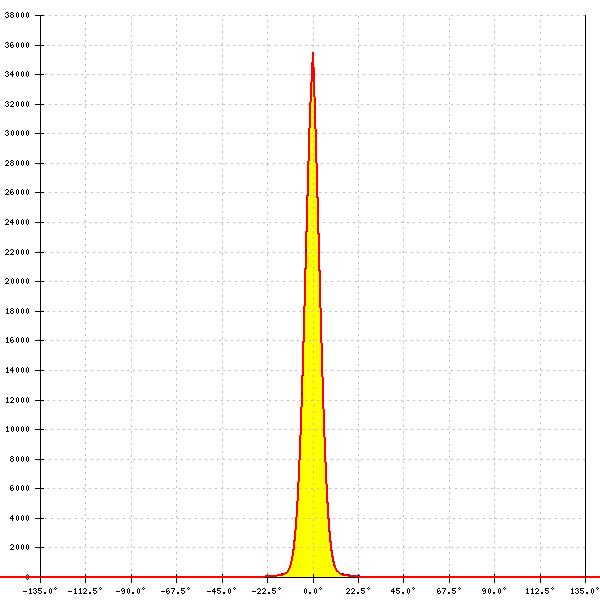

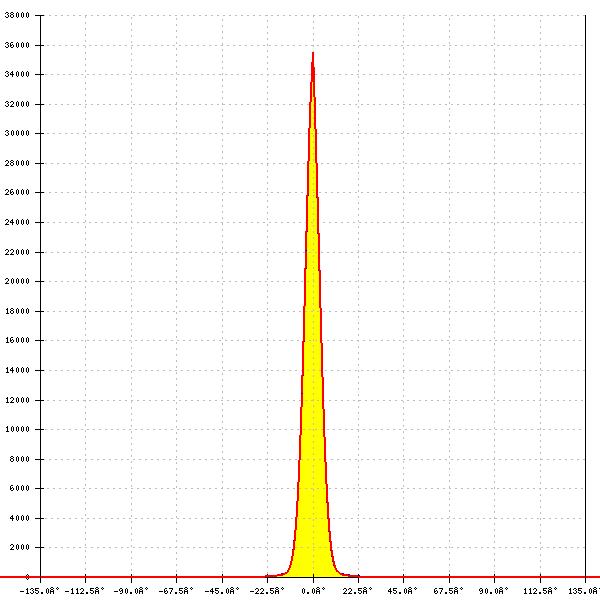

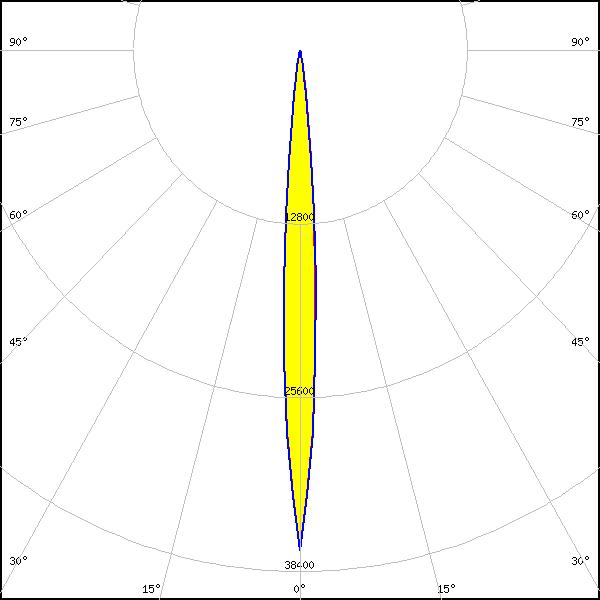

    LED: V4 HD Gen 8
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 4.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 35.520 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

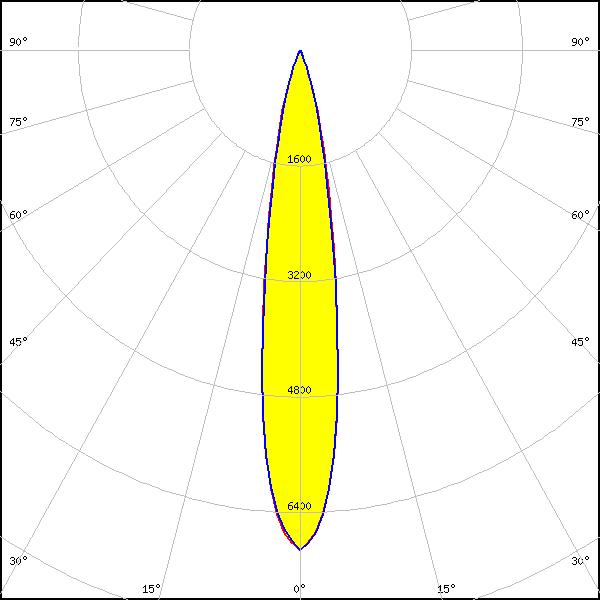

    LED: Vesta SE 13mm TW
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 18°
    FWTM: 36°
    Peak intensity: 6.923 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

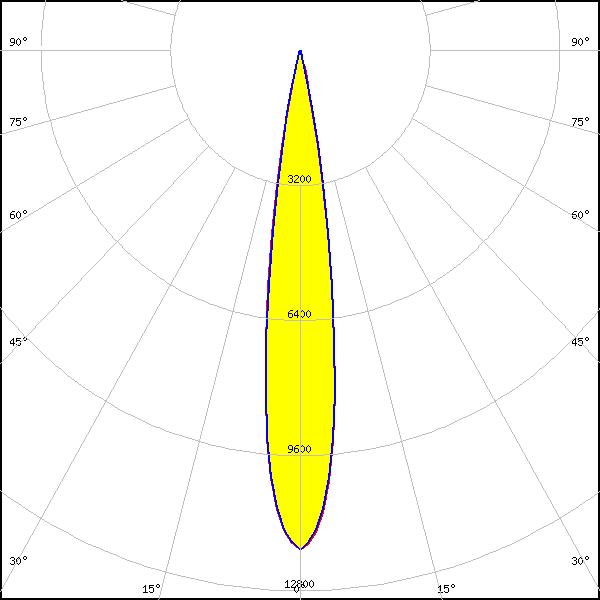

    LED: CLU02x (LES10)
    Ordering code: CP18781_YASMEEN-70-RS-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.846 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

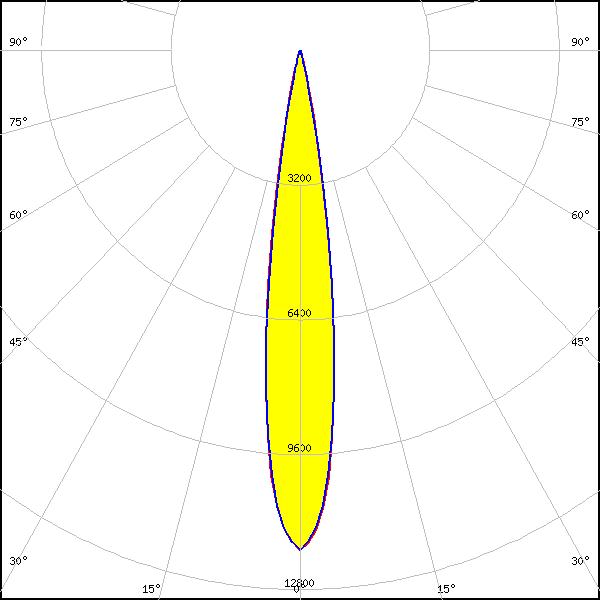

    LED: CLU02x (LES10)
    Ordering code: CP18788_YASMEEN-70-RS-B2-WHT
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.873 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 17°
    FWTM: 30°
    Peak intensity: 8.547 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)

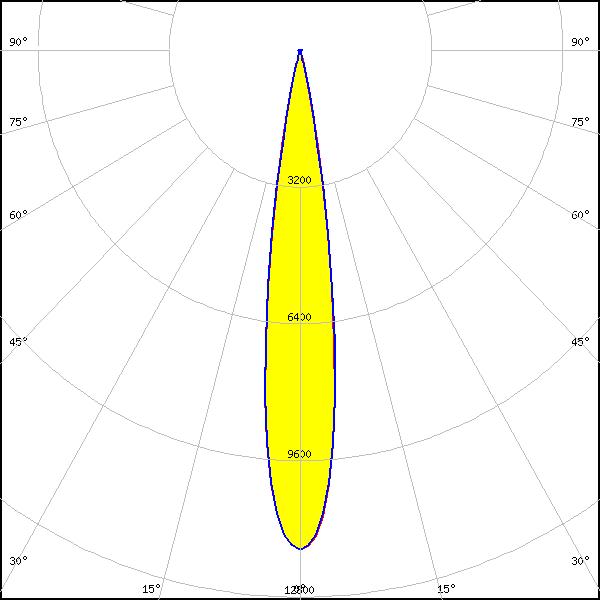

    Ordering code: CP18579_YASMEEN-70-RS
    LES size: 9.8 mm
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.705 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

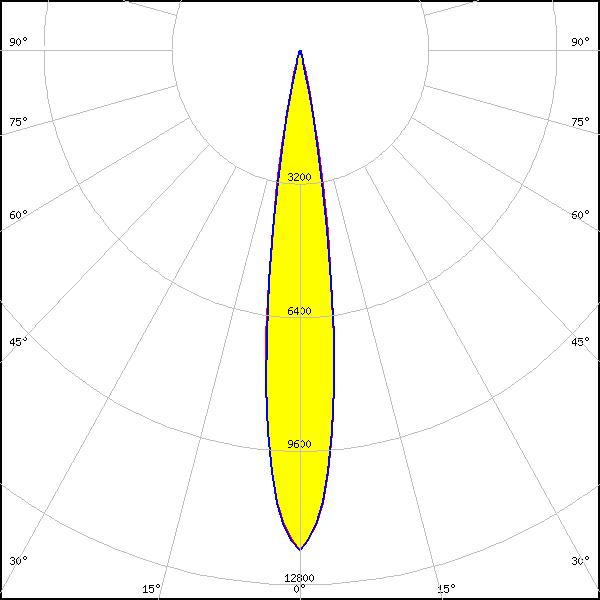

    LED: CLU02x (LES10)

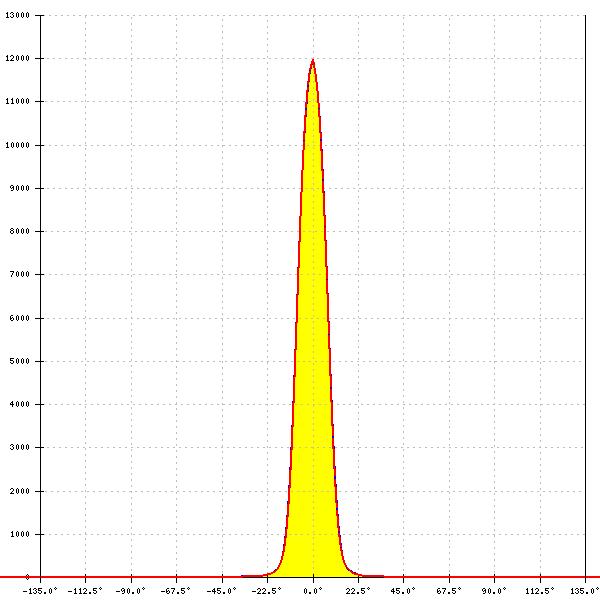

    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.977 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

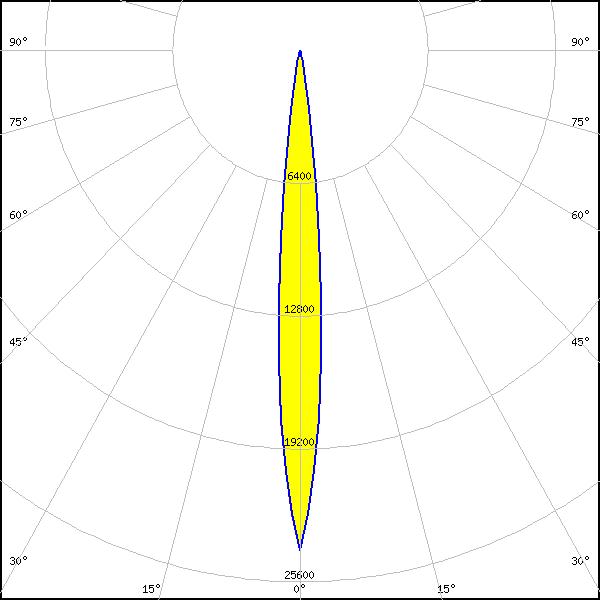

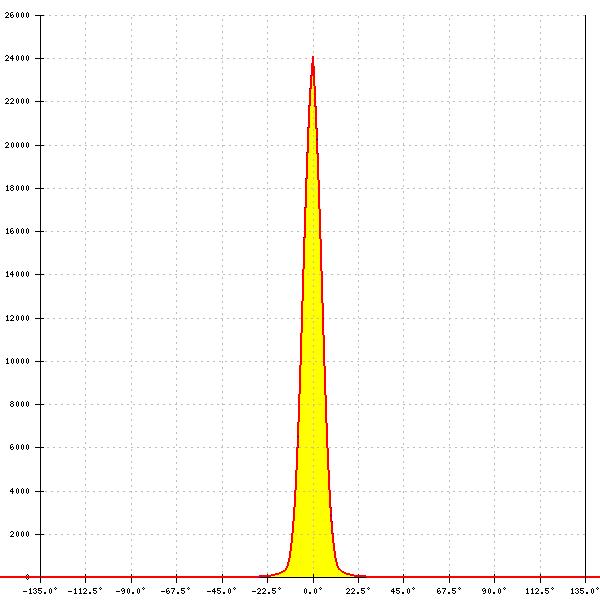

    LED: CLU700/701/702/703
    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 24.086 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

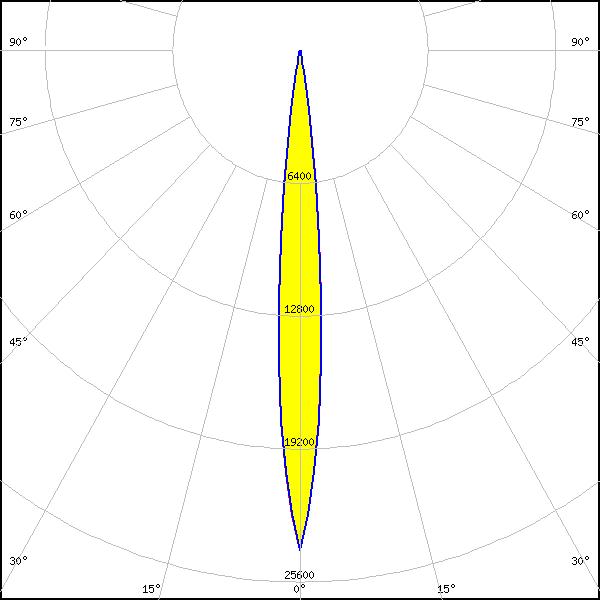

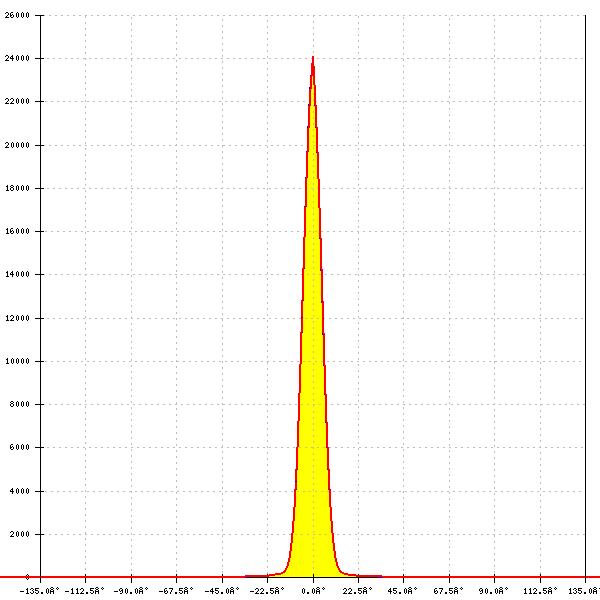

    LED: CLU700/701/702/703
    Ordering code: CP18781_YASMEEN-70-RS-C2-WHT
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 24.080 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703

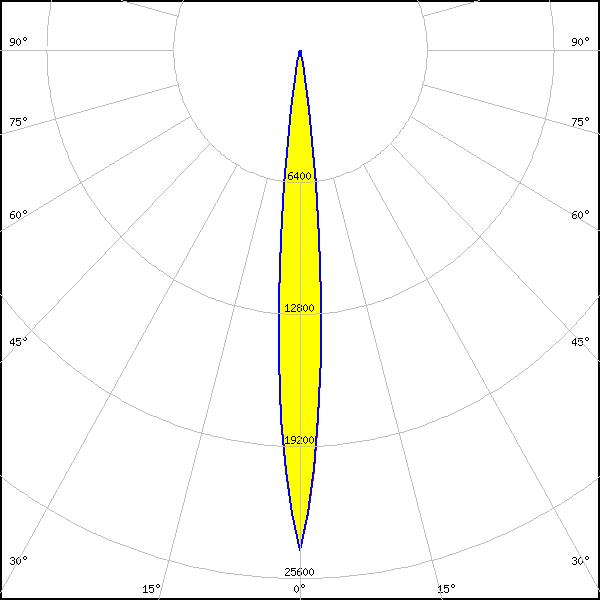

    Ordering code: CP18788_YASMEEN-70-RS-B2-WHT
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 24.234 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

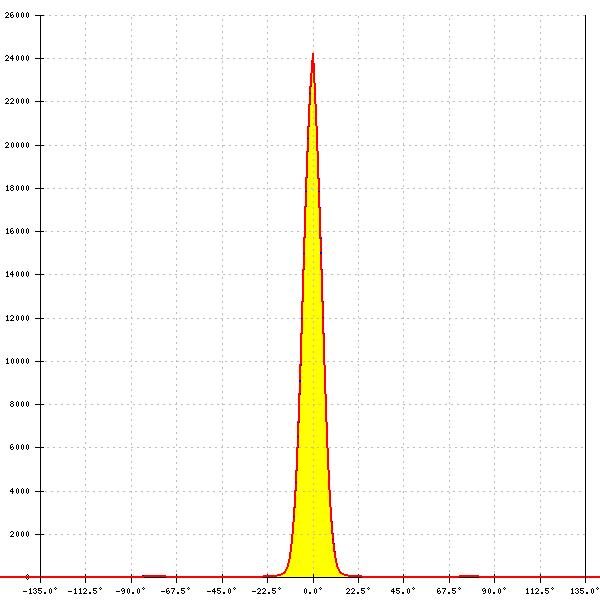

    LED: CLU700/701/702/703
    Ordering code: CP18579_YASMEEN-70-RS
    LES size: 6.0 mm
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 24.232 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

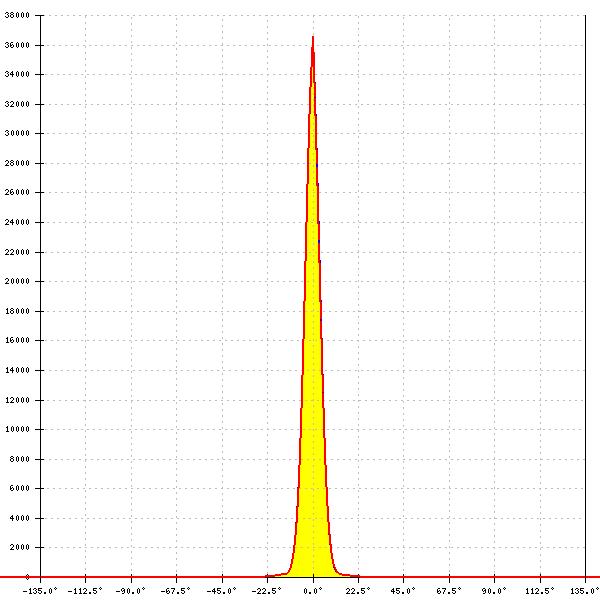

    LED: CLU7A2/7A3
    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 4.2 mm
    Required components:
    BJB: 47.360.1020

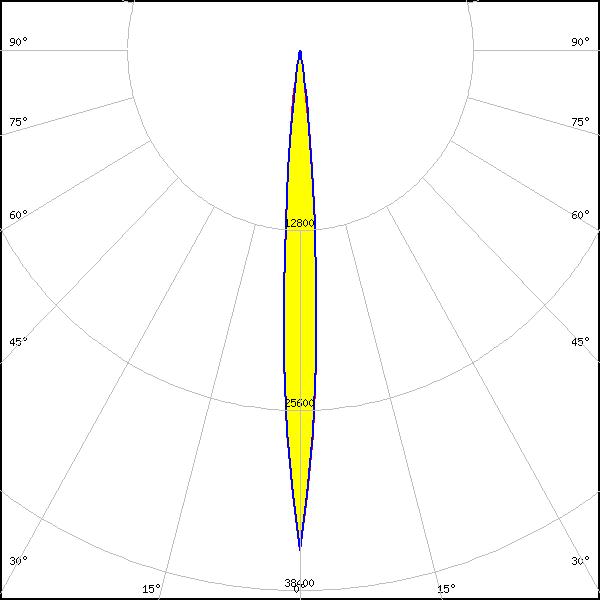

    FWHM: 8°
    FWTM: 16°
    Peak intensity: 36.600 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

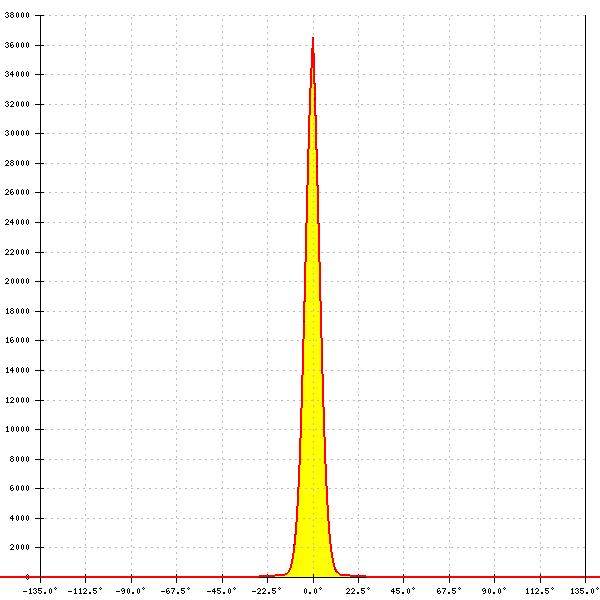

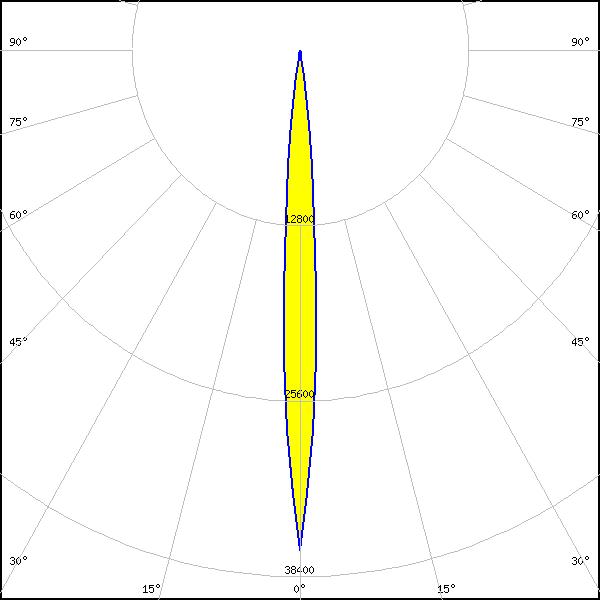

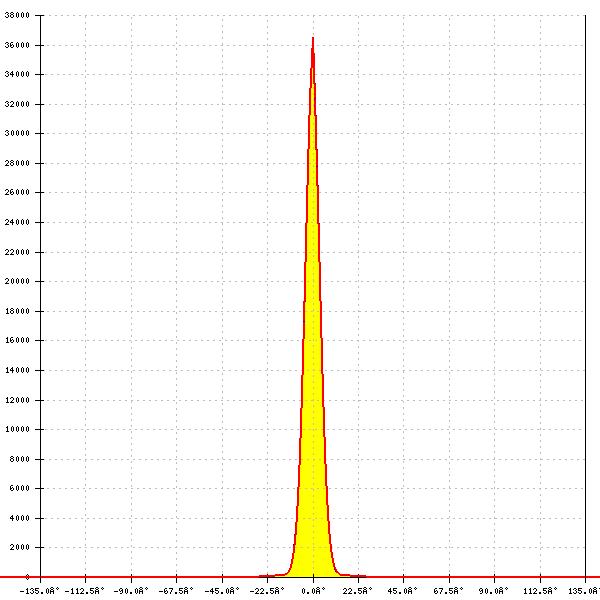

    LED: CLU7A2/7A3
    Ordering code: CP18781_YASMEEN-70-RS-C2-WHT
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 36.482 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

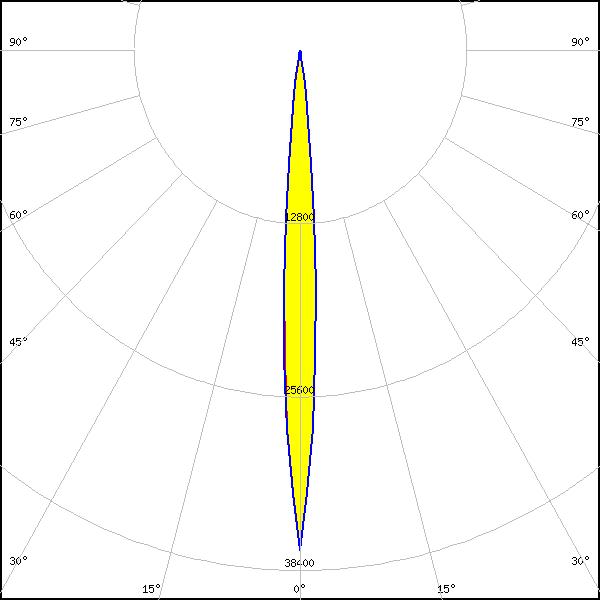

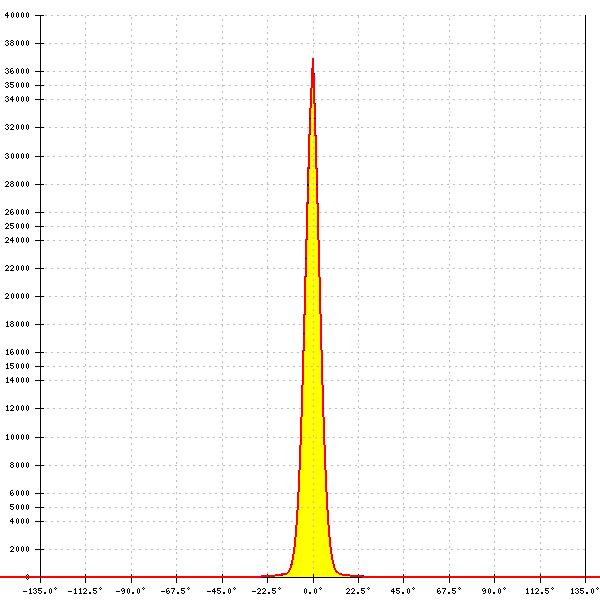

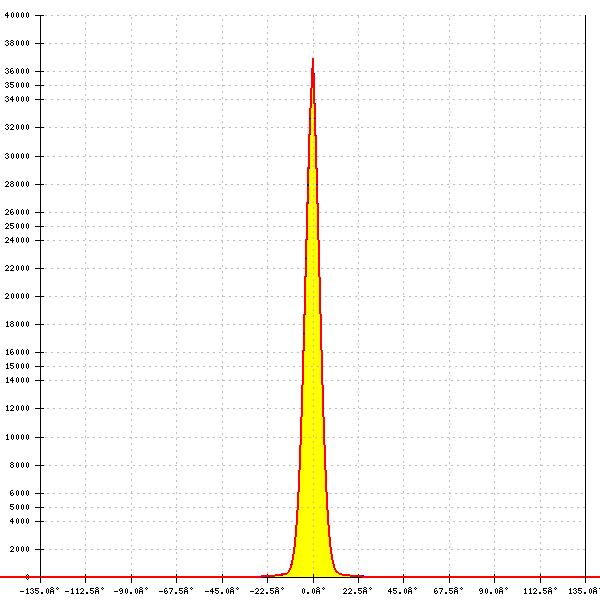

    LED: CLU7A2/7A3
    Ordering code: CP18788_YASMEEN-70-RS-B2-WHT
    LES size: 4.2 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 36.927 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

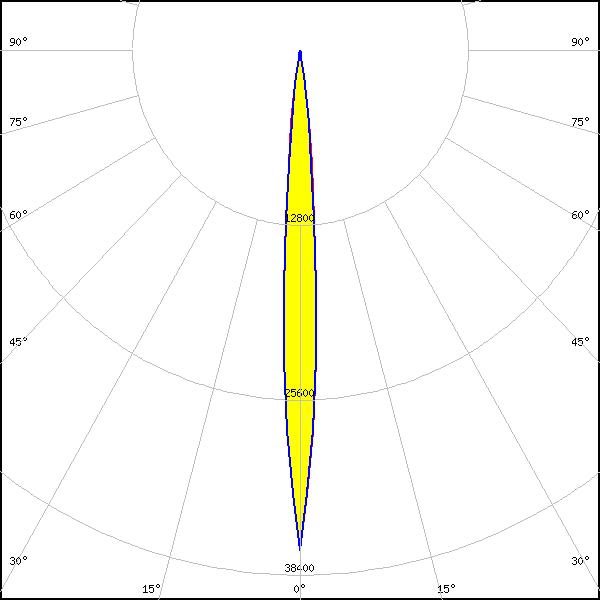

    LED: CLU7A2/7A3

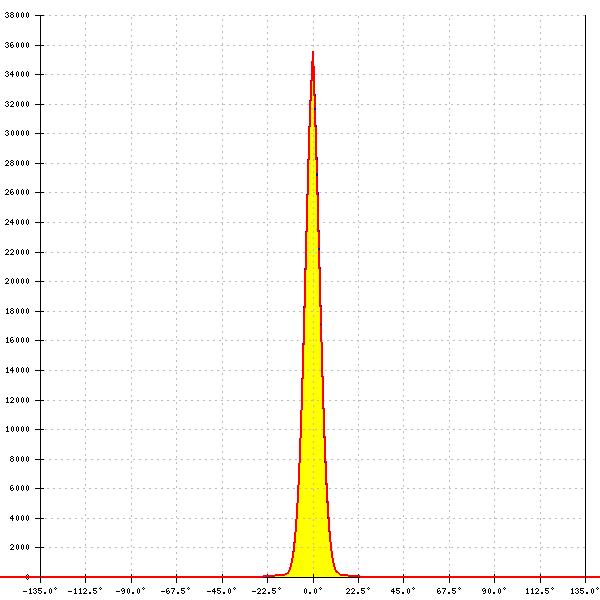

    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 4.2 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 35.556 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3

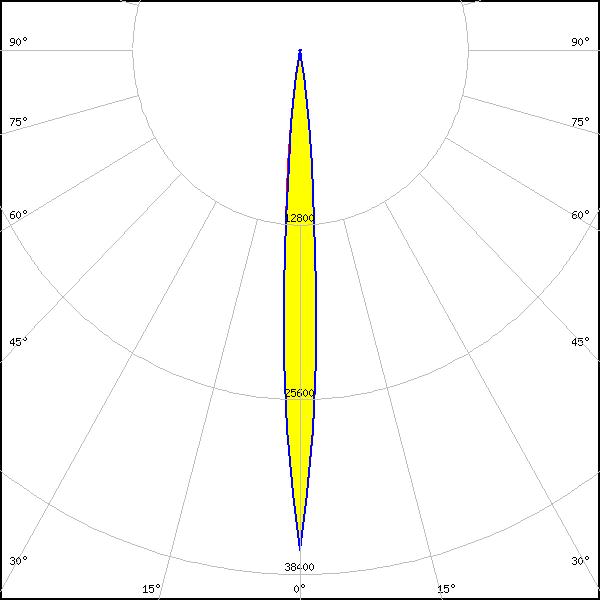

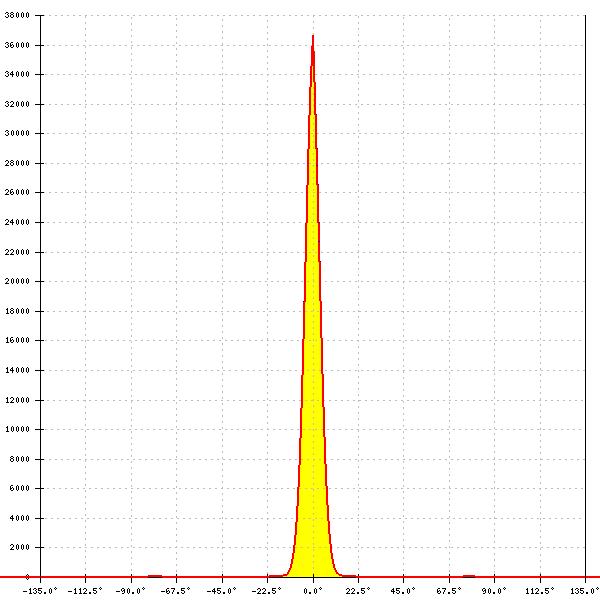

    Ordering code: CP18579_YASMEEN-70-RS
    LES size: 4.2 mm
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 36.645 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

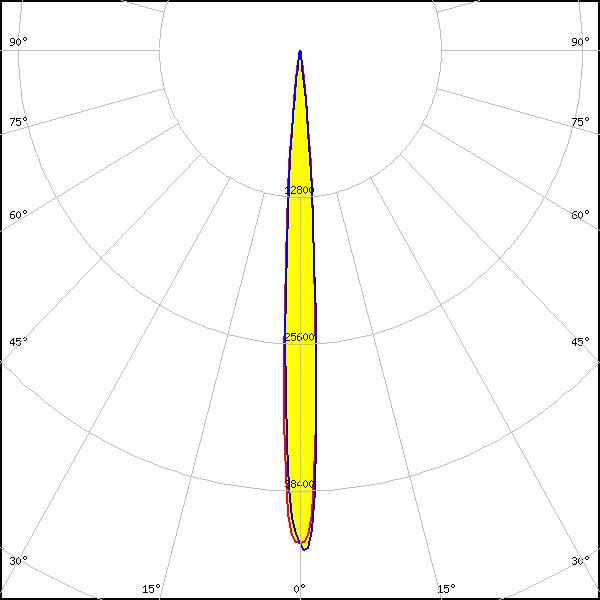

    LED: CLU7A3 Type-F
    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 4.2 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 23.820 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

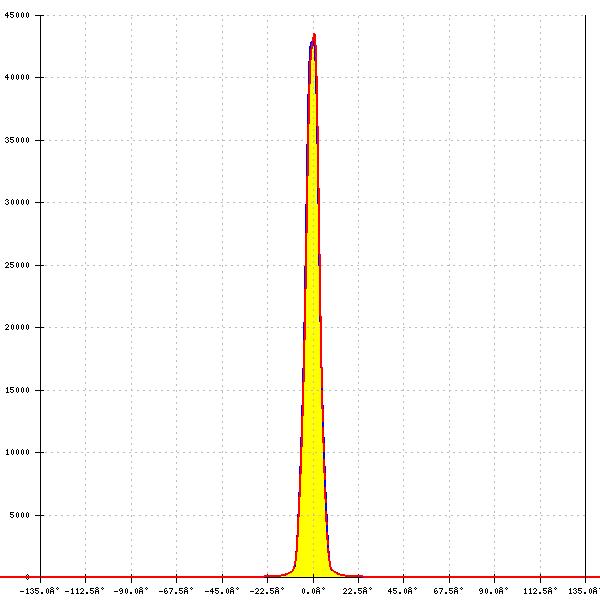

    LED: CLU7L3
    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 2.4 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 7°
    FWTM: 14°
    Peak intensity: 43.671 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

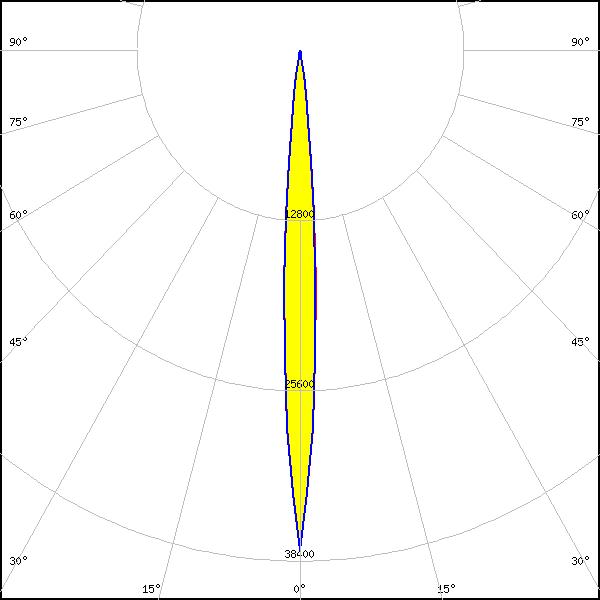

    LED: CLU7S3
    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 667a Bayonet35
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 37.598 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

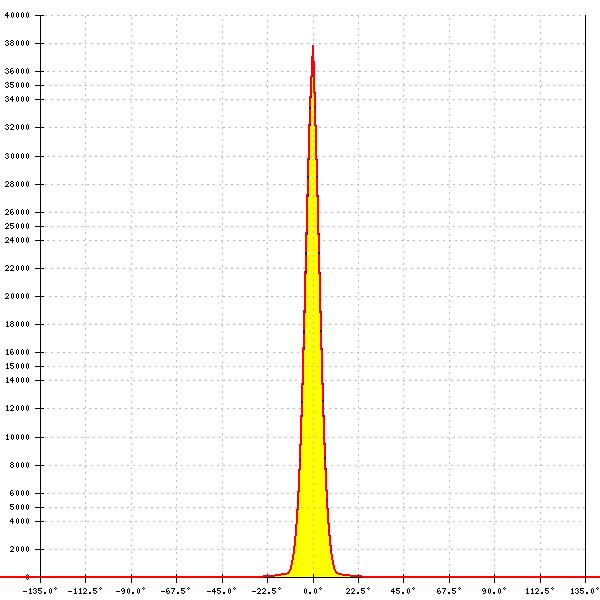

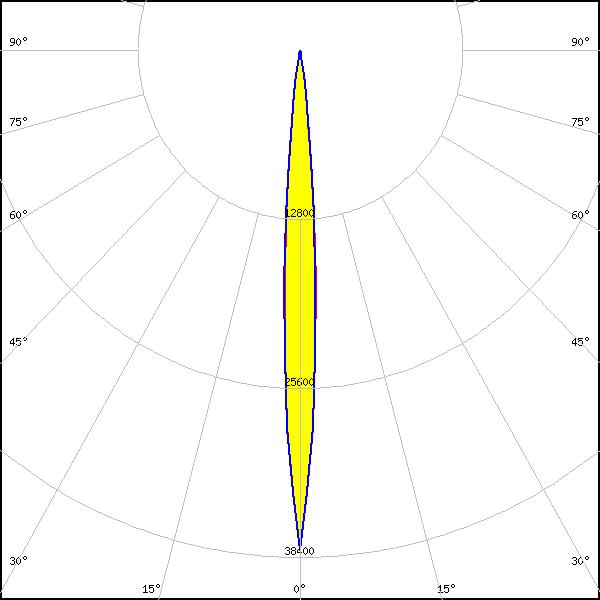

    LED: CLU7S3
    Ordering code: CP18788_YASMEEN-70-RS-B2-WHT
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 667a Bayonet35
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 37.864 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

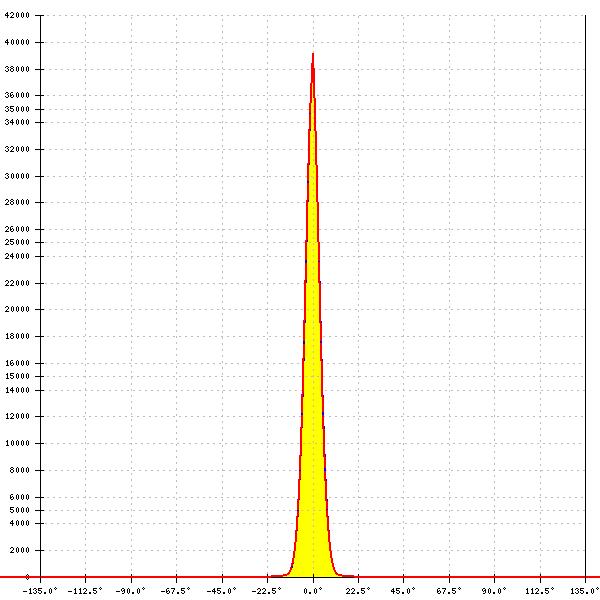

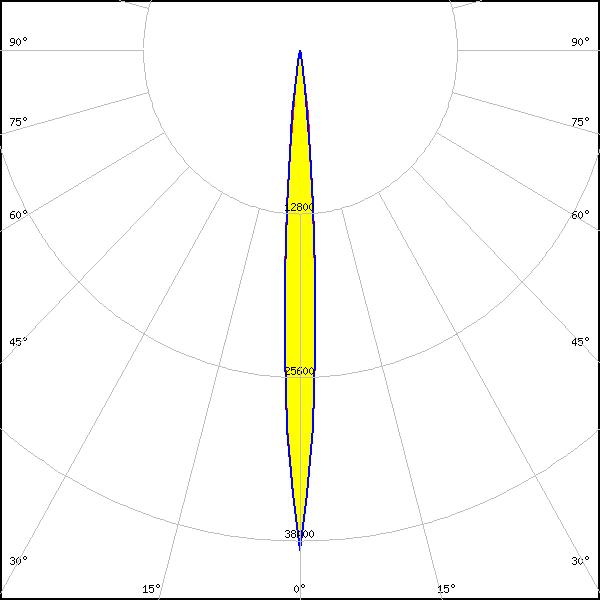

    LED: CLU7S3
    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 3.5 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 39.138 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

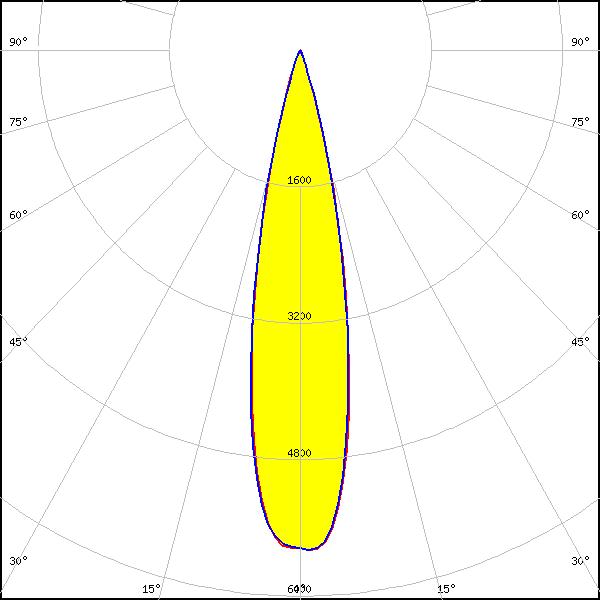

    LED: CMA1840
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 5.874 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

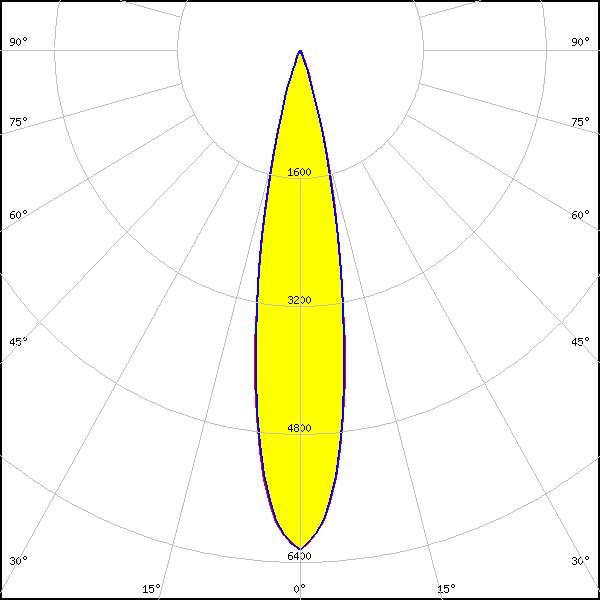

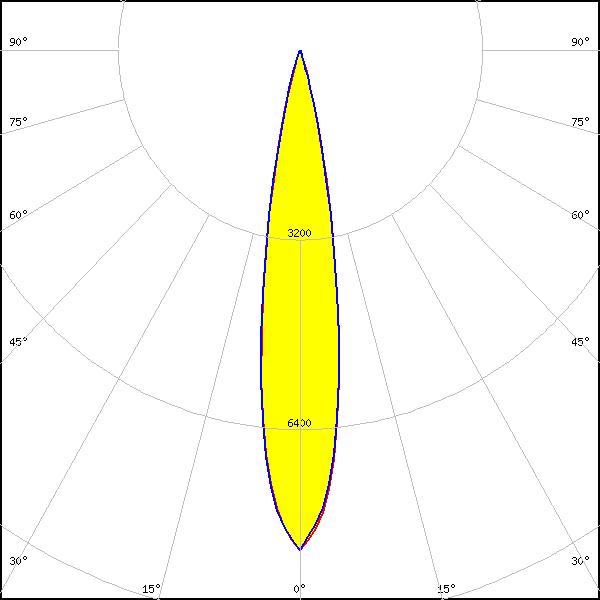

    LED: CMU15xx
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.250 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

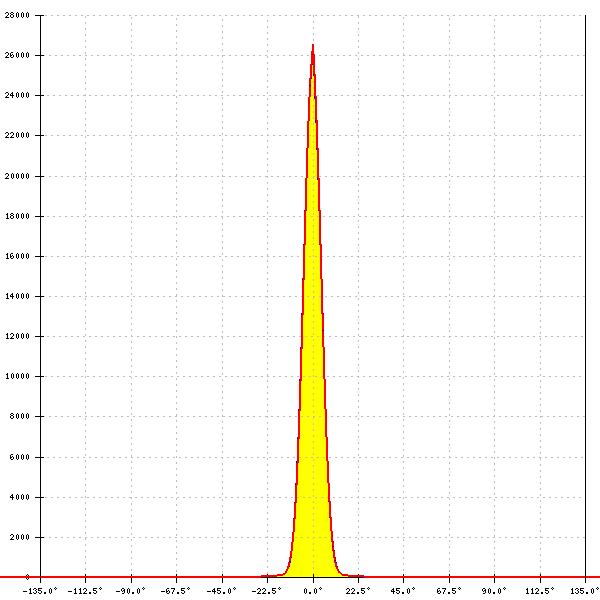

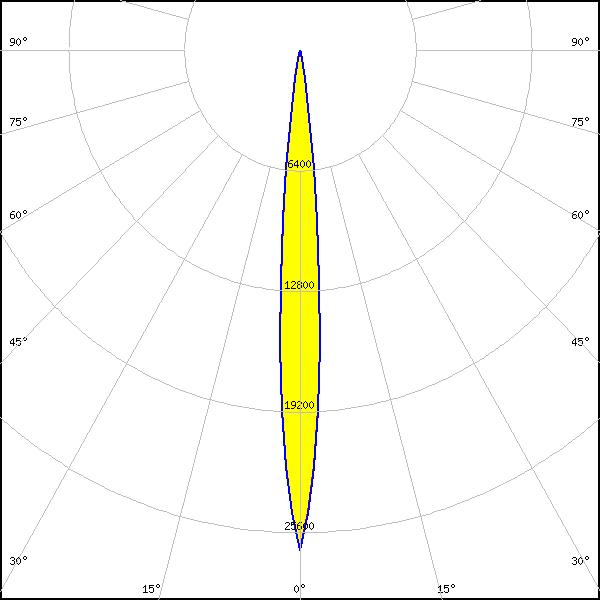

    LED: CXA/B 13xx
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 26.539 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-9 (13.5x13.5)
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.582 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM C TW L06A 1313 G7N
    Ordering code: CP18781_YASMEEN-70-RS-C2-WHT
    LES size: 6.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 508 Typ L8
    FWHM: 11°
    FWTM: 19°
    Peak intensity: 21.811 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM C TW L09A 1919 G7N
    Ordering code: CP18781_YASMEEN-70-RS-C2-WHT
    LES size: 9.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 15°
    FWTM: 25°
    Peak intensity: 11.392 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

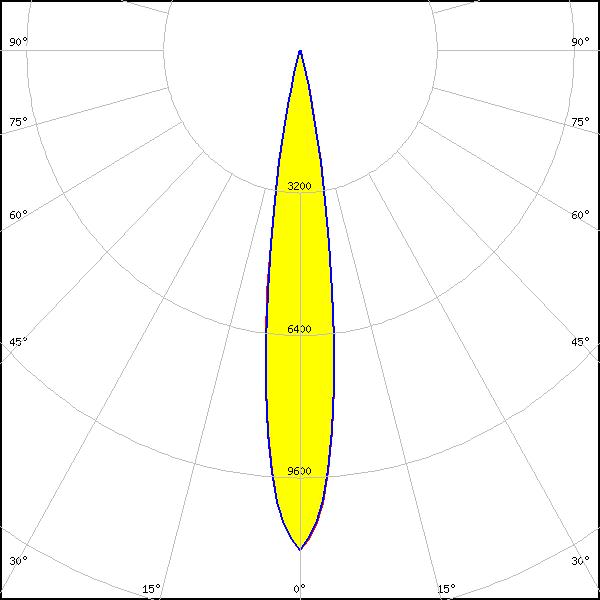

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18781_YASMEEN-70-RS-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.228 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

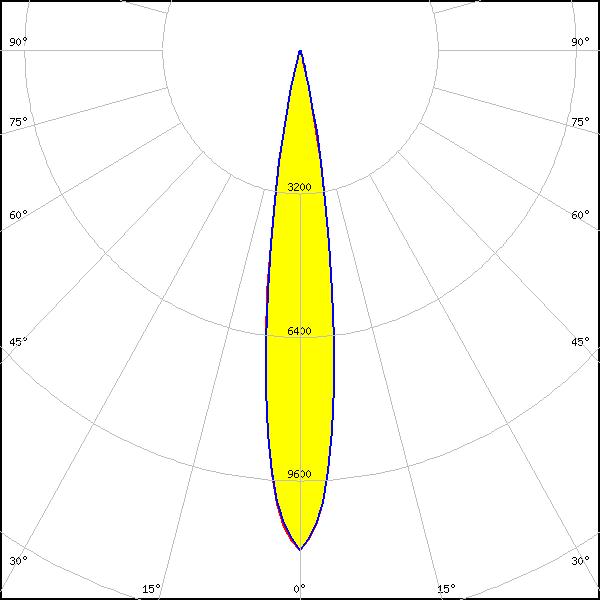

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18788_YASMEEN-70-RS-B2-WHT
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.148 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

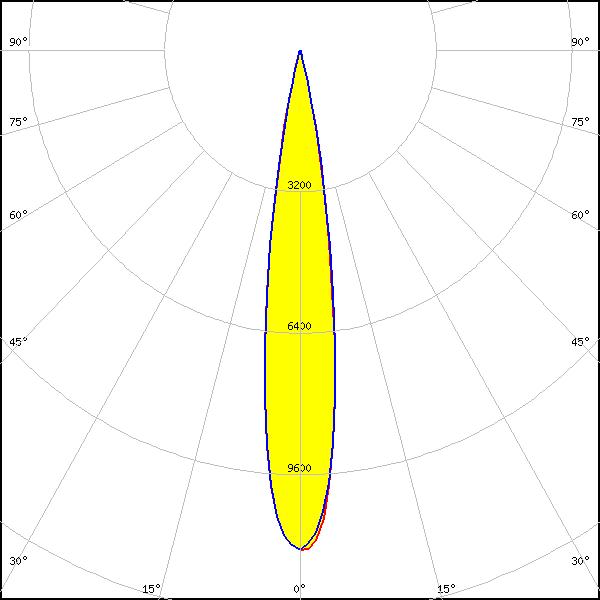

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.314 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.403 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

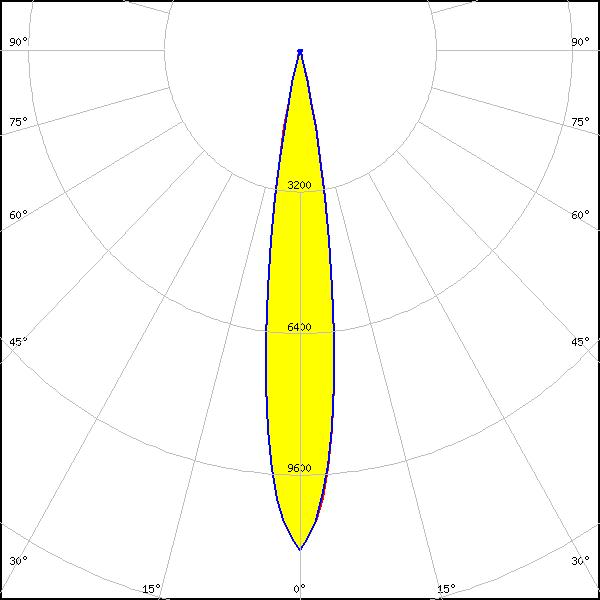

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18579_YASMEEN-70-RS
    LES size: 9.8 mm
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.303 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

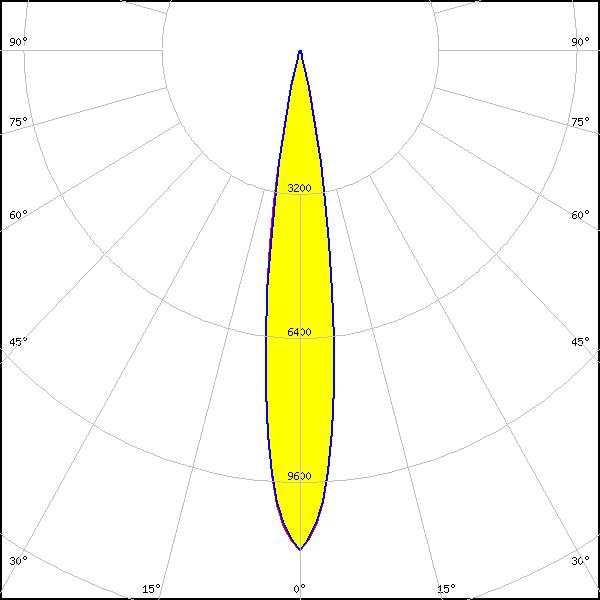

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18774_YASMEEN-70-RS-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 11.109 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

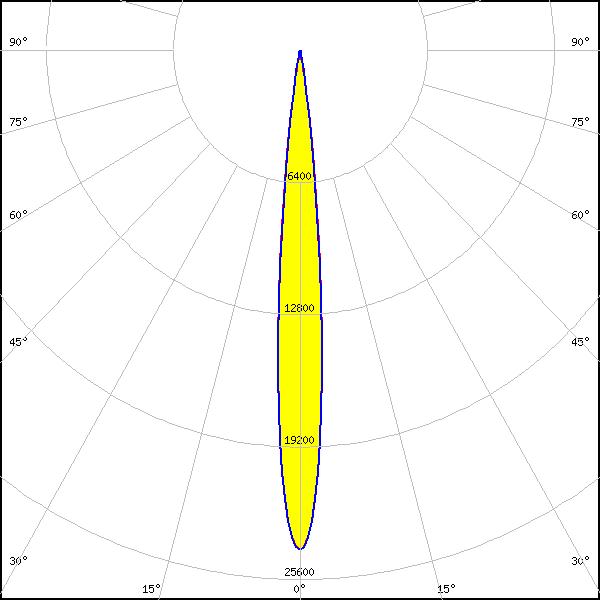

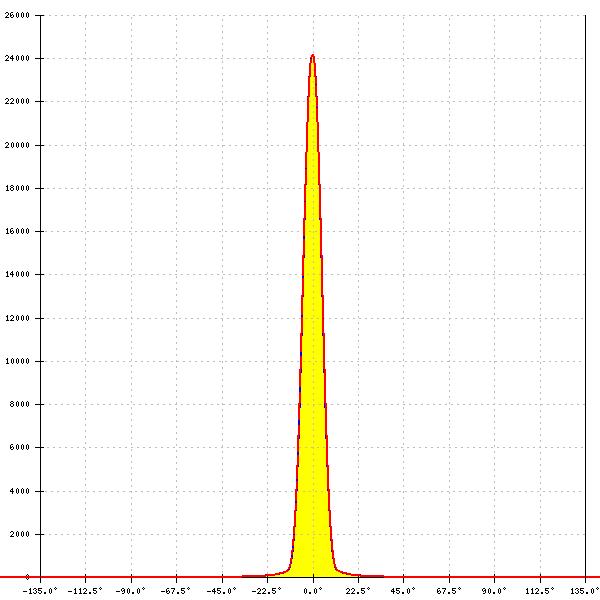

    LED: LC010C G2
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 24.210 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

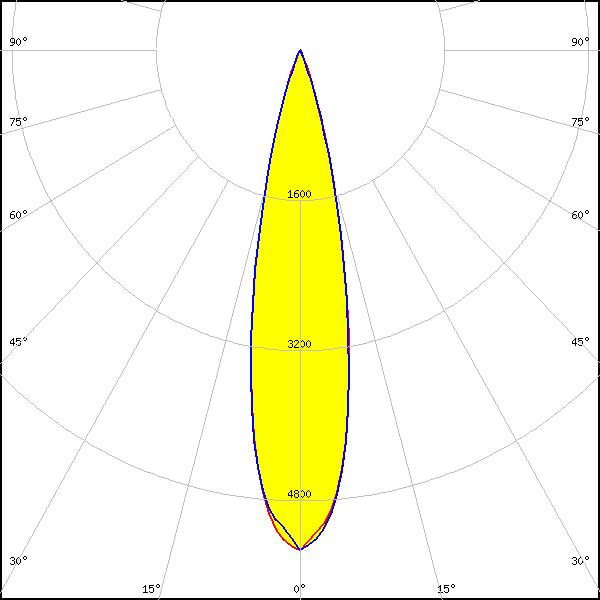

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.328 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.483 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

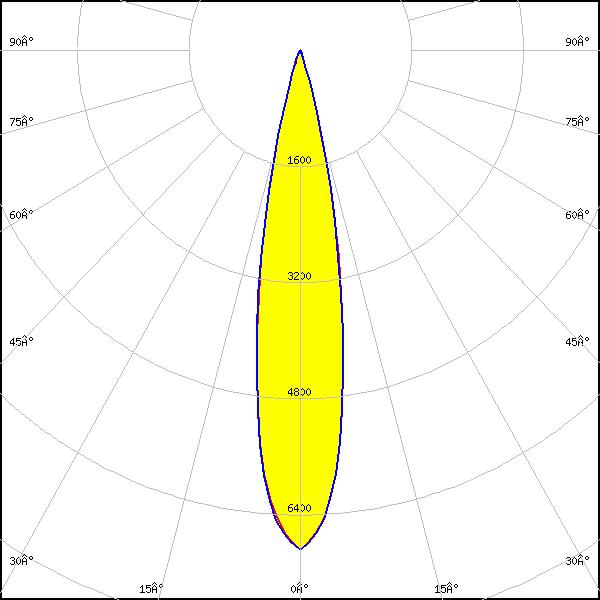

    LED: XOB 14.5 mm
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 20°
    FWTM: 34°
    Peak intensity: 6.888 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

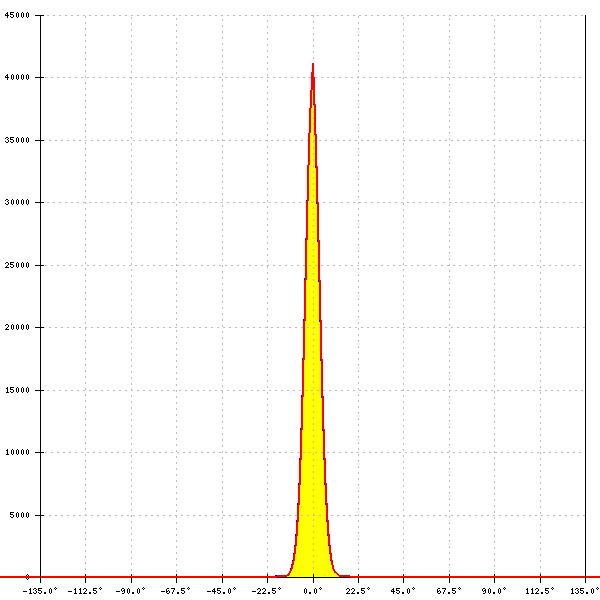

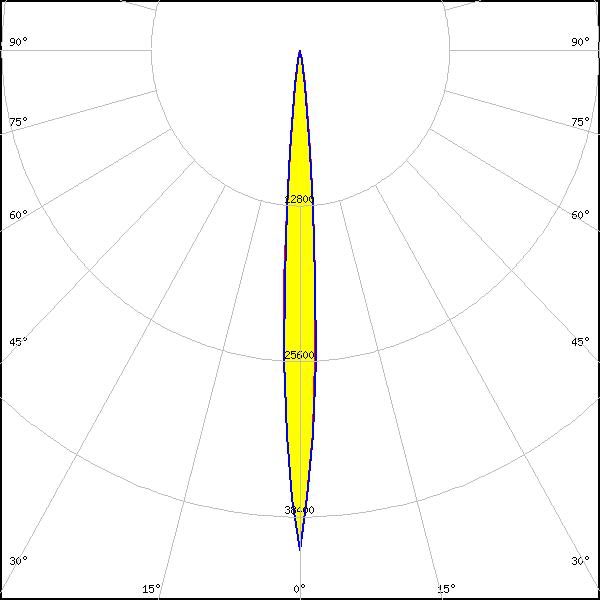

    LED: XOB 4mm
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634b Hekla
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 41.151 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

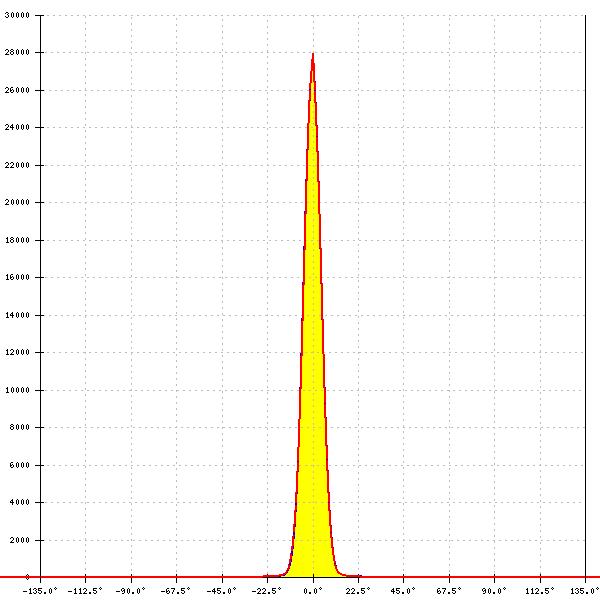

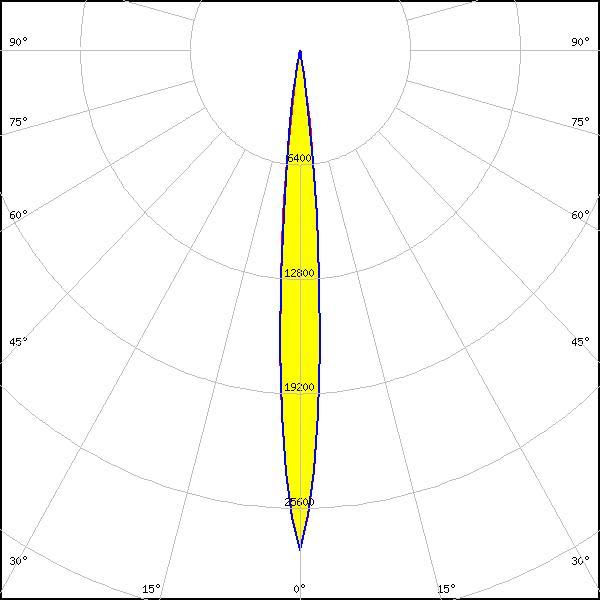

    LED: XOB 6 mm
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634b Hekla
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 27.947 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

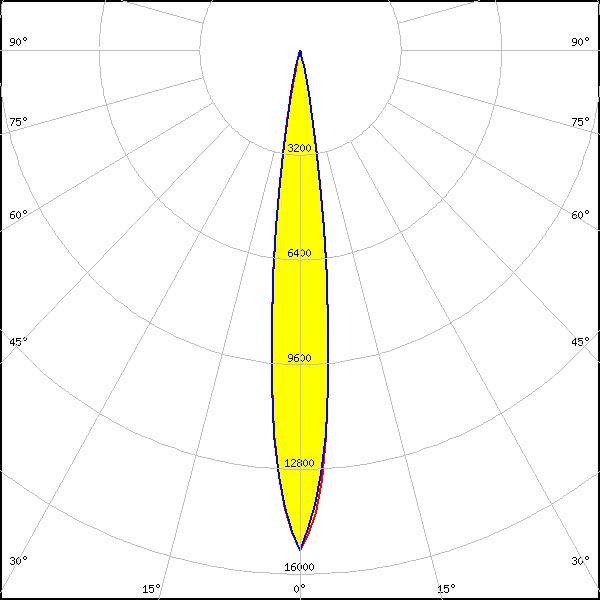

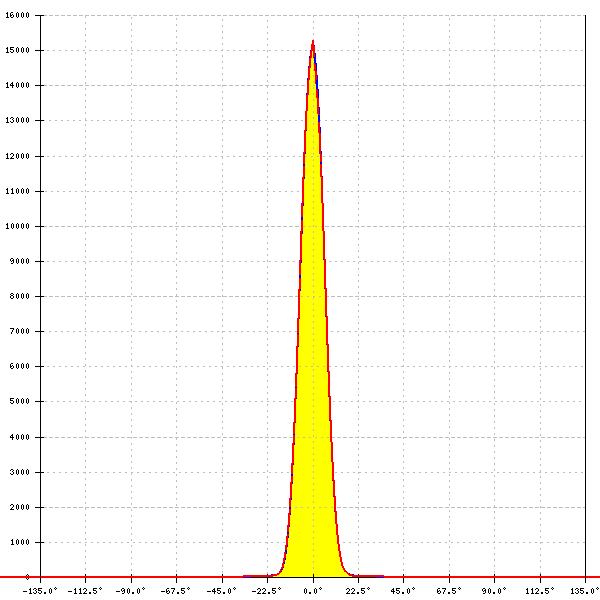

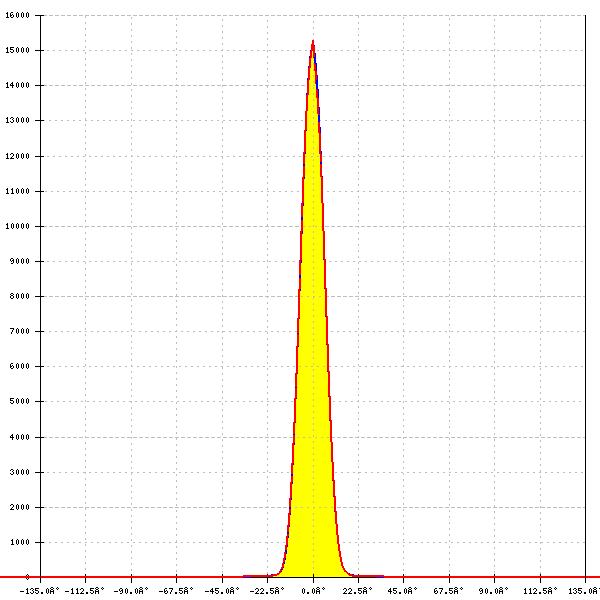

    LED: XOB 9.8 mm
    Ordering code: CP18767_YASMEEN-70-RS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 14°
    FWTM: 24°
    Peak intensity: 15.274 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
