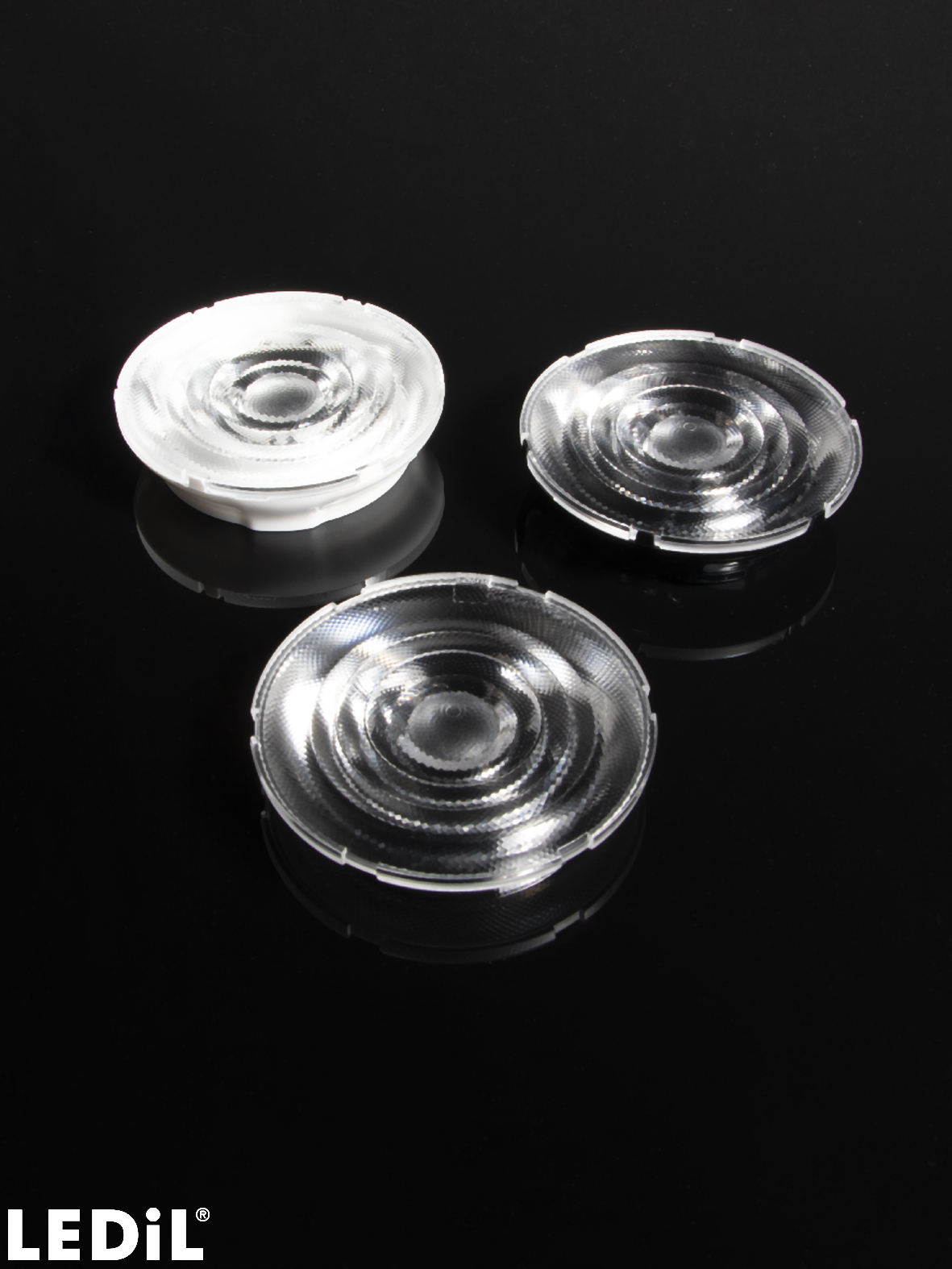

    AMY-70-RS

    Print

    ~13° spot beam with tight cutoff

    B2 variants fit ∅35 mm B+W and BJB connectors as well as SOCKET-B-35. B50 variants fit ∅50 mm B+W and BJB connectors. Variants in PC are also available.

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      70 mm
    • Height:
      11.81 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    • AMY-70-RS
      Single lens
      PMMA
    • AMY-70-HLD2-C-WHT
      Holder
      PC
    • AMY-70-HLD2-C
      Holder
      PC
    • AMY-70-HLD2-B50-WHT
      Holder
      PC
    • AMY-70-HLD2-B50
      Holder
      PC
    • AMY-70-HLD2-B-WHT
      Holder
      PC
    • AMY-70-HLD2-B
      Holder
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C18516_AMY-70-RS
      clear
    • Quantity in box:
      285 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.70 kg
    • MPQ:
      15 pcs
    • MOQ:
      285 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      9.70 kg
    • Assembly

      (single lens, holder)

    • CP19105_AMY-70-RS-B2
      black,Holder B
    • CP19121_AMY-70-RS-B2-WHT
      white,Holder B
    • CP19648_AMY-70-RS-B50
      black,Holder B
    • CP19656_AMY-70-RS-B50-WHT
      white,Holder B
    • CP19045_AMY-70-RS-C2
      black,Holder C
    • CP19112_AMY-70-RS-C2-WHT
      white,Holder C
    • Quantity in box:
      210 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.00 kg
    • MPQ:
      15 pcs
    • MOQ:
      210 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      9.00 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18516_AMY-70-RS
      CP19045_AMY-70-RS-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Article

    Finding the perfect spot – The art and science of narrowing beam angles

    News

    The real spot beams with YASMEEN and AMY

    Catalogue

    LEDiL Latest products catalogue

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    New beams and products – December 2024

    News

    Illuminate with elegance – discover the versatility of AMY

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Alteme Lior luminaire

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

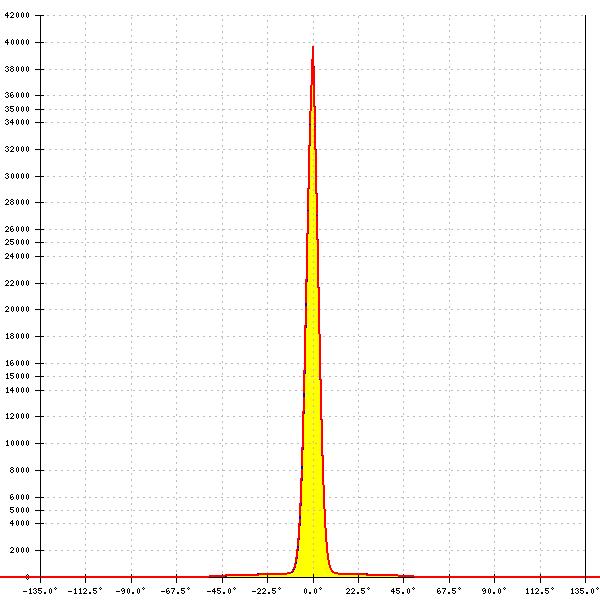

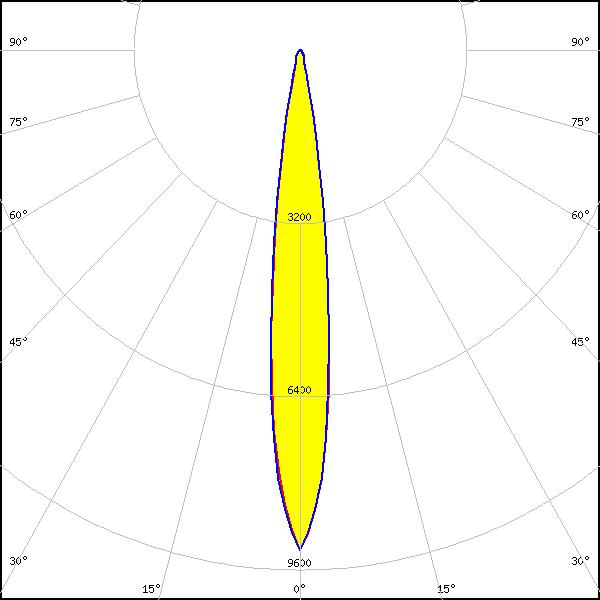

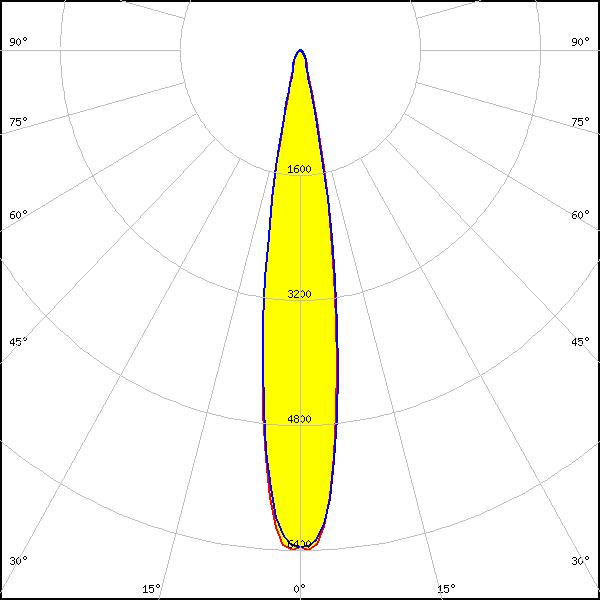

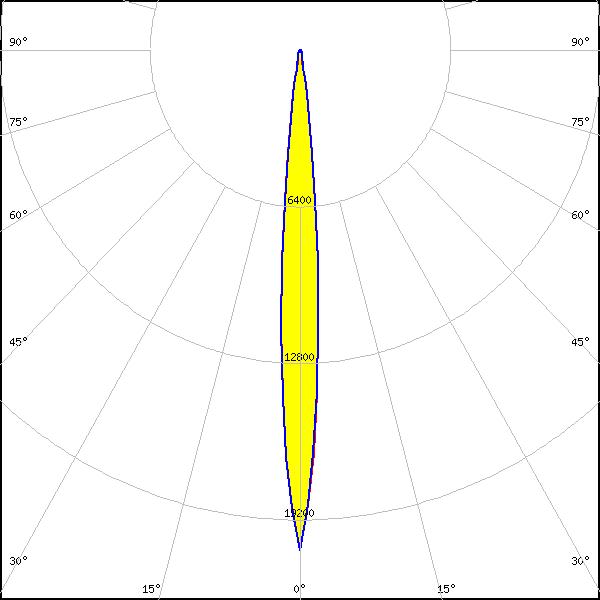

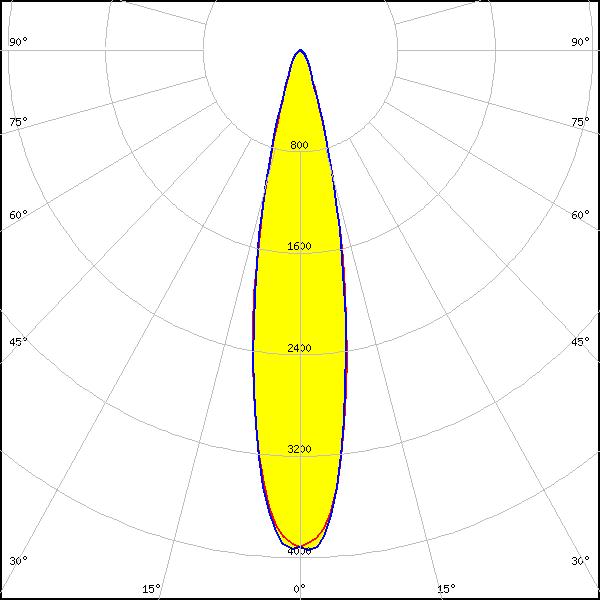

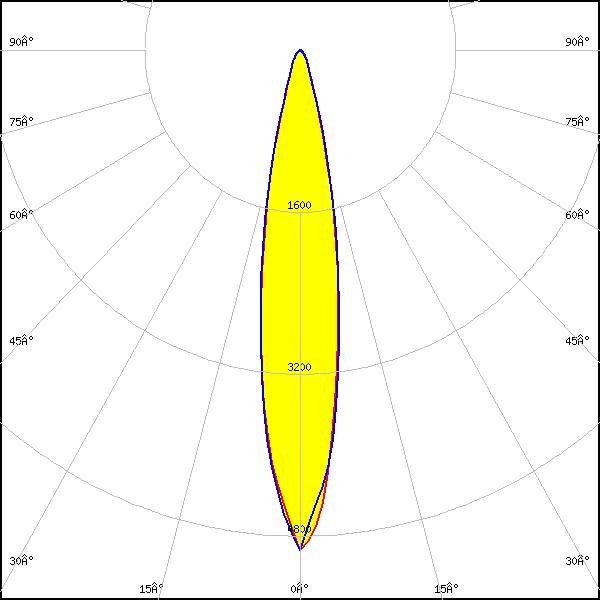

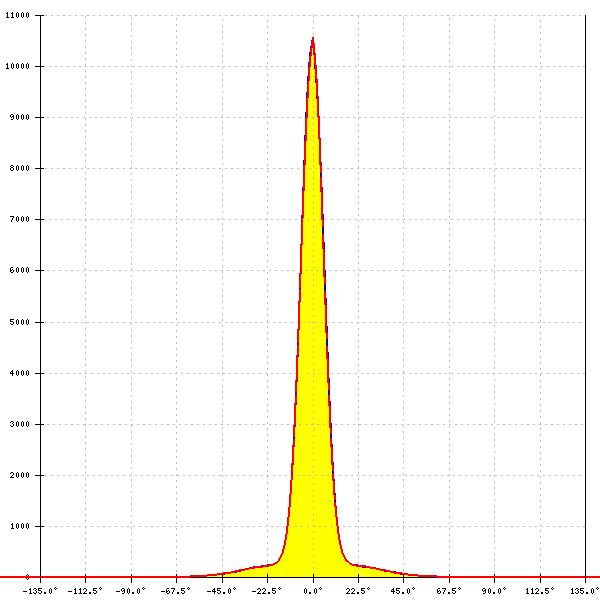

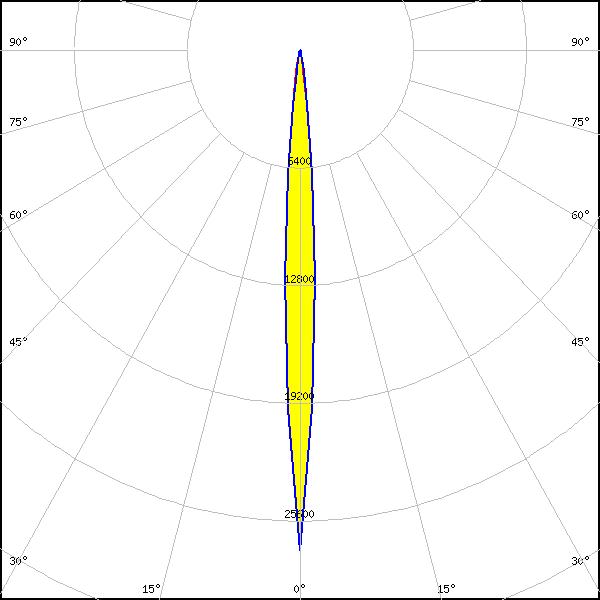

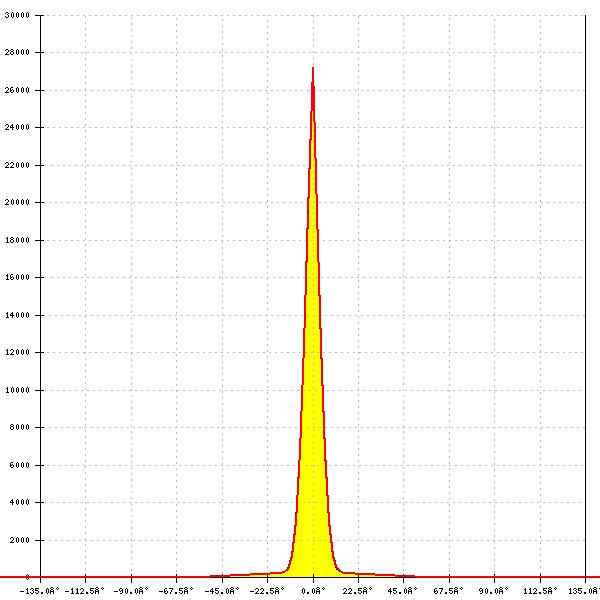

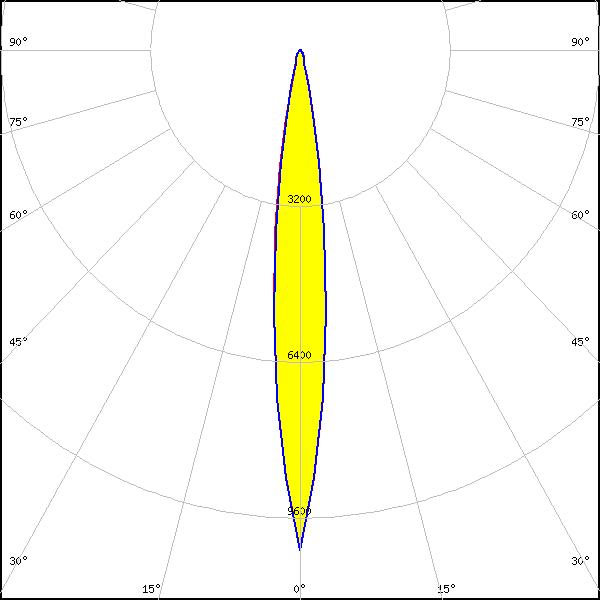

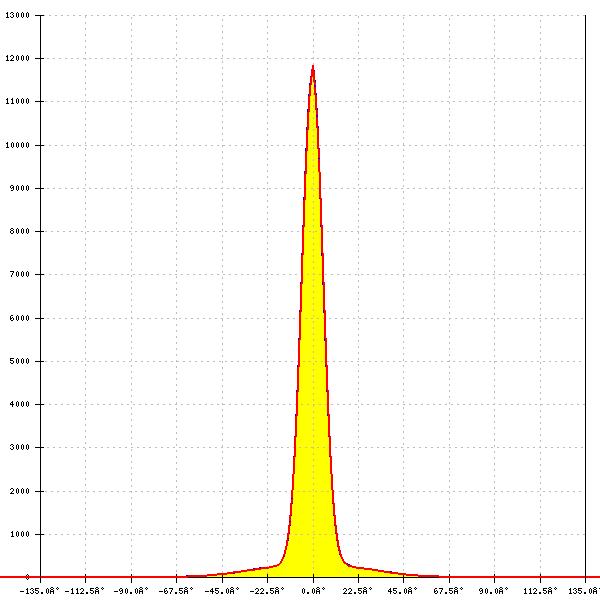

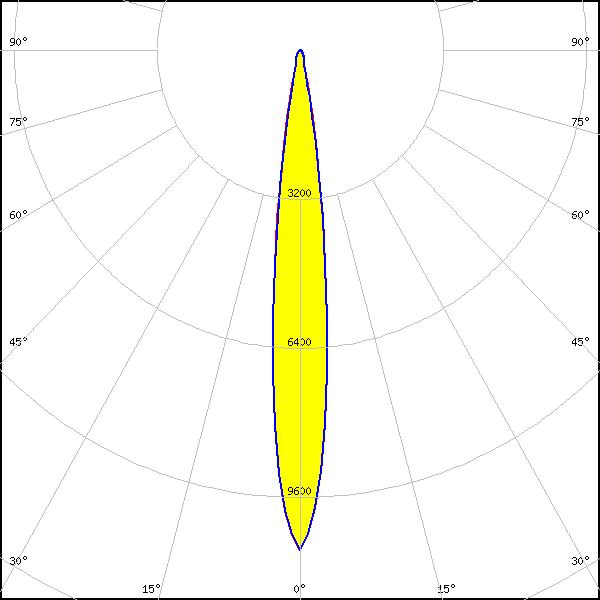

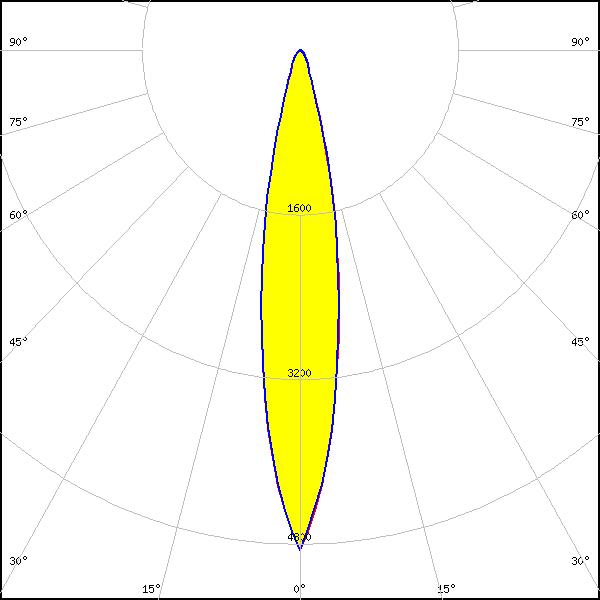

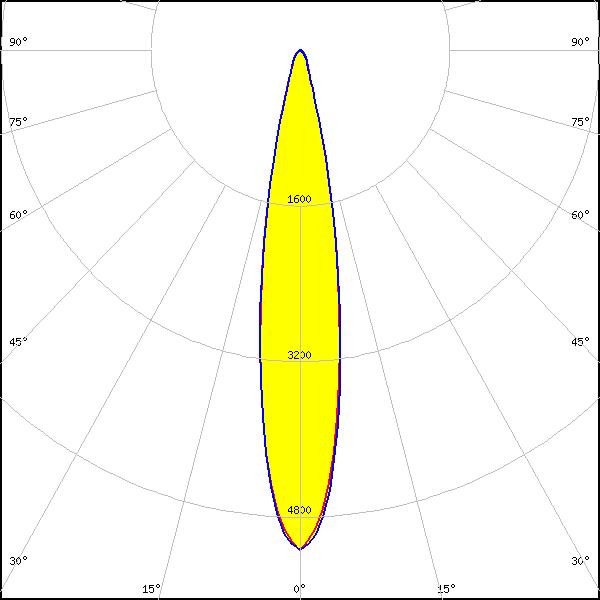

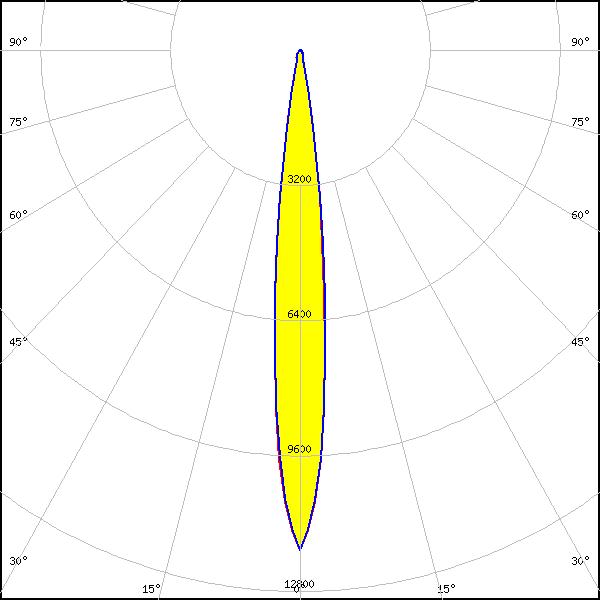

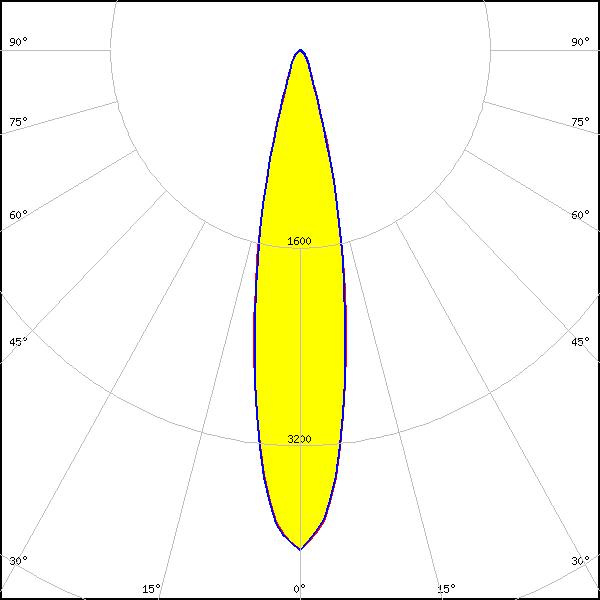

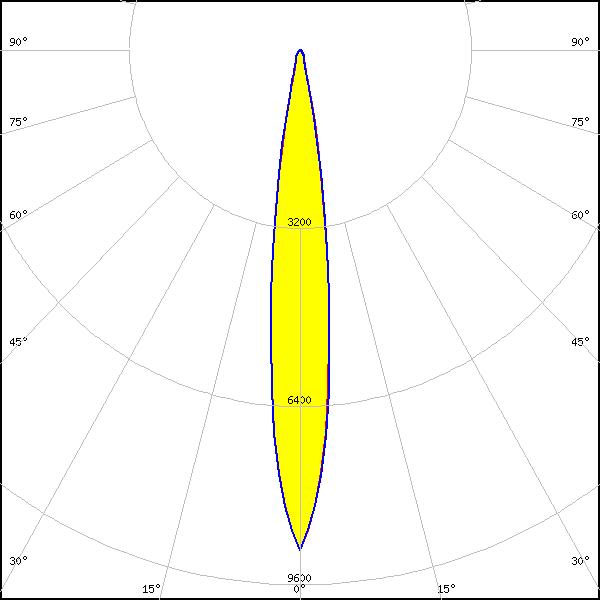

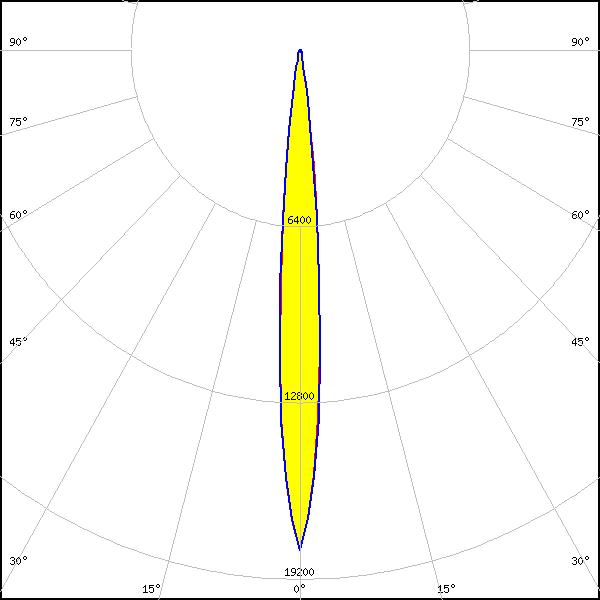

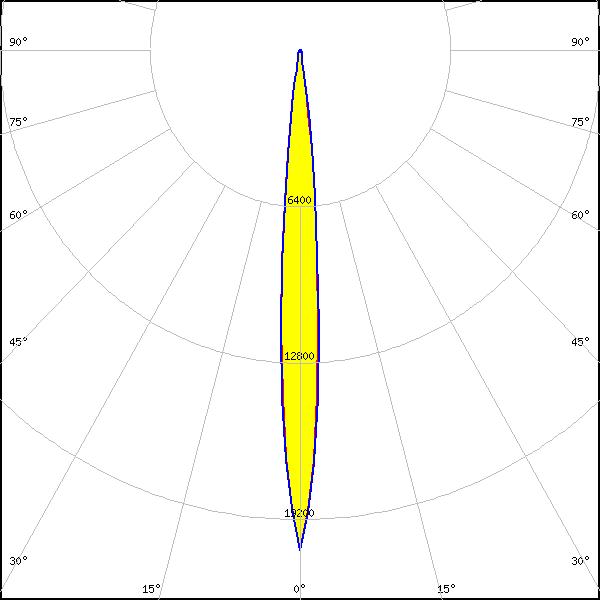

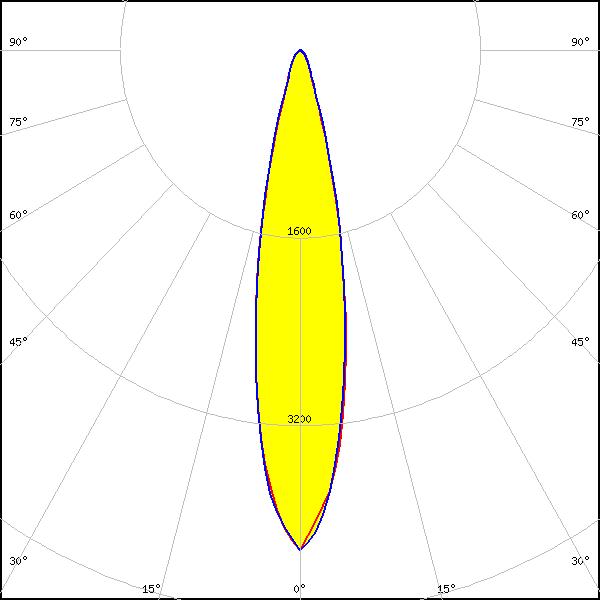

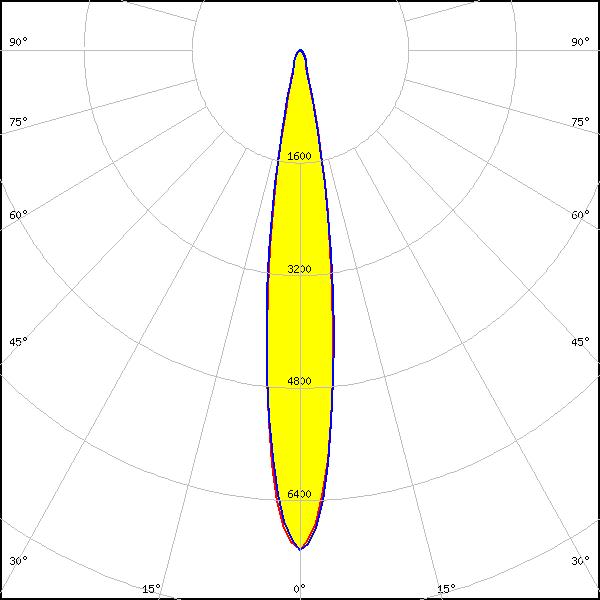

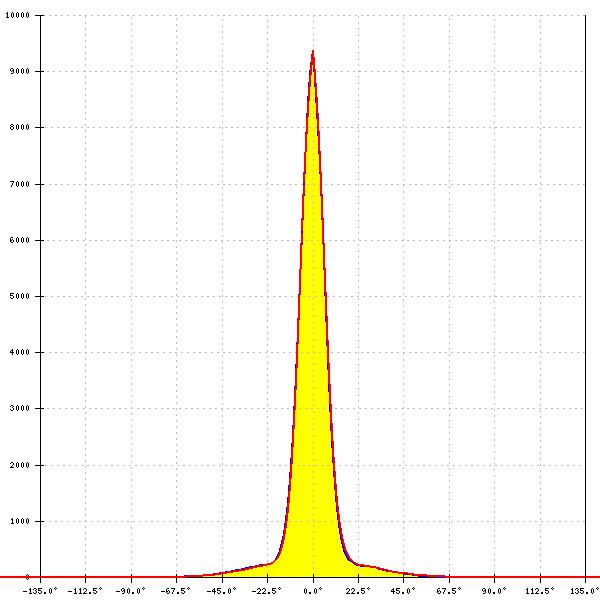

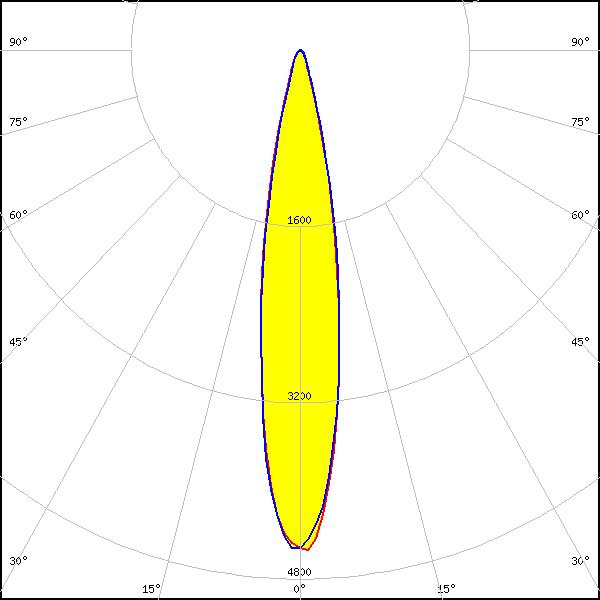

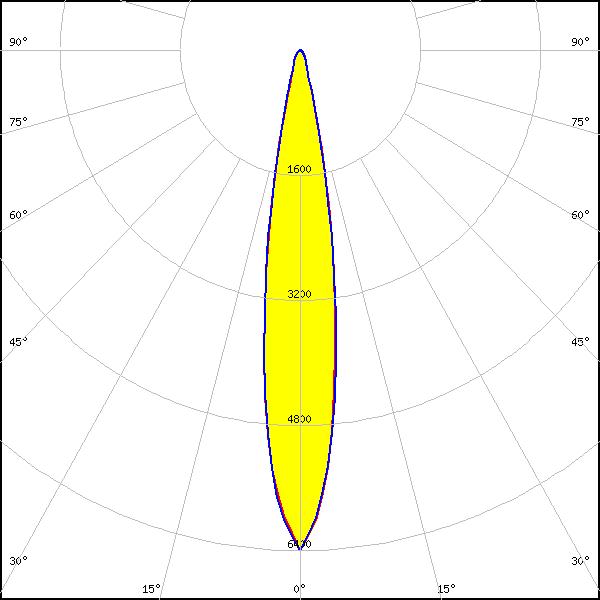

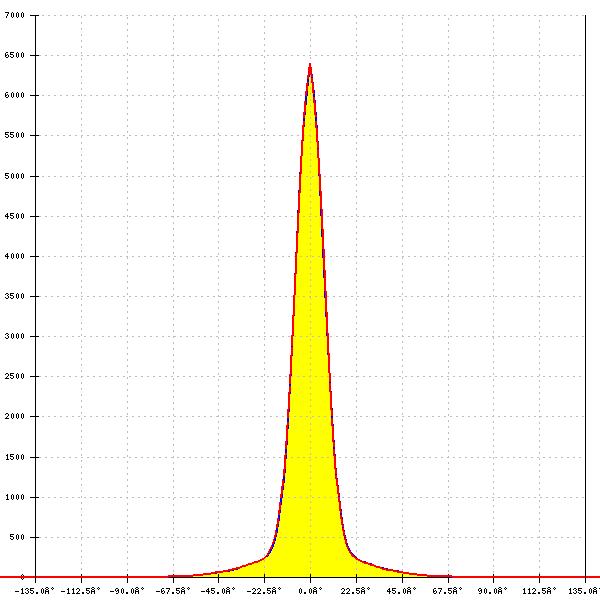

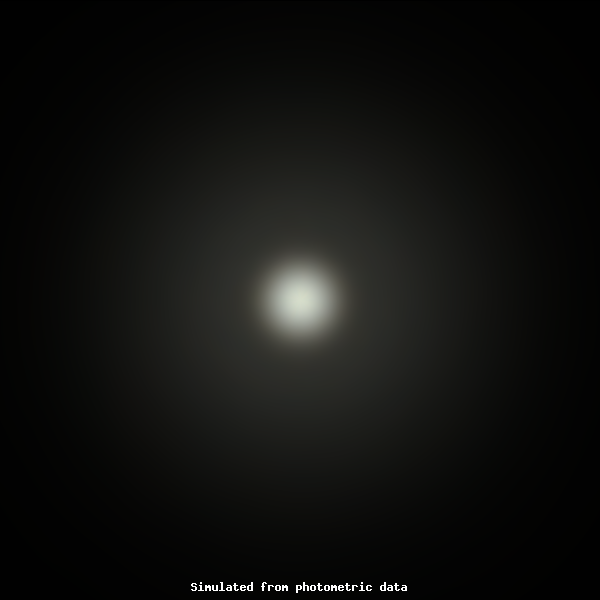

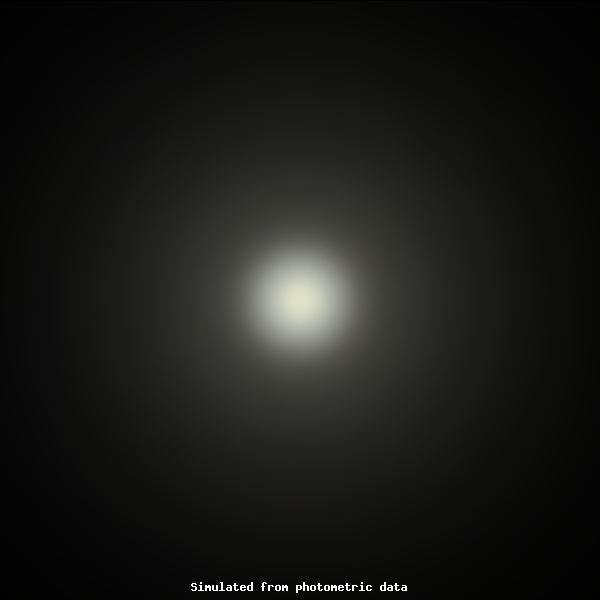

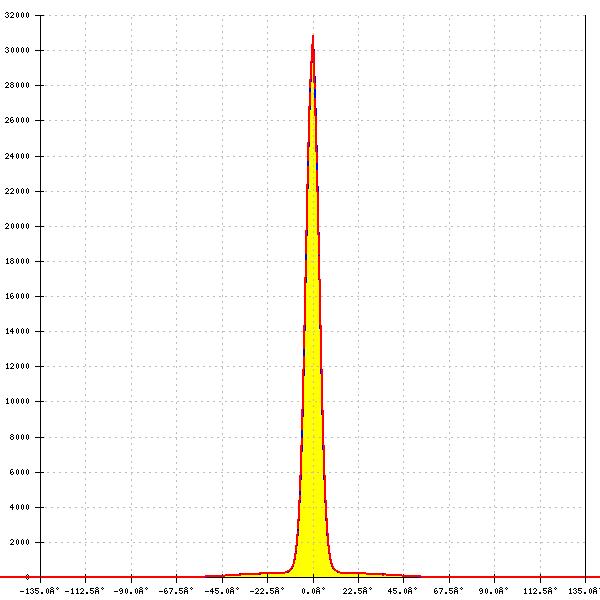

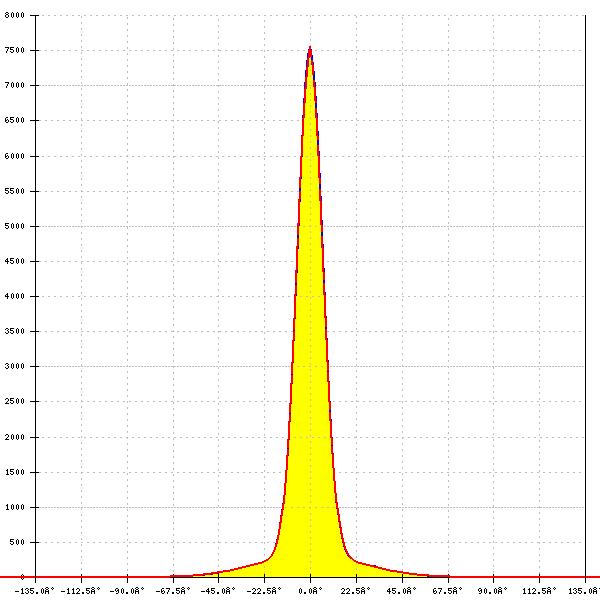

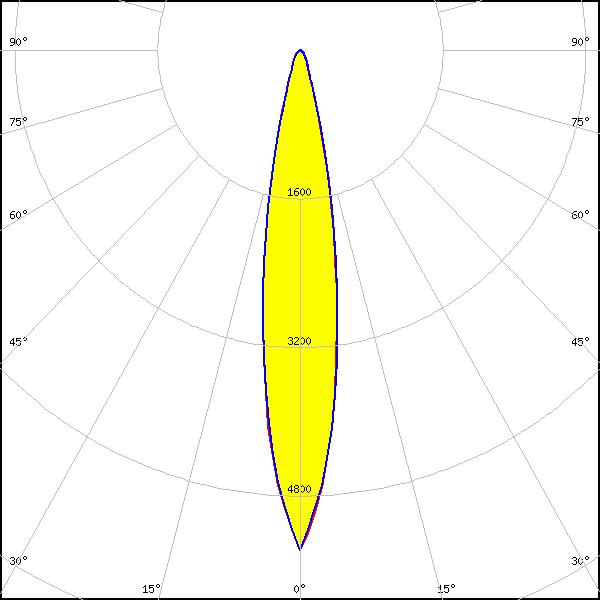

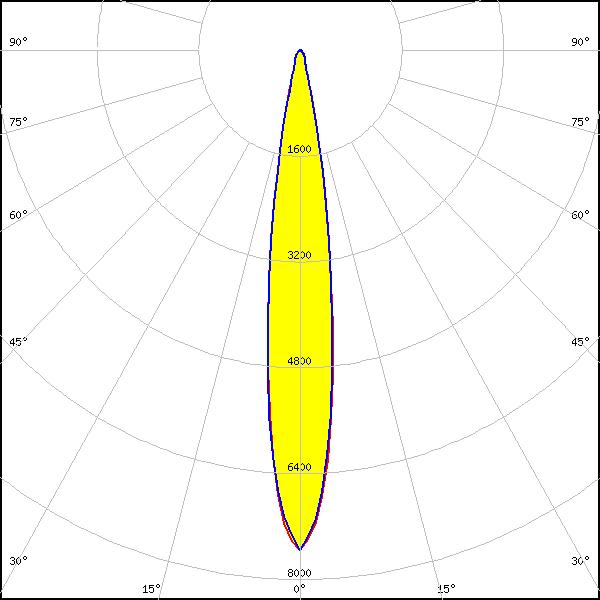

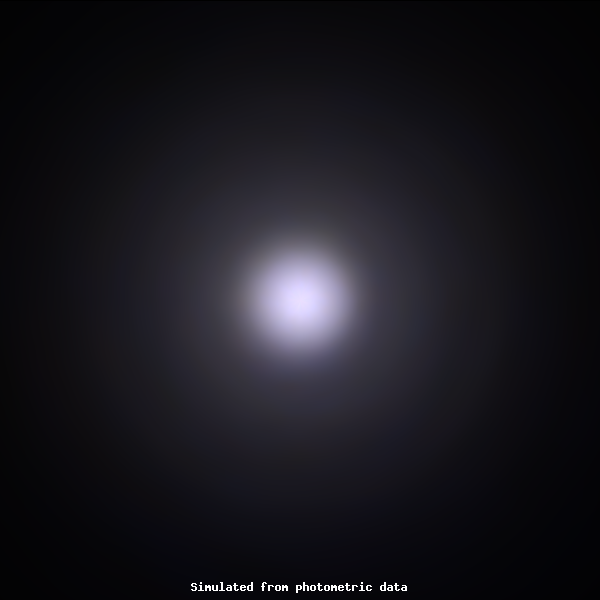

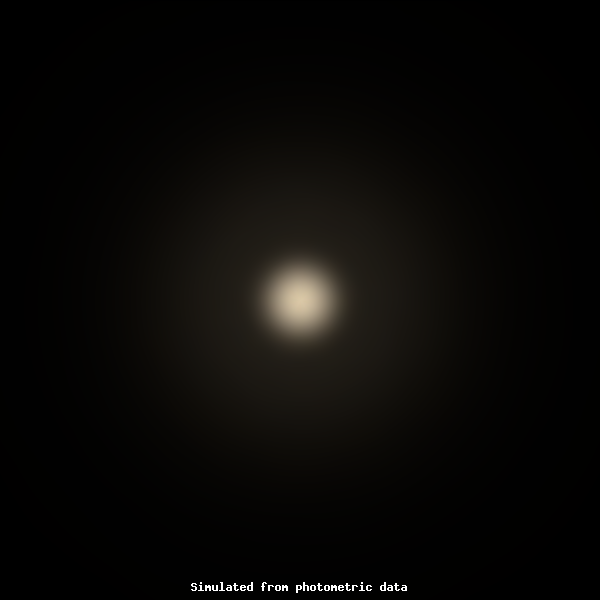

    Optical results

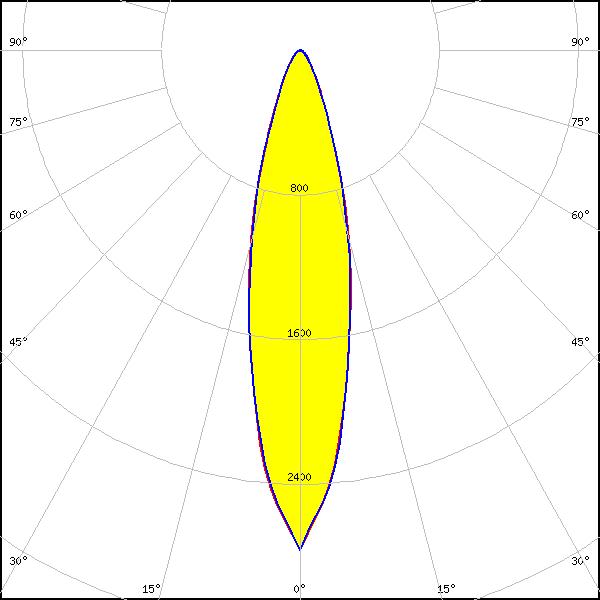

    LED: V18 Gen 8-9
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 19.6 mm
    Required components:
    Bender Wirth: 639b Hekla XL
    FWHM: 24°
    FWTM: 52°
    Peak intensity: 2.766 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

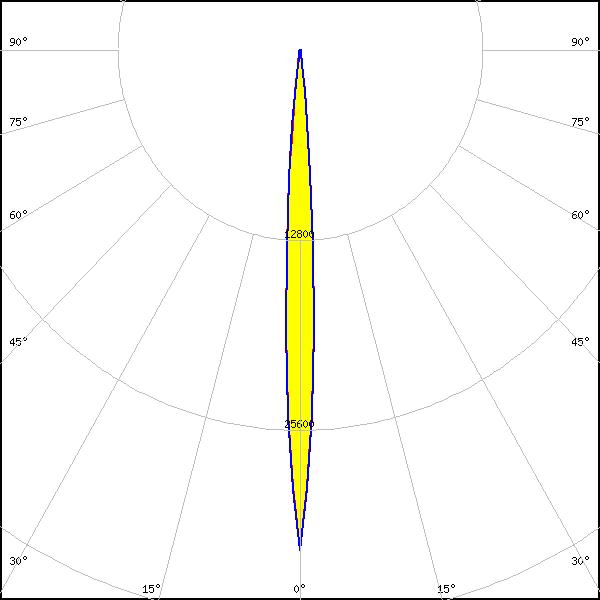

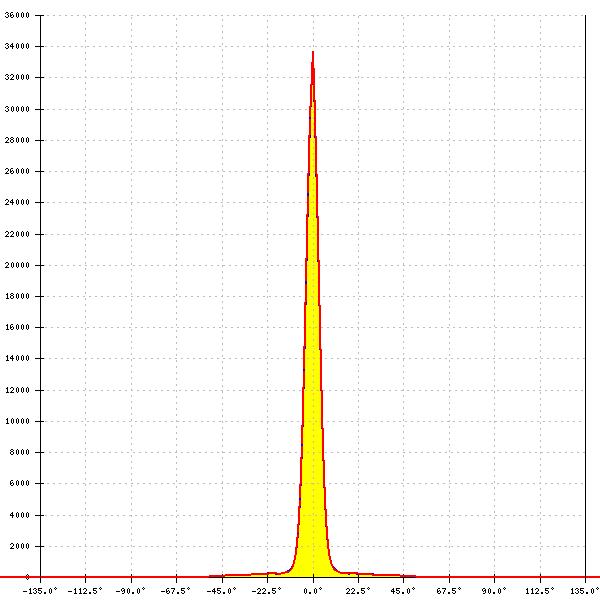

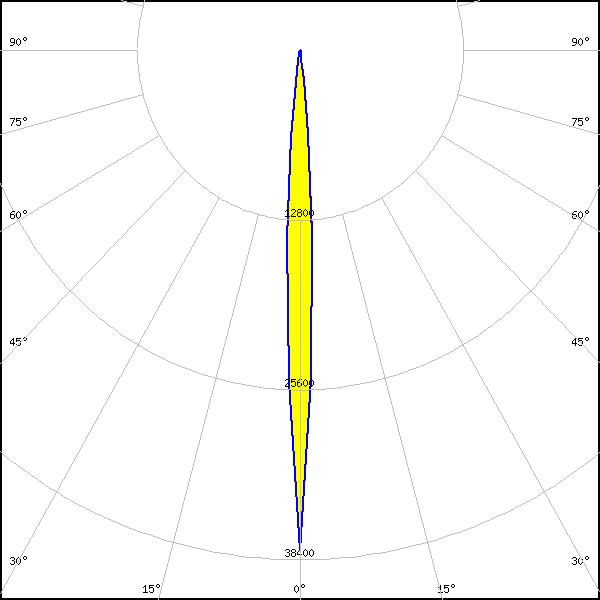

    LED: V3 HD Gen 8
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 3.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 33.682 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

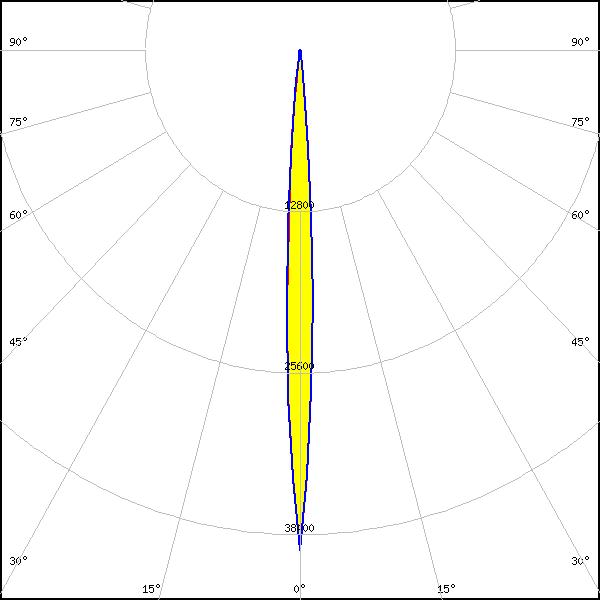

    LED: V3 HD Gen 8 FC
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 2.9 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 39.653 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

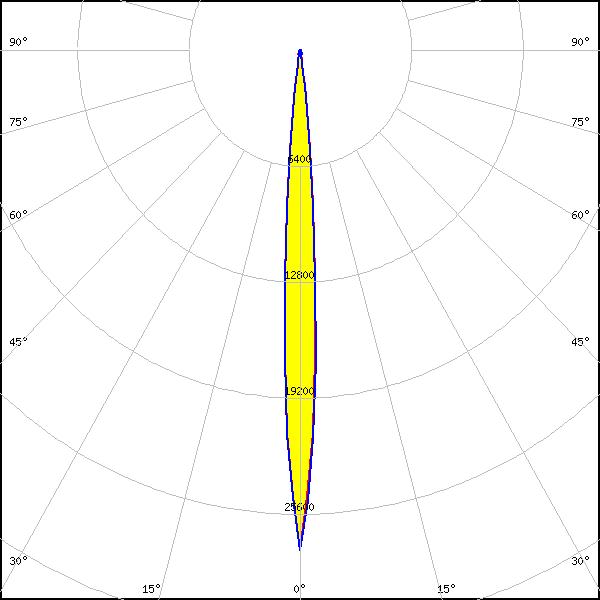

    LED: V4 HD Gen 8
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 4.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 27.596 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

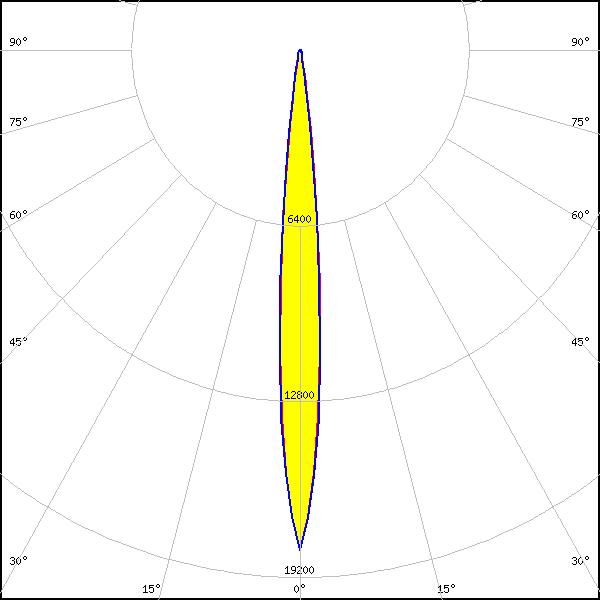

    LED: V6 Gen 8-9
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.217 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 Gen 8-9
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.175 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

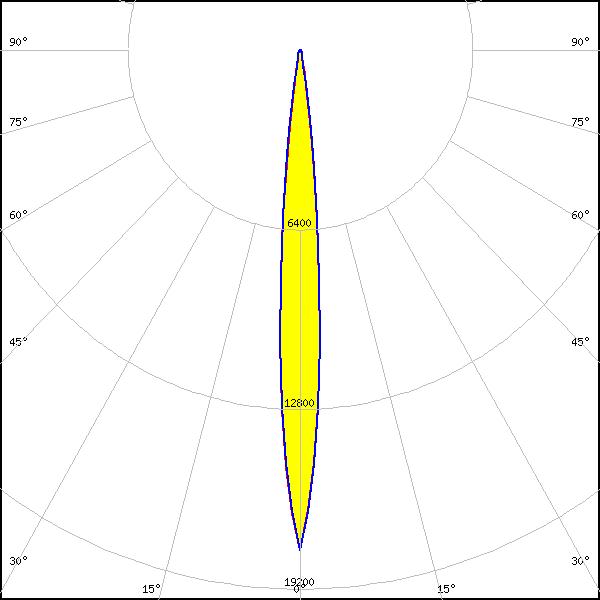

    LED: V6 HD Gen 8
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 17.819 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

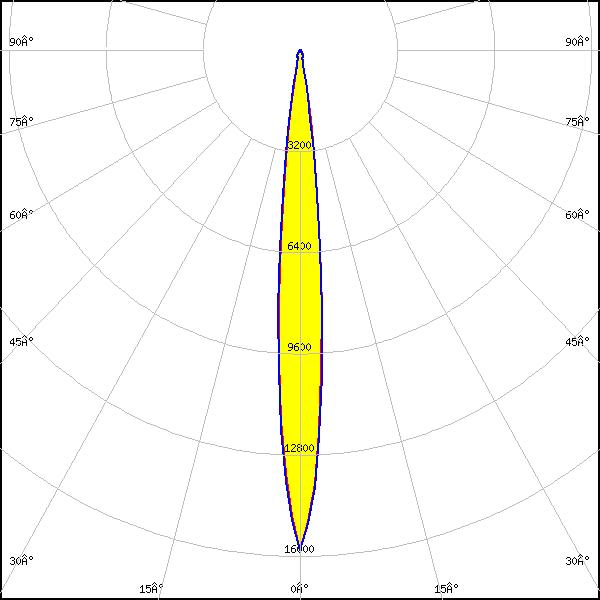

    LED: V6 HD Gen 8
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.6 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 15.811 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

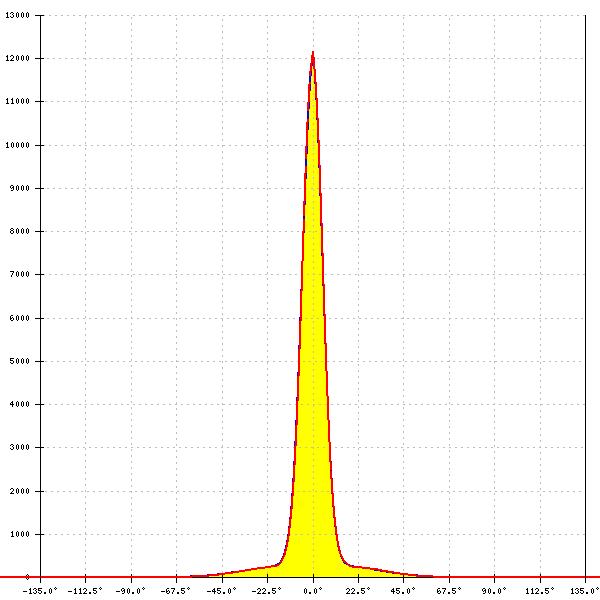

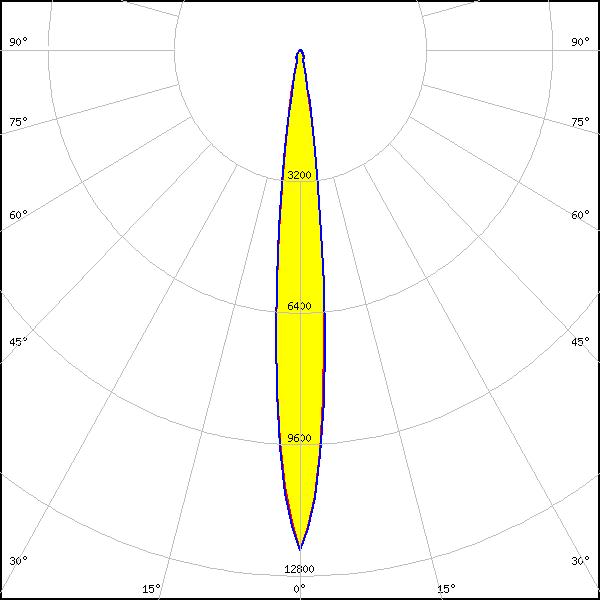

    LED: V9 HD Gen 8
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 12.174 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

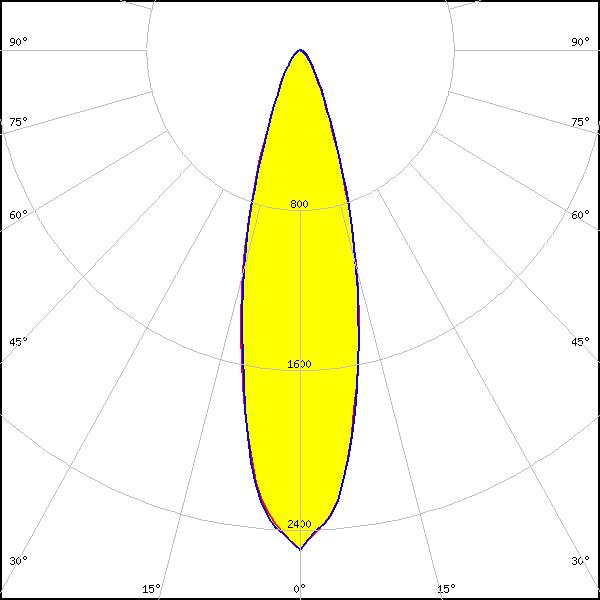

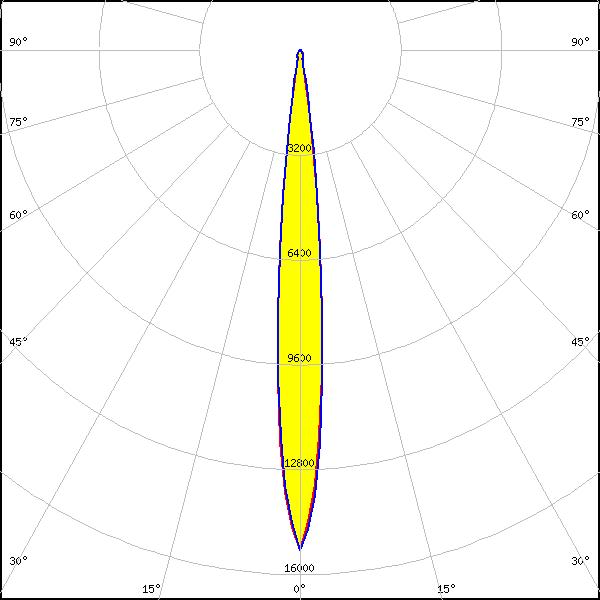

    LED: VERO18
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 18.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 28°
    FWTM: 56°
    Peak intensity: 2.500 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

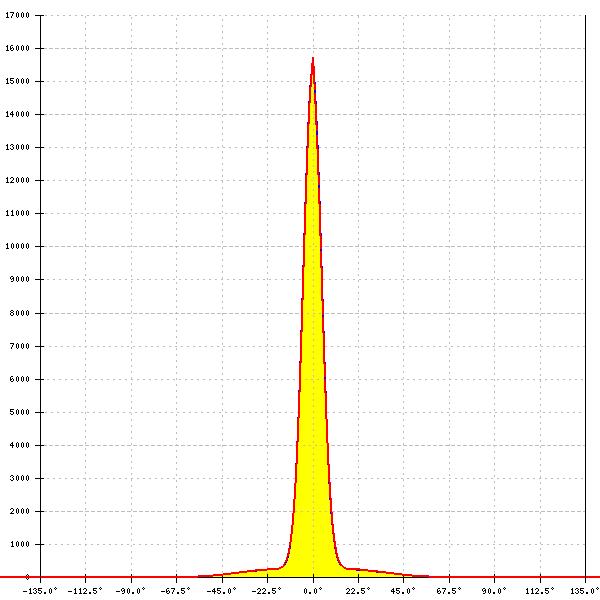

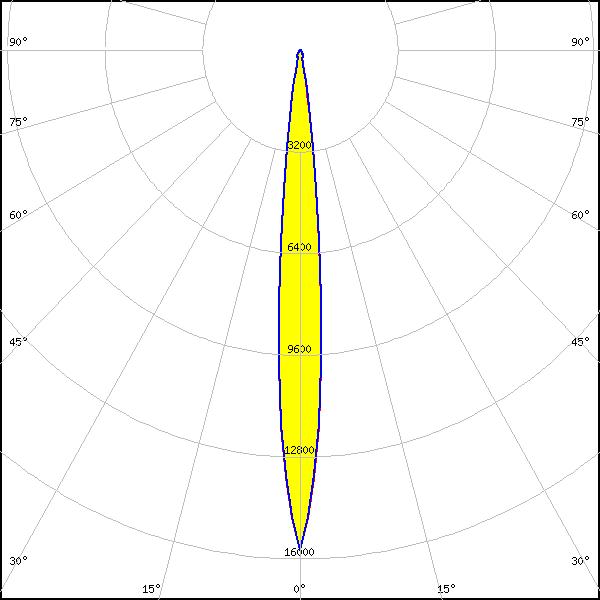

    LED: Vesta DTW 13mm (21W)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 15.734 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

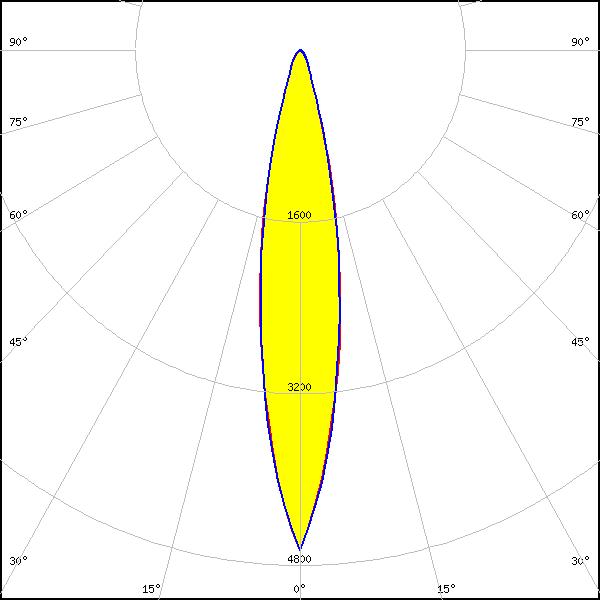

    LED: Vesta DTW 15mm (33W)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 4.660 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

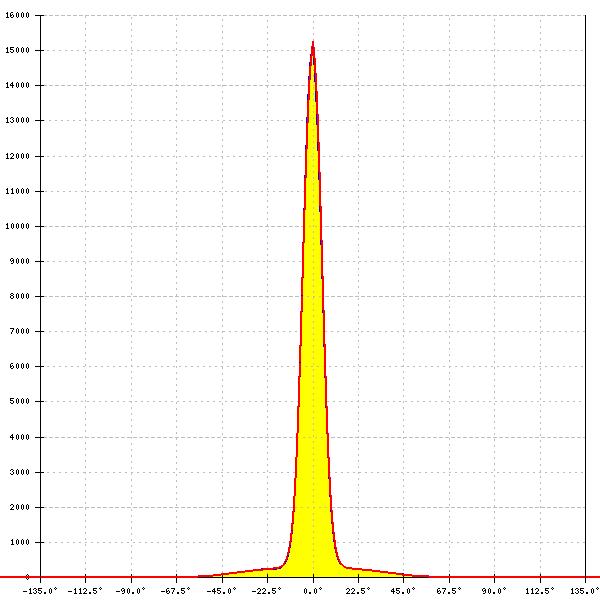

    LED: Vesta DTW 6mm
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 15.258 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

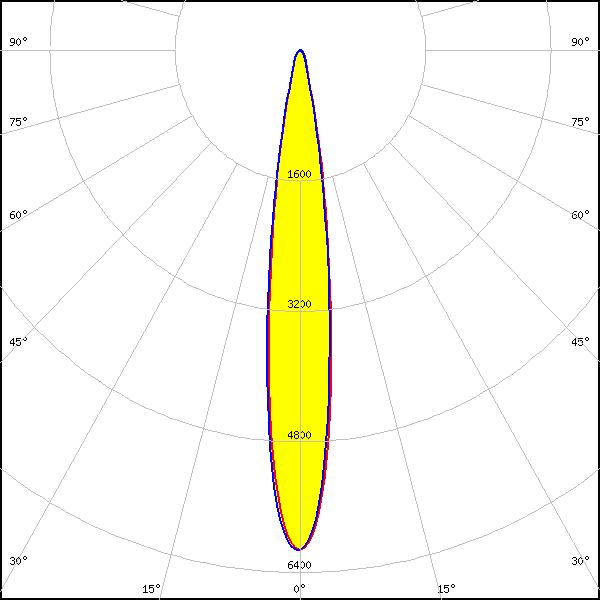

    LED: Vesta RGBW 10mm CSP
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 10.0 mm
    Required components:
    C19950_HEKLA-SOCKET-RZ
    FWHM: 15°
    FWTM: 30°
    Peak intensity: 6.133 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 28
    Light colour/type: RGBW

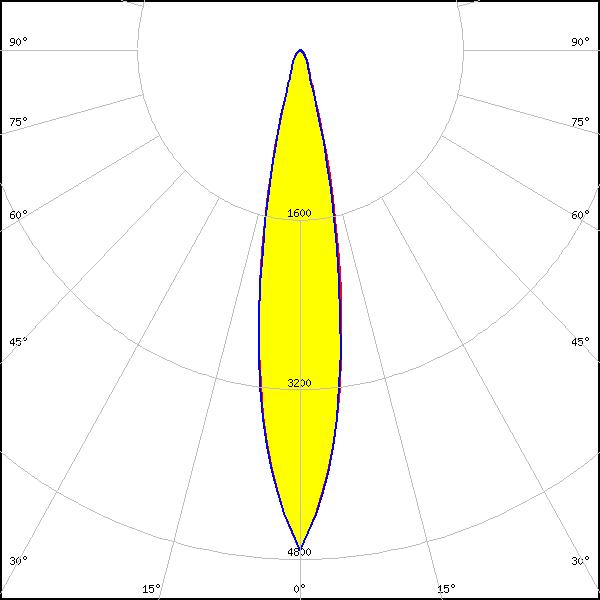

    LED: Vesta SE 13mm TW
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 20°
    FWTM: 37°
    Peak intensity: 4.717 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

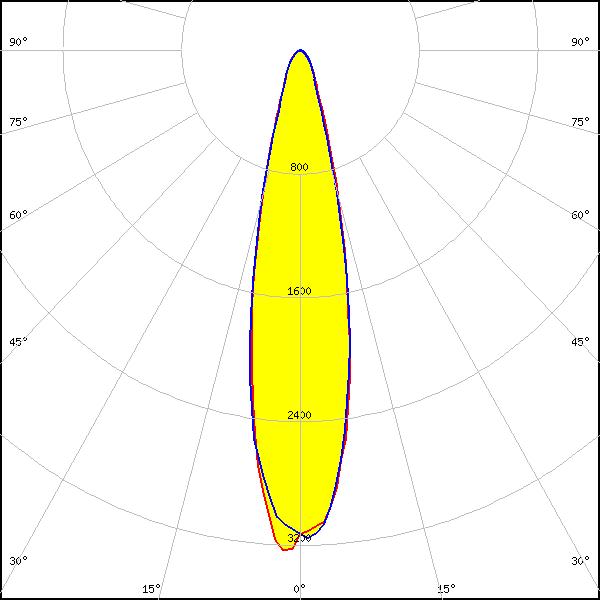

    LED: Vesta TW 13mm (18W) DP
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 492 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 23°
    FWTM: 46°
    Peak intensity: 3.250 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

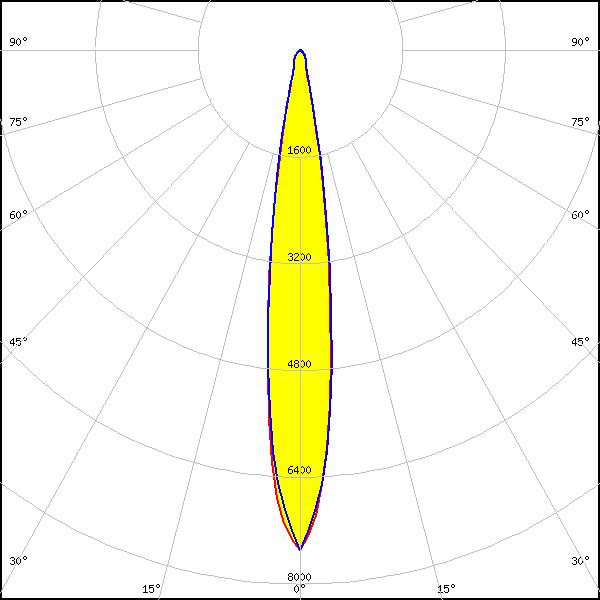

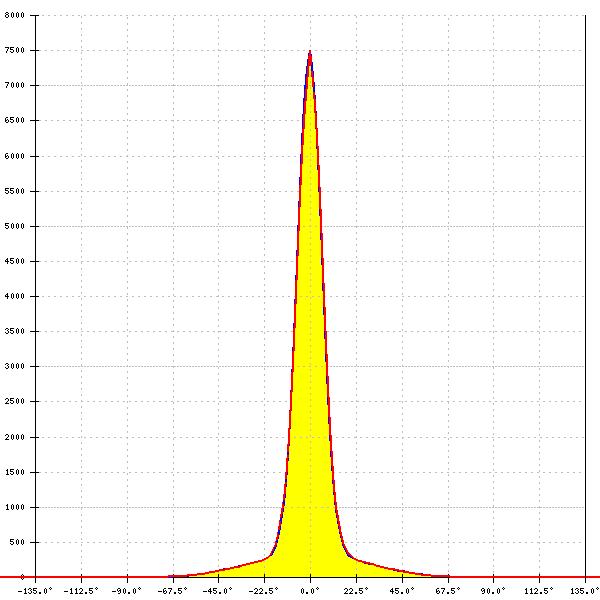

    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 10.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 15°
    FWTM: 29°
    Peak intensity: 7.497 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

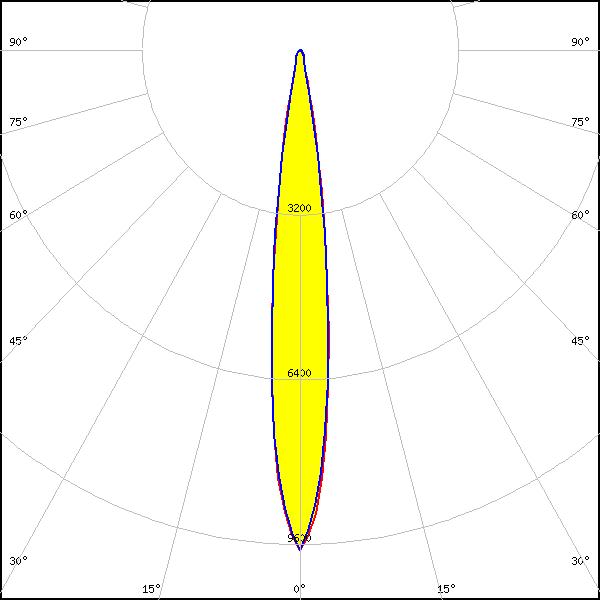

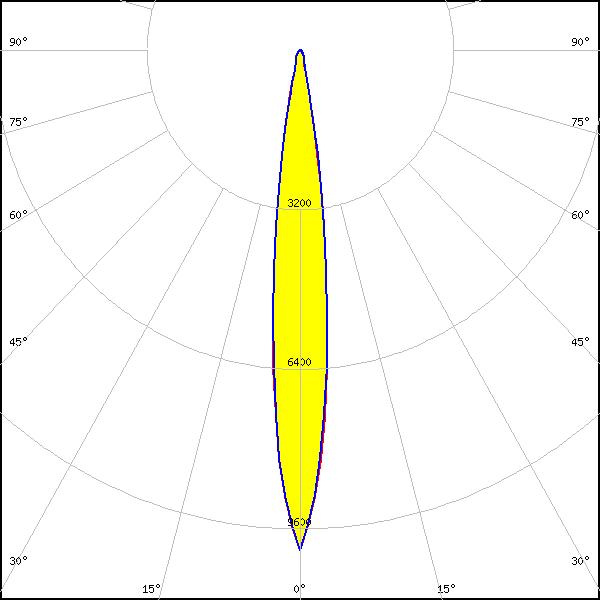

    LED: CLU02x (LES10)
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 9.8 mm
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 9.000 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

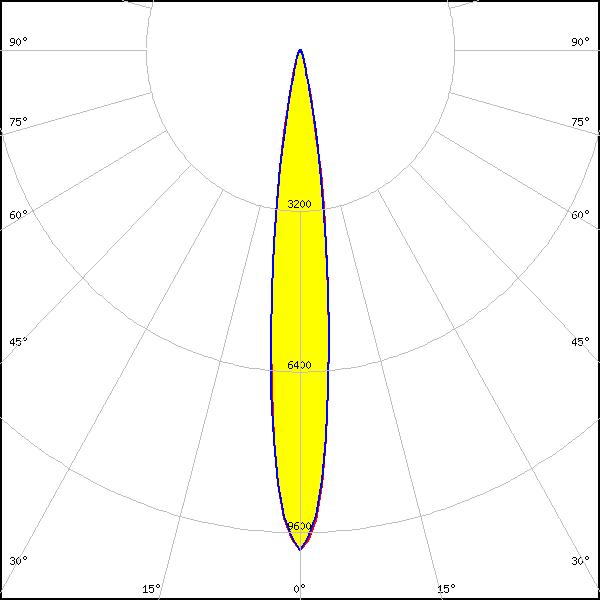

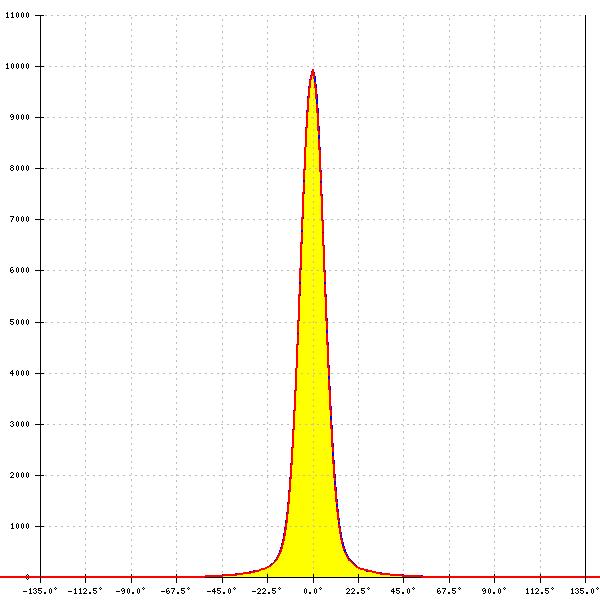

    LED: CLU02x (LES10)
    Ordering code: C18516_AMY-70-RS
    LES size: 9.8 mm
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 9.000 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

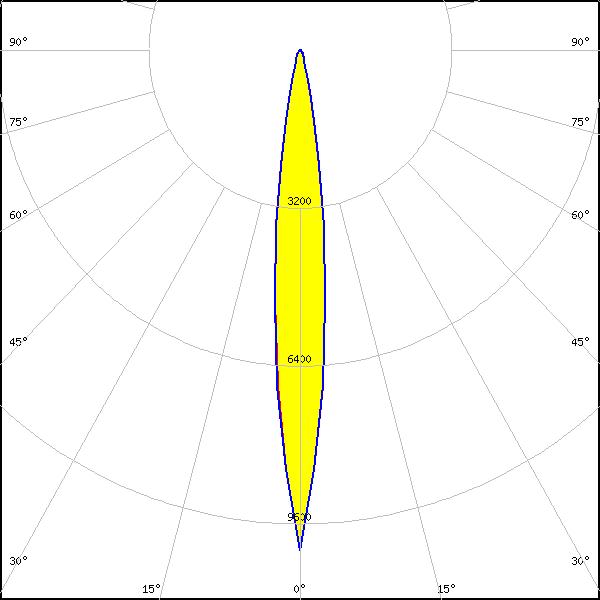

    LED: CLU02x (LES10)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.8 mm
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 9.000 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

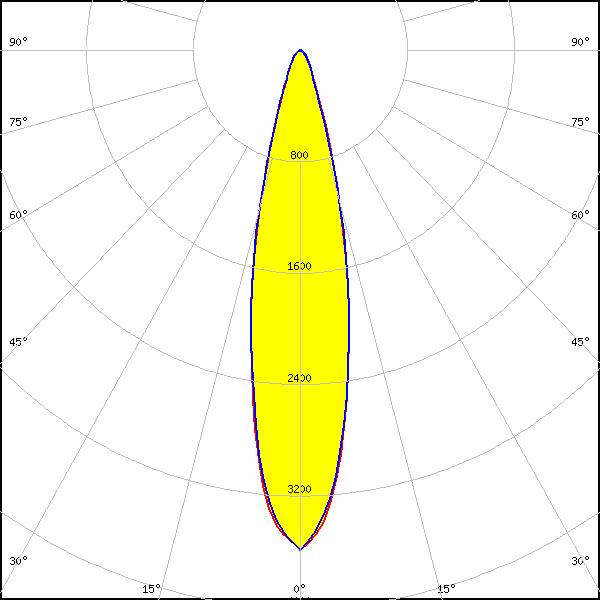

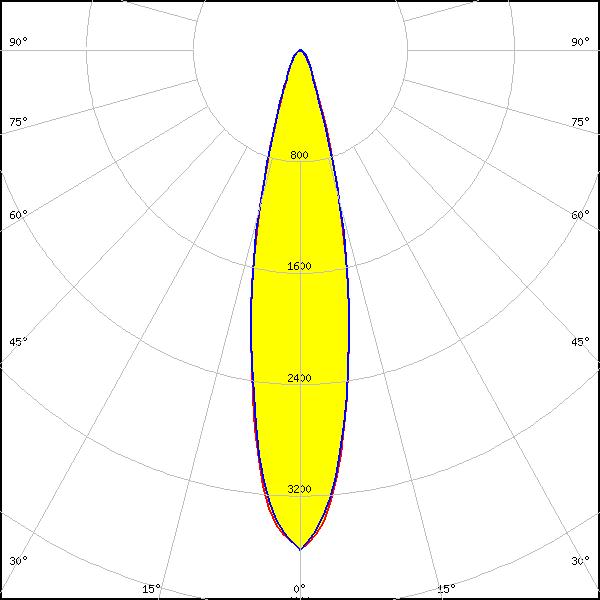

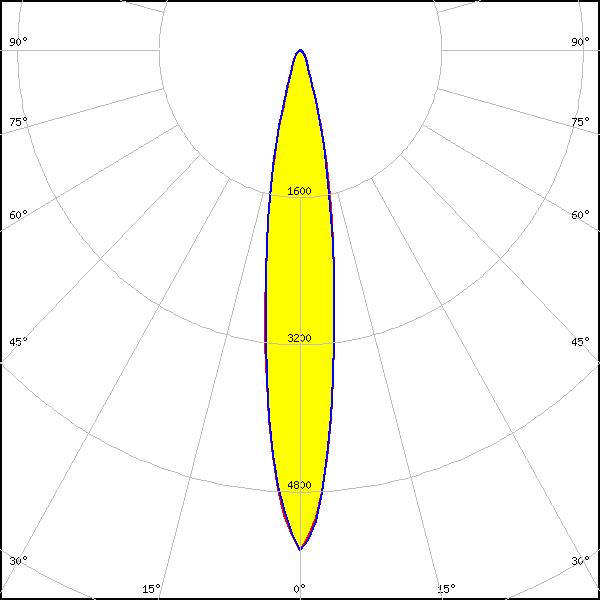

    LED: CLU03Q Type-F
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 3.590 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

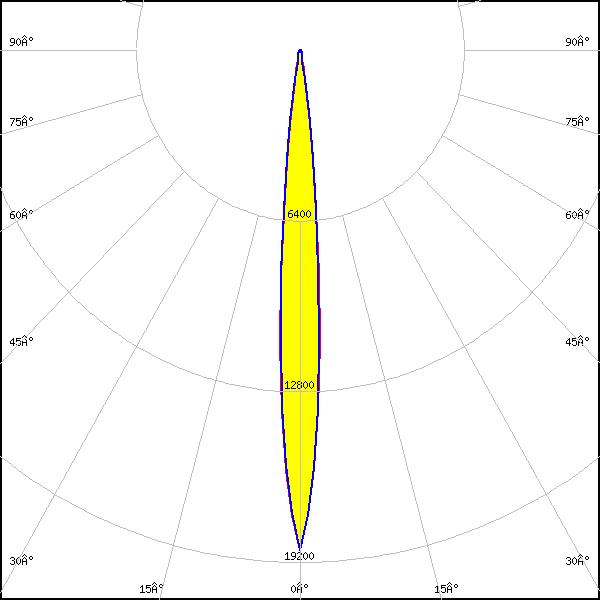

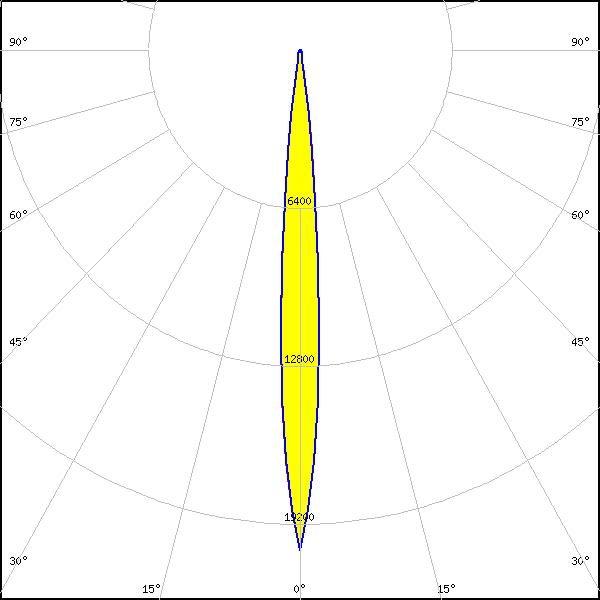

    LED: CLU700/701/702/703
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.744 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

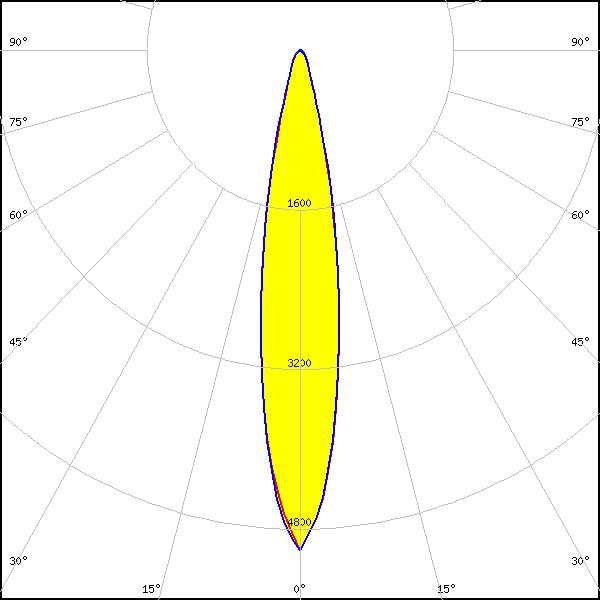

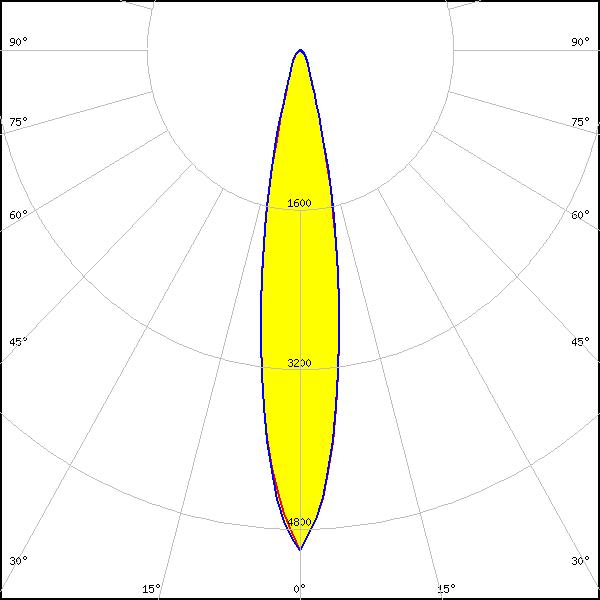

    LED: CLU733 Type-F
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 5.012 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

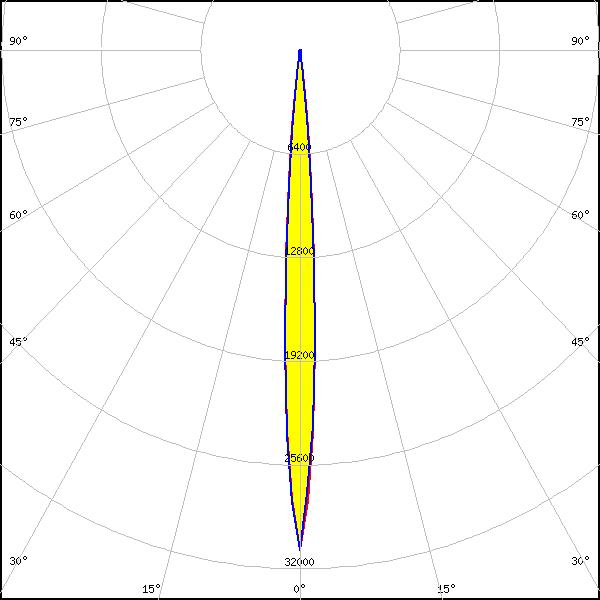

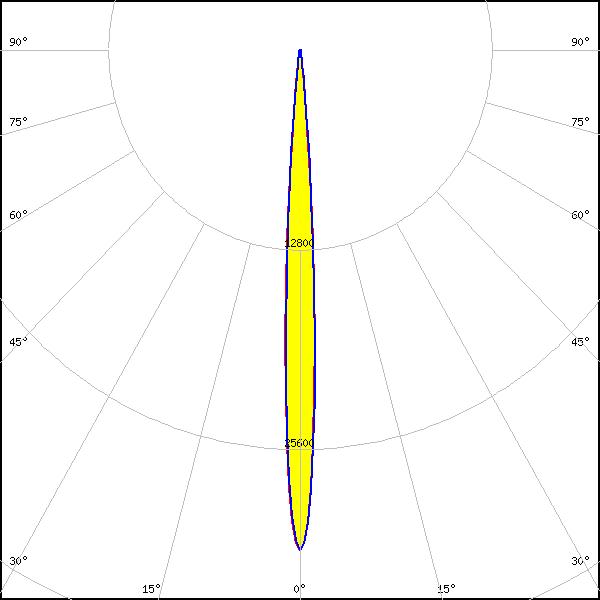

    LED: CLU7L3
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 2.4 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 7°
    FWTM: 13°
    Peak intensity: 32.837 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

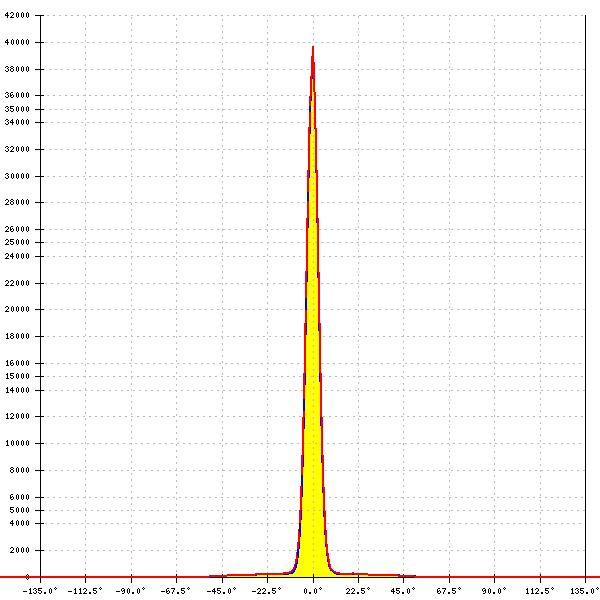

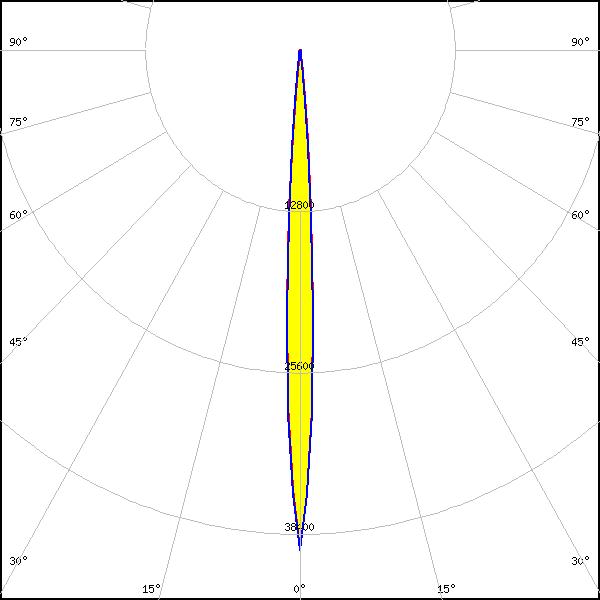

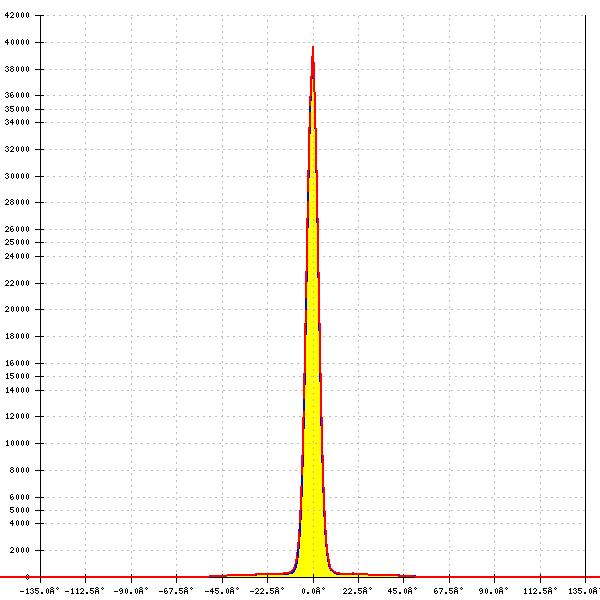

    LED: CHA0304
    Ordering code: CP19112_AMY-70-RS-C2-WHT
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 39.684 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

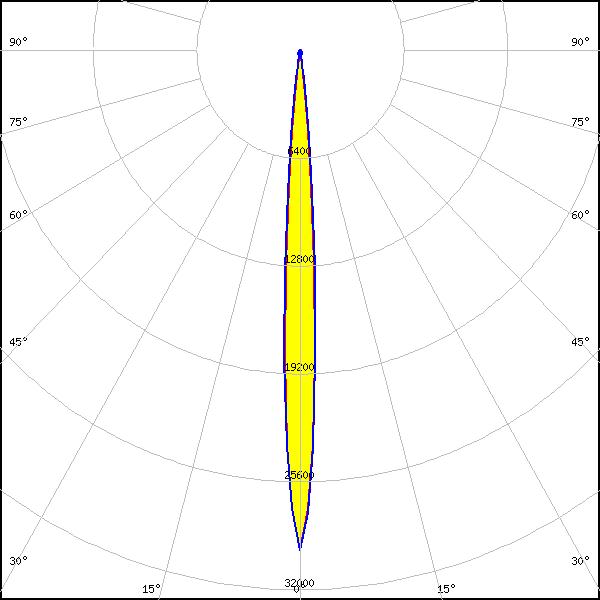

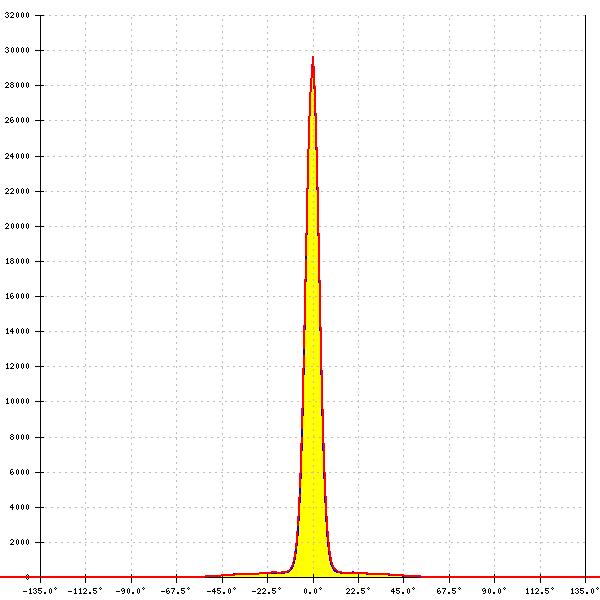

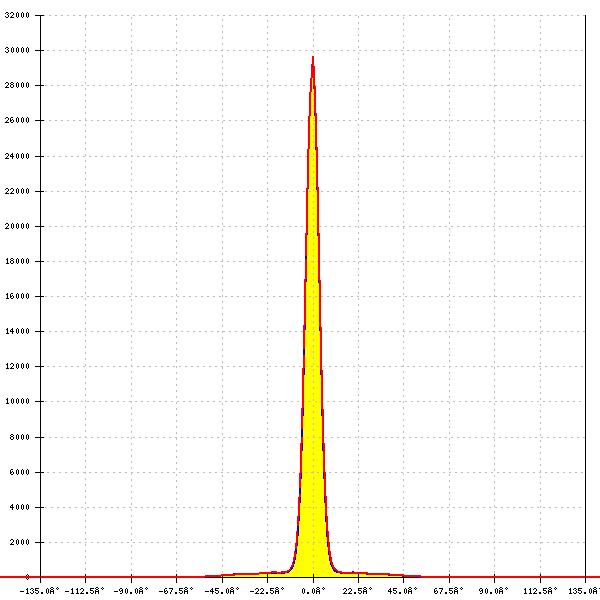

    LED: CHA0410
    Ordering code: CP19112_AMY-70-RS-C2-WHT
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 29.670 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

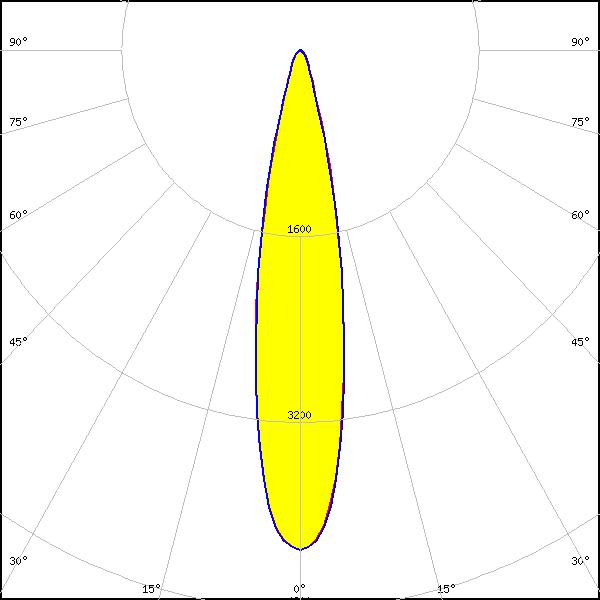

    LED: CMA1840
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 20°
    FWTM: 39°
    Peak intensity: 4.301 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

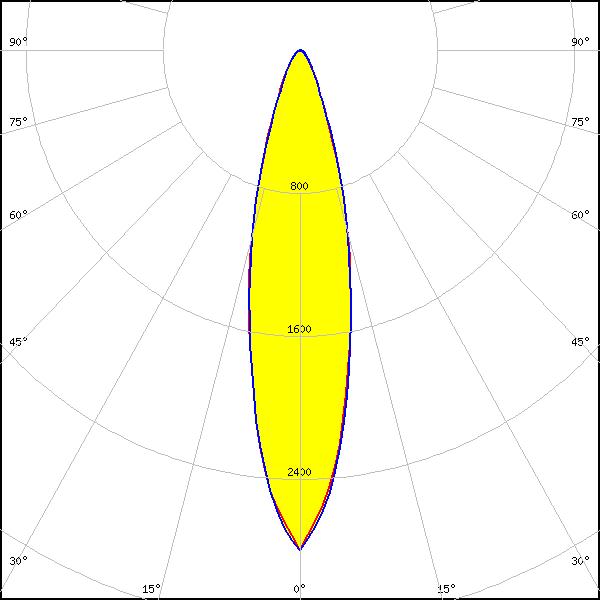

    LED: CMA2550
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 639a Hekla XL
    FWHM: 24°
    FWTM: 52°
    Peak intensity: 2.798 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

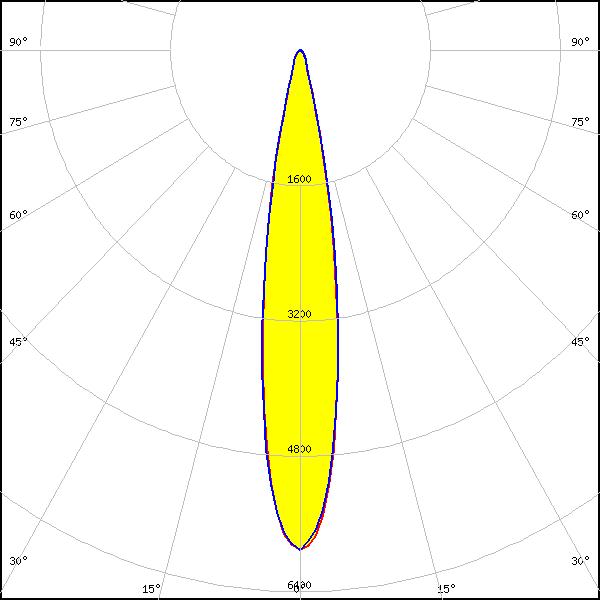

    LED: CMB1818-25
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 18°
    FWTM: 32°
    Peak intensity: 5.912 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

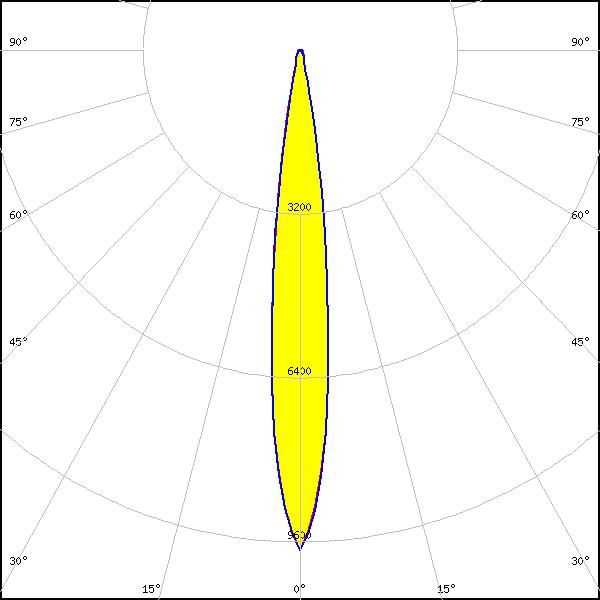

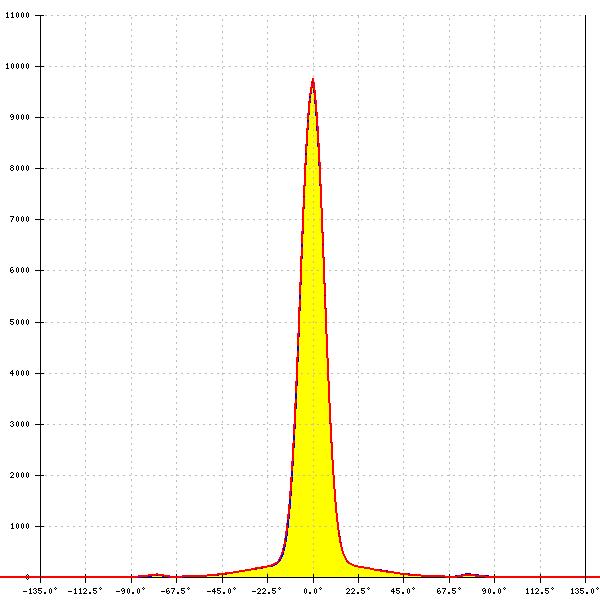

    LED: CMT14xx
    Ordering code: C18516_AMY-70-RS
    LES size: 9.8 mm
    FWHM: 14°
    FWTM: 25°
    Peak intensity: 9.769 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

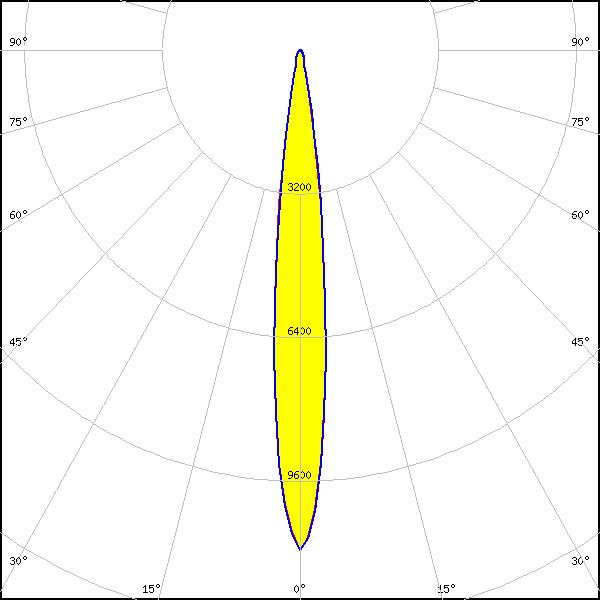

    LED: CMT14xx
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 9.238 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 10.032 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

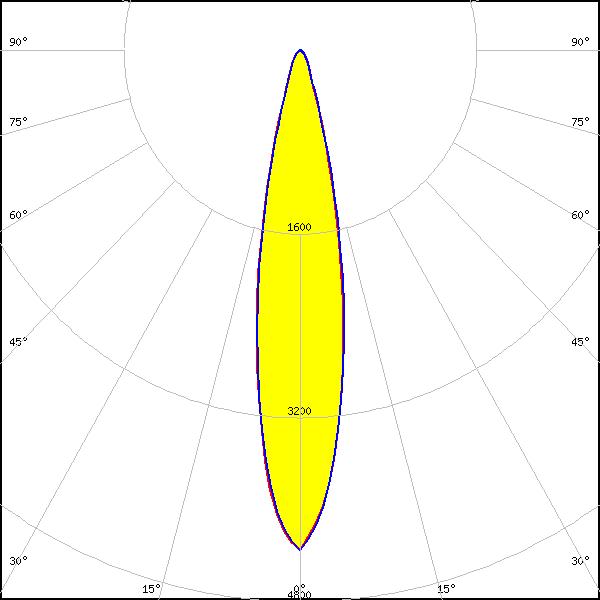

    LED: CMU15xx
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.5 mm
    Required components:
    Bender Wirth: 633a Hekla
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 4.354 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

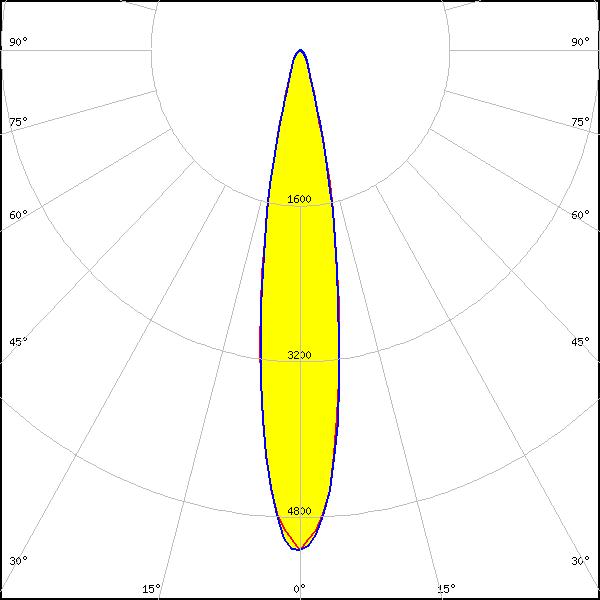

    LED: CMU15xx
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 4.646 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

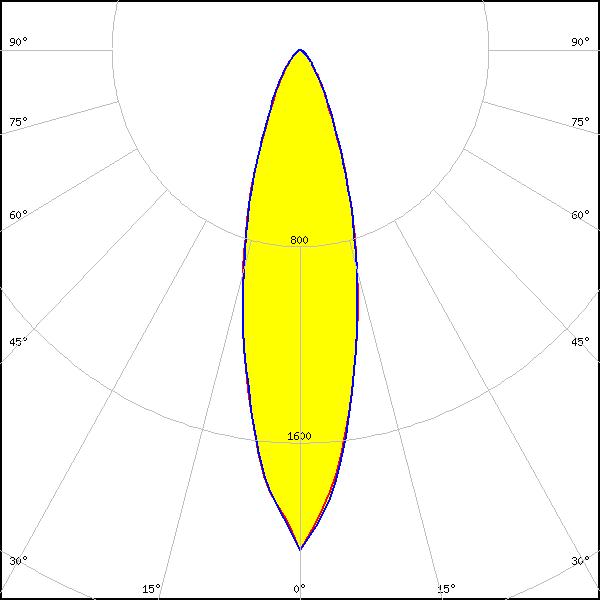

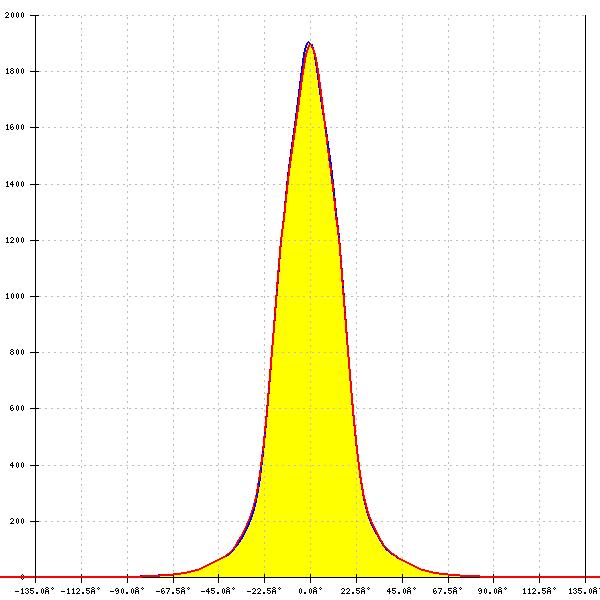

    LED: CMU22xx
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 28°
    FWTM: 61°
    Peak intensity: 2.037 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

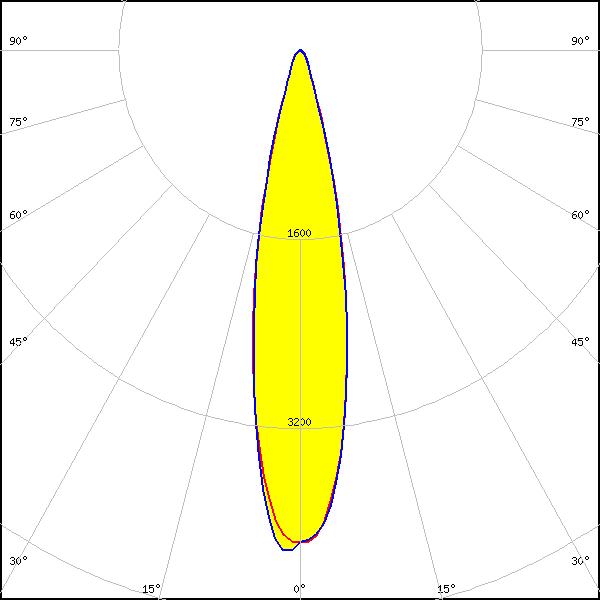

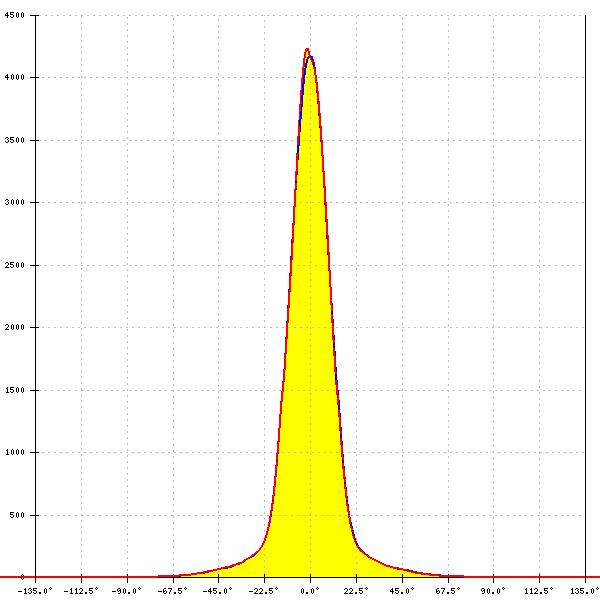

    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 4.238 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

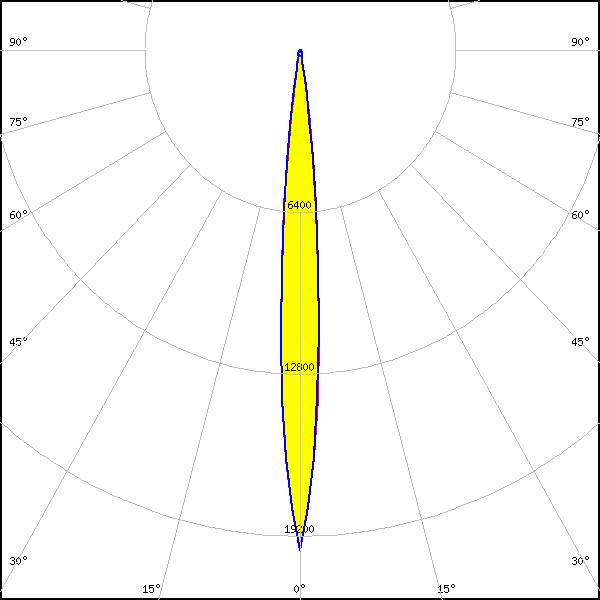

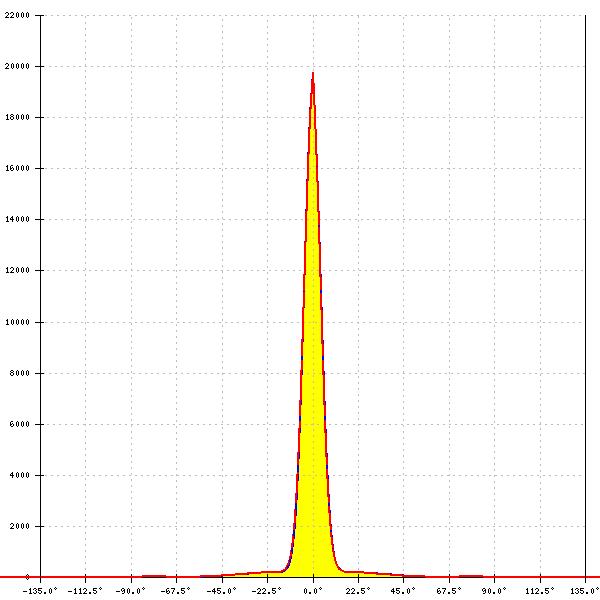

    LED: LUXEON 7070
    LES size: 0.0 mm
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 19.764 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

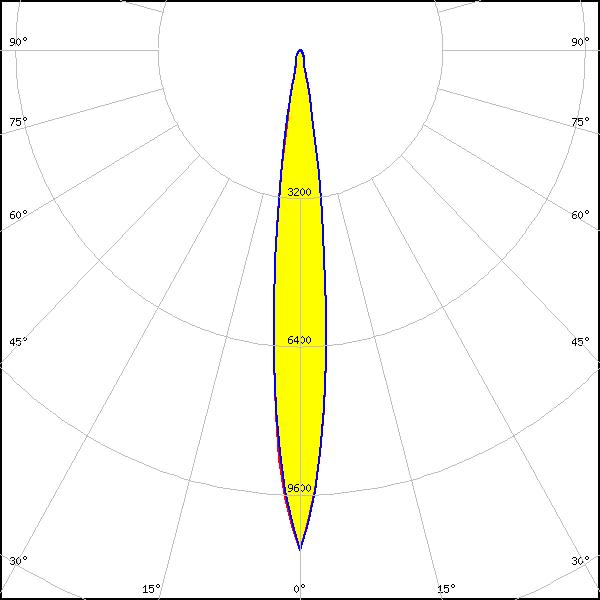

    LED: LUXEON CoB 1202/1203
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 10.791 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

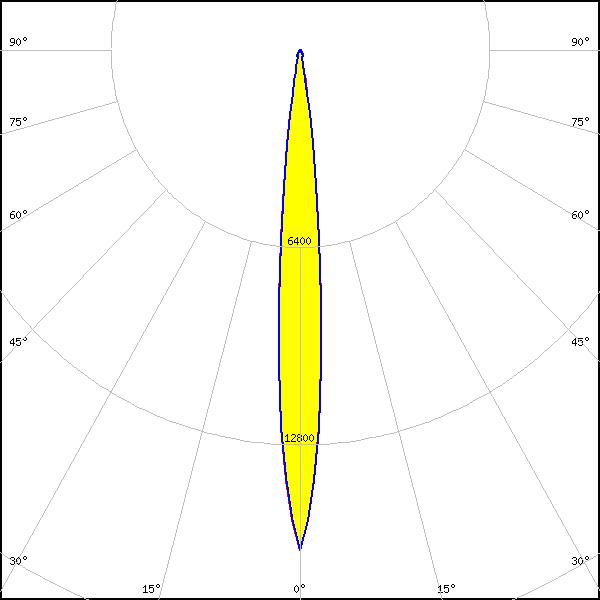

    LED: LUXEON CoB 1202HD
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 16.224 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

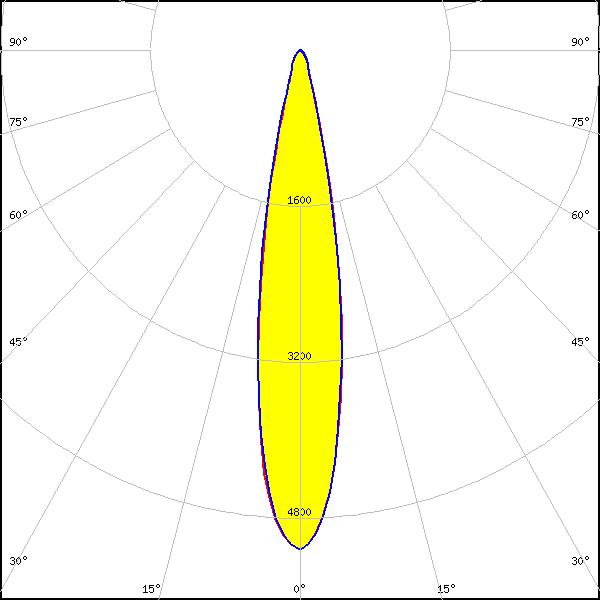

    LED: LUXEON CoB 1204/1205
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.158 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 14°
    FWTM: 25°
    Peak intensity: 9.716 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 18°
    FWTM: 30°
    Peak intensity: 6.450 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

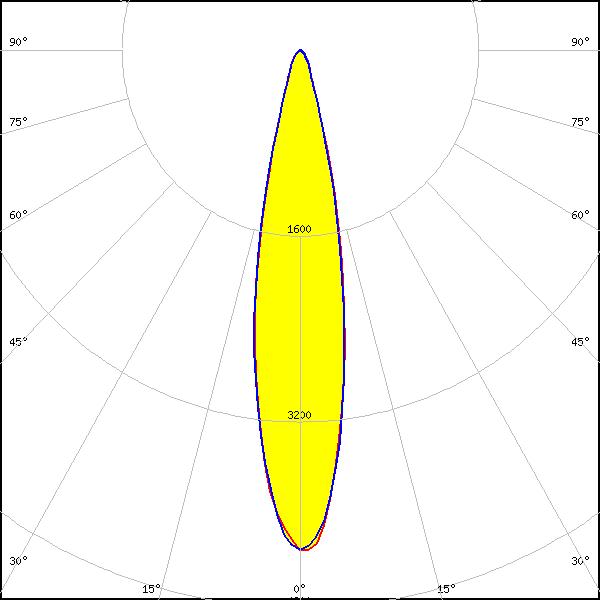

    LED: LUXEON CoB 1208
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 21°
    FWTM: 40°
    Peak intensity: 4.344 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

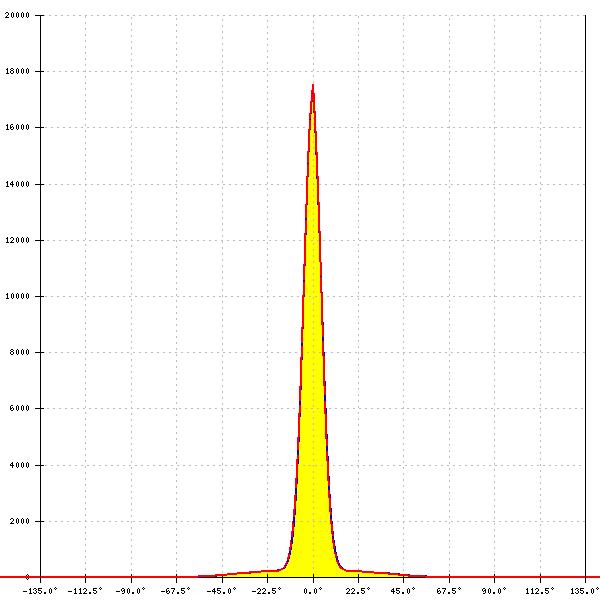

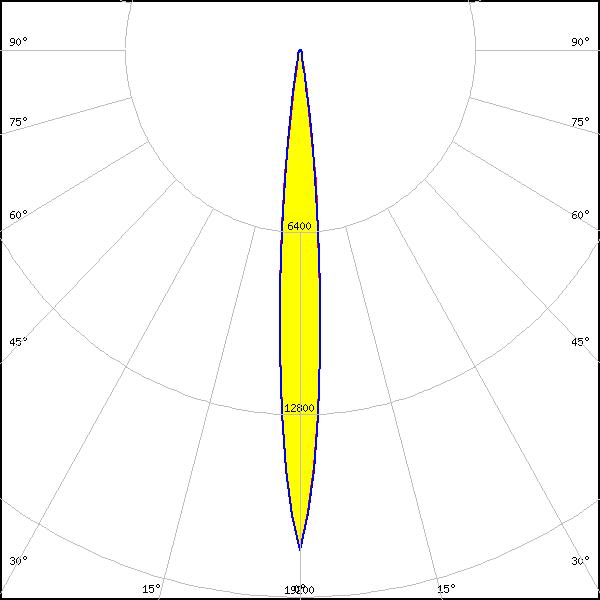

    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 10°
    FWTM: 19°
    Peak intensity: 17.560 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

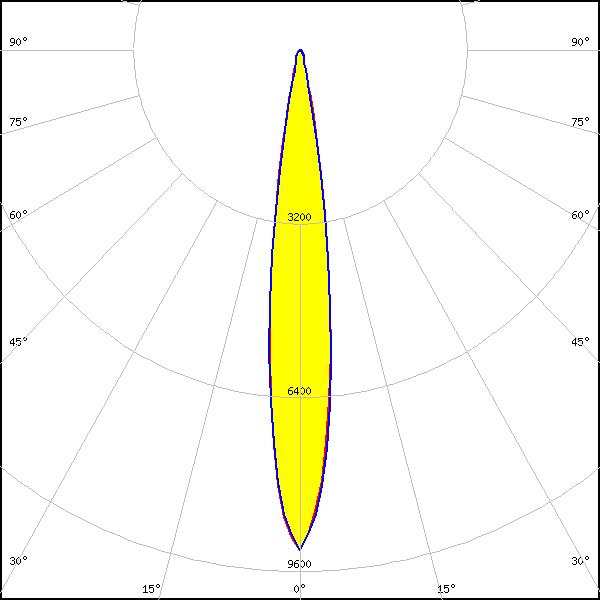

    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 9.214 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

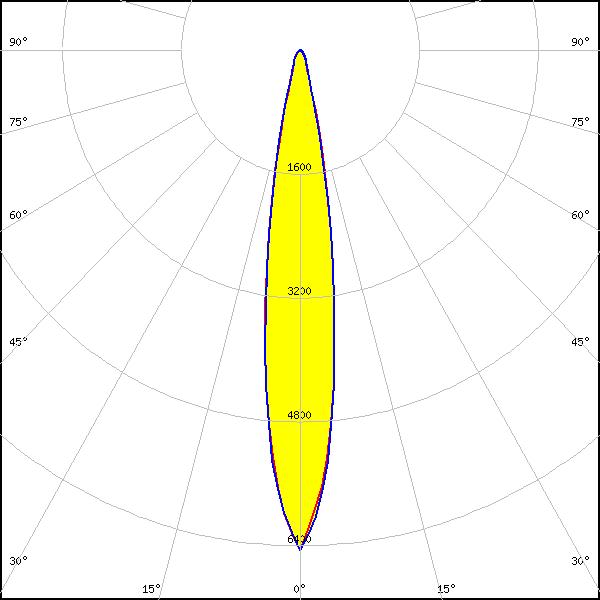

    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 6.460 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

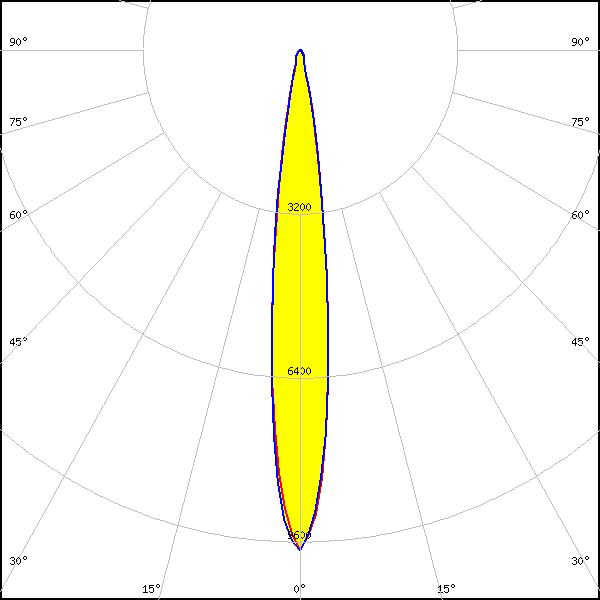

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 9.764 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

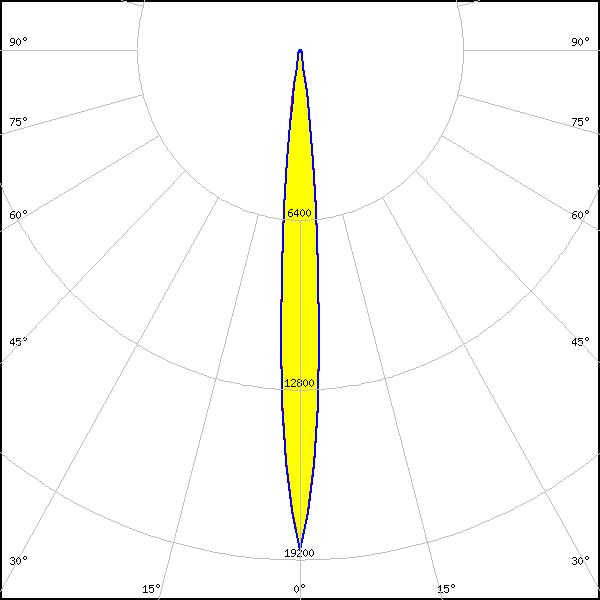

    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.841 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

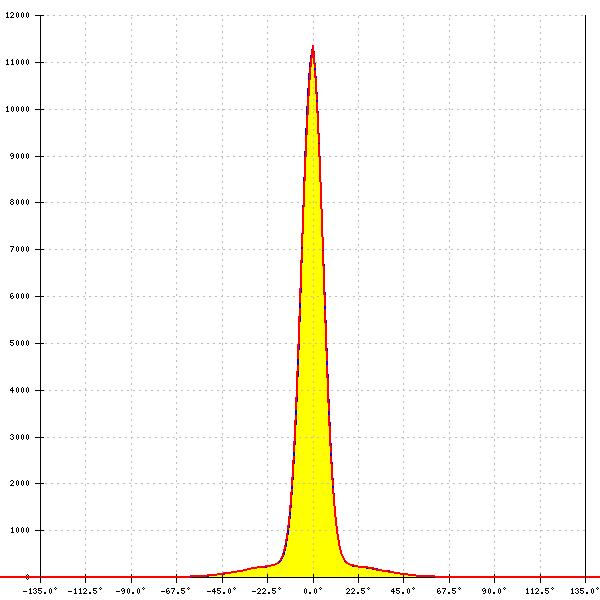

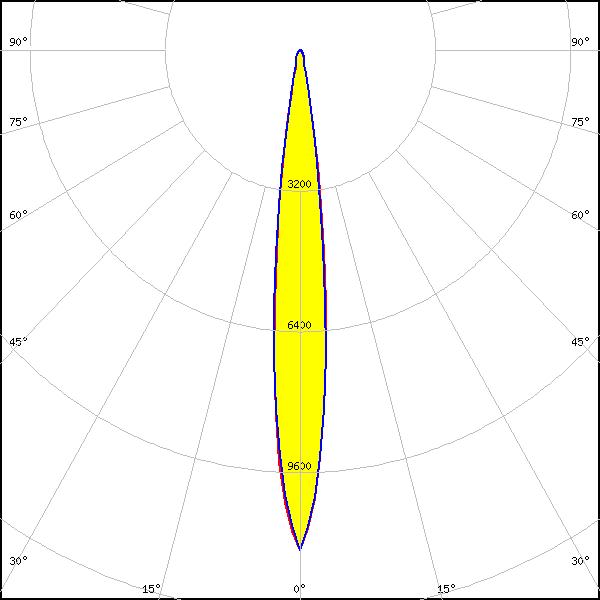

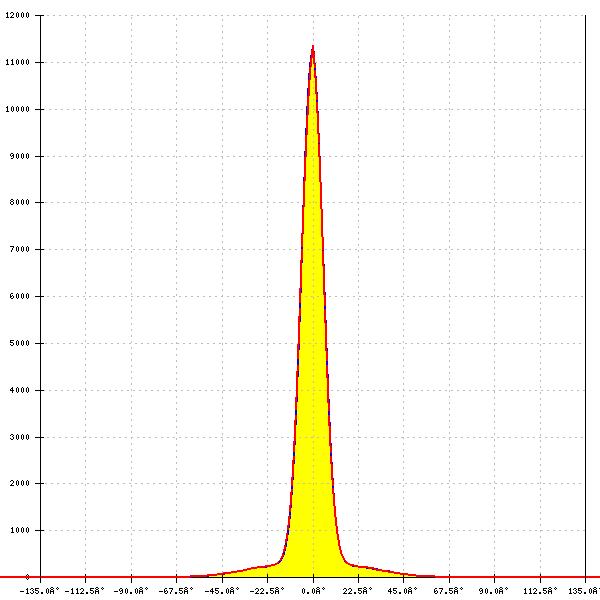

    LED: CHM-9 XH (19x19)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 11.366 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

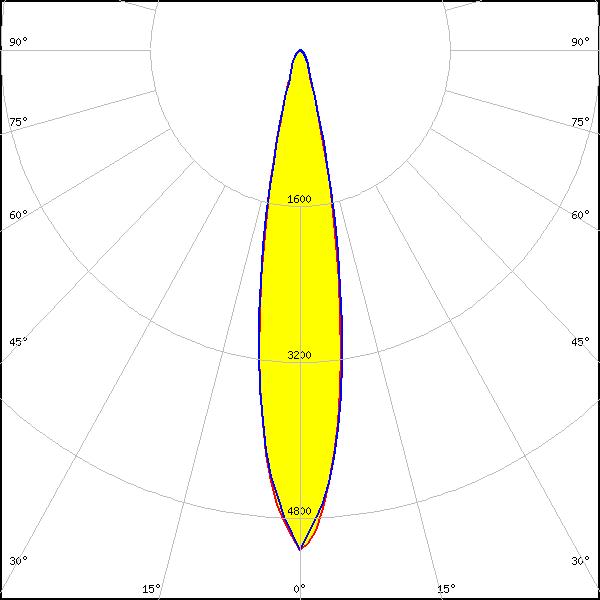

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.129 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

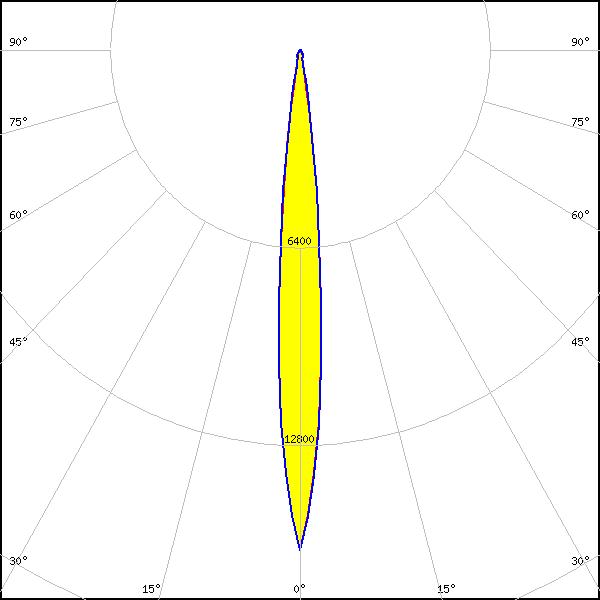

    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 16.198 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

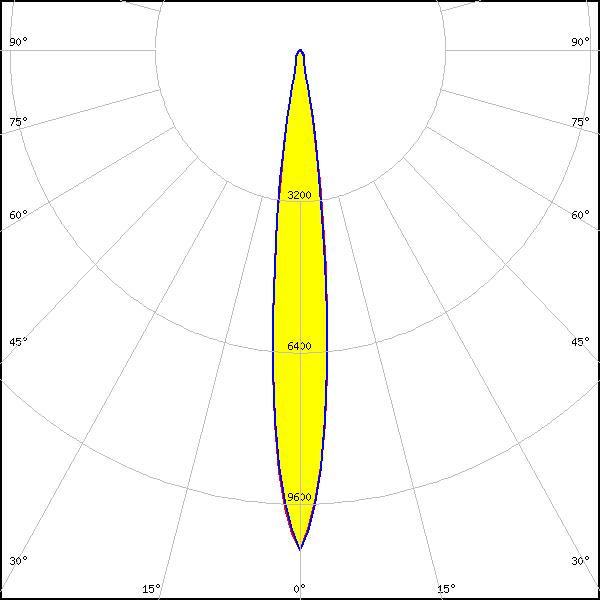

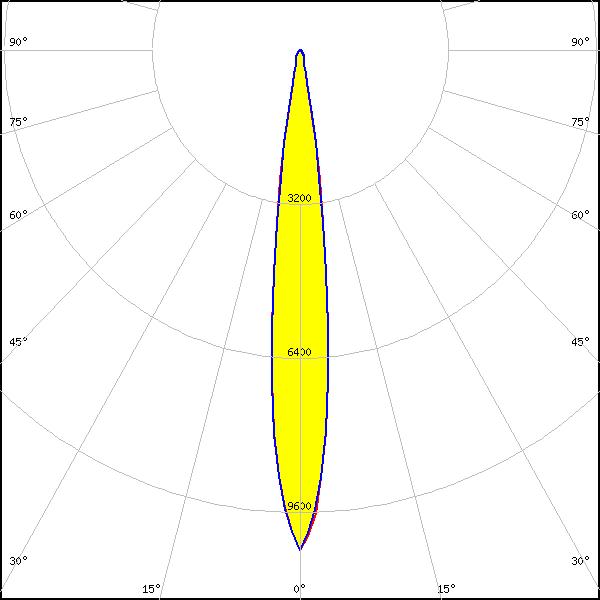

    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 10.575 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

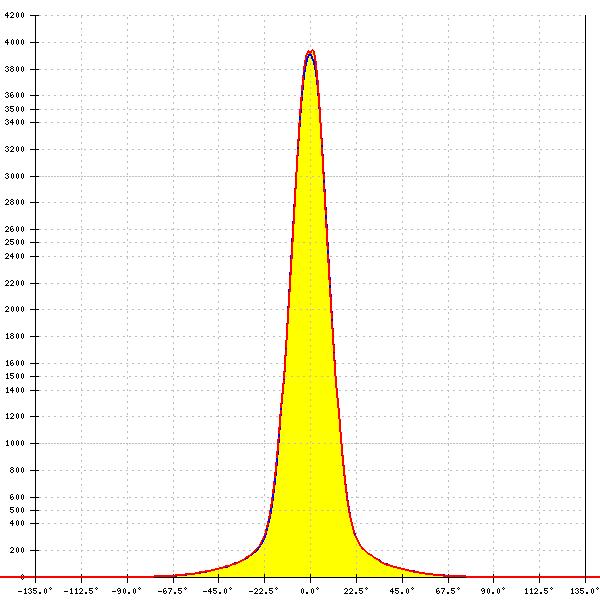

    LED: CxM-14 (18.5x18.5)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 13.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 22°
    FWTM: 41°
    Peak intensity: 3.955 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

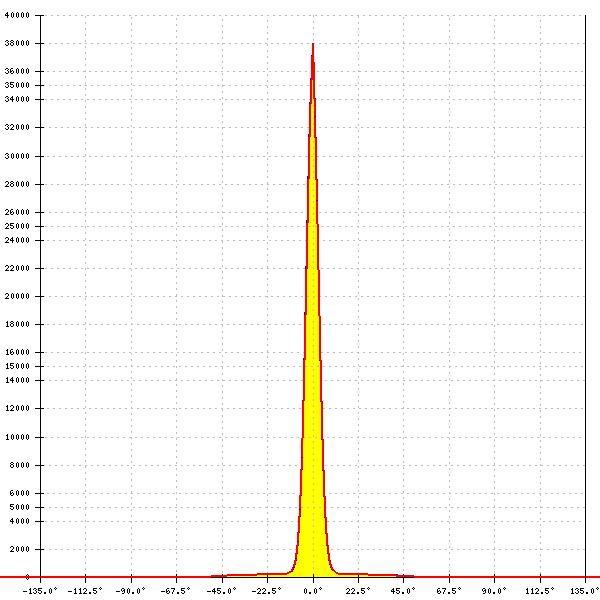

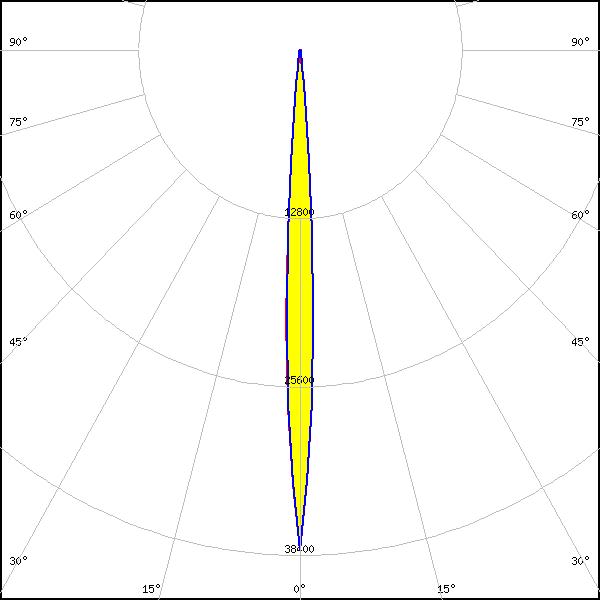

    LED: CXM-3
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 38.012 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

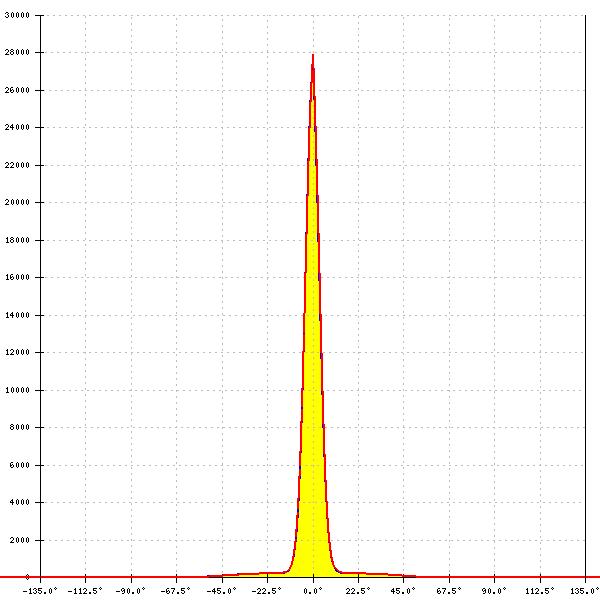

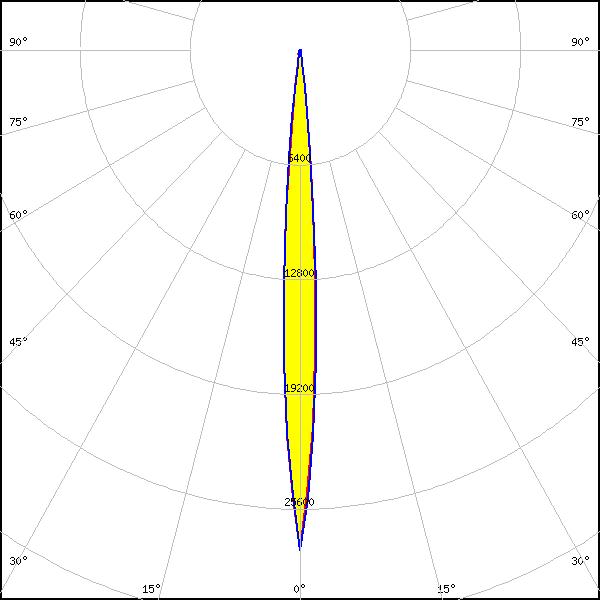

    LED: CXM-4
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 8°
    FWTM: 15°
    Peak intensity: 27.896 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.154 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

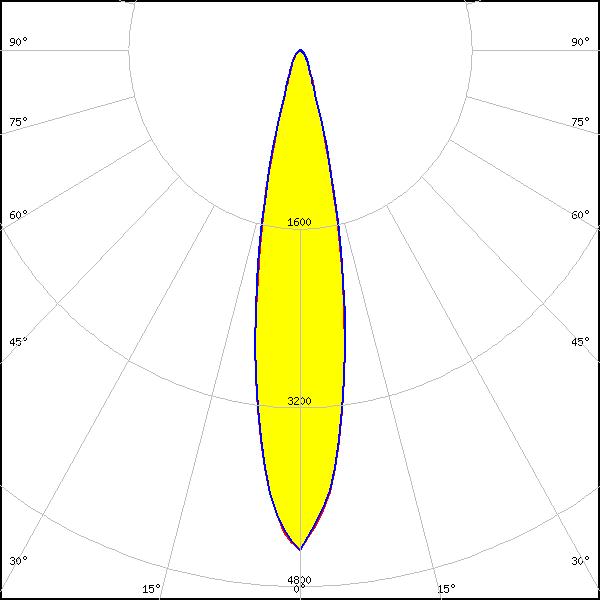

    LED: COB J-Type
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: 21°
    FWTM: 40°
    Peak intensity: 4.477 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 11.5 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 7.104 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

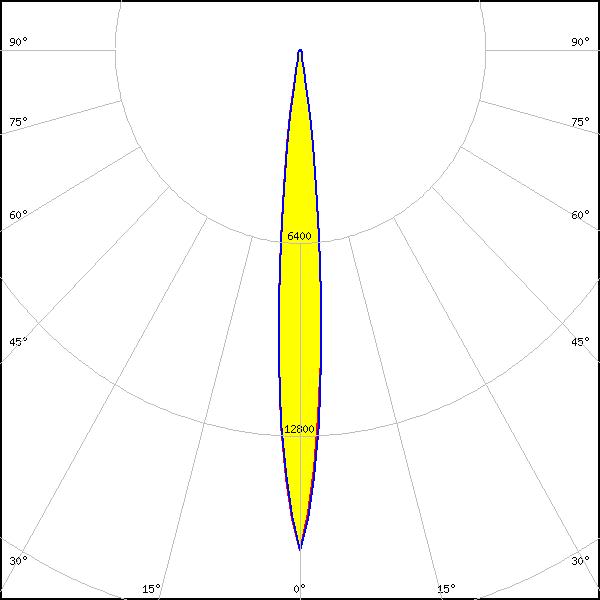

    LED: COB S-Type (LES 6)
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 20.442 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 16.586 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

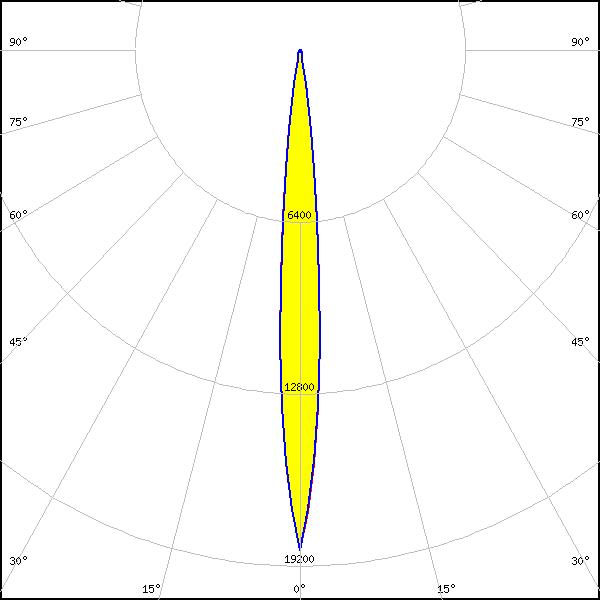

    LED: COB T-Type
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.618 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

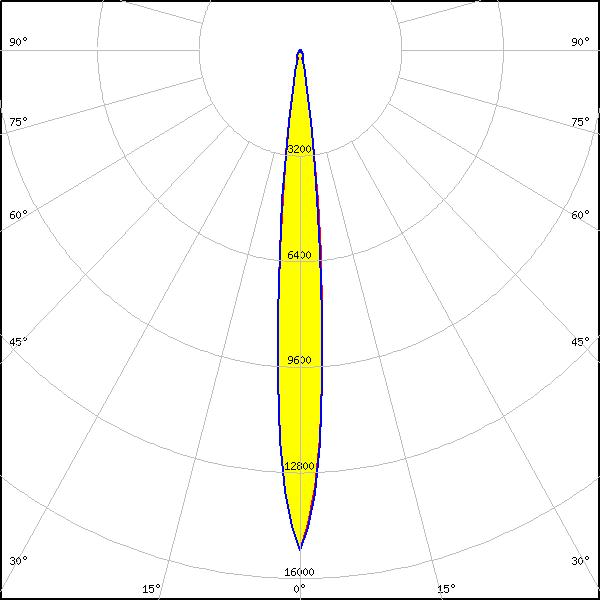

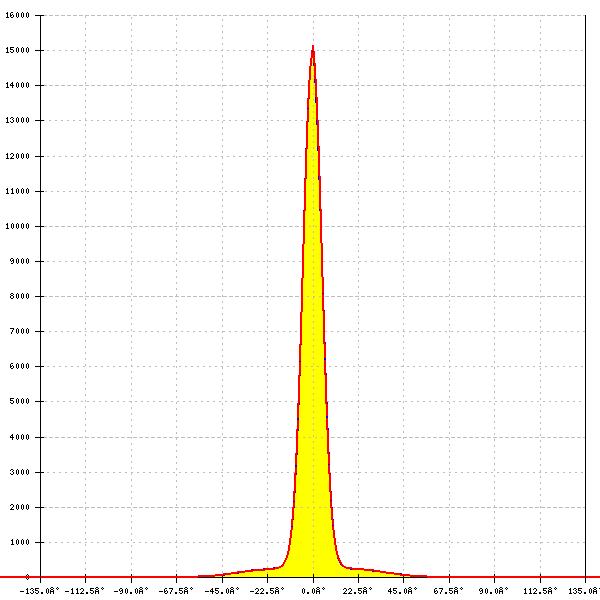

    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 15.148 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

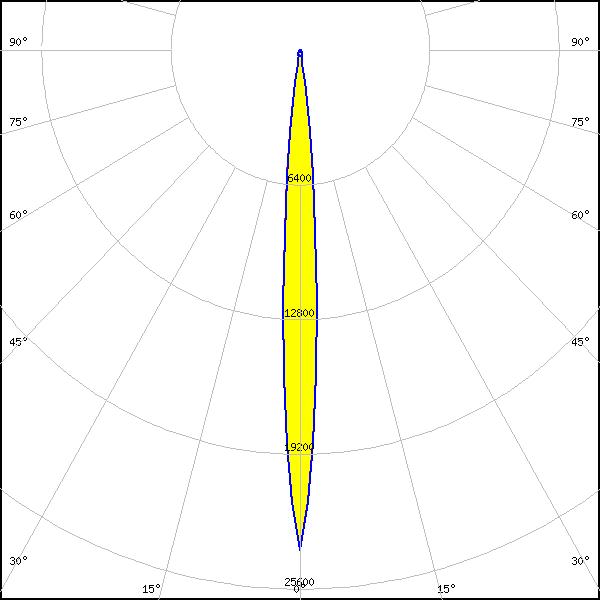

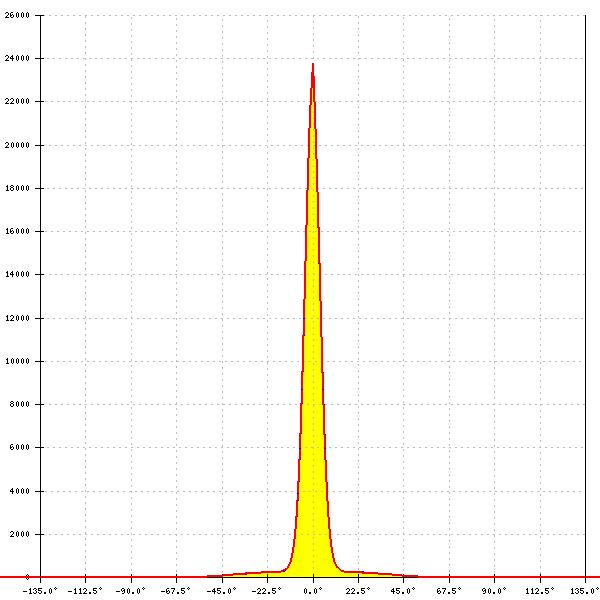

    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 23.764 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

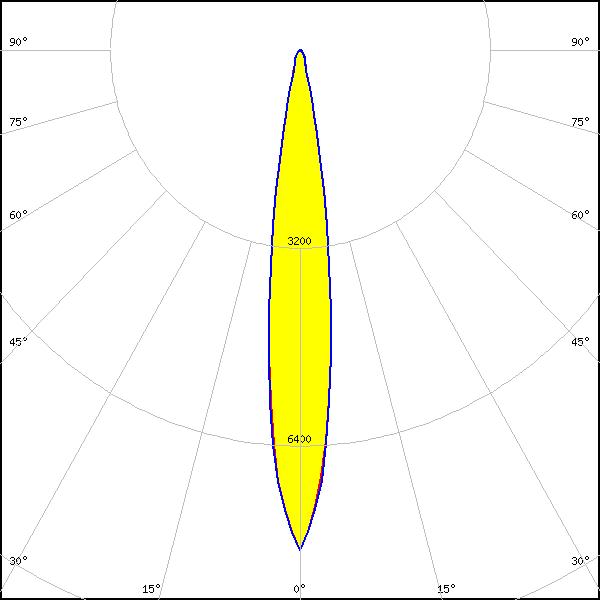

    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 8.090 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Fortimo SLM C TW L06A 1313 G7N
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 508 Typ L8
    FWHM: 10°
    FWTM: 19°
    Peak intensity: 15.437 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM C TW L09A 1919 G7N
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 15°
    FWTM: 26°
    Peak intensity: 8.290 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Fortimo SLM L15 1919 CoB
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 4.940 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

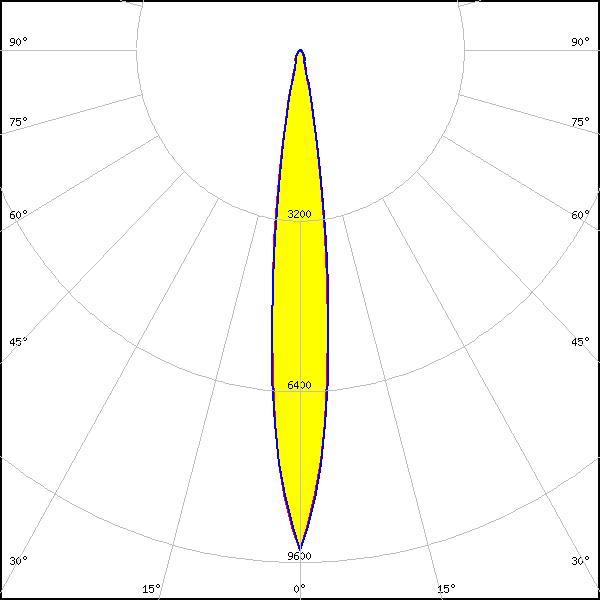

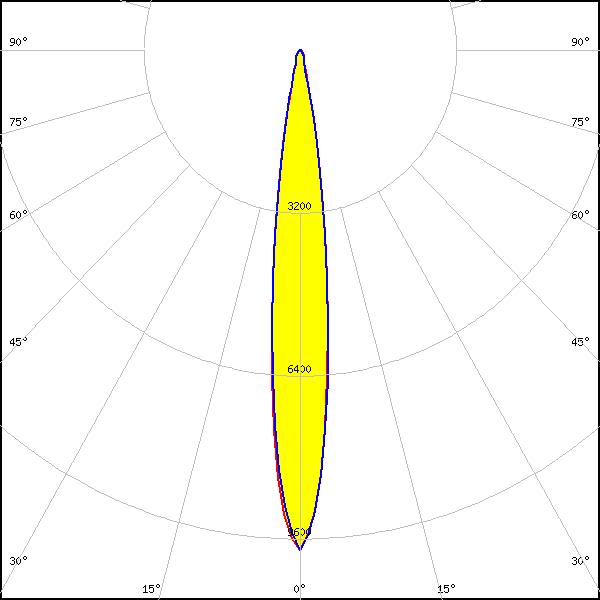

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 9.824 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

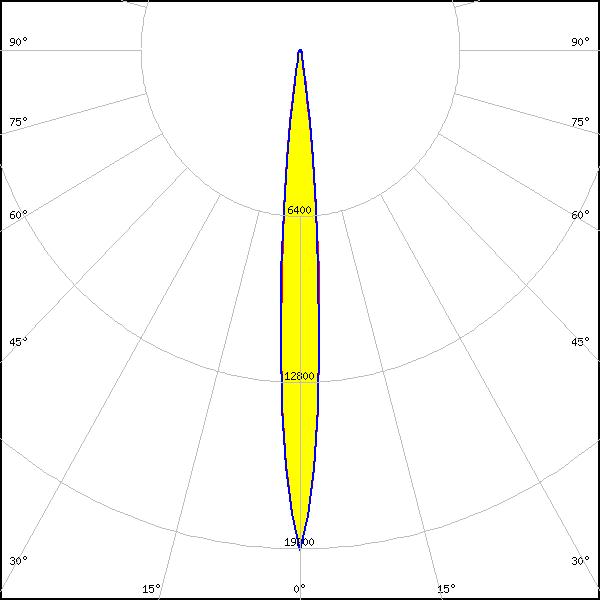

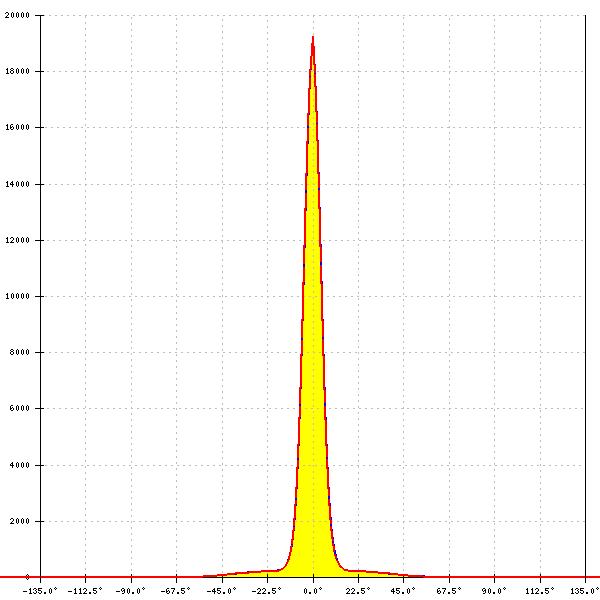

    LED: LC010C G2
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 19.265 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

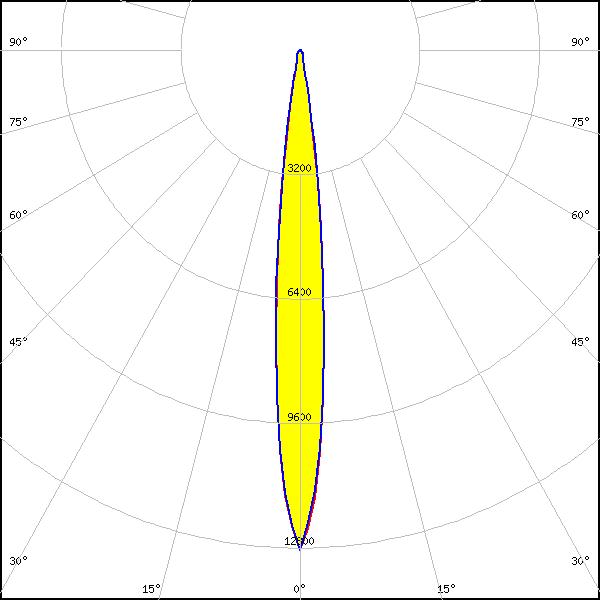

    LED: LC010T (Tunable White)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.8 mm
    Required components:
    Bender Wirth: 501 Typ L8
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 12.861 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

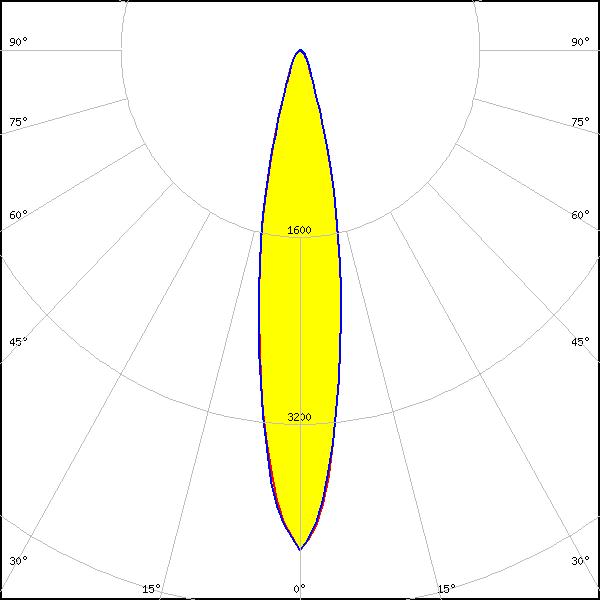

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 4.280 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

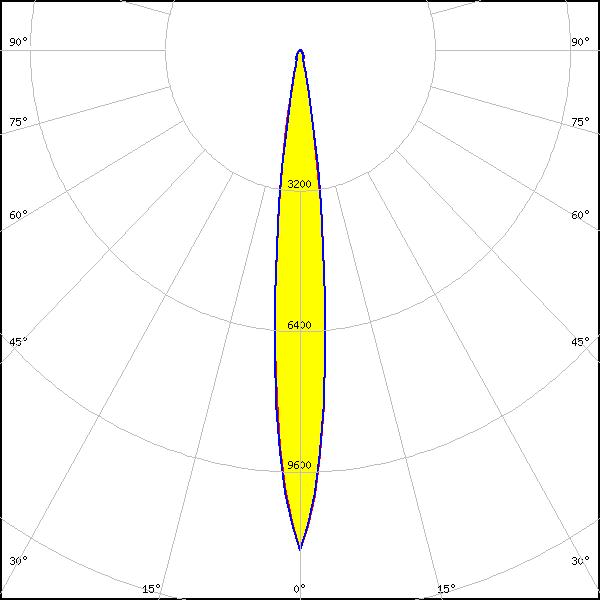

    LED: LC020C G2
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 11.379 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

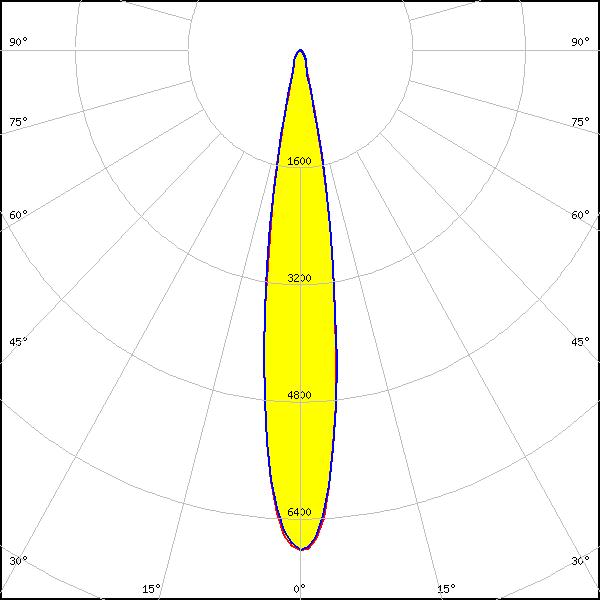

    LED: LC020T (Tunable white)
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 6.829 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

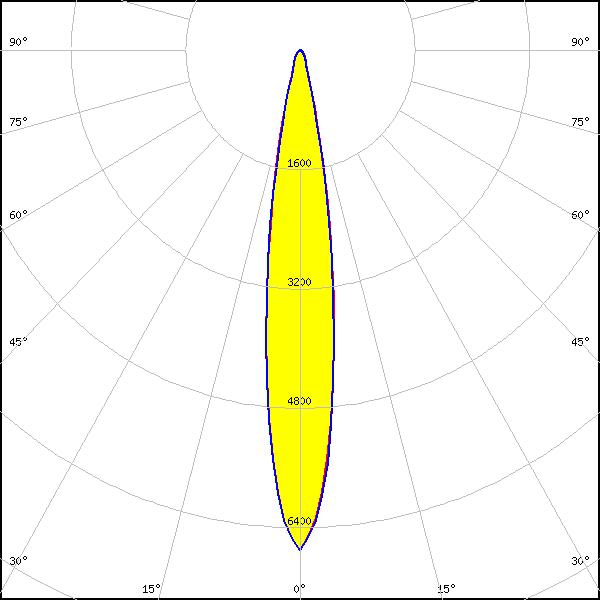

    LED: LC030C/040C G2
    Ordering code: CP19105_AMY-70-RS-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 6.704 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 4.262 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 20.464 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP19045_AMY-70-RS-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 9.374 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
