AMY-50-W

Print

~36° wide beam

This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

Specification
  • Dimensions:
    50 mm
  • Height:
    10.97 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials
  • AMY-50-W
    PMMA
  • AMY-50-HLD2-C-WHT
    PC
  • AMY-50-HLD2-C
    PC
  • AMY-50-HLD2-B-WHT
    PC
  • AMY-50-HLD2-B
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Single lens
  • C17688_AMY-50-W
    clear
  • Quantity in box:
    690 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.30 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 80 mm
  • MOQ Weight:
    1.70 kg
  • Assembly
  • CP19125_AMY-50-W-C2
    black,Holder C
  • CP19134_AMY-50-W-B2
    black,Holder B
  • CP19143_AMY-50-W-C2-WHT
    white,Holder C
  • CP19152_AMY-50-W-B2-WHT
    white,Holder B
  • Quantity in box:
    510 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.20 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    2.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17688_AMY-50-W
    CP19125_AMY-50-W-C2
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

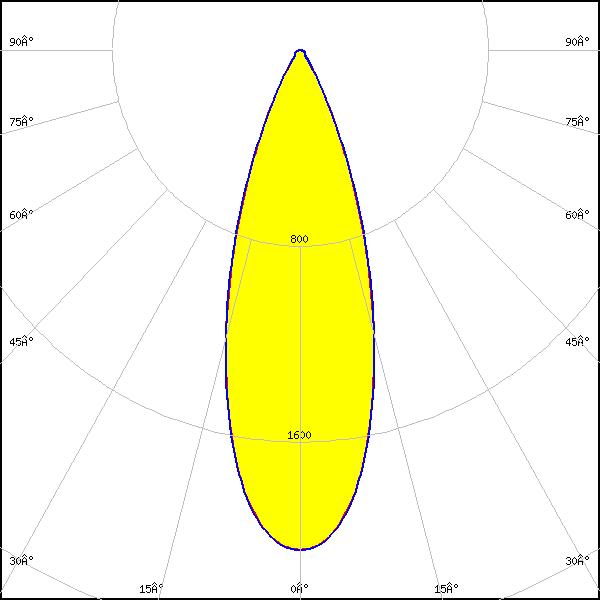

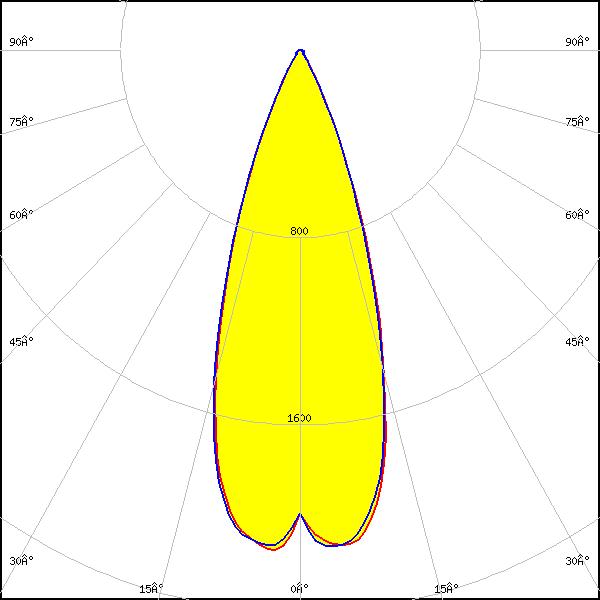

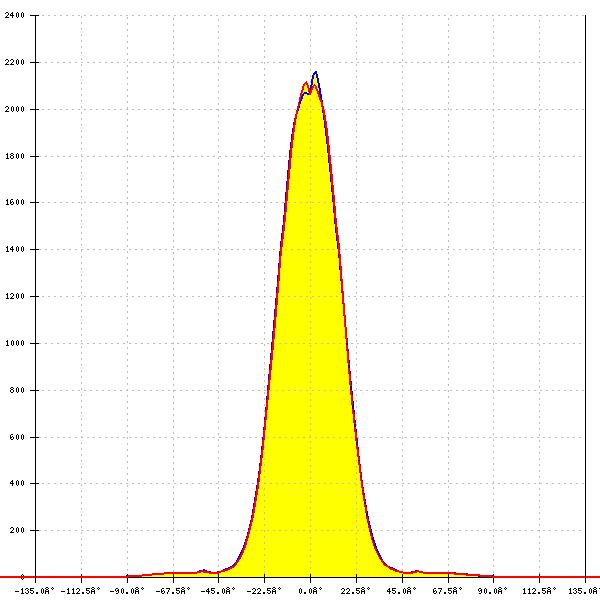

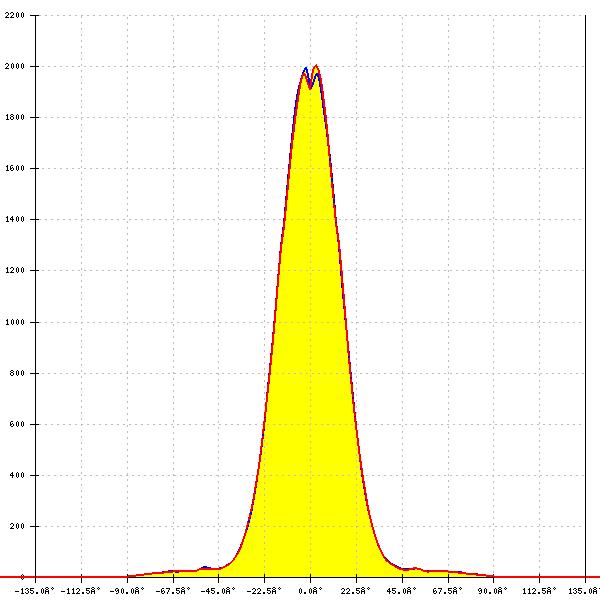

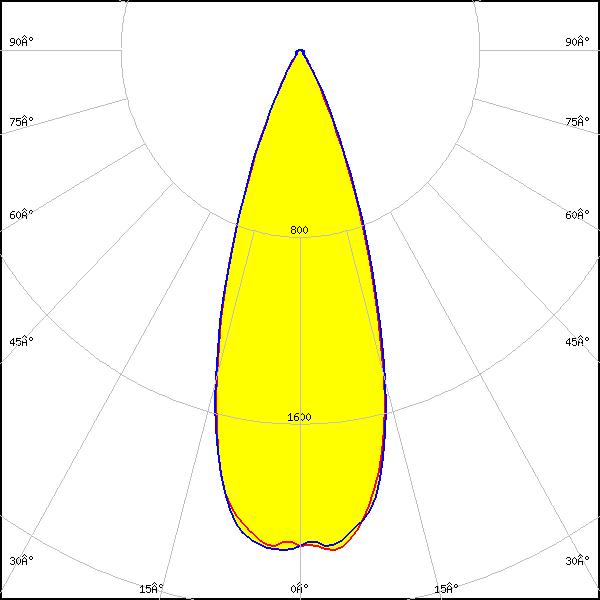

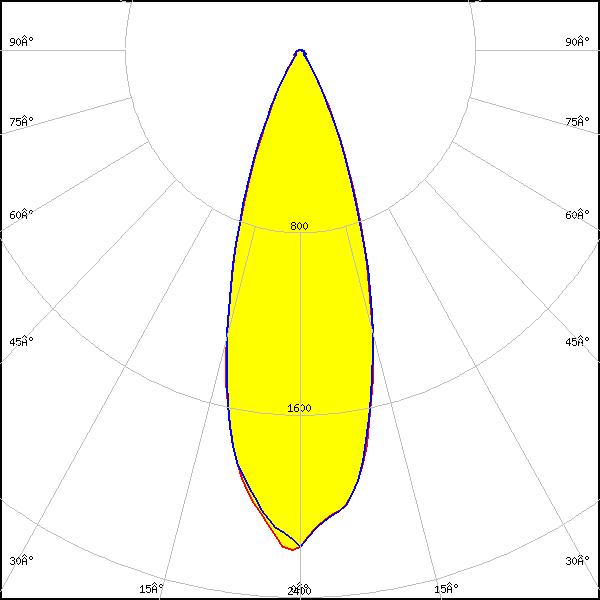

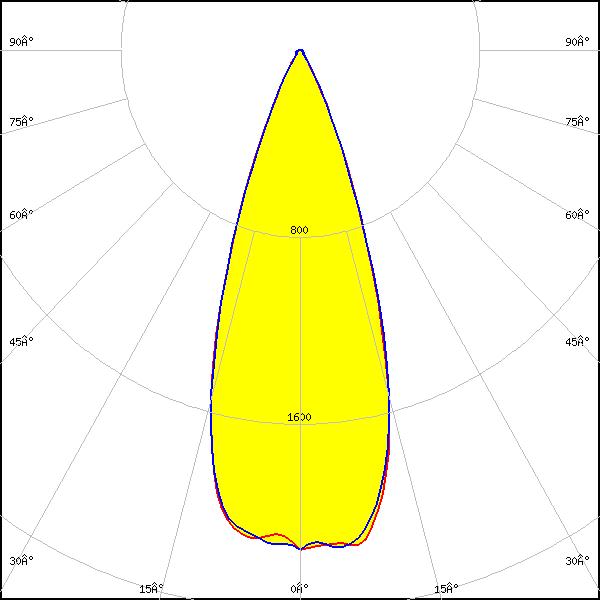

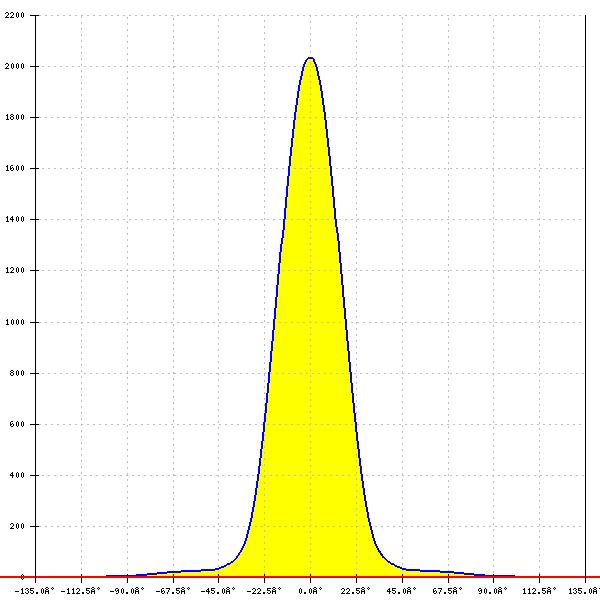

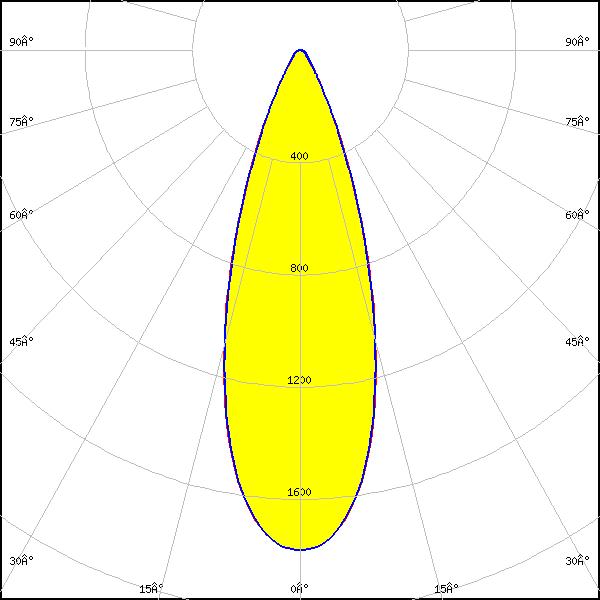

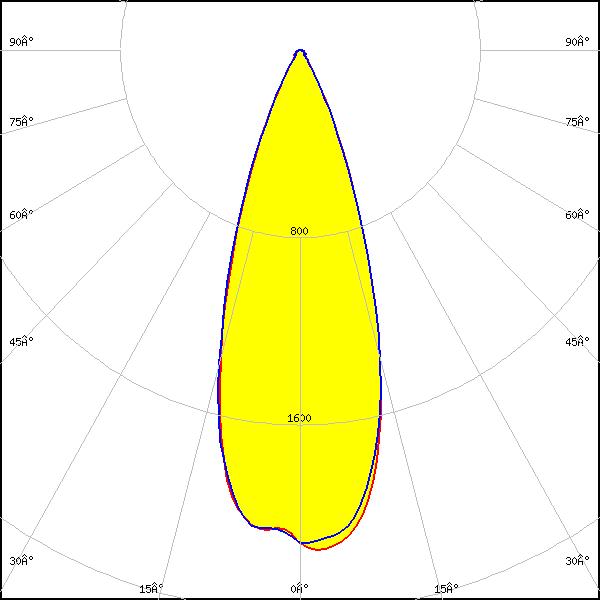

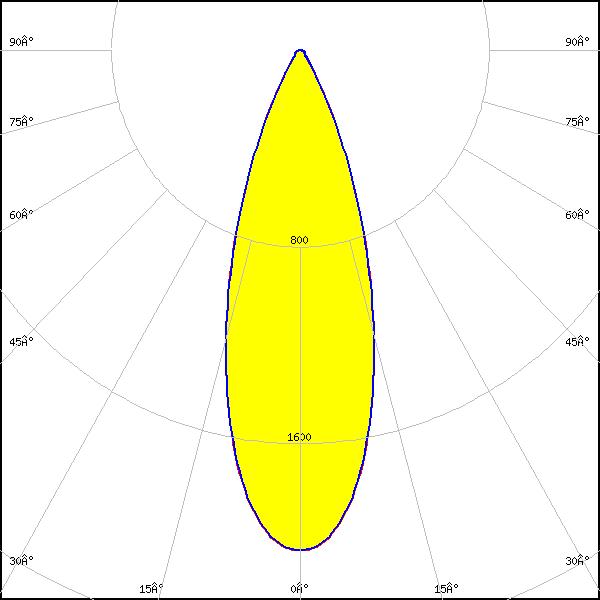

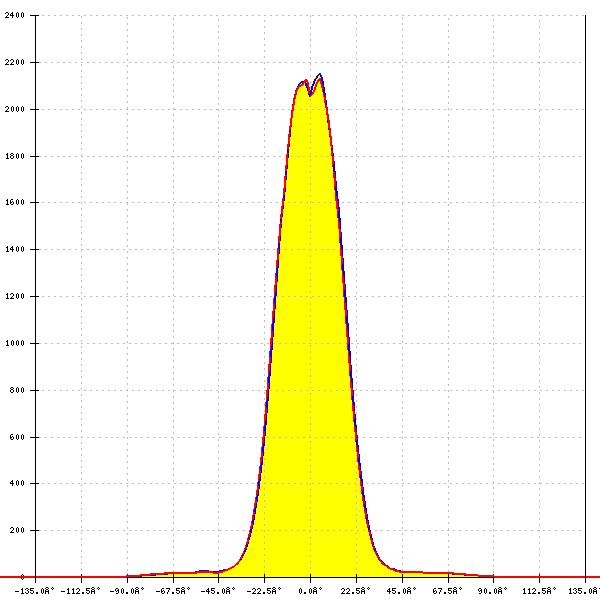

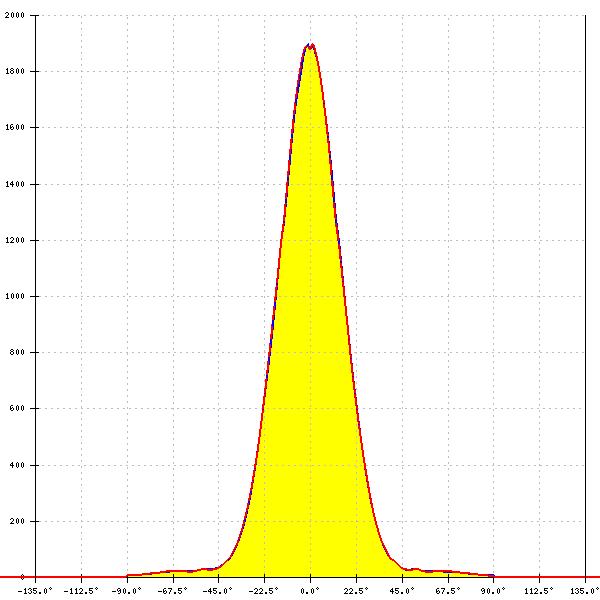

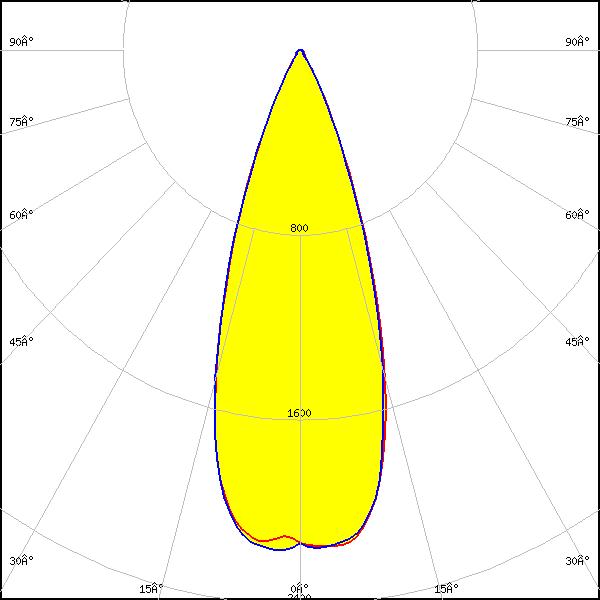

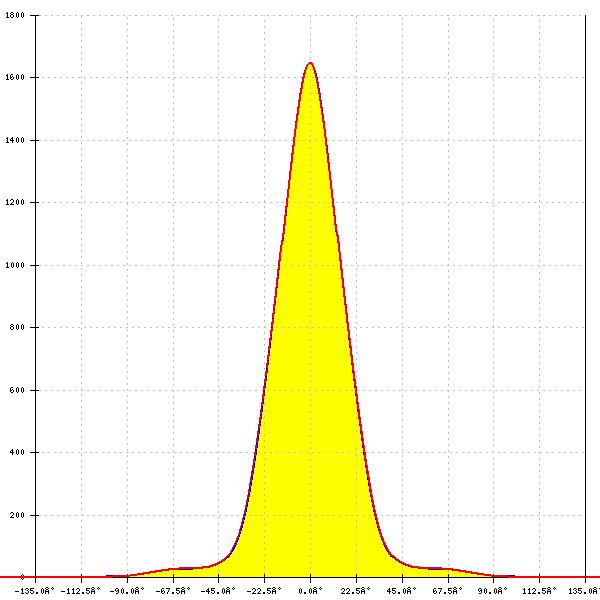

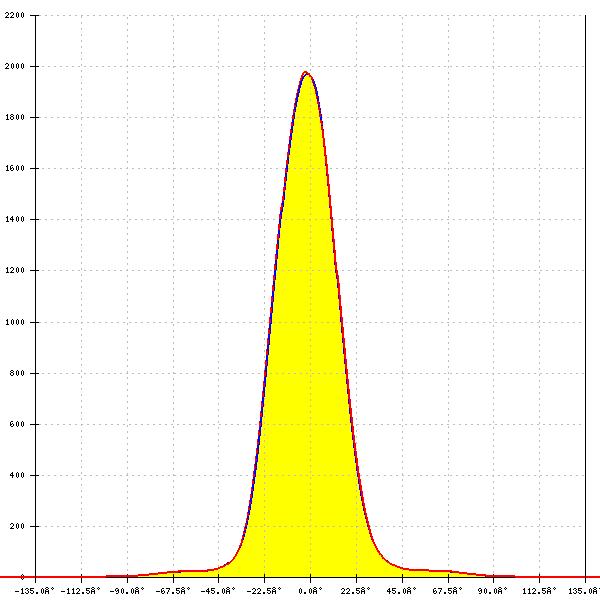

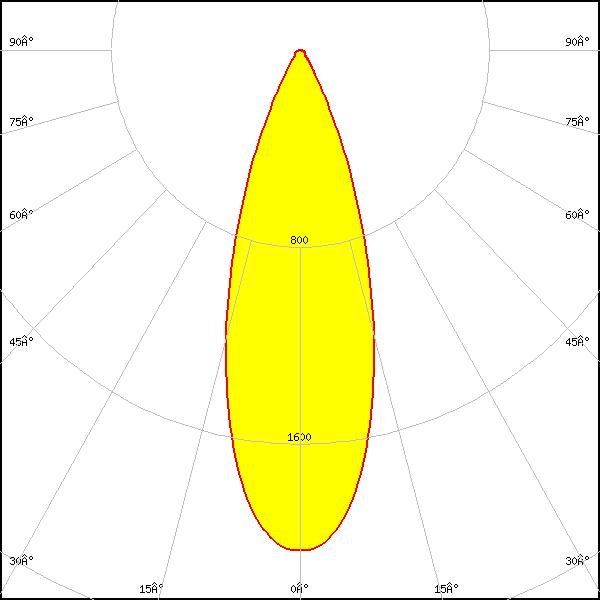

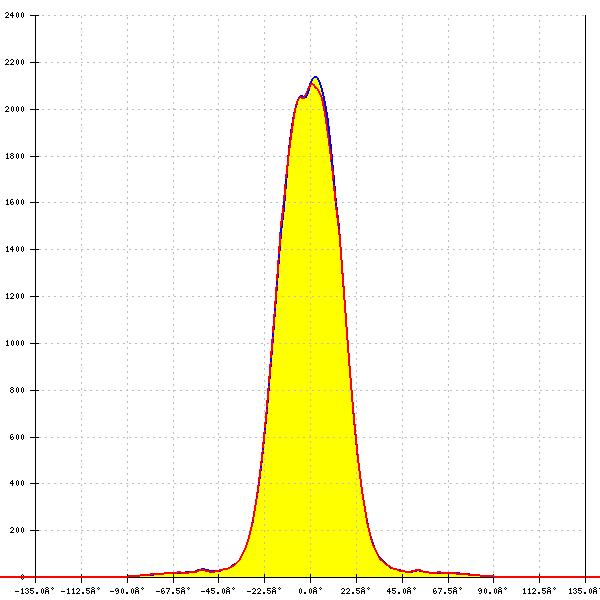

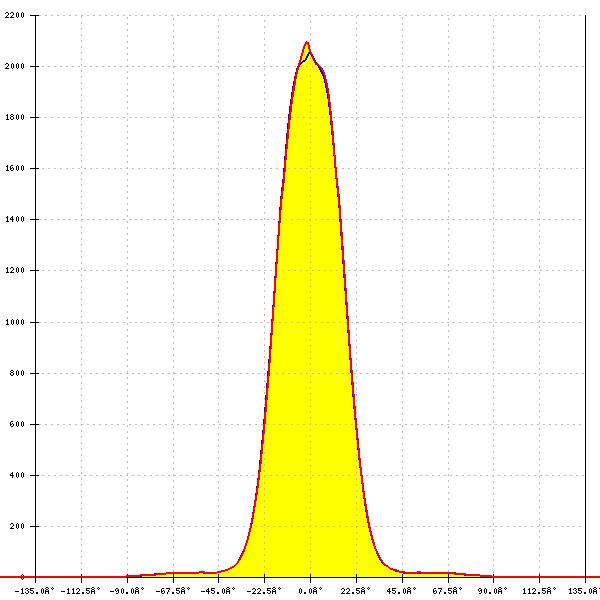

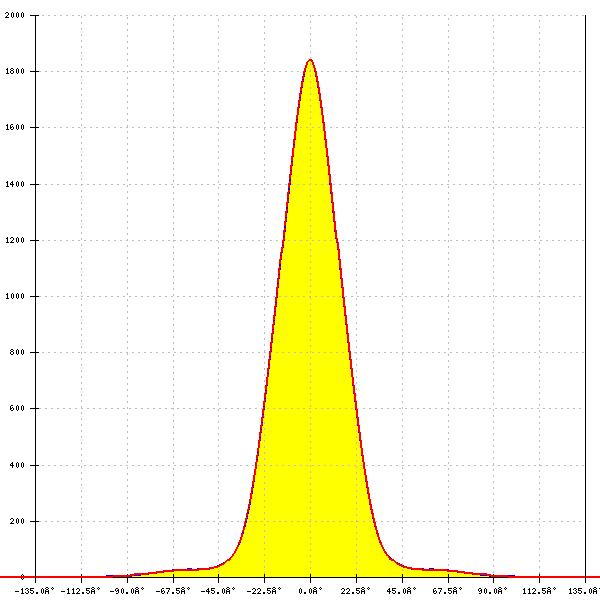

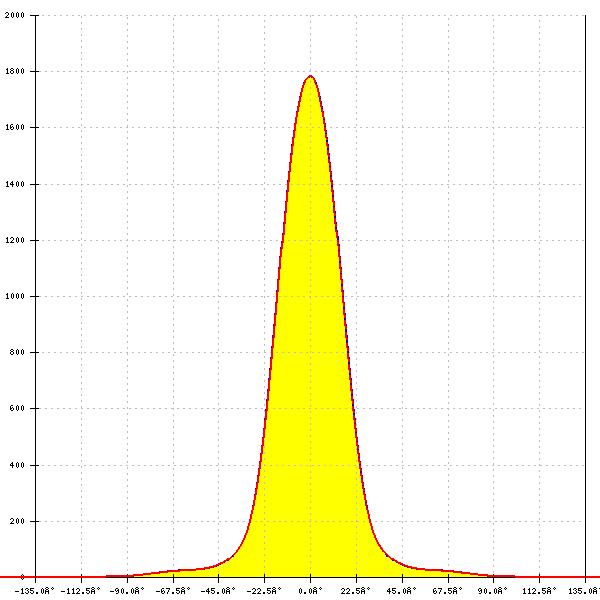

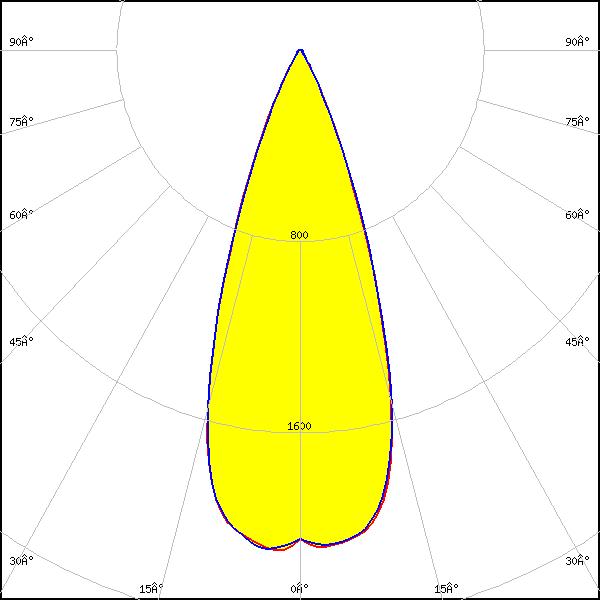

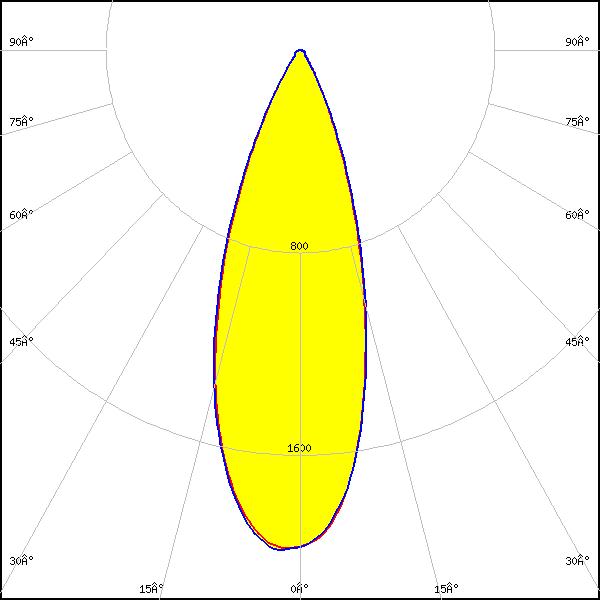

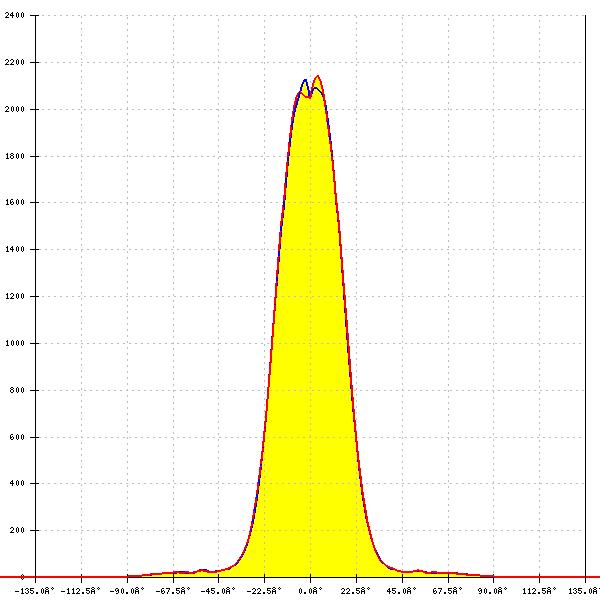

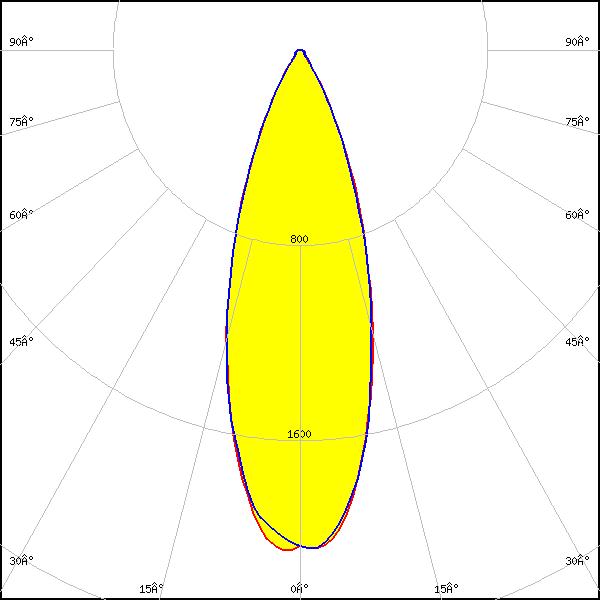

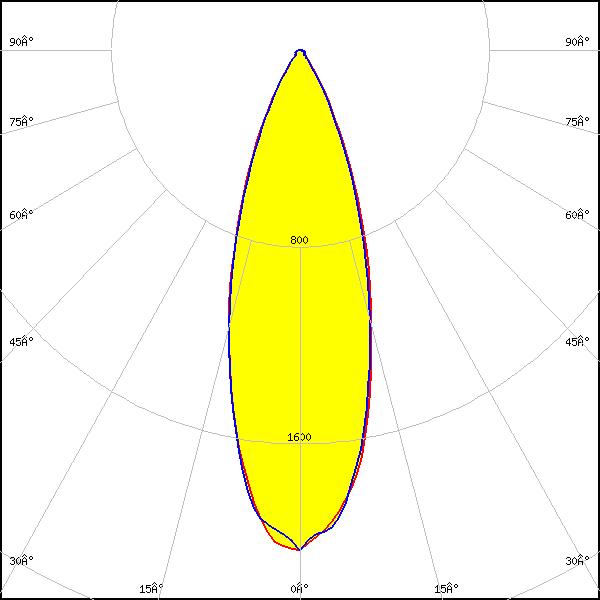

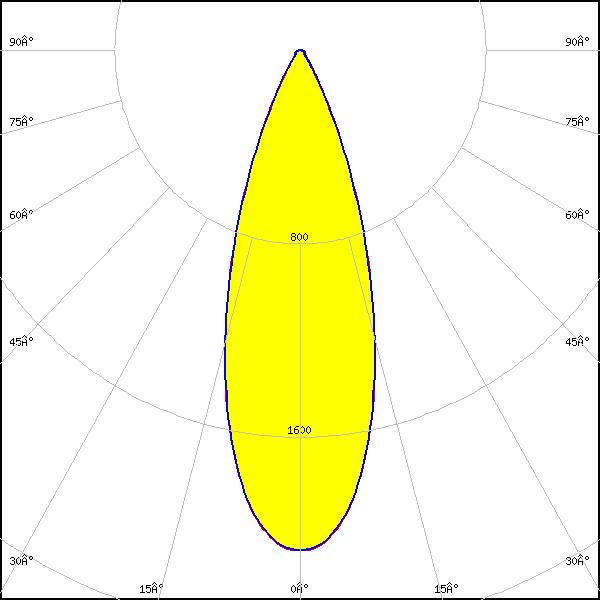

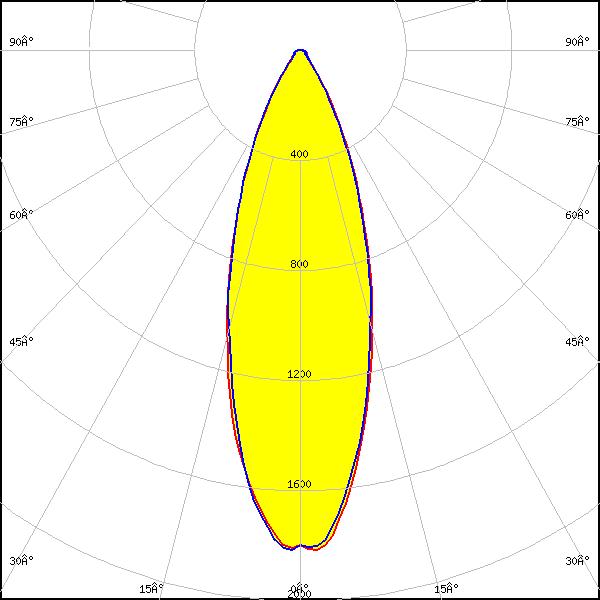

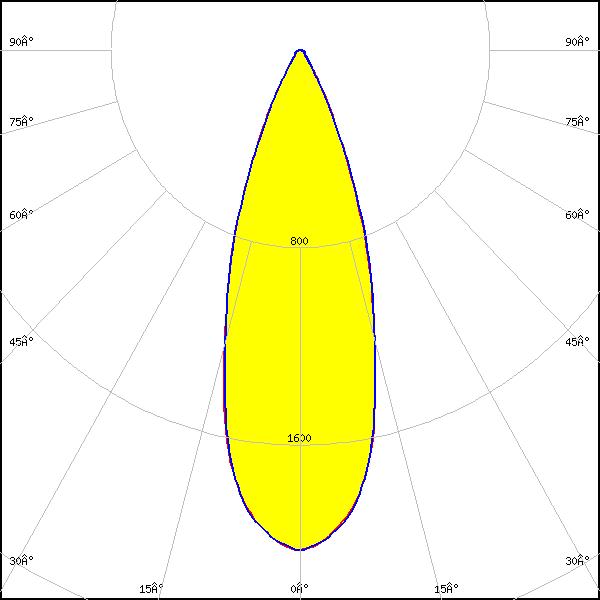

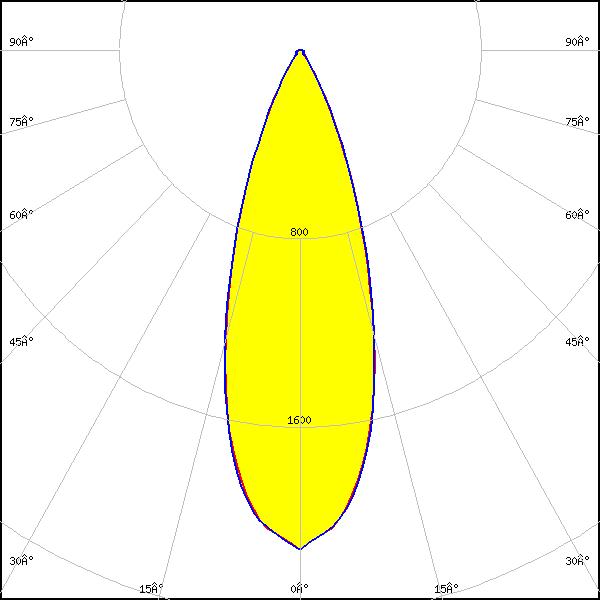

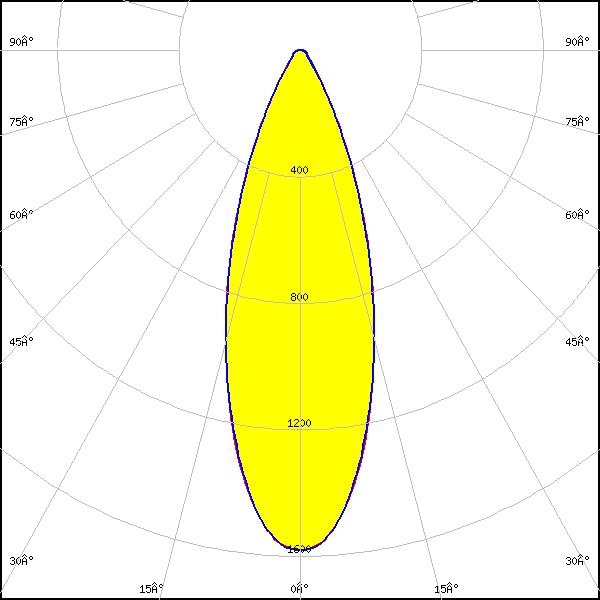

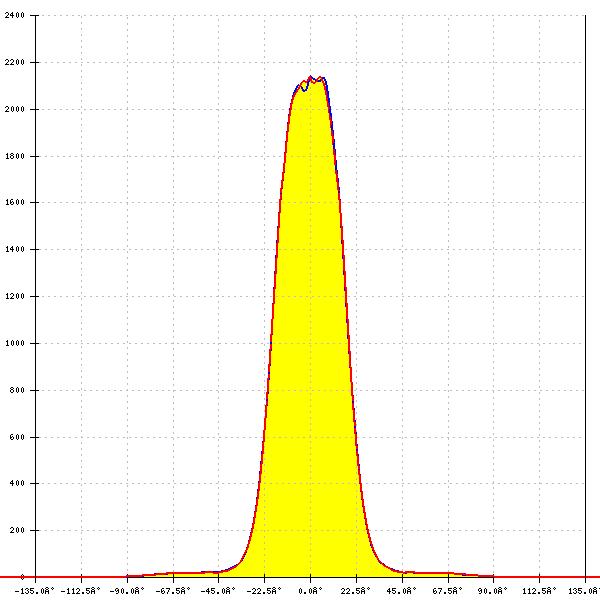

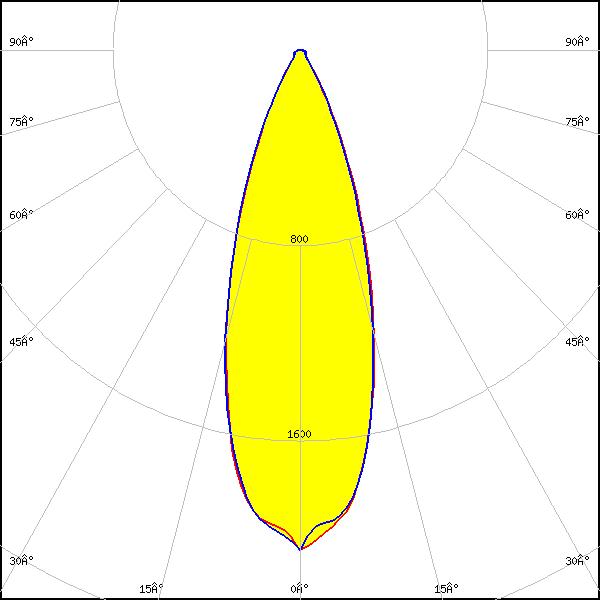

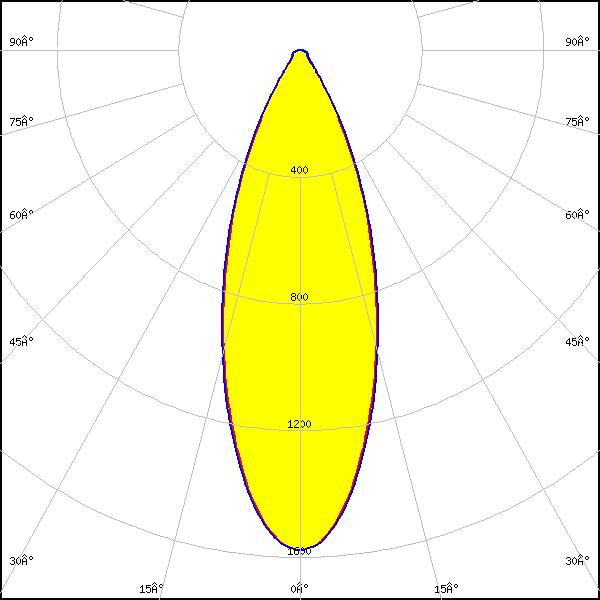

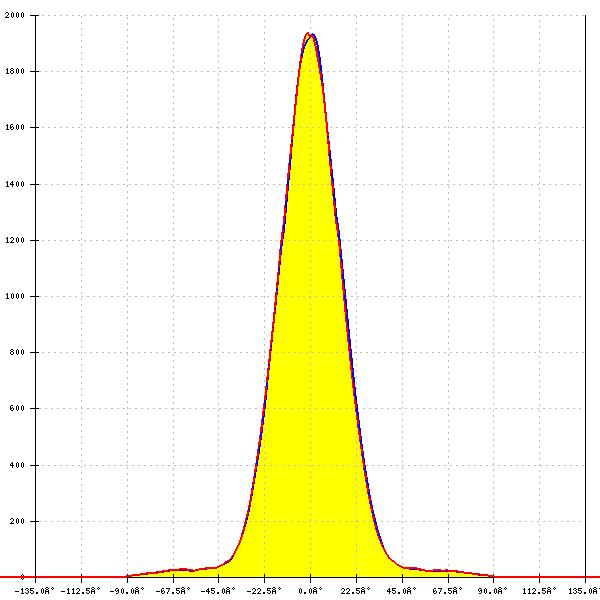

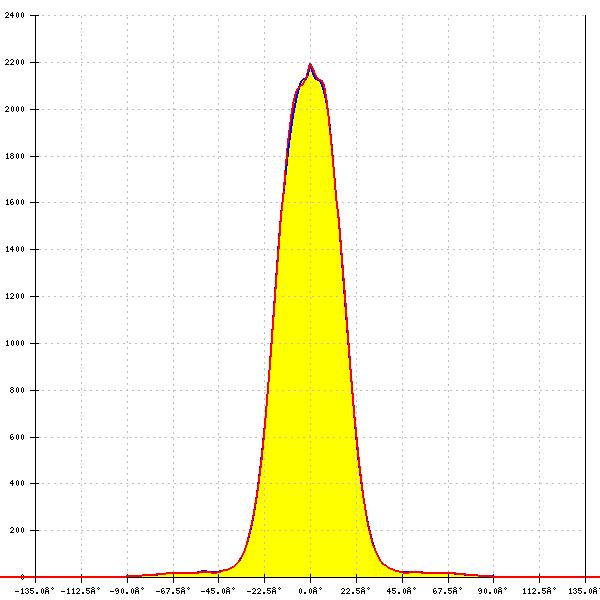

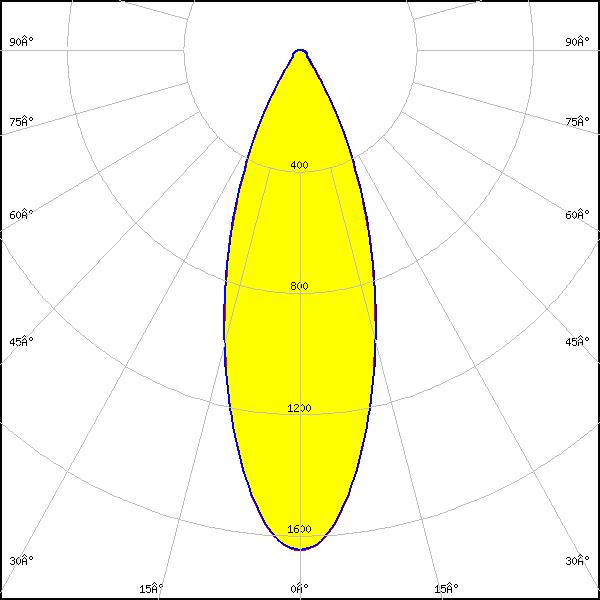

Optical results

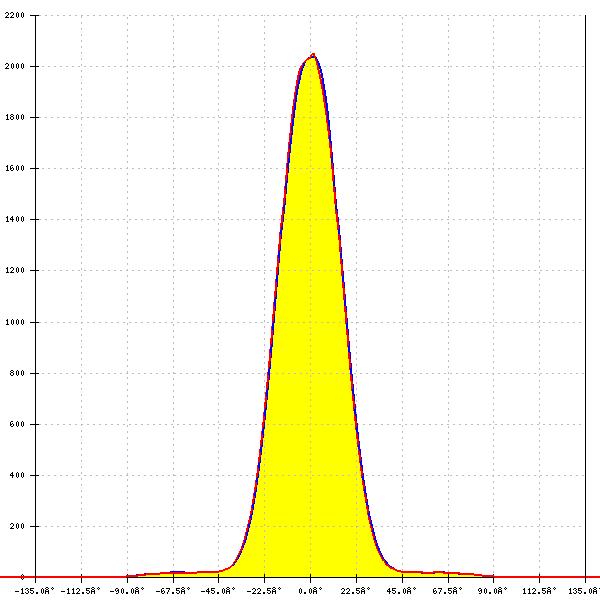

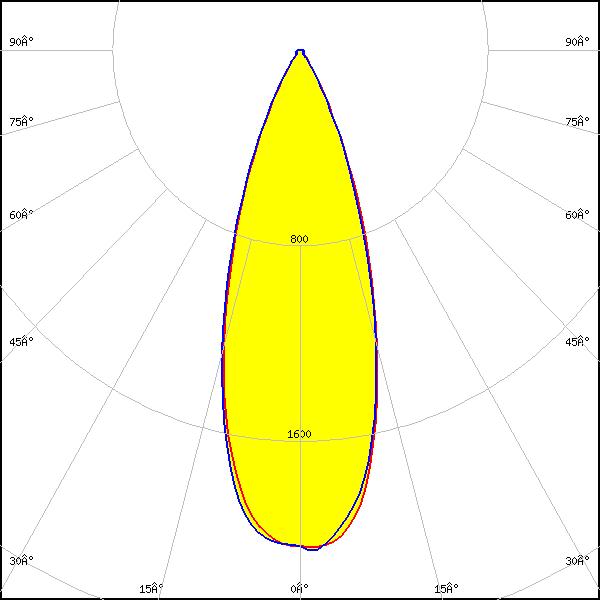

LED: V10 Gen 8-9
Ordering code: CP19134_AMY-50-W-B2
LES size: 10.0 mm
Required components:
BJB: 47.360.1020
FWHM: 35°
FWTM: 60°
Peak intensity: 2.061 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen 8-9

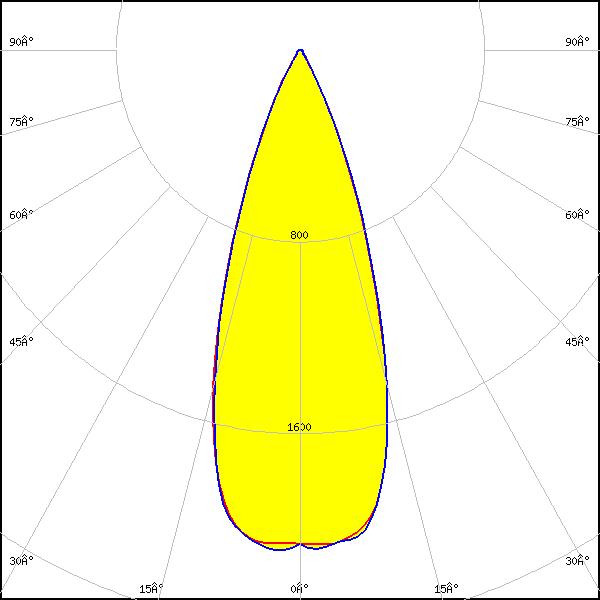

Ordering code: CP19125_AMY-50-W-C2
LES size: 10.0 mm
Required components:
FWHM: 35°
FWTM: 61°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

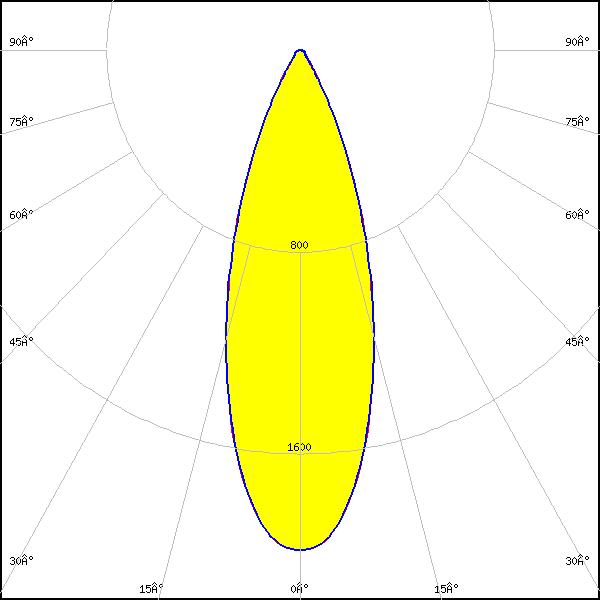

LED: V11 HD Gen 8
Ordering code: CP19125_AMY-50-W-C2
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM: 35°
FWTM: 62°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

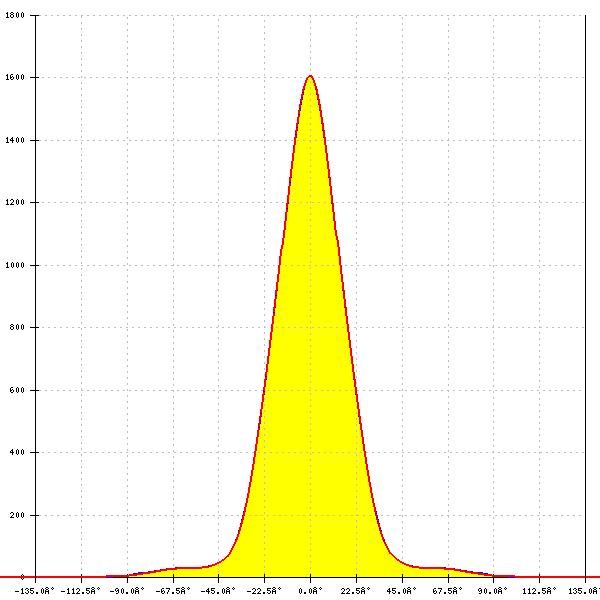

LED: V13 Gen 8-9
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.8 mm
Required components:
FWHM: 37°
FWTM: 69°
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: V3 HD Gen 8
Ordering code: CP19125_AMY-50-W-C2
LES size: 3.8 mm
Required components:
FWHM: 37°
FWTM: 56°
Peak intensity: 2.235 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: V3 HD Gen 8 FC
Ordering code: CP19125_AMY-50-W-C2
LES size: 2.9 mm
Required components:
FWHM: 38°
FWTM: 55°
Peak intensity: 2.220 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

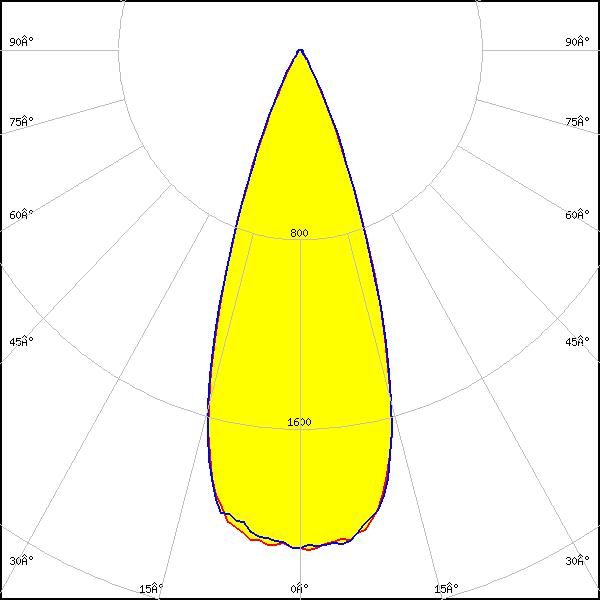

LED: V4 HD Gen 7
Ordering code: CP19125_AMY-50-W-C2
LES size: 5.2 mm
Required components:
FWHM: 36°
FWTM: 56°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

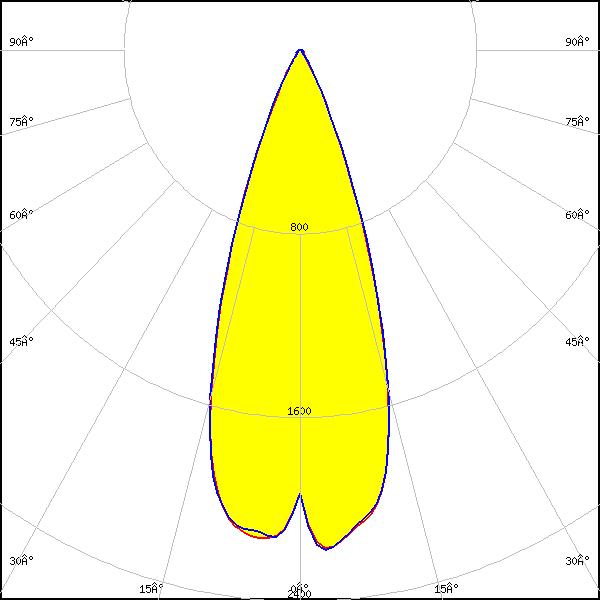

LED: V4 HD Gen 8
Ordering code: CP19125_AMY-50-W-C2
LES size: 4.8 mm
Required components:
FWHM: 37°
FWTM: 56°
Peak intensity: 2.239 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

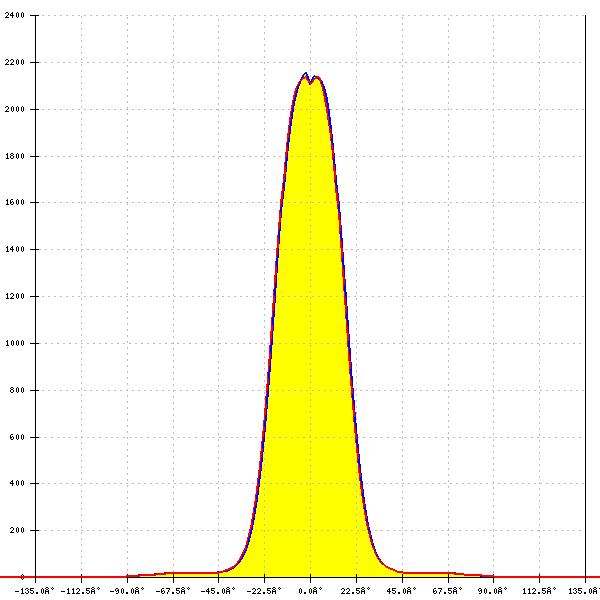

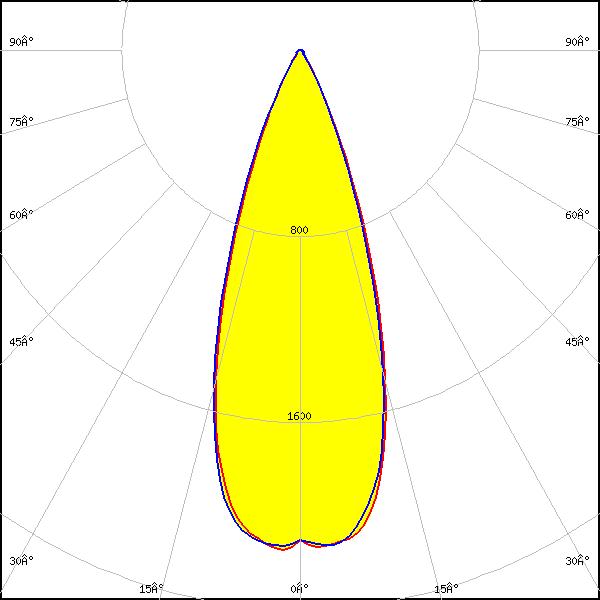

LED: V6 Gen 8-9
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.3 mm
Required components:
FWHM: 37°
FWTM: 57°
Peak intensity: 2.151 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

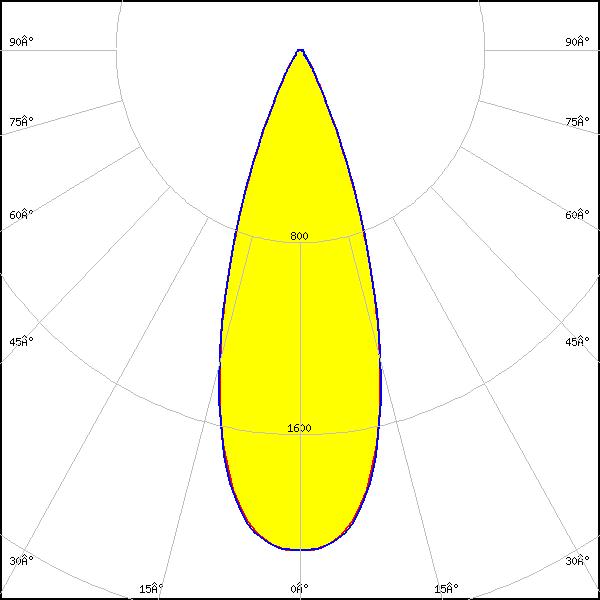

LED: V6 HD Gen 7
Ordering code: CP19125_AMY-50-W-C2
LES size: 7.0 mm
Required components:
FWHM: 36°
FWTM: 58°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

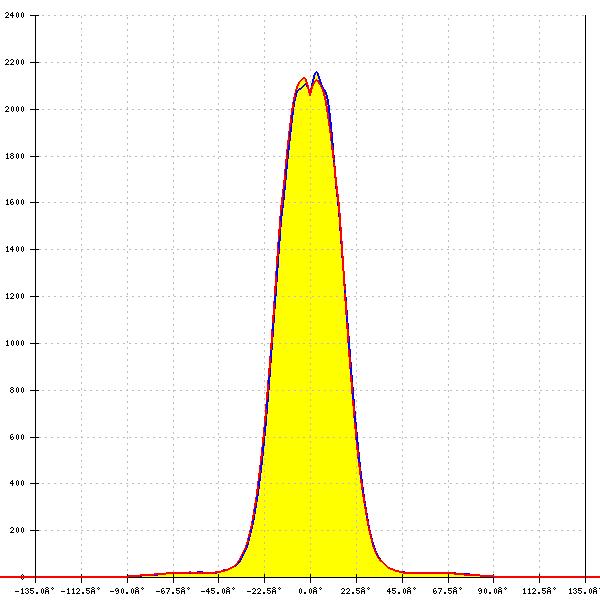

LED: V6 HD Gen 8
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.6 mm
Required components:
FWHM: 36°
FWTM: 58°
Peak intensity: 2.204 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

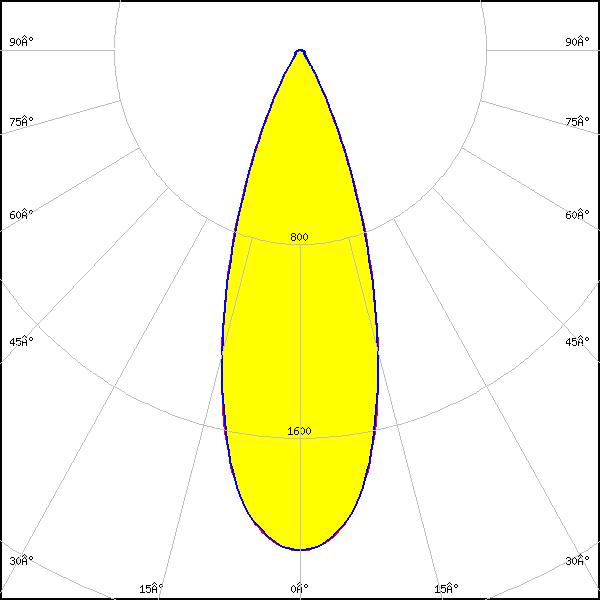

LED: V8 Gen 8-9
Ordering code: CP19125_AMY-50-W-C2
LES size: 8.5 mm
Required components:
FWHM: 36°
FWTM: 60°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

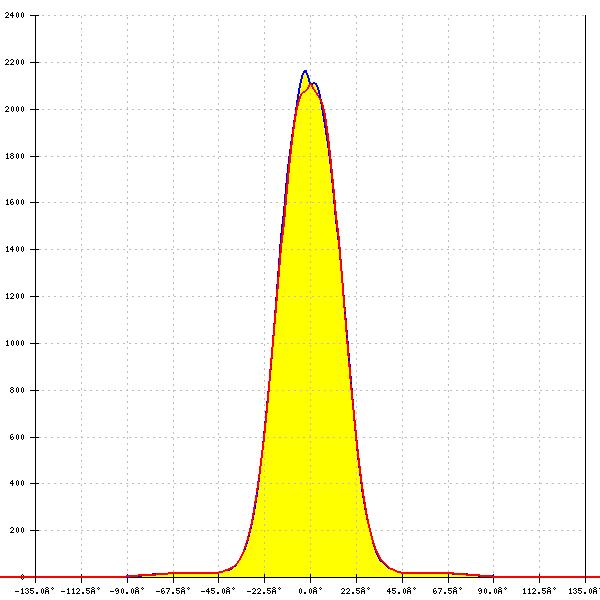

LED: V8 Gen7
Ordering code: CP19125_AMY-50-W-C2
LES size: 8.1 mm
Required components:
FWHM: 36°
FWTM: 58°
Peak intensity: 2.161 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

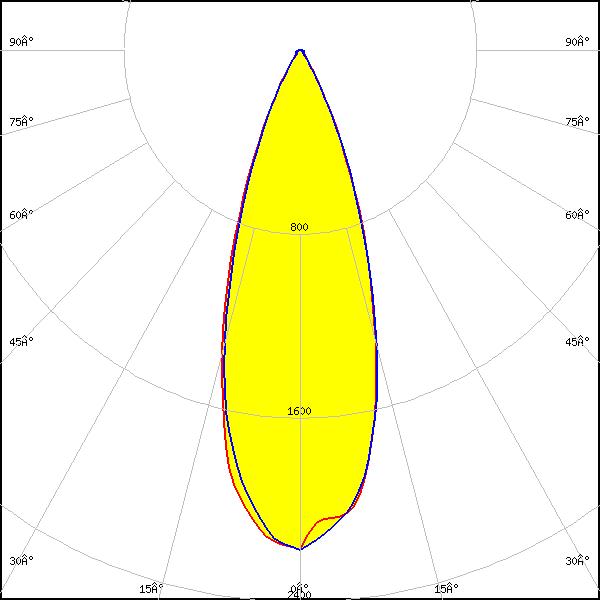

LED: V9 HD Gen 8
Ordering code: CP19125_AMY-50-W-C2
LES size: 8.8 mm
Required components:
FWHM: 35°
FWTM: 59°
Peak intensity: 2.210 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

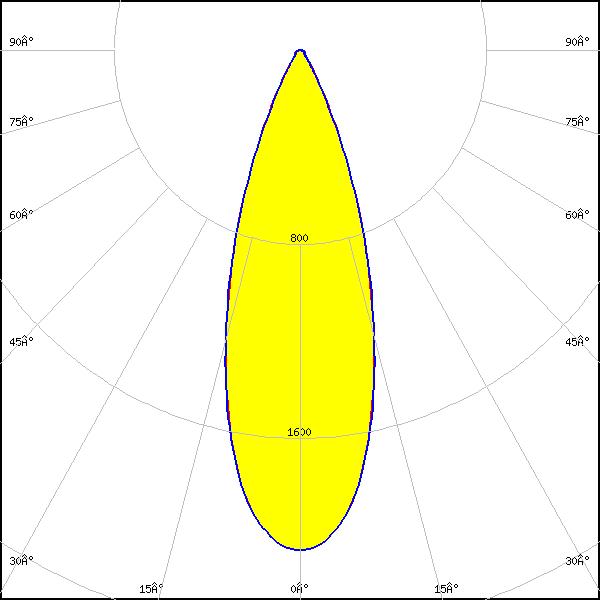

LED: V9 HD Gen7
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.2 mm
Required components:
FWHM: 34°
FWTM: 59°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

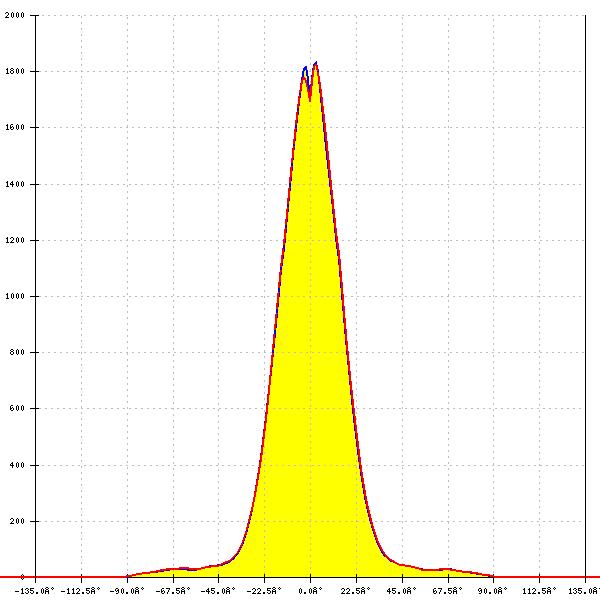

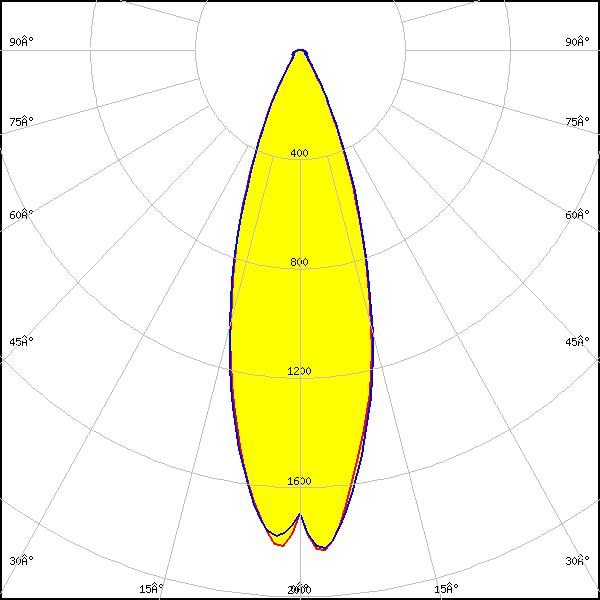

LED: Vero SE 13
Ordering code: CP19125_AMY-50-W-C2
LES size: 13.4 mm
Required components:
FWHM: 34°
FWTM: 61°
Peak intensity: 1.858 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

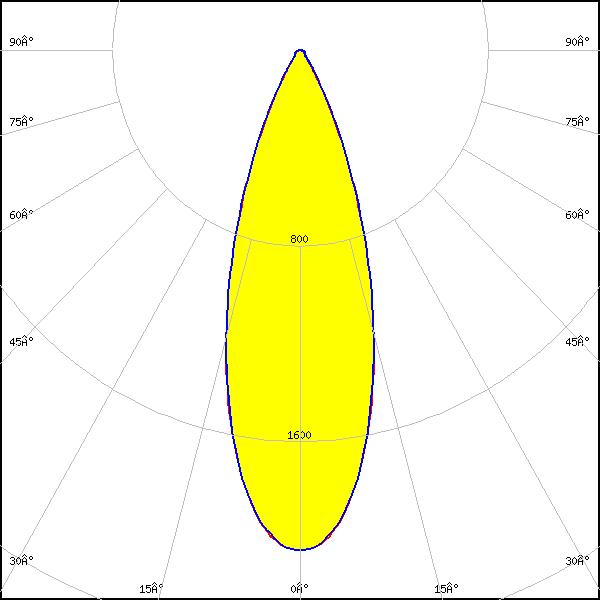

LED: VERO10
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.9 mm
Required components:
FWHM: 34°
FWTM: 60°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

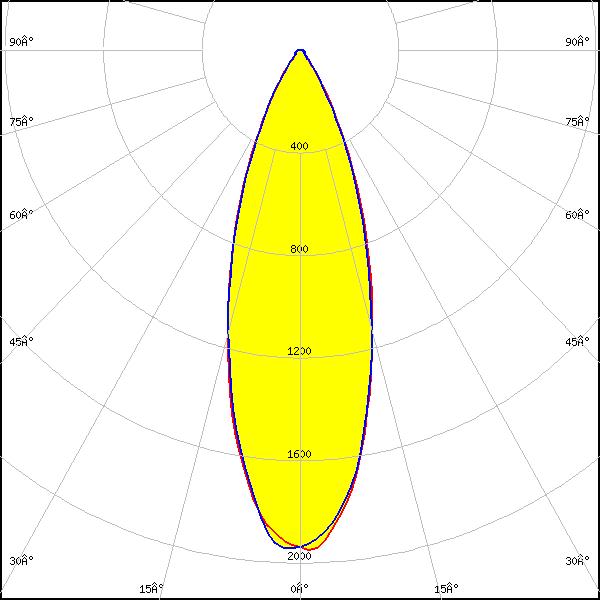

LED: VERO13
Ordering code: CP19125_AMY-50-W-C2
LES size: 13.4 mm
Required components:
FWHM: 34°
FWTM: 65°
Peak intensity: 1.960 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

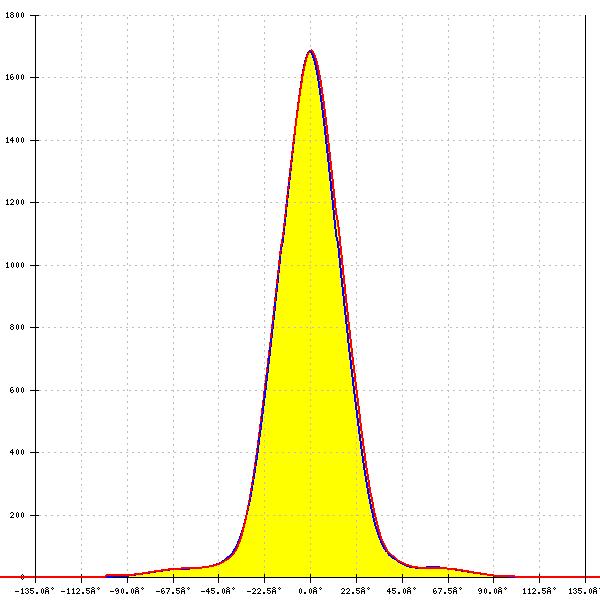

LED: Vesta DTW 13mm (21W)
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 35°
FWTM: 65°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

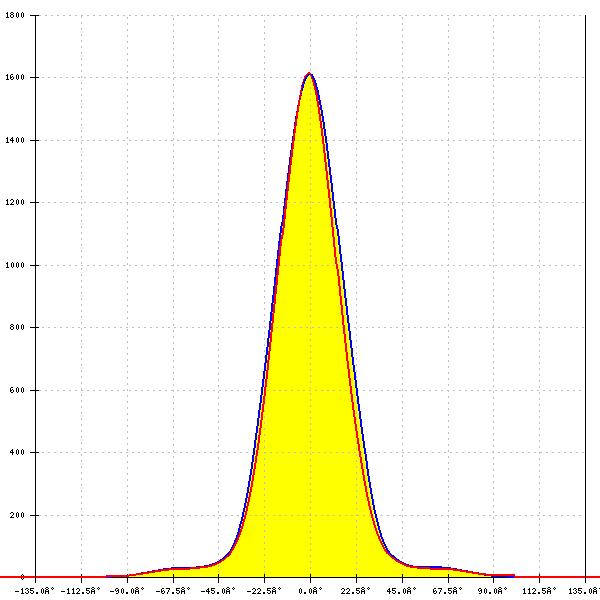

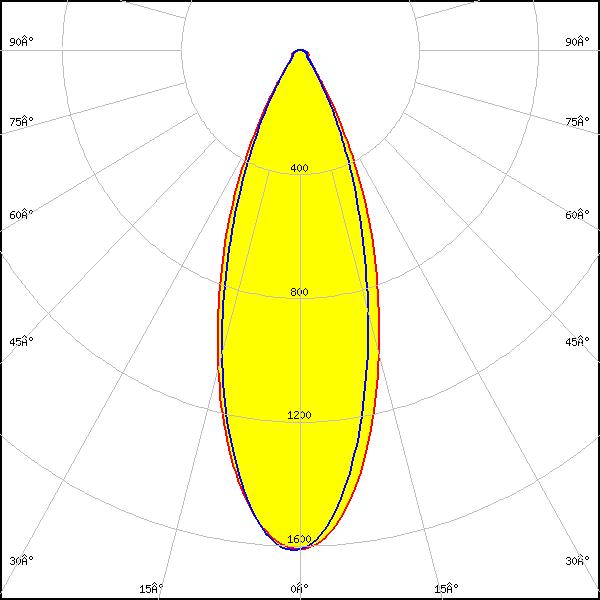

LED: Vesta DTW 15mm (33W)
Ordering code: CP19125_AMY-50-W-C2
LES size: 16.2 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 37°
FWTM: 67°
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta DTW 6mm
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 36°
FWTM: 58°
Peak intensity: 2.199 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

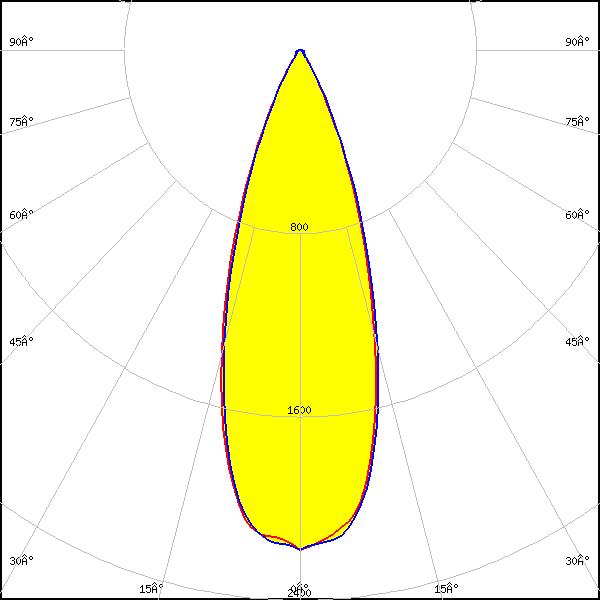

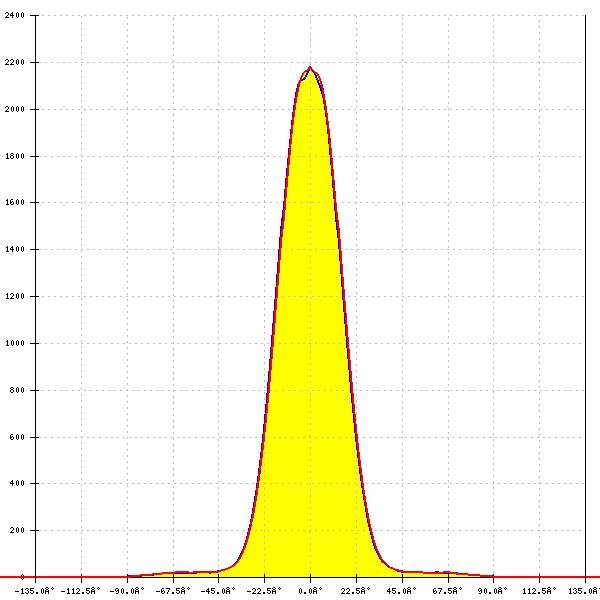

LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 35°
FWTM: 59°
Peak intensity: 2.186 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

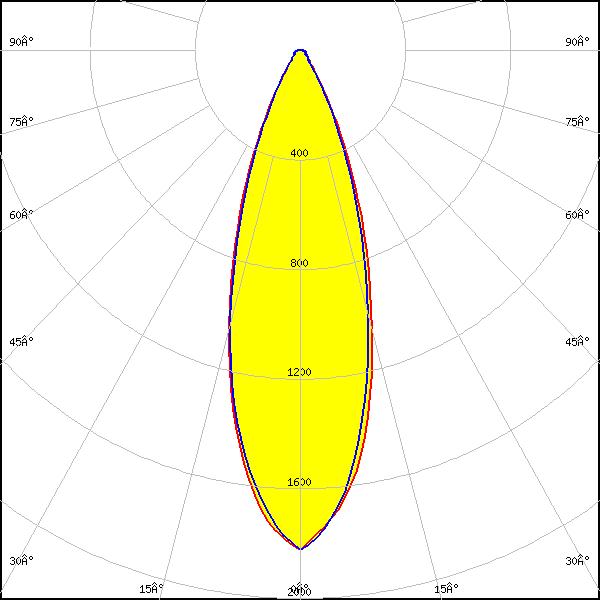

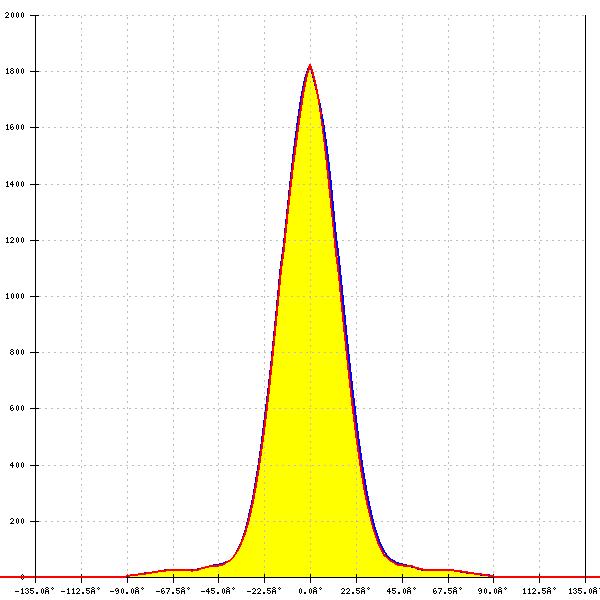

LED: Vesta SE 13mm TW
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.3 mm
Required components:
FWHM: 33°
FWTM: 63°
Peak intensity: 1.824 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: Tunable White

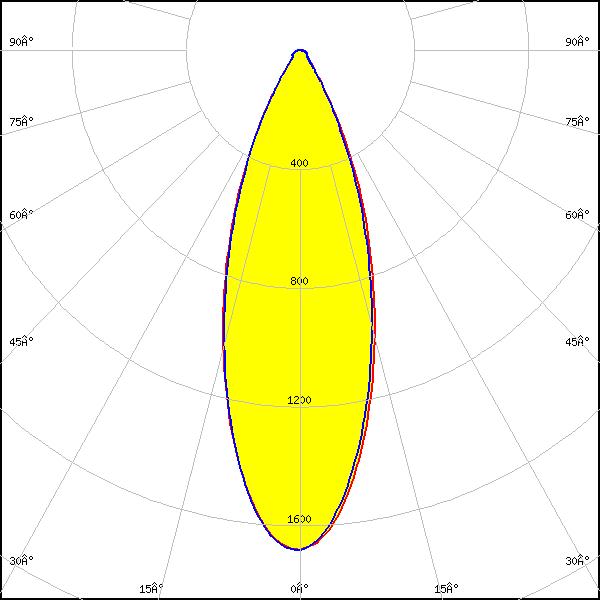

LED: Vesta TW 13mm (18W) DP
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 492 Typ L8
FWHM: 36°
FWTM: 66°
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

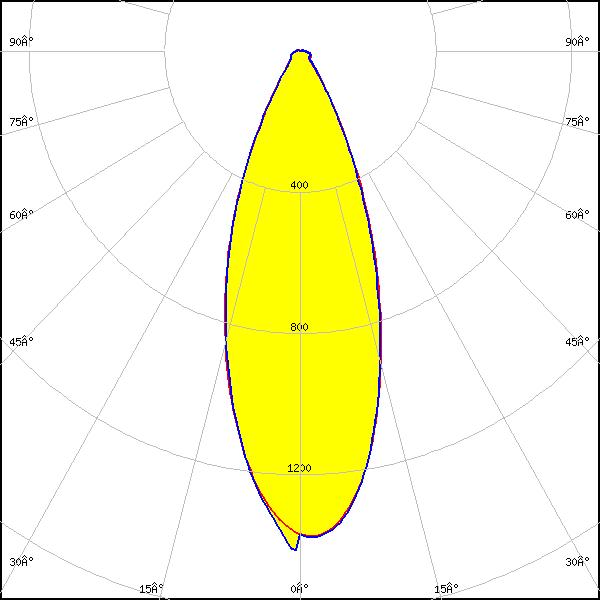

LED: Vesta TW 15mm DP
Ordering code: CP19125_AMY-50-W-C2
LES size: 16.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 482 Typ L8
FWHM: 38°
FWTM: 68°
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

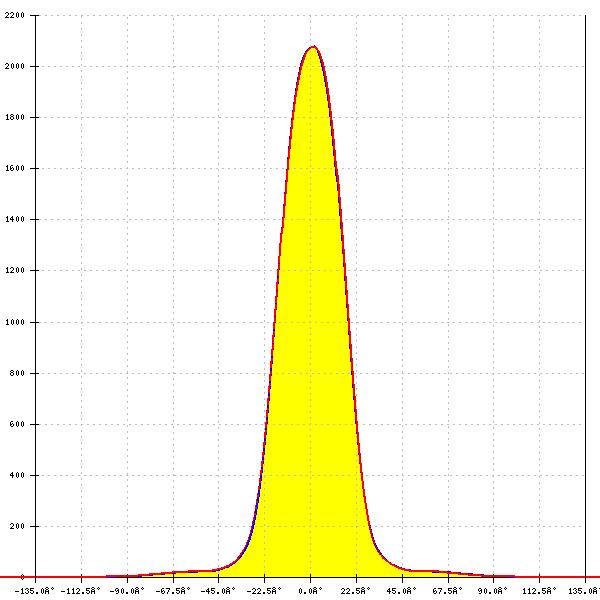

LED: Vesta TW 6mm DP
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 36°
FWTM: 57°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

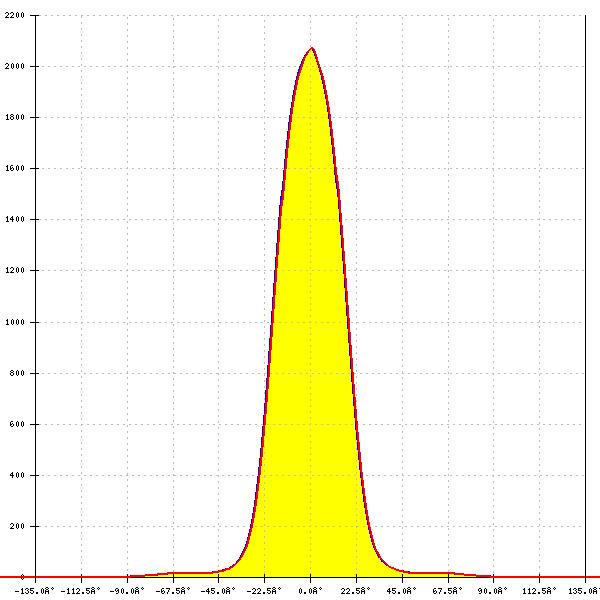

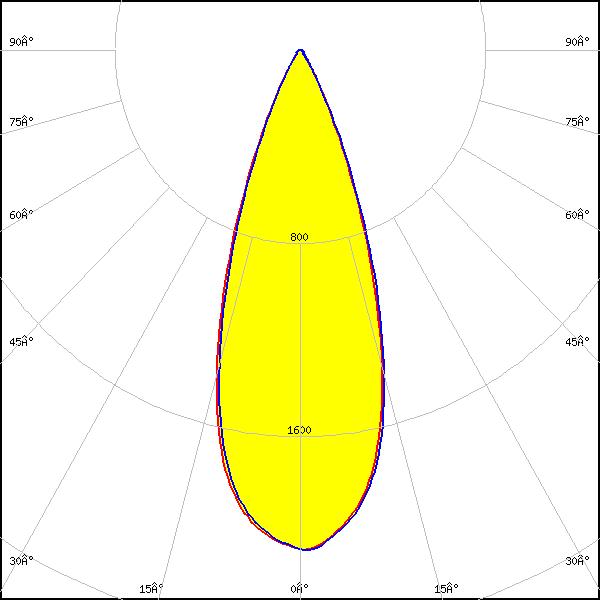

LED: Vesta TW 6mm DP
Ordering code: CP19134_AMY-50-W-B2
LES size: 6.3 mm
Required components:
Bender Wirth: 504 Typ B35L
FWHM: 37°
FWTM: 58°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

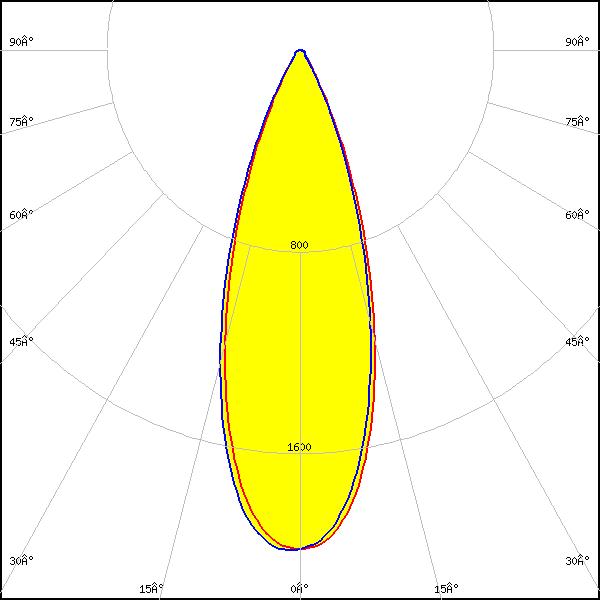

LED: Vesta TW 9mm (9W) DP
Ordering code: CP19125_AMY-50-W-C2
LES size: 10.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 35°
FWTM: 60°
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

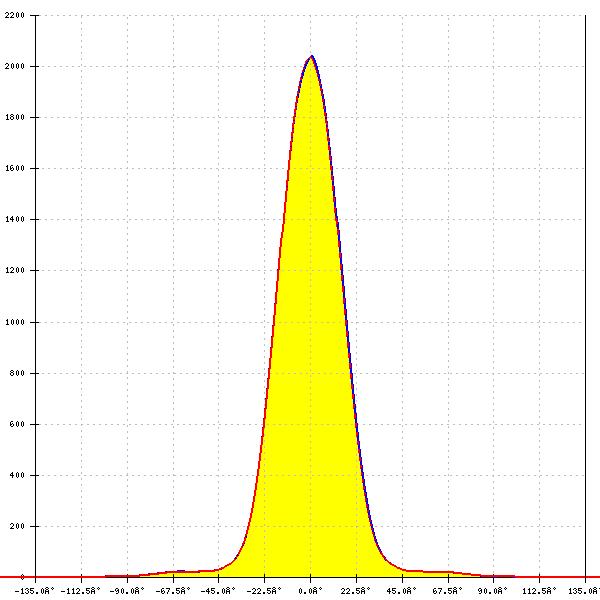

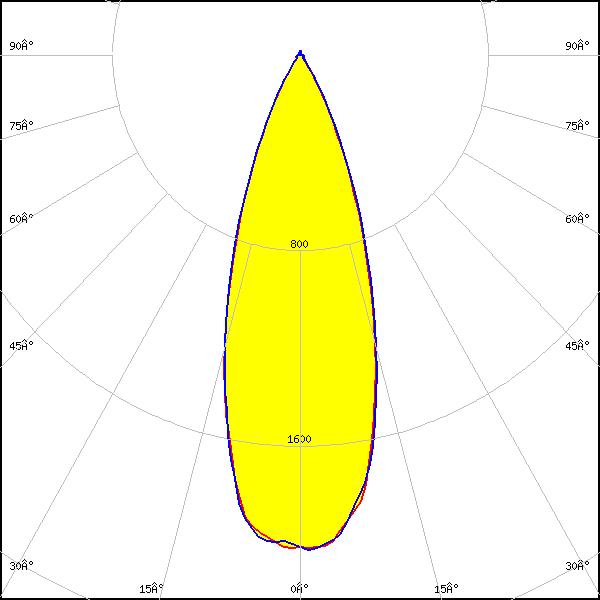

LED: CLL02x/CLU02x (LES10)
Ordering code: CP19134_AMY-50-W-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 35°
FWTM: 60°
Peak intensity: 2.032 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

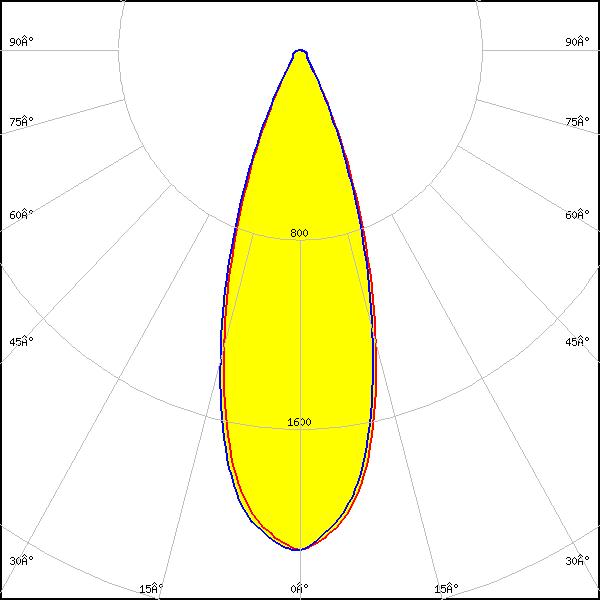

LED: CLL02x/CLU02x (LES10)
Ordering code: CP19143_AMY-50-W-C2-WHT
LES size: 9.8 mm
Required components:
FWHM: 35°
FWTM: 59°
Peak intensity: 2.114 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

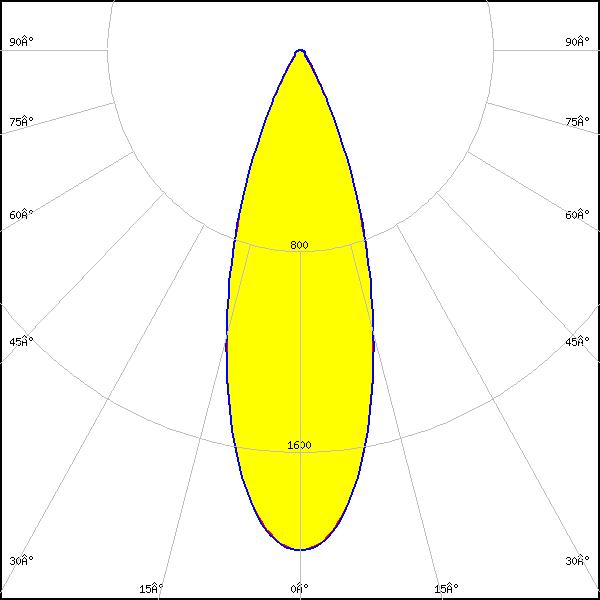

LED: CLL02x/CLU02x (LES10)
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.8 mm
Required components:
FWHM: 34°
FWTM: 60°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
Ordering code: CP19134_AMY-50-W-B2
LES size: 9.8 mm
Required components:
Green Gems: GH27d
FWHM: 35°
FWTM: 60°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

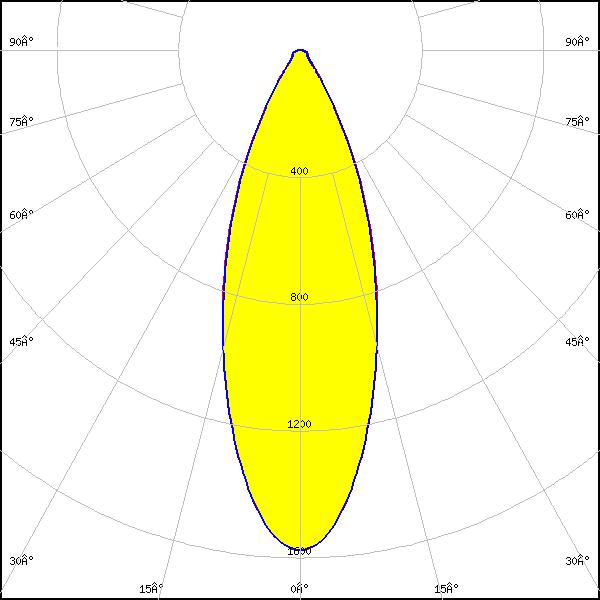

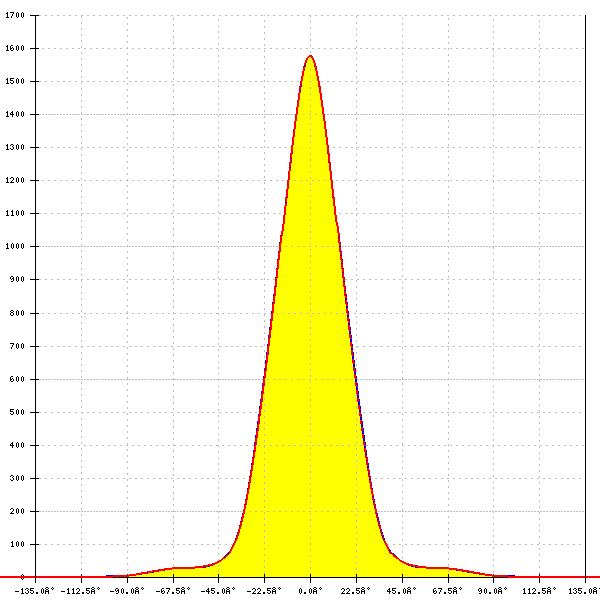

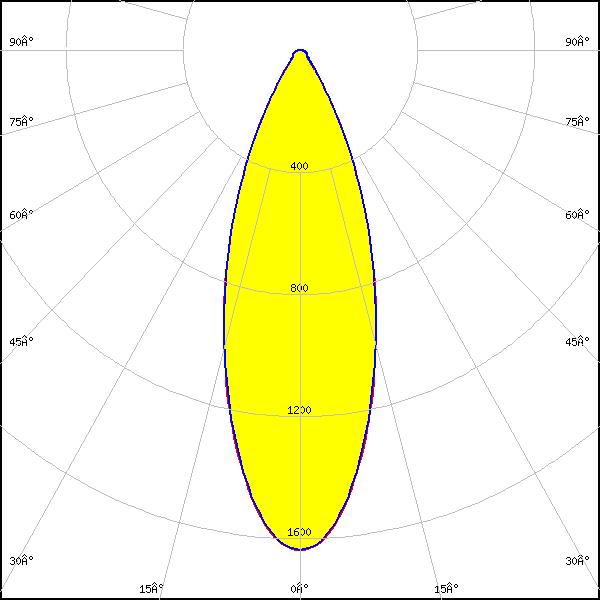

LED: CLL03x/CLU03x
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.5 mm
Required components:
FWHM: 36°
FWTM: 67°
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

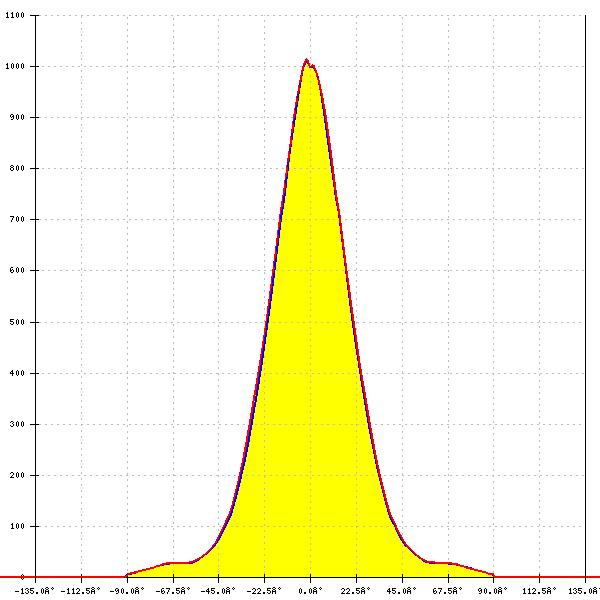

LED: CLL04x/CLU04x
Ordering code: CP19125_AMY-50-W-C2
LES size: 22.0 mm
Required components:
Bender Wirth: 631a Hekla XL
FWHM: 42°
FWTM: 83°
Peak intensity: 1.017 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

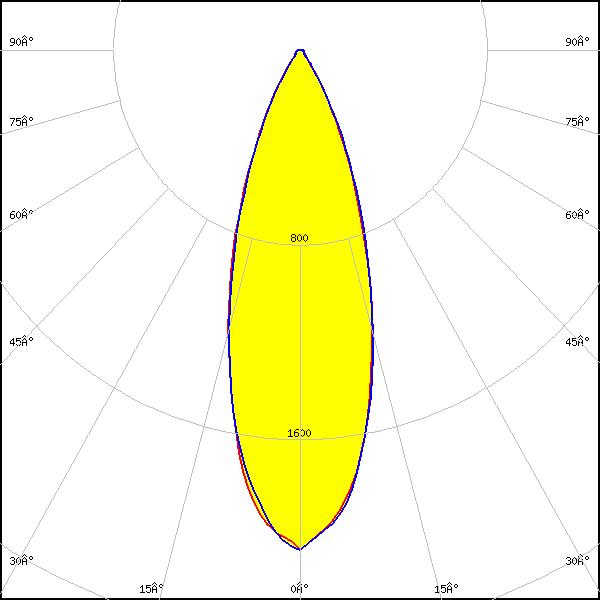

LED: CLU02Q Type-F
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.7 mm
Required components:
FWHM: 34°
FWTM: 62°
Peak intensity: 2.056 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

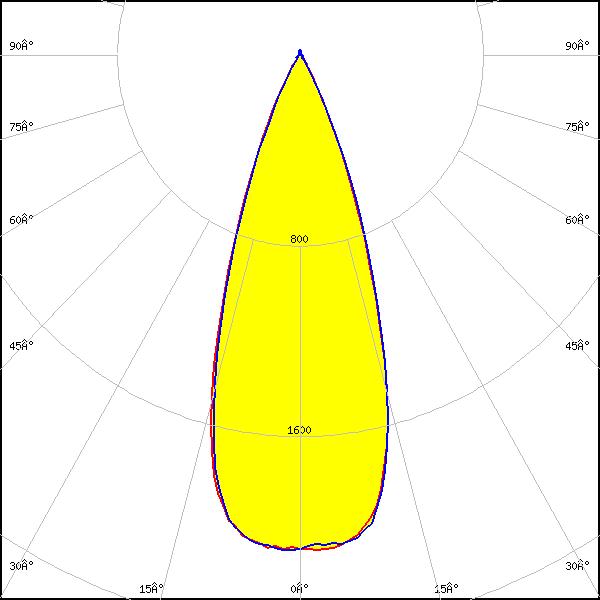

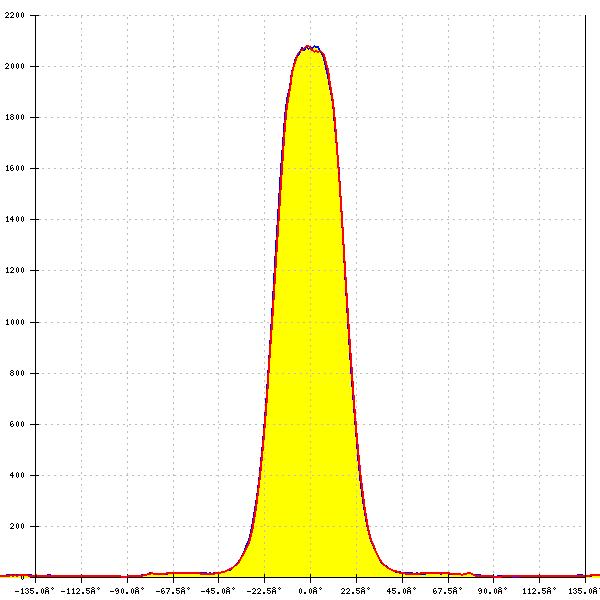

LED: CLU700/701/702/703
Ordering code: CP19134_AMY-50-W-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 36°
FWTM: 56°
Peak intensity: 2.087 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

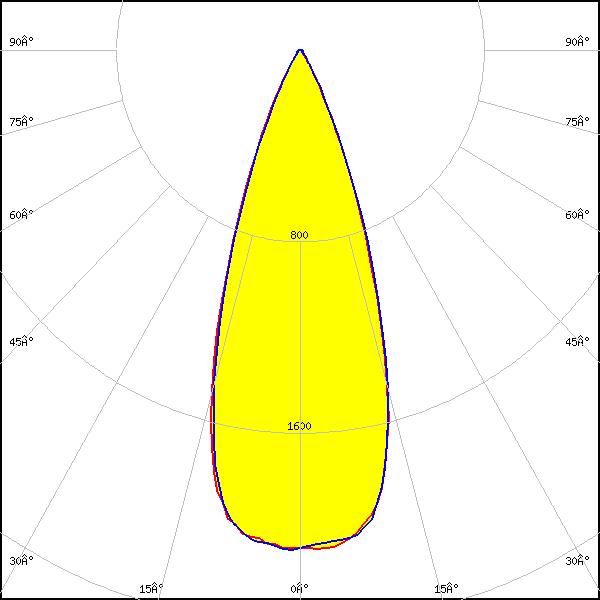

LED: CLU700/701/702/703
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.0 mm
Required components:
FWHM: 35°
FWTM: 57°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

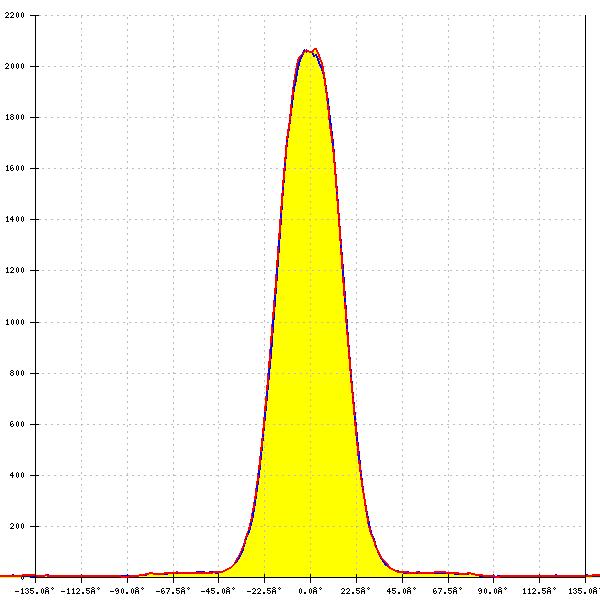

LED: CLU710/711
Ordering code: CP19134_AMY-50-W-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM: 36°
FWTM: 58°
Peak intensity: 2.070 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

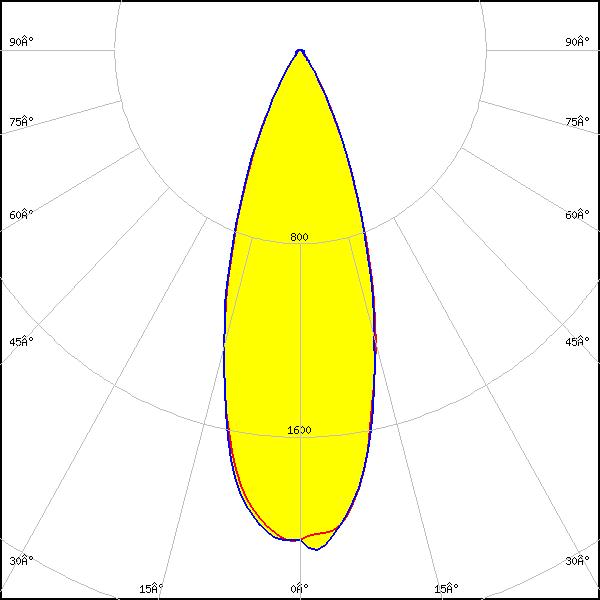

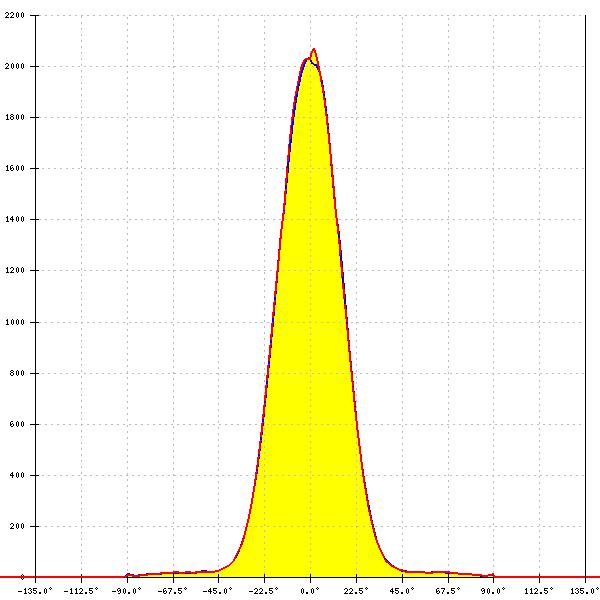

LED: CLU712/713
Ordering code: CP19125_AMY-50-W-C2
LES size: 8.5 mm
Required components:
FWHM: 36°
FWTM: 60°
Peak intensity: 2.128 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

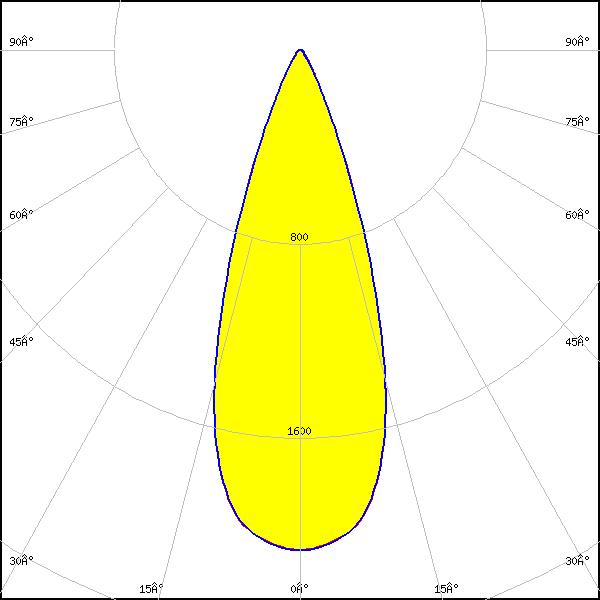

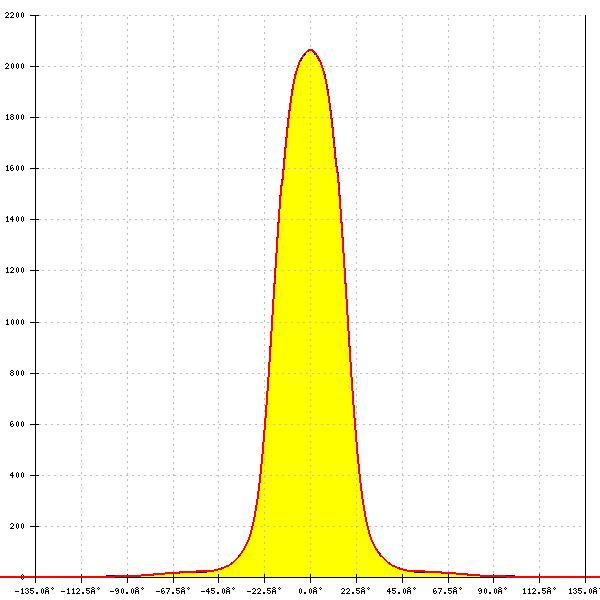

LED: CLU7A2/7A3
Ordering code: CP19125_AMY-50-W-C2
LES size: 4.2 mm
Required components:
FWHM: 36°
FWTM: 56°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

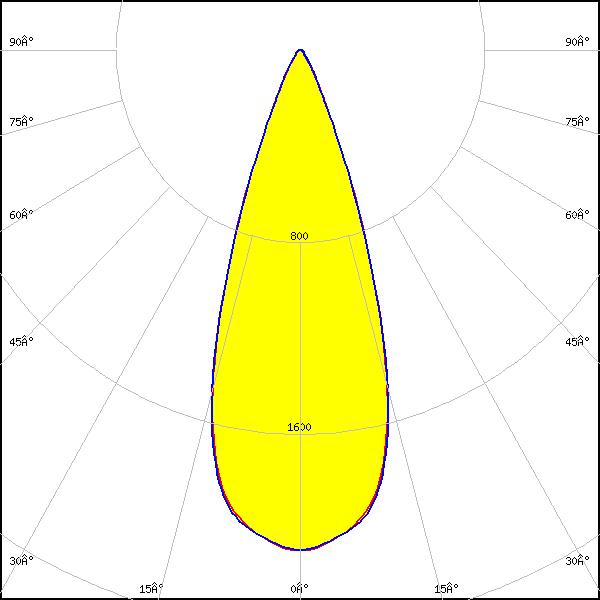

LED: CLU7B2
Ordering code: CP19125_AMY-50-W-C2
LES size: 3.3 mm
Required components:
FWHM: 36°
FWTM: 55°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU7L3
Ordering code: CP19134_AMY-50-W-B2
LES size: 2.4 mm
Required components:
Bender Wirth: 667a Bayonet35
FWHM: 38°
FWTM: 54°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU7S3
Ordering code: CP19134_AMY-50-W-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 667a Bayonet35
FWHM: 38°
FWTM: 55°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CHA0410
Ordering code: CP19125_AMY-50-W-C2
LES size: 4.2 mm
Required components:
FWHM: 38°
FWTM: 56°
Peak intensity: 2.105 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CHA0612
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.0 mm
Required components:
FWHM: 37°
FWTM: 58°
Peak intensity: 2.103 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1516
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.0 mm
Required components:
FWHM: 35°
FWTM: 60°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1825
Ordering code: CP19125_AMY-50-W-C2
LES size: 12.0 mm
Required components:
FWHM: 35°
FWTM: 64°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT14xx
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.8 mm
Required components:
FWHM: 34°
FWTM: 60°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT19xx
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.5 mm
Required components:
FWHM: 36°
FWTM: 67°
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CMU10xx
Ordering code: CP19134_AMY-50-W-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 34°
FWTM: 60°
Peak intensity: 2.123 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CMU10xx
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.8 mm
Required components:
FWHM: 35°
FWTM: 61°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CMU15xx
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.5 mm
Required components:
FWHM: 34°
FWTM: 66°
Peak intensity: 1.833 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CMU15xx
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.5 mm
Required components:
FWHM: 34°
FWTM: 66°
Peak intensity: 1.845 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

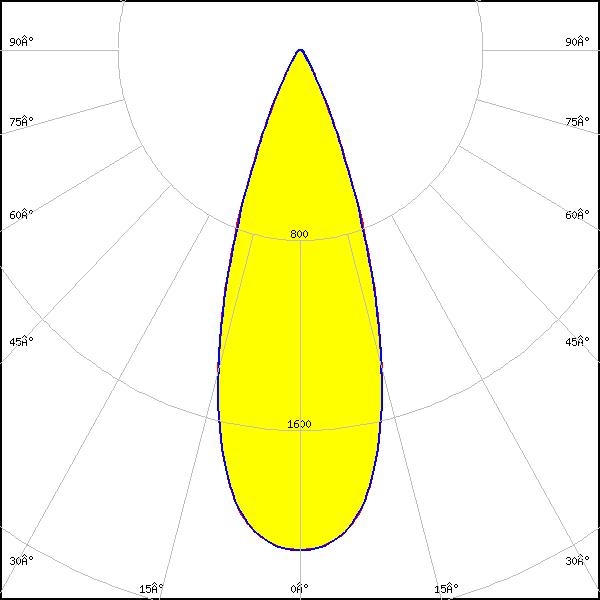

LED: CXA/B 13xx
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.0 mm
Required components:
FWHM: 36°
FWTM: 57°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

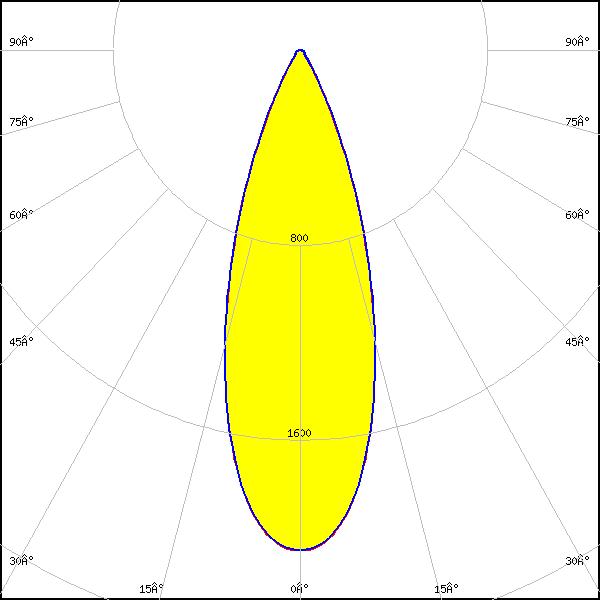

LED: CXA/B 15xx
Ordering code: CP19125_AMY-50-W-C2
LES size: 8.9 mm
Required components:
FWHM: 35°
FWTM: 59°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LEDIM/C6
Ordering code: CP19125_AMY-50-W-C2
LES size: 8.0 mm
Required components:
FWHM: 35°
FWTM: 60°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 34°
FWTM: 67°
Peak intensity: 1.848 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

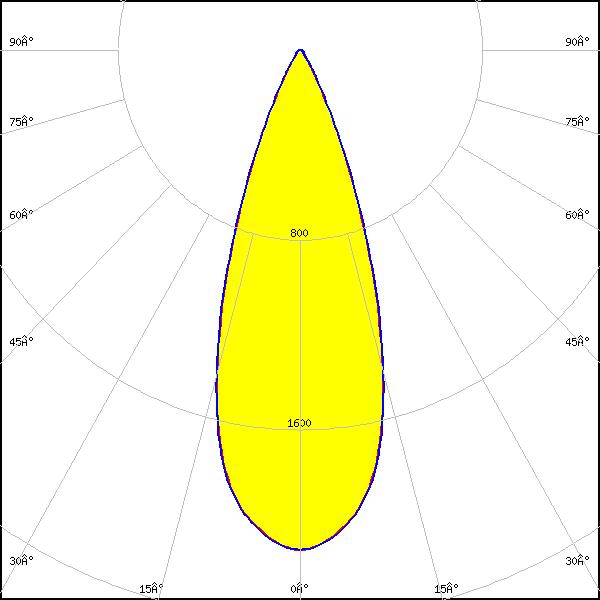

LED: LUXEON 7070
Ordering code: CP19134_AMY-50-W-B2
LES size: 0.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 37°
FWTM: 58°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.0 mm
Required components:
FWHM: 34°
FWTM: 59°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1204/1205
Ordering code: CP19125_AMY-50-W-C2
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 35°
FWTM: 64°
Peak intensity: 2.008 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1204HD
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.0 mm
Required components:
FWHM: 35°
FWTM: 60°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1205HD
Ordering code: CP19125_AMY-50-W-C2
LES size: 11.0 mm
Required components:
FWHM: 34°
FWTM: 62°
Peak intensity: 2.144 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

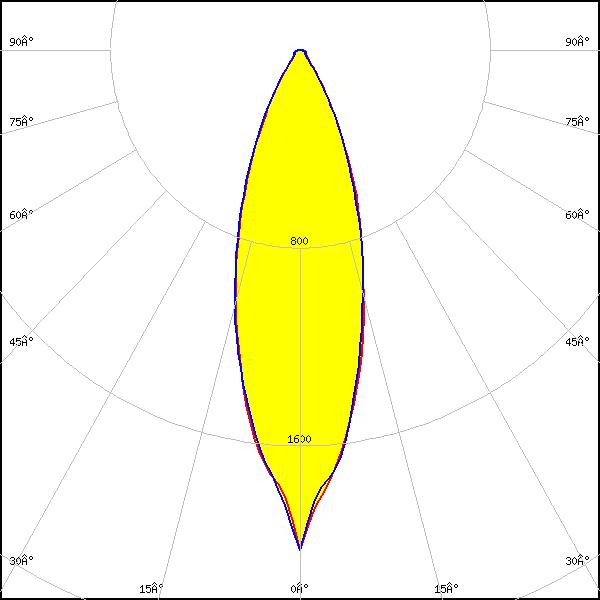

LED: LUXEON CoB 1208
Ordering code: CP19125_AMY-50-W-C2
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 31°
FWTM: 64°
Peak intensity: 2.023 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB M02/M03
Ordering code: CP19125_AMY-50-W-C2
LES size: 8.5 mm
Required components:
FWHM: 35°
FWTM: 60°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB S01
Ordering code: CP19125_AMY-50-W-C2
LES size: 5.5 mm
Required components:
FWHM: 36°
FWTM: 57°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S01H4
Ordering code: CP19134_AMY-50-W-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 37°
FWTM: 56°
Peak intensity: 2.218 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S02H6
Ordering code: CP19134_AMY-50-W-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 36°
FWTM: 58°
Peak intensity: 2.193 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S04H9
Ordering code: CP19134_AMY-50-W-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 34°
FWTM: 60°
Peak intensity: 2.182 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

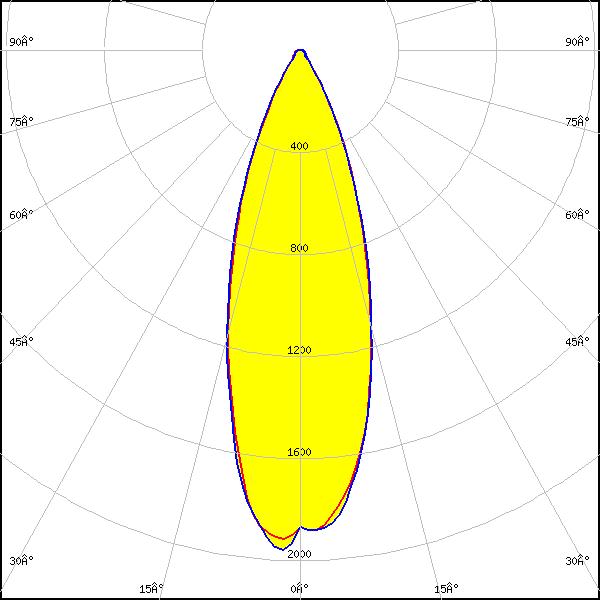

LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP19125_AMY-50-W-C2
LES size: 12.0 mm
Required components:
FWHM: 34°
FWTM: 63°
Peak intensity: 2.001 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

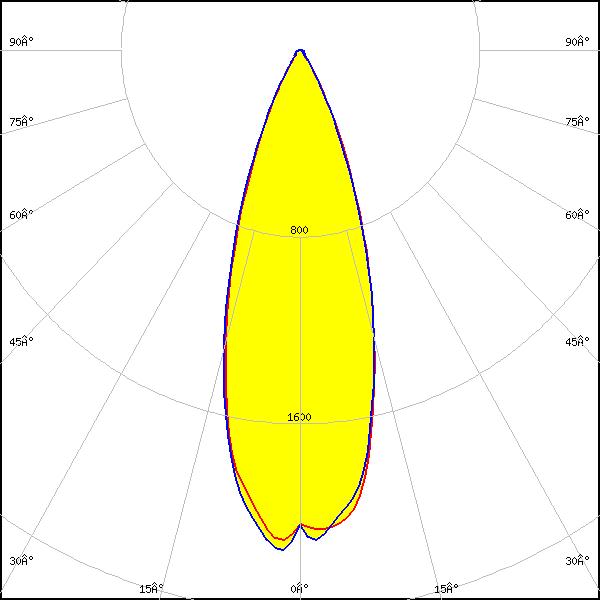

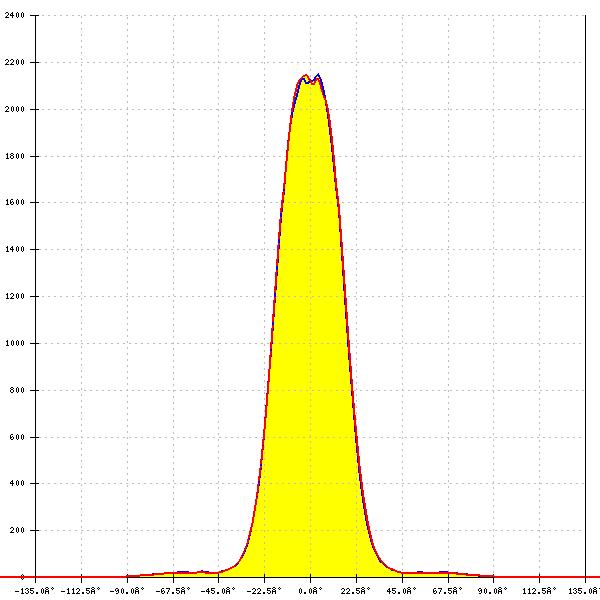

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.0 mm
Required components:
FWHM: 34°
FWTM: 60°
Peak intensity: 2.153 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.0 mm
Required components:
FWHM: 36°
FWTM: 58°
Peak intensity: 2.225 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Fusion 12-up (20x24)
Ordering code: CP19125_AMY-50-W-C2
LES size: 7.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
F18158_HEKLA-RZ-LENS
FWHM: 35°
FWTM: 61°
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

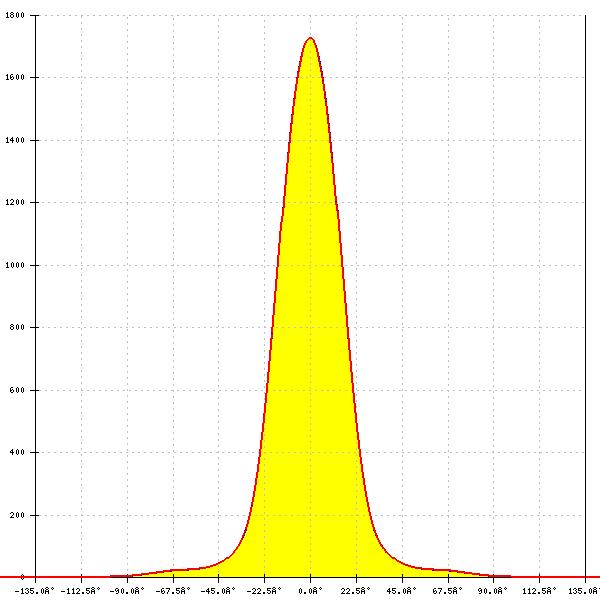

LED: LUXEON Fusion 21-up (20x24)
Ordering code: CP19125_AMY-50-W-C2
LES size: 7.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
F18158_HEKLA-RZ-LENS
FWHM: 35°
FWTM: 62°
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Fusion 27-up (20x24)
Ordering code: CP19125_AMY-50-W-C2
LES size: 10.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
F18158_HEKLA-RZ-LENS
FWHM: 35°
FWTM: 65°
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

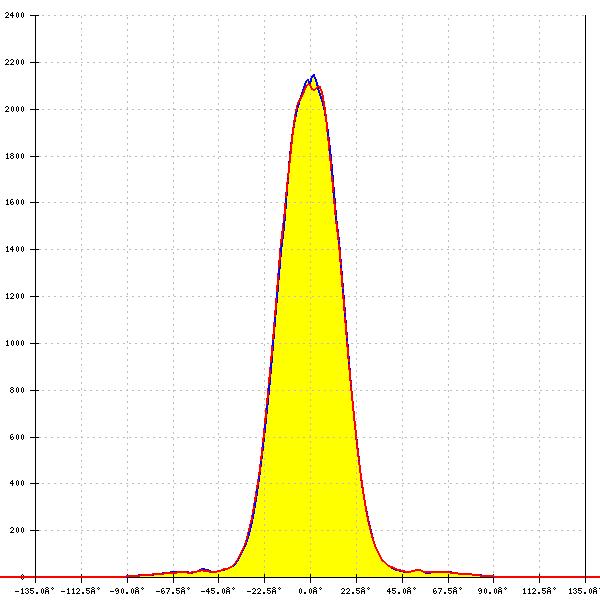

LED: CHM-9 XH (19x19)
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.0 mm
Required components:
FWHM: 36°
FWTM: 59°
Peak intensity: 2.178 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

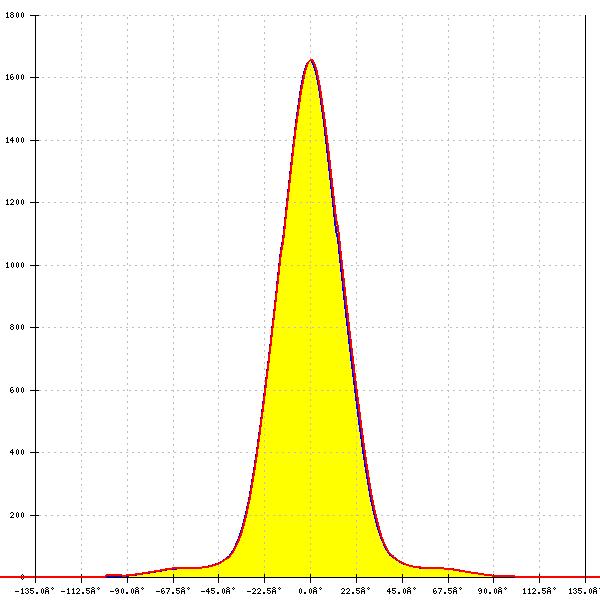

LED: CTM-14 (Tunable White) Gen2
Ordering code: CP19125_AMY-50-W-C2
LES size: 13.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 36°
FWTM: 66°
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

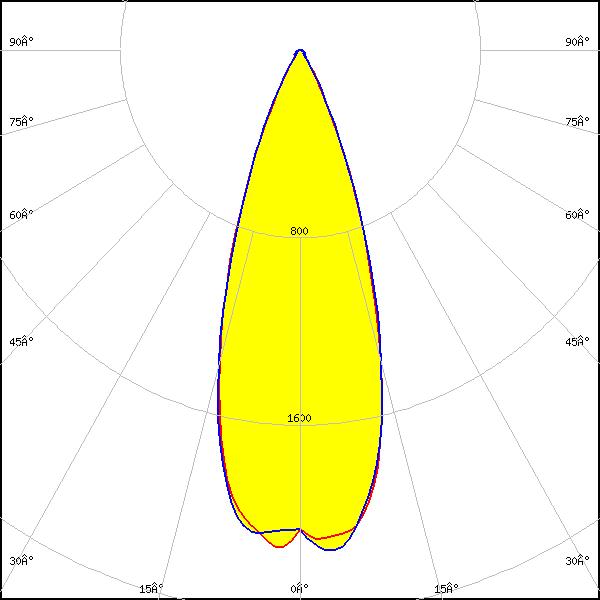

LED: CTM-6 (Tunable White) Gen2
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 36°
FWTM: 58°
Peak intensity: 2.169 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: CTM-9 (Tunable White)
Ordering code: CP19134_AMY-50-W-B2
LES size: 9.5 mm
Required components:
Bender Wirth: 495 Typ B35L
FWHM: 36°
FWTM: 61°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-9 (Tunable White) Gen2
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 34°
FWTM: 59°
Peak intensity: 2.204 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: CXM-3
Ordering code: CP19125_AMY-50-W-C2
LES size: 3.5 mm
Required components:
FWHM: 36°
FWTM: 55°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CXM-4
Ordering code: CP19125_AMY-50-W-C2
LES size: 4.5 mm
Required components:
FWHM: 36°
FWTM: 56°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-6 (13.5x13.5)
Ordering code: CP19134_AMY-50-W-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM: 36°
FWTM: 57°
Peak intensity: 2.184 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

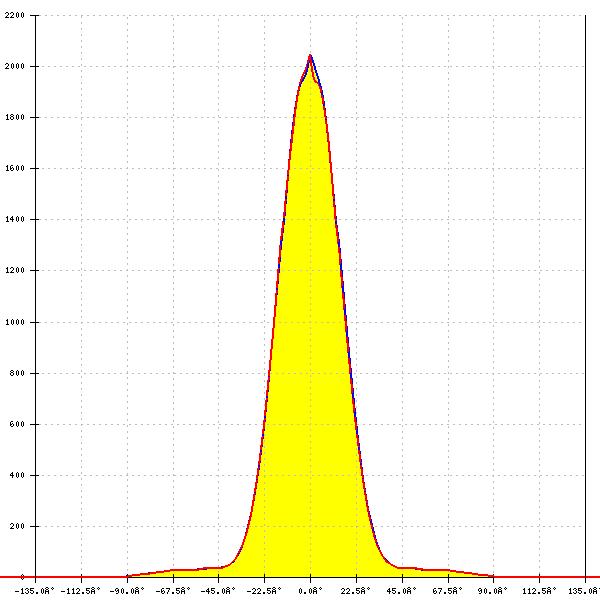

LED: CxM-9 (13.5x13.5)
Ordering code: CP19152_AMY-50-W-B2-WHT
LES size: 9.8 mm
Required components:
FWHM: 34°
FWTM: 60°
Peak intensity: 2.049 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM: 35°
FWTM: 68°
Peak intensity: 1.829 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
Ordering code: CP19125_AMY-50-W-C2
LES size: 11.5 mm
Required components:
FWHM: 34°
FWTM: 62°
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
Ordering code: CP19125_AMY-50-W-C2
LES size: 8.7 mm
Required components:
FWHM: 35°
FWTM: 59°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 6)
Ordering code: CP19134_AMY-50-W-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 36°
FWTM: 56°
Peak intensity: 2.183 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Ordering code: CP19134_AMY-50-W-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 36°
FWTM: 58°
Peak intensity: 2.242 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

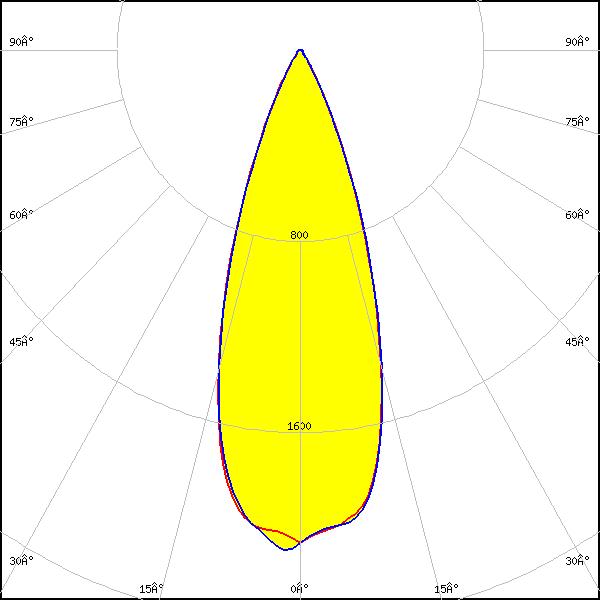

LED: COB S-Type (LES 7)
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Hekla
FWHM: 36°
FWTM: 58°
Peak intensity: 2.098 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.7 mm
Required components:
FWHM: 35°
FWTM: 58°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Ordering code: CP19134_AMY-50-W-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 36°
FWTM: 58°
Peak intensity: 2.208 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP19125_AMY-50-W-C2
LES size: 7.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8 HV
FWHM: 36°
FWTM: 58°
Peak intensity: 2.171 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: Tunable White

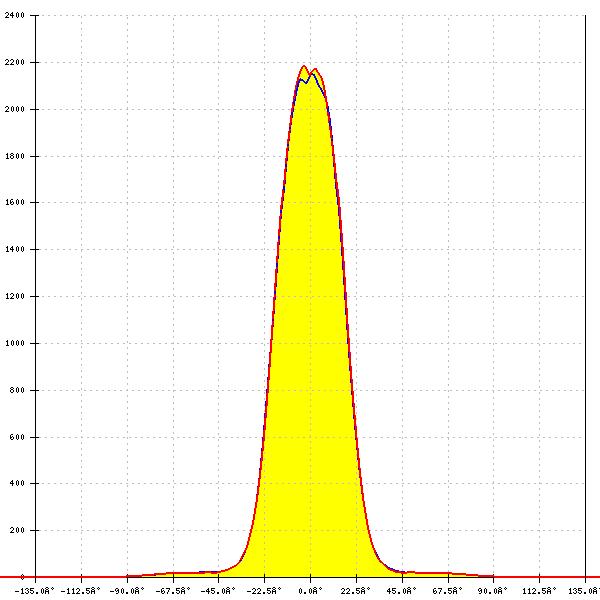

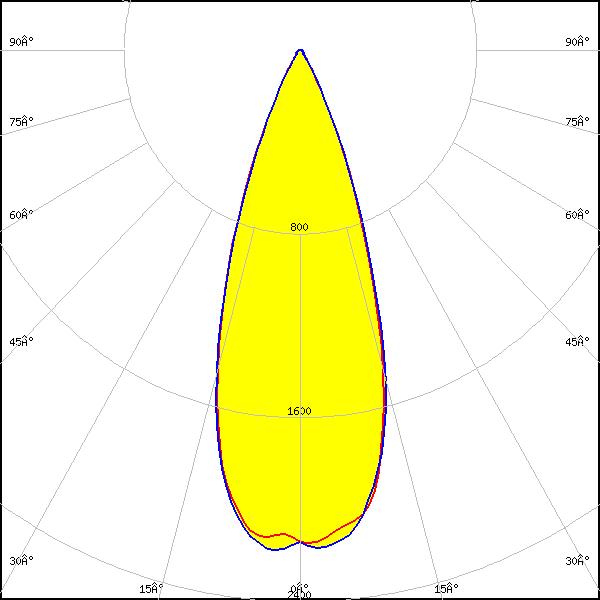

LED: NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP19125_AMY-50-W-C2
LES size: 5.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8 HV
FWHM: 36°
FWTM: 56°
Peak intensity: 2.173 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP19125_AMY-50-W-C2
LES size: 10.6 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8 HV
FWHM: 34°
FWTM: 62°
Peak intensity: 2.053 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Fortimo SLM C TW L06A 1313 G7N
LES size: 6.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 508 Typ L8
FWHM: 36°
FWTM: 57°
Peak intensity: 2.079 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Fortimo SLM C TW L09A 1919 G7N
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 35°
FWTM: 60°
Peak intensity: 1.983 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Fortimo SLM L09 CoB
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.0 mm
Required components:
FWHM: 34°
FWTM: 60°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

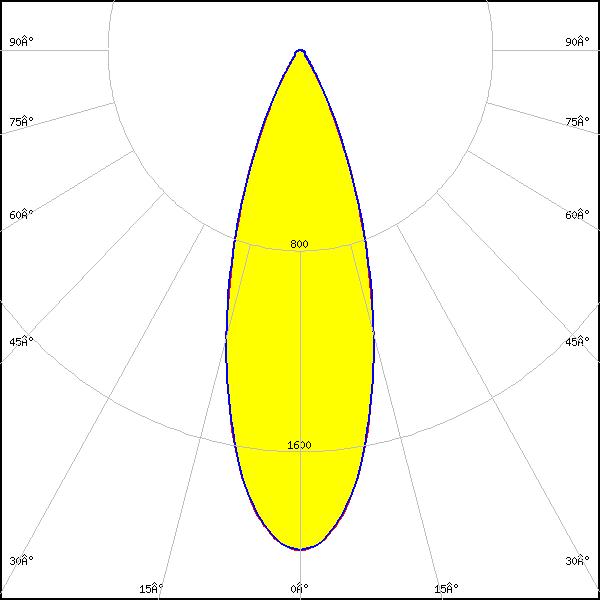

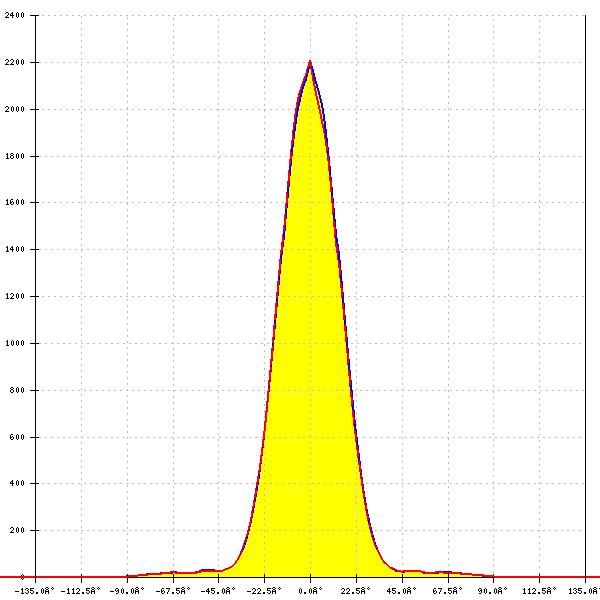

LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP19134_AMY-50-W-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 34°
FWTM: 60°
Peak intensity: 2.215 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.8 mm
Required components:
FWHM: 34°
FWTM: 60°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LC010C G2
Ordering code: CP19134_AMY-50-W-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 36°
FWTM: 56°
Peak intensity: 2.212 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.5 mm
Required components:
FWHM: 38°
FWTM: 70°
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

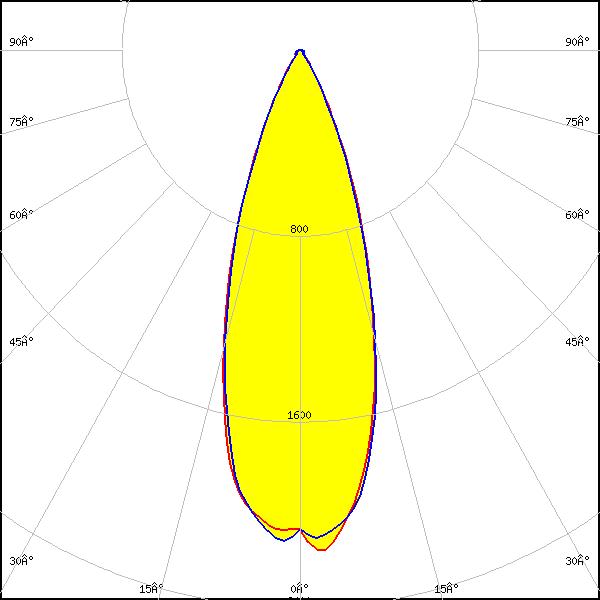

LED: LC020C G2
Ordering code: CP19134_AMY-50-W-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM: 34°
FWTM: 59°
Peak intensity: 2.166 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LC030C/040C G2
Ordering code: CP19134_AMY-50-W-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM: 34°
FWTM: 62°
Peak intensity: 2.055 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

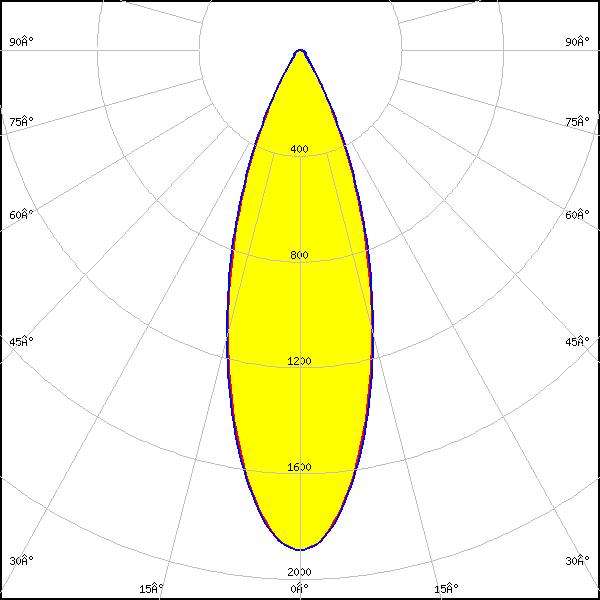

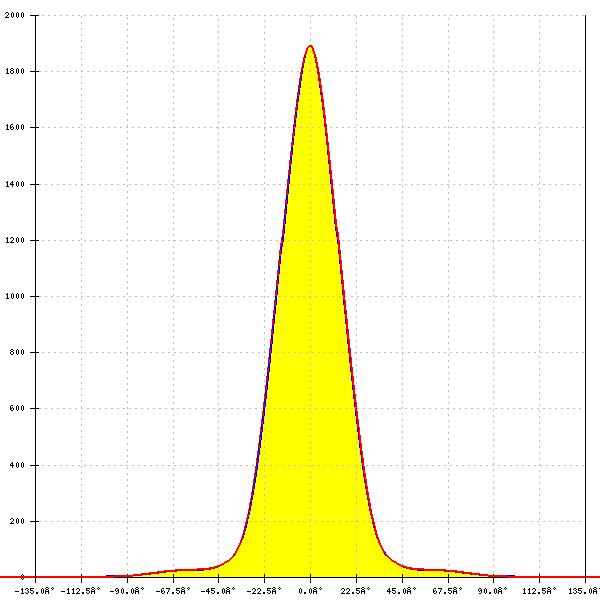

LED: LC030C/040C G2
Ordering code: CP19125_AMY-50-W-C2
LES size: 11.5 mm
Required components:
FWHM: 35°
FWTM: 63°
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 14.5
Ordering code: CP19125_AMY-50-W-C2
LES size: 14.5 mm
Required components:
FWHM: 37°
FWTM: 68°
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

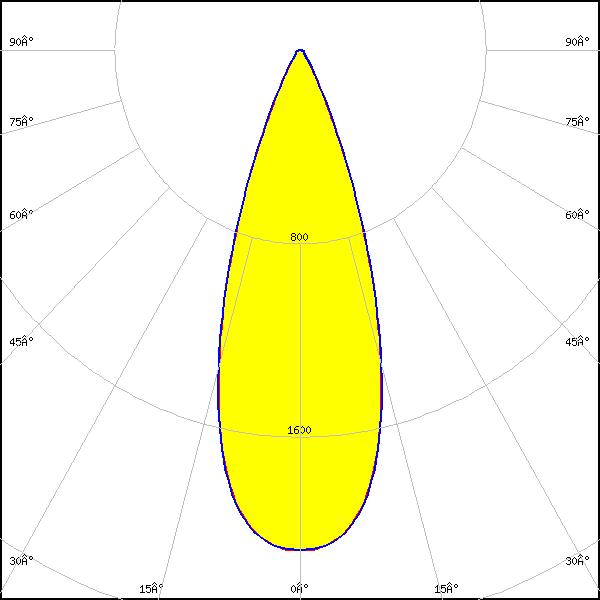

LED: MJT COB LES 6
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.0 mm
Required components:
FWHM: 36°
FWTM: 57°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 9.8
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.8 mm
Required components:
FWHM: 34°
FWTM: 60°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES09
Ordering code: CP19125_AMY-50-W-C2
LES size: 9.0 mm
Required components:
FWHM: 34°
FWTM: 59°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

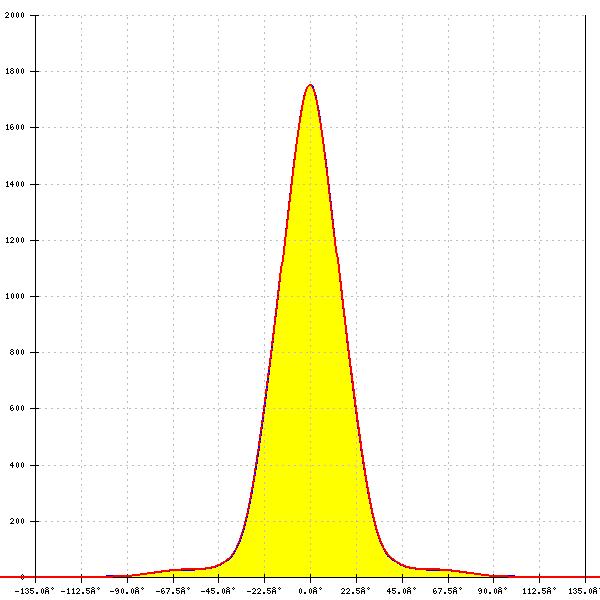

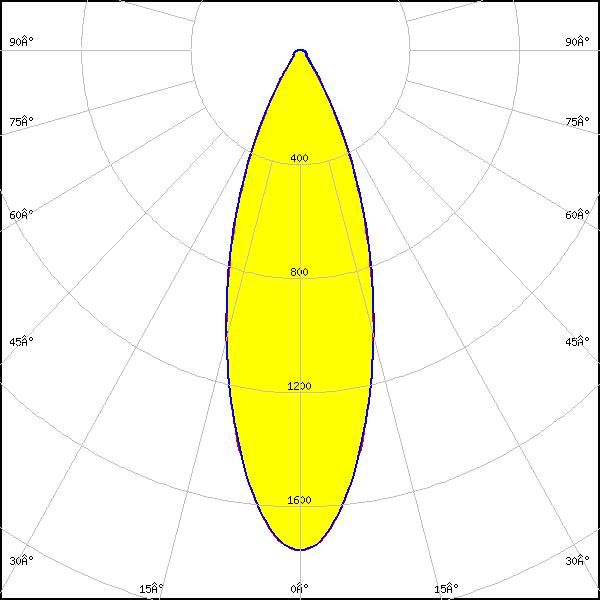

LED: SLE G7 LES13
Ordering code: CP19125_AMY-50-W-C2
LES size: 13.0 mm
Required components:
FWHM: 35°
FWTM: 65°
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES15
Ordering code: CP19125_AMY-50-W-C2
LES size: 15.0 mm
Required components:
FWHM: 37°
FWTM: 68°
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

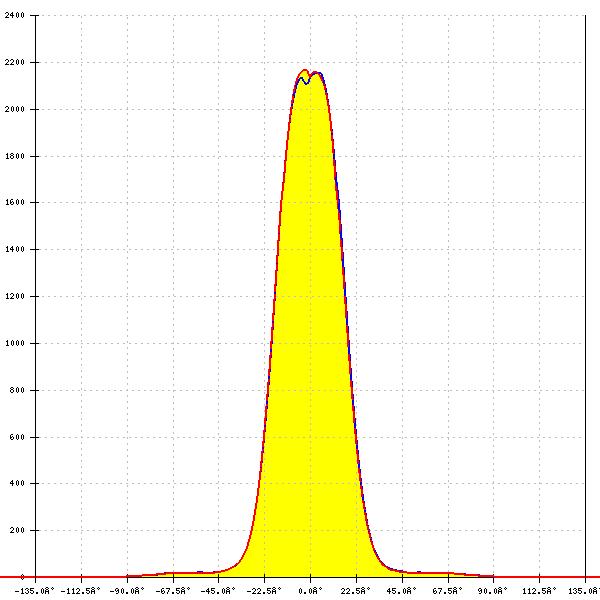

LED: SLE SNC8 LES06
Ordering code: CP19125_AMY-50-W-C2
LES size: 6.0 mm
Required components:
FWHM: 36°
FWTM: 57°
Peak intensity: 2.182 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
