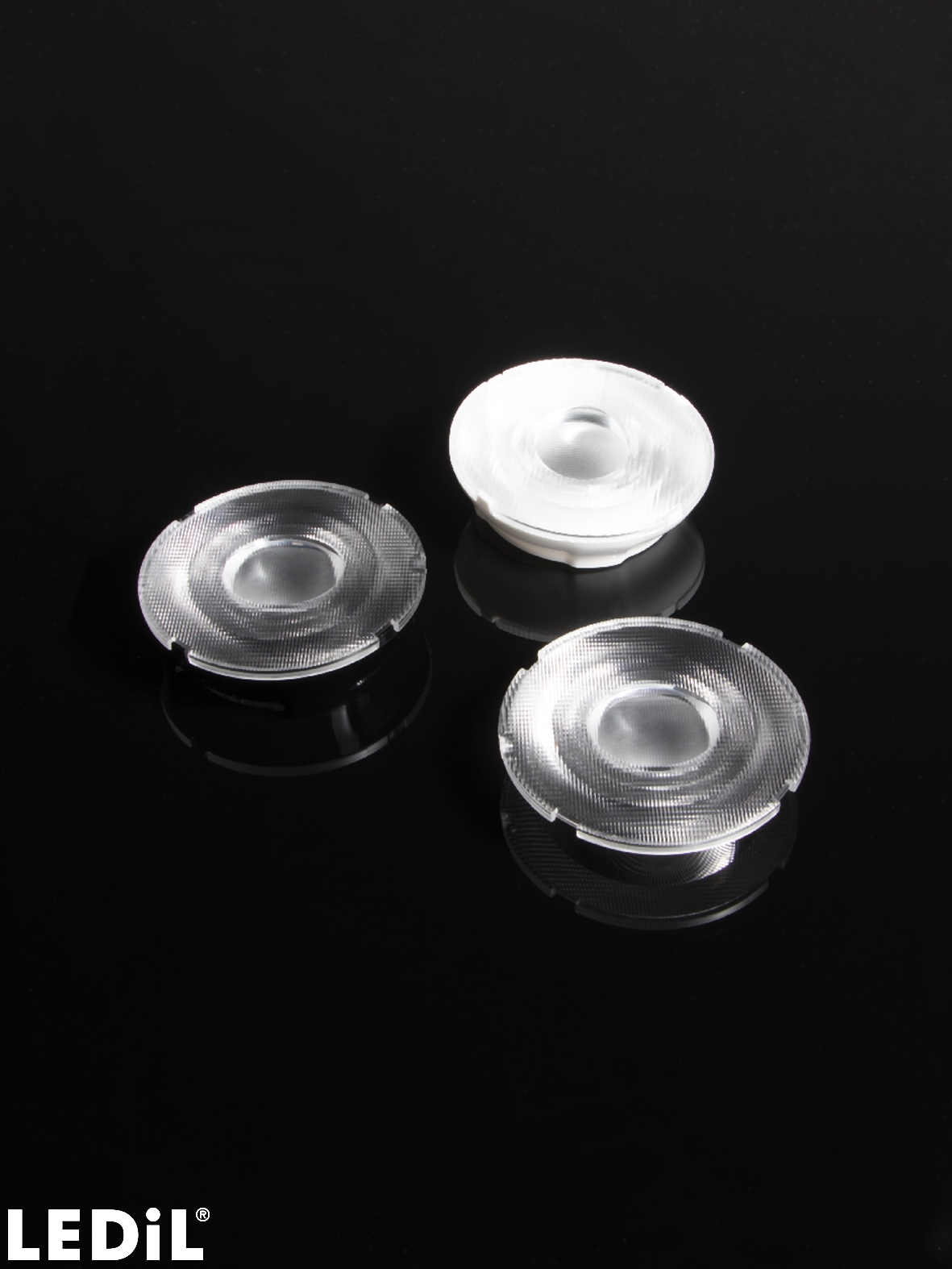

AMY-50-O
Print
~20 + 50° oval beam
Variants in PC are also available.
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Component Materials
- AMY-50-OSingle lensPMMA
- AMY-50-HLD2-C-WHT-ASYMHolderPC
- AMY-50-HLD2-C-ASYMHolderPC
- AMY-50-HLD2-B-WHT-ASYMHolderPC
- AMY-50-HLD2-B-ASYMHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

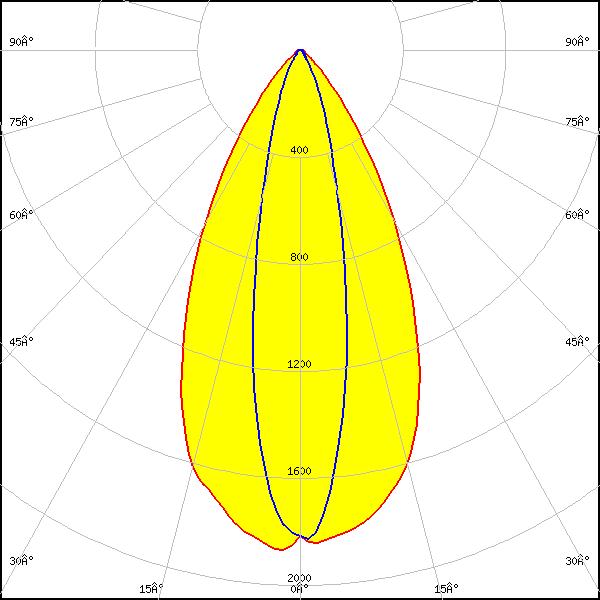

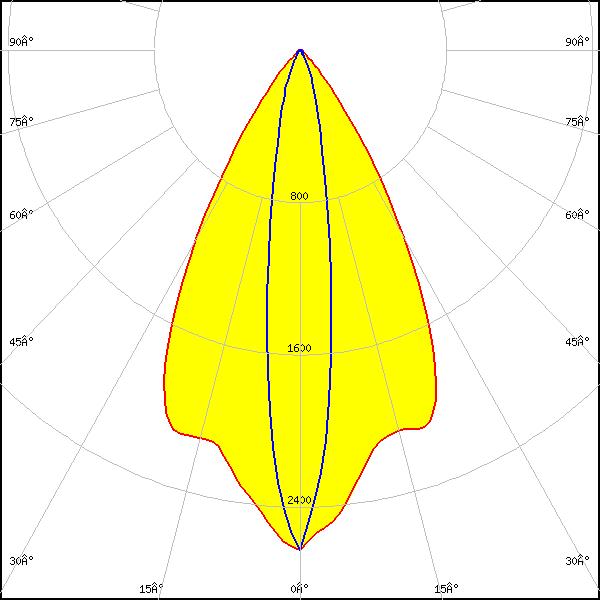

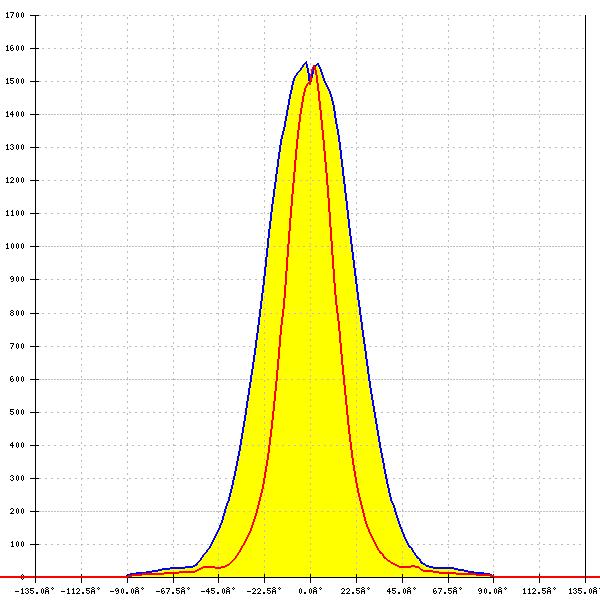

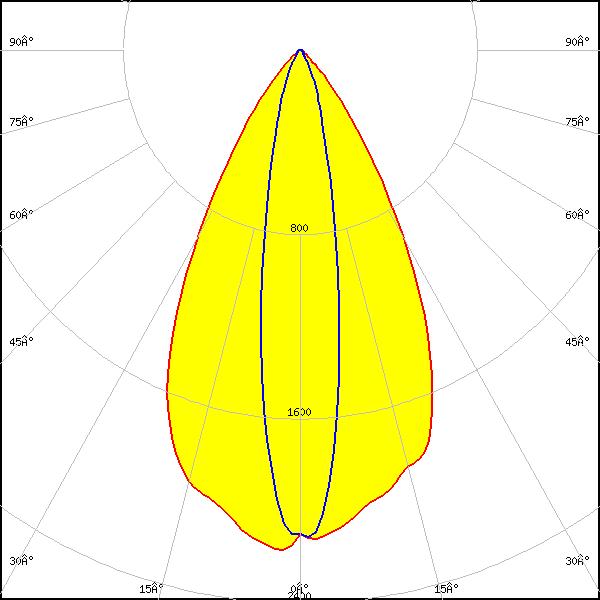

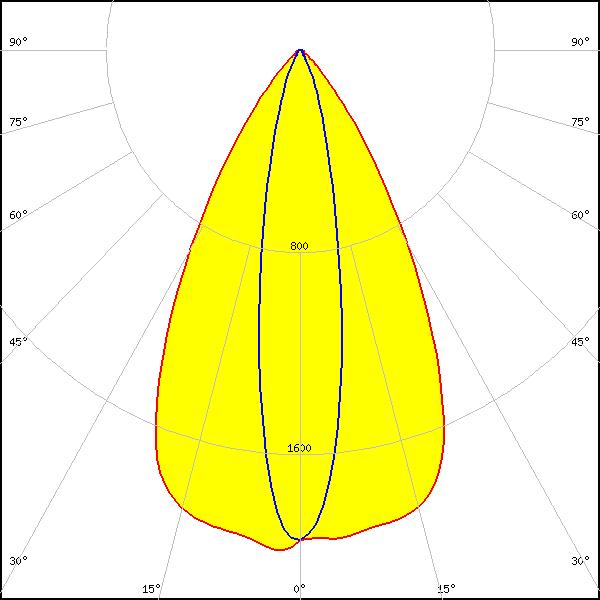

Optical results

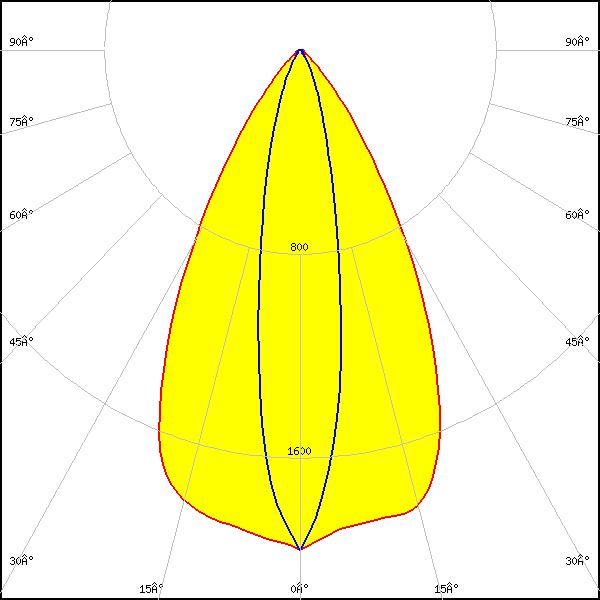

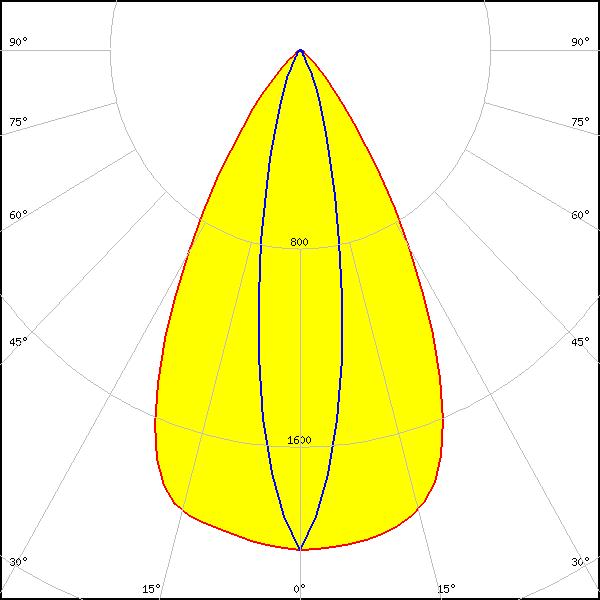

LED:
V10 Gen 8-9
Ordering code: CP19138_AMY-50-O-B2
LES size: 10.0 mm
Required components:
BJB: 47.360.1020
FWHM:
57° + 20°
FWTM:
85° + 45°
Peak intensity:
1.962 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

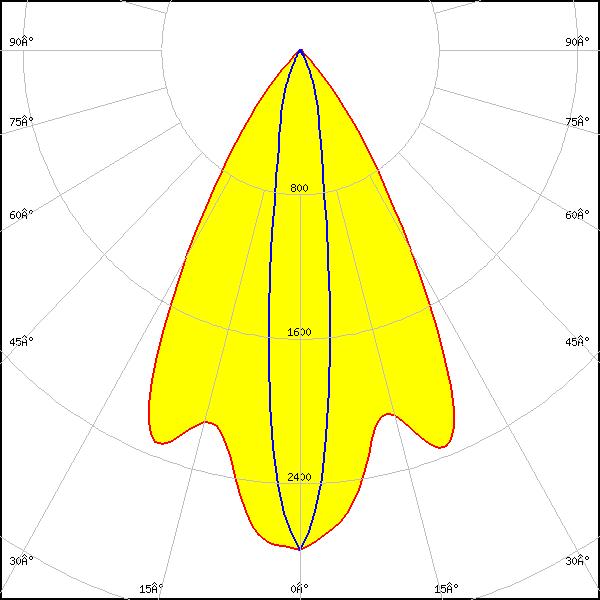

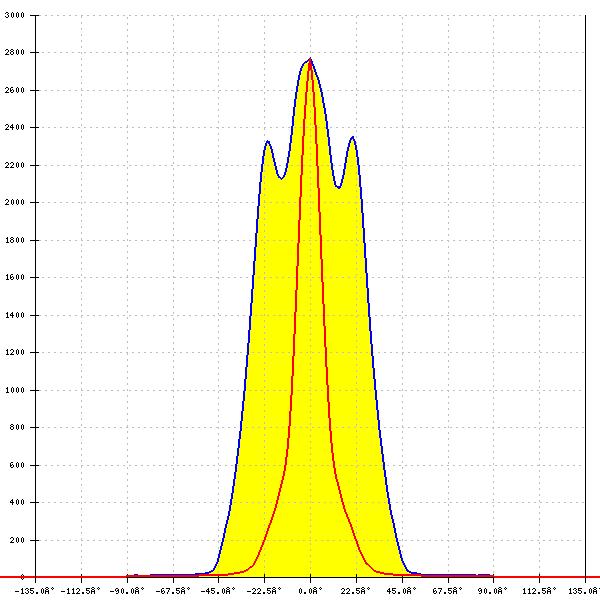

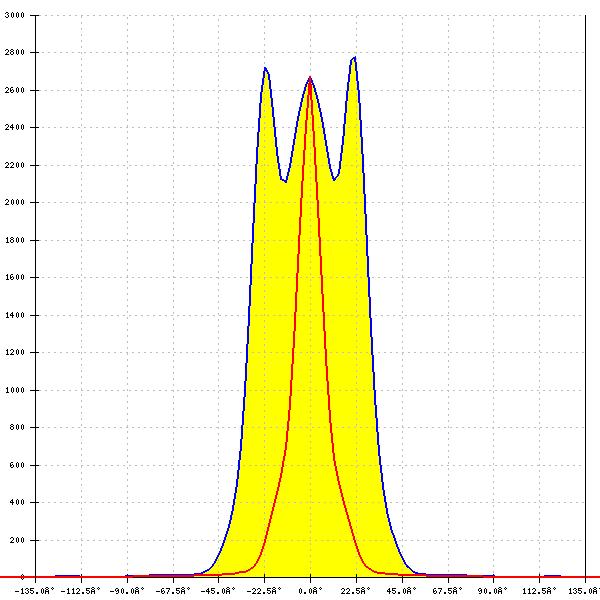

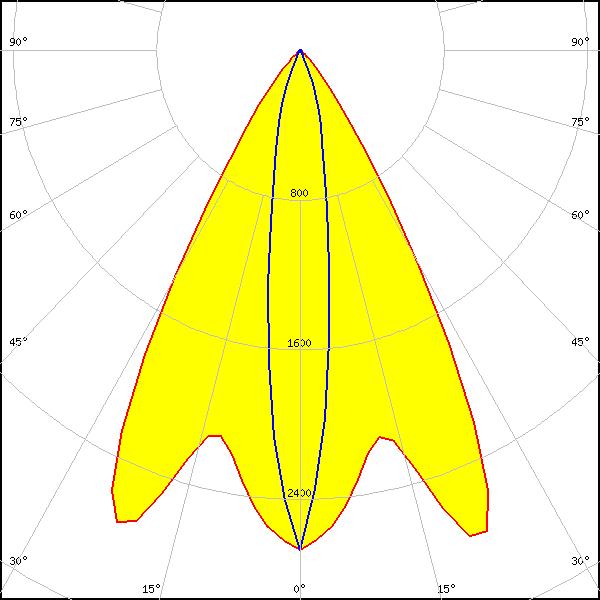

LED:
V3 HD Gen 8
Ordering code: CP19129_AMY-50-O-C2
LES size: 3.8 mm
Required components:
FWHM:
58° + 14°
FWTM:
82° + 40°
Peak intensity:
2.789 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

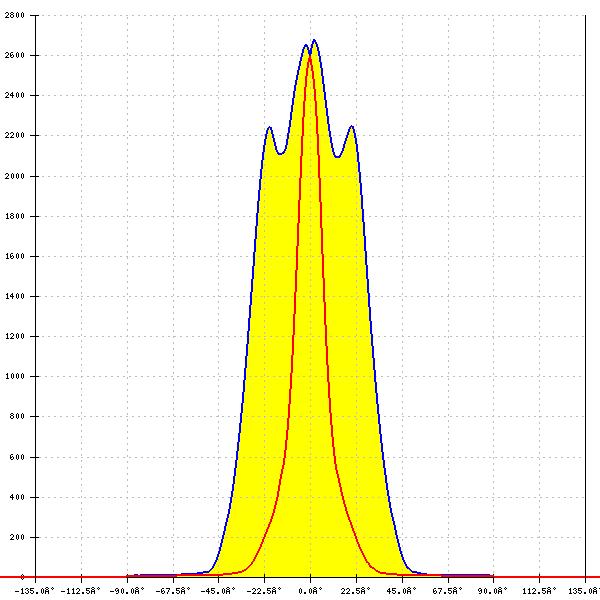

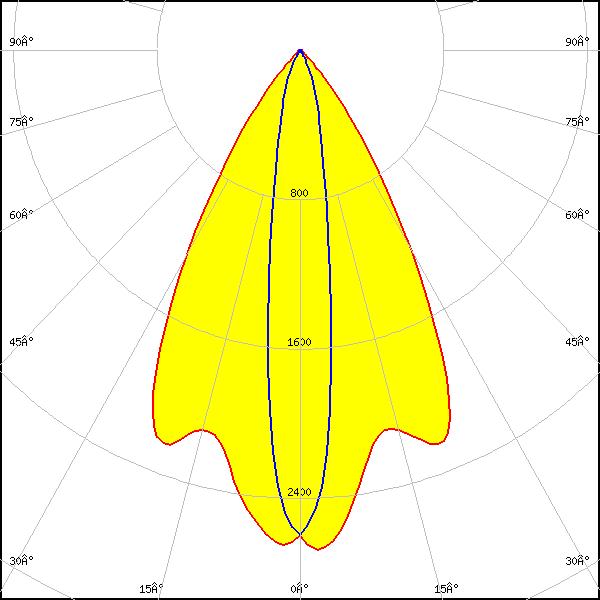

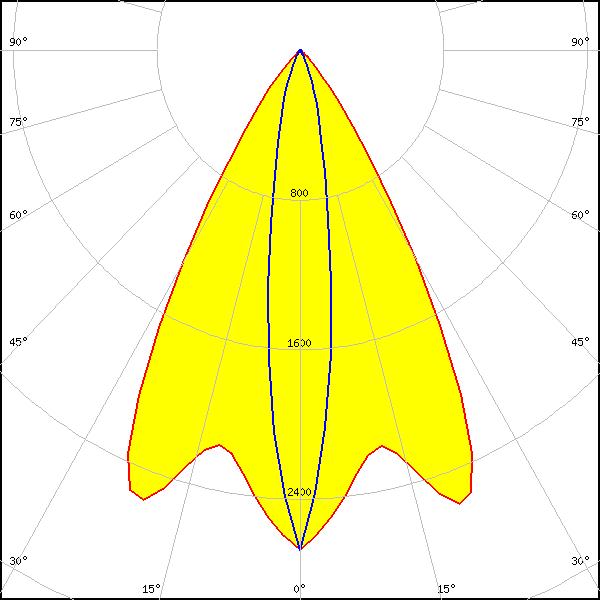

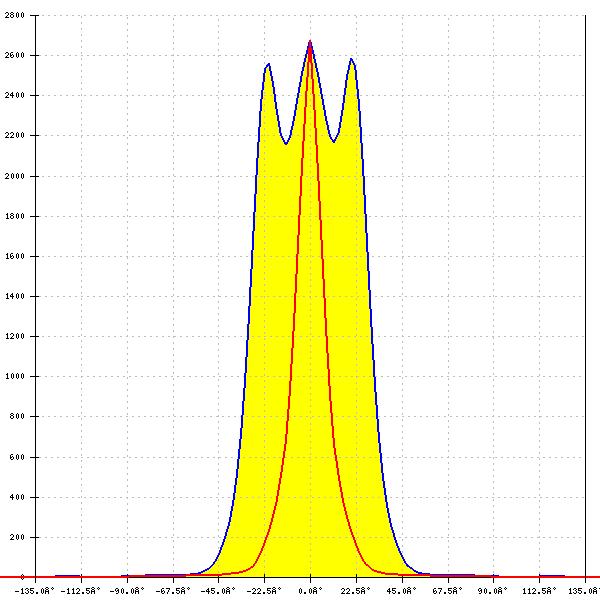

LED:
V4 HD Gen 8
Ordering code: CP19129_AMY-50-O-C2
LES size: 4.8 mm
Required components:
FWHM:
58° + 16°
FWTM:
82° + 40°
Peak intensity:
2.686 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

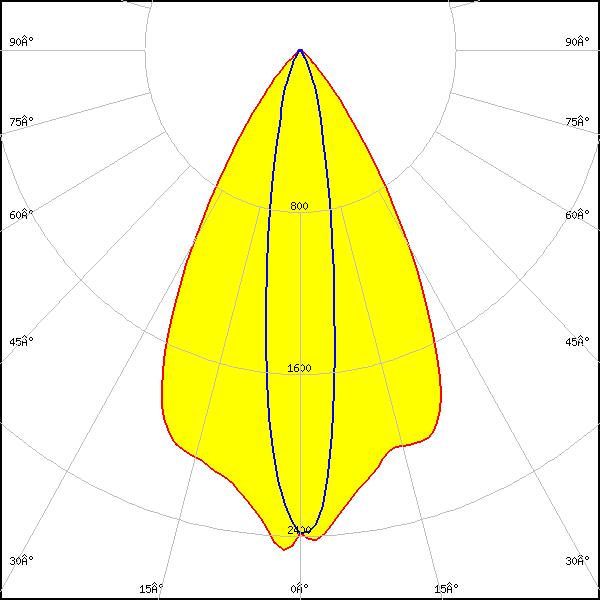

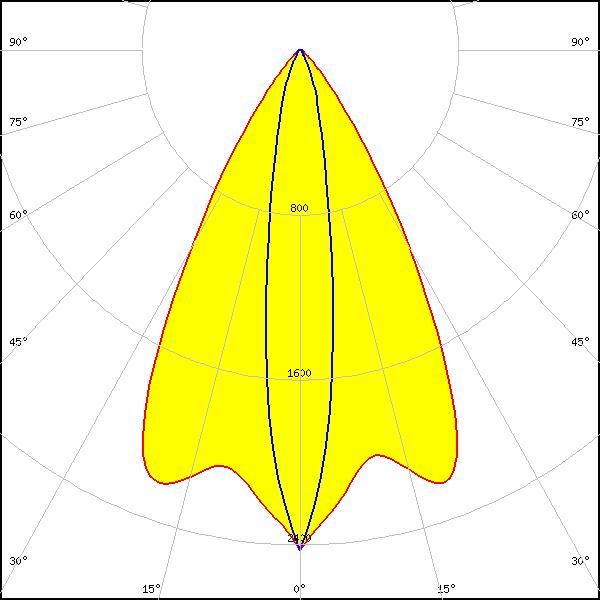

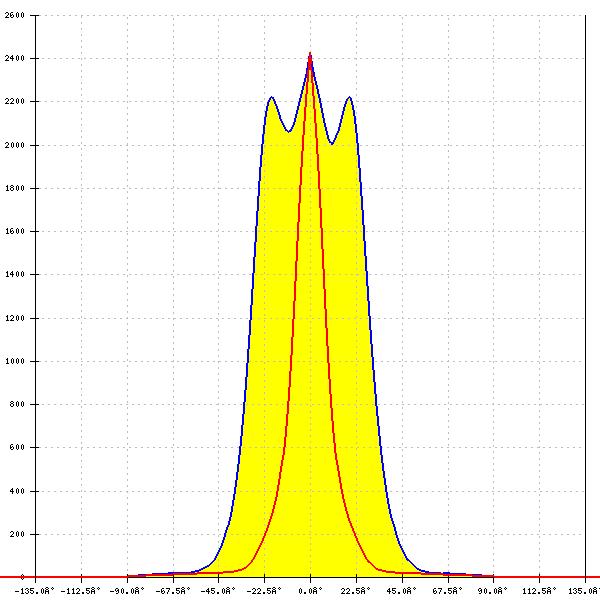

LED:
V6 HD Gen 8
Ordering code: CP19129_AMY-50-O-C2
LES size: 6.6 mm
Required components:
FWHM:
58° + 16°
FWTM:
83° + 41°
Peak intensity:
2.471 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

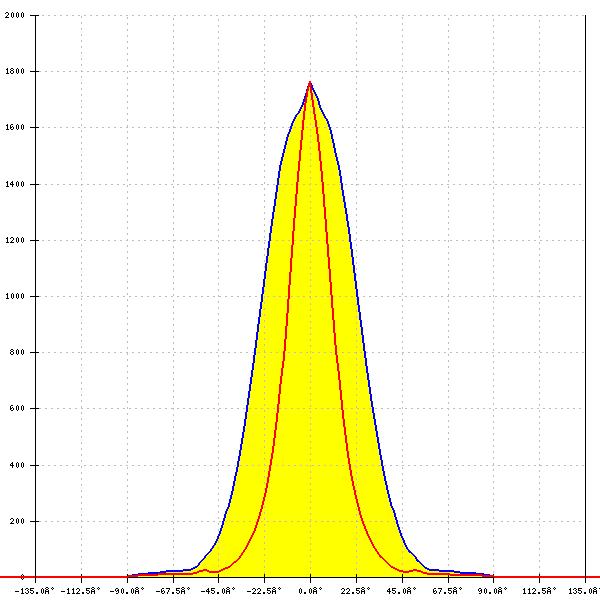

LED:

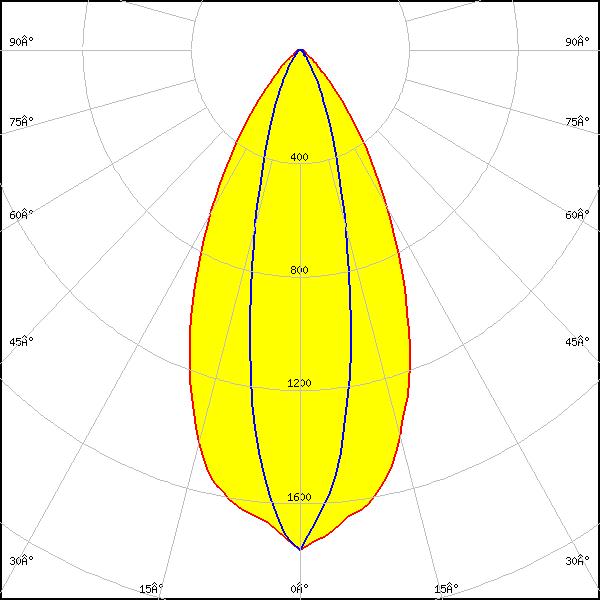

VERO13
Ordering code: CP19129_AMY-50-O-C2
LES size: 13.4 mm
Required components:
FWHM:
51° + 24°
FWTM:
86° + 54°
Peak intensity:
1.765 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

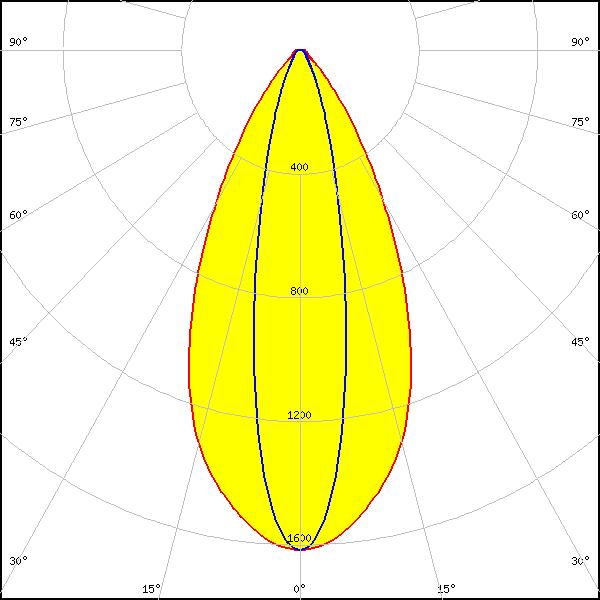

LED:
Vesta RGBW 10mm CSP
Ordering code: CP19129_AMY-50-O-C2
LES size: 10.0 mm
Required components:
FWHM:
51° + 22°
FWTM:
85° + 50°
Peak intensity:
1.619 cd/lm
Efficiency:
78 %
LEDs/each optic:
28
Light colour/type:
RGBW

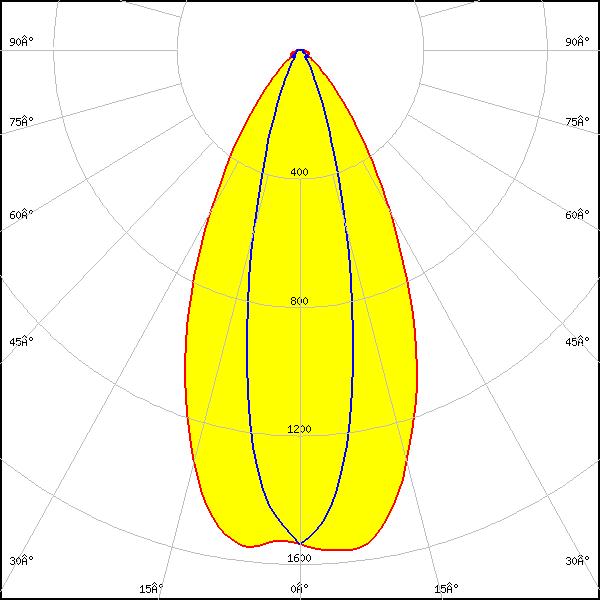

LED:
Vesta SE 13mm TW
Ordering code: CP19129_AMY-50-O-C2
LES size: 14.3 mm
Required components:
FWHM:
52° + 26°
FWTM:
88° + 50°
Peak intensity:
1.565 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
Tunable White

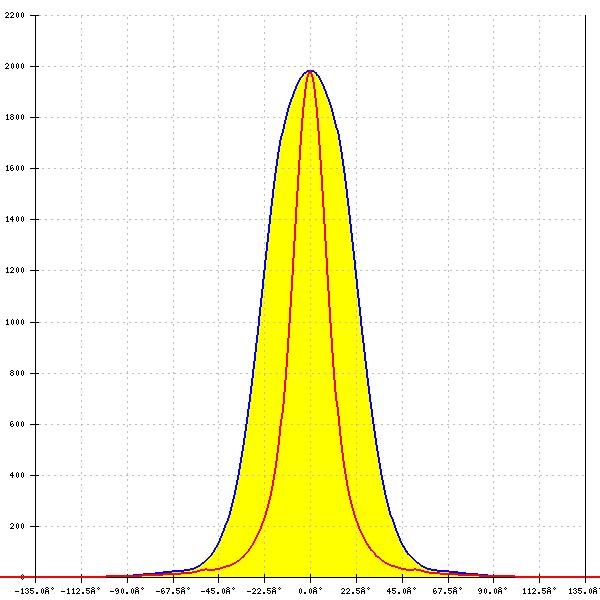

LED:

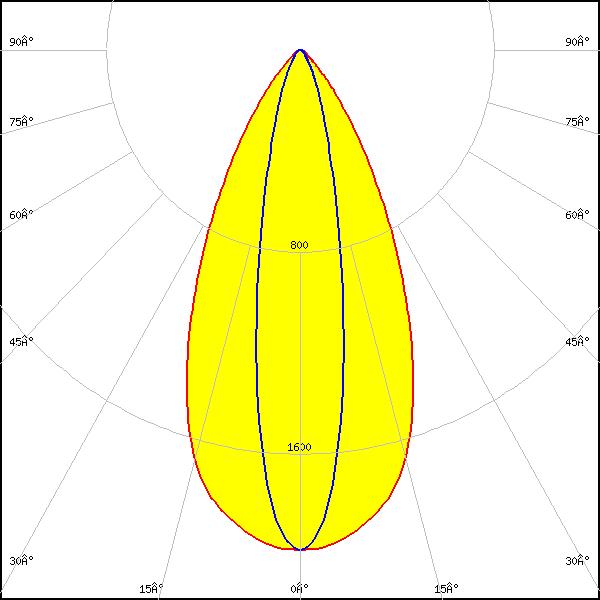

CLU02x (LES10)
Ordering code: CP19138_AMY-50-O-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
51° + 21°
FWTM:
83° + 48°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

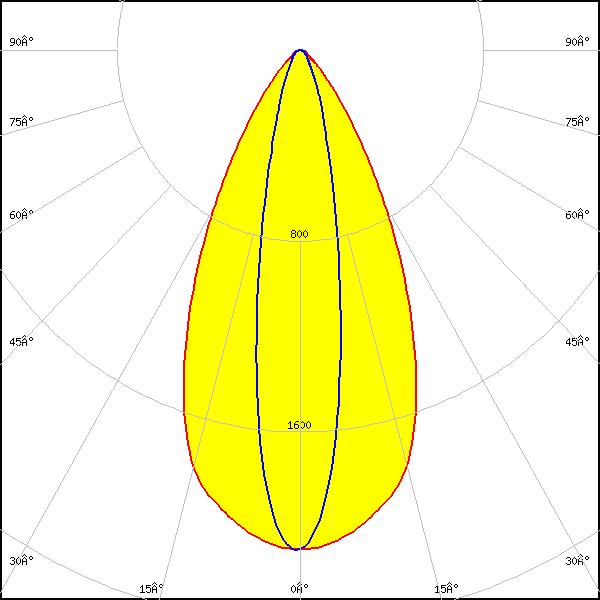

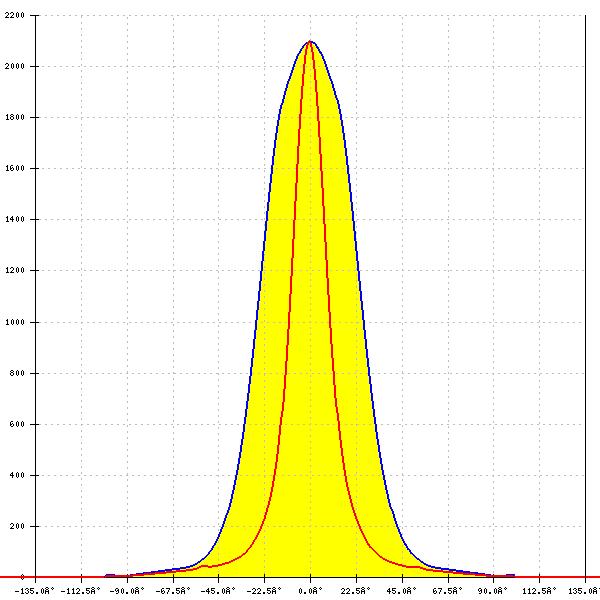

LED:
CLU02x (LES10)
Ordering code: CP19147_AMY-50-O-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
52° + 20°
FWTM:
84° + 47°
Peak intensity:
2.099 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP19129_AMY-50-O-C2
LES size: 9.8 mm
Required components:
FWHM:
51° + 21°
FWTM:
83° + 48°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

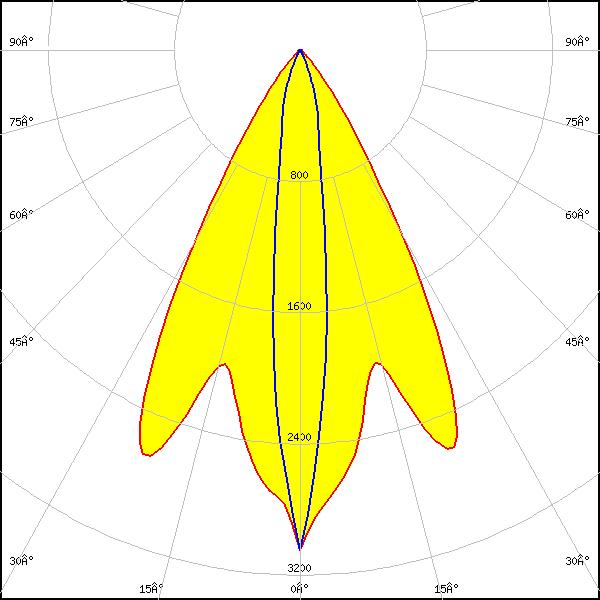

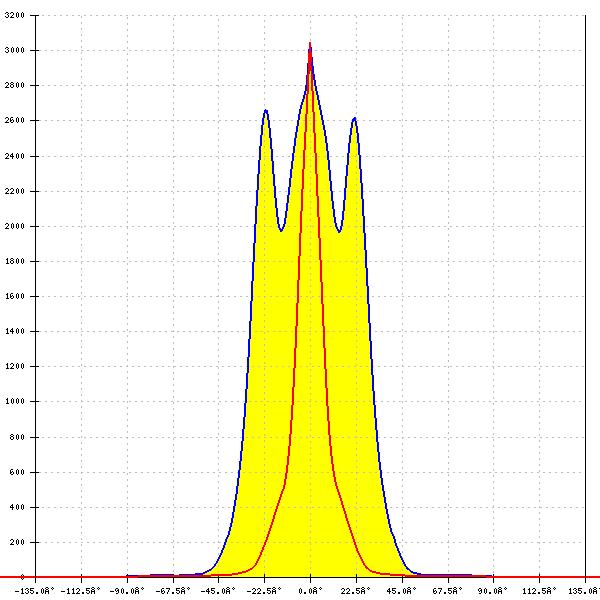

LED:
CLU700/701/702/703
Ordering code: CP19138_AMY-50-O-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
58° + 12°
FWTM:
78° + 38°
Peak intensity:
3.049 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

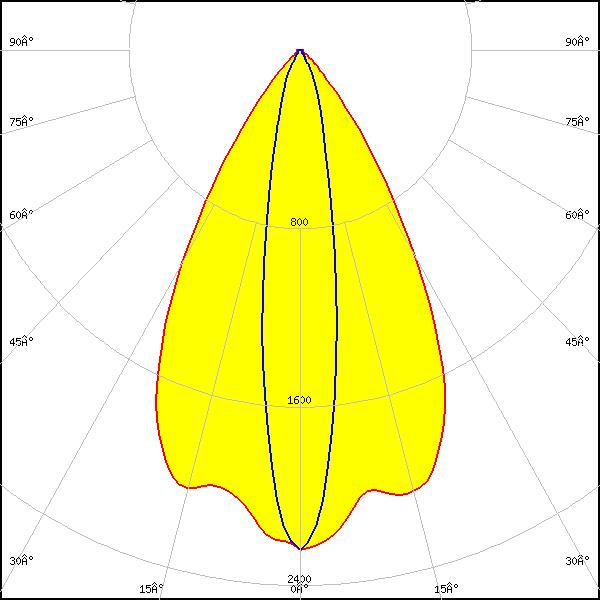

LED:
CLU700/701/702/703
Ordering code: C18490_AMY-50-O
LES size: 6.0 mm
Required components:
FWHM:
60° + 18°
FWTM:
86° + 43°
Peak intensity:
2.272 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

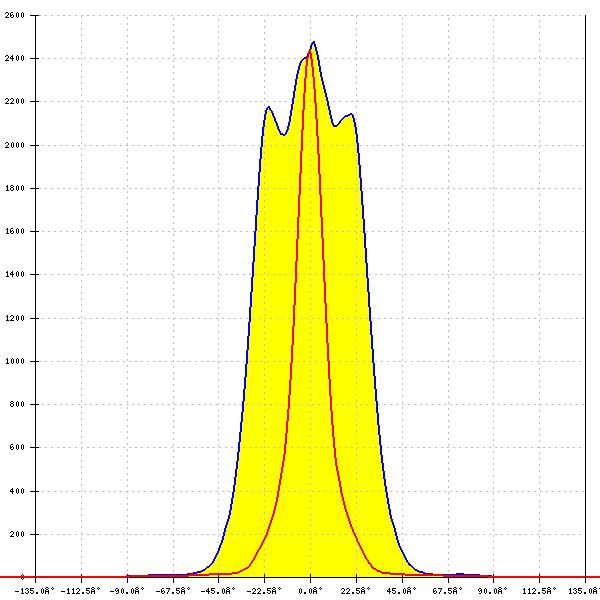

LED:

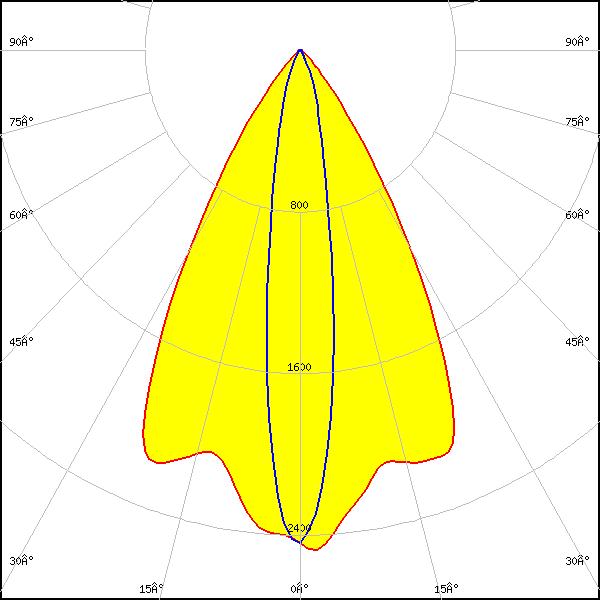

CLU700/701/702/703
Ordering code: CP19129_AMY-50-O-C2
LES size: 6.0 mm
Required components:
FWHM:
58° + 16°
FWTM:
82° + 40°
Peak intensity:
2.486 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

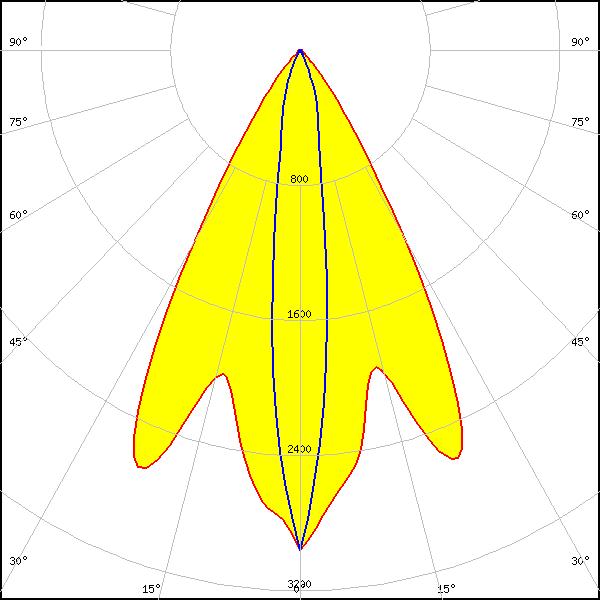

LED:

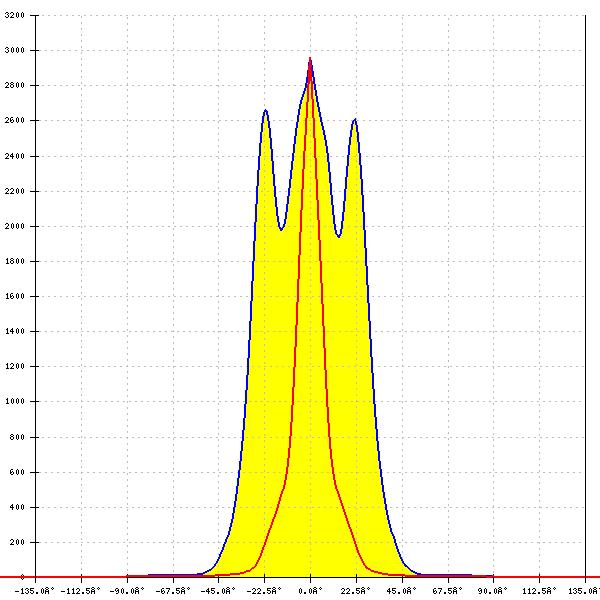

CLU7B2
Ordering code: CP19138_AMY-50-O-B2
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM:
58° + 14°
FWTM:
78° + 38°
Peak intensity:
2.961 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

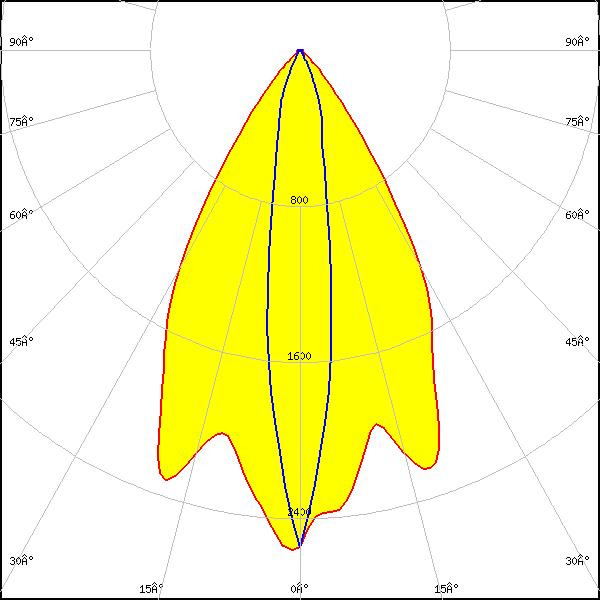

LED:

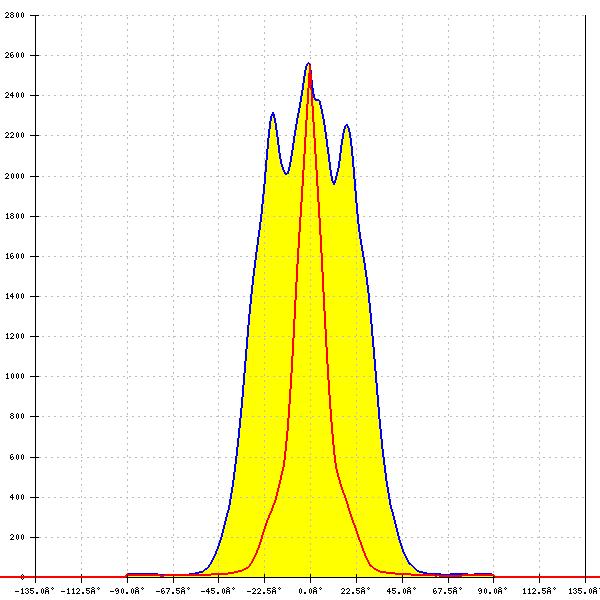

CLU7B2
Ordering code: C18490_AMY-50-O
LES size: 3.3 mm
Required components:
FWHM:
60° + 16°
FWTM:
84° + 44°
Peak intensity:
2.564 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

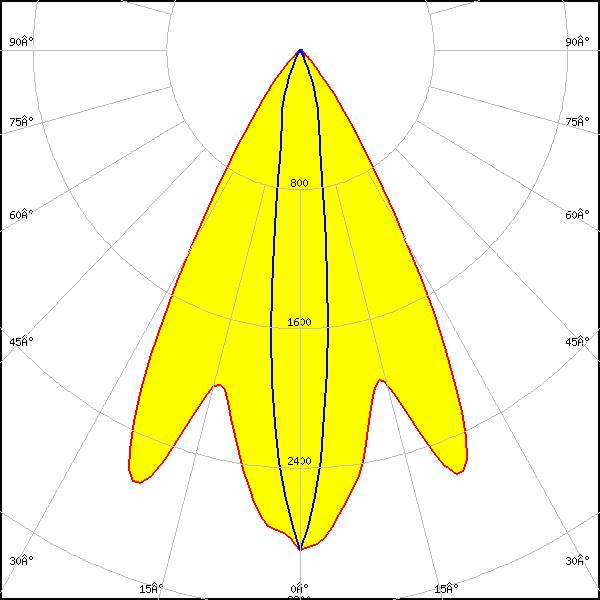

LED:

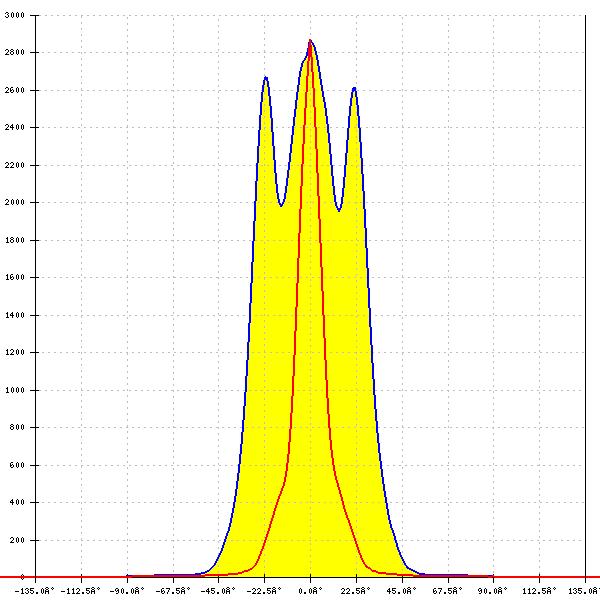

CLU7B2
Ordering code: CP19129_AMY-50-O-C2
LES size: 3.3 mm
Required components:
FWHM:
58° + 14°
FWTM:
79° + 38°
Peak intensity:
2.873 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

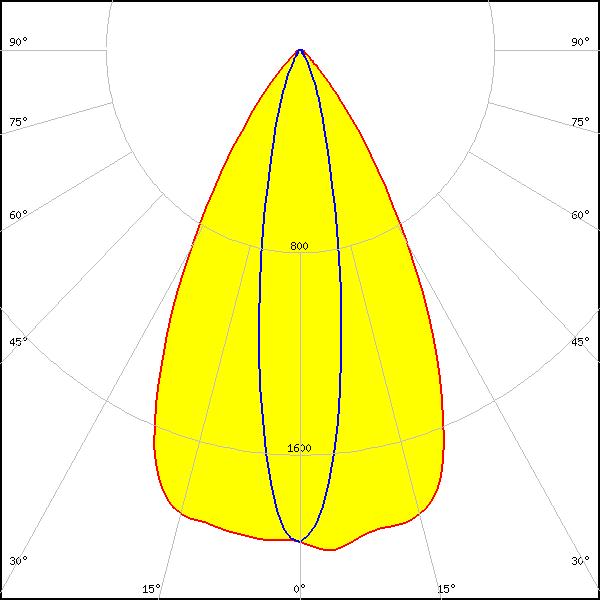

LED:
CMB15xx
Ordering code: CP19129_AMY-50-O-C2
LES size: 9.0 mm
Required components:
FWHM:
58° + 20°
FWTM:
84° + 44°
Peak intensity:
1.982 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

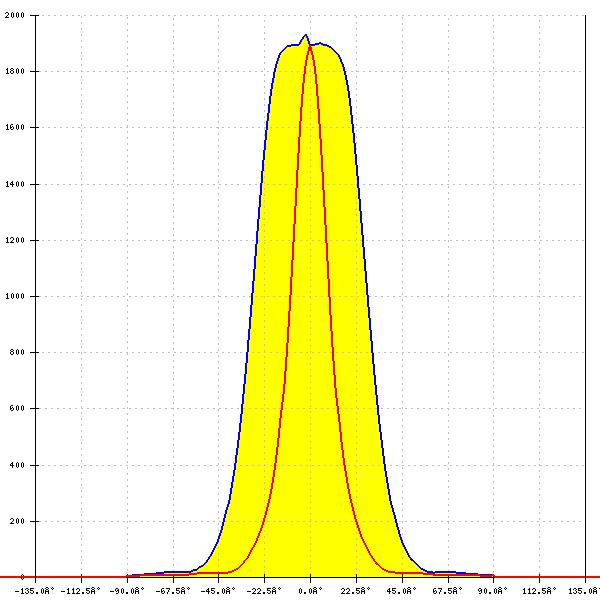

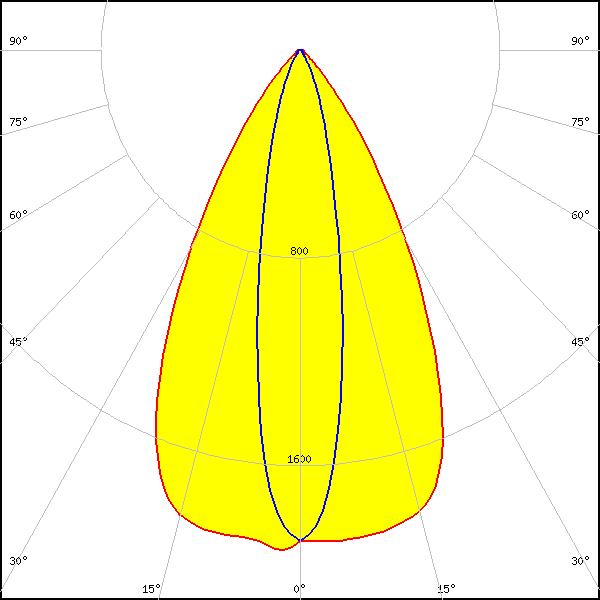

LED:
CMU10xx
Ordering code: CP19138_AMY-50-O-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
58° + 20°
FWTM:
84° + 46°
Peak intensity:
1.932 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

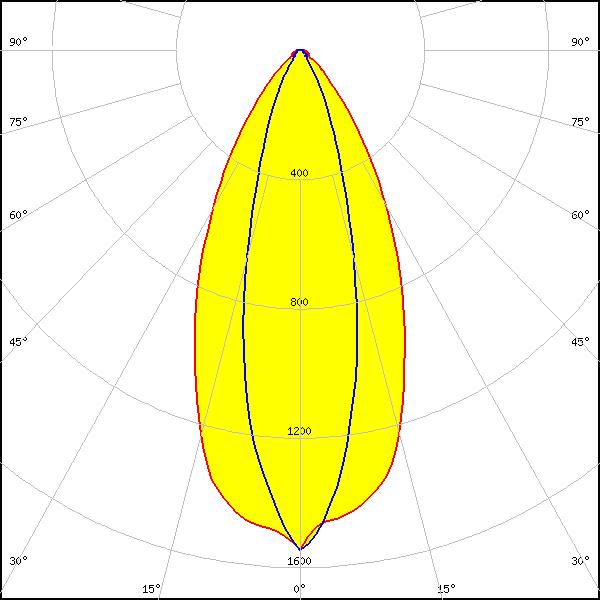

LED:
CMU15xx
Ordering code: CP19129_AMY-50-O-C2
LES size: 14.5 mm
Required components:
FWHM:
50° + 27°
FWTM:
88° + 56°
Peak intensity:
1.547 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

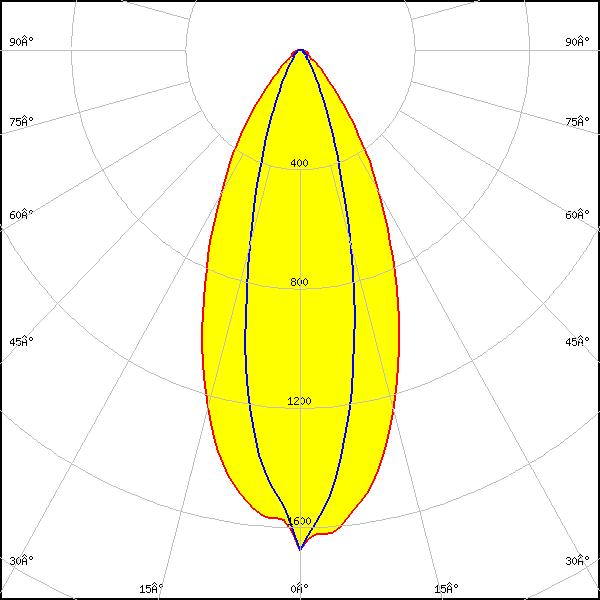

LED:
LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP19129_AMY-50-O-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
47° + 26°
FWTM:
86° + 54°
Peak intensity:
1.677 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

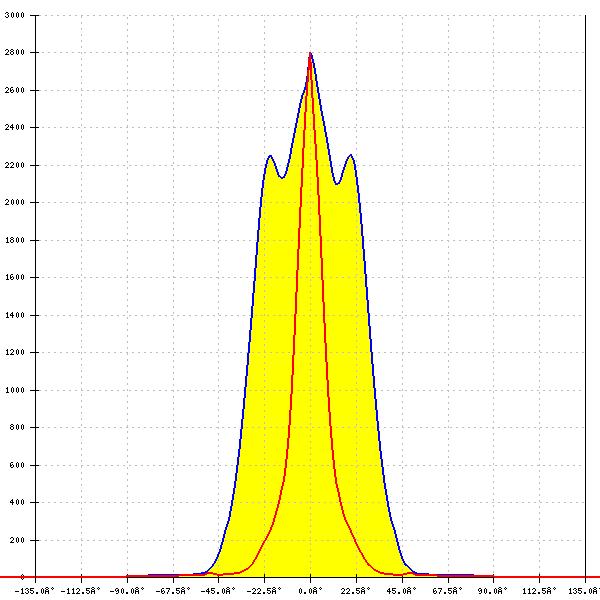

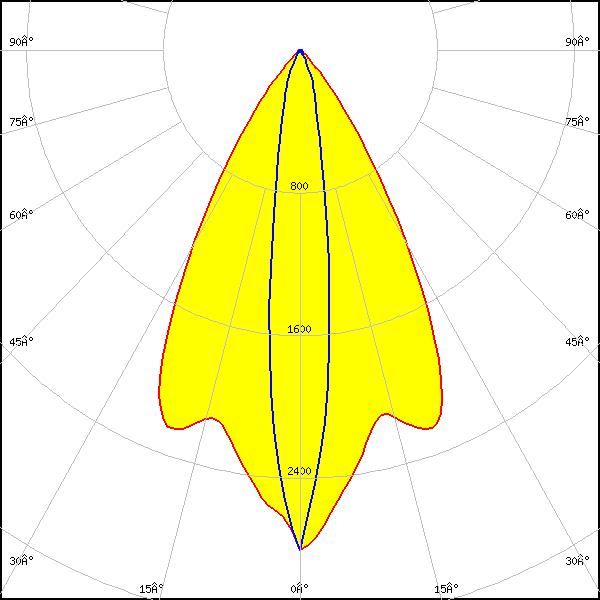

LED:
LUXEON CX Plus CoB - HD S01H4
Ordering code: CP19138_AMY-50-O-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
58° + 14°
FWTM:
82° + 36°
Peak intensity:
2.804 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

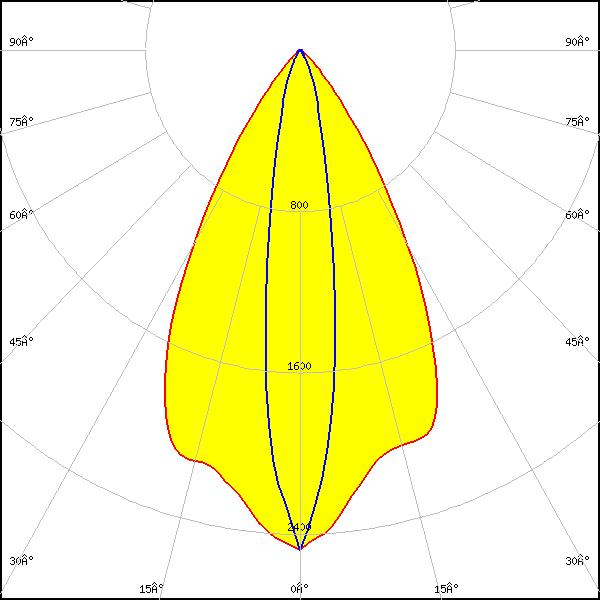

LED:
LUXEON CX Plus CoB - HD S02H6
Ordering code: CP19138_AMY-50-O-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
58° + 16°
FWTM:
83° + 40°
Peak intensity:
2.508 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

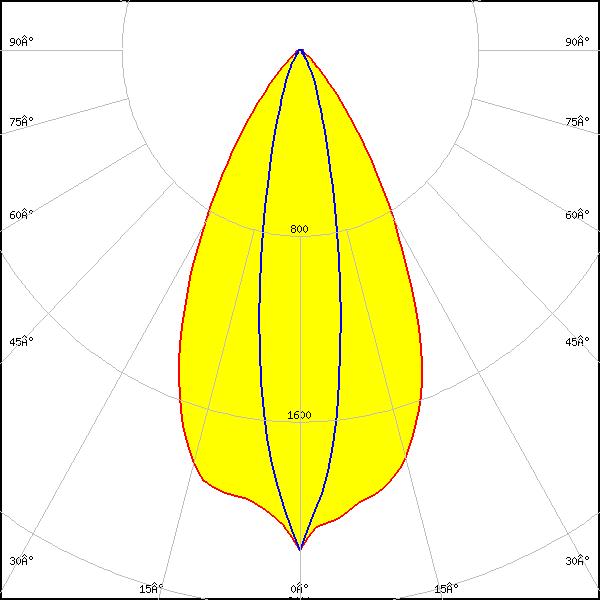

LED:
LUXEON CX Plus CoB - HD S04H9
Ordering code: CP19138_AMY-50-O-B2
LES size: 9.0 mm
FWHM:
54° + 20°
FWTM:
84° + 44°
Peak intensity:
2.153 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

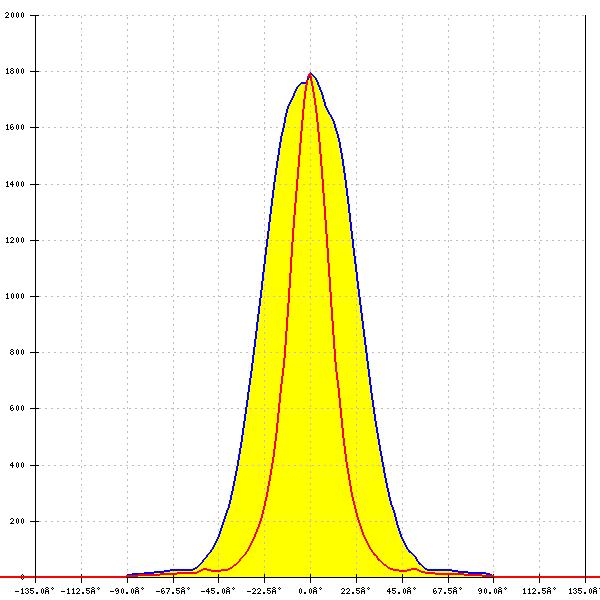

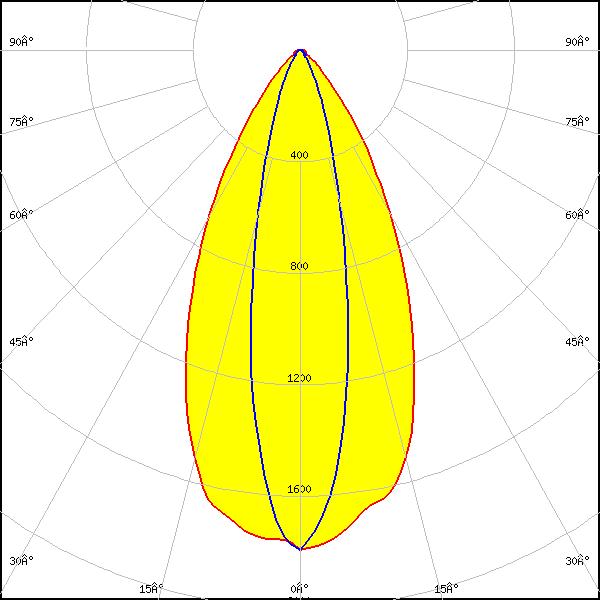

LED:

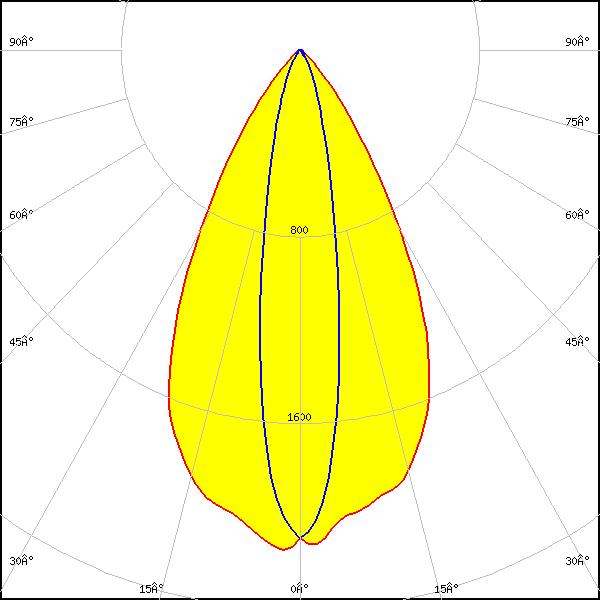

LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP19129_AMY-50-O-C2
LES size: 12.0 mm
Required components:
FWHM:
52° + 23°
FWTM:
86° + 50°
Peak intensity:
1.817 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

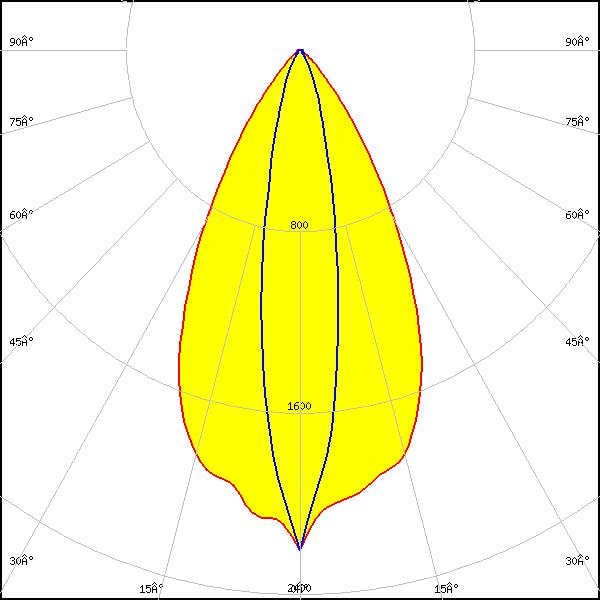

LED:

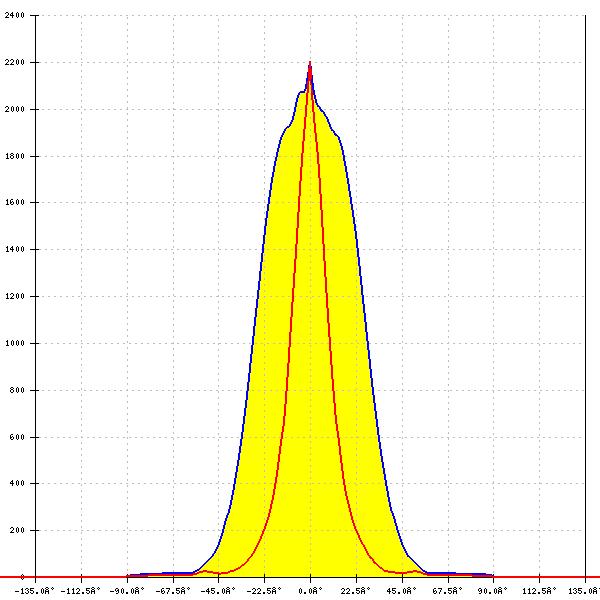

LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP19129_AMY-50-O-C2
LES size: 9.0 mm
Required components:
FWHM:
54° + 18°
FWTM:
84° + 44°
Peak intensity:
2.205 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHM-11 XH (19x19)
Ordering code: CP19129_AMY-50-O-C2
LES size: 11.0 mm
Required components:
FWHM:
56° + 18°
FWTM:
84° + 44°
Peak intensity:
2.187 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

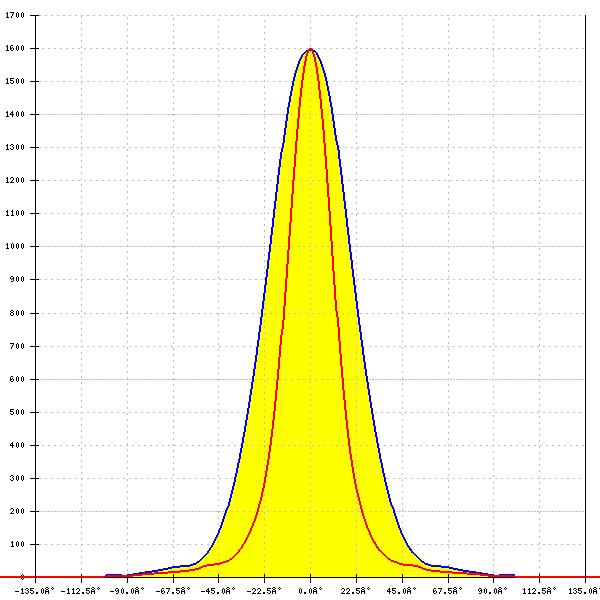

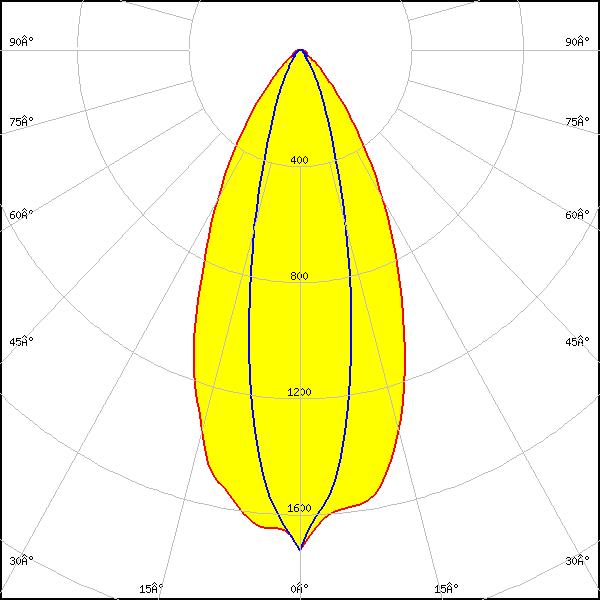

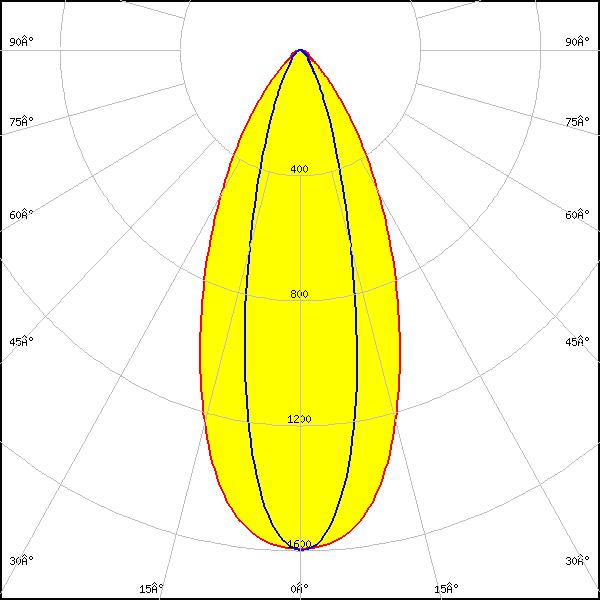

LED:

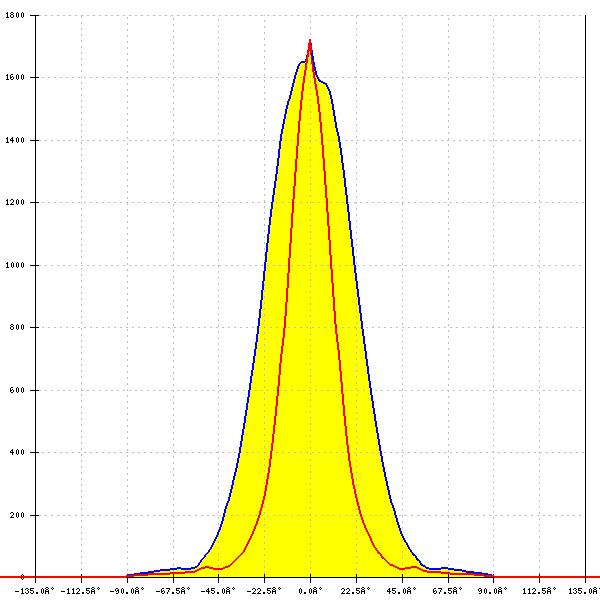

CTM-14 (Tunable White) Gen2
Ordering code: CP19129_AMY-50-O-C2
LES size: 13.9 mm
Required components:
FWHM:
48° + 24°
FWTM:
86° + 52°
Peak intensity:
1.722 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-14 (Tunable White) Gen2
Ordering code: CP19129_AMY-50-O-C2
LES size: 13.9 mm
Required components:
FWHM:
47° + 26°
FWTM:
87° + 56°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

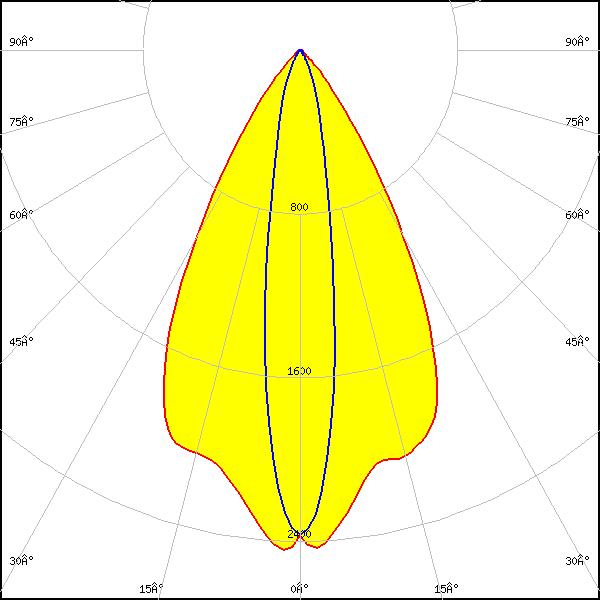

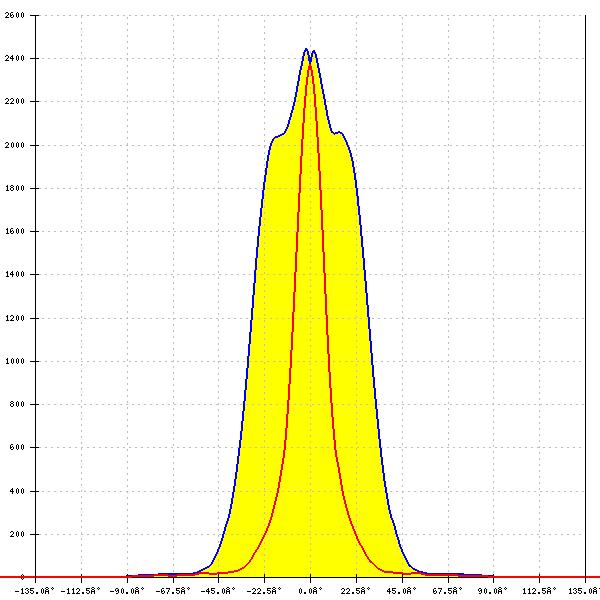

CTM-6 (Tunable White) Gen2
Ordering code: CP19129_AMY-50-O-C2
LES size: 6.8 mm
Required components:
FWHM:
57° + 16°
FWTM:
82° + 41°
Peak intensity:
2.473 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White

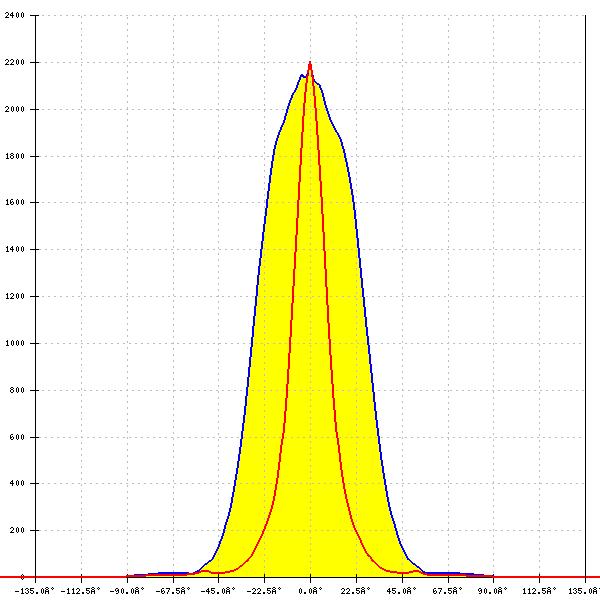

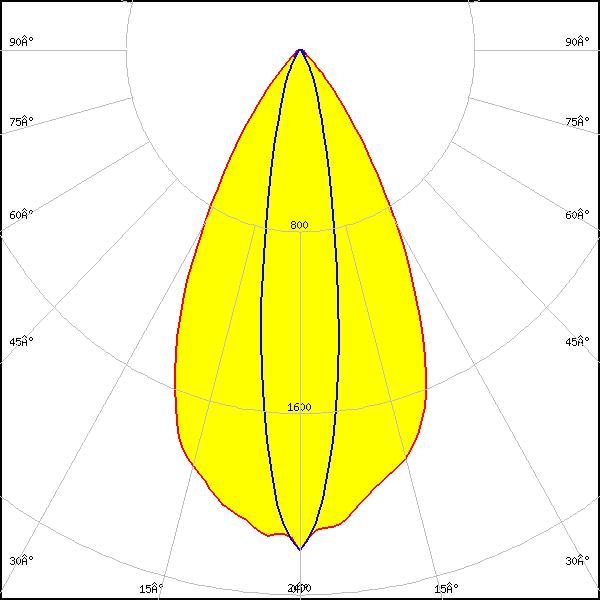

LED:
CTM-9 (Tunable White) Gen2
Ordering code: CP19129_AMY-50-O-C2
LES size: 9.5 mm
Required components:
FWHM:
54° + 18°
FWTM:
82° + 43°
Peak intensity:
2.204 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CxM-6 (13.5x13.5)
Ordering code: CP19138_AMY-50-O-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
56° + 15°
FWTM:
82° + 38°
Peak intensity:
2.627 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
Ordering code: CP19126_AMY-50-WW-C2
LES size: 14.6 mm
FWHM:
50° + 28°
FWTM:
88° + 56°
Peak intensity:
1.649 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Ordering code: CP19129_AMY-50-O-C2
LES size: 11.5 mm
Required components:
FWHM:
54° + 22°
FWTM:
86° + 49°
Peak intensity:
1.871 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
Ordering code: CP19129_AMY-50-O-C2
LES size: 8.7 mm
Required components:
FWHM:
55° + 18°
FWTM:
84° + 43°
Peak intensity:
2.262 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP19138_AMY-50-O-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
58° + 16°
FWTM:
82° + 40°
Peak intensity:
2.560 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP19138_AMY-50-O-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
58° + 18°
FWTM:
84° + 42°
Peak intensity:
2.428 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

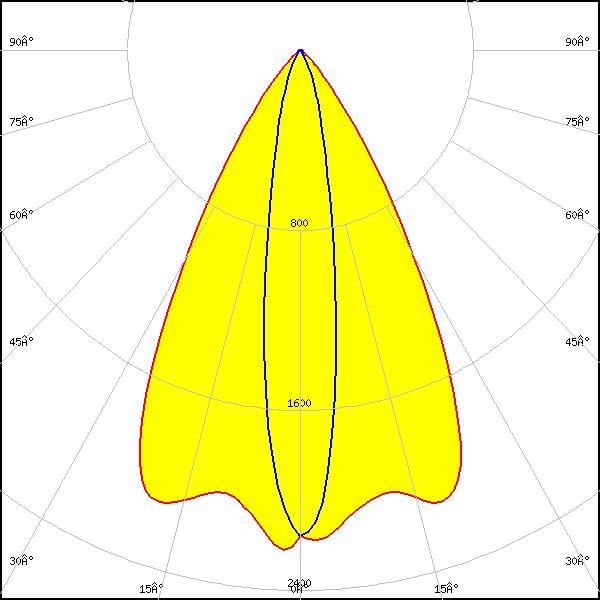

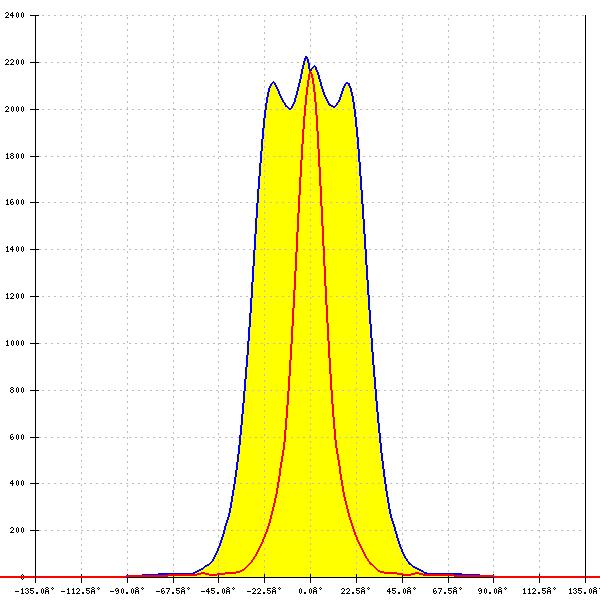

LED:
COB S-Type (LES 7)
Ordering code: CP19129_AMY-50-O-C2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Hekla
FWHM:
59° + 18°
FWTM:
82° + 41°
Peak intensity:
2.227 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP19138_AMY-50-O-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
58° + 16°
FWTM:
84° + 40°
Peak intensity:
2.484 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

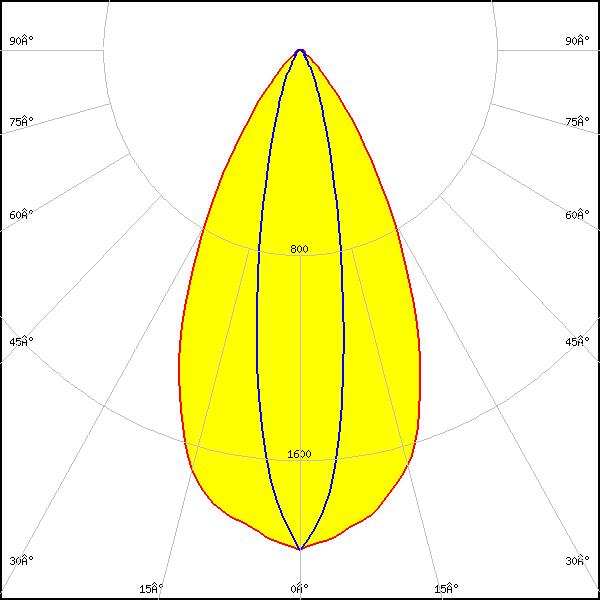

LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP19129_AMY-50-O-C2
LES size: 7.0 mm
Required components:
FWHM:
57° + 16°
FWTM:
82° + 40°
Peak intensity:
2.466 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White

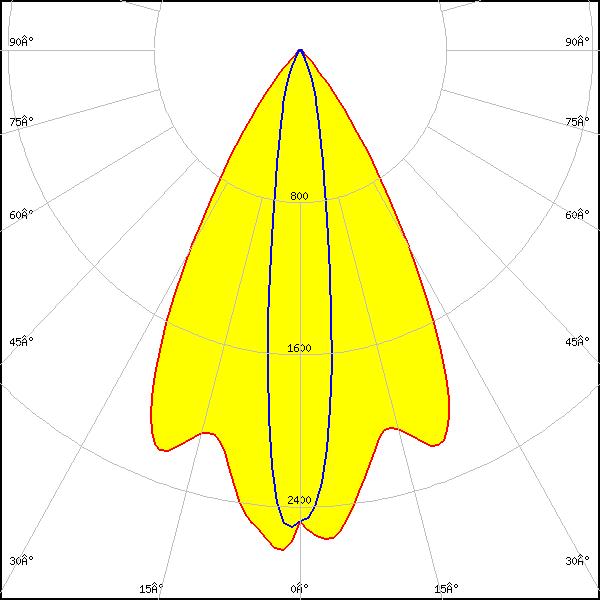

LED:
NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP19129_AMY-50-O-C2
LES size: 5.9 mm
Required components:
FWHM:
58° + 16°
FWTM:
80° + 40°
Peak intensity:
2.635 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP19129_AMY-50-O-C2
LES size: 10.6 mm
Required components:
FWHM:
54° + 20°
FWTM:
84° + 47°
Peak intensity:
1.954 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Fortimo SLM C TW L06A 1313 G7N
Ordering code: CP19129_AMY-50-O-C2
LES size: 6.5 mm
Required components:
FWHM:
53° + 16°
FWTM:
79° + 38°
Peak intensity:
2.560 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White

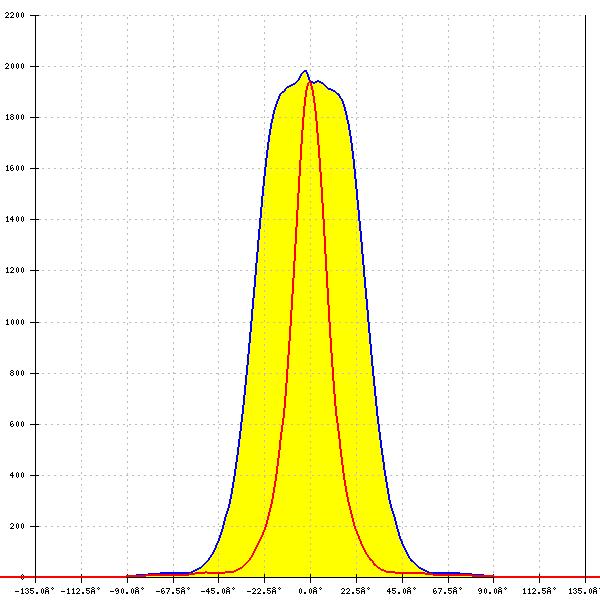

LED:
Fortimo SLM C TW L09A 1919 G7N
Ordering code: CP19129_AMY-50-O-C2
LES size: 9.3 mm
Required components:
FWHM:
51° + 20°
FWTM:
83° + 45°
Peak intensity:
2.108 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

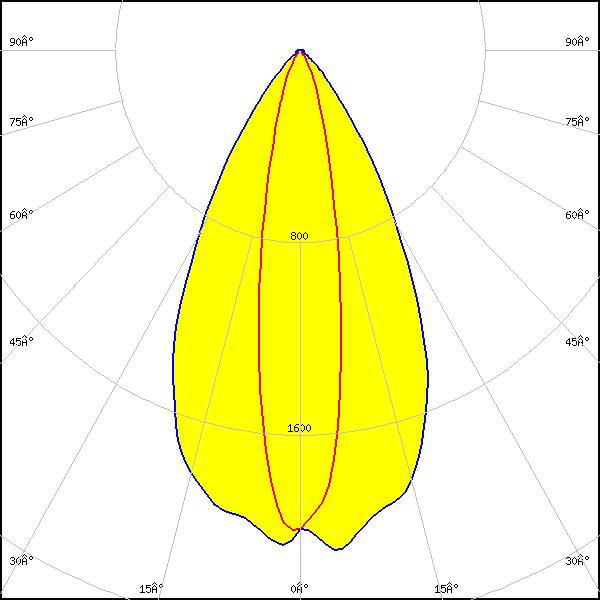

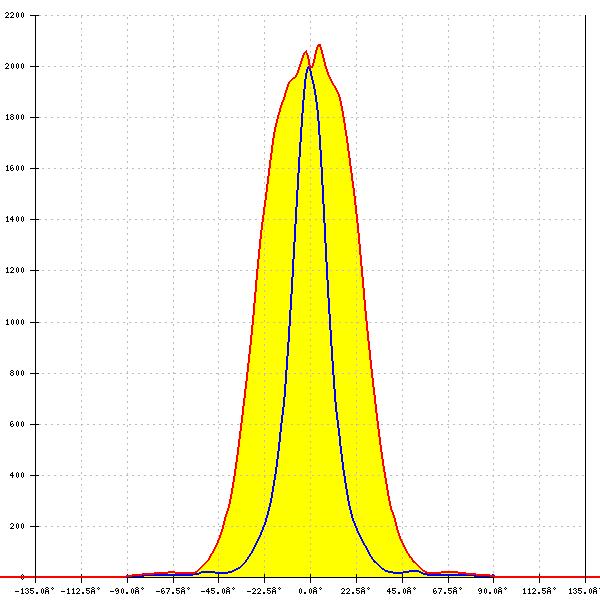

LC003D / LC006D / LC009D / LC013D
Ordering code: CP19138_AMY-50-O-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
55° + 20°
FWTM:
84° + 45°
Peak intensity:
2.084 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

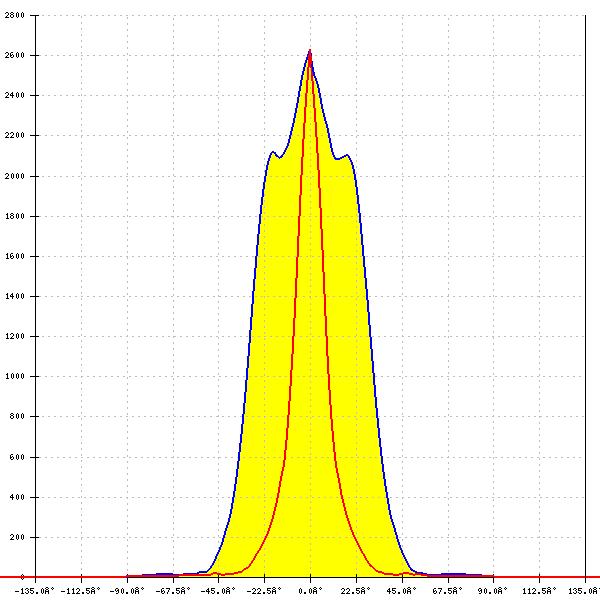

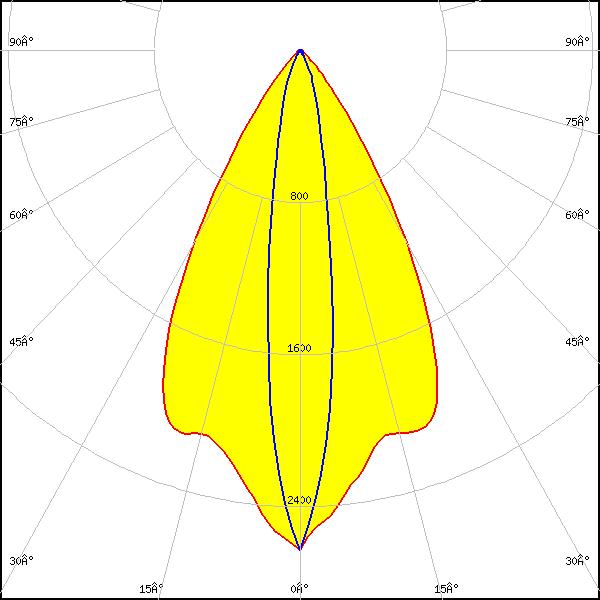

LC010C G2
Ordering code: CP19138_AMY-50-O-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
58° + 16°
FWTM:
81° + 38°
Peak intensity:
2.629 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

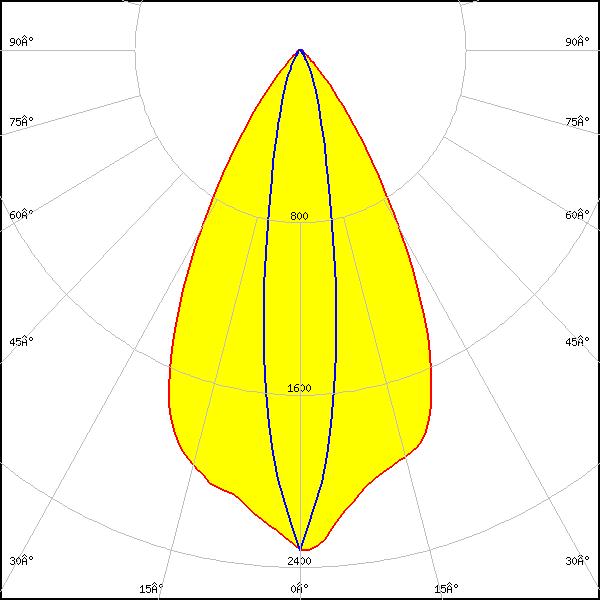

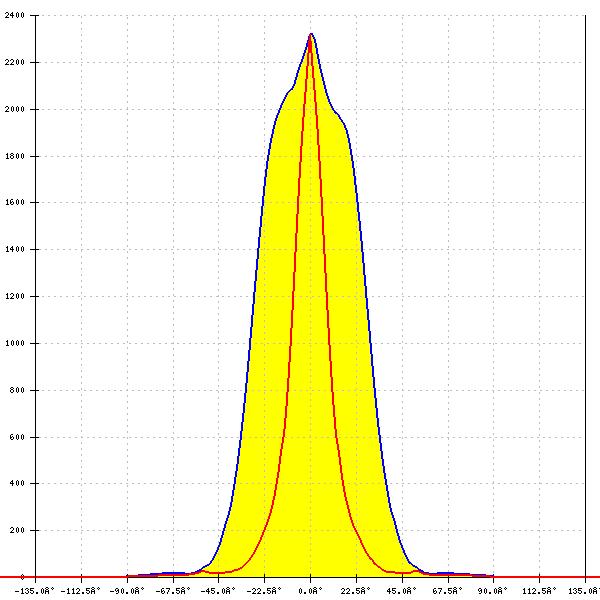

LC010T (Tunable White)
Ordering code: CP19129_AMY-50-O-C2
LES size: 9.8 mm
Required components:
FWHM:
56° + 18°
FWTM:
82° + 42°
Peak intensity:
2.353 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

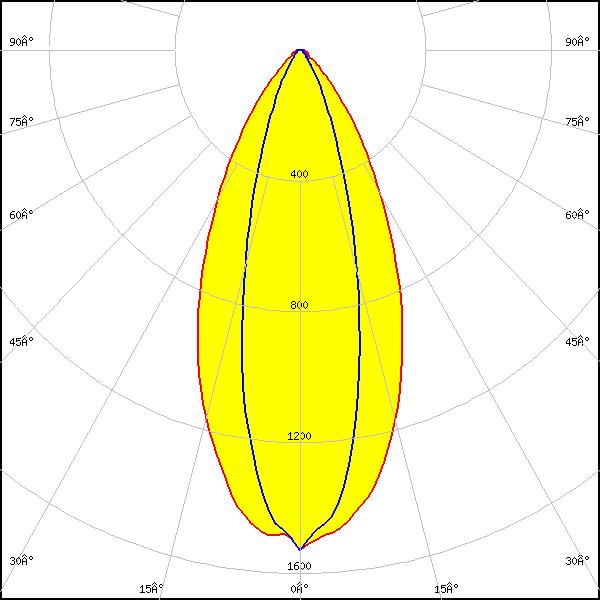

LC016D / LC019D / LC026D / LC033D
Ordering code: CP19138_AMY-50-O-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
48° + 28°
FWTM:
87° + 57°
Peak intensity:
1.532 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

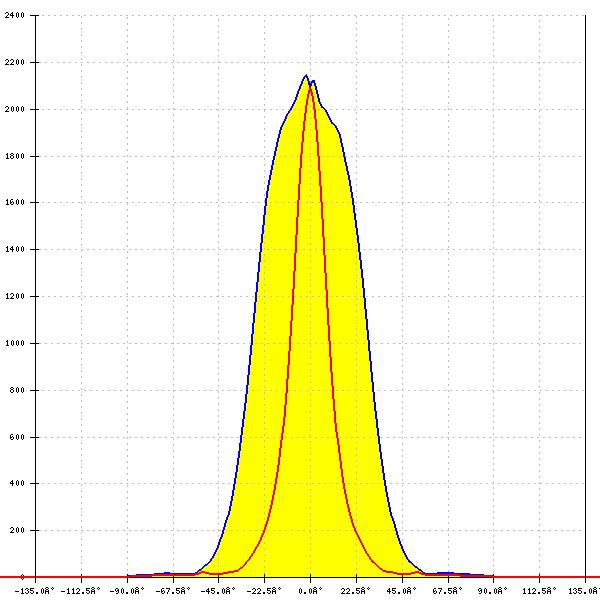

LC020C G2
Ordering code: CP19138_AMY-50-O-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
56° + 19°
FWTM:
84° + 44°
Peak intensity:
2.176 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

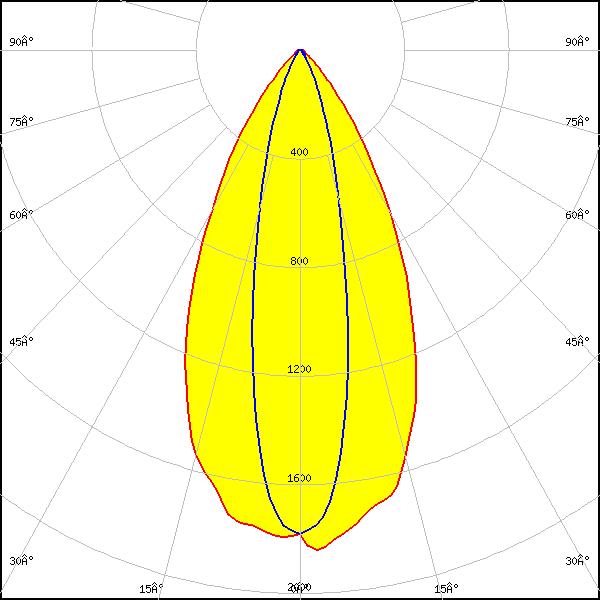

LC030C/040C G2
Ordering code: CP19138_AMY-50-O-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
52° + 23°
FWTM:
84° + 50°
Peak intensity:
1.843 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP19129_AMY-50-O-C2
LES size: 14.5 mm
Required components:
FWHM:
48° + 27°
FWTM:
88° + 57°
Peak intensity:
1.594 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
