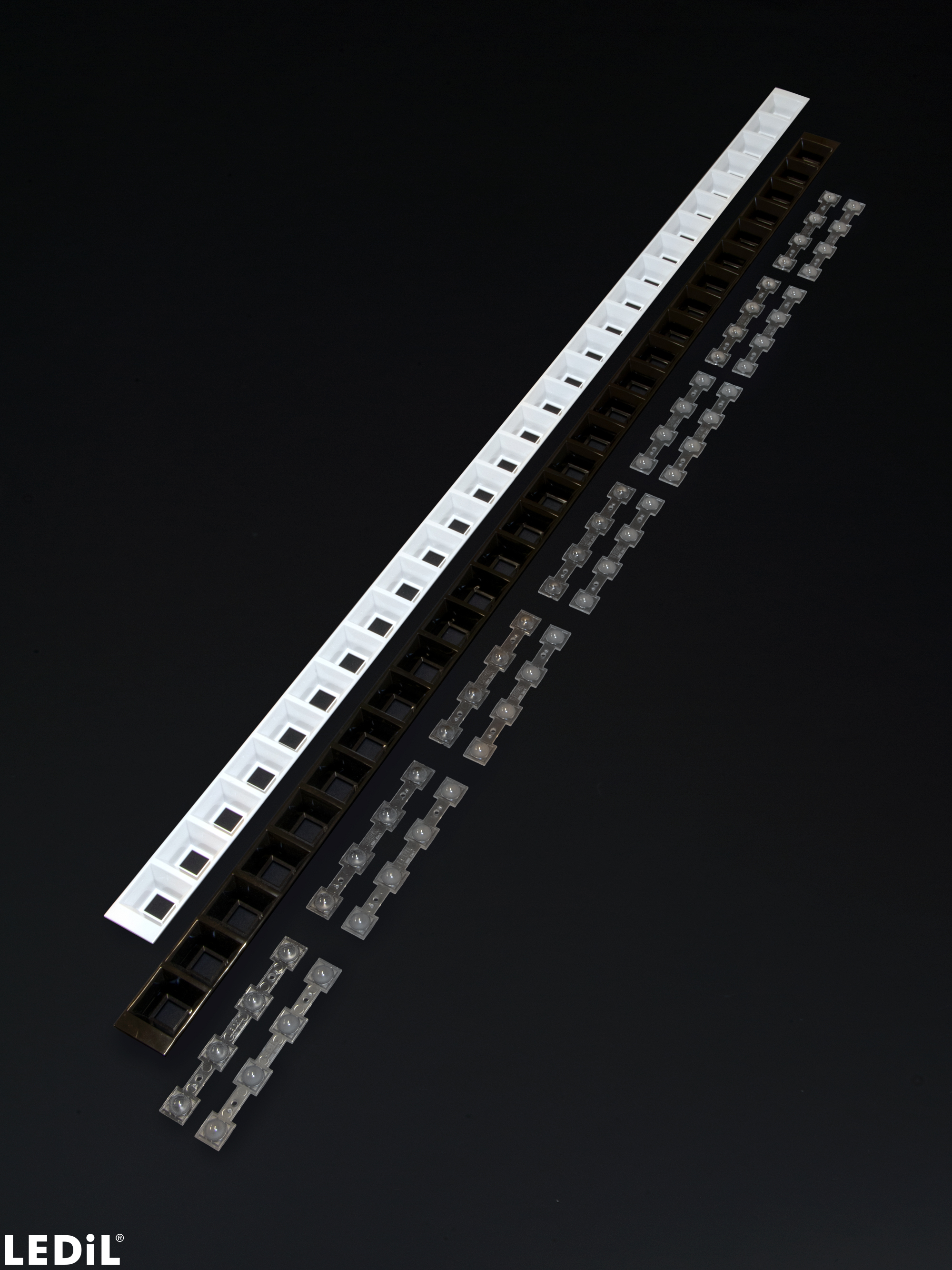

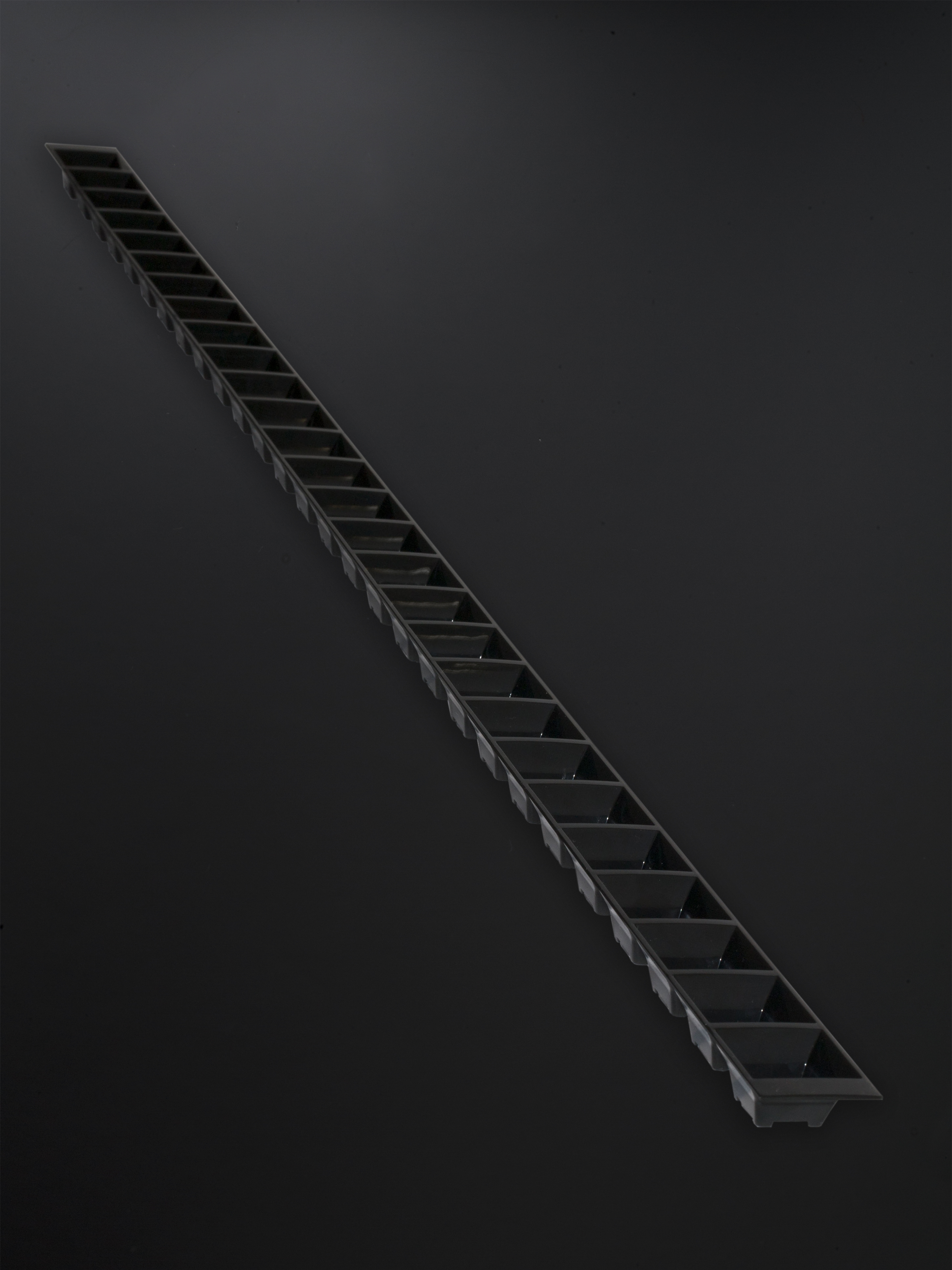

    DAISY-28X1-WW

    Print

    ~80° wide beam. Variant with 4X1 lenses.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      1140 x  40 mm
    • Height:
      20.20 mm
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information

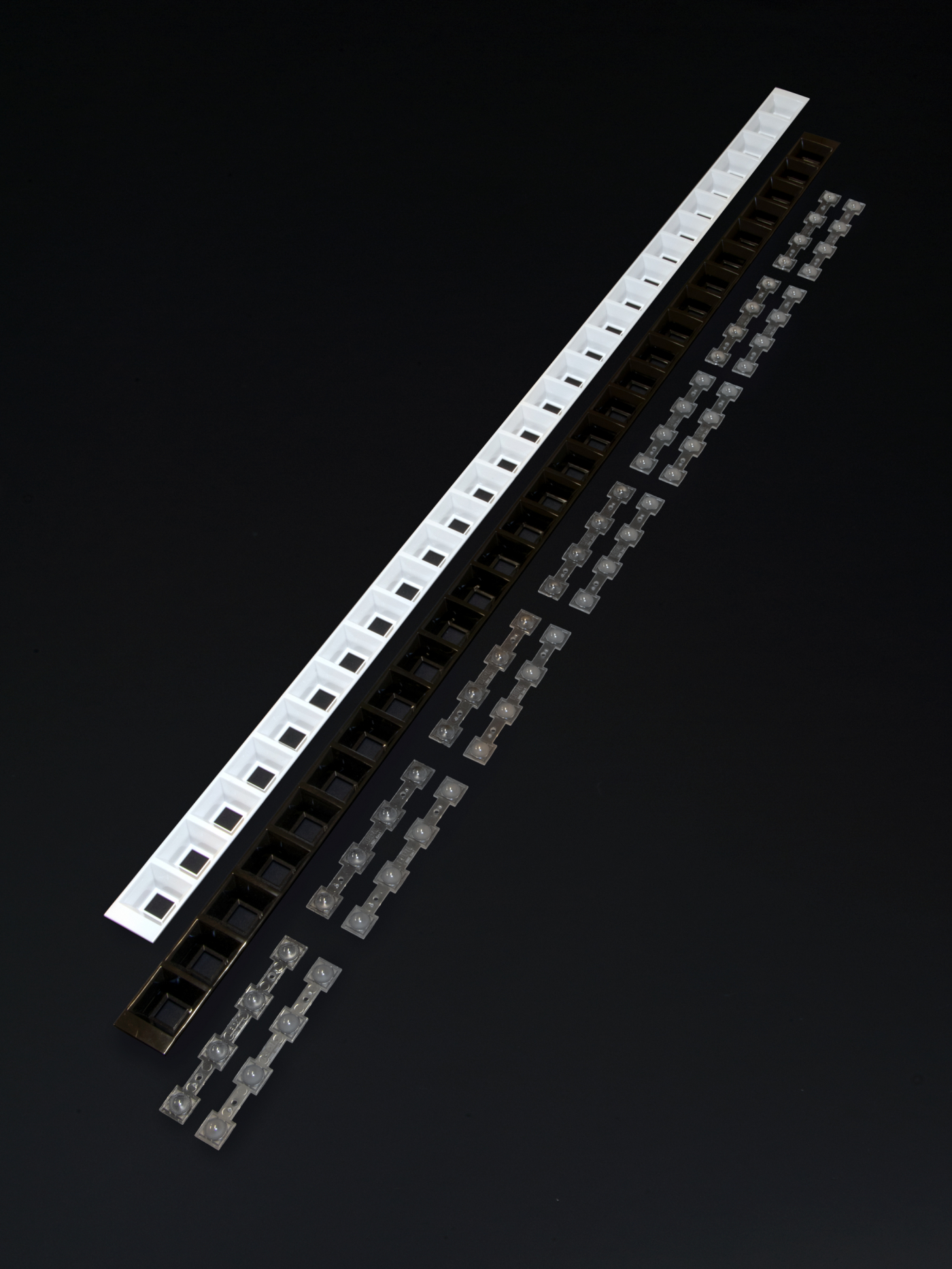

    • Quantities for one set:
    • Linear lens
      7 pcs
    • Shade
      1 pcs
    • Linear lens
    • C16584_DAISY-4X1-WW
      clear
    • Quantity in box:
      504 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.60 kg
    • MPQ:
      21 pcs
    • MOQ:
      336 pcs
    • MOQ Size:
      480 x 280 x 220 mm
    • MOQ Weight:
      3.90 kg
    • Shade
    • C16585_DAISY-28X1-SHD
      black,gloss
    • C16783_DAISY-28X1-SHD-WHT
      white,gloss
    • C17481_DAISY-28X1-SHD-MATT
      black,matt
    • C17482_DAISY-28X1-SHD-WHT-MATT
      white,matt
    • Quantity in box:
      48 pcs
    • Box size:
      1185 x 385 x 125 mm
    • Box weight:
      8.40 kg
    • MPQ:
      48 pcs
    • MOQ:
      48 pcs
    • MOQ Size:
      1185 x 385 x 140 mm
    • MOQ Weight:
      8.40 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C16584_DAISY-4X1-WW
      C16585_DAISY-28X1-SHD

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    PCN

    Product change notification NR159 - Change of product ordering method in Daisy family

    PCN

    Product change notification NR149 - Change of nominal dimensions of DAISY-WW

    Application example

    Office meeting room lighting with DAISY

    Application example

    Open office lighting with DAISY (Task related)

    Application example

    Open office lighting with DAISY (Room related)

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    Case story

    BILLA supermarket stores

    Article

    Office luminaire examples from LEDiL

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

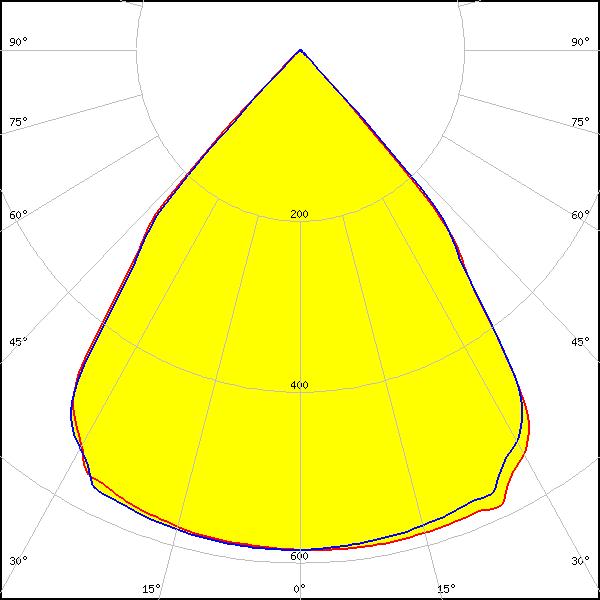

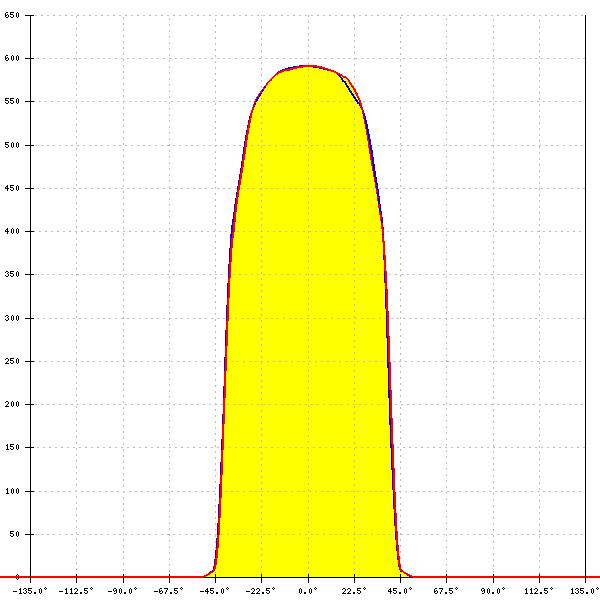

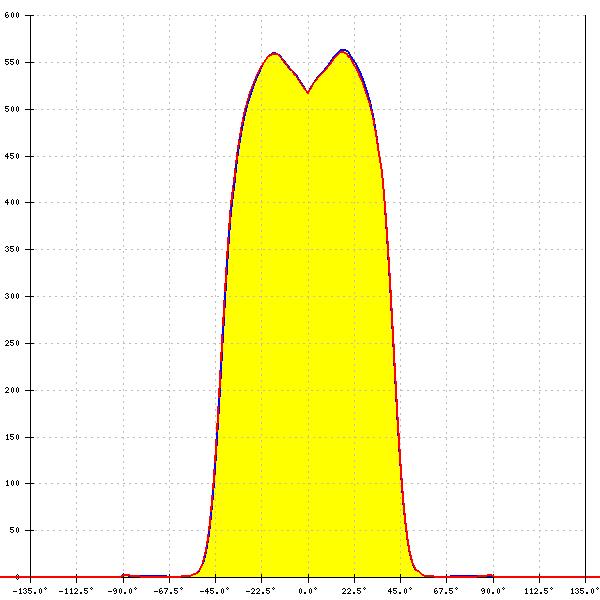

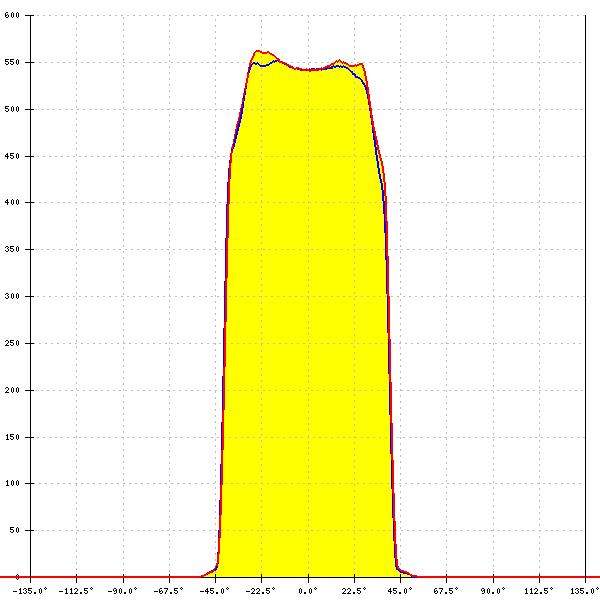

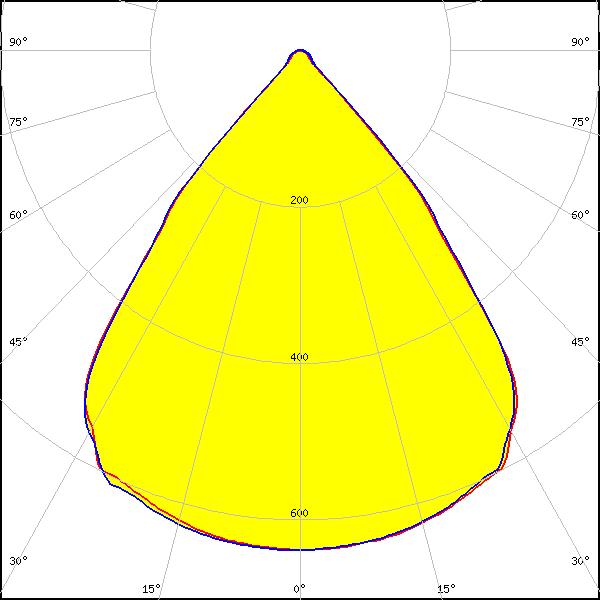

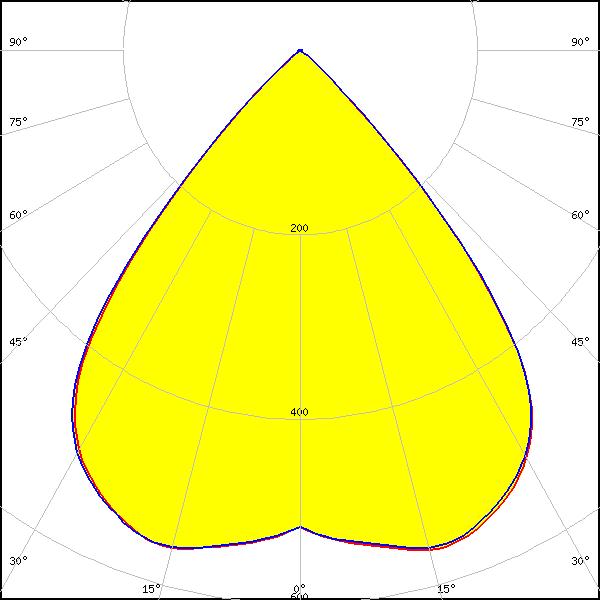

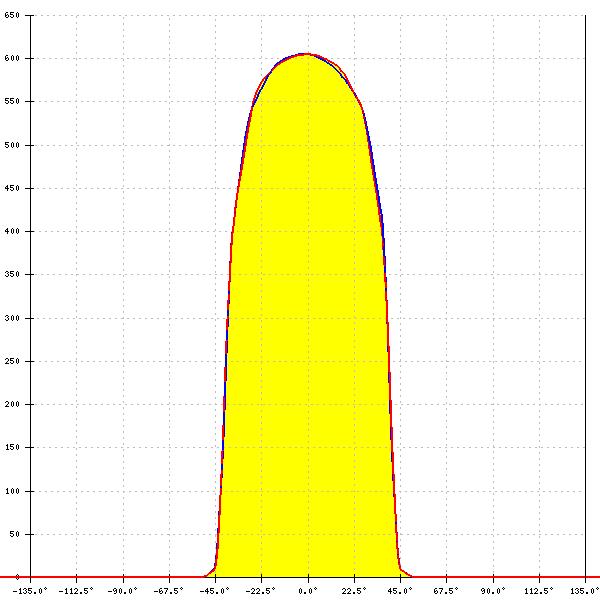

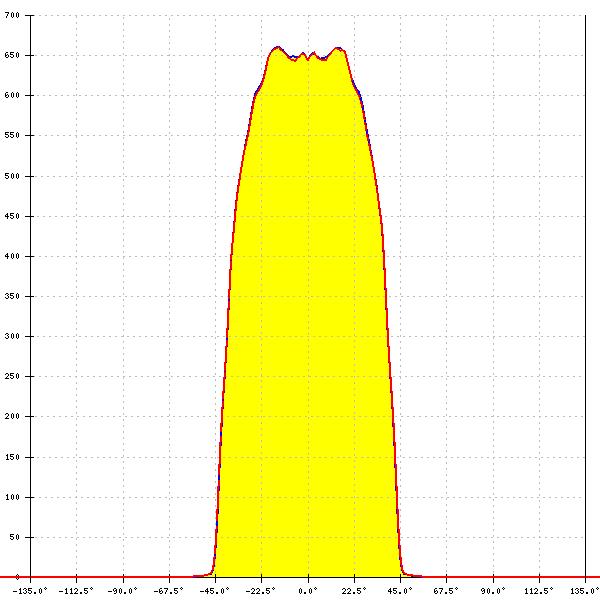

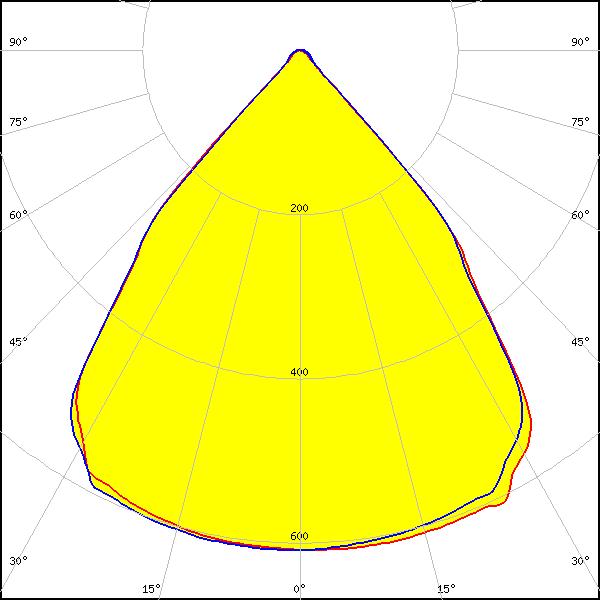

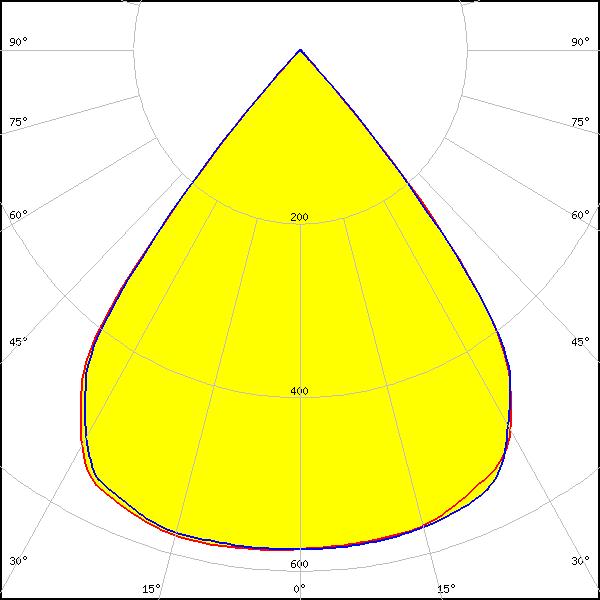

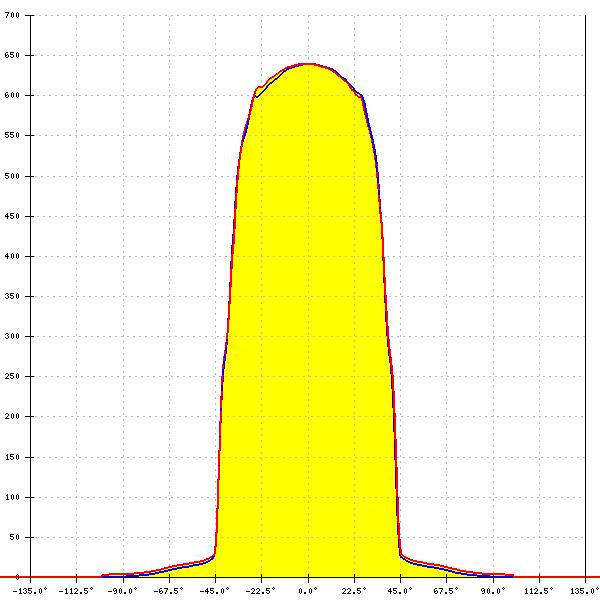

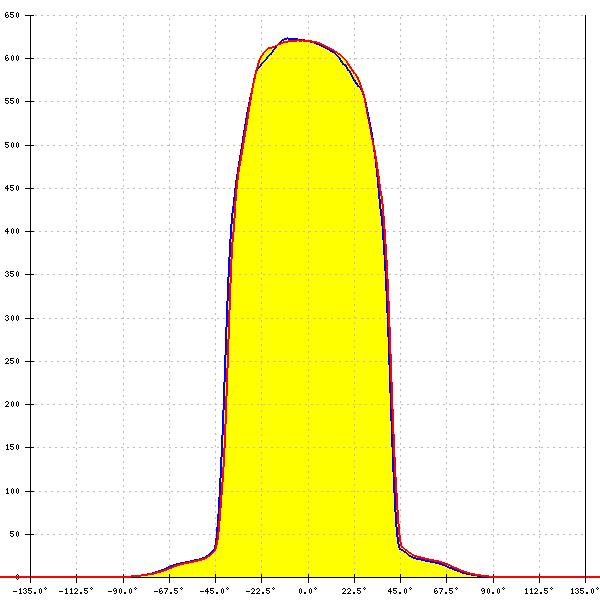

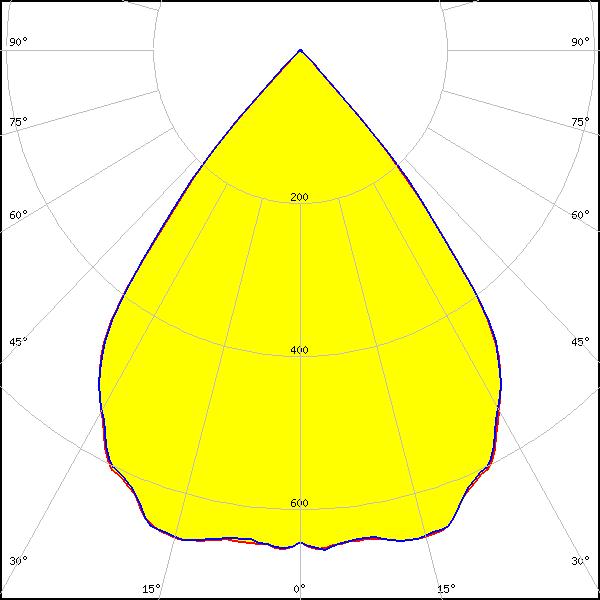

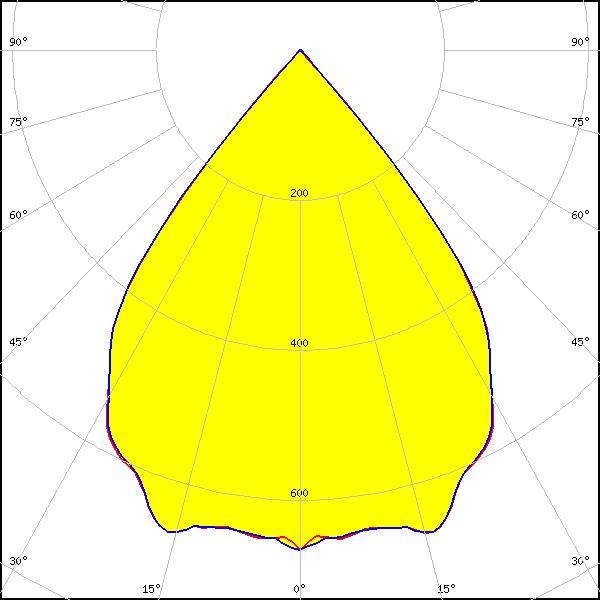

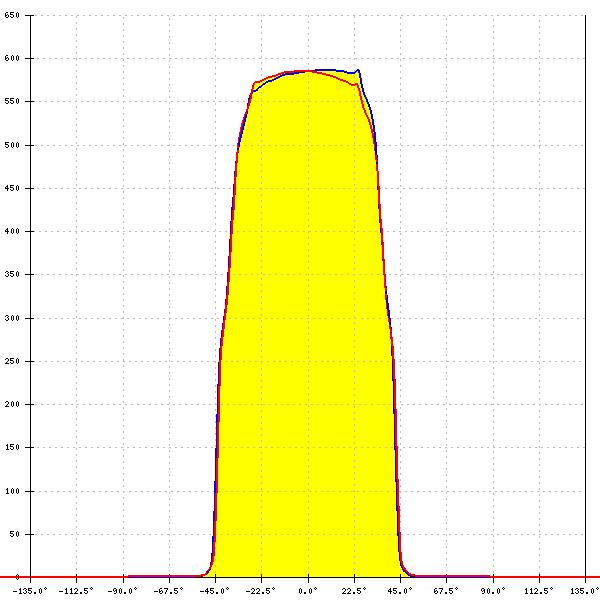

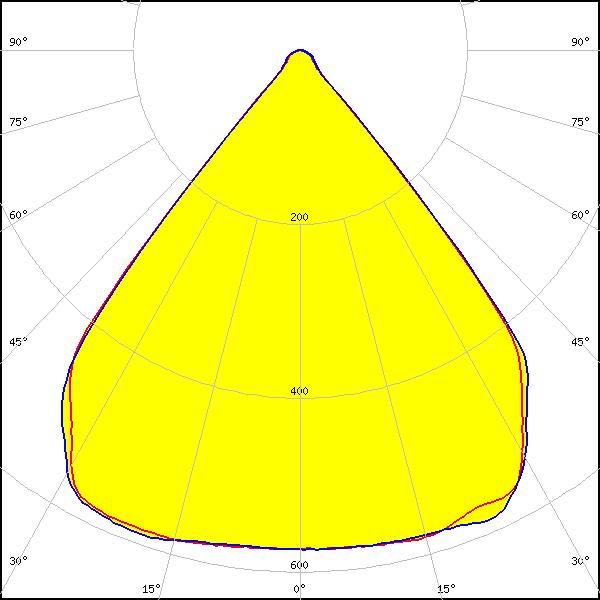

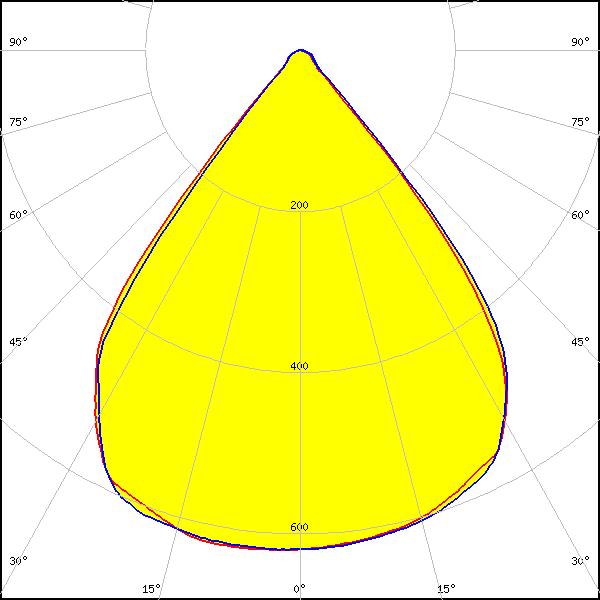

    Optical results

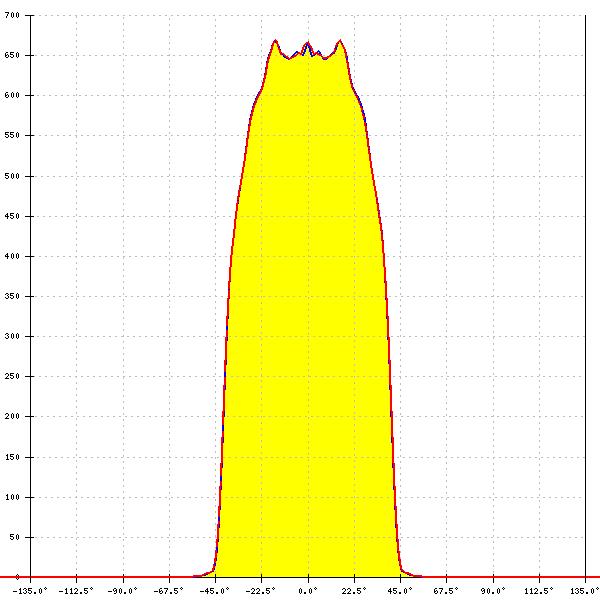

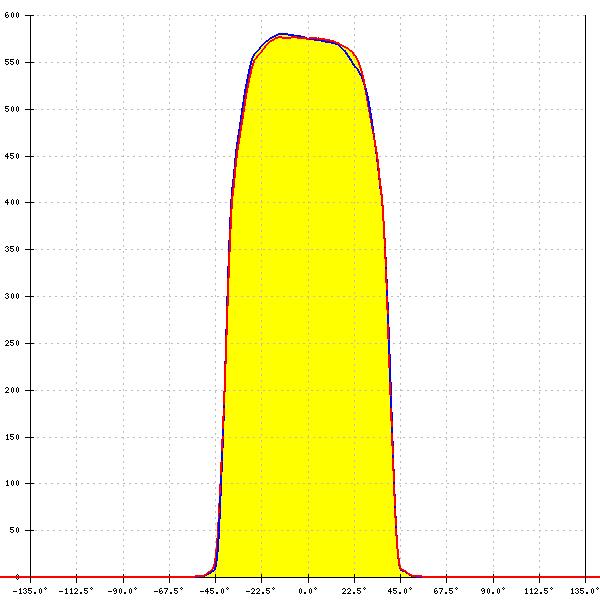

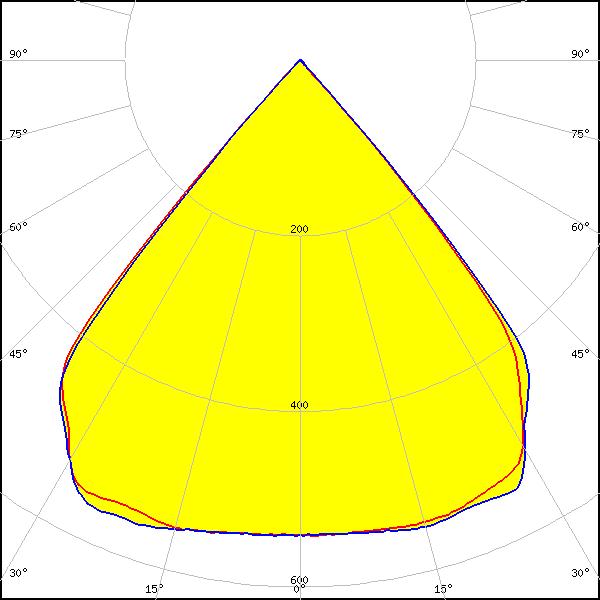

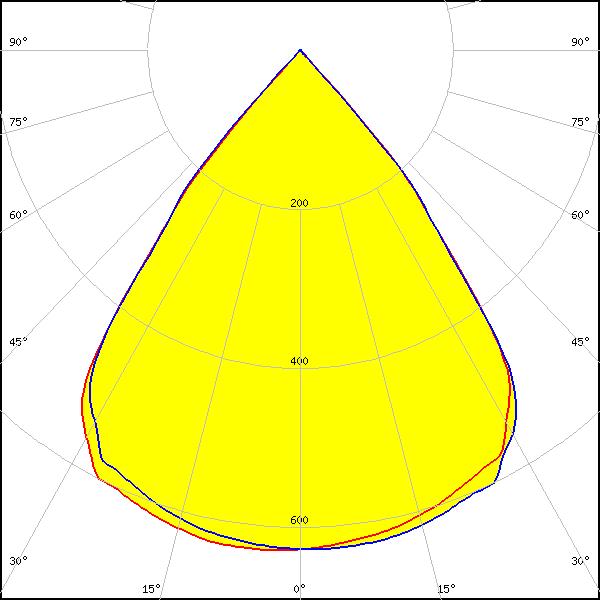

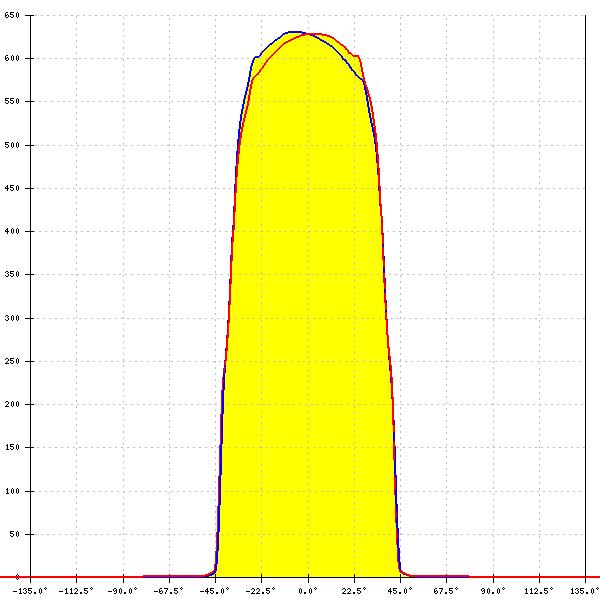

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 76°
    FWTM: 87°
    Peak intensity: 0.631 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White

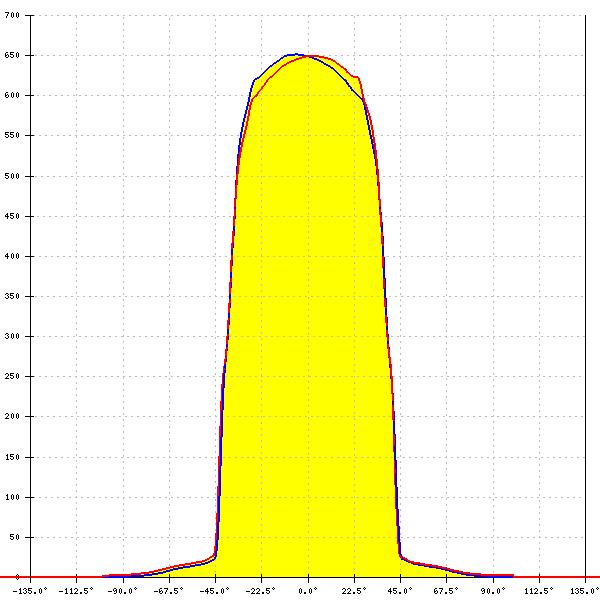

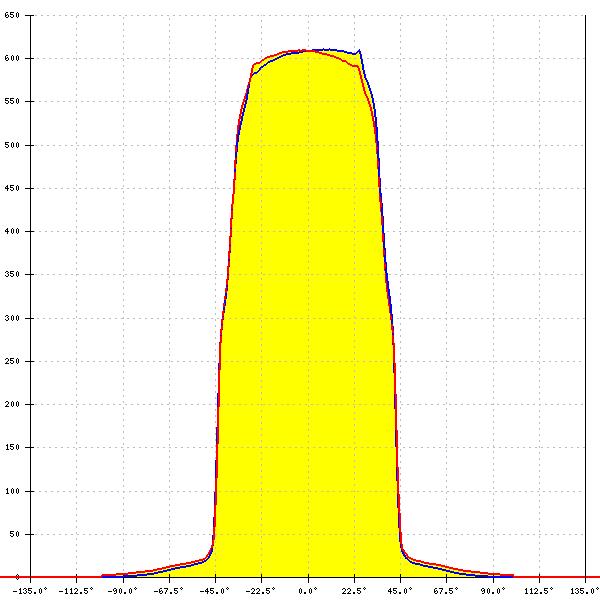

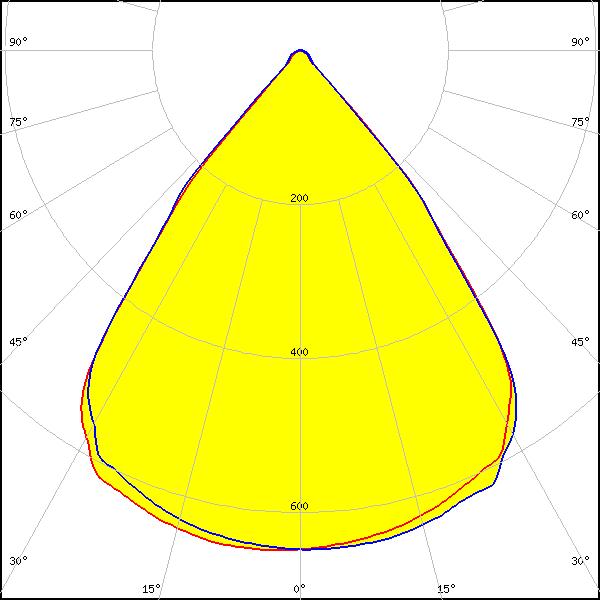

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 76°
    FWTM: 88°
    Peak intensity: 0.651 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

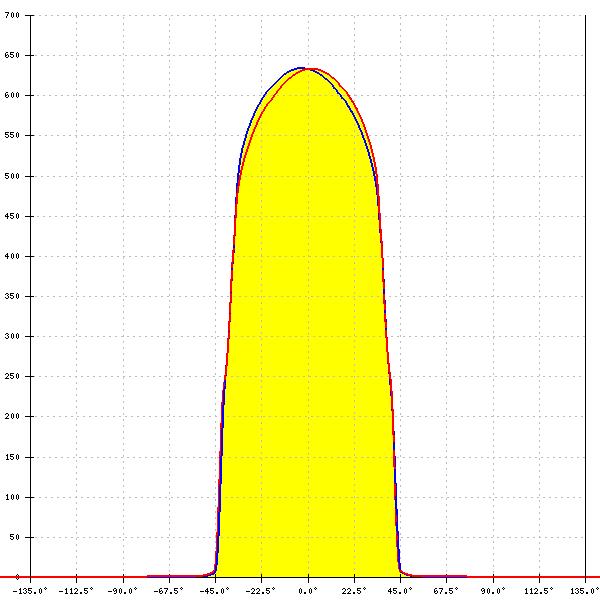

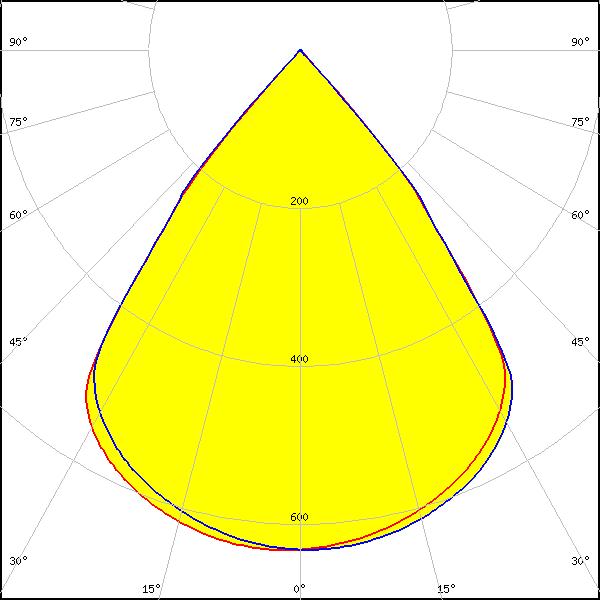

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C17481_DAISY-28X1-SHD-MATT
    FWHM: 76°
    FWTM: 87°
    Peak intensity: 0.634 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White

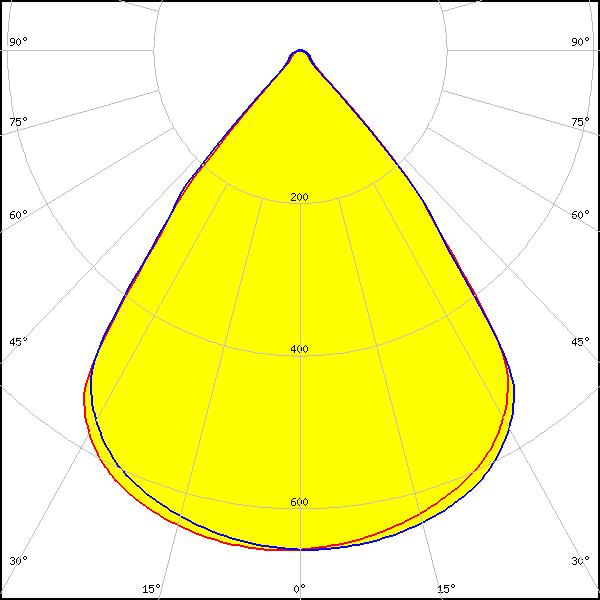

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C17482_DAISY-28X1-SHD-WHT-MATT
    FWHM: 76°
    FWTM: 88°
    Peak intensity: 0.656 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 4
    Light colour/type: White

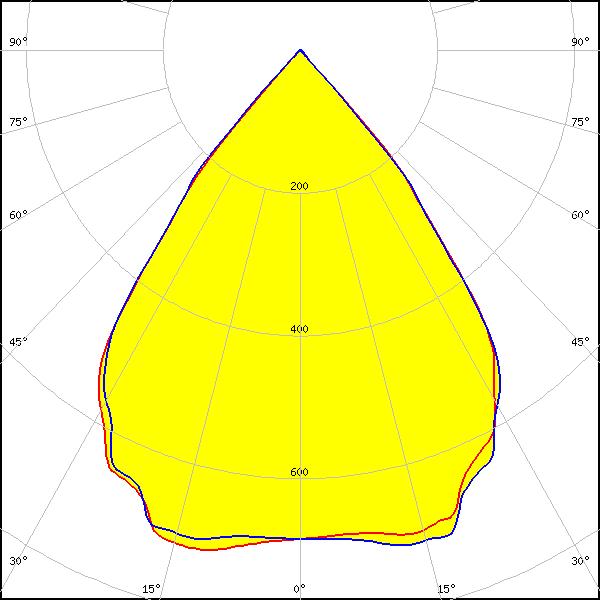

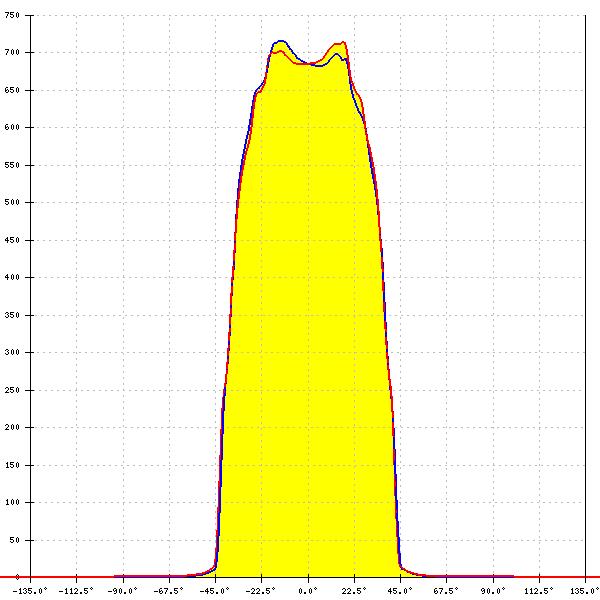

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C17527_DAISY-28X1-SHD-MET
    FWHM: 74°
    FWTM: 87°
    Peak intensity: 0.725 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 4
    Light colour/type: White

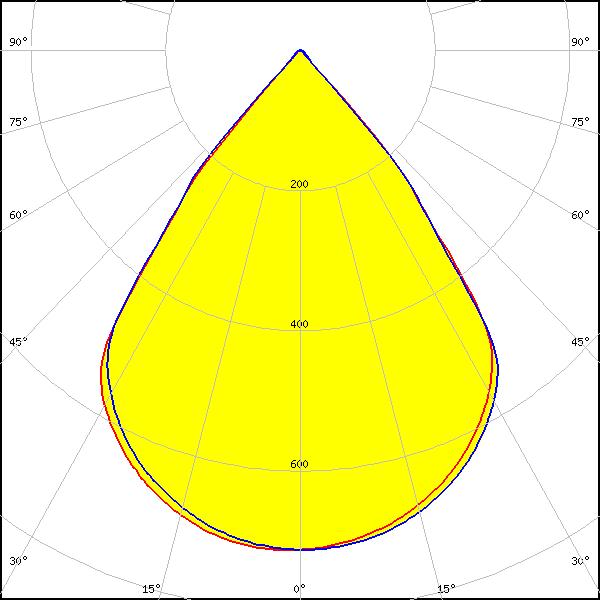

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:

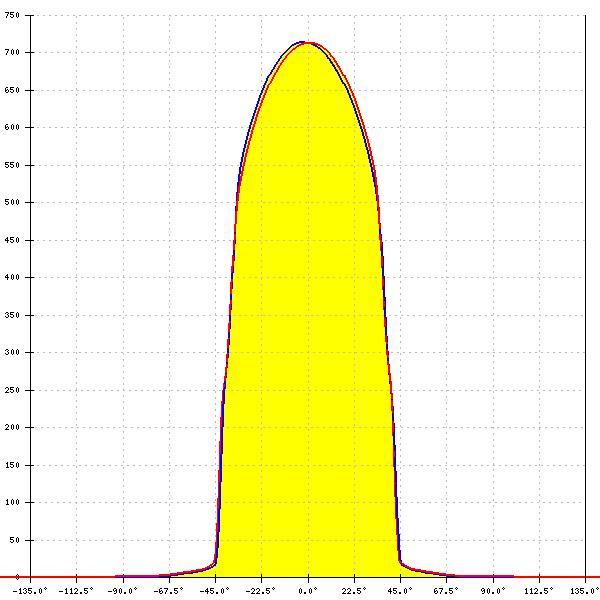

    C17537_DAISY-28X1-SHD-MET-MATT
    FWHM: 75°
    FWTM: 87°
    Peak intensity: 0.714 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Bridgelux SMD 2835
    Required components:
    C16585_DAISY-28X1-SHD
    LEDs/each optic: 1
    Light colour/type: White

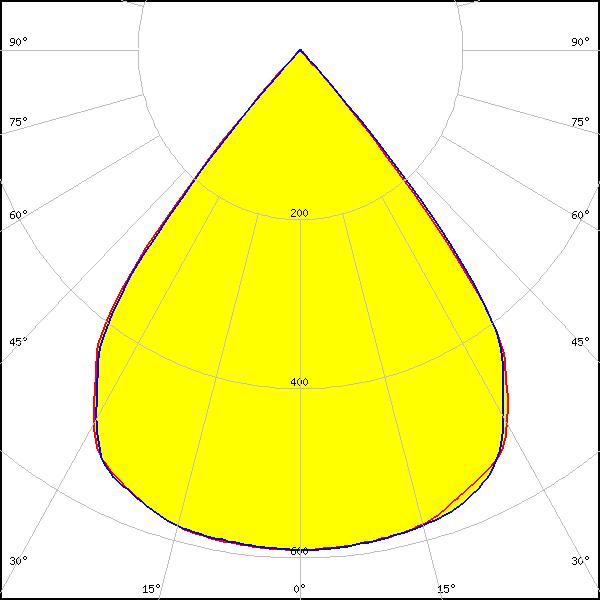

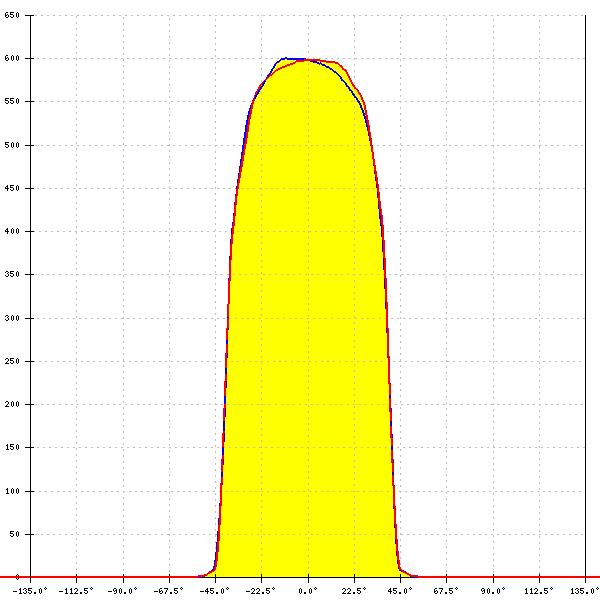

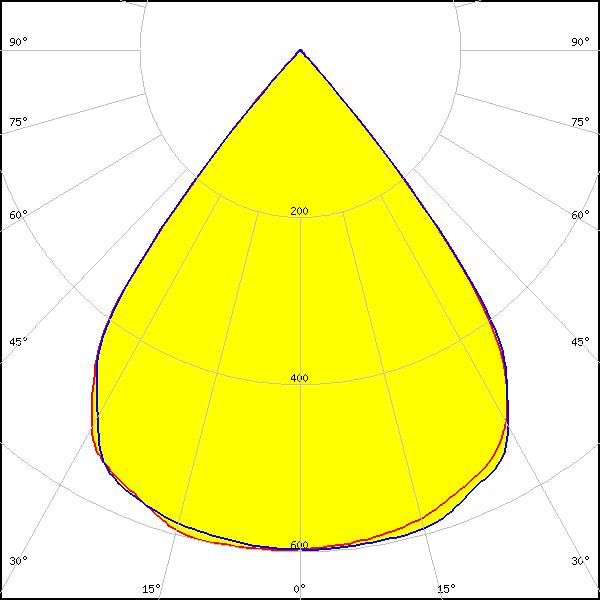

    LED: J Series 2835
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 77°
    FWTM: 86°
    Peak intensity: 0.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White

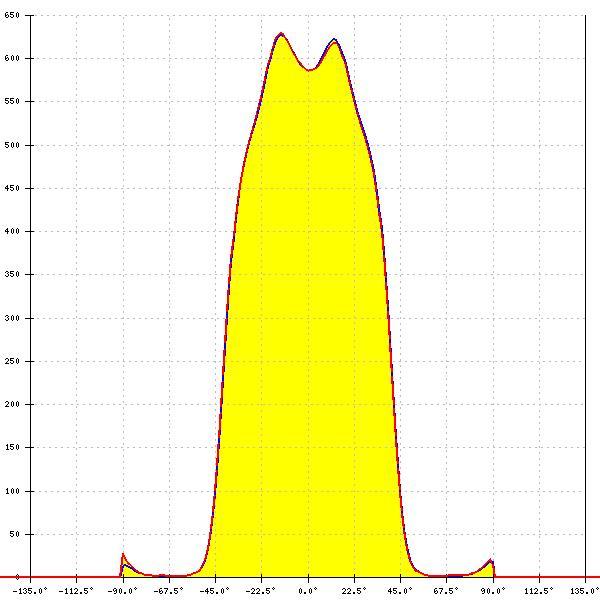

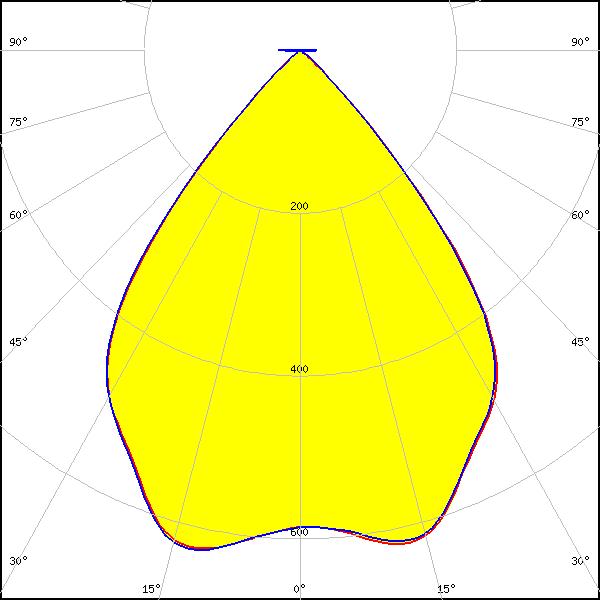

    LED: XD16
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 76°
    FWTM: 93°
    Peak intensity: 0.630 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

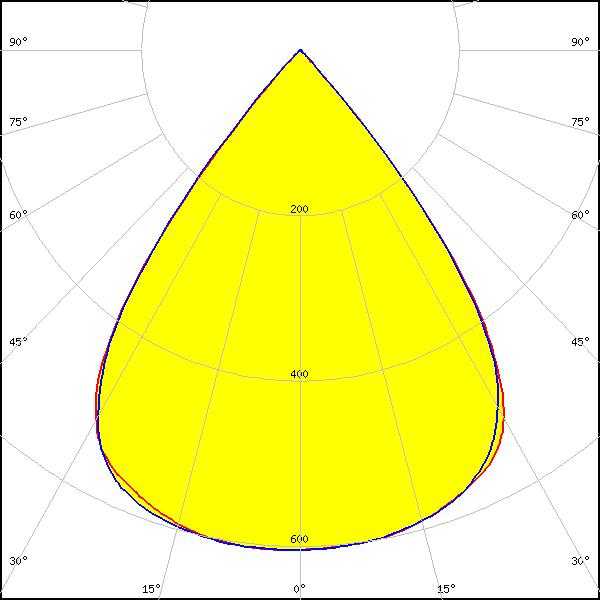

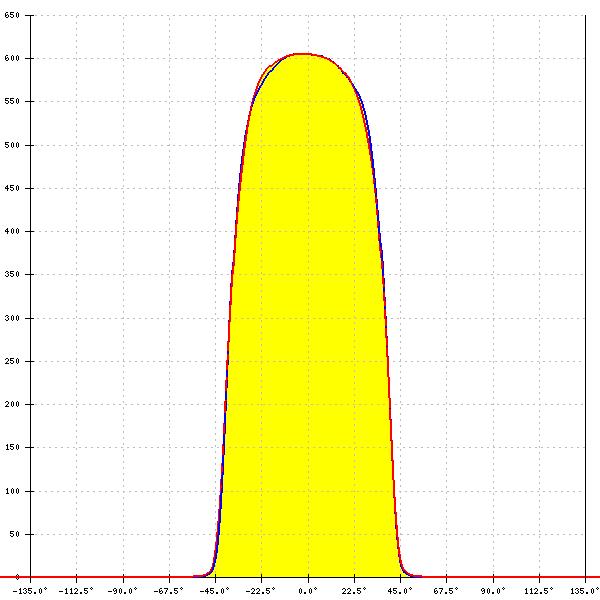

    LED: LDL-iC-562-827-2000lm
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 75°
    FWTM: 86°
    Peak intensity: 0.600 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

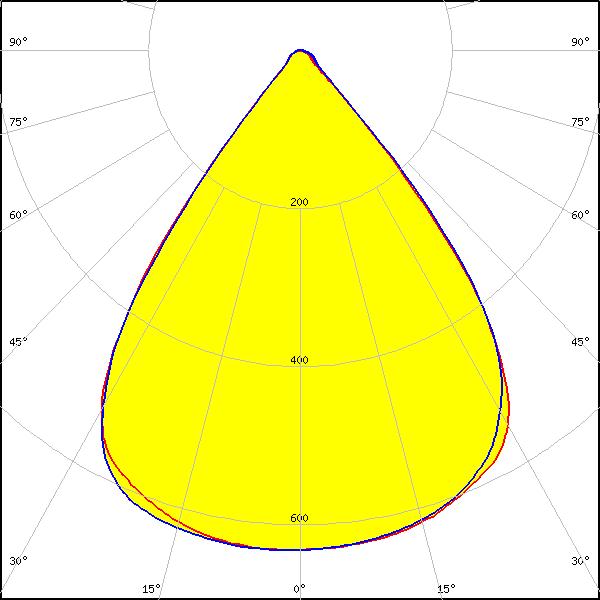

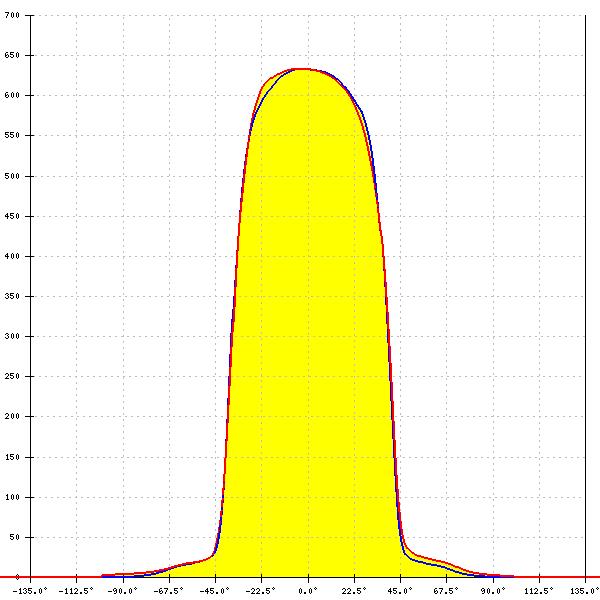

    LED: LDL-iC-562-827-2000lm
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 75°
    FWTM: 88°
    Peak intensity: 0.630 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

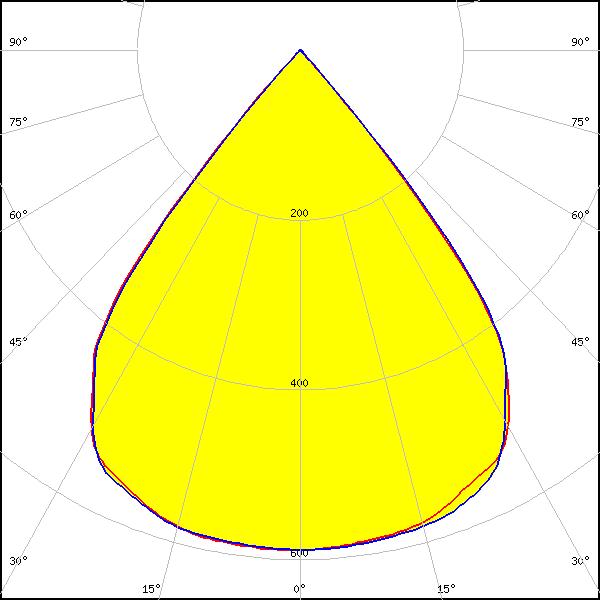

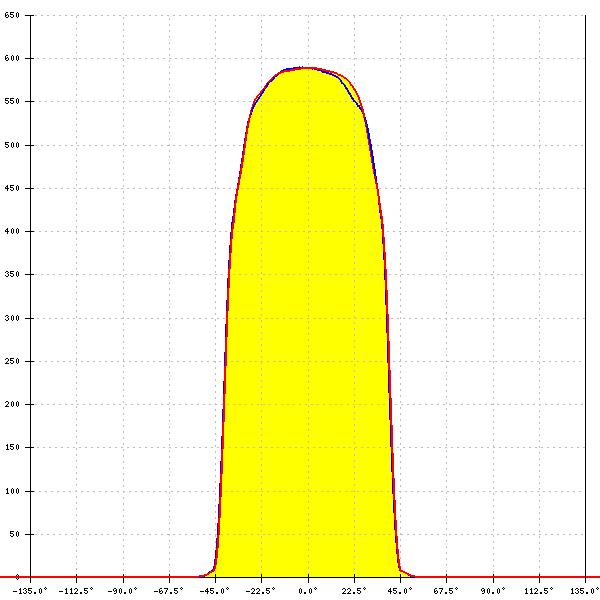

    LED: LUXEON 2835 Line
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 78°
    FWTM: 86°
    Peak intensity: 0.590 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White

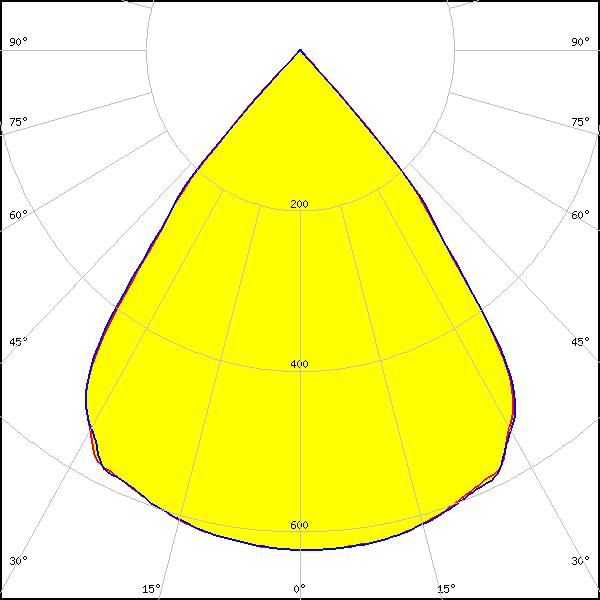

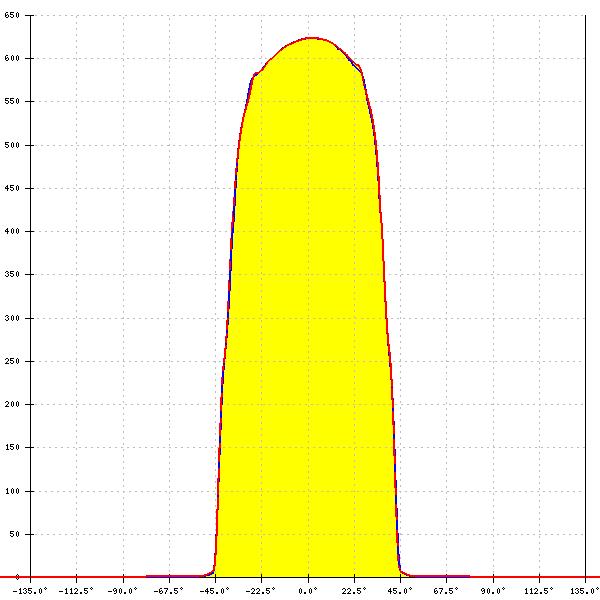

    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 76° + 76°
    FWTM: 88° + 87°
    Peak intensity: 0.622 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

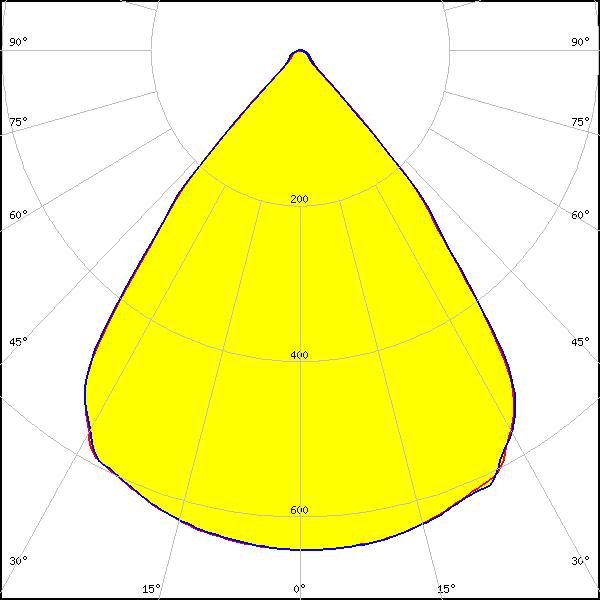

    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 77°
    FWTM: 89°
    Peak intensity: 0.642 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White

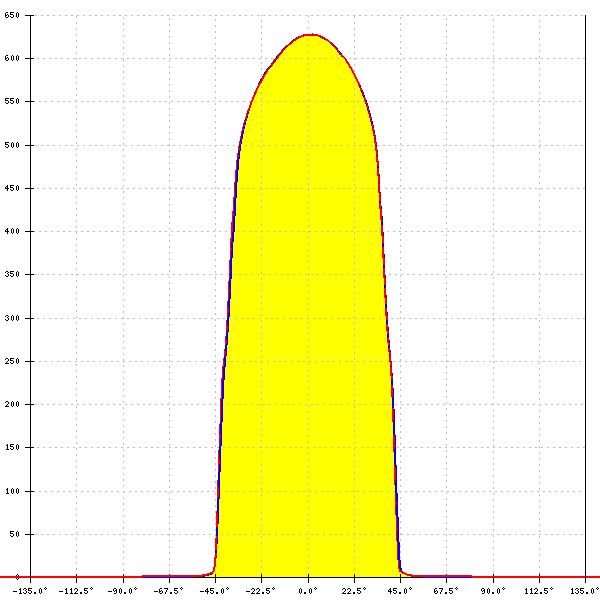

    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C17481_DAISY-28X1-SHD-MATT
    FWHM: 76° + 76°
    FWTM: 88° + 88°
    Peak intensity: 0.624 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C17482_DAISY-28X1-SHD-WHT-MATT
    FWHM: 76° + 77°
    FWTM: 88° + 88°
    Peak intensity: 0.647 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White

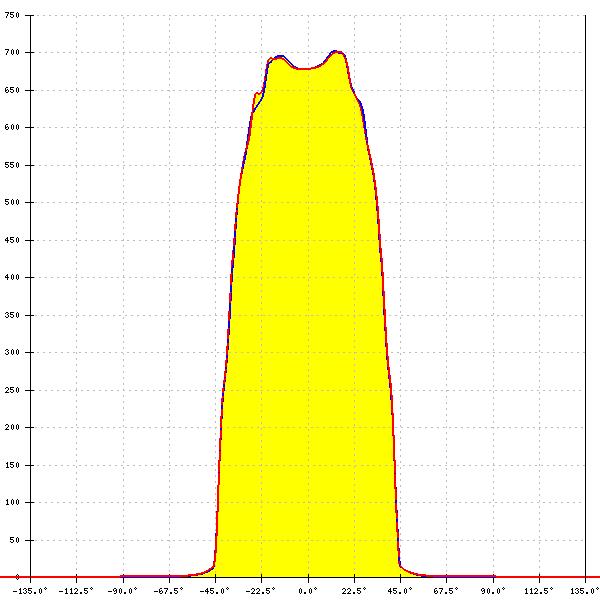

    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C17527_DAISY-28X1-SHD-MET
    FWHM: 75°
    FWTM: 88°
    Peak intensity: 0.712 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C17537_DAISY-28X1-SHD-MET-MATT
    FWHM: 75°
    FWTM: 88°
    Peak intensity: 0.712 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White

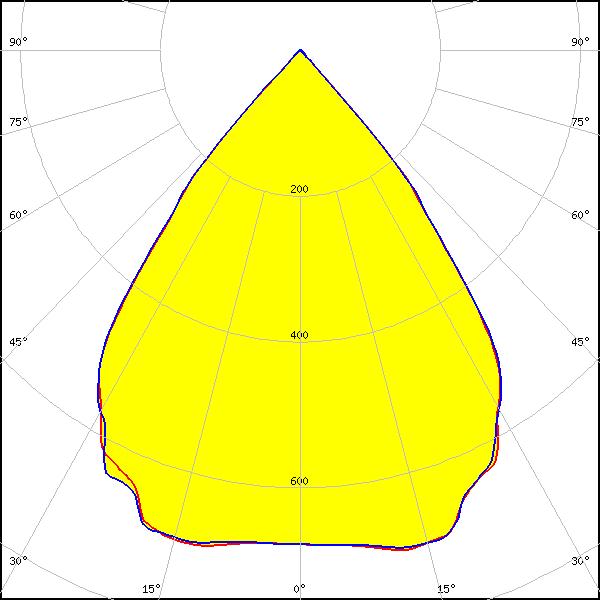

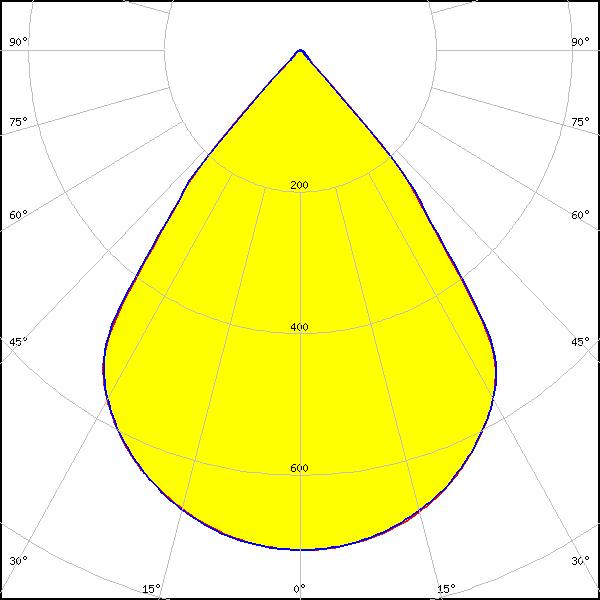

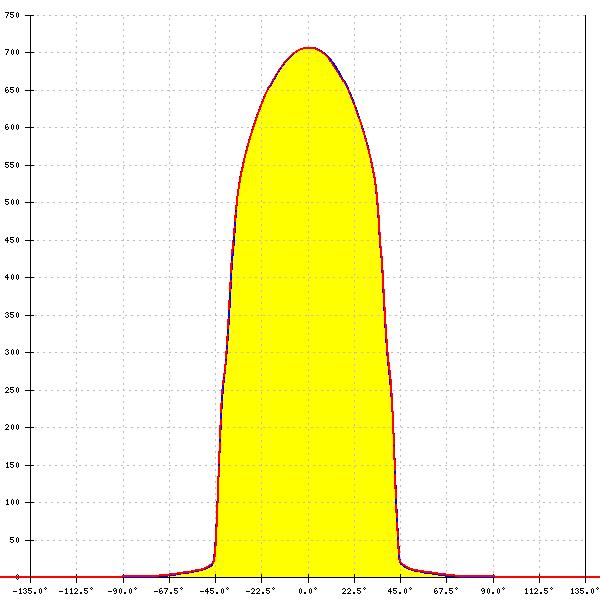

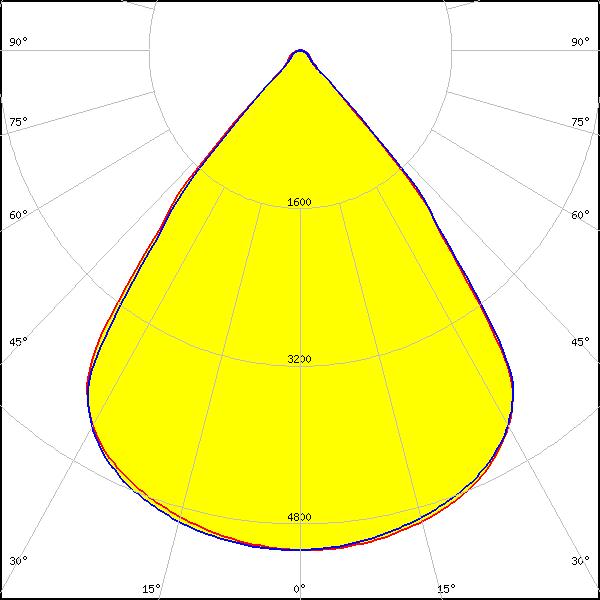

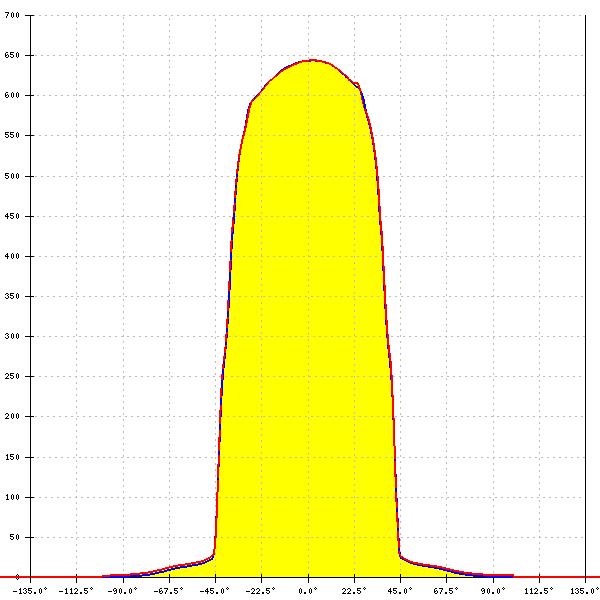

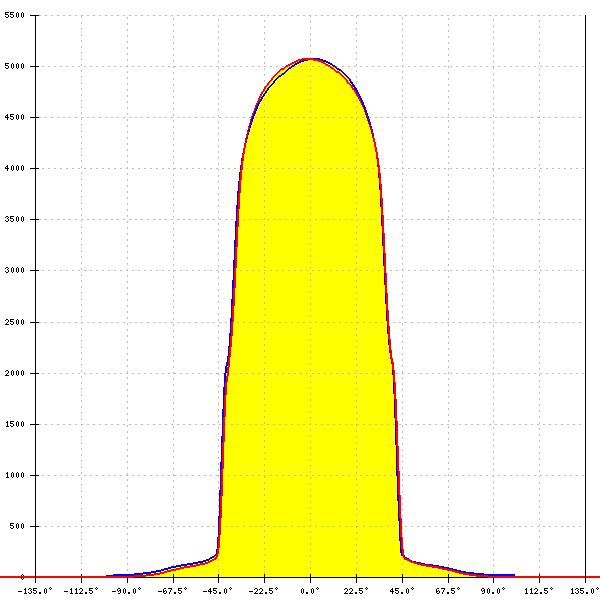

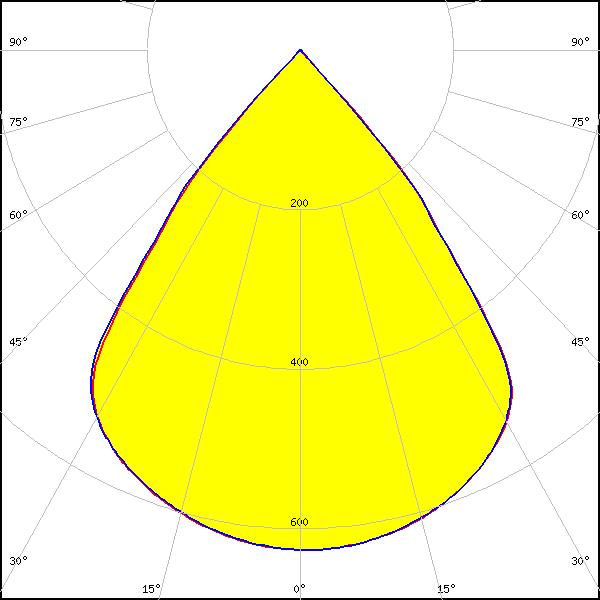

    LED: LinLED 1120x28mm 2x2200lm 827-865 2x2C 84V DAISY-28x1 G1
