    DAISY-28X1-W

    Print

    ~50° wide beam. Variant with 4X1 lenses.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      1140 x  40 mm
    • Height:
      20.20 mm
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information

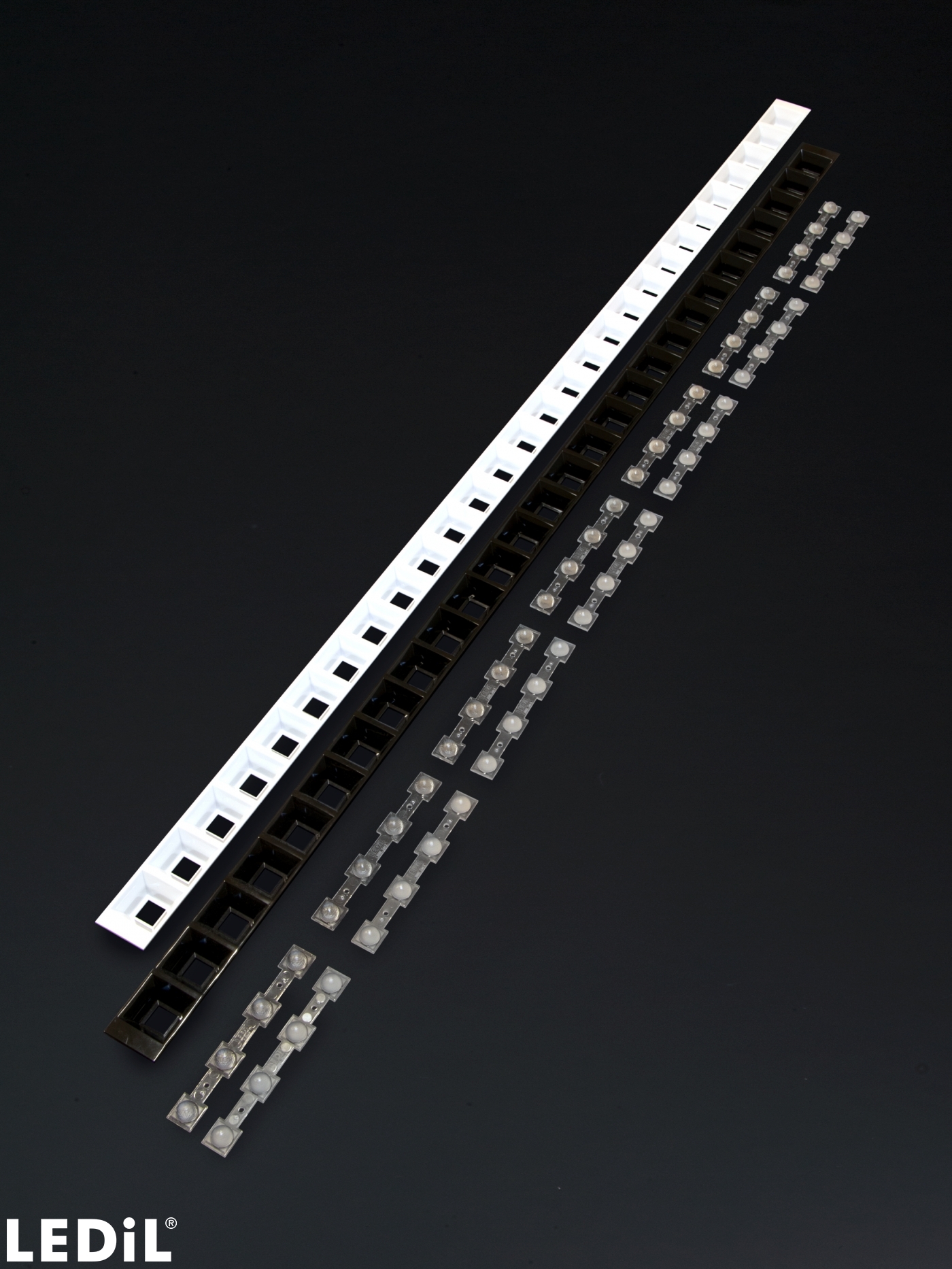

    • Quantities for one set:
    • Linear lens
      7 pcs
    • Shade
      1 pcs
    • Linear lens
    • C16588_DAISY-4X1-W
      clear
    • Quantity in box:
      504 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.30 kg
    • MPQ:
      21 pcs
    • MOQ:
      336 pcs
    • MOQ Size:
      480 x 280 x 220 mm
    • MOQ Weight:
      4.40 kg
    • Shade
    • C16585_DAISY-28X1-SHD
      black,gloss
    • C16783_DAISY-28X1-SHD-WHT
      white,gloss
    • C17481_DAISY-28X1-SHD-MATT
      black,matt
    • C17482_DAISY-28X1-SHD-WHT-MATT
      white,matt
    • Quantity in box:
      48 pcs
    • Box size:
      1185 x 385 x 125 mm
    • Box weight:
      8.40 kg
    • MPQ:
      48 pcs
    • MOQ:
      48 pcs
    • MOQ Size:
      1185 x 385 x 140 mm
    • MOQ Weight:
      8.40 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C16588_DAISY-4X1-W
      C16585_DAISY-28X1-SHD

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    PCN

    Product change notification NR159 - Change of product ordering method in Daisy family

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    Case story

    BILLA supermarket stores

    Article

    Office luminaire examples from LEDiL

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

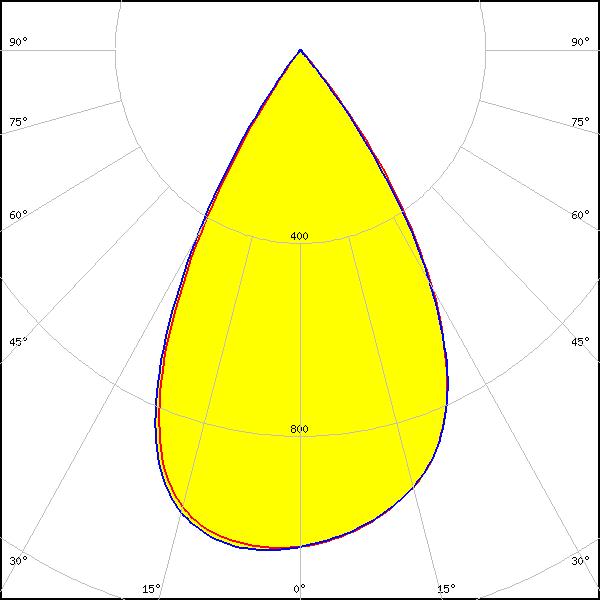

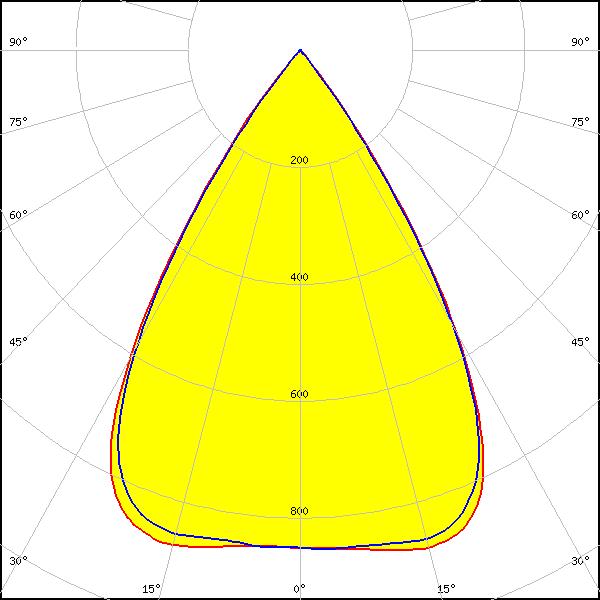

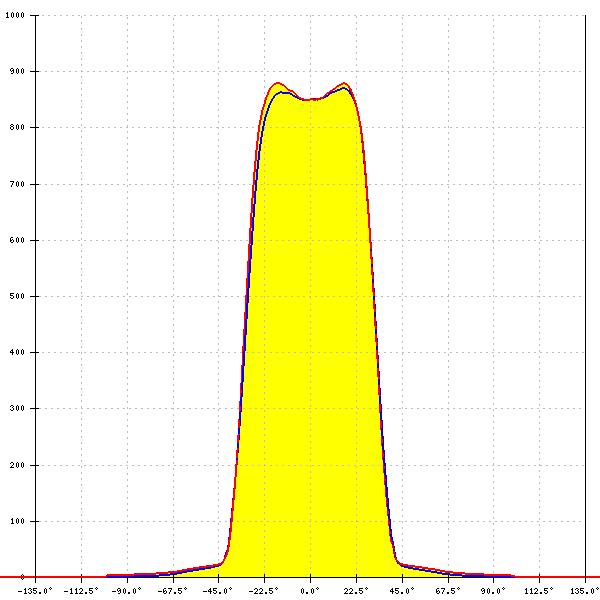

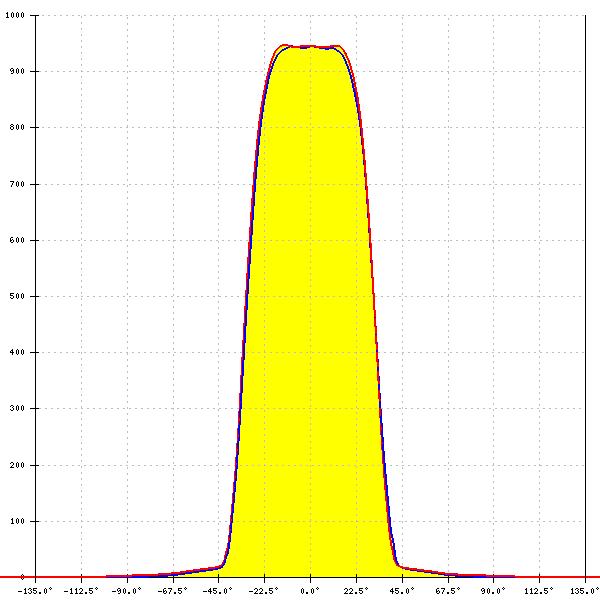

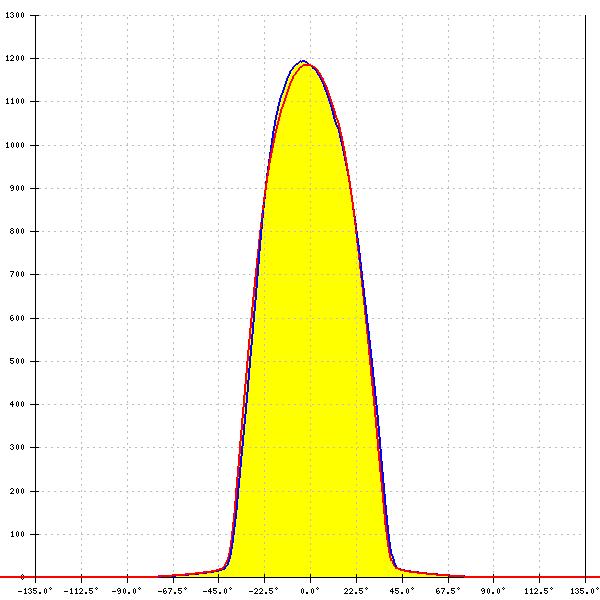

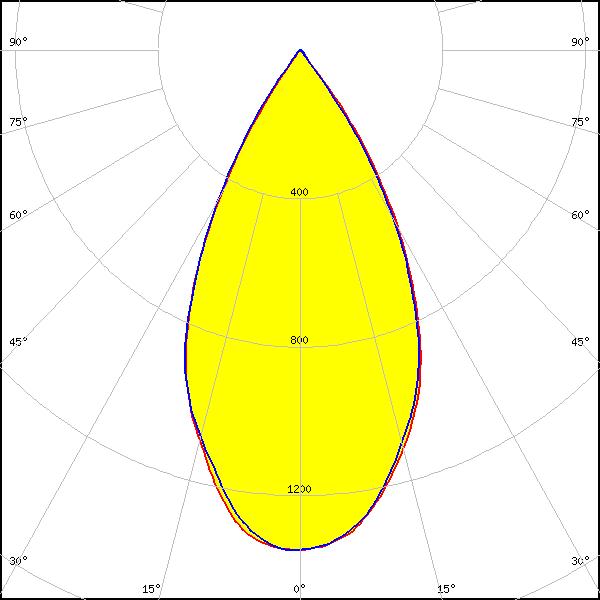

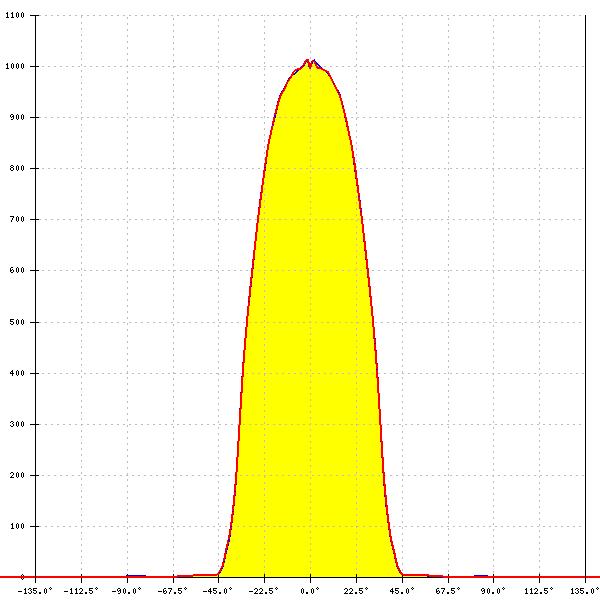

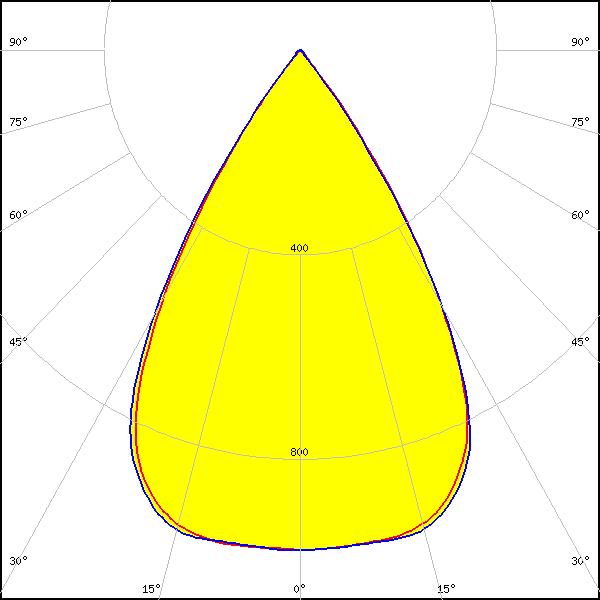

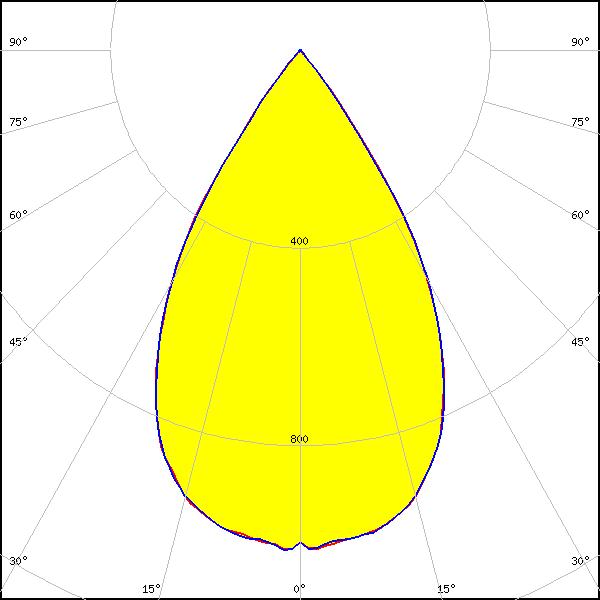

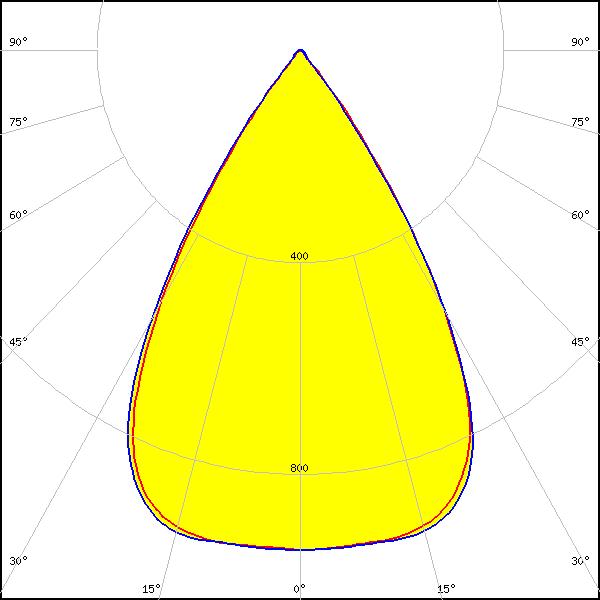

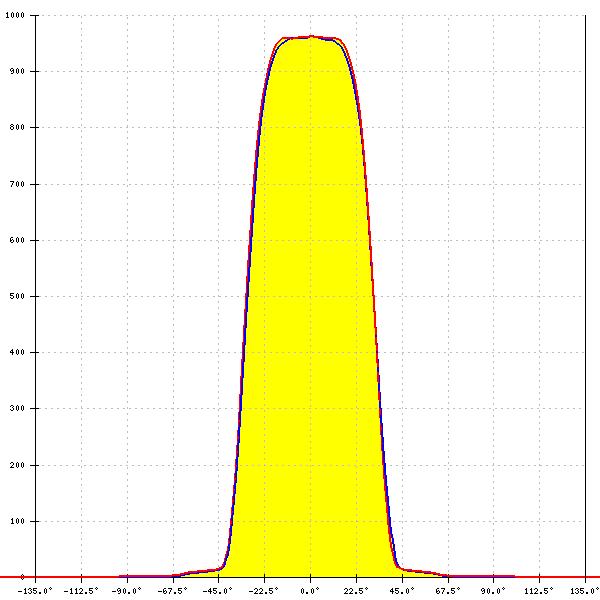

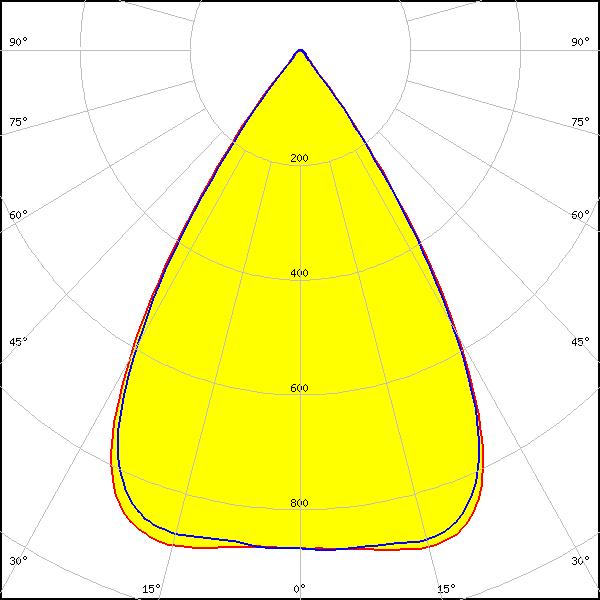

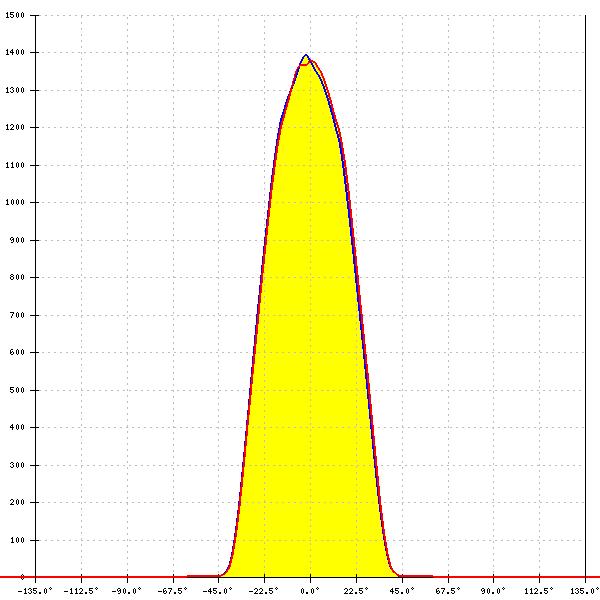

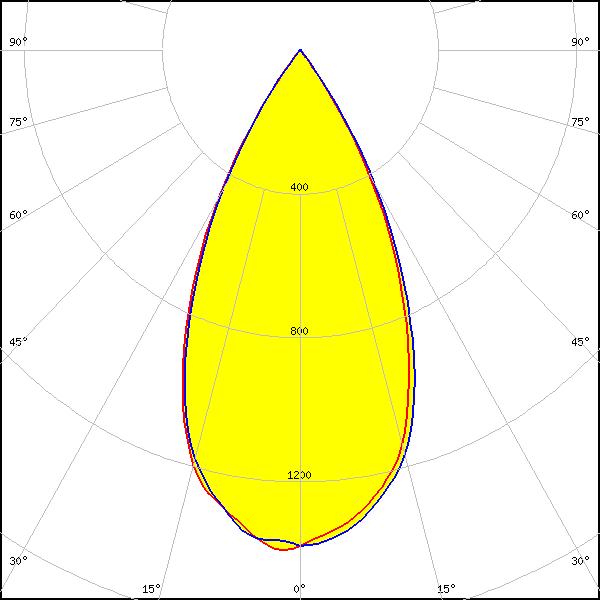

    Optical results

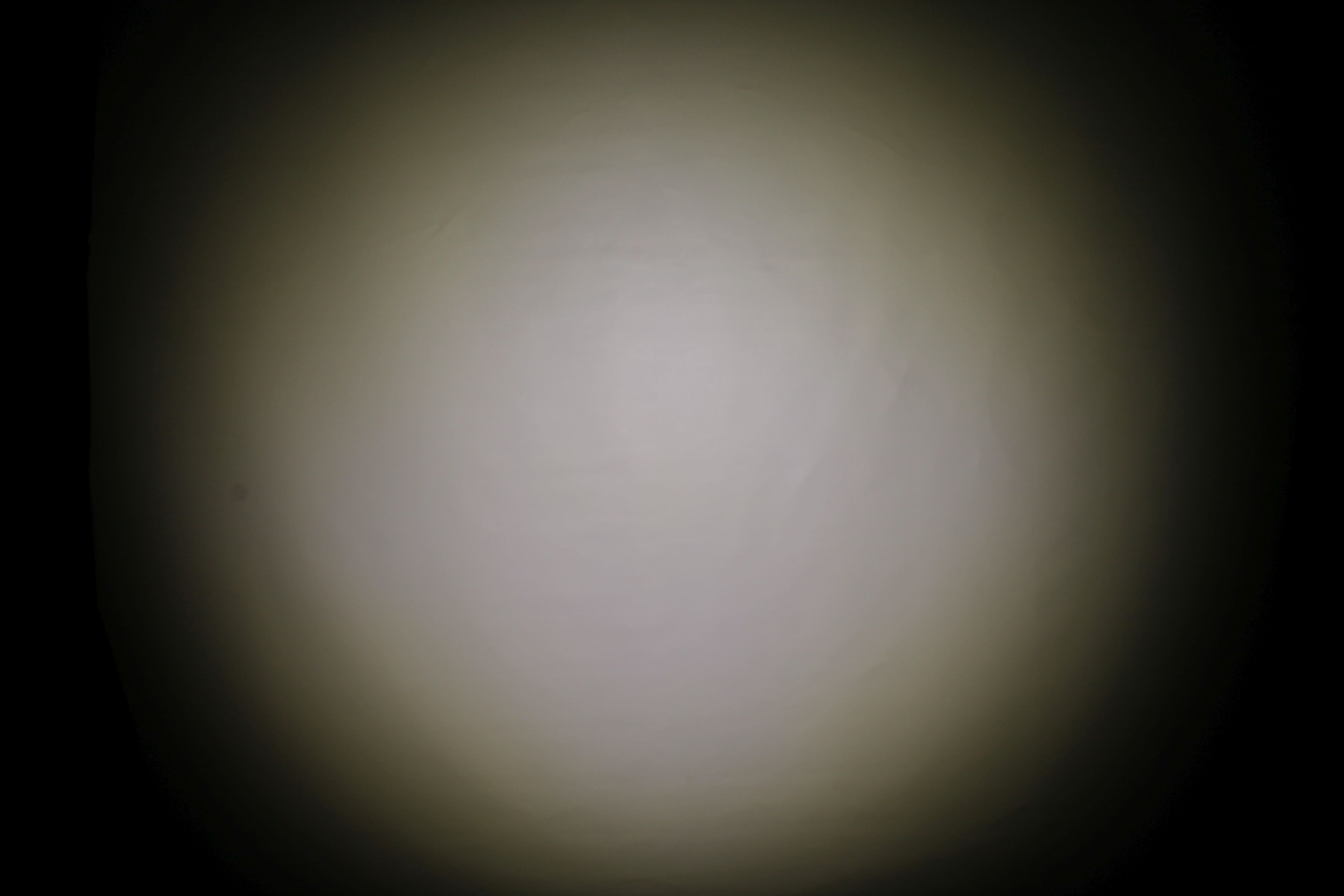

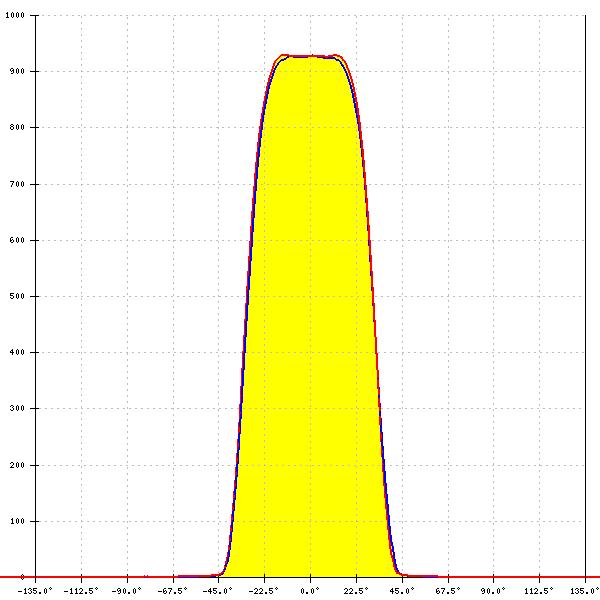

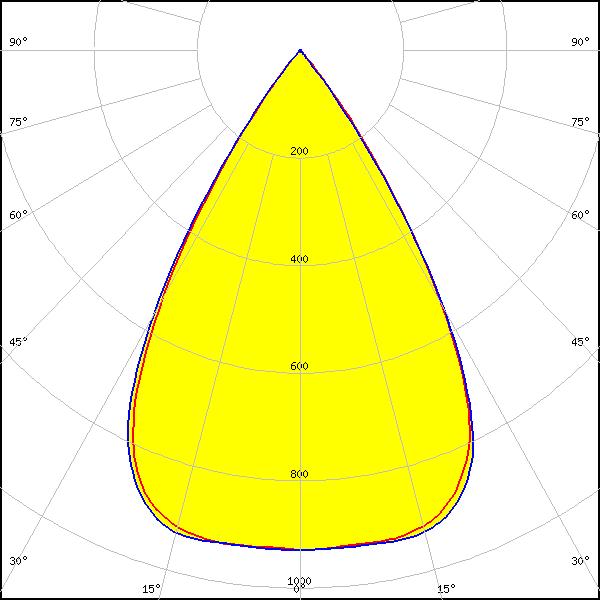

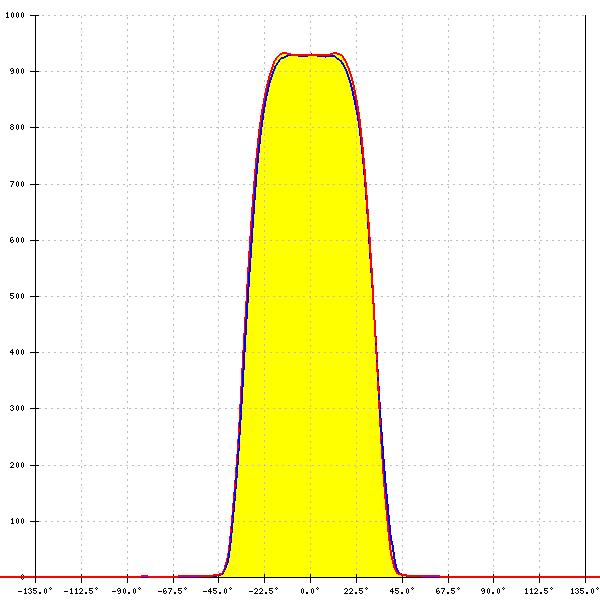

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 63°
    FWTM: 77°
    Peak intensity: 0.933 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

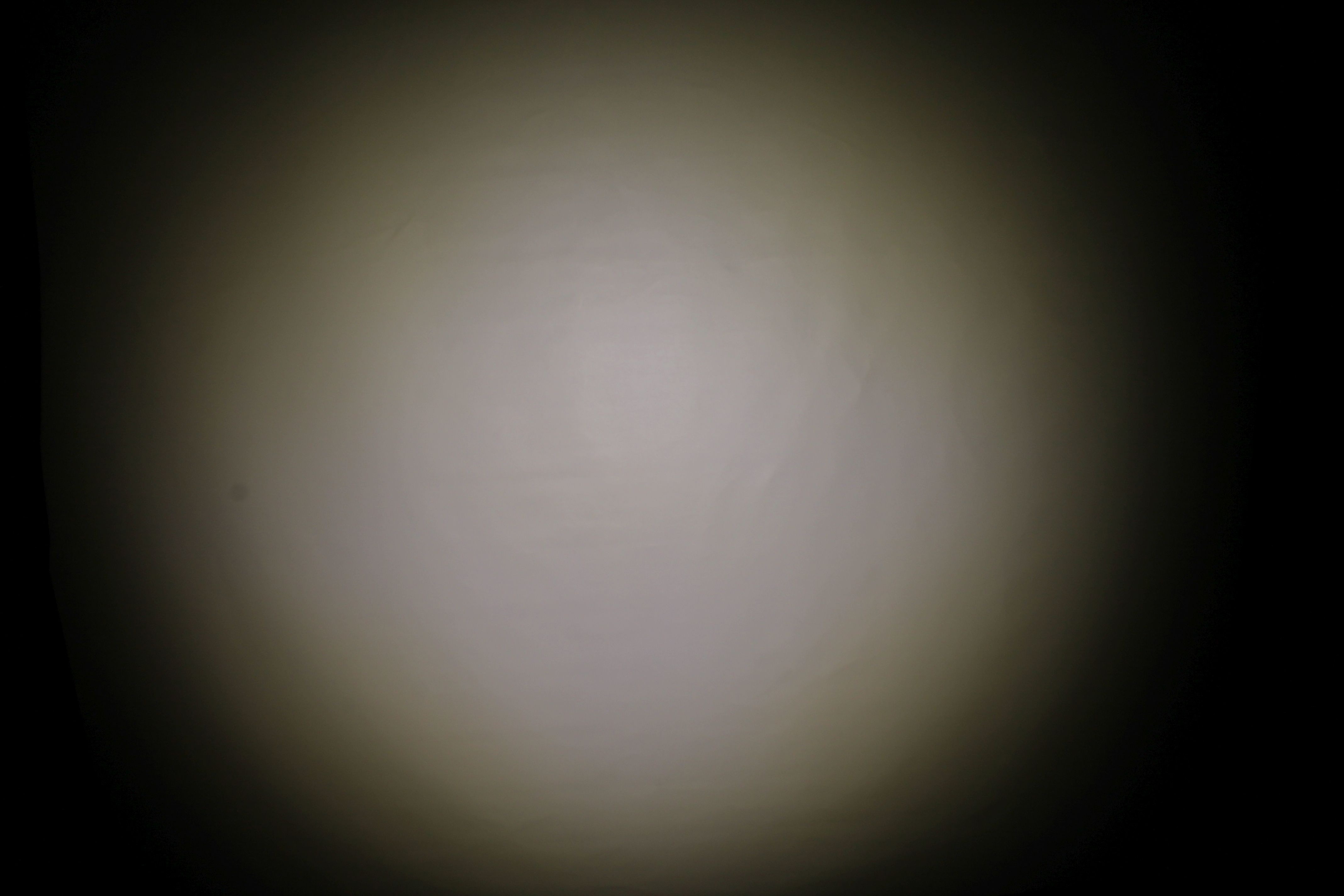

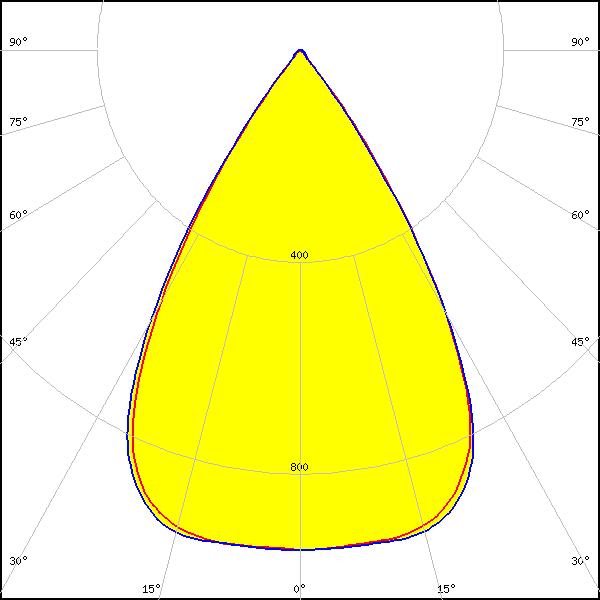

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.948 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

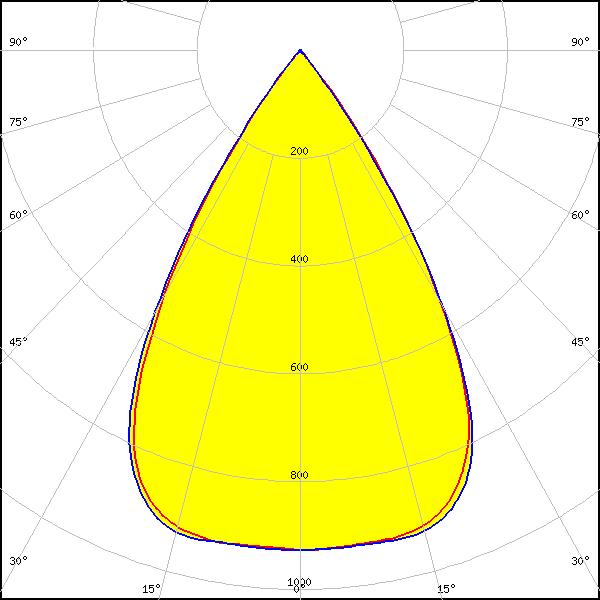

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C17481_DAISY-28X1-SHD-MATT
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.930 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

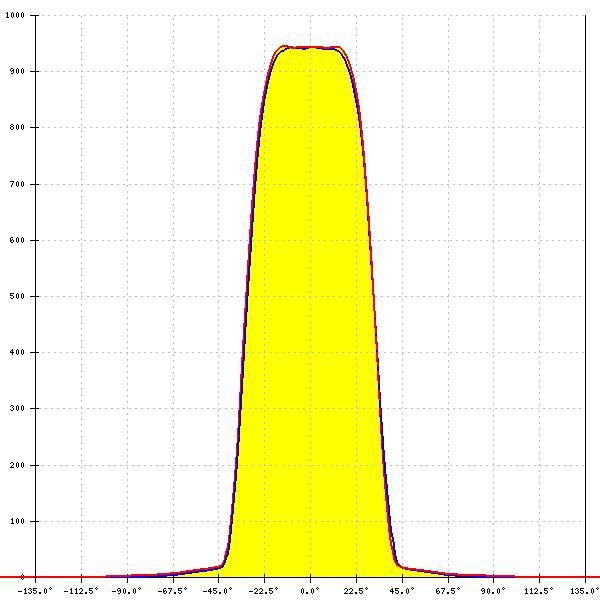

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C17482_DAISY-28X1-SHD-WHT-MATT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.946 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

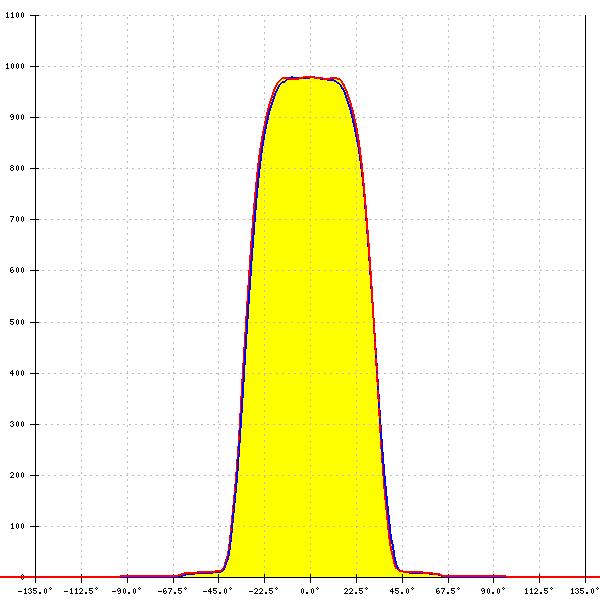

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C17527_DAISY-28X1-SHD-MET
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.980 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

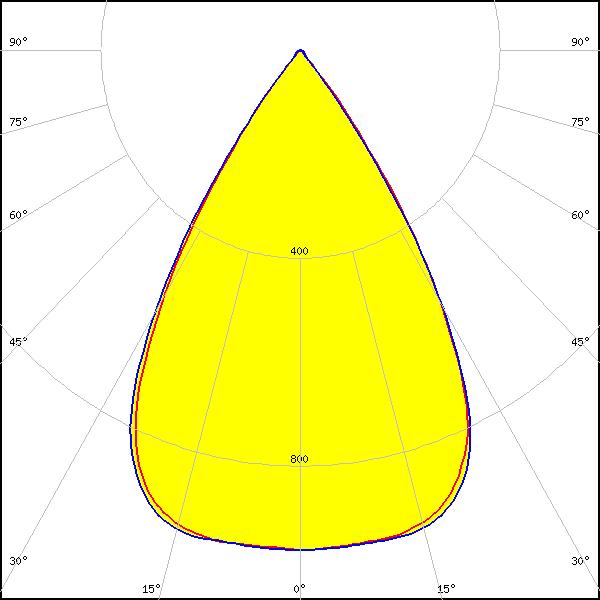

    LED: LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
    Required components:
    C17537_DAISY-28X1-SHD-MET-MATT
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.962 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

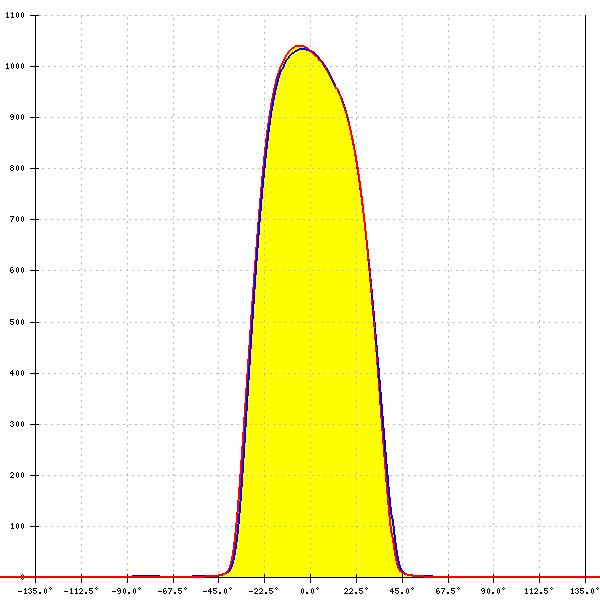

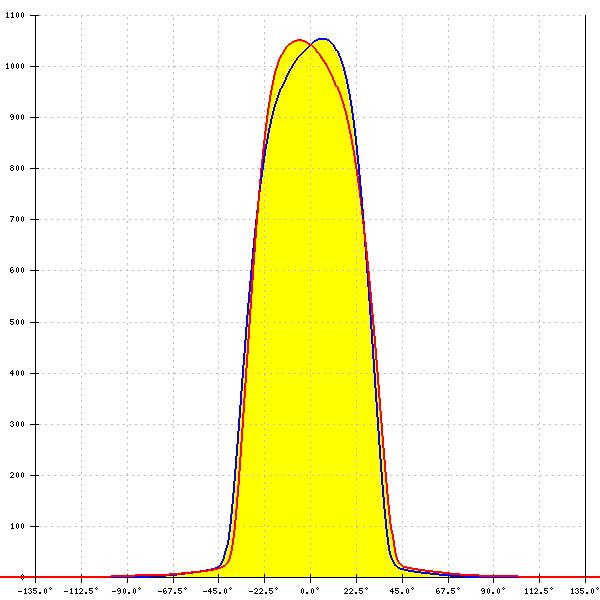

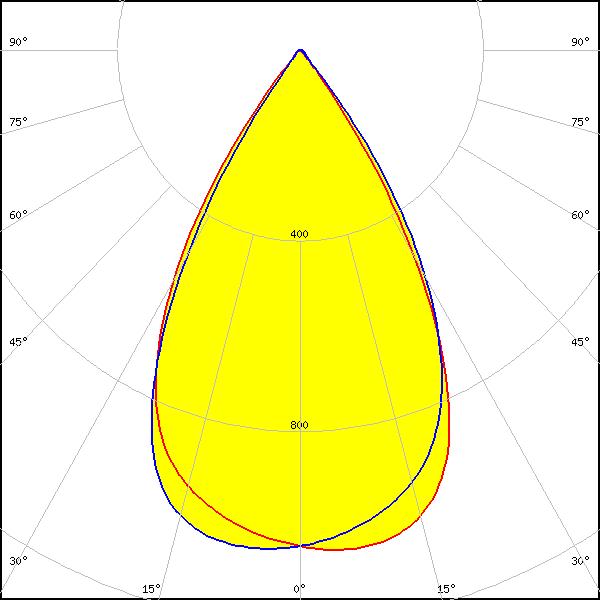

    LED: LDL-iC-562-827-2000lm
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 60°
    FWTM: 76°
    Peak intensity: 1.040 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LDL-iC-562-827-2000lm
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 60°
    FWTM: 77°
    Peak intensity: 1.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

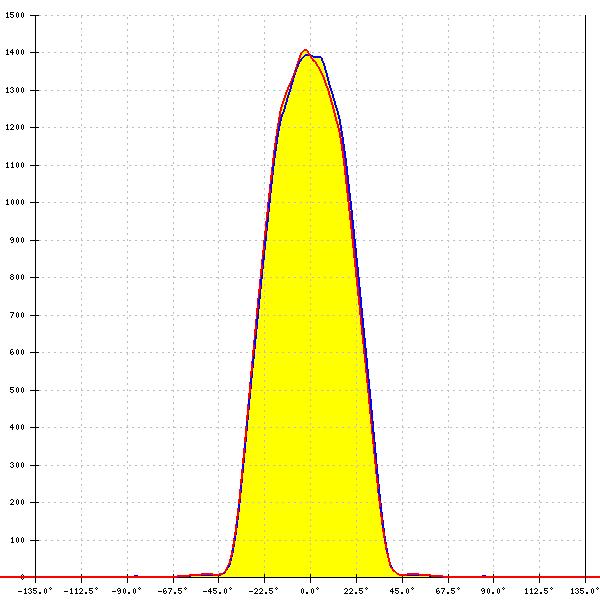

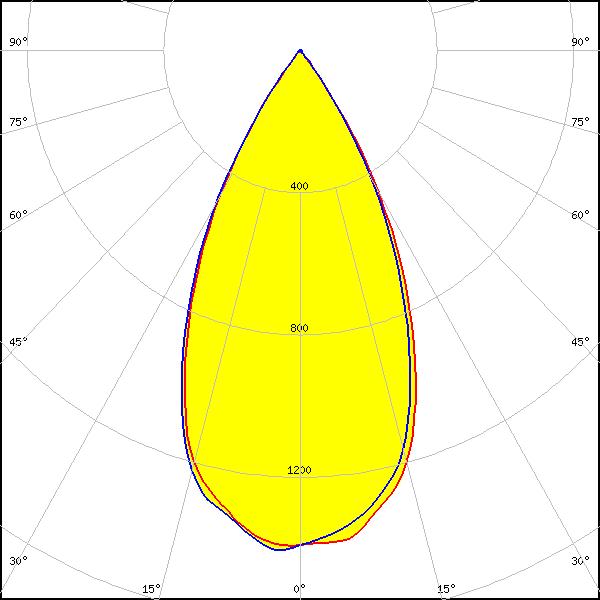

    LED: LUXEON 2835 Line
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 51°
    FWTM: 72°
    Peak intensity: 1.411 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 2835 Line
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 51°
    FWTM: 72°
    Peak intensity: 1.394 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

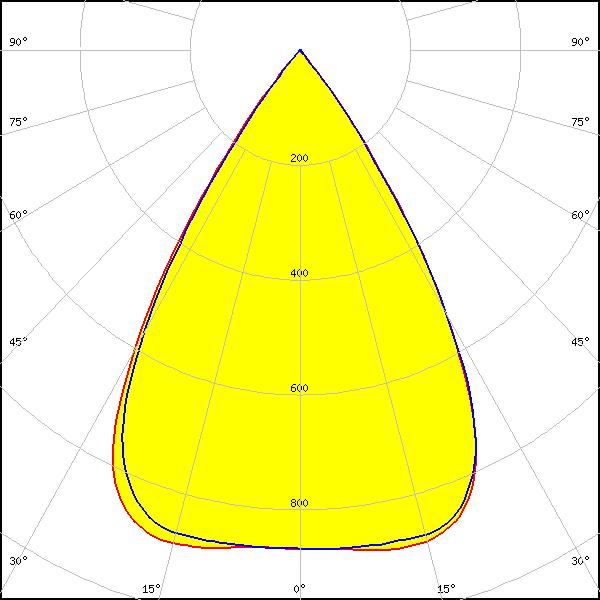

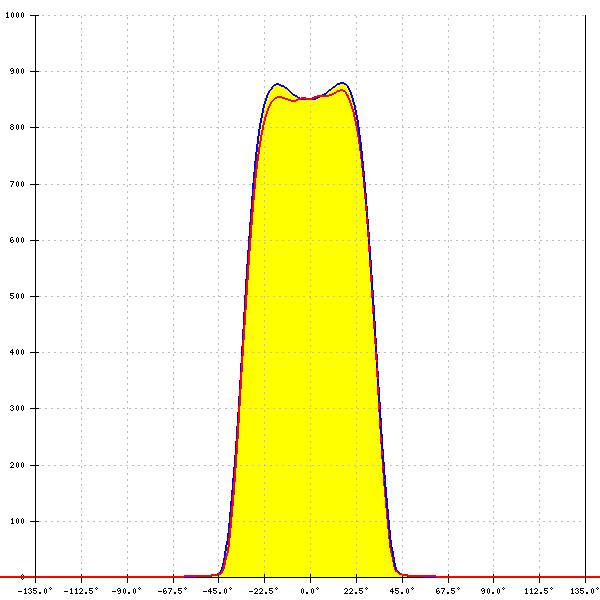

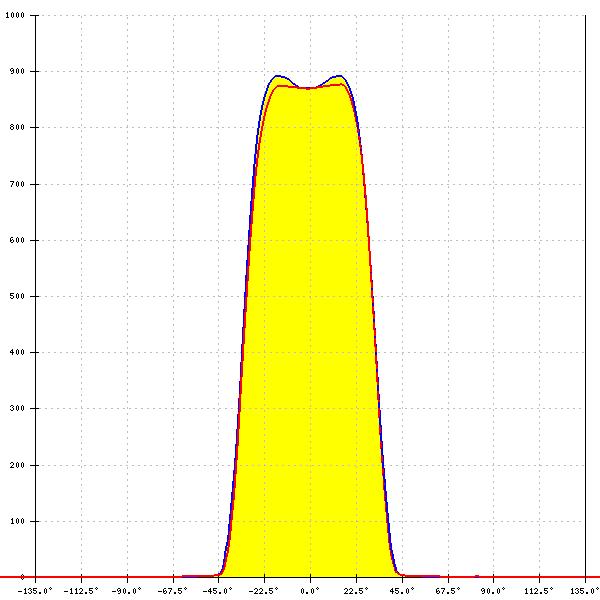

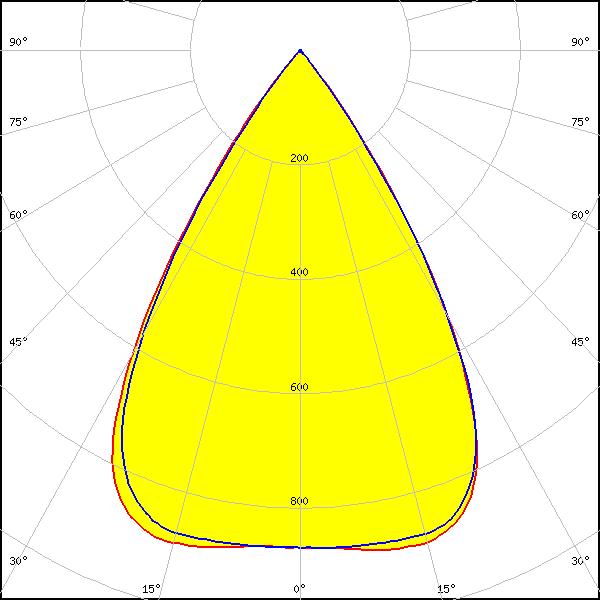

    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 65°
    FWTM: 78°
    Peak intensity: 0.892 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

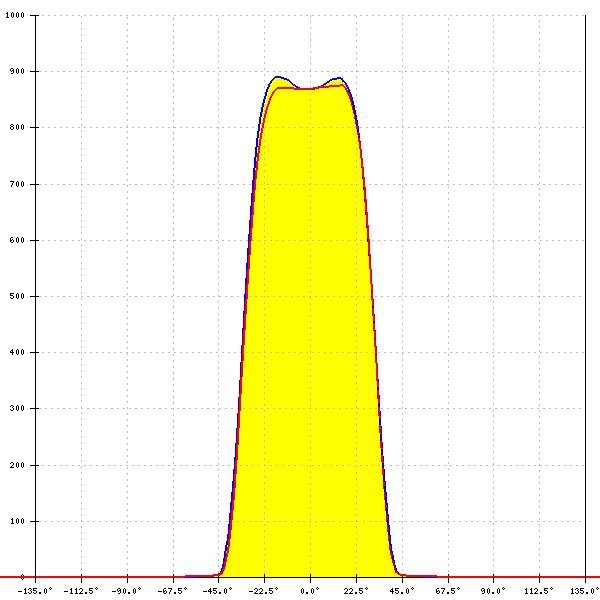

    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C17481_DAISY-28X1-SHD-MATT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.890 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.905 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C17482_DAISY-28X1-SHD-WHT-MATT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.907 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C17527_DAISY-28X1-SHD-MET
    FWHM: 64° + 64°
    FWTM: 79° + 78°
    Peak intensity: 0.935 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 1120x28mm 2200lm 8x0 2C 84V Opt G1
    Required components:
    C17537_DAISY-28X1-SHD-MET-MATT
    FWHM: 65° + 64°
    FWTM: 79° + 79°
    Peak intensity: 0.919 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 2
    Light colour/type: White

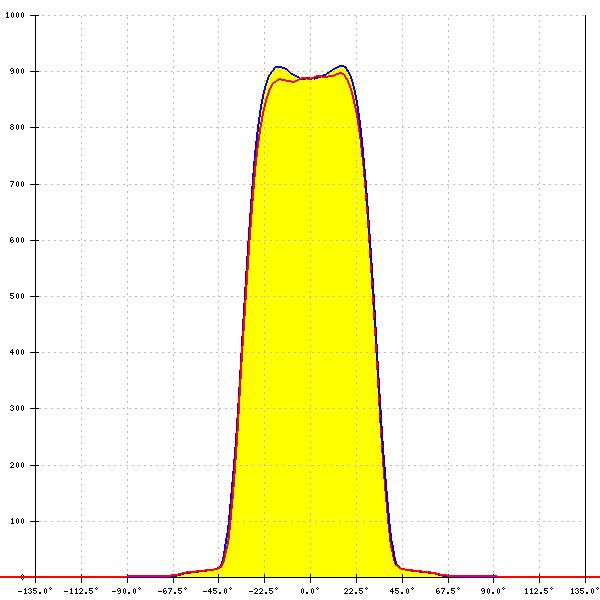

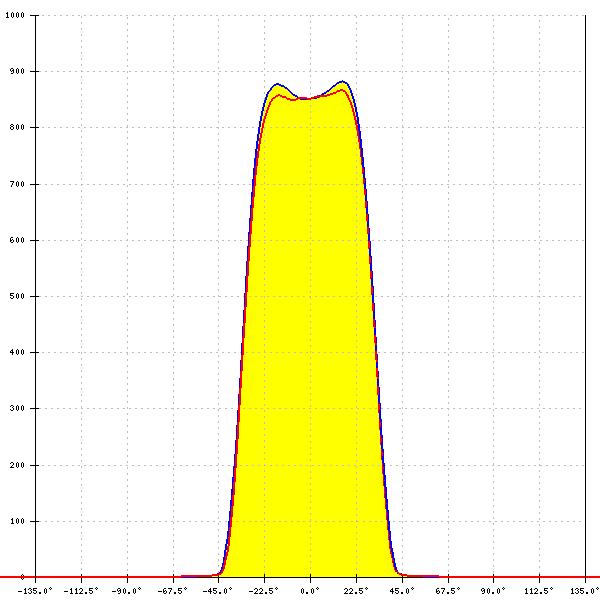

    LED: LinLED 1120x28mm 2x2200lm 827-865 2x2C 84V DAISY-28x1 G1
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 65° + 65°
    FWTM: 79° + 78°
    Peak intensity: 0.882 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

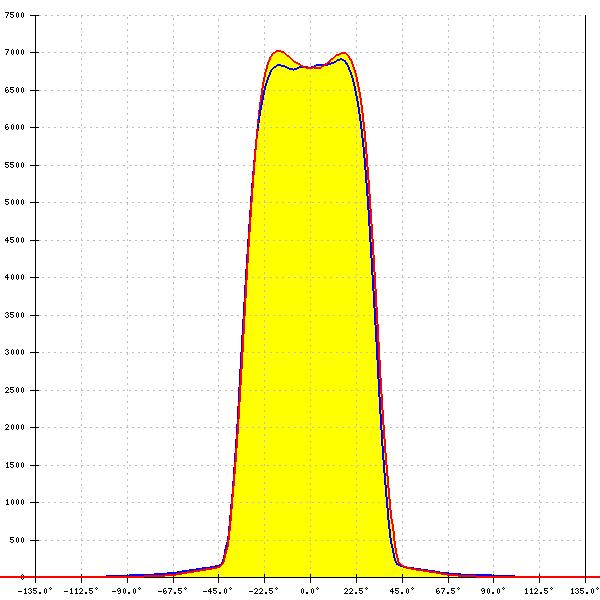

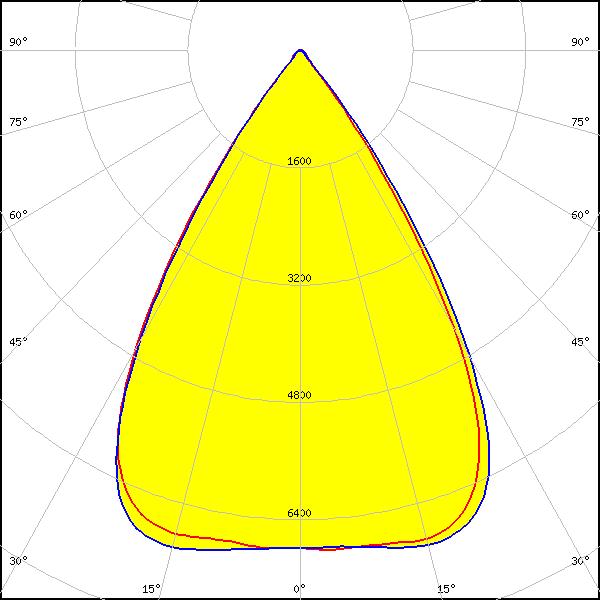

    LED: LinLED 1120x28mm 2x2200lm 827-865 2x2C 84V DAISY-28x1 G1
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.898 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: LinLED 1120x28mm 2x2200lm 827-865 2x2C 84V DAISY-28x1 G1
    Required components:
    C17481_DAISY-28X1-SHD-MATT
    FWHM: 65° + 65°
    FWTM: 79° + 78°
    Peak intensity: 0.879 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: LinLED 1120x28mm 2x2200lm 827-865 2x2C 84V DAISY-28x1 G1
    Required components:
    C17482_DAISY-28X1-SHD-WHT-MATT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.897 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

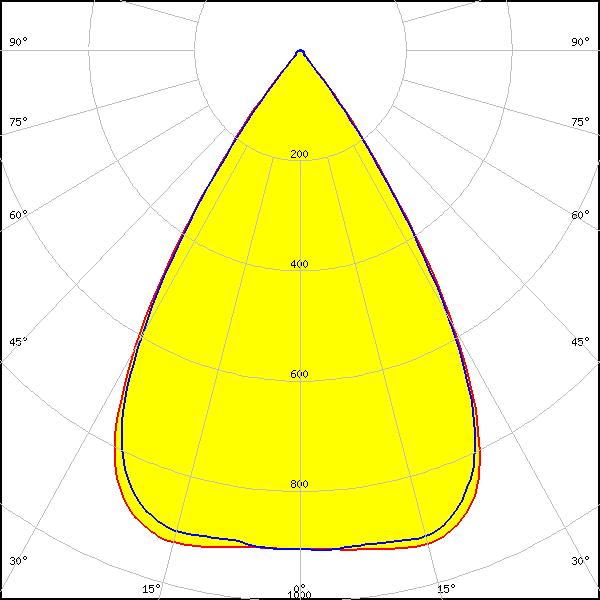

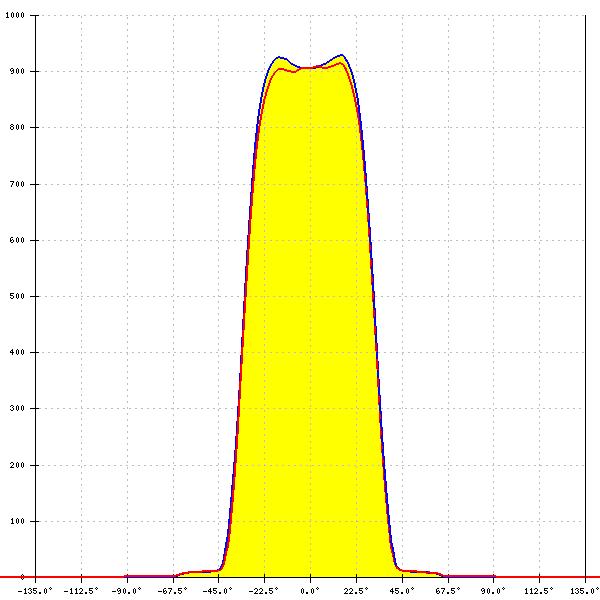

    LED: LinLED 1120x28mm 2x2200lm 827-865 2x2C 84V DAISY-28x1 G1
    Required components:
    C17527_DAISY-28X1-SHD-MET
    FWHM: 65°
    FWTM: 79°
    Peak intensity: 0.928 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: LinLED 1120x28mm 2x2200lm 827-865 2x2C 84V DAISY-28x1 G1
    Required components:
    C17537_DAISY-28X1-SHD-MET-MATT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.910 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: LinLED 1120x28mm 4400lm 8x0 2C Opt G1
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 65°
    FWTM: 79°
    Peak intensity: 0.892 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 2C Opt G1
    Required components:
    C17481_DAISY-28X1-SHD-MATT
    FWHM: 64°
    FWTM: 79°
    Peak intensity: 0.890 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 2C Opt G1
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.905 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 2C Opt G1
    Required components:
    C17482_DAISY-28X1-SHD-WHT-MATT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.907 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 2C Opt G1
    Required components:
    C17527_DAISY-28X1-SHD-MET
    FWHM: 64° + 64°
    FWTM: 79° + 78°
    Peak intensity: 0.935 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 2C Opt G1
    Required components:
    C17537_DAISY-28X1-SHD-MET-MATT
    FWHM: 65° + 64°
    FWTM: 79° + 79°
    Peak intensity: 0.919 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 4C Opt G1
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 65°
    FWTM: 79°
    Peak intensity: 0.892 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 4C Opt G1
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.905 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 4C Opt G1
    Required components:
    C17481_DAISY-28X1-SHD-MATT
    FWHM: 64°
    FWTM: 79°
    Peak intensity: 0.890 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 4C Opt G1
    Required components:
    C17482_DAISY-28X1-SHD-WHT-MATT
    FWHM: 65° + 65°
    FWTM: 80° + 79°
    Peak intensity: 0.907 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 4C Opt G1
    Required components:
    C17527_DAISY-28X1-SHD-MET
    FWHM: 64° + 64°
    FWTM: 79° + 78°
    Peak intensity: 0.935 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 1120x28mm 4400lm 8x0 4C Opt G1
    Required components:
    C17537_DAISY-28X1-SHD-MET-MATT
    FWHM: 65° + 64°
    FWTM: 79° + 79°
    Peak intensity: 0.919 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

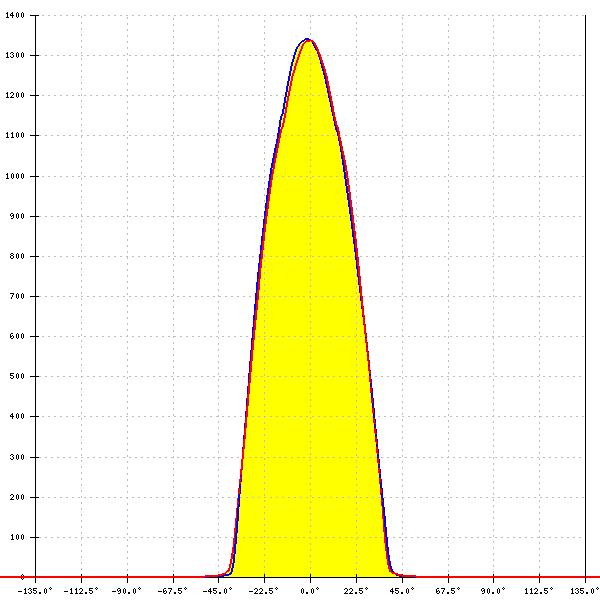

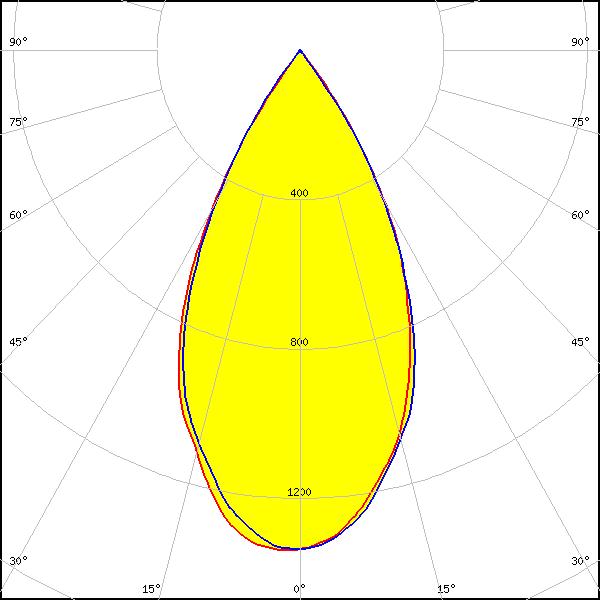

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16585_DAISY-28X1-SHD
    LEDs/each optic: 1
    Light colour/type: White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 1.019 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

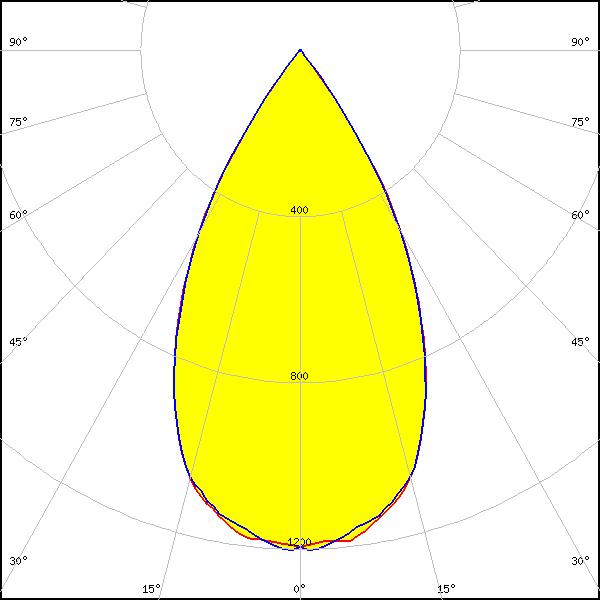

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.212 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

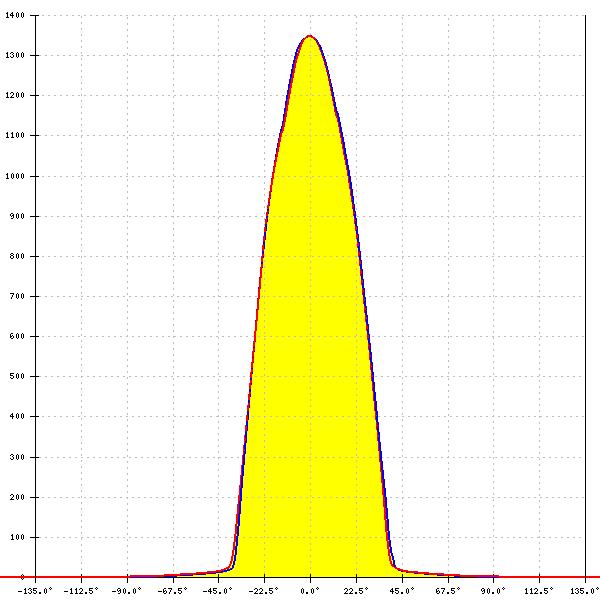

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 53°
    FWTM: 74°
    Peak intensity: 1.349 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 53°
    FWTM: 73°
    Peak intensity: 1.339 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

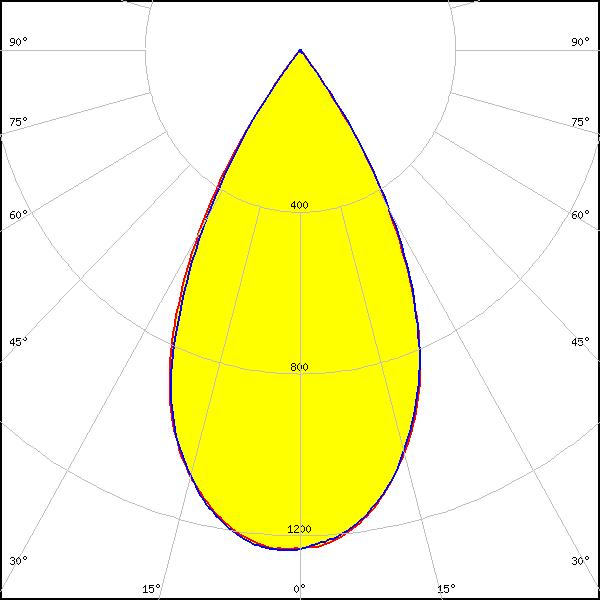

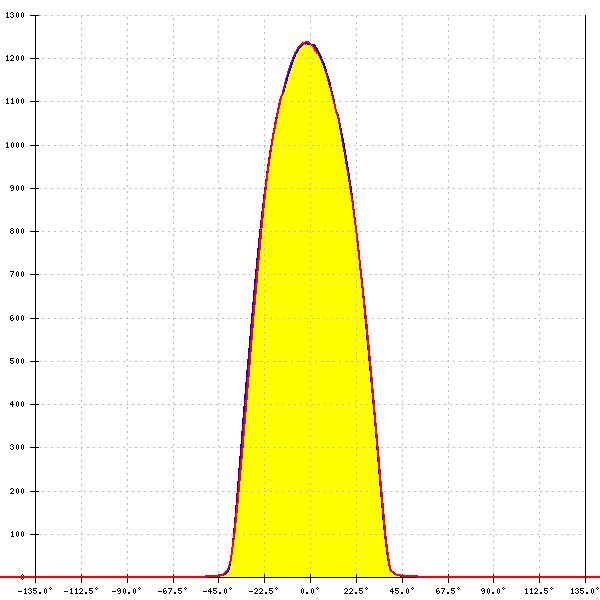

    LED: LM28xB Series
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 55°
    FWTM: 73°
    Peak intensity: 1.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

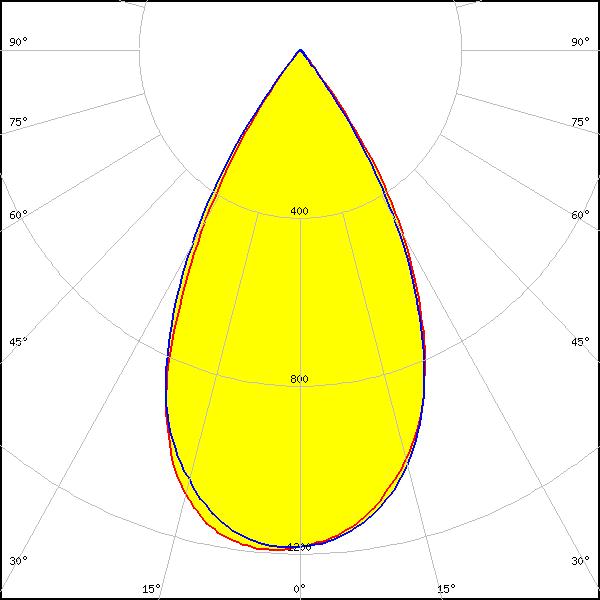

    LED: LM28xB Series
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 56°
    FWTM: 75°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White

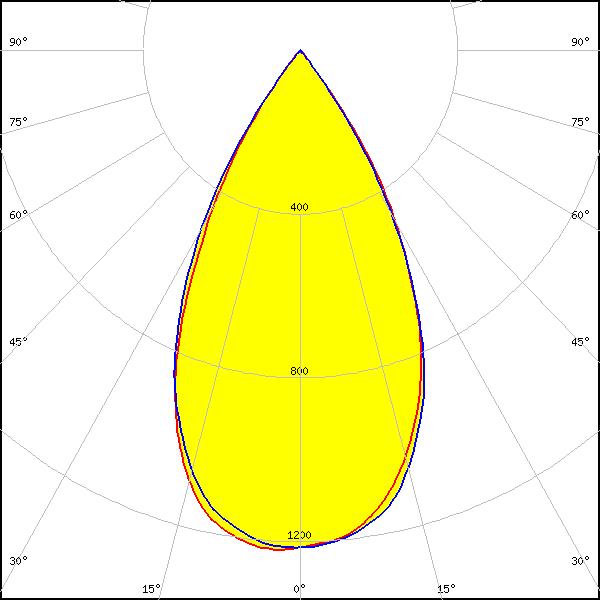

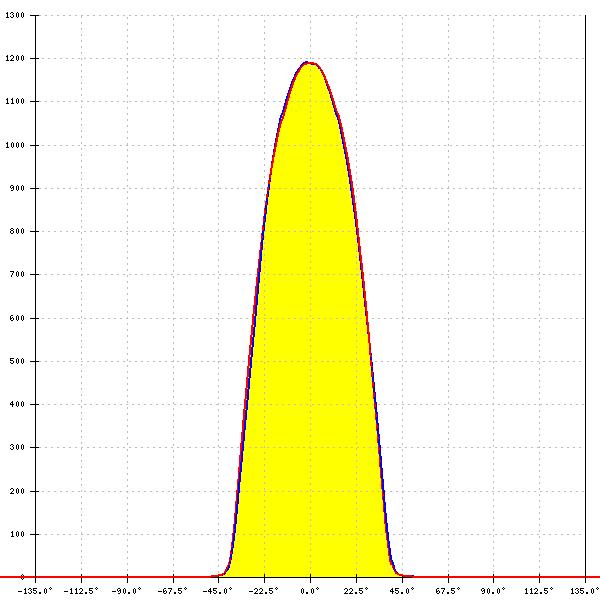

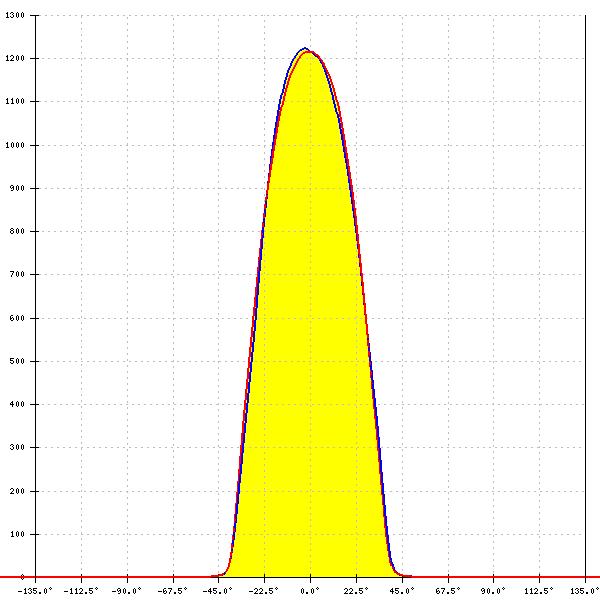

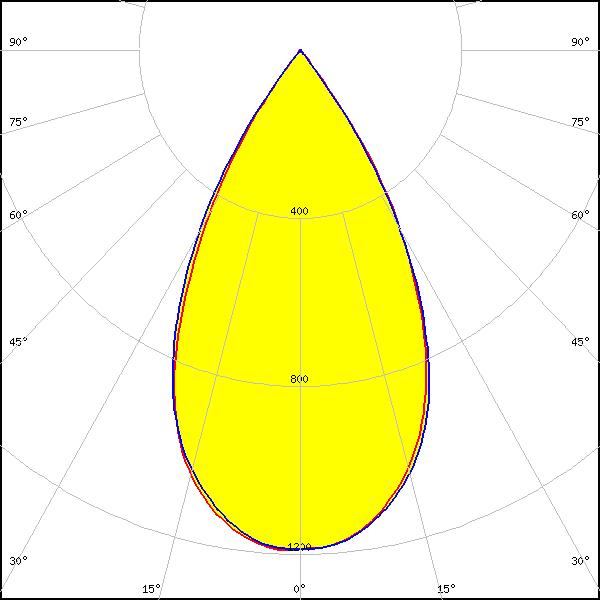

    LED: SEOUL DC 3528
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: SEOUL DC 3528
    Required components:
    C16585_DAISY-28X1-SHD
    FWHM: 56°
    FWTM: 75°
    Peak intensity: 1.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

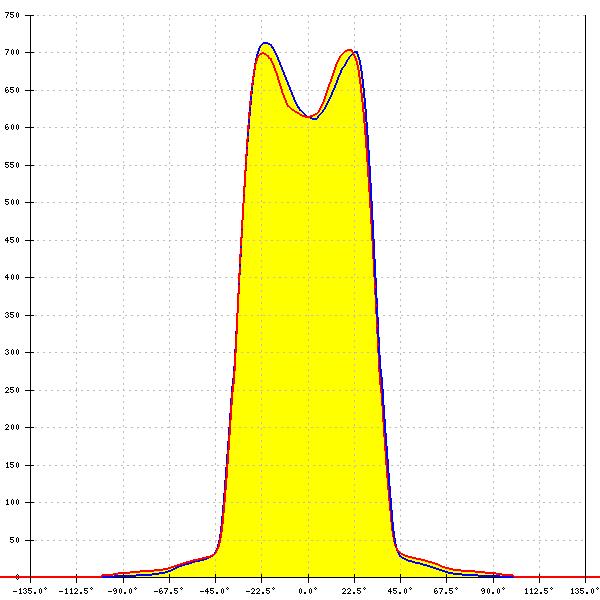

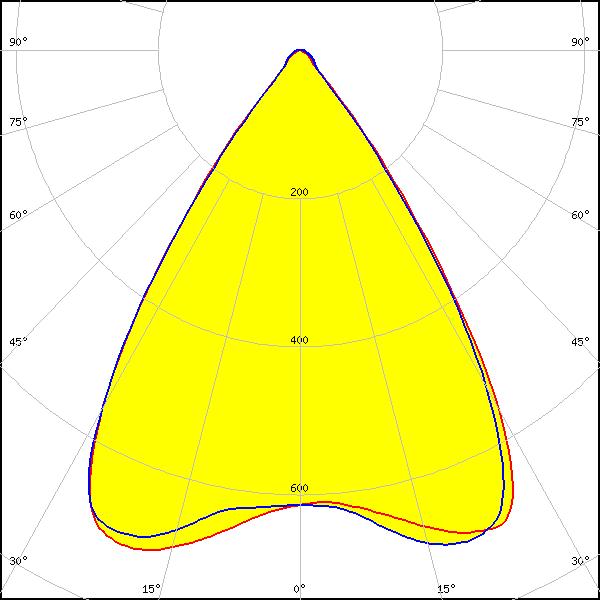

    LED: PassivePAQ-L-2F35-SSA3-5.4K-840-3-DC
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 68°
    FWTM: 83°
    Peak intensity: 0.765 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White

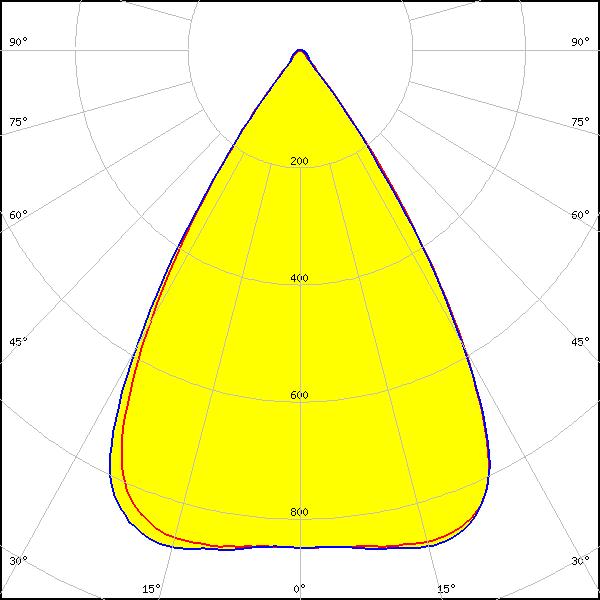

    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C16783_DAISY-28X1-SHD-WHT
    FWHM: 65°
    FWTM: 79°
    Peak intensity: 0.882 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
