DAISY-8X1-WW-MATT-D

Print

~80° wide beam. Variant with diffused lenses.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    305 x  38 mm
  • Height:
    21.05 mm
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

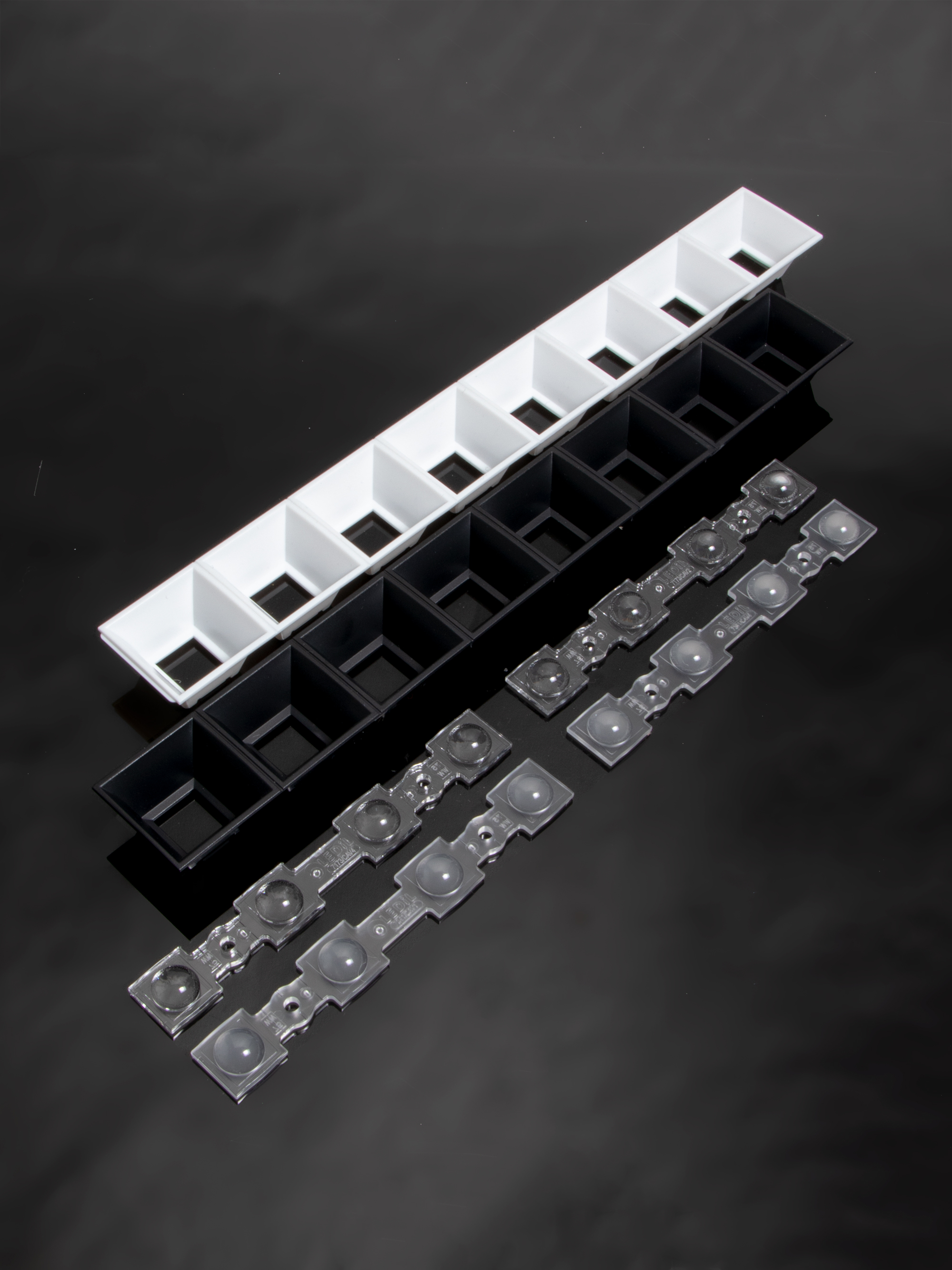

Ordering information
  • Quantities for one set:
  • Linear lens
    2 pcs
  • Shade
    1 pcs
  • Linear lens
  • C17341_DAISY-4X1-WW-US-D
    milky
  • Quantity in box:
    504 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.50 kg
  • MPQ:
    84 pcs
  • MOQ:
    84 pcs
  • MOQ Size:
    480 x 280 x 70 mm
  • MOQ Weight:
    1.10 kg
  • Shade
  • C17171_DAISY-8X1-SHD-MATT
    black,matt
  • C17172_DAISY-8X1-SHD-MATT-WHT
    white,matt
  • Quantity in box:
    84 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    4.00 kg
  • MPQ:
    42 pcs
  • MOQ:
    42 pcs
  • MOQ Size:
    400 x 300 x 160 mm
  • MOQ Weight:
    2.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17341_DAISY-4X1-WW-US-D
    C17171_DAISY-8X1-SHD-MATT
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

Optical results

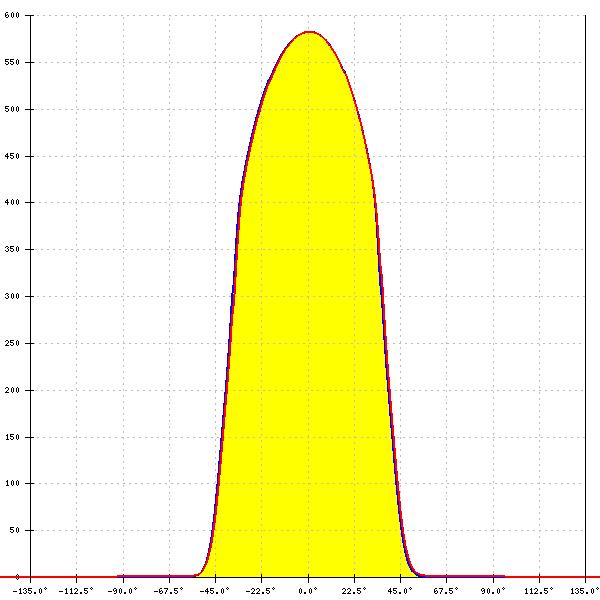

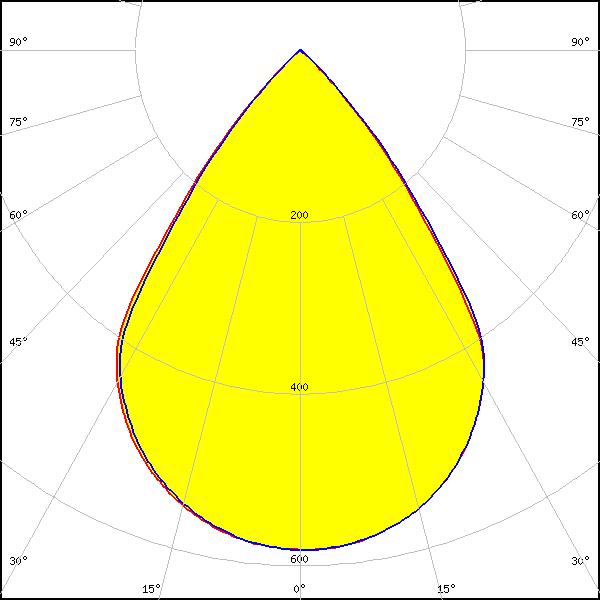

LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 73°
FWTM: 92°
Peak intensity: 0.582 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour/type: White

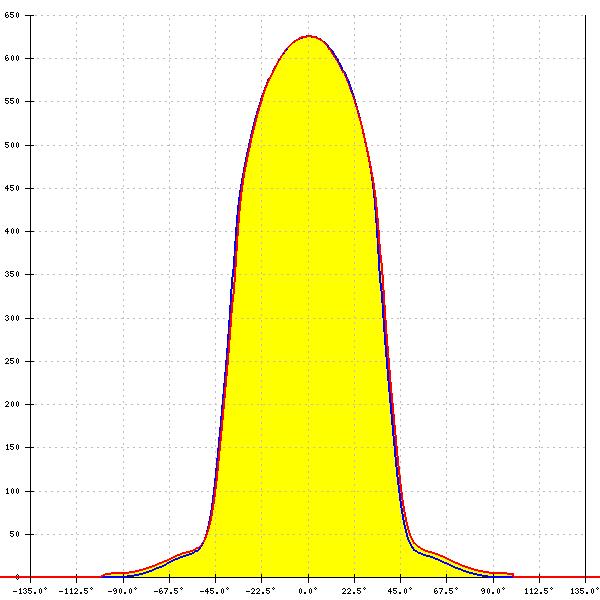

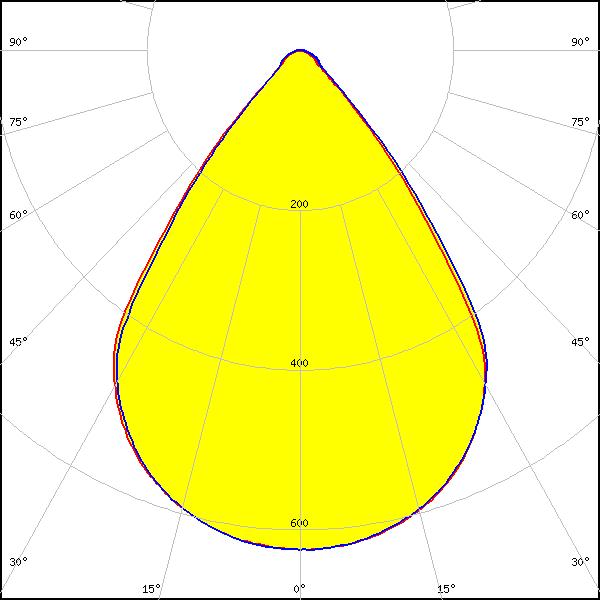

LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm
Required components:
C17172_DAISY-8X1-SHD-MATT-WHT
FWHM: 74°
FWTM: 96°
Peak intensity: 0.627 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

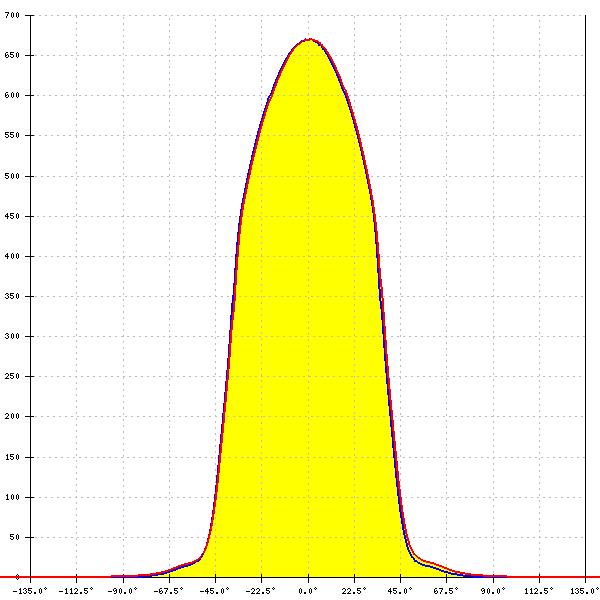

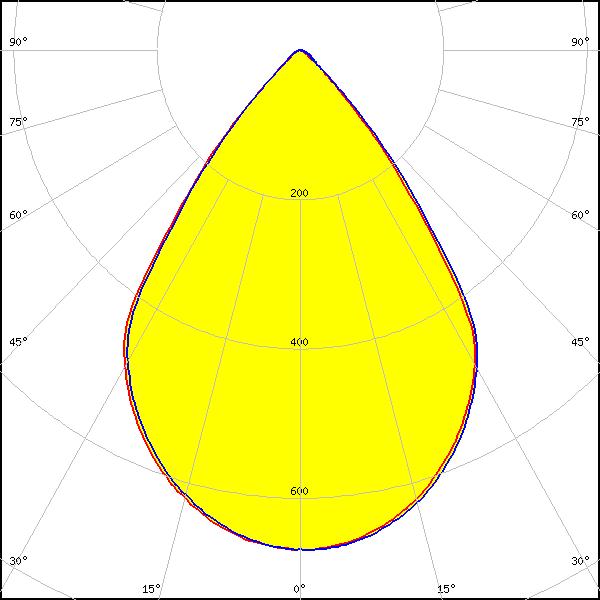

LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm
Required components:
C17534_DAISY-8X1-SHD-MET-MATT
FWHM: 73°
FWTM: 93°
Peak intensity: 0.670 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

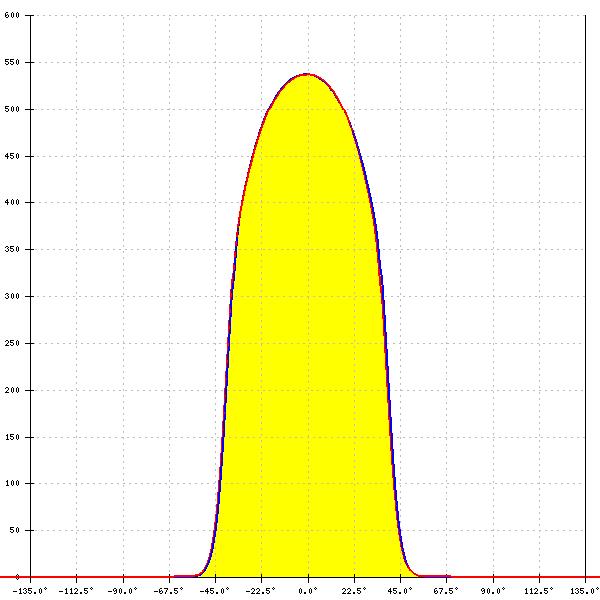

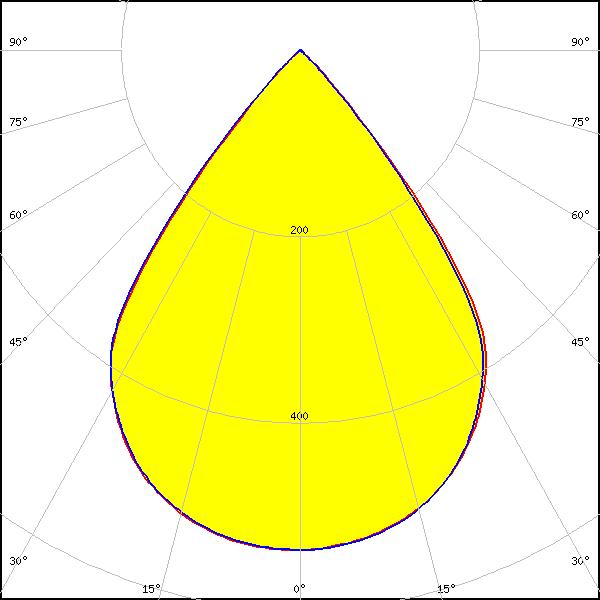

LED: LM28xB Series
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 75°
FWTM: 89°
Peak intensity: 0.537 cd/lm
Efficiency: 74 %
LEDs/each optic: 2
Light colour/type: White

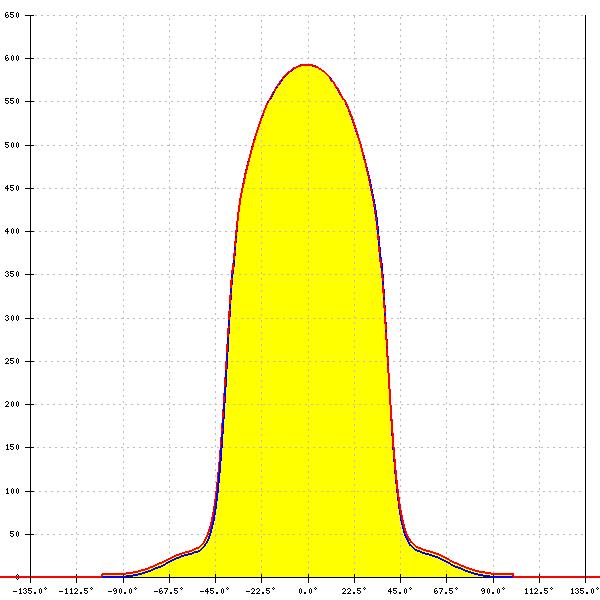

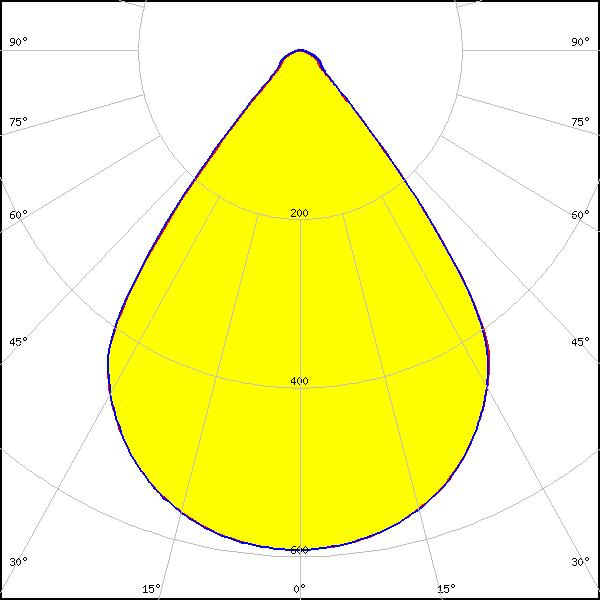

LED: LM28xB Series
Required components:
C17172_DAISY-8X1-SHD-MATT-WHT
FWHM: 76°
FWTM: 93°
Peak intensity: 0.593 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White
