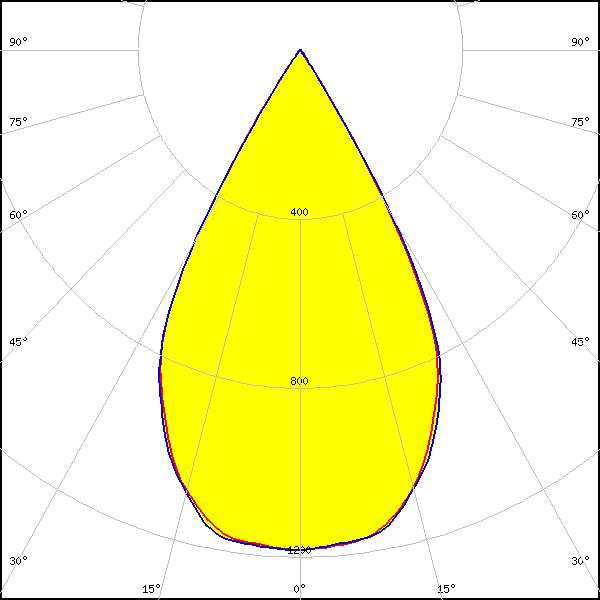

DAISY-28X1-W2-B

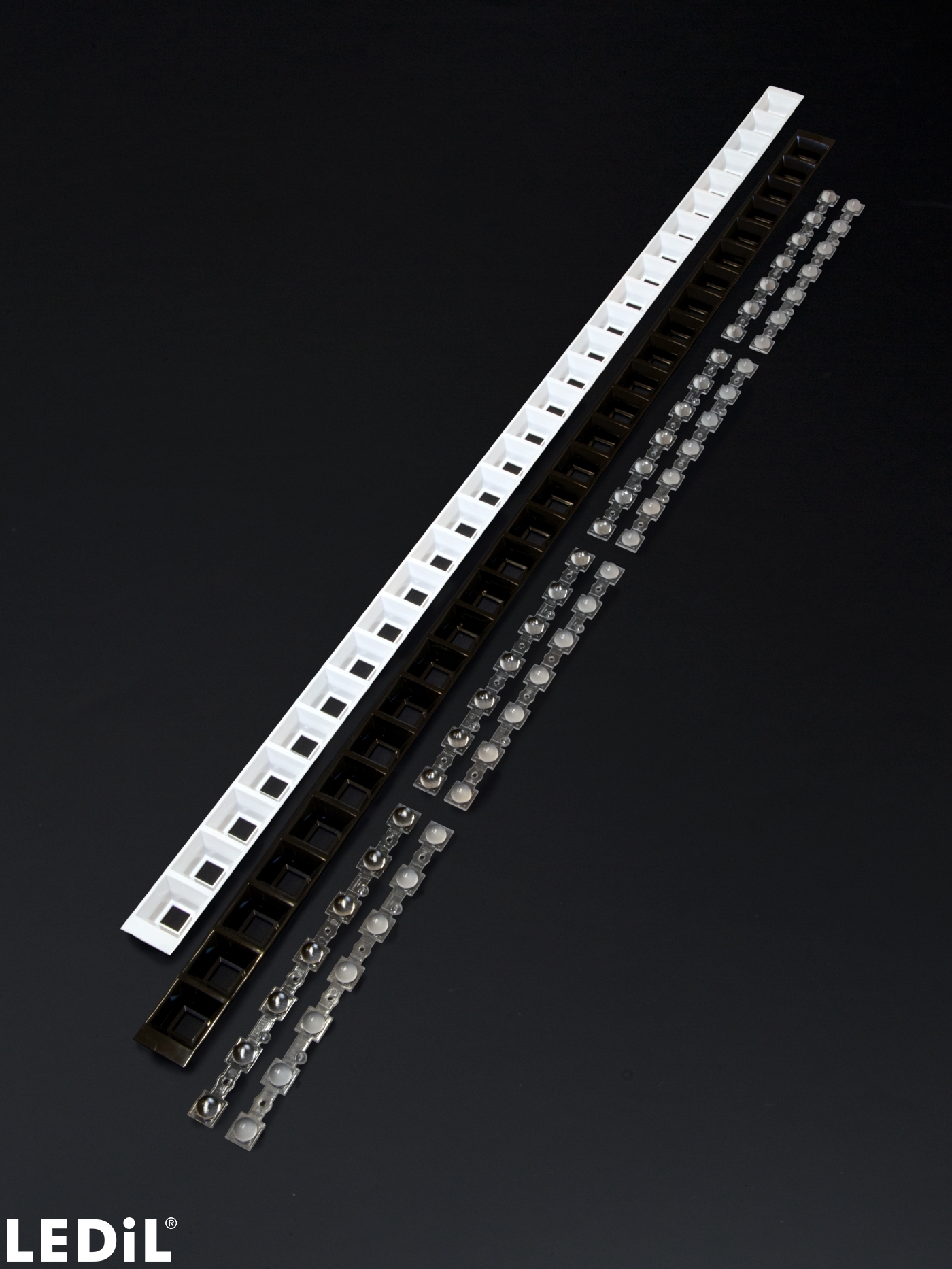

Print~50° wide beam with tighter cutoff. Variant with 7X1 lenses.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:1140 x 40 mm
-
Height:20.20 mm
-
Fastening:pin, screw, clips
-
RoHS and REACH compliant:Yes
Component Materials
- DAISY-28X1-SHDShadePC
- DAISY-28X1-SHD-WHTShadePC
- DAISY-7X1-W2Linear lensPMMA
- DAISY-28X1-SHD-MATTShadePC-ABS
- DAISY-28X1-SHD-WHT-MATTShadePC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Linear lens4 pcs
- Shade1 pcs
- Linear lens
- C16989_DAISY-7X1-W2clear
- Quantity in box:312 pcs
- Box size:400 x 300 x 300 mm
- Box weight:7.00 kg
- MPQ:24 pcs
- MOQ:312 pcs
- MOQ Size:400 x 300 x 300 mm
- MOQ Weight:7.00 kg
- Shade
- C16585_DAISY-28X1-SHDblack,gloss
- C16783_DAISY-28X1-SHD-WHTwhite,gloss
- C17481_DAISY-28X1-SHD-MATTblack,matt
- C17482_DAISY-28X1-SHD-WHT-MATTwhite,matt
- Quantity in box:48 pcs
- Box size:1185 x 385 x 125 mm
- Box weight:8.40 kg
- MPQ:48 pcs
- MOQ:48 pcs
- MOQ Size:1185 x 385 x 140 mm
- MOQ Weight:8.40 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content

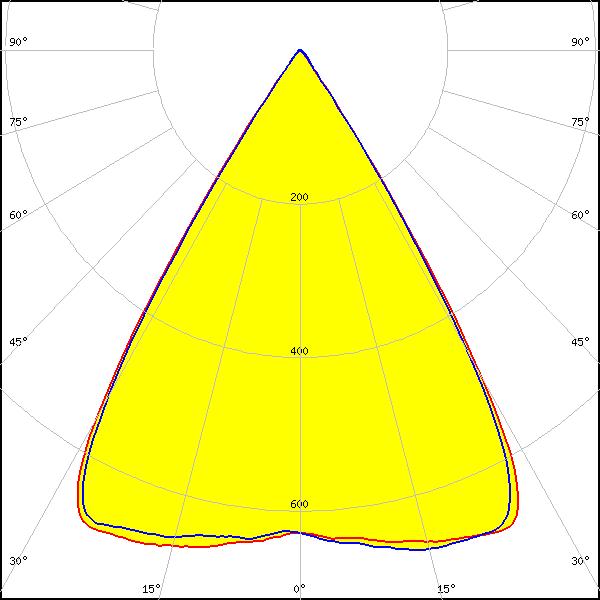

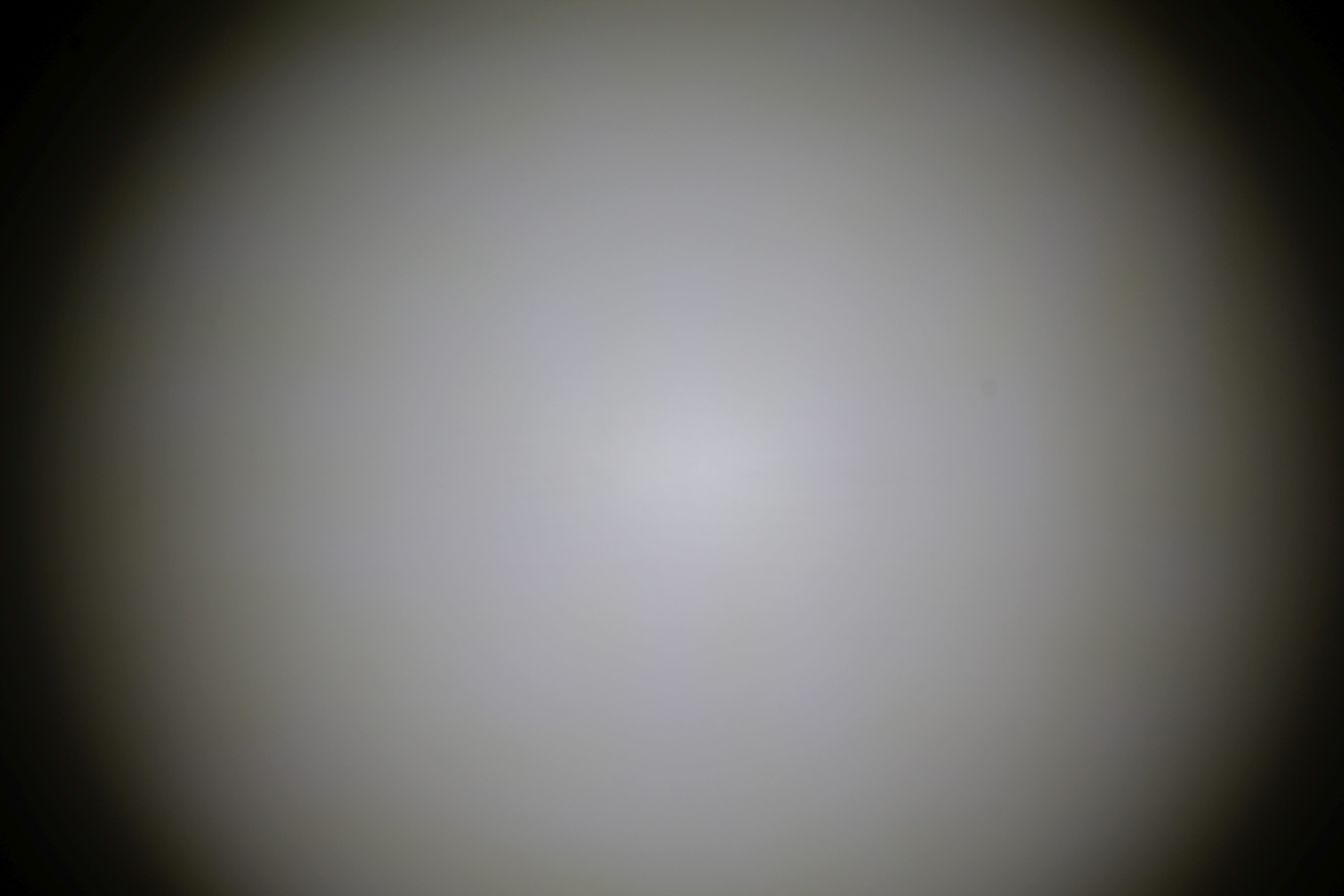

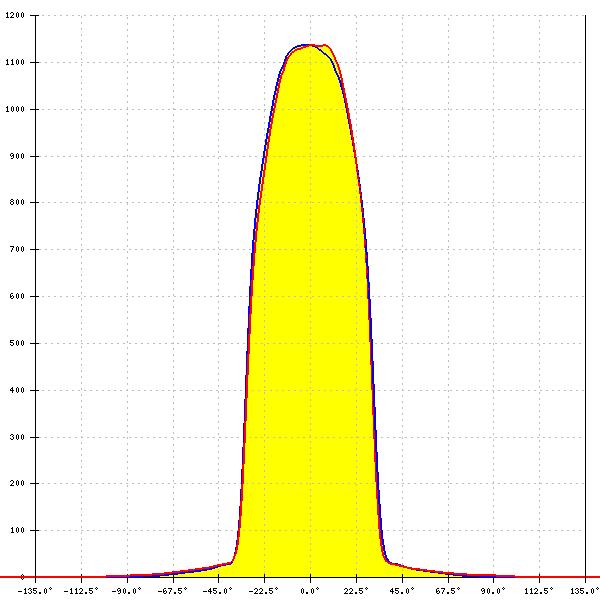

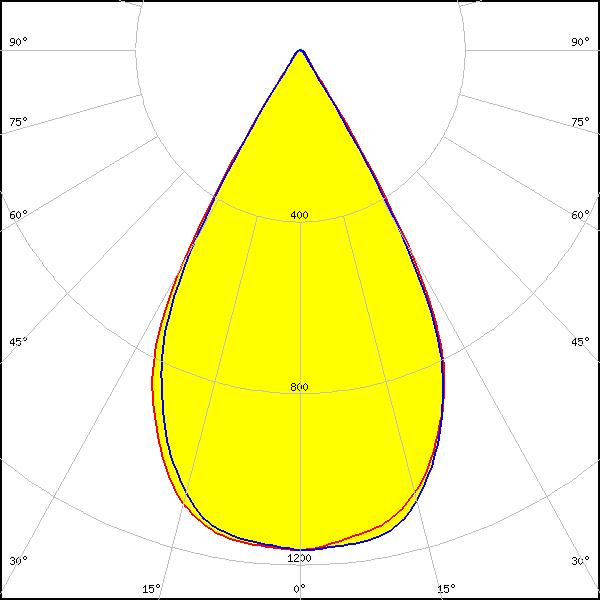

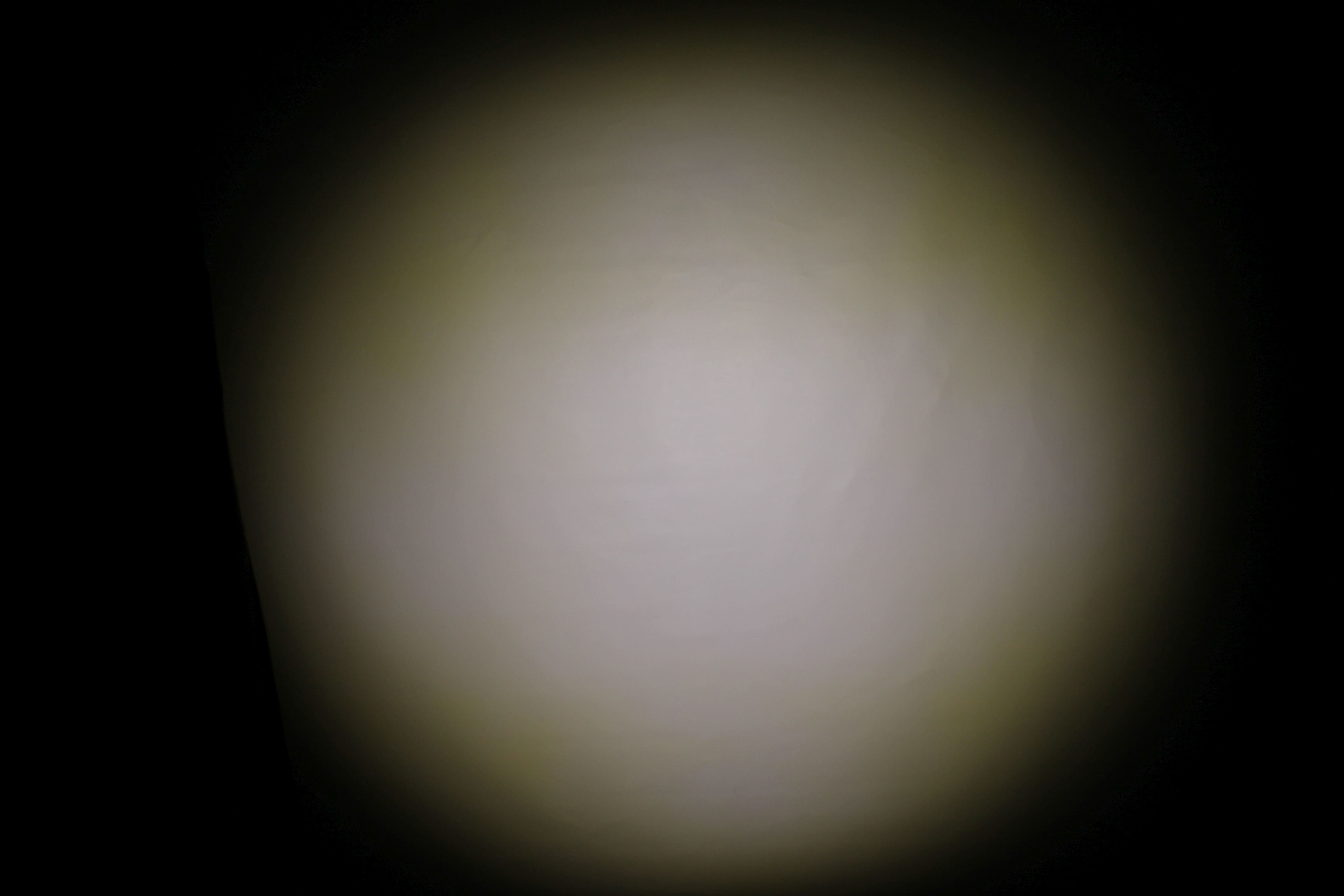

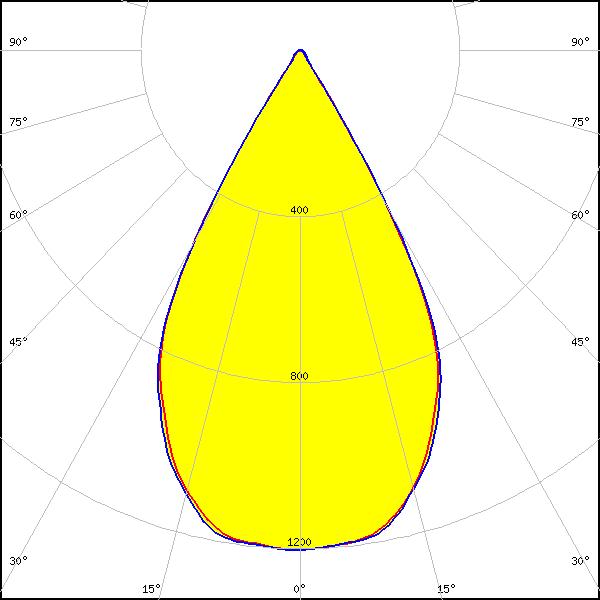

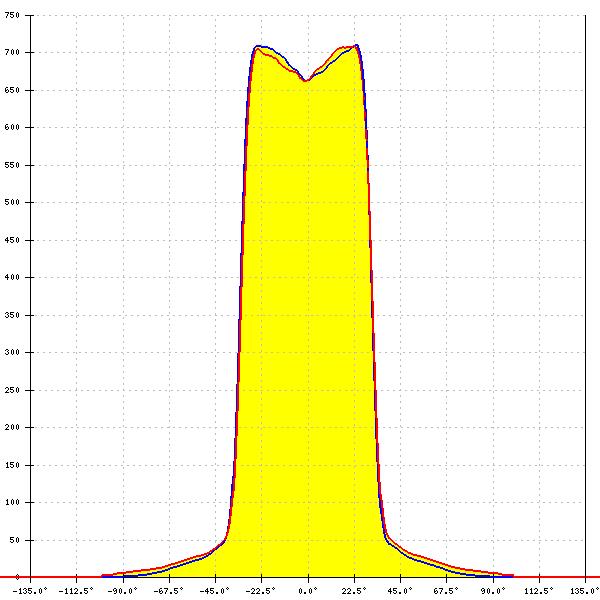

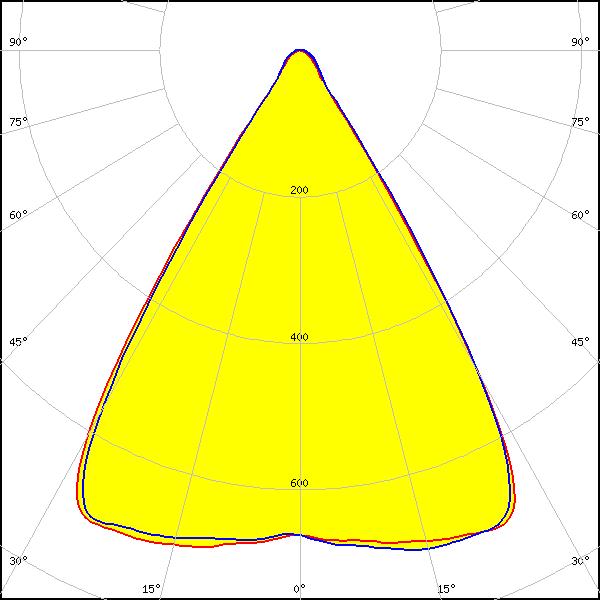

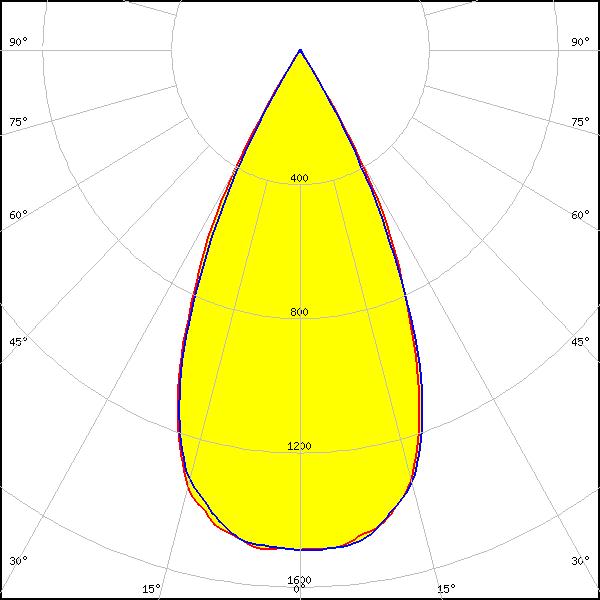

Optical results
LED:

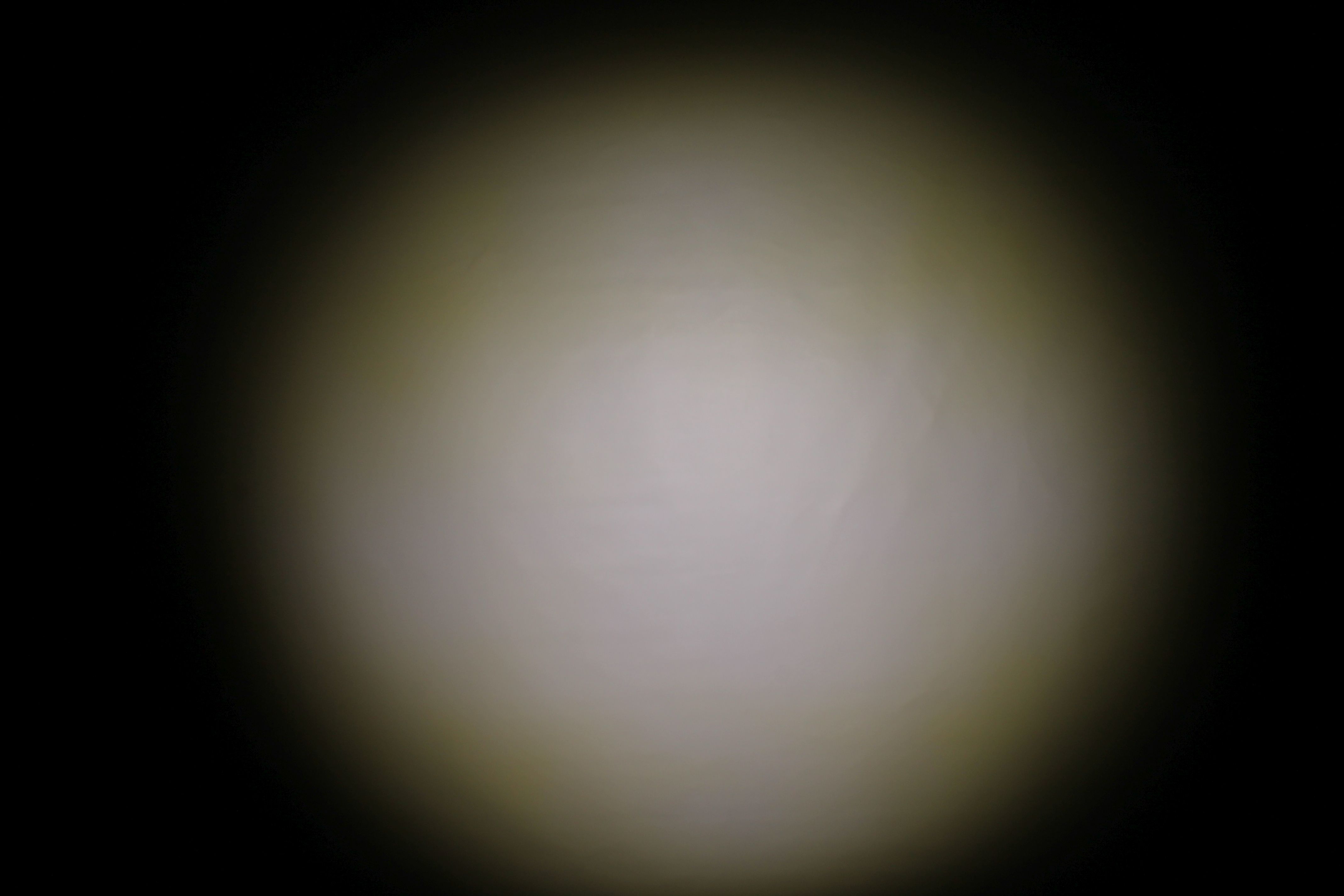

LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:

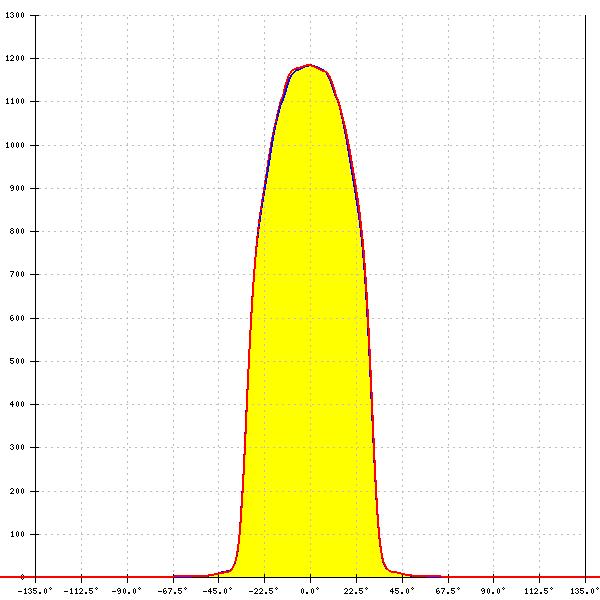

C16585_DAISY-28X1-SHD
FWHM:
58°
FWTM:
68°
Peak intensity:
1.184 cd/lm
Efficiency:
85 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm

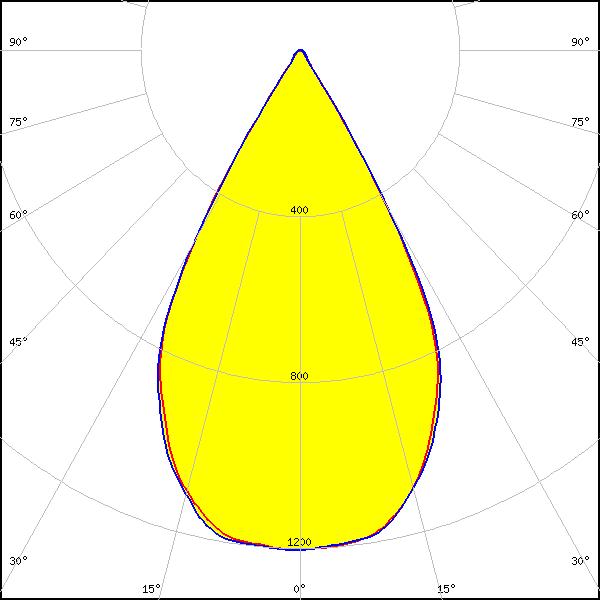

Required components:
C16783_DAISY-28X1-SHD-WHT
FWHM:
58°
FWTM:
69°
Peak intensity:
1.205 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
White

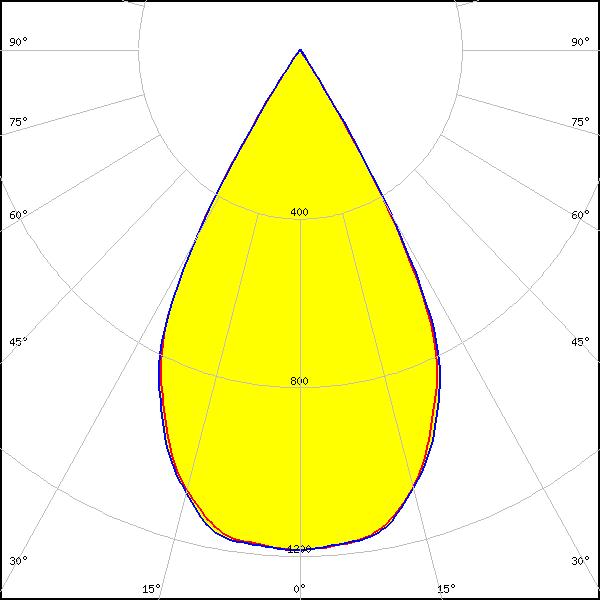

LED:
LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C17481_DAISY-28X1-SHD-MATT
FWHM:
58°
FWTM:
68°
Peak intensity:
1.186 cd/lm
Efficiency:
85 %
LEDs/each optic:
4
Light colour/type:
White

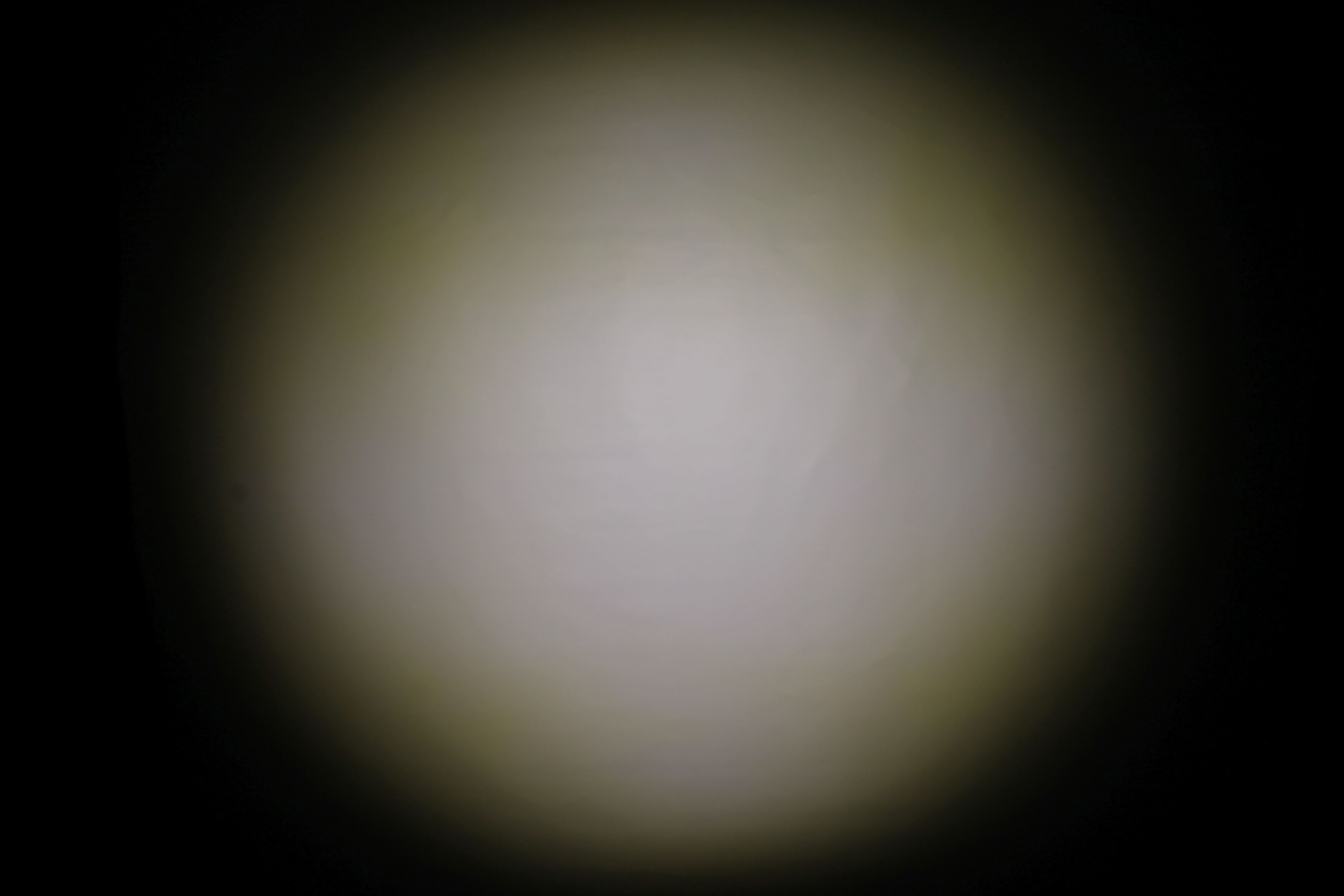

LED:
LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C17482_DAISY-28X1-SHD-WHT-MATT
FWHM:
58°
FWTM:

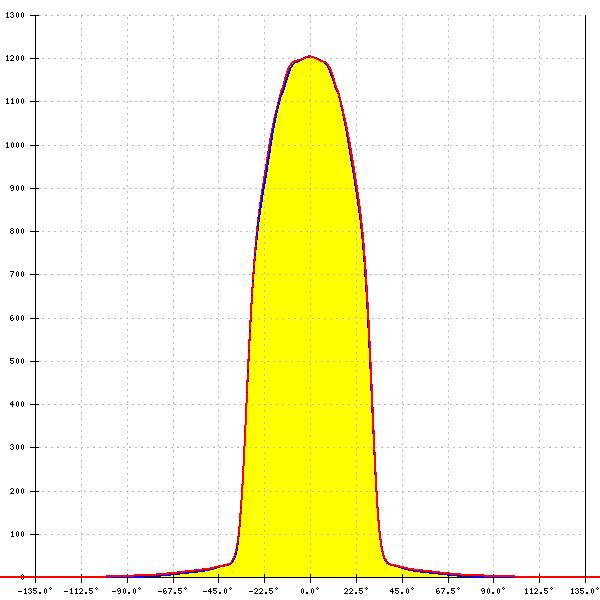

69°
Peak intensity:
1.204 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
White

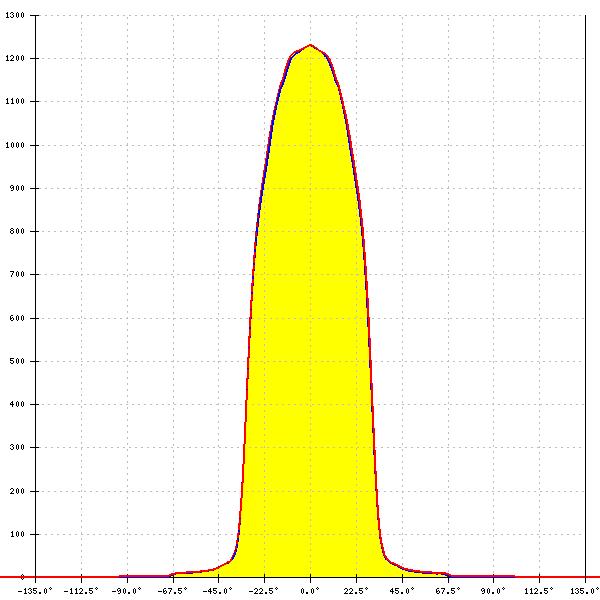

LED:

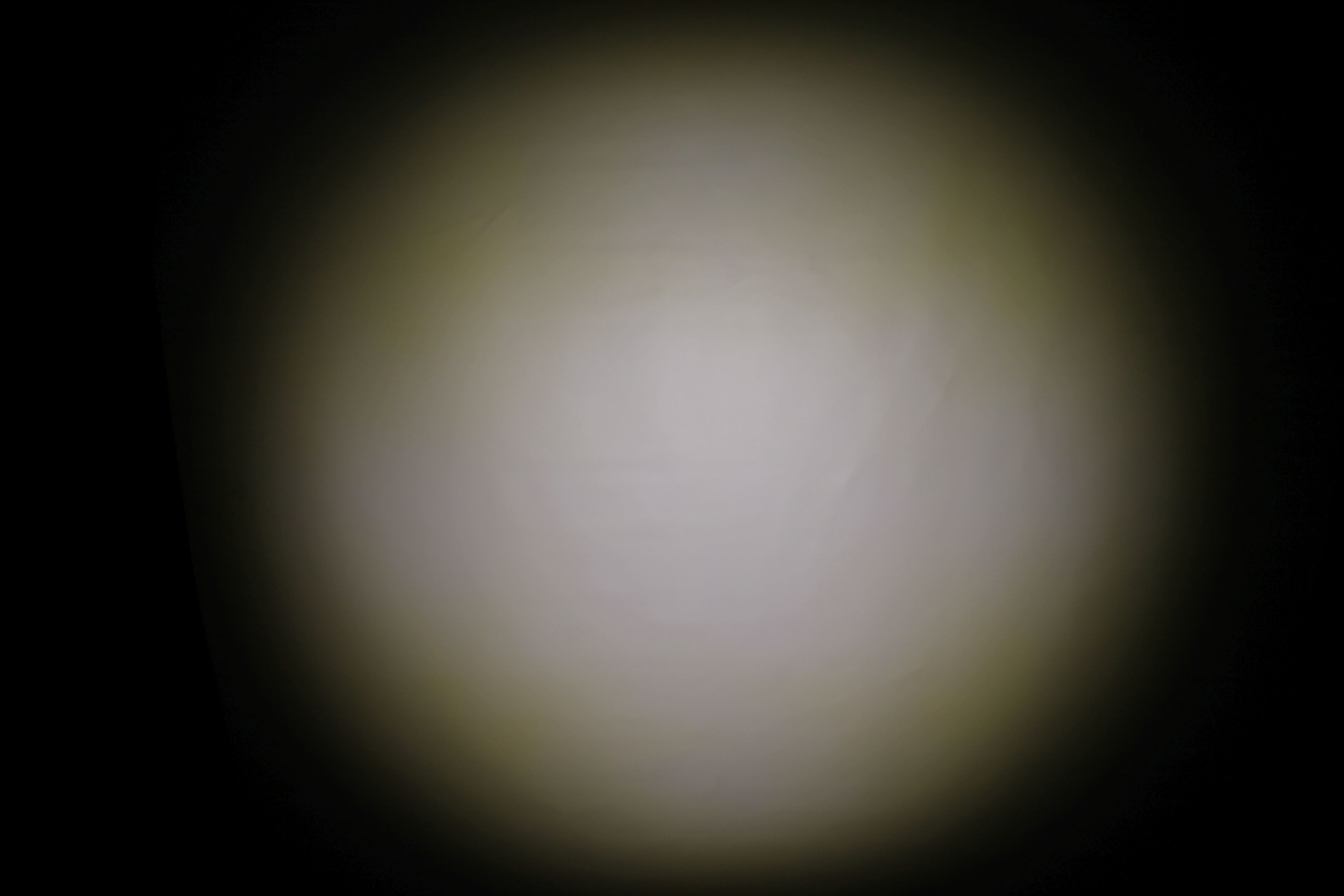

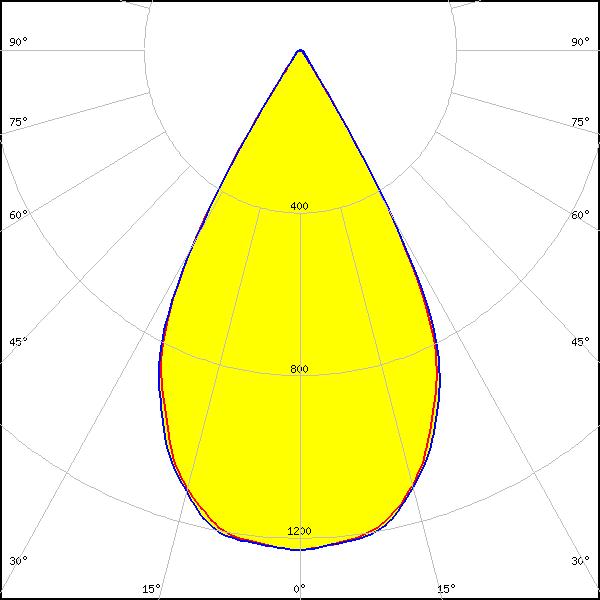

LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C17527_DAISY-28X1-SHD-MET
FWHM:
58°
FWTM:
69°
Peak intensity:
1.230 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
White

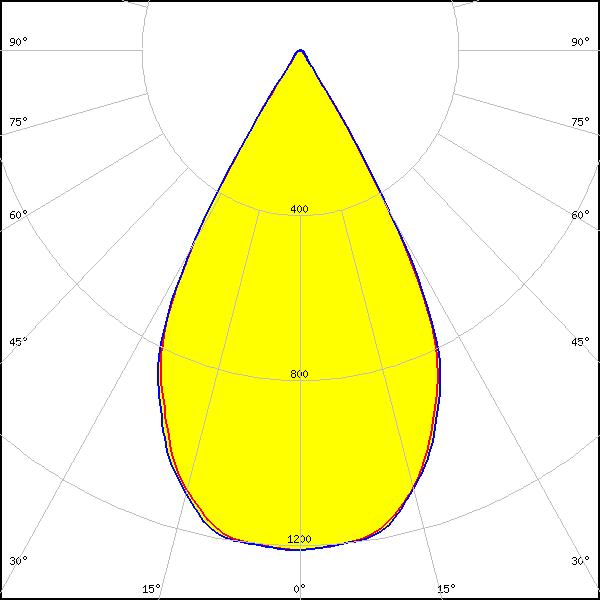

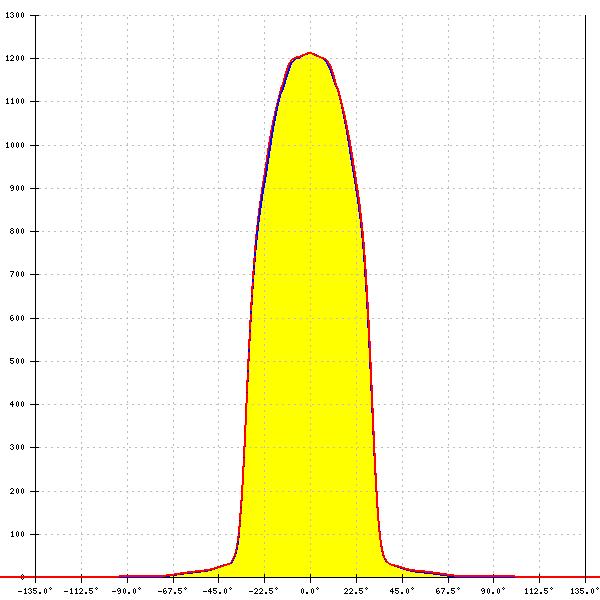

LED:

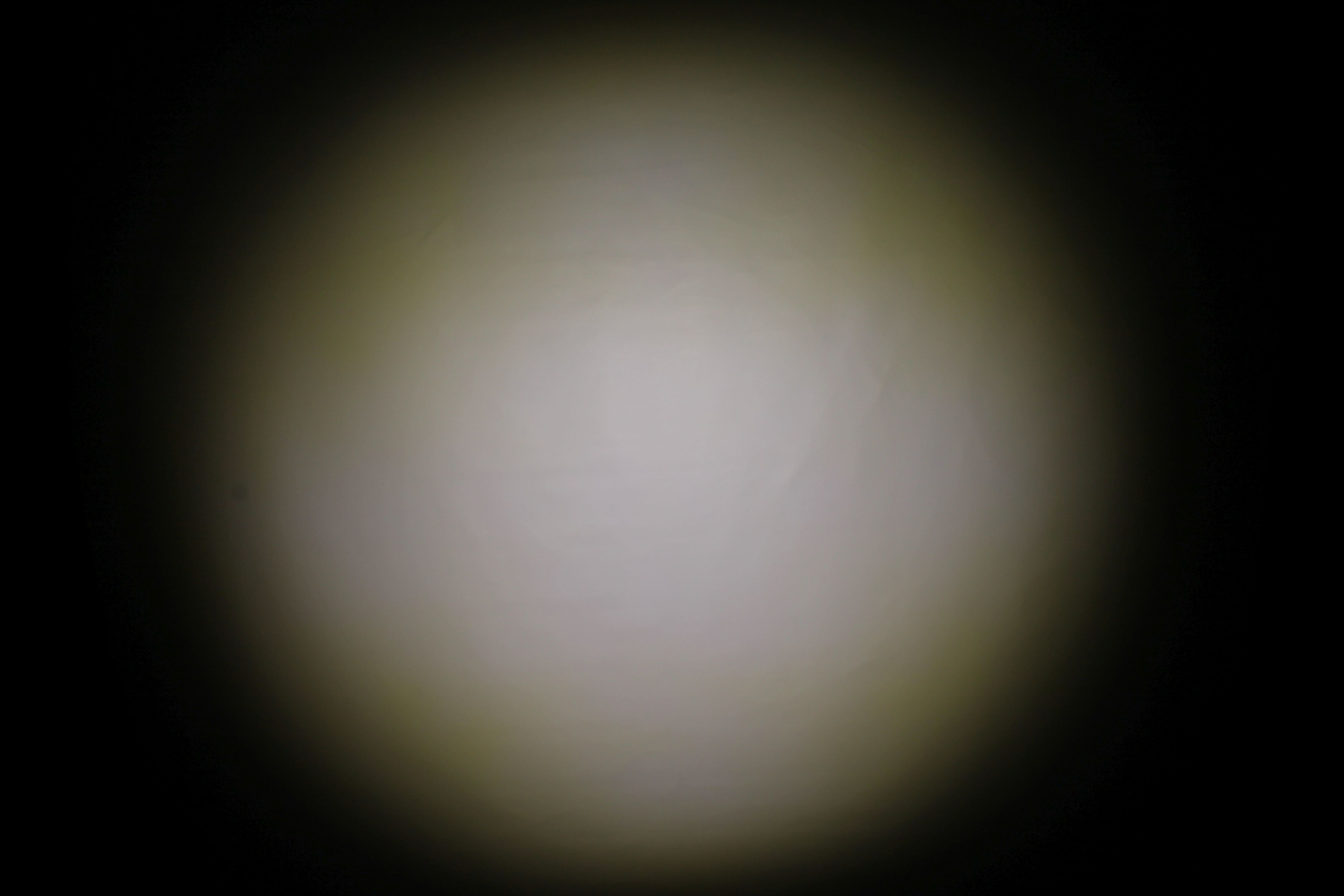

LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C17537_DAISY-28X1-SHD-MET-MATT
FWHM:
58°
FWTM:
69°
Peak intensity:
1.212 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White

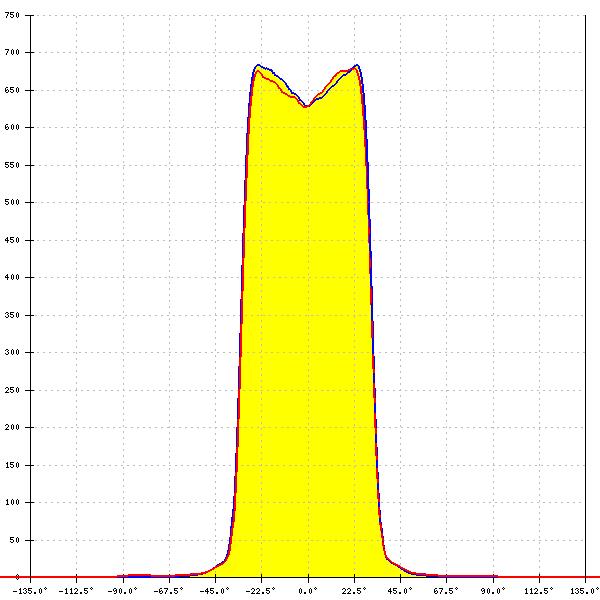

LED:

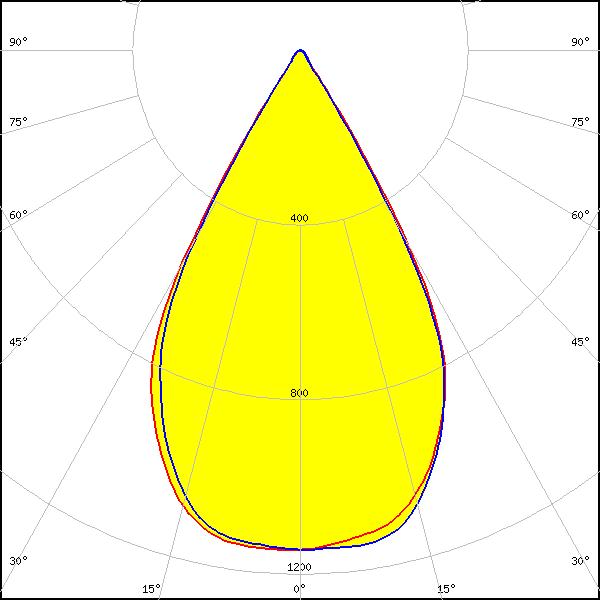

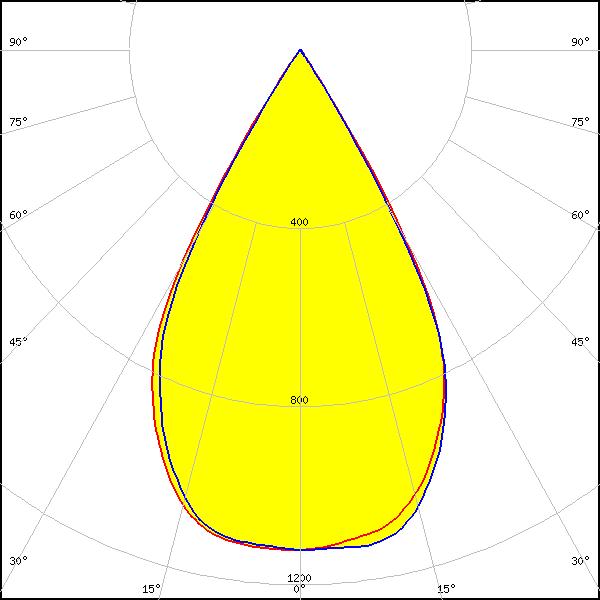

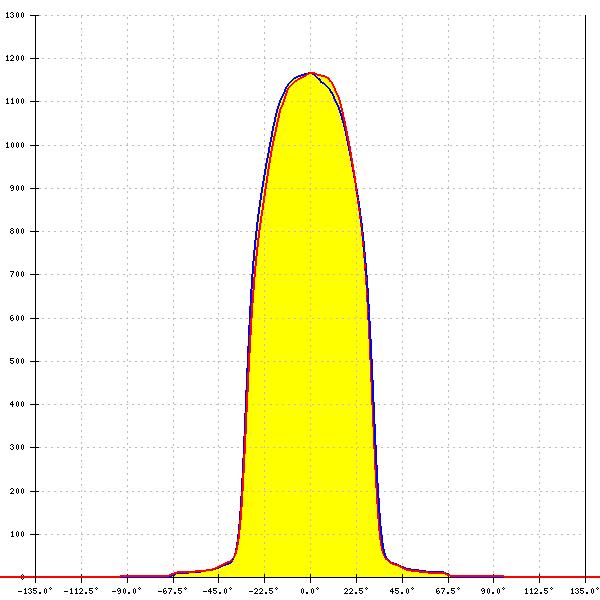

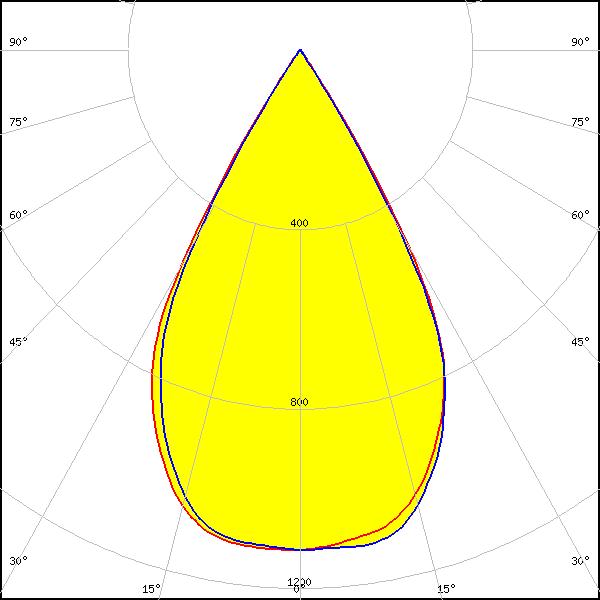

LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:

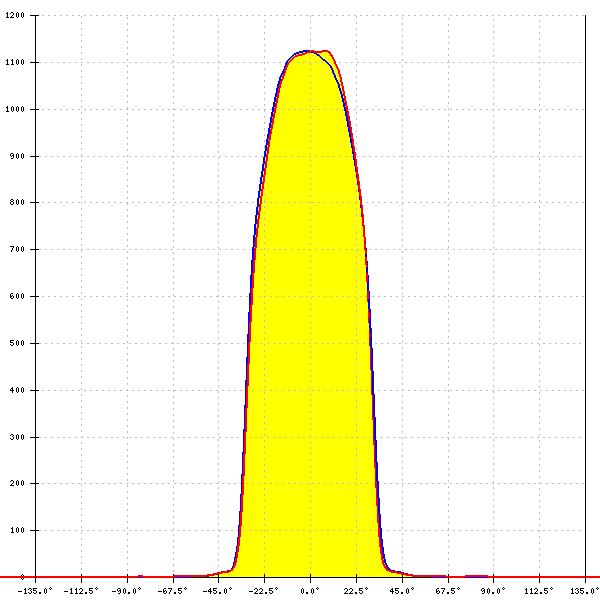

C16585_DAISY-28X1-SHD
FWHM:
60° + 58°
FWTM:
69° + 68°
Peak intensity:
1.130 cd/lm
Efficiency:
84 %
LEDs/each optic:
4
Light colour/type:
White

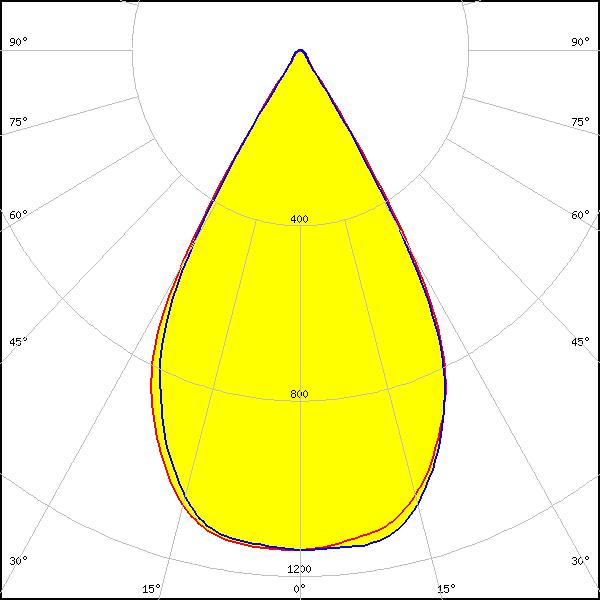

LED:
LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C16783_DAISY-28X1-SHD-WHT
FWHM:
60° + 58°
FWTM:
70° + 69°
Peak intensity:
1.146 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White
LED:

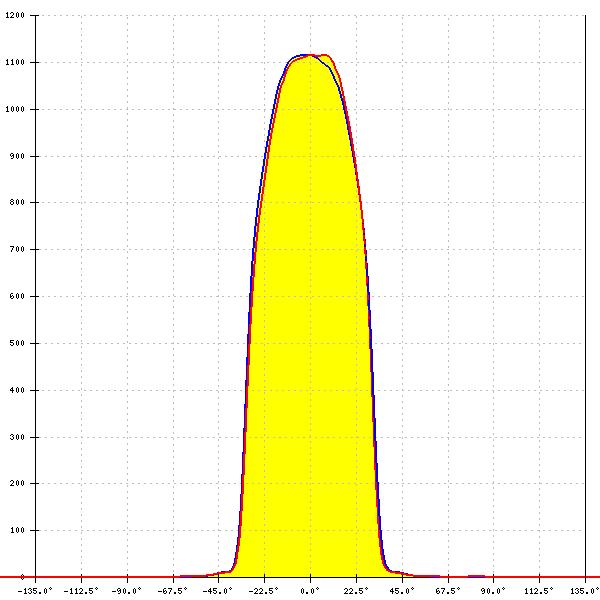

LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C17481_DAISY-28X1-SHD-MATT
FWHM:
60° + 58°
FWTM:
69° + 68°
Peak intensity:
1.122 cd/lm
Efficiency:
84 %
LEDs/each optic:
4
Light colour/type:
White
LED:

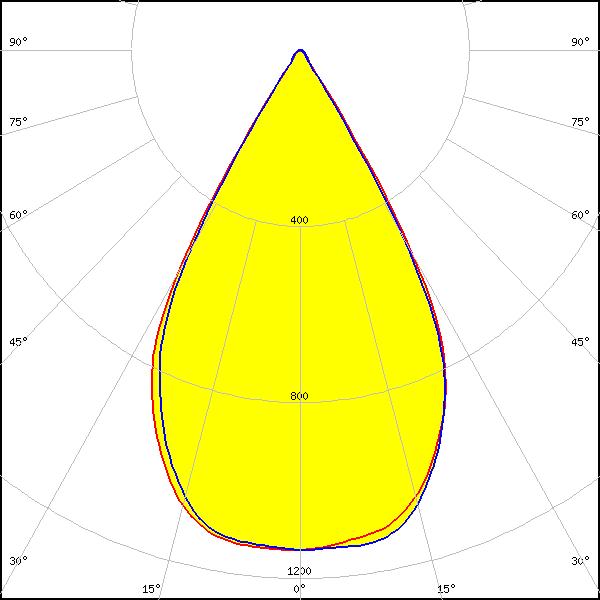

LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C17482_DAISY-28X1-SHD-WHT-MATT
FWHM:
60° + 58°
FWTM:
70° + 69°
Peak intensity:
1.142 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:

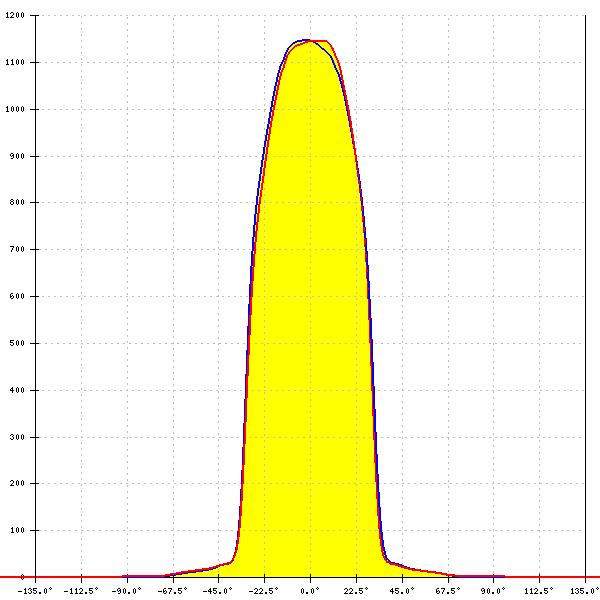

C17527_DAISY-28X1-SHD-MET
FWHM:
60° + 58°
FWTM:
70° + 69°
Peak intensity:
1.153 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C17537_DAISY-28X1-SHD-MET-MATT
FWHM:
60° + 58°
FWTM:
70° + 69°
Peak intensity:
1.167 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White

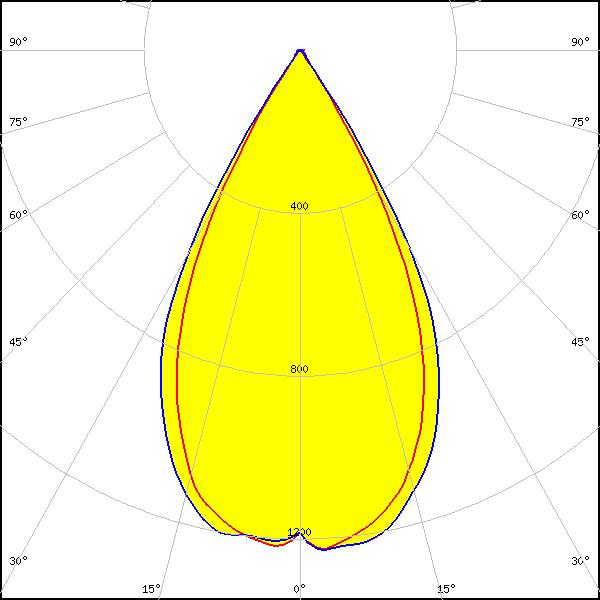

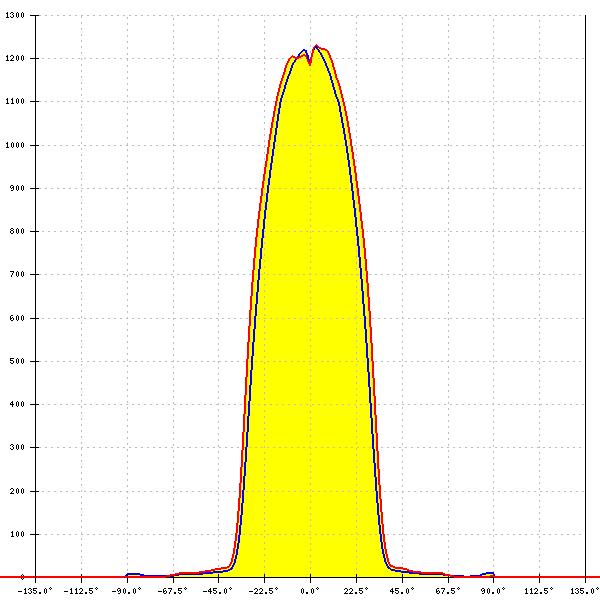

LED:
LM28xB Series
Required components:
C16783_DAISY-28X1-SHD-WHT
FWHM:
54° + 58°
FWTM:
68° + 72°
Peak intensity:
1.238 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White

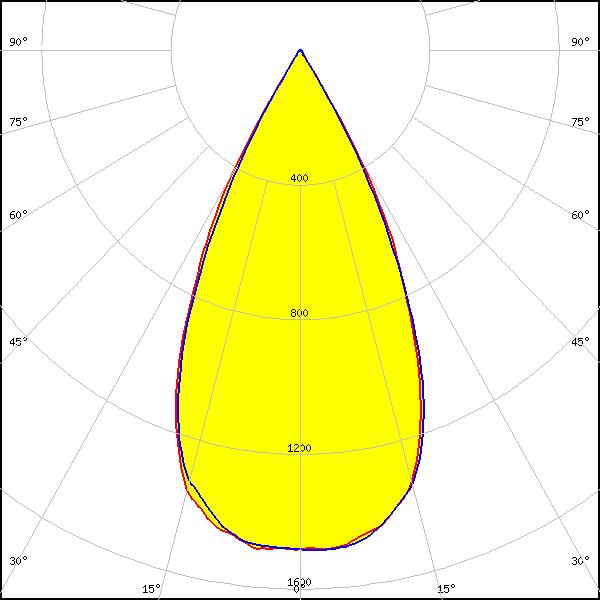

LED:
LM28xB Series

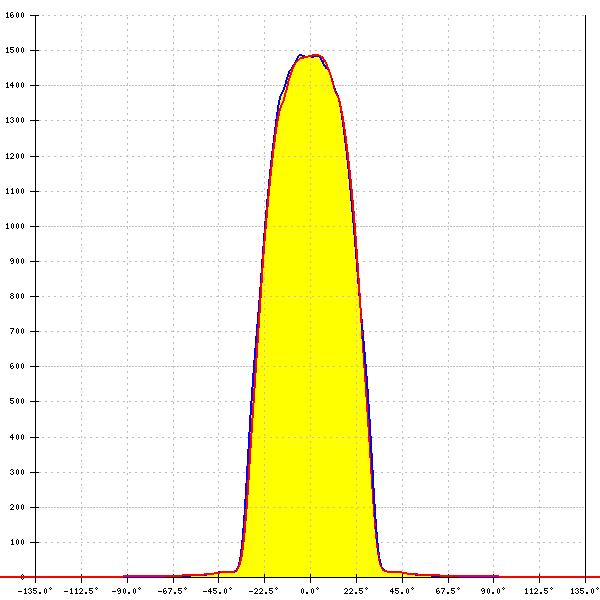

Required components:
C16783_DAISY-28X1-SHD-WHT
FWHM:
50°
FWTM:
65°
Peak intensity:
1.493 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

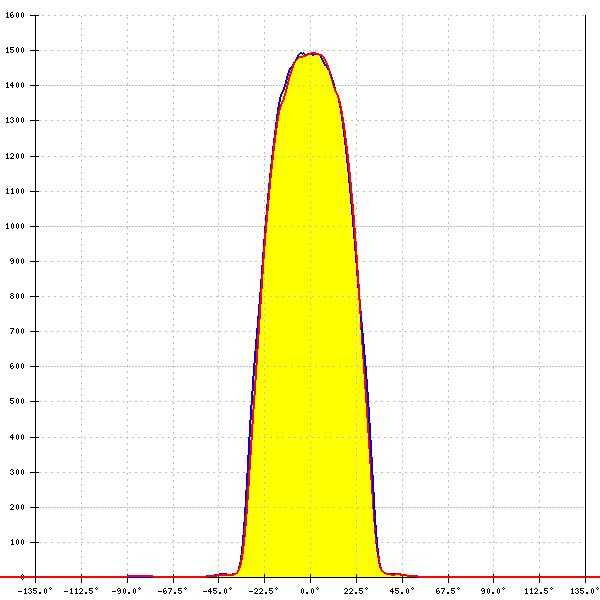

LM28xB Series
Required components:
C16585_DAISY-28X1-SHD
FWHM:
50°
FWTM:
65°
Peak intensity:
1.498 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
