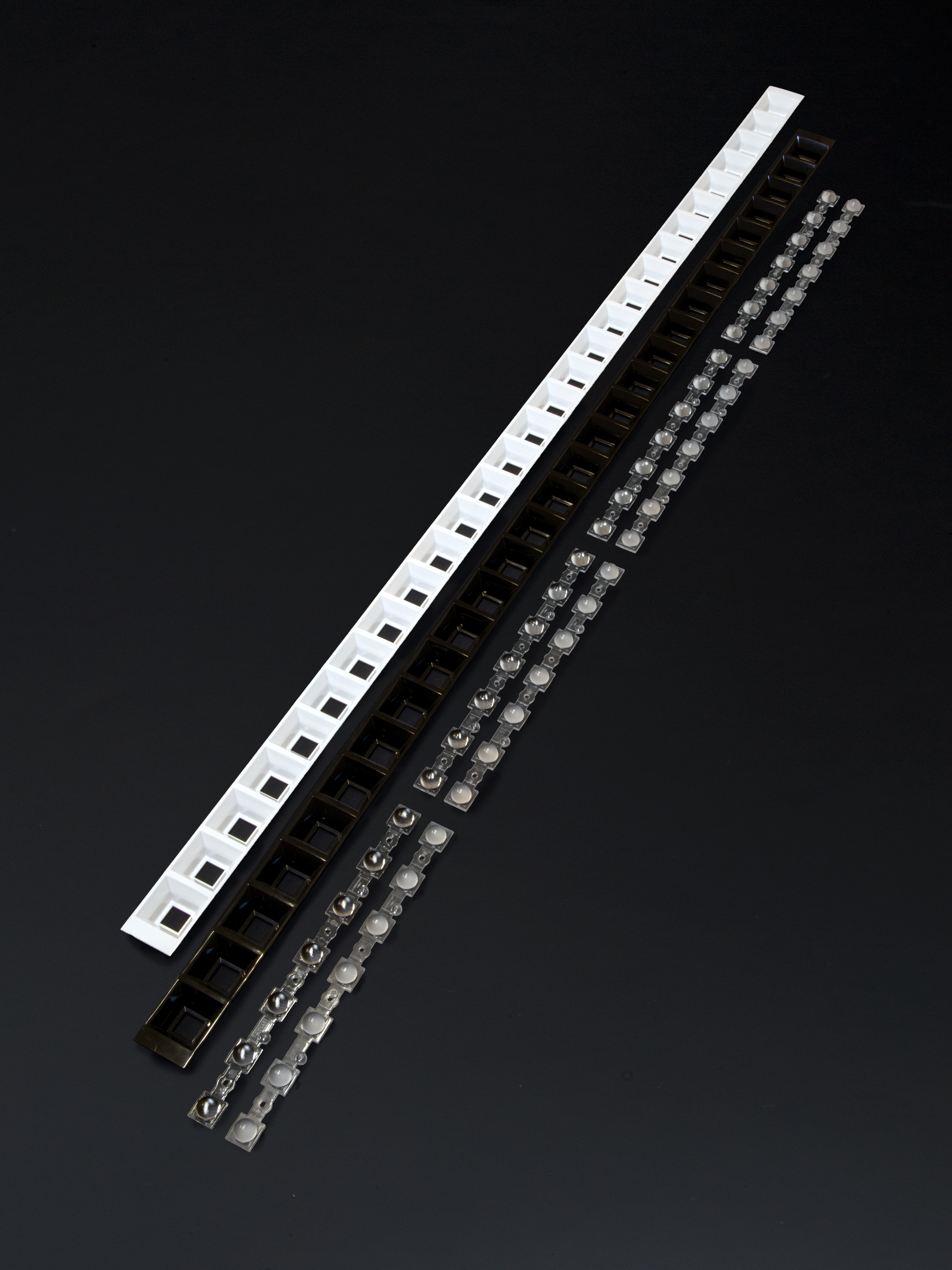

DAISY-28X1-W2-B-D
Print~50° wide beam with tighter cutoff. Variant with diffused 7X1 lenses.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:1140 x 40 mm
-
Height:20.20 mm
-
Fastening:pin, screw
-
RoHS and REACH compliant:Yes
Component Materials
- DAISY-28X1-SHDShadePC
- DAISY-28X1-SHD-WHTShadePC
- DAISY-7X1-W2-DLinear lensPMMA
- DAISY-28X1-SHD-MATTShadePC-ABS
- DAISY-28X1-SHD-WHT-MATTShadePC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Linear lens4 pcs
- Shade1 pcs
- Linear lens
- C17363_DAISY-7X1-W2-Dmilky
- Quantity in box:312 pcs
- Box size:400 x 300 x 300 mm
- Box weight:7.00 kg
- MPQ:24 pcs
- MOQ:312 pcs
- MOQ Size:400 x 300 x 300 mm
- MOQ Weight:7.00 kg
- Shade
- C16585_DAISY-28X1-SHDblack,gloss
- C16783_DAISY-28X1-SHD-WHTwhite,gloss
- C17481_DAISY-28X1-SHD-MATTblack,matt
- C17482_DAISY-28X1-SHD-WHT-MATTwhite,matt
- Quantity in box:48 pcs
- Box size:1185 x 385 x 125 mm
- Box weight:8.40 kg
- MPQ:48 pcs
- MOQ:48 pcs
- MOQ Size:1185 x 385 x 140 mm
- MOQ Weight:8.40 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
Optical results

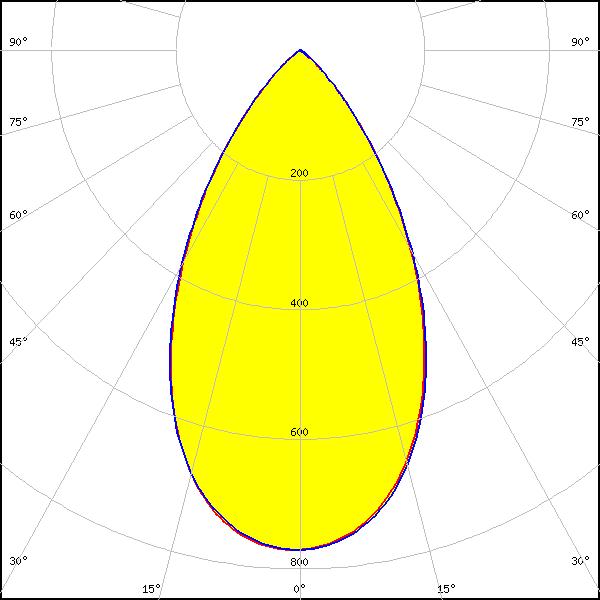

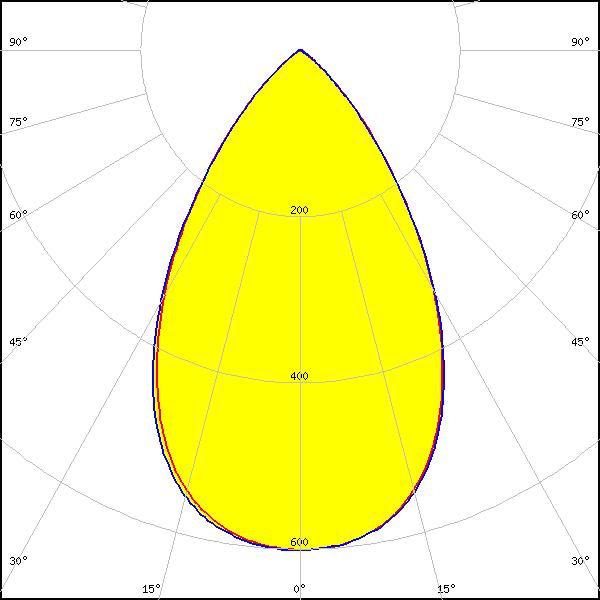

LED:
LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C16585_DAISY-28X1-SHD
FWHM:
59°
FWTM:
91°
Peak intensity:
0.772 cd/lm
Efficiency:
76 %
LEDs/each optic:
4
Light colour/type:
White

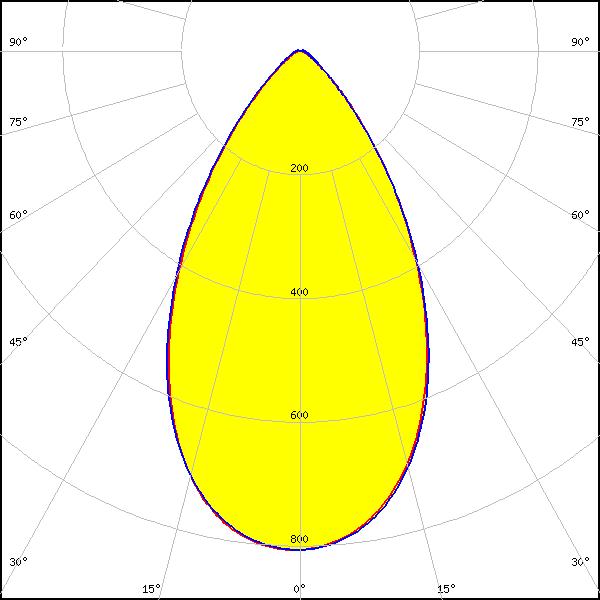

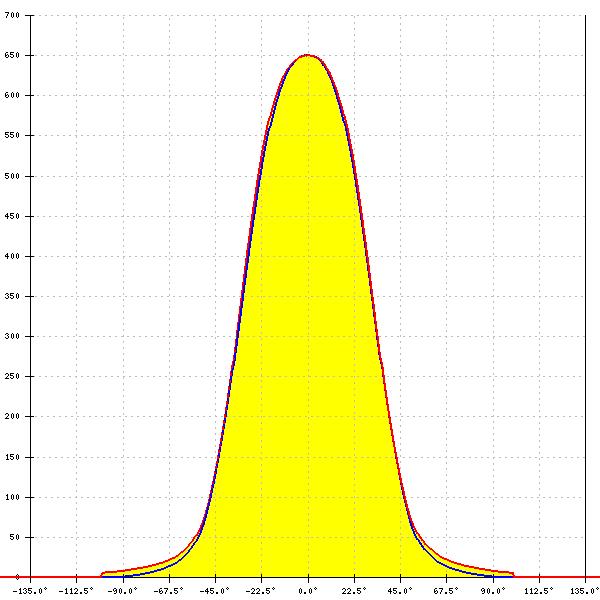

LED:
LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C16783_DAISY-28X1-SHD-WHT
FWHM:
60°
FWTM:
95°
Peak intensity:
0.807 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

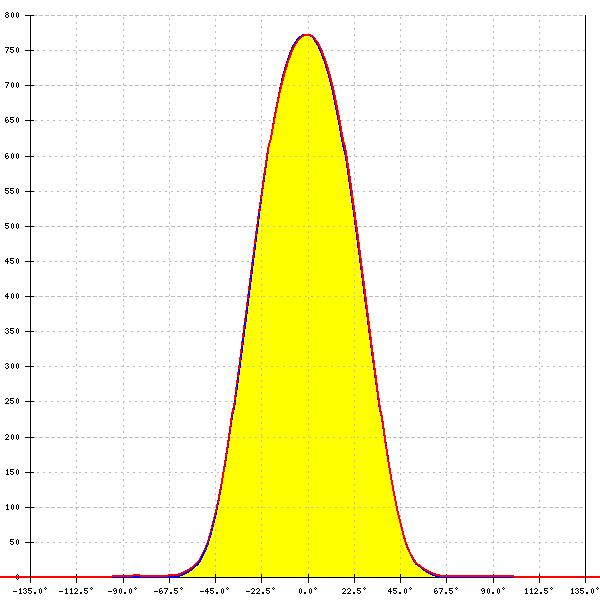

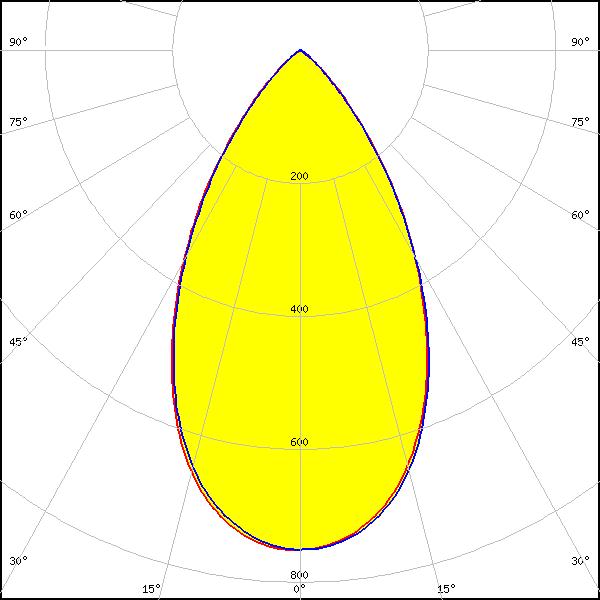

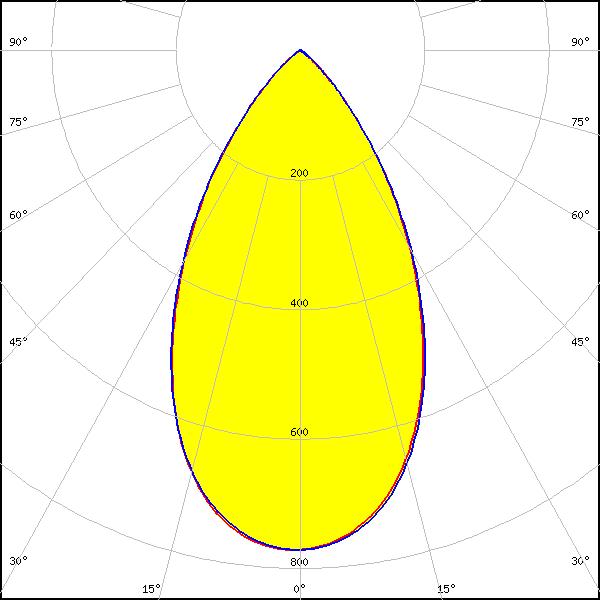

LED:
LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C17481_DAISY-28X1-SHD-MATT
FWHM:
58°
FWTM:
91°
Peak intensity:
0.772 cd/lm
Efficiency:
75 %
LEDs/each optic:
4
Light colour/type:
White

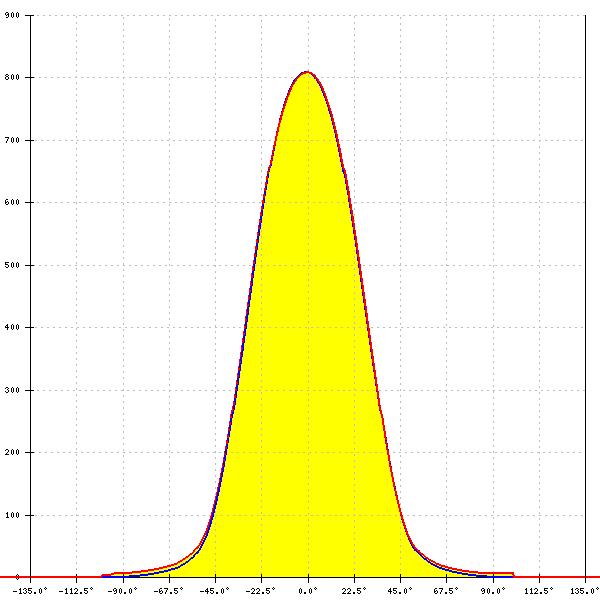

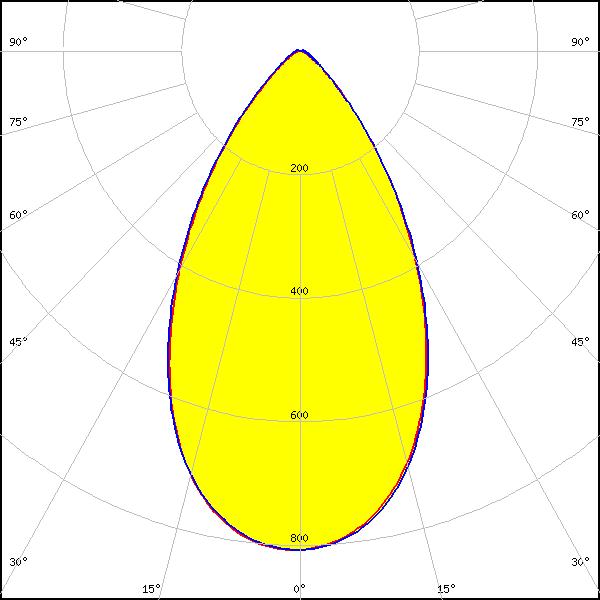

LED:
LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C17482_DAISY-28X1-SHD-WHT-MATT
FWHM:
60°
FWTM:
95°
Peak intensity:
0.808 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

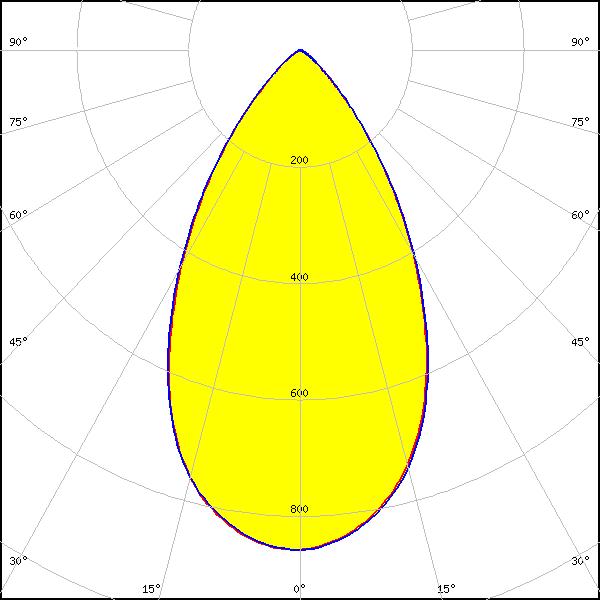

LED:
LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C17527_DAISY-28X1-SHD-MET
FWHM:
59°
FWTM:
94°
Peak intensity:
0.859 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

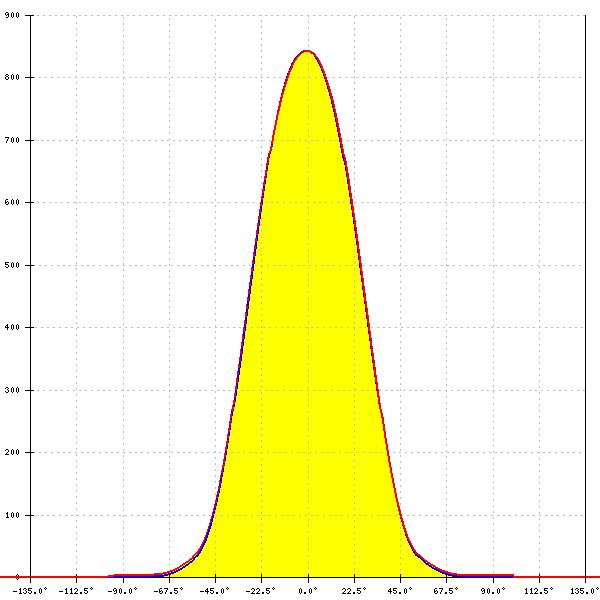

LED:

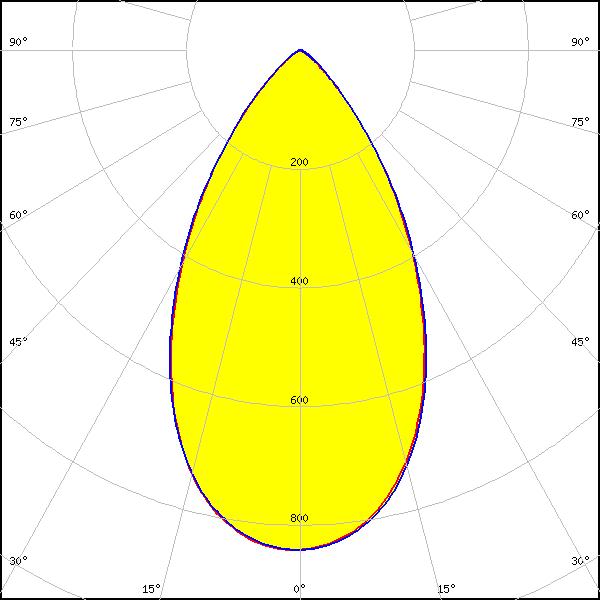

LIGHT ENGINE DAISY 112 LEDs 1,140mm x 20mm
Required components:
C17537_DAISY-28X1-SHD-MET-MATT
FWHM:
59°
FWTM:
94°
Peak intensity:
0.843 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
White

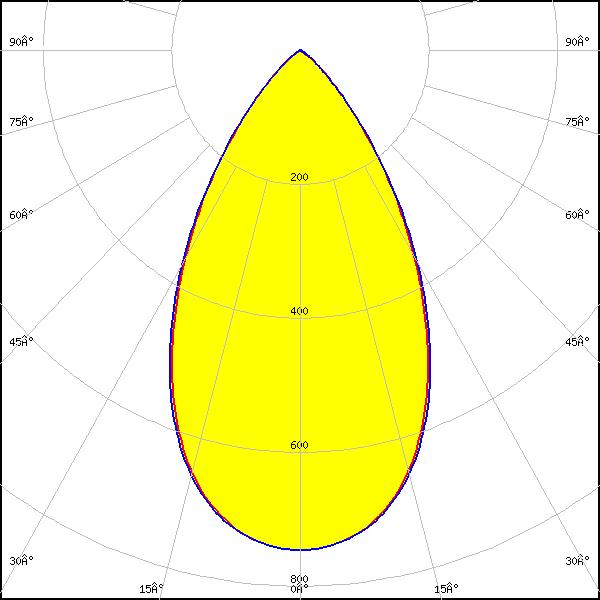

LED:
PL-LIN-4000 560x24mm
Required components:
C17481_DAISY-28X1-SHD-MATT
FWHM:
59°
FWTM:
67°
Peak intensity:
1.072 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
White

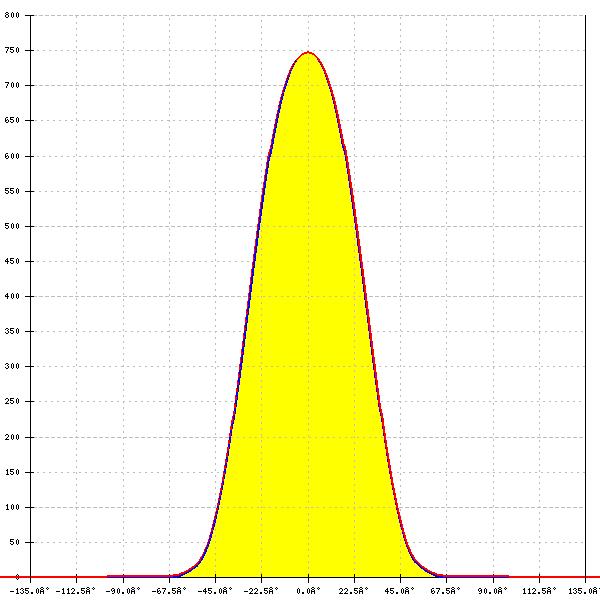

LED:
PL-LIN-4000 560x24mm
Required components:
C17481_DAISY-28X1-SHD-MATT
FWHM:
59°
FWTM:
91°
Peak intensity:
0.747 cd/lm
Efficiency:
74 %
LEDs/each optic:
4
Light colour/type:
White

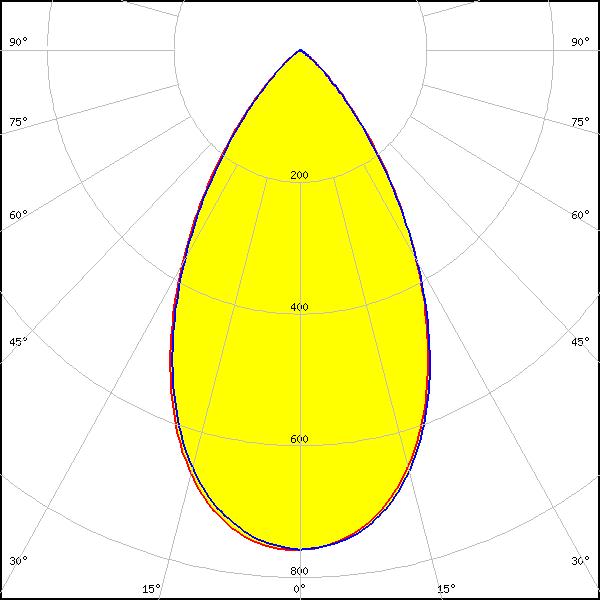

LED:

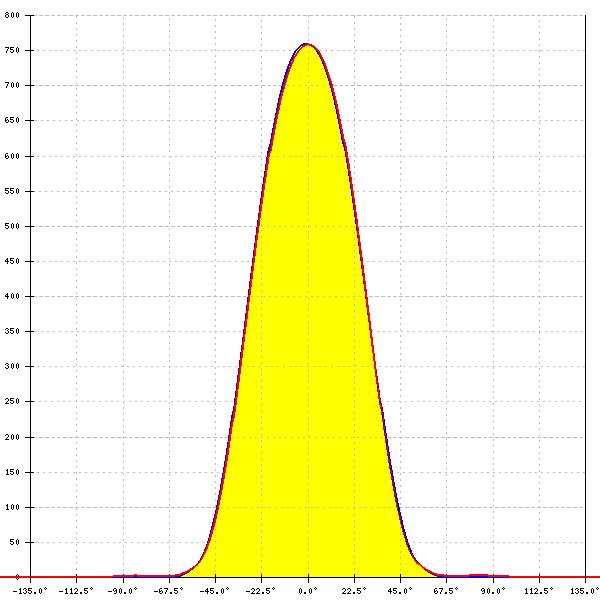

LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C16585_DAISY-28X1-SHD
FWHM:
59°
FWTM:
92°
Peak intensity:
0.759 cd/lm
Efficiency:
75 %
LEDs/each optic:
4
Light colour/type:
White

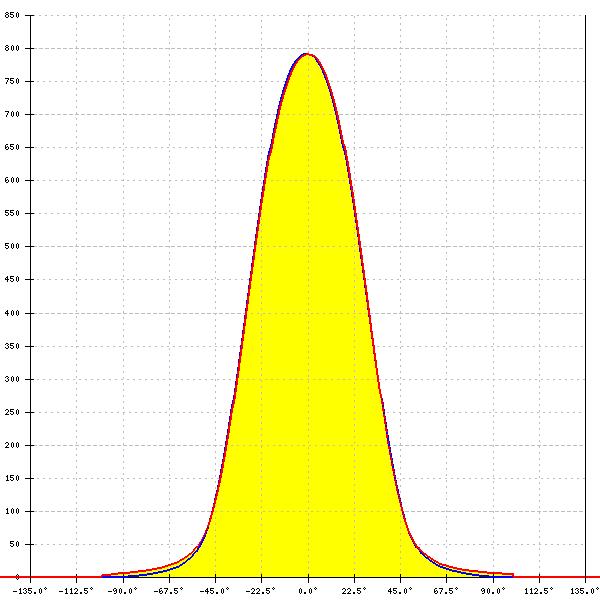

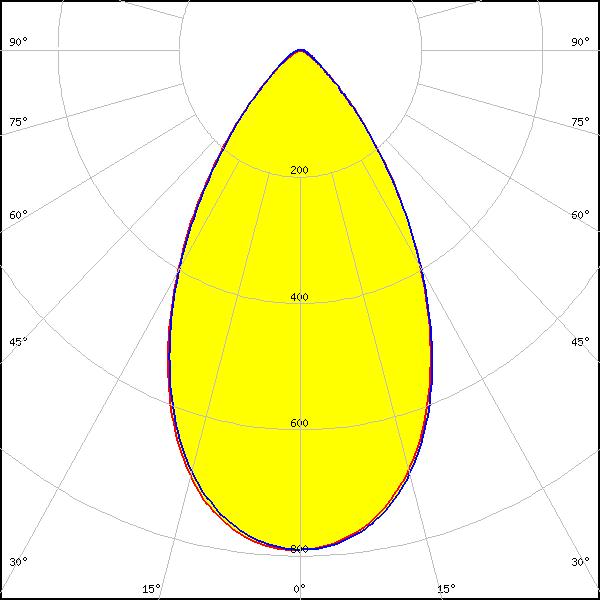

LED:
LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C16783_DAISY-28X1-SHD-WHT
FWHM:
61°
FWTM:
97°
Peak intensity:
0.791 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White
LED:

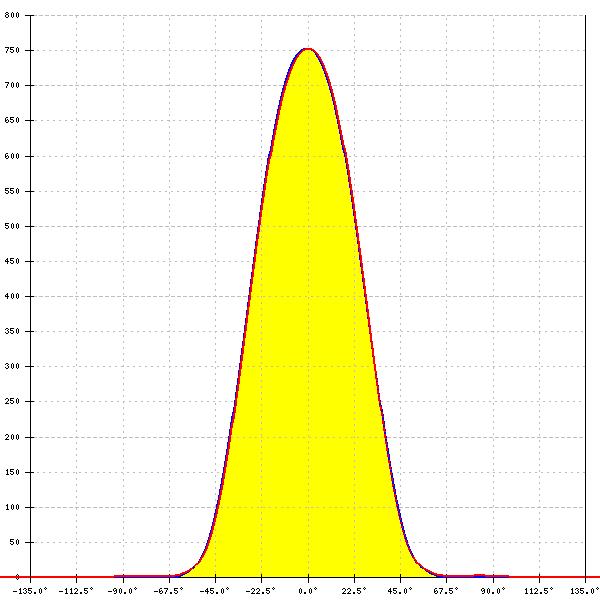

LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C17481_DAISY-28X1-SHD-MATT
FWHM:
59° + 59°
FWTM:
92° + 92°
Peak intensity:
0.752 cd/lm
Efficiency:
74 %
LEDs/each optic:
4
Light colour/type:
White

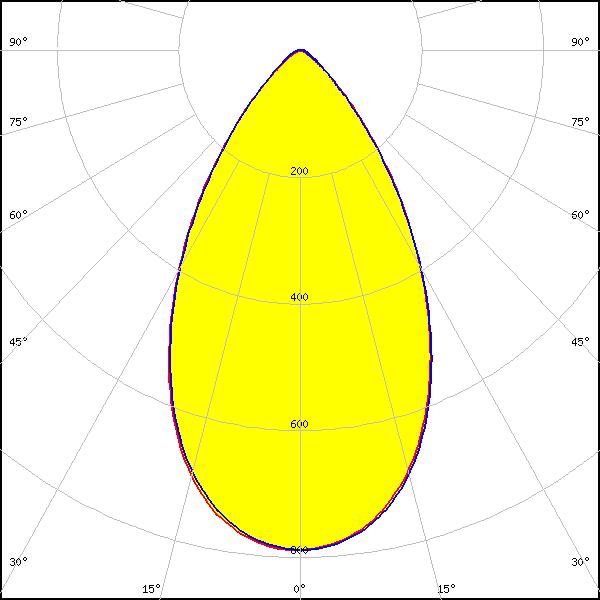

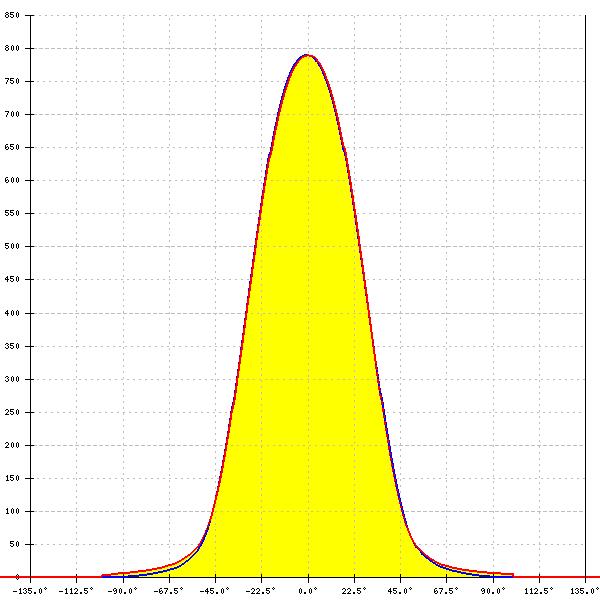

LED:

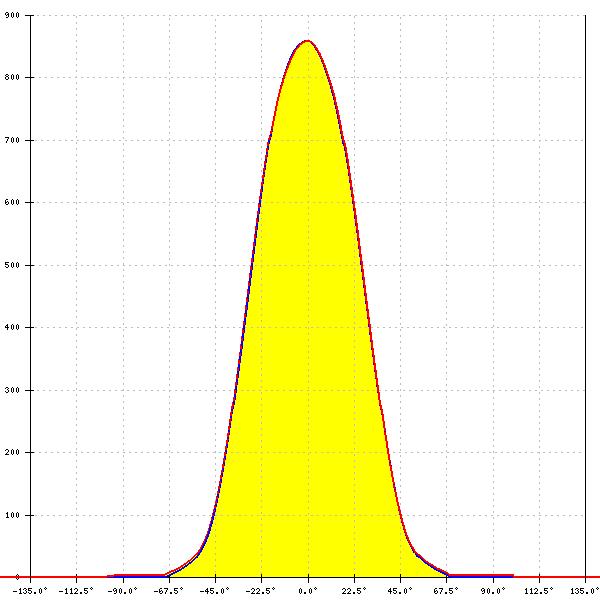

LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C17482_DAISY-28X1-SHD-WHT-MATT
FWHM:
60°
FWTM:
97°
Peak intensity:
0.789 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
White

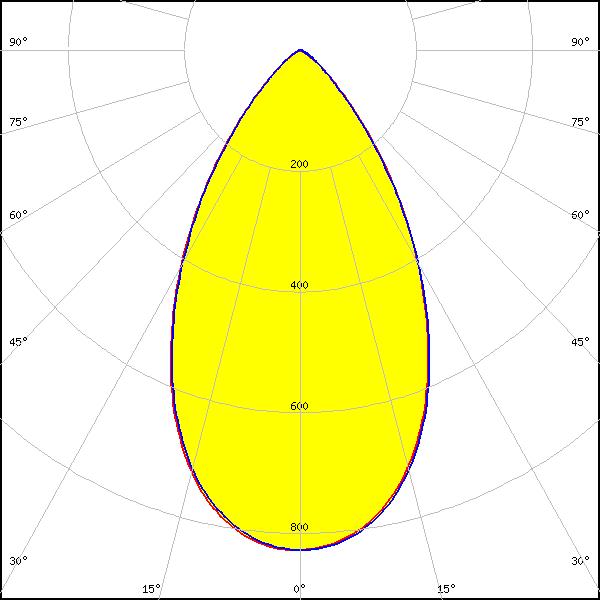

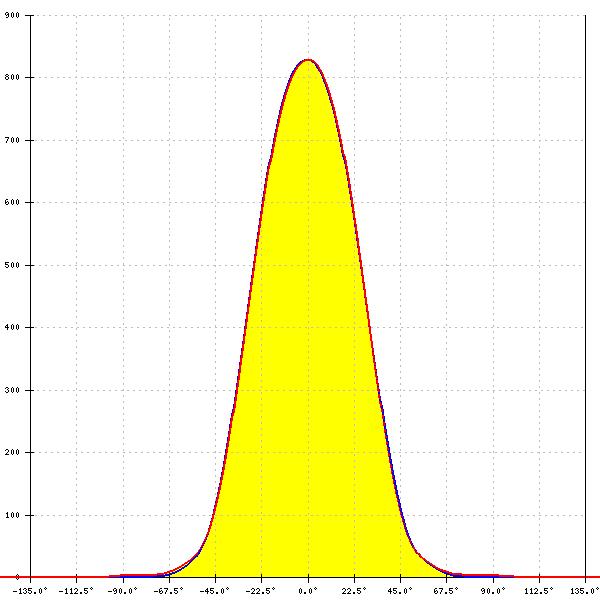

LED:
LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C17527_DAISY-28X1-SHD-MET
FWHM:
59°
FWTM:
95°
Peak intensity:
0.828 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
White

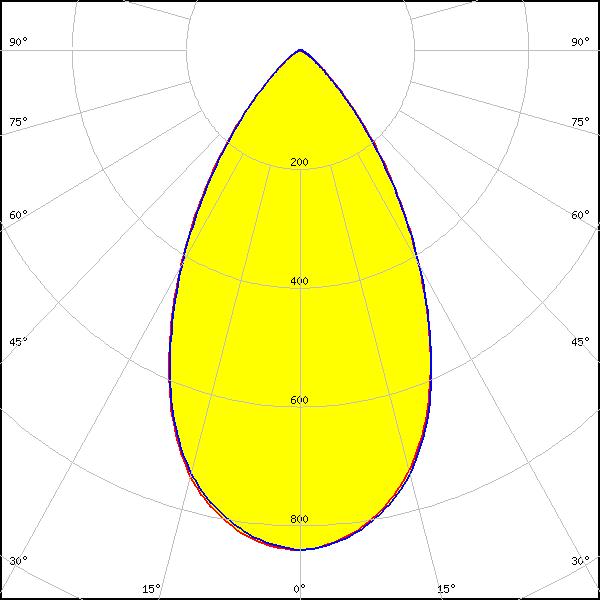

LED:

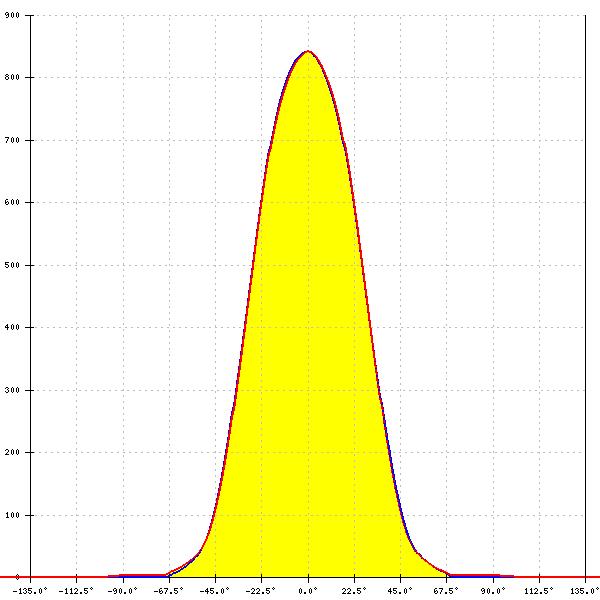

LinLED 1120x28mm 4400lm 8x0 4C Opt G1
Required components:
C17537_DAISY-28X1-SHD-MET-MATT
FWHM:
60° + 60°
FWTM:
95° + 94°
Peak intensity:
0.842 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
