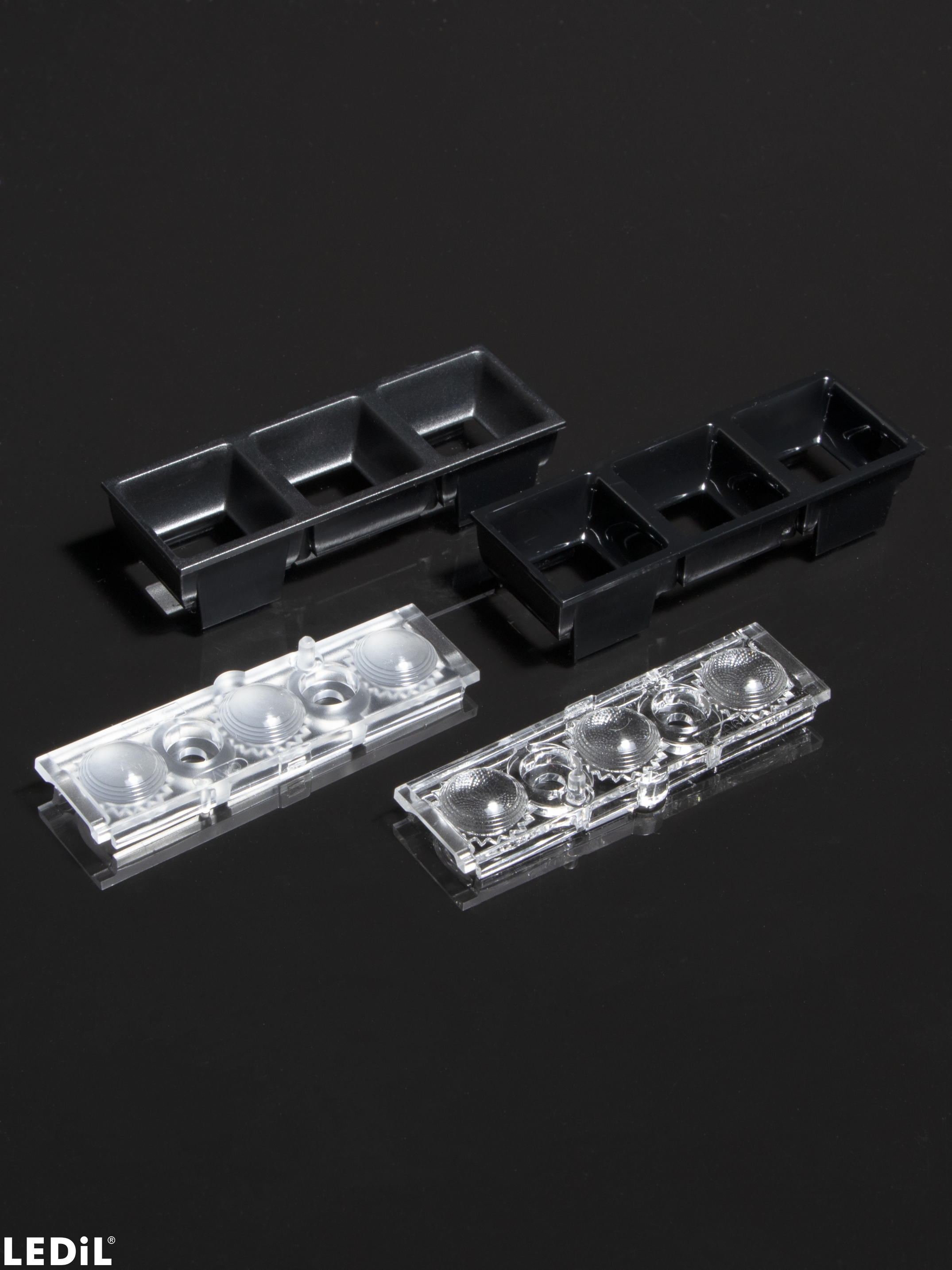

DAISY-MINI-3X1-WW

Print

~65° wide beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    21 x  60 mm
  • Height:
    13.30 mm
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

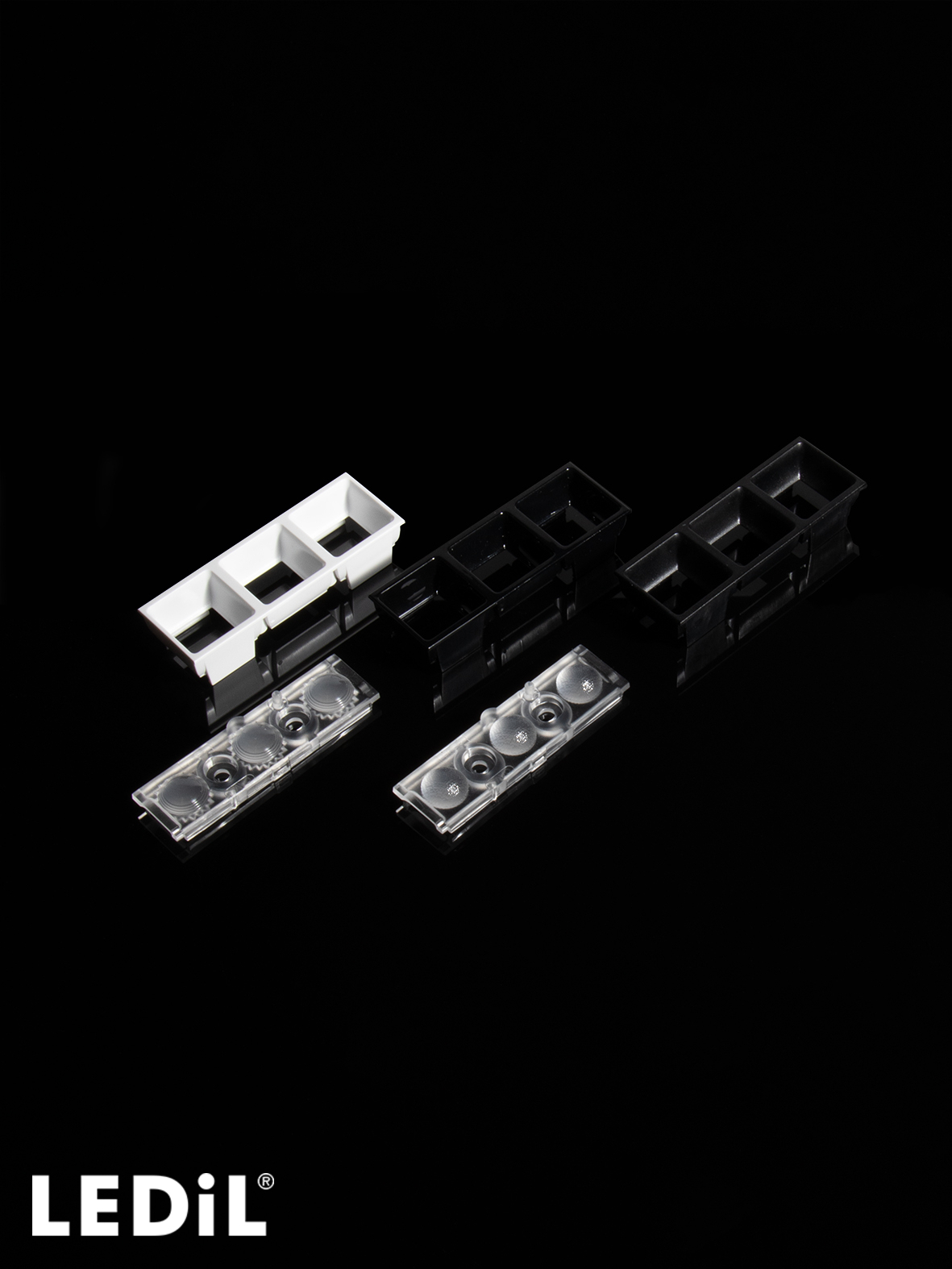

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C18506_DAISY-MINI-3X1-WW
    clear
  • Quantity in box:
    1890 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.30 kg
  • MPQ:
    70 pcs
  • MOQ:
    210 pcs
  • MOQ Size:
    480 x 280 x 50 mm
  • MOQ Weight:
    1.20 kg
  • Shade
  • C18508_DAISY-MINI-3X1-SHD
    black,gloss
  • C18509_DAISY-MINI-3X1-SHD-MATT
    black,matt
  • Quantity in box:
    945 pcs
  • Box size:
    476 x 273 x 226 mm
  • Box weight:
    4.50 kg
  • MPQ:
    5 pcs
  • MOQ:
    210 pcs
  • MOQ Size:
    480 x 280 x 70 mm
  • MOQ Weight:
    1.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C18506_DAISY-MINI-3X1-WW
    C18508_DAISY-MINI-3X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

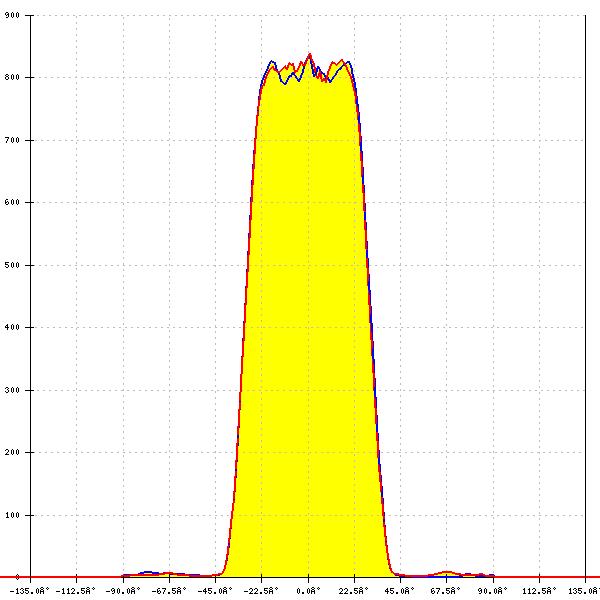

Optical results

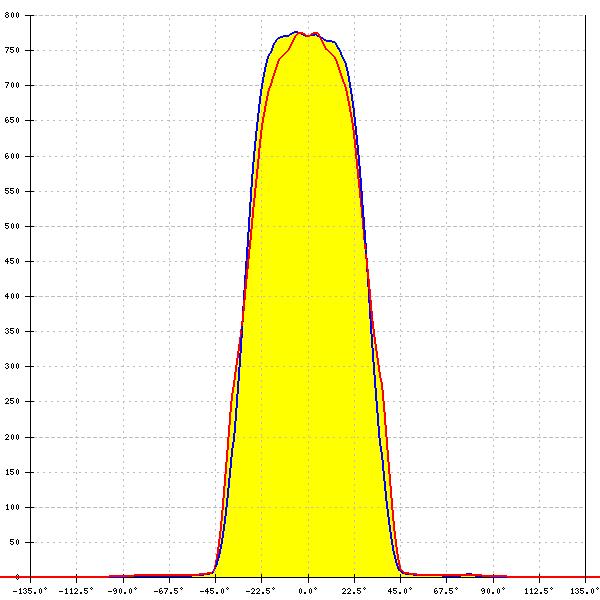

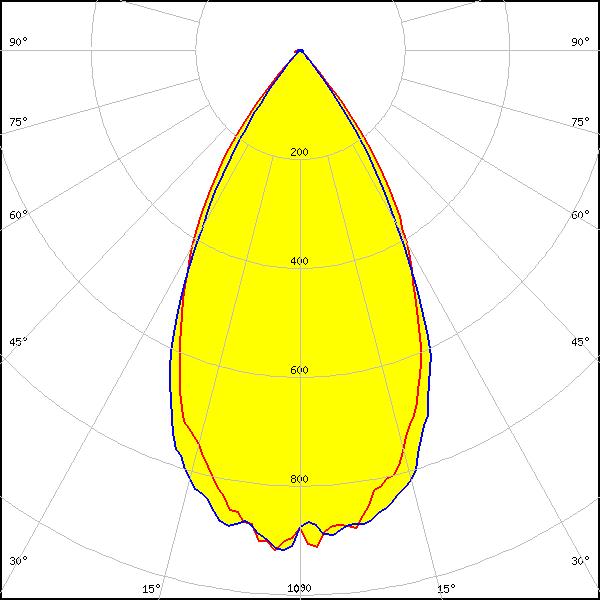

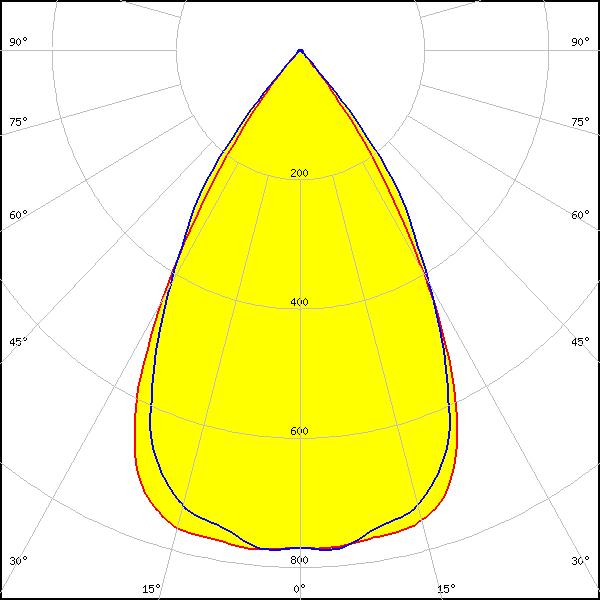

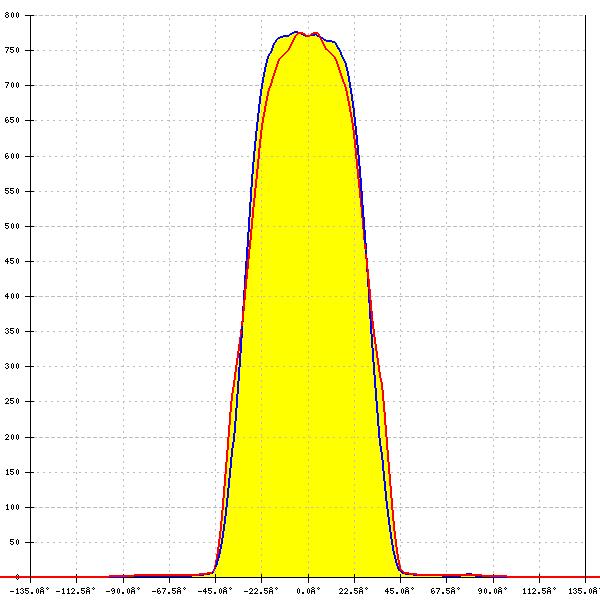

LED: LED Line SMD L6W2 DAISY-MINI-3x1 Static White
Required components:
C18509_DAISY-MINI-3X1-SHD-MATT
FWHM: 62°
FWTM: 82°
Peak intensity: 0.780 cd/lm
Efficiency: 79 %
LEDs/each optic: 2
Light colour/type: White

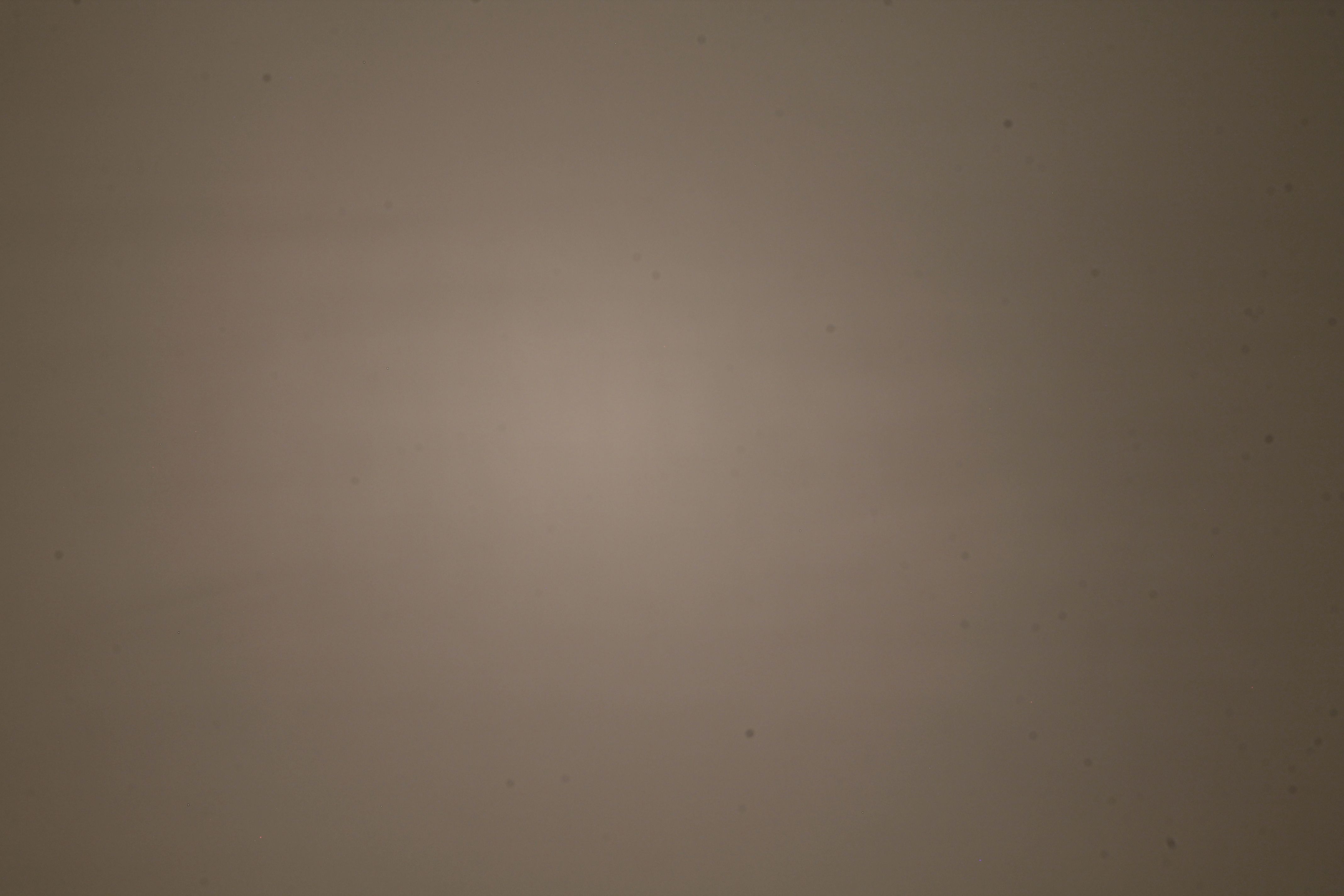

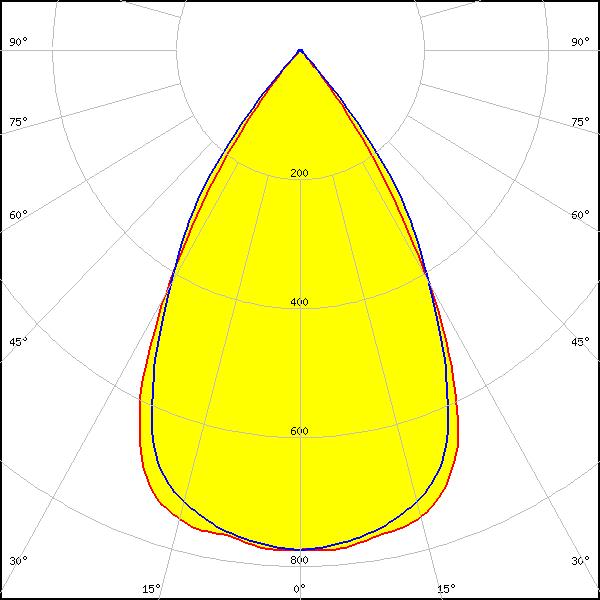

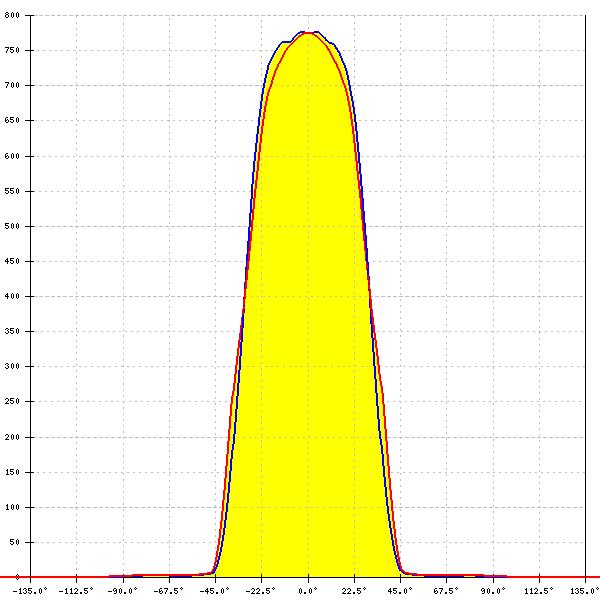

LED: LED Line SMD L6W2 DAISY-MINI-3x1 Tunable White
Required components:
C18509_DAISY-MINI-3X1-SHD-MATT
FWHM: 62°
FWTM: 82°
Peak intensity: 0.776 cd/lm
Efficiency: 79 %
LEDs/each optic: 2
Light colour/type: Tunable White

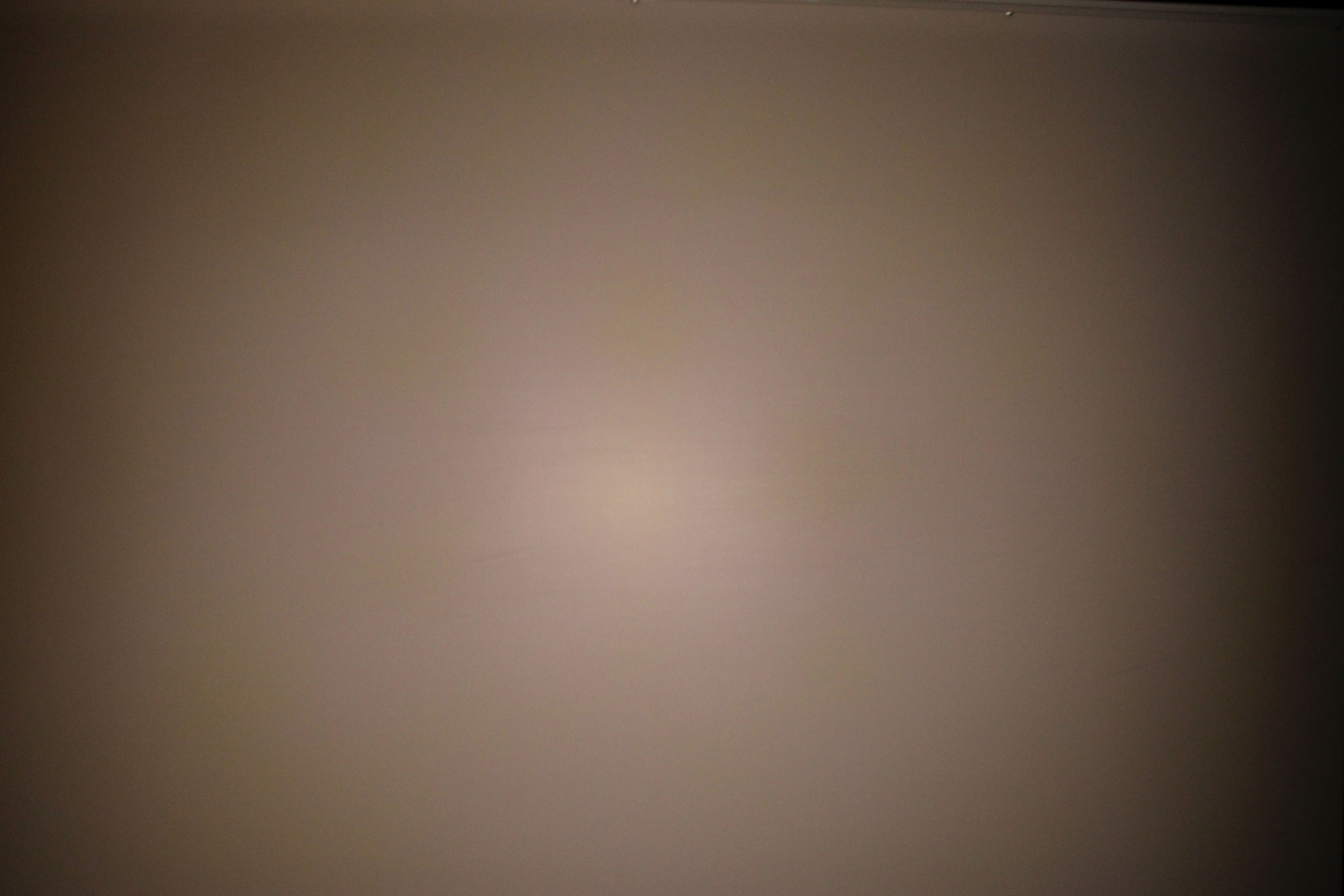

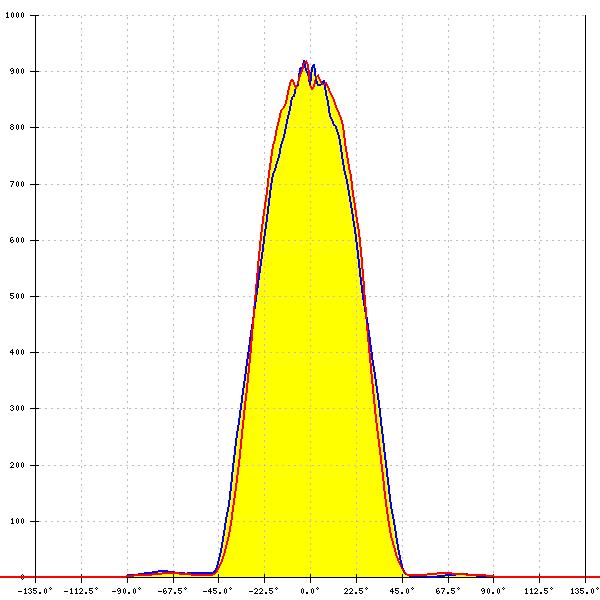

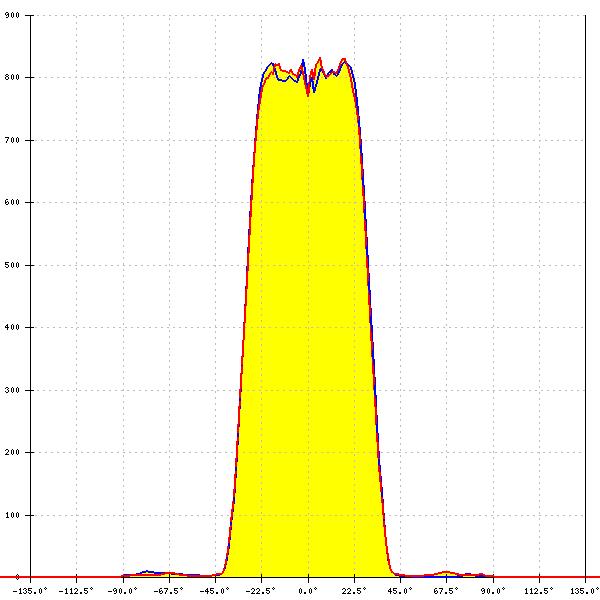

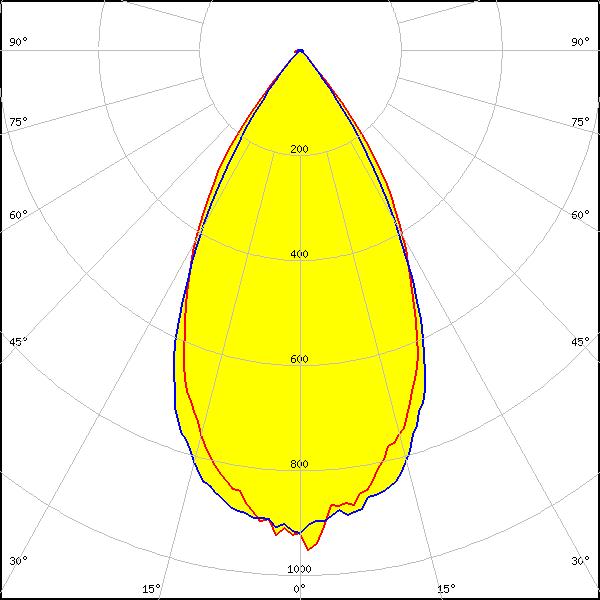

LED: LM28xB Series
Required components:
C18508_DAISY-MINI-3X1-SHD
FWHM: 56°
FWTM: 82°
Peak intensity: 0.952 cd/lm
Efficiency: 78 %
LEDs/each optic: 2
Light colour/type: White

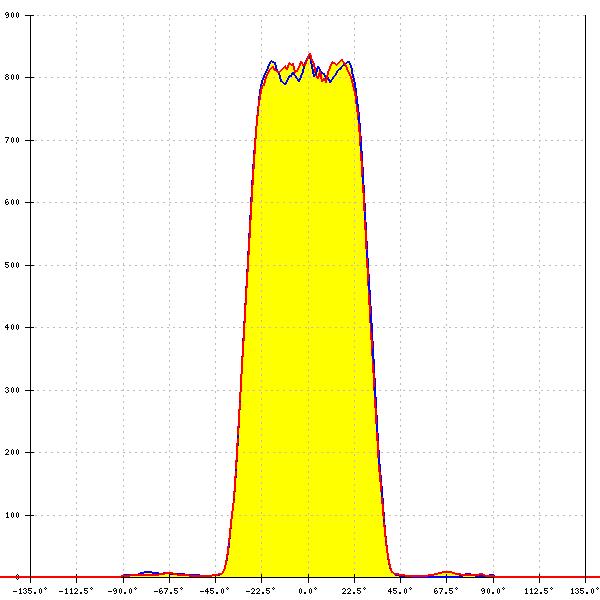

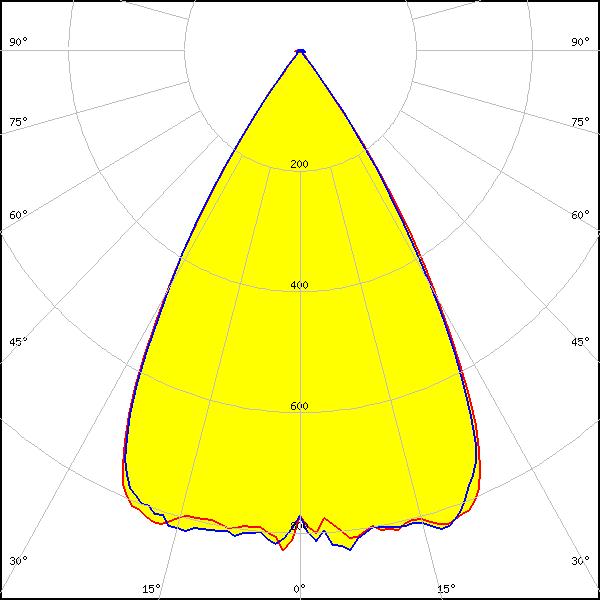

LED: LM28xB Series
Required components:
C18508_DAISY-MINI-3X1-SHD
FWHM: 62°
FWTM: 74°
Peak intensity: 0.853 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

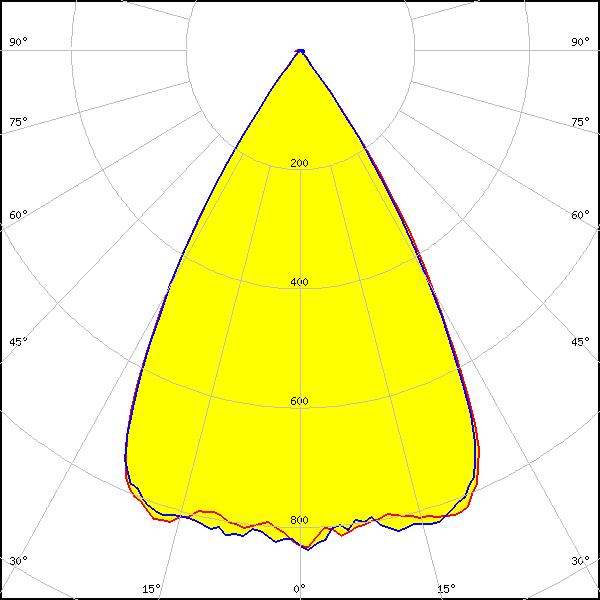

LED: LM28xB Series
Required components:
C18509_DAISY-MINI-3X1-SHD-MATT
FWHM: 56°
FWTM: 82°
Peak intensity: 0.953 cd/lm
Efficiency: 78 %
LEDs/each optic: 2
Light colour/type: White
LED: LM28xB Series
Required components:
C18509_DAISY-MINI-3X1-SHD-MATT
FWHM: 62°
FWTM: 74°
Peak intensity: 0.855 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
