    DAISY-MINI-FT-D

    Print

    Forward throwing beam for freestanding office luminaires

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      275 x  16 mm
    • Height:
      6.20 mm
    • Fastening:
      pin, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

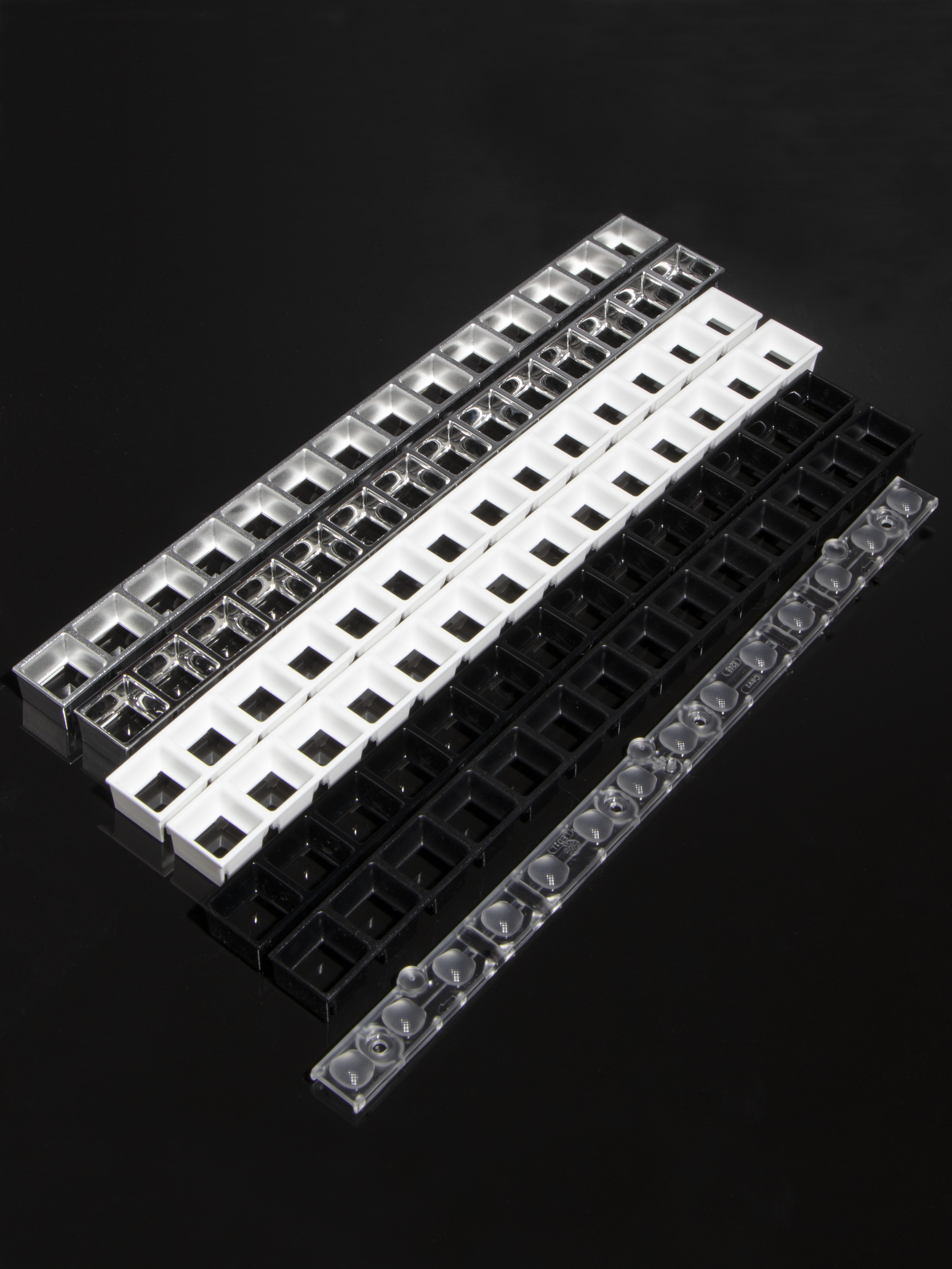

    Component Materials
    • DAISY-MINI-SHD
      Shade
      PC
    • DAISY-MINI-SHD-WHT
      Shade
      PC
    • DAISY-MINI-SHD-MATT
      Shade
      PC
    • DAISY-MINI-SHD-WHT-MATT
      Shade
      PC
    • DAISY-MINI-SHD-MET
      Shade
      PC
    • DAISY-MINI-SHD-MET-MATT
      Shade
      PC
    • DAISY-MINI-FT-D
      Linear lens
      PMMA
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • F18248_DAISY-MINI-FT-D
      clear
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      6.00 kg
    • MPQ:
      12 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      6.00 kg
    • Shade
    • F17028_DAISY-MINI-SHD
      black,gloss
    • F17033_DAISY-MINI-SHD-WHT
      white,gloss
    • F17034_DAISY-MINI-SHD-MATT
      black,matt
    • F17465_DAISY-MINI-SHD-WHT-MATT
      white,matt
    • F17666_DAISY-MINI-SHD-MET
      metal,gloss
    • F17667_DAISY-MINI-SHD-MET-MATT
      metal,matt
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.90 kg
    • MPQ:
      4 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.90 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F18248_DAISY-MINI-FT-D
      F17028_DAISY-MINI-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Luminaire, example

    Freestanding luminaire with DAISY-7X1/MINI-FT-D and LINDA-UP

    News

    New products – December 13, 2022

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    Compatible product

    Aluminium profiles by Topmet

    News

    Transforming workspaces with DAISY

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    Meet DAISY-MINI – the smallest LEDiL Dark Light optic in the world

    Application guide

    Guide for Office Lighting Optics

    Application guide

    Guide for Retail Lighting Optics

    Catalogue

    LEDiL Latest products catalogue 2026

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

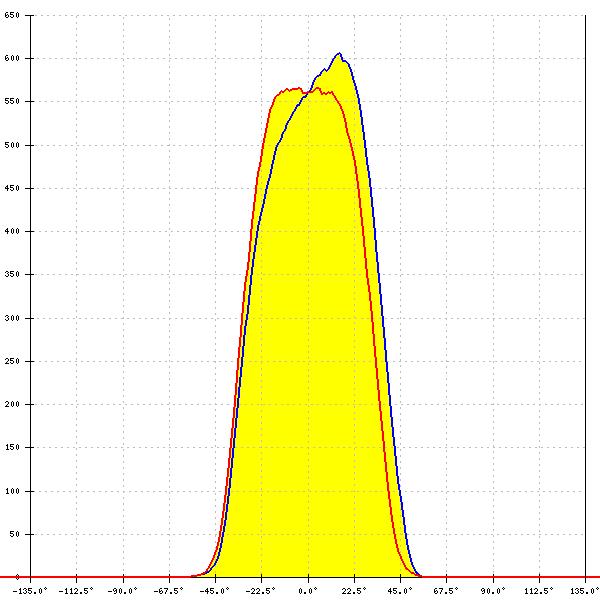

    Optical results

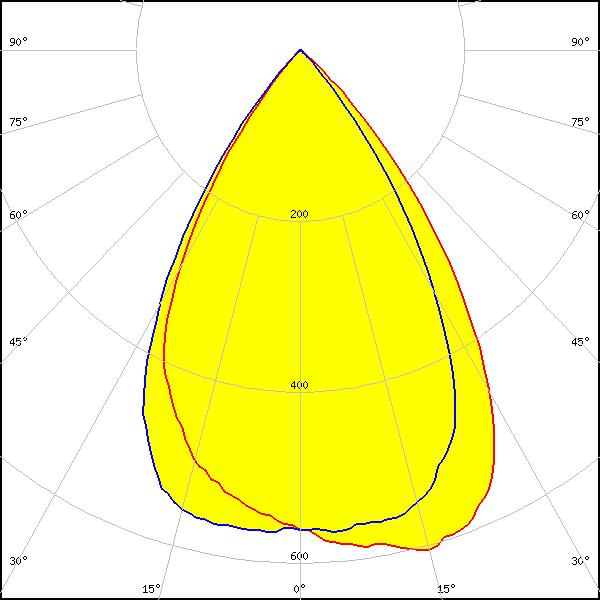

    LED: LUXEON 5050 Square LES
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: asymmetric
    Peak intensity: 0.606 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White

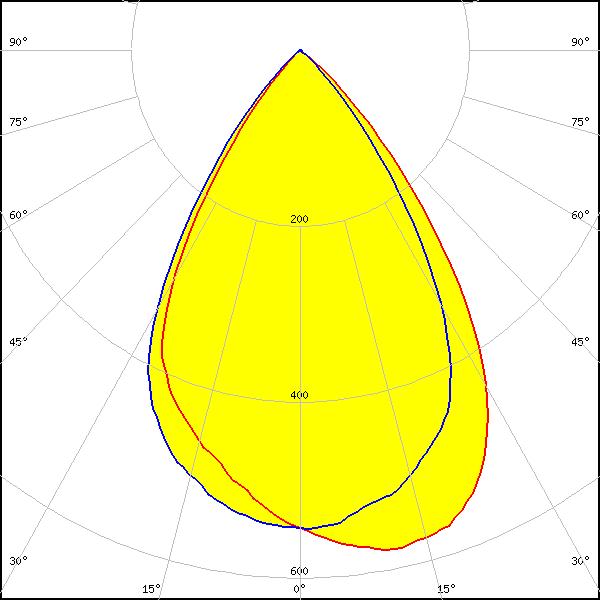

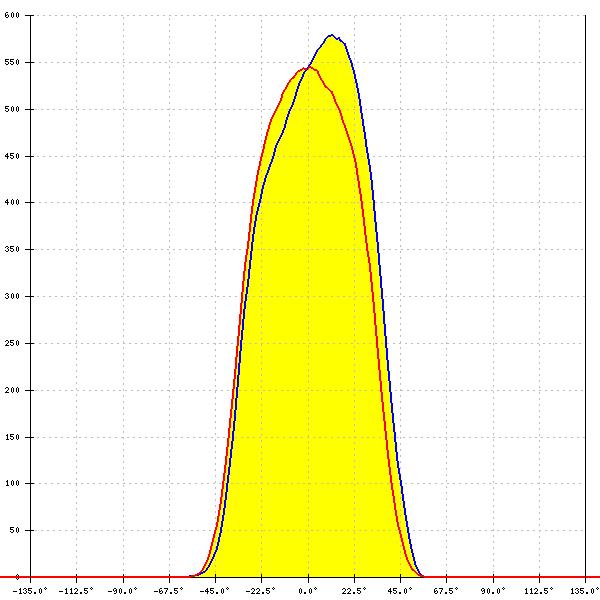

    LED: LM28xB Series
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: asymmetric
    Peak intensity: 0.579 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 2
    Light colour/type: White

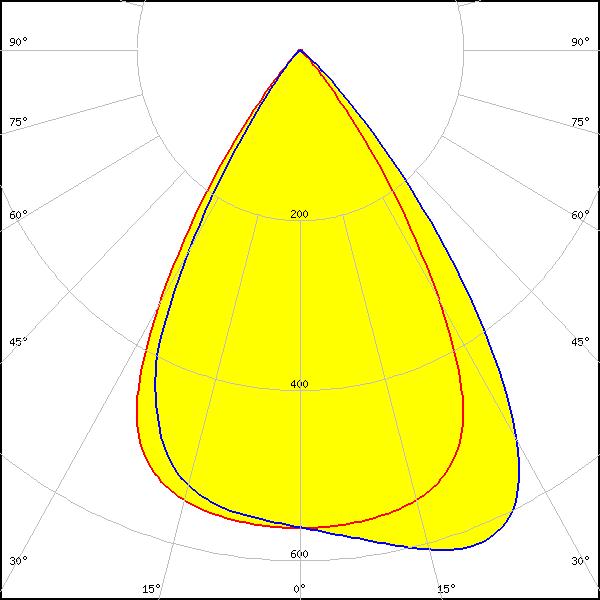

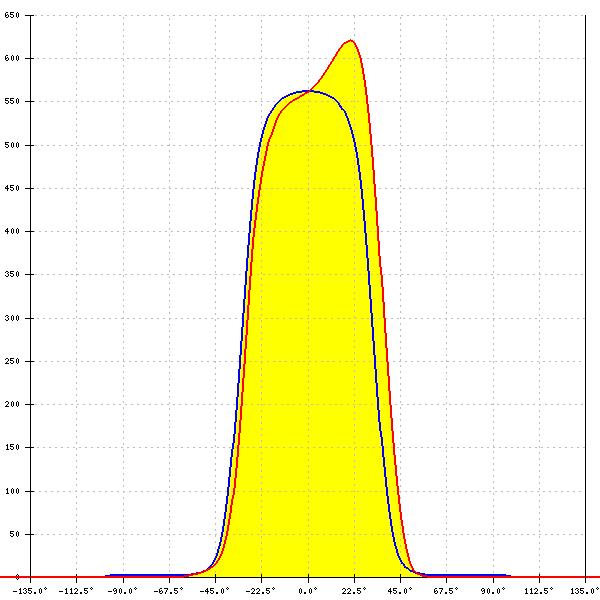

    LED: LM28xB Series
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: asymmetric
    Peak intensity: 0.621 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

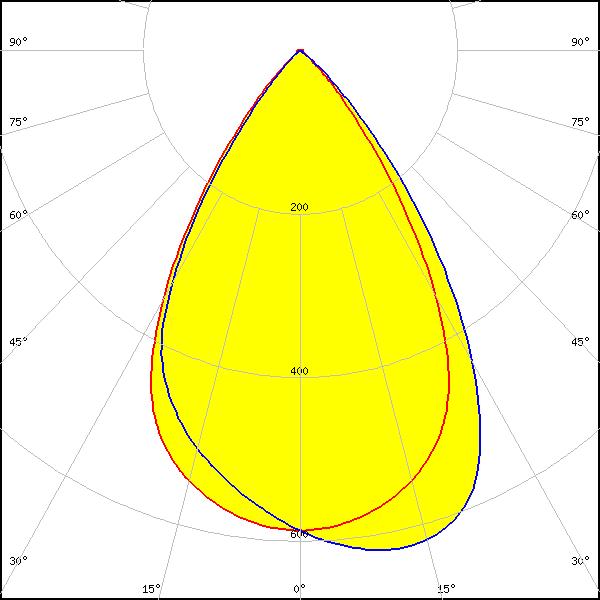

    LED: LED-St-L28W2-840-C010-06 (Daisy-Mini)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: asymmetric
    Peak intensity: 0.623 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 2
    Light colour/type: White

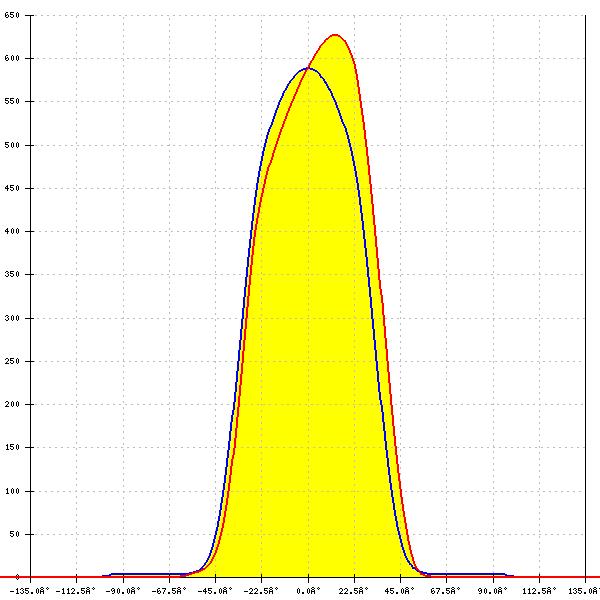

    LED: LED-St-L28W2-927-C010-965-C010-07 (Daisy-Mini)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: asymmetric
    Peak intensity: 0.628 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: LLE 20x280mm 750lm 927-965 DL PRE
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.628 cd/lm
    Efficiency: 66 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: LLE 20x280mm 750lm 9x0 DL PRE
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.626 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 2
    Light colour/type: White
