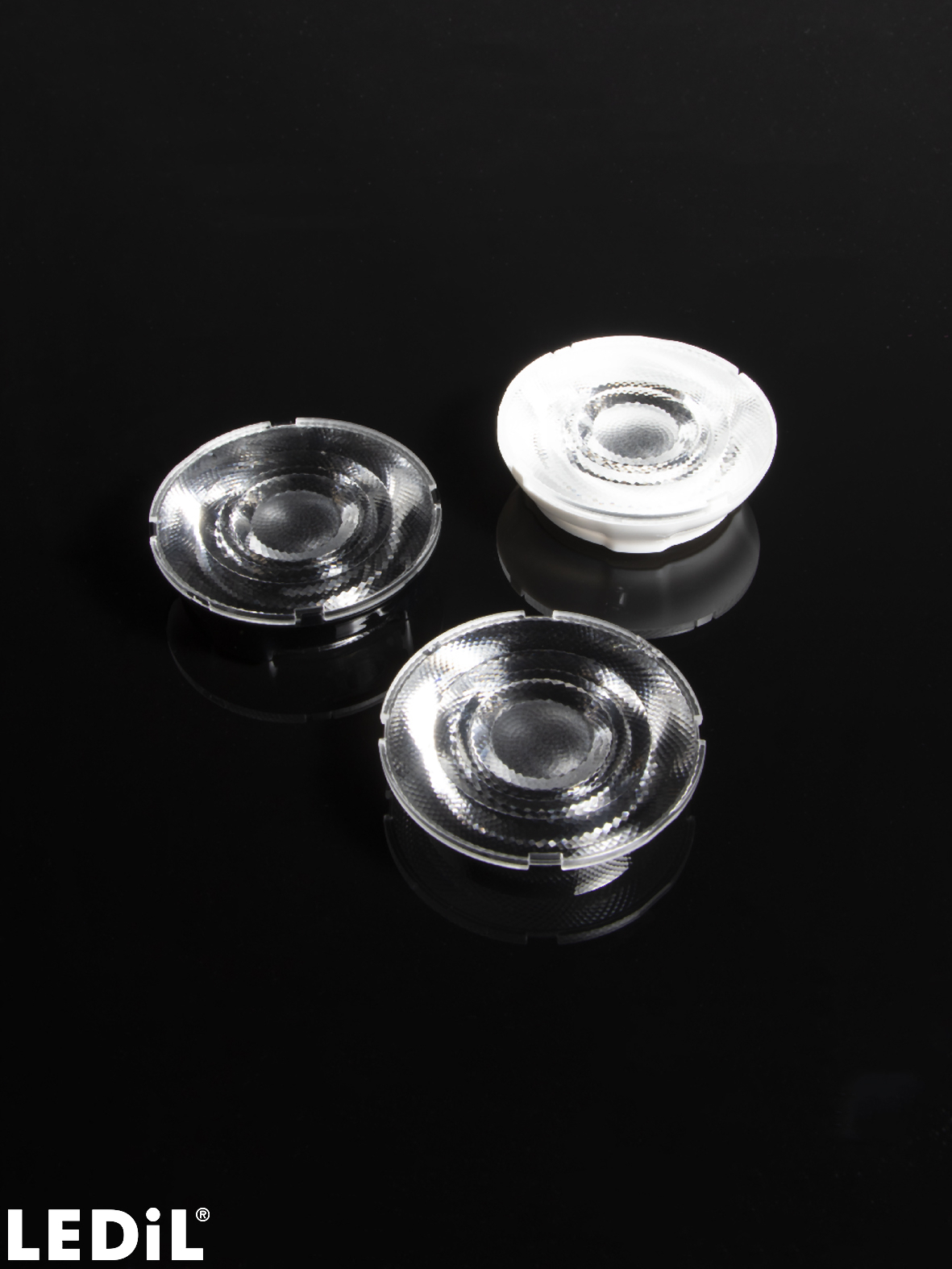

AMY-50-RS
Print
~15° spot beam with tight cutoff
Variants in PC are also available.
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Specification
-
Dimensions:50 mm
-
Height:11.00 mm
-
Fastening:socket
-
RoHS and REACH compliant:Yes
Component Materials
- AMY-50-RSSingle lensPMMA
- AMY-50-HLD2-C-WHTHolderPC
- AMY-50-HLD2-CHolderPC
- AMY-50-HLD2-B-WHTHolderPC
- AMY-50-HLD2-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Single lens
- C18515_AMY-50-RSclearQuantity in box:690 pcsBox size:480 x 280 x 300 mmBox weight:9.70 kgMPQ:30 pcsMOQ:120 pcsMOQ Size:480 x 280 x 80 mmMOQ Weight:1.80 kg
- Assembly
(single lens, holder)
- CP19140_AMY-50-RS-B2
black,Holder B- CP19160_AMY-50-RS-B2-WHT
white,Holder B- CP19131_AMY-50-RS-C2
black,Holder C- CP19149_AMY-50-RS-C2-WHT
white,Holder CQuantity in box:510 pcsBox size:480 x 280 x 300 mmBox weight:8.90 kgMPQ:30 pcsMOQ:120 pcsMOQ Size:480 x 280 x 100 mmMOQ Weight:2.30 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

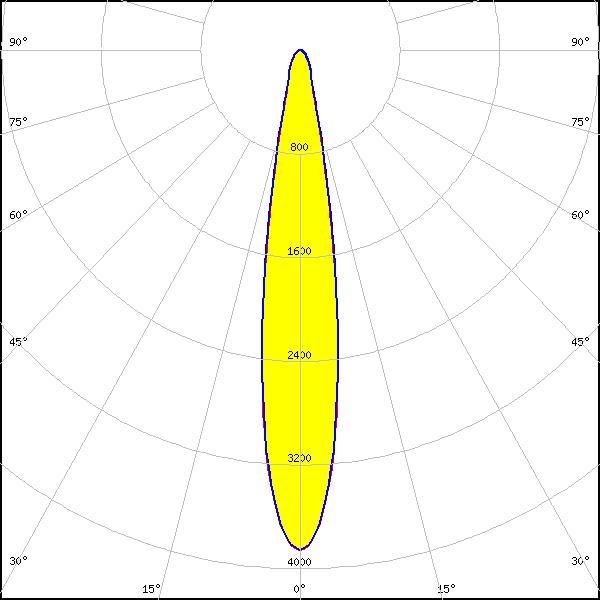

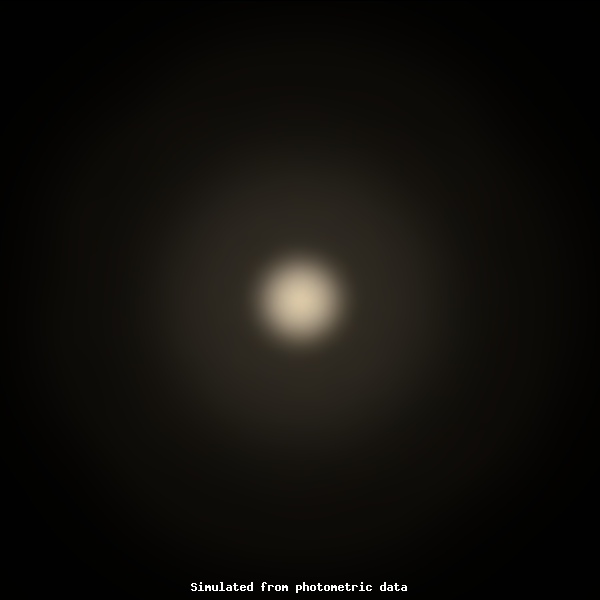

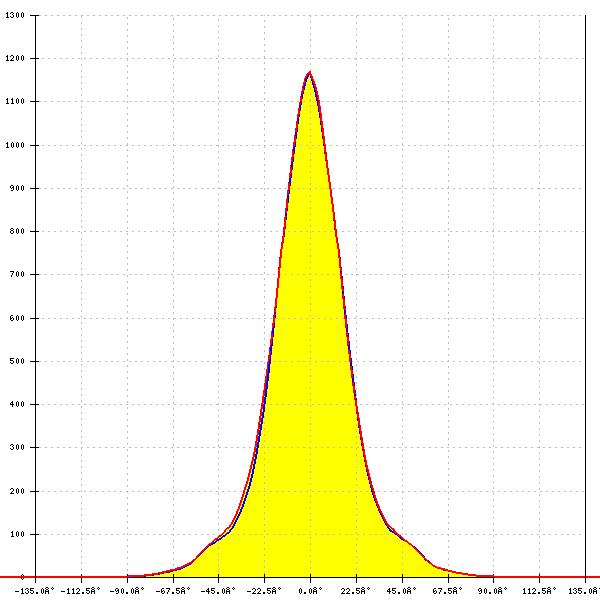

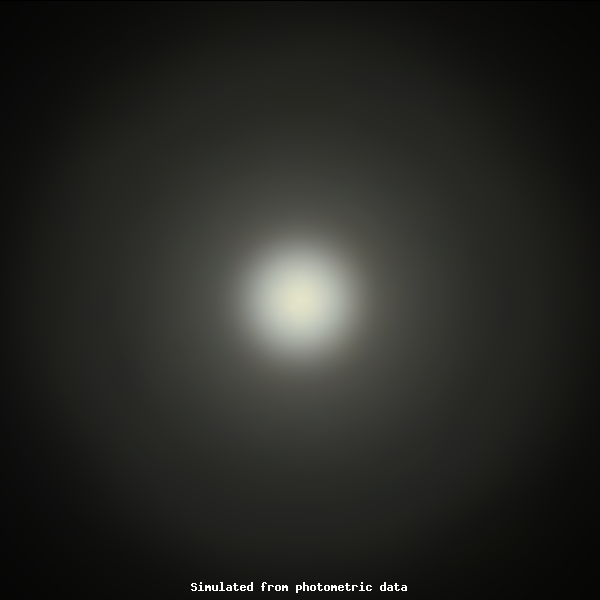

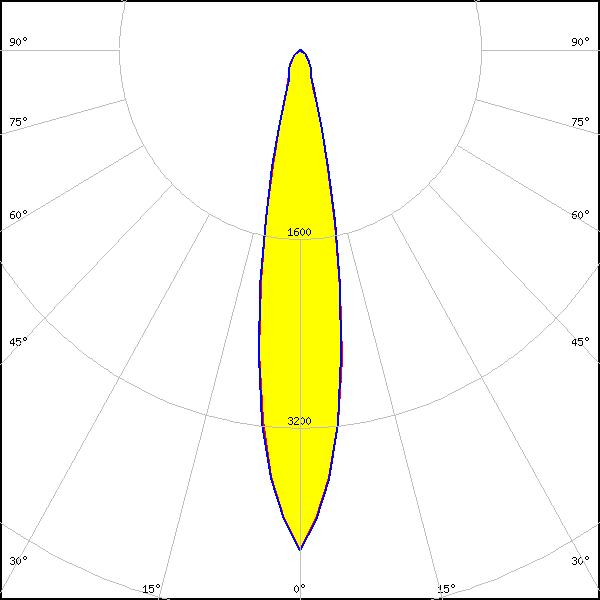

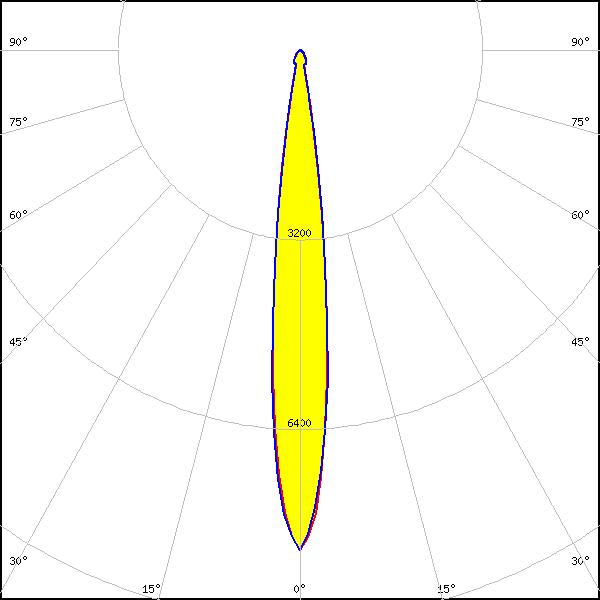

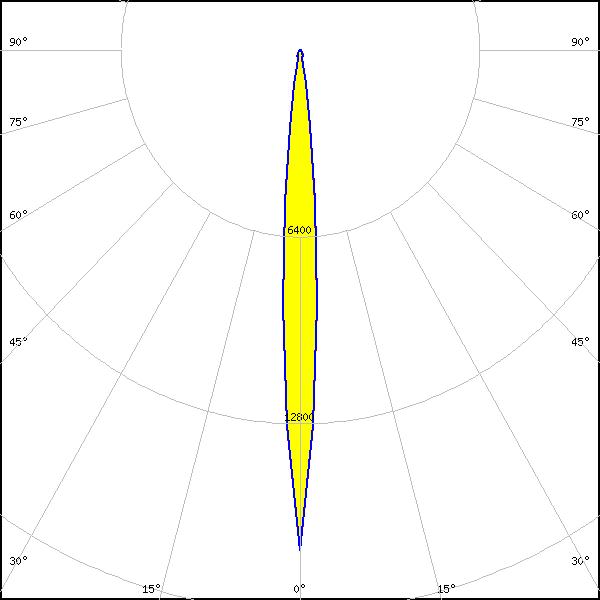

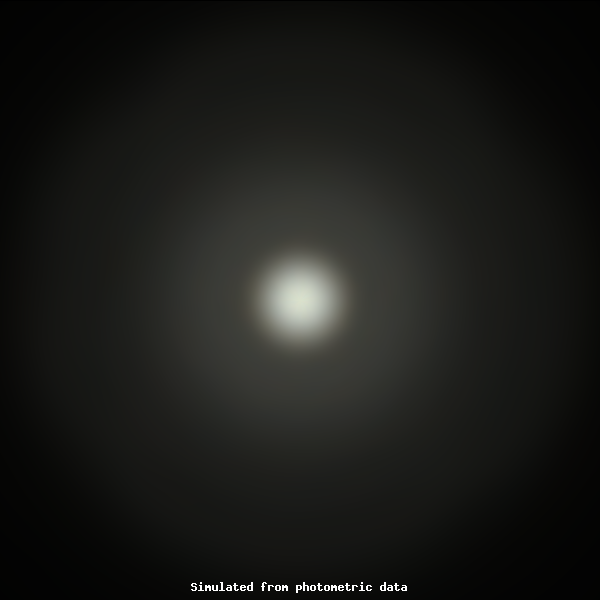

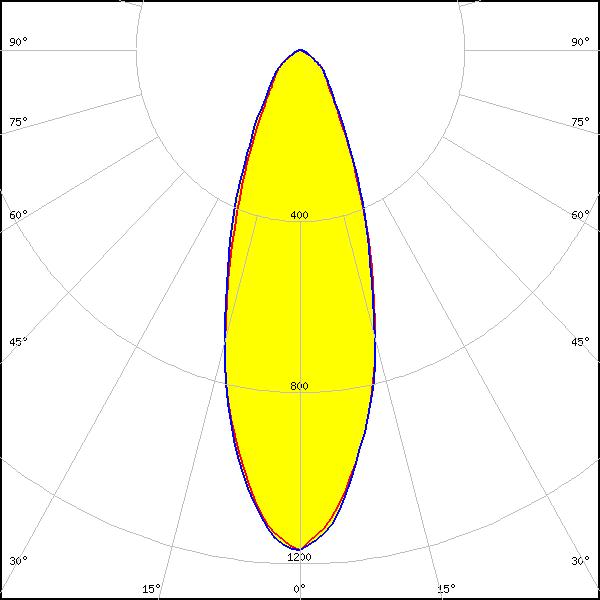

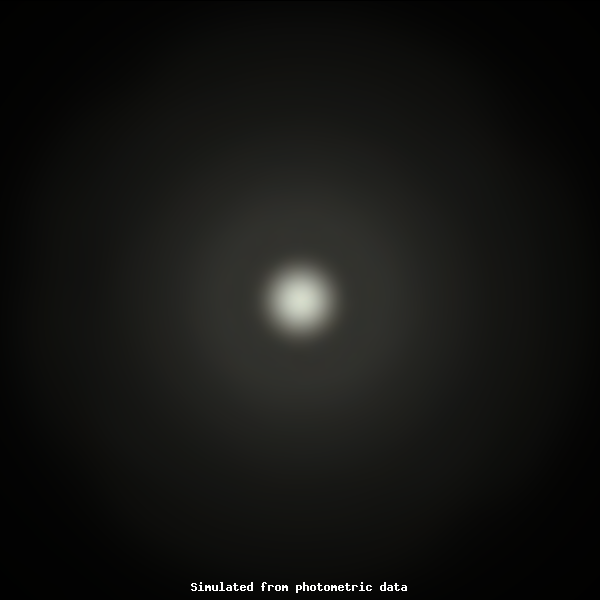

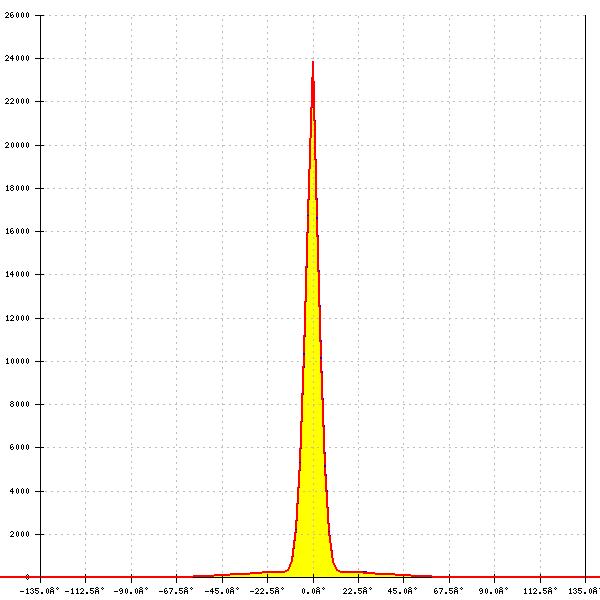

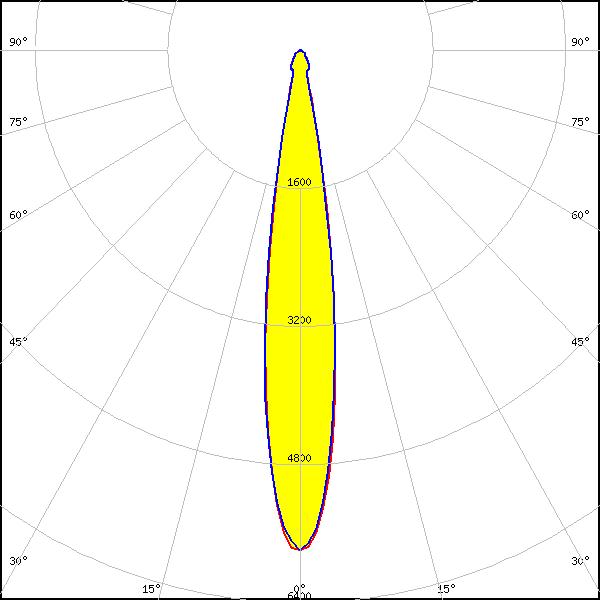

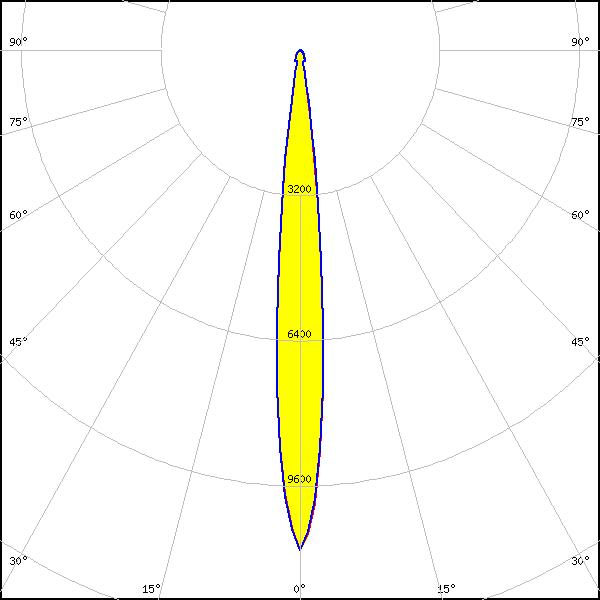

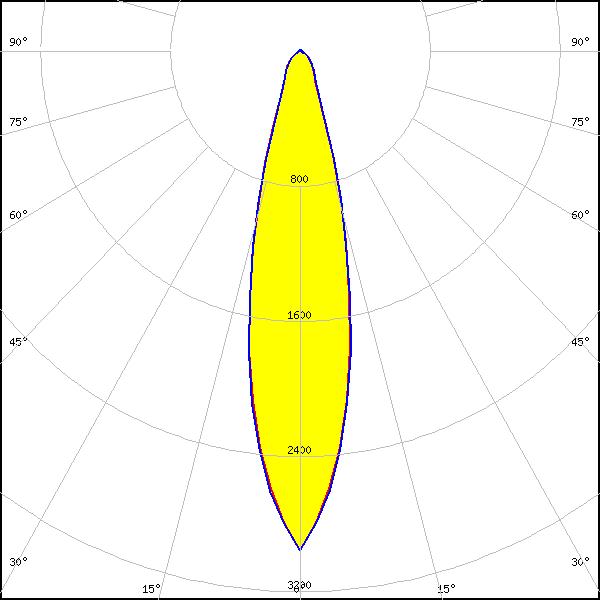

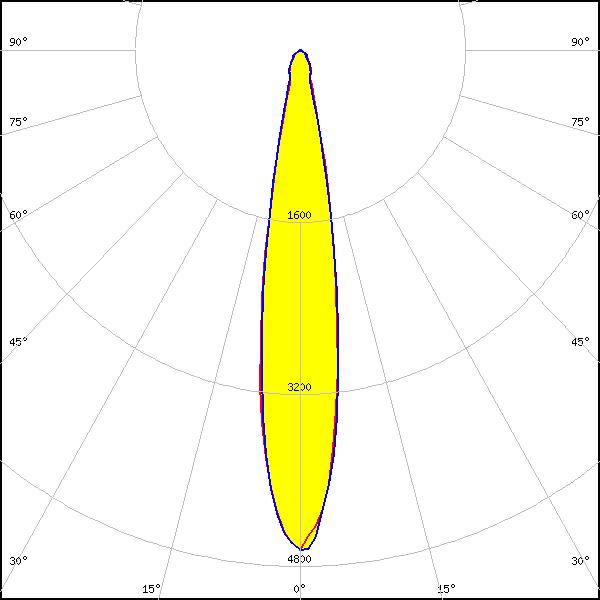

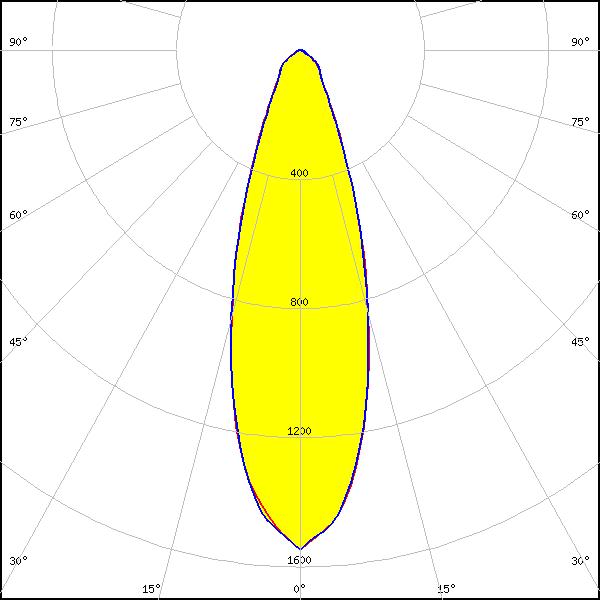

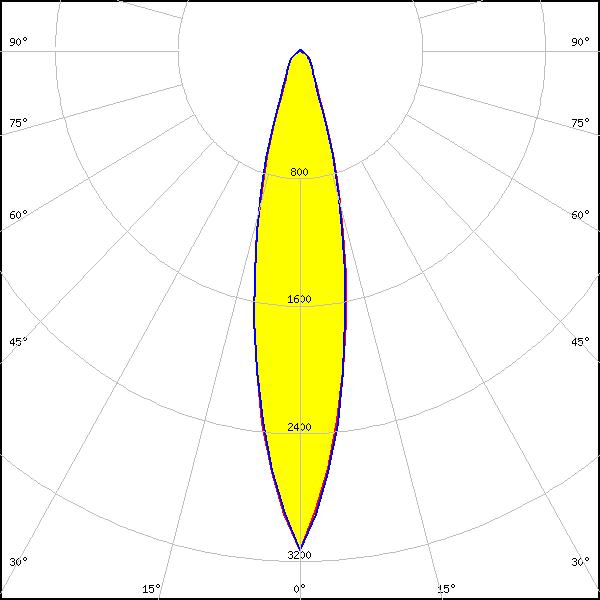

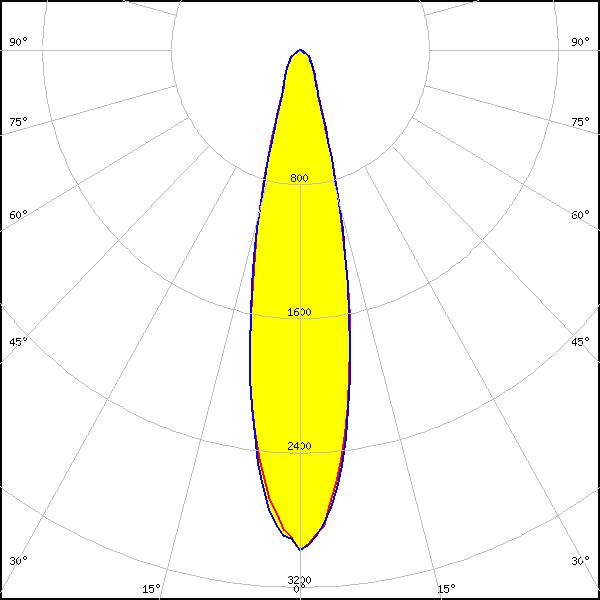

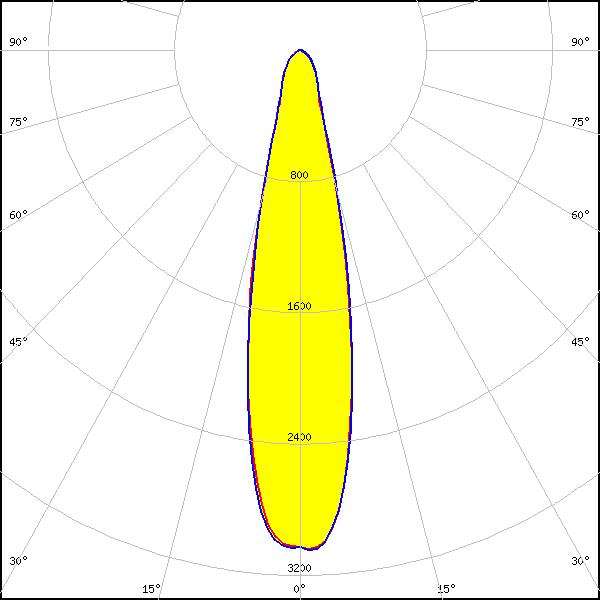

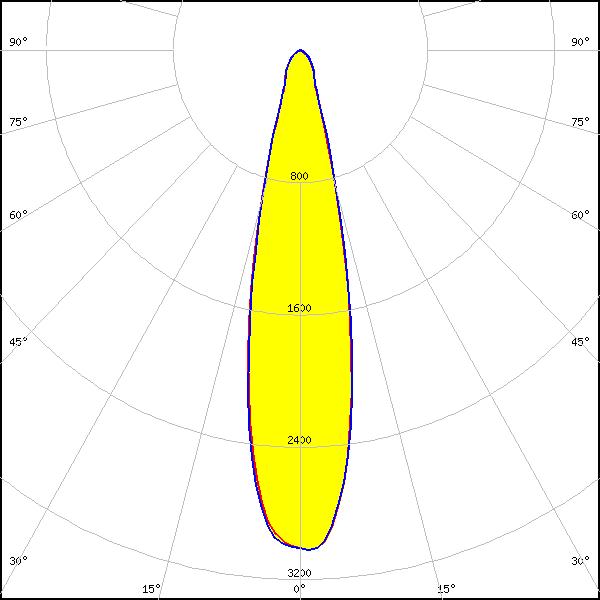

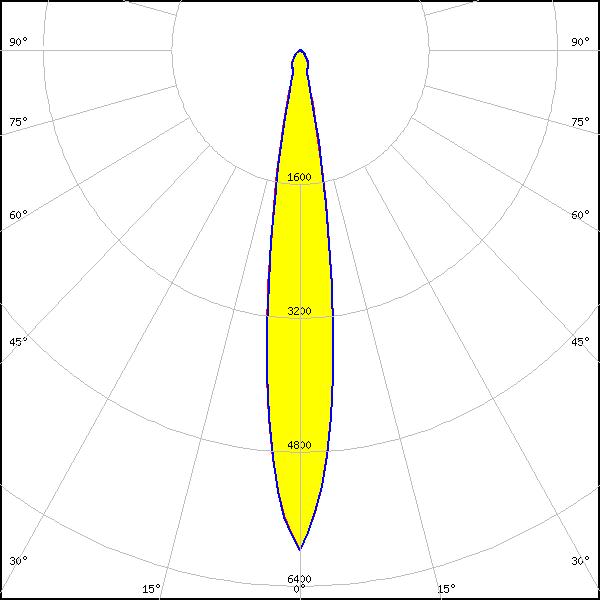

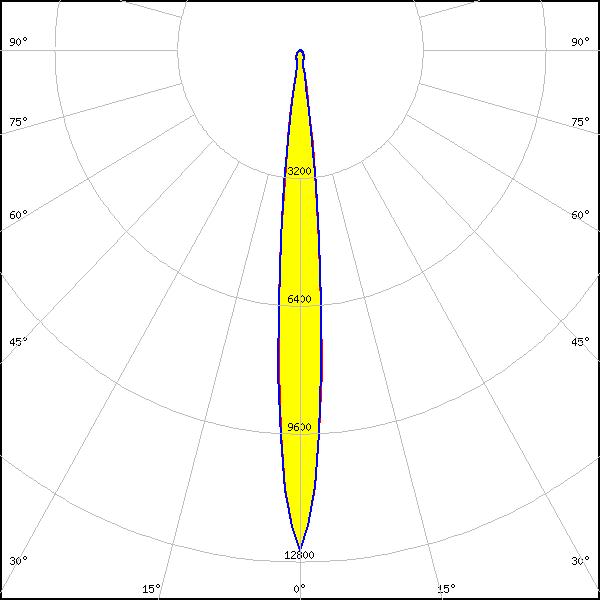

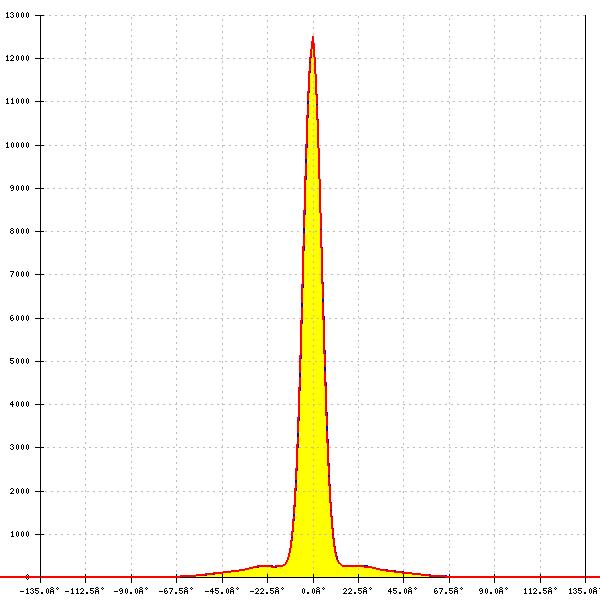

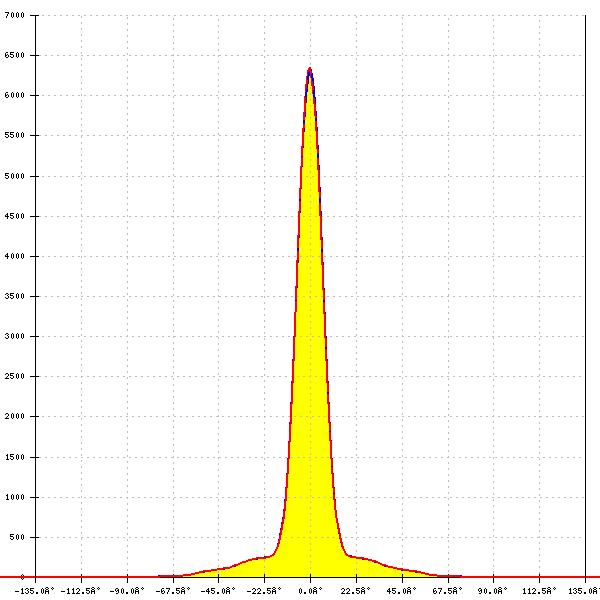

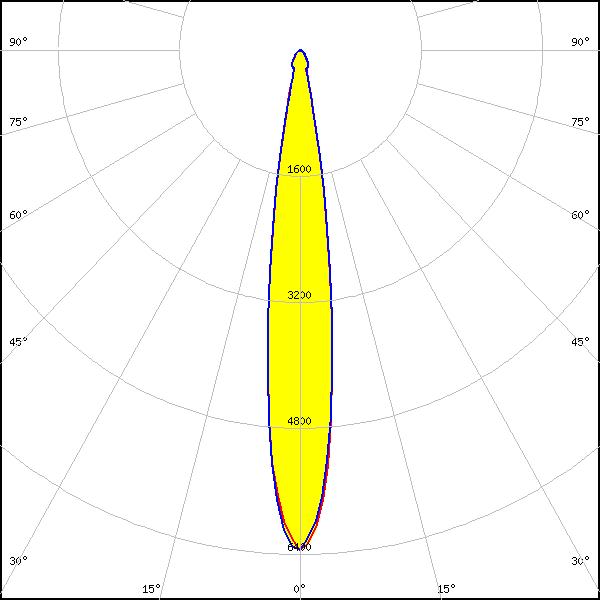

Optical results

LED:
BXRV-D10-RGBW2000-A3
Ordering code: CP19131_AMY-50-RS-C2
LES size: 10.0 mm
Required components:
FWHM:
18°
FWTM:
35°
Peak intensity:
3.858 cd/lm
Efficiency:
77 %
LEDs/each optic:
28
Light colour/type:
RGBW

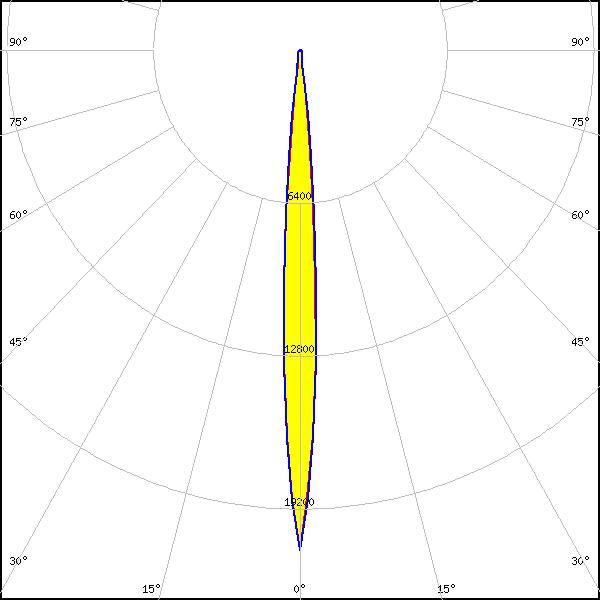

LED:

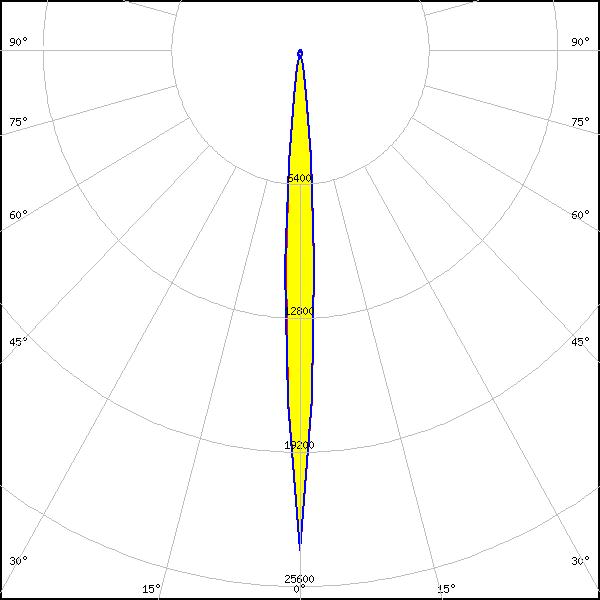

V3 HD Gen 8
Ordering code: CP19140_AMY-50-RS-B2
LES size: 3.8 mm
Required components:
FWHM:
8°
FWTM:
16°
Peak intensity:
20.931 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

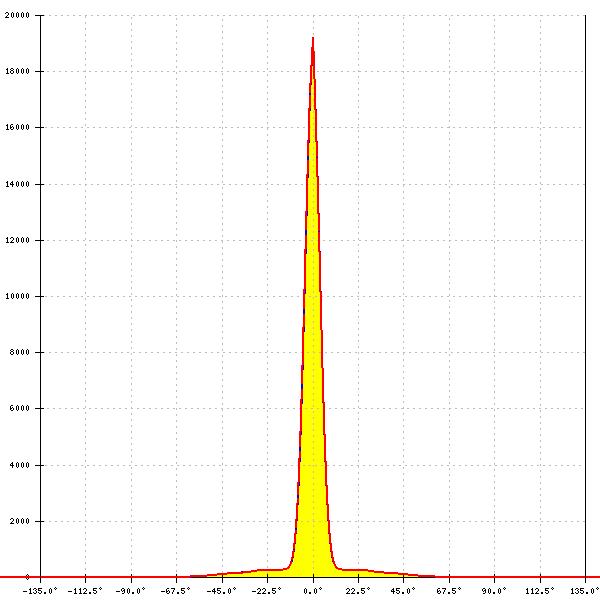

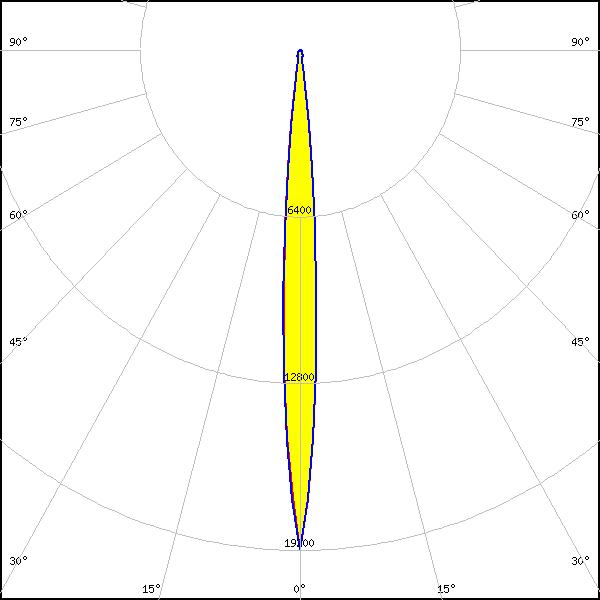

LED:
V4 HD Gen 7
Ordering code: CP19140_AMY-50-RS-B2
LES size: 5.2 mm
Required components:
FWHM:
8°
FWTM:
16°
Peak intensity:
19.207 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:

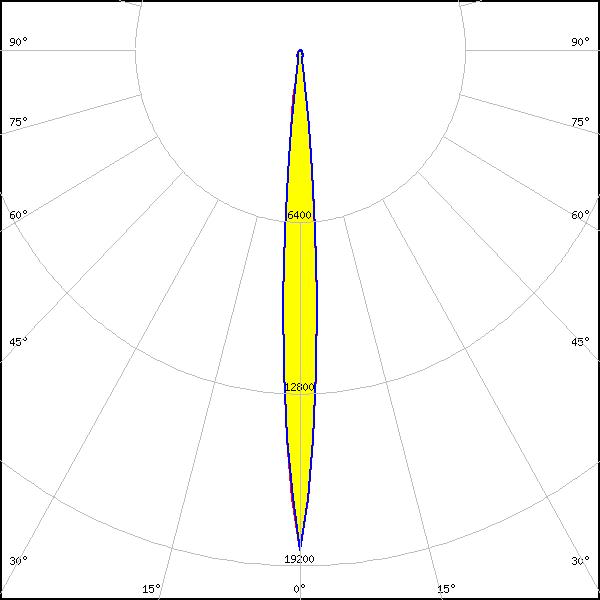

V4 HD Gen 8
Ordering code: CP19140_AMY-50-RS-B2
LES size: 4.8 mm
Required components:
FWHM:
8°
FWTM:
16°
Peak intensity:
18.628 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

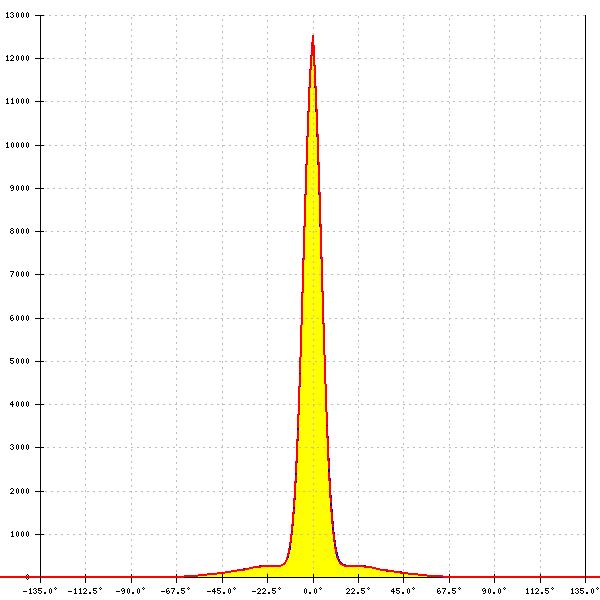

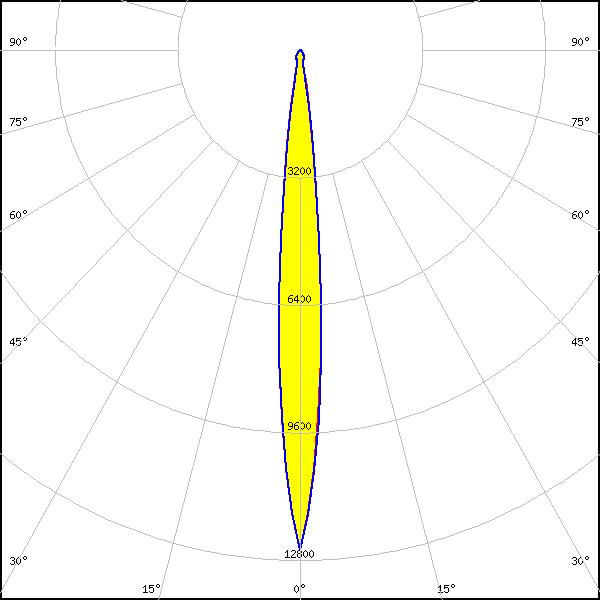

LED:
V6 HD Gen 7
Ordering code: CP19140_AMY-50-RS-B2
LES size: 7.0 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
12.546 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

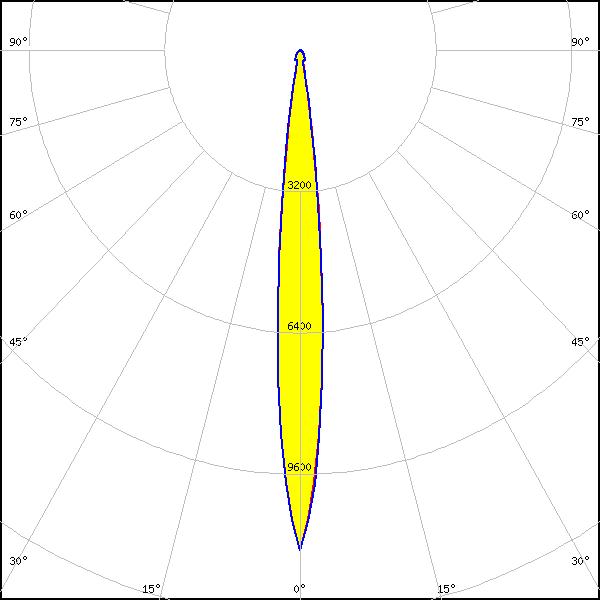

LED:
V6 HD Gen 8
Ordering code: CP19149_AMY-50-RS-C2-WHT
LES size: 6.6 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
11.321 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

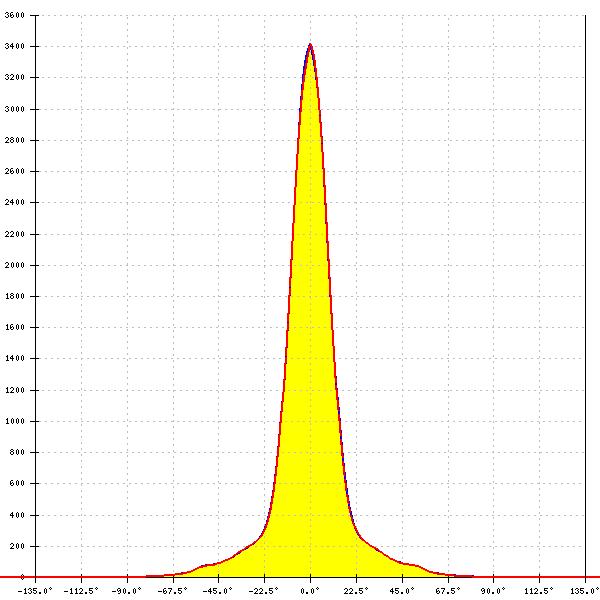

LED:

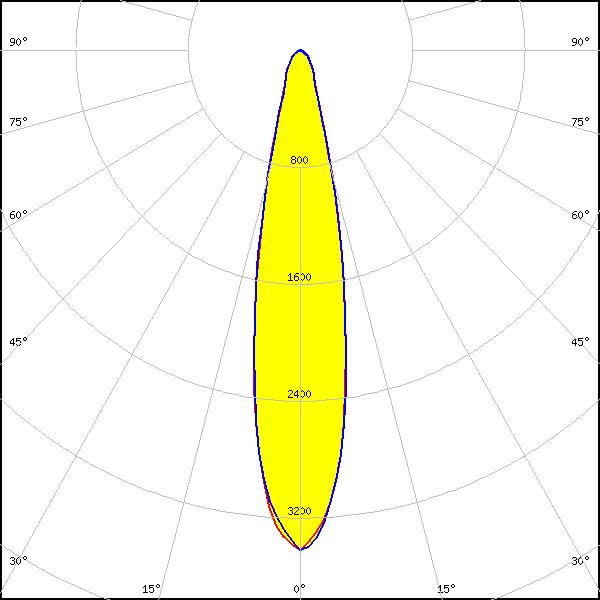

VERO13
Ordering code: CP19140_AMY-50-RS-B2
LES size: 13.4 mm
Required components:
FWHM:
22°
FWTM:
42°
Peak intensity:
3.430 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

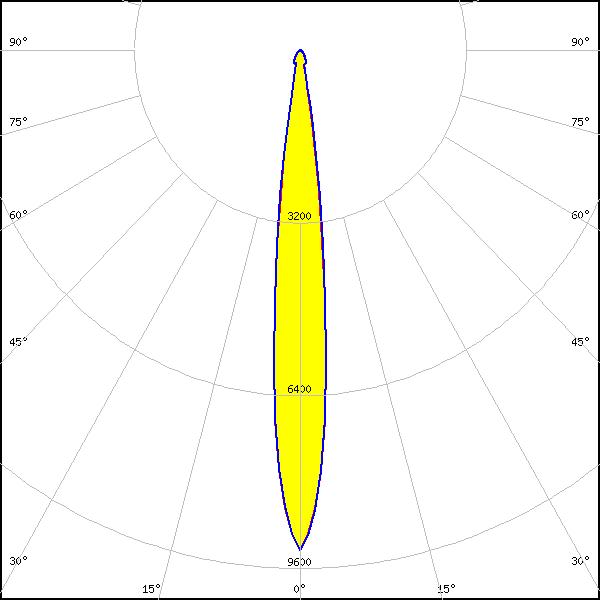

LED:
Vesta DTW 6mm
Ordering code: CP19140_AMY-50-RS-B2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
12°
FWTM:
22°
Peak intensity:
9.264 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

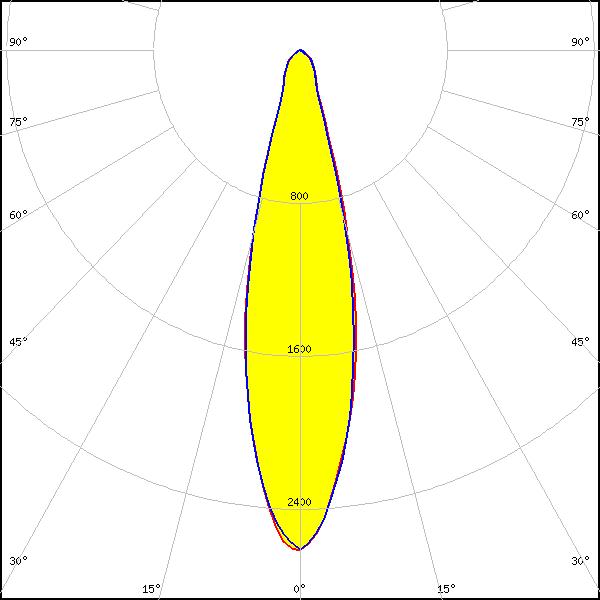

LED:
Vesta SE 13mm TW
Ordering code: CP19131_AMY-50-RS-C2
LES size: 14.3 mm
Required components:
FWHM:
26°
FWTM:
46°
Peak intensity:
2.615 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
Tunable White

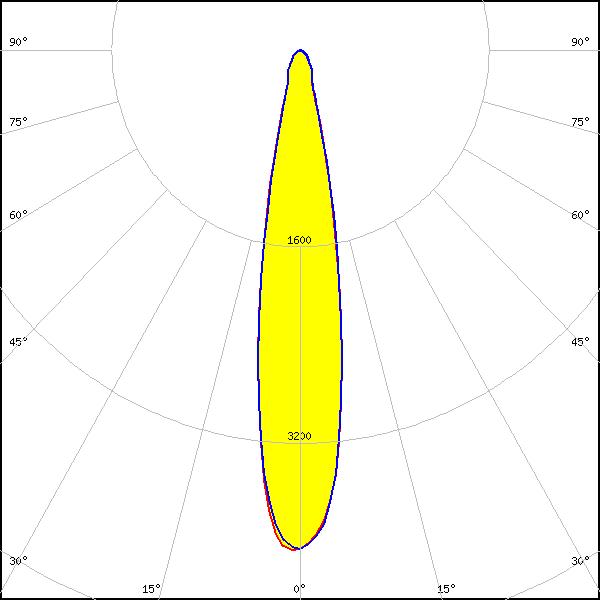

LED:

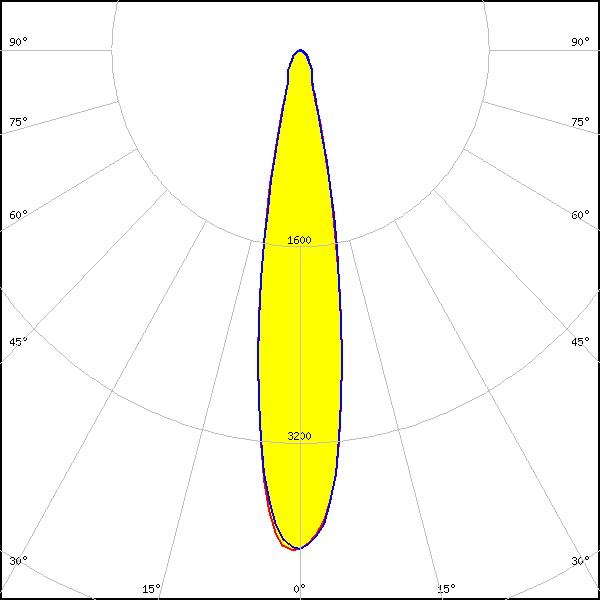

CLU02Q Type-F
Ordering code: CP19131_AMY-50-RS-C2
LES size: 9.7 mm
Required components:
FWHM:
20°
FWTM:
36°
Peak intensity:
4.097 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

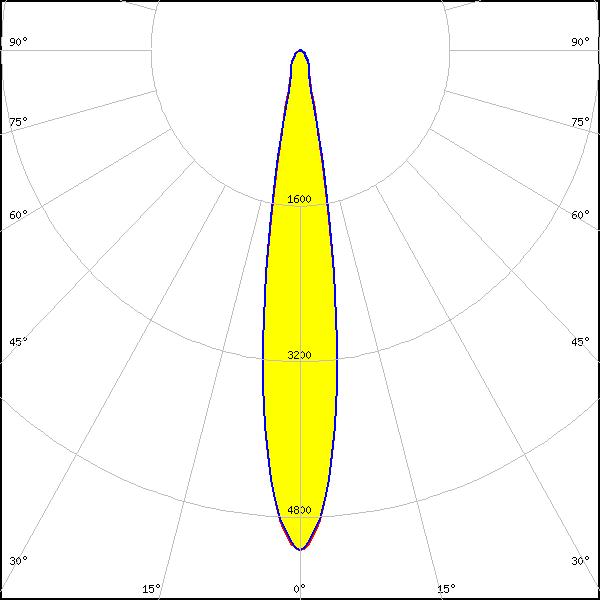

LED:
CLU02x (LES10)
Ordering code: CP19140_AMY-50-RS-B2
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
31°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:

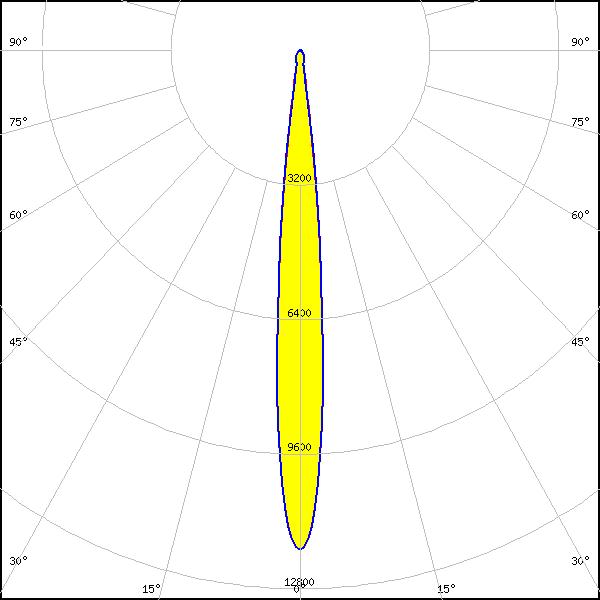

CLU700/701/702/703
Ordering code: CP19140_AMY-50-RS-B2
LES size: 6.0 mm
Required components:
FWHM:
11°
FWTM:
19°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:

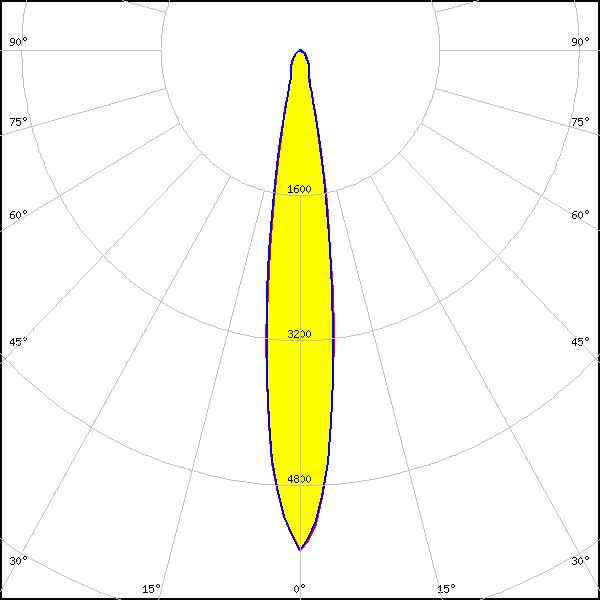

CLU713 Type-F
Ordering code: CP19131_AMY-50-RS-C2
LES size: 8.5 mm
Required components:
FWHM:
16°
FWTM:
31°
Peak intensity:
5.513 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:

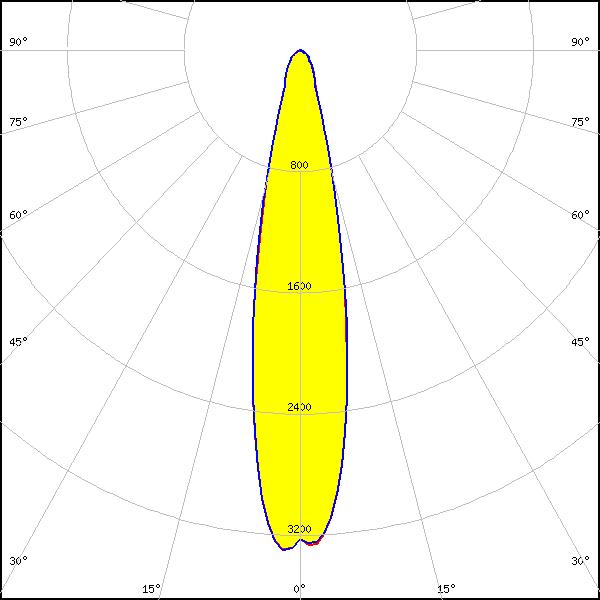

CLU723 Type-F
Ordering code: CP19131_AMY-50-RS-C2
LES size: 11.0 mm
Required components:
FWHM:
22°
FWTM:
43°
Peak intensity:
3.351 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CHA0410
Ordering code: CP19131_AMY-50-RS-C2
LES size: 4.2 mm
Required components:
FWHM:
8°
FWTM:
16°
Peak intensity:
18.937 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:

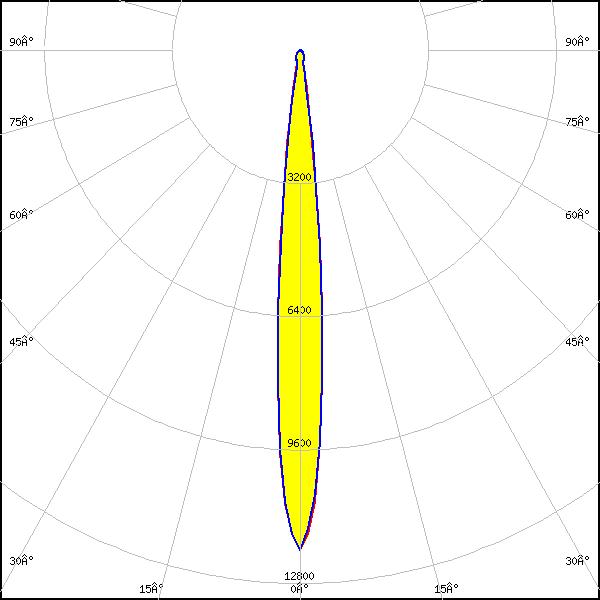

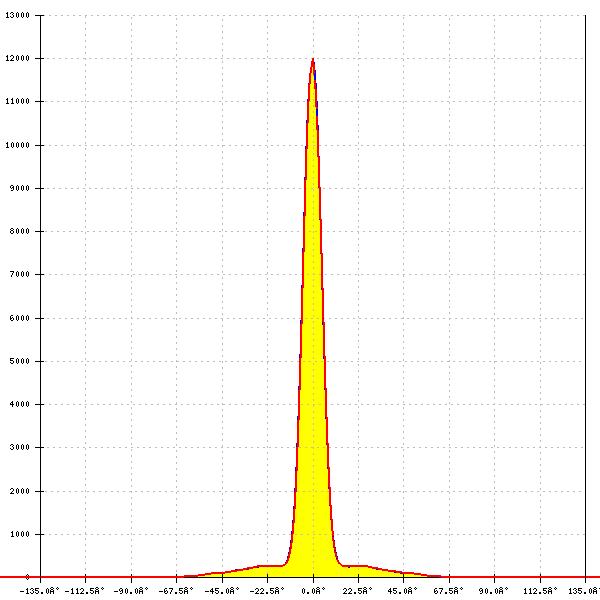

CHA0612
Ordering code: CP19131_AMY-50-RS-C2
LES size: 6.0 mm
Required components:
FWHM:
10°
FWTM:
19°
Peak intensity:
12.010 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:

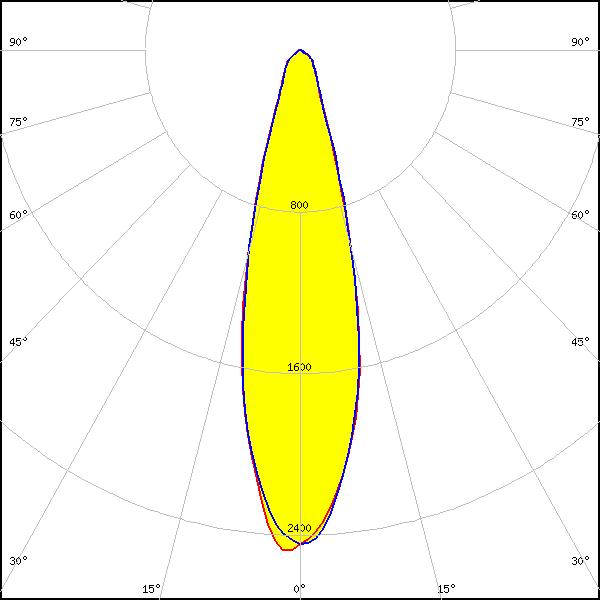

CMU15xx
Ordering code: CP19131_AMY-50-RS-C2
LES size: 14.5 mm
Required components:
FWHM:
27°
FWTM:
51°
Peak intensity:
2.475 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

LED:

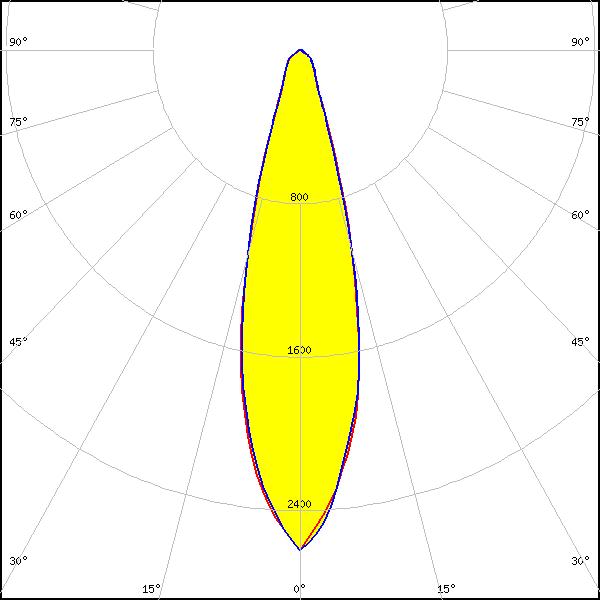

LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP19131_AMY-50-RS-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
28°
FWTM:
50°
Peak intensity:
2.608 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:

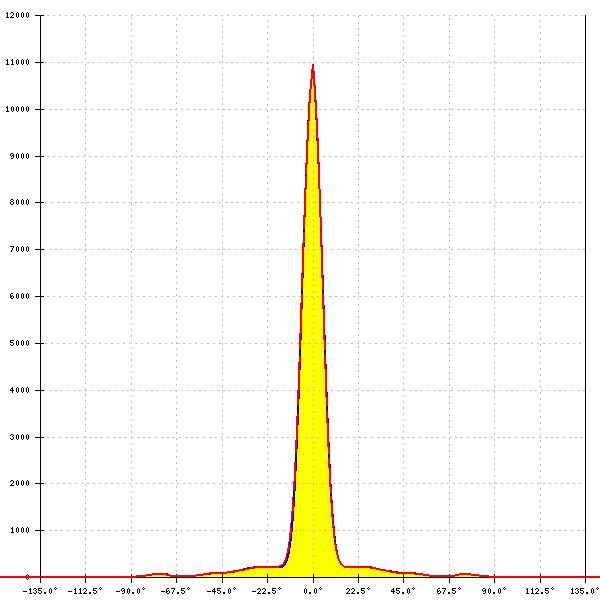

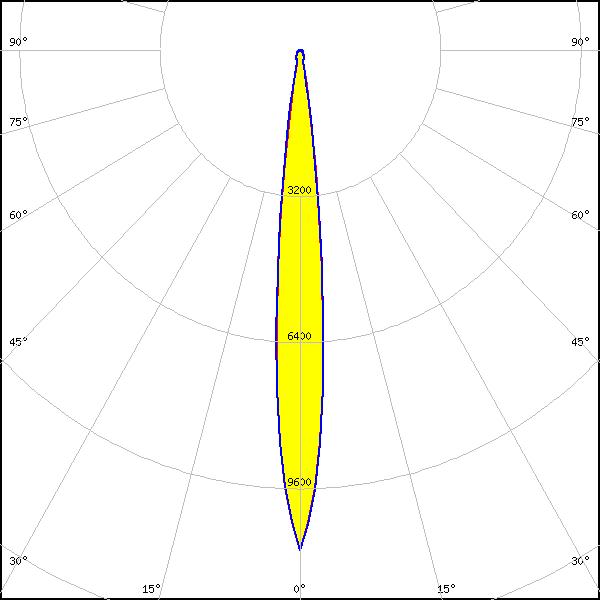

LUXEON 7070
Ordering code: C18515_AMY-50-RS
LES size: 0.0 mm
FWHM:
11°
FWTM:
20°
Peak intensity:
10.946 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

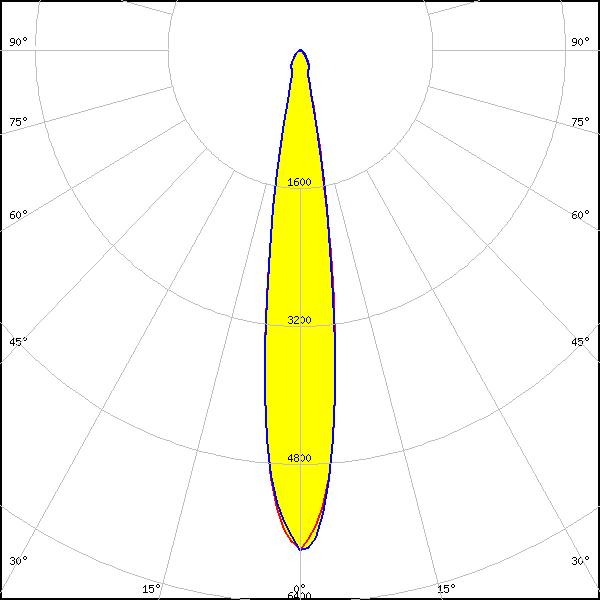

LED:
LUXEON CoB 1204HD
Ordering code: CP19140_AMY-50-RS-B2
LES size: 9.0 mm
Required components:
FWHM:
16°
FWTM:
30°
Peak intensity:
5.796 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:

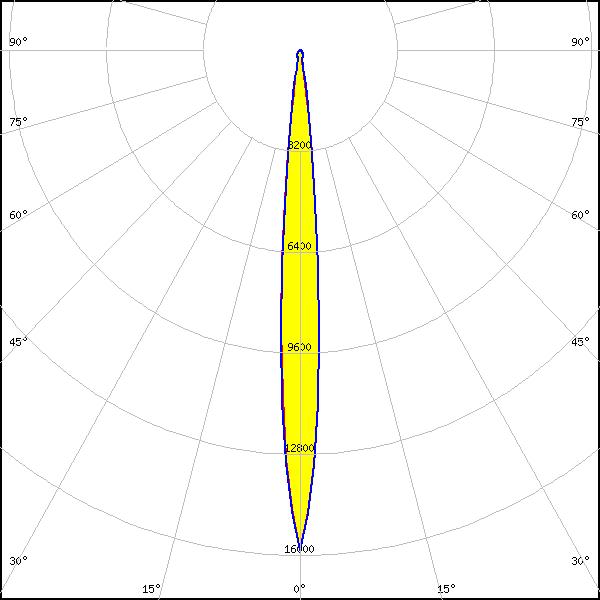

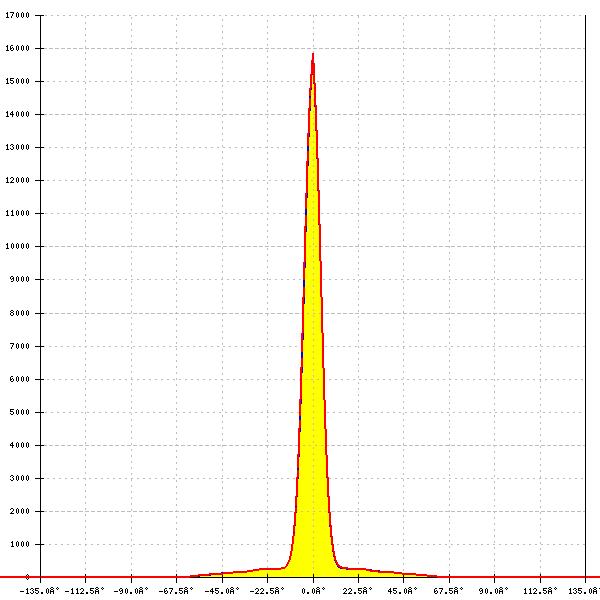

LUXEON CX Plus CoB - HD S01H4
Ordering code: CP19140_AMY-50-RS-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
9°
FWTM:
18°
Peak intensity:
15.840 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:

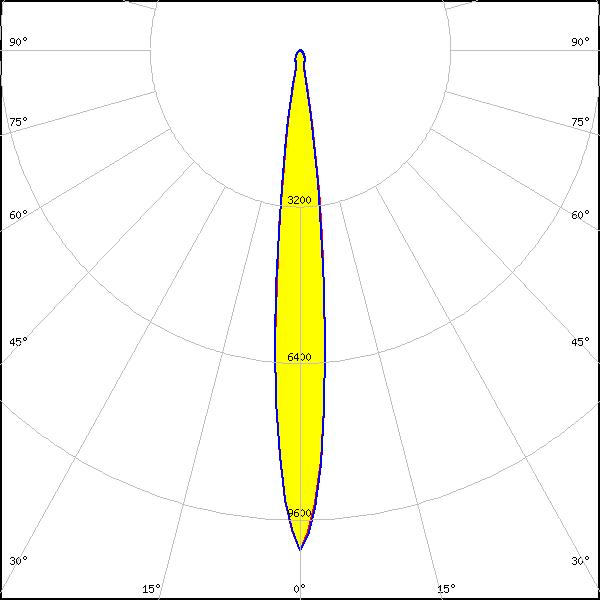

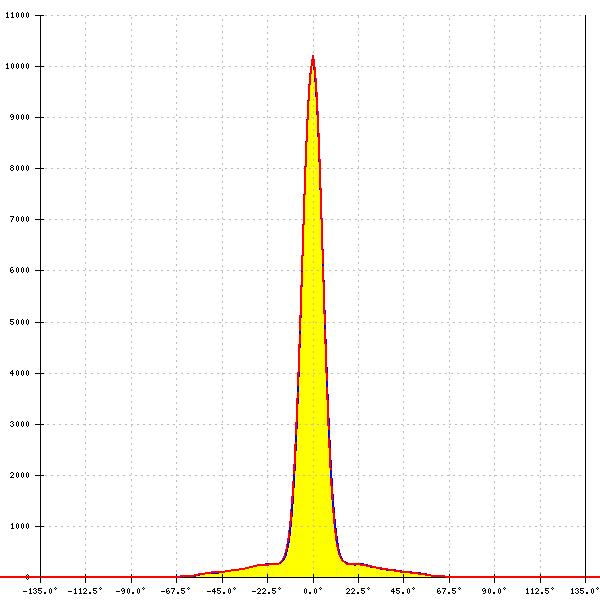

LUXEON CX Plus CoB - HD S02H6
Ordering code: CP19140_AMY-50-RS-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
12°
FWTM:
22°
Peak intensity:
10.220 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

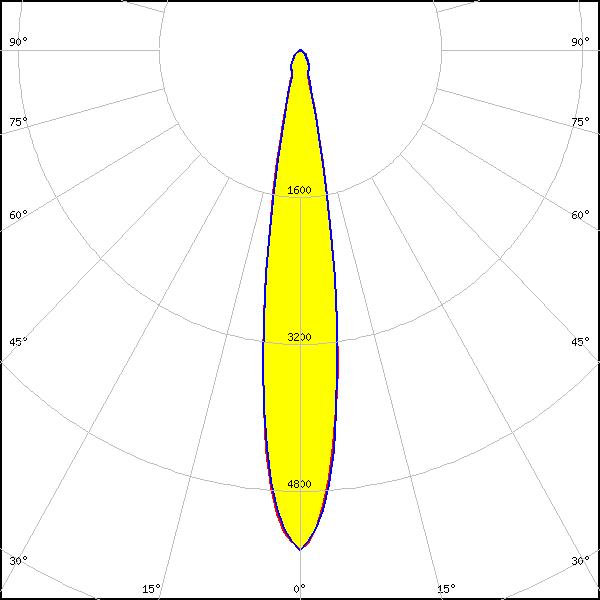

LUXEON CX Plus CoB - HD S04H9
Ordering code: CP19140_AMY-50-RS-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
17°
FWTM:
30°
Peak intensity:
5.473 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP19131_AMY-50-RS-C2
LES size: 6.0 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
11.805 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

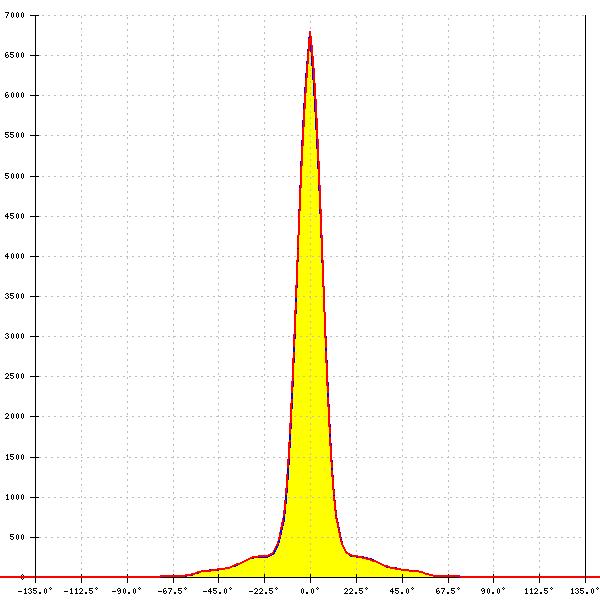

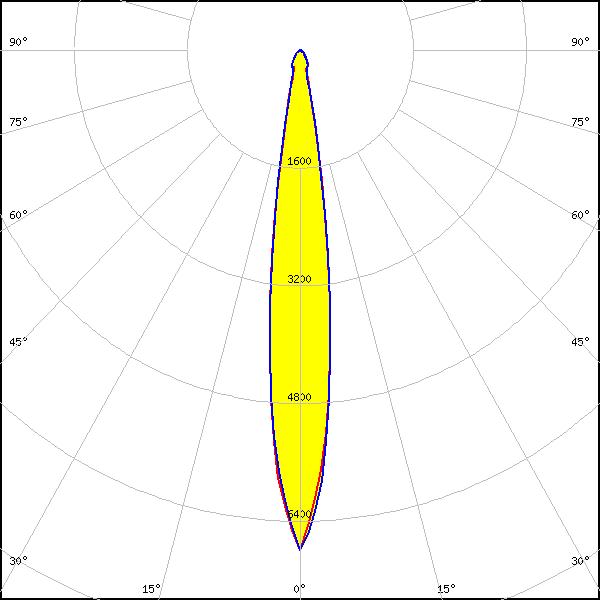

LED:
CHM-9 XH (19x19)
Ordering code: CP19131_AMY-50-RS-C2
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
27°
Peak intensity:
6.796 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

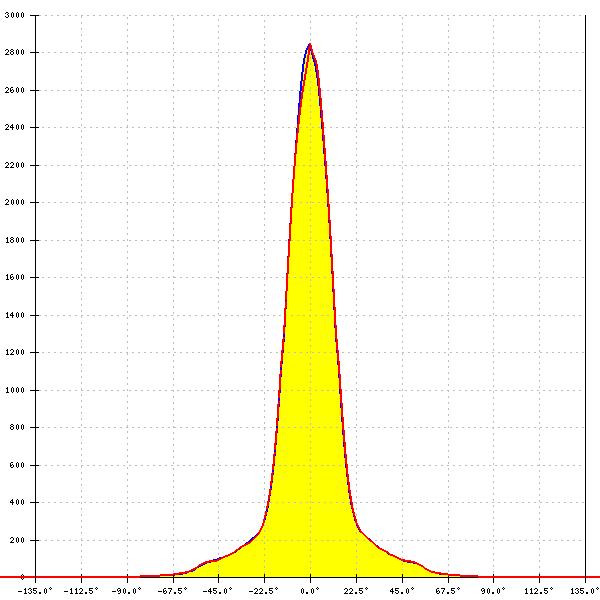

LED:

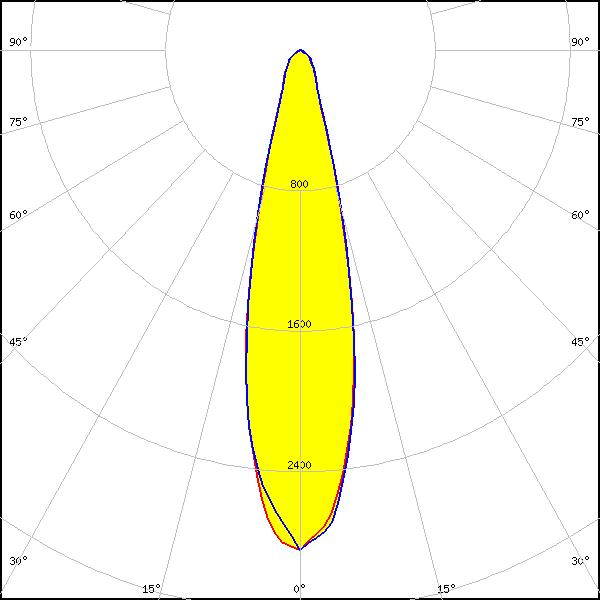

CTM-14 (Tunable White) Gen2
Ordering code: CP19131_AMY-50-RS-C2
LES size: 13.9 mm
Required components:
FWHM:
24°
FWTM:
46°
Peak intensity:
2.932 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White

LED:

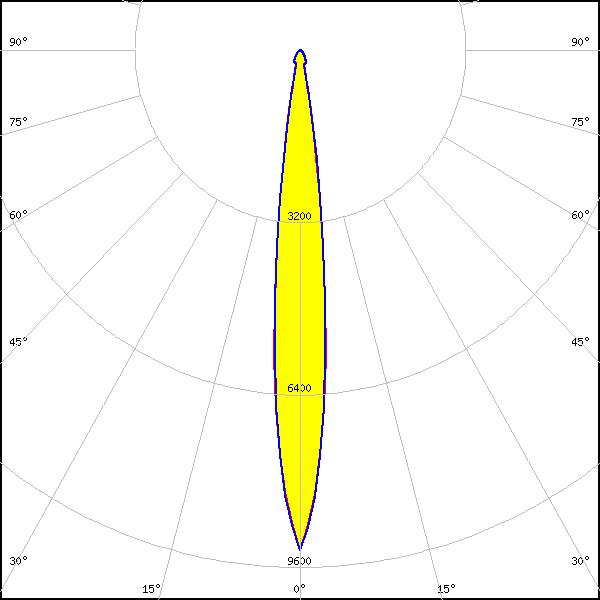

CTM-6 (Tunable White) Gen2
Ordering code: CP19131_AMY-50-RS-C2
LES size: 6.8 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
9.283 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White

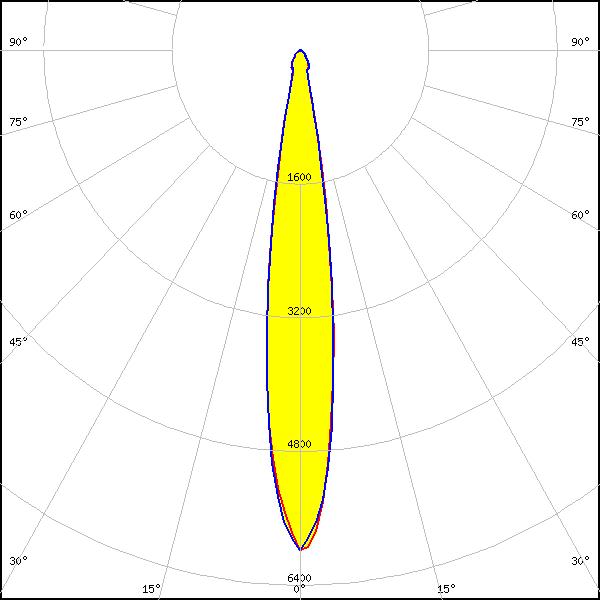

LED:
CTM-9 (Tunable White) Gen2
Ordering code: CP19131_AMY-50-RS-C2
LES size: 9.5 mm
Required components:
FWHM:
16°
FWTM:
28°
Peak intensity:
5.986 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White

LED:
CxM-6 (13.5x13.5)
Ordering code: CP19140_AMY-50-RS-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
11°
FWTM:
20°
Peak intensity:
10.939 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CxM-9 (13.5x13.5)
Ordering code: CP19160_AMY-50-RS-B2-WHT
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
30°
Peak intensity:
5.171 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB J-Type
Ordering code: CP19131_AMY-50-RS-C2
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM:
27°
FWTM:
50°
Peak intensity:
2.605 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB L-Type (LES 9)
Ordering code: CP19131_AMY-50-RS-C2
LES size: 8.7 mm
Required components:
FWHM:
14°
FWTM:
28°
Peak intensity:
6.635 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB S-Type (LES 6)
Ordering code: CP19140_AMY-50-RS-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
10°
FWTM:
20°
Peak intensity:
12.661 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

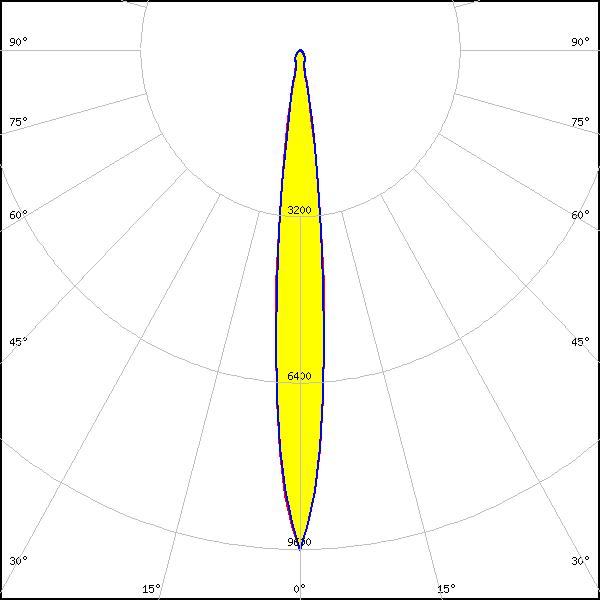

COB S-Type (LES 7)
Ordering code: CP19140_AMY-50-RS-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Hekla
FWHM:
12°
FWTM:
22°
Peak intensity:
9.622 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB S-Type (LES 7)
Ordering code: CP19140_AMY-50-RS-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
12°
FWTM:
22°
Peak intensity:
10.233 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

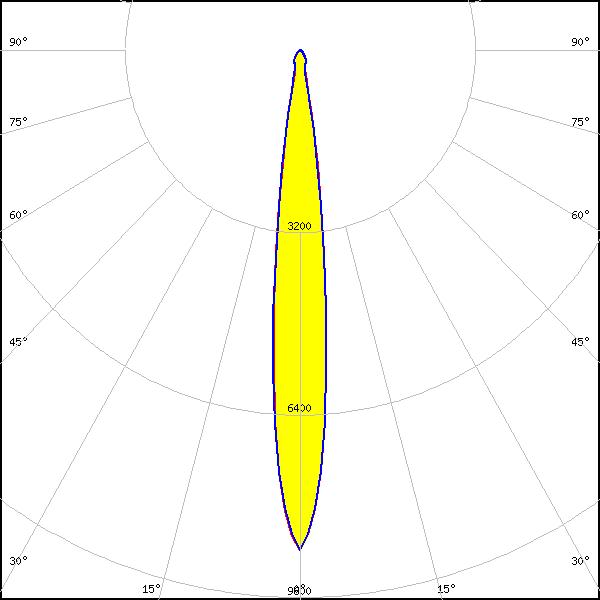

NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP19131_AMY-50-RS-C2
LES size: 7.0 mm
Required components:
FWHM:
12°
FWTM:
23°
Peak intensity:
8.773 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White

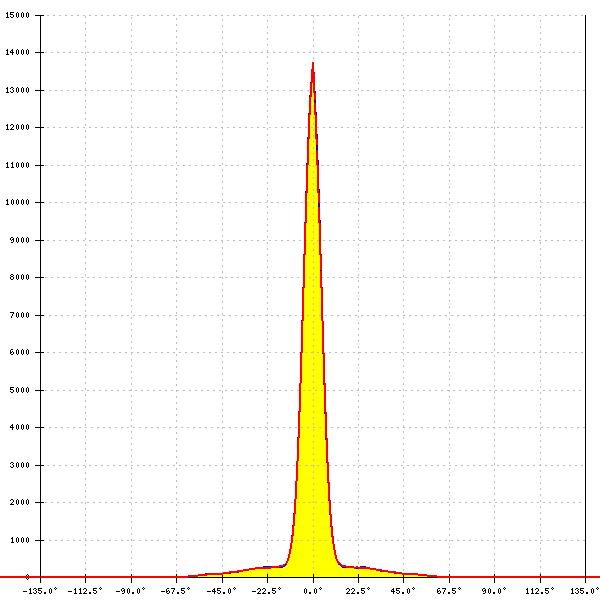

LED:

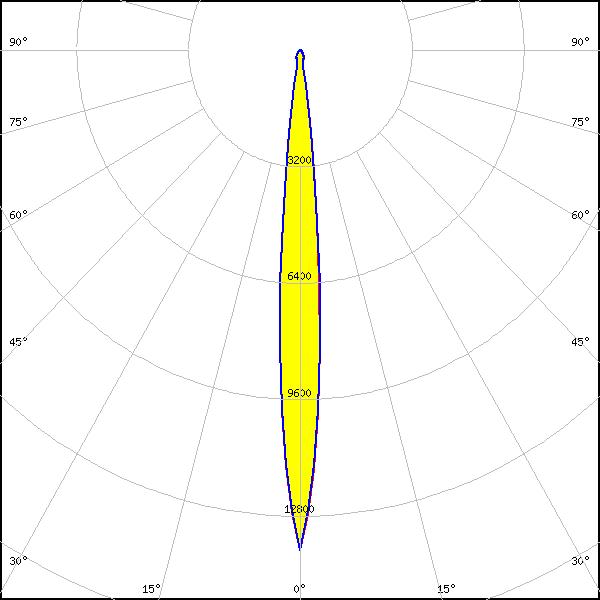

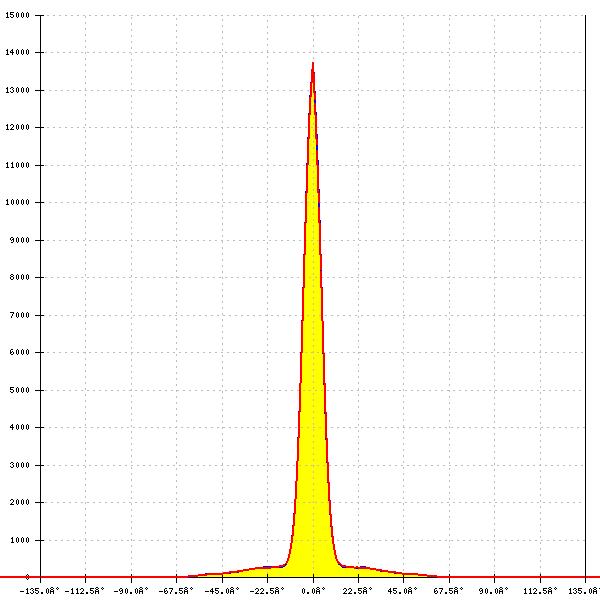

NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP19131_AMY-50-RS-C2
LES size: 5.9 mm
Required components:
FWHM:
10°
FWTM:
18°
Peak intensity:
13.740 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White

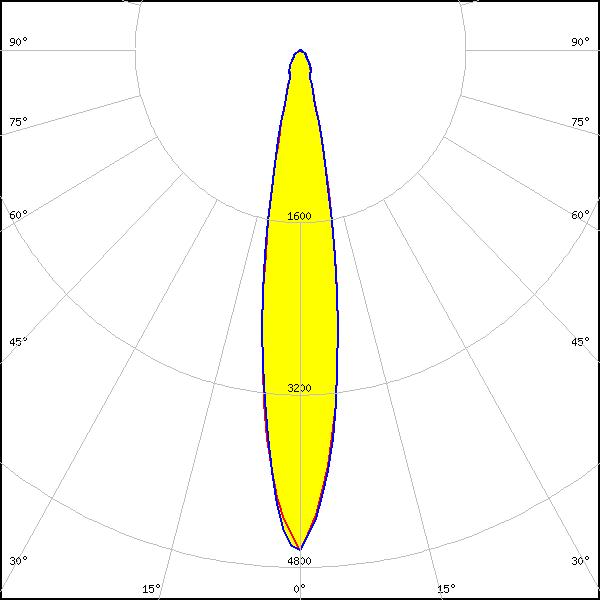

LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP19131_AMY-50-RS-C2
LES size: 10.6 mm
Required components:
FWHM:
18°
FWTM:
34°
Peak intensity:
4.642 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White

LED:
Fortimo SLM C TW L06A 1313 G7N
Ordering code: CP19131_AMY-50-RS-C2
LES size: 6.5 mm
Required components:
FWHM:
12°
FWTM:
21°
Peak intensity:
9.666 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White

LED:
Fortimo SLM C TW L09A 1919 G7N

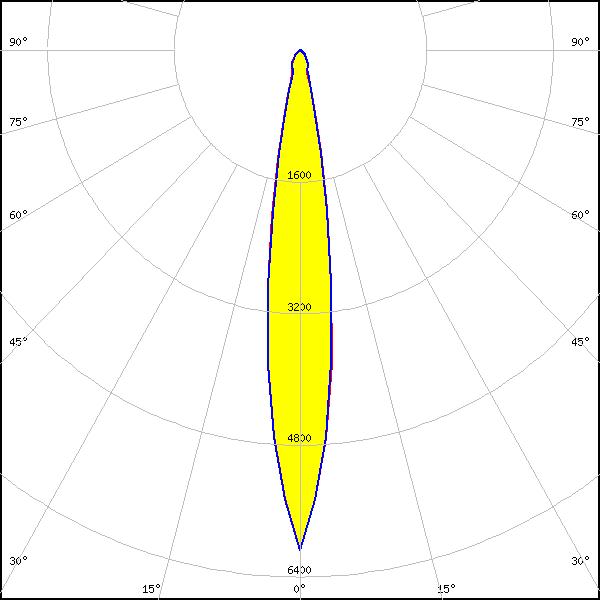

Ordering code: CP19131_AMY-50-RS-C2
LES size: 9.3 mm
Required components:
FWHM:
17°
FWTM:
30°
Peak intensity:
5.376 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White

LED:

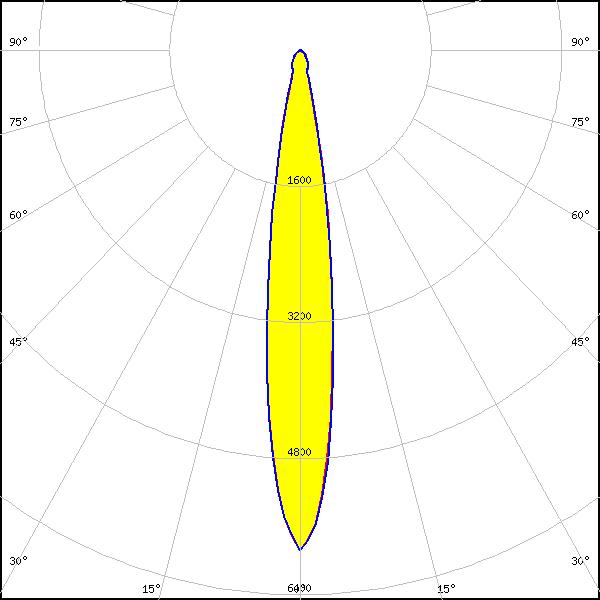

LC003D / LC006D / LC009D / LC013D
Ordering code: CP19140_AMY-50-RS-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
16°
FWTM:
30°
Peak intensity:
5.879 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

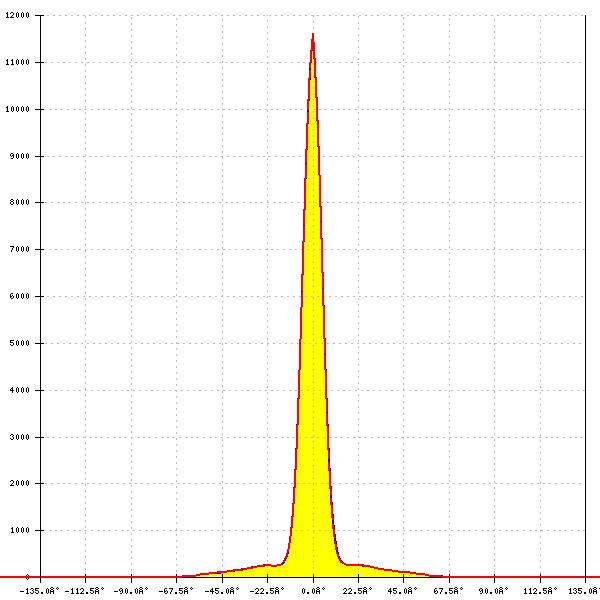

LED:

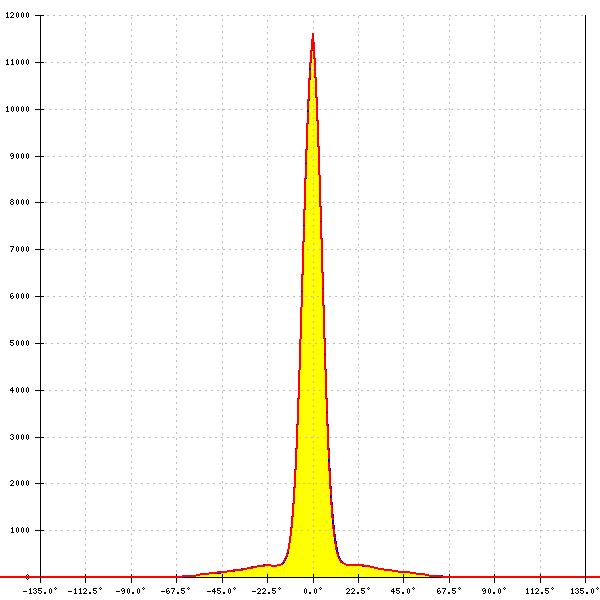

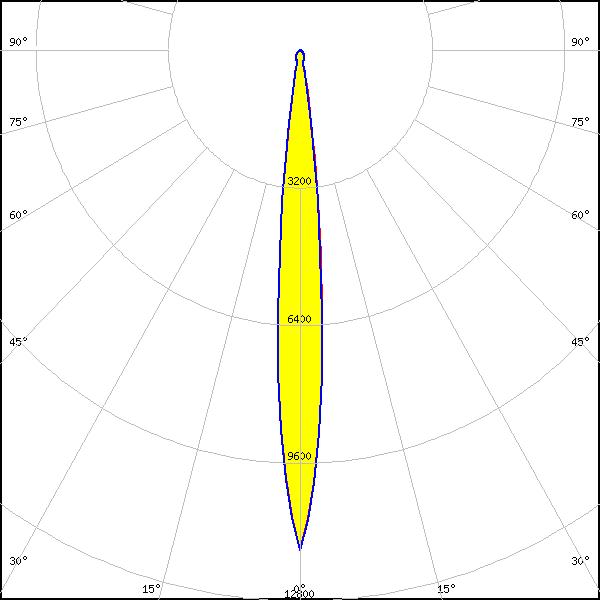

LC010C G2
Ordering code: CP19140_AMY-50-RS-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
10°
FWTM:
20°
Peak intensity:
11.625 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:

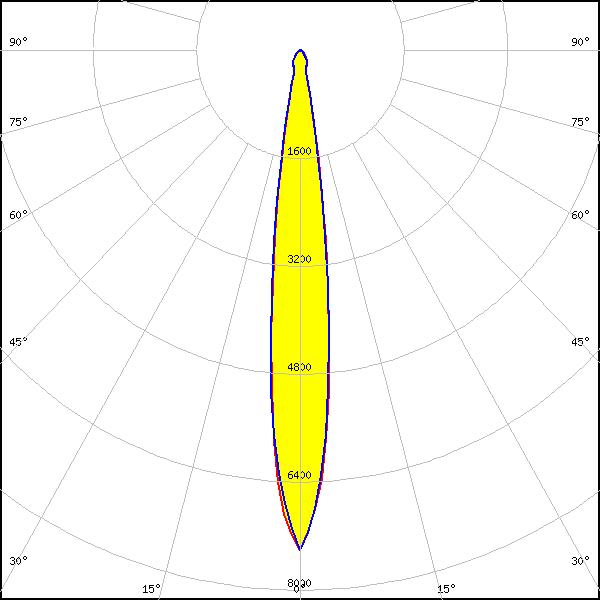

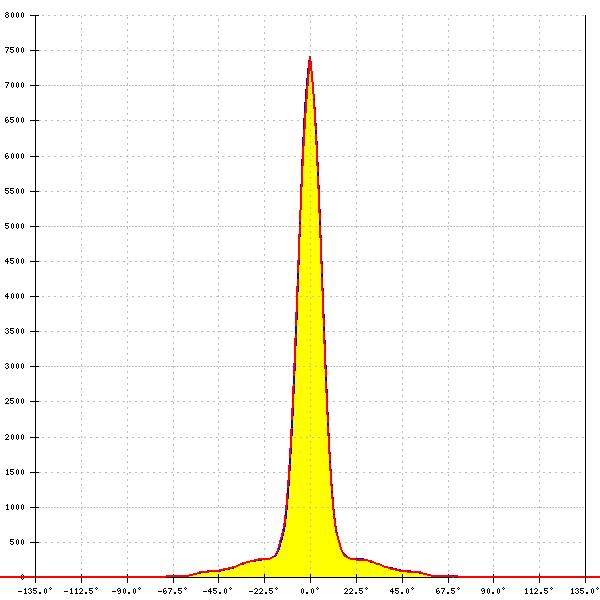

LC010T (Tunable White)
Ordering code: CP19131_AMY-50-RS-C2
LES size: 9.8 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
7.413 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White

LED:

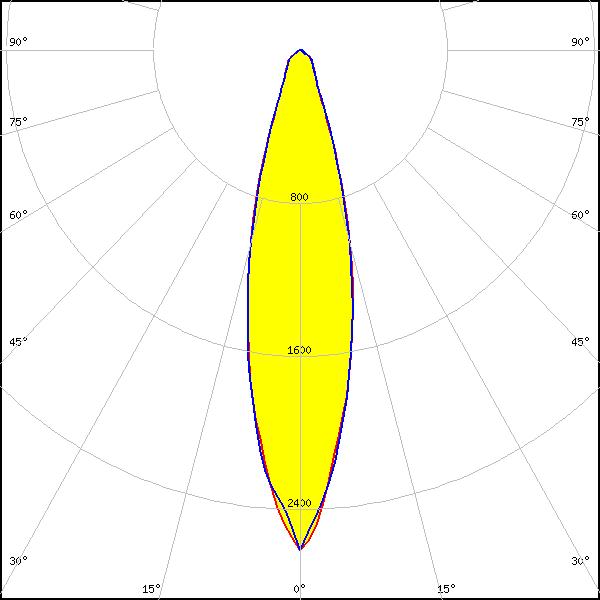

LC016D / LC019D / LC026D / LC033D
Ordering code: CP19140_AMY-50-RS-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
26°
FWTM:
50°
Peak intensity:
2.614 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

LED:

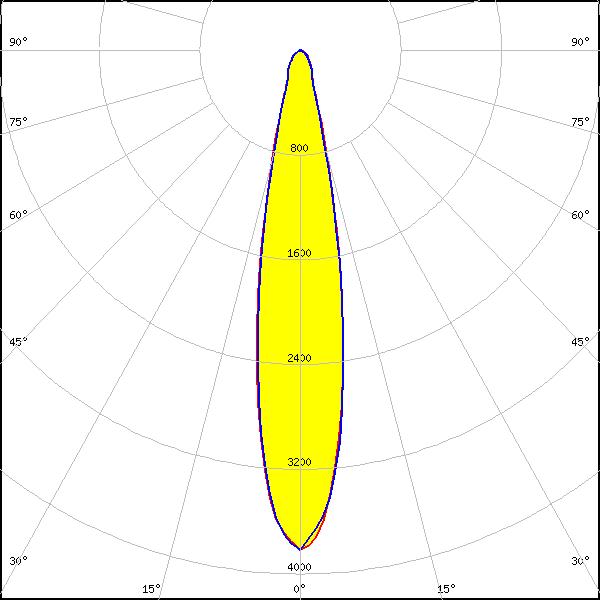

LC030C/040C G2
Ordering code: CP19140_AMY-50-RS-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
20°
FWTM:
39°
Peak intensity:
3.827 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
MJT COB LES 14.5
Ordering code: CP19131_AMY-50-RS-C2
LES size: 14.5 mm
Required components:
FWHM:
26°
FWTM:
51°
Peak intensity:
2.518 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
Manage Consent
To provide the best experiences, we use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behavior or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.
Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes.
The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.
