DAISY-7X1-W

Print

~50° wide beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    280 x  40 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes

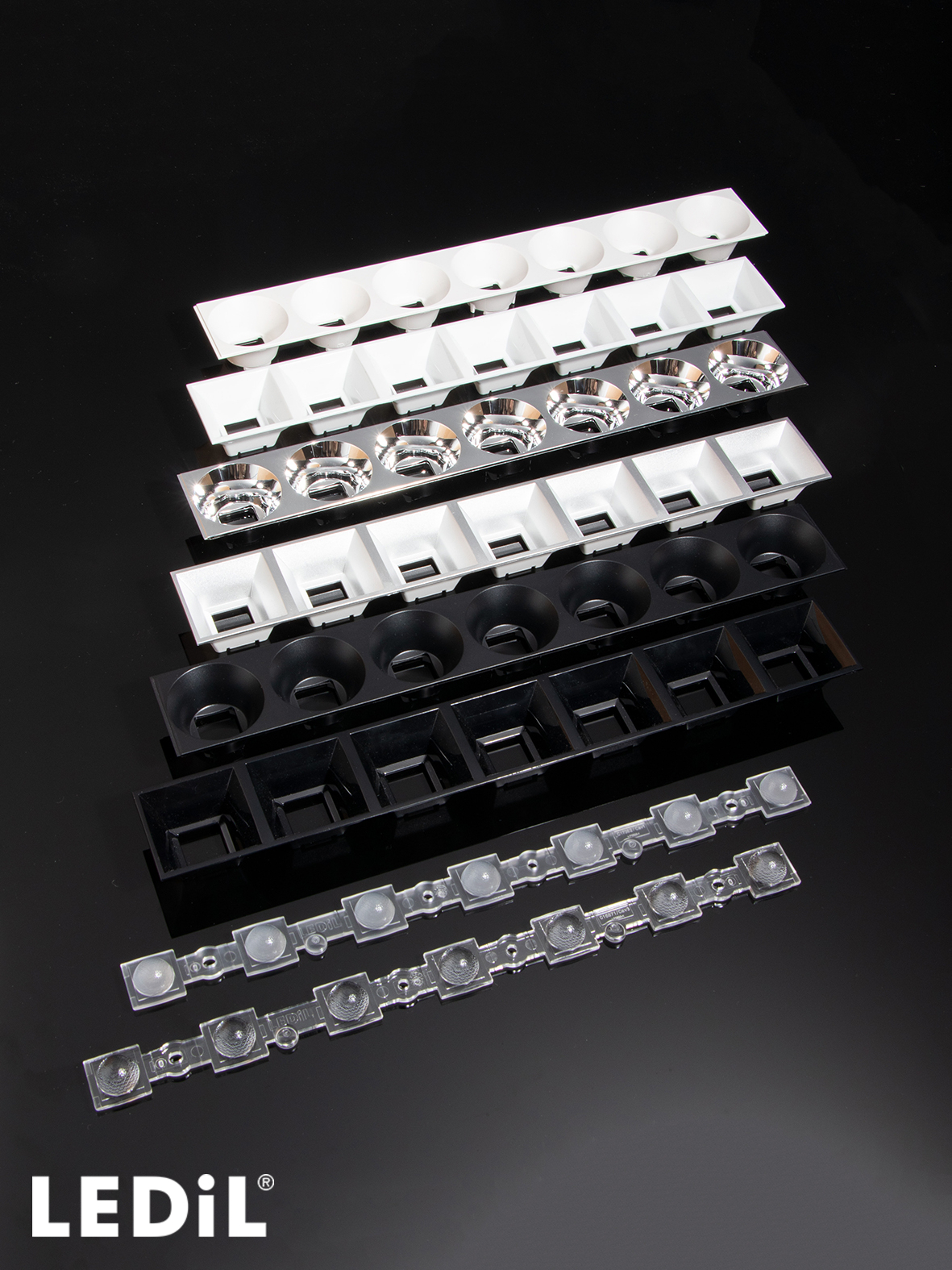

Materials
  • Linear lens
  • C16871_DAISY-7X1-W
    PMMA
  • Request material files from Tech Support

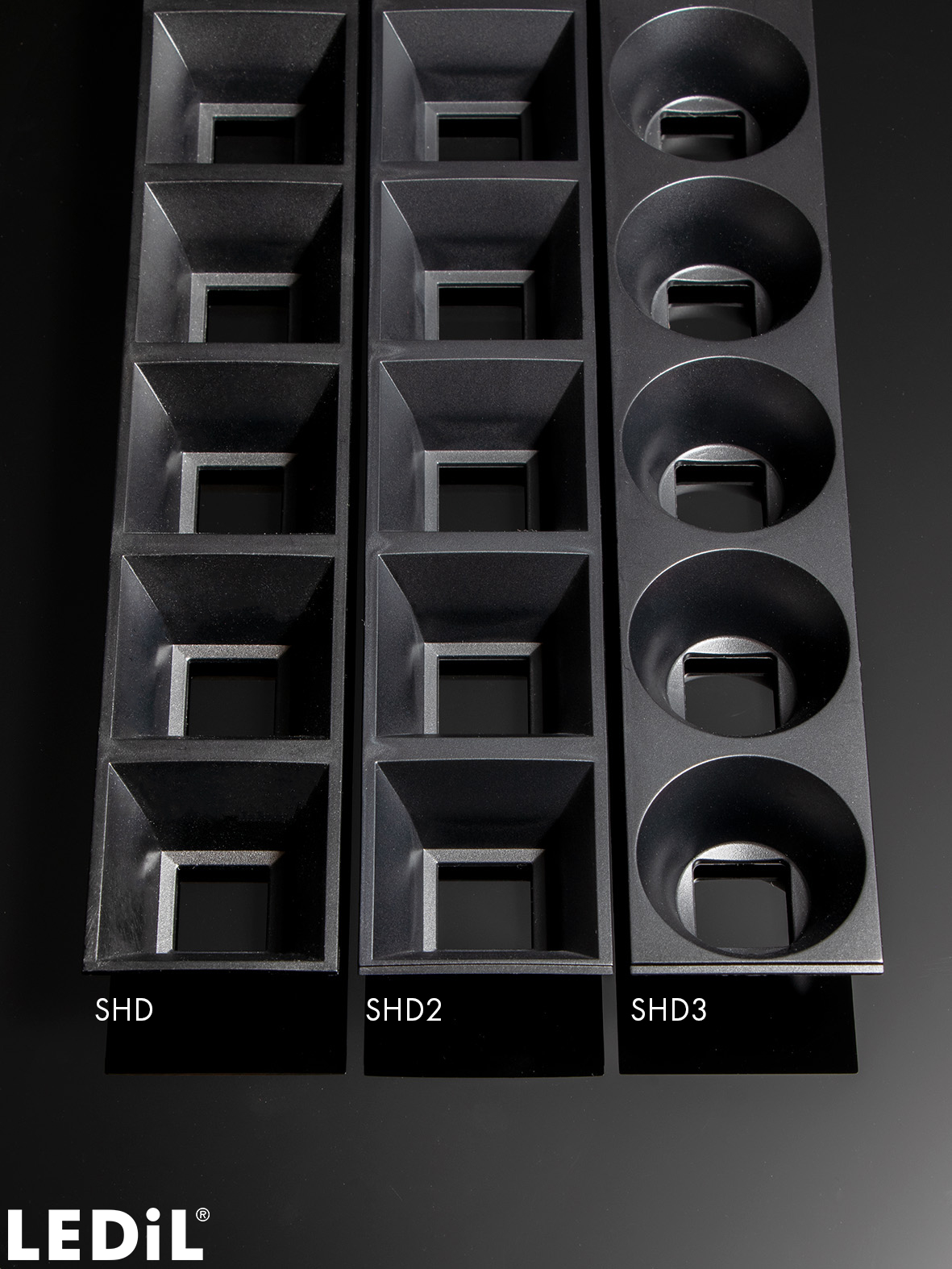

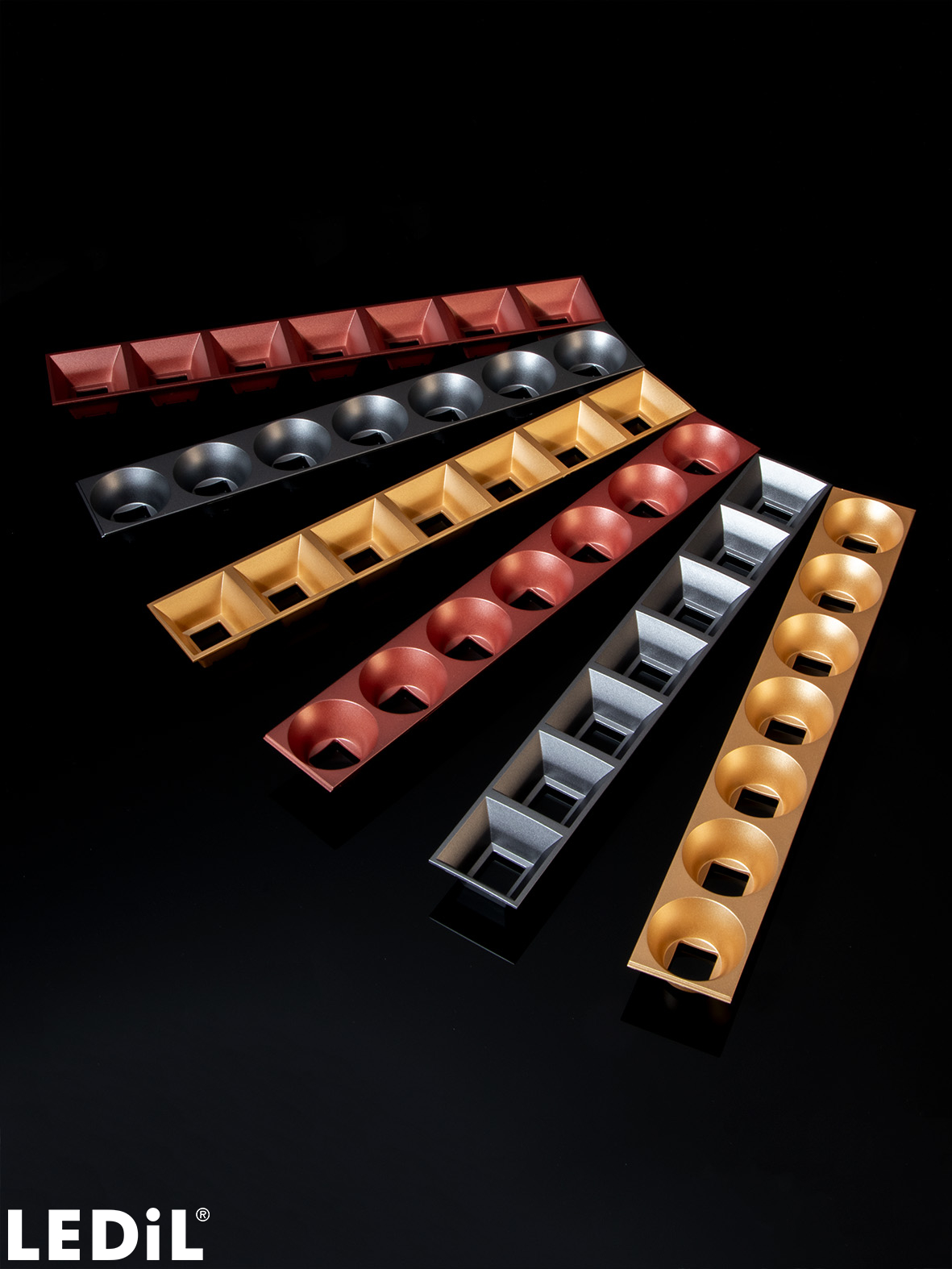

  • Shade
  • C16872_DAISY-7X1-SHD
    PC
  • C16876_DAISY-7X1-SHD-WHT
    PC
  • C17051_DAISY-7X1-SHD-MATT
    PC
  • C17225_DAISY-7X1-SHD-WHT-MATT
    PC
  • C18167_DAISY-7X1-SHD-MET
    PC
  • C18409_DAISY-7X1-SHD-MET-MATT
    PC
  • C19312_DAISY-7X1-SHD3
    PC
  • C19313_DAISY-7X1-SHD3-MATT
    PC
  • C19314_DAISY-7X1-SHD3-WHT
    PC
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    PC
  • C19641_DAISY-7X1-SHD3-MET
    PC
  • C19642_DAISY-7X1-SHD3-MET-MATT
    PC
  • Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C16871_DAISY-7X1-W
    clear
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    6.30 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    6.30 kg
  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • C18409_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • C19312_DAISY-7X1-SHD3
    black,gloss
  • C19313_DAISY-7X1-SHD3-MATT
    black,matt
  • C19314_DAISY-7X1-SHD3-WHT
    white,gloss
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    white,matt
  • C19641_DAISY-7X1-SHD3-MET
    metal,gloss
  • C19642_DAISY-7X1-SHD3-MET-MATT
    metal,matt
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    7.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C16871_DAISY-7X1-W
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

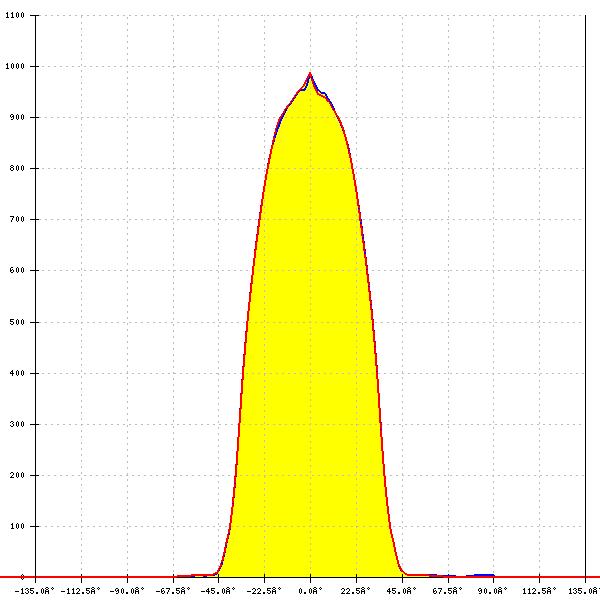

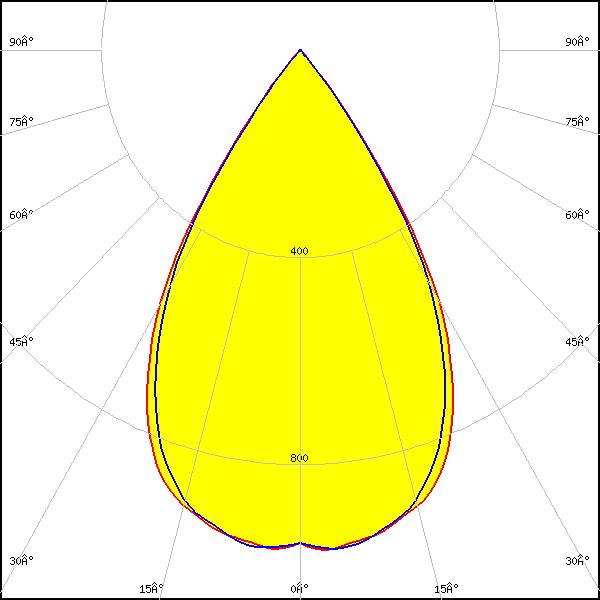

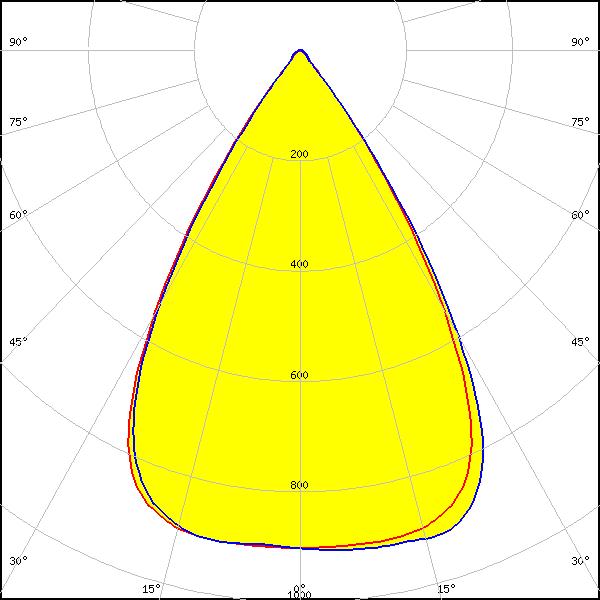

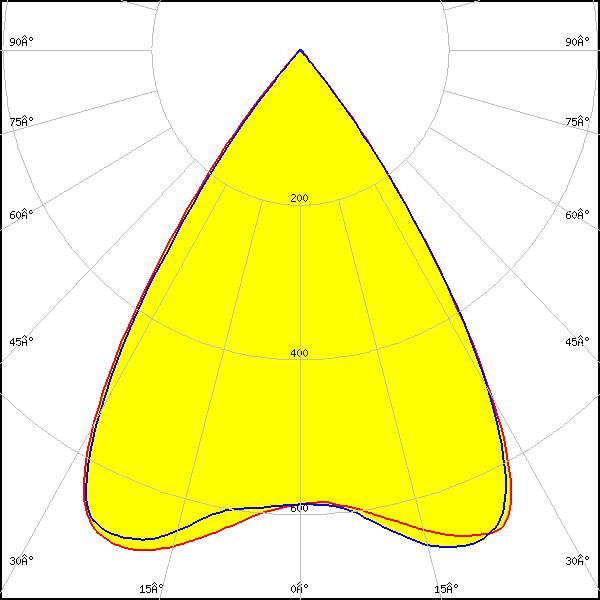

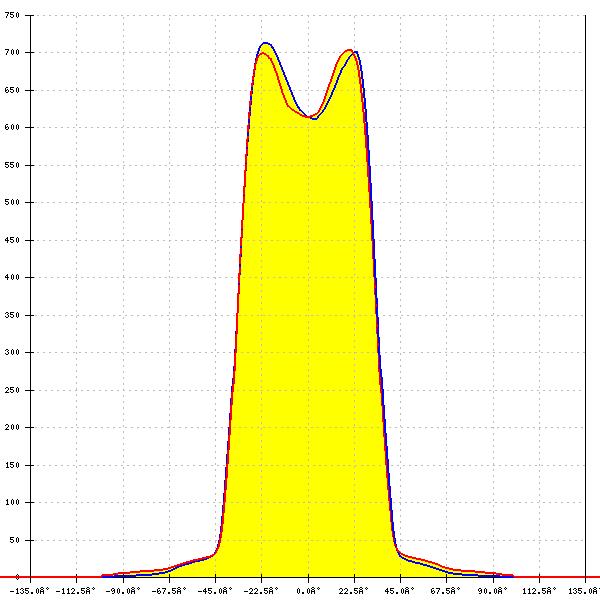

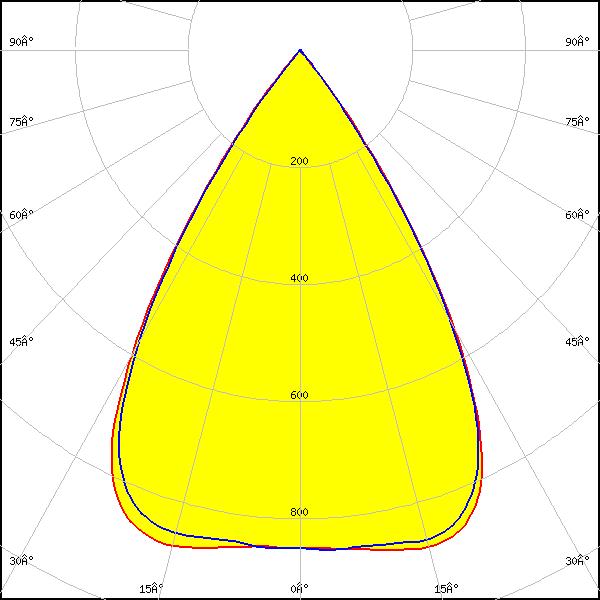

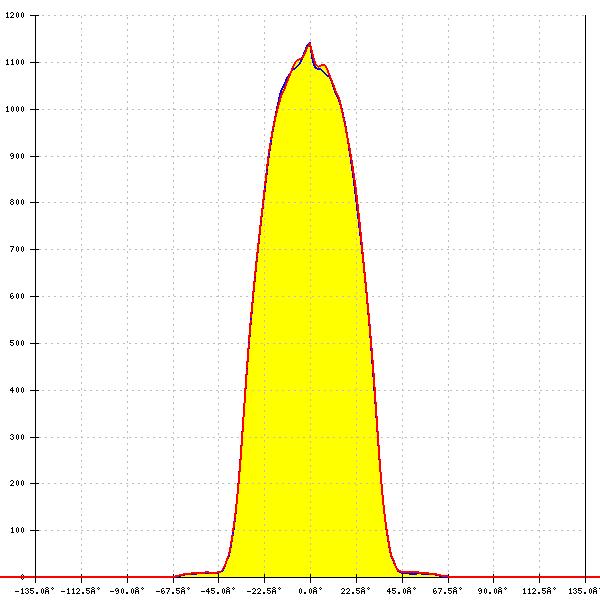

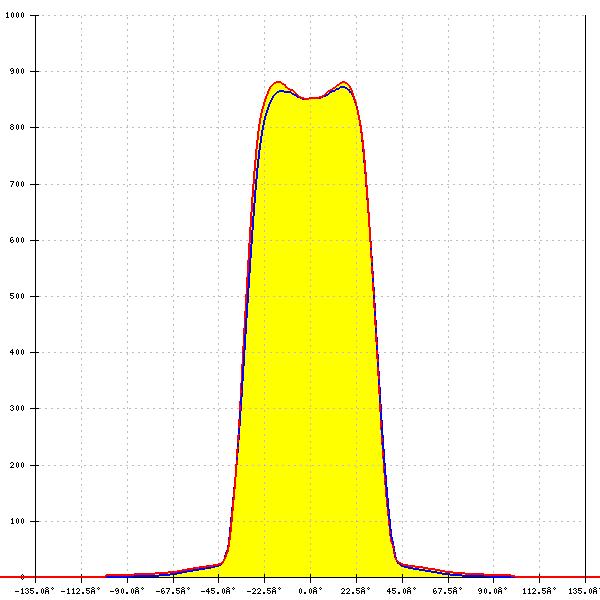

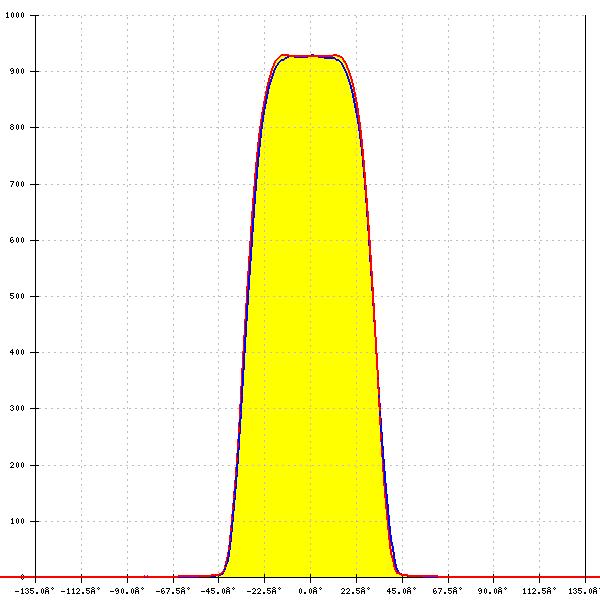

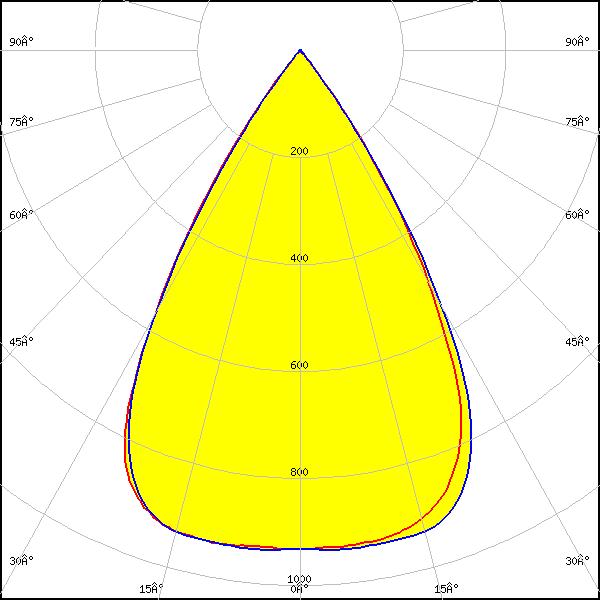

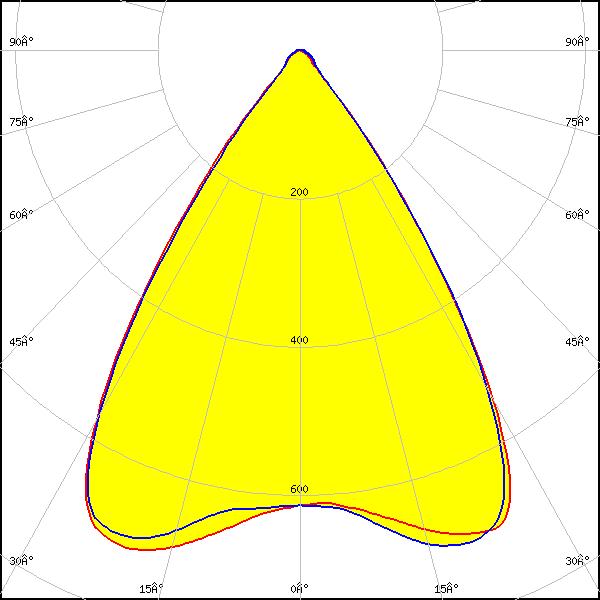

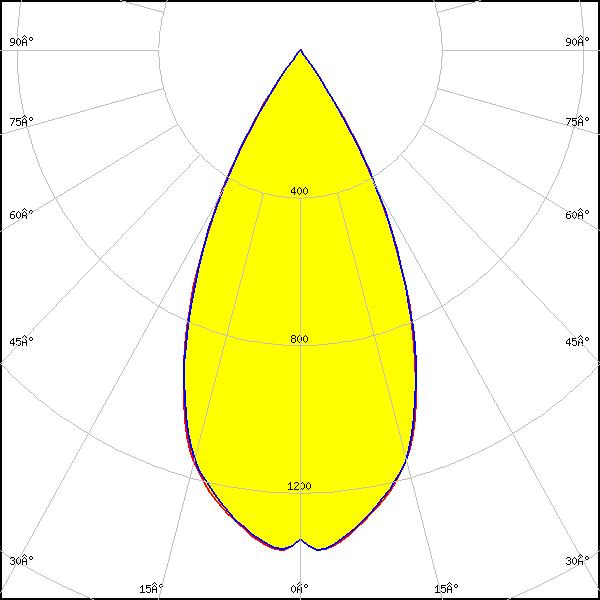

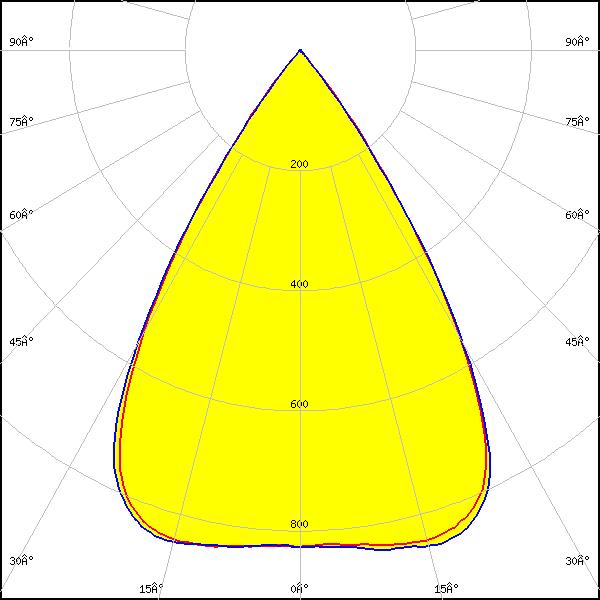

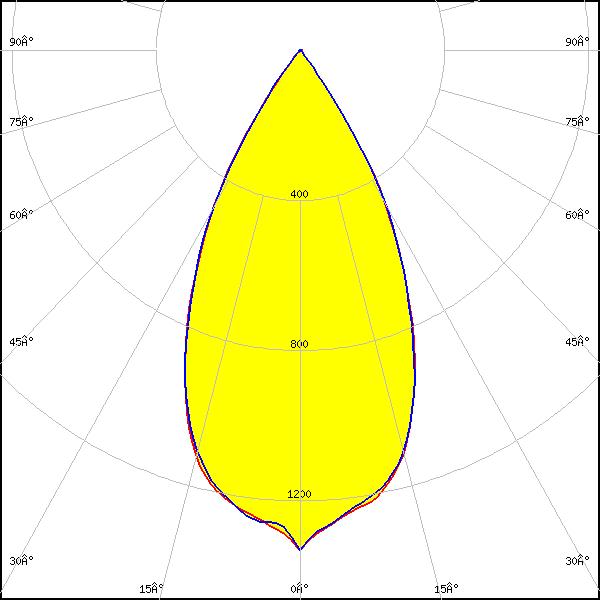

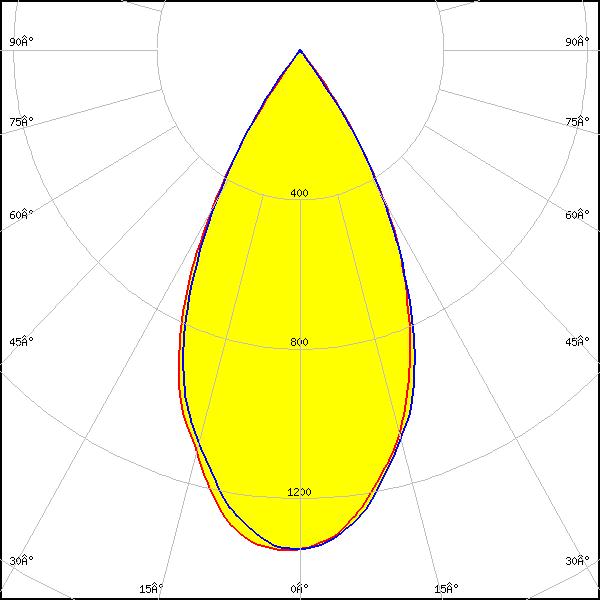

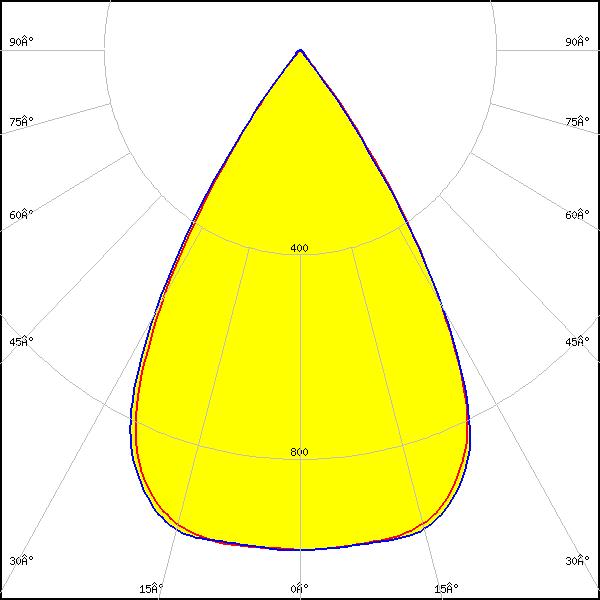

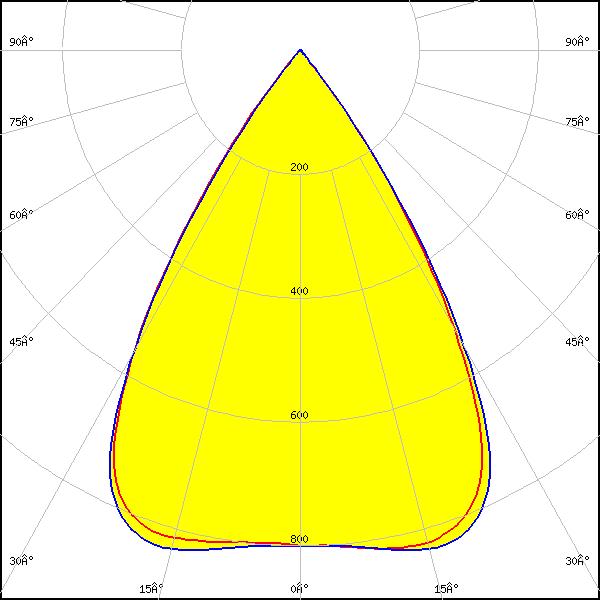

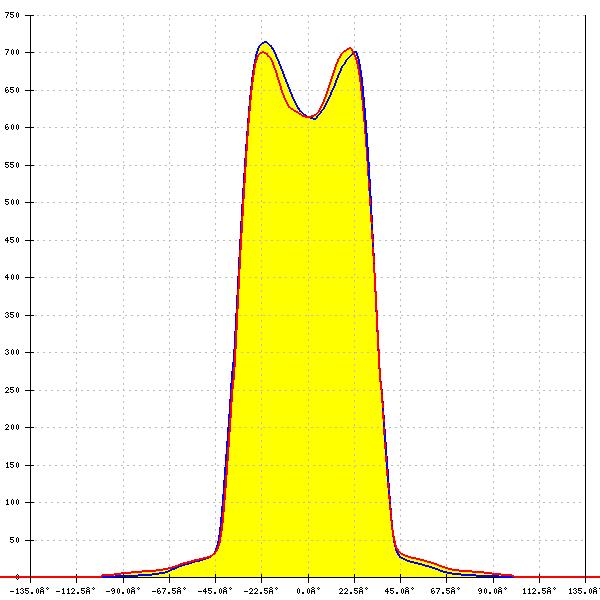

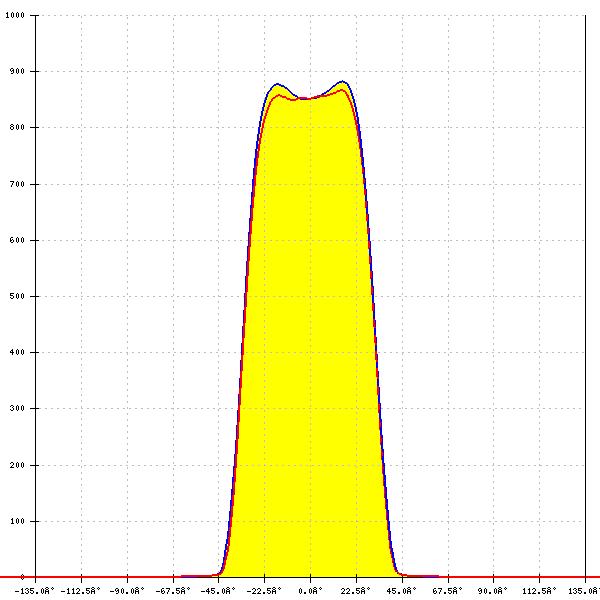

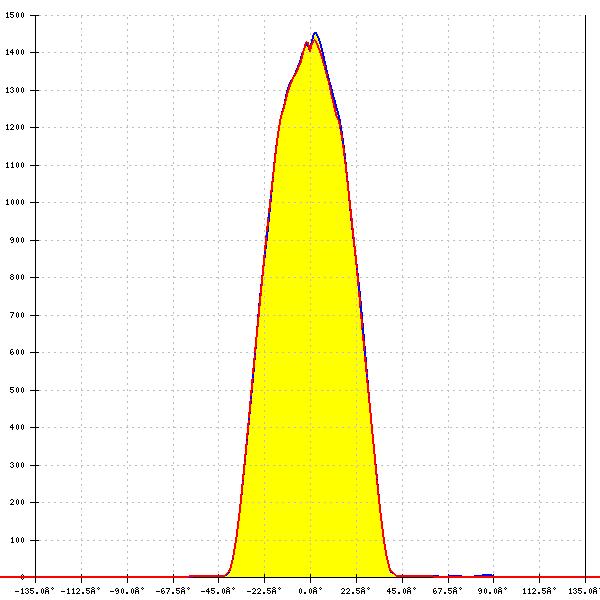

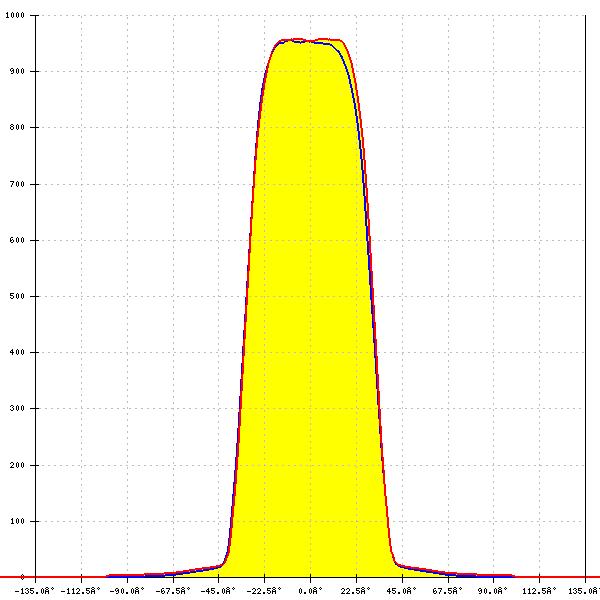

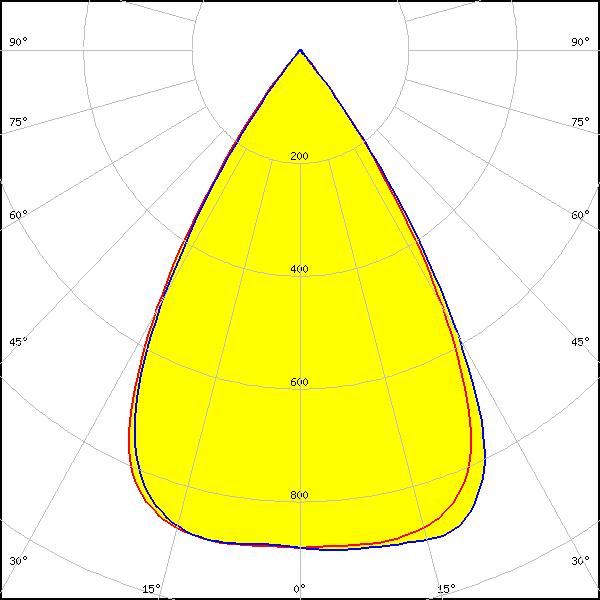

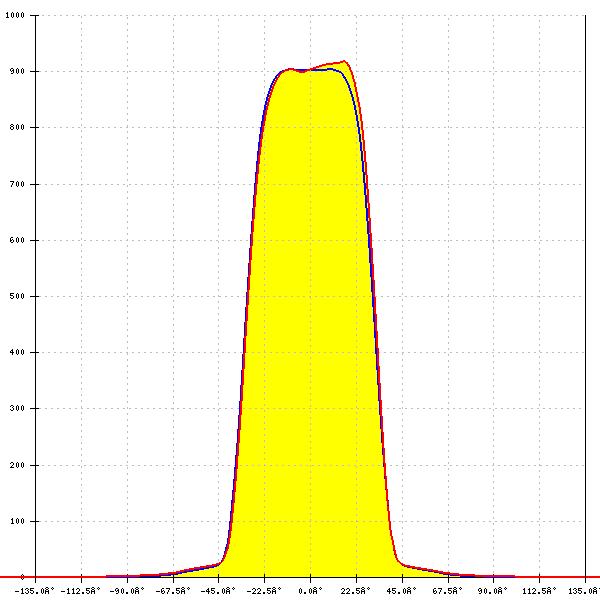

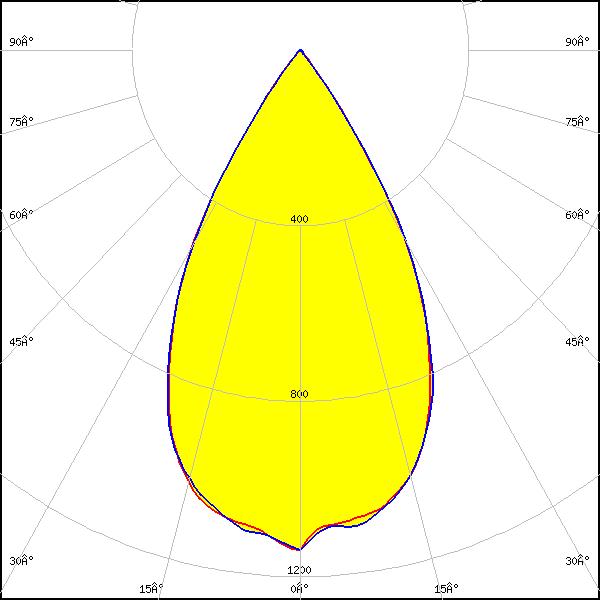

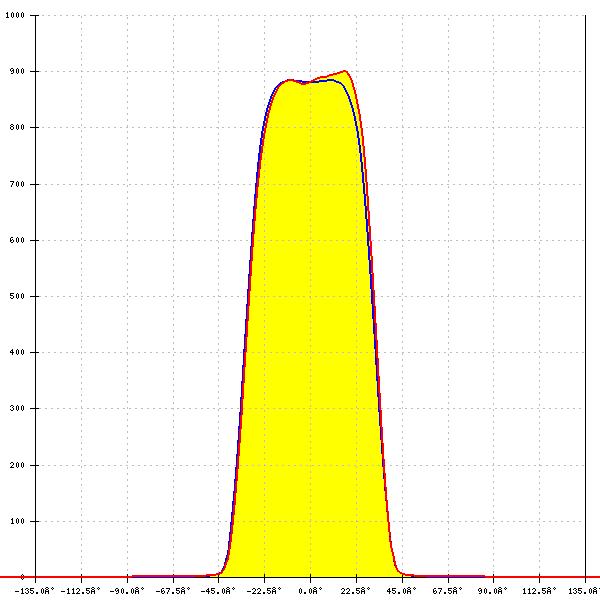

Optical results

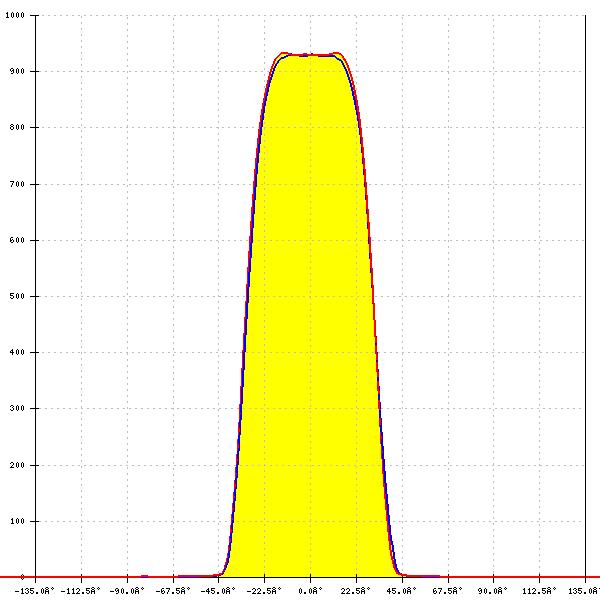

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:

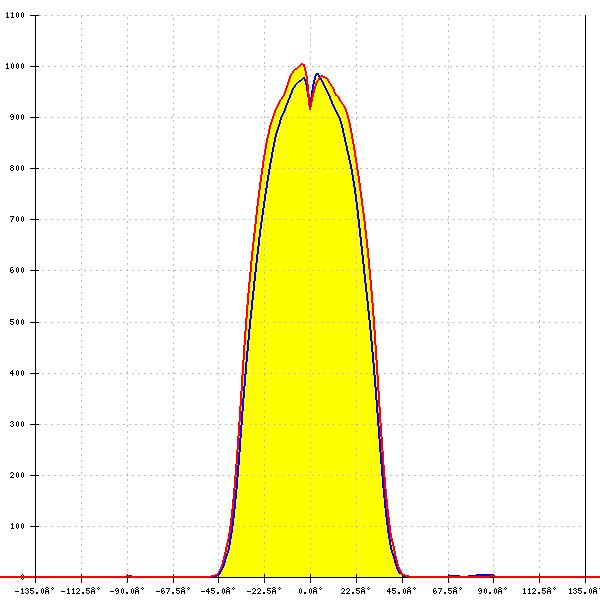

C16872_DAISY-7X1-SHD
FWHM: 63°
FWTM: 77°
Peak intensity: 0.934 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

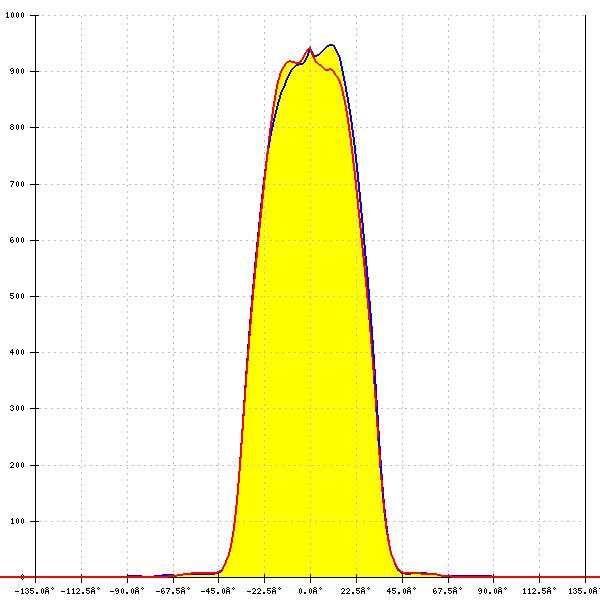

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.948 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

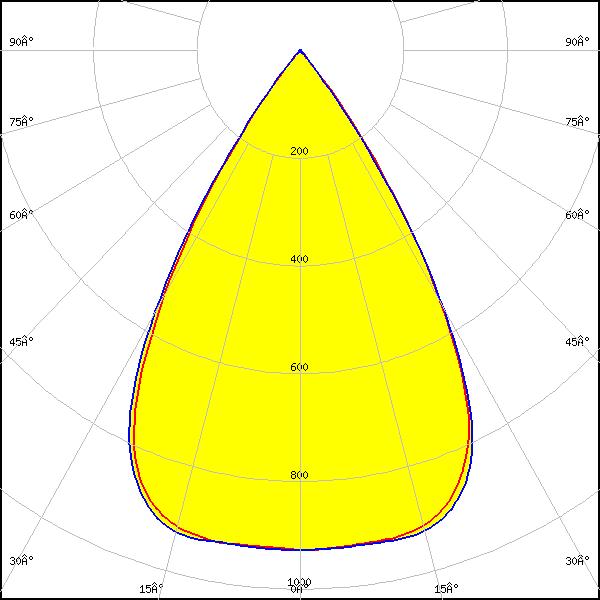

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 63°
FWTM: 77°
Peak intensity: 0.930 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.946 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 63°
FWTM: 78°
Peak intensity: 0.980 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

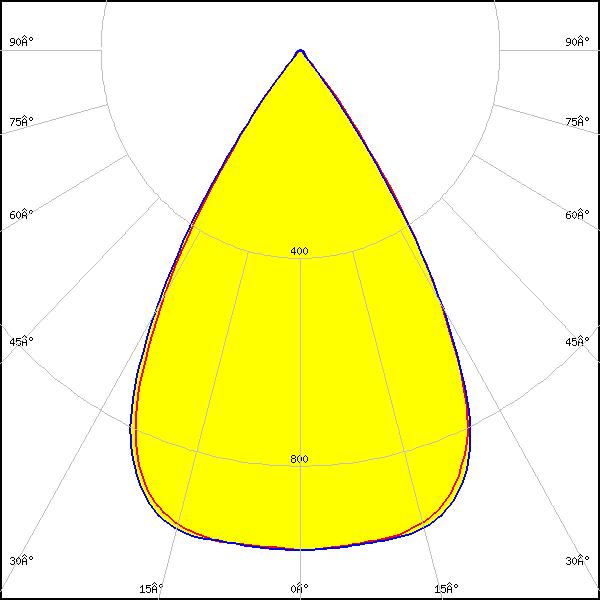

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 63°
FWTM: 78°
Peak intensity: 0.962 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White

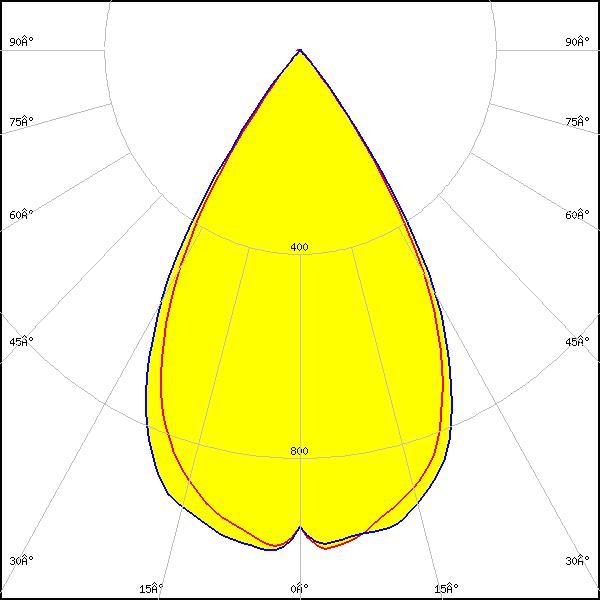

LED: J Series 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: 63°
FWTM: 80°
Peak intensity: 0.993 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

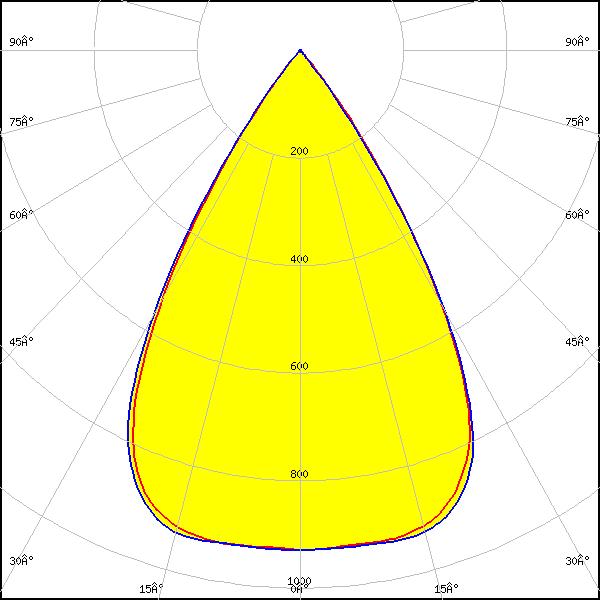

LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 63°
FWTM: 77°
Peak intensity: 0.934 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

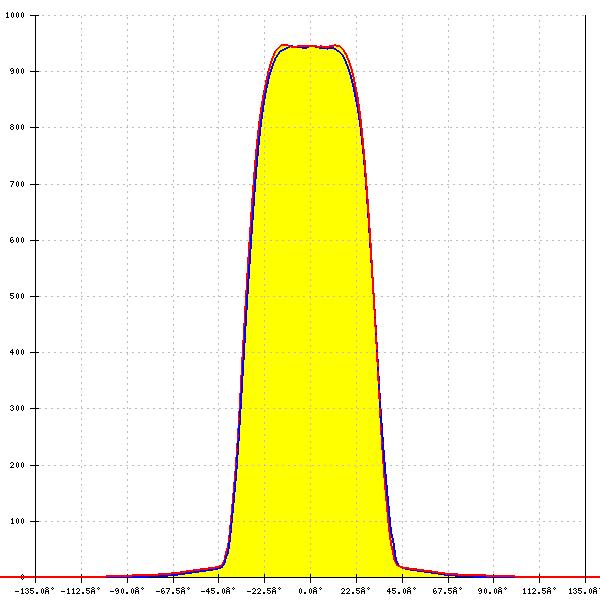

LED: LUXEON 2835 Line
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.948 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: LUXEON 2835 Line
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 63°
FWTM: 78°
Peak intensity: 0.930 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

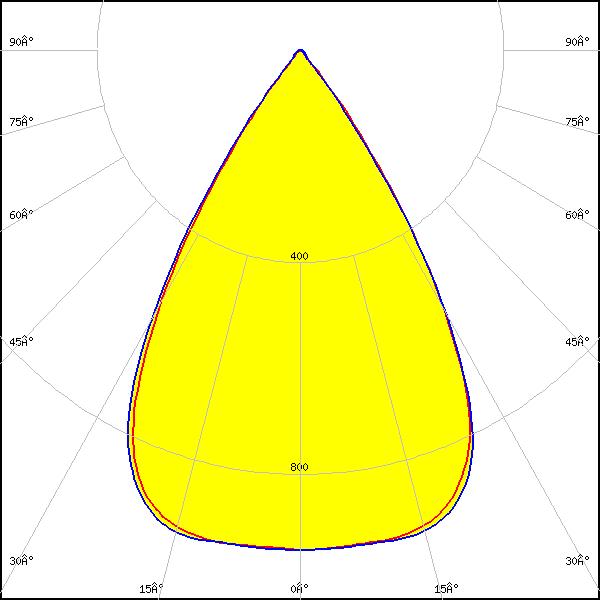

LED: LUXEON 2835 Line
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.946 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

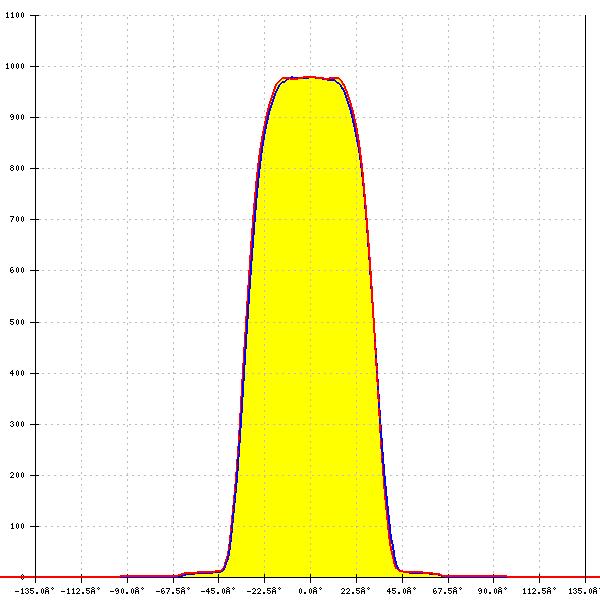

LED: LUXEON 2835 Line
Required components:
C17532_DAISY-7X1-SHD-MET
FWHM: 63°
FWTM: 78°
Peak intensity: 0.980 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

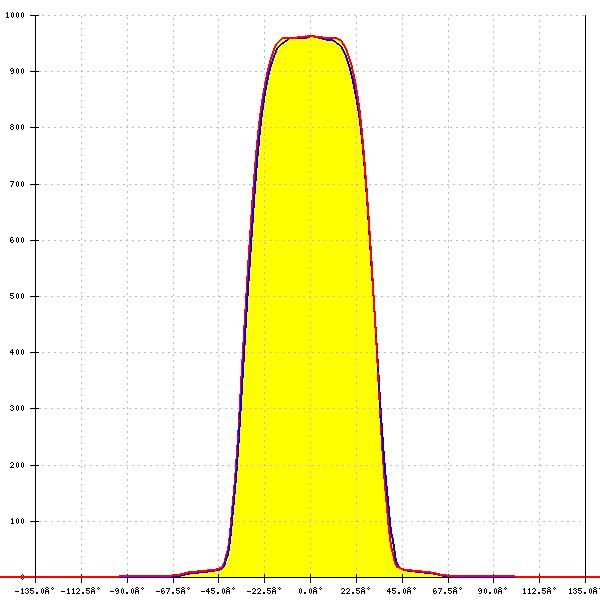

LED: LUXEON 2835 Line
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 63°
FWTM: 78°
Peak intensity: 0.962 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White

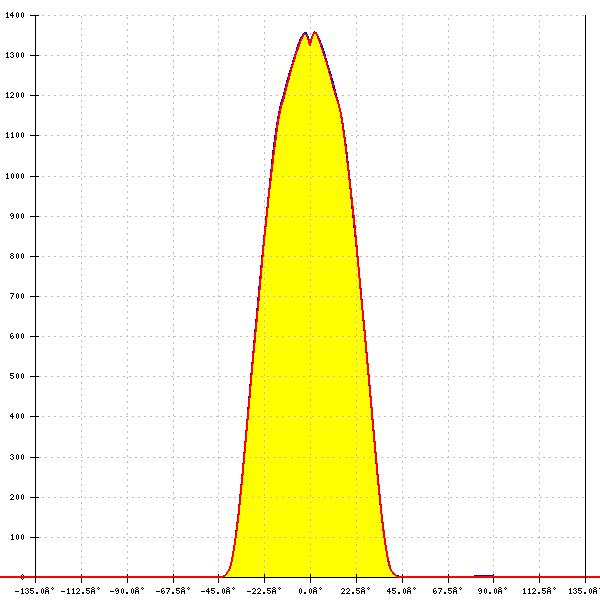

LED: LUXEON 3030 HE Plus
Required components:
C16872_DAISY-7X1-SHD
FWHM: 52°
FWTM: 72°
Peak intensity: 1.361 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

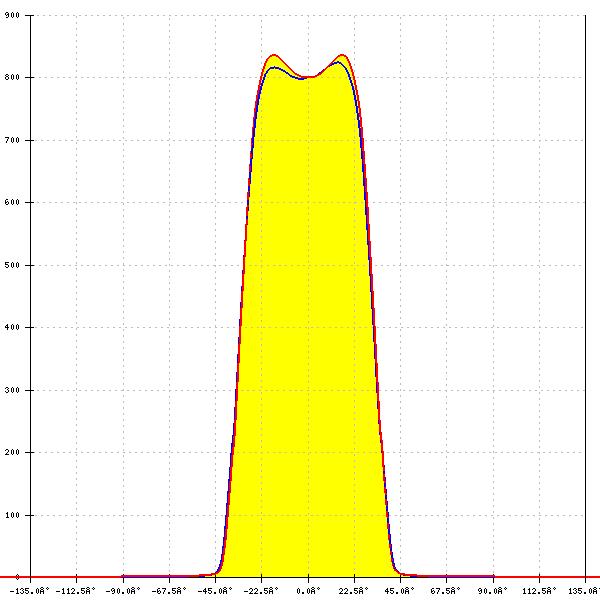

LED: Opticus Daisy M L28W2
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.842 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 65°
FWTM: 78°
Peak intensity: 0.892 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.890 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.905 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.907 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 64°
FWTM: 79°
Peak intensity: 0.935 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 64°
FWTM: 79°
Peak intensity: 0.919 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

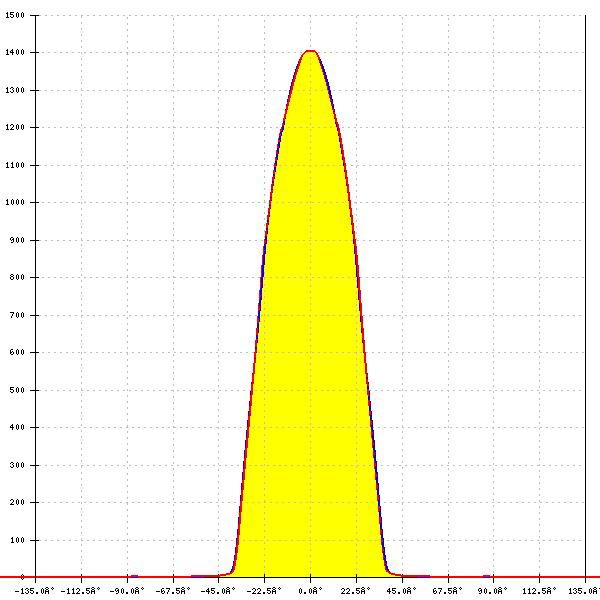

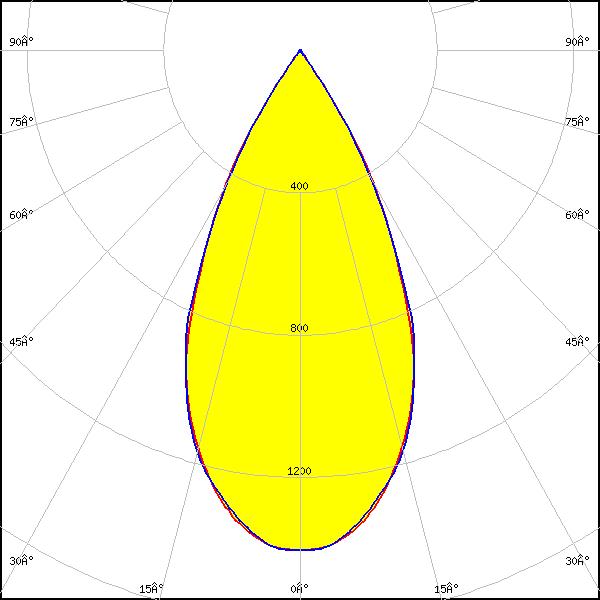

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 50°
FWTM: 70°
Peak intensity: 1.407 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 65°
FWTM: 79°
Peak intensity: 0.882 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: Tunable White

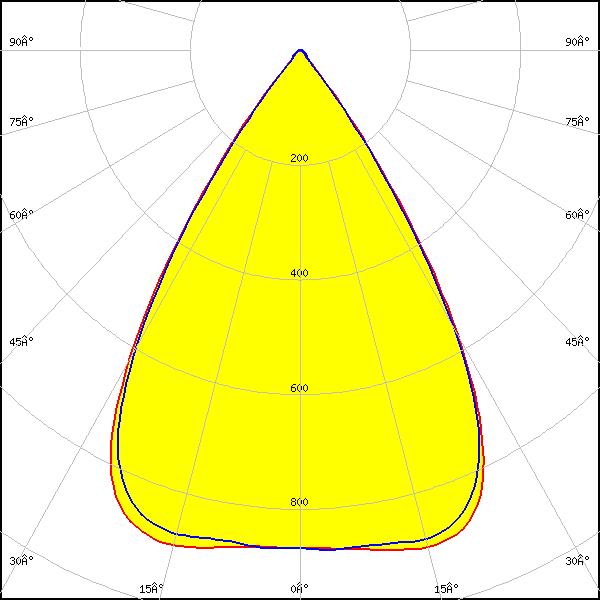

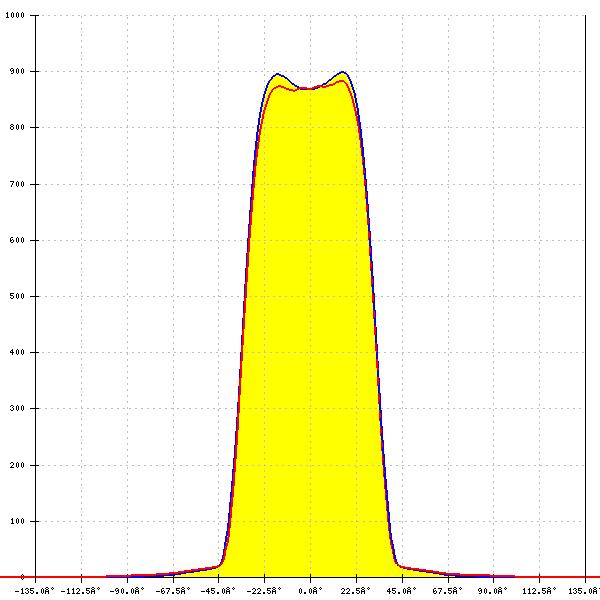

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.898 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: Tunable White

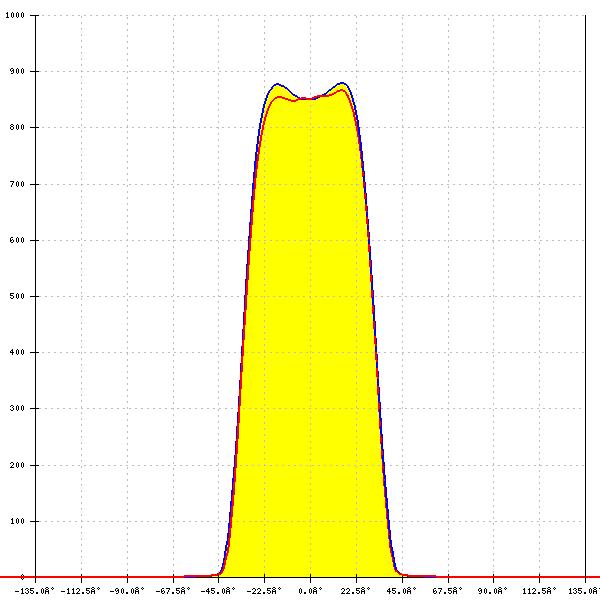

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.879 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: Tunable White

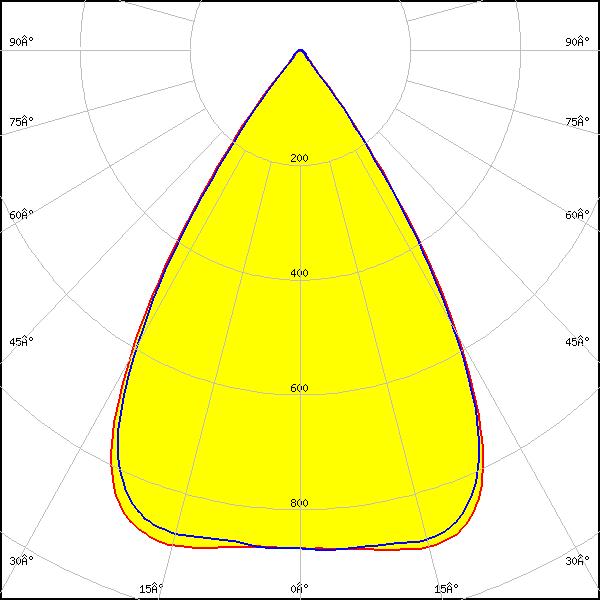

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.897 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: Tunable White

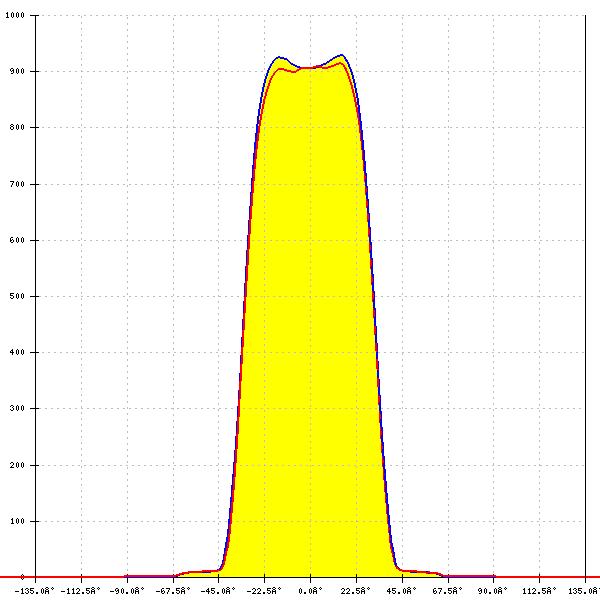

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 65°
FWTM: 79°
Peak intensity: 0.928 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: Tunable White

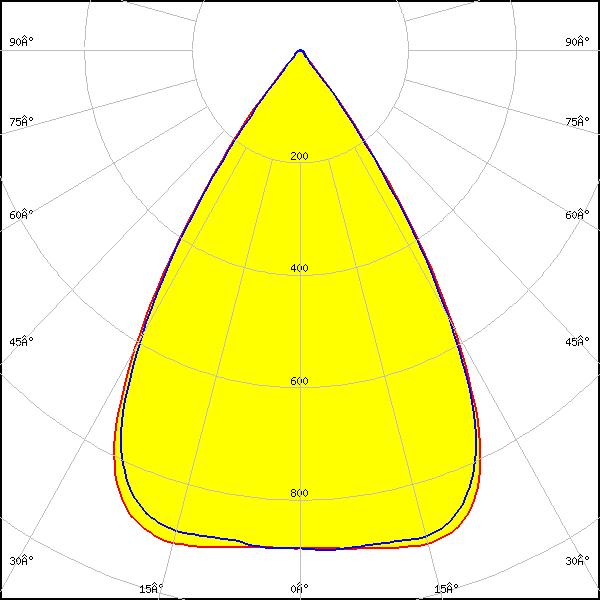

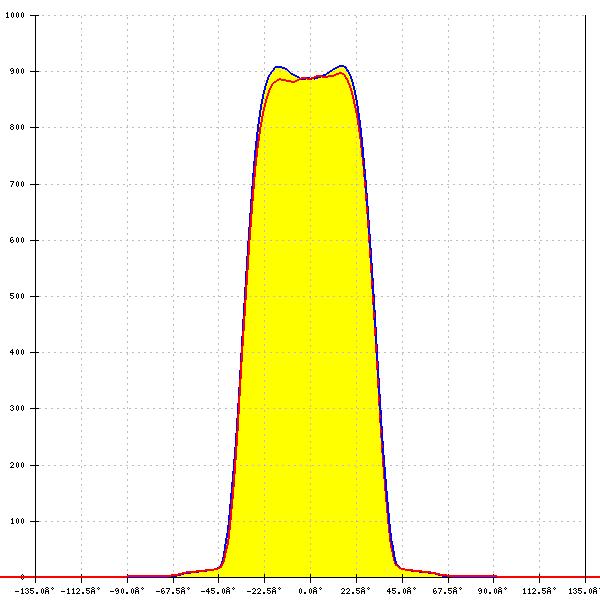

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.910 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: Tunable White

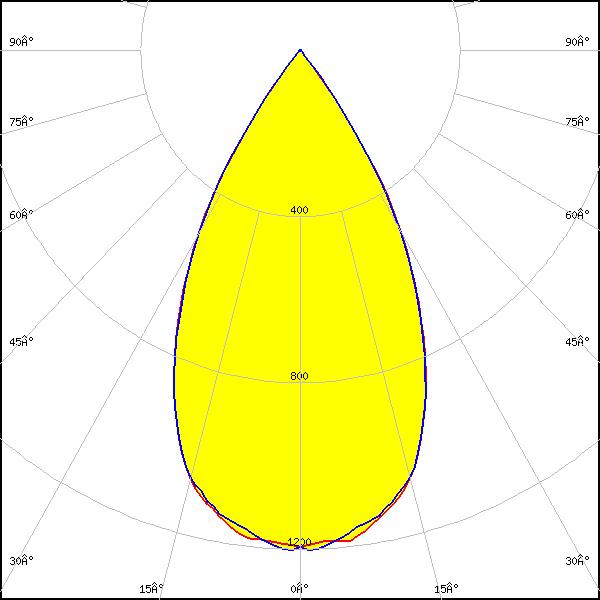

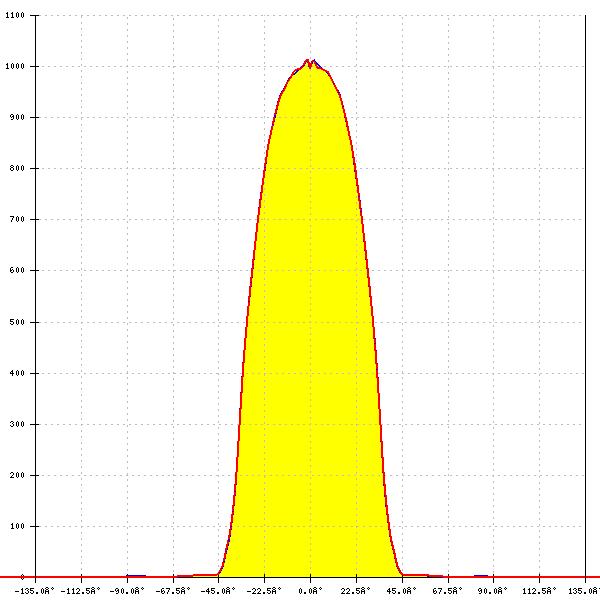

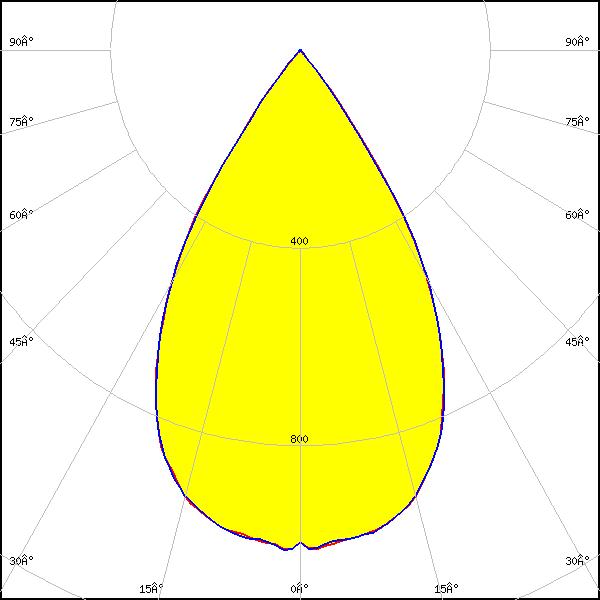

LED: NF2W757G-MT (Tunable White)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 62°
FWTM: 78°
Peak intensity: 1.019 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: Tunable White

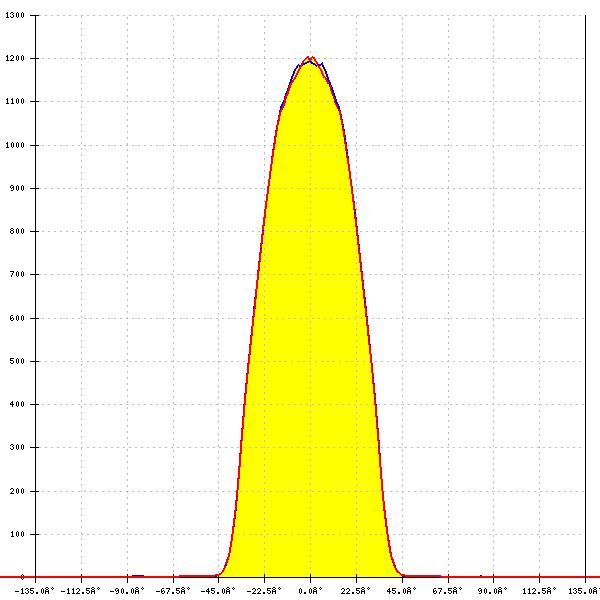

LED: NF2W757G-MT (Tunable White)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 56°
FWTM: 76°
Peak intensity: 1.212 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour/type: Tunable White

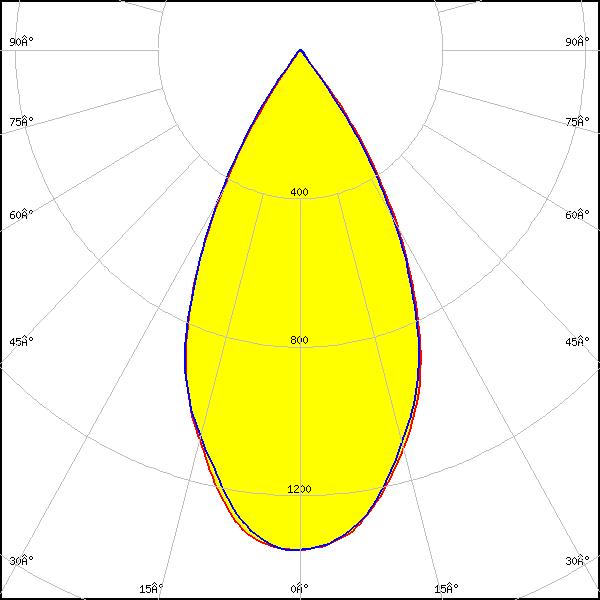

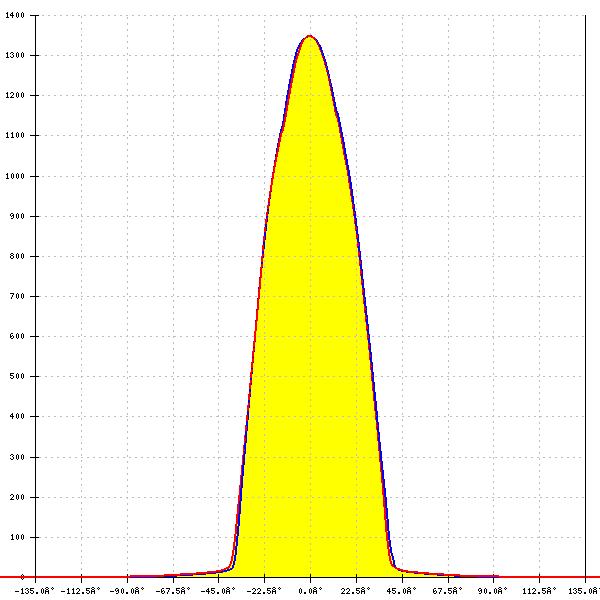

LED: NF2W757G-MT (Tunable White)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 53°
FWTM: 74°
Peak intensity: 1.349 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: Tunable White

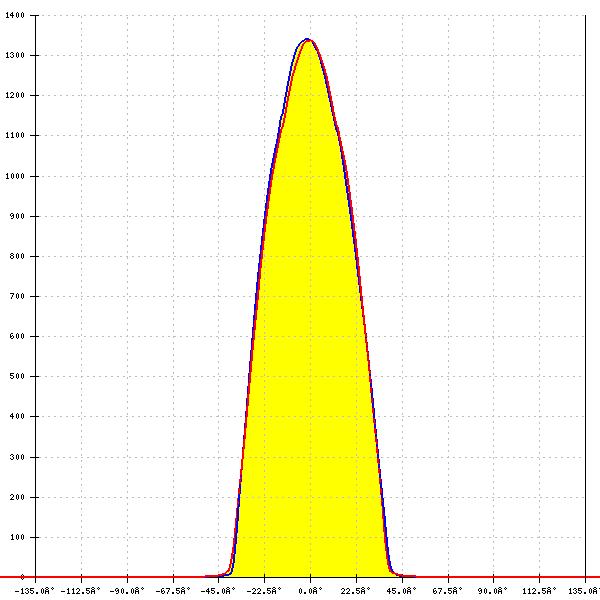

LED: NF2W757G-MT (Tunable White)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 53°
FWTM: 73°
Peak intensity: 1.339 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: Tunable White

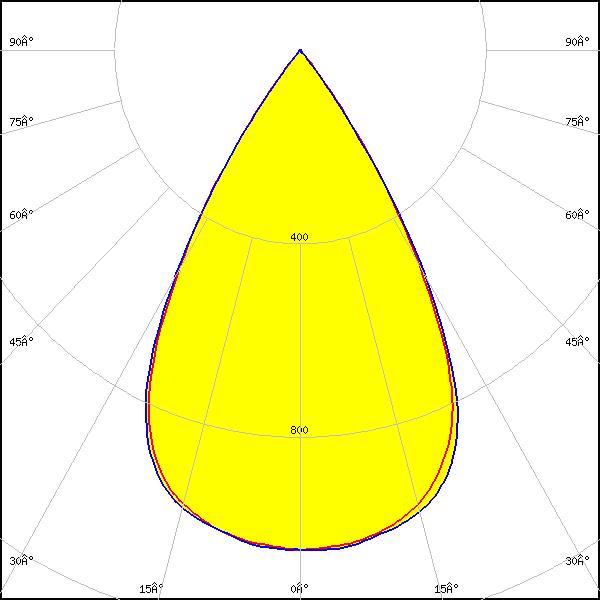

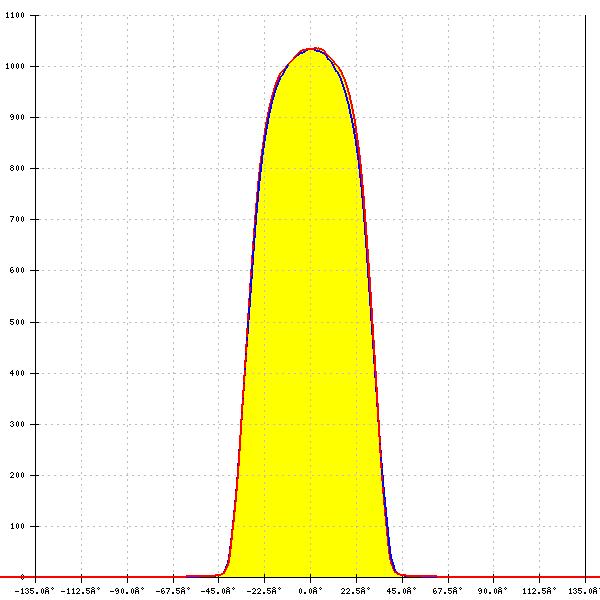

LED: NFSx757G
Required components:
C16872_DAISY-7X1-SHD
FWHM: 61°
FWTM: 76°
Peak intensity: 1.035 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: Tunable White

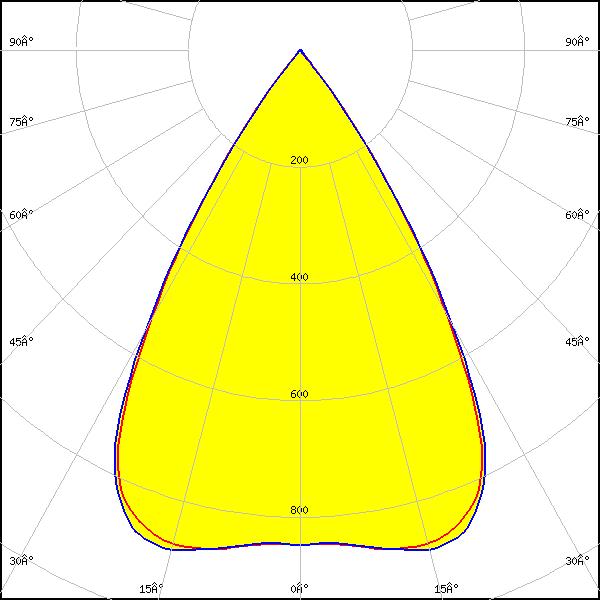

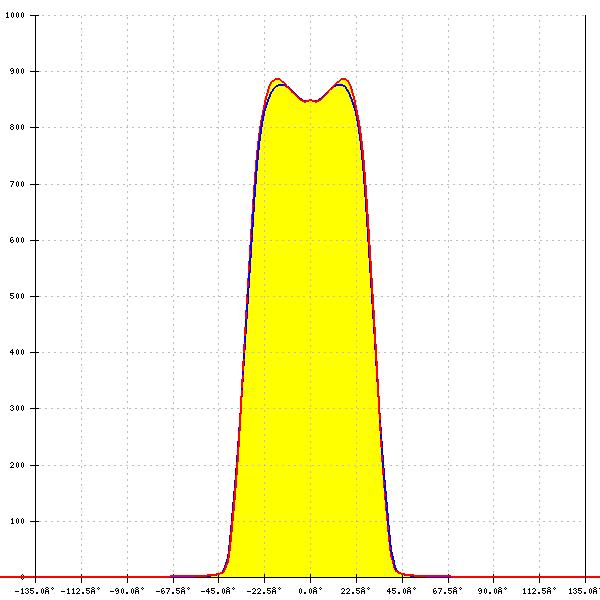

LED: PL-LIN-2000 280x24mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 63°
FWTM: 77°
Peak intensity: 0.891 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White

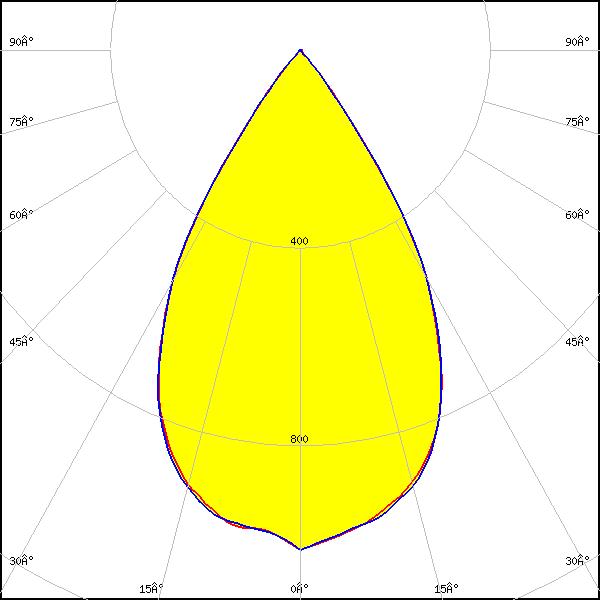

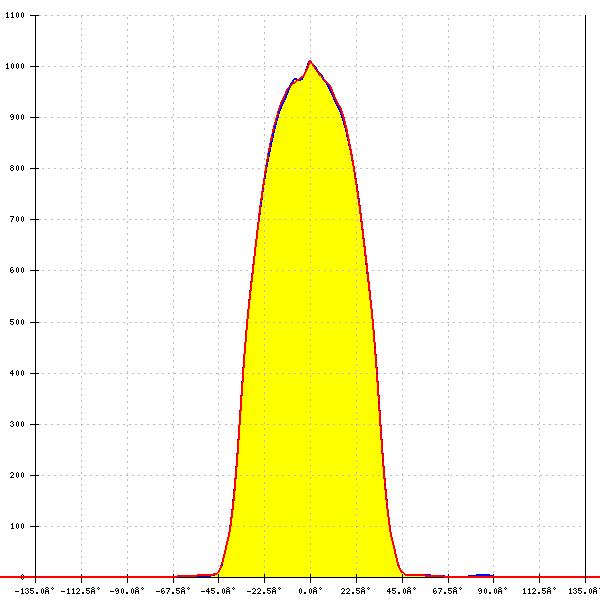

LED: Duris E 2835
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 62°
FWTM: 78°
Peak intensity: 1.012 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

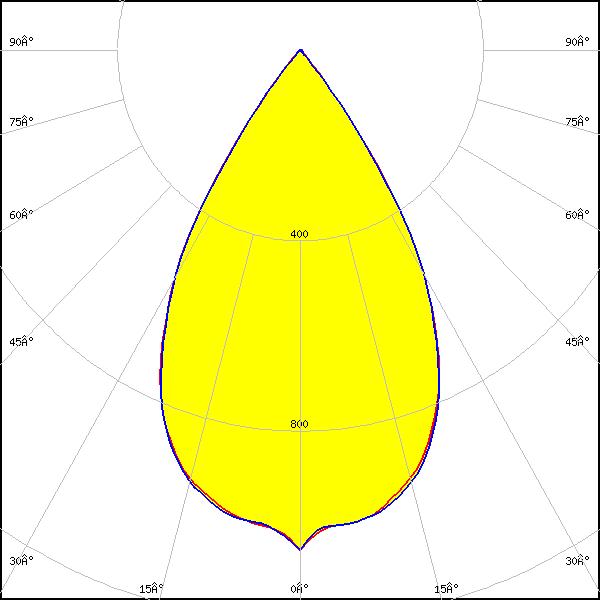

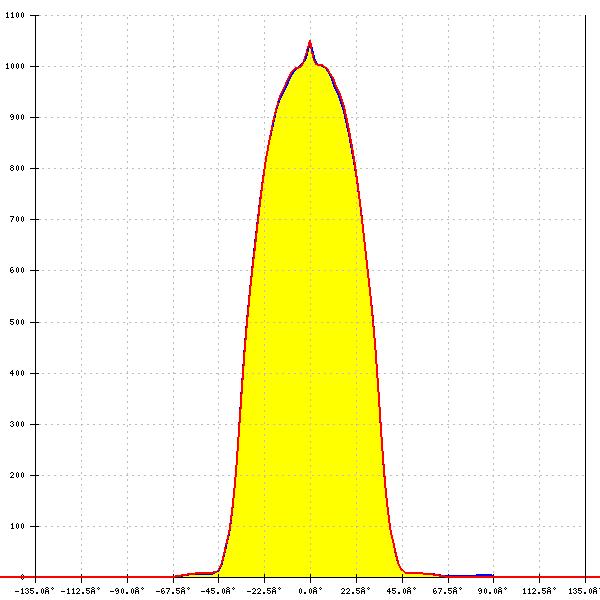

LED: Duris E 2835
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 60°
FWTM: 78°
Peak intensity: 1.051 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White
LED: Duris E 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: 50°
FWTM: 70°
Peak intensity: 1.471 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

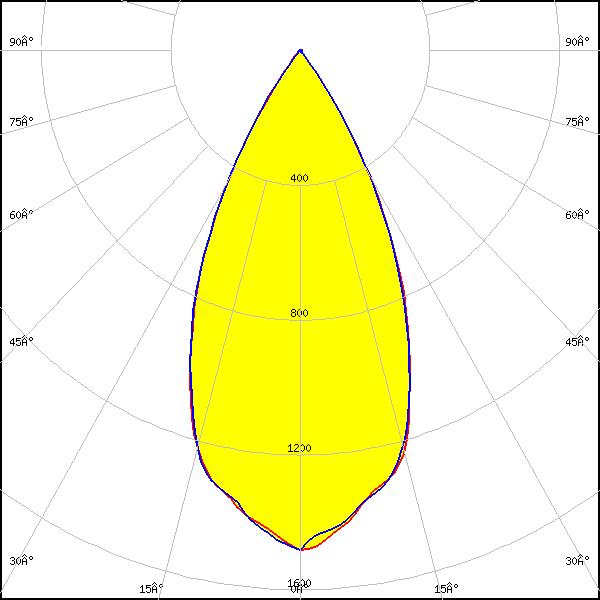

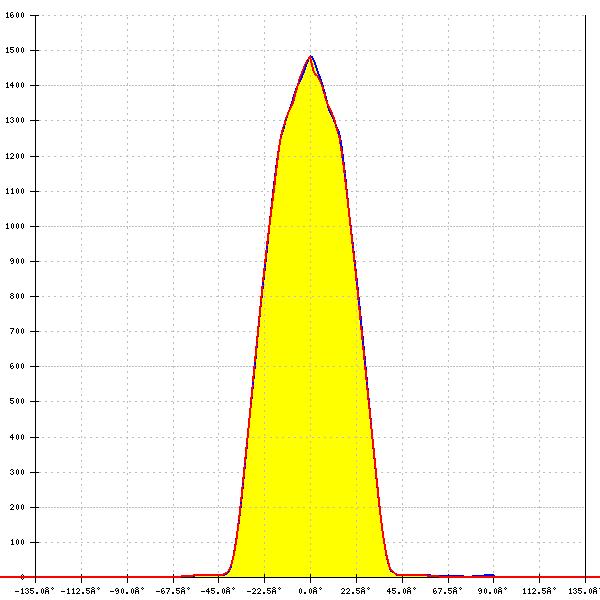

LED: Duris E 2835
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 50°
FWTM: 70°
Peak intensity: 1.499 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris E 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: 52°
FWTM: 74°
Peak intensity: 1.332 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

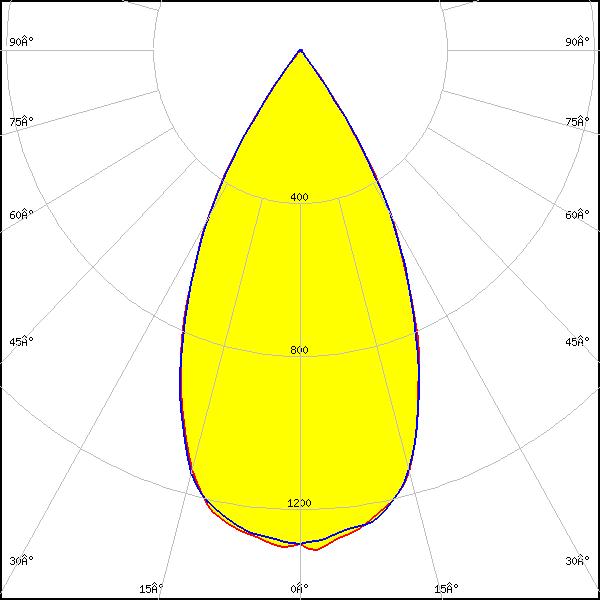

LED: Duris E 2835
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 54°
FWTM: 74°
Peak intensity: 1.321 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White

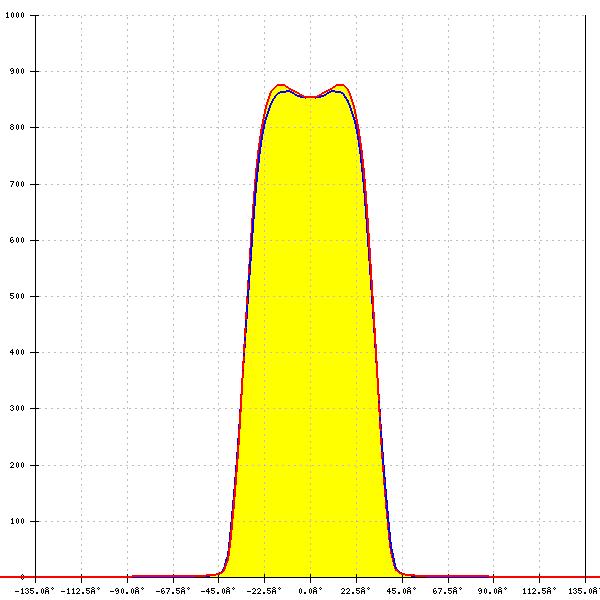

LED: OSCONIQ E 2835
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.879 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White

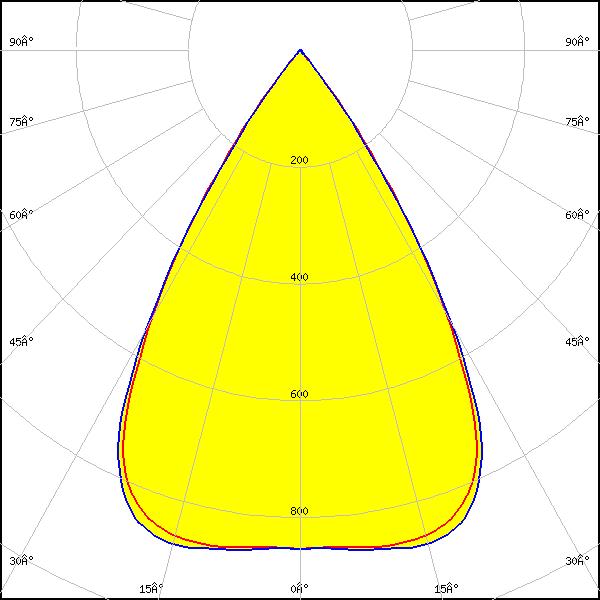

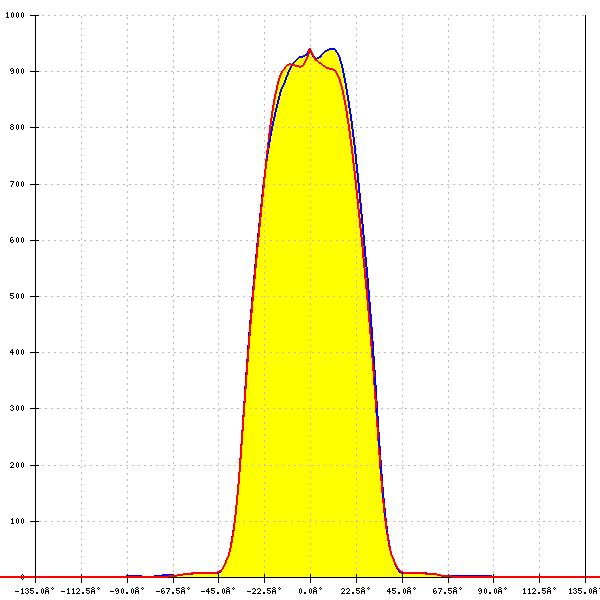

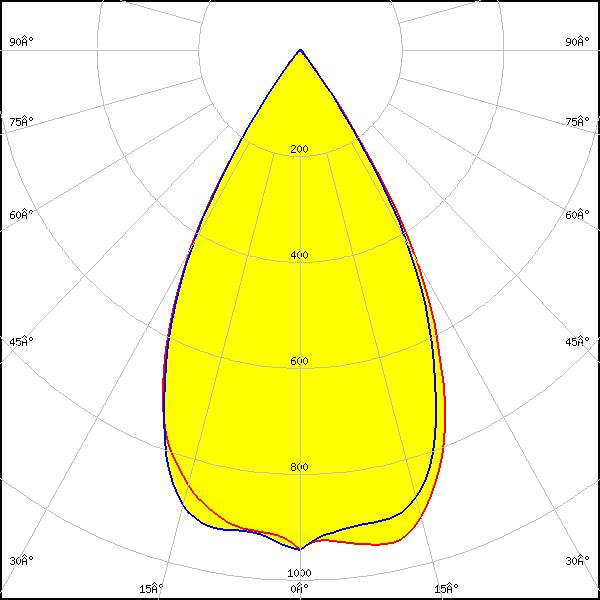

LED: OSLON PURE 1010
Required components:
C16872_DAISY-7X1-SHD
FWHM: 58°
FWTM: 74°
Peak intensity: 0.950 cd/lm
Efficiency: 81 %
LEDs/each optic: 8
Light colour/type: White
LED: OSLON PURE 1010
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 58°
FWTM: 74°
Peak intensity: 0.949 cd/lm
Efficiency: 81 %
LEDs/each optic: 8
Light colour/type: White

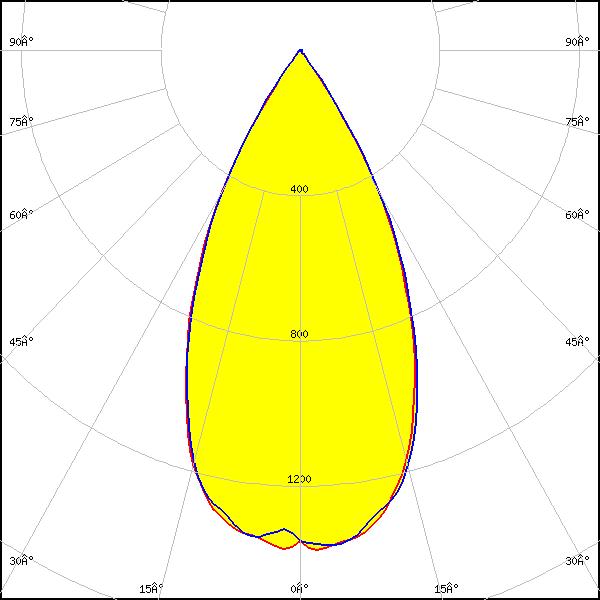

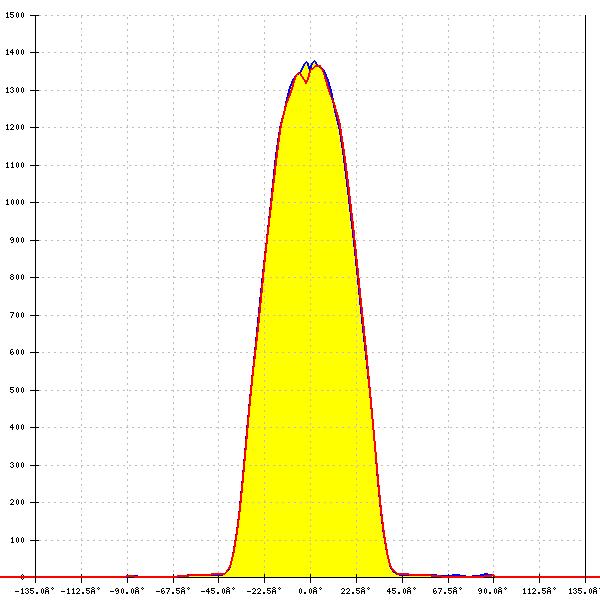

LED: LH181B
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 51°
FWTM: 72°
Peak intensity: 1.397 cd/lm
Efficiency: 92 %
LEDs/each optic: 2
Light colour/type: White

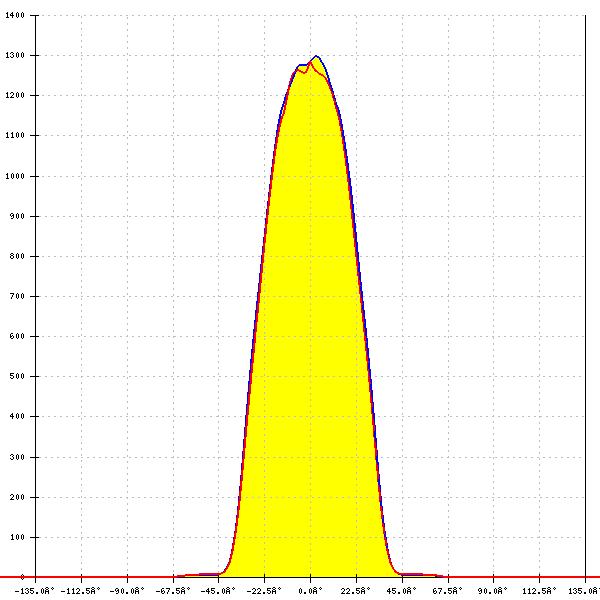

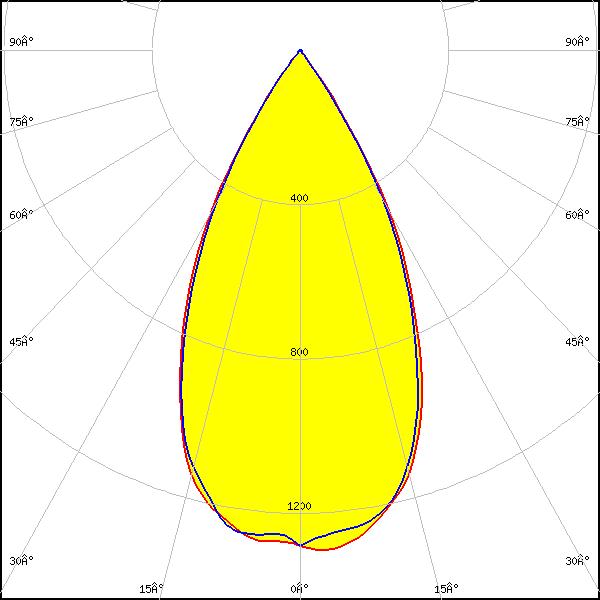

LED: LH231B
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 53°
FWTM: 72°
Peak intensity: 1.320 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White
LED: LH231B
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 58°
FWTM: 74°
Peak intensity: 1.143 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

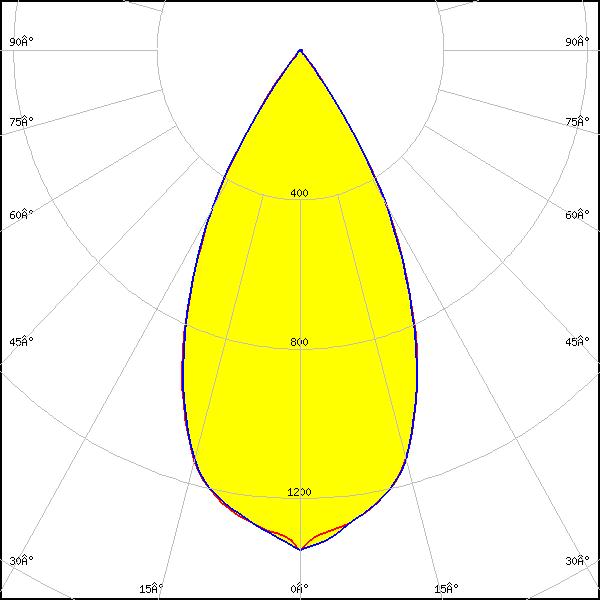

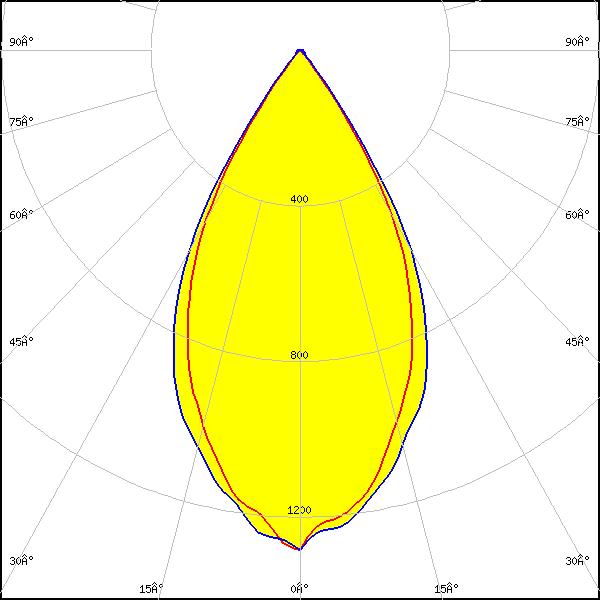

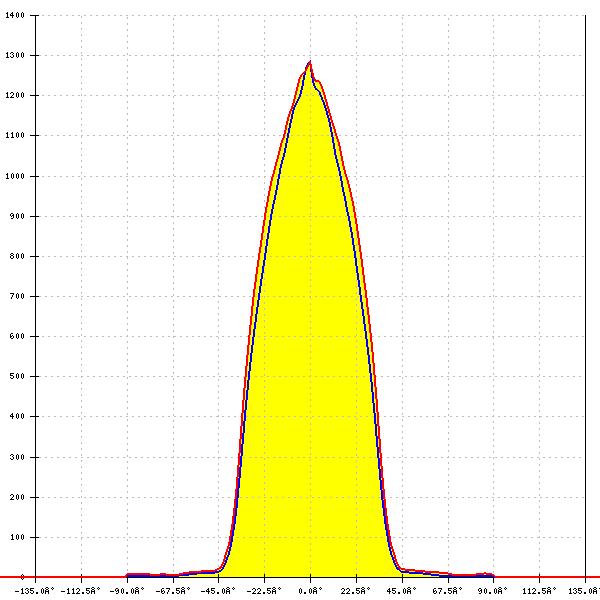

LED: LM28xB Series
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 52°
FWTM: 74°
Peak intensity: 1.339 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White

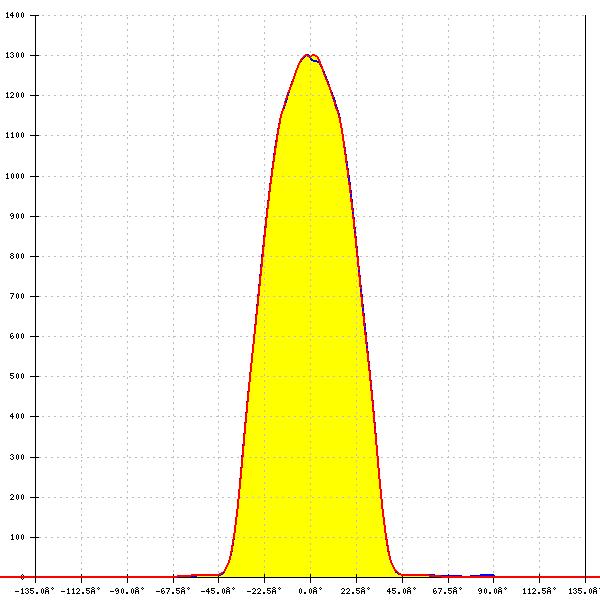

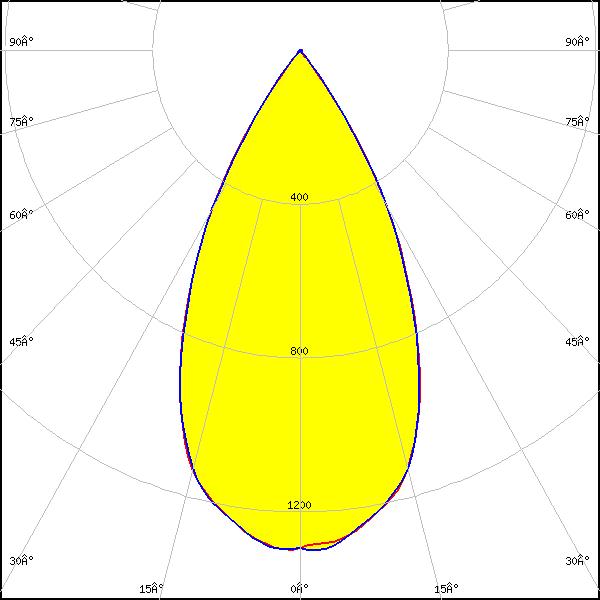

LED: LM28xB Series
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 52°
FWTM: 74°
Peak intensity: 1.303 cd/lm
Efficiency: 92 %
LEDs/each optic: 2
Light colour/type: White

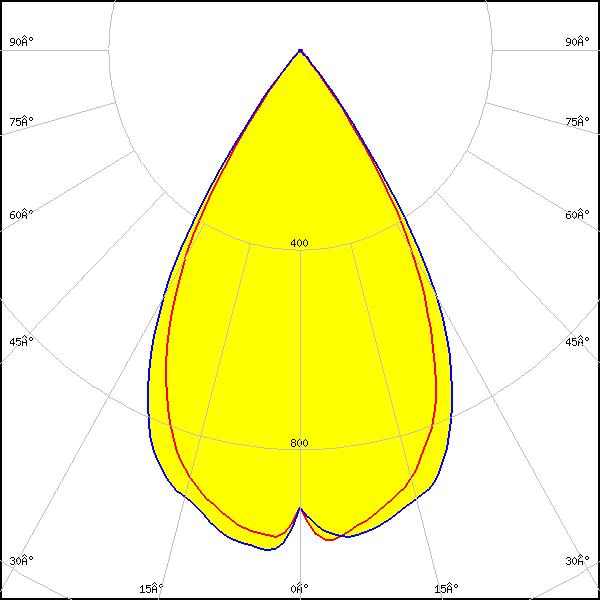

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 61°
FWTM: 77°
Peak intensity: 1.005 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White

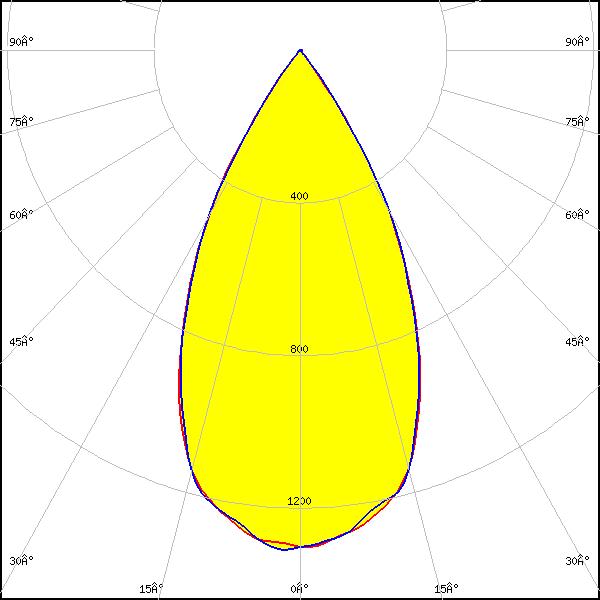

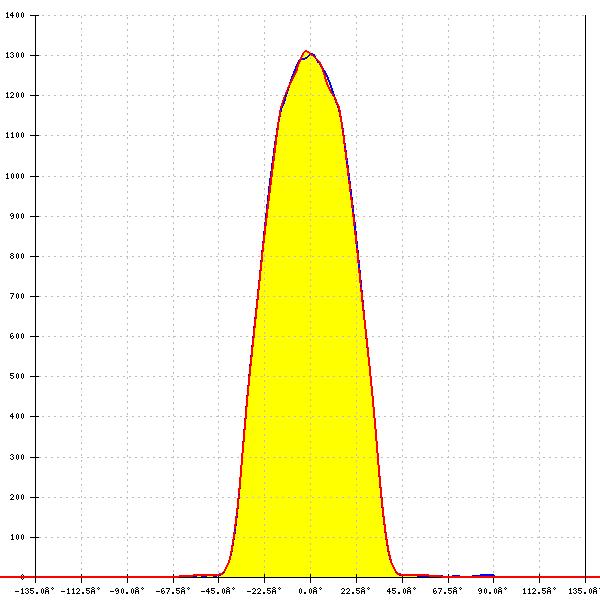

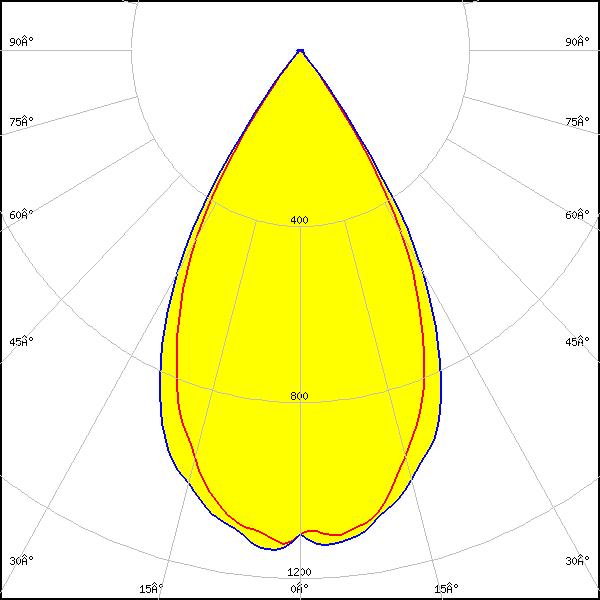

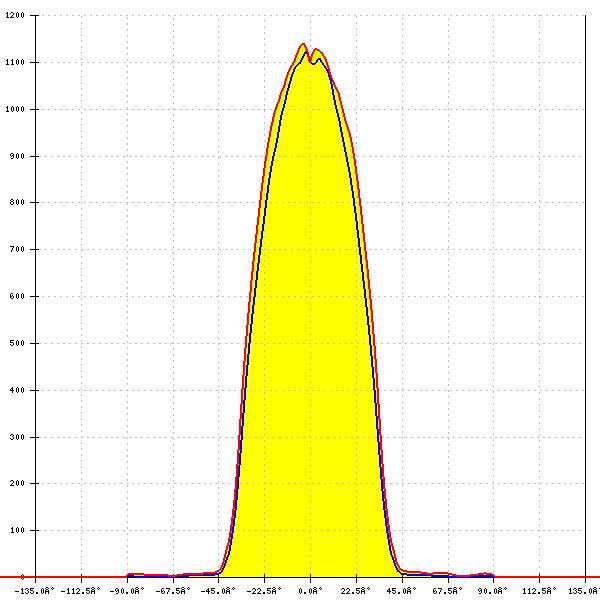

LED: LM28xB Series
Required components:
C19641_DAISY-7X1-SHD3-MET
FWHM: 54°
FWTM: 74°
Peak intensity: 1.318 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White

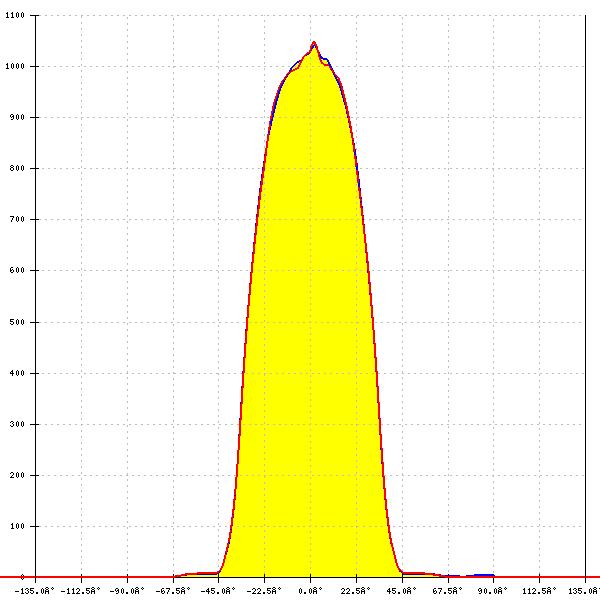

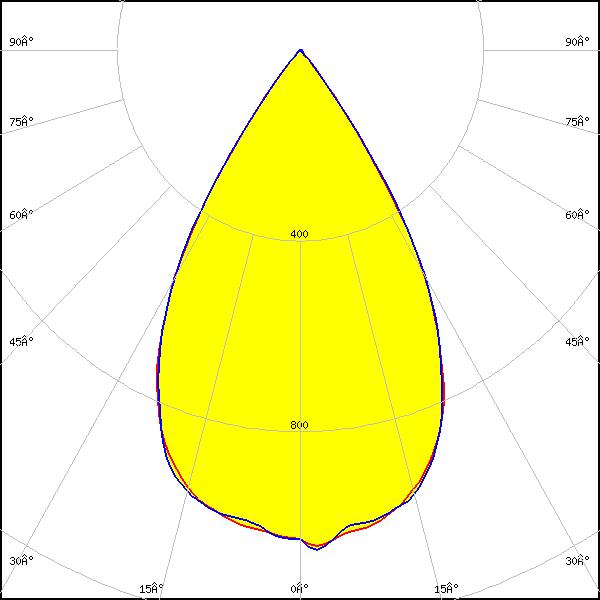

LED: LM28xB Series
Required components:
C19641_DAISY-7X1-SHD3-MET
FWHM: 61°
FWTM: 78°
Peak intensity: 1.057 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White

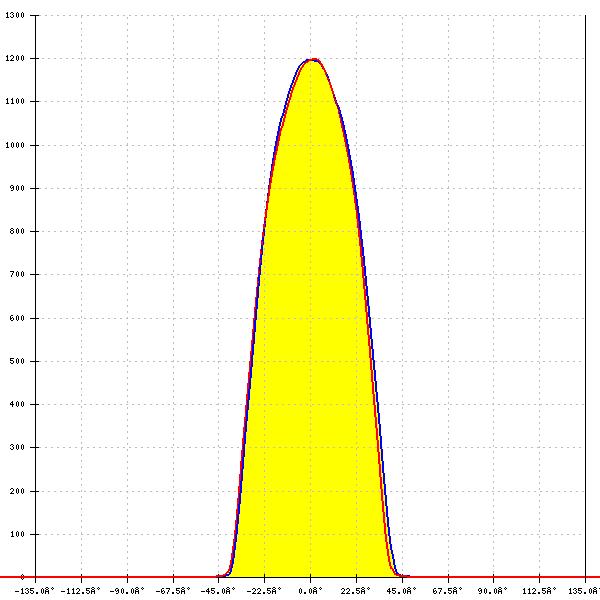

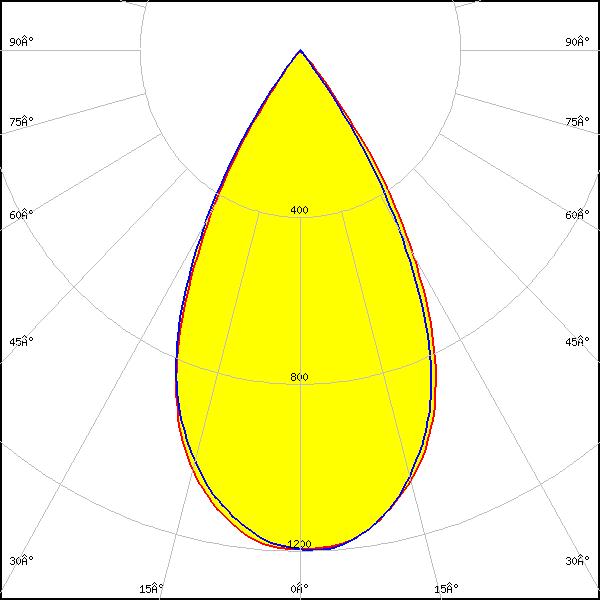

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 56°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

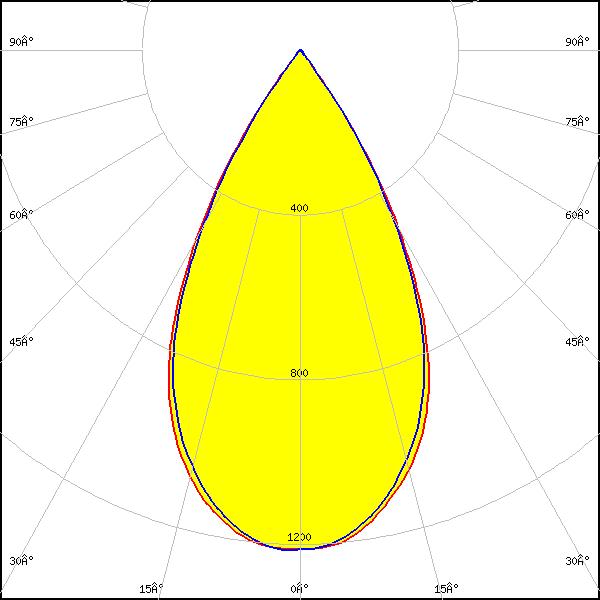

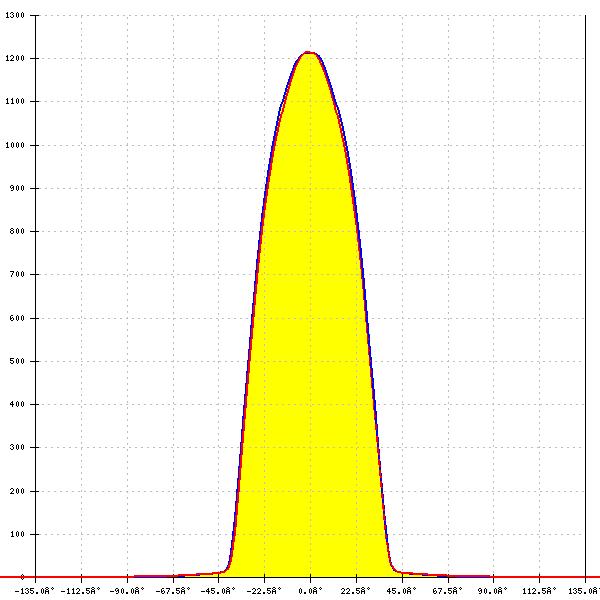

LED: LM28xB Series
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 56°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White

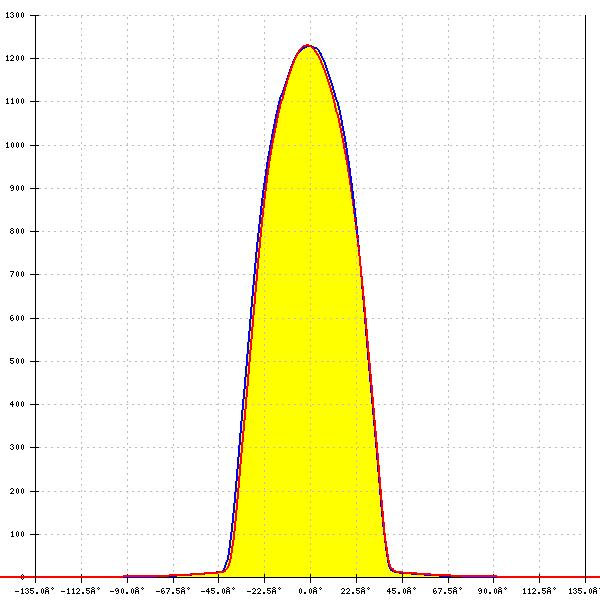

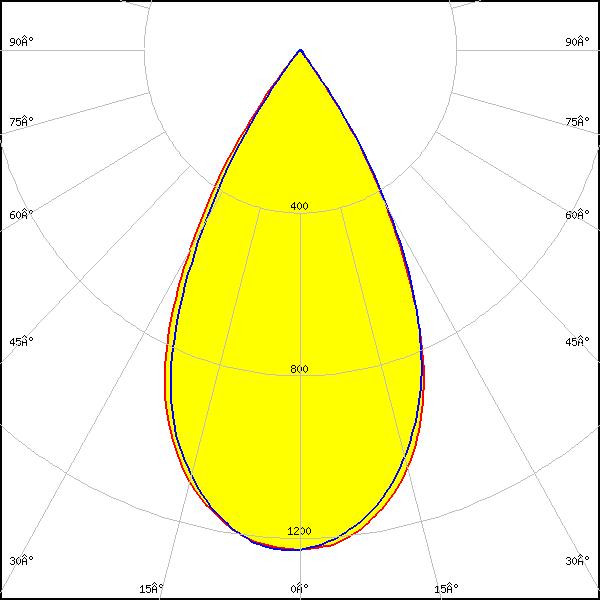

LED: LM28xB Series
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 55°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White

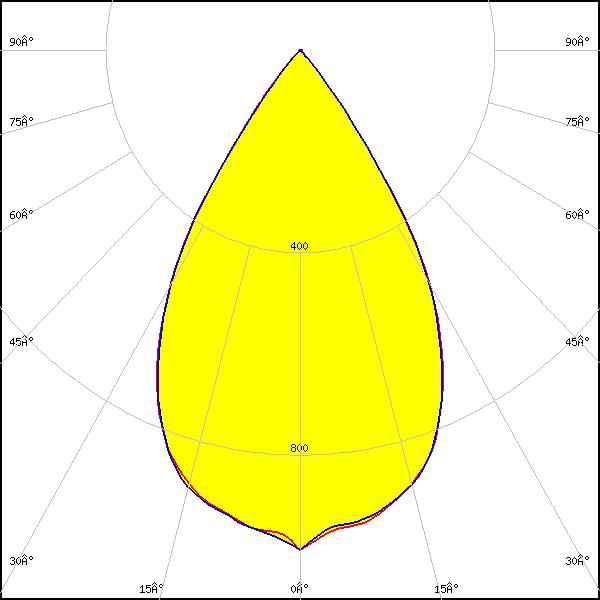

LED: LM301B
Required components:
C16872_DAISY-7X1-SHD
FWHM: 62°
FWTM: 80°
Peak intensity: 0.988 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 62°
FWTM: 77°
Peak intensity: 0.945 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

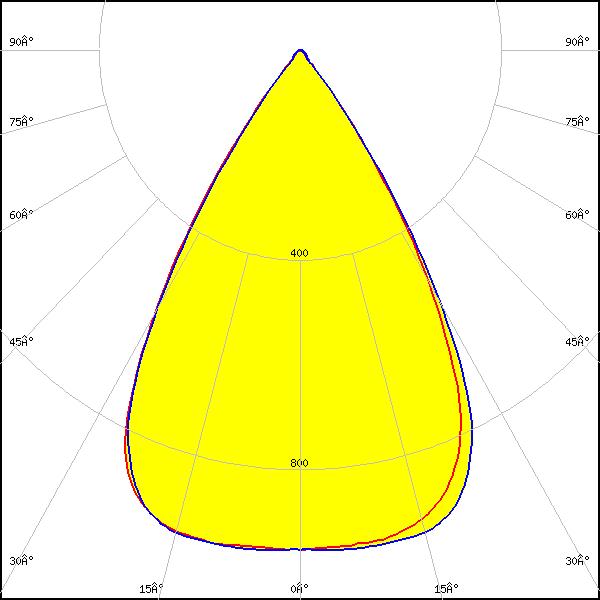

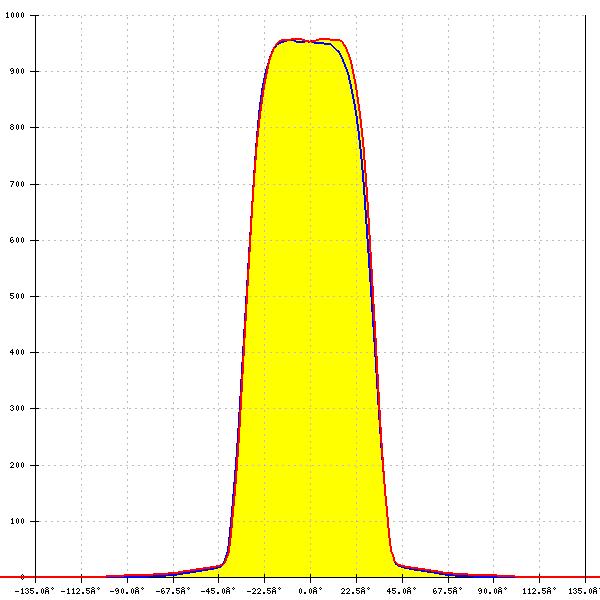

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 62°
FWTM: 77°
Peak intensity: 0.965 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

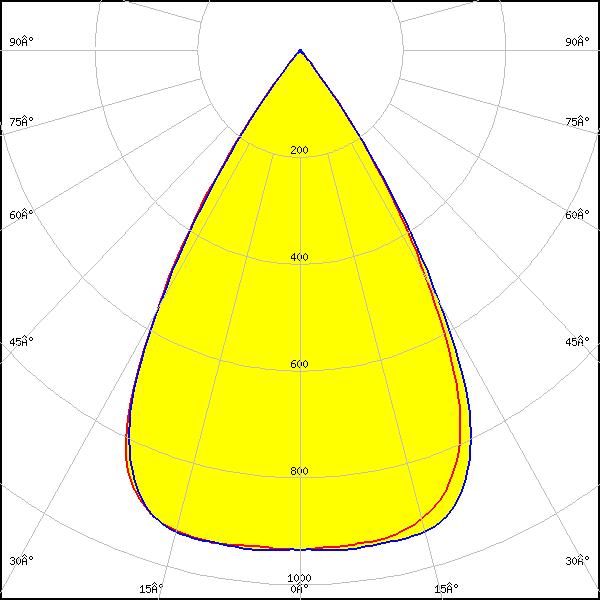

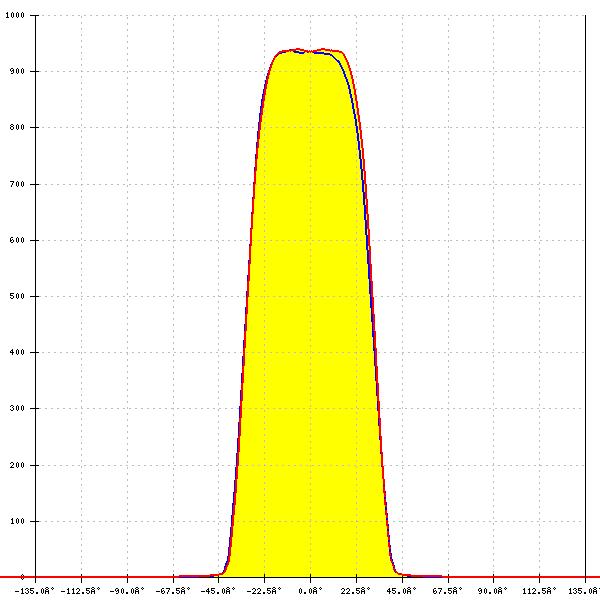

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 62°
FWTM: 77°
Peak intensity: 0.946 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

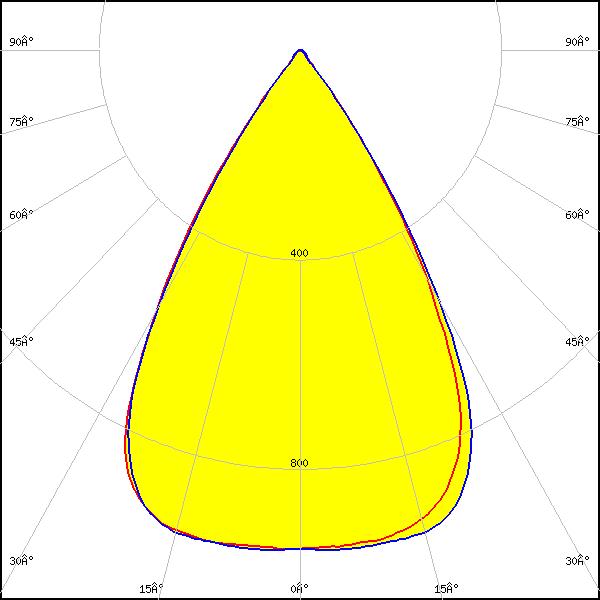

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 62°
FWTM: 77°
Peak intensity: 0.965 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: White

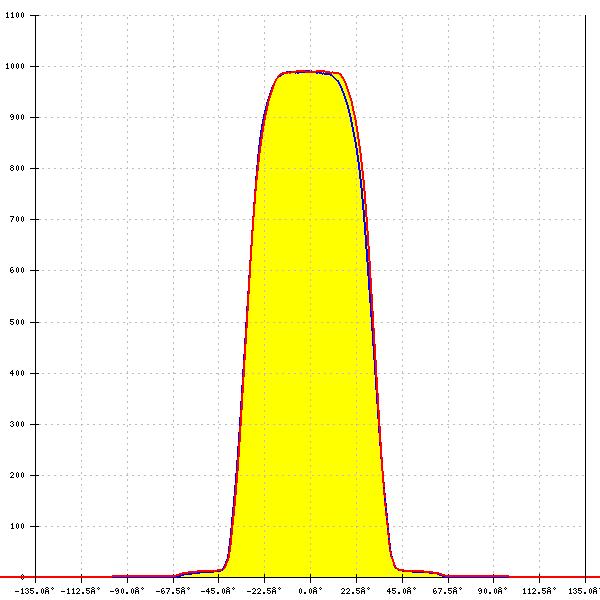

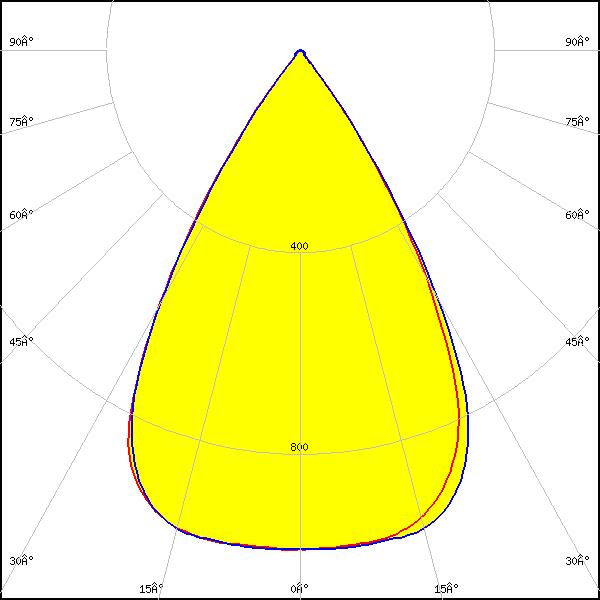

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 62°
FWTM: 77°
Peak intensity: 0.997 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

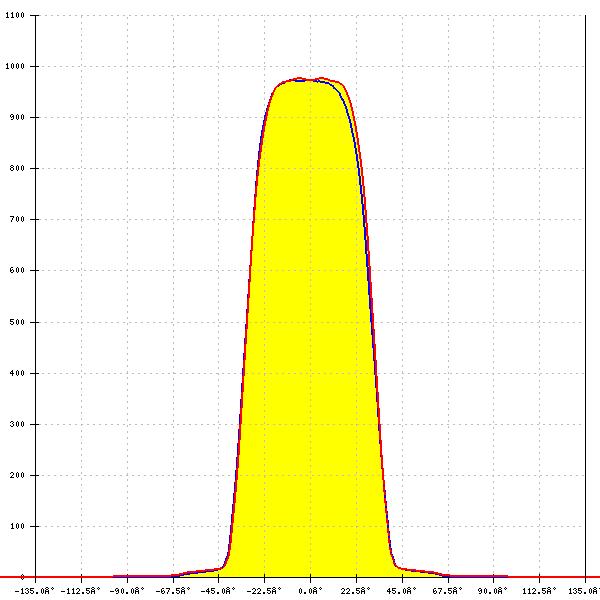

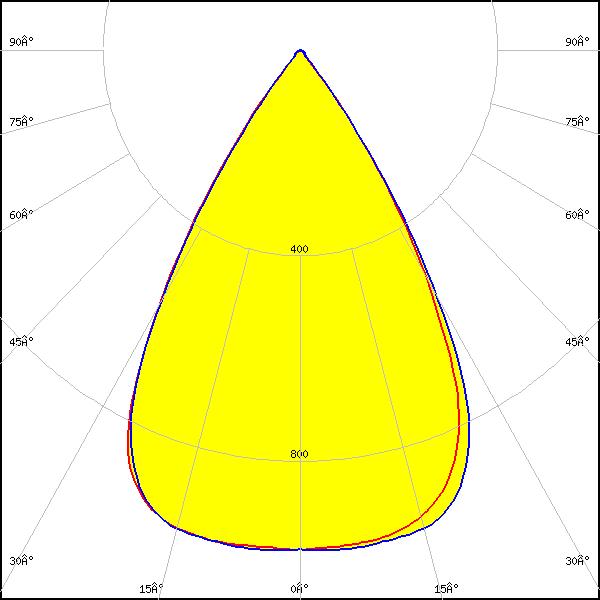

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 62°
FWTM: 77°
Peak intensity: 0.982 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

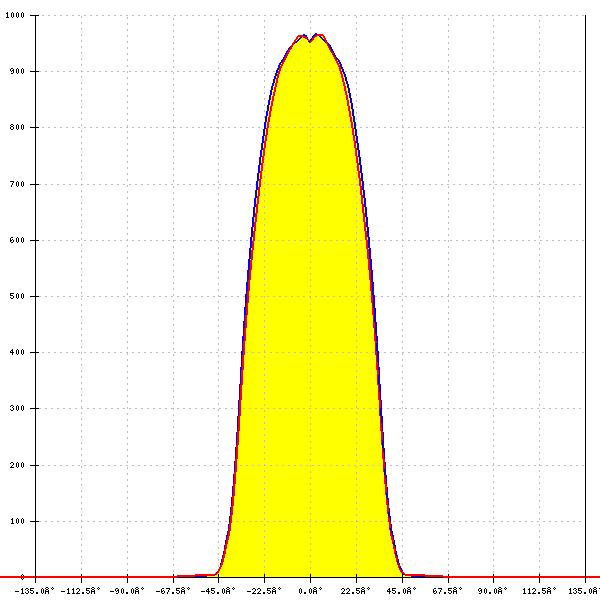

LED: SEOUL DC 3030C
Required components:
C16872_DAISY-7X1-SHD
FWHM: 63°
FWTM: 79°
Peak intensity: 0.985 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

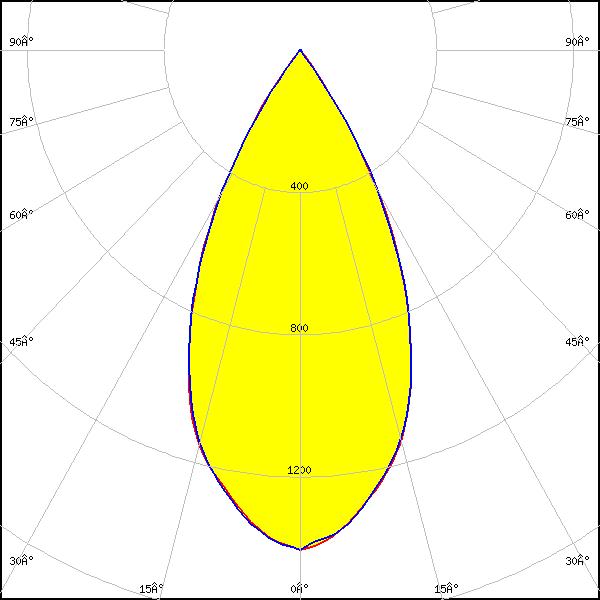

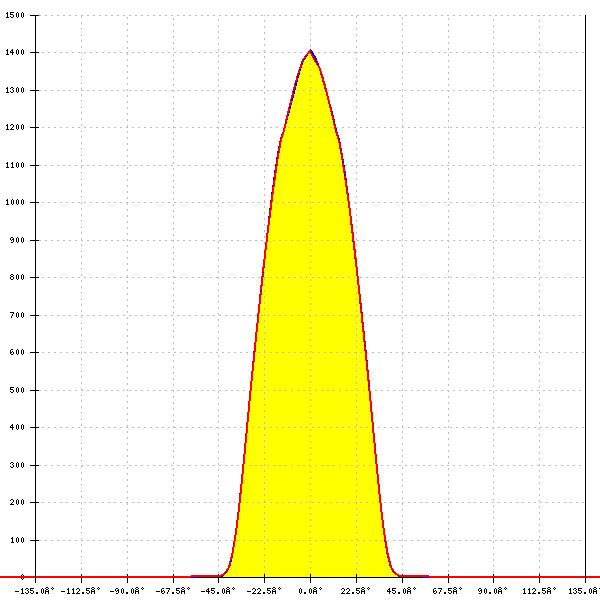

LED: SEOUL DC 3528
Required components:
C16872_DAISY-7X1-SHD
FWHM: 50°
FWTM: 72°
Peak intensity: 1.407 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16872_DAISY-7X1-SHD
FWHM: 70°
FWTM: 82°
Peak intensity: 0.735 cd/lm
Efficiency: 81 %
LEDs/each optic: 4
Light colour/type: White

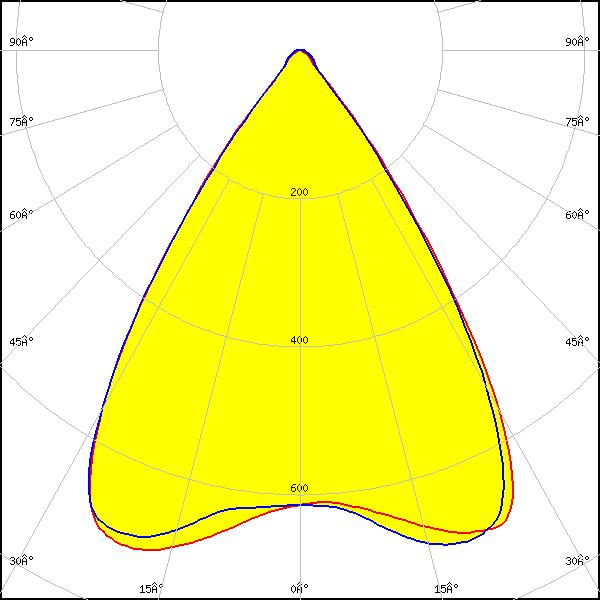

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 68°
FWTM: 83°
Peak intensity: 0.765 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White

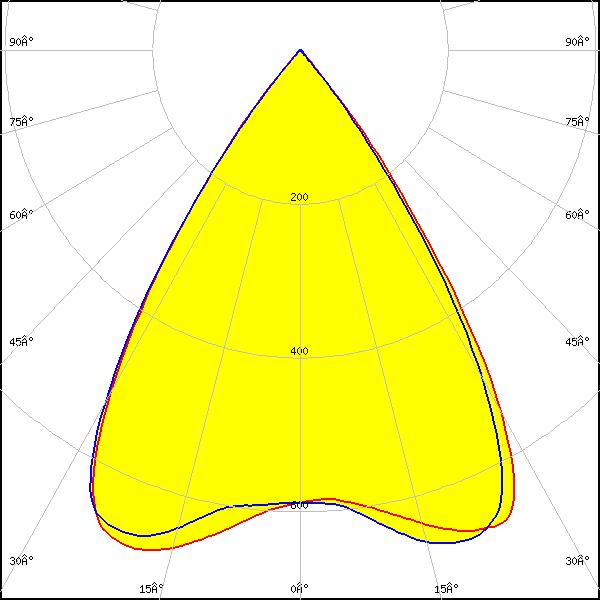

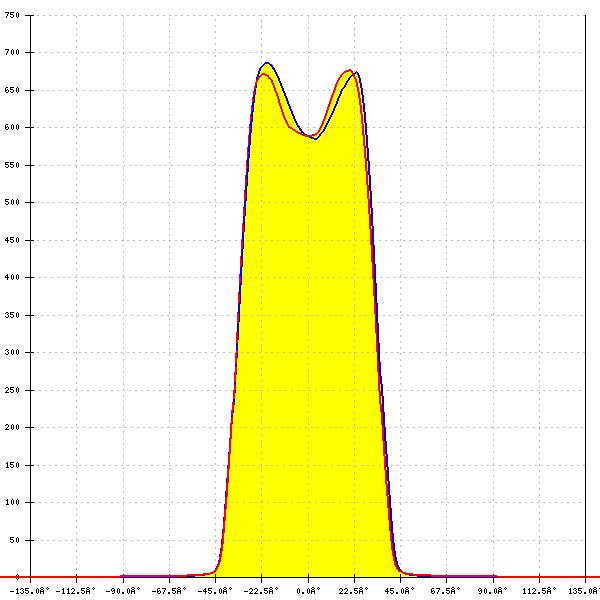

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 68°
FWTM: 81°
Peak intensity: 0.738 cd/lm
Efficiency: 81 %
LEDs/each optic: 4
Light colour/type: White
LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 70°
FWTM: 84°
Peak intensity: 0.764 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White

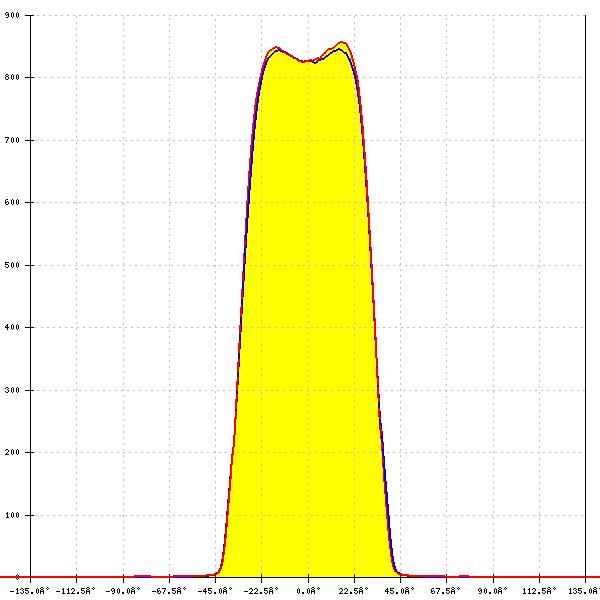

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 65°
FWTM: 79°
Peak intensity: 0.859 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White

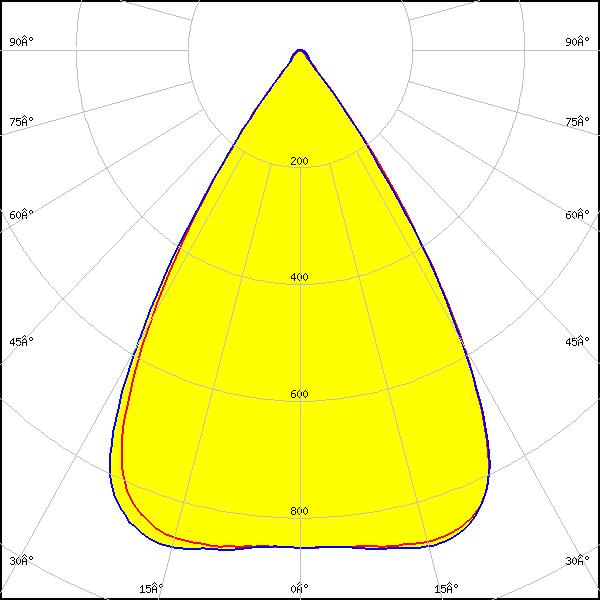

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.884 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

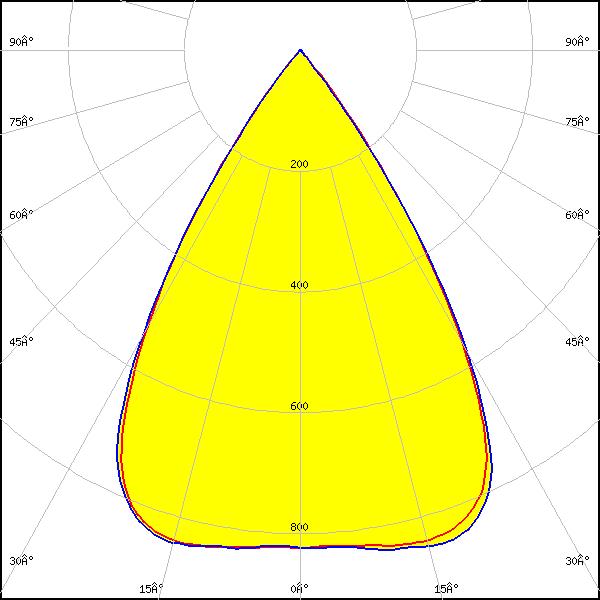

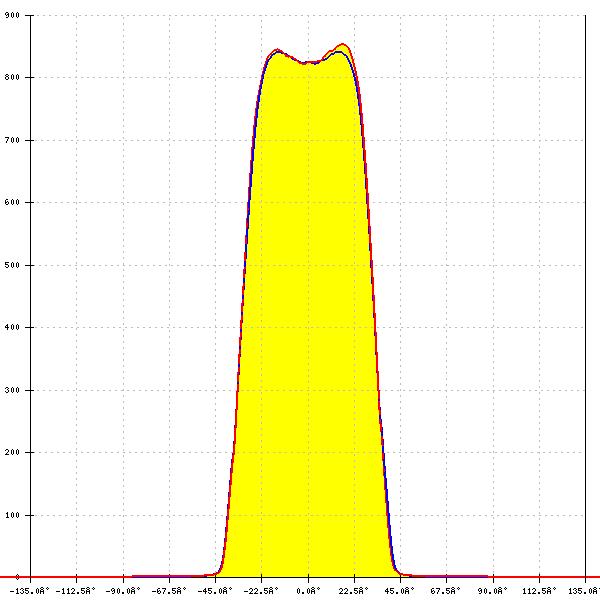

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 65°
FWTM: 78°
Peak intensity: 0.855 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White

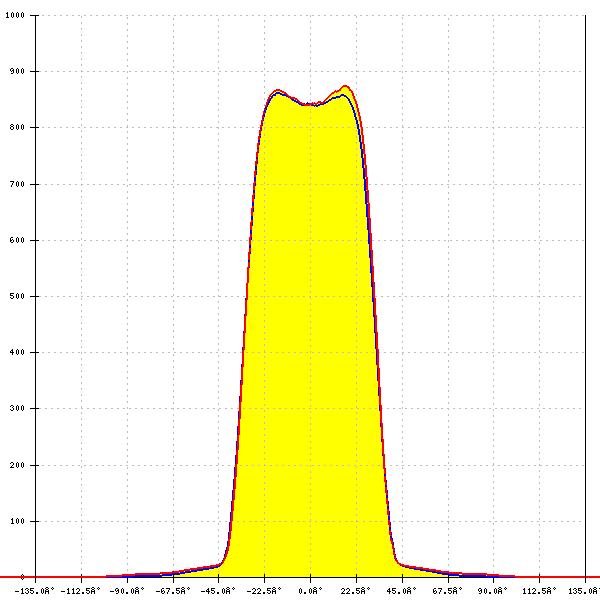

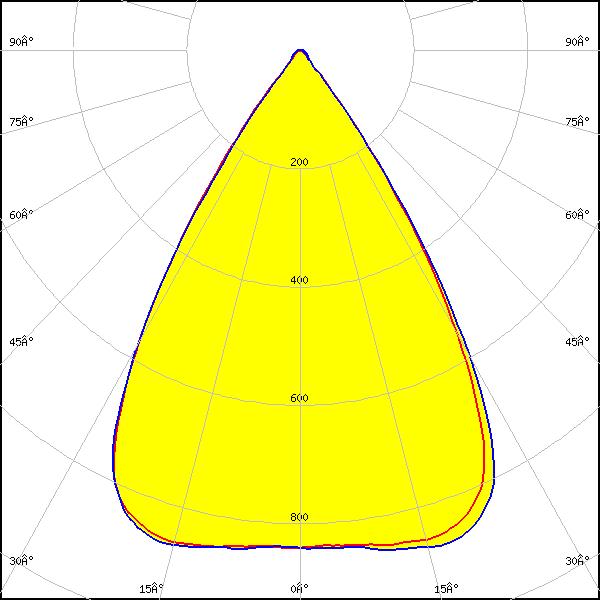

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 65°
FWTM: 79°
Peak intensity: 0.874 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
