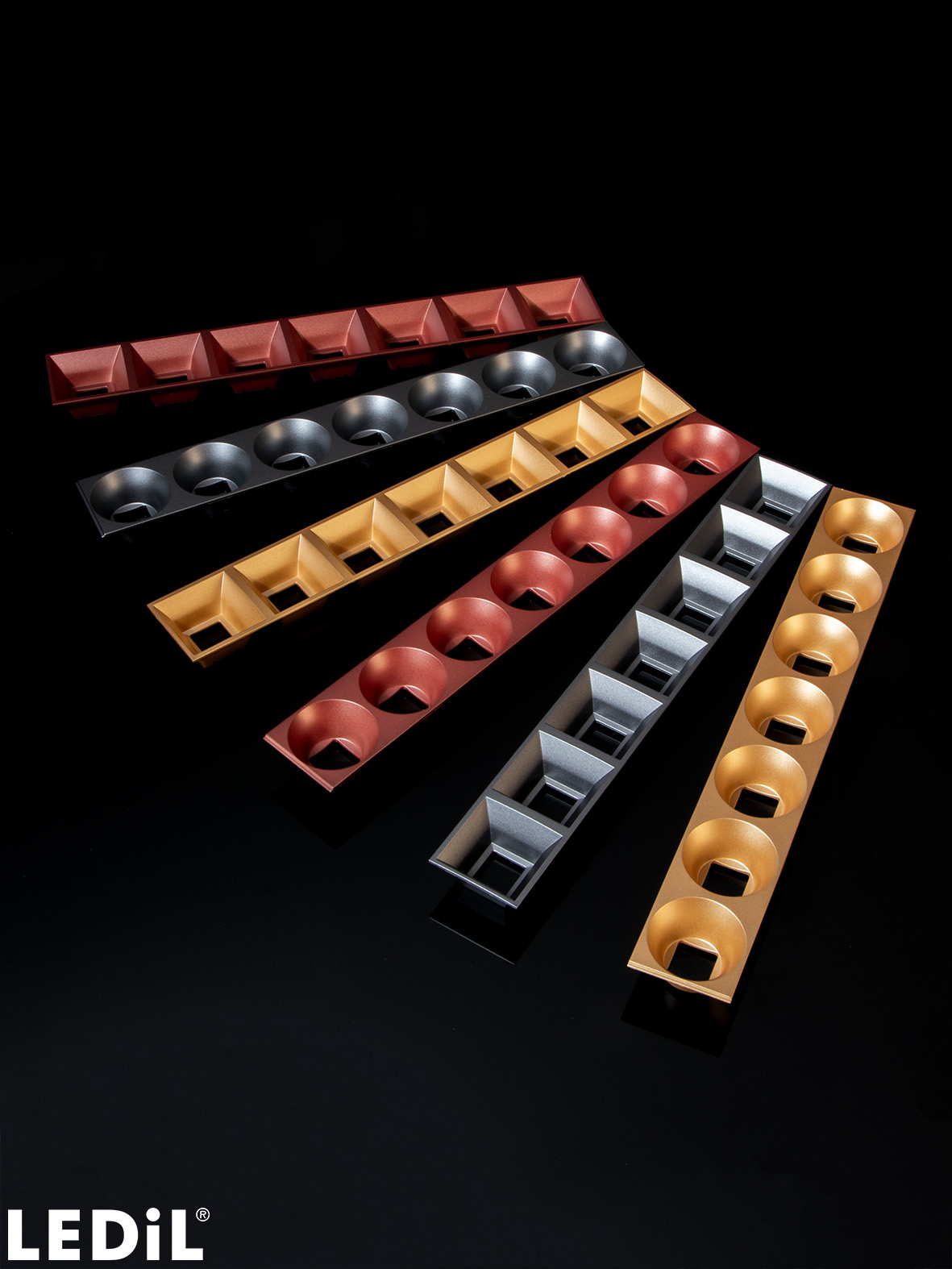

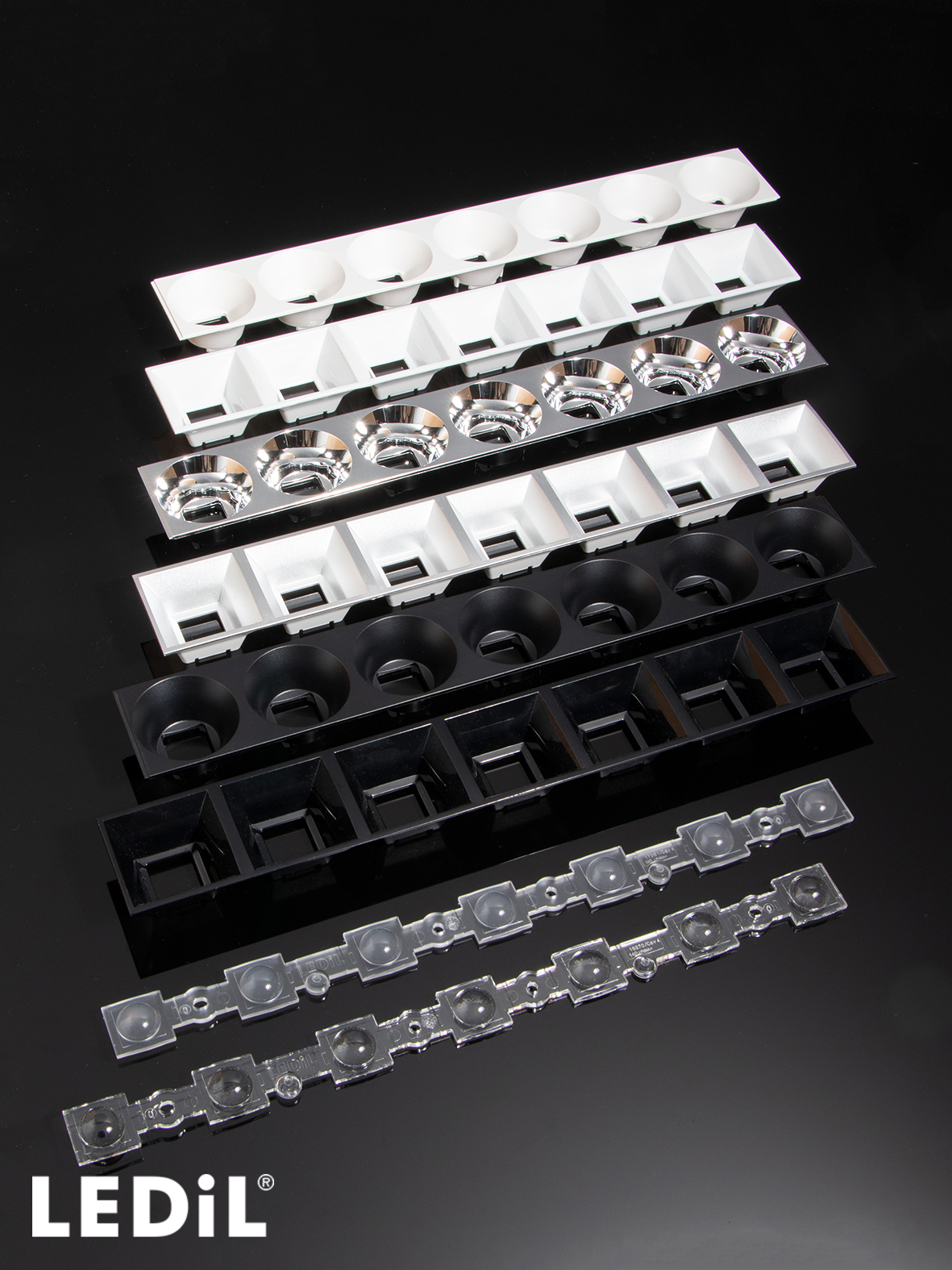

DAISY-7X1-WW

Print

~80° wide beam

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    280 x  40 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C16870_DAISY-7X1-WW
    clear
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    5.60 kg
  • MPQ:
    24 pcs
  • MOQ:
    192 pcs
  • MOQ Size:
    400 x 300 x 185 mm
  • MOQ Weight:
    3.60 kg

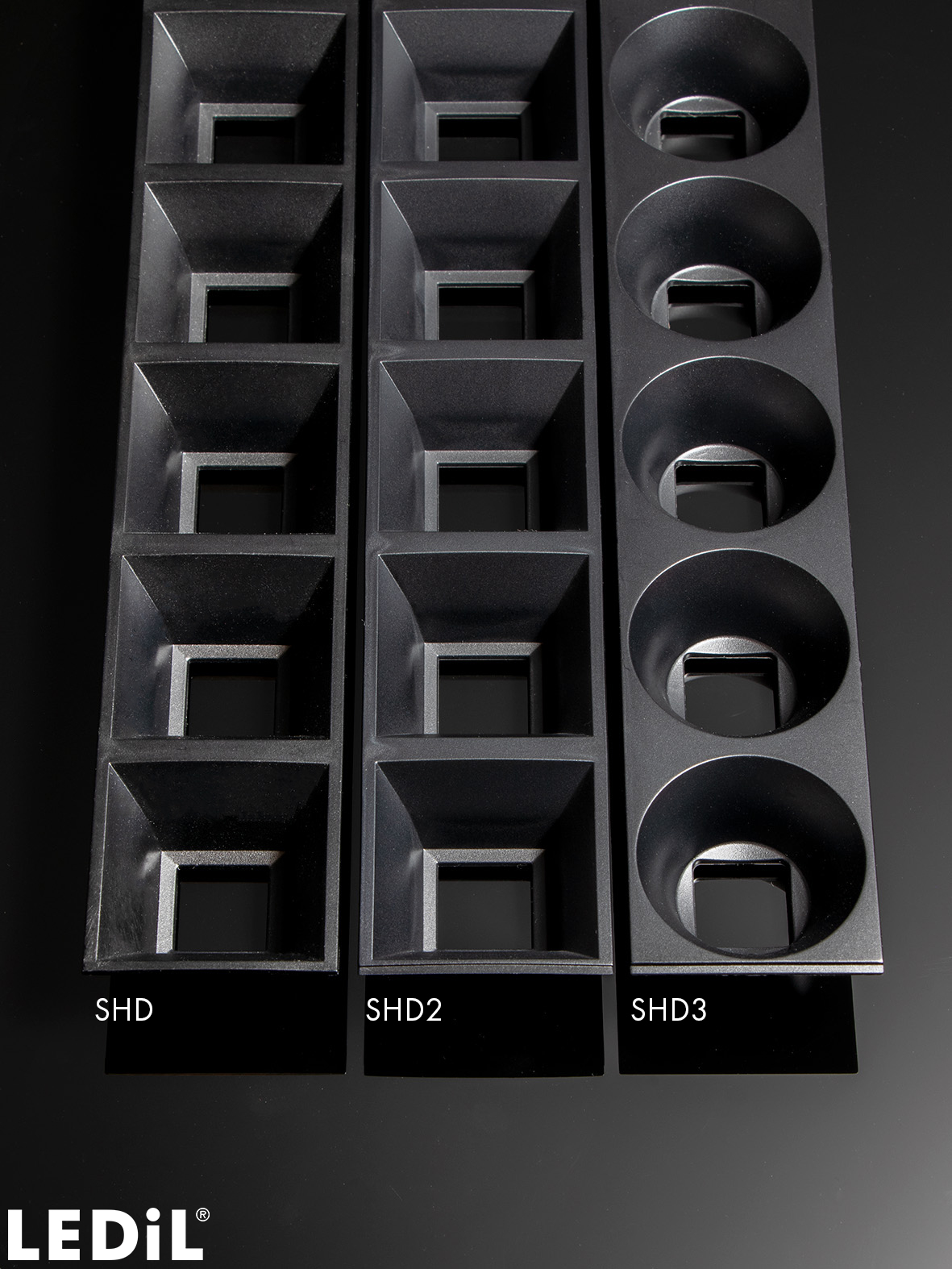

  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C17533_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    192 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    9.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C16870_DAISY-7X1-WW
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

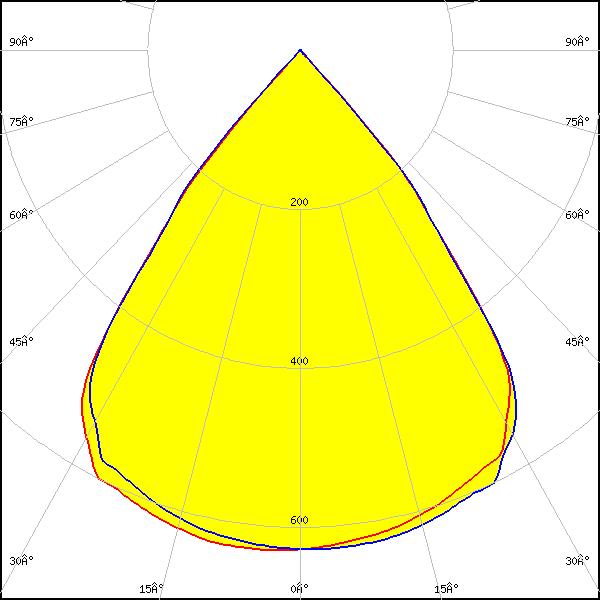

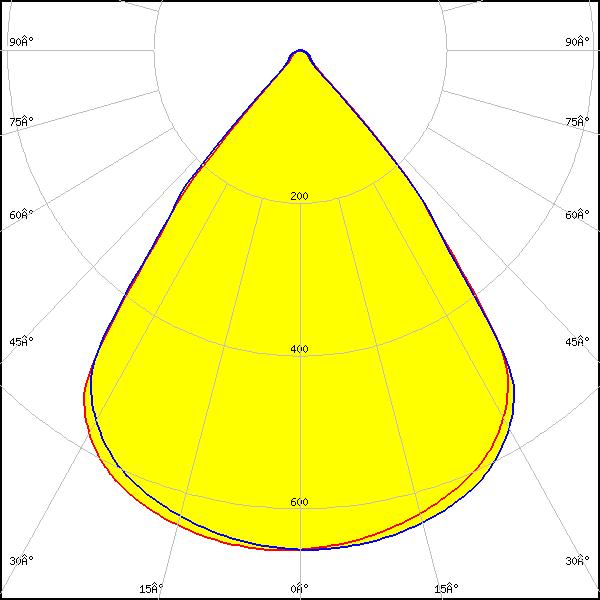

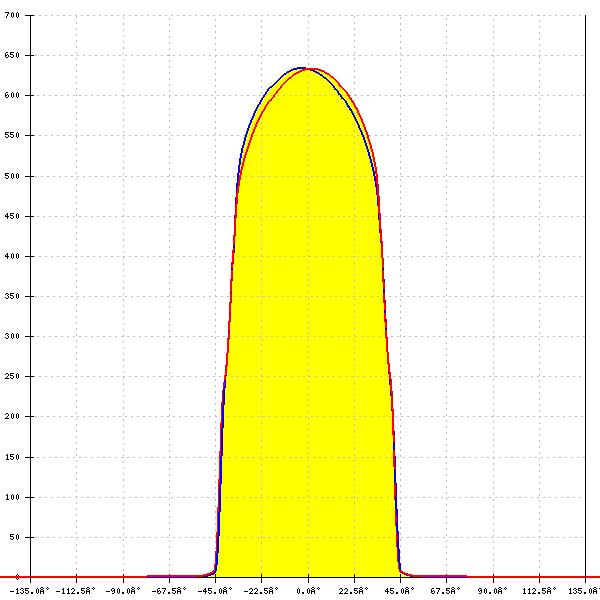

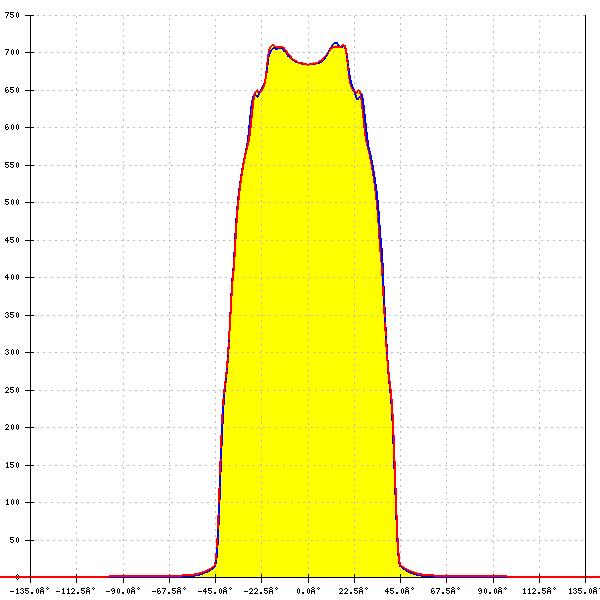

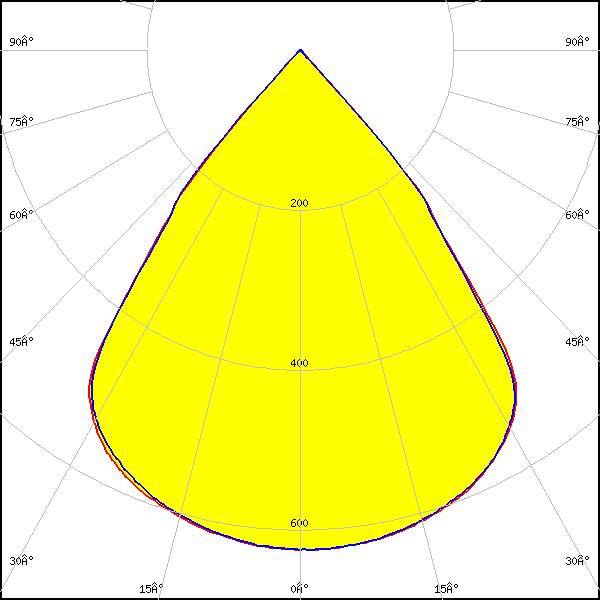

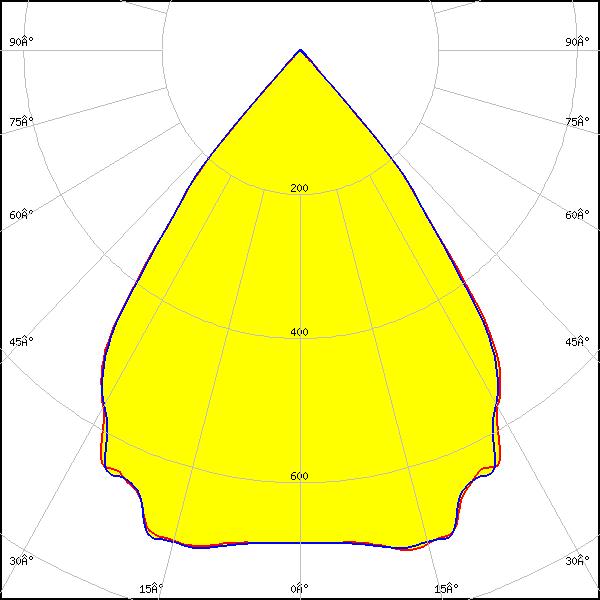

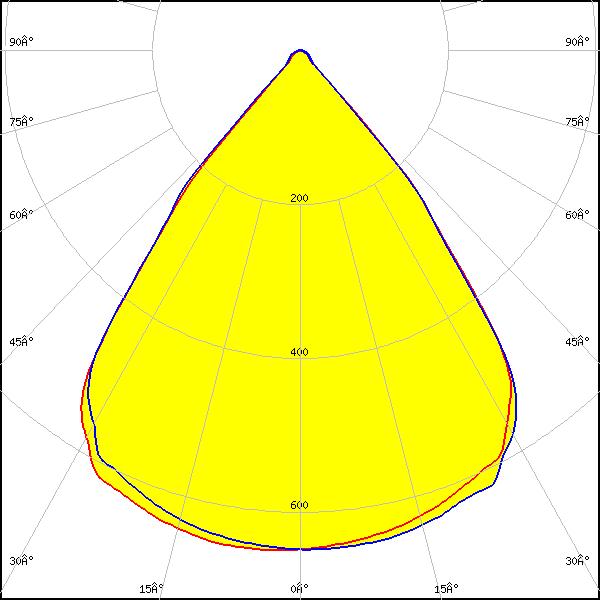

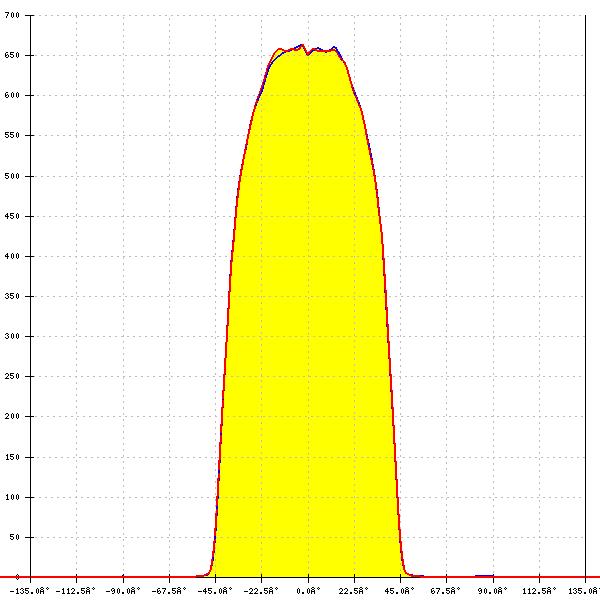

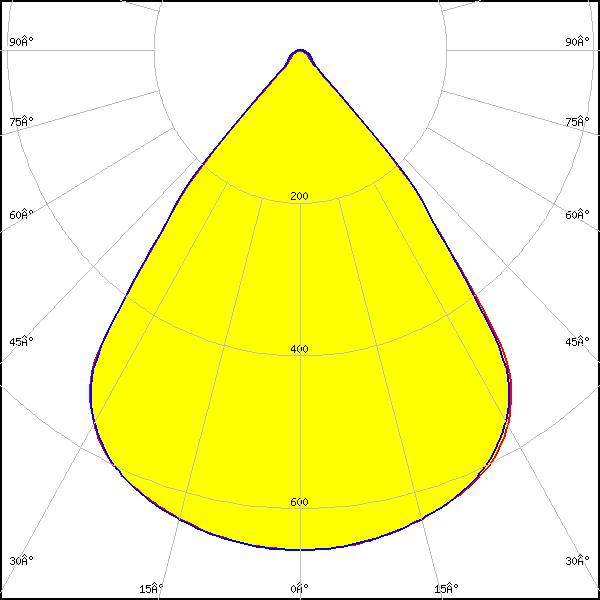

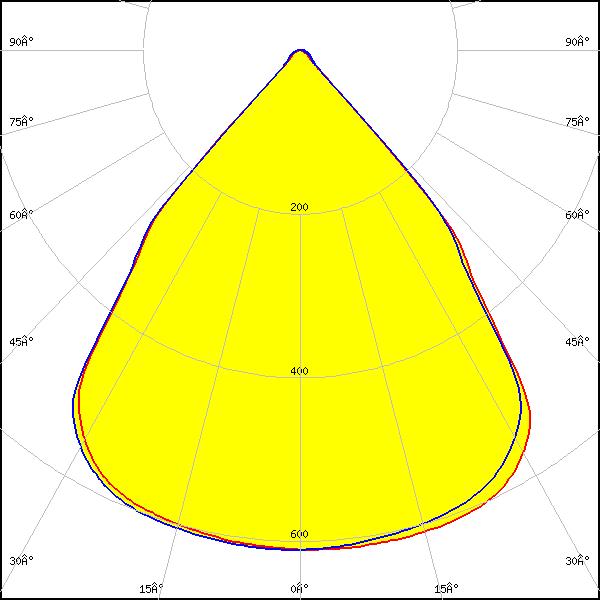

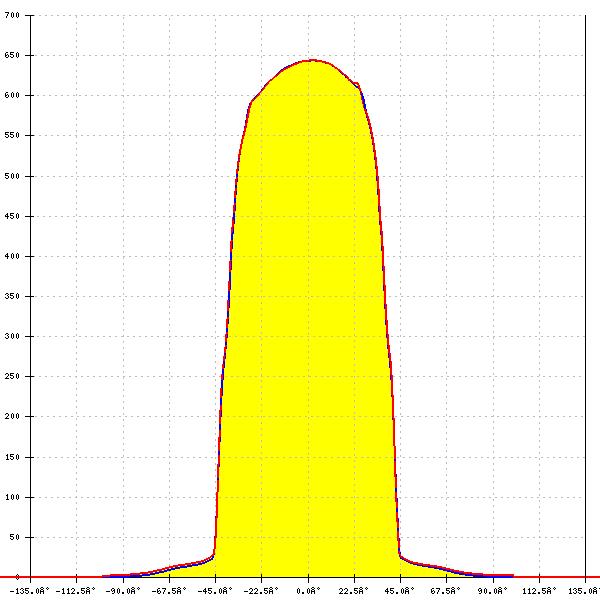

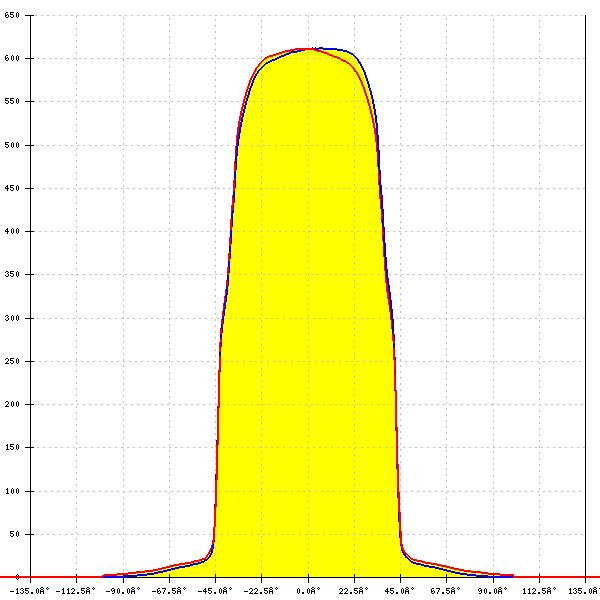

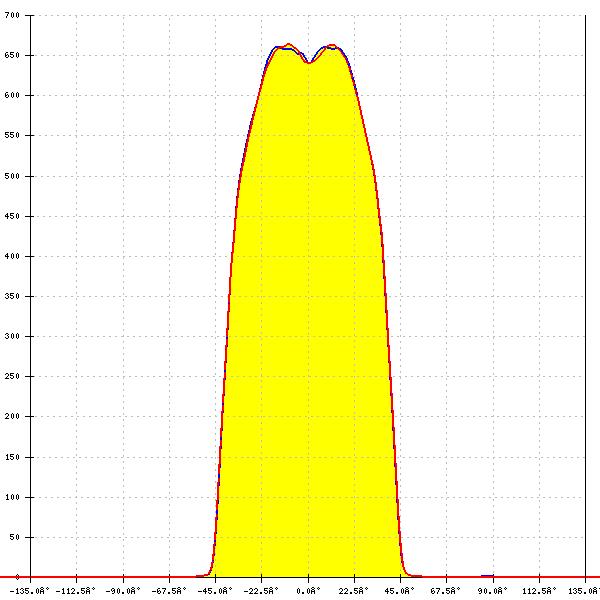

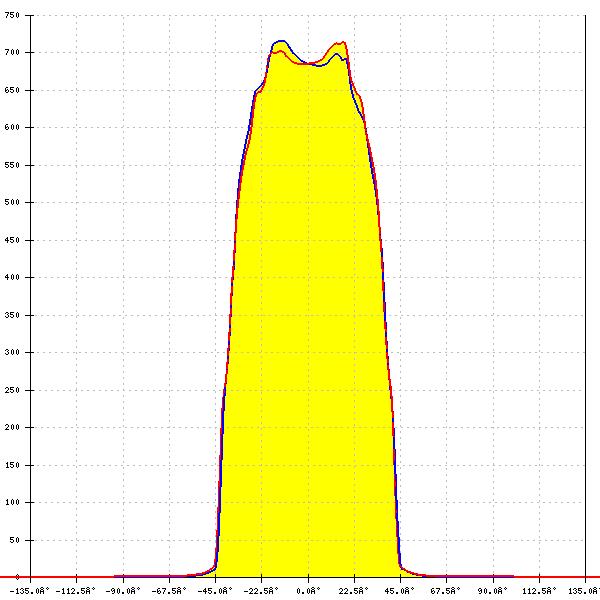

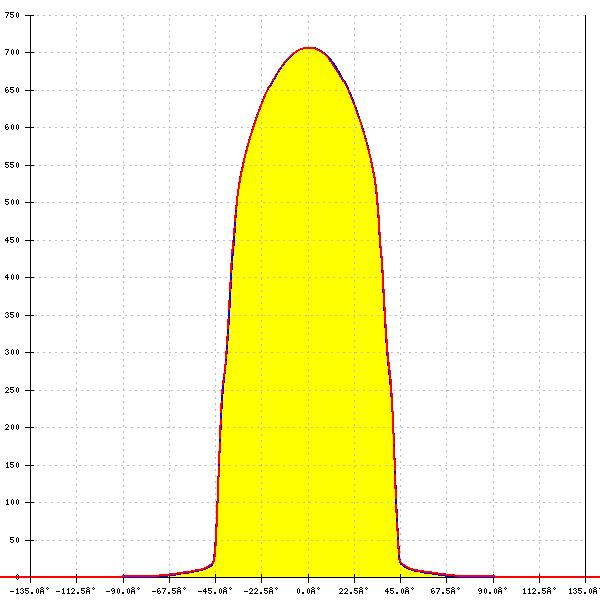

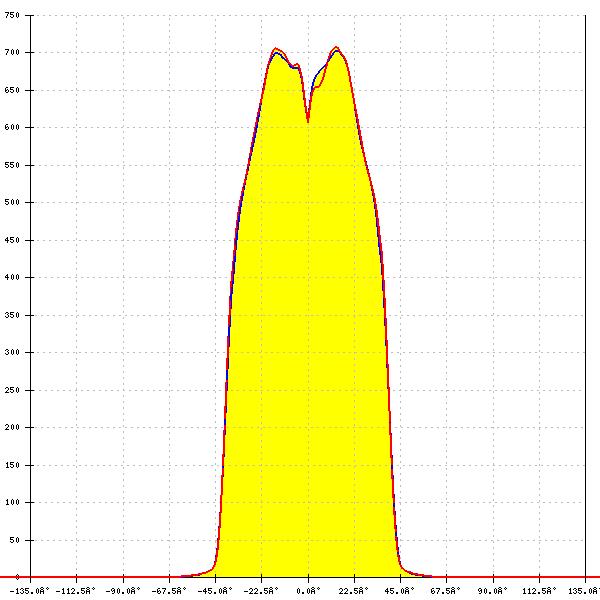

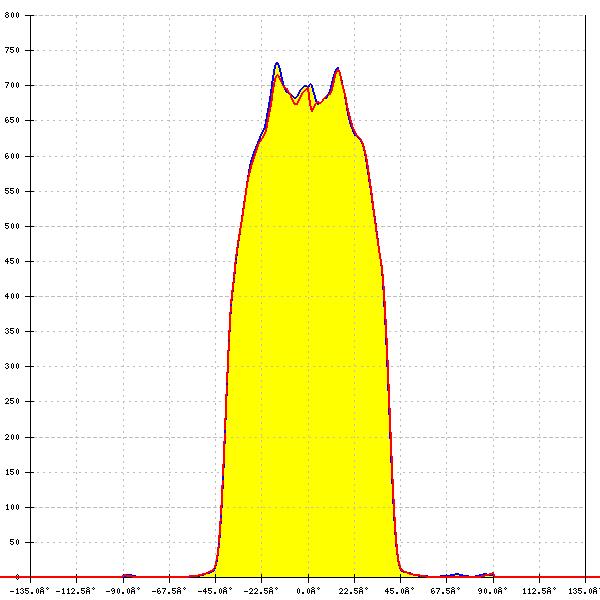

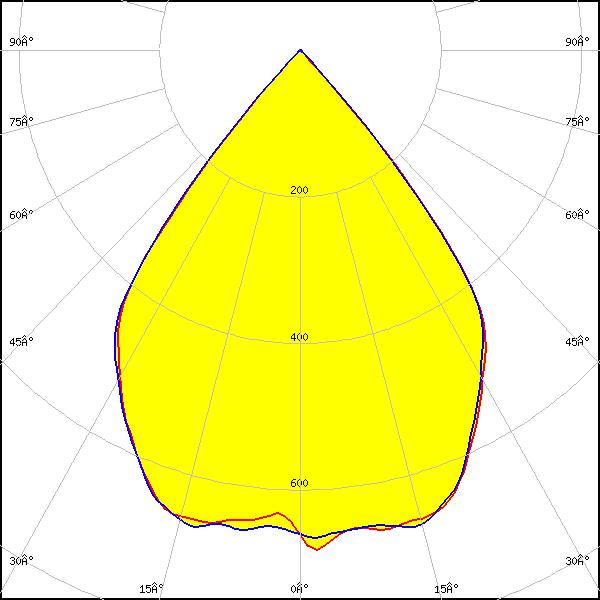

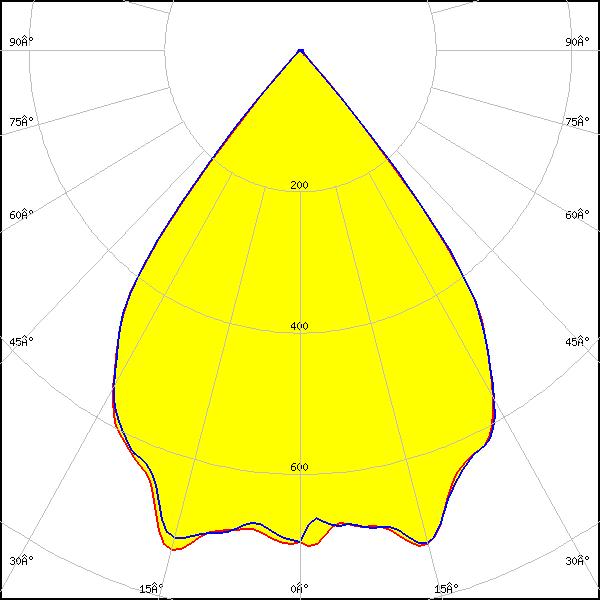

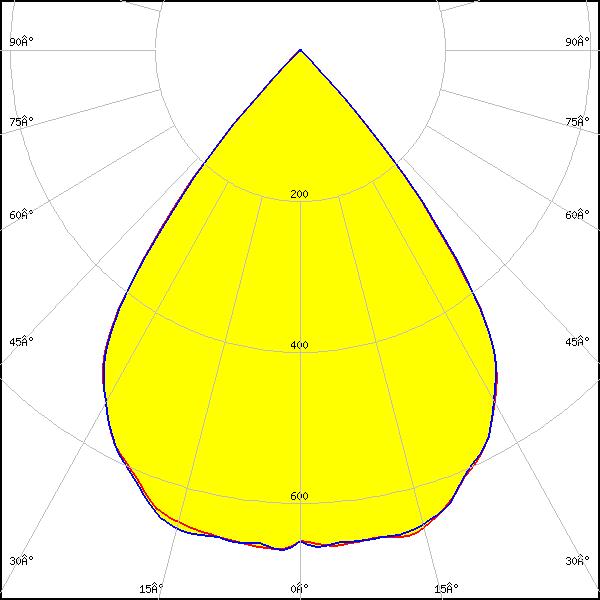

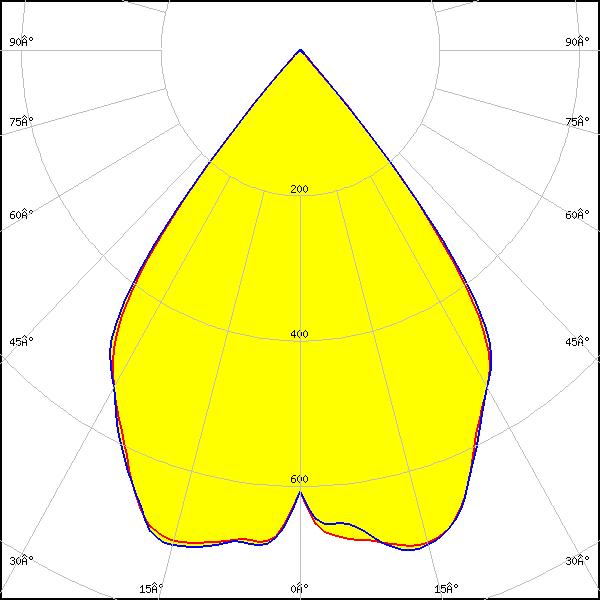

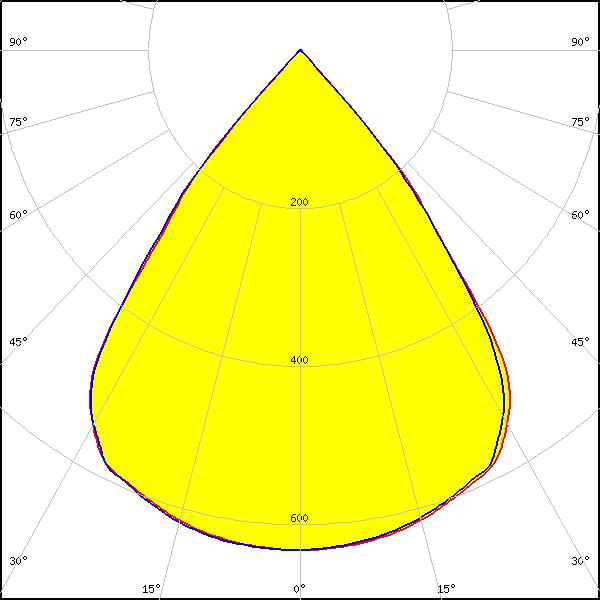

Optical results

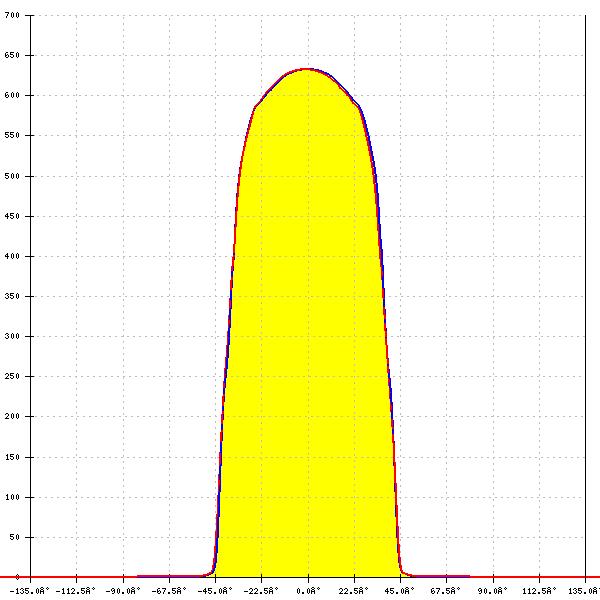

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 87°
Peak intensity: 0.631 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.651 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 87°
Peak intensity: 0.634 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White

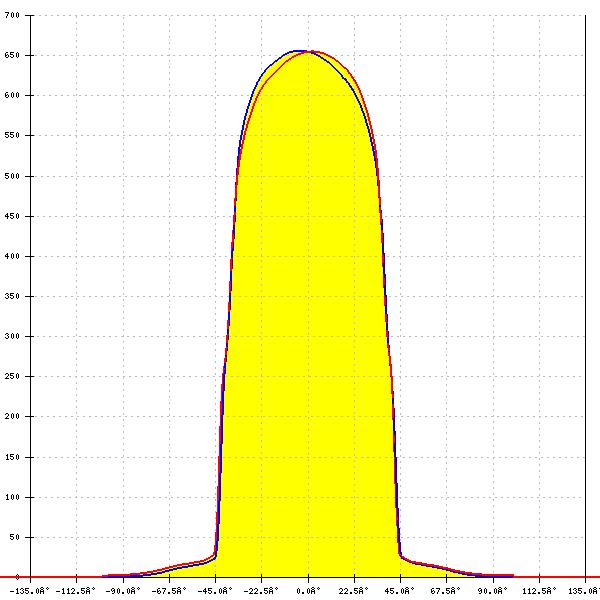

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.656 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White

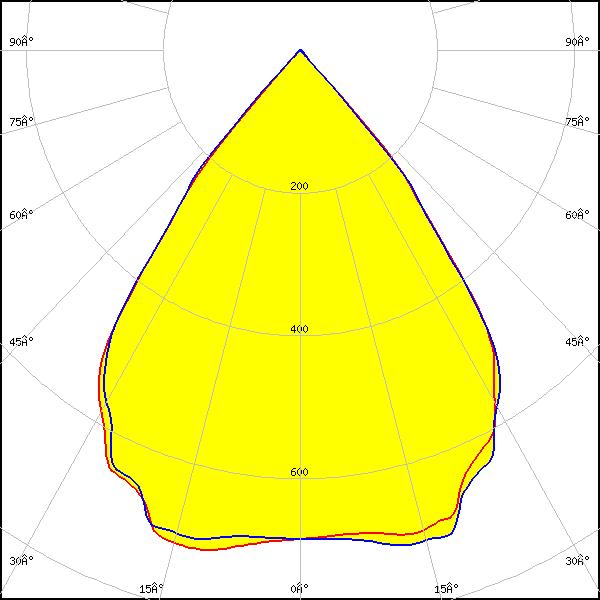

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 87°
Peak intensity: 0.725 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 75°
FWTM: 87°
Peak intensity: 0.714 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

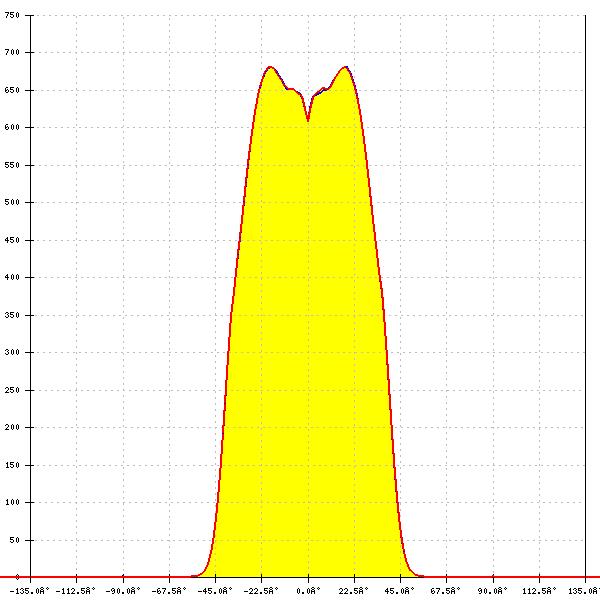

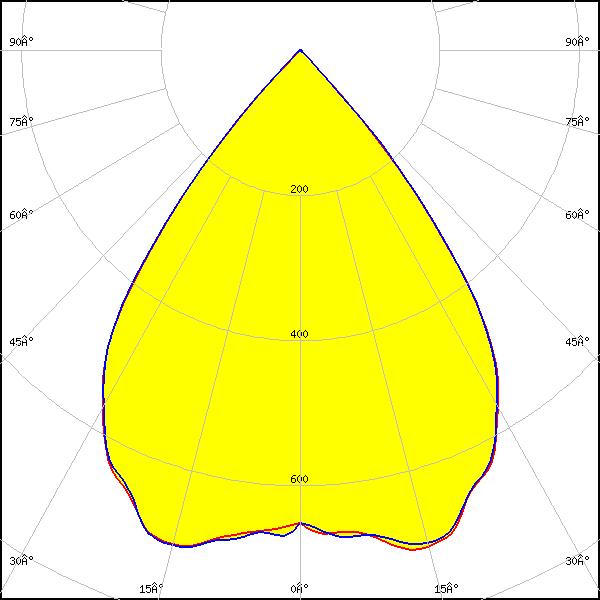

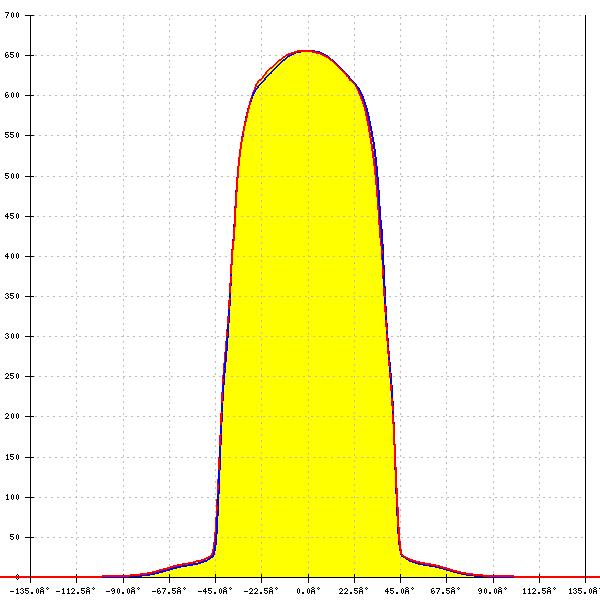

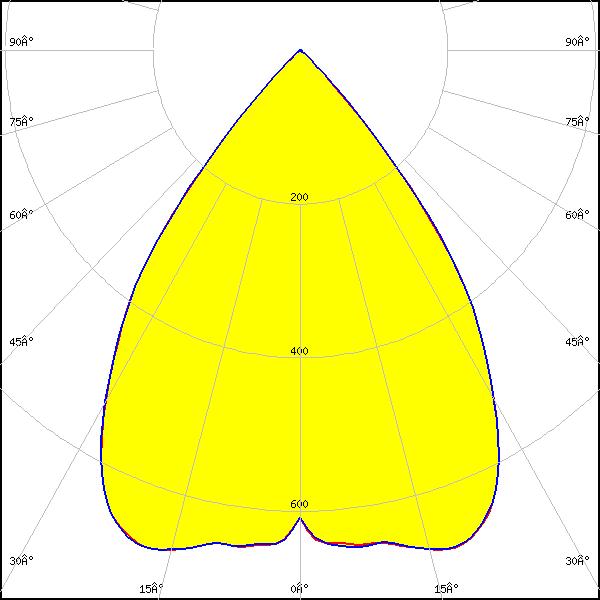

LED: Bridgelux SMD 5050
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 74°
FWTM: 90°
Peak intensity: 0.683 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

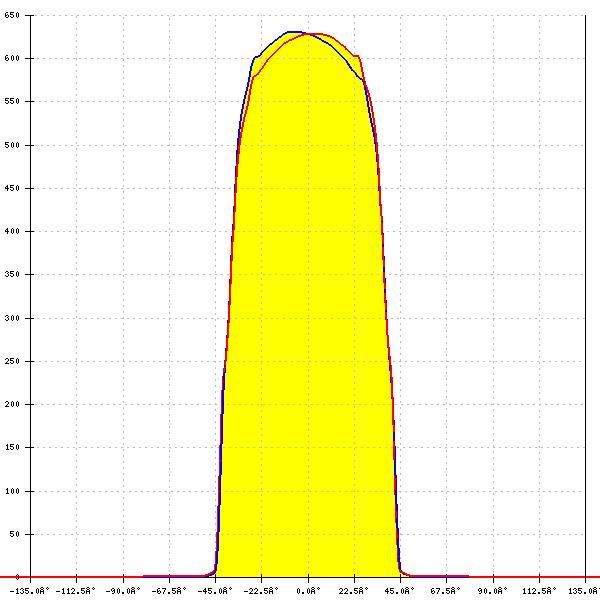

LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 87°
Peak intensity: 0.631 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White
LED: LUXEON 2835 Line
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.651 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White

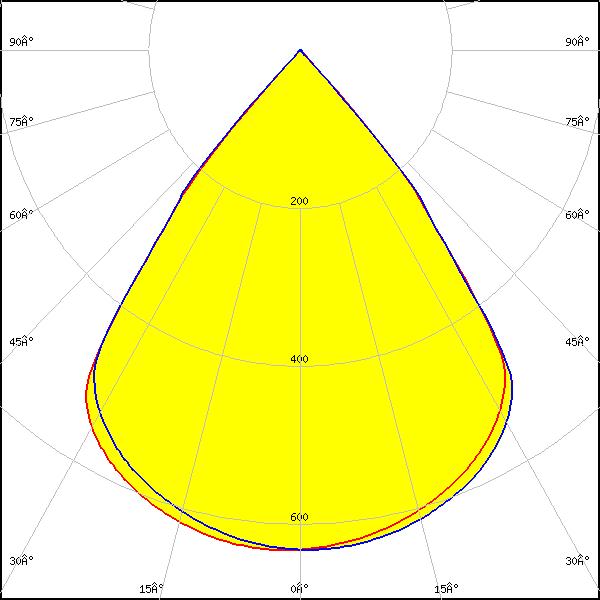

LED: LUXEON 2835 Line
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 87°
Peak intensity: 0.634 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White
LED: LUXEON 2835 Line
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.656 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White
LED: LUXEON 2835 Line
Required components:
C17532_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 87°
Peak intensity: 0.725 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour: White

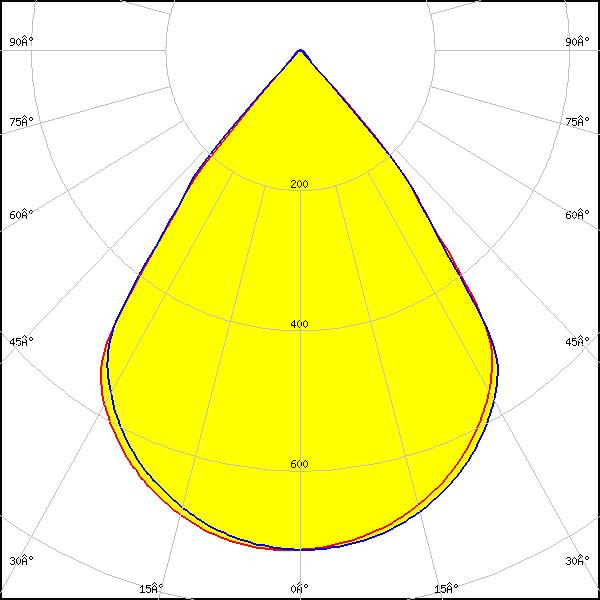

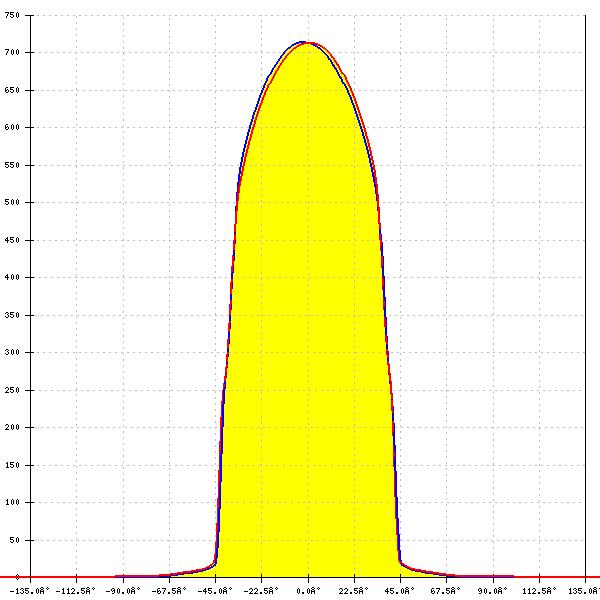

LED: LUXEON 2835 Line
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 75°
FWTM: 87°
Peak intensity: 0.714 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

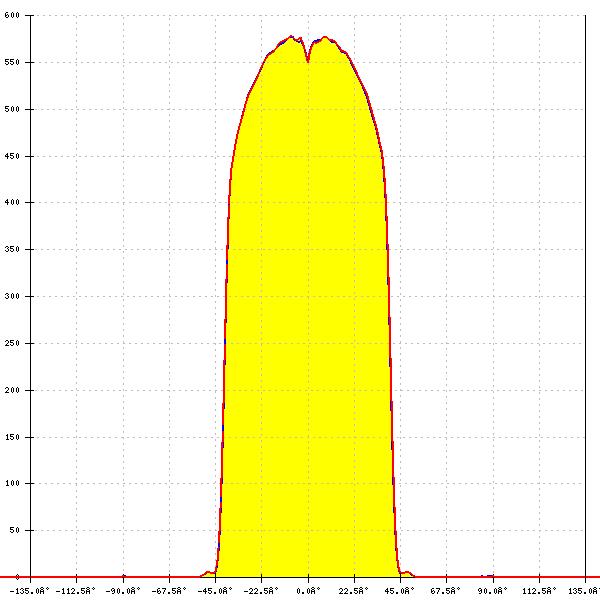

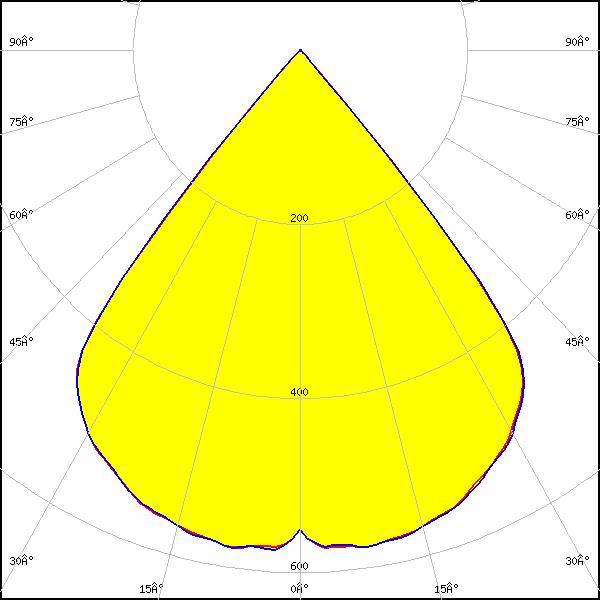

LED: LUXEON 3030 HE Plus
Required components:
C16872_DAISY-7X1-SHD
FWHM: 80°
FWTM: 85°
Peak intensity: 0.580 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

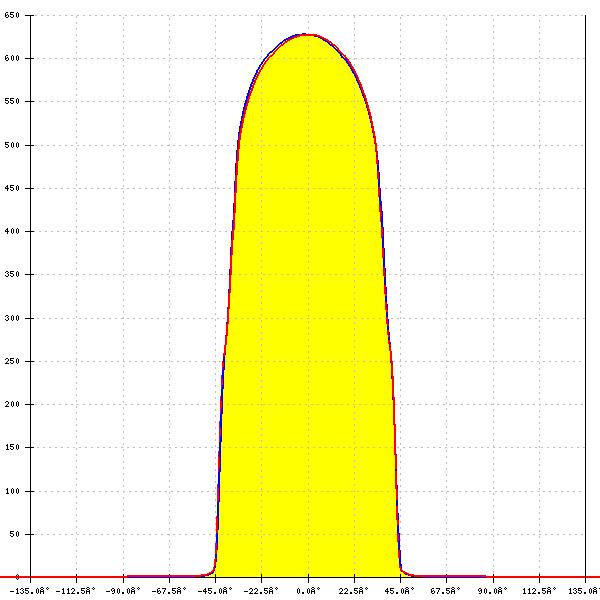

LED: Opticus Daisy M L28W2
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.628 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 87°
Peak intensity: 0.622 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 77°
FWTM: 88°
Peak intensity: 0.642 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.624 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.647 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 75°
FWTM: 87°
Peak intensity: 0.712 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 75°
FWTM: 88°
Peak intensity: 0.712 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

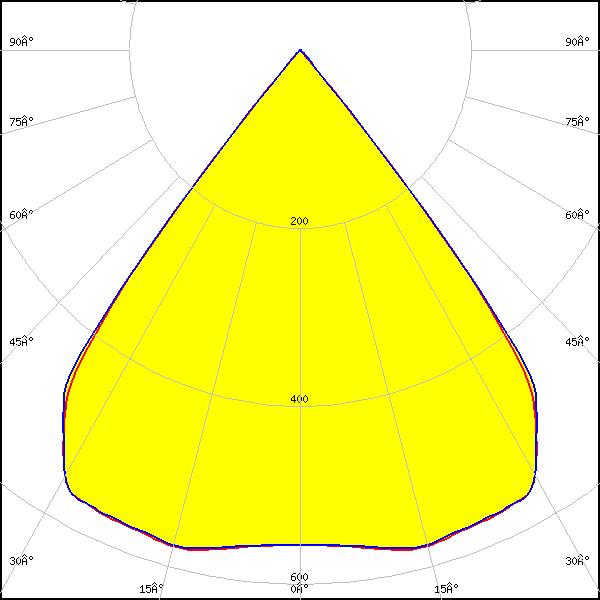

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 77°
FWTM: 82°
Peak intensity: 0.587 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 88°
Peak intensity: 0.624 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: Tunable White

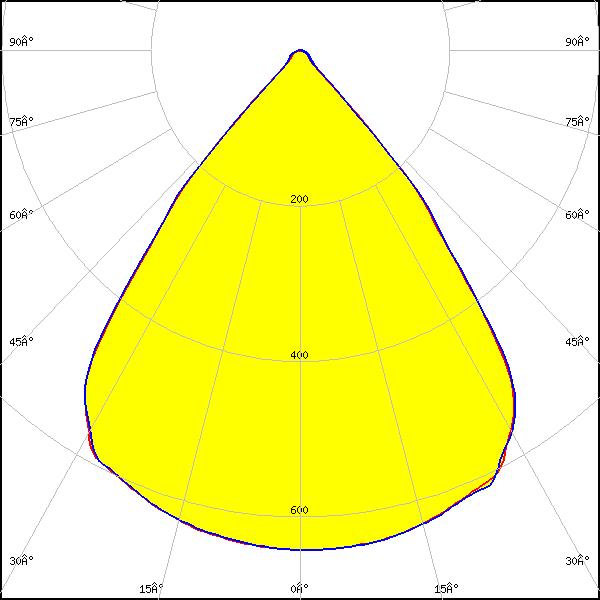

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 77°
FWTM: 89°
Peak intensity: 0.644 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: Tunable White

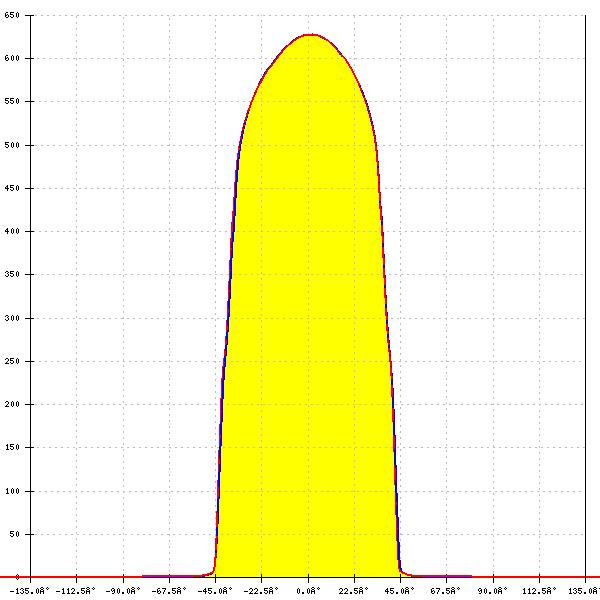

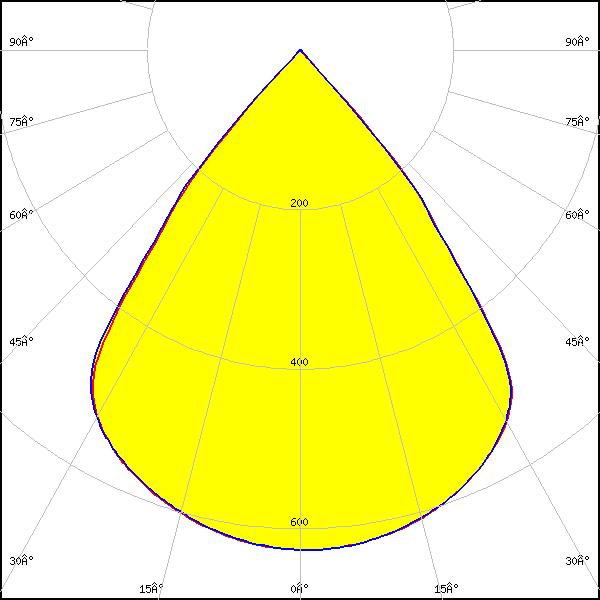

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.628 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: Tunable White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 77°
FWTM: 89°
Peak intensity: 0.648 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: Tunable White

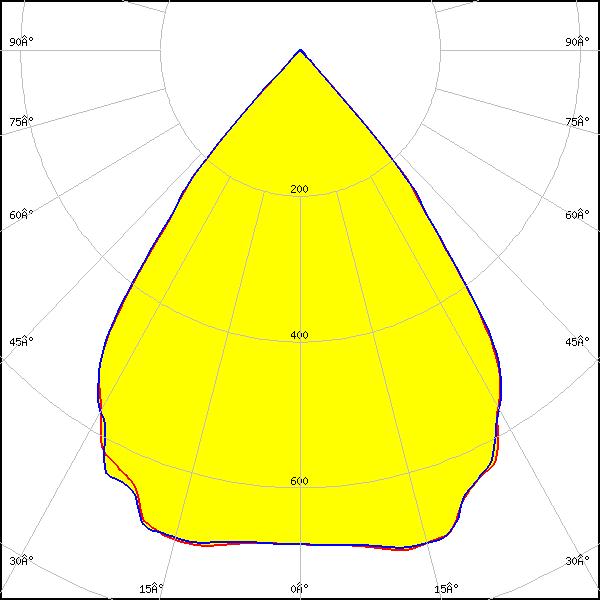

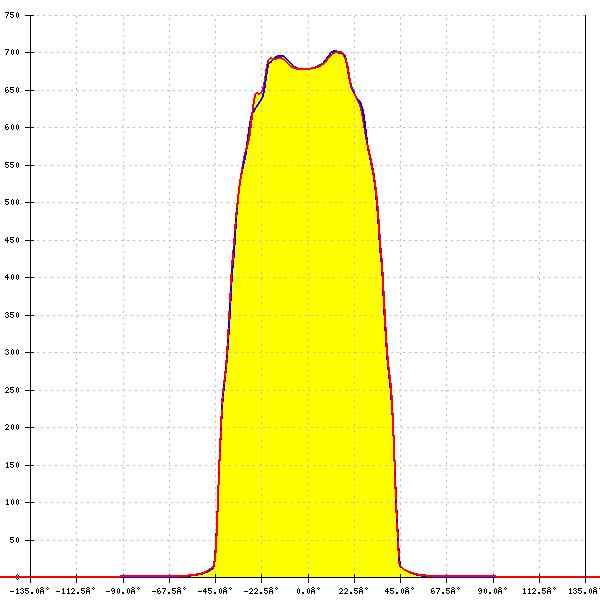

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 75°
FWTM: 88°
Peak intensity: 0.708 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: Tunable White

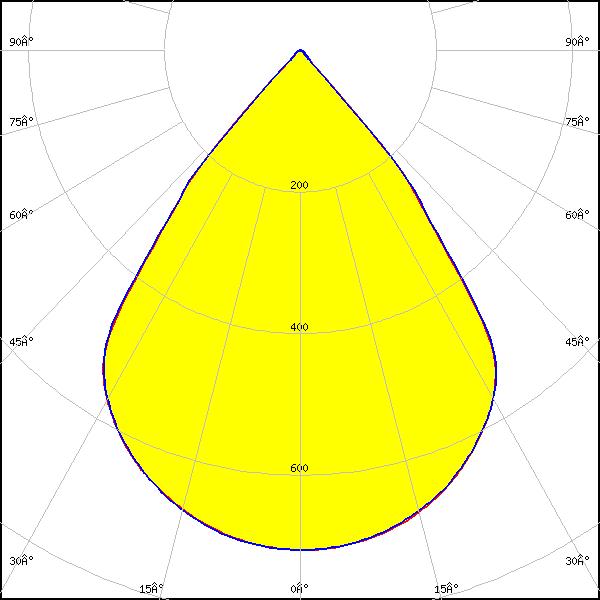

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.706 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: Tunable White

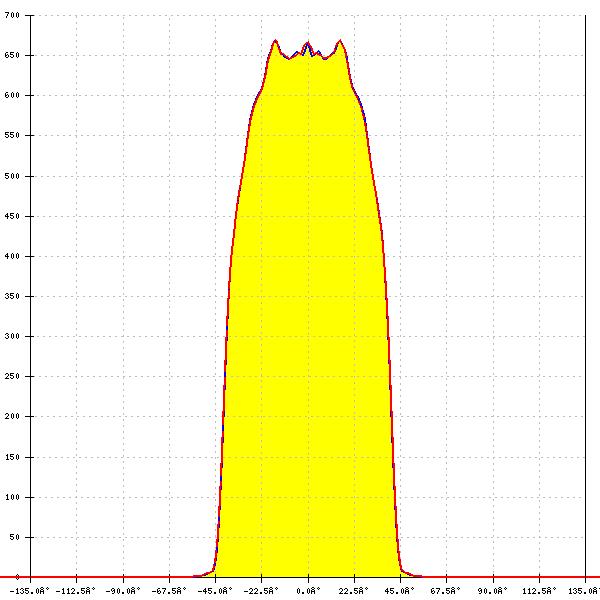

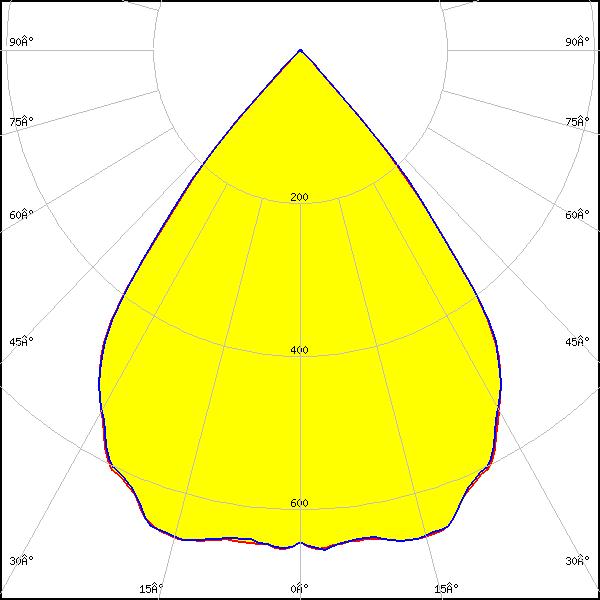

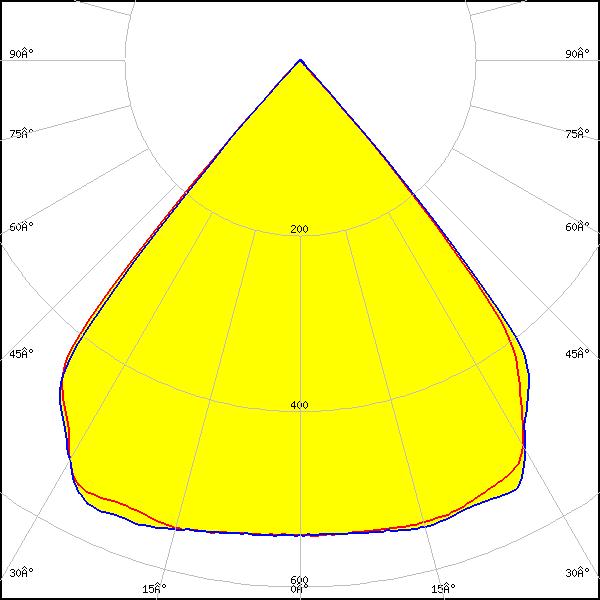

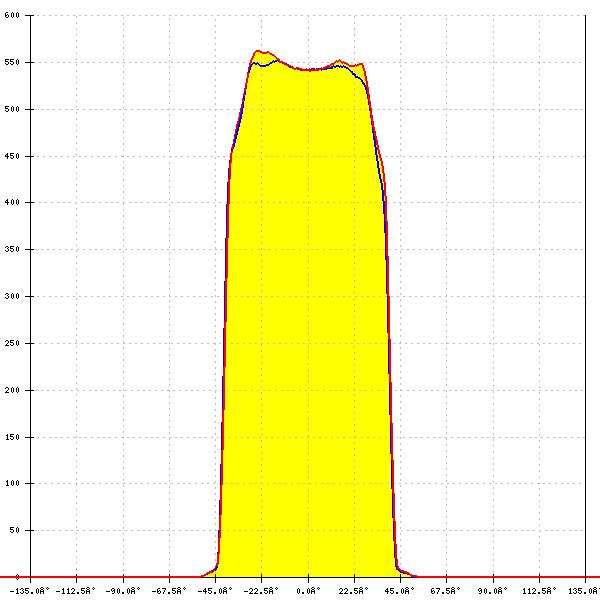

LED: NF2W757G-MT (Tunable White)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 88°
Peak intensity: 0.660 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: Tunable White

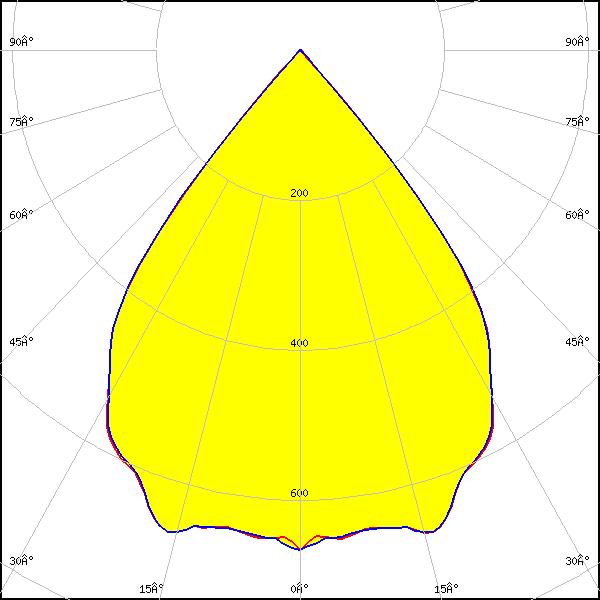

LED: NF2W757G-MT (Tunable White)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 77°
FWTM: 86°
Peak intensity: 0.670 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour: Tunable White
LED: NF2W757G-MT (Tunable White)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 80°
FWTM: 86°
Peak intensity: 0.589 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: Tunable White
LED: NF2W757G-MT (Tunable White)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 79°
FWTM: 85°
Peak intensity: 0.562 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: Tunable White

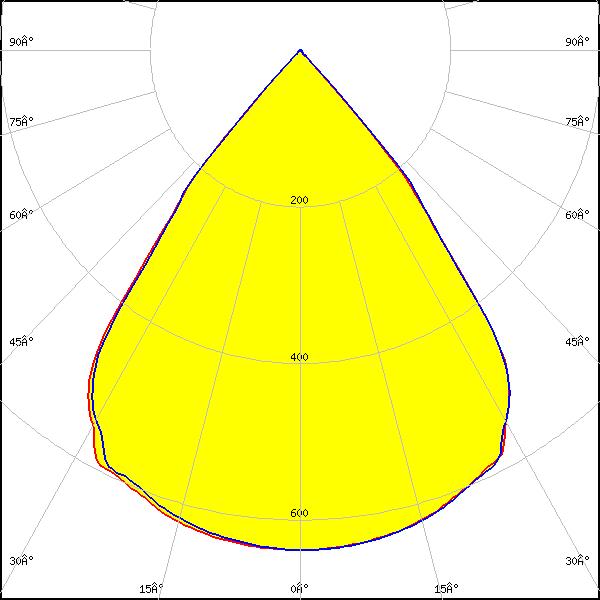

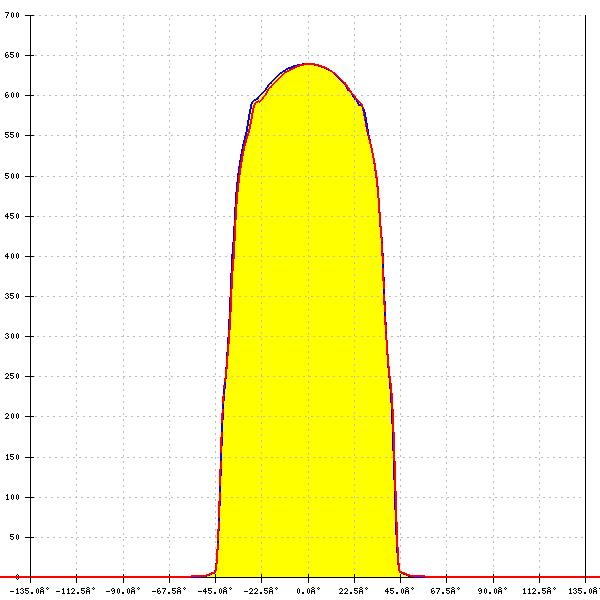

LED: NFSx757G
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 86°
Peak intensity: 0.639 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour: Tunable White

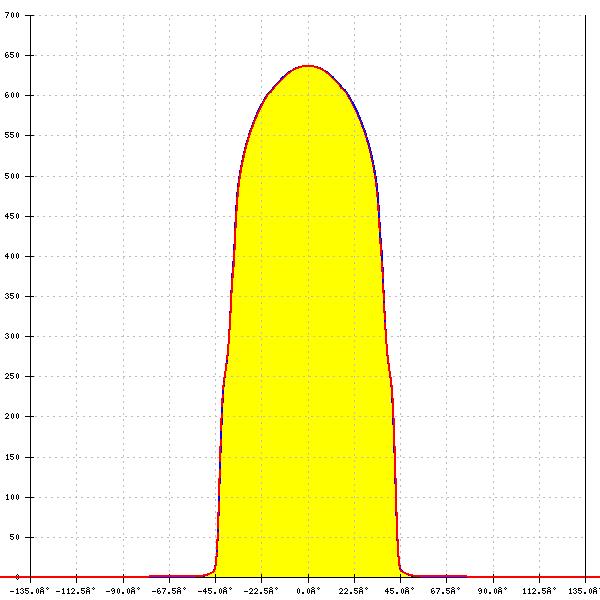

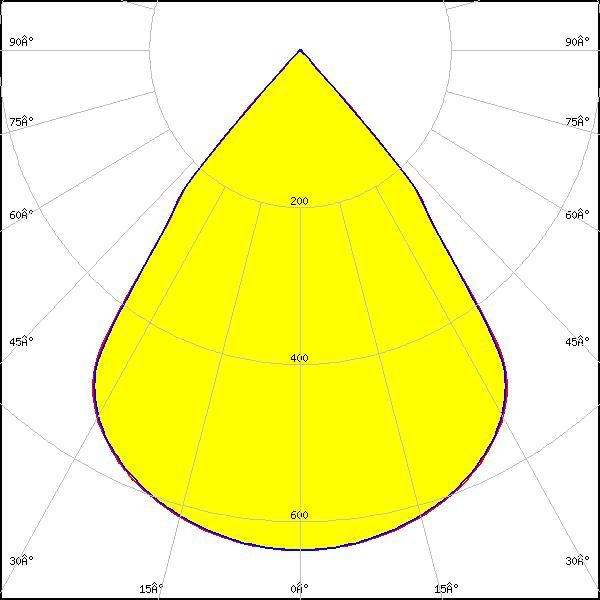

LED: PL-LIN-2000 280x24mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 87°
Peak intensity: 0.638 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White

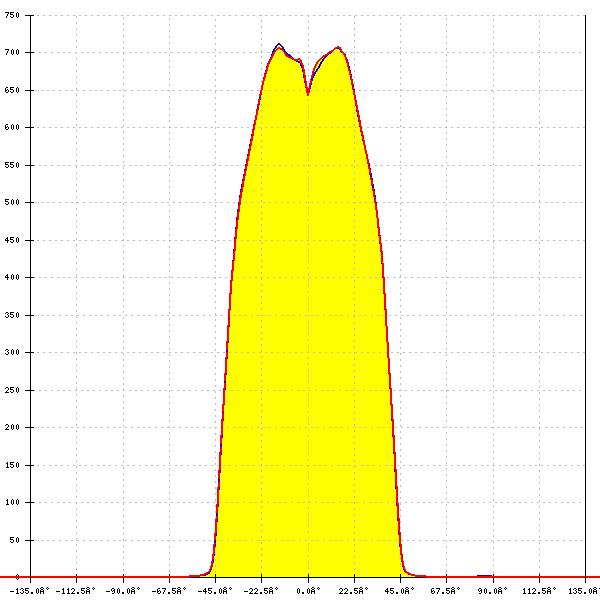

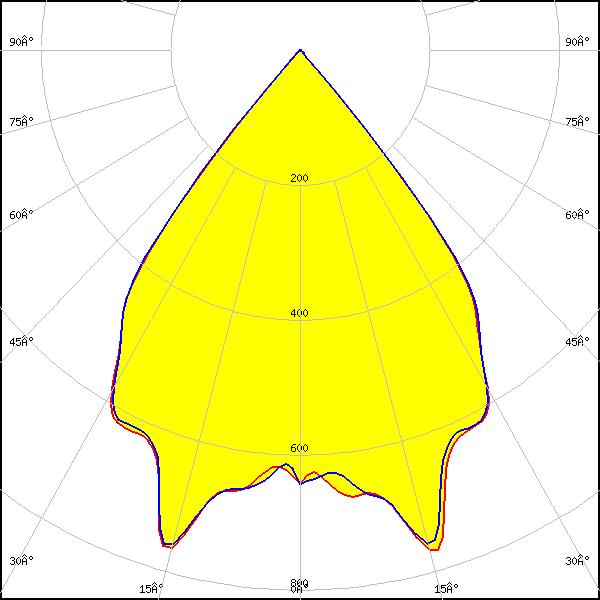

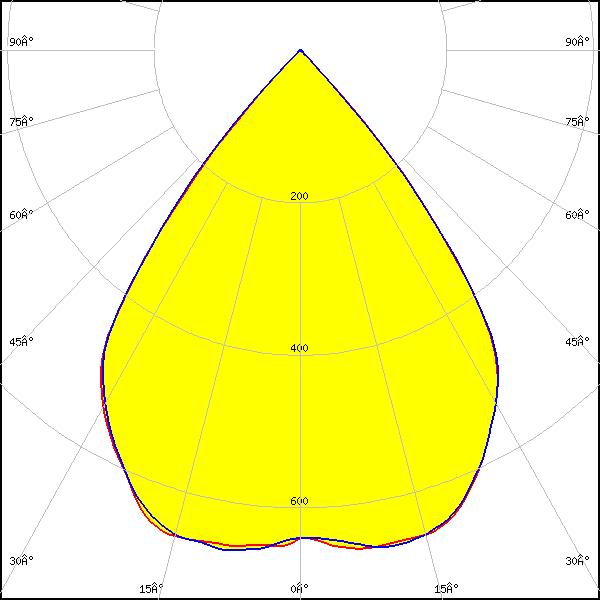

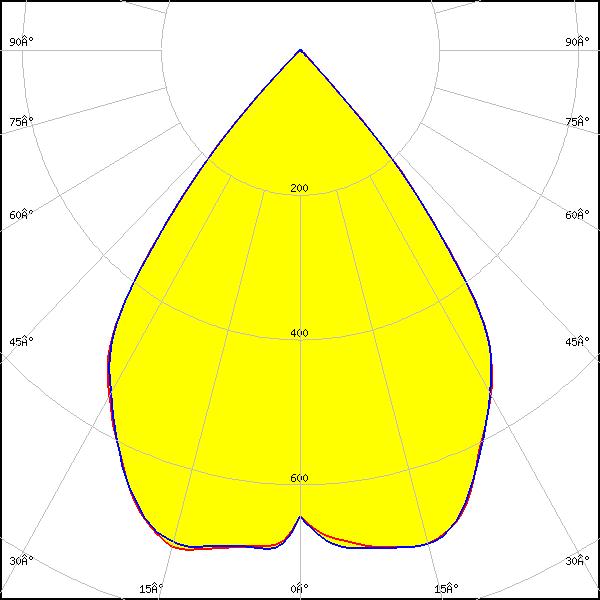

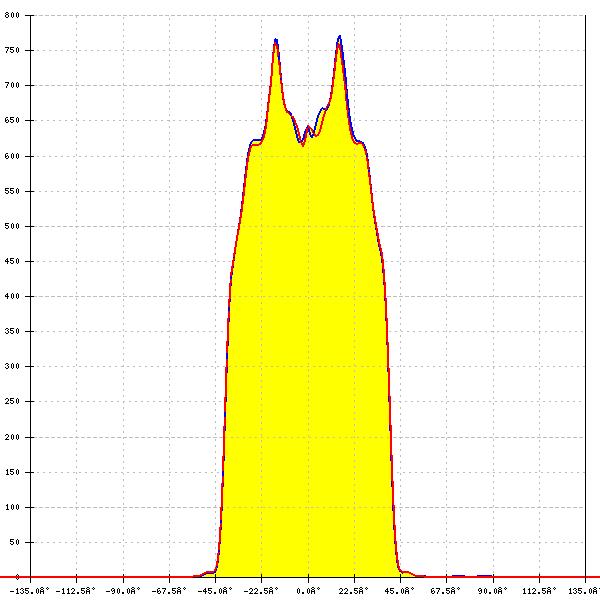

LED: Duris E 2835
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 84°
Peak intensity: 0.771 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

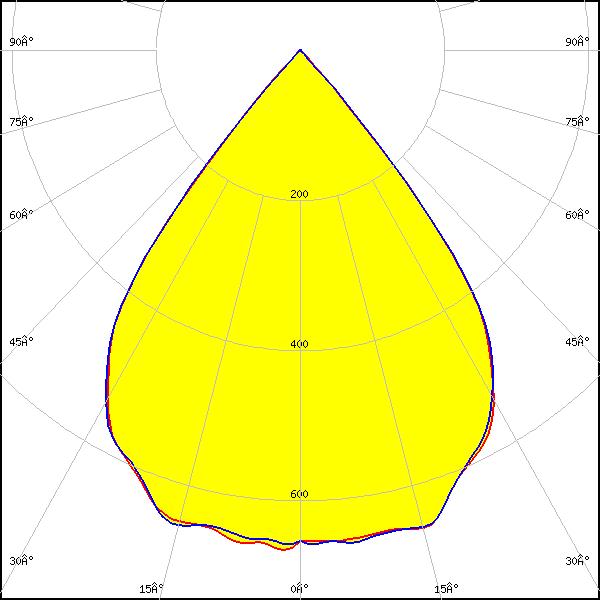

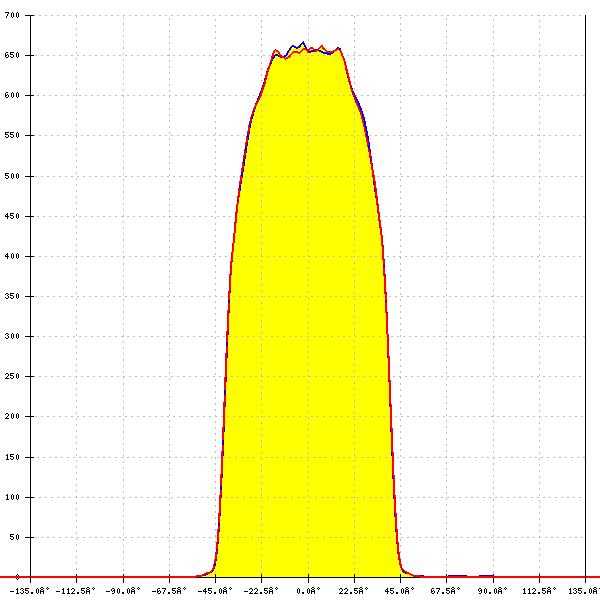

LED: Duris E 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 86°
Peak intensity: 0.672 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour: White

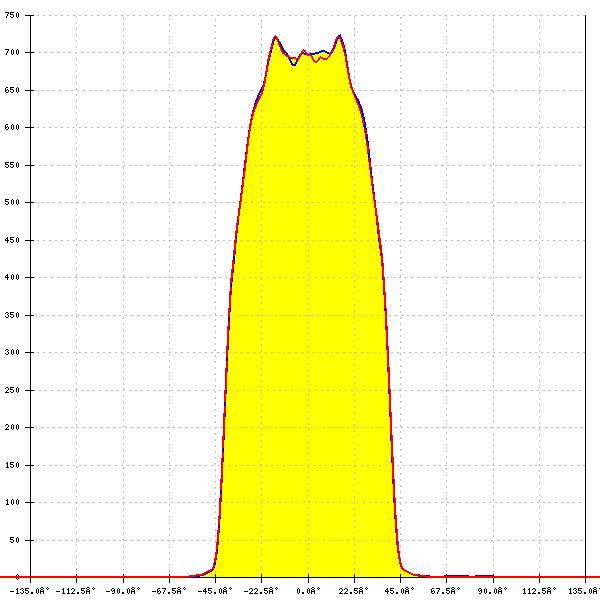

LED: Duris E 2835
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 86°
Peak intensity: 0.742 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour: White

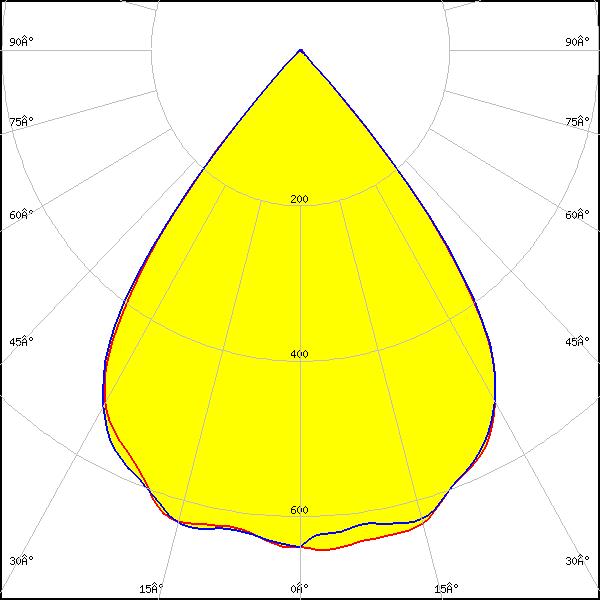

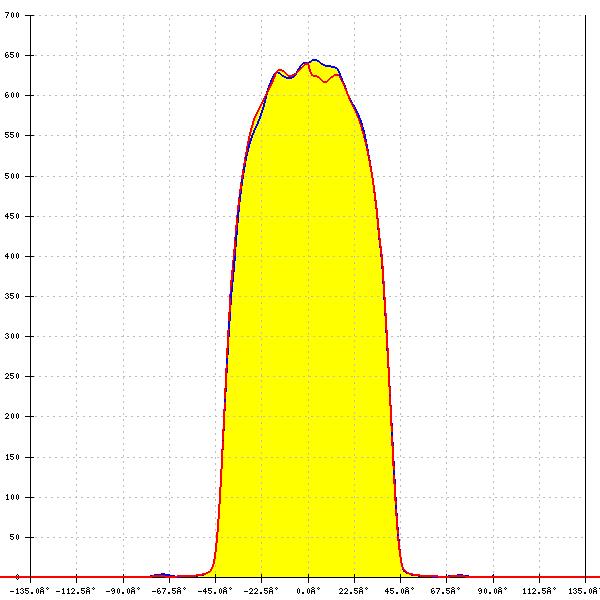

LED: OSLON PURE 1010
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 88°
Peak intensity: 0.645 cd/lm
Efficiency: 83 %
LEDs/each optic: 8
Light colour: White

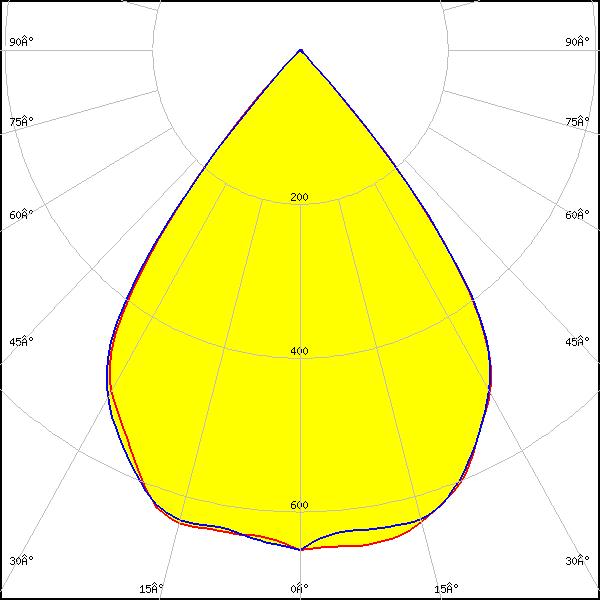

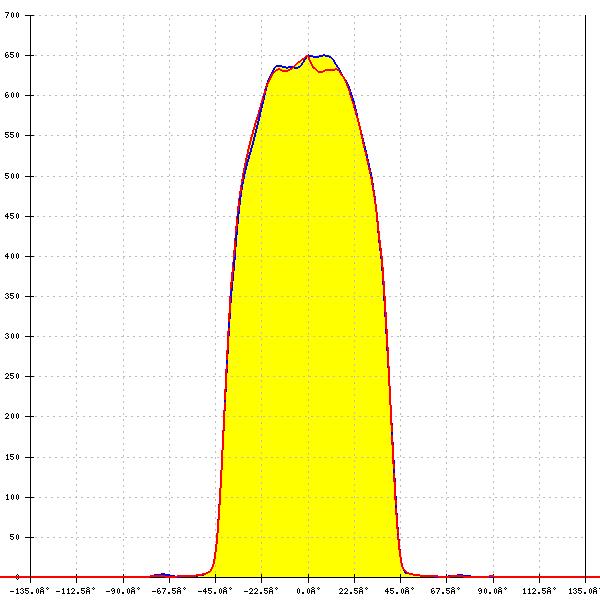

LED: OSLON PURE 1010
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 87°
Peak intensity: 0.653 cd/lm
Efficiency: 83 %
LEDs/each optic: 8
Light colour: White

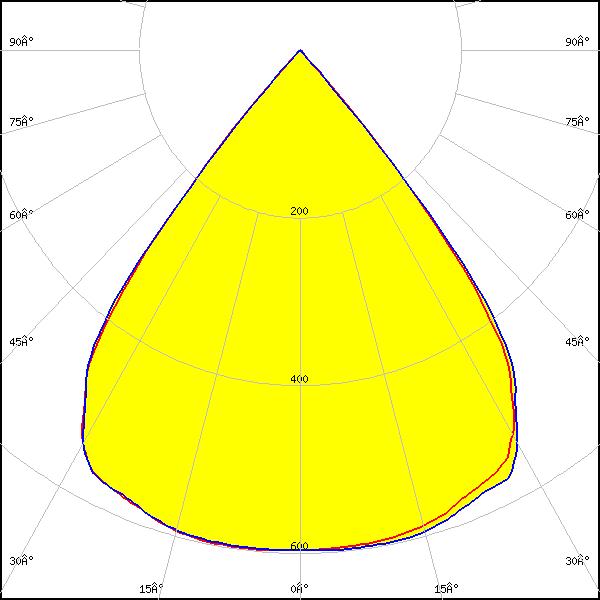

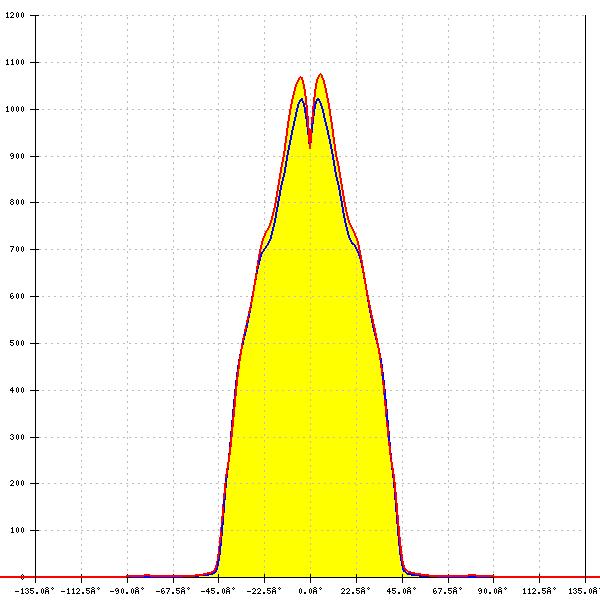

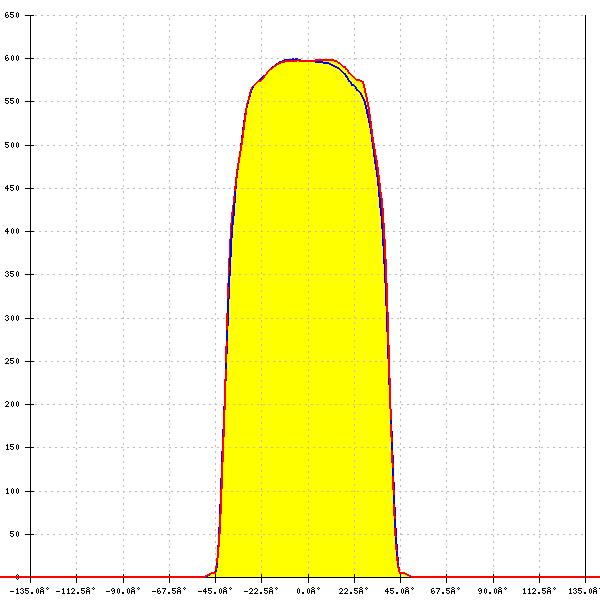

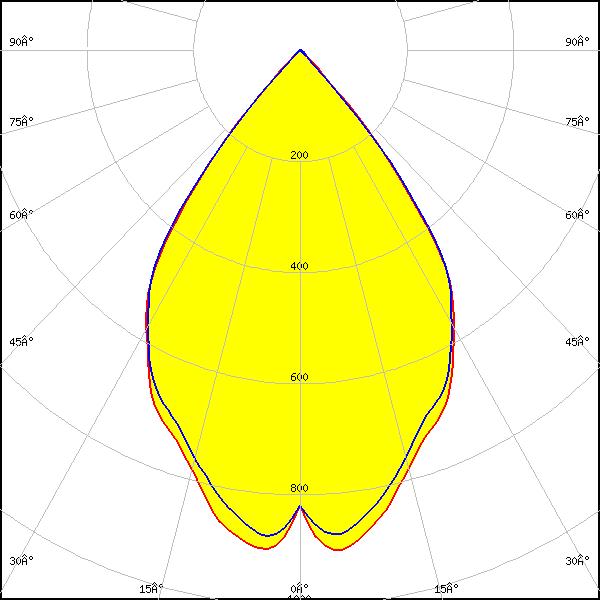

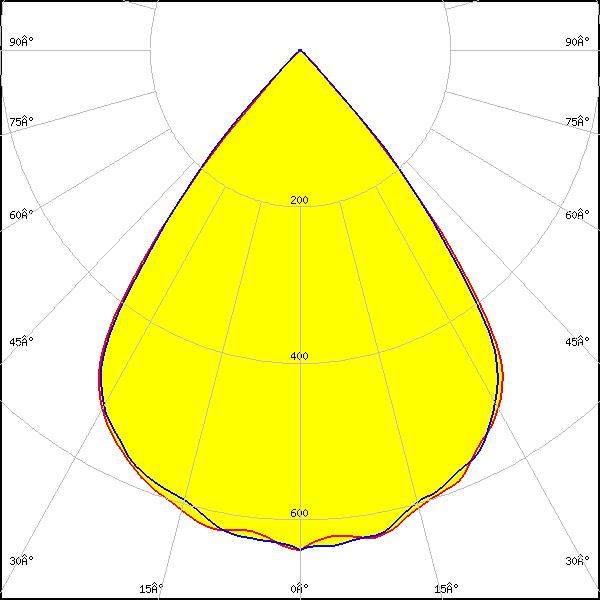

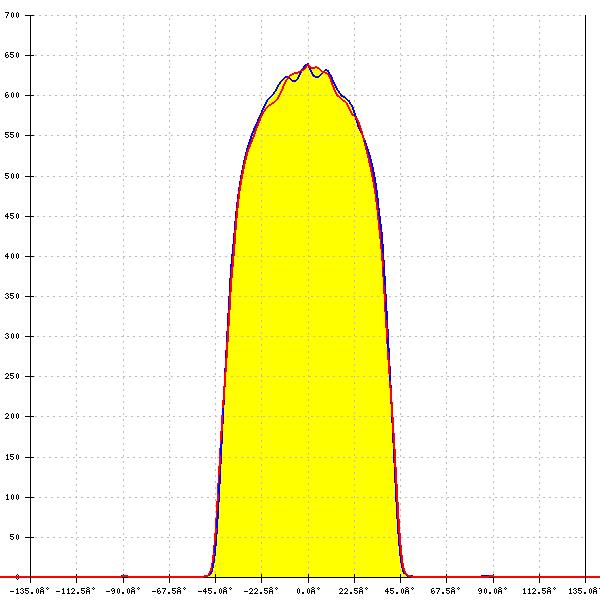

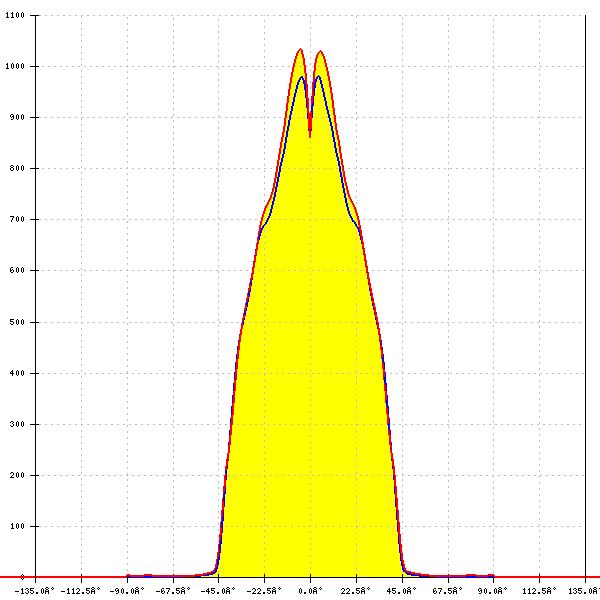

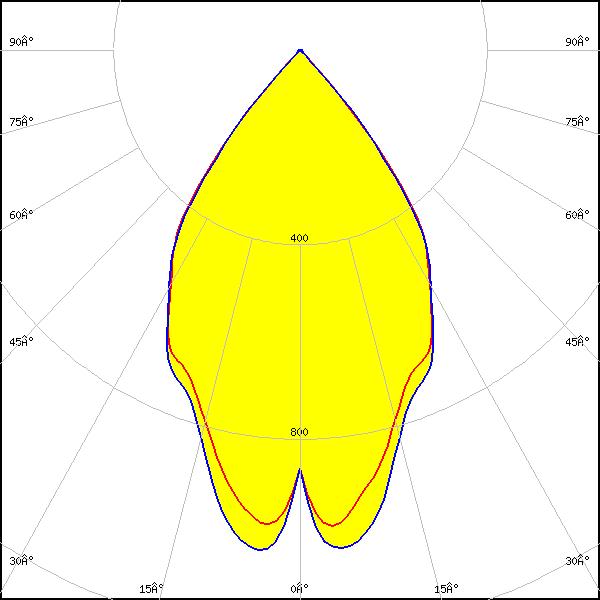

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 77°
FWTM: 90°
Peak intensity: 0.656 cd/lm
Efficiency: 84 %
LEDs/each optic: 4
Light colour: White

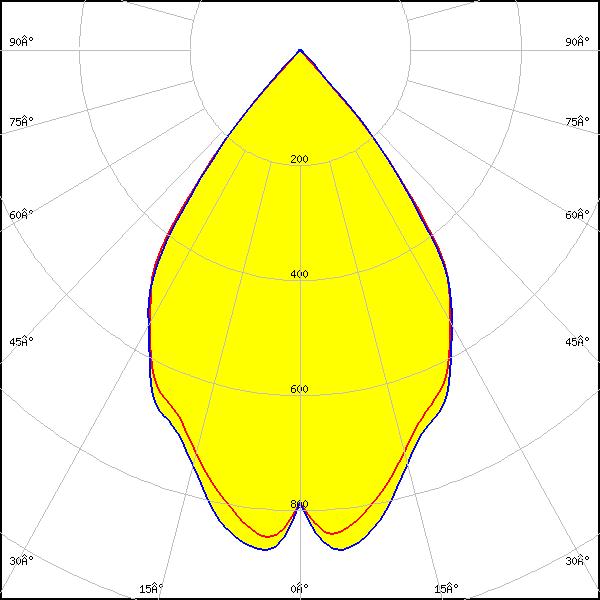

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 77°
FWTM: 85°
Peak intensity: 0.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour: White

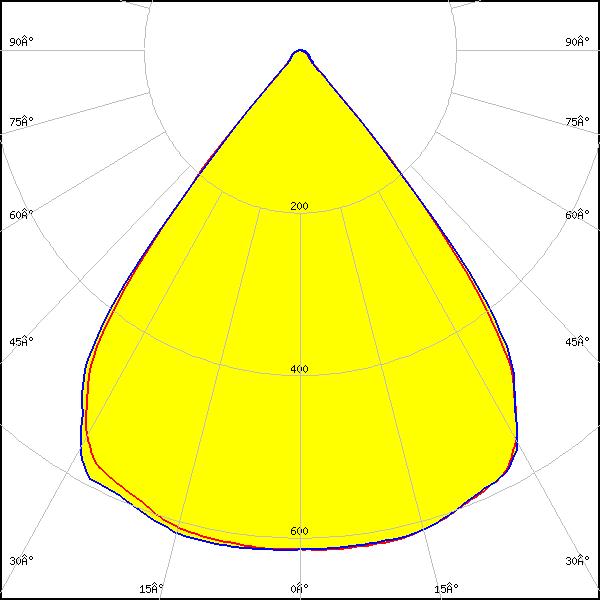

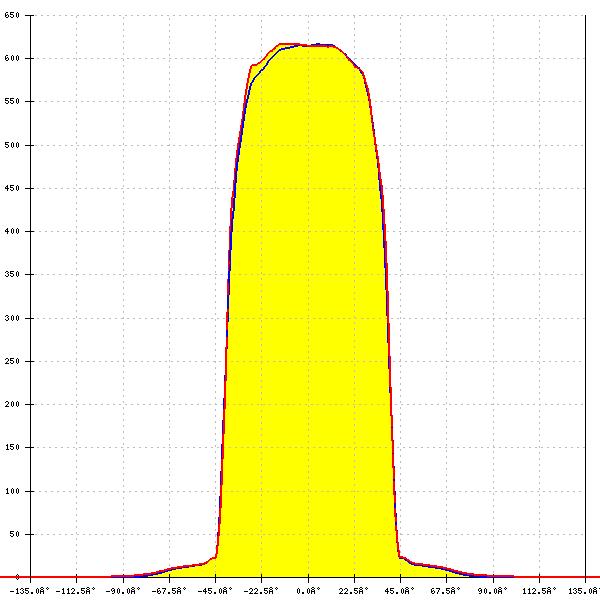

LED: LM28xB Series
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 78°
FWTM: 86°
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour: White

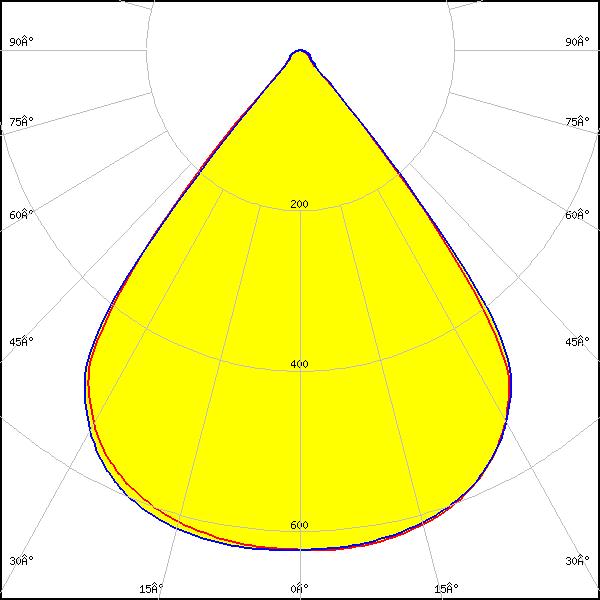

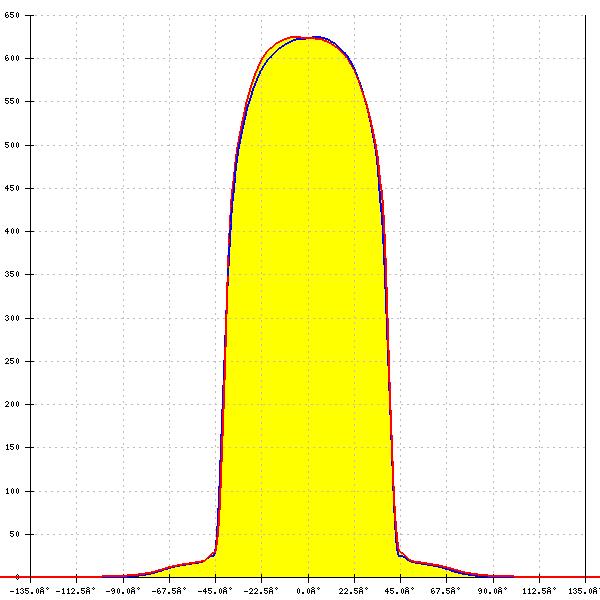

LED: LM28xB Series
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 78°
FWTM: 86°
Peak intensity: 0.630 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour: White

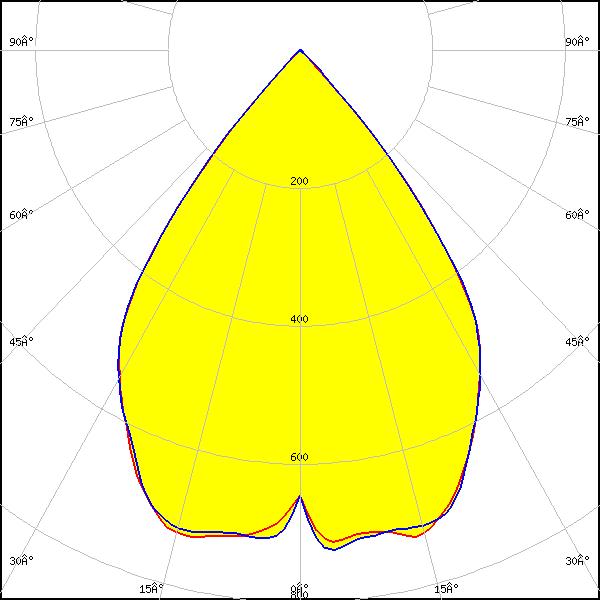

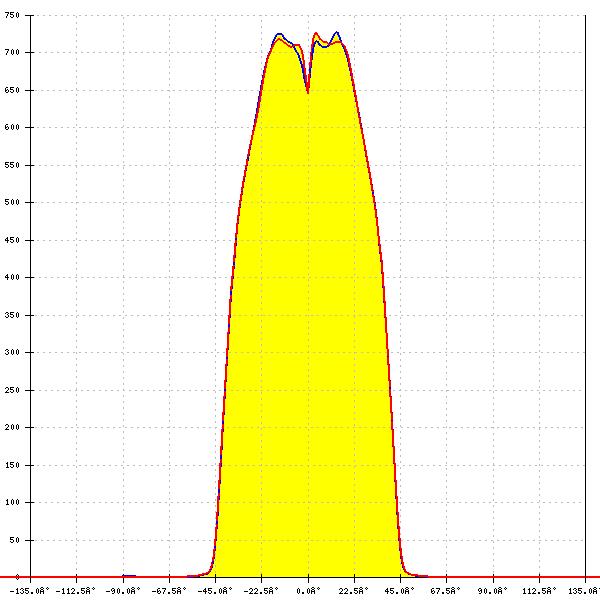

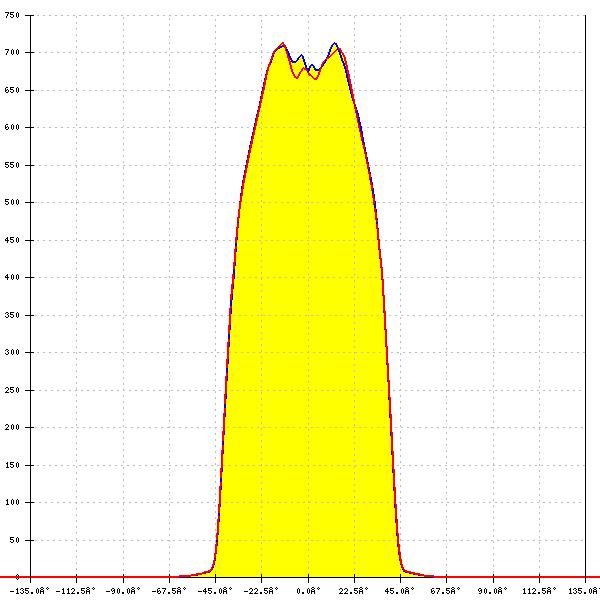

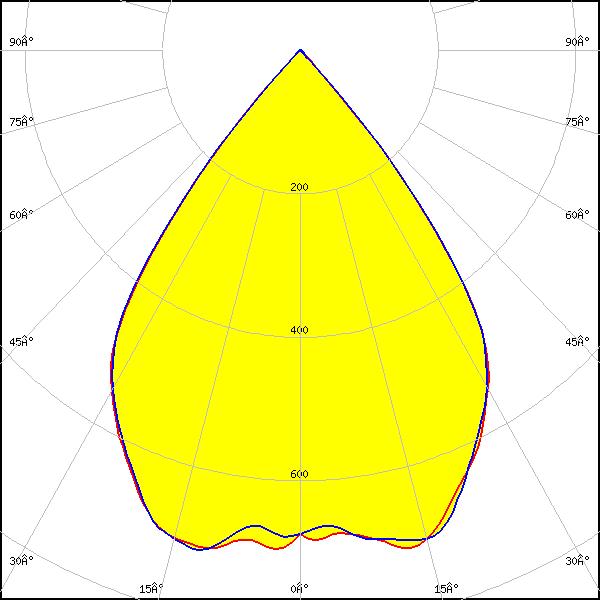

LED: LM301D
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 74°
FWTM: 88°
Peak intensity: 0.733 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: White

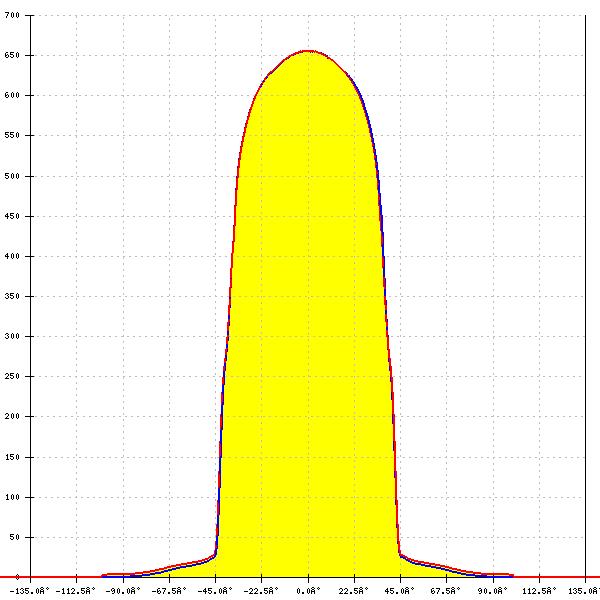

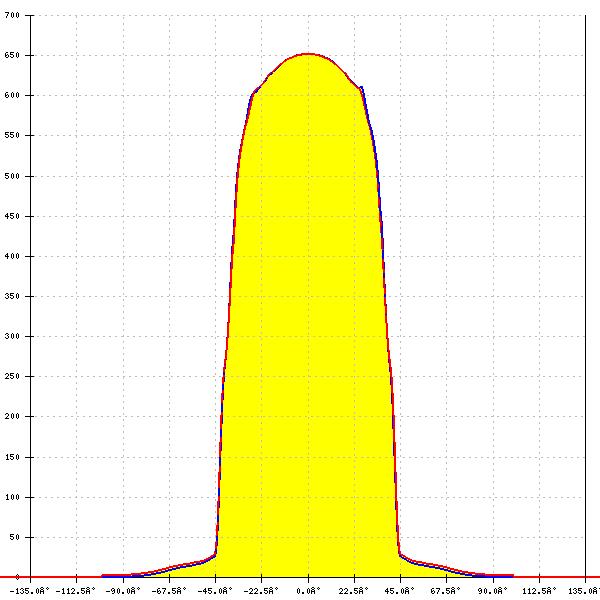

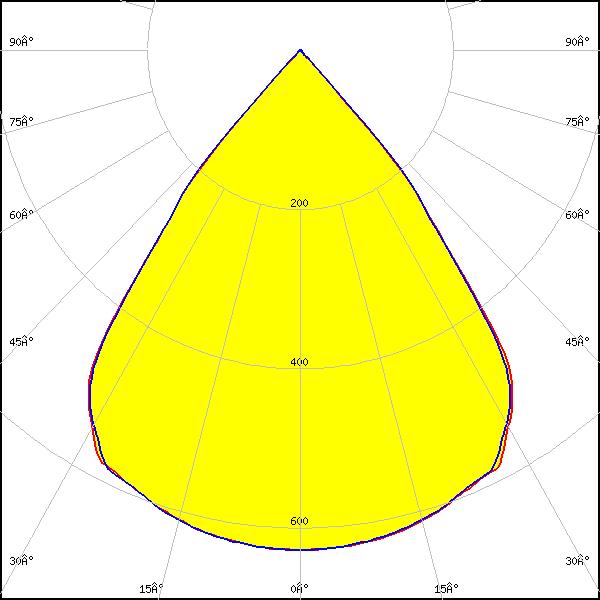

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 87°
Peak intensity: 0.629 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White

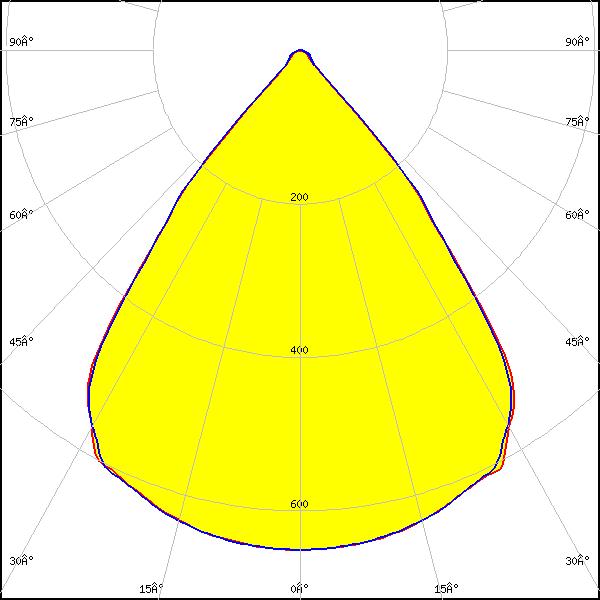

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 87°
Peak intensity: 0.652 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour: White

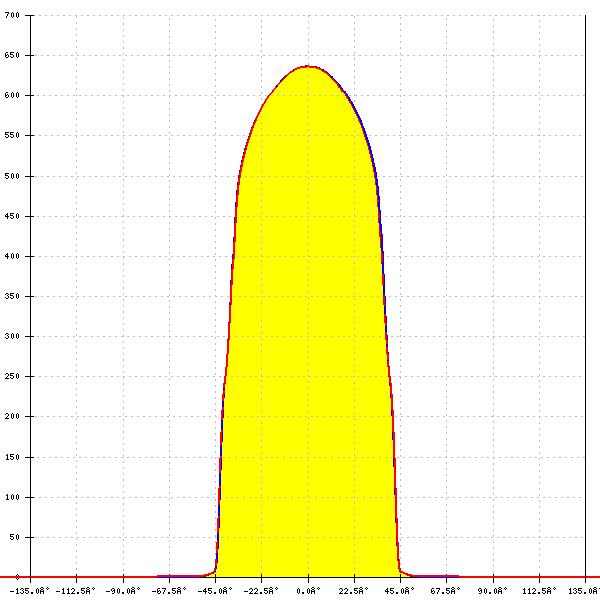

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 87°
Peak intensity: 0.636 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 87°
Peak intensity: 0.656 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 75°
FWTM: 87°
Peak intensity: 0.722 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour: White

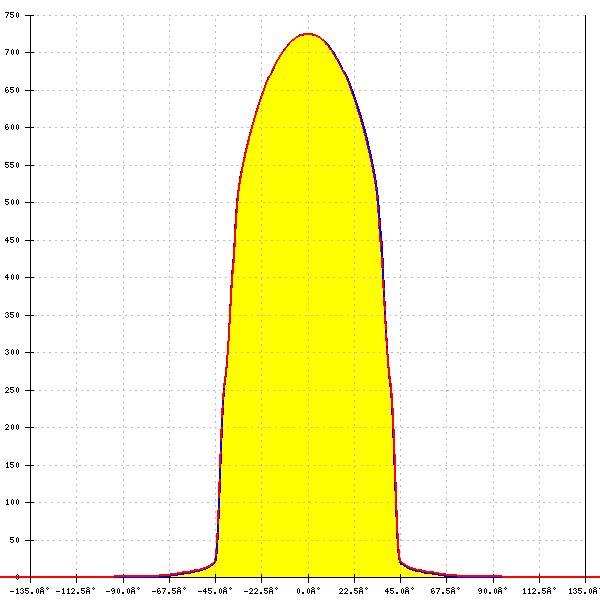

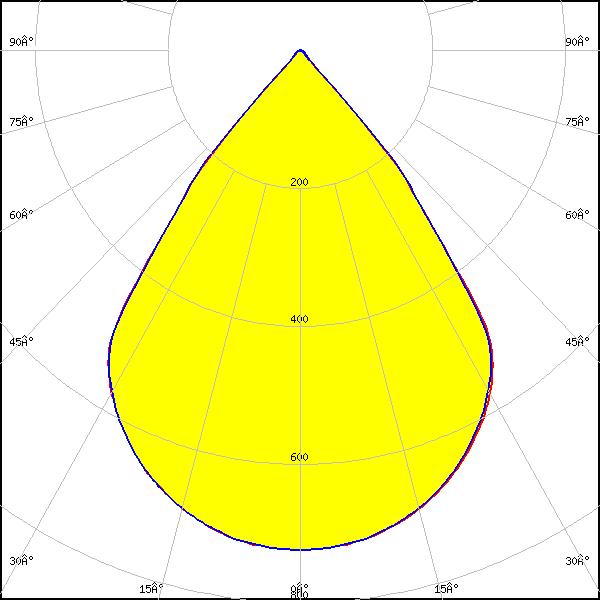

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 75°
FWTM: 87°
Peak intensity: 0.725 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White

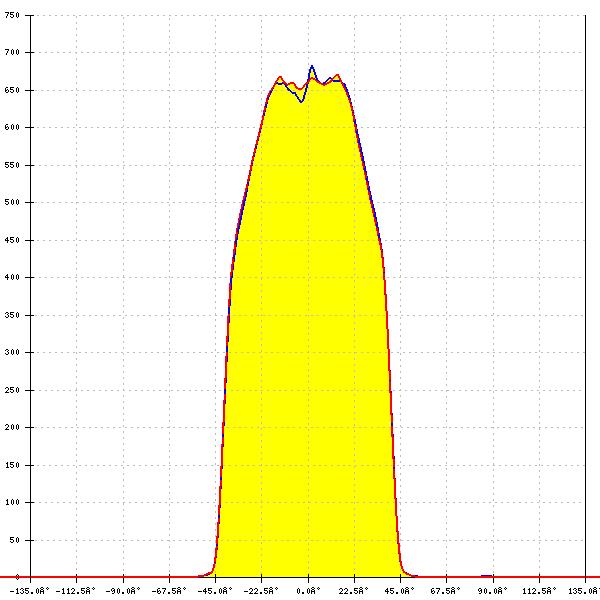

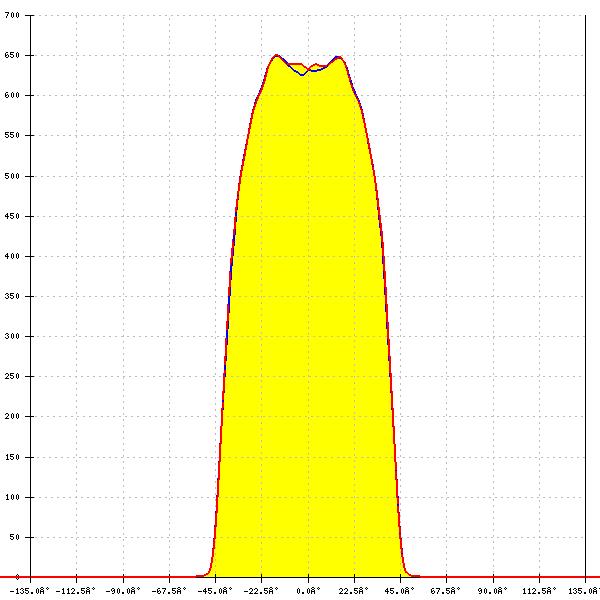

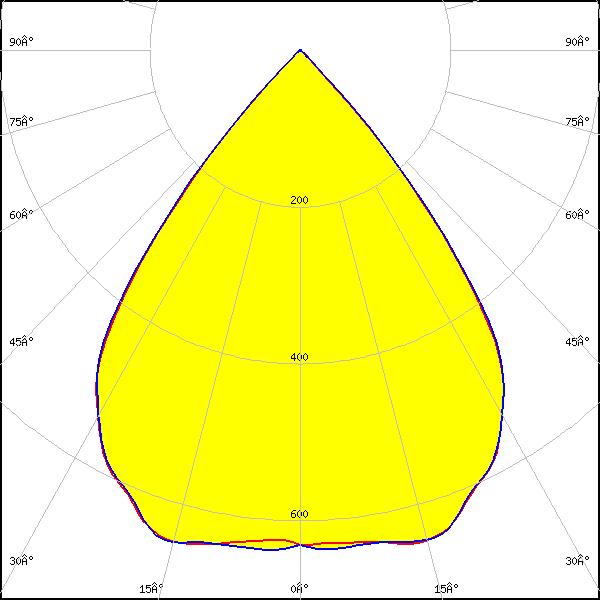

LED: SEOUL DC 3030C
Required components:
C16872_DAISY-7X1-SHD
FWHM: 77°
FWTM: 90°
Peak intensity: 0.652 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour: White

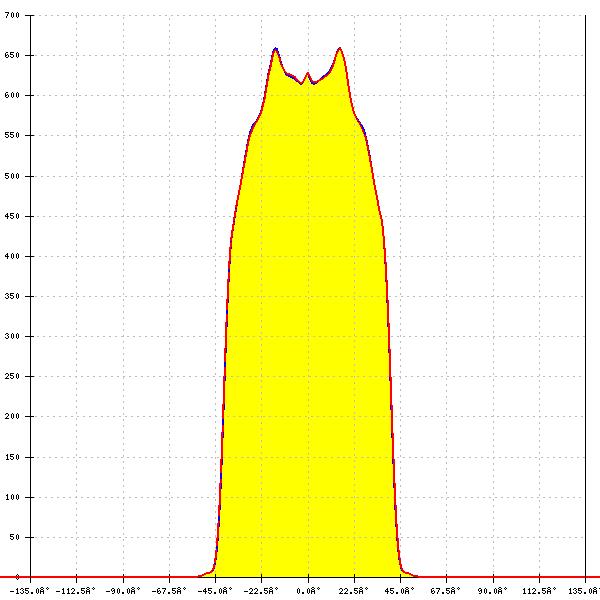

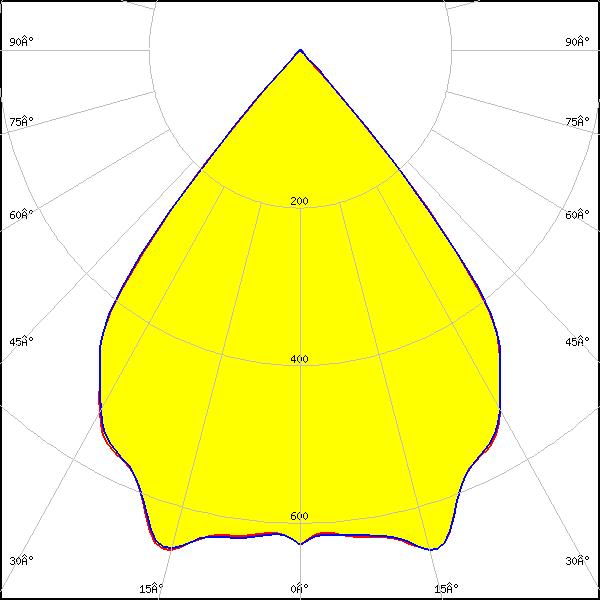

LED: SEOUL DC 3528
Required components:
C16872_DAISY-7X1-SHD
FWHM: 78°
FWTM: 86°
Peak intensity: 0.659 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

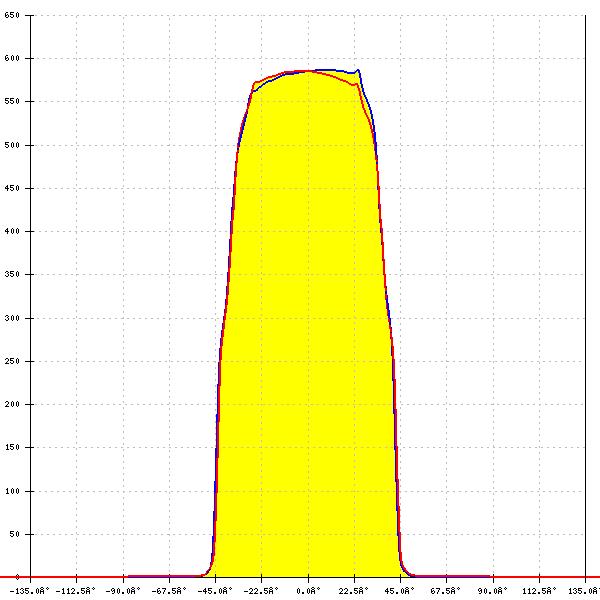

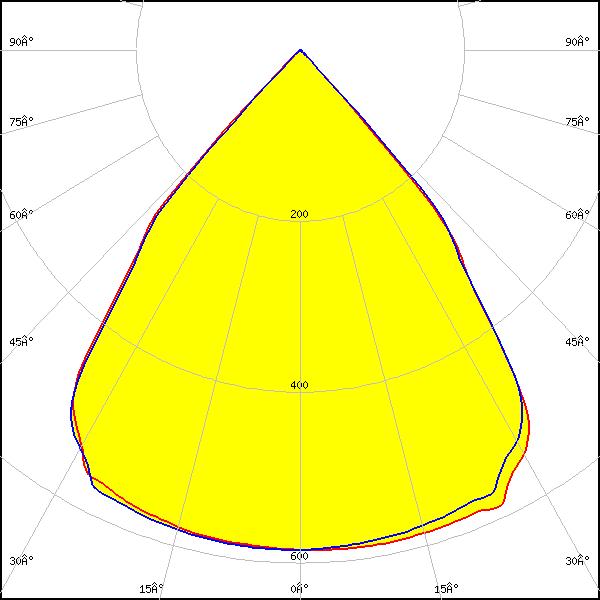

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16872_DAISY-7X1-SHD
FWHM: 81°
FWTM: 90°
Peak intensity: 0.587 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White

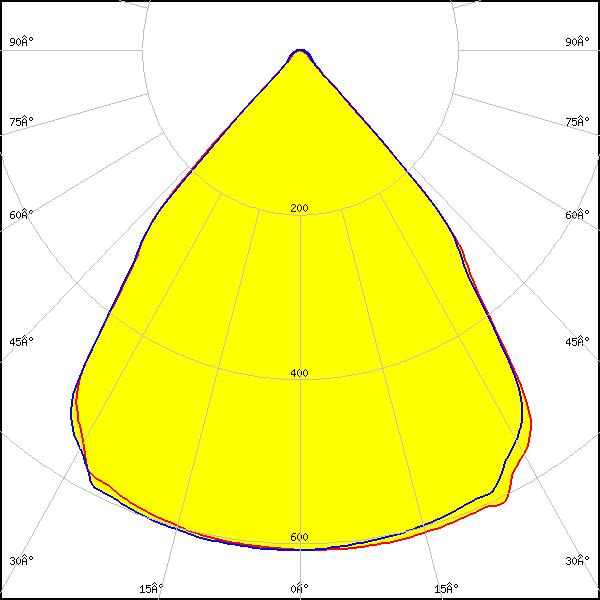

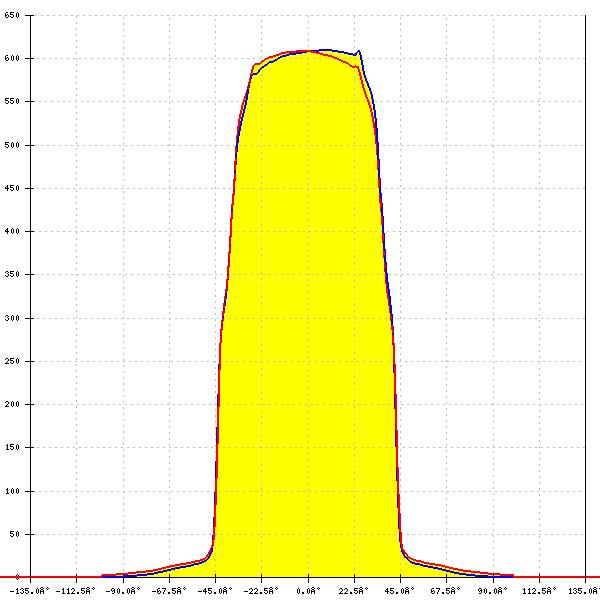

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 82°
FWTM: 90°
Peak intensity: 0.609 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

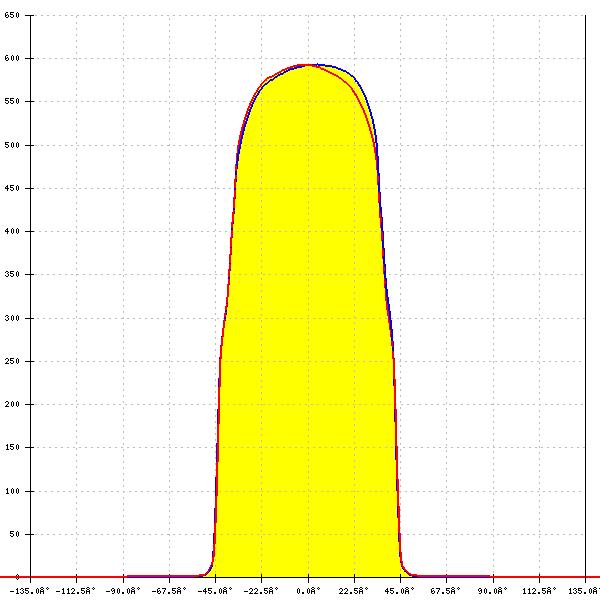

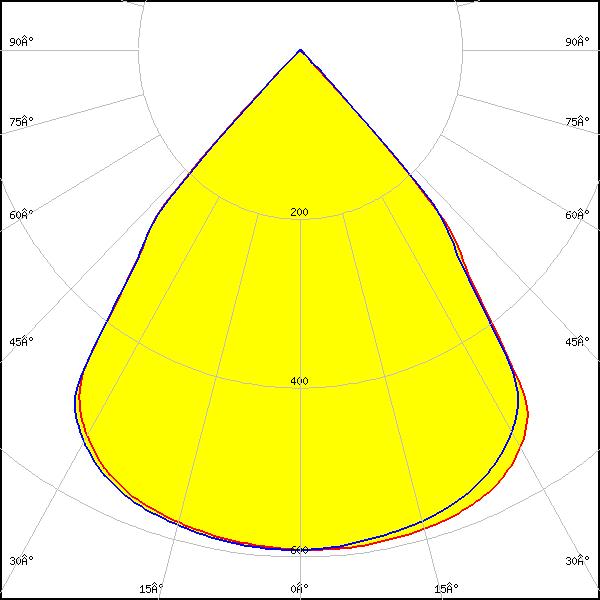

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 80°
FWTM: 90°
Peak intensity: 0.593 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White
LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 82°
FWTM: 90°
Peak intensity: 0.612 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

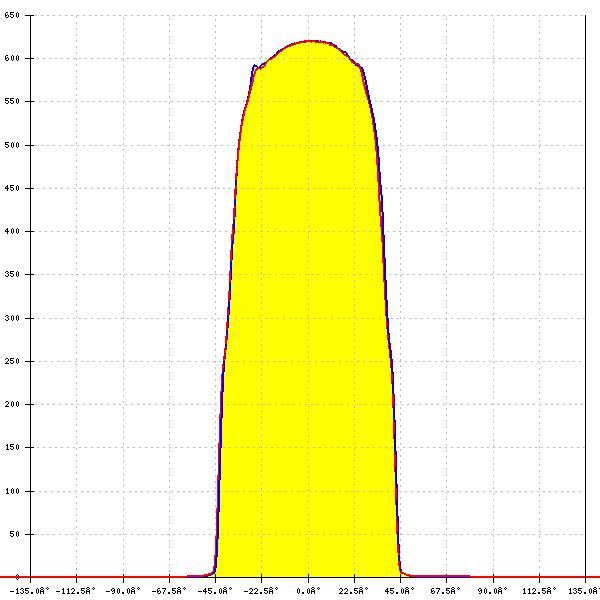

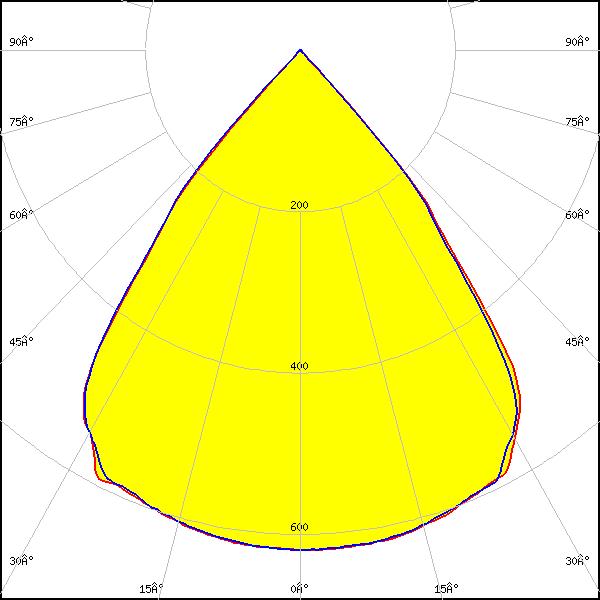

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 87°
Peak intensity: 0.621 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White

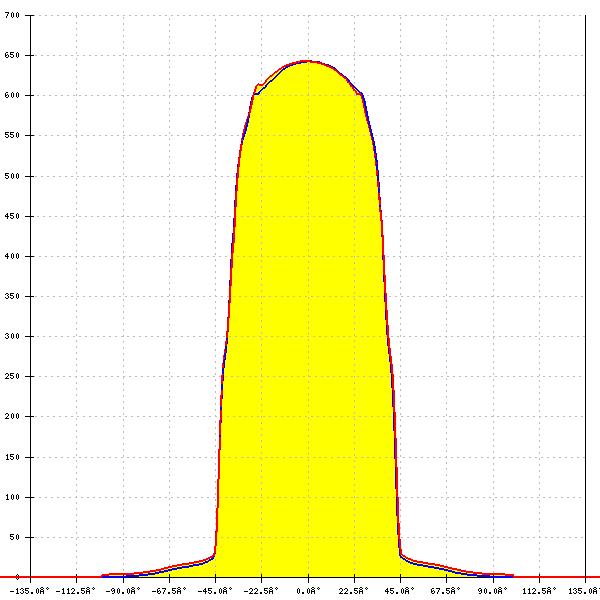

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 77°
FWTM: 88°
Peak intensity: 0.642 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

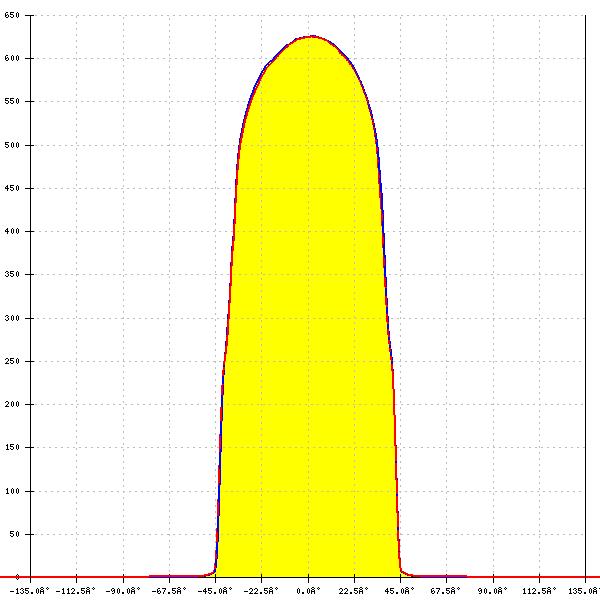

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 87°
Peak intensity: 0.626 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White

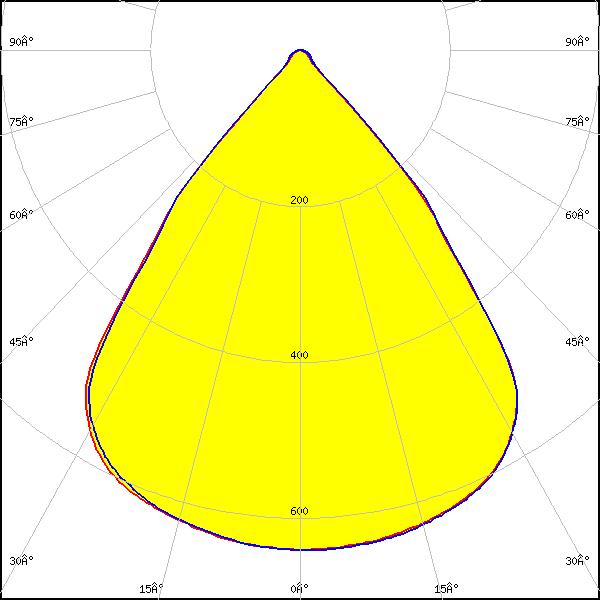

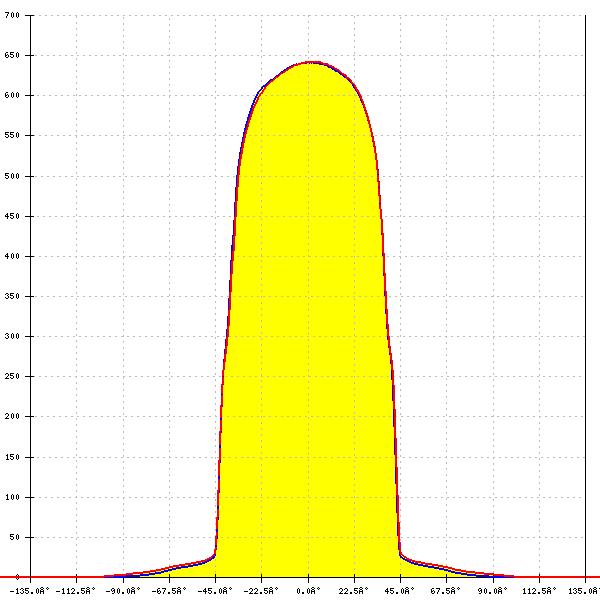

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 77°
FWTM: 88°
Peak intensity: 0.642 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White

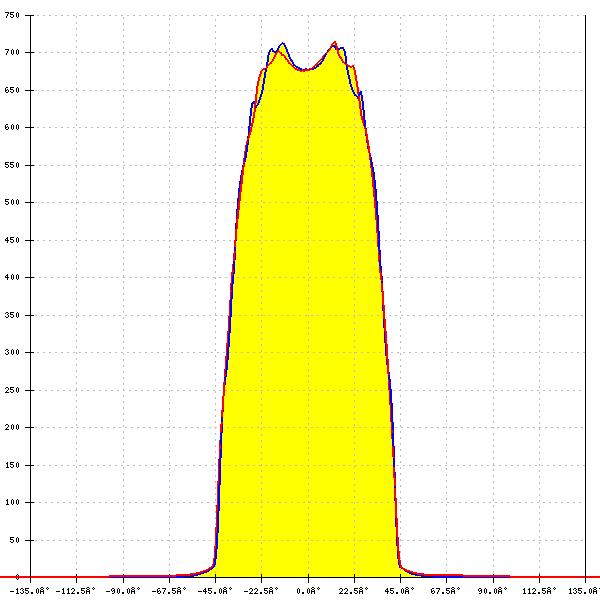

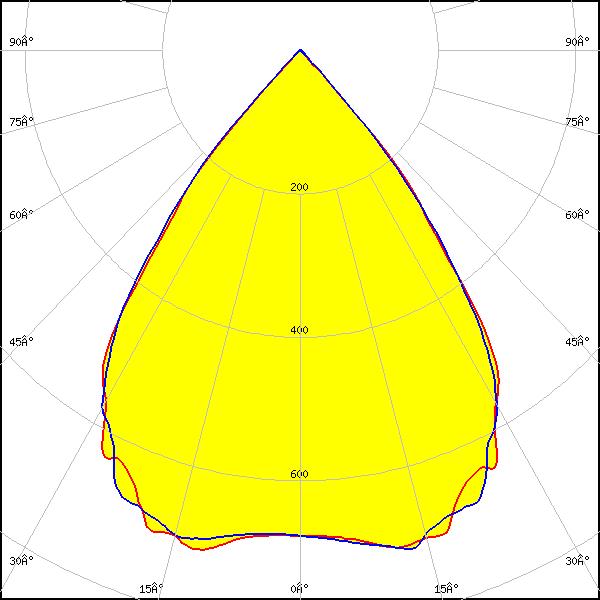

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 87°
Peak intensity: 0.729 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour: Tunable White

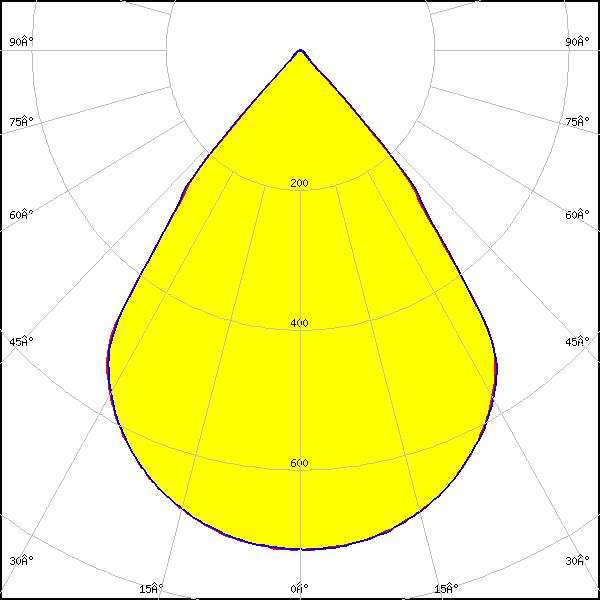

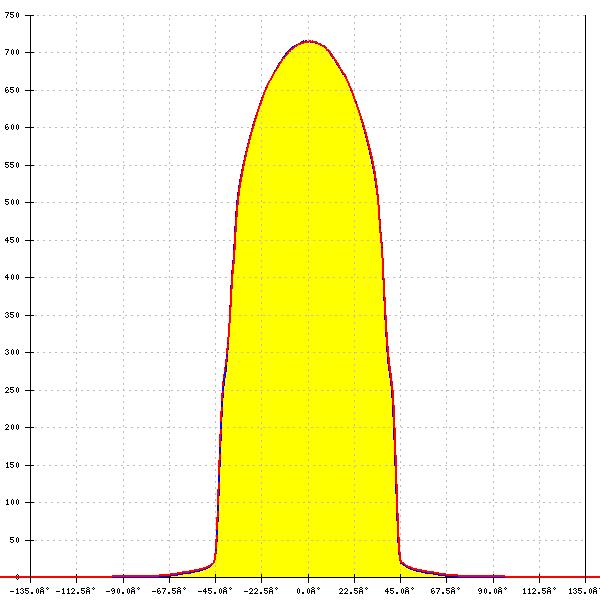

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 75°
FWTM: 88°
Peak intensity: 0.715 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: Tunable White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
