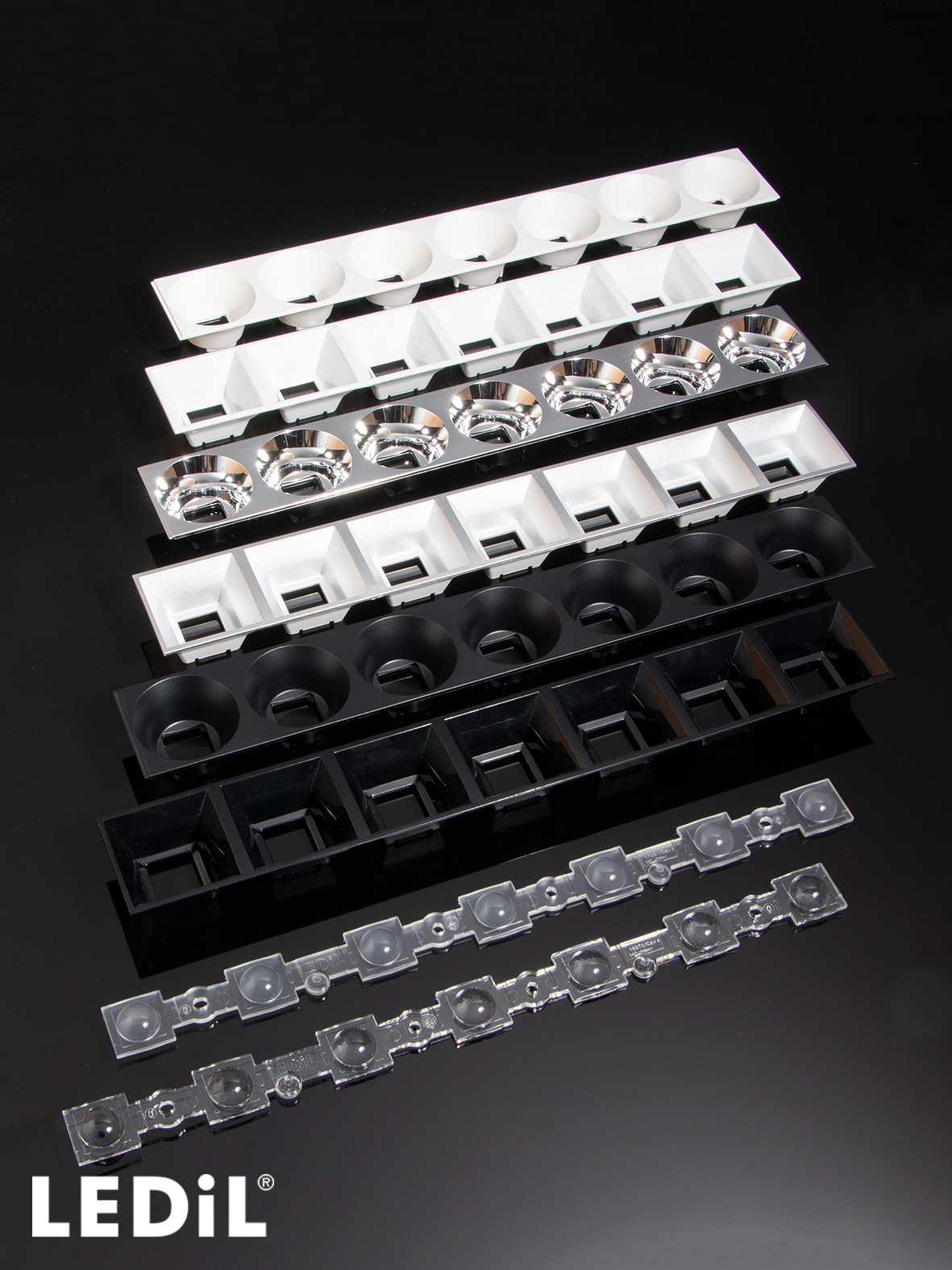

DAISY-7X1-WW-D

Print

~80° wide beam. Variant with diffused lenses.

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    280 x  40 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C17361_DAISY-7X1-WW-D
    milky
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    5.50 kg
  • MPQ:
    24 pcs
  • MOQ:
    192 pcs
  • MOQ Size:
    400 x 300 x 185 mm
  • MOQ Weight:
    3.60 kg
  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C17533_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    192 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    9.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17361_DAISY-7X1-WW-D
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

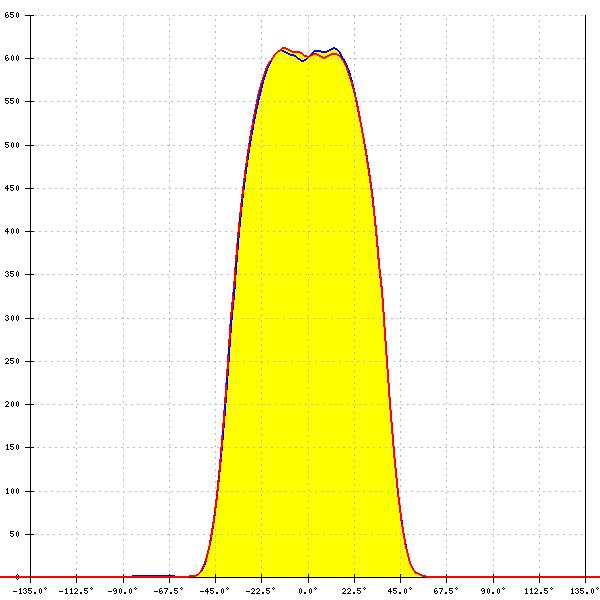

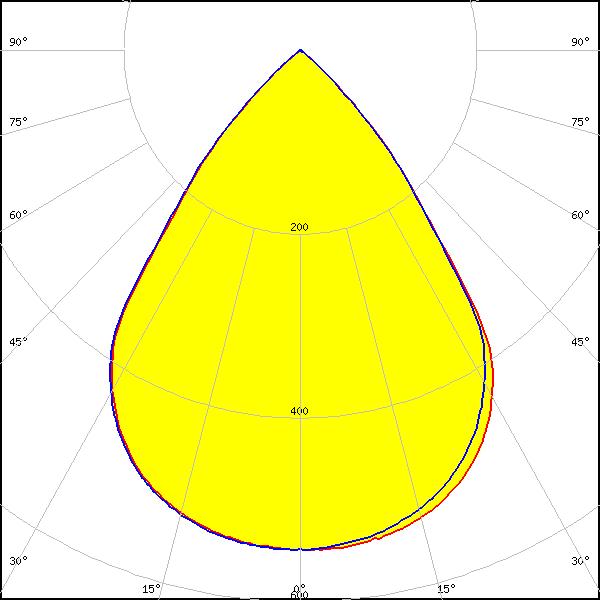

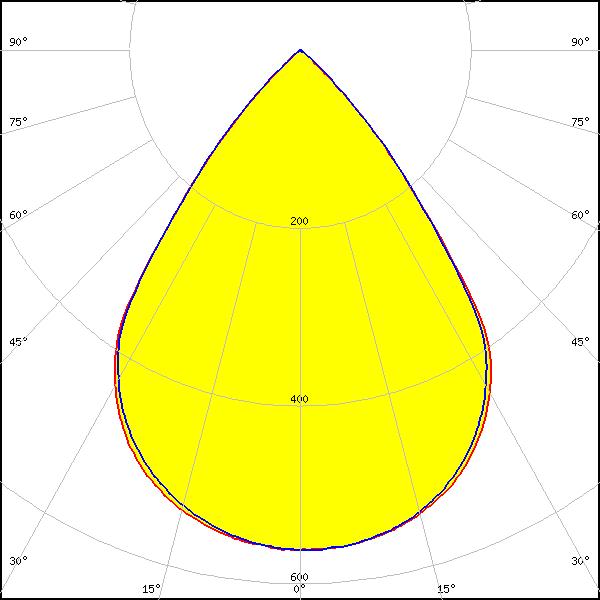

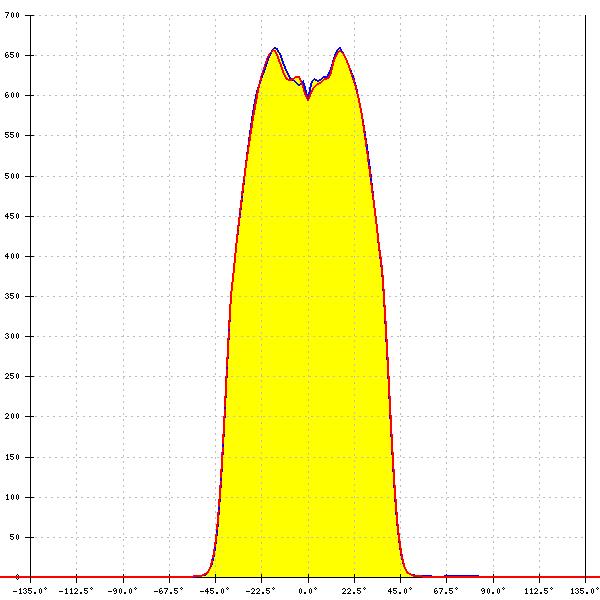

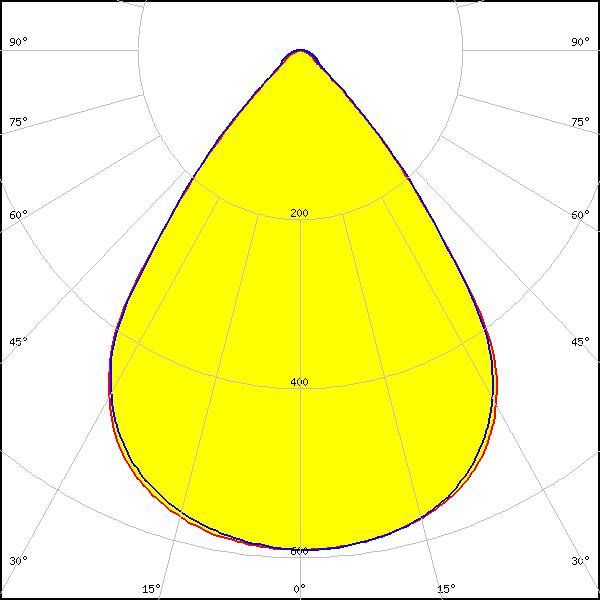

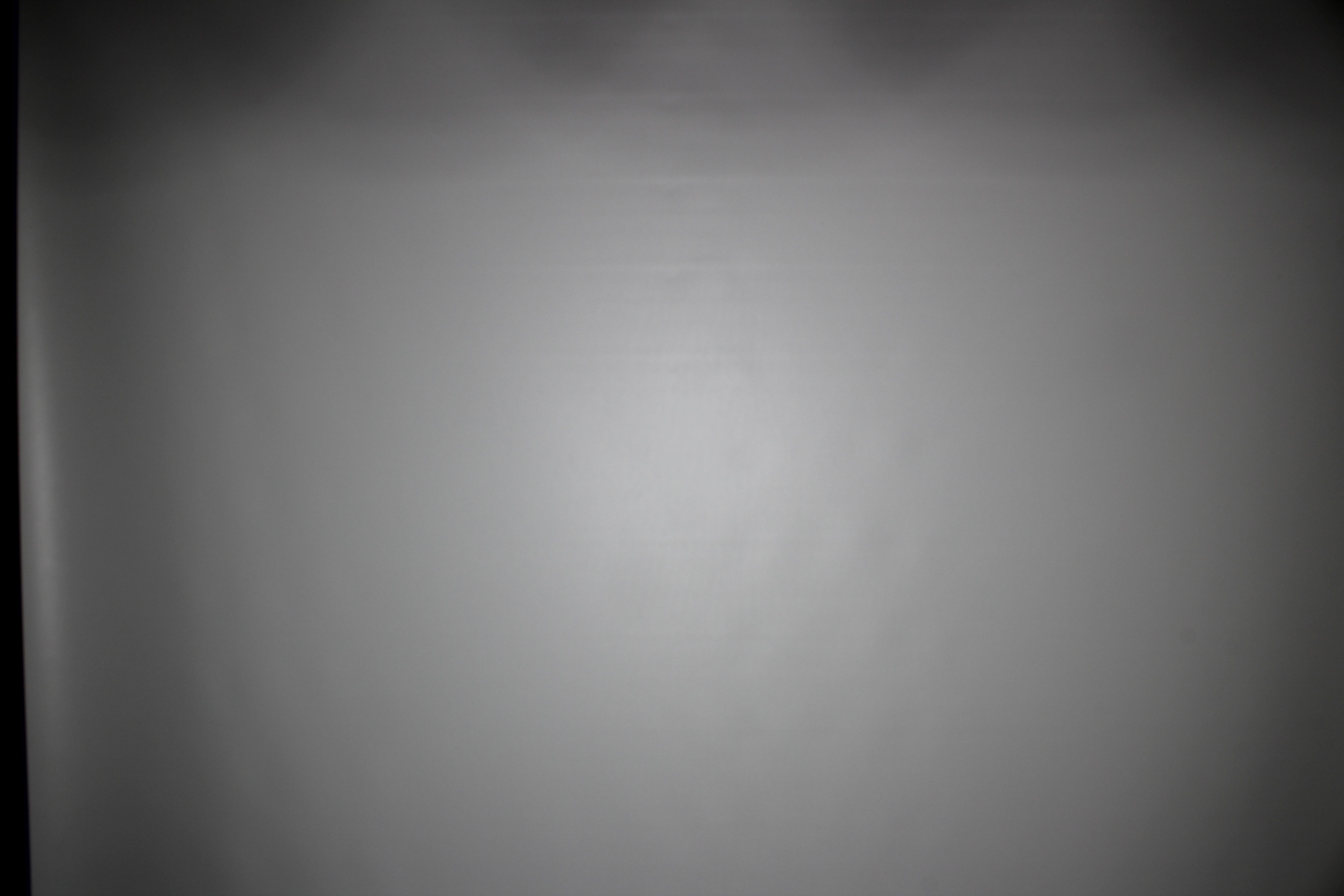

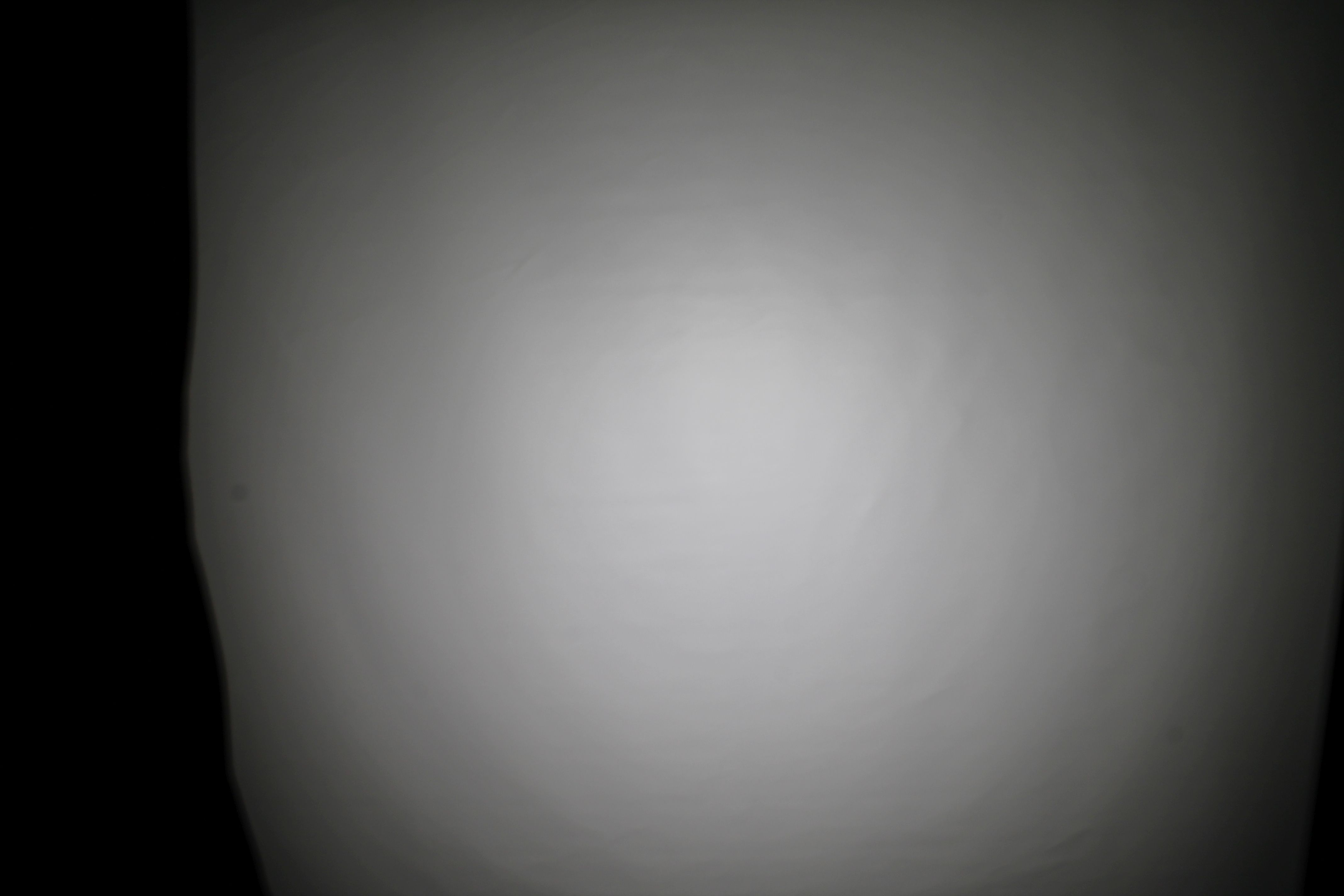

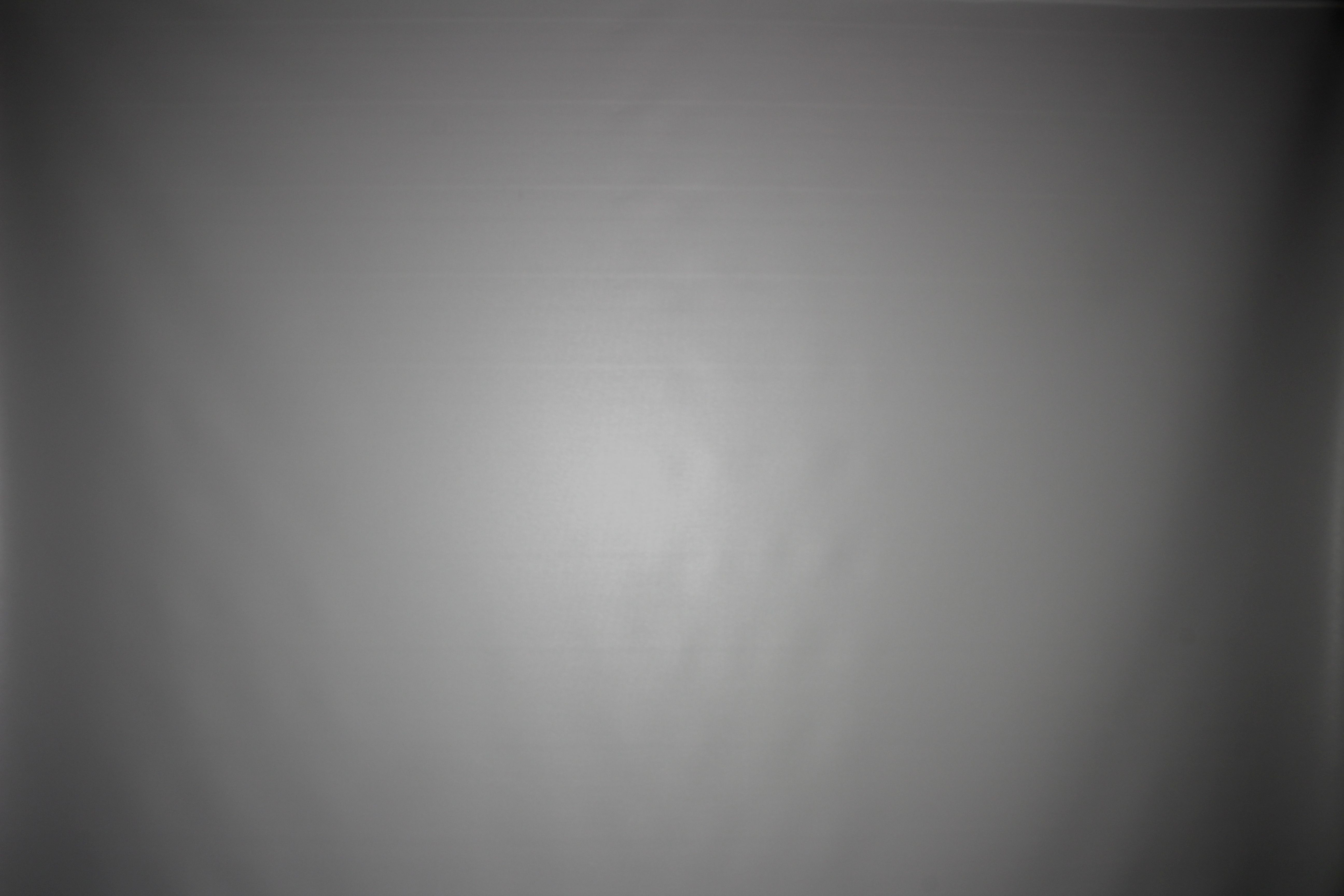

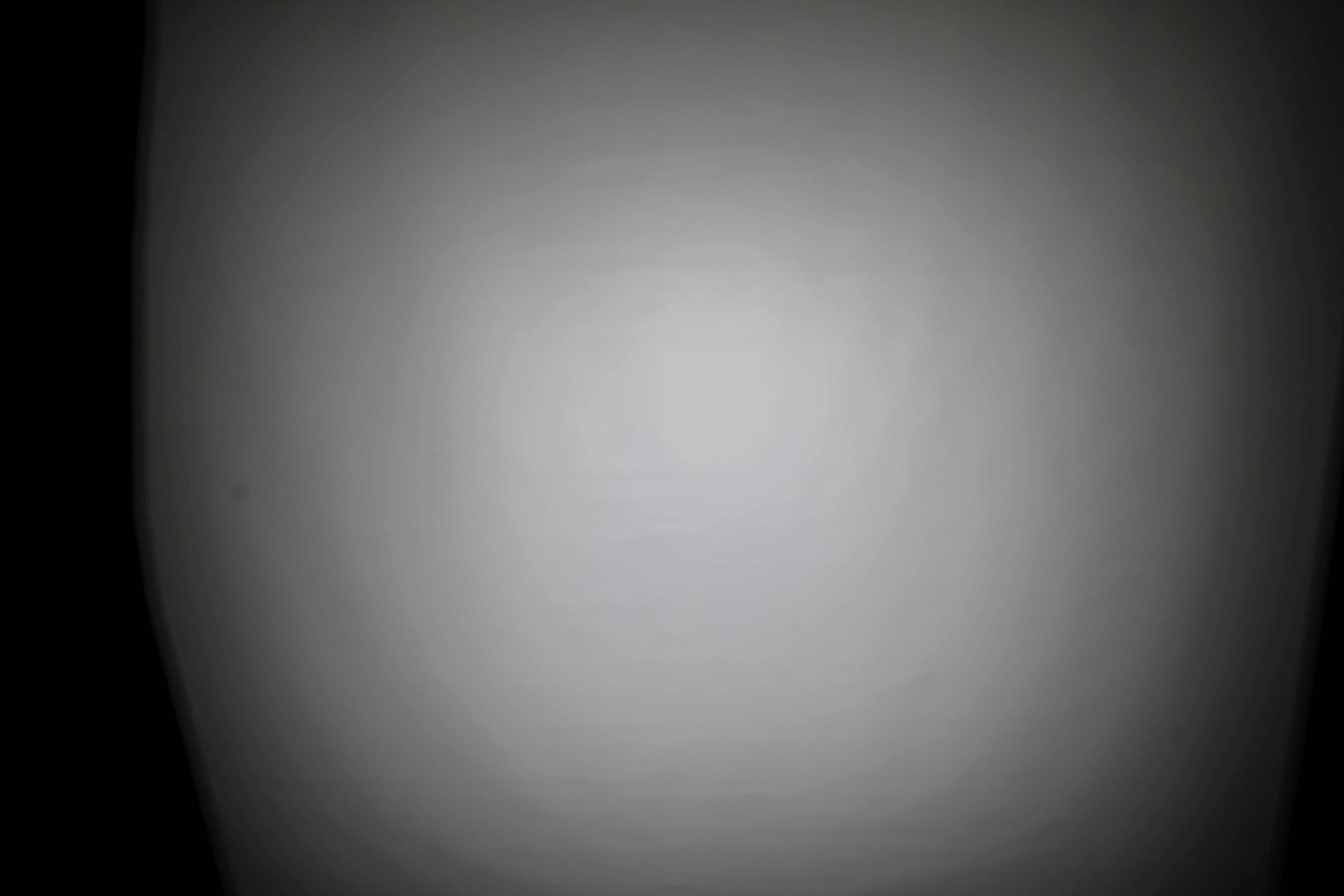

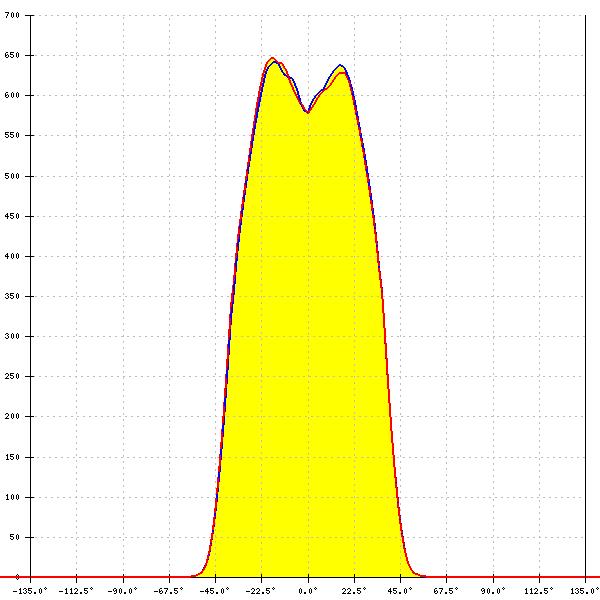

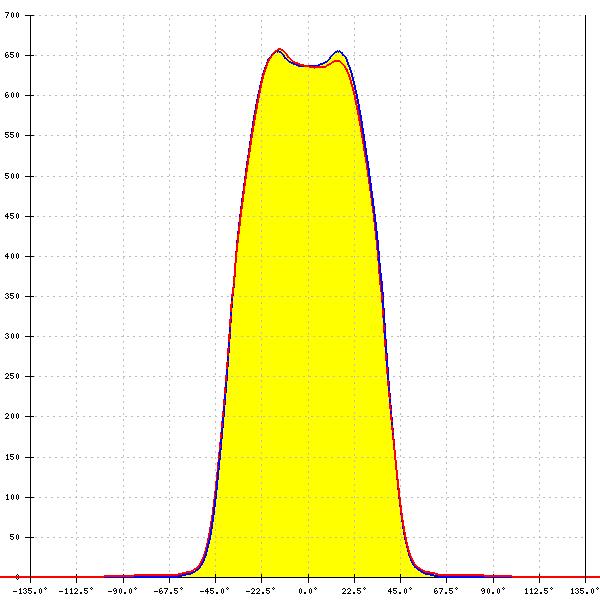

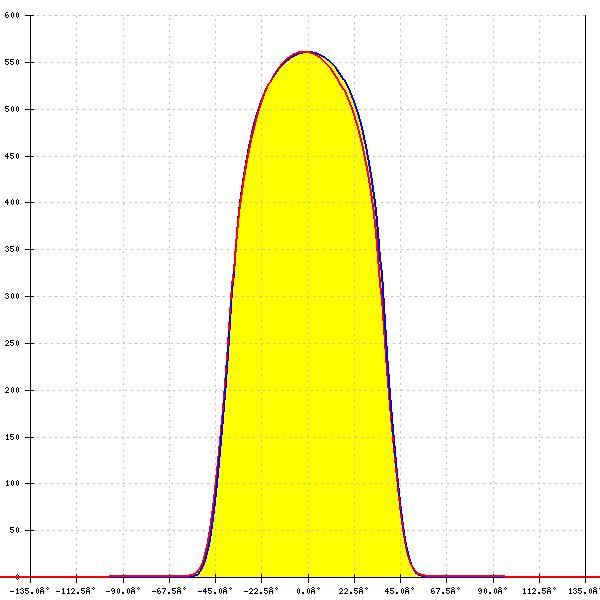

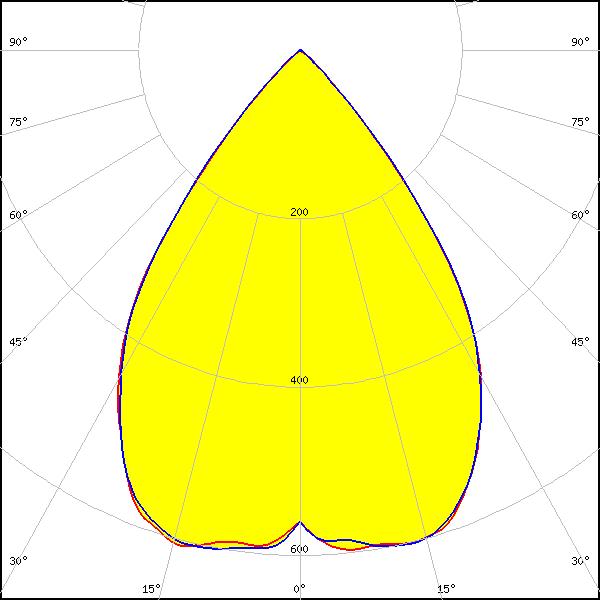

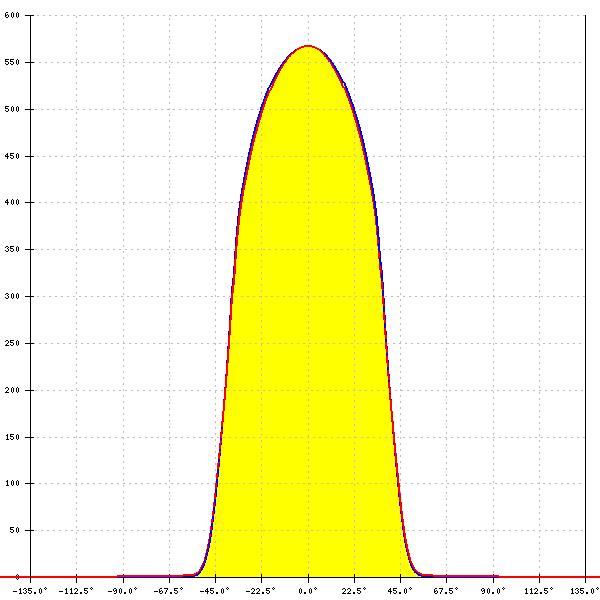

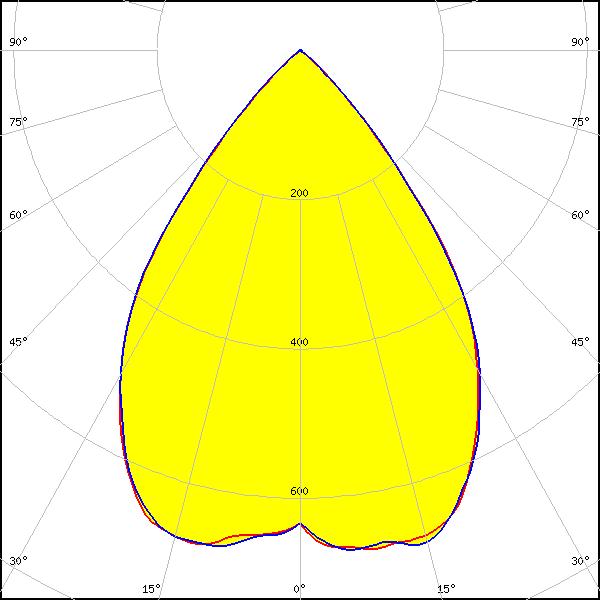

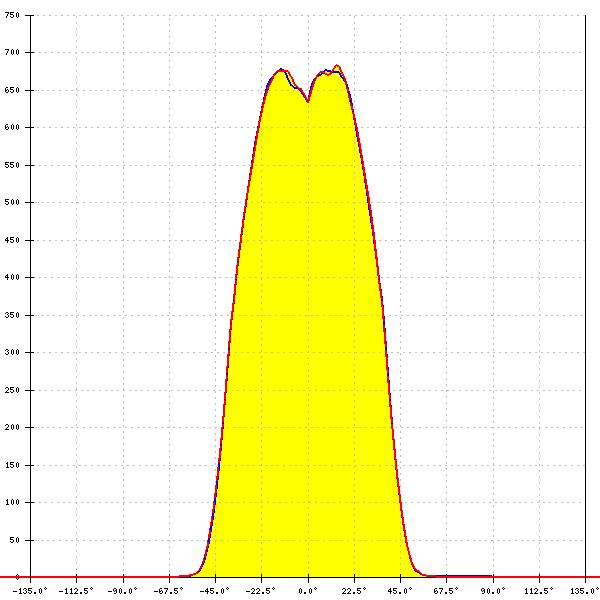

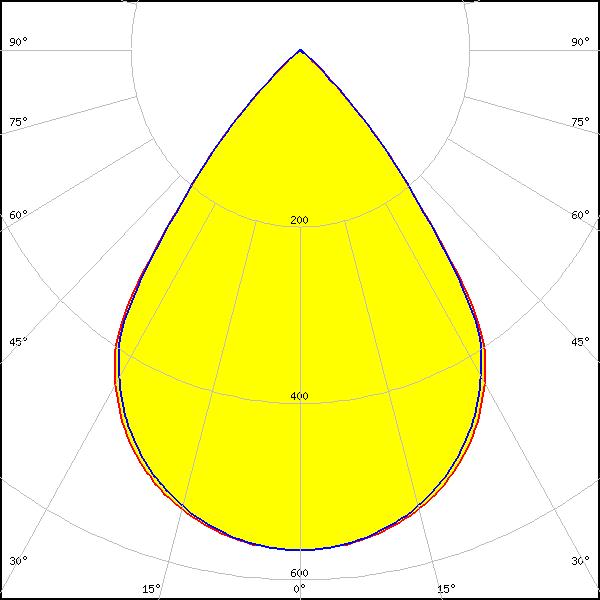

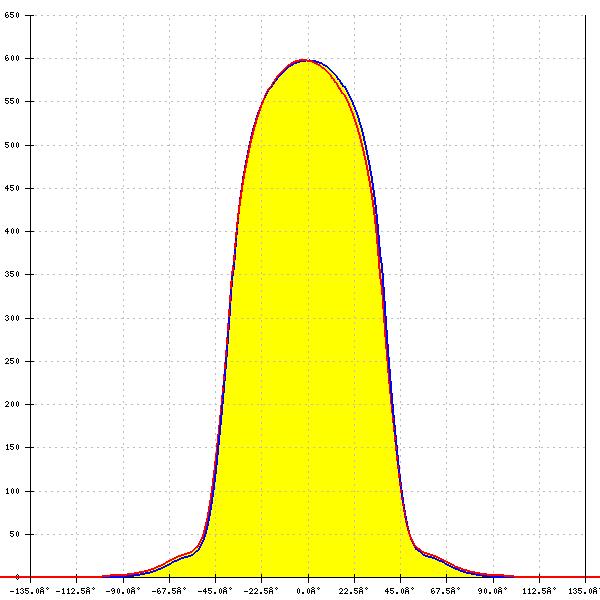

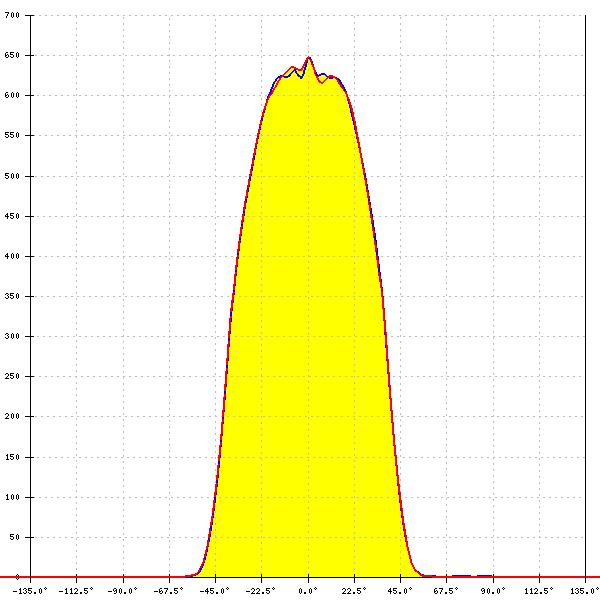

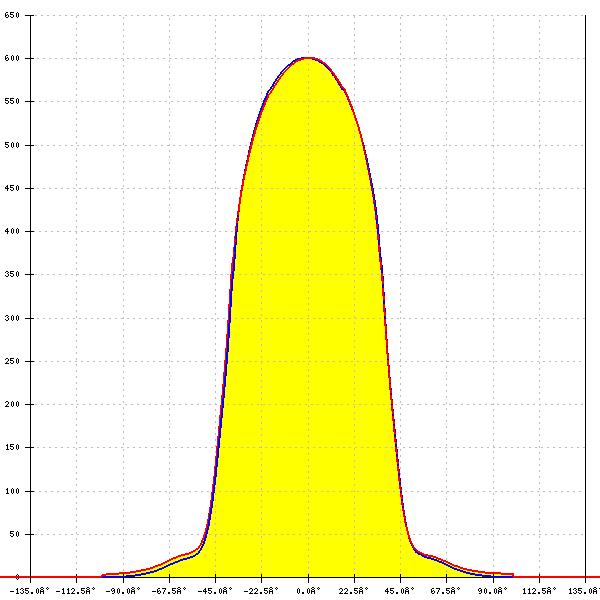

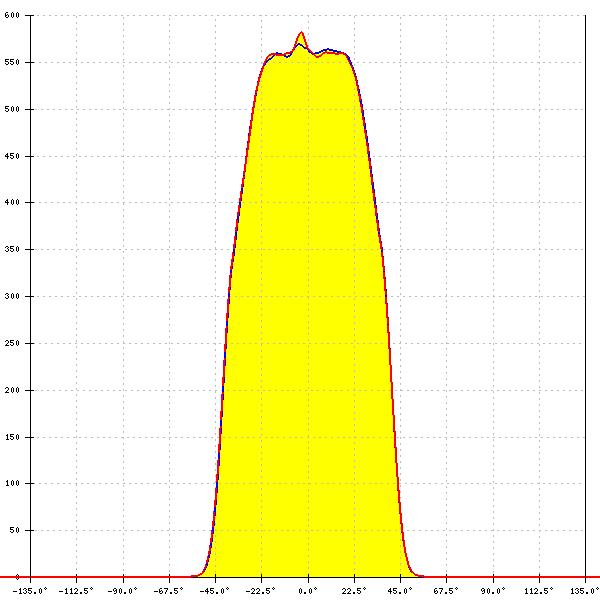

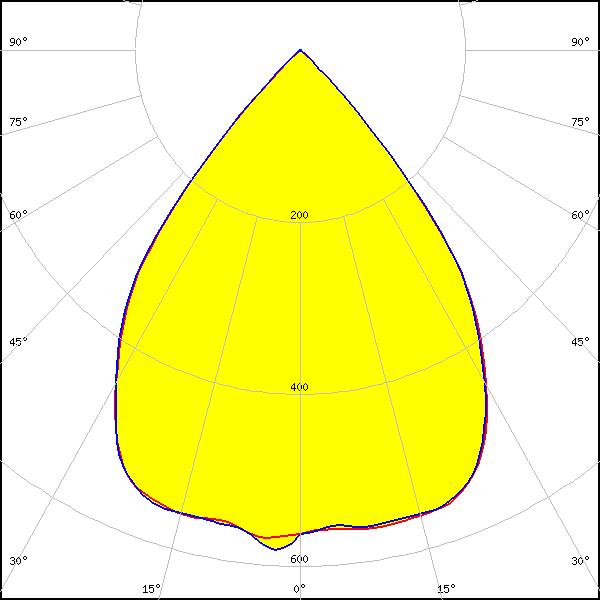

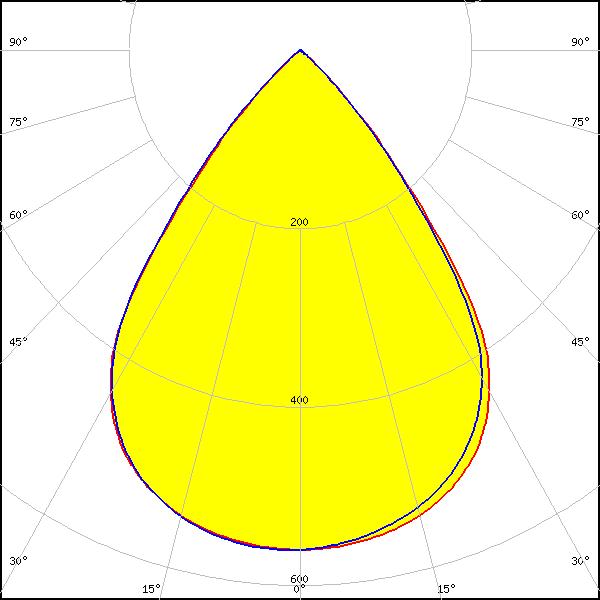

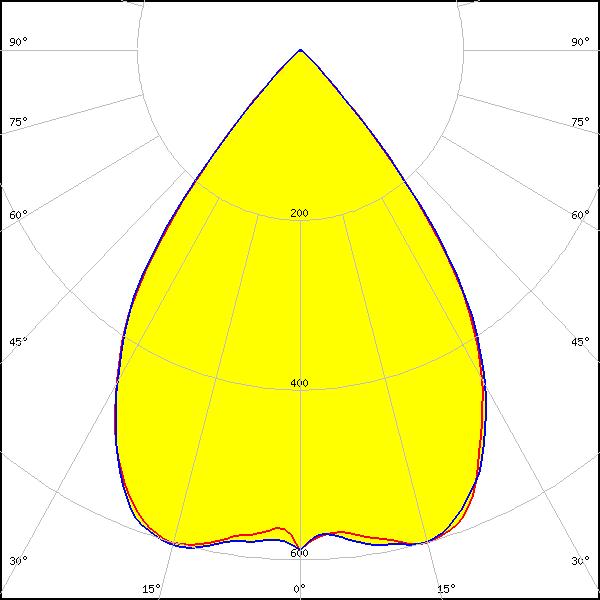

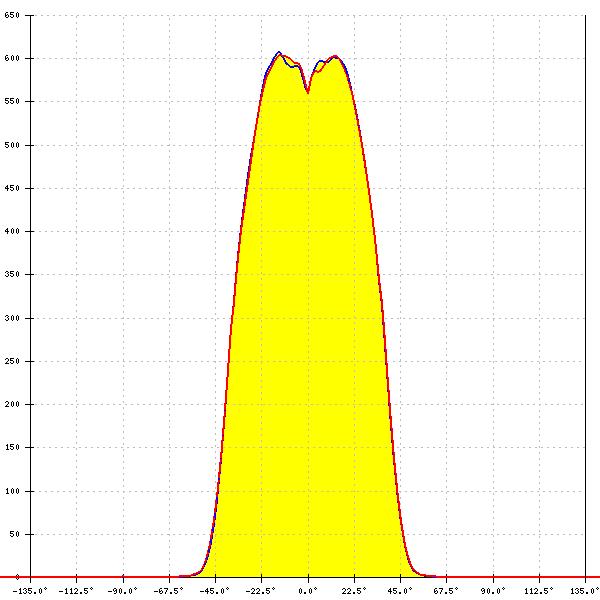

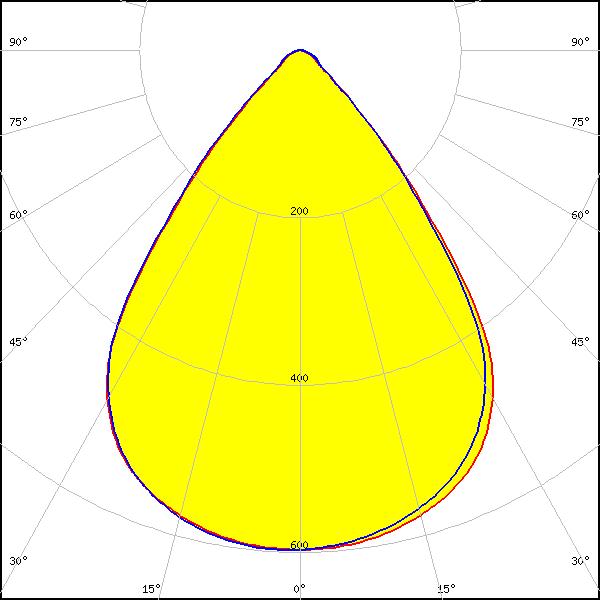

Optical results

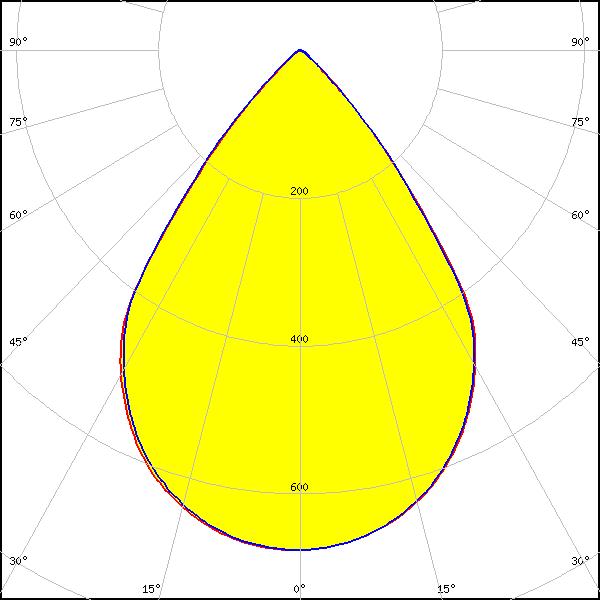

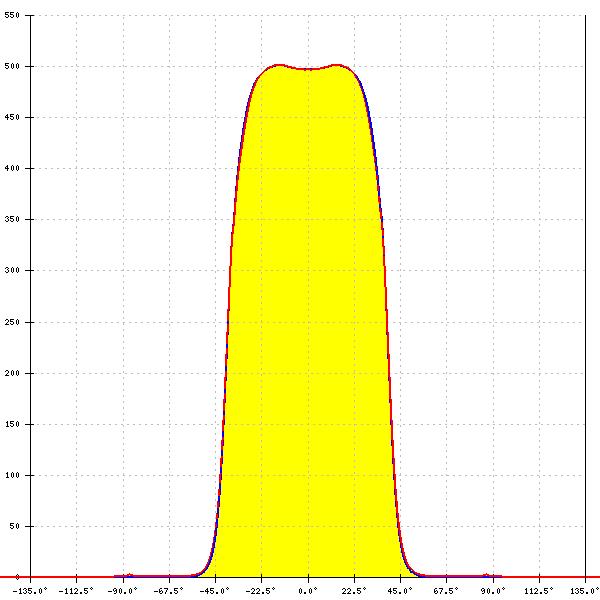

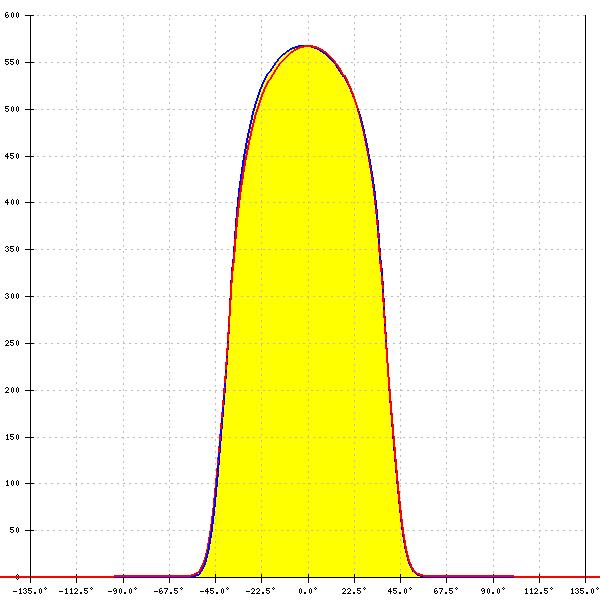

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 93°
Peak intensity: 0.567 cd/lm
Efficiency: 79 %
LEDs/each optic: 4
Light colour: White

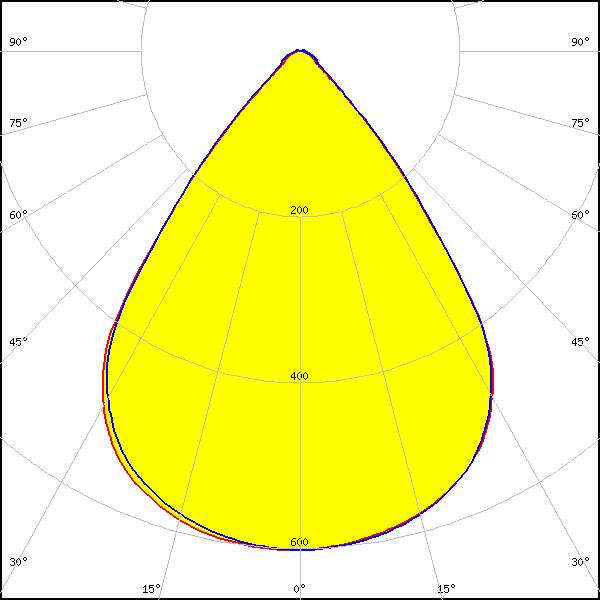

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 96°
Peak intensity: 0.602 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: White

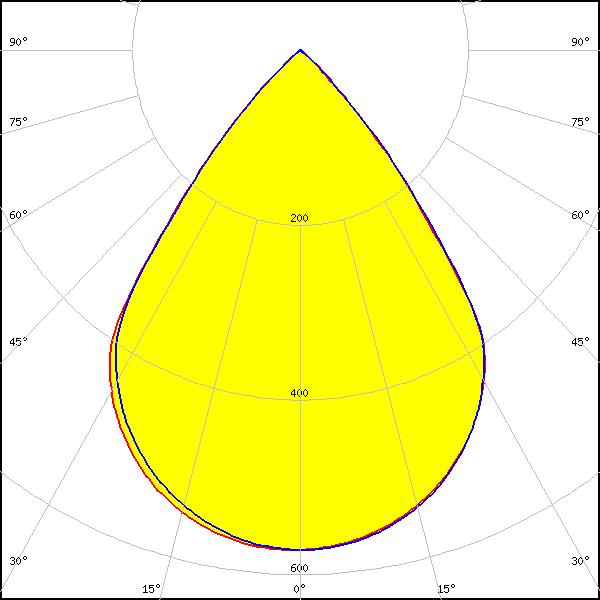

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 92°
Peak intensity: 0.572 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour: White

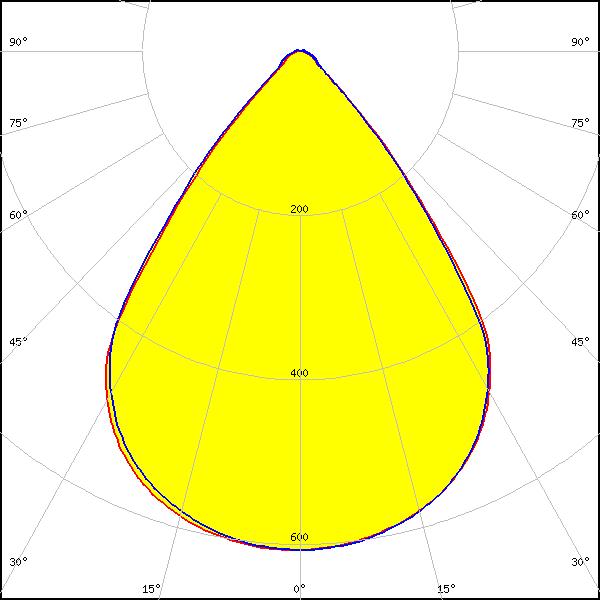

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 96°
Peak intensity: 0.608 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 93°
Peak intensity: 0.669 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

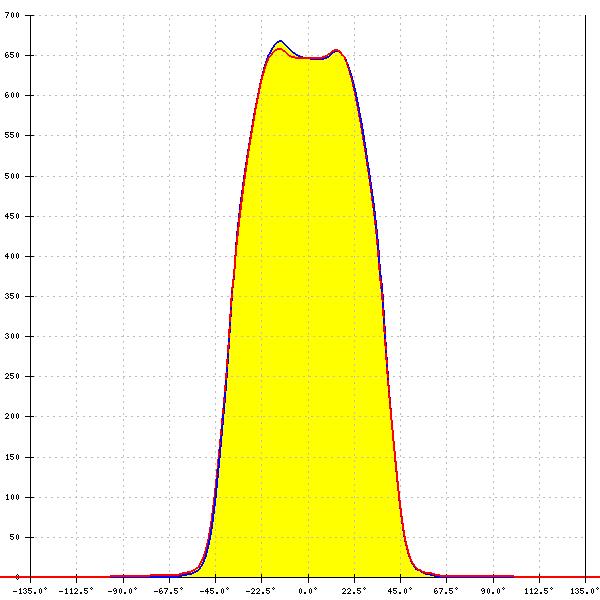

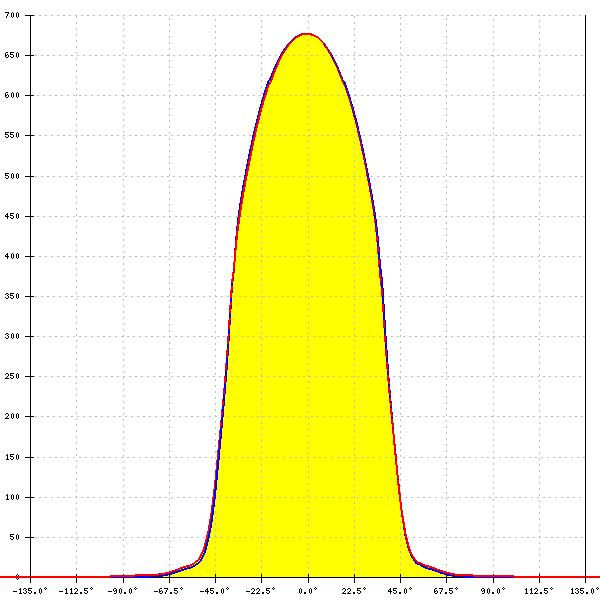

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 74°
FWTM: 94°
Peak intensity: 0.677 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White

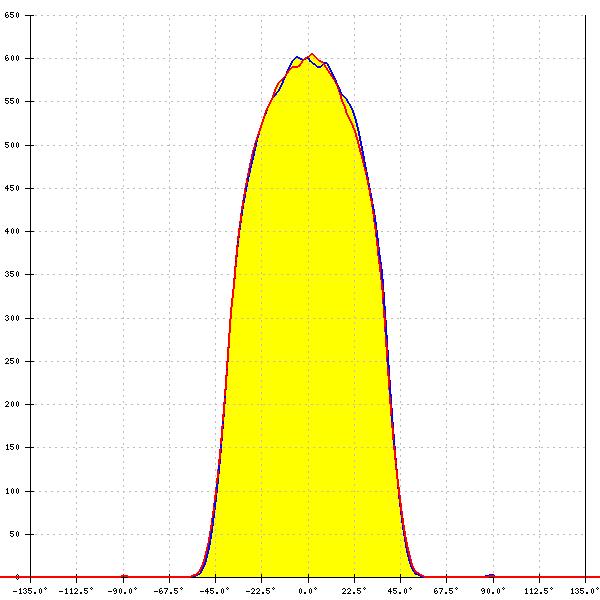

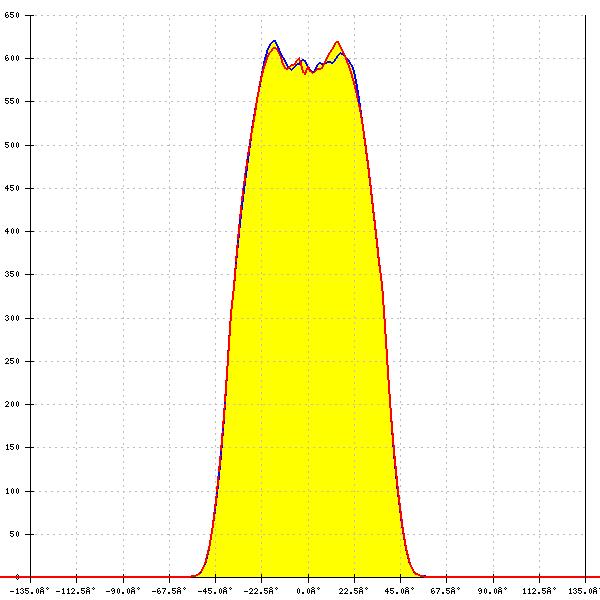

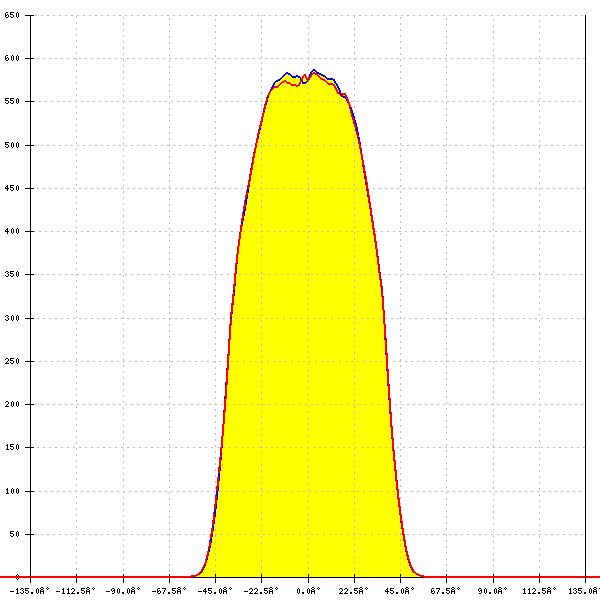

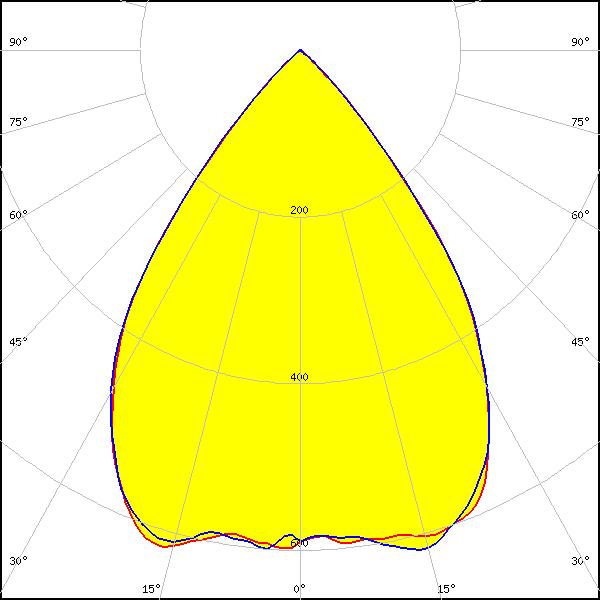

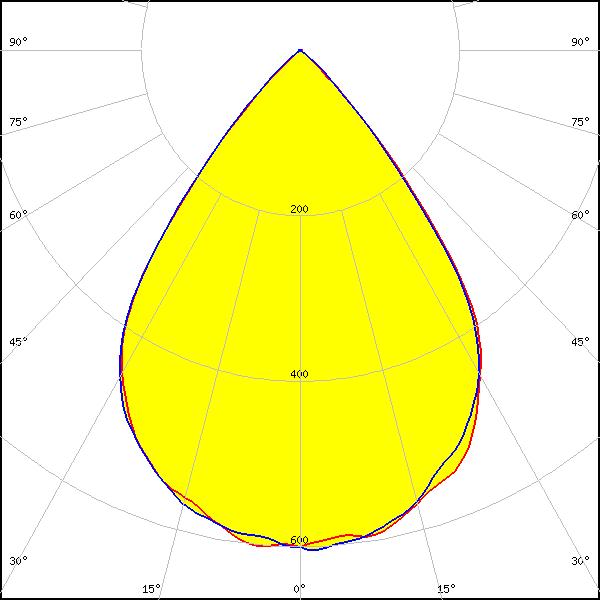

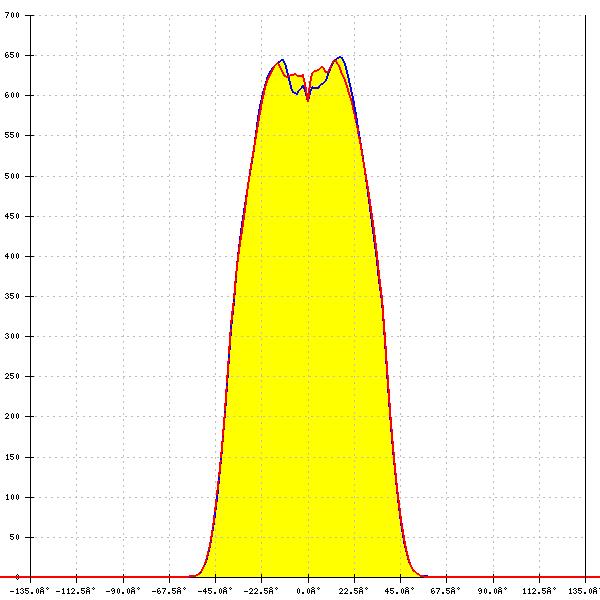

LED: J Series 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 94°
Peak intensity: 0.611 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour: White

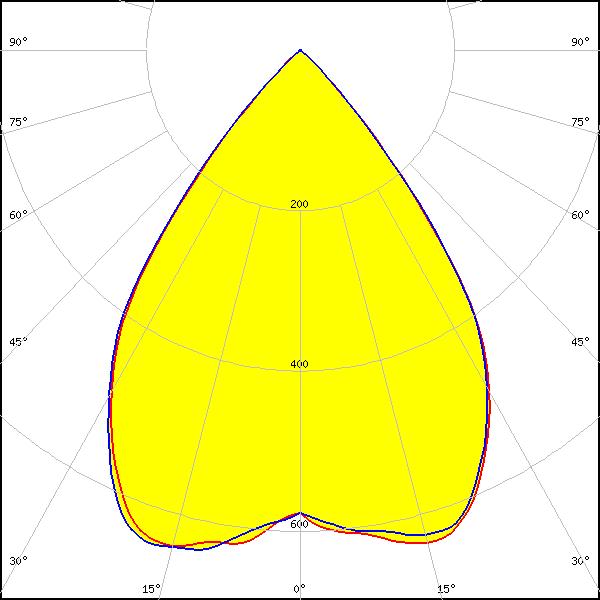

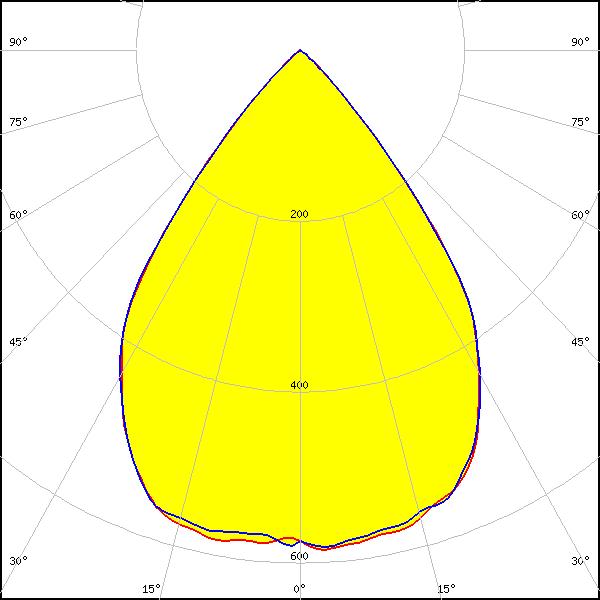

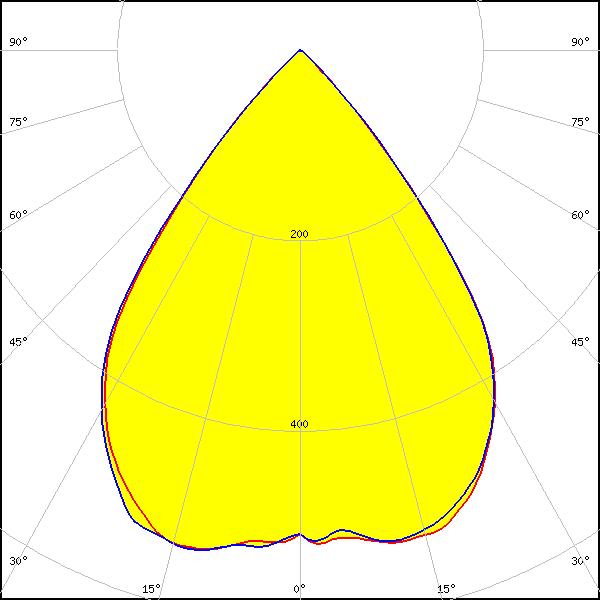

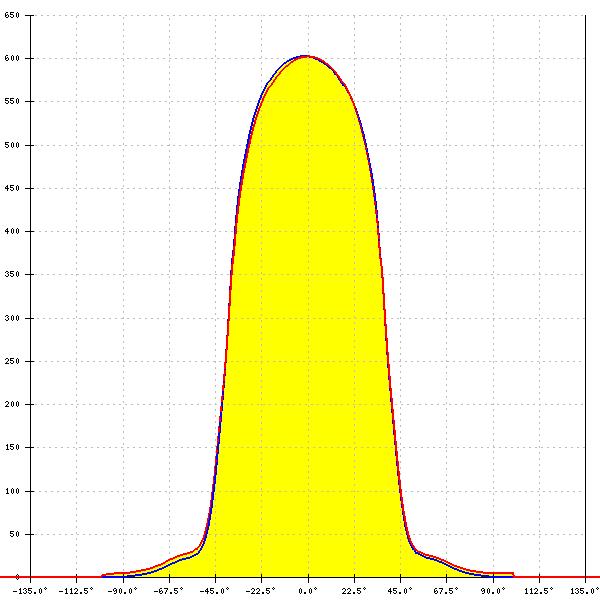

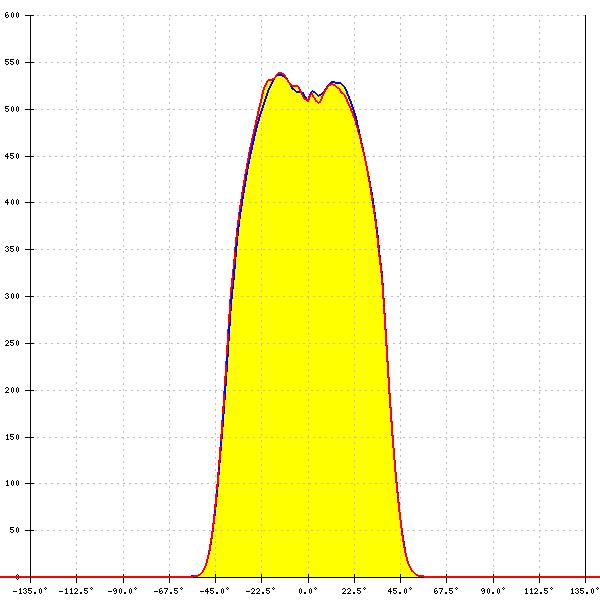

LED: LUXEON 2835 Line
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 92°
Peak intensity: 0.545 cd/lm
Efficiency: 75 %
LEDs/each optic: 3
Light colour: RGB
LED: LUXEON 2835 Line
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 74°
FWTM: 91°
Peak intensity: 0.669 cd/lm
Efficiency: 88 %
LEDs/each optic: 3
Light colour: RGB
LED: LUXEON 2835 Line
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 75°
FWTM: 92°
Peak intensity: 0.663 cd/lm
Efficiency: 90 %
LEDs/each optic: 3
Light colour: RGB

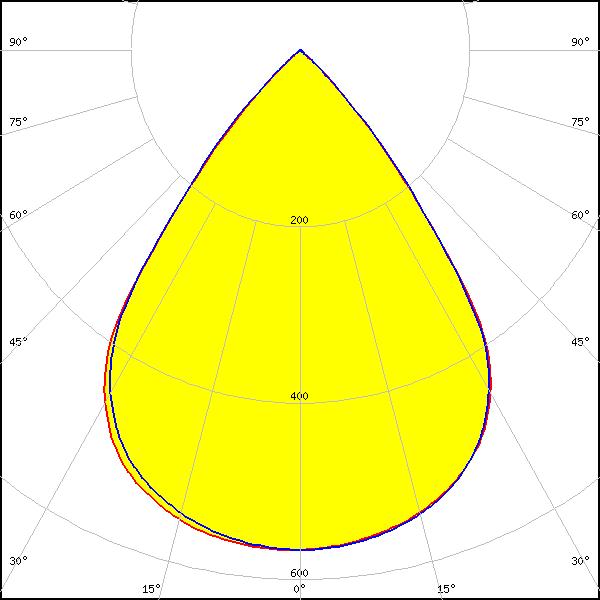

LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 92°
Peak intensity: 0.567 cd/lm
Efficiency: 79 %
LEDs/each optic: 4
Light colour: White
LED: LUXEON 2835 Line
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 96°
Peak intensity: 0.602 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: White

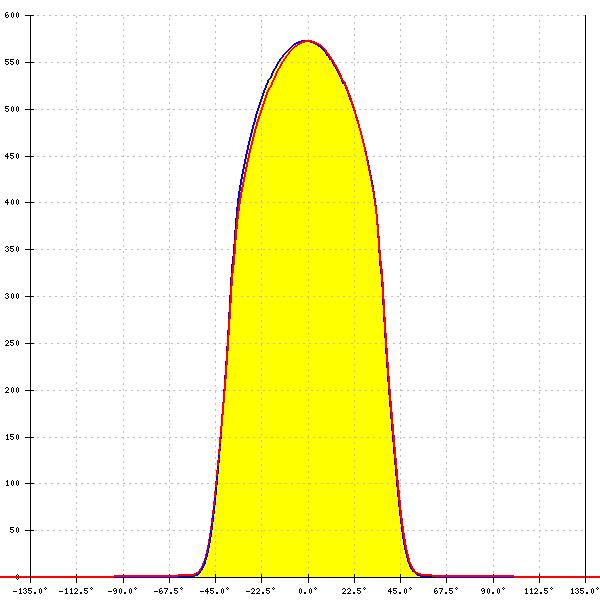

LED: LUXEON 2835 Line
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 92°
Peak intensity: 0.572 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour: White

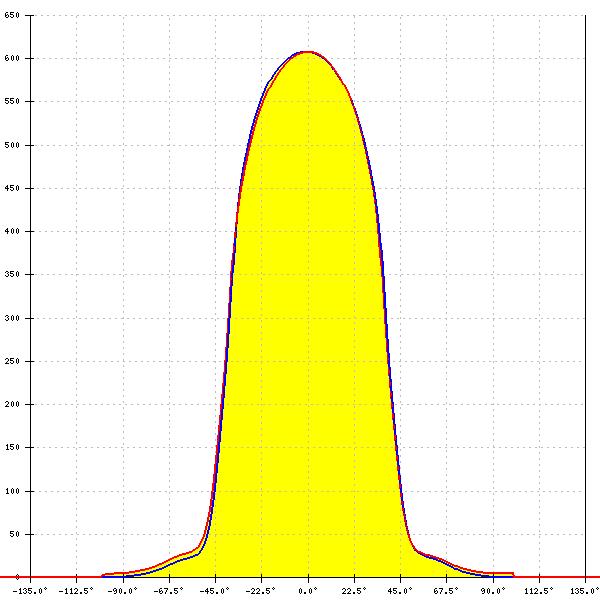

LED: LUXEON 2835 Line
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 96°
Peak intensity: 0.608 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

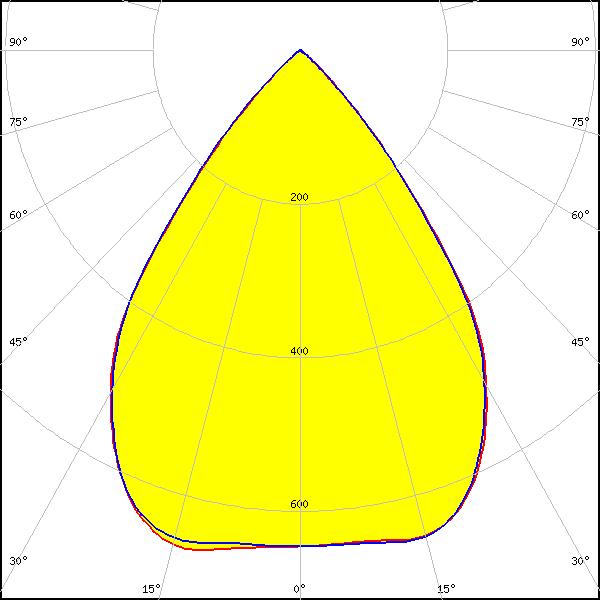

LED: LUXEON 2835 Line
Required components:
C17532_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 93°
Peak intensity: 0.669 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White
LED: LUXEON 2835 Line
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 74°
FWTM: 94°
Peak intensity: 0.677 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 74°
FWTM: 93°
Peak intensity: 0.563 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 97°
Peak intensity: 0.596 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White

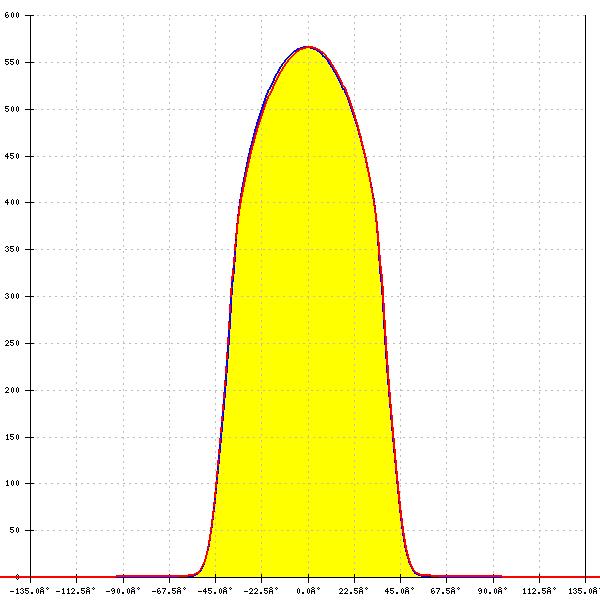

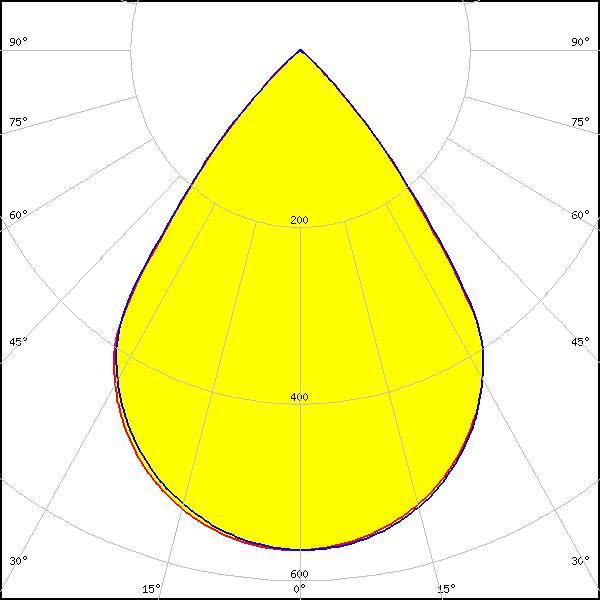

LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 93°
Peak intensity: 0.566 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 75°
FWTM: 97°
Peak intensity: 0.601 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 93°
Peak intensity: 0.660 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 74°
FWTM: 94°
Peak intensity: 0.676 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: White

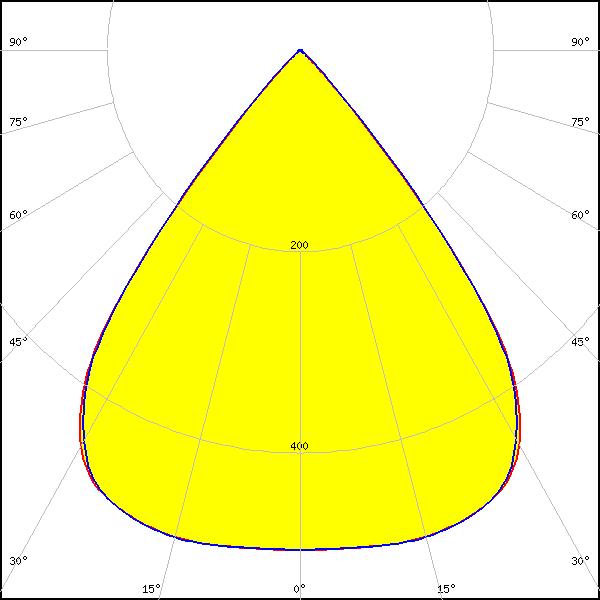

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 77°
FWTM: 89°
Peak intensity: 0.503 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

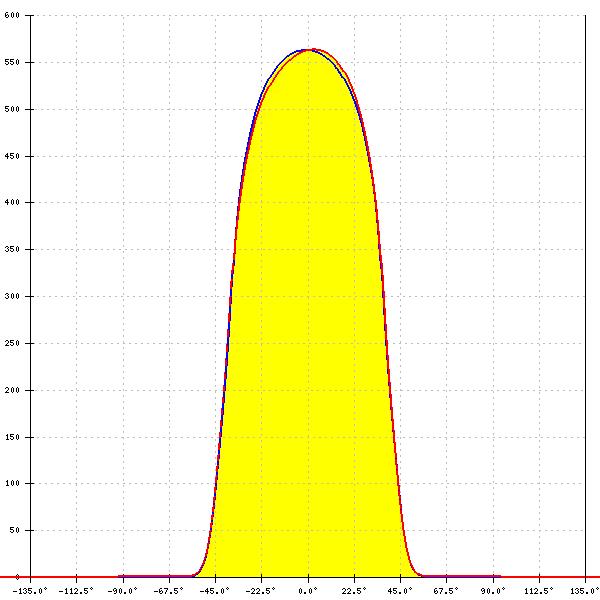

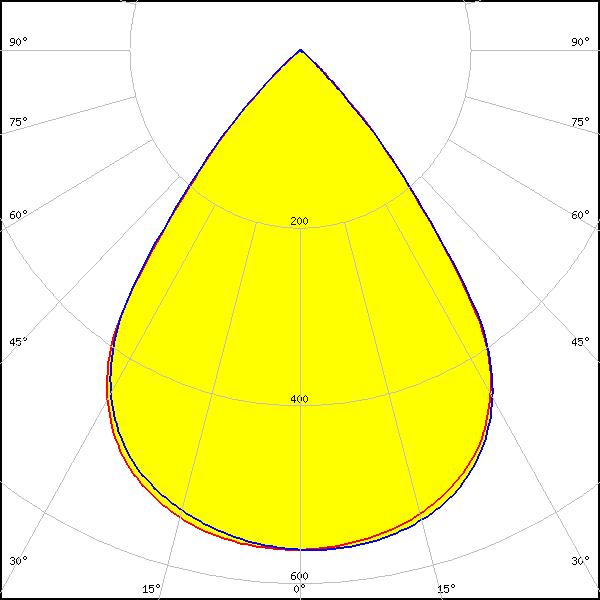

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 93°
Peak intensity: 0.563 cd/lm
Efficiency: 79 %
LEDs/each optic: 4
Light colour: Tunable White

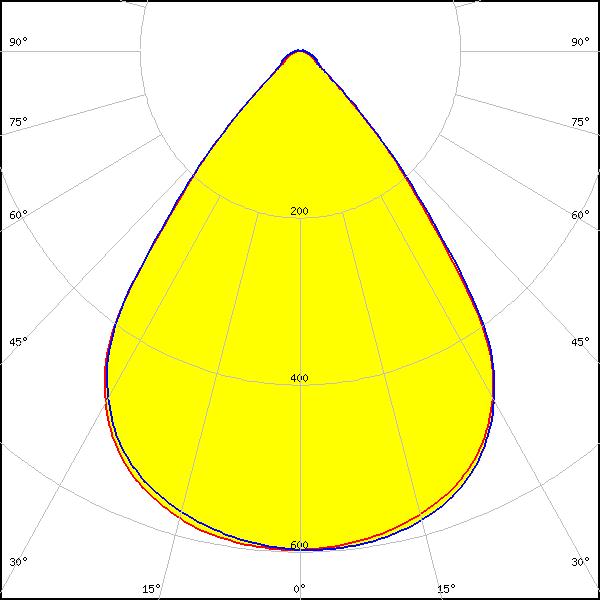

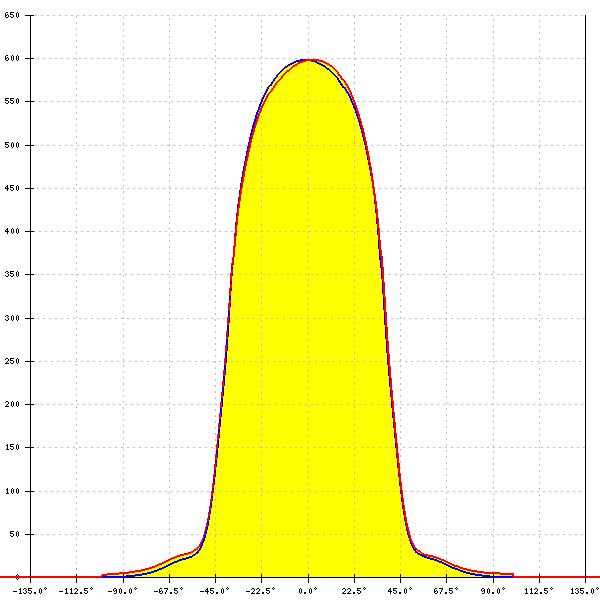

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 77°
FWTM: 98°
Peak intensity: 0.598 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: Tunable White

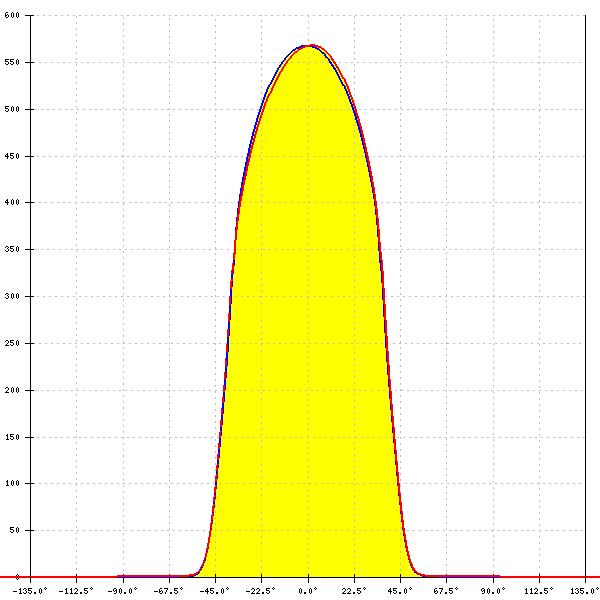

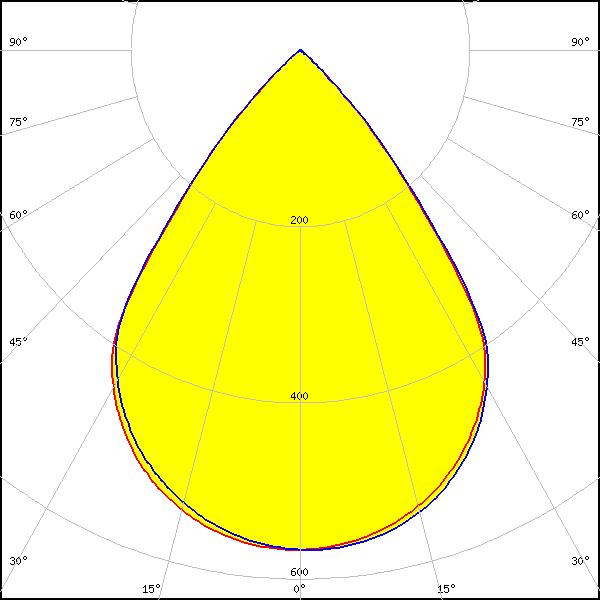

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 94°
Peak intensity: 0.568 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour: Tunable White

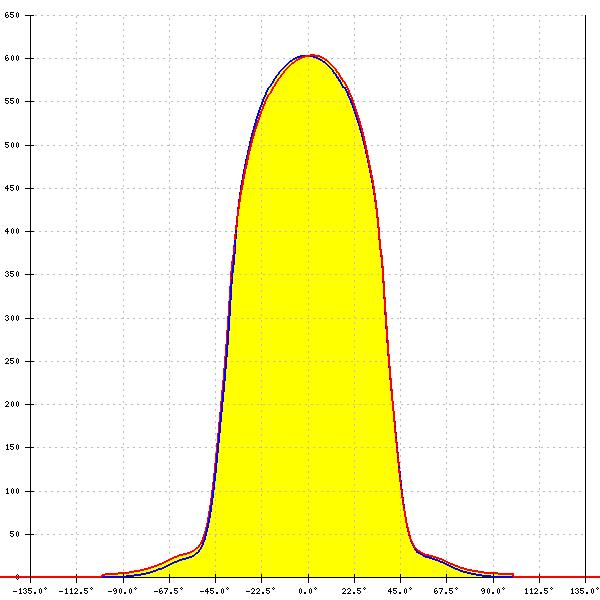

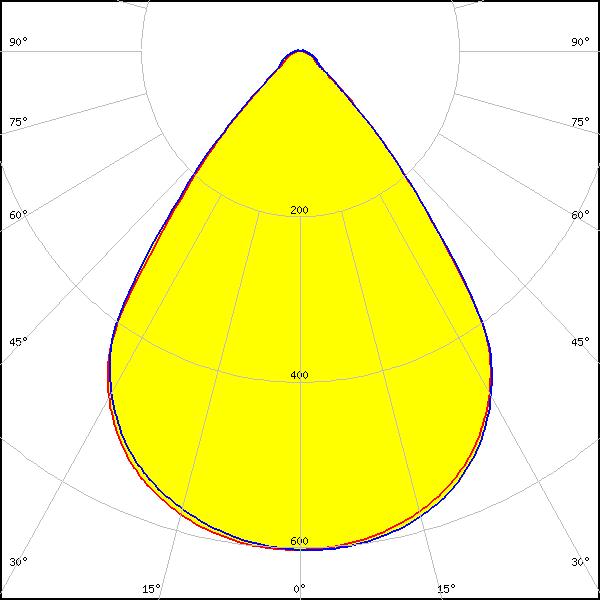

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 77°
FWTM: 98°
Peak intensity: 0.603 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: Tunable White

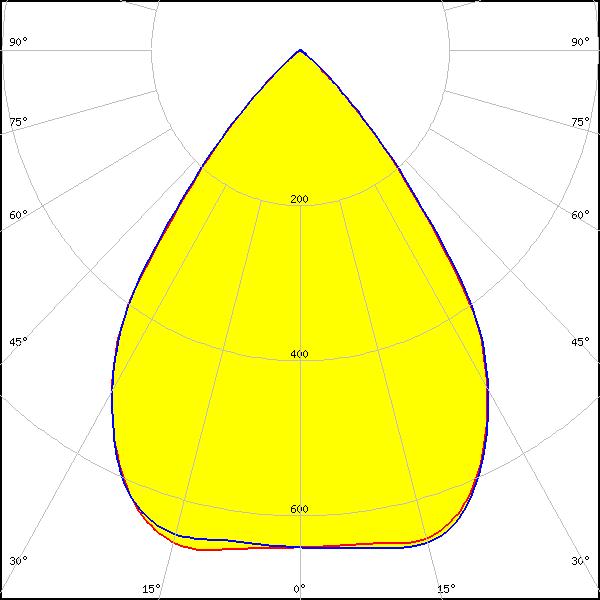

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 94°
Peak intensity: 0.667 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: Tunable White

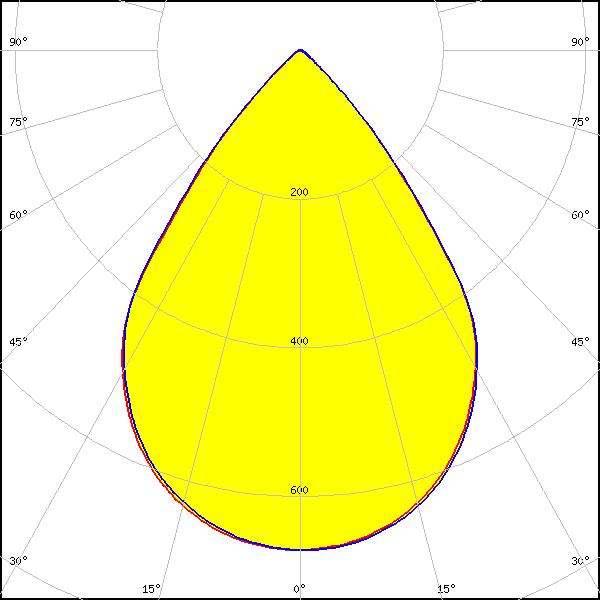

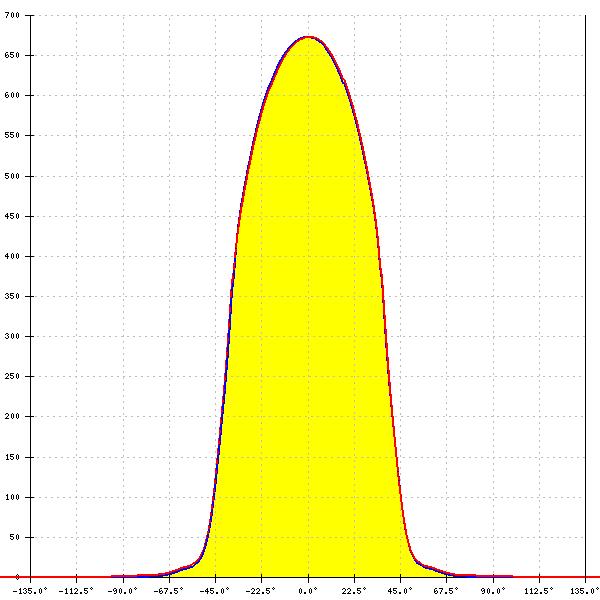

LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V Opt G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 75°
FWTM: 95°
Peak intensity: 0.673 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: Tunable White

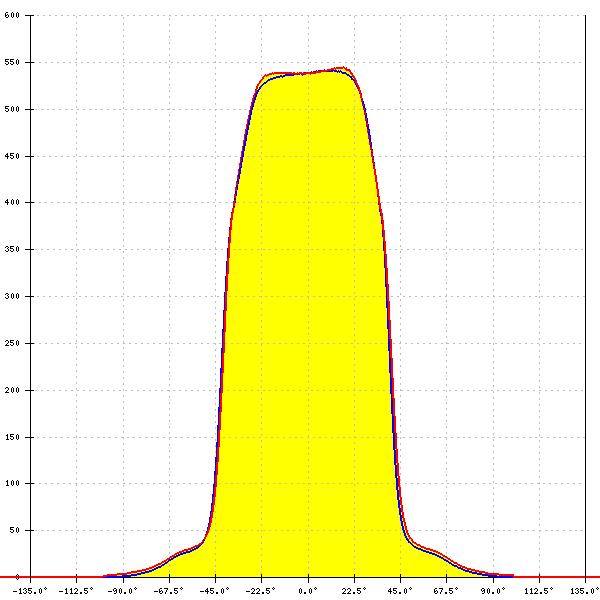

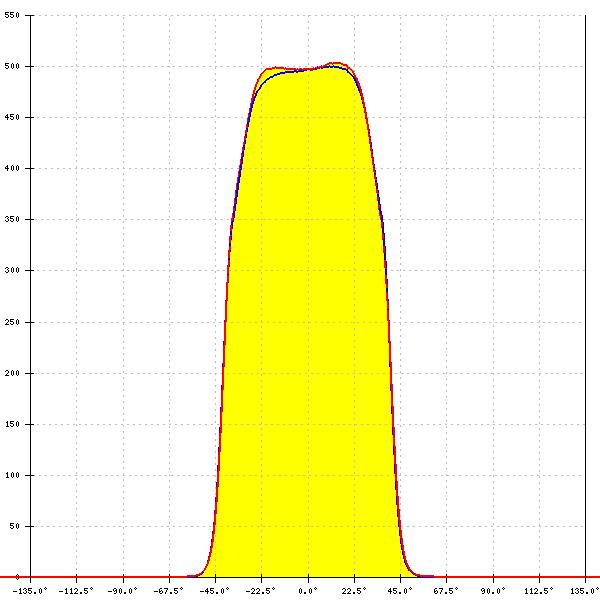

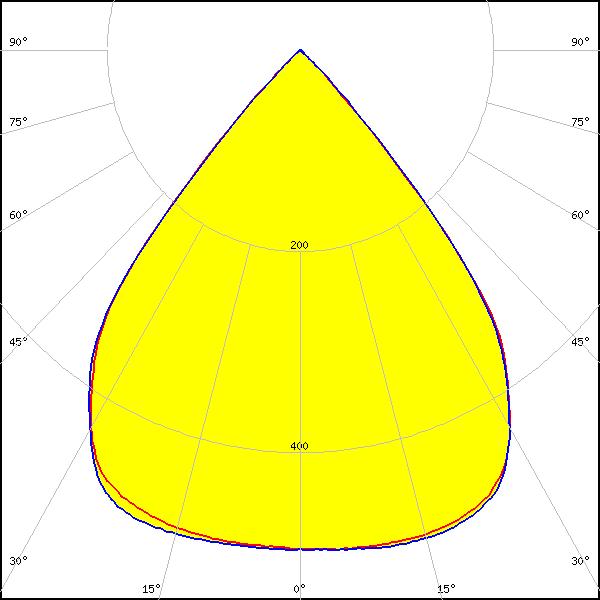

LED: NF2W757G-MT (Tunable White)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 80°
FWTM: 90°
Peak intensity: 0.503 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: Tunable White

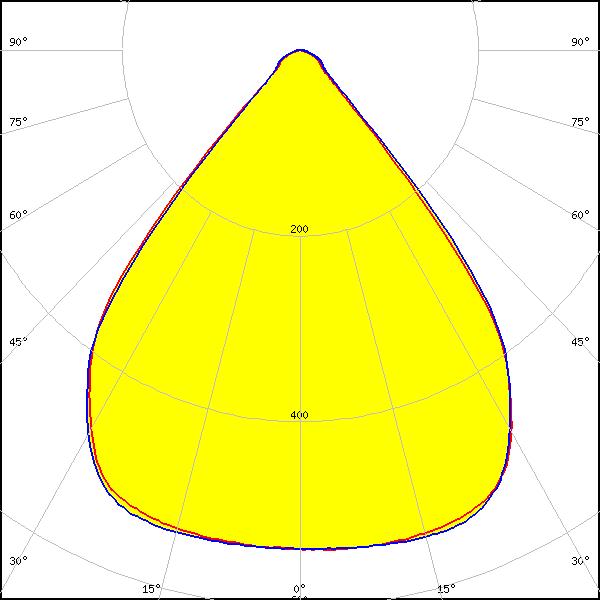

LED: NF2W757G-MT (Tunable White)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 80°
FWTM: 95°
Peak intensity: 0.544 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: Tunable White

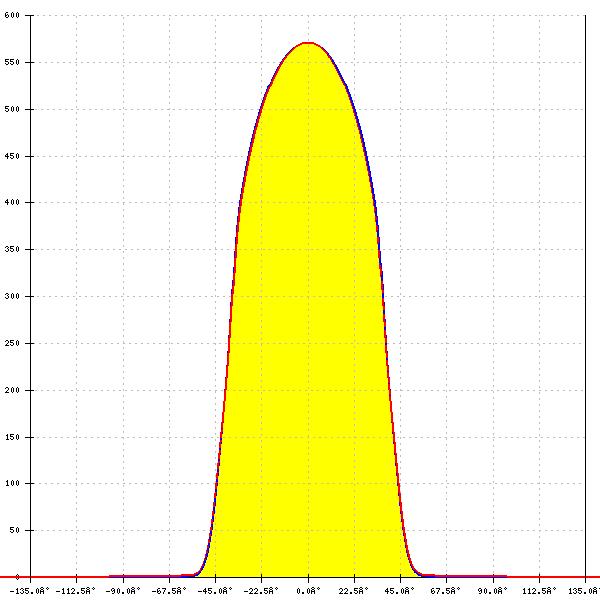

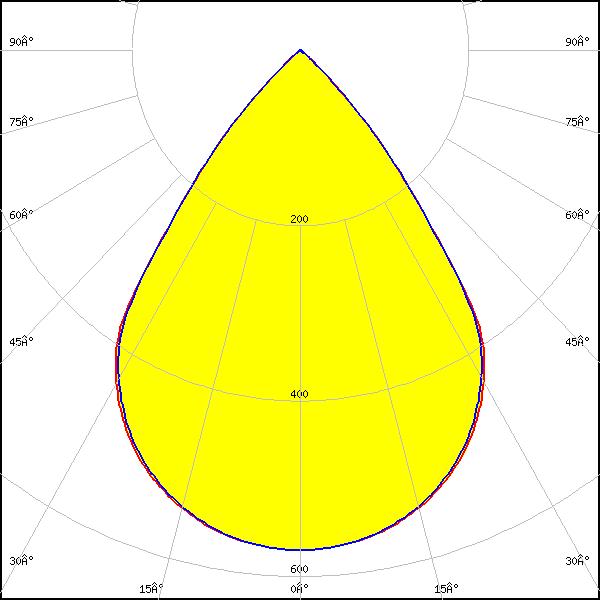

LED: PL-LIN-2000 280x24mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 74°
FWTM: 93°
Peak intensity: 0.570 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour: White

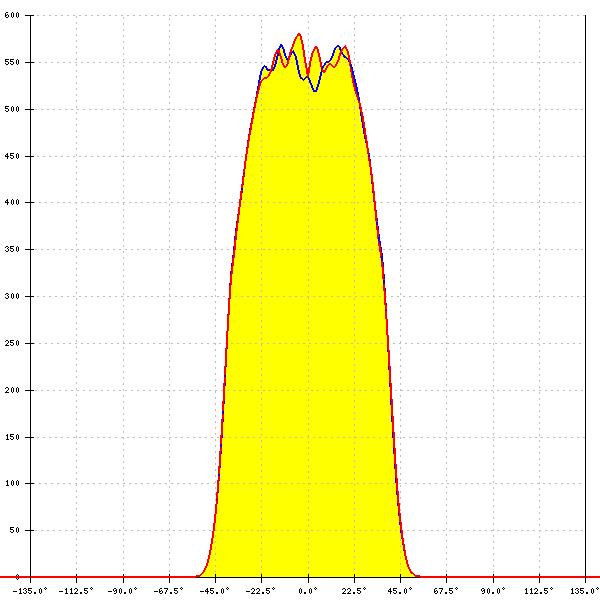

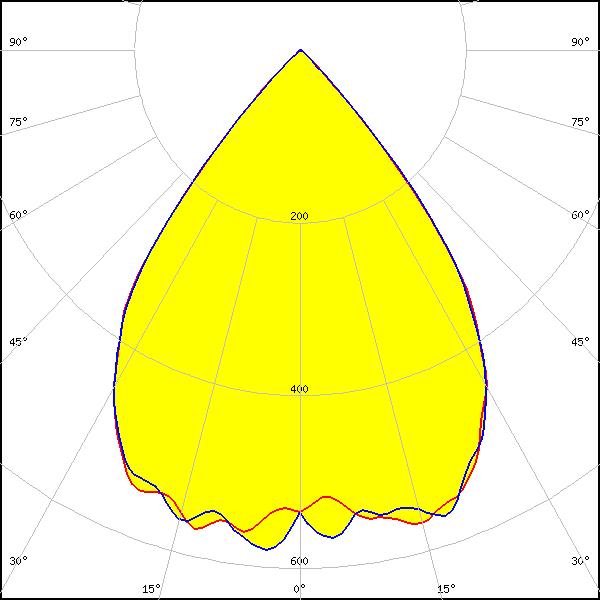

LED: Duris S8
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 90°
Peak intensity: 0.585 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

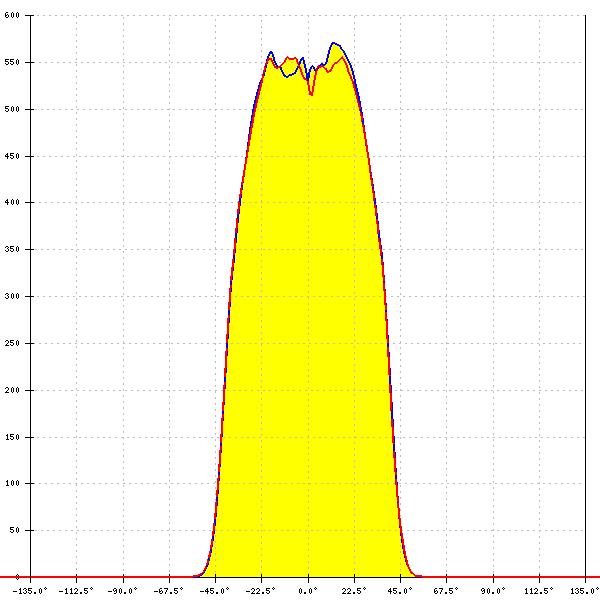

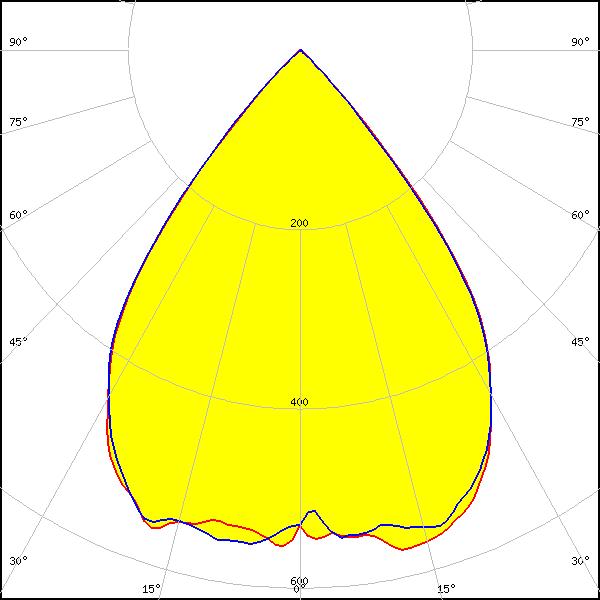

LED: OSCONIQ S 5050
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76°
FWTM: 90°
Peak intensity: 0.589 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

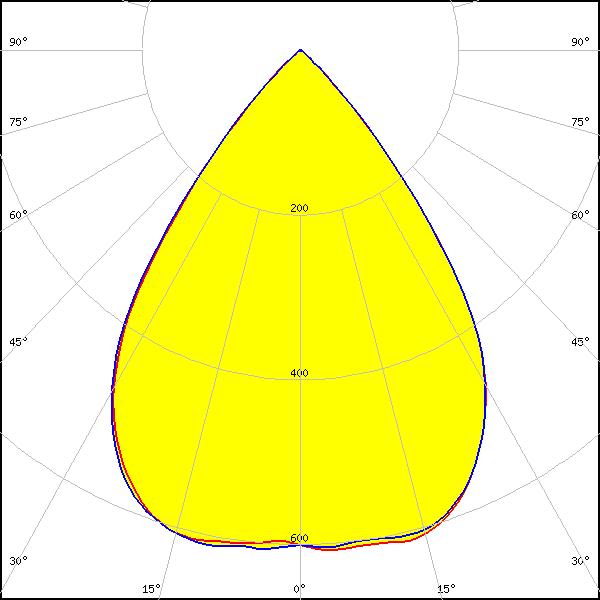

LED: OSLON PURE 1010
Required components:
C16872_DAISY-7X1-SHD
FWHM: 74°
FWTM: 92°
Peak intensity: 0.613 cd/lm
Efficiency: 82 %
LEDs/each optic: 8
Light colour: White

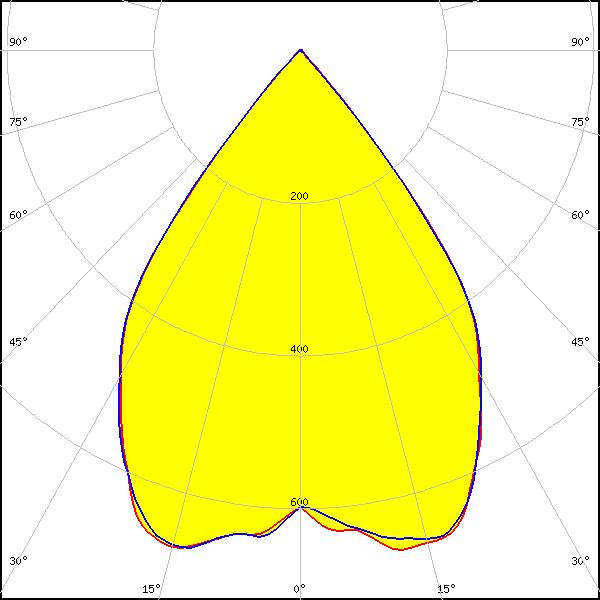

LED: OSLON PURE 1010
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 74°
FWTM: 86°
Peak intensity: 0.686 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White

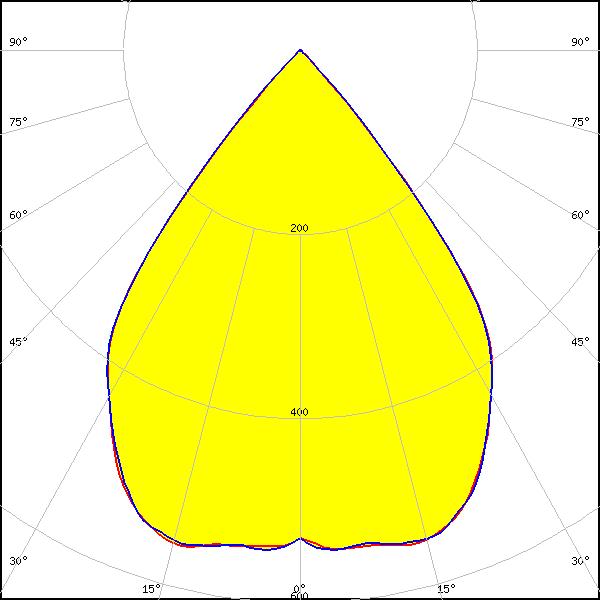

LED: LM101B
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.556 cd/lm
Efficiency: 75 %
LEDs/each optic: 4
Light colour: White

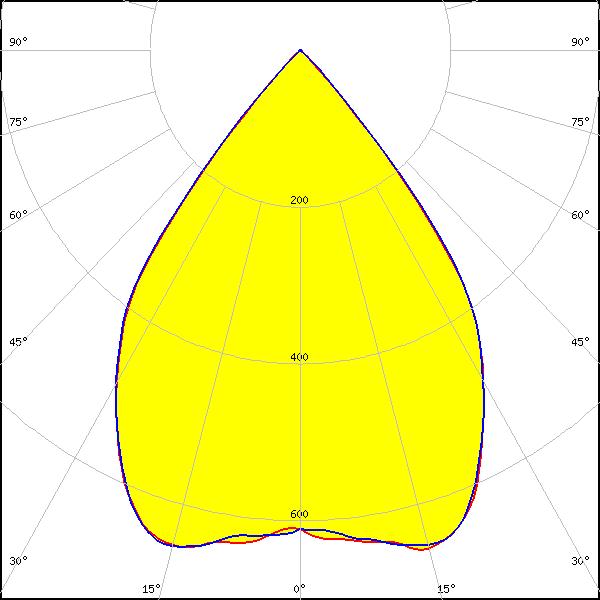

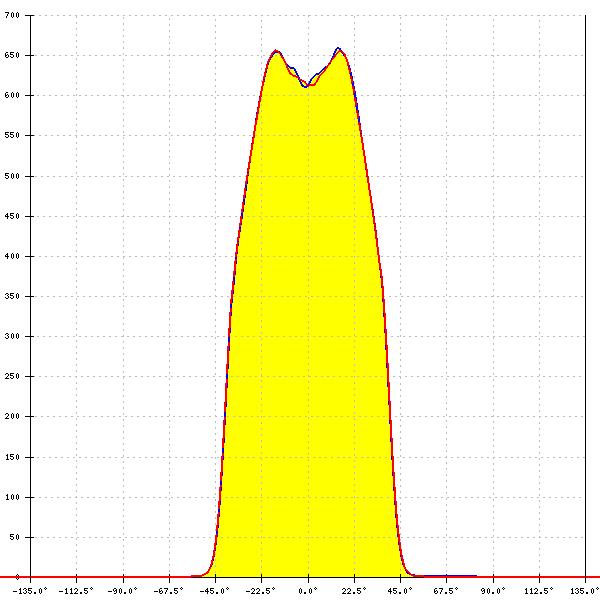

LED: LM101B
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 74°
FWTM: 88°
Peak intensity: 0.666 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White

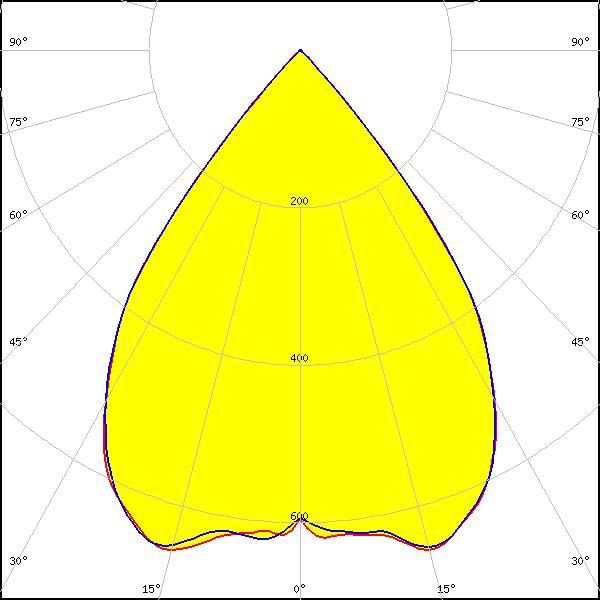

LED: LM101B
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 75°
FWTM: 88°
Peak intensity: 0.667 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour: White

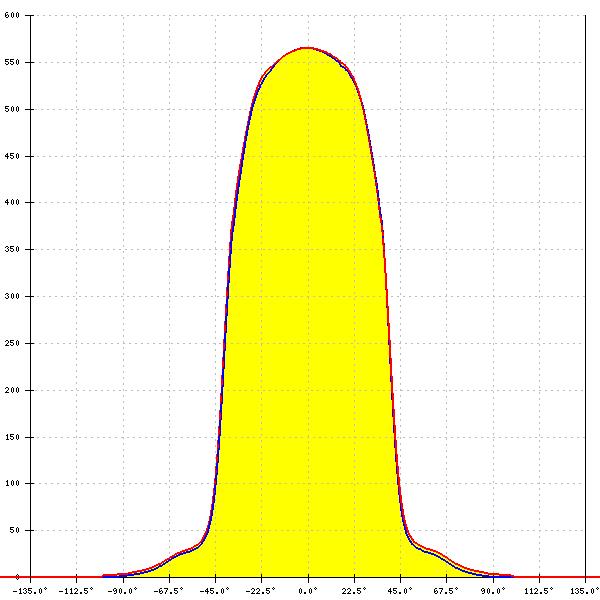

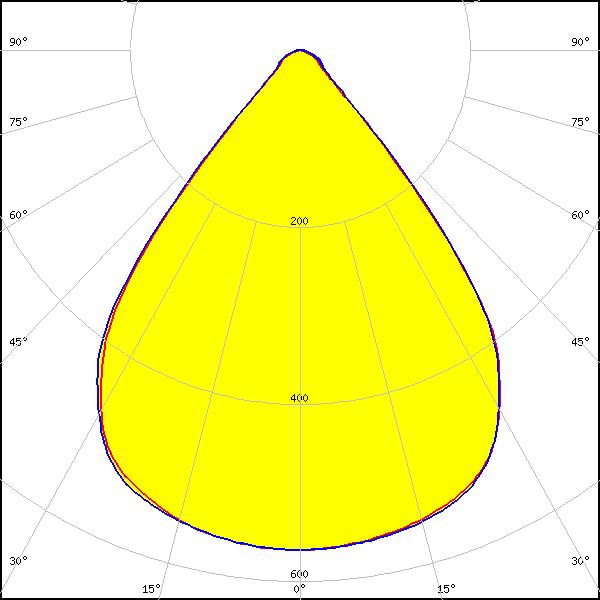

LED: LM28xB Series
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 78°
FWTM: 95°
Peak intensity: 0.565 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour: White

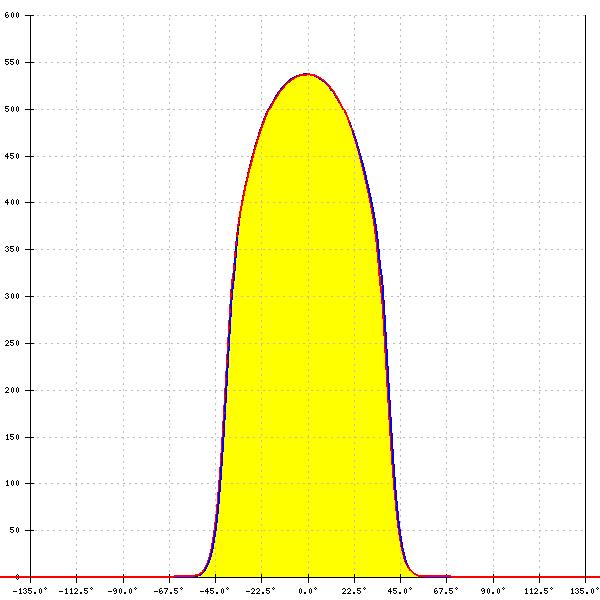

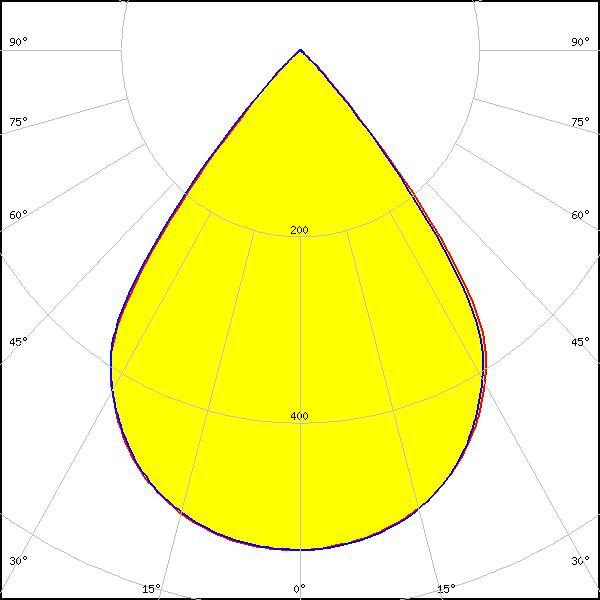

LED: LM28xB Series
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 89°
Peak intensity: 0.537 cd/lm
Efficiency: 73 %
LEDs/each optic: 2
Light colour: White

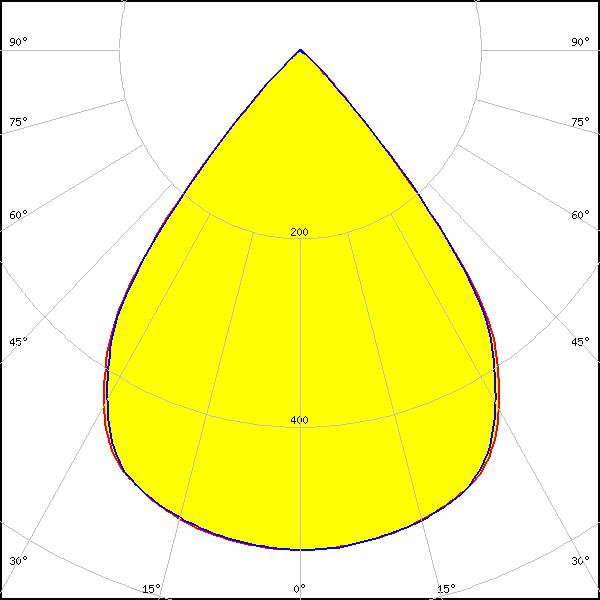

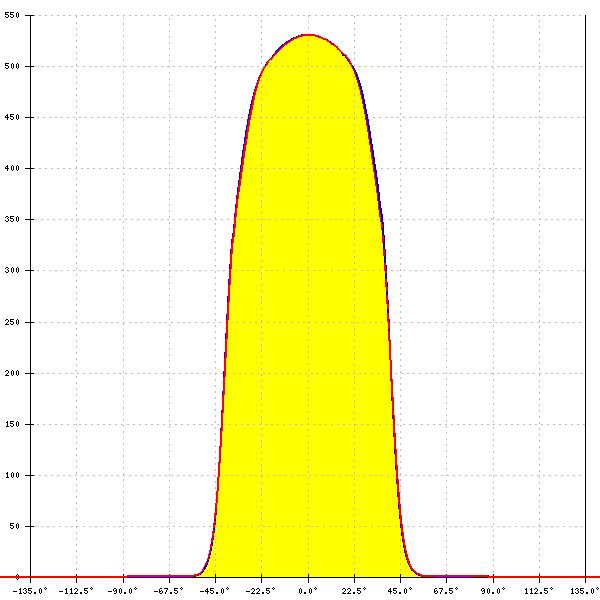

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 78°
FWTM: 91°
Peak intensity: 0.531 cd/lm
Efficiency: 79 %
LEDs/each optic: 2
Light colour: White
LED: LM301D
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 74°
FWTM: 92°
Peak intensity: 0.708 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White

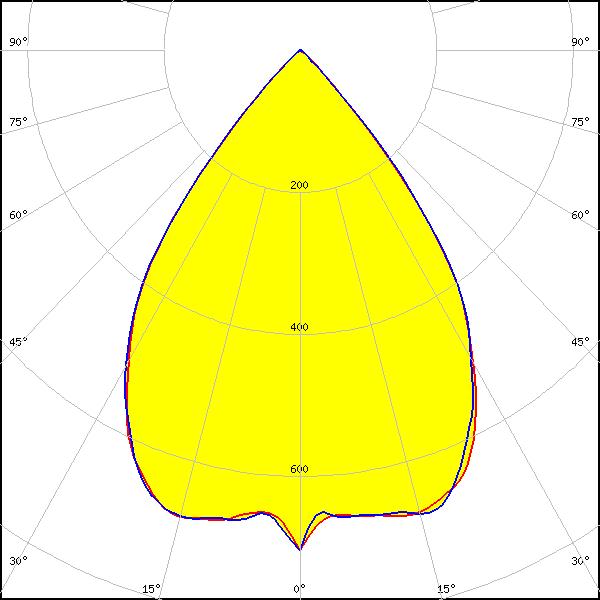

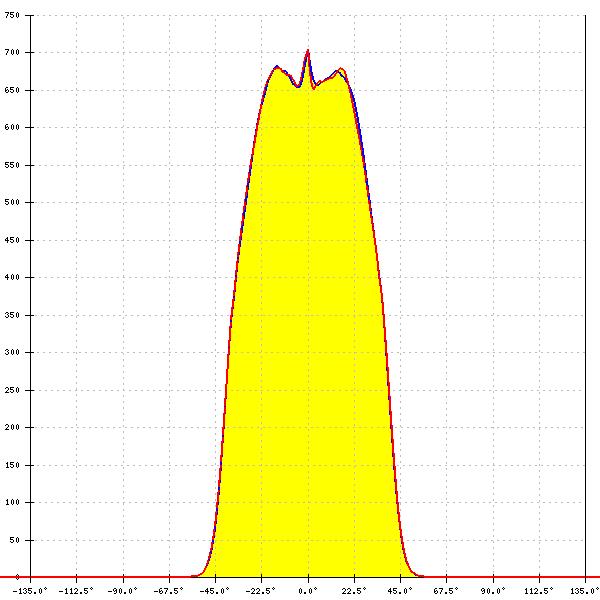

LED: LM301D
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 74°
FWTM: 90°
Peak intensity: 0.704 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour: White

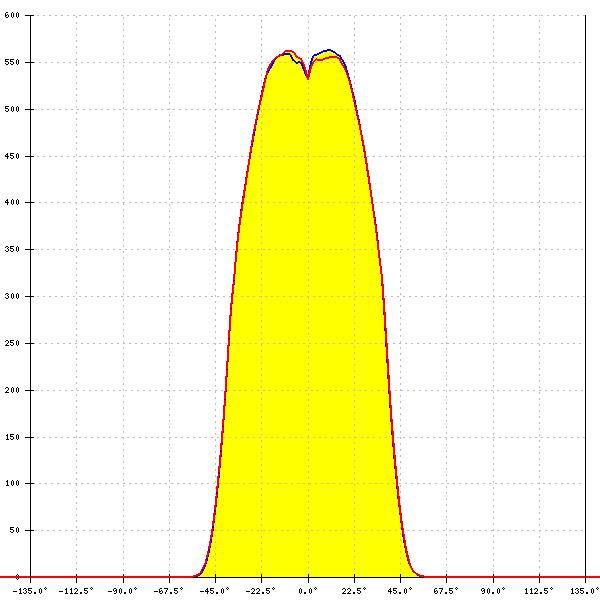

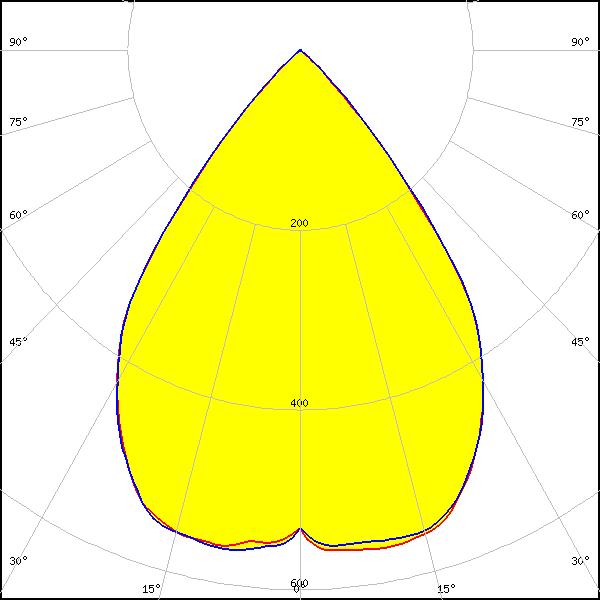

LED: LM301Z Plus
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 74°
FWTM: 92°
Peak intensity: 0.564 cd/lm
Efficiency: 75 %
LEDs/each optic: 4
Light colour: White

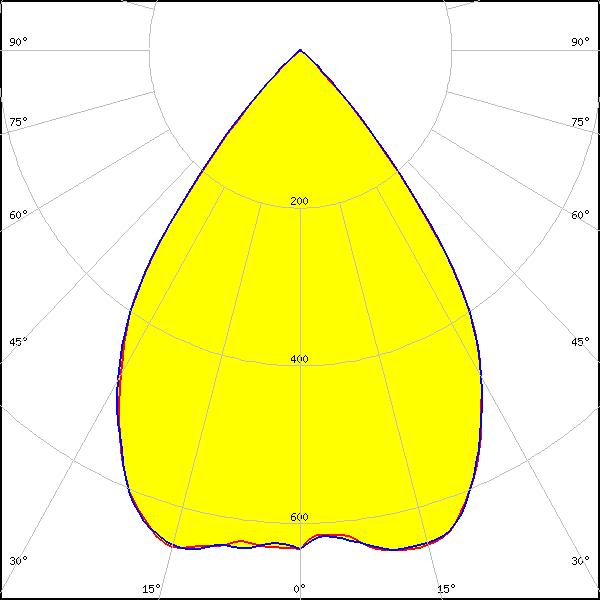

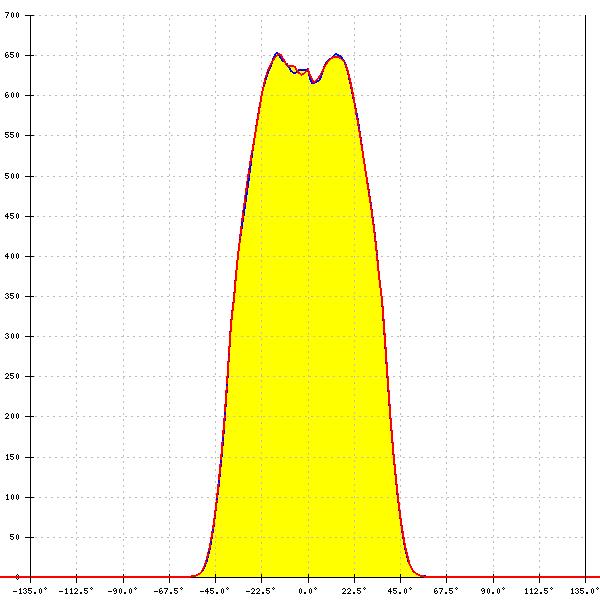

LED: LM301Z Plus
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 74°
FWTM: 92°
Peak intensity: 0.659 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour: White

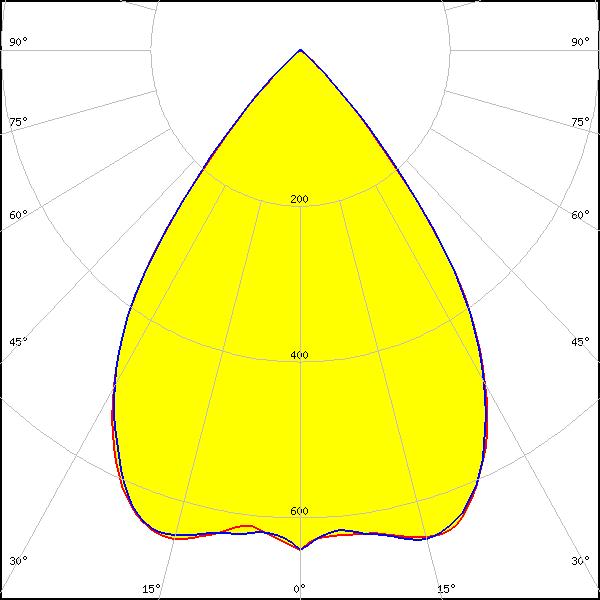

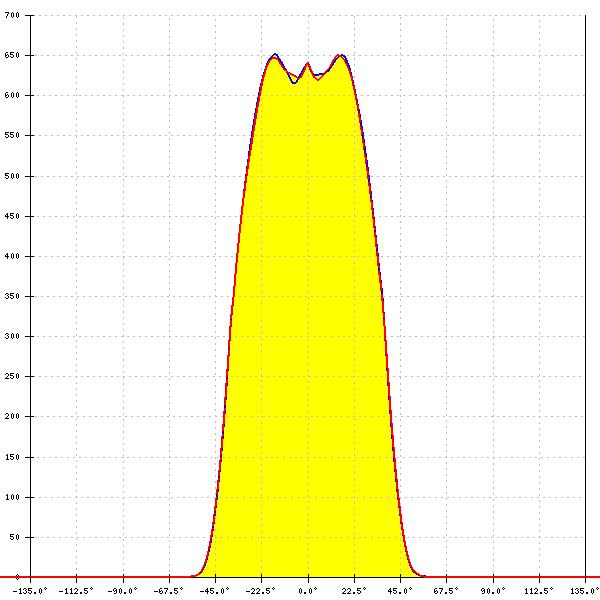

LED: LM301Z Plus
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 92°
Peak intensity: 0.654 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour: White

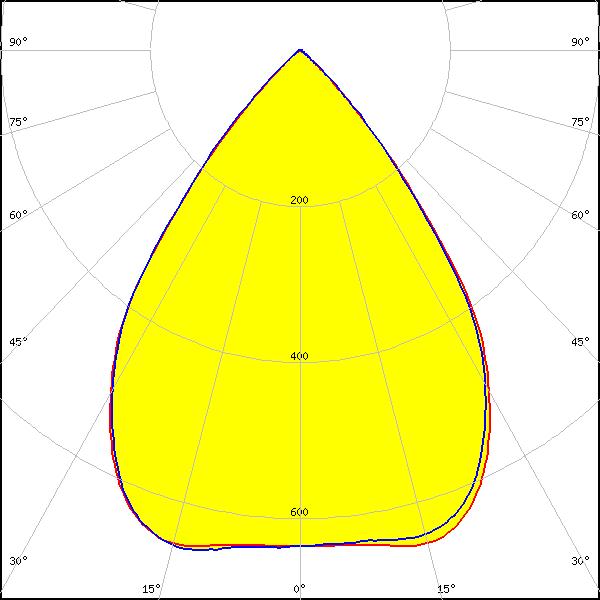

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 74°
FWTM: 93°
Peak intensity: 0.665 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

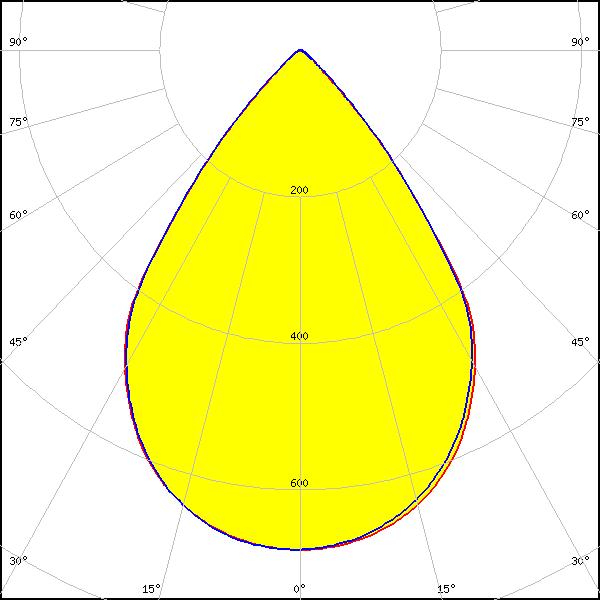

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 74°
FWTM: 94°
Peak intensity: 0.683 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

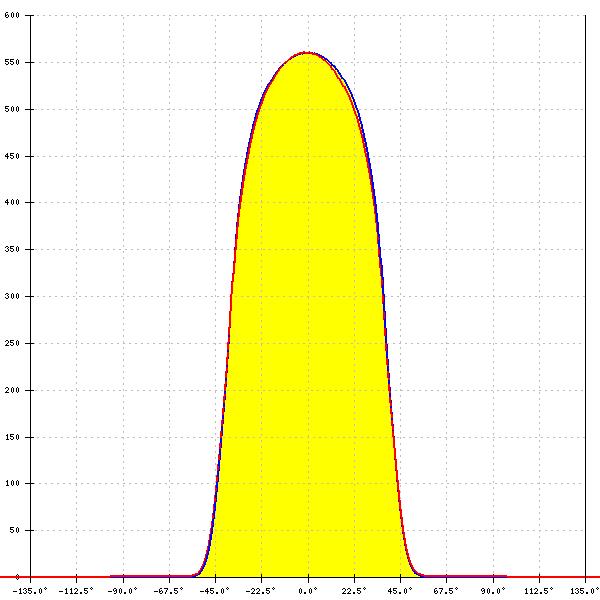

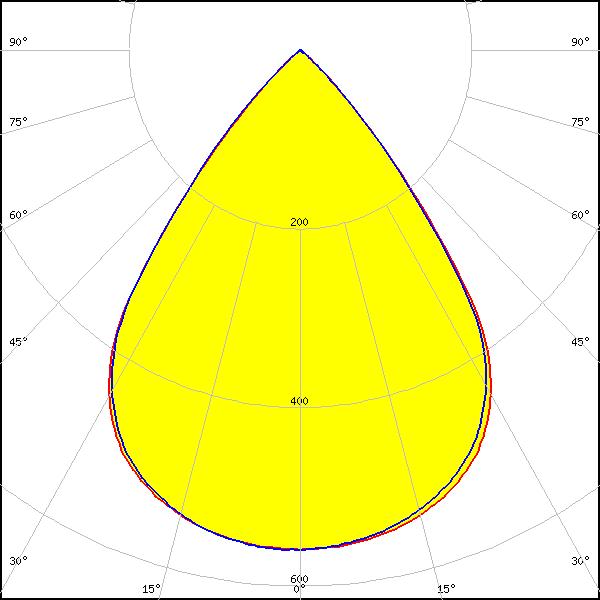

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 92°
Peak intensity: 0.560 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour: White

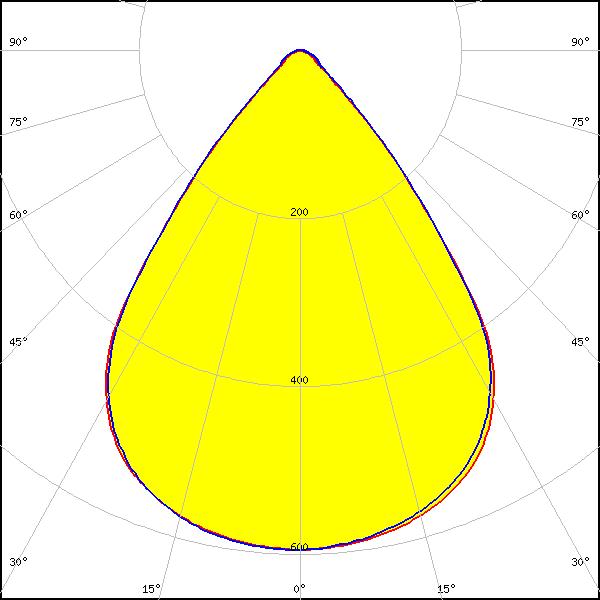

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 98°
Peak intensity: 0.596 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

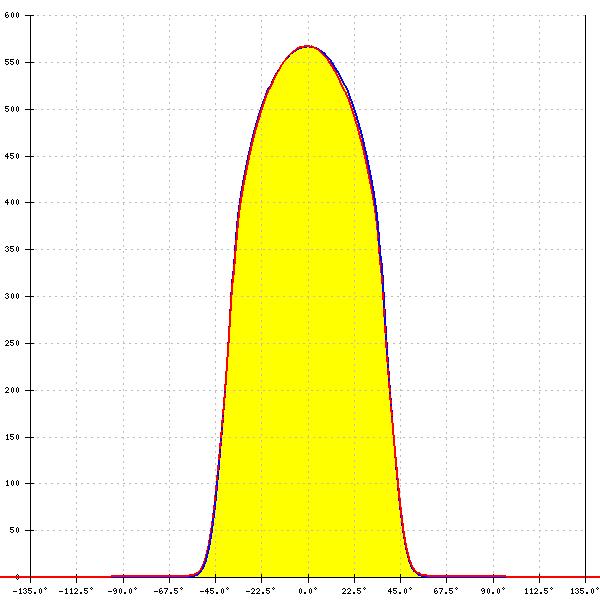

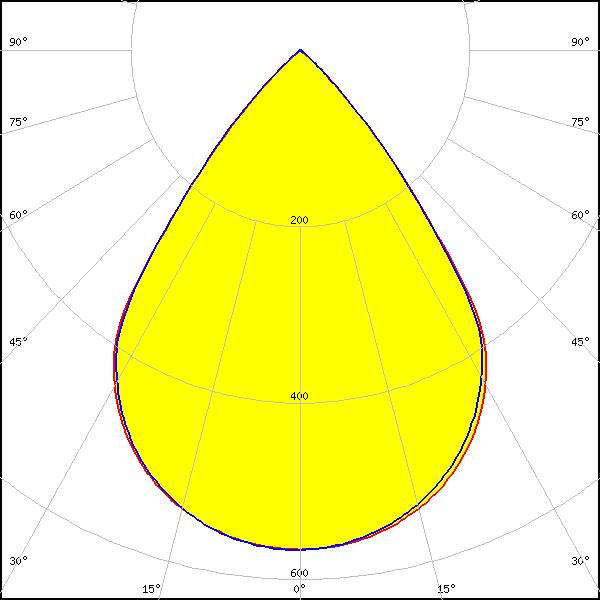

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 93°
Peak intensity: 0.567 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour: White

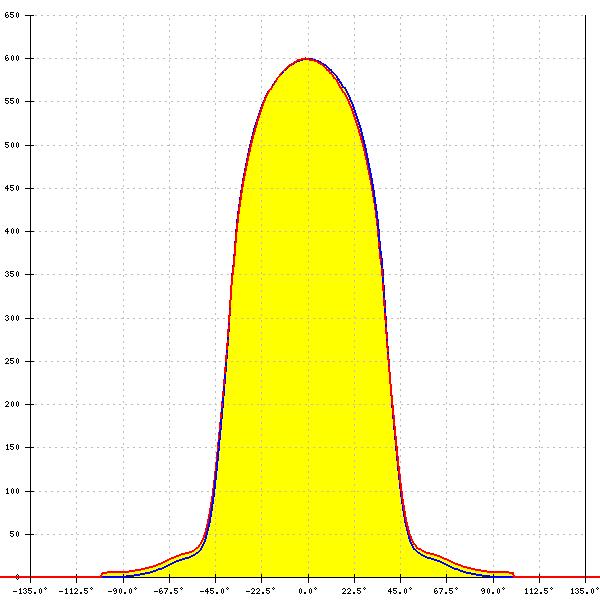

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 97°
Peak intensity: 0.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

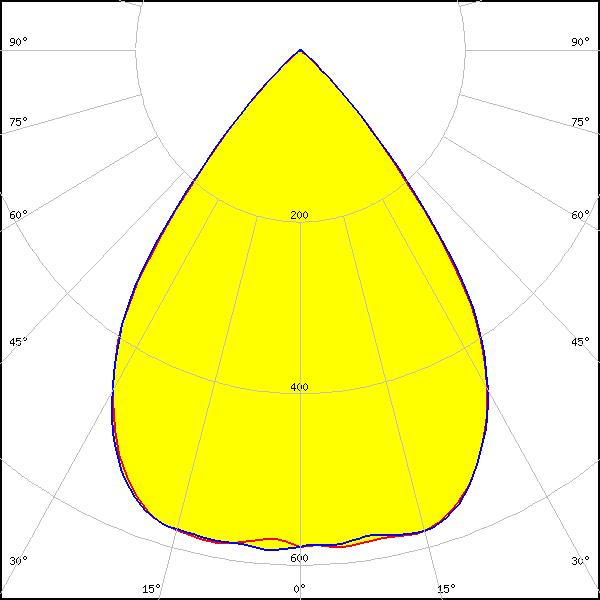

LED: SEOUL DC 3030C
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 94°
Peak intensity: 0.586 cd/lm
Efficiency: 80 %
LEDs/each optic: 4
Light colour: White

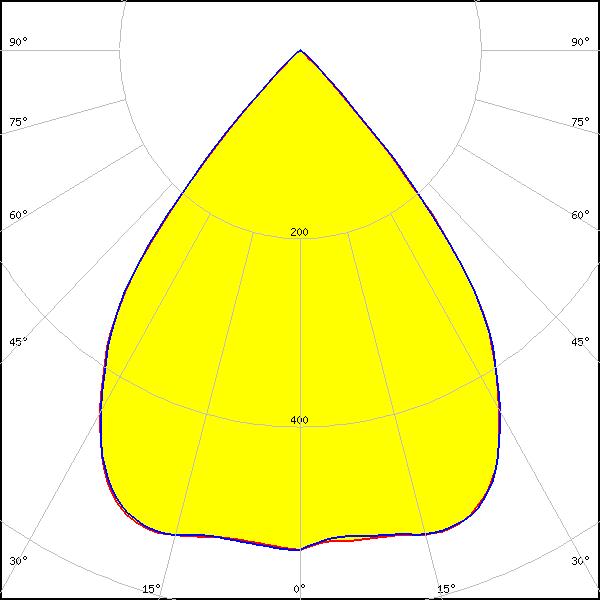

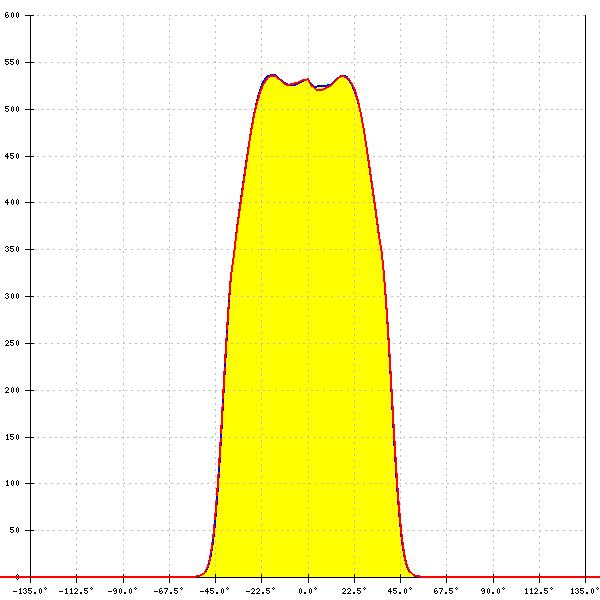

LED: SEOUL DC 3528
Required components:
C16872_DAISY-7X1-SHD
FWHM: 78°
FWTM: 90°
Peak intensity: 0.536 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

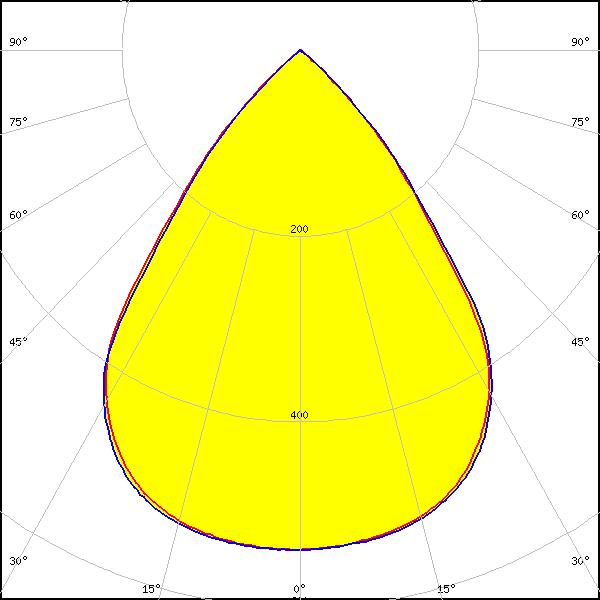

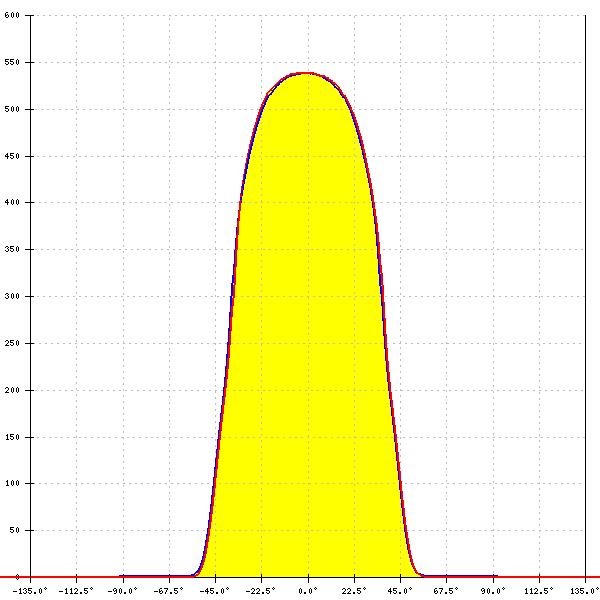

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 96°
Peak intensity: 0.539 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

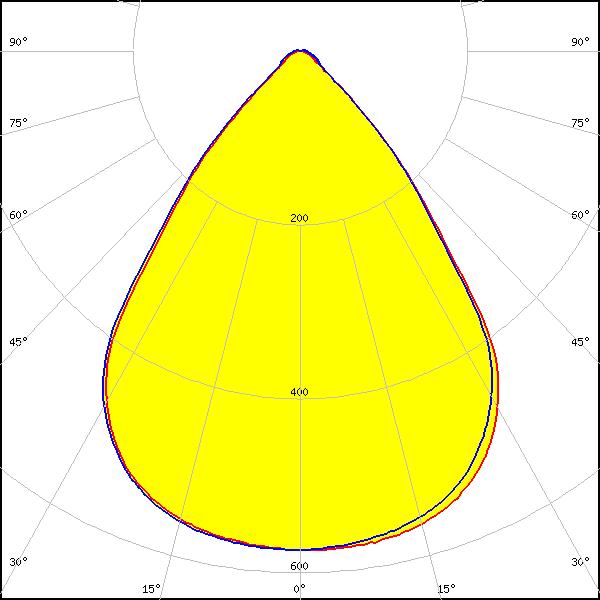

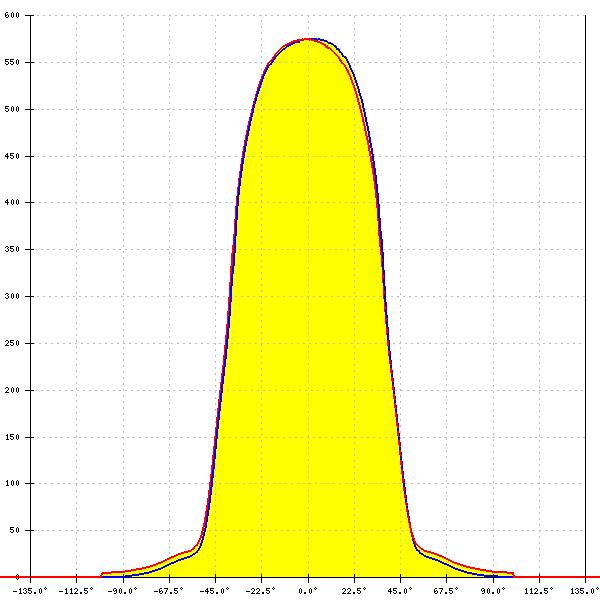

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 76°
FWTM: 100°
Peak intensity: 0.575 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

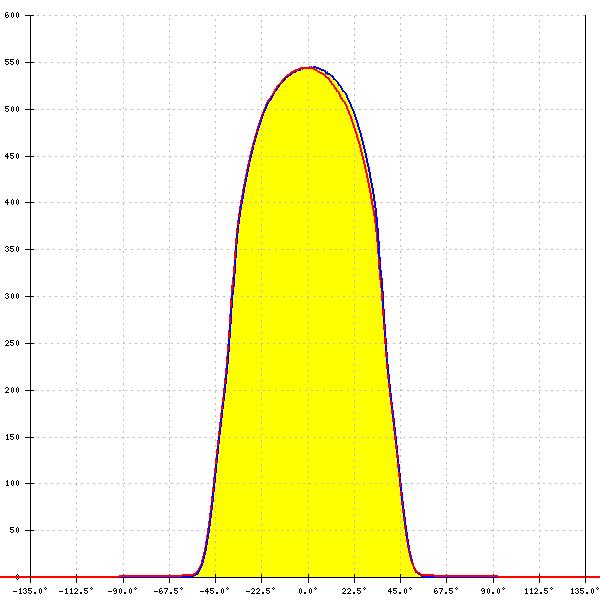

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 96°
Peak intensity: 0.544 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

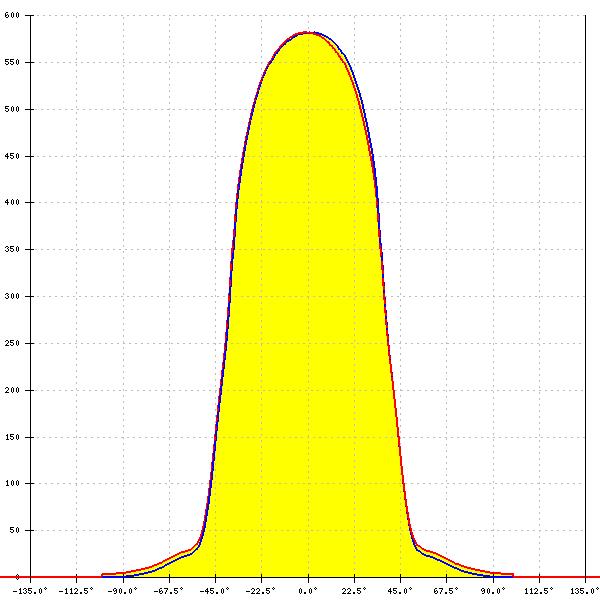

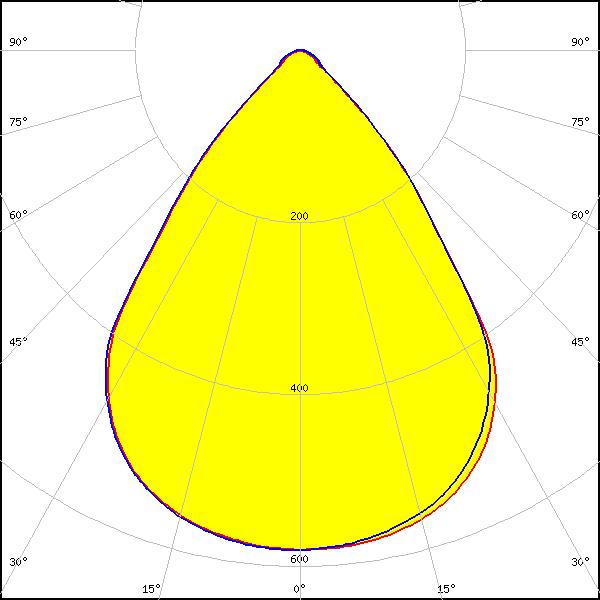

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 100°
Peak intensity: 0.582 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 74°
FWTM: 94°
Peak intensity: 0.600 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

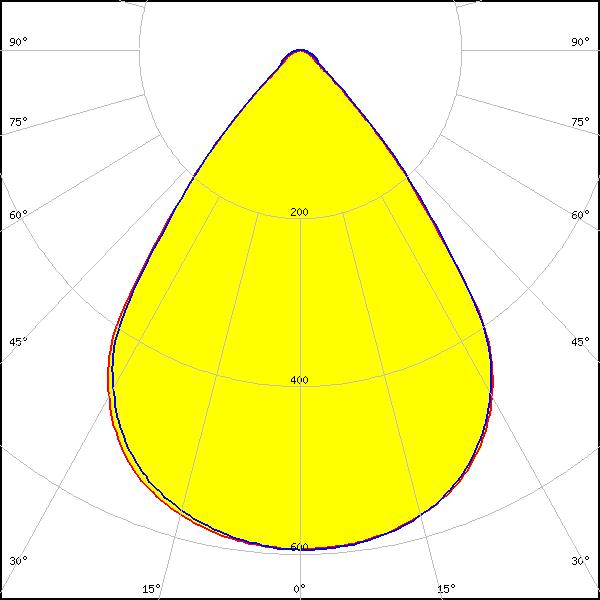

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 72°
FWTM: 94°
Peak intensity: 0.726 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

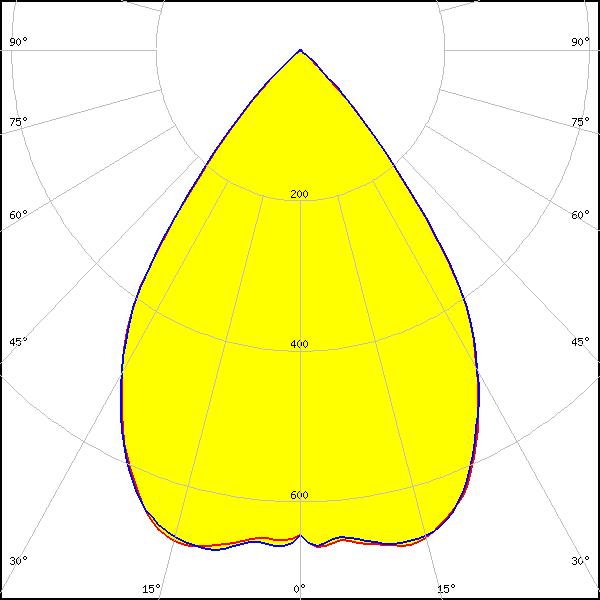

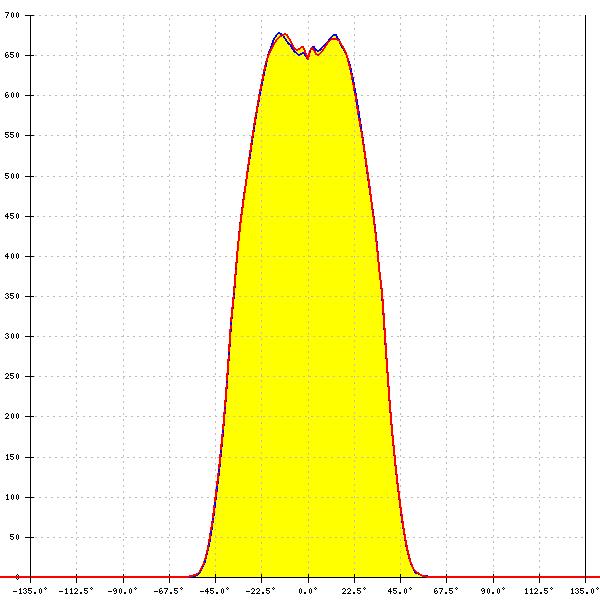

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 72°
FWTM: 92°
Peak intensity: 0.680 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour: White

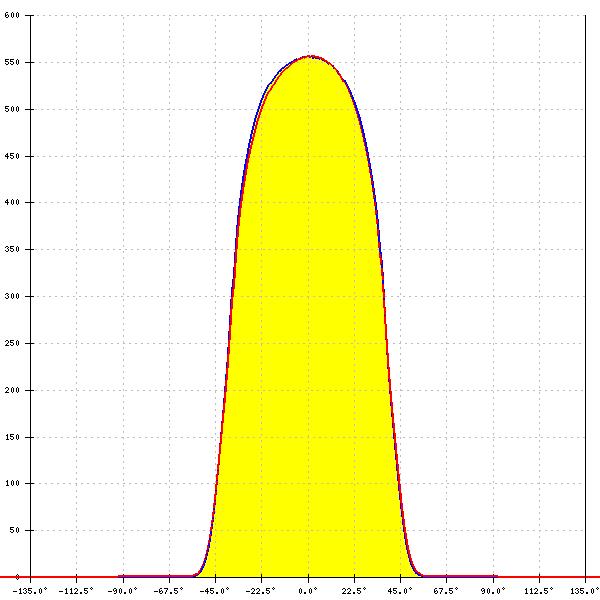

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75°
FWTM: 93°
Peak intensity: 0.556 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour: White

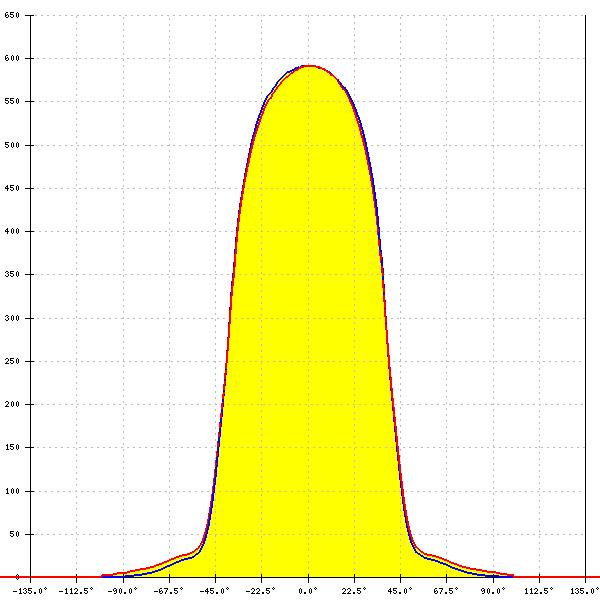

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 75°
FWTM: 98°
Peak intensity: 0.591 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75°
FWTM: 94°
Peak intensity: 0.563 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour: White

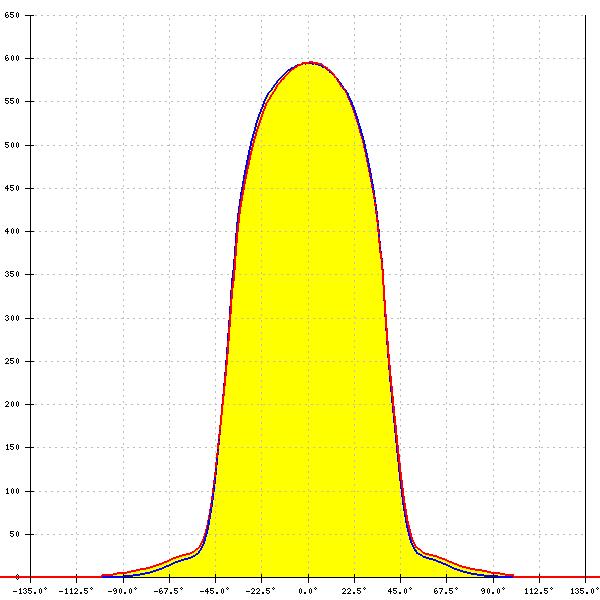

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 76°
FWTM: 98°
Peak intensity: 0.596 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
