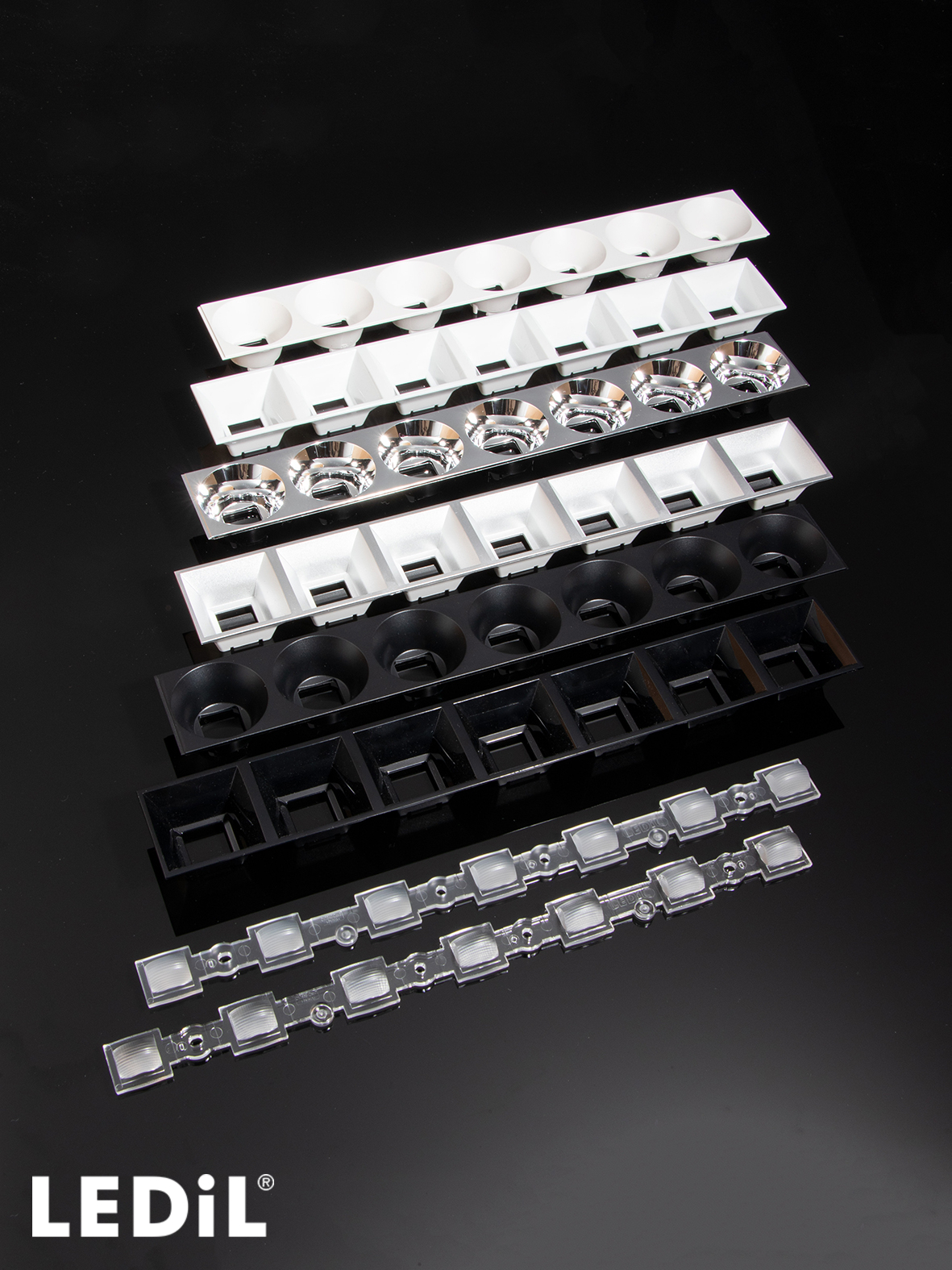

DAISY-7X1-O

Print

~25 + 70° oval beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    280 x  40 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials
  • Linear lens
  • C17538_DAISY-7X1-O
    PMMA
  • Request material files from Tech Support

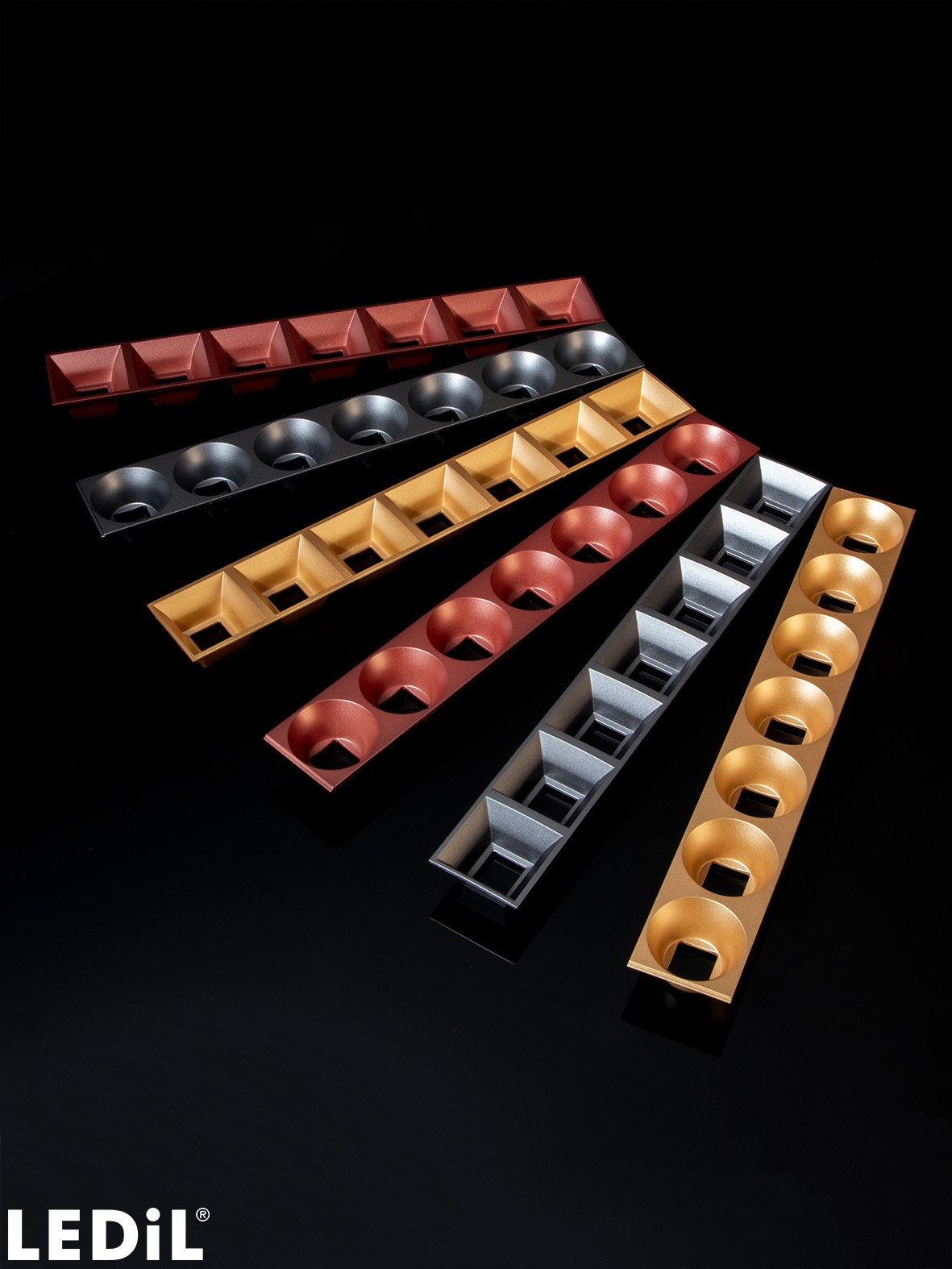

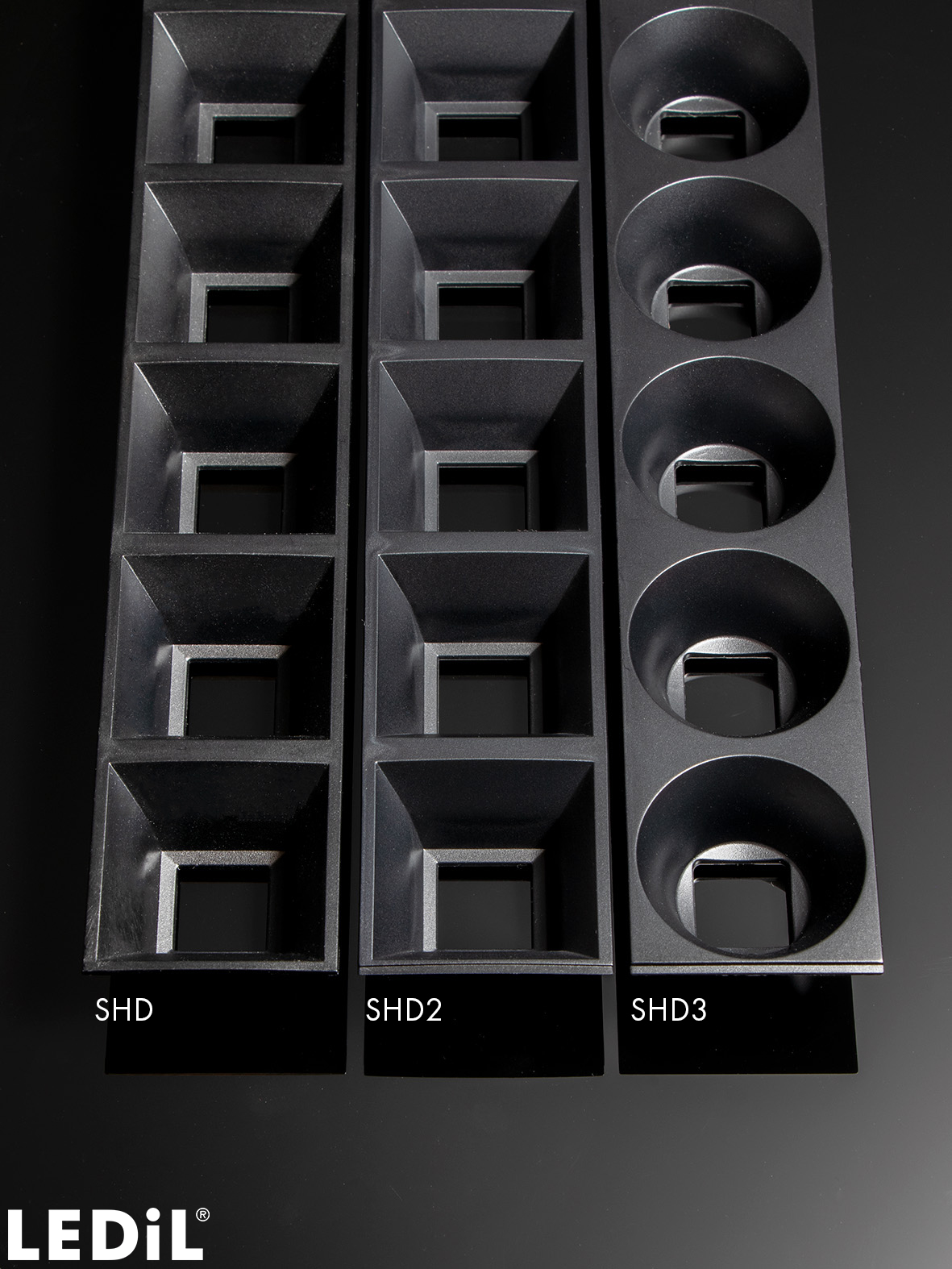

  • Shade
  • C16872_DAISY-7X1-SHD
    PC
  • C16876_DAISY-7X1-SHD-WHT
    PC
  • C17051_DAISY-7X1-SHD-MATT
    PC
  • C17225_DAISY-7X1-SHD-WHT-MATT
    PC
  • C18167_DAISY-7X1-SHD-MET
    PC
  • C18409_DAISY-7X1-SHD-MET-MATT
    PC
  • C19312_DAISY-7X1-SHD3
    PC
  • C19313_DAISY-7X1-SHD3-MATT
    PC
  • C19314_DAISY-7X1-SHD3-WHT
    PC
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    PC
  • C19641_DAISY-7X1-SHD3-MET
    PC
  • C19642_DAISY-7X1-SHD3-MET-MATT
    PC
  • C19763_DAISY-7X1-SHD-MATT-RED
    PC
  • C19764_DAISY-7X1-SHD-MATT-GR
    PC
  • C19852_DAISY-7X1-SHD-MATT-GLD
    PC
  • C19853_DAISY-7X1-SHD3-MATT-GR
    PC
  • C19854_DAISY-7X1-SHD3-MATT-RED
    PC
  • C19855_DAISY-7X1-SHD3-MATT-GLD
    PC
  • Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C17538_DAISY-7X1-O
    clear
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    7.00 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    7.00 kg
  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • C18409_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • C19312_DAISY-7X1-SHD3
    black,gloss
  • C19313_DAISY-7X1-SHD3-MATT
    black,matt
  • C19314_DAISY-7X1-SHD3-WHT
    white,gloss
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    white,matt
  • C19641_DAISY-7X1-SHD3-MET
    metal,gloss
  • C19642_DAISY-7X1-SHD3-MET-MATT
    metal,matt
  • C19763_DAISY-7X1-SHD-MATT-RED
    red,matt
  • C19764_DAISY-7X1-SHD-MATT-GR
    grey,matt
  • C19852_DAISY-7X1-SHD-MATT-GLD
    gold,matt
  • C19853_DAISY-7X1-SHD3-MATT-GR
    grey,matt
  • C19854_DAISY-7X1-SHD3-MATT-RED
    red,matt
  • C19855_DAISY-7X1-SHD3-MATT-GLD
    gold,matt
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    7.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17538_DAISY-7X1-O
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

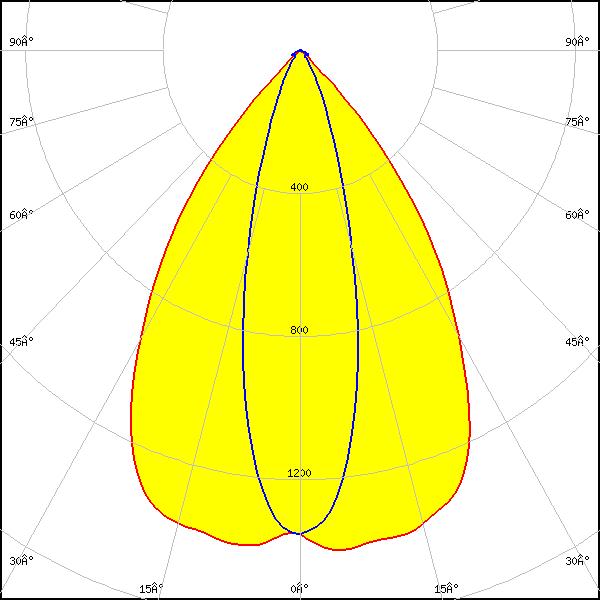

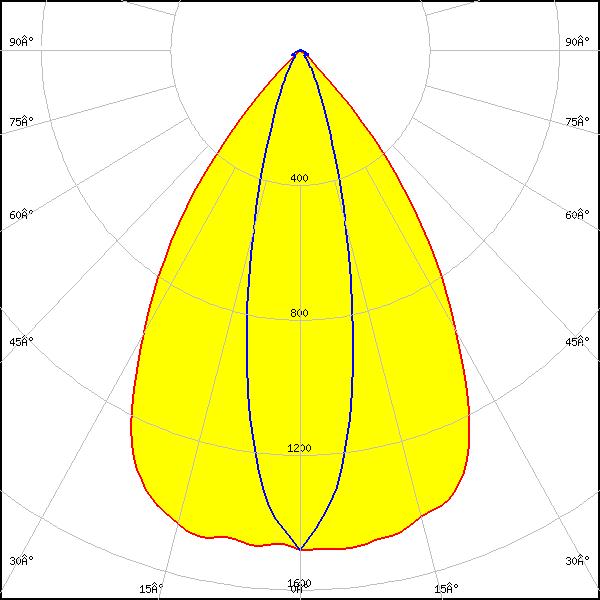

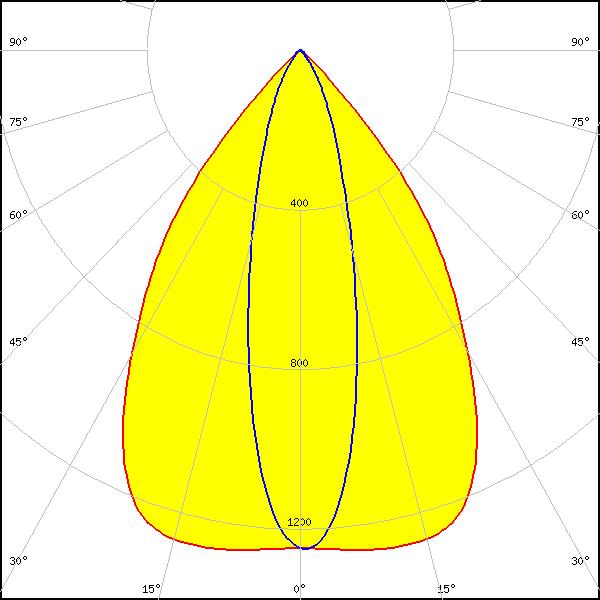

Optical results

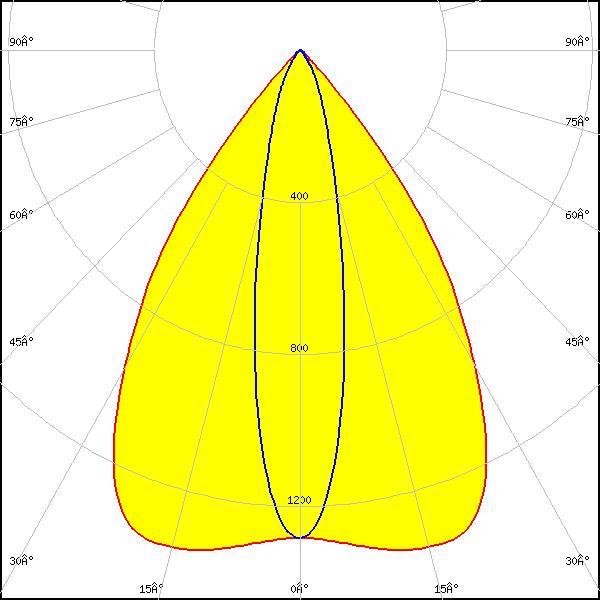

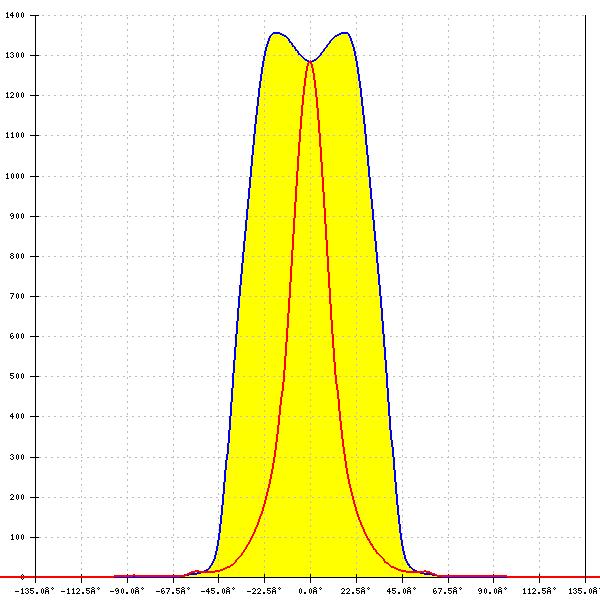

LED: LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 70° + 22°
FWTM: 88° + 52°
Peak intensity: 1.362 cd/lm
Efficiency: 70 %
LEDs/each optic: 2
Light colour/type: Tunable White

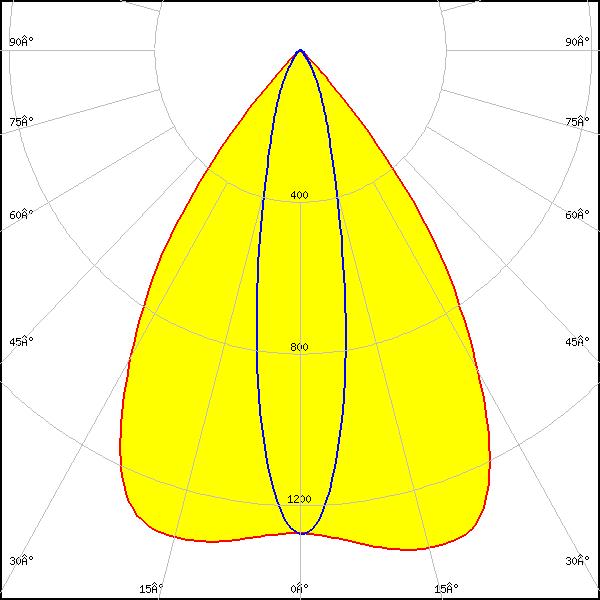

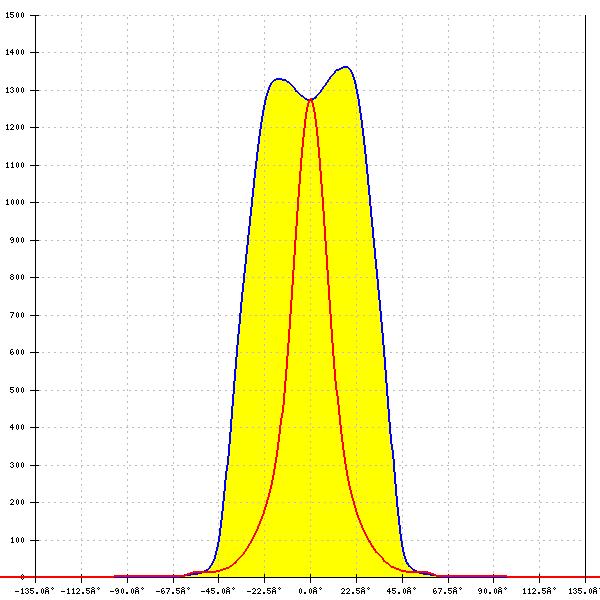

LED: LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 70° + 22°
FWTM: 88° + 52°
Peak intensity: 1.361 cd/lm
Efficiency: 70 %
LEDs/each optic: 2
Light colour/type: White

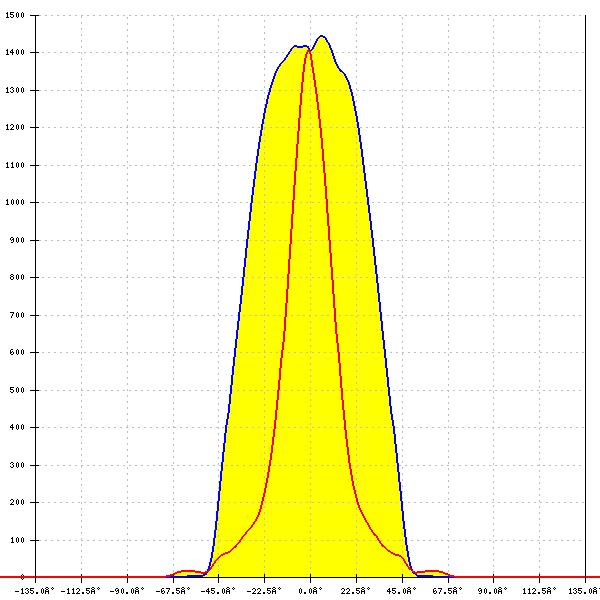

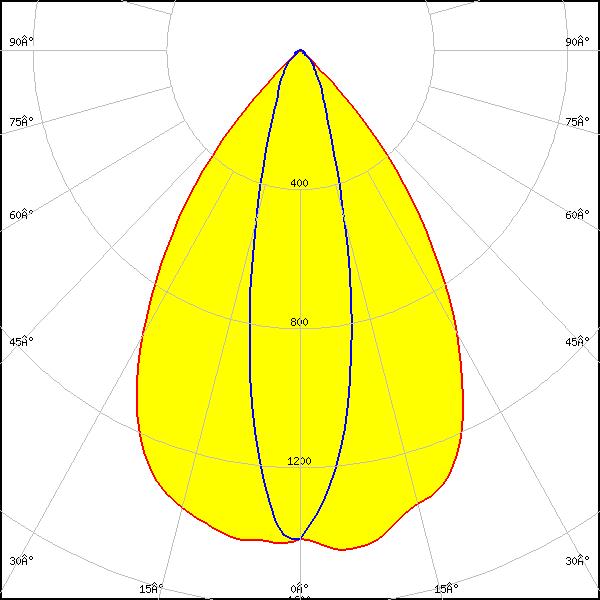

LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 69° + 24°
FWTM: 92° + 57°
Peak intensity: 1.447 cd/lm
Efficiency: 83 %
LEDs/each optic: 2
Light colour/type: White

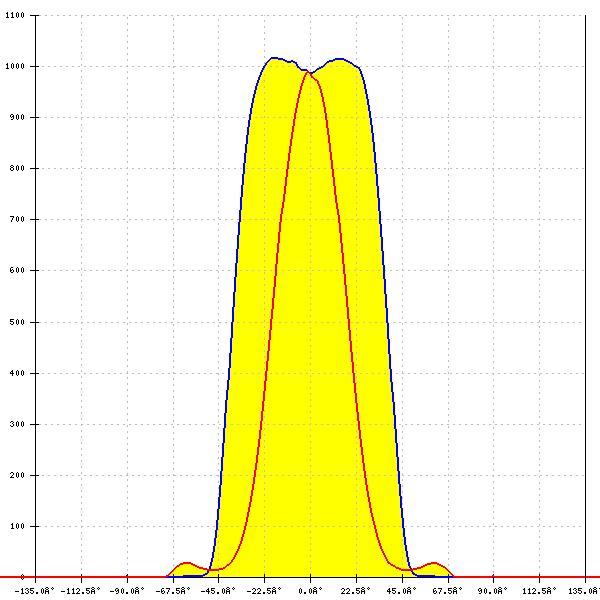

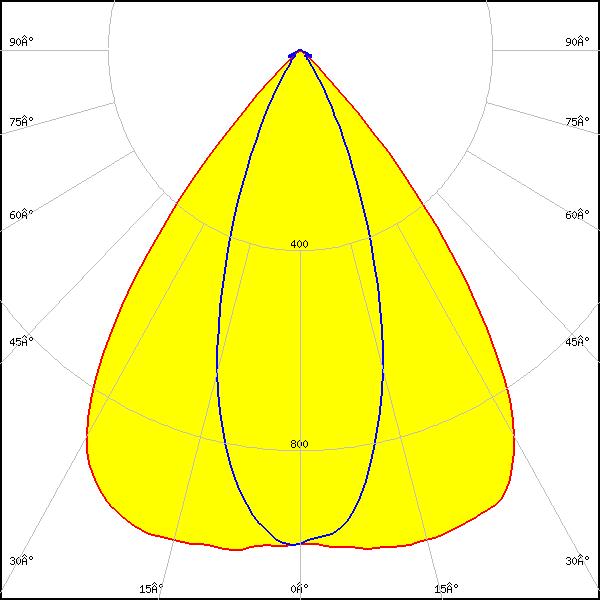

LED: LUXEON 5050 HE
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 76° + 38°
FWTM: 92° + 64°
Peak intensity: 1.017 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

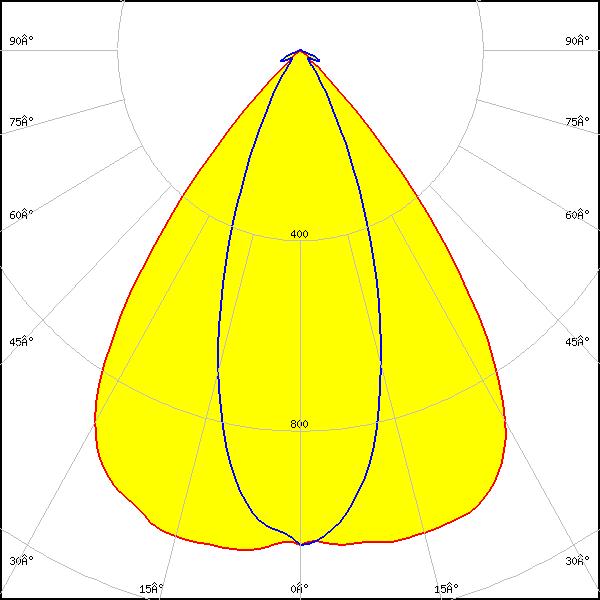

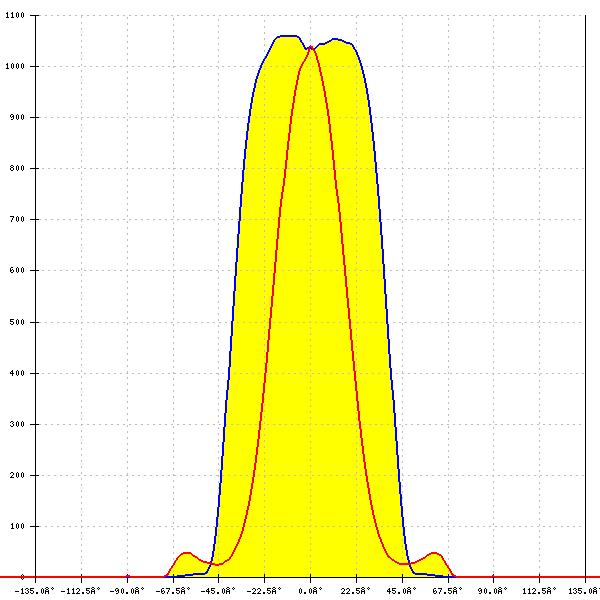

LED: LUXEON 5050 HE
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 76° + 38°
FWTM: 92° + 64°
Peak intensity: 1.060 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

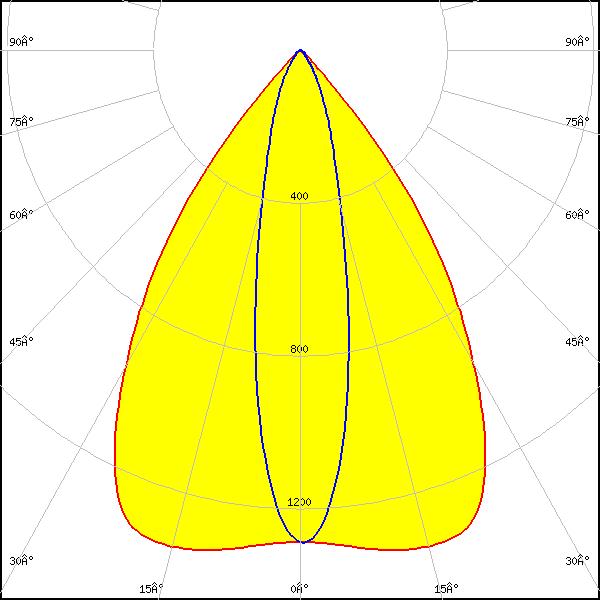

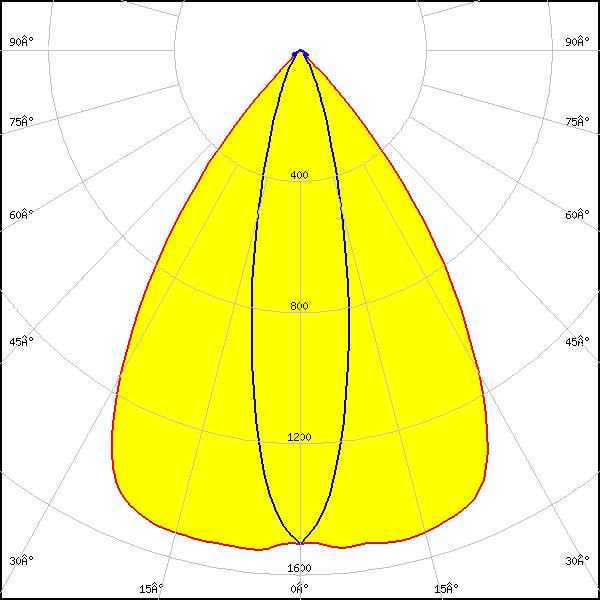

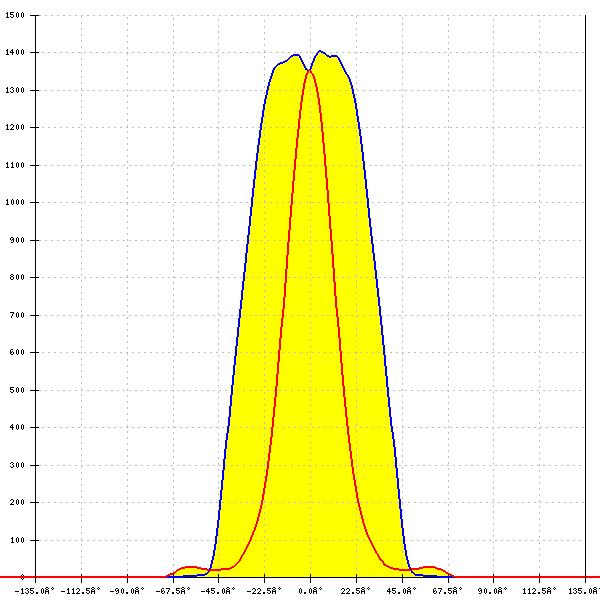

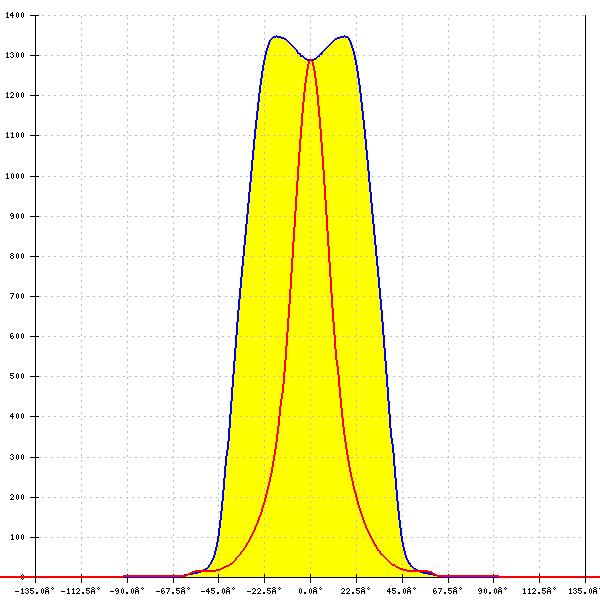

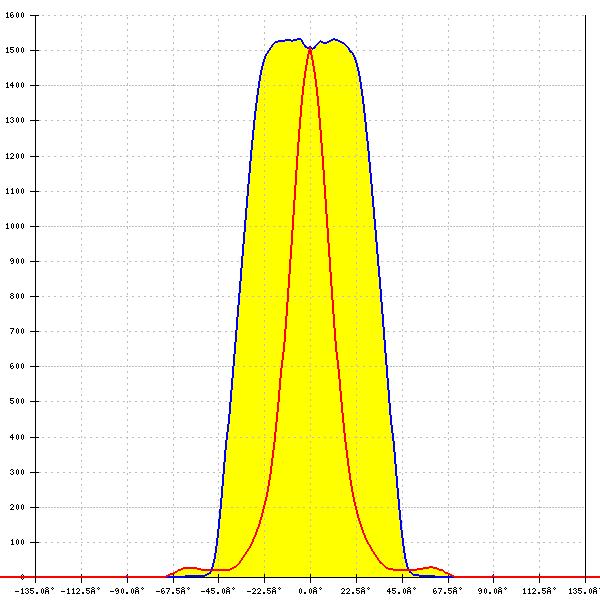

LED: LUXEON HL2Z
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 71° + 23°
FWTM: 88° + 54°
Peak intensity: 1.347 cd/lm
Efficiency: 72 %
LEDs/each optic: 2
Light colour/type: White

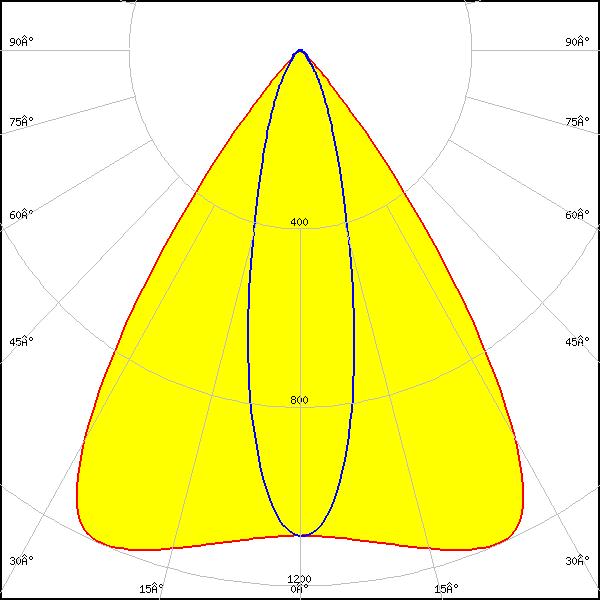

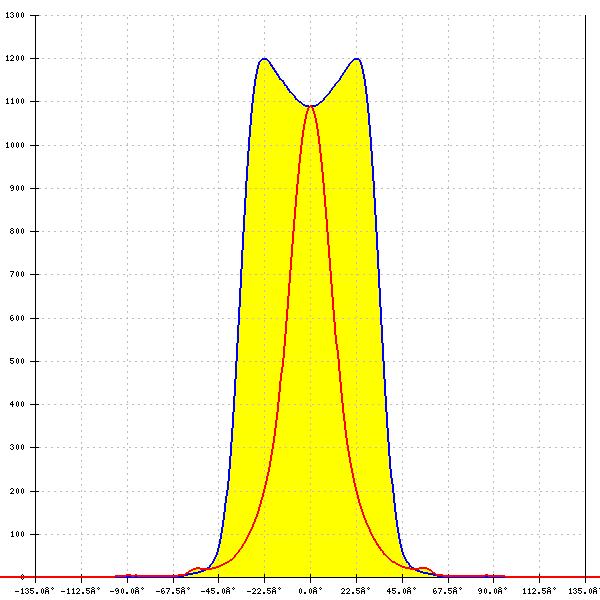

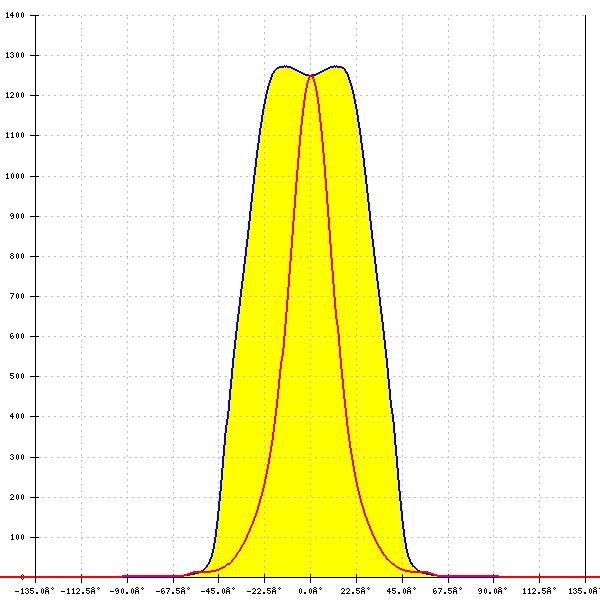

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 70° + 26°
FWTM: 85° + 59°
Peak intensity: 1.205 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

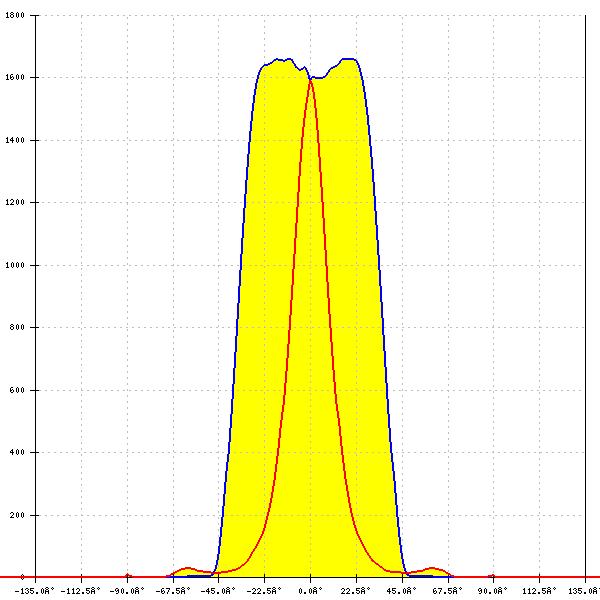

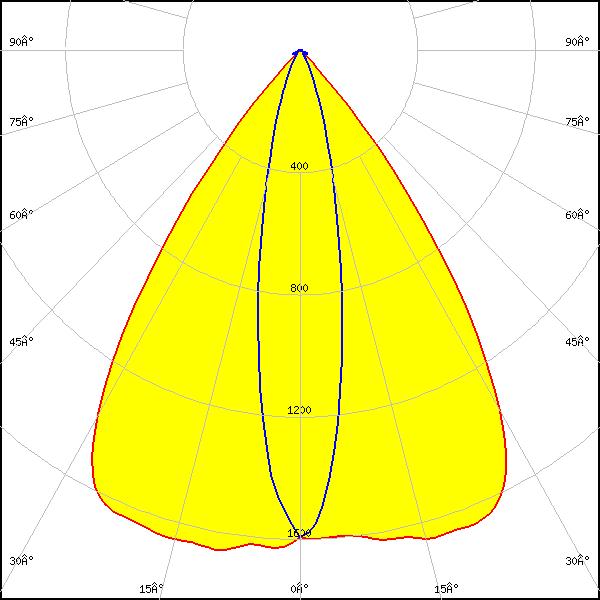

LED: NCSxE17A
Required components:
C16872_DAISY-7X1-SHD
FWHM: 72° + 20°
FWTM: 86° + 44°
Peak intensity: 1.660 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

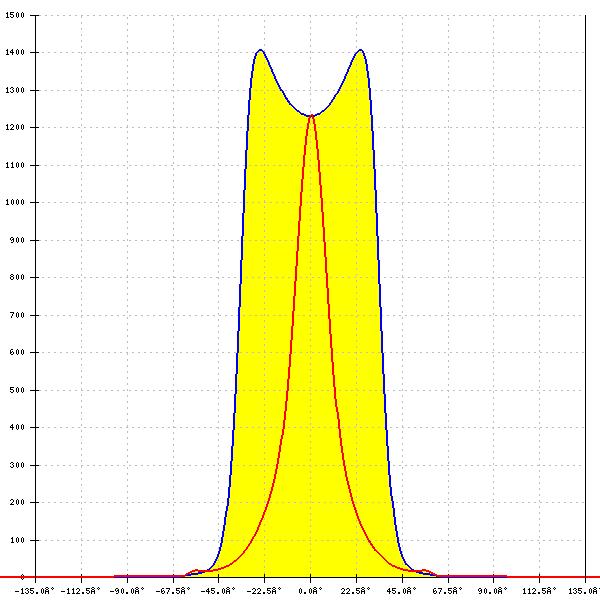

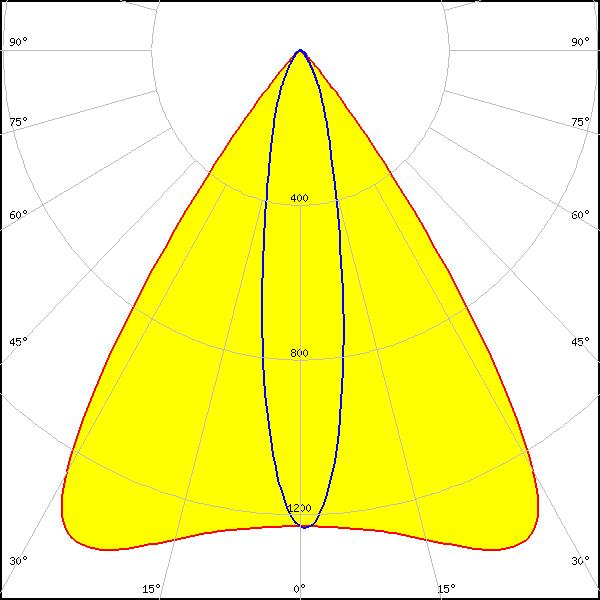

LED: NCSxE17A
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 70° + 20°
FWTM: 84° + 53°
Peak intensity: 1.427 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White

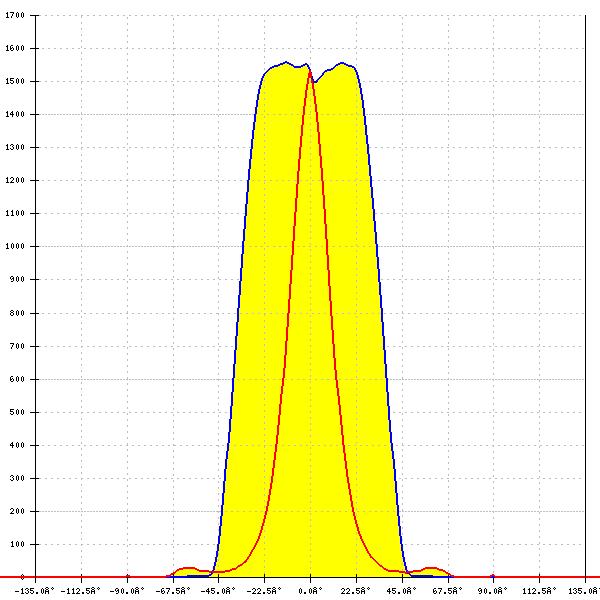

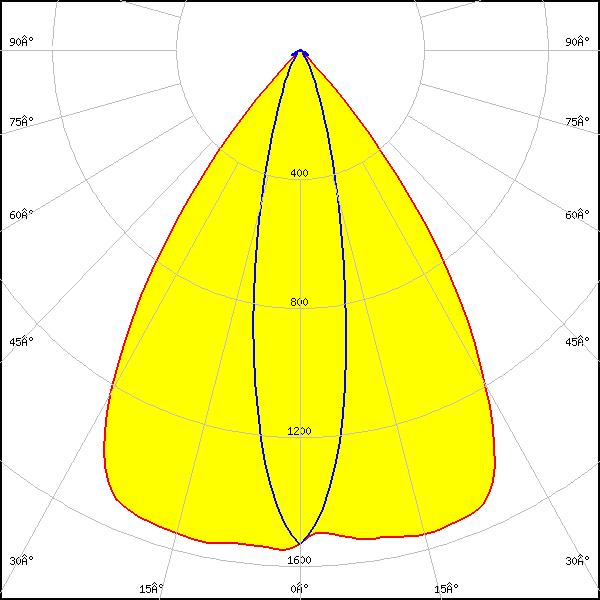

LED: NVSxE21A
Required components:
C16872_DAISY-7X1-SHD
FWHM: 72° + 22°
FWTM: 88° + 46°
Peak intensity: 1.556 cd/lm
Efficiency: 80 %
LEDs/each optic: 2
Light colour/type: White

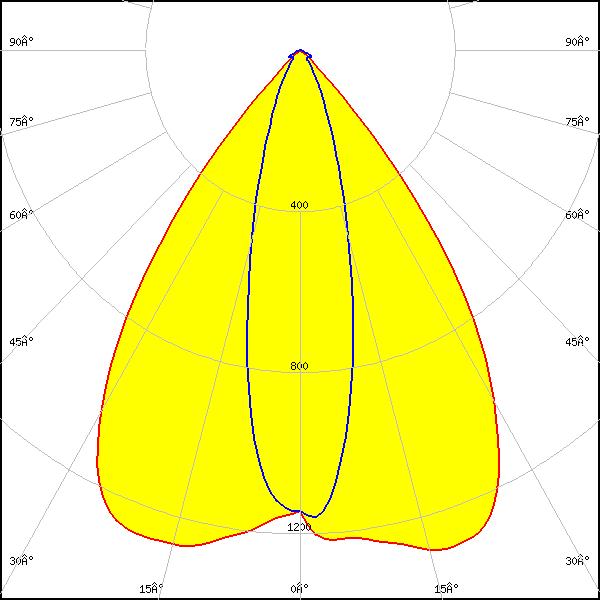

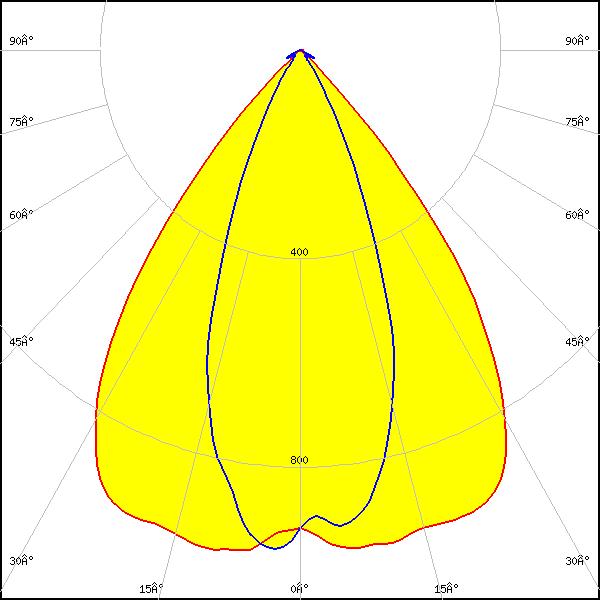

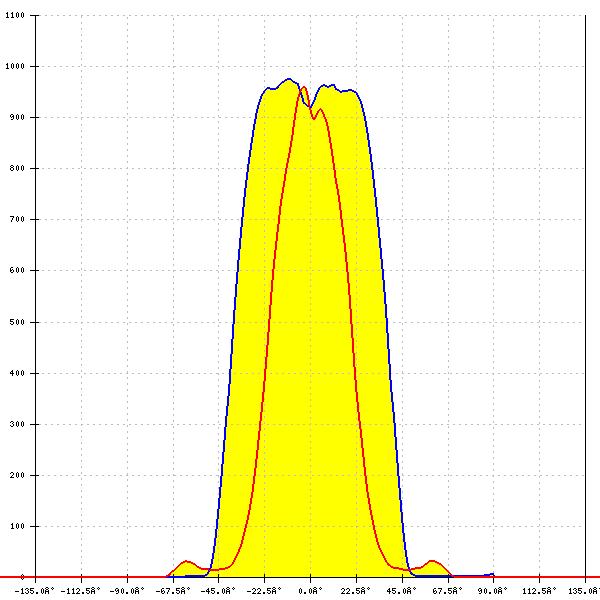

LED: Duris S8
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76° + 41°
FWTM: 91° + 64°
Peak intensity: 1.007 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

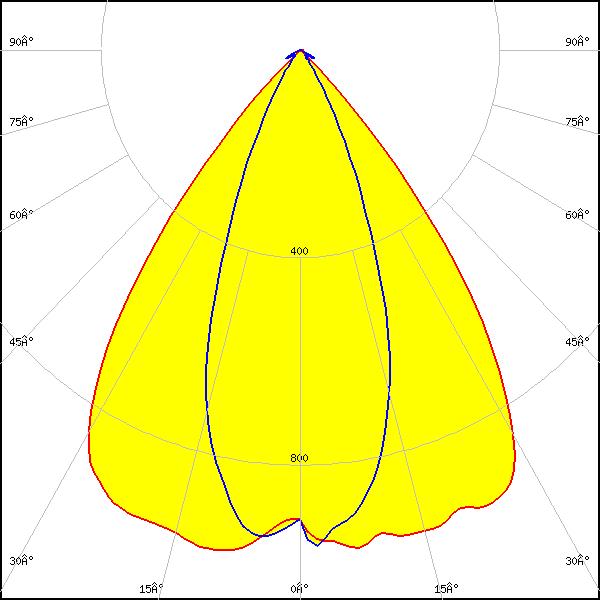

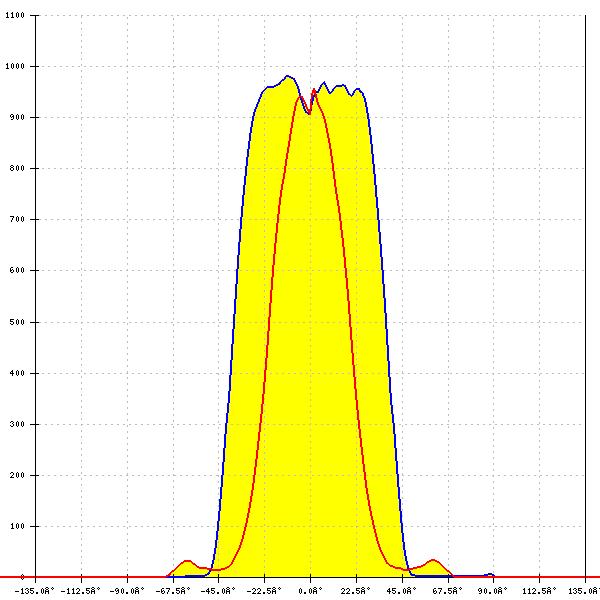

LED: OSCONIQ S 5050
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76° + 40°
FWTM: 90° + 64°
Peak intensity: 0.987 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

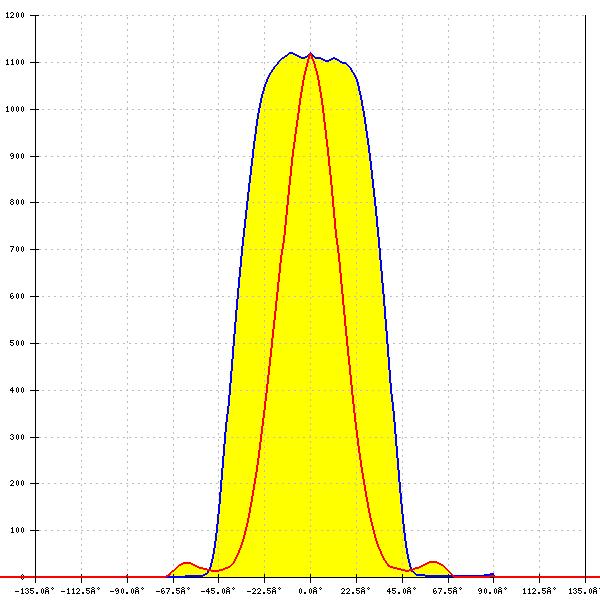

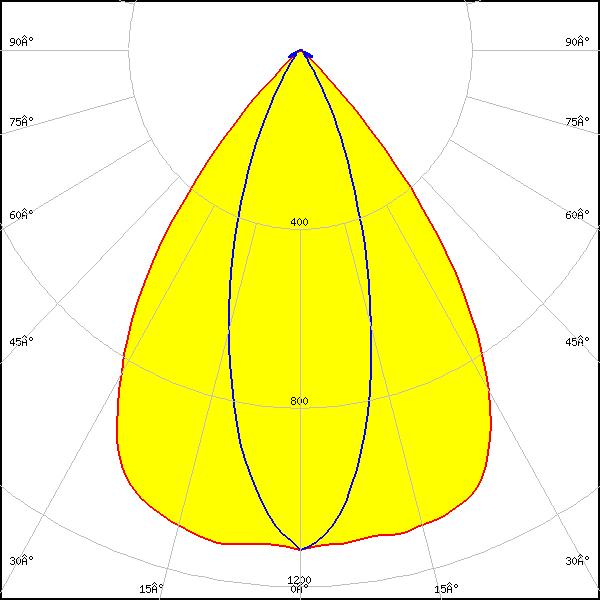

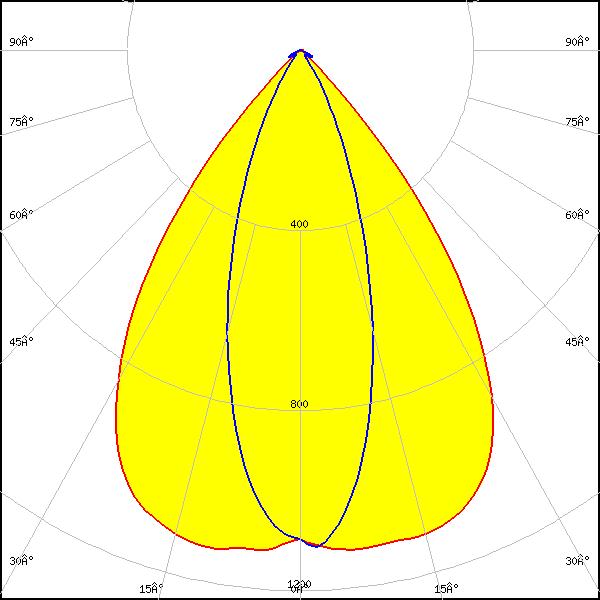

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 73° + 34°
FWTM: 91° + 62°
Peak intensity: 1.121 cd/lm
Efficiency: 82 %
LEDs/each optic: 2
Light colour/type: White
LED: LM28xB Series
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 73° + 34°
FWTM: 91° + 62°
Peak intensity: 1.125 cd/lm
Efficiency: 82 %
LEDs/each optic: 2
Light colour/type: White

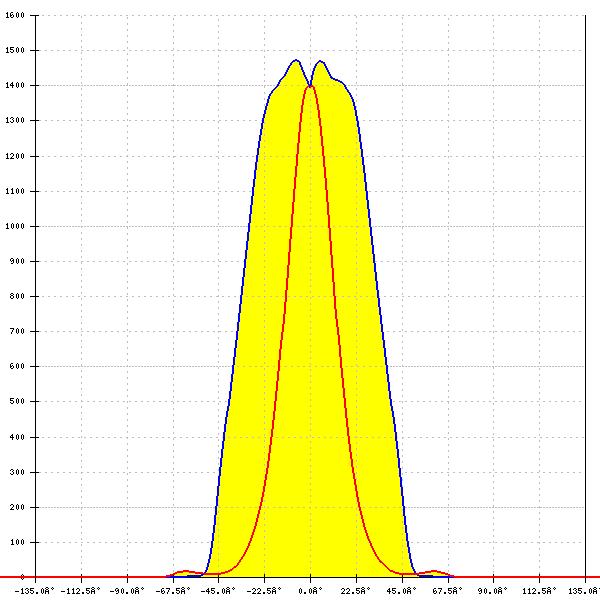

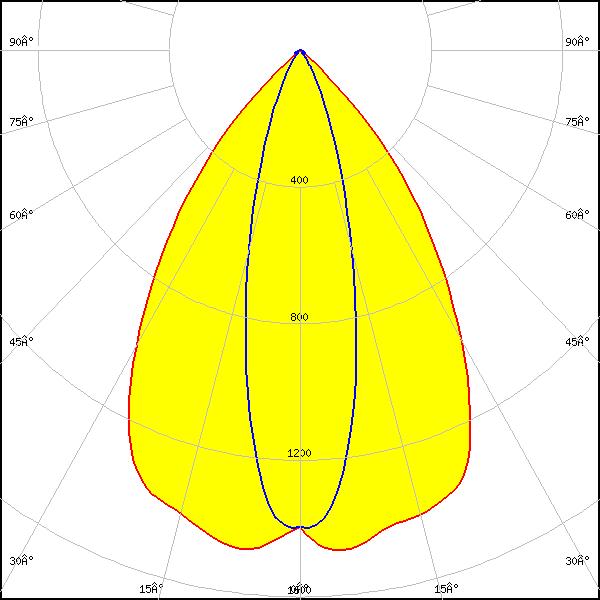

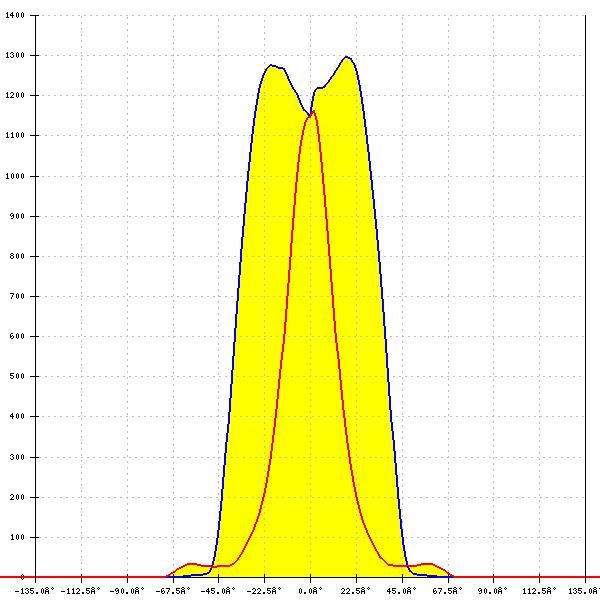

LED: LM301B
Required components:
C16872_DAISY-7X1-SHD
FWHM: 70° + 27°
FWTM: 94° + 54°
Peak intensity: 1.472 cd/lm
Efficiency: 85 %
LEDs/each optic: 2
Light colour/type: White

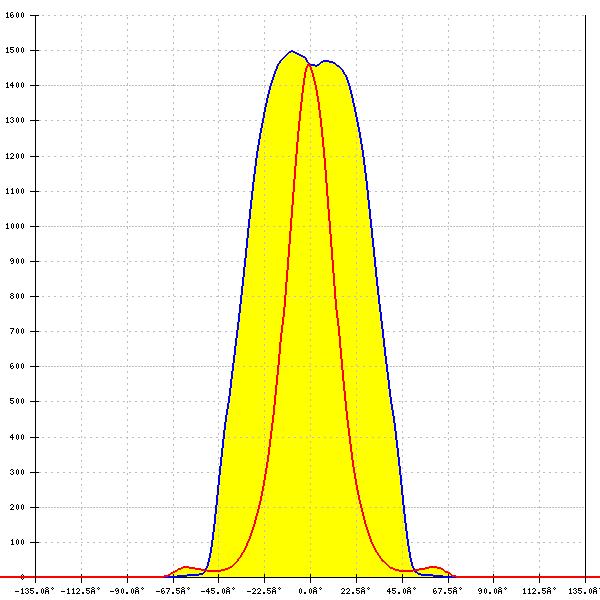

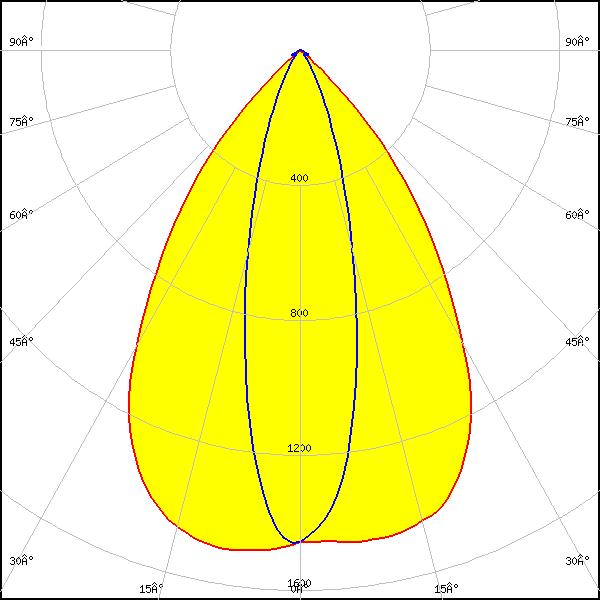

LED: LM301B
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 70° + 27°
FWTM: 94° + 56°
Peak intensity: 1.498 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour/type: White
