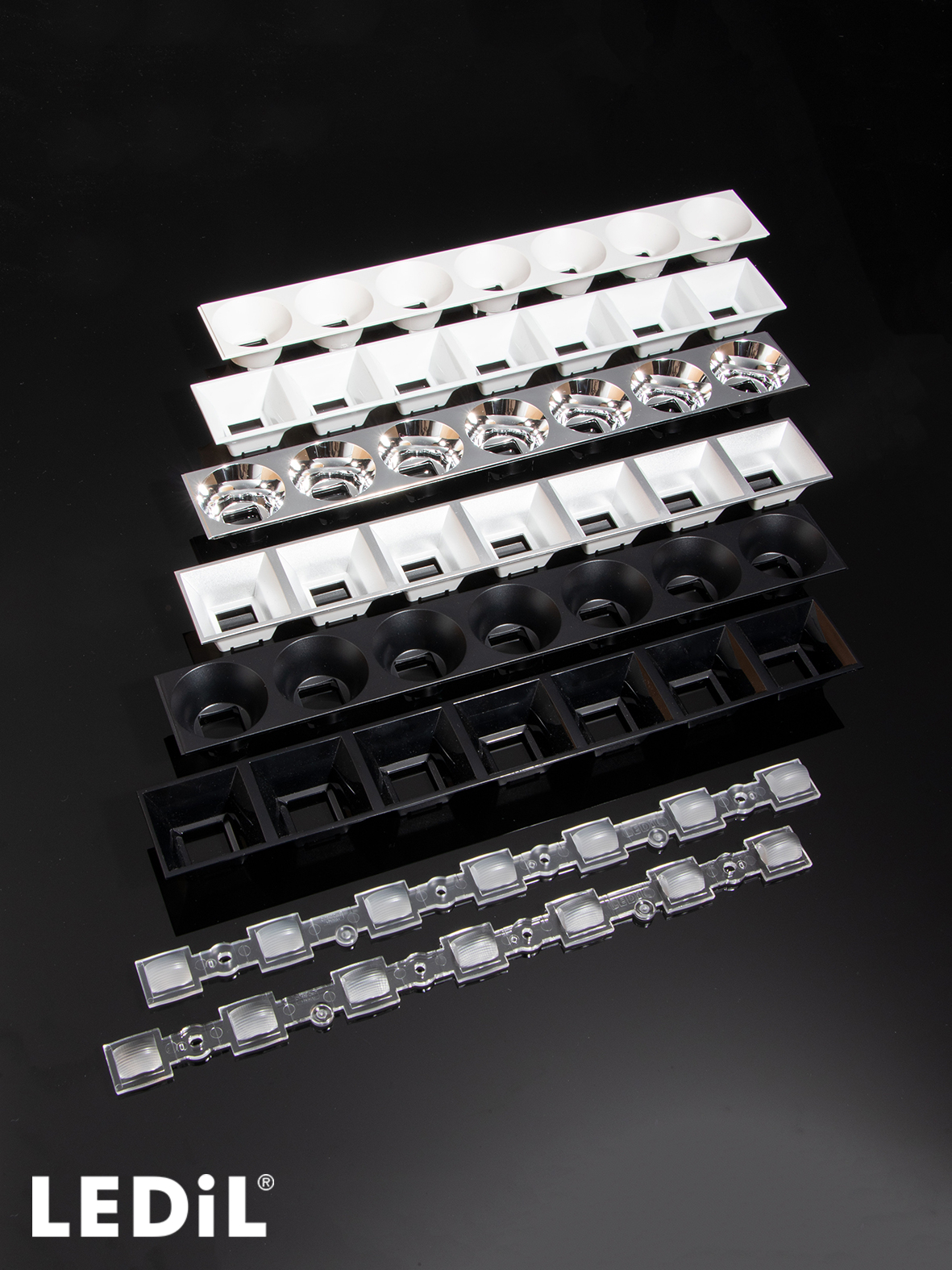

DAISY-7X1-O-D

Print

~25 + 70° oval beam. Variant with diffused lenses.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    280 x  40 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C17540_DAISY-7X1-O-D
    milky
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    7.00 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    7.00 kg

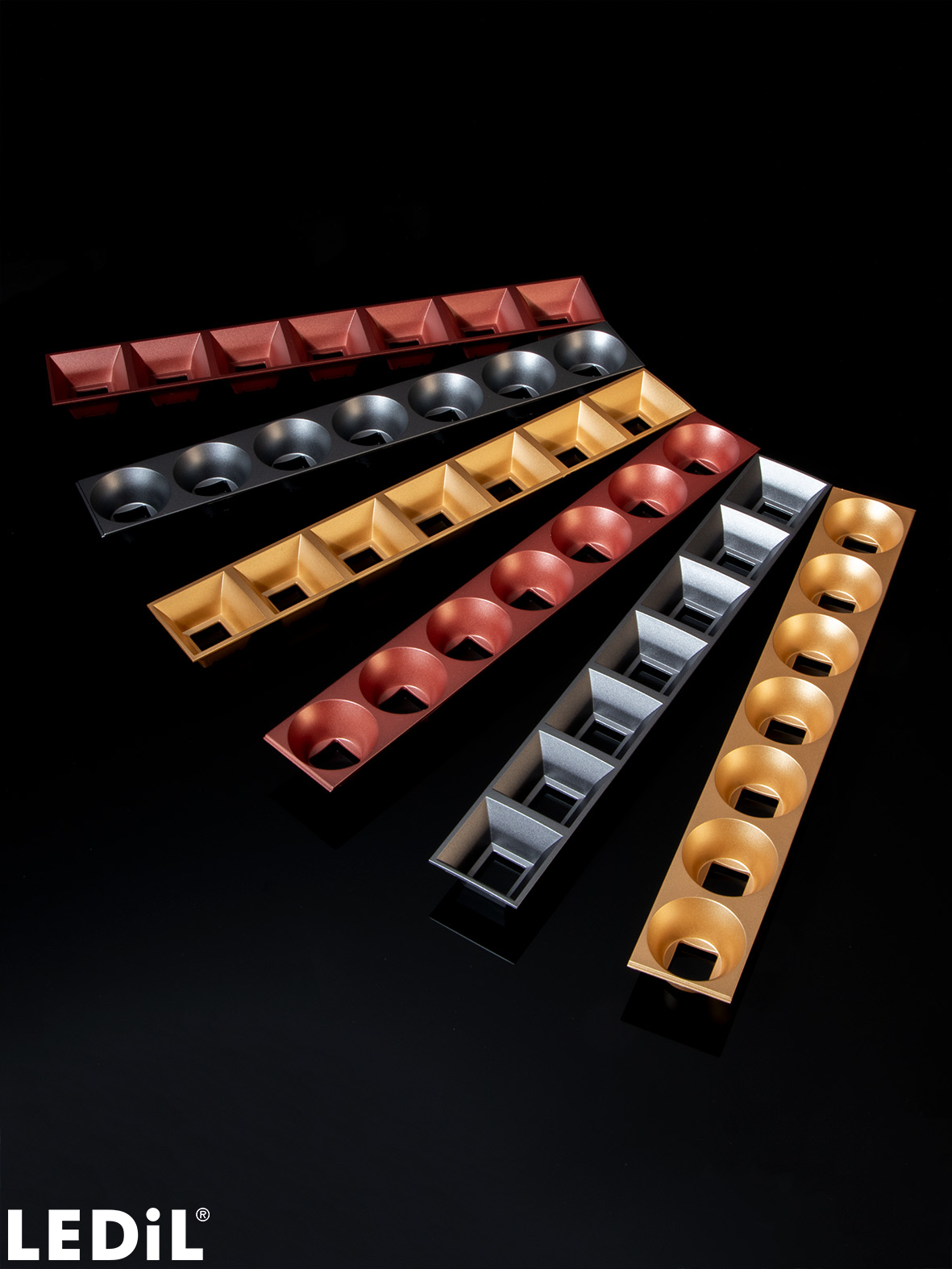

  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • C18409_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    7.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17540_DAISY-7X1-O-D
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

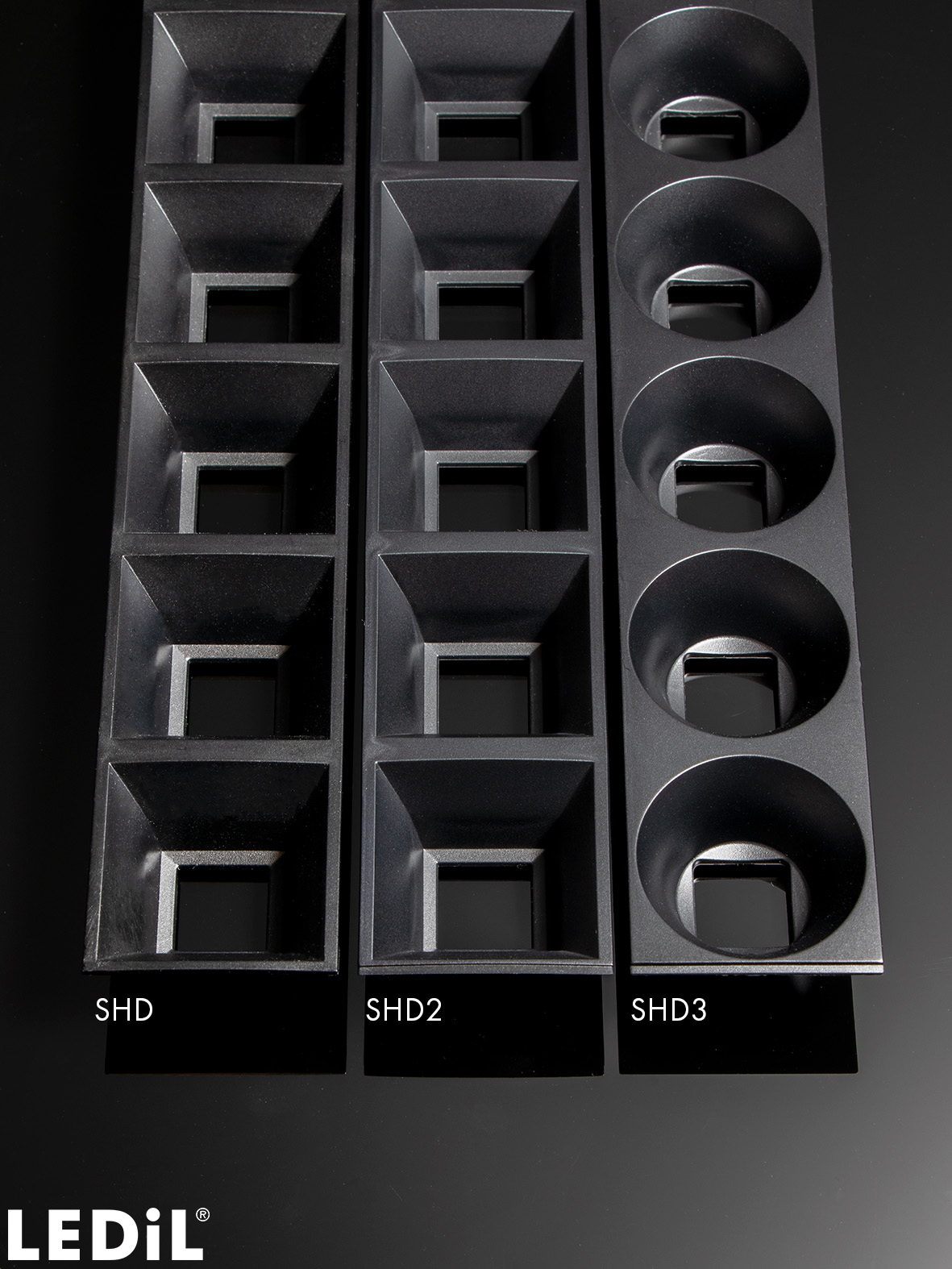

Related Content

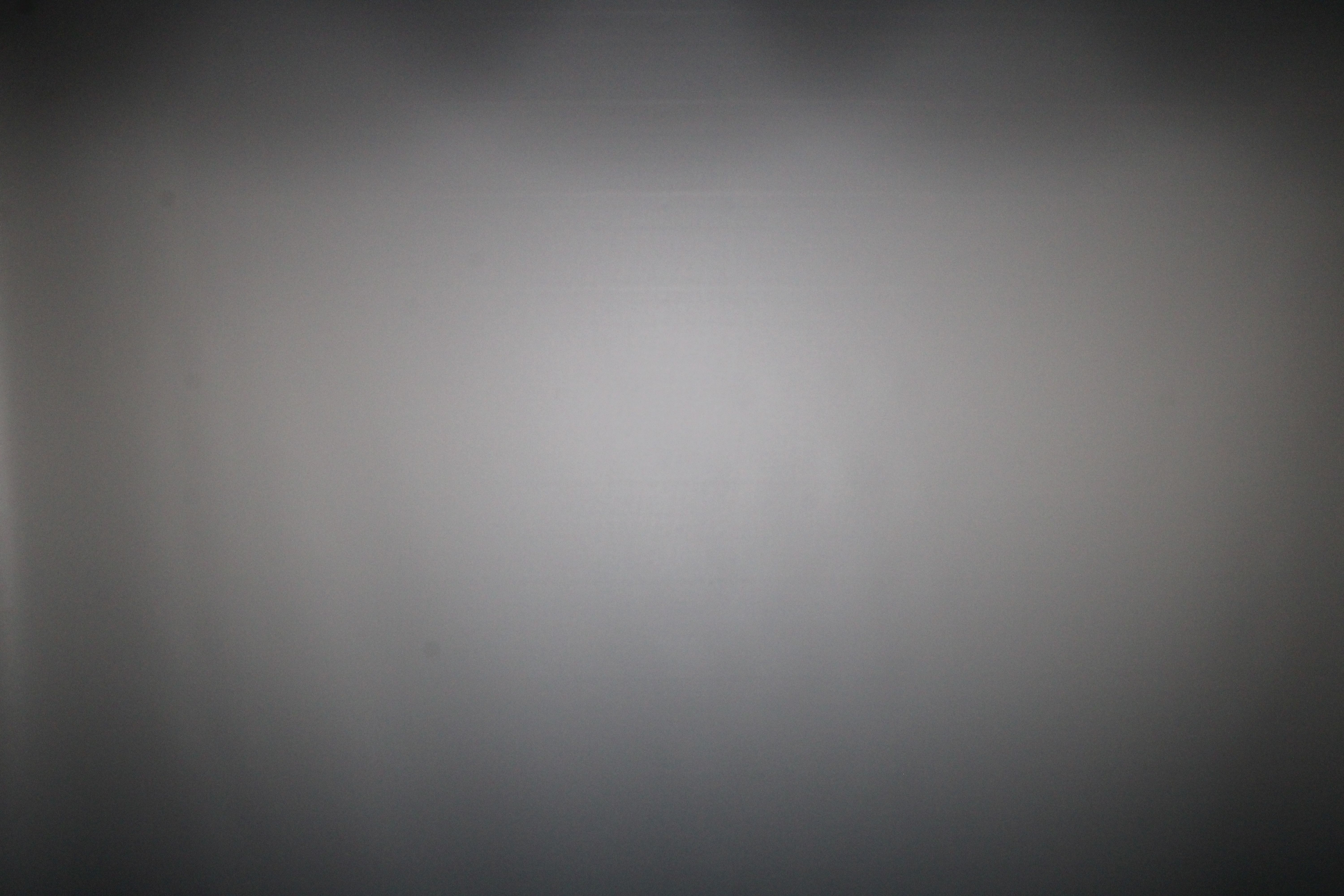

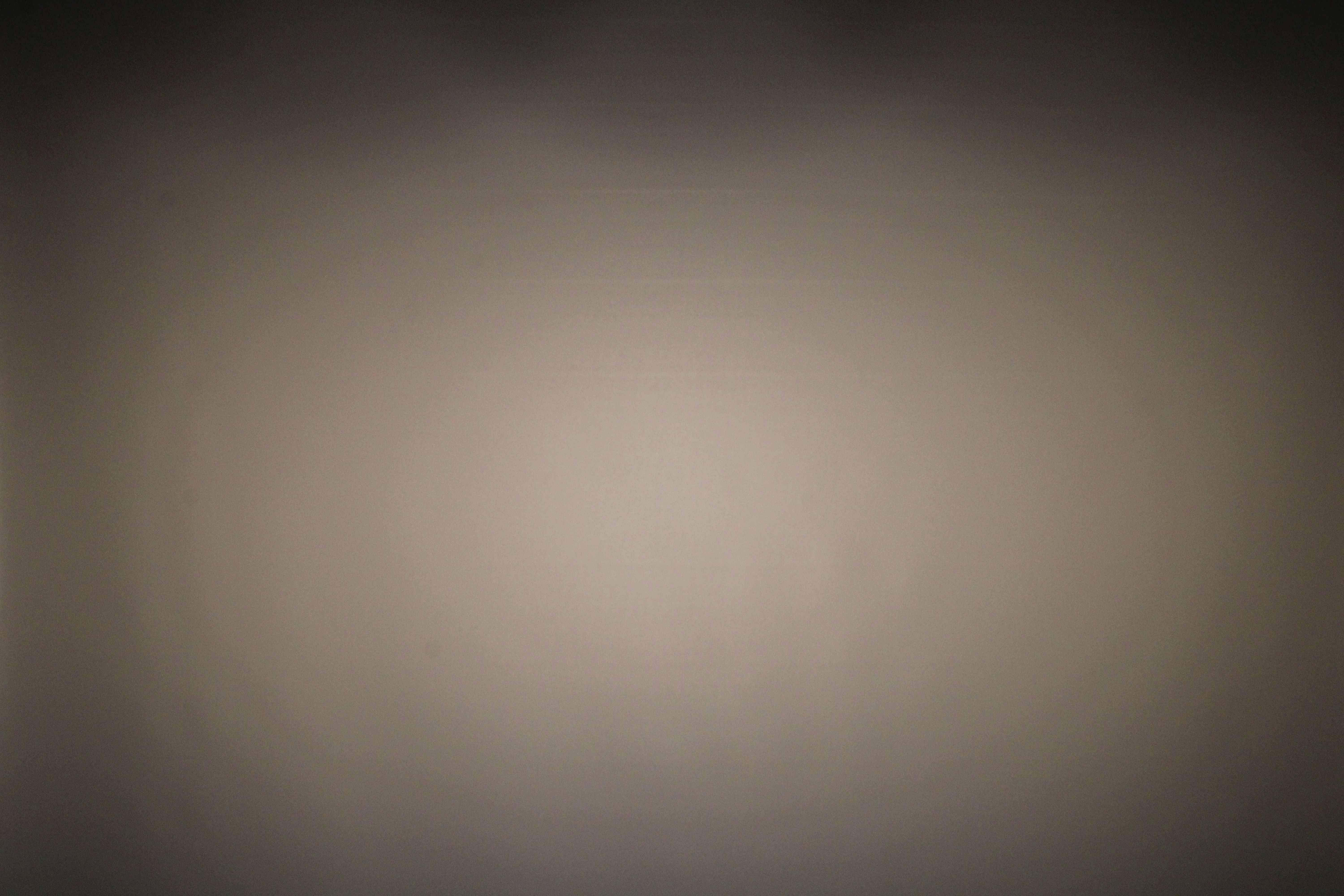

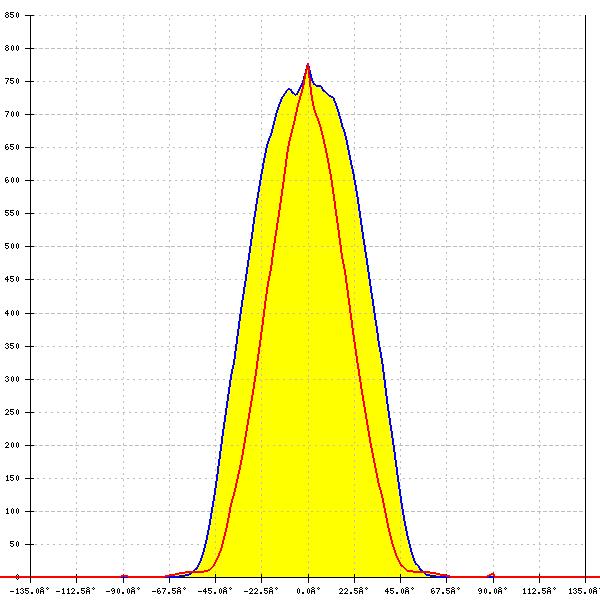

Optical results

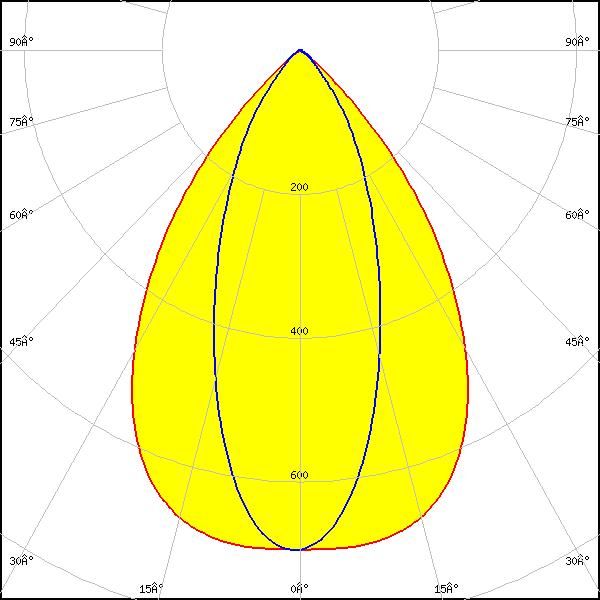

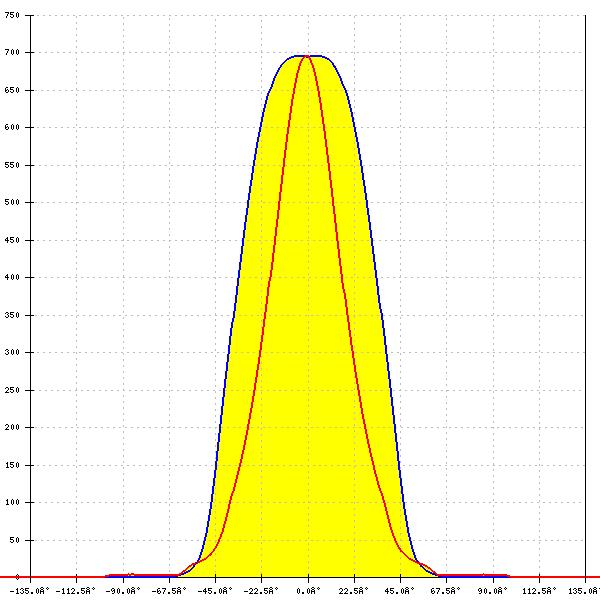

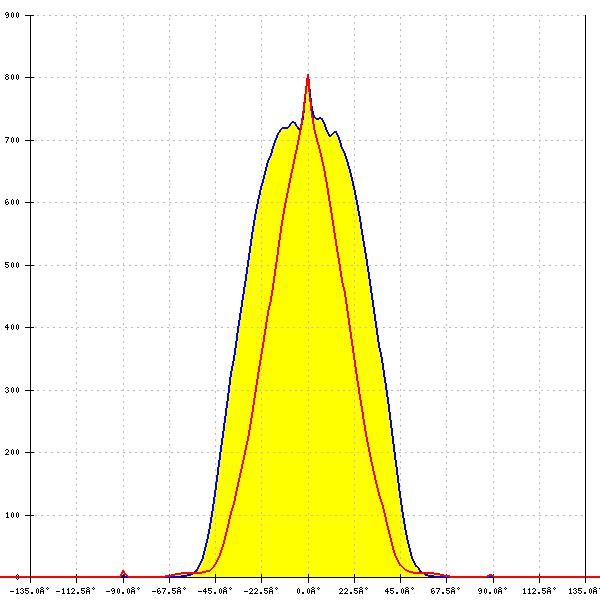

LED: LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 73° + 40°
FWTM: 97° + 81°
Peak intensity: 0.696 cd/lm
Efficiency: 64 %
LEDs/each optic: 2
Light colour/type: Tunable White

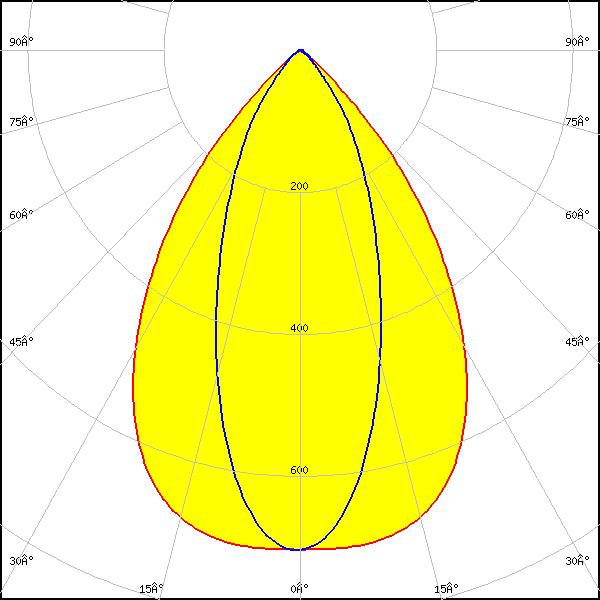

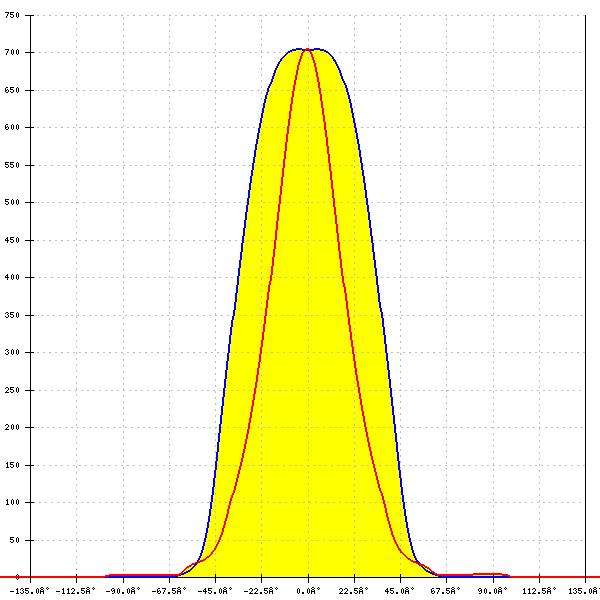

LED: LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 72° + 40°
FWTM: 97° + 80°
Peak intensity: 0.706 cd/lm
Efficiency: 64 %
LEDs/each optic: 2
Light colour/type: White

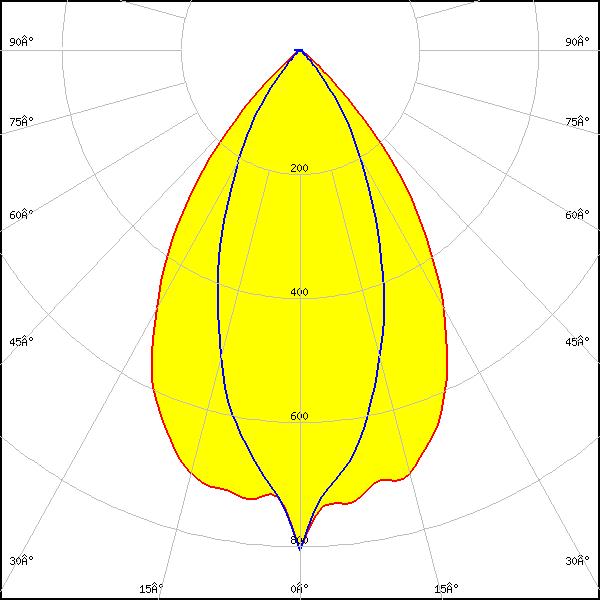

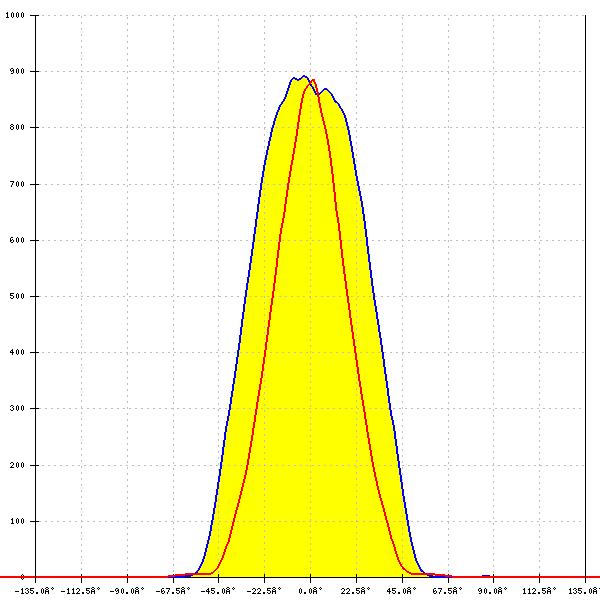

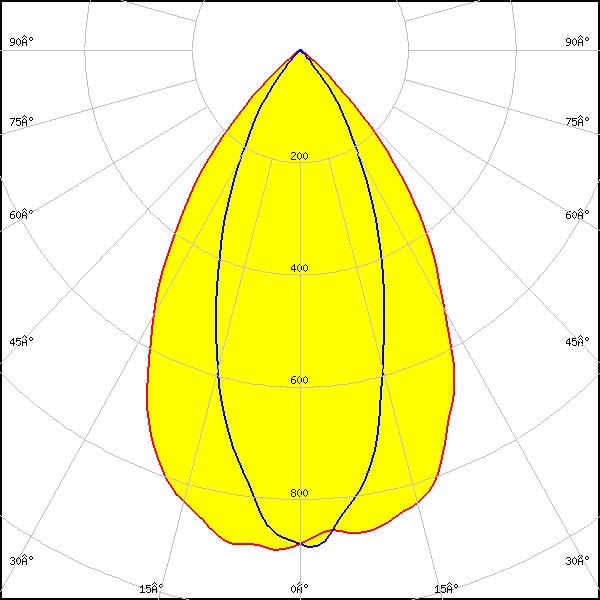

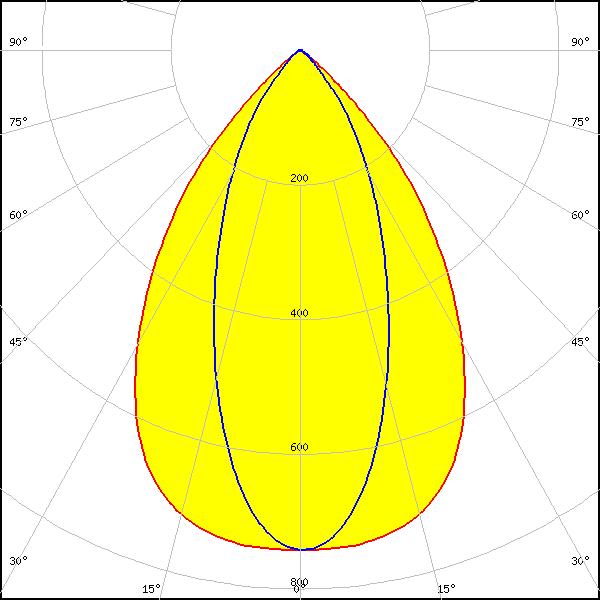

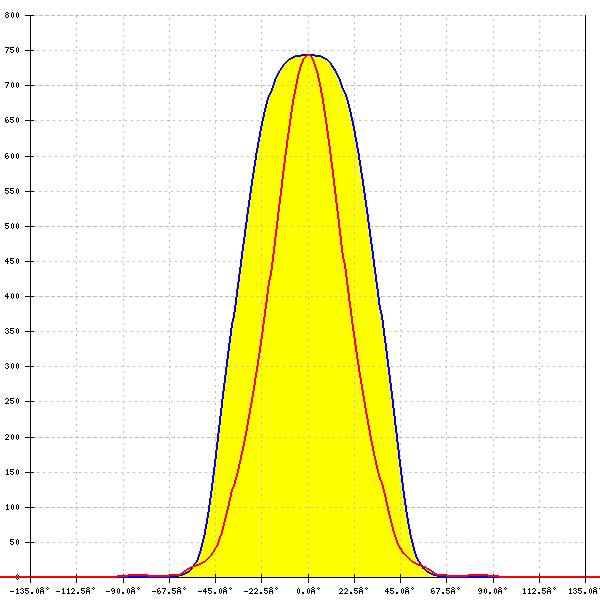

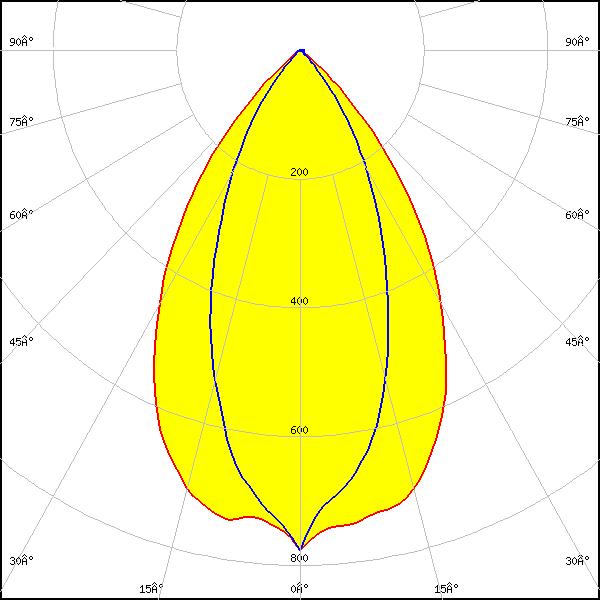

LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 68° + 41°
FWTM: 96° + 77°
Peak intensity: 0.928 cd/lm
Efficiency: 74 %
LEDs/each optic: 2
Light colour/type: White

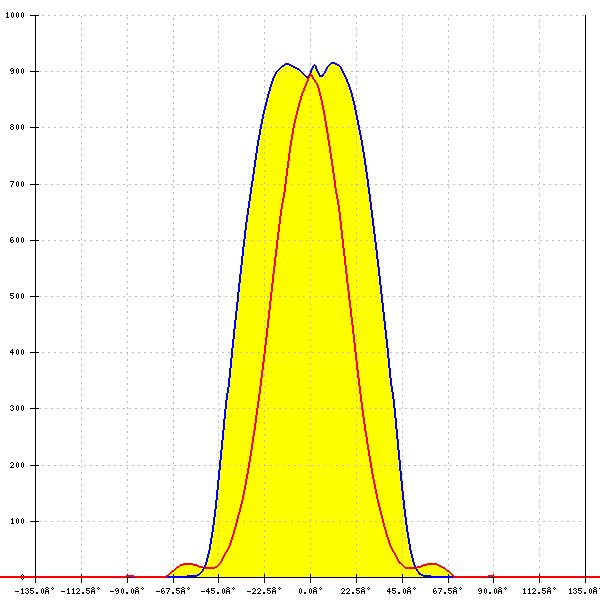

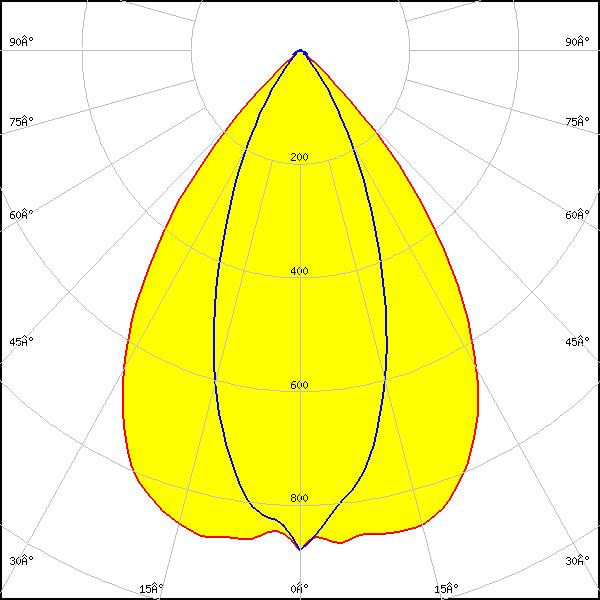

LED: LUXEON 5050 HE
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 74° + 40°
FWTM: 94° + 72°
Peak intensity: 0.879 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

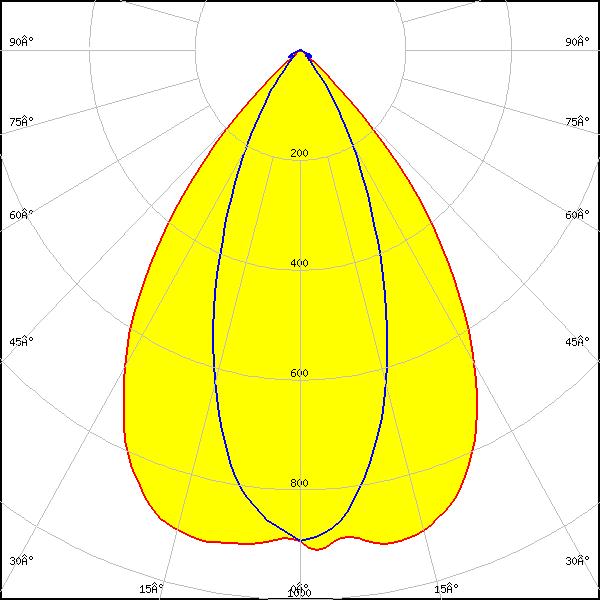

LED: LUXEON 5050 HE
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 74° + 42°
FWTM: 94° + 74°
Peak intensity: 0.914 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

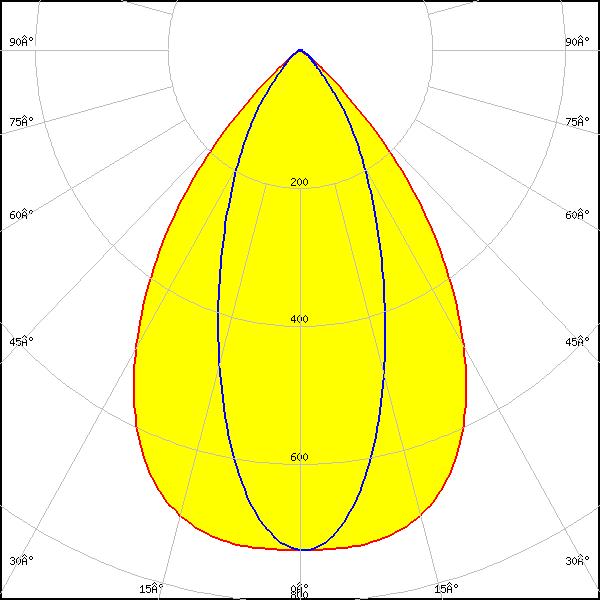

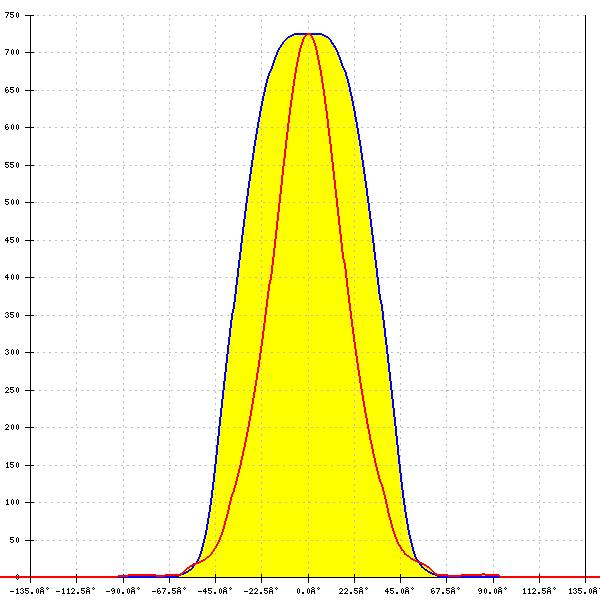

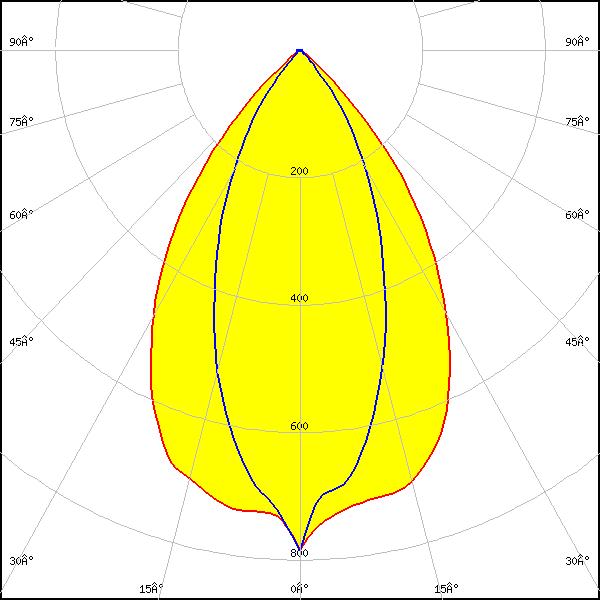

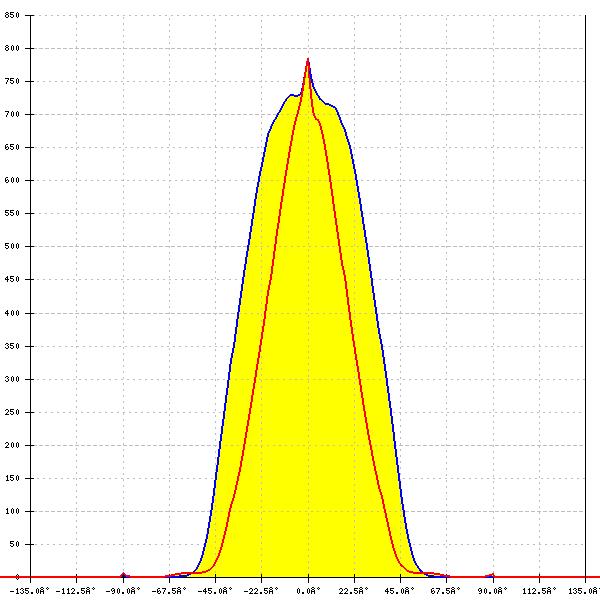

LED: LUXEON HL2Z
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 72° + 40°
FWTM: 97° + 81°
Peak intensity: 0.725 cd/lm
Efficiency: 66 %
LEDs/each optic: 2
Light colour/type: White

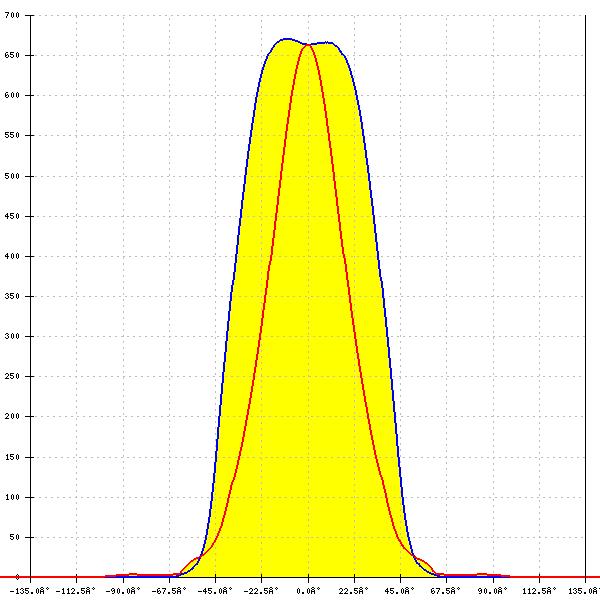

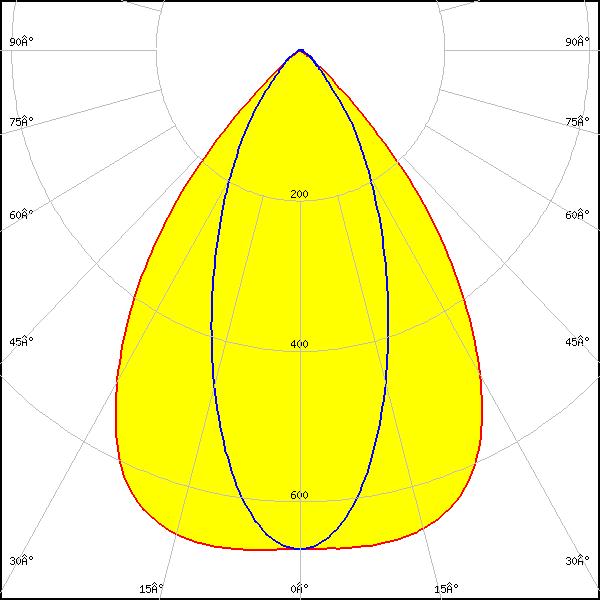

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 75° + 43°
FWTM: 97° + 83°
Peak intensity: 0.670 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White

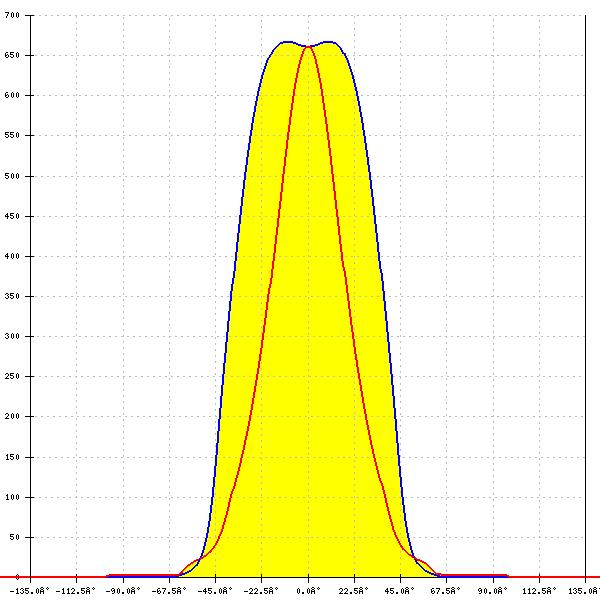

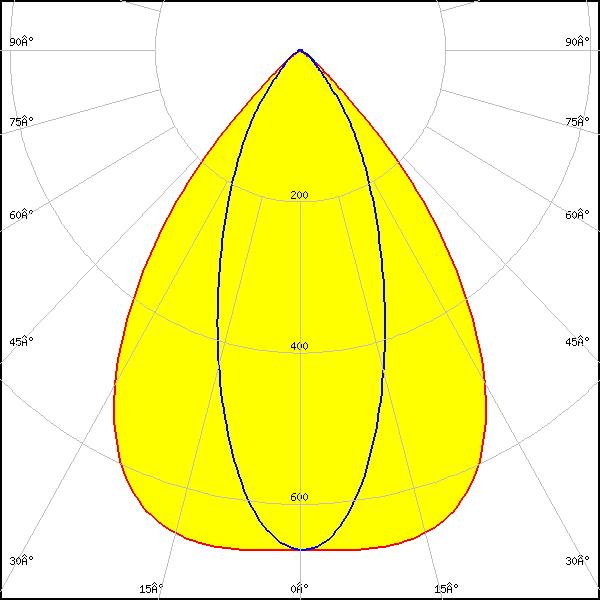

LED: NCSxE17A
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 75° + 41°
FWTM: 96° + 82°
Peak intensity: 0.669 cd/lm
Efficiency: 64 %
LEDs/each optic: 1
Light colour/type: White

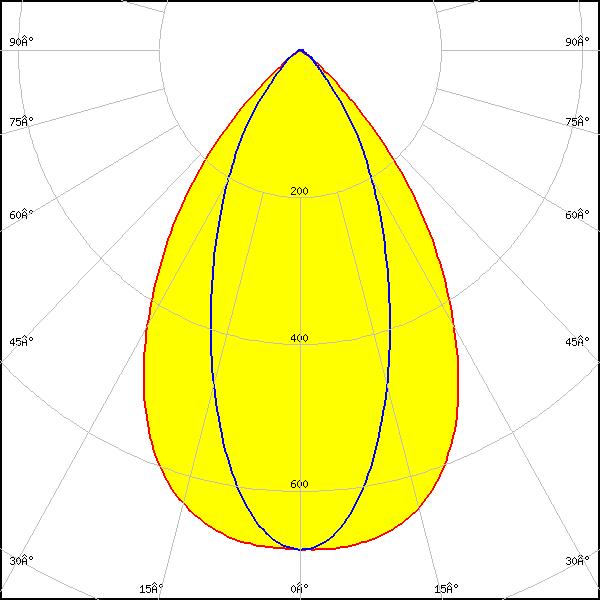

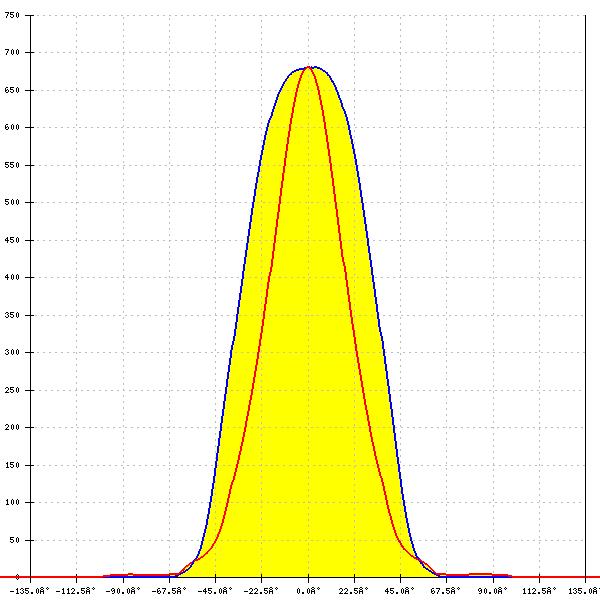

LED: LH231B
Required components:
C16872_DAISY-7X1-SHD
FWHM: 70° + 43°
FWTM: 99° + 84°
Peak intensity: 0.681 cd/lm
Efficiency: 65 %
LEDs/each optic: 2
Light colour/type: White

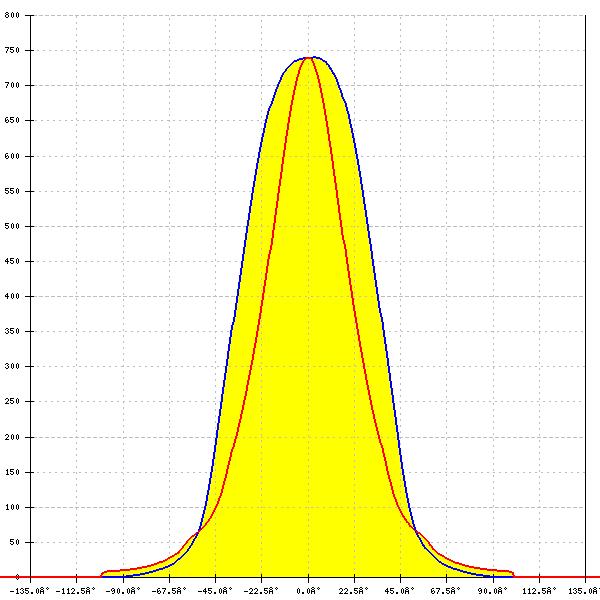

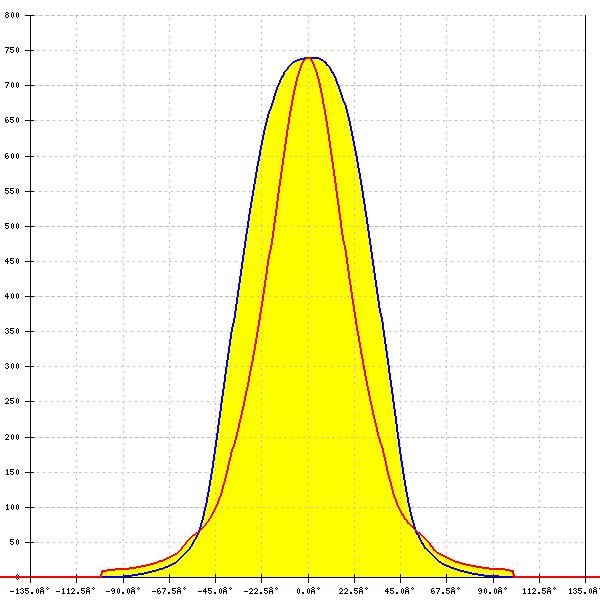

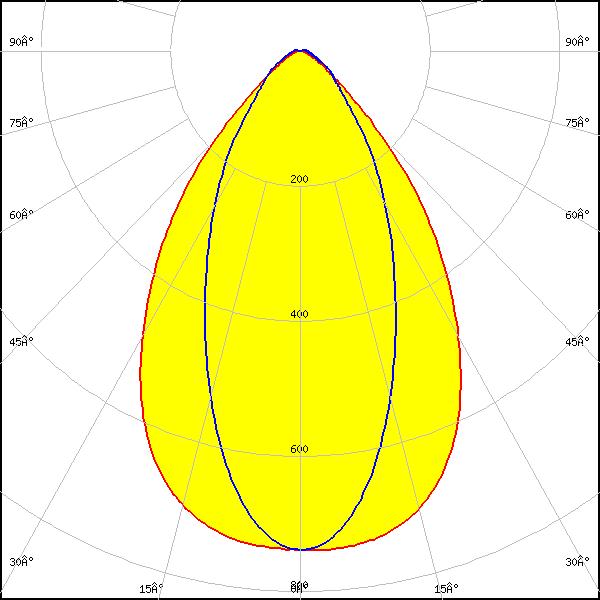

LED: LH231B
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 72° + 47°
FWTM: 104° + 100°
Peak intensity: 0.740 cd/lm
Efficiency: 85 %
LEDs/each optic: 2
Light colour/type: White

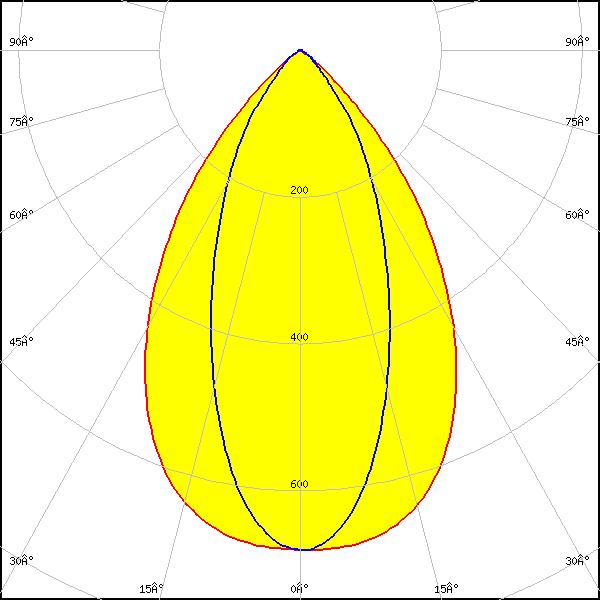

LED: LH231B
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 70° + 43°
FWTM: 99° + 83°
Peak intensity: 0.682 cd/lm
Efficiency: 65 %
LEDs/each optic: 2
Light colour/type: White

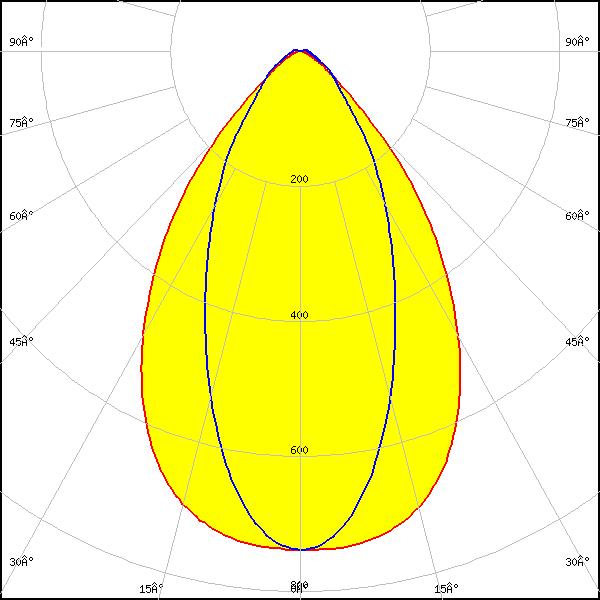

LED: LH231B
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 72° + 46°
FWTM: 104° + 100°
Peak intensity: 0.740 cd/lm
Efficiency: 86 %
LEDs/each optic: 2
Light colour/type: White

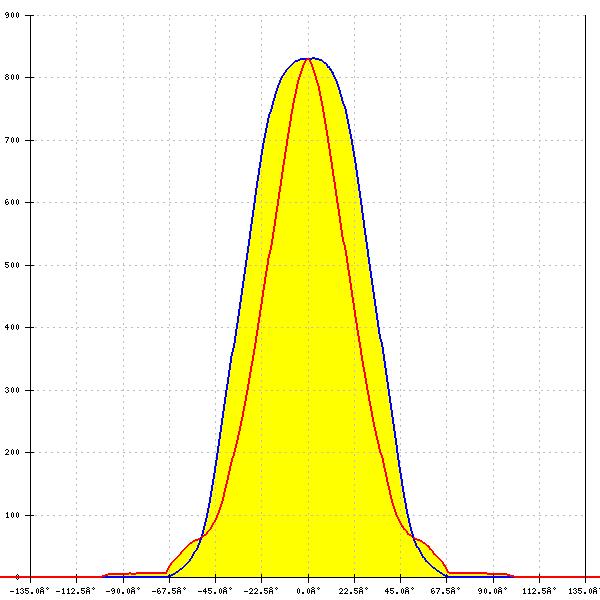

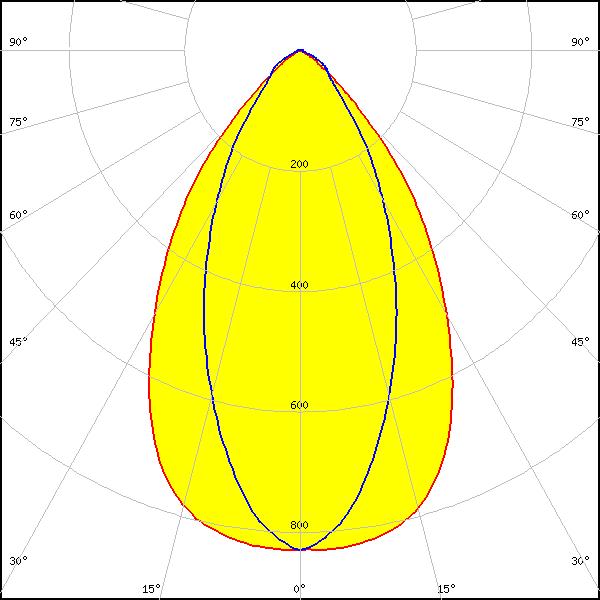

LED: LH231B
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 68° + 47°
FWTM: 100° + 93°
Peak intensity: 0.831 cd/lm
Efficiency: 86 %
LEDs/each optic: 2
Light colour/type: White

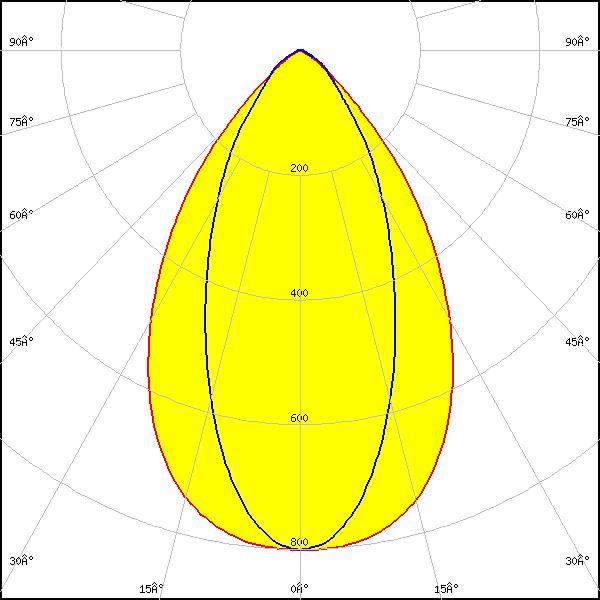

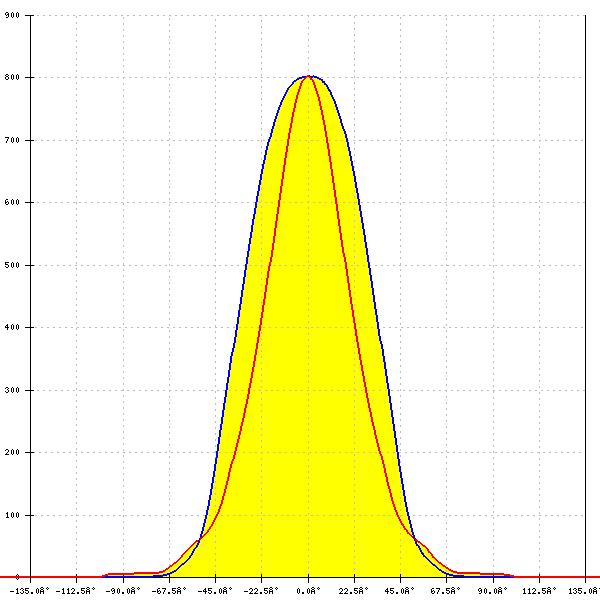

LED: LH231B
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 69° + 46°
FWTM: 101° + 94°
Peak intensity: 0.802 cd/lm
Efficiency: 84 %
LEDs/each optic: 2
Light colour/type: White

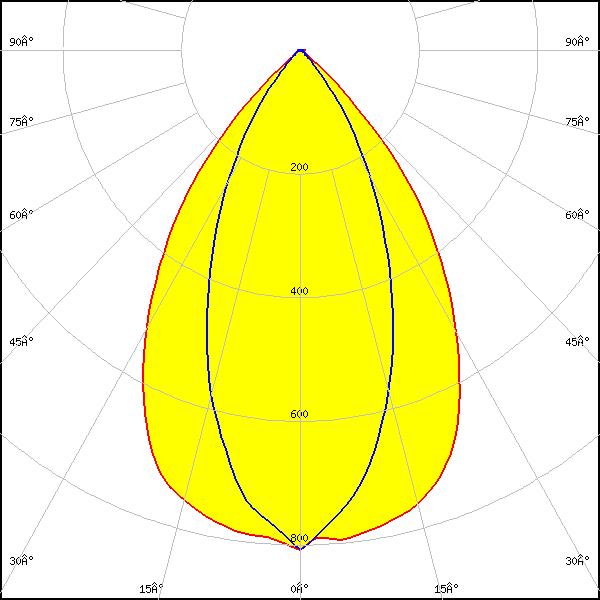

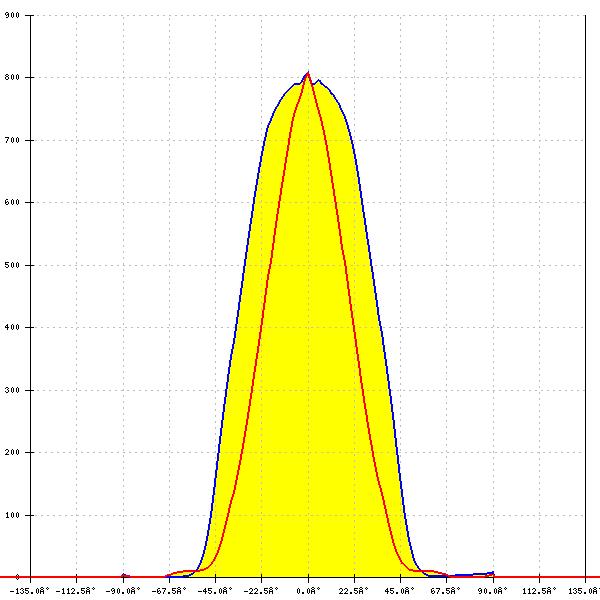

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 70° + 44°
FWTM: 96° + 80°
Peak intensity: 0.809 cd/lm
Efficiency: 74 %
LEDs/each optic: 2
Light colour/type: White

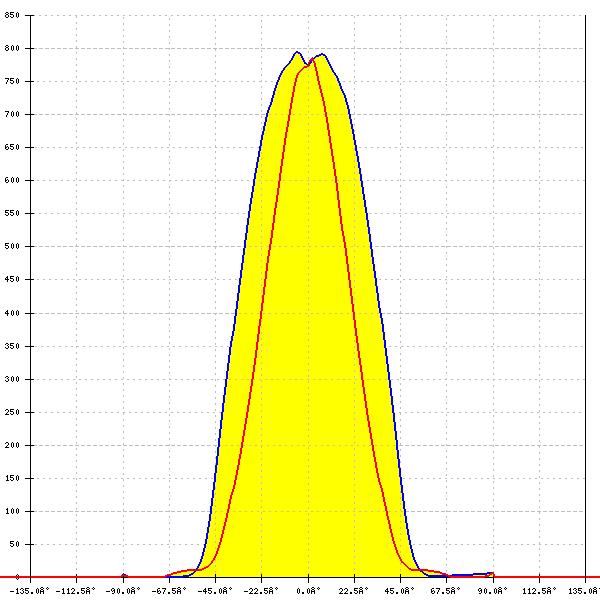

LED: LM28xB Series
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 71° + 46°
FWTM: 96° + 80°
Peak intensity: 0.796 cd/lm
Efficiency: 74 %
LEDs/each optic: 2
Light colour/type: White
