    DAISY-7X1-M

    Print

    ~35° wide beam

    Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
    Specification
    • Dimensions:
      280 x  40 mm
    • Height:
      20.3 mm
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

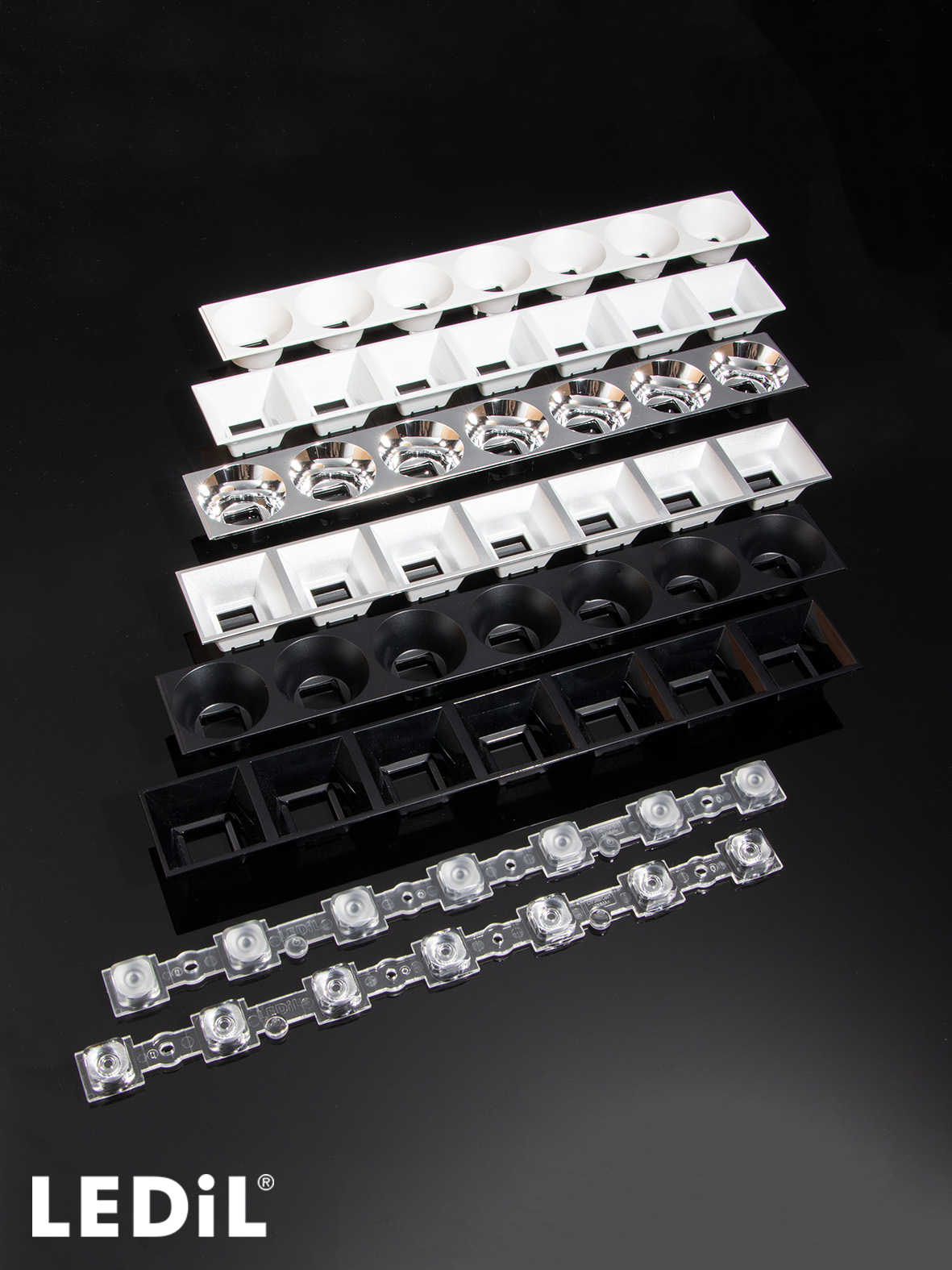

    Materials
    • Linear lens
    • C17389_DAISY-7X1-M
      PMMA

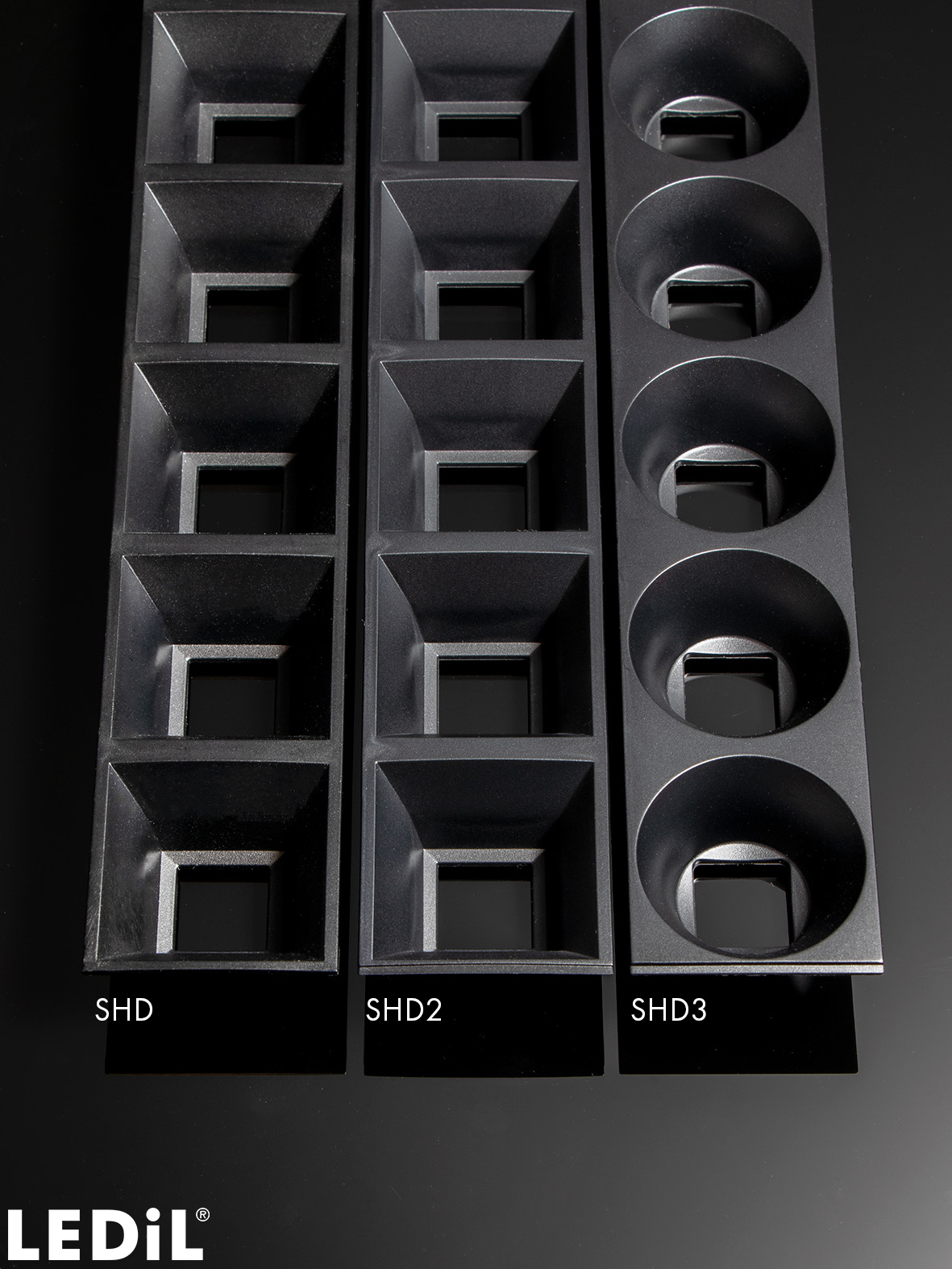

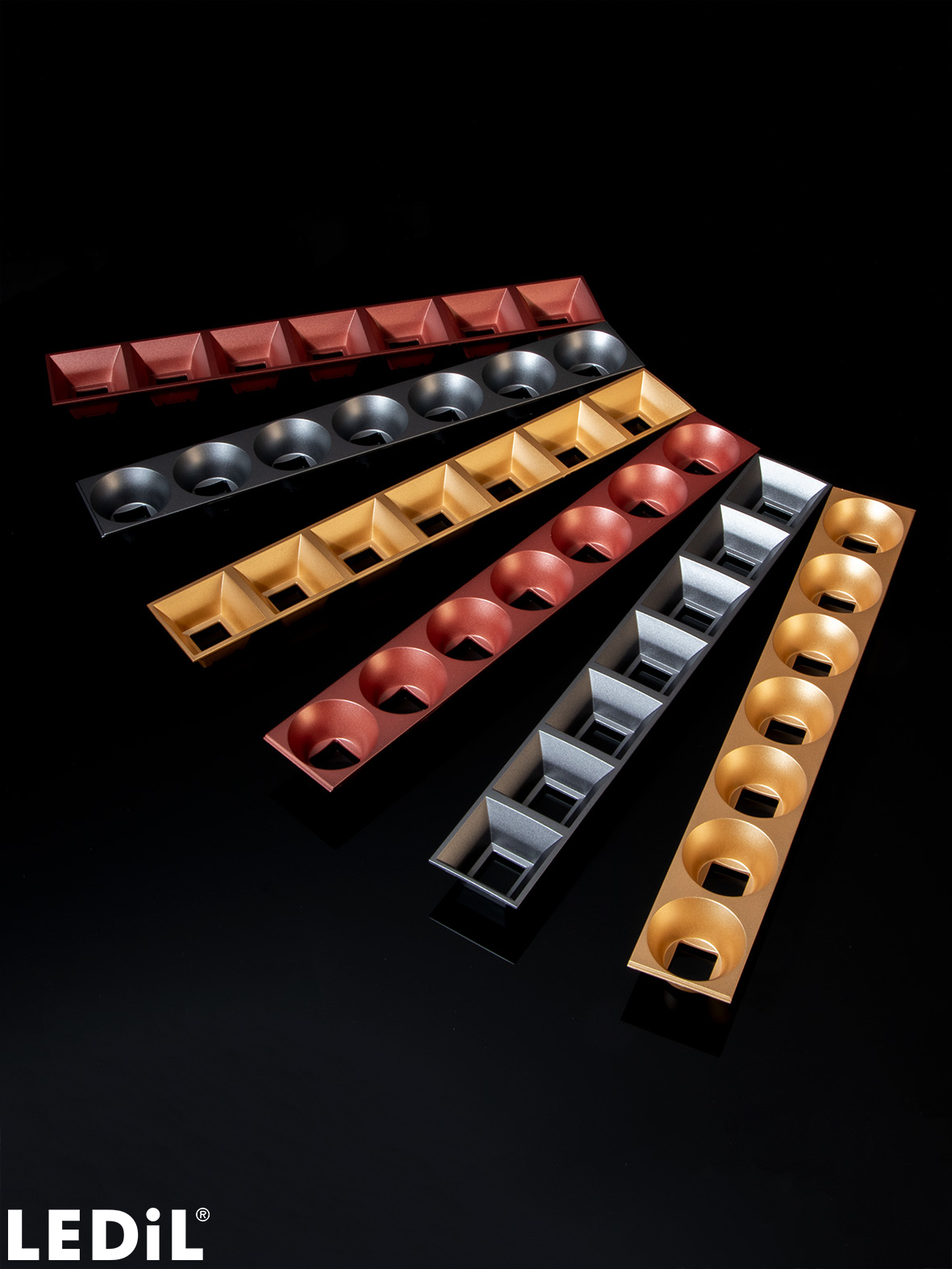

    • Shade
    • C16872_DAISY-7X1-SHD
      PC
    • C16876_DAISY-7X1-SHD-WHT
      PC
    • C17051_DAISY-7X1-SHD-MATT
      PC
    • C17225_DAISY-7X1-SHD-WHT-MATT
      PC
    • C17533_DAISY-7X1-SHD-MET-MATT
      PC
    • C18167_DAISY-7X1-SHD-MET
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C17389_DAISY-7X1-M
      clear
    • Quantity in box:
      312 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      6.30 kg
    • MPQ:
      24 pcs
    • MOQ:
      192 pcs
    • MOQ Size:
      400 x 300 x 185 mm
    • MOQ Weight:
      4.10 kg
    • Shade
    • C16872_DAISY-7X1-SHD
      black,gloss
    • C16876_DAISY-7X1-SHD-WHT
      white,gloss
    • C17051_DAISY-7X1-SHD-MATT
      black,matt
    • C17225_DAISY-7X1-SHD-WHT-MATT
      white,matt
    • C17533_DAISY-7X1-SHD-MET-MATT
      metal,matt
    • C18167_DAISY-7X1-SHD-MET
      metal,gloss
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 230 mm
    • Box weight:
      6.40 kg
    • MPQ:
      24 pcs
    • MOQ:
      192 pcs
    • MOQ Size:
      595 x 360 x 230 mm
    • MOQ Weight:
      8.30 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17389_DAISY-7X1-M
      C16872_DAISY-7X1-SHD

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    Installation Guide

    General Installation Guide

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    News

    NEW PRODUCTS – AUGUST 12, 2021

    PCN

    Product change notification NR173 - Change of product coating method and ordering code

    News

    Perfecting luminaires with multi-use DAISY Dark Light optics

    News

    NEW PRODUCTS – MAY 19, 2021

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    VDU workstations

    News

    New Products 2020-1-9

    News

    New Products 2019-11-07

    News

    New Products - 2019-08-27

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Troffer luminaires with DAISY-7X1

    Application guide

    Guide_for_Retail_Lighting_Optics_v.1.0_2021_WEB

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

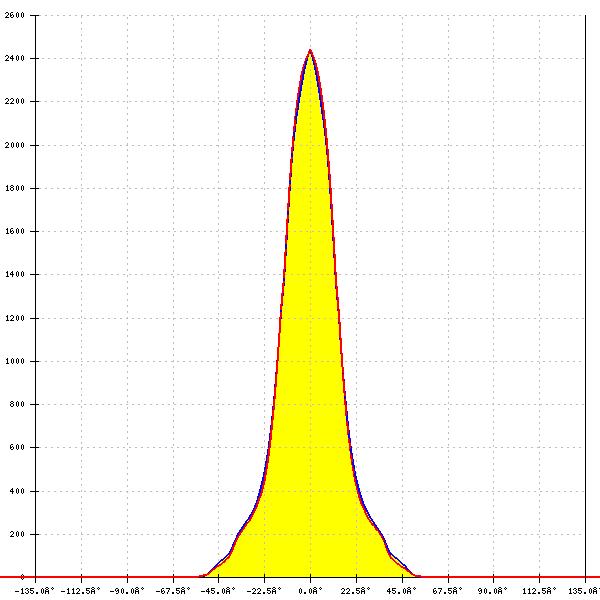

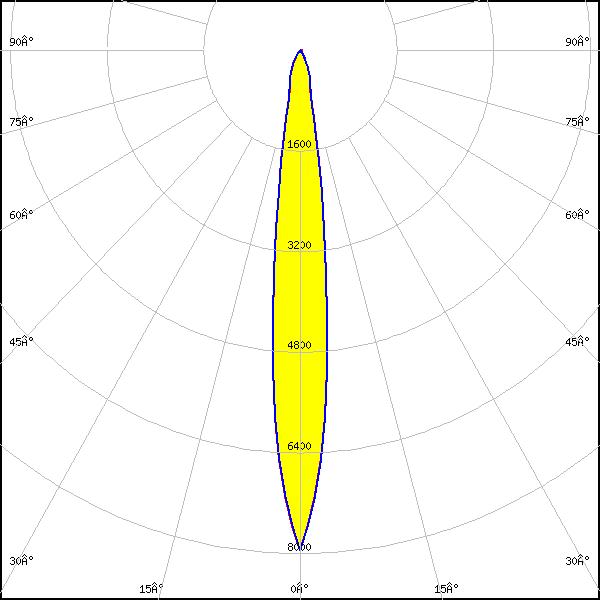

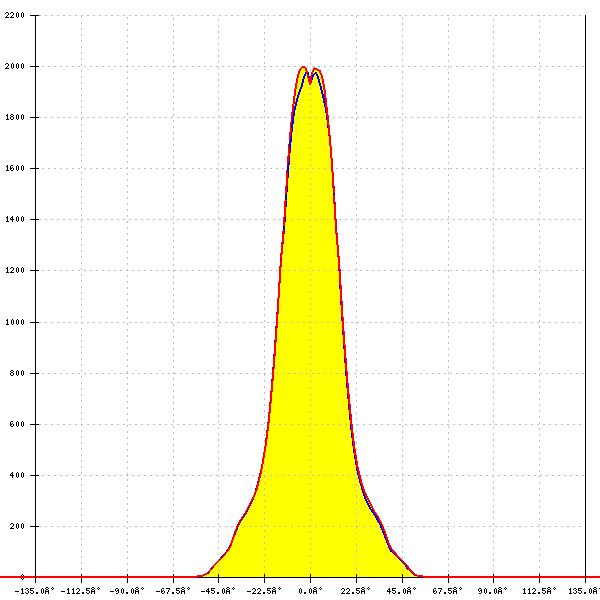

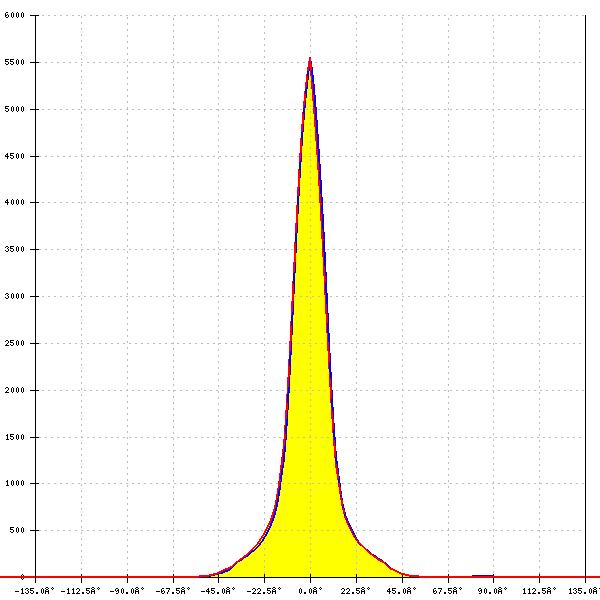

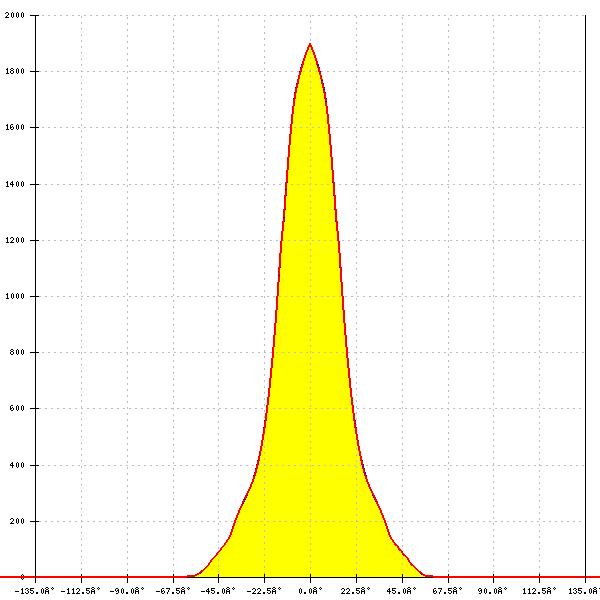

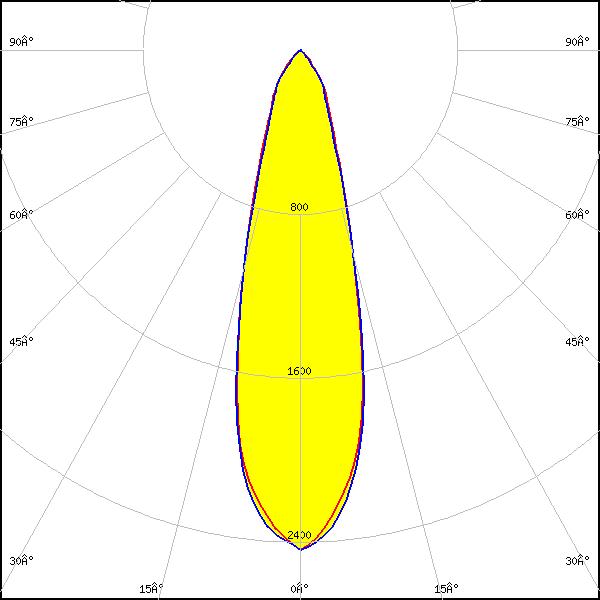

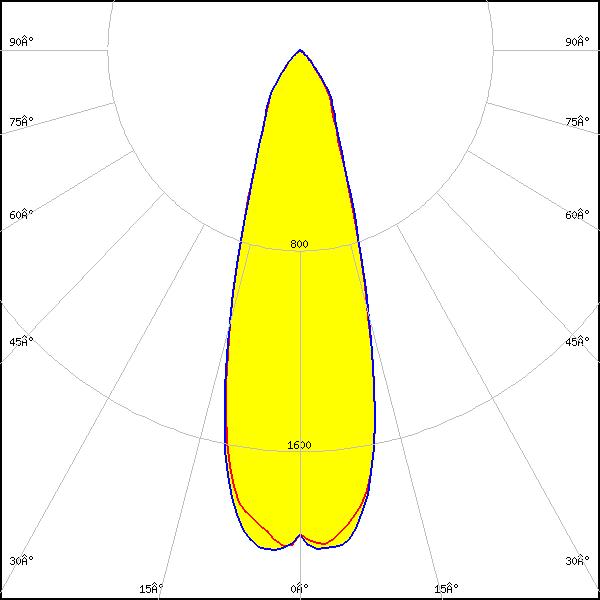

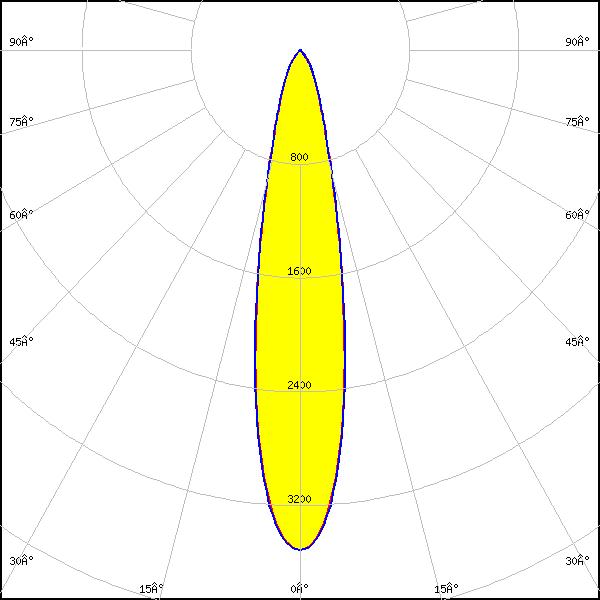

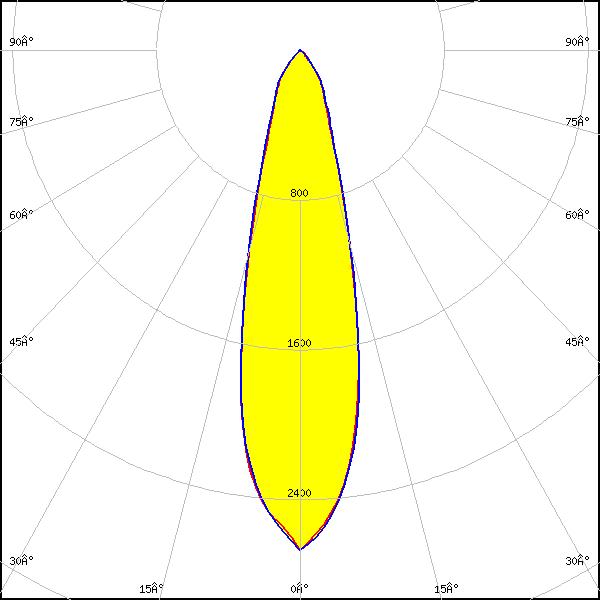

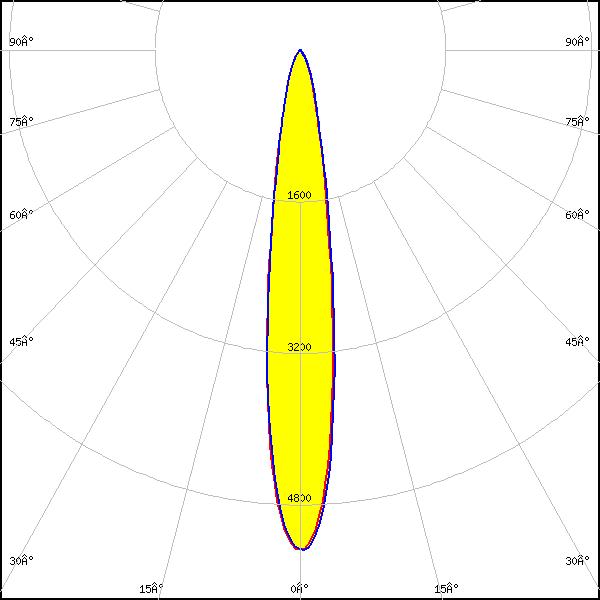

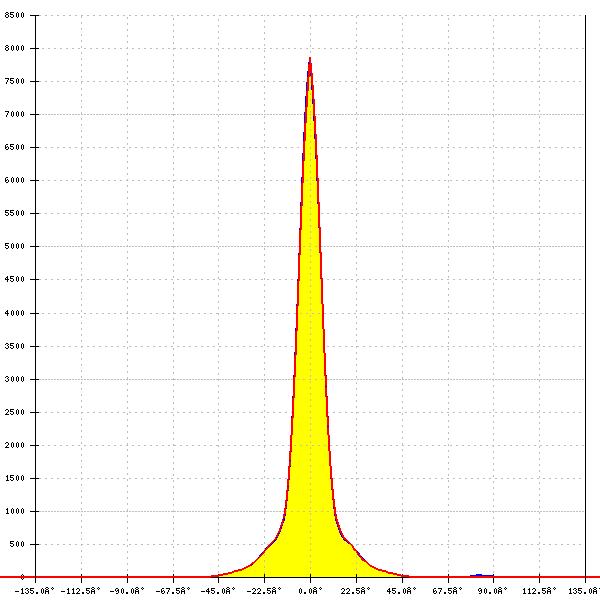

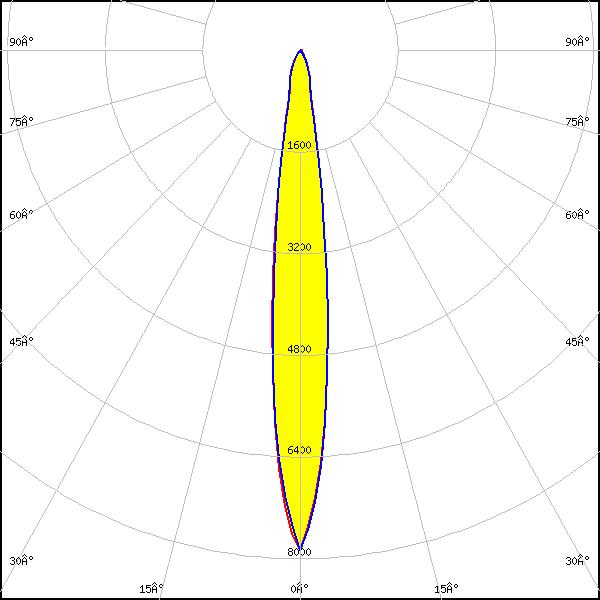

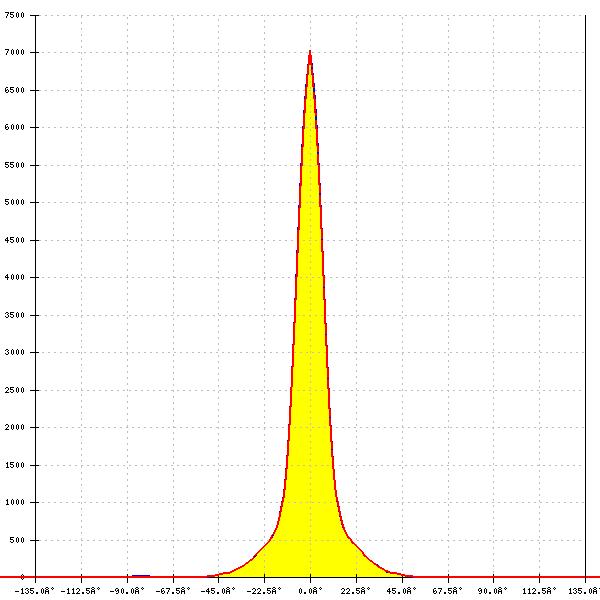

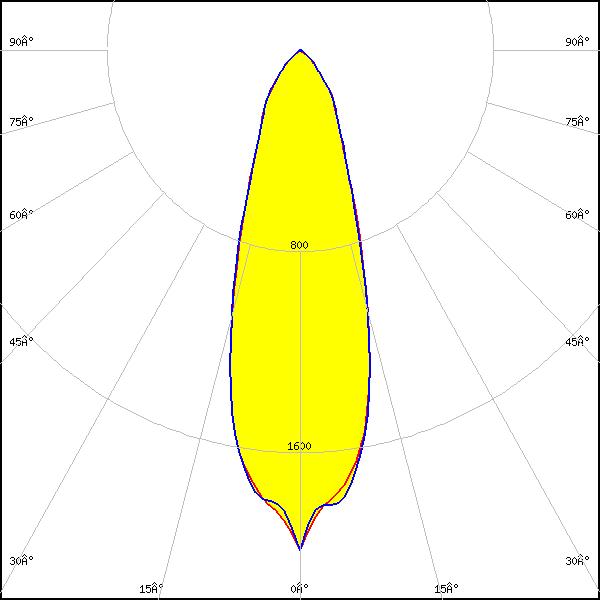

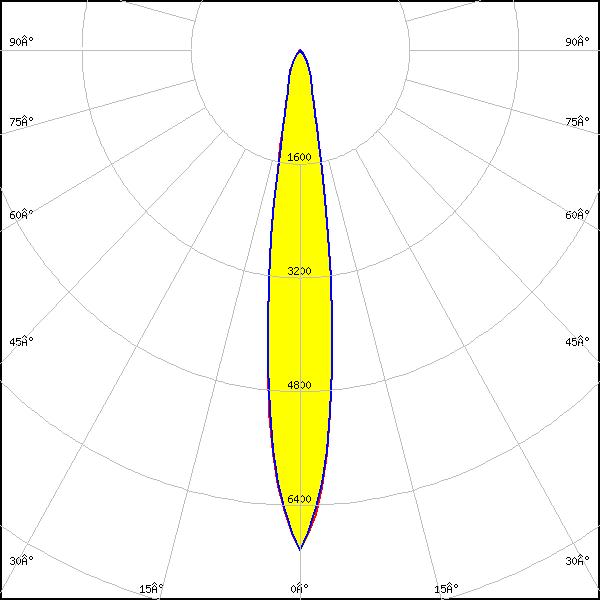

    Optical results

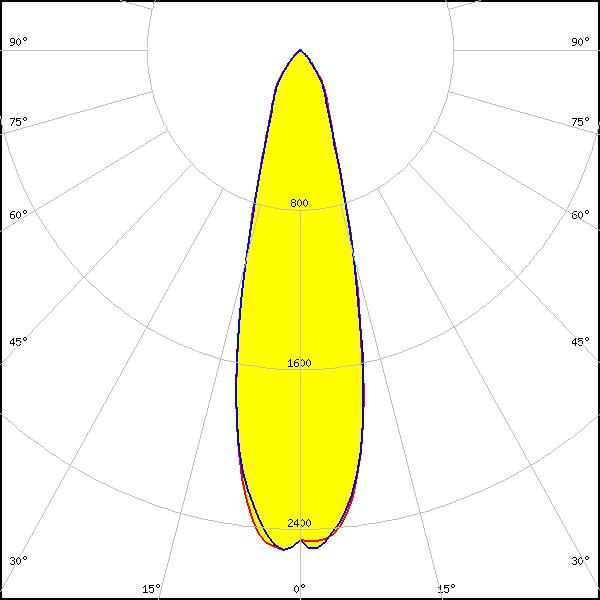

    LED: J Series 5050 Round LES
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 26°
    FWTM: 58°
    Peak intensity: 2.7 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White
    LED: J Series 5050 Round LES
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 28°
    FWTM: 64°
    Peak intensity: 2.5 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

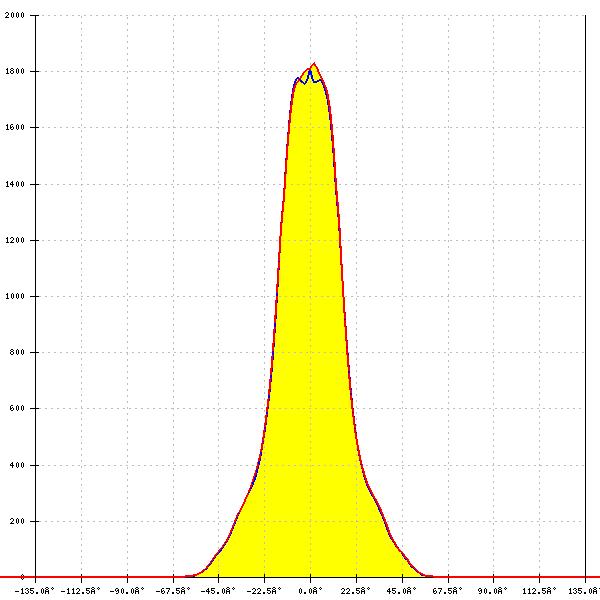

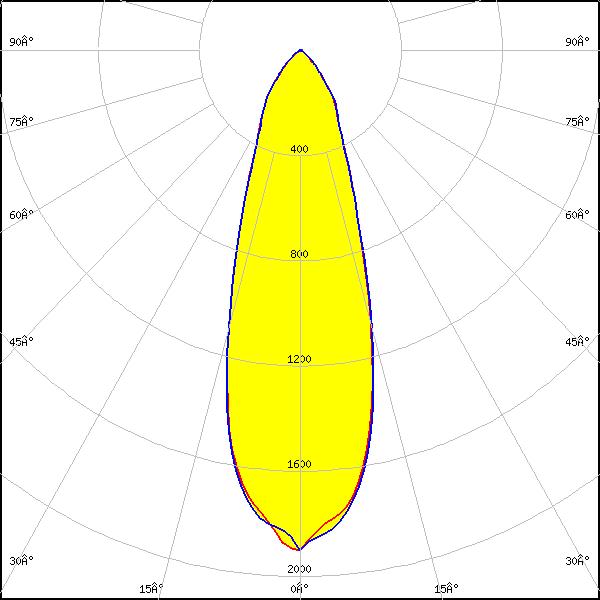

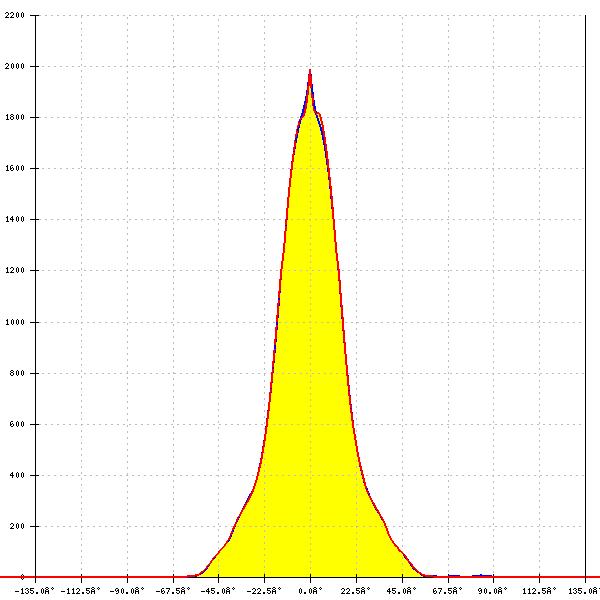

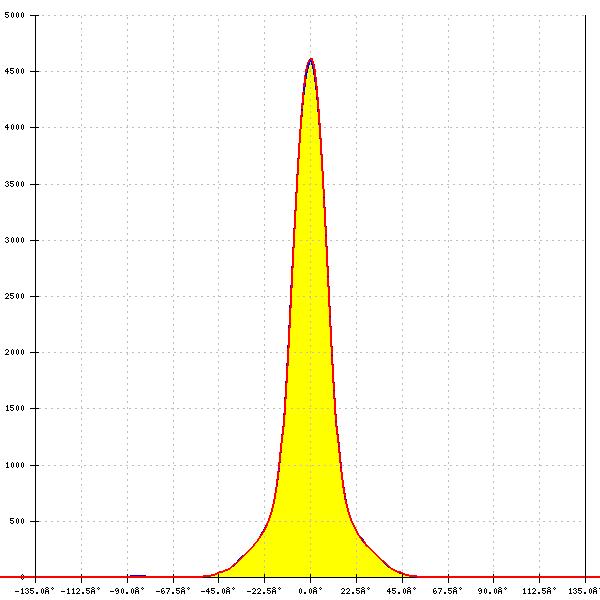

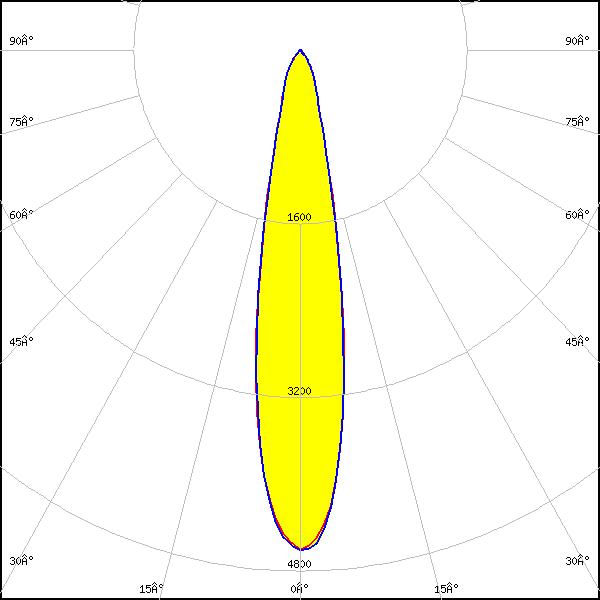

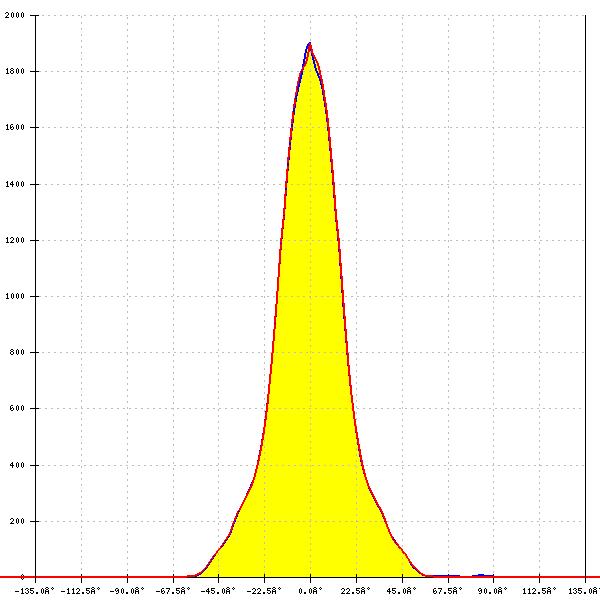

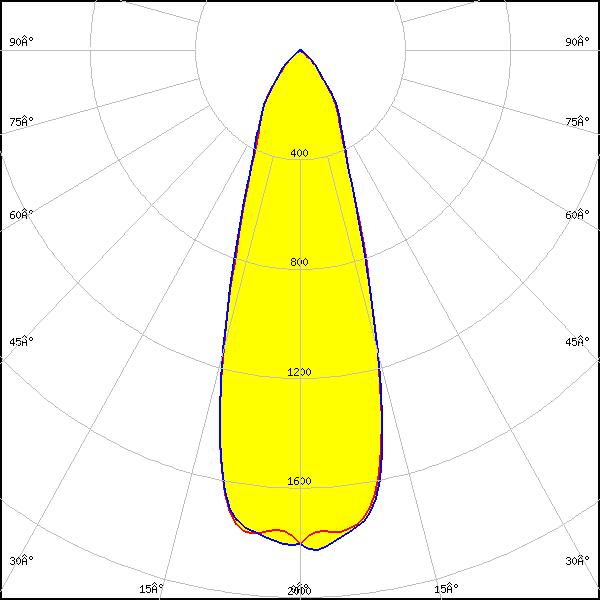

    LED: LUXEON 2835 Line
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 34°
    FWTM: 76°
    Peak intensity: 1.9 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour: White
    LED: LUXEON 5050 Square LES
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.4 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON 5050 Square LES
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 32°
    FWTM: 72°
    Peak intensity: 2.0 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White
    LED: Duris S8
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 33° + 34°
    FWTM: 72° + 72°
    Peak intensity: 1.9 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

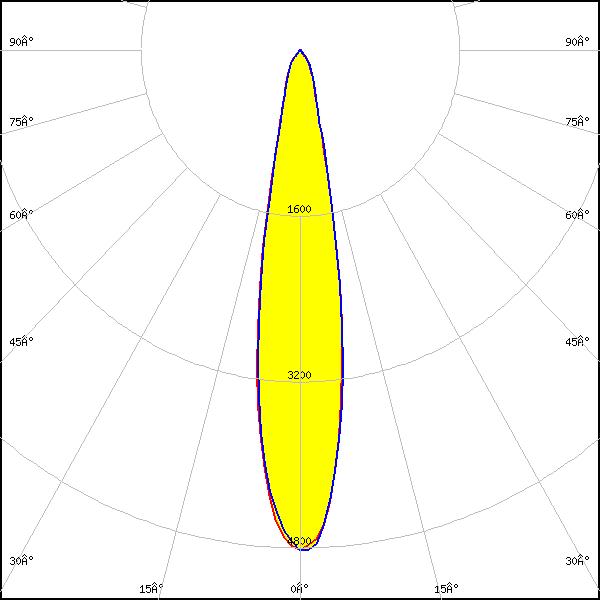

    LED: LH231B
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 20°
    FWTM: 39°
    Peak intensity: 4.8 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

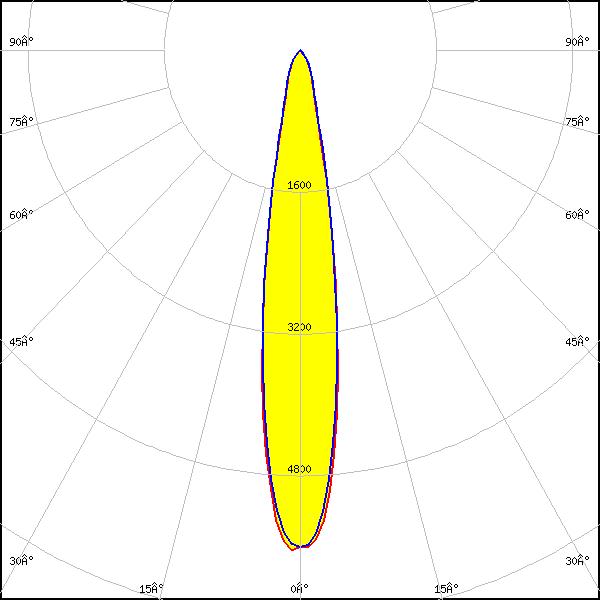

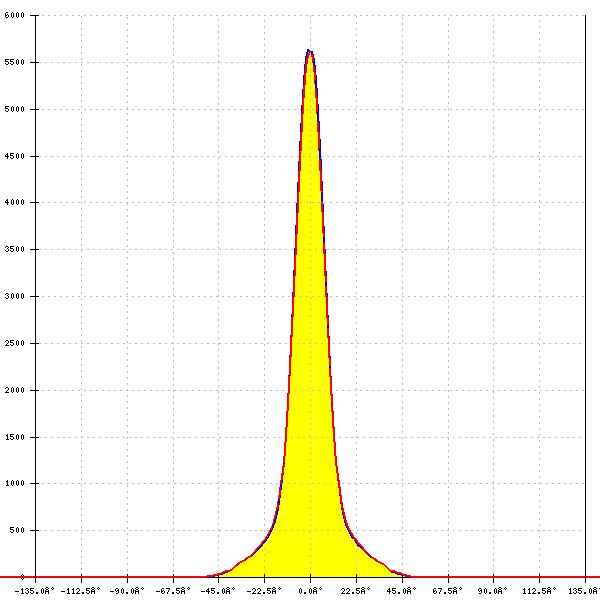

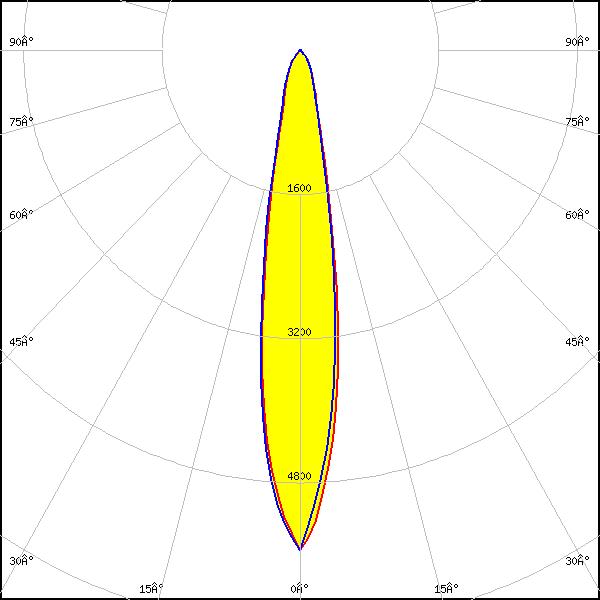

    LED: LM28xB Series
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 18°
    FWTM: 36°
    Peak intensity: 5.7 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

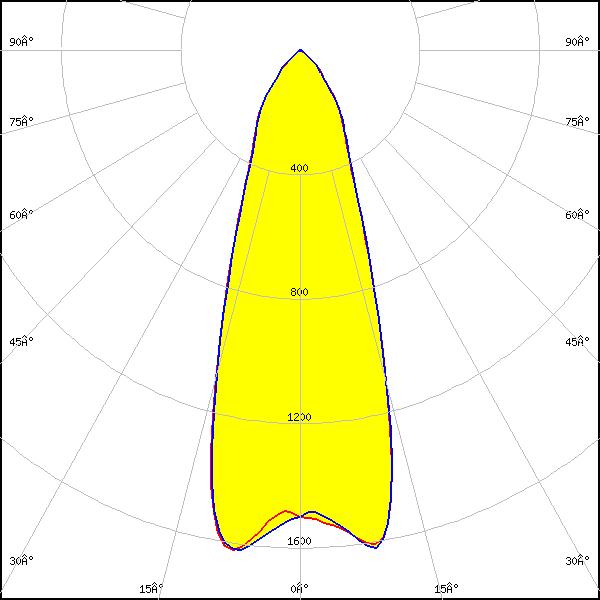

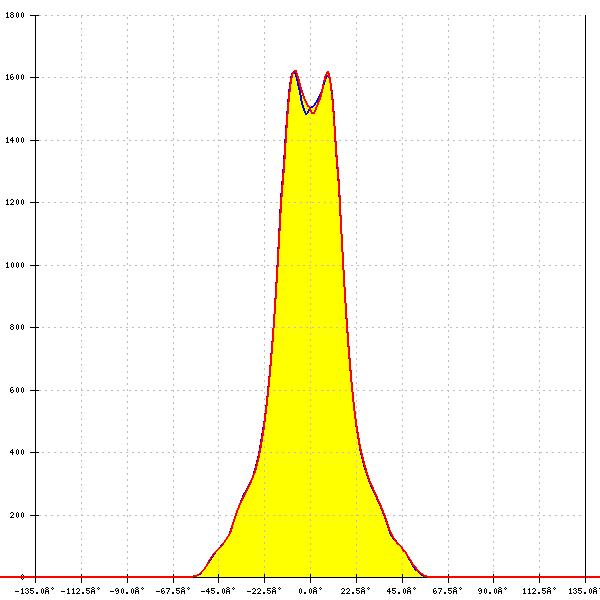

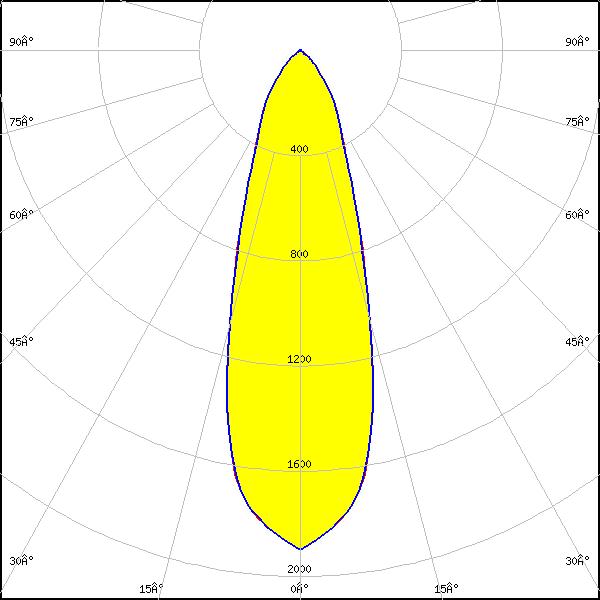

    LED: LM28xB Series
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 36°
    FWTM: 78°
    Peak intensity: 1.6 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 2
    Light colour: White
