DAISY-7X1-W2

Print

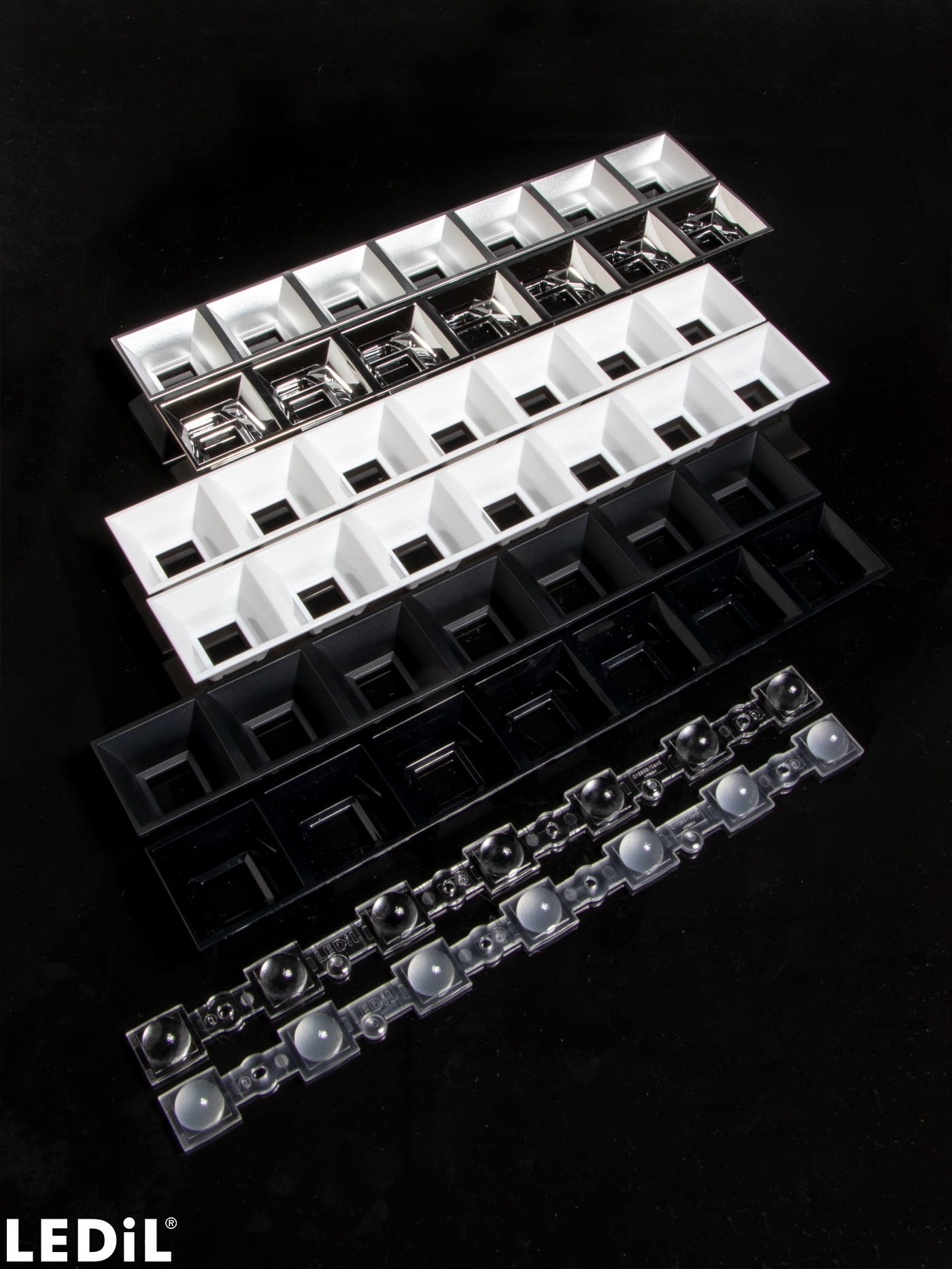

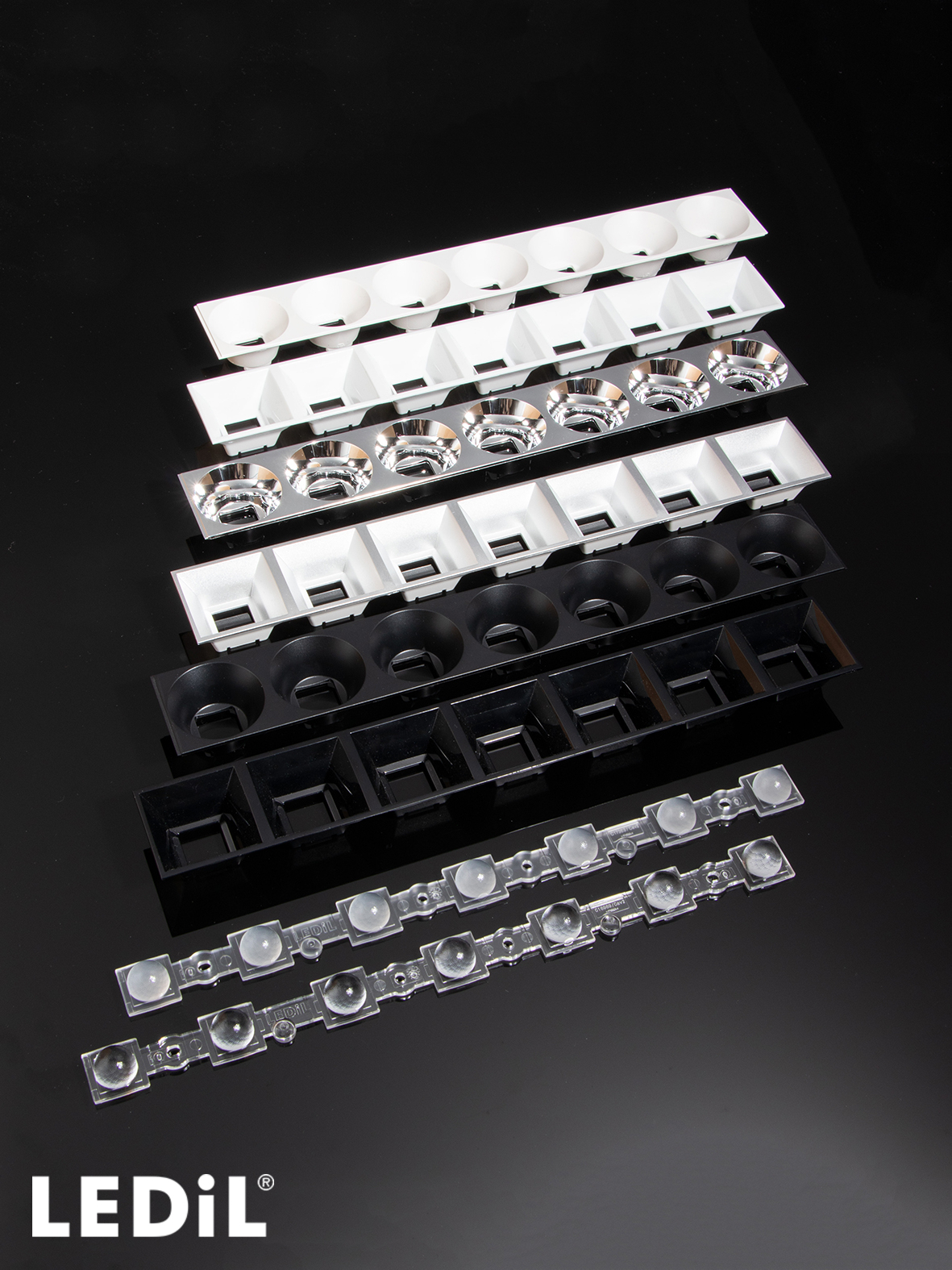

~50° wide beam with tighter cutoff

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    280 x  40 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C16989_DAISY-7X1-W2
    clear
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    7.00 kg
  • MPQ:
    24 pcs
  • MOQ:
    192 pcs
  • MOQ Size:
    400 x 300 x 185 mm
  • MOQ Weight:
    4.50 kg

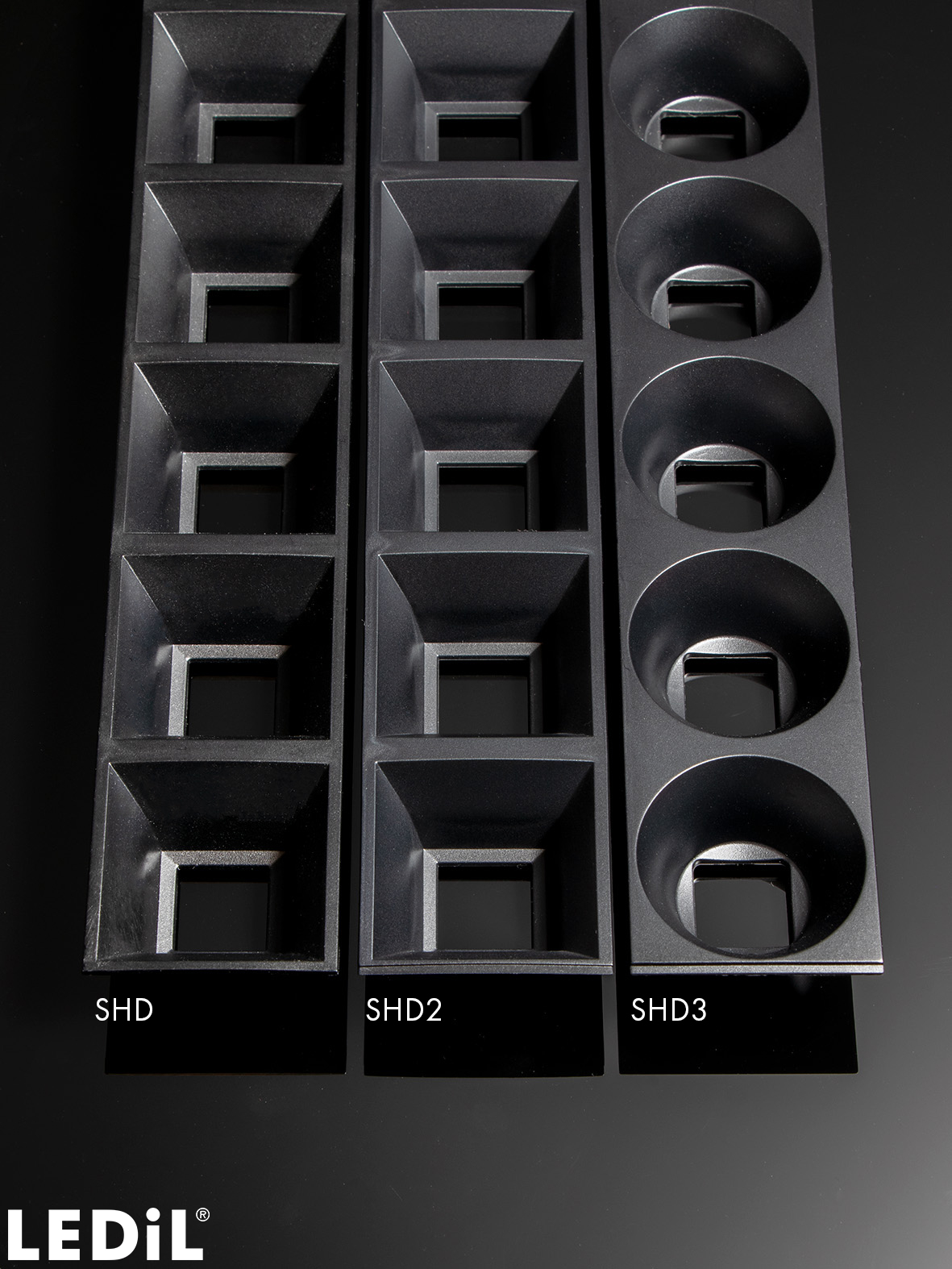

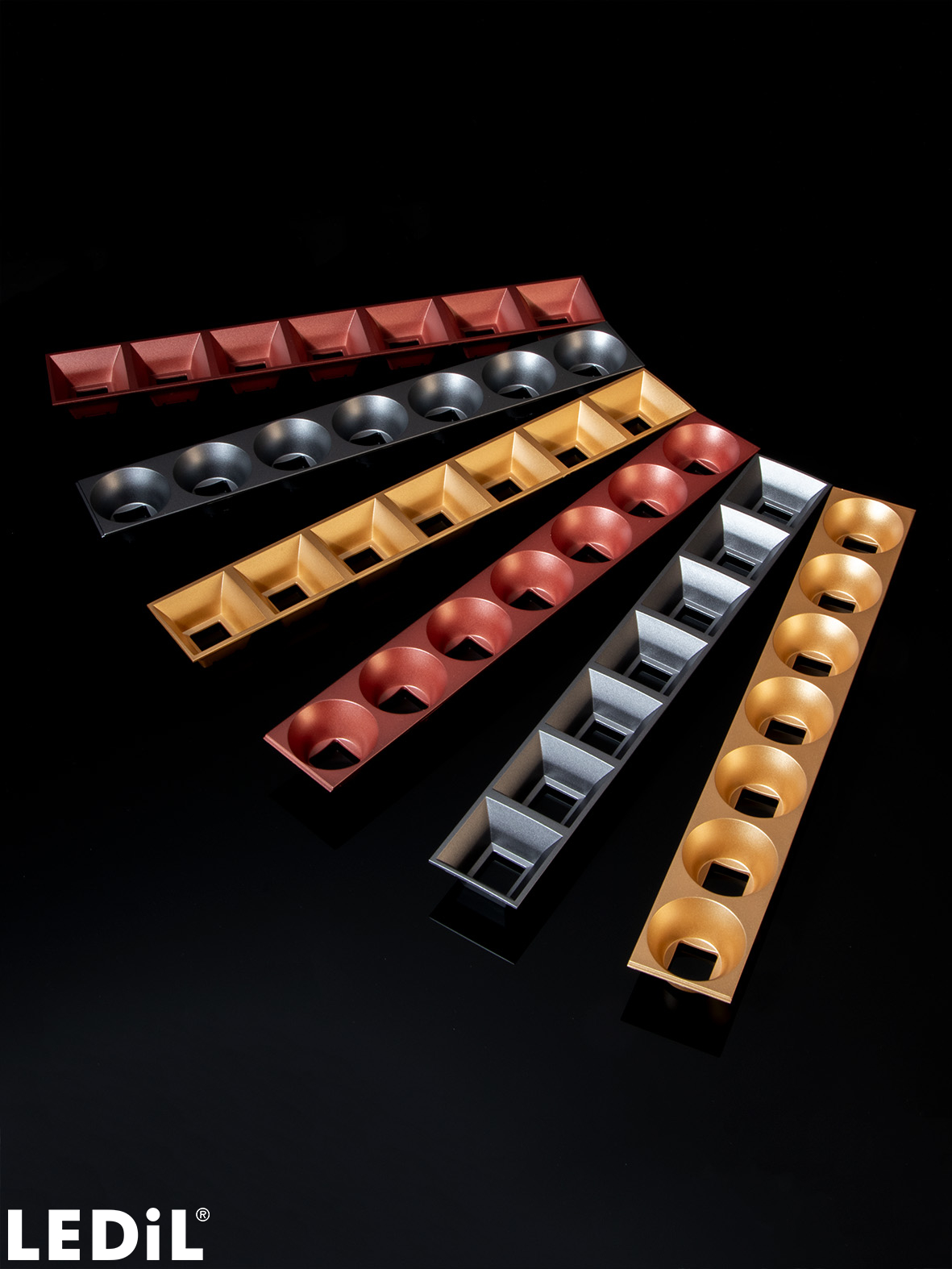

  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C17533_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    192 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    9.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C16989_DAISY-7X1-W2
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

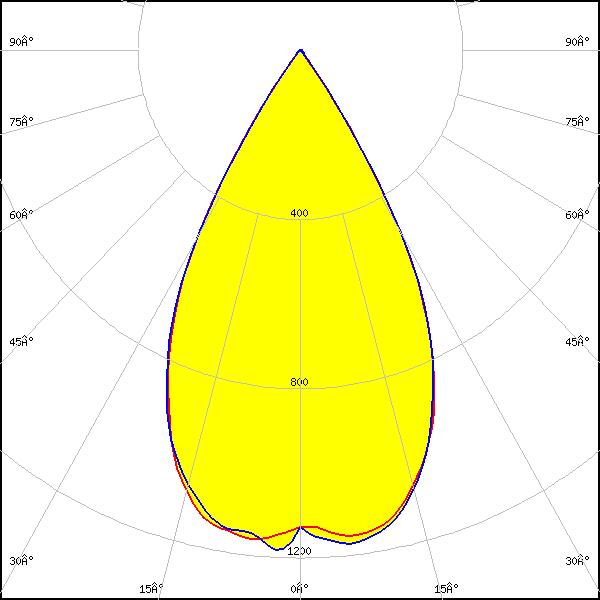

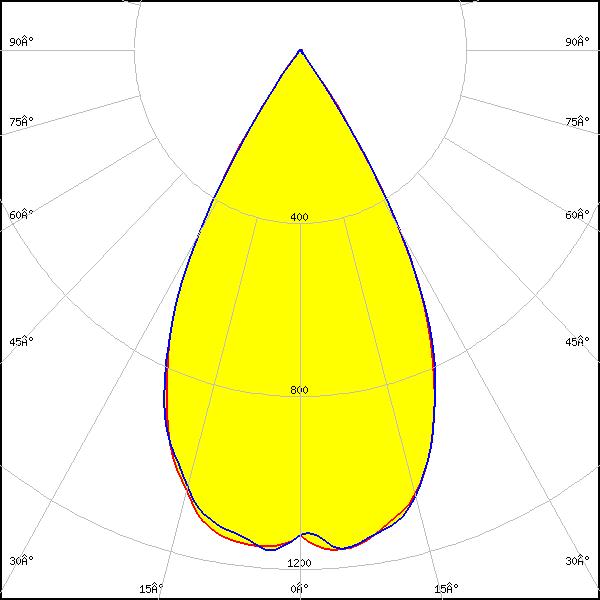

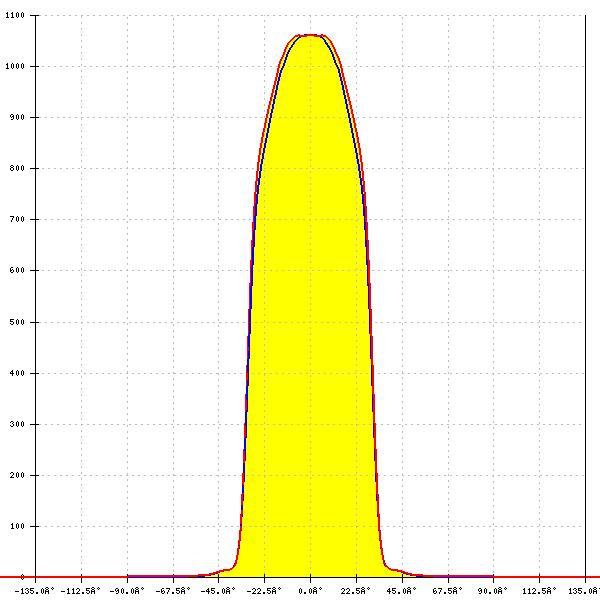

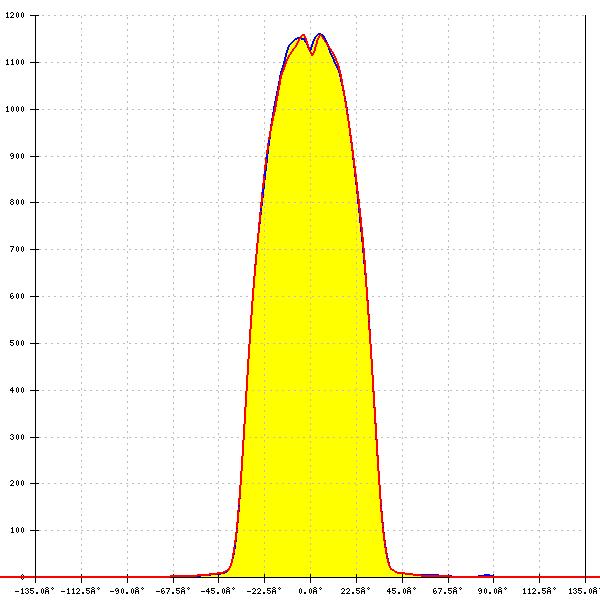

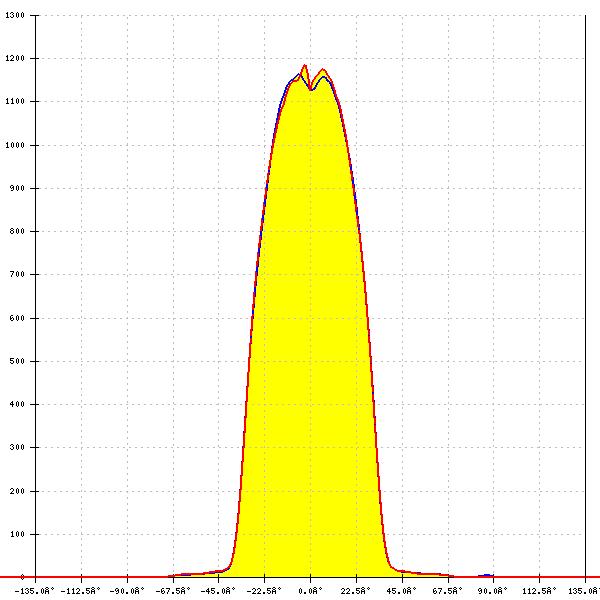

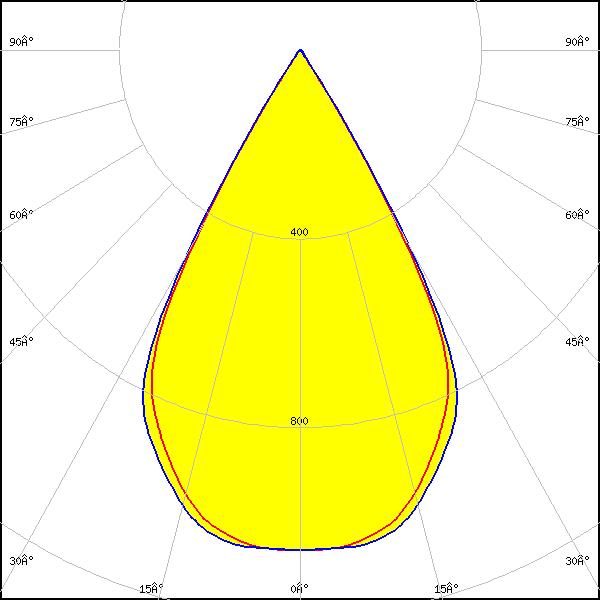

Optical results

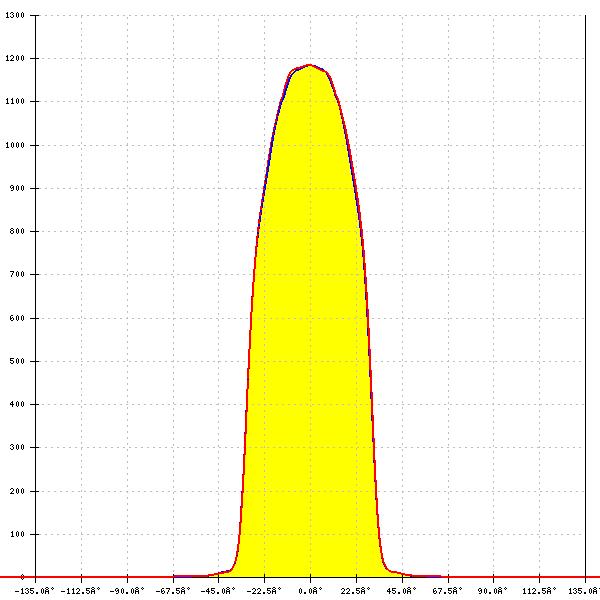

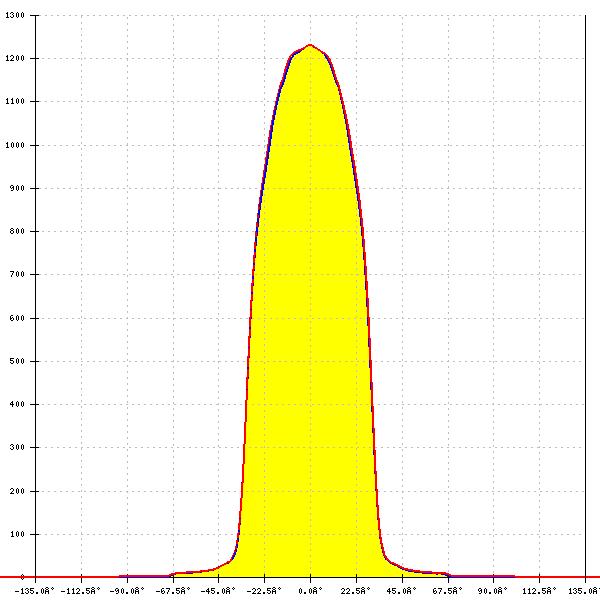

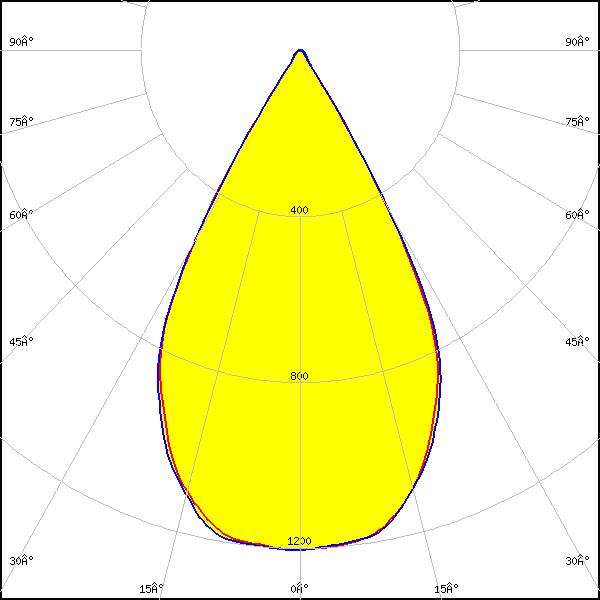

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.205 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

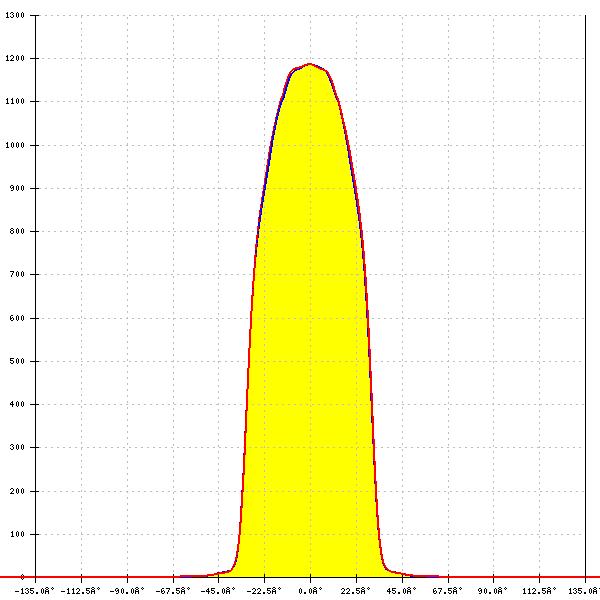

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.186 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White

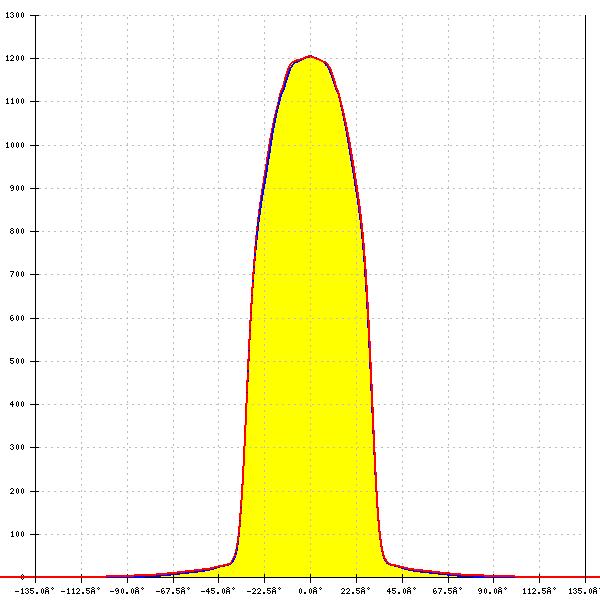

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.204 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 58°
FWTM: 69°
Peak intensity: 1.230 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

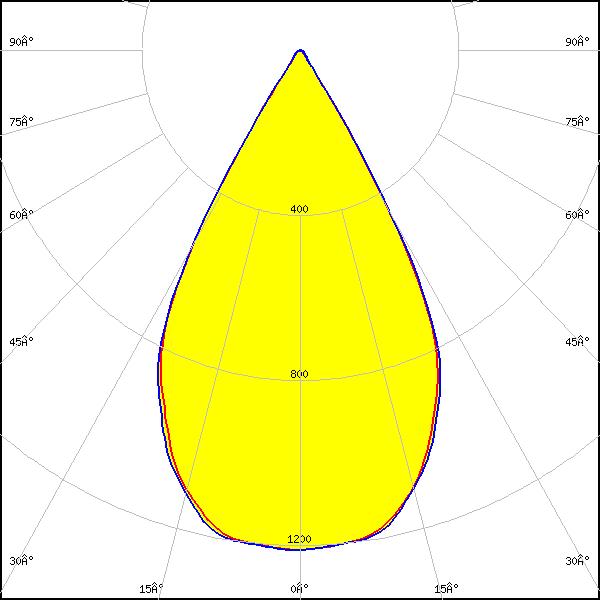

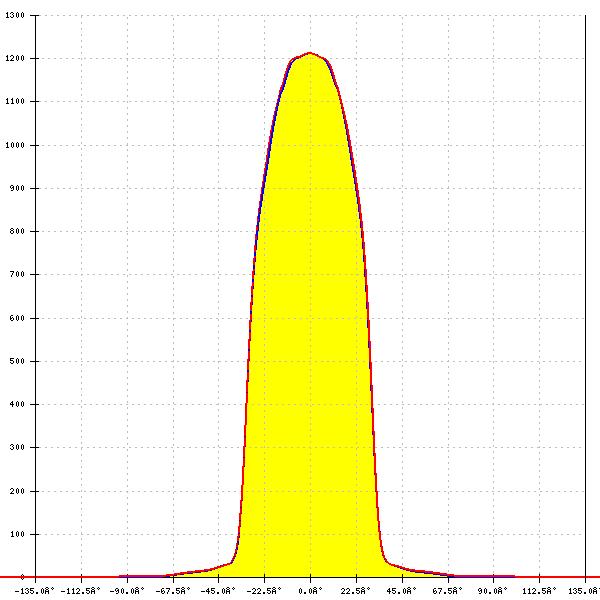

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.212 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White

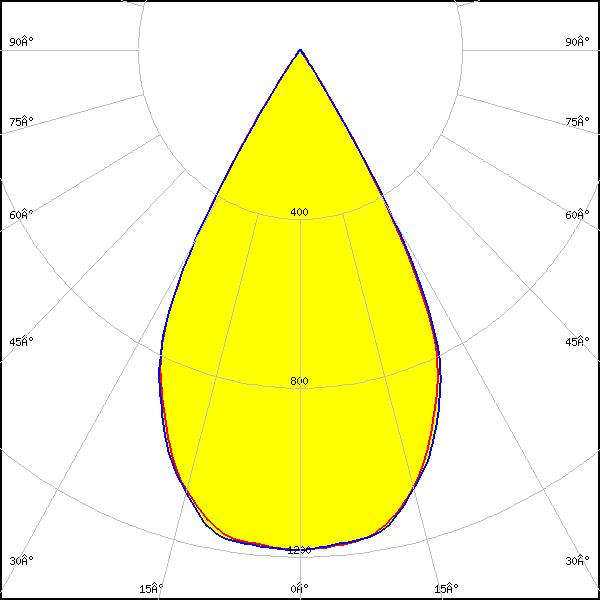

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16872_DAISY-7X1-SHD
FWHM: 58°
FWTM: 68°
Peak intensity: 1.184 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White

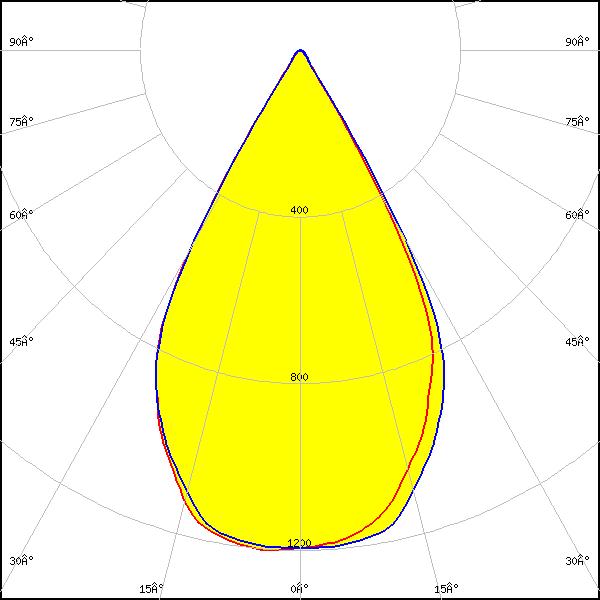

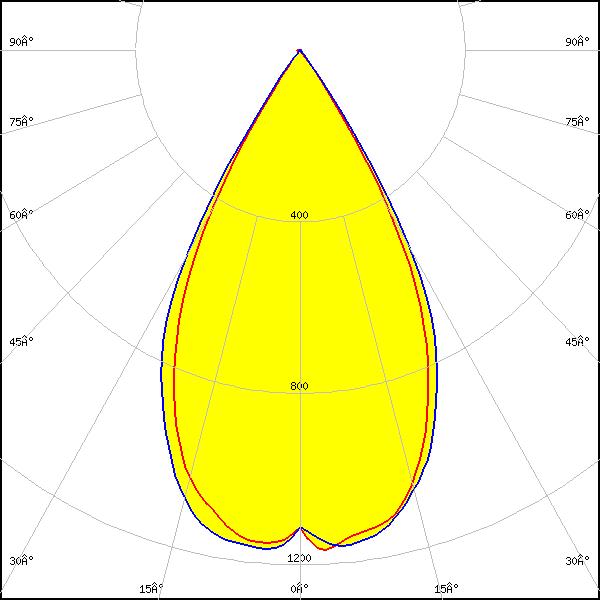

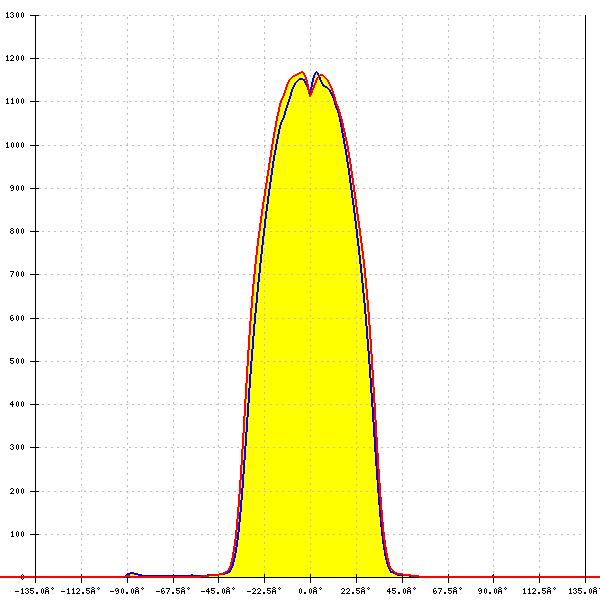

LED: J Series 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: 58°
FWTM: 72°
Peak intensity: 1.173 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White
LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 58°
FWTM: 68°
Peak intensity: 1.184 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White

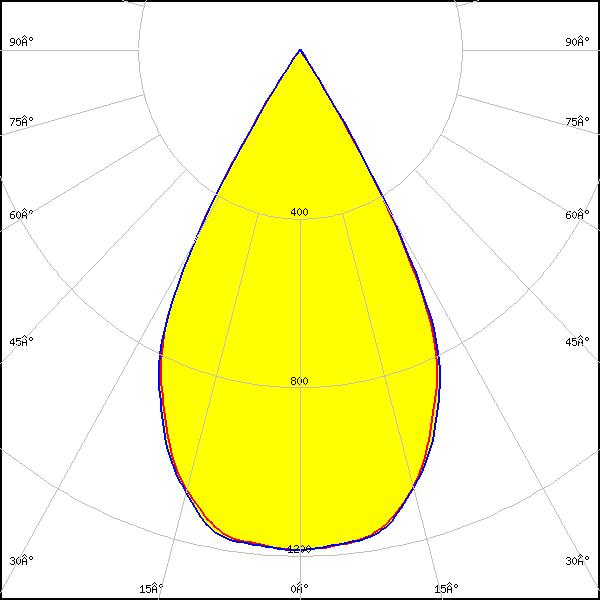

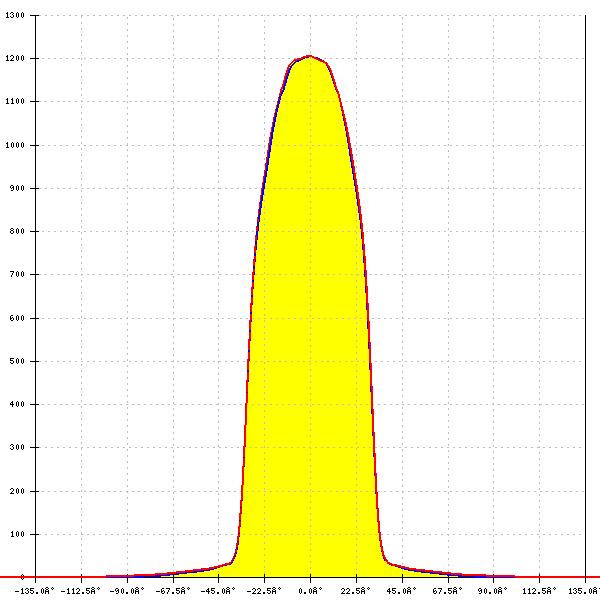

LED: LUXEON 2835 Line
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 58°
FWTM: 69°
Peak intensity: 1.205 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White
LED: LUXEON 2835 Line
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.186 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White

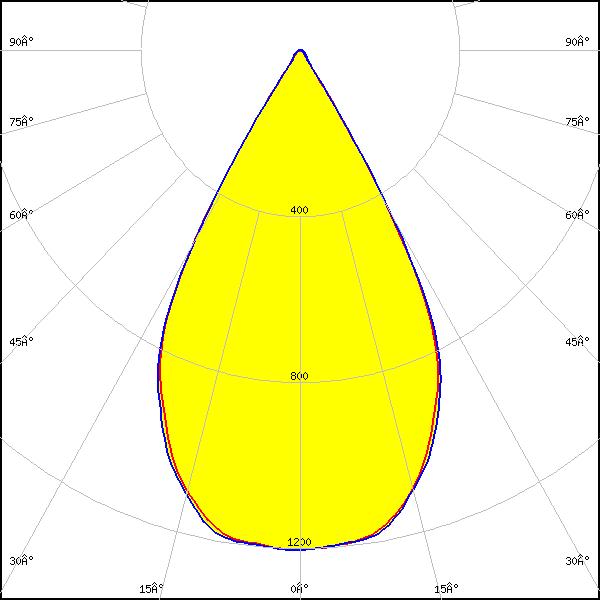

LED: LUXEON 2835 Line
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 58°
FWTM: 69°
Peak intensity: 1.204 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

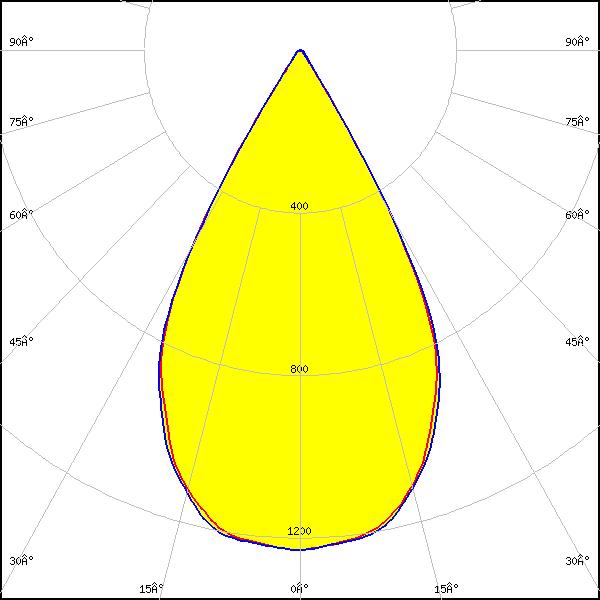

LED: LUXEON 2835 Line
Required components:
C17532_DAISY-7X1-SHD-MET
FWHM: 58°
FWTM: 69°
Peak intensity: 1.230 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White
LED: LUXEON 2835 Line
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 58°
FWTM: 69°
Peak intensity: 1.212 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White

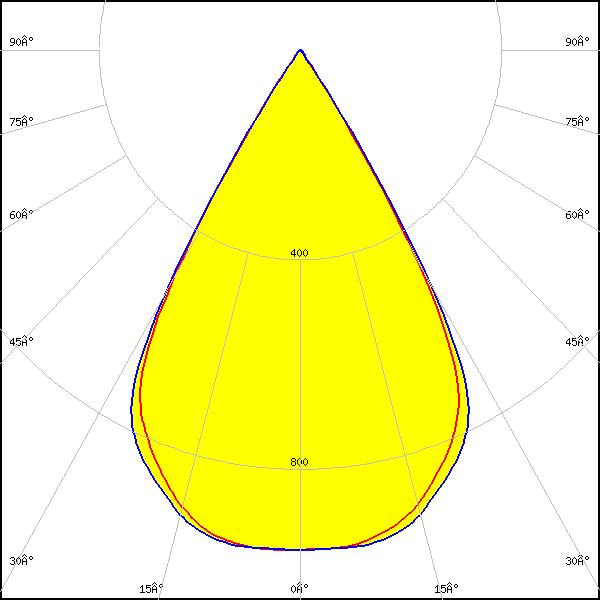

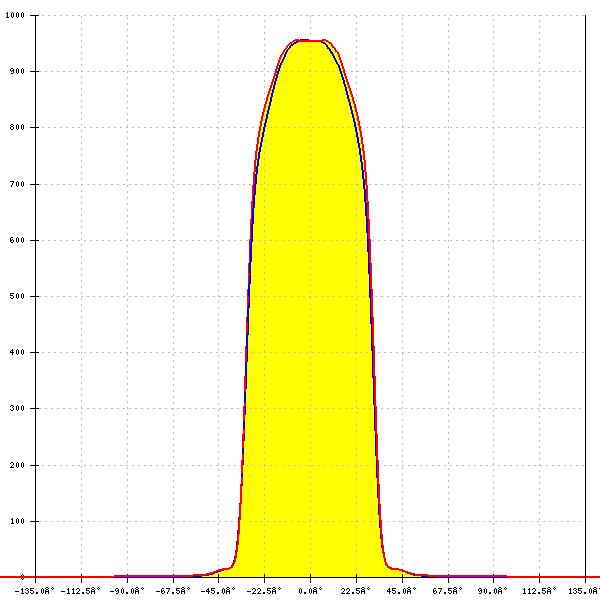

LED: Opticus Daisy M L28W2
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 61°
FWTM: 70°
Peak intensity: 0.958 cd/lm
Efficiency: 82 %
LEDs/each optic: 4
Light colour: White

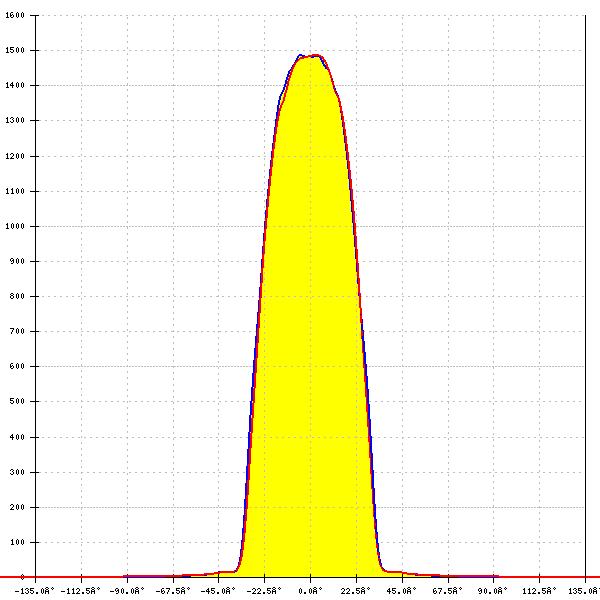

LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 59°
FWTM: 69°
Peak intensity: 1.130 cd/lm
Efficiency: 84 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 59°
FWTM: 69°
Peak intensity: 1.139 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 59°
FWTM: 69°
Peak intensity: 1.115 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 59°
FWTM: 69°
Peak intensity: 1.134 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 59°
FWTM: 69°
Peak intensity: 1.145 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V Opt G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 59°
FWTM: 70°
Peak intensity: 1.159 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: White

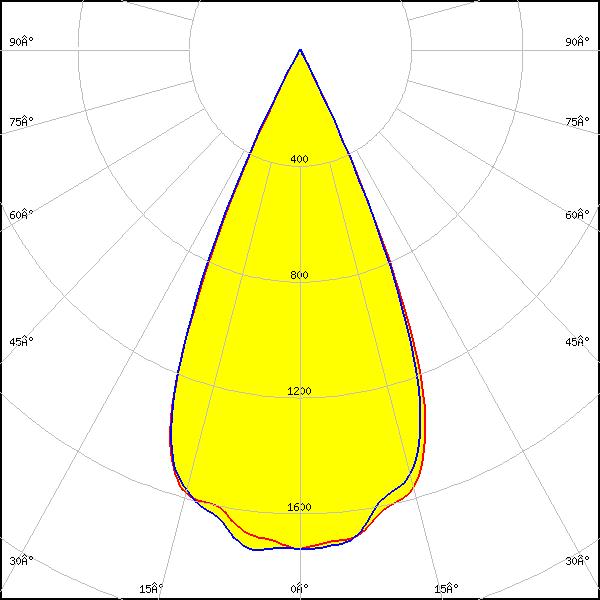

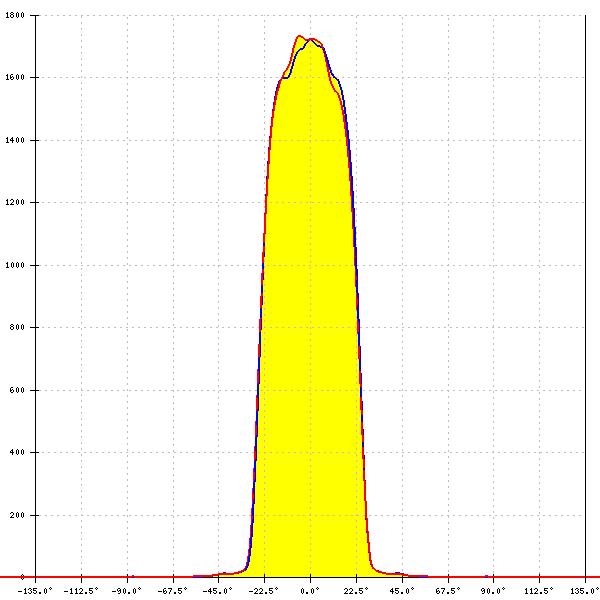

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 47°
FWTM: 57°
Peak intensity: 1.733 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

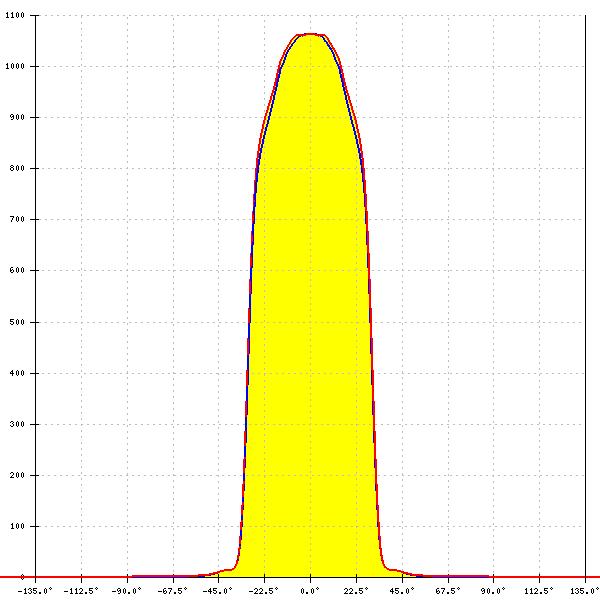

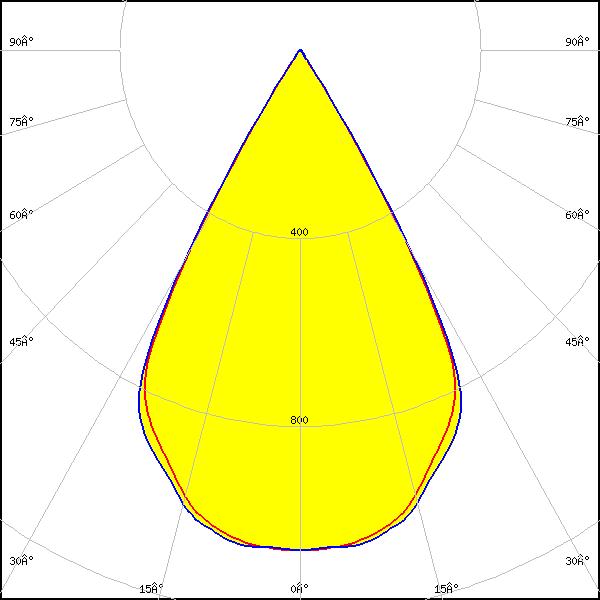

LED: PL-LIN-2000 280x24mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 59°
FWTM: 67°
Peak intensity: 1.073 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour: White

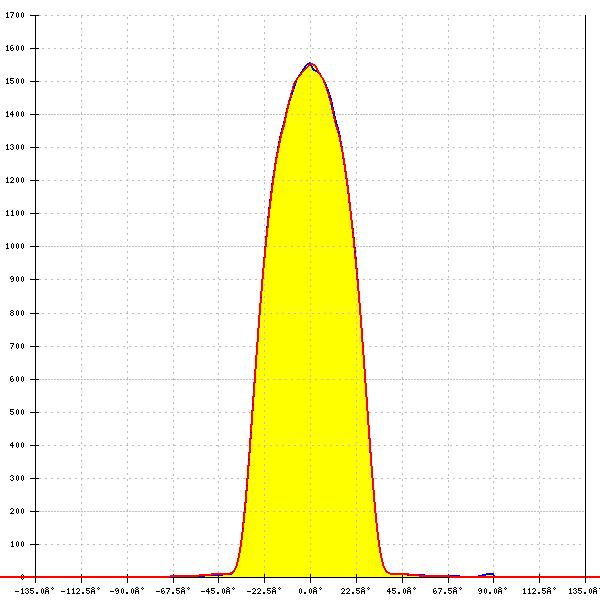

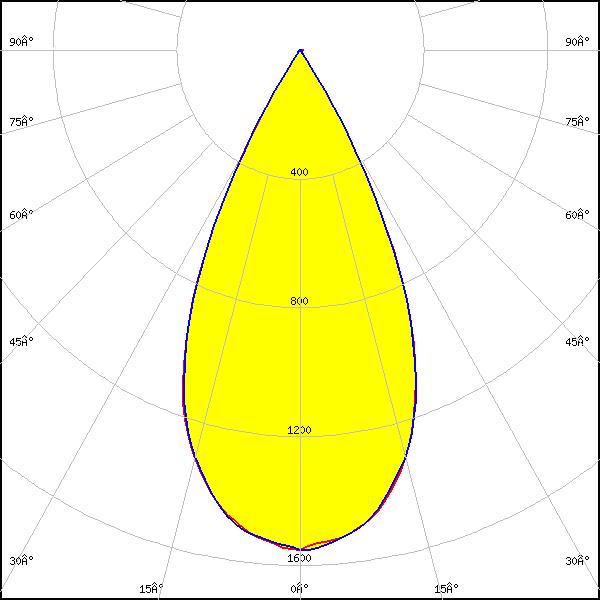

LED: LM28xB Series
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 50°
FWTM: 66°
Peak intensity: 1.559 cd/lm
Efficiency: 92 %
LEDs/each optic: 2
Light colour: White

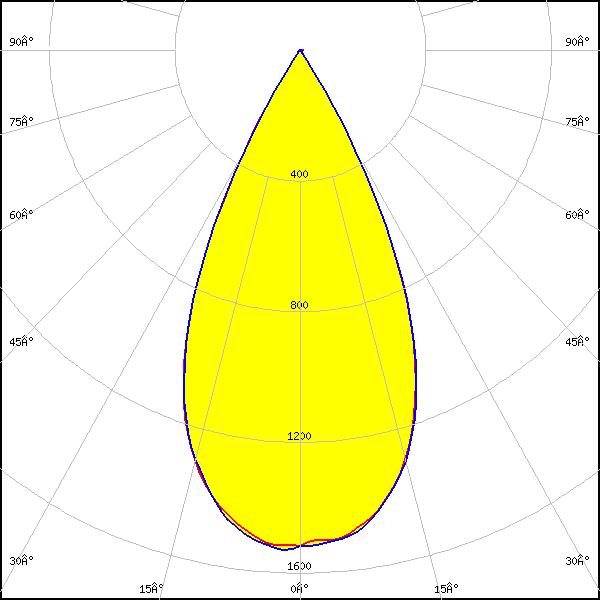

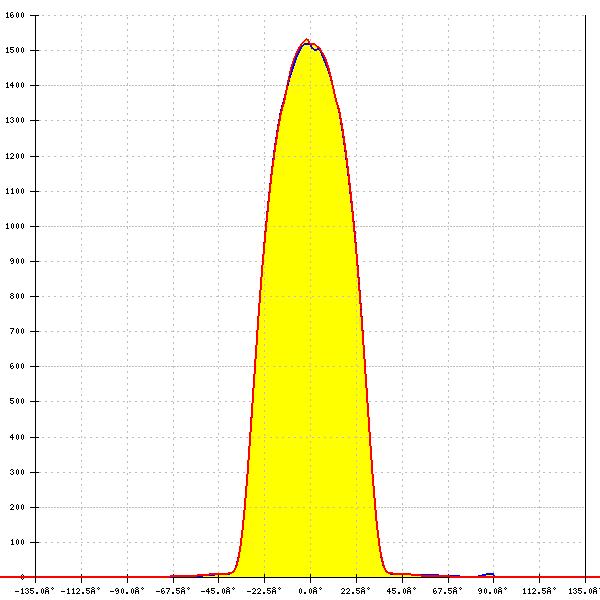

LED: LM28xB Series
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 50°
FWTM: 66°
Peak intensity: 1.541 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour: White

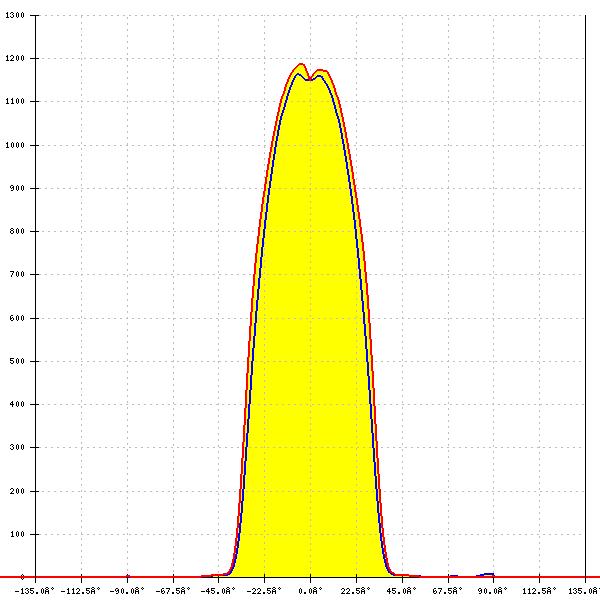

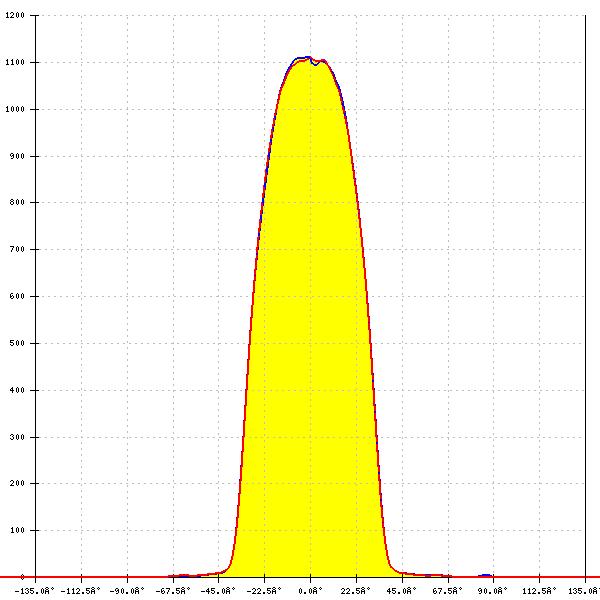

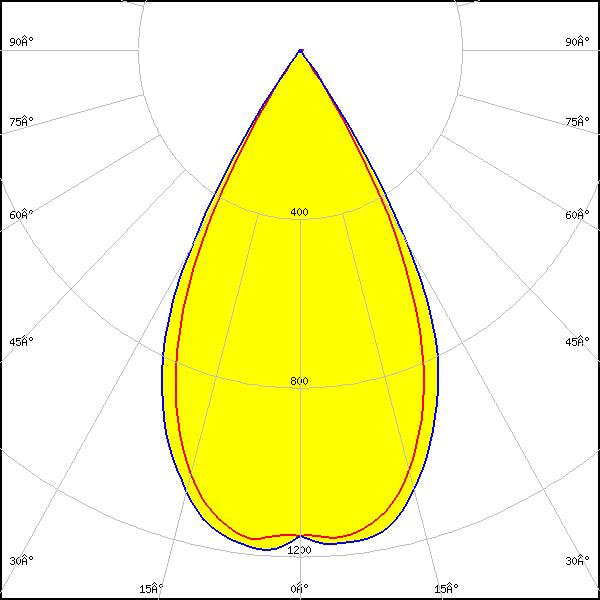

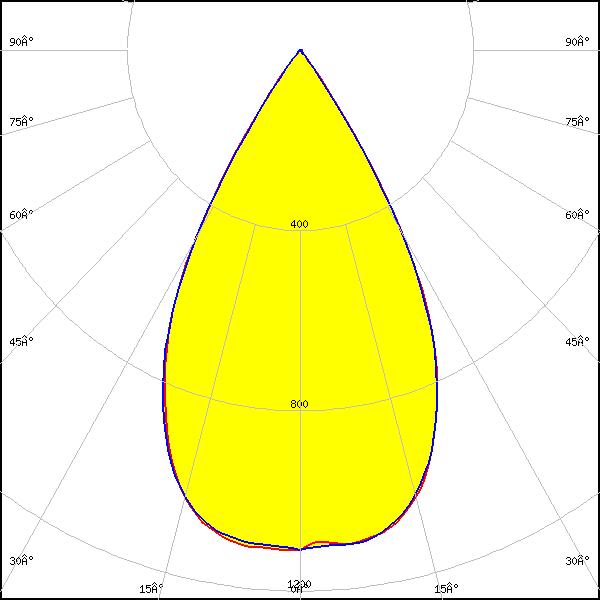

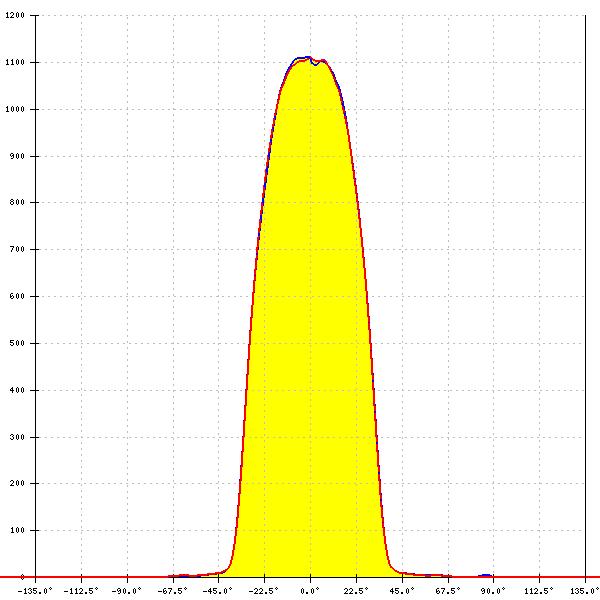

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 56°
FWTM: 70°
Peak intensity: 1.202 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White

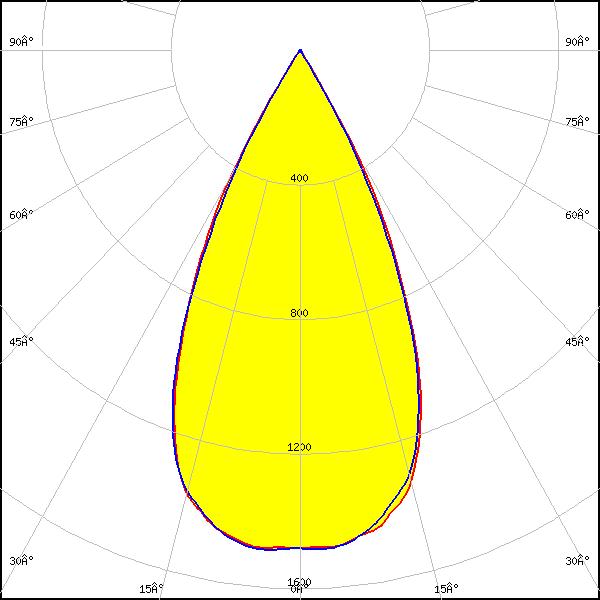

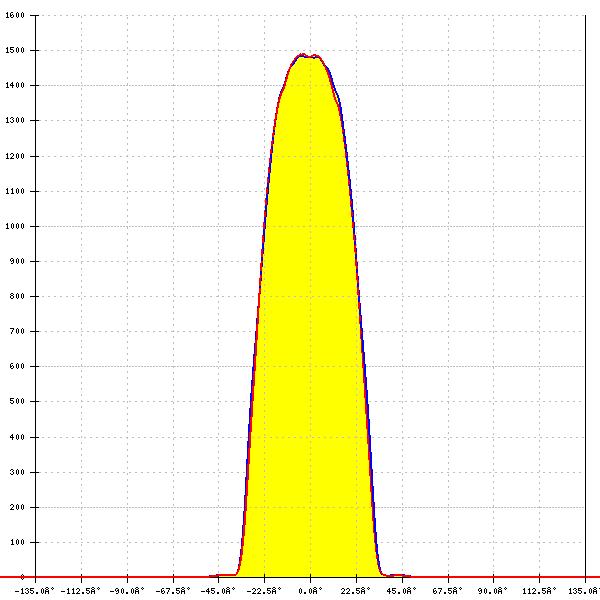

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 51°
FWTM: 65°
Peak intensity: 1.497 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

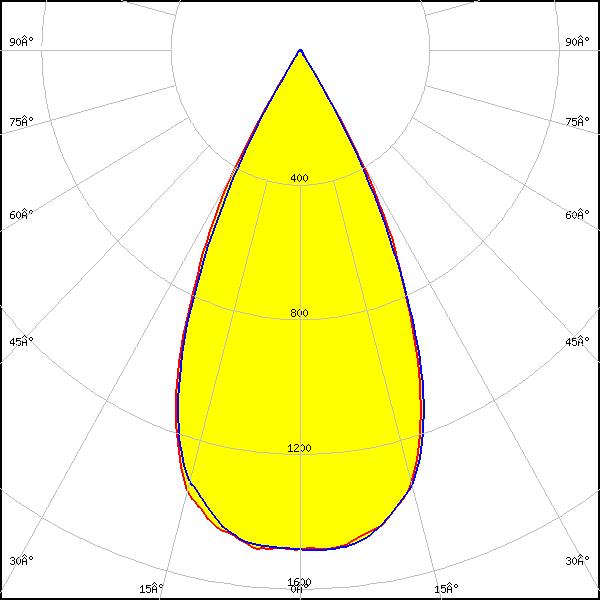

LED: LM28xB Series
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 51°
FWTM: 65°
Peak intensity: 1.493 cd/lm
Efficiency: 92 %
LEDs/each optic: 2
Light colour: White

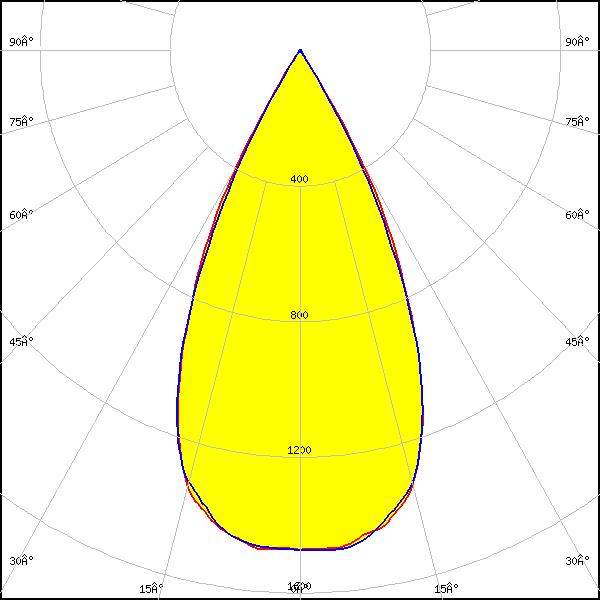

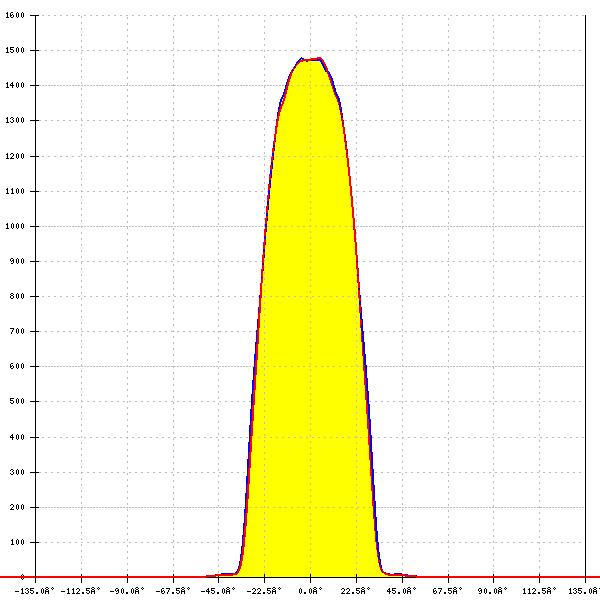

LED: LM28xB Series
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 50°
FWTM: 65°
Peak intensity: 1.482 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour: White

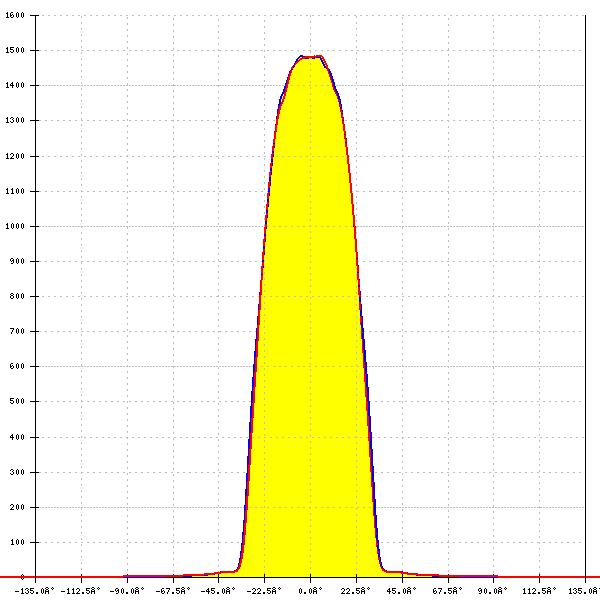

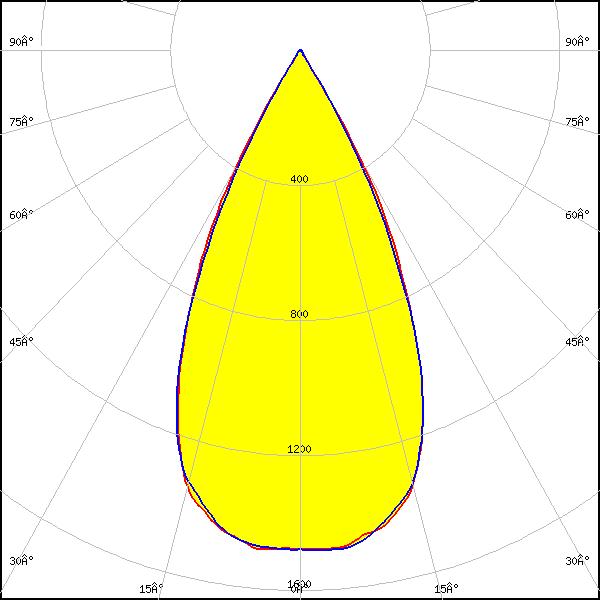

LED: LM28xB Series
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 51°
FWTM: 65°
Peak intensity: 1.489 cd/lm
Efficiency: 92 %
LEDs/each optic: 2
Light colour: White

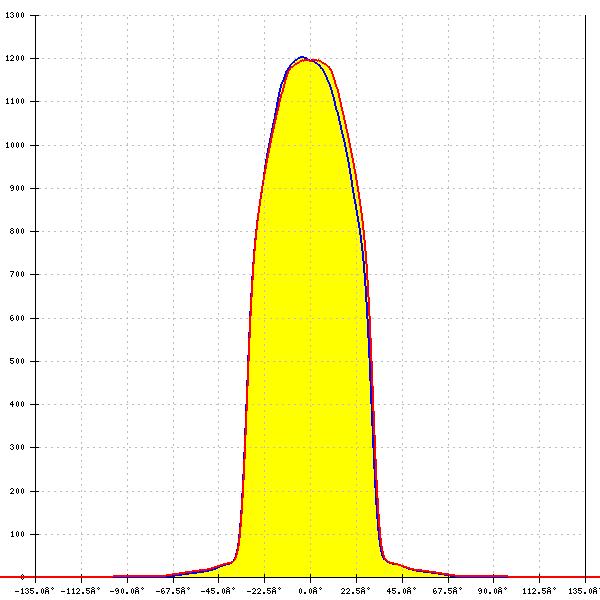

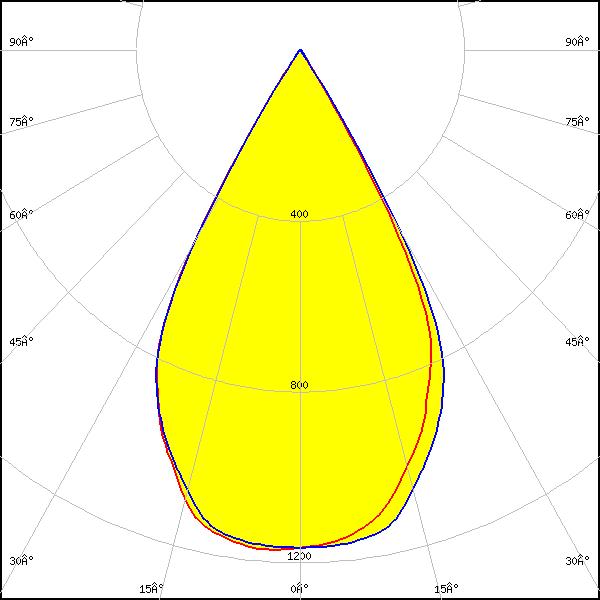

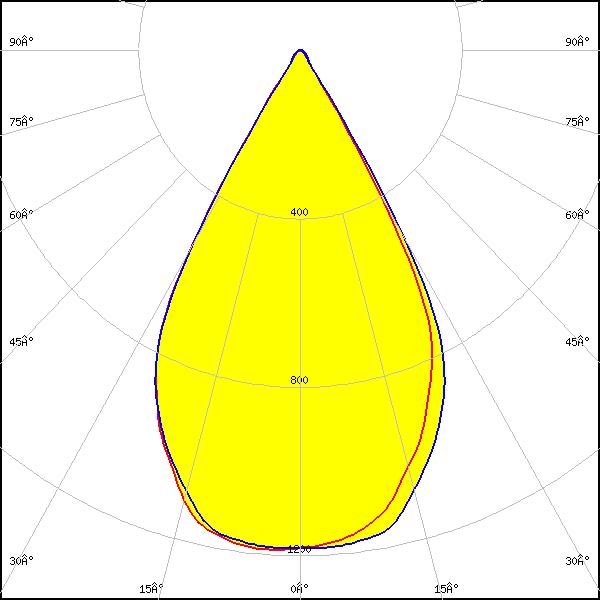

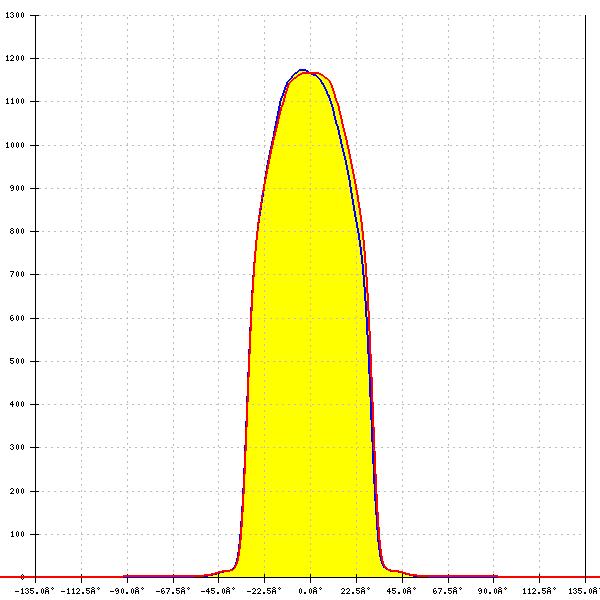

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 58°
FWTM: 67°
Peak intensity: 1.174 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.191 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: White

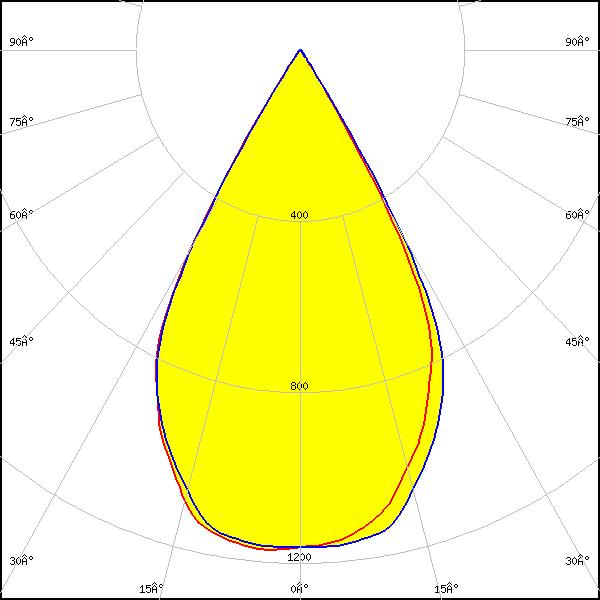

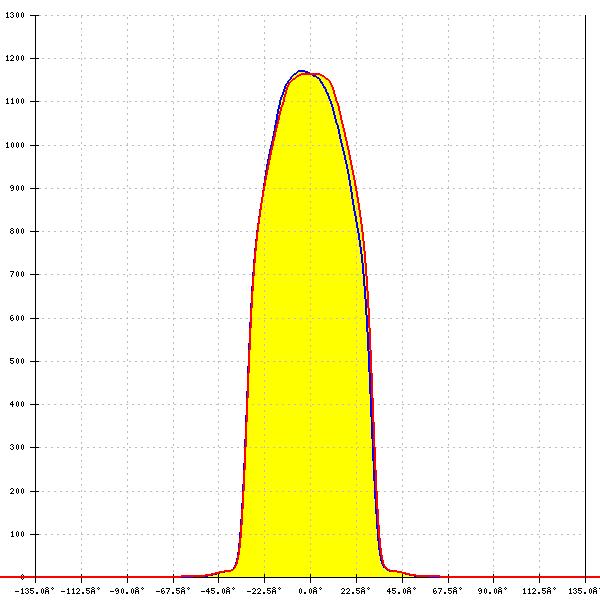

LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.172 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.192 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 58°
FWTM: 68°
Peak intensity: 1.214 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 58°
FWTM: 68°
Peak intensity: 1.204 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

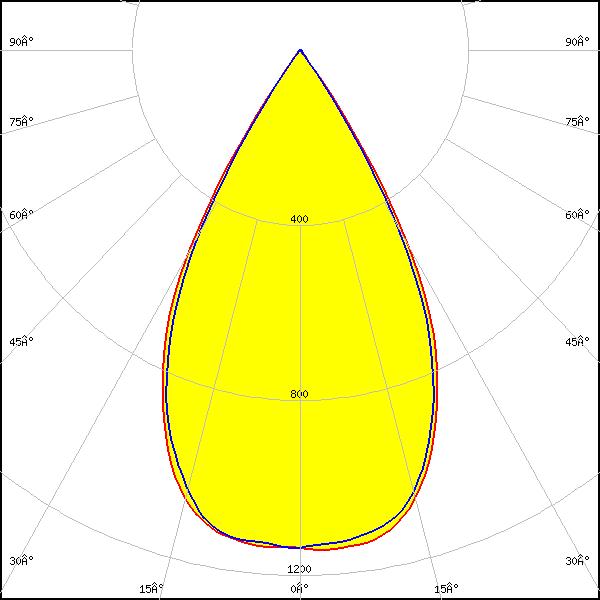

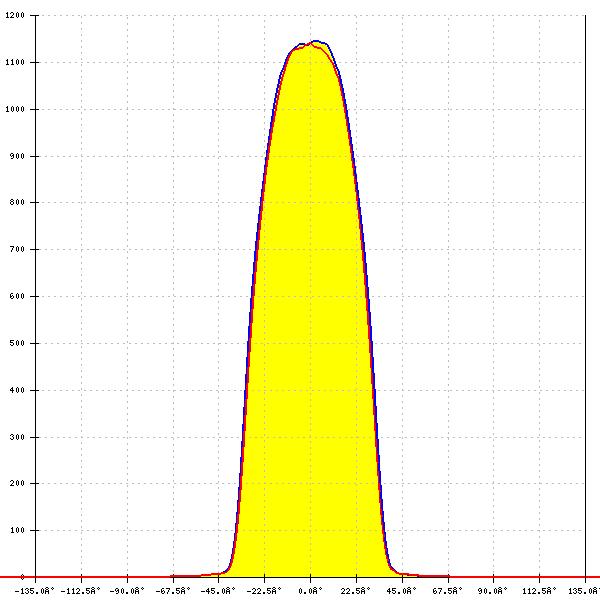

LED: SEOUL DC 3030C
Required components:
C16872_DAISY-7X1-SHD
FWHM: 57°
FWTM: 72°
Peak intensity: 1.150 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour: White

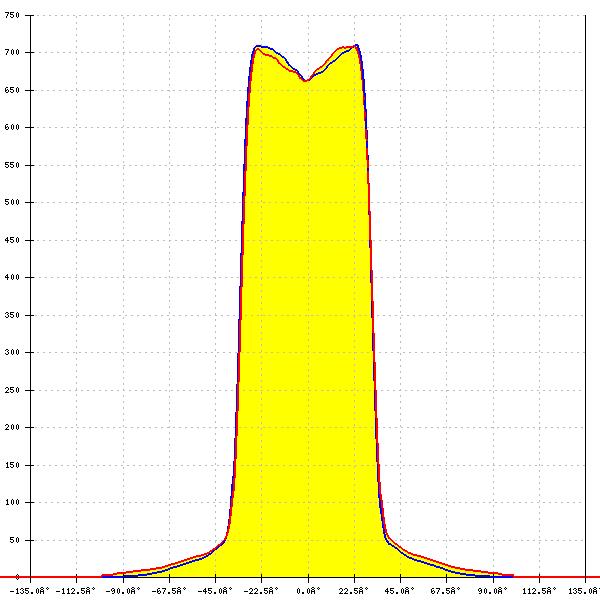

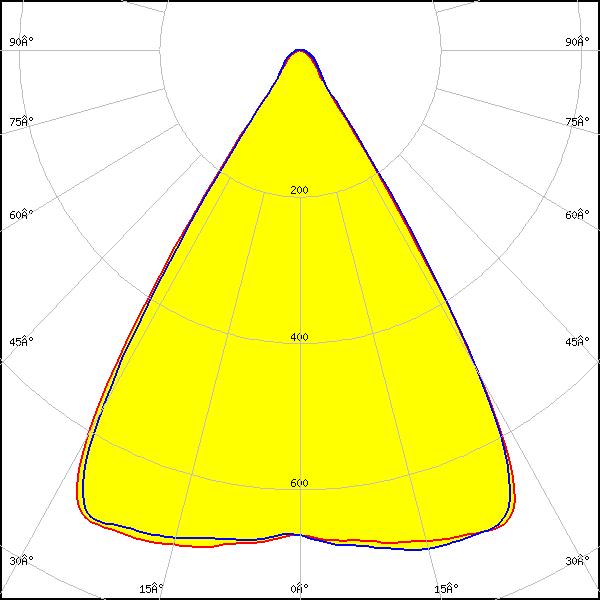

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 65°
FWTM: 75°
Peak intensity: 0.763 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White

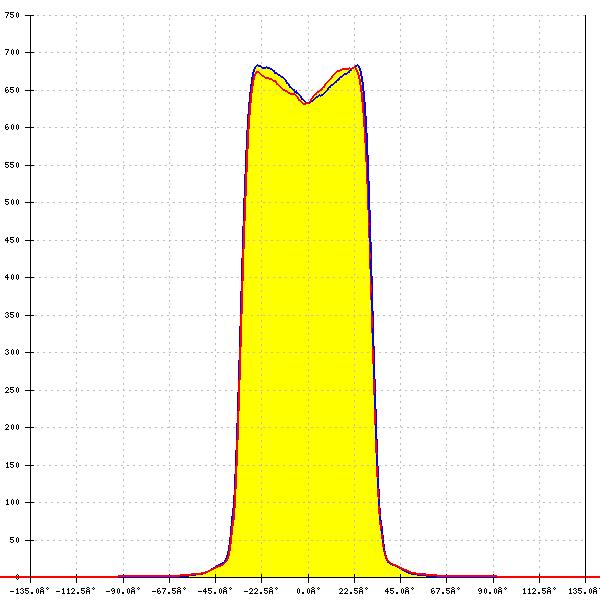

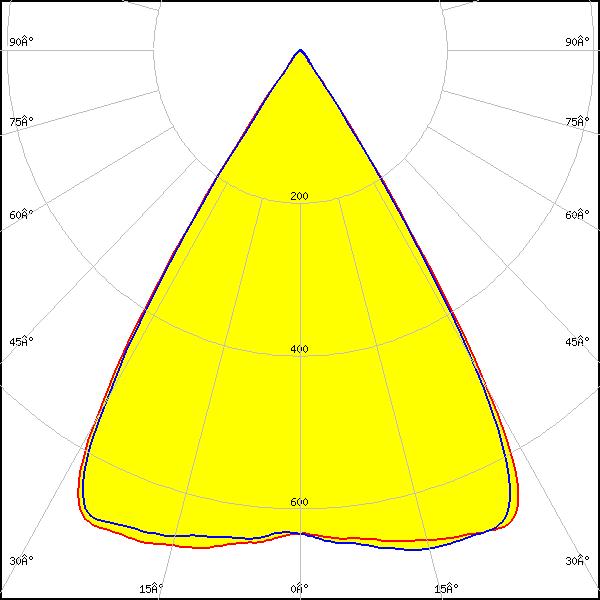

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 65°
FWTM: 73°
Peak intensity: 0.738 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour: White

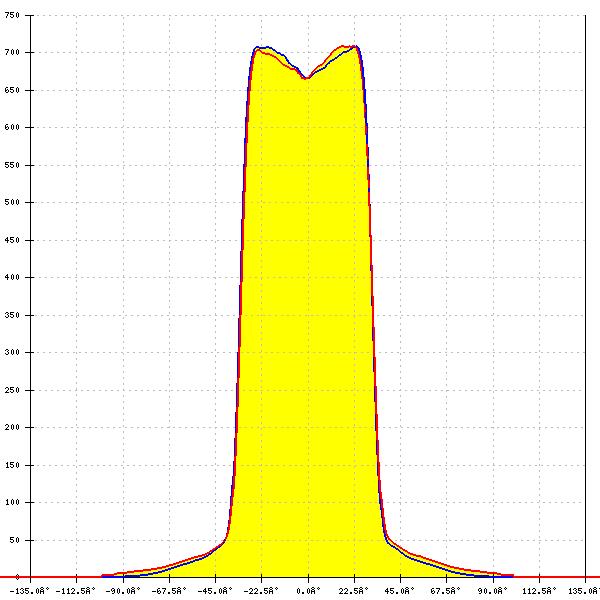

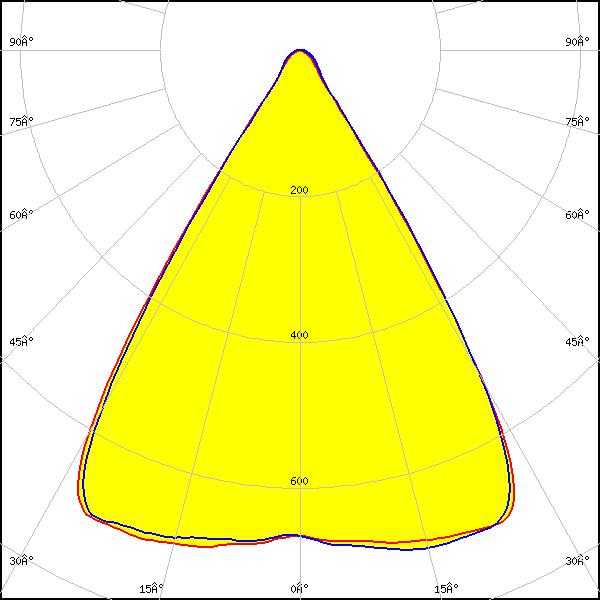

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 65°
FWTM: 75°
Peak intensity: 0.760 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White

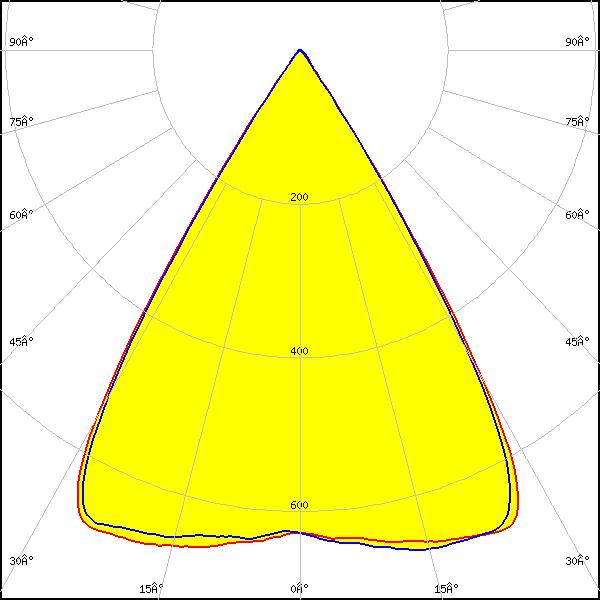

LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16872_DAISY-7X1-SHD
FWHM: 64°
FWTM: 72°
Peak intensity: 0.739 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour: White

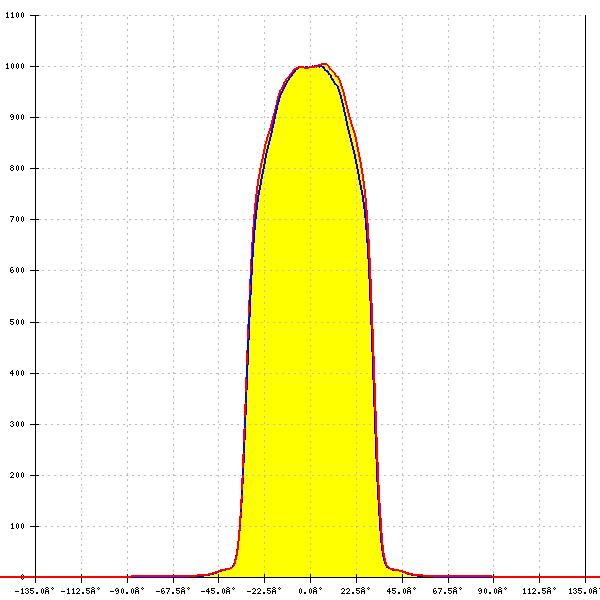

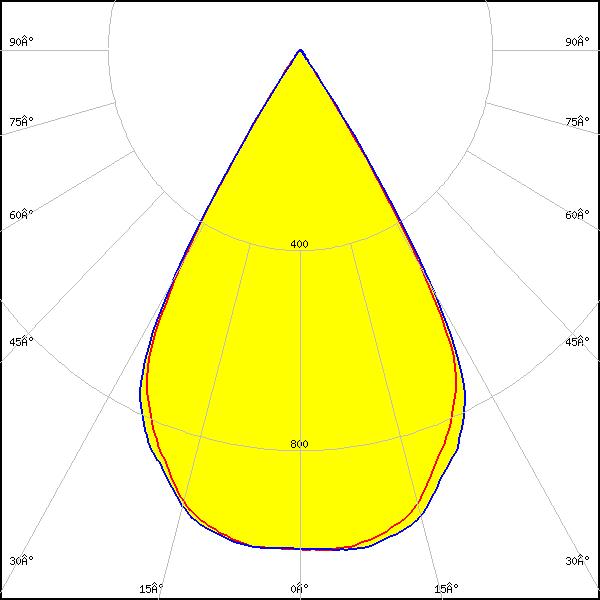

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 60°
FWTM: 69°
Peak intensity: 1.005 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

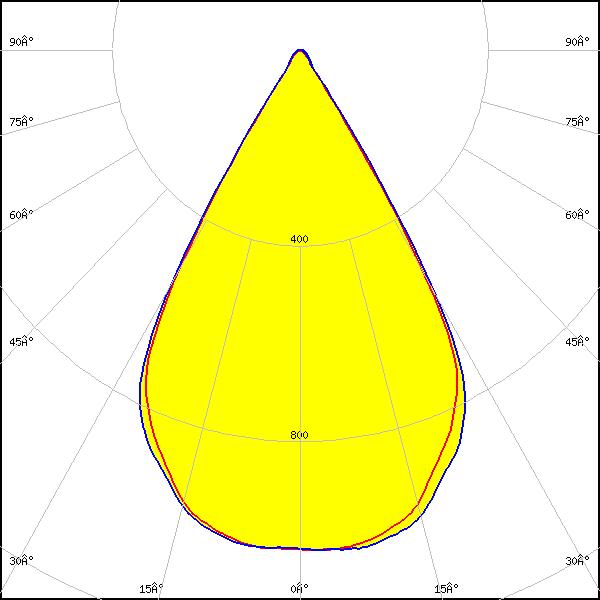

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 60°
FWTM: 70°
Peak intensity: 1.028 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 60°
FWTM: 69°
Peak intensity: 1.005 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour: White

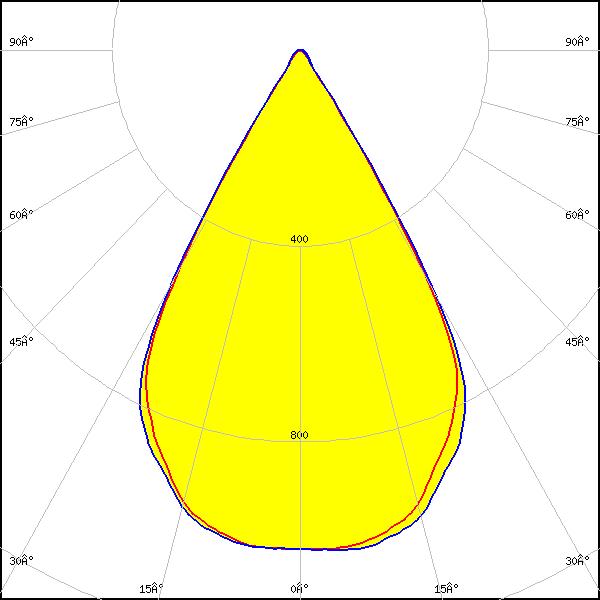

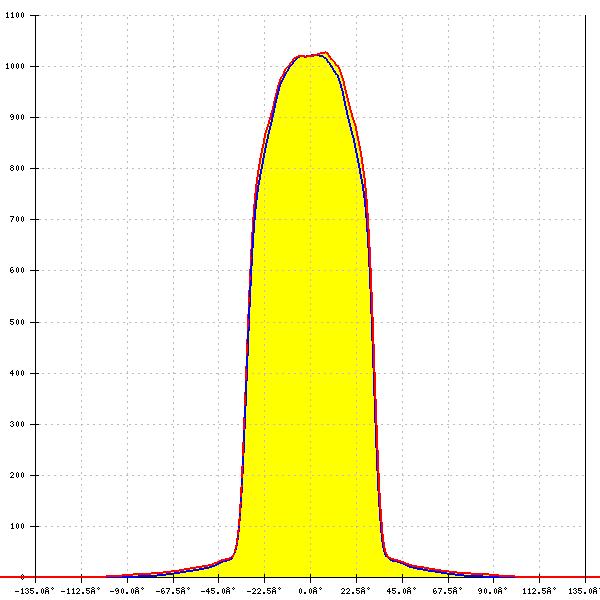

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 61°
FWTM: 70°
Peak intensity: 1.027 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White
