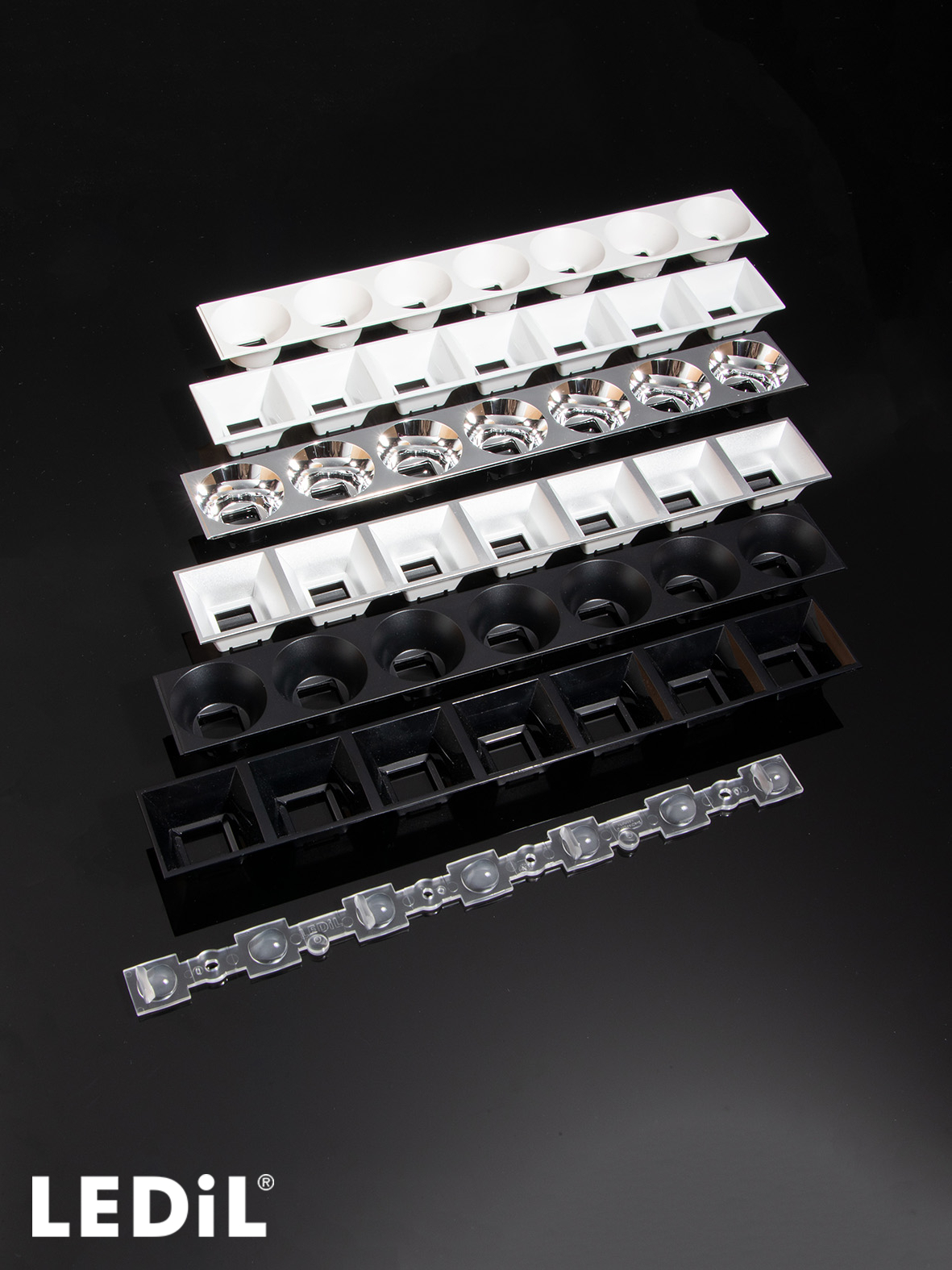

DAISY-7X1-FT-D

Print

Forward throwing beam for freestanding office luminaires

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    40 x  259 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw
  • RoHS and REACH compliant:
    Yes
Materials
  • Linear lens
  • C18244_DAISY-7X1-FT-D
    PMMA
  • Request material files from Tech Support

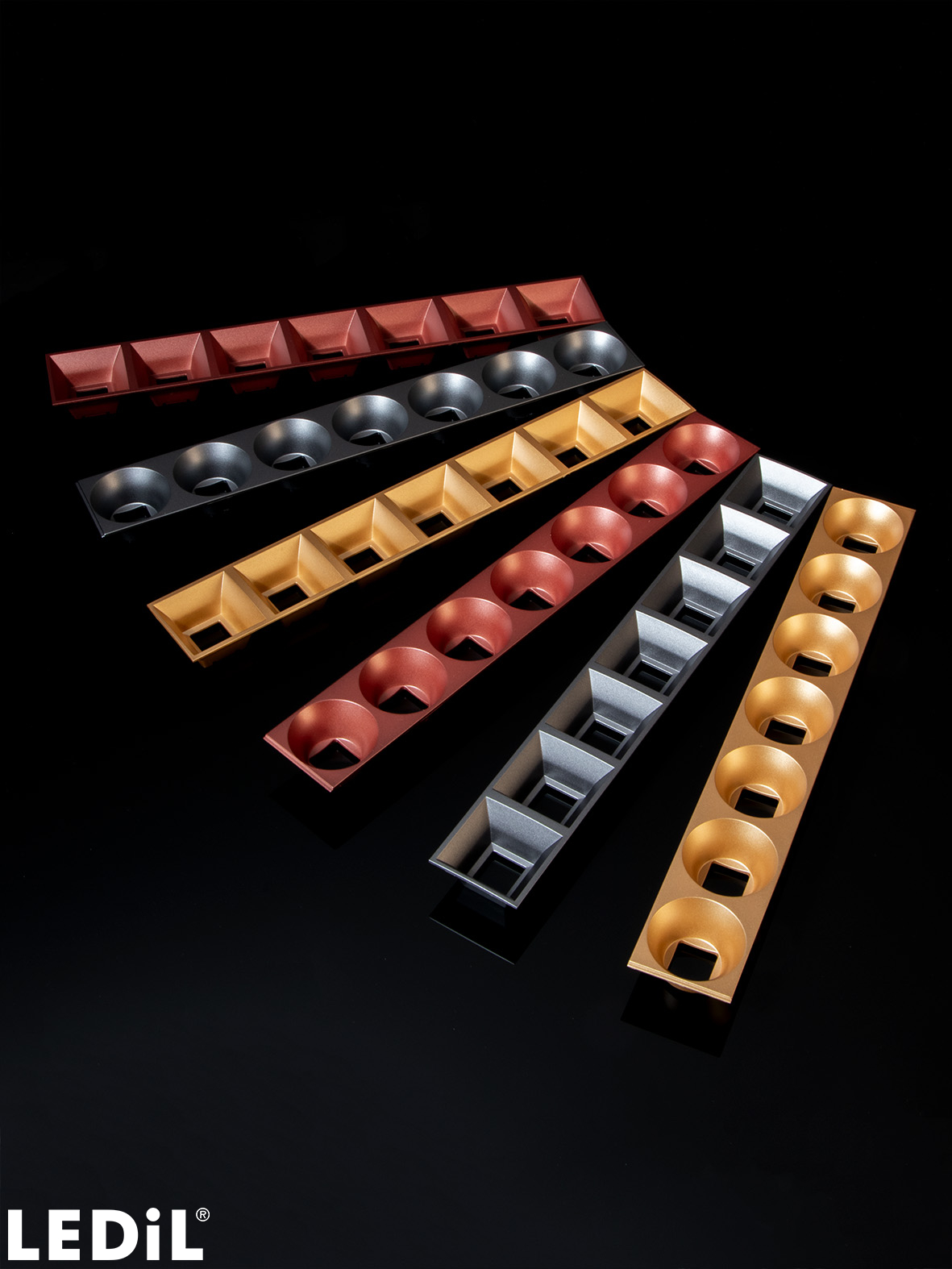

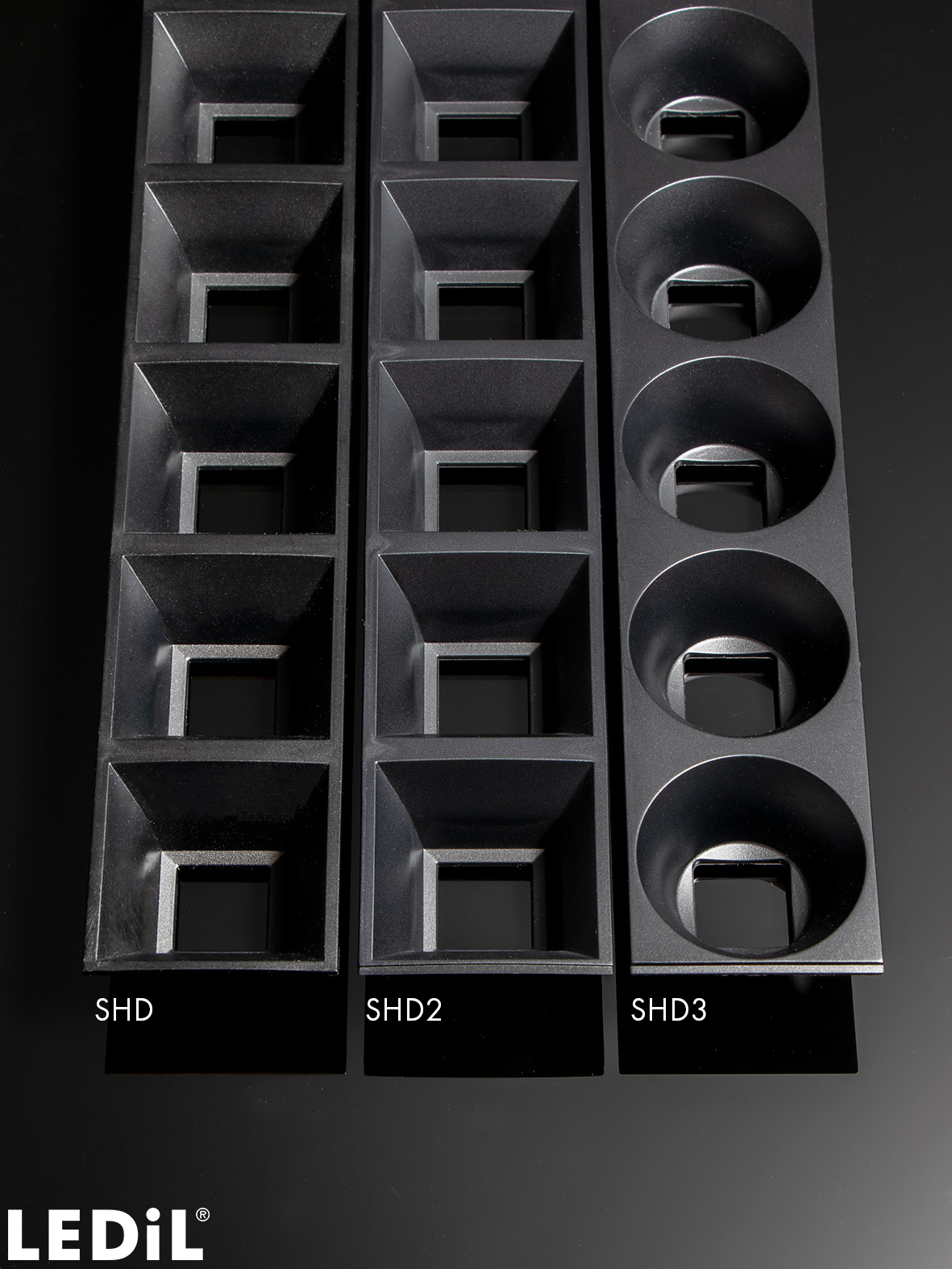

  • Shade
  • C16872_DAISY-7X1-SHD
    PC
  • C16876_DAISY-7X1-SHD-WHT
    PC
  • C17051_DAISY-7X1-SHD-MATT
    PC
  • C17225_DAISY-7X1-SHD-WHT-MATT
    PC
  • C18167_DAISY-7X1-SHD-MET
    PC
  • C18409_DAISY-7X1-SHD-MET-MATT
    PC
  • C19312_DAISY-7X1-SHD3
    PC
  • C19313_DAISY-7X1-SHD3-MATT
    PC
  • C19314_DAISY-7X1-SHD3-WHT
    PC
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    PC
  • C19641_DAISY-7X1-SHD3-MET
    PC
  • C19642_DAISY-7X1-SHD3-MET-MATT
    PC
  • C19763_DAISY-7X1-SHD-MATT-RED
    PC
  • C19764_DAISY-7X1-SHD-MATT-GR
    PC
  • C19852_DAISY-7X1-SHD-MATT-GLD
    PC
  • C19853_DAISY-7X1-SHD3-MATT-GR
    PC
  • C19854_DAISY-7X1-SHD3-MATT-RED
    PC
  • C19855_DAISY-7X1-SHD3-MATT-GLD
    PC
  • Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C18244_DAISY-7X1-FT-D
    milky
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    5.60 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    5.60 kg
  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • C18409_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • C19312_DAISY-7X1-SHD3
    black,gloss
  • C19313_DAISY-7X1-SHD3-MATT
    black,matt
  • C19314_DAISY-7X1-SHD3-WHT
    white,gloss
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    white,matt
  • C19641_DAISY-7X1-SHD3-MET
    metal,gloss
  • C19642_DAISY-7X1-SHD3-MET-MATT
    metal,matt
  • C19763_DAISY-7X1-SHD-MATT-RED
    red,matt
  • C19764_DAISY-7X1-SHD-MATT-GR
    grey,matt
  • C19852_DAISY-7X1-SHD-MATT-GLD
    gold,matt
  • C19853_DAISY-7X1-SHD3-MATT-GR
    grey,matt
  • C19854_DAISY-7X1-SHD3-MATT-RED
    red,matt
  • C19855_DAISY-7X1-SHD3-MATT-GLD
    gold,matt
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    7.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C18244_DAISY-7X1-FT-D
    C16872_DAISY-7X1-SHD
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

Optical results

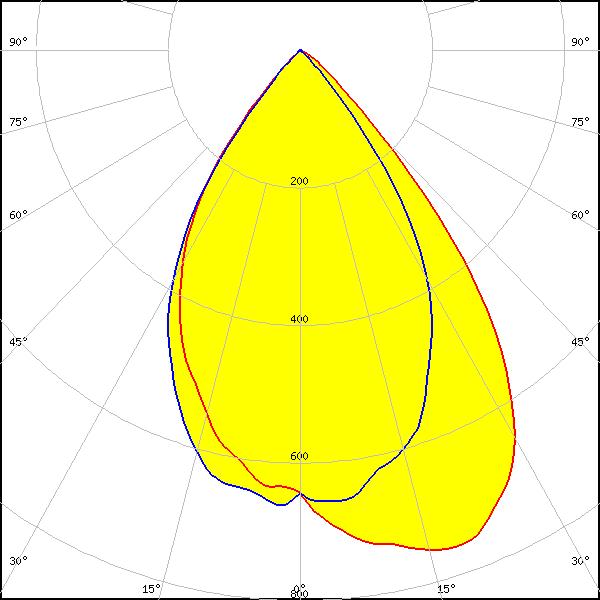

LED: LUXEON 5050 Square LES
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

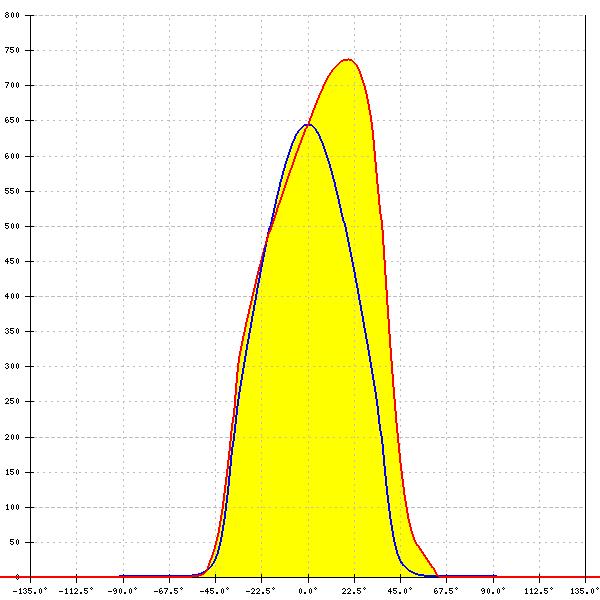

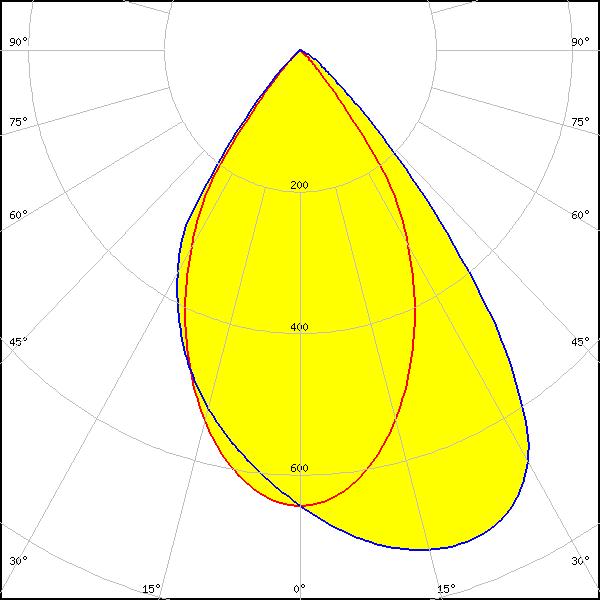

LED: LUXEON HL2Z
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity: 0.737 cd/lm
Efficiency: 75 %
LEDs/each optic: 2
Light colour/type: White

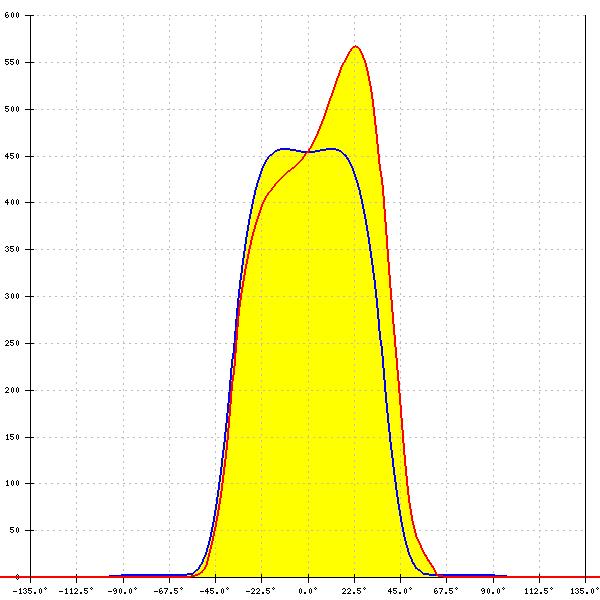

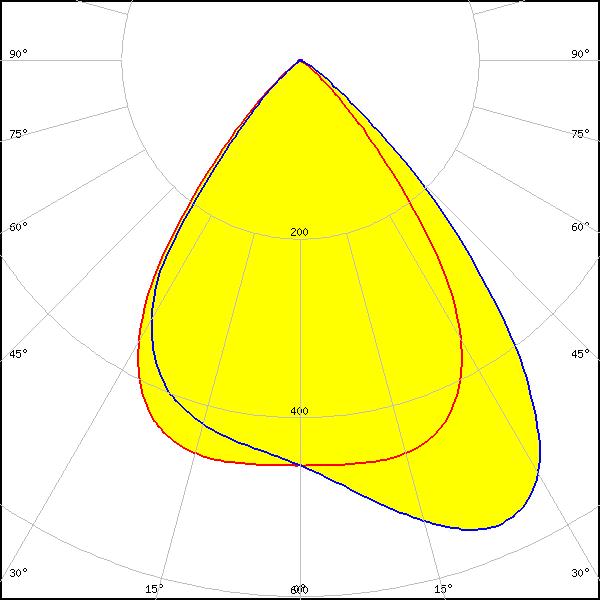

LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity: 0.566 cd/lm
Efficiency: 72 %
LEDs/each optic: 4
Light colour/type: White

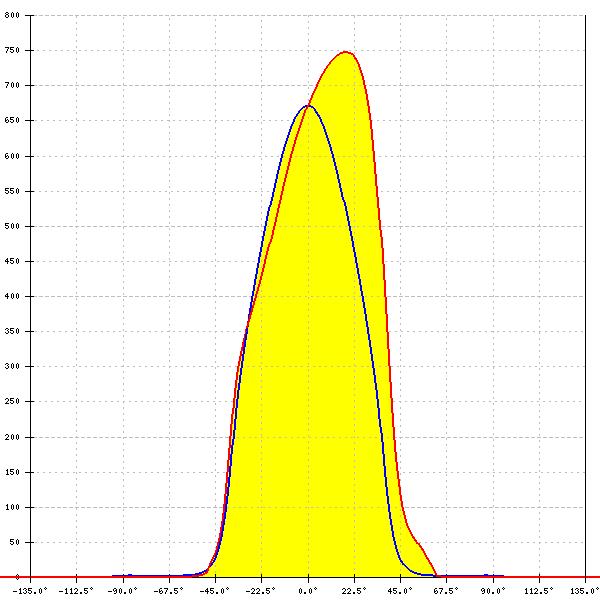

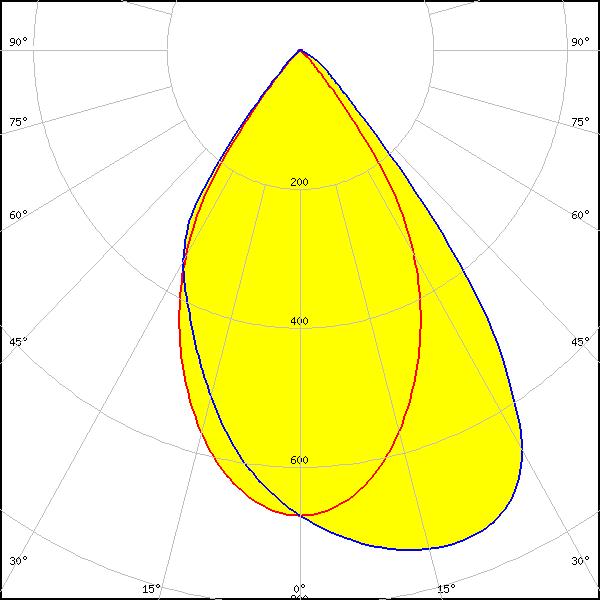

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity: 0.747 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity: 0.563 cd/lm
Efficiency: 72 %
LEDs/each optic: 4
Light colour/type: Tunable White

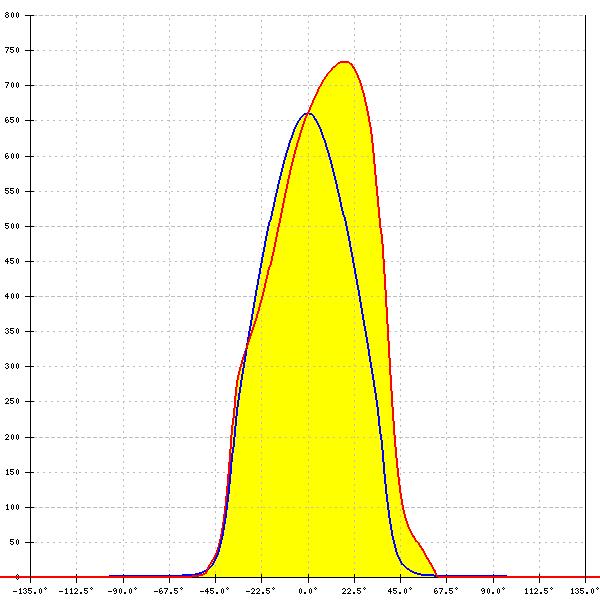

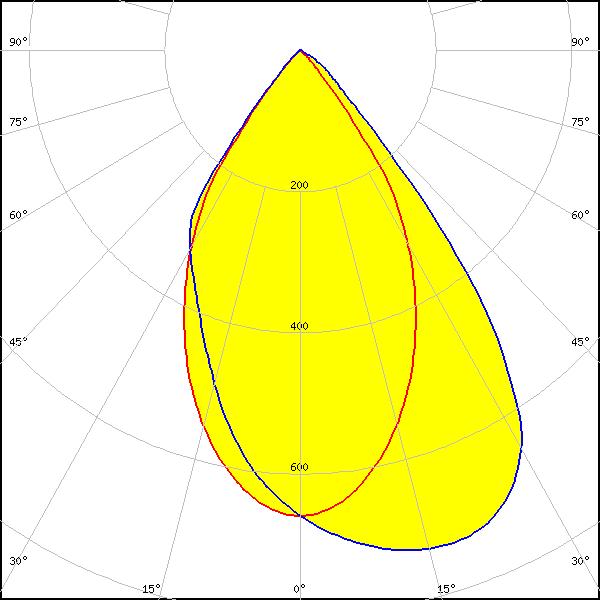

LED: NCSxE17A
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity: 0.734 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

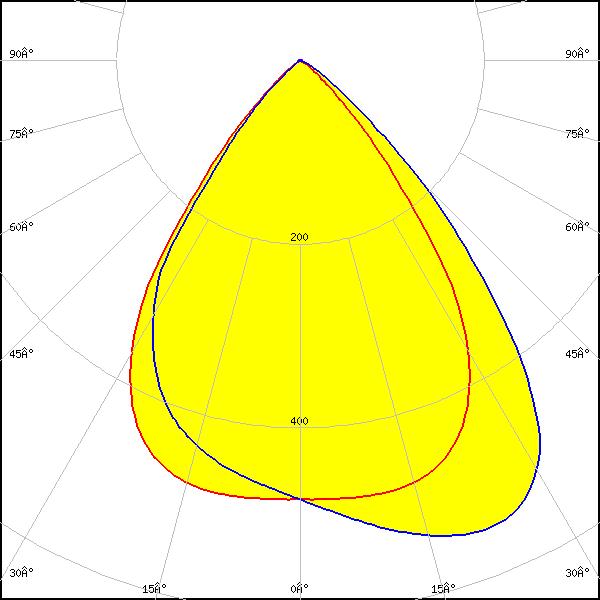

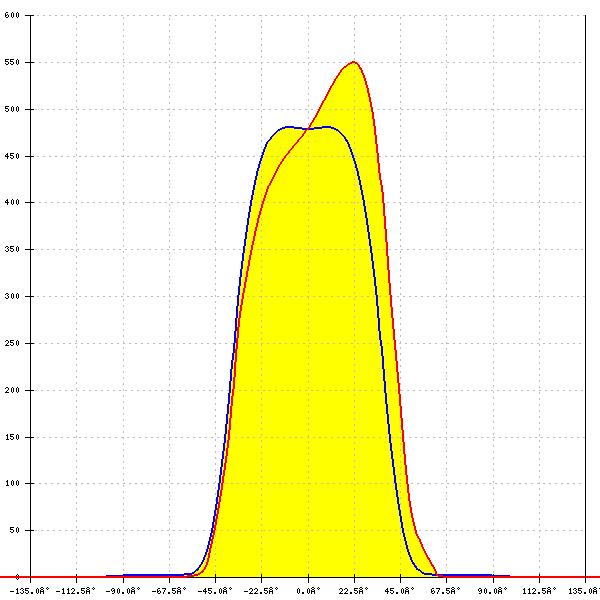

LED: PL-LIN-2000 280x24mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 71 %
LEDs/each optic: 4
Light colour/type: White
LED: LH231B
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity: 0.781 cd/lm
Efficiency: 79 %
LEDs/each optic: 2
Light colour/type: White

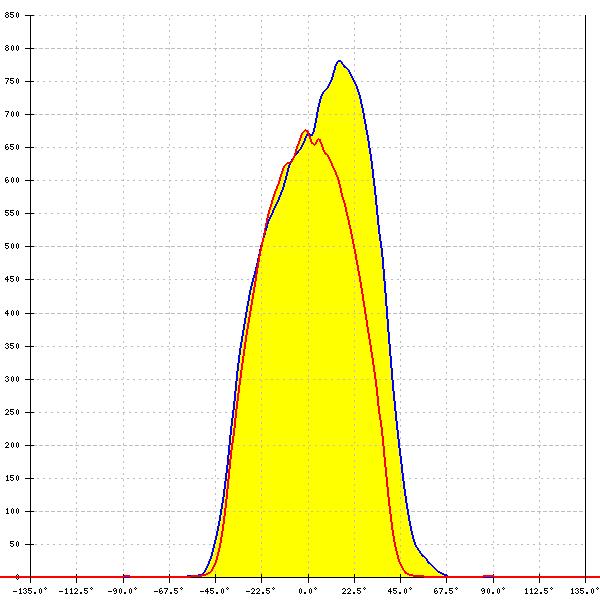

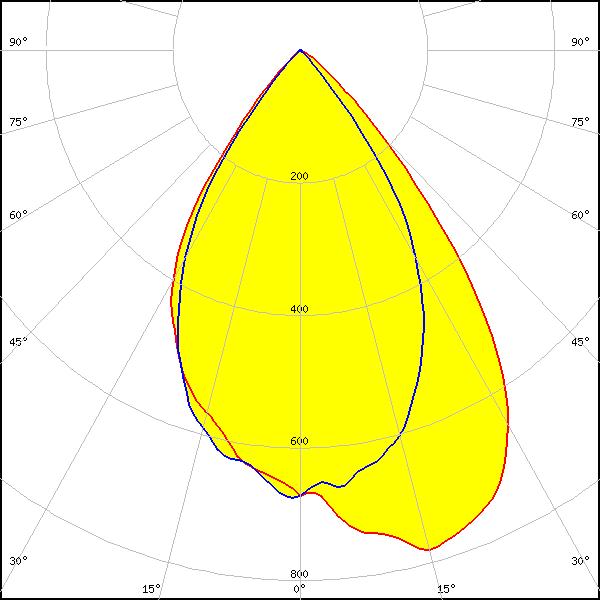

LED: LH231B
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity: 0.813 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

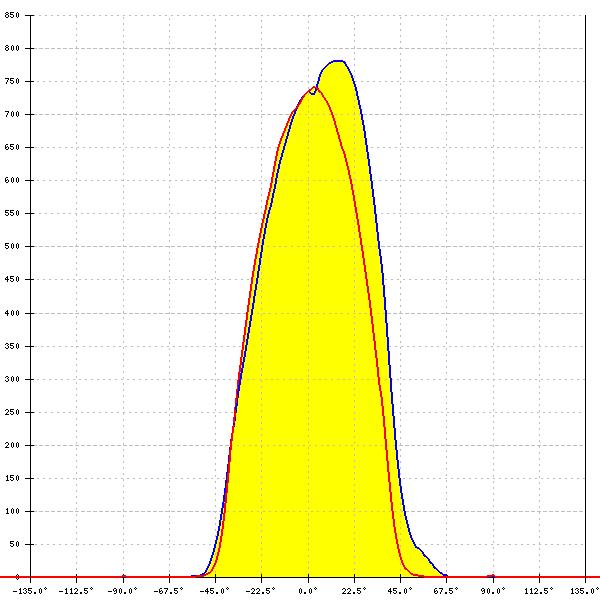

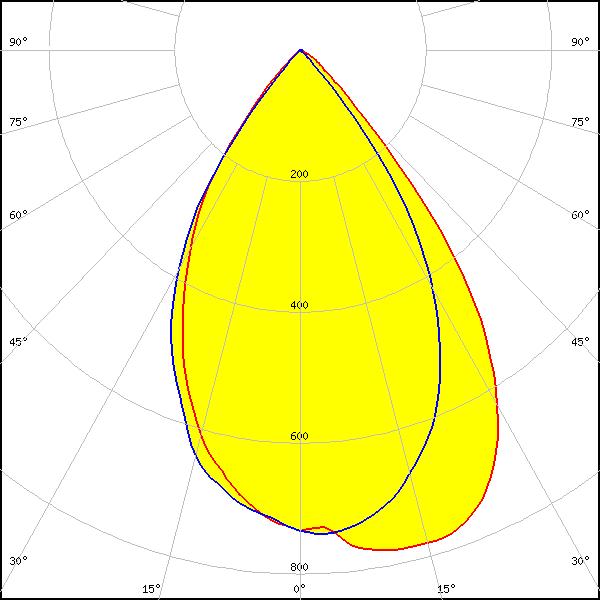

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity: 0.786 cd/lm
Efficiency: 81 %
LEDs/each optic: 2
Light colour/type: White

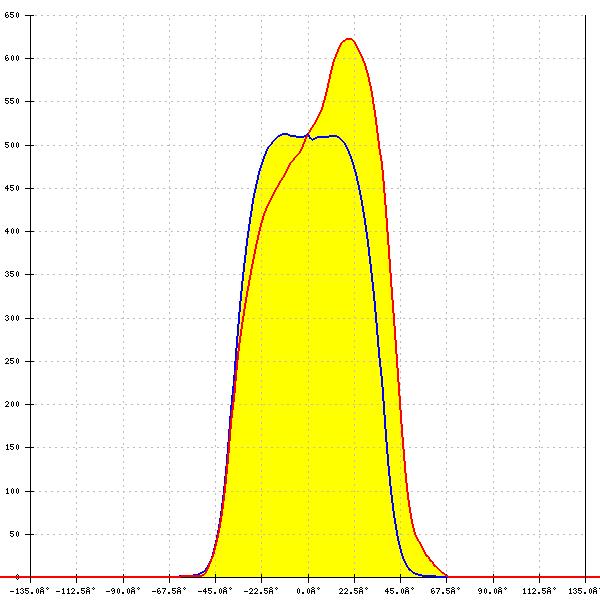

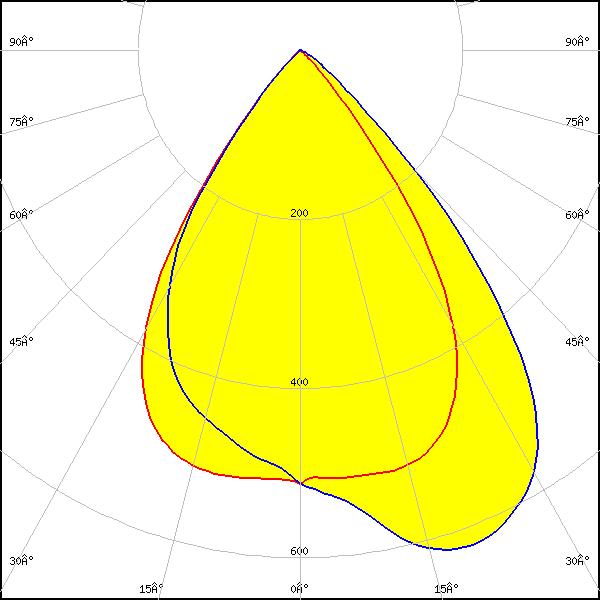

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
