DAISY-7X1-ZT25
Print

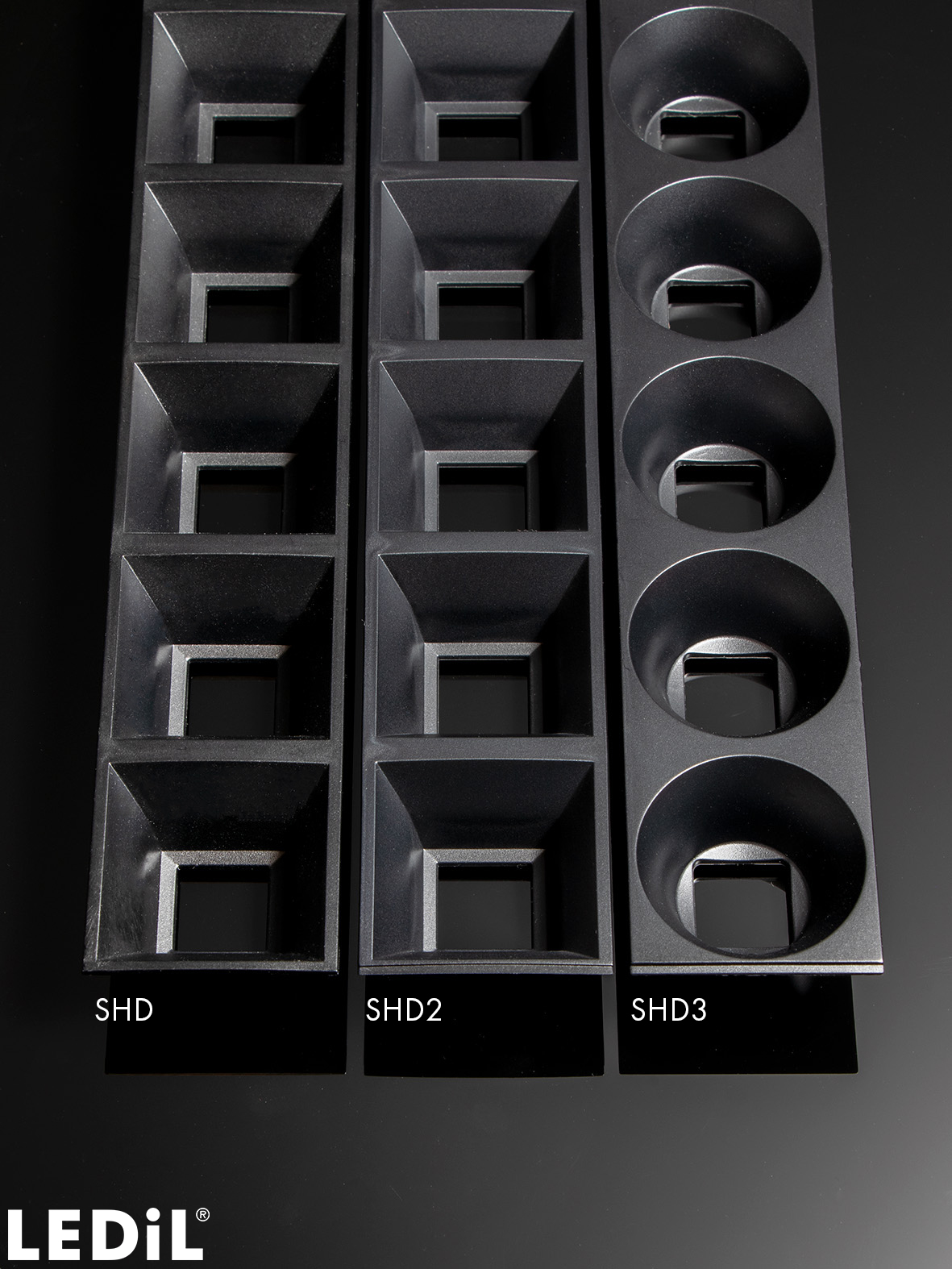

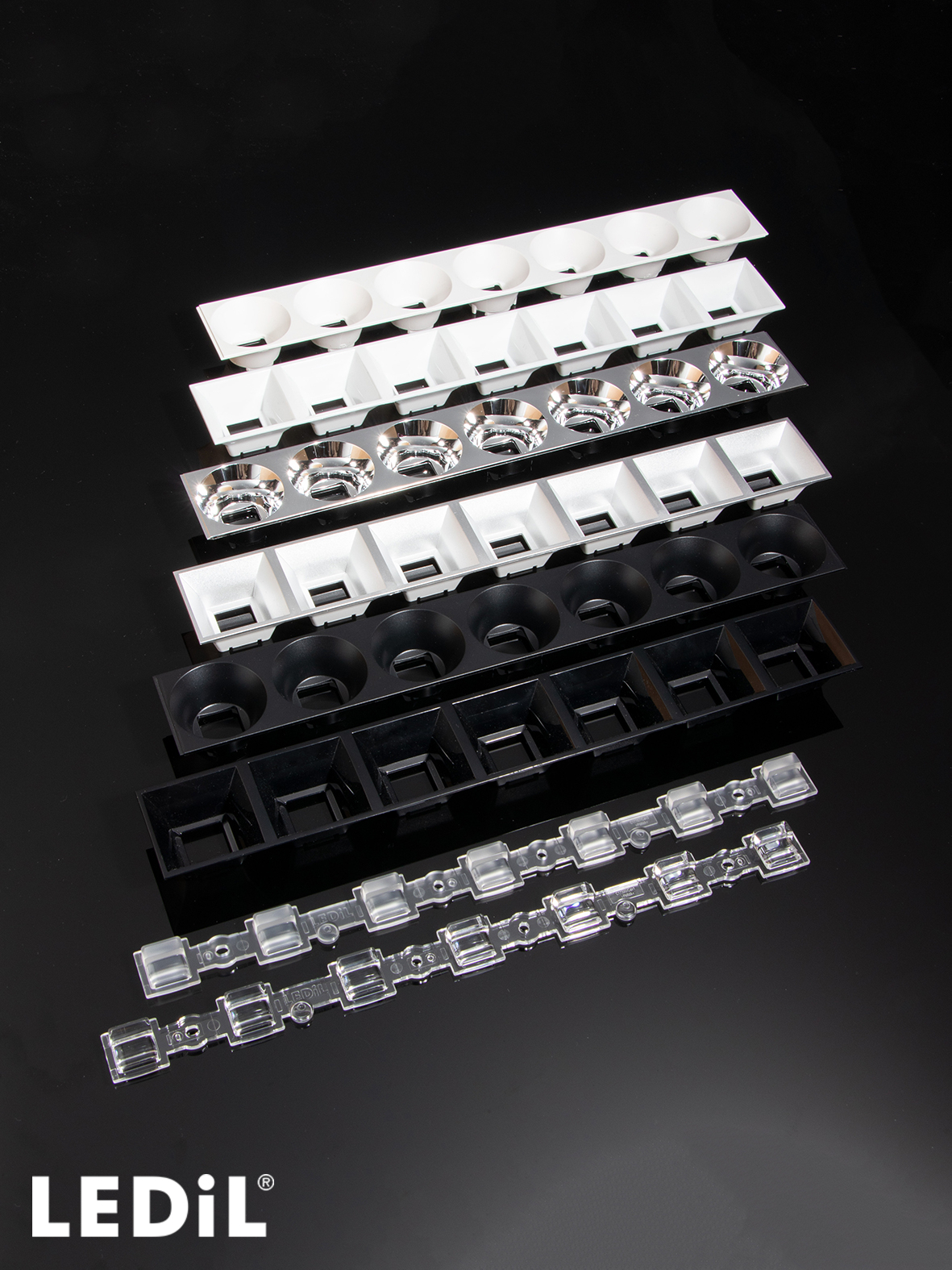

Asymmetric beam for aisle lighting. Clear version for high contrast lighting. Choose SHD with no lips or SHD2 with narrow lips and square openings. SHD3 with narrow lips and round openings.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:280 x 40 mm
-
Height:20.30 mm
-
Fastening:pin, screw
-
RoHS and REACH compliant:Yes
Materials
- Linear lens
- C17390_DAISY-7X1-ZT25PMMA
- Request material files from Tech Support
- Shade
- C16872_DAISY-7X1-SHDPC
- C16876_DAISY-7X1-SHD-WHTPC
- C17051_DAISY-7X1-SHD-MATTPC
- C17225_DAISY-7X1-SHD-WHT-MATTPC
- C18167_DAISY-7X1-SHD-METPC
- C18409_DAISY-7X1-SHD-MET-MATTPC
- C19312_DAISY-7X1-SHD3PC
- C19313_DAISY-7X1-SHD3-MATTPC
- C19314_DAISY-7X1-SHD3-WHTPC
- C19315_DAISY-7X1-SHD3-WHT-MATTPC
- C19641_DAISY-7X1-SHD3-METPC
- C19642_DAISY-7X1-SHD3-MET-MATTPC
- C19763_DAISY-7X1-SHD-MATT-REDPC
- C19764_DAISY-7X1-SHD-MATT-GRPC
- C19852_DAISY-7X1-SHD-MATT-GLDPC
- C19853_DAISY-7X1-SHD3-MATT-GRPC
- C19854_DAISY-7X1-SHD3-MATT-REDPC
- C19855_DAISY-7X1-SHD3-MATT-GLDPC
- L20010_DAISY-7X1-SHD2PC
- L20011_DAISY-7X1-SHD2-MATTPC-ABS
- L20012_DAISY-7X1-SHD2-WHTPC
- L20013_DAISY-7X1-SHD2-MATT-WHTPC
- L20014_DAISY-7X1-SHD2-METPC
- L20015_DAISY-7X1-SHD2-MET-MATTPC-ABS
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Linear lens1 pcs
- Shade1 pcs
- Linear lens
- C17390_DAISY-7X1-ZT25
- Quantity in box:312 pcs
- Box size:400 x 300 x 300 mm
- Box weight:5.90 kg
- MPQ:24 pcs
- MOQ:312 pcs
- MOQ Size:400 x 300 x 300 mm
- MOQ Weight:5.90 kg

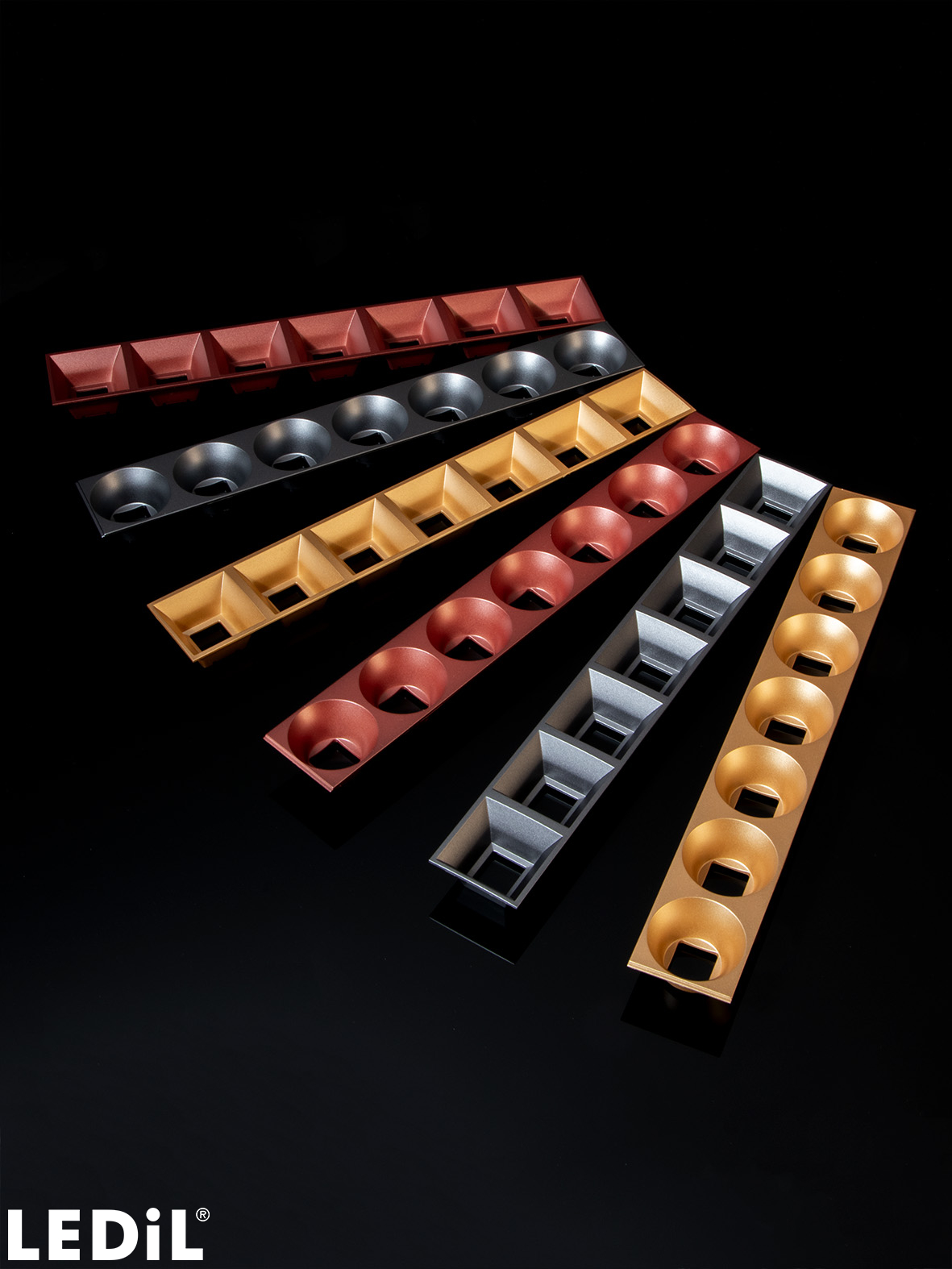

- Shade
- C16872_DAISY-7X1-SHDblack,gloss
- C16876_DAISY-7X1-SHD-WHTwhite,gloss
- C17051_DAISY-7X1-SHD-MATTblack,matt
- C17225_DAISY-7X1-SHD-WHT-MATTwhite,matt
- C18167_DAISY-7X1-SHD-METmetal,gloss
- C18409_DAISY-7X1-SHD-MET-MATTmetal,matt
- C19312_DAISY-7X1-SHD3black,gloss
- C19313_DAISY-7X1-SHD3-MATTblack,matt
- C19314_DAISY-7X1-SHD3-WHTwhite,gloss
- C19315_DAISY-7X1-SHD3-WHT-MATTwhite,matt
- C19641_DAISY-7X1-SHD3-METmetal,gloss
- C19642_DAISY-7X1-SHD3-MET-MATTmetal,matt
- C19763_DAISY-7X1-SHD-MATT-REDred,matt
- C19764_DAISY-7X1-SHD-MATT-GRgrey,matt
- C19852_DAISY-7X1-SHD-MATT-GLDgold,matt
- C19853_DAISY-7X1-SHD3-MATT-GRgrey,matt
- C19854_DAISY-7X1-SHD3-MATT-REDred,matt
- C19855_DAISY-7X1-SHD3-MATT-GLDgold,matt
- L20010_DAISY-7X1-SHD2black,gloss
- L20011_DAISY-7X1-SHD2-MATTblack,matt
- L20012_DAISY-7X1-SHD2-WHTwhite,gloss
- L20013_DAISY-7X1-SHD2-MATT-WHTwhite,matt
- L20014_DAISY-7X1-SHD2-METmetal,gloss
- L20015_DAISY-7X1-SHD2-MET-MATTmetal,matt
- Quantity in box:156 pcs
- Box size:595 x 360 x 230 mm
- Box weight:7.10 kg
- MPQ:24 pcs
- MOQ:312 pcs
- MOQ Size:595 x 360 x 230 mm
- MOQ Weight:7.10 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
- PCB drawing
Related Content

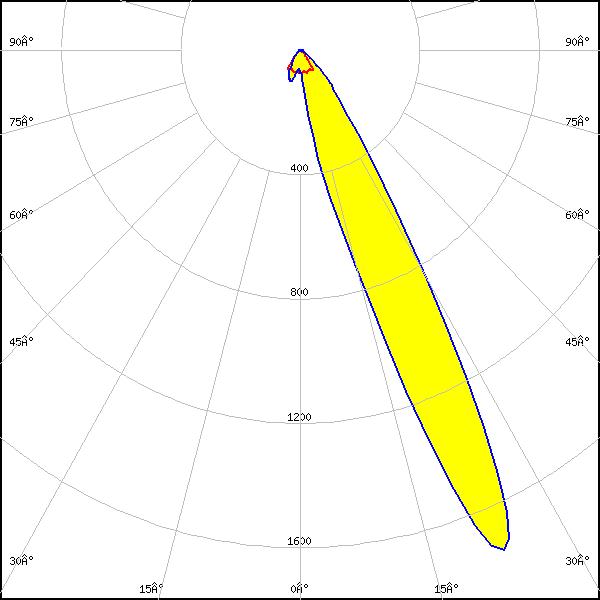

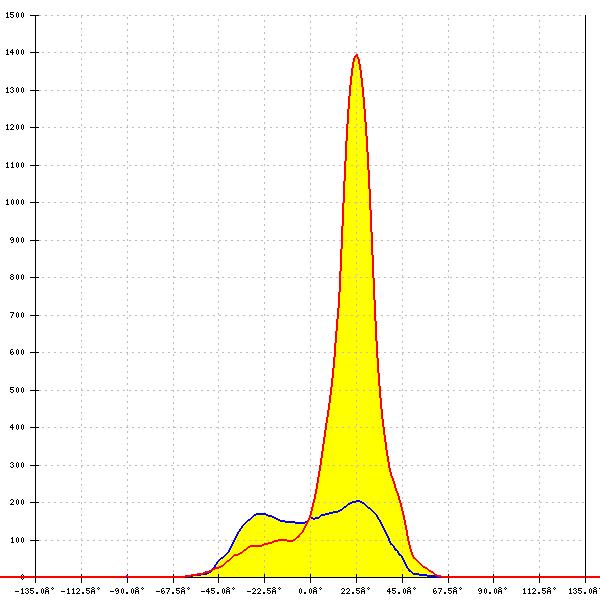

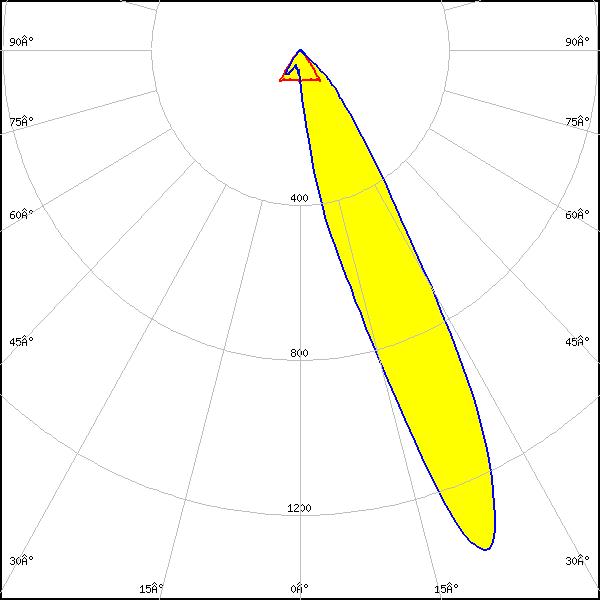

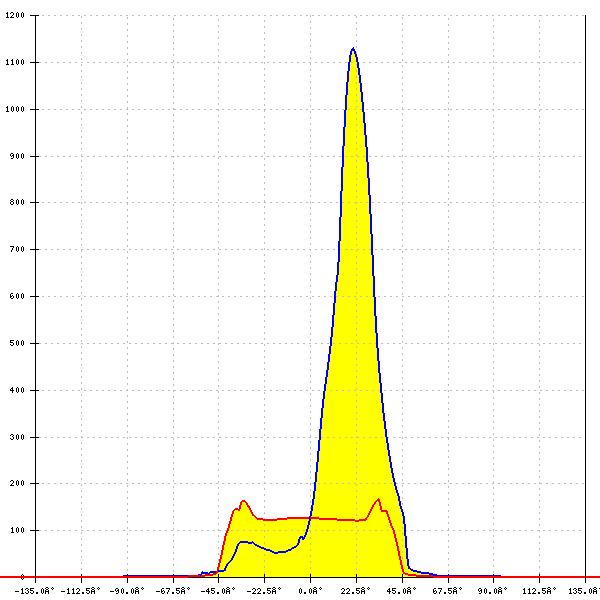

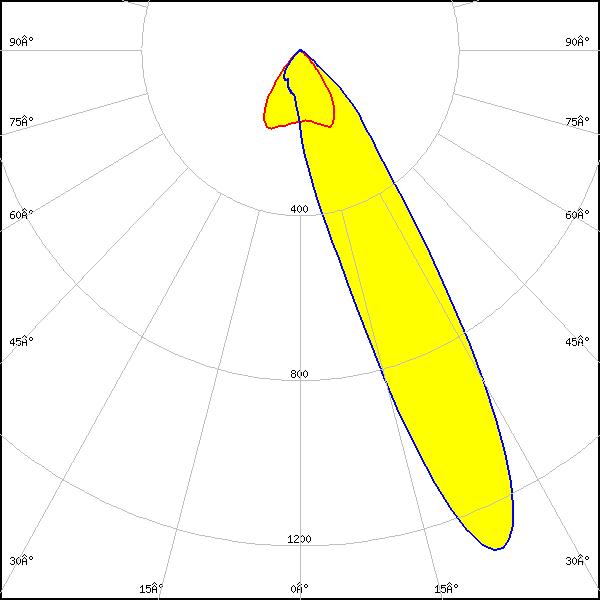

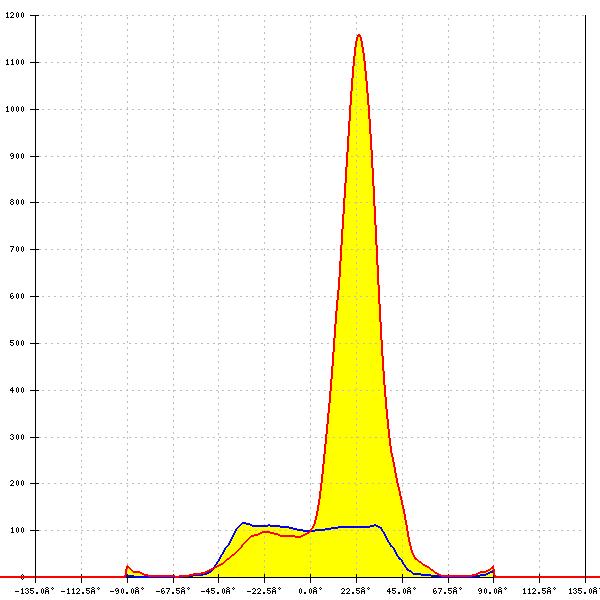

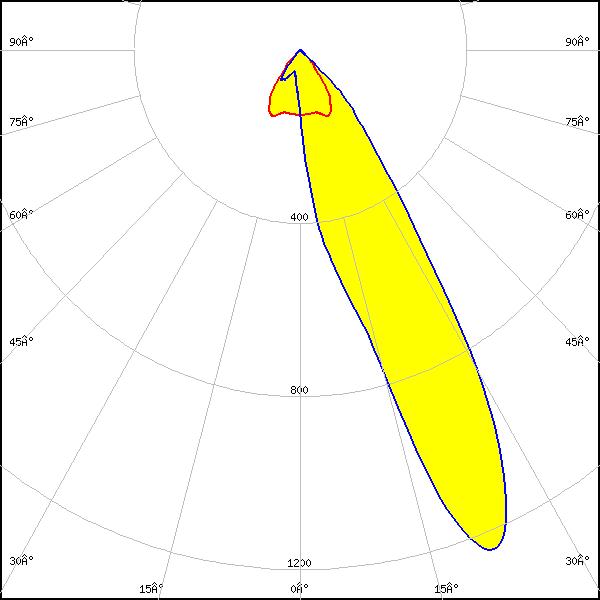

Optical results

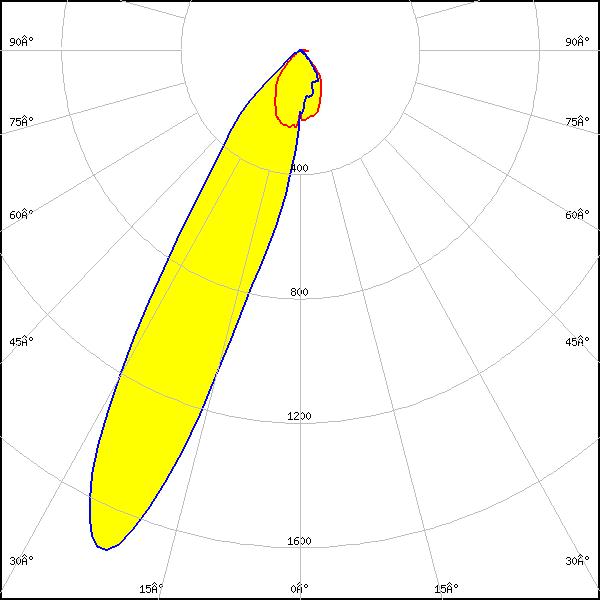

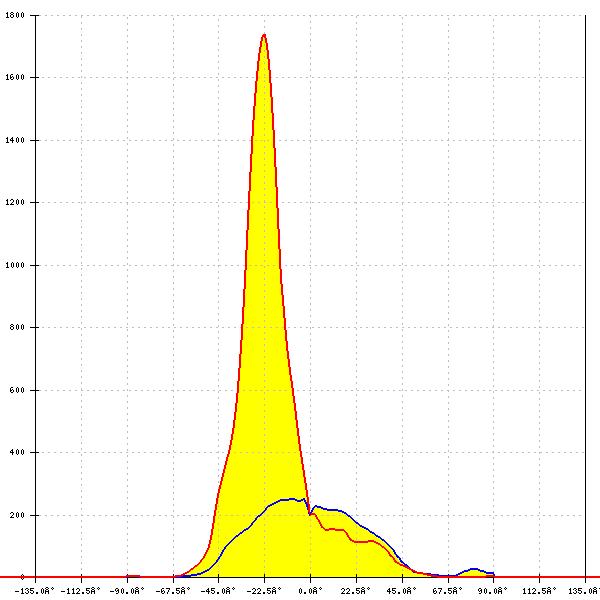

LED:
CSP 2727 (BXCP)
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: asymmetric
Peak intensity:
1.744 cd/lm
Efficiency:
85 %
LEDs/each optic:
3
Light colour/type:
White

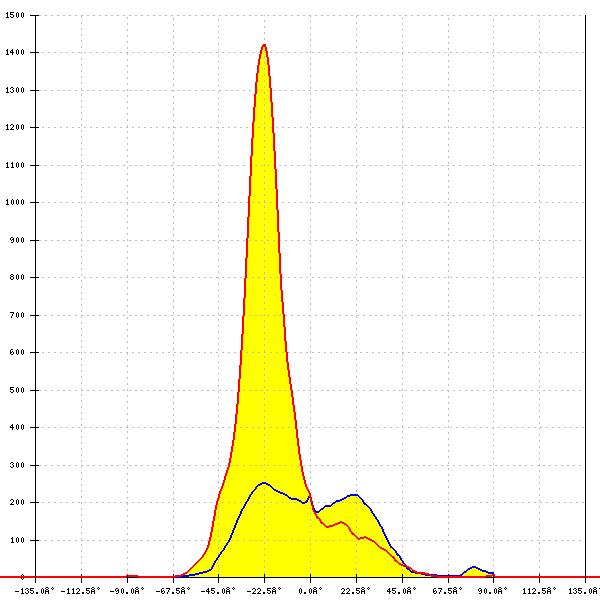

LED:
CSP 2727 (BXCP)
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: asymmetric
Peak intensity:
1.717 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White

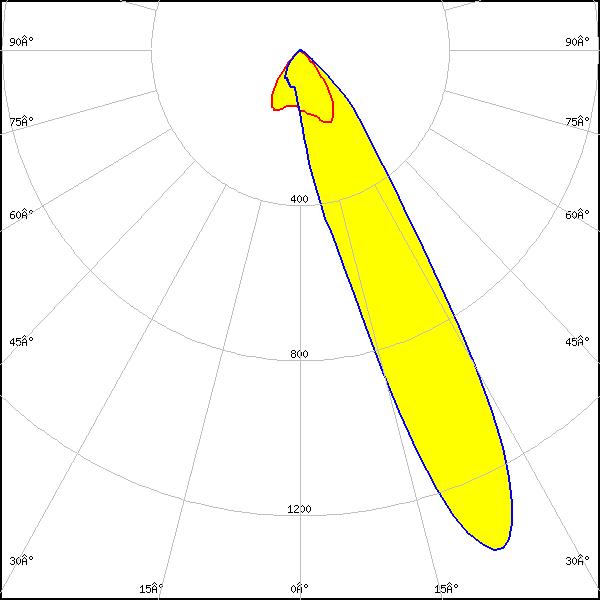

LED:
CSP 2727 (BXCP)
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.603 cd/lm
Efficiency:
78 %
LEDs/each optic:
2
Light colour/type:
White

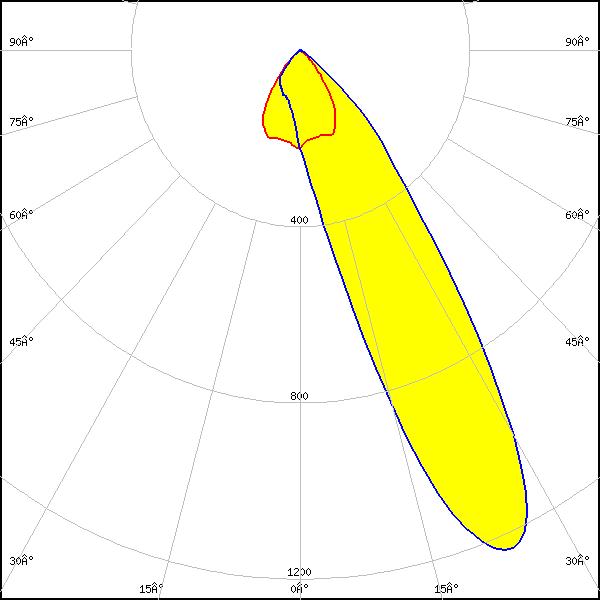

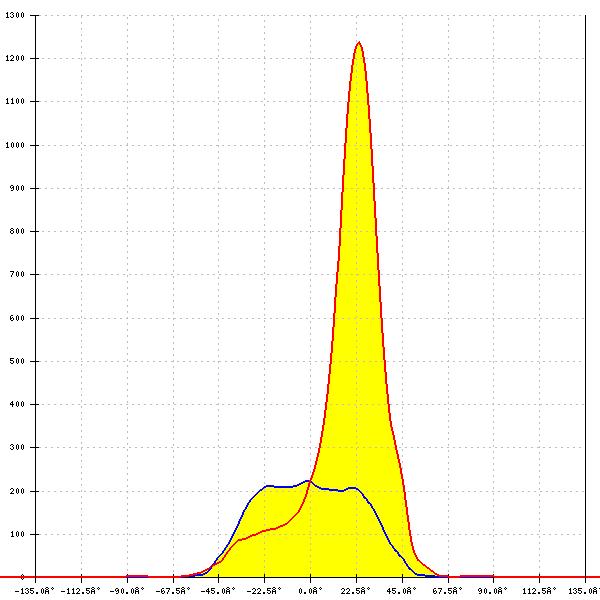

LED:
J Series 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.378 cd/lm
Efficiency:
78 %
LEDs/each optic:
2
Light colour/type:
White

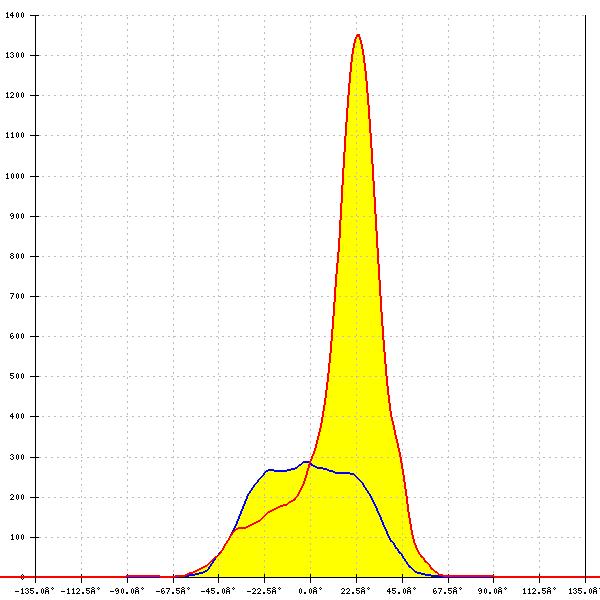

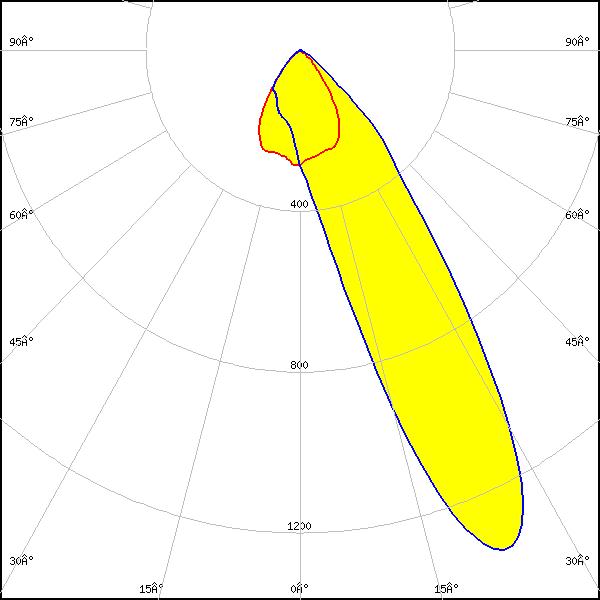

LED:
J Series 2835
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: asymmetric
Peak intensity:
1.496 cd/lm
Efficiency:
89 %
LEDs/each optic:
2
Light colour/type:
White

LED:
XD16
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.309 cd/lm
Efficiency:
75 %
LEDs/each optic:
2
Light colour/type:
White

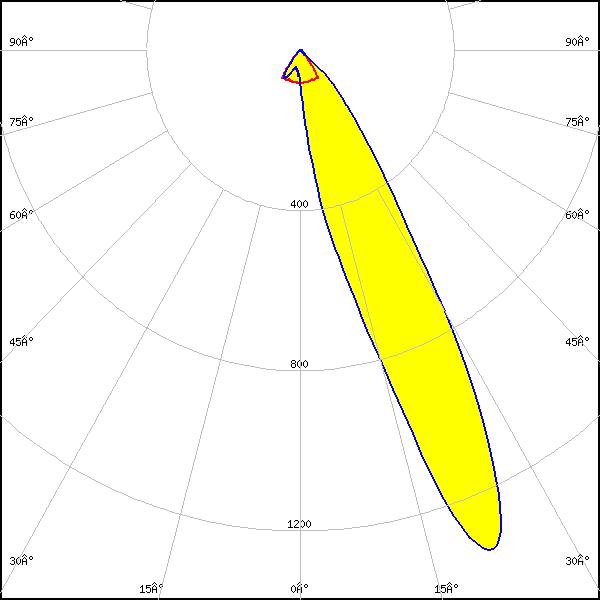

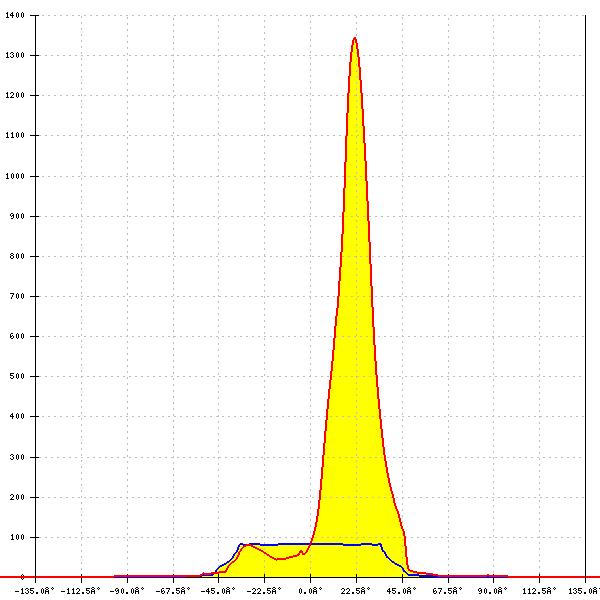

LED:

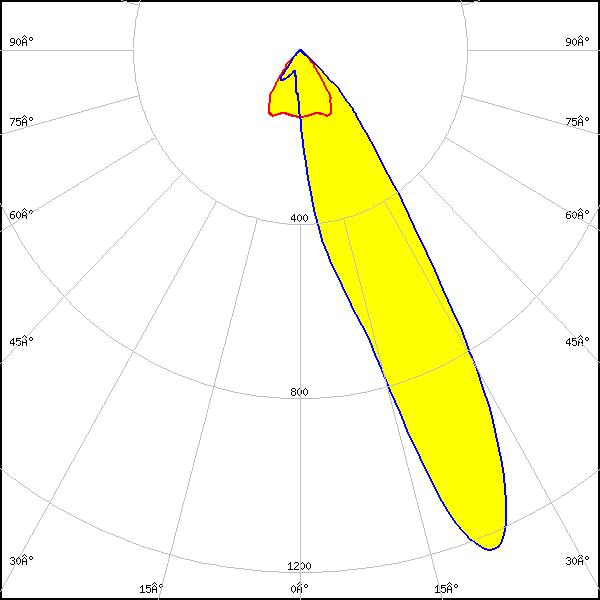

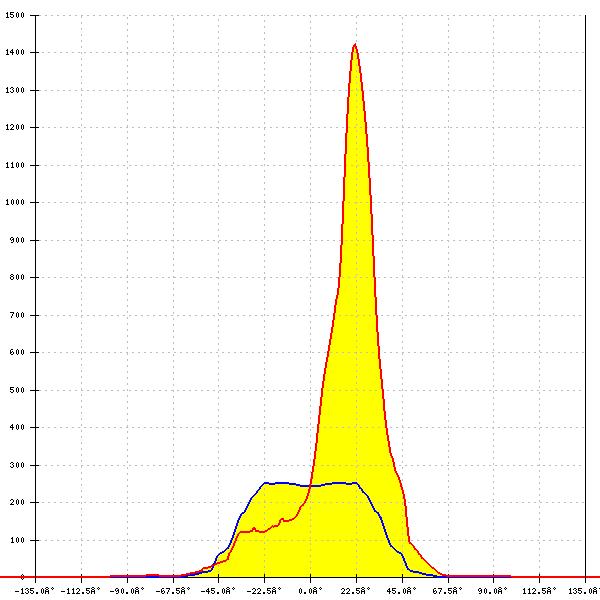

LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
1.710 cd/lm
Efficiency:
71 %
LEDs/each optic:
2
Light colour/type:
Tunable White

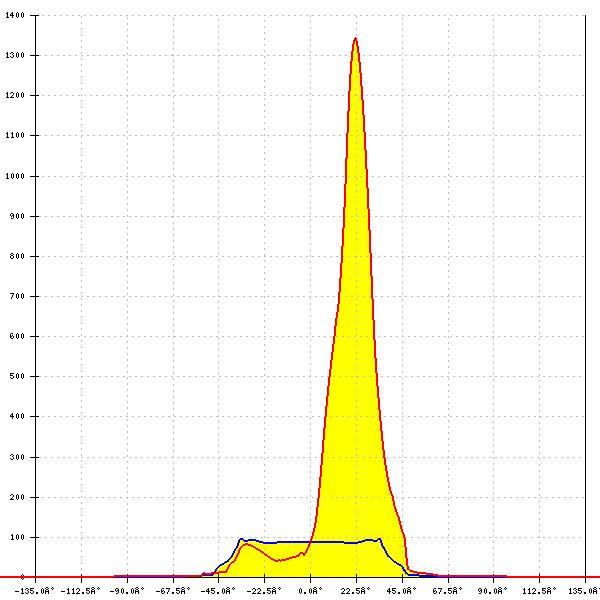

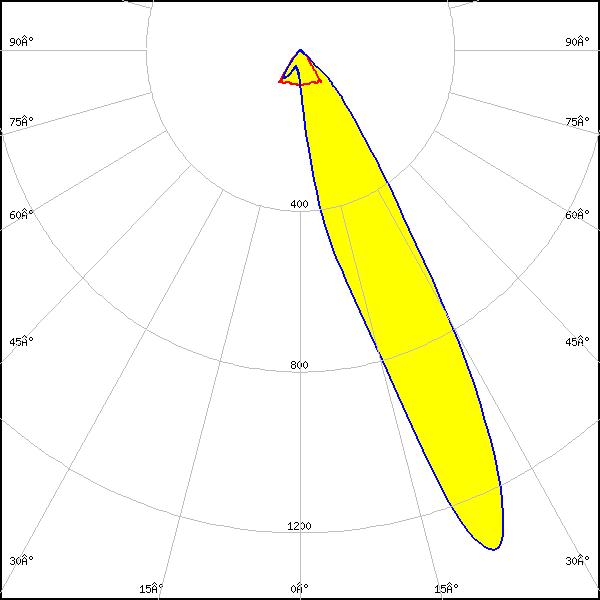

LED:
LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
1.721 cd/lm
Efficiency:
71 %
LEDs/each optic:
2
Light colour/type:
White

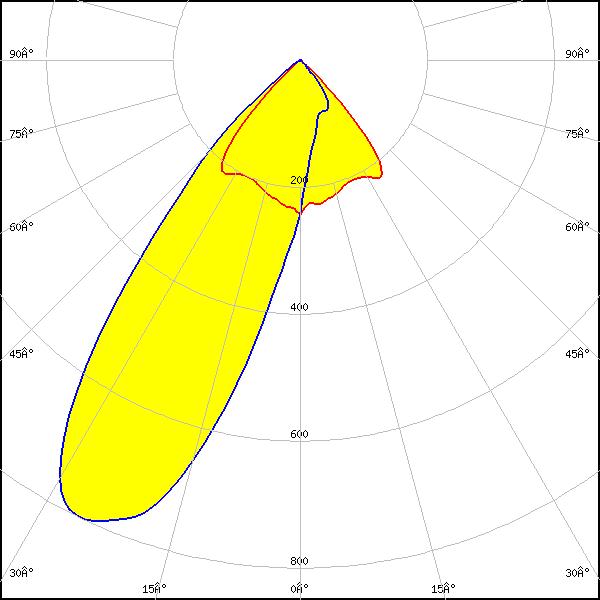

LED:
LUXEON 2835 Line
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
0.951 cd/lm
Efficiency:
71 %
LEDs/each optic:
2
Light colour/type:
White

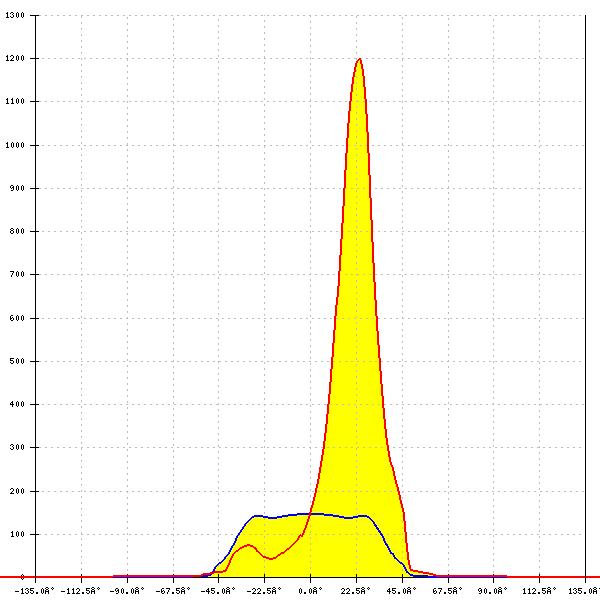

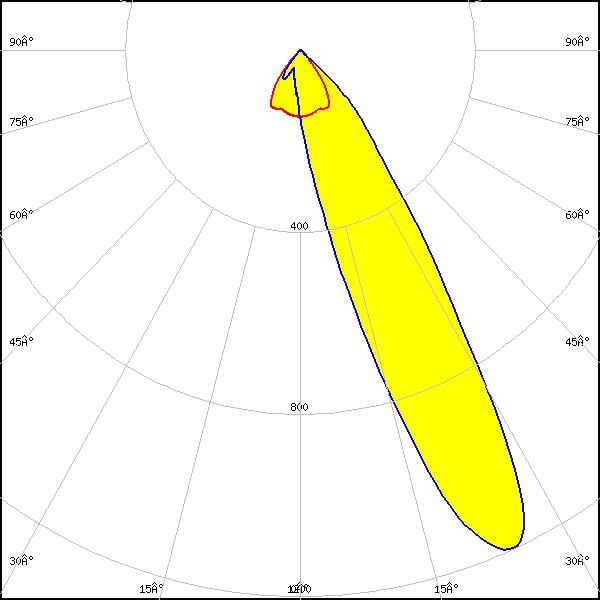

LED:
LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.477 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

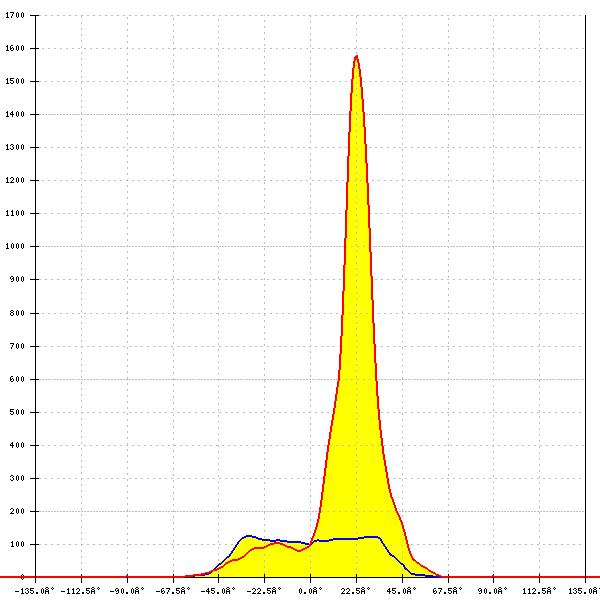

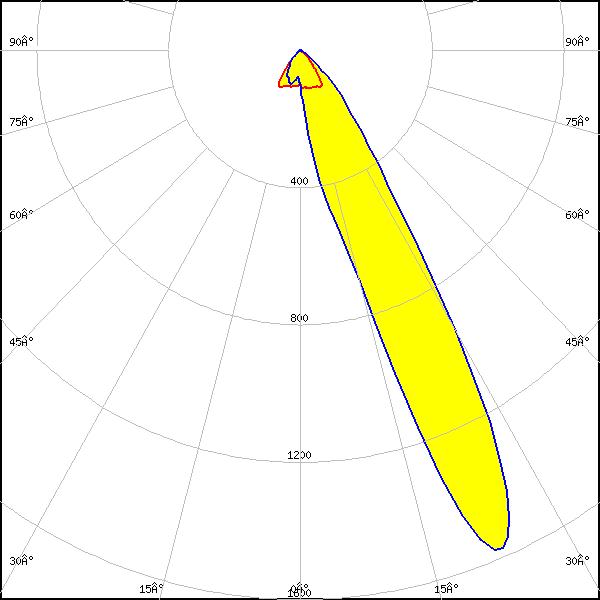

LED:
LUXEON HL2Z
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.755 cd/lm
Efficiency:
79 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LUXEON HL2Z
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
1.786 cd/lm
Efficiency:
72 %
LEDs/each optic:
2
Light colour/type:
White

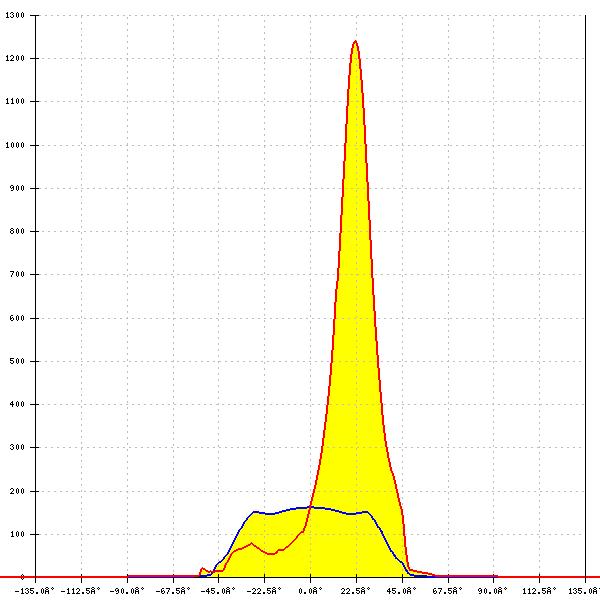

LED:
LinLED 274x24mm 1100lm 840 4C 42V DAISY-7X1 (ZT25) G4
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.517 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

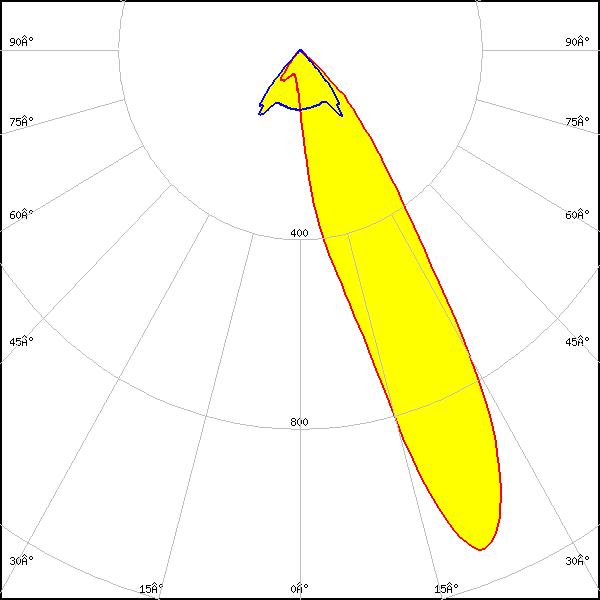

LED:
LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.569 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

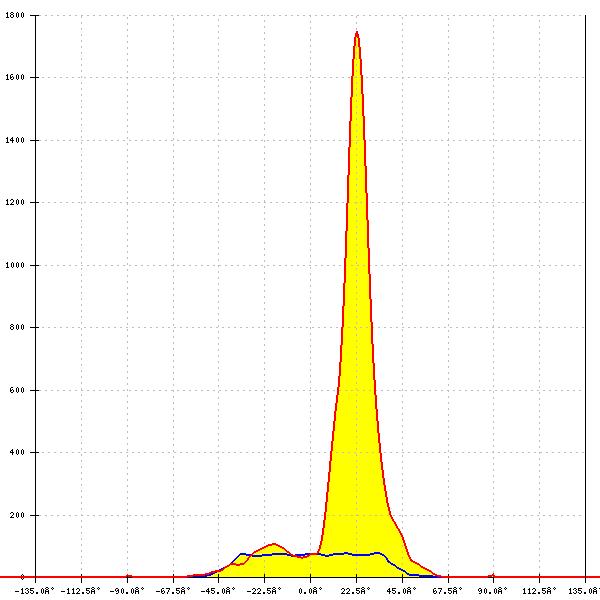

LED:
NCSxE17A
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.965 cd/lm
Efficiency:
78 %
LEDs/each optic:
2
Light colour/type:
White

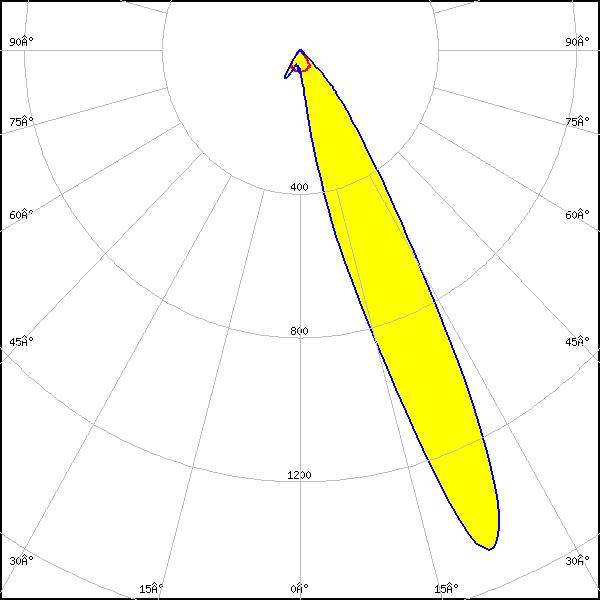

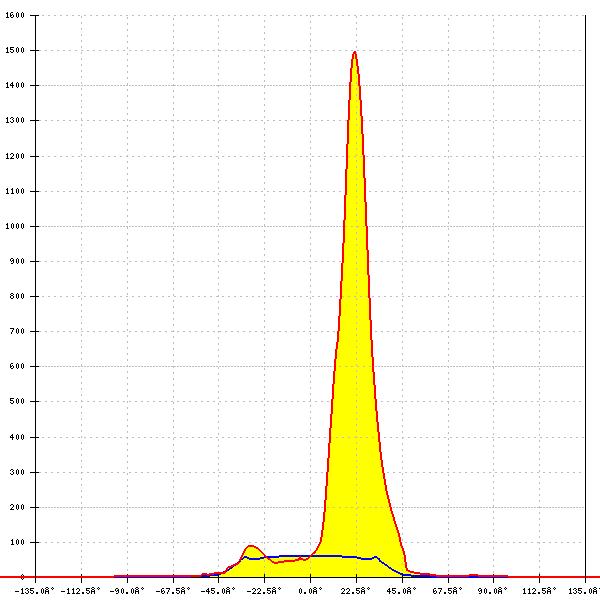

LED:
NCSxE17A
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
2.293 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

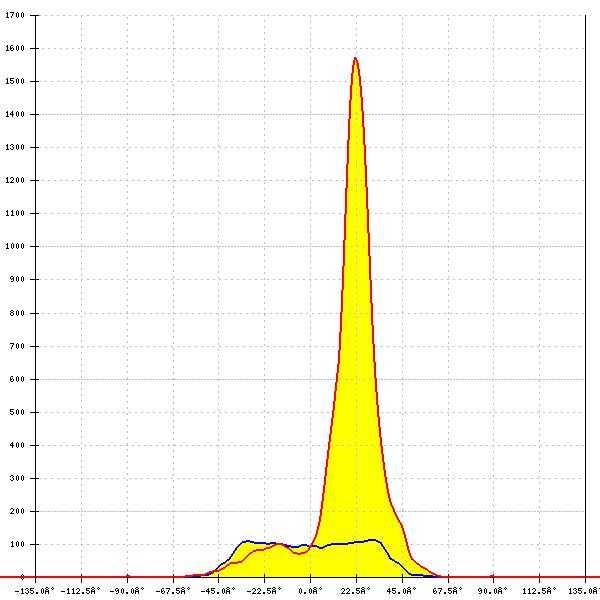

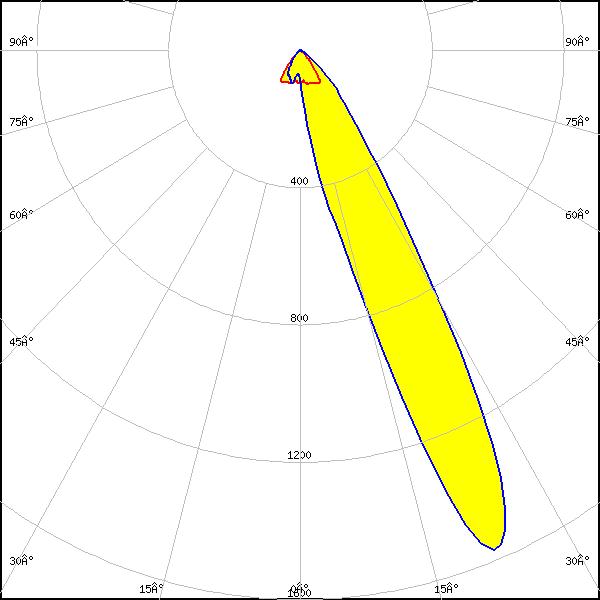

LED:
NVSxE21A
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.665 cd/lm
Efficiency:
79 %
LEDs/each optic:
2
Light colour/type:
White

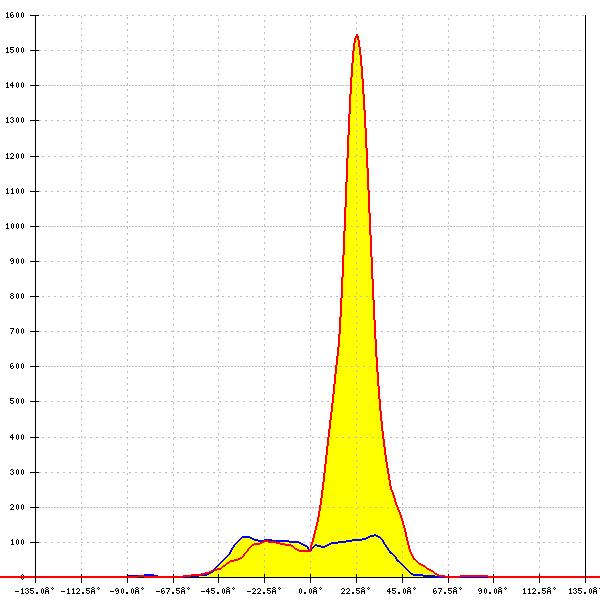

LED:
NVSxE21A
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.843 cd/lm
Efficiency:
78 %
LEDs/each optic:
2
Light colour/type:
White

LED:
NVSxE21A
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.836 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

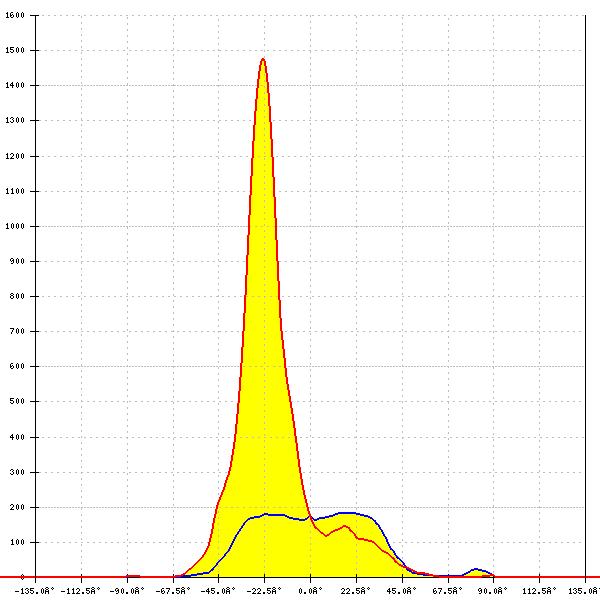

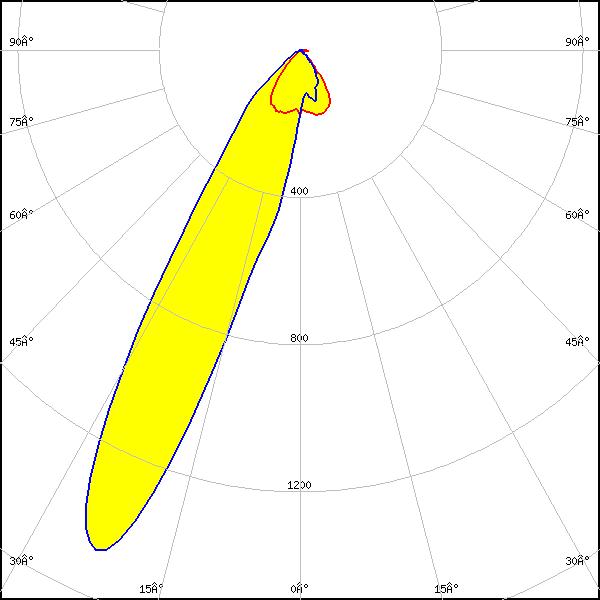

LED:
LH181B
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: asymmetric
Peak intensity:
1.699 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White

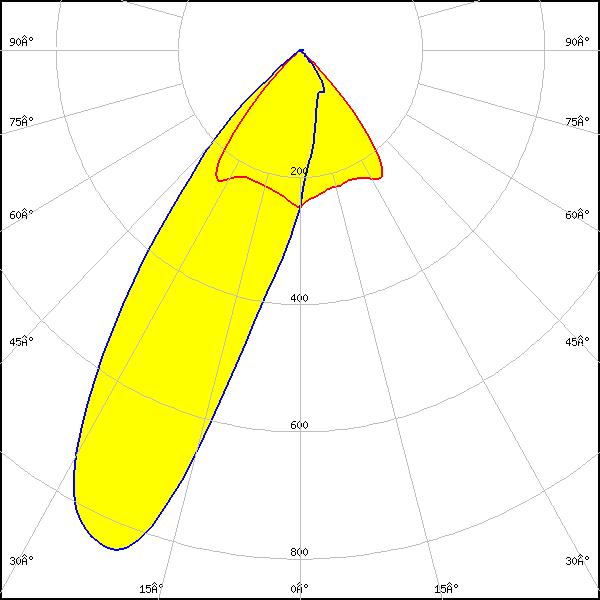

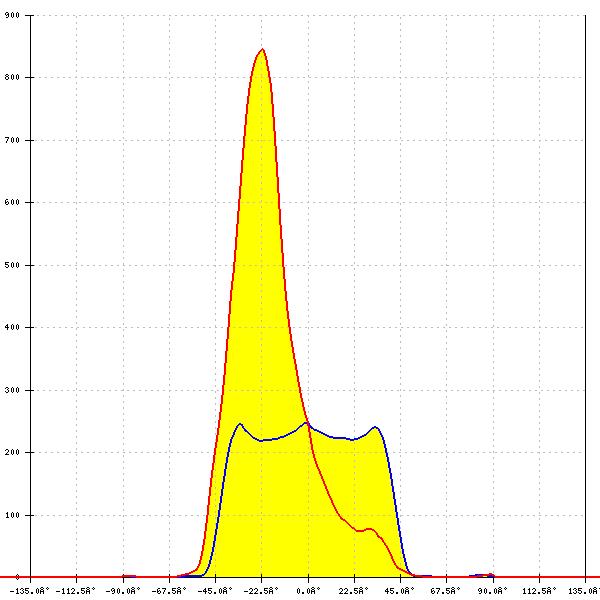

LED:

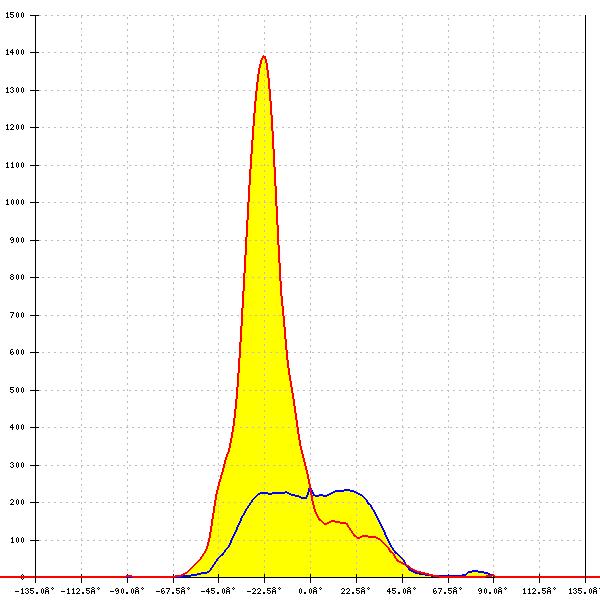

LH231B
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
0.975 cd/lm
Efficiency:
70 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LH231B
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: asymmetric
Peak intensity:
1.622 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White

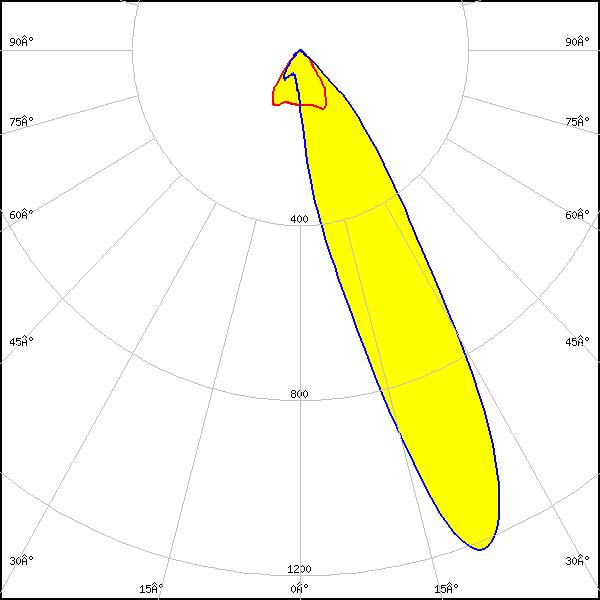

LED:
LH231B
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.490 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LED-St-LxxW2c4-50 (Daisy-7x1)
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.539 cd/lm
Efficiency:
73 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LED-St-LxxW2c4-50 (Daisy-7x1)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: asymmetric
Peak intensity:
1.591 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LED-St-LxxW2c4-50 (Daisy-7x1)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
1.496 cd/lm
Efficiency:
72 %
LEDs/each optic:
2
Light colour/type:
White

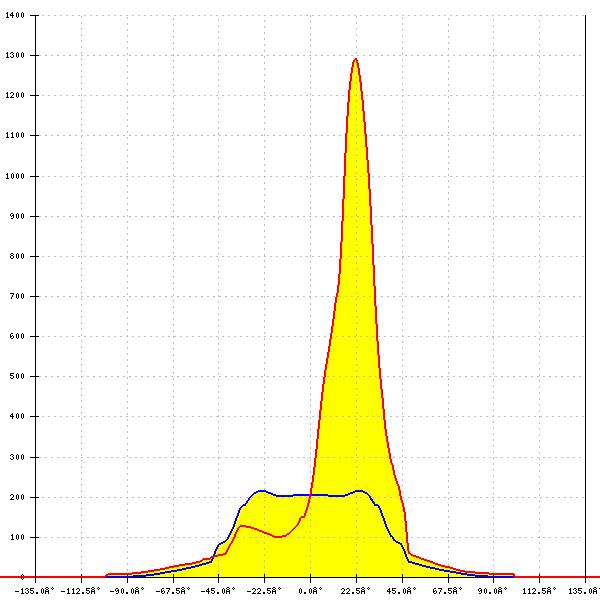

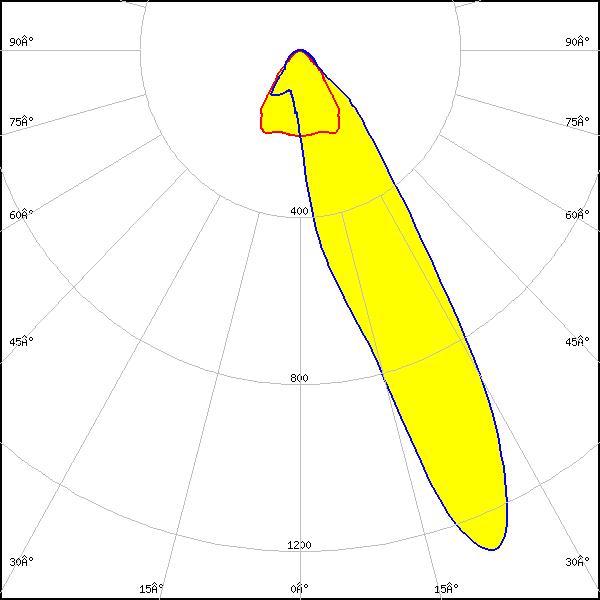

LED:
LED-St-LxxW2c4-50 (Daisy-7x1)
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: asymmetric
Peak intensity:
1.568 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White

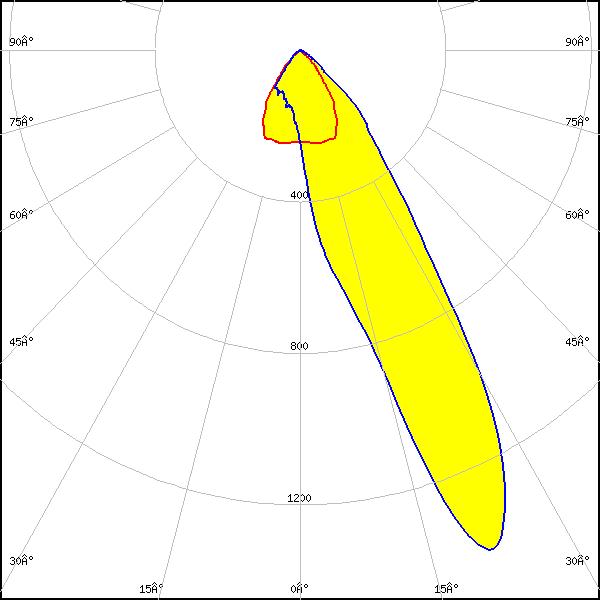

LED:
LED-St-LxxW2c4-50 (Daisy-7x1)
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: asymmetric
Peak intensity:
1.746 cd/lm
Efficiency:
91 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LED-St-LxxW2c4-50 (Daisy-7x1)
Required components:
C18409_DAISY-7X1-SHD-MET-MATT
FWHM: asymmetric
Peak intensity:
1.605 cd/lm
Efficiency:
89 %
LEDs/each optic:
2
Light colour/type:
White

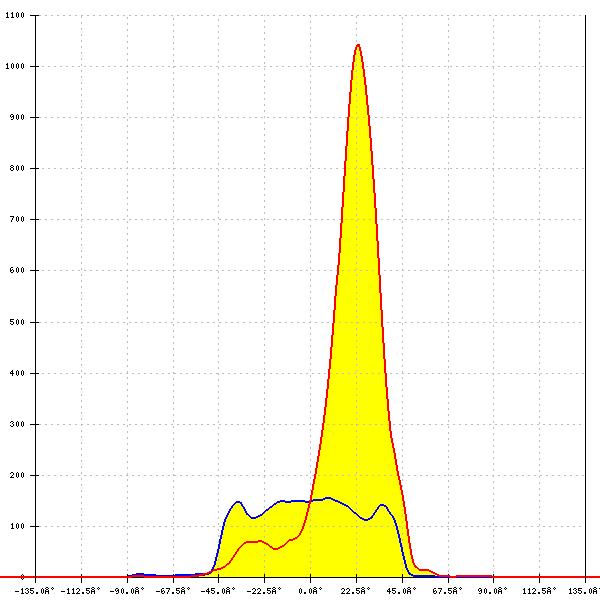

LED:

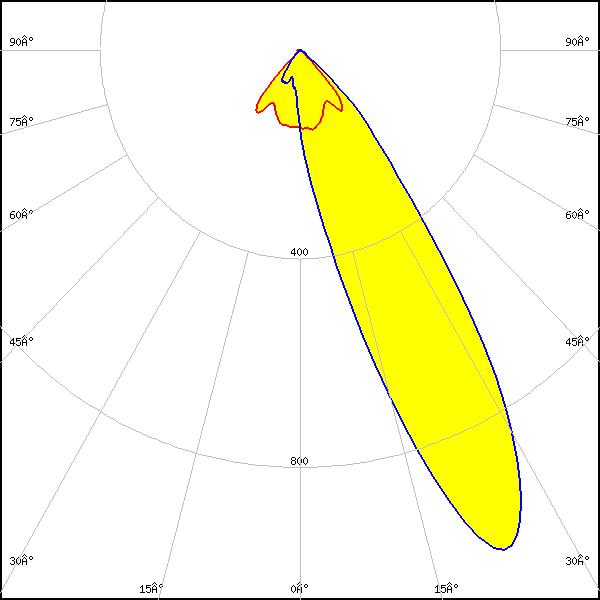

SEOUL DC 3030
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.042 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

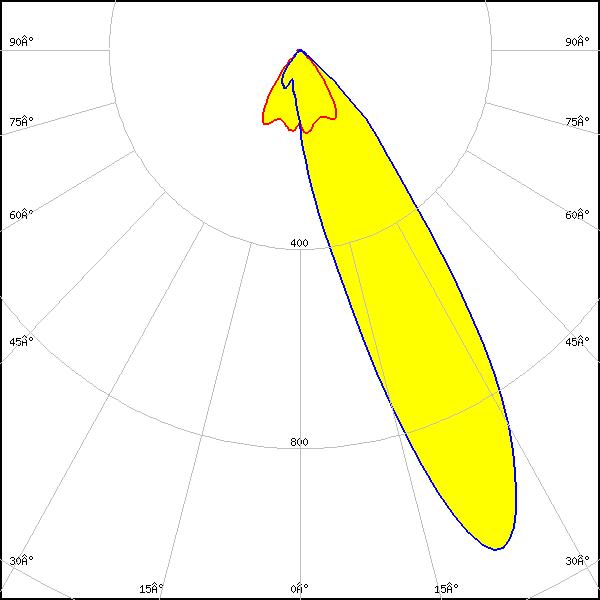

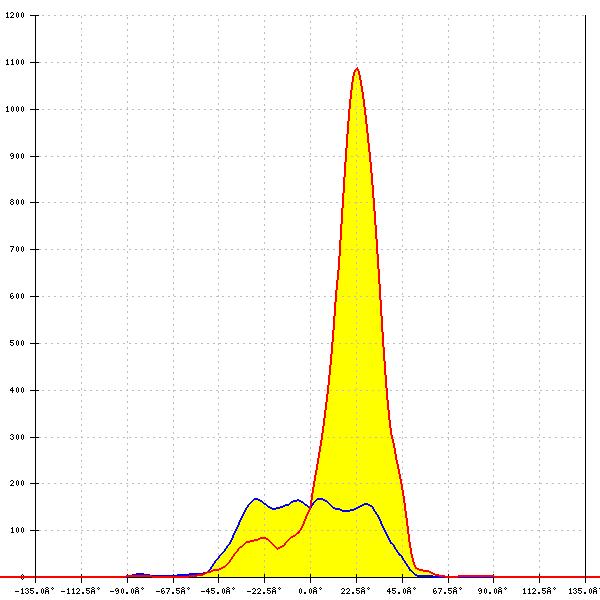

LED:
SEOUL DC 3030
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.187 cd/lm
Efficiency:
69 %
LEDs/each optic:
2
Light colour/type:
White

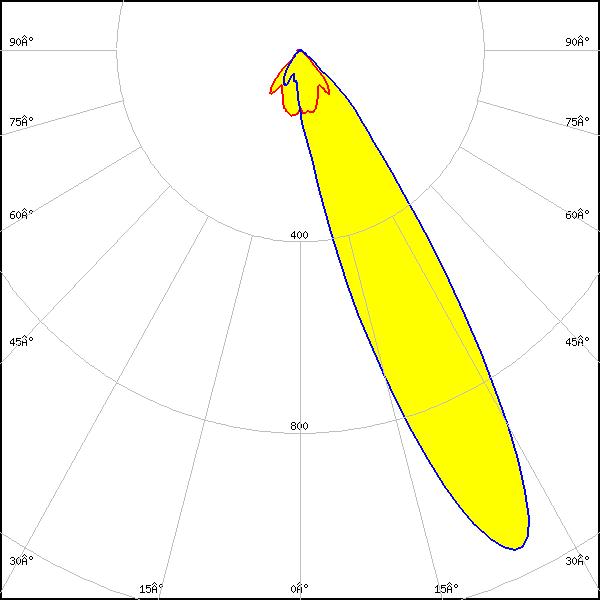

LED:
SEOUL DC 3030C
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.186 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White

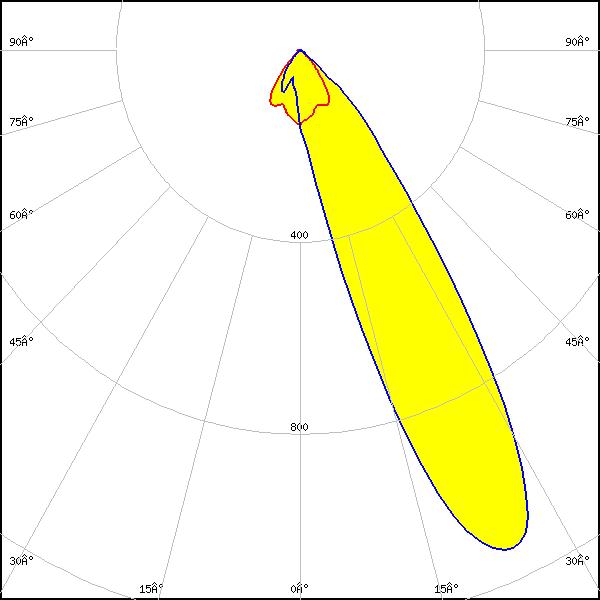

LED:
SEOUL DC 3030C
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.265 cd/lm
Efficiency:
70 %
LEDs/each optic:
2
Light colour/type:
White

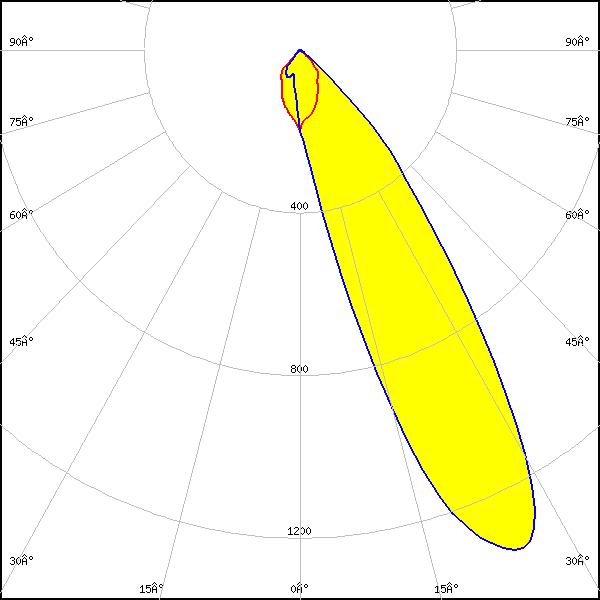

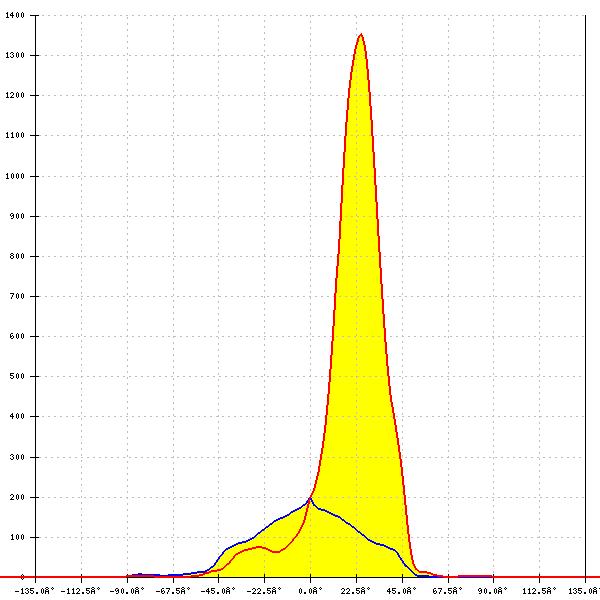

LED:
SEOUL DC 3528
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.352 cd/lm
Efficiency:
66 %
LEDs/each optic:
3
Light colour/type:
White

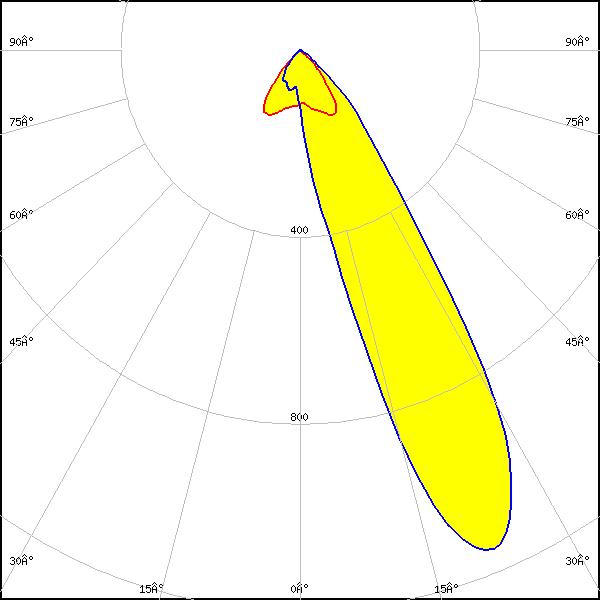

LED:

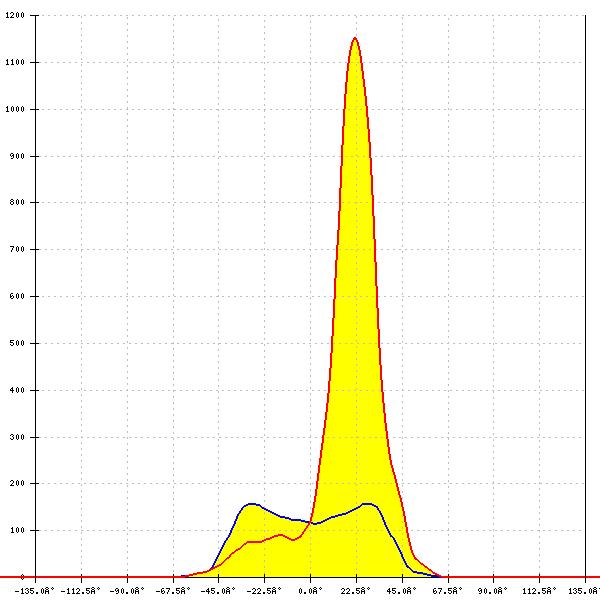

Z8Y22
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.470 cd/lm
Efficiency:
76 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LLE 24mm 2000lm LVD HP ADV2
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
1.518 cd/lm
Efficiency:
77 %
LEDs/each optic:
2
Light colour/type:
White
