DAISY-7X1-ZT25-D
Print

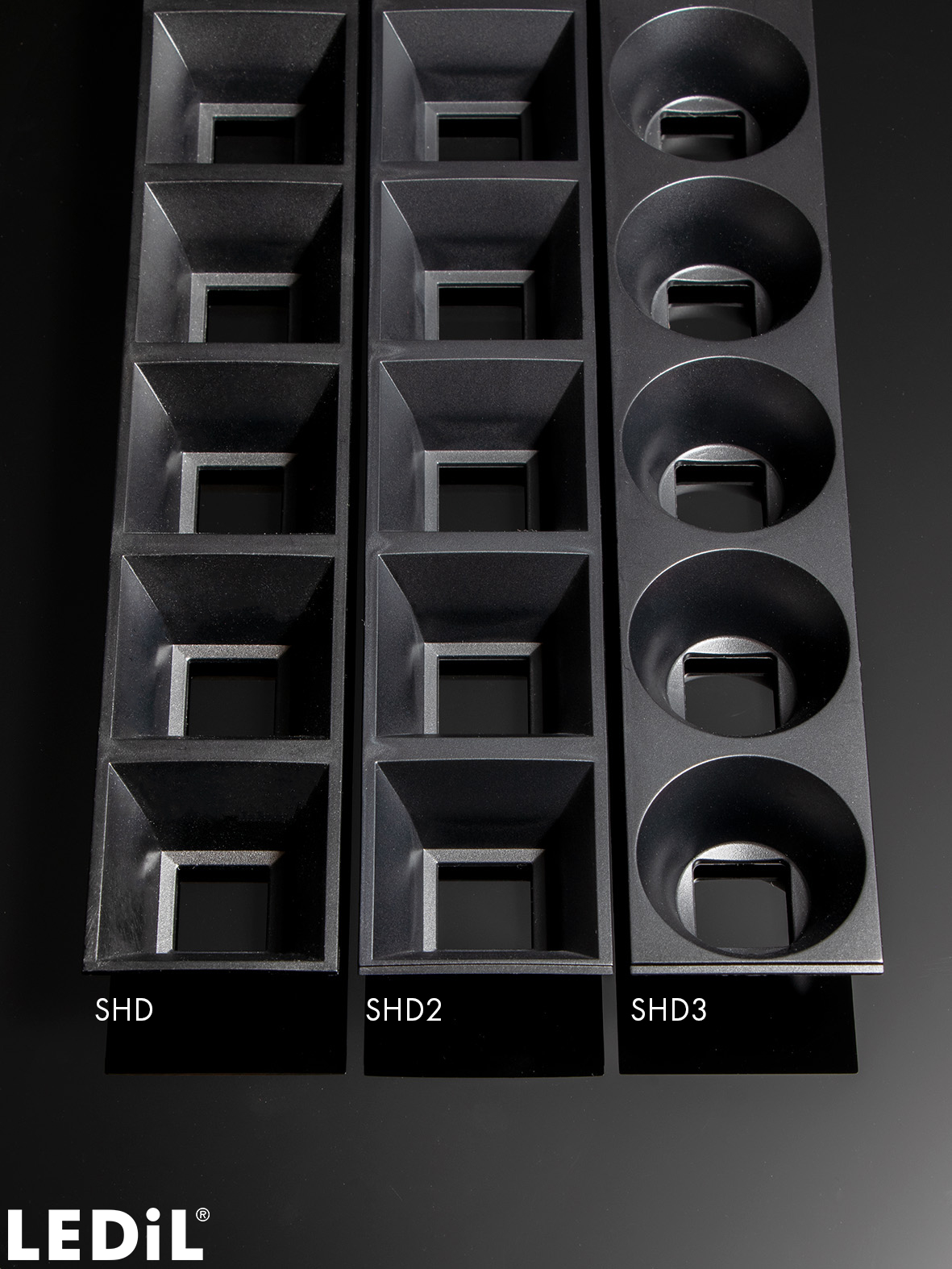

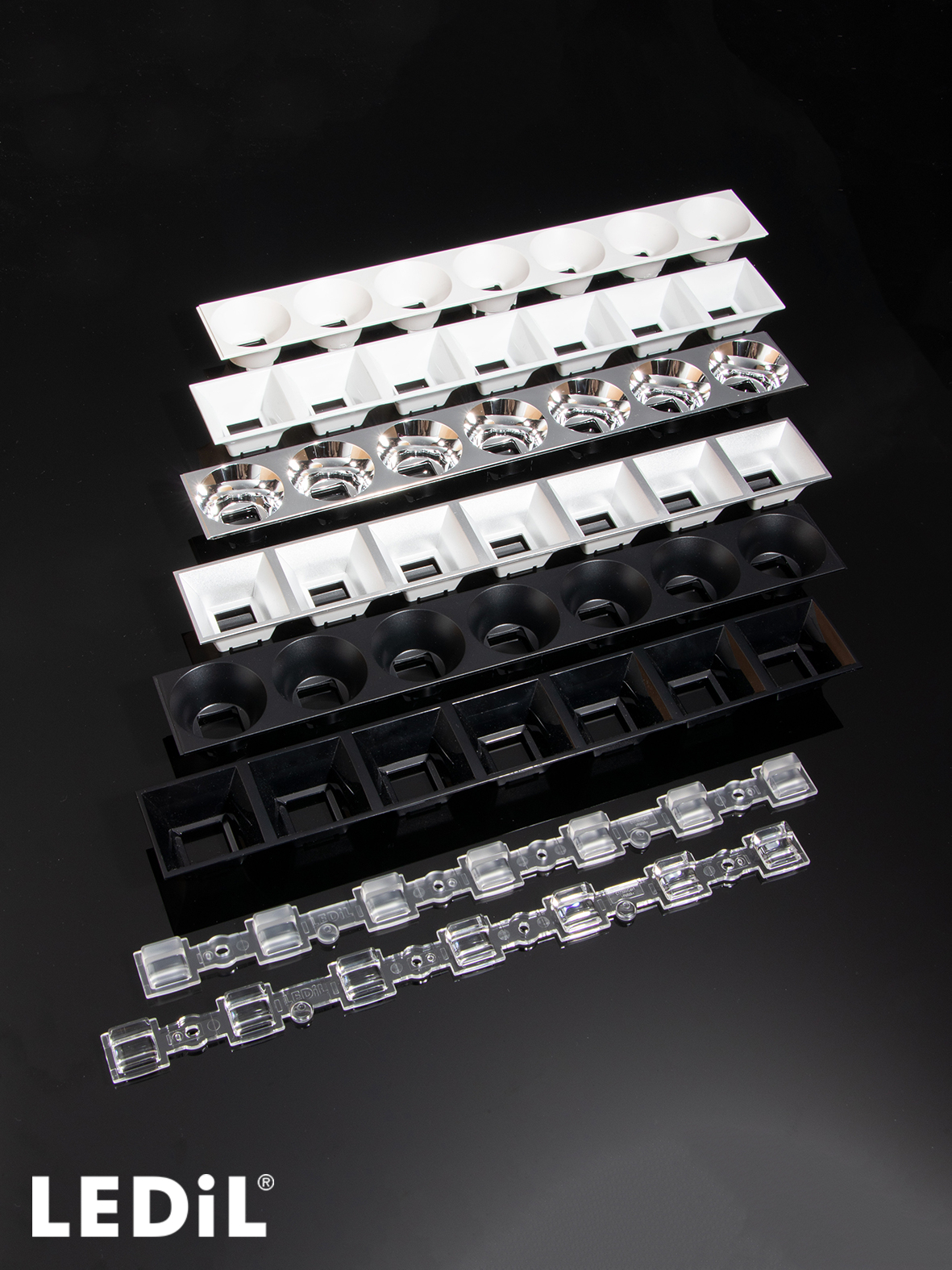

Asymmetric beam for aisle lighting. Diffused version for perfect colour mixing. Choose SHD with no lips or SHD2 with narrow lips and square openings. SHD3 with narrow lips and round openings.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:280 x 40 mm
-
Height:20.30 mm
-
Fastening:pin, screw
-
RoHS and REACH compliant:Yes
Materials
- Linear lens
- C17767_DAISY-7X1-ZT25-DPMMA
- Request material files from Tech Support

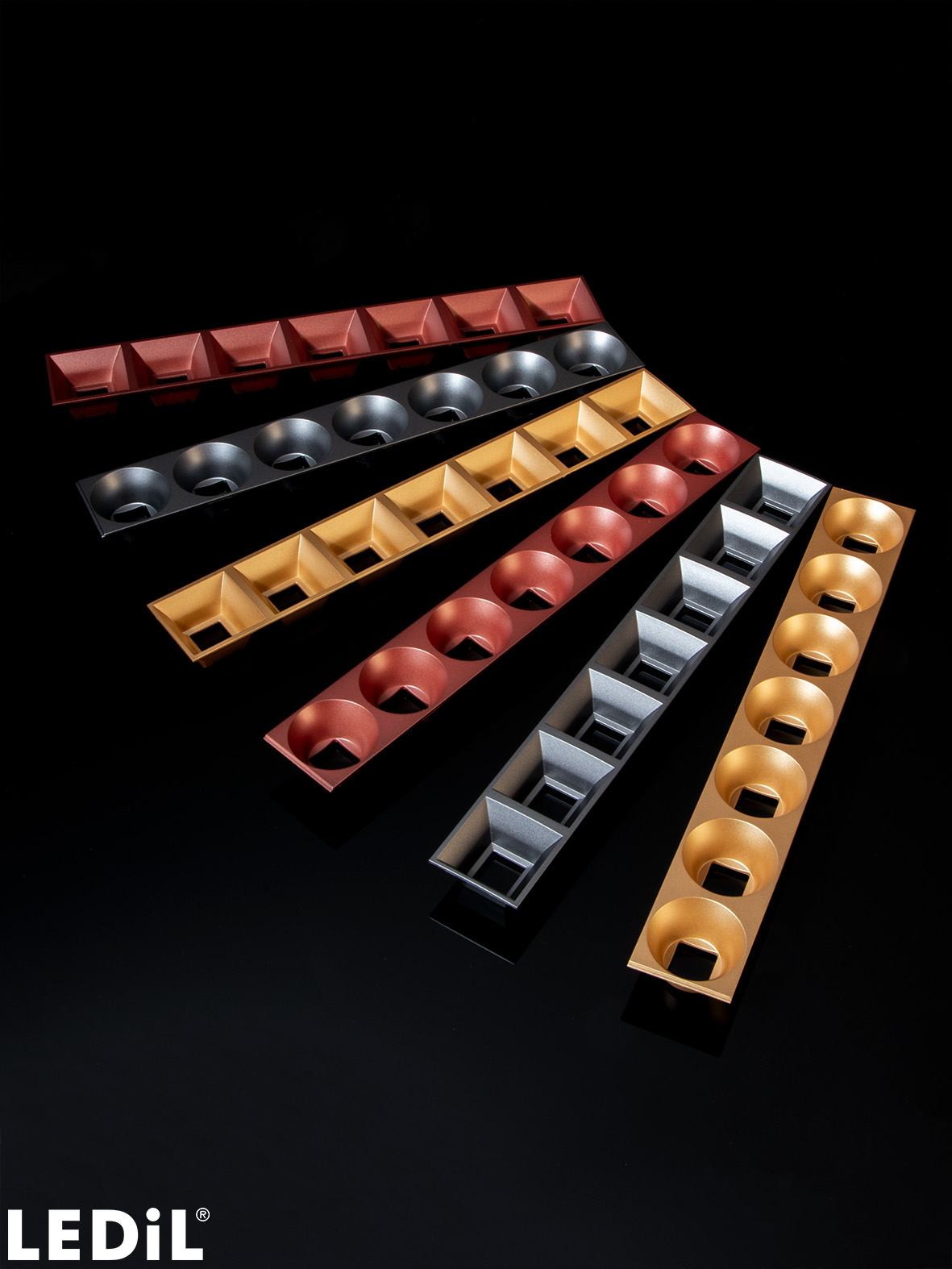

- Shade
- C16872_DAISY-7X1-SHDPC
- C16876_DAISY-7X1-SHD-WHTPC
- C17051_DAISY-7X1-SHD-MATTPC
- C17225_DAISY-7X1-SHD-WHT-MATTPC
- C18167_DAISY-7X1-SHD-METPC
- C18409_DAISY-7X1-SHD-MET-MATTPC
- C19763_DAISY-7X1-SHD-MATT-REDPC
- C19764_DAISY-7X1-SHD-MATT-GRPC
- C19852_DAISY-7X1-SHD-MATT-GLDPC
- C19853_DAISY-7X1-SHD3-MATT-GRPC
- C19854_DAISY-7X1-SHD3-MATT-REDPC
- C19855_DAISY-7X1-SHD3-MATT-GLDPC
- L20010_DAISY-7X1-SHD2PC
- L20011_DAISY-7X1-SHD2-MATTPC-ABS
- L20012_DAISY-7X1-SHD2-WHTPC
- L20013_DAISY-7X1-SHD2-MATT-WHTPC
- L20014_DAISY-7X1-SHD2-METPC
- L20015_DAISY-7X1-SHD2-MET-MATTPC-ABS
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Linear lens1 pcs
- Shade1 pcs
- Linear lens
- C17767_DAISY-7X1-ZT25-Dmilky
- Quantity in box:312 pcs
- Box size:400 x 300 x 300 mm
- Box weight:5.90 kg
- MPQ:24 pcs
- MOQ:312 pcs
- MOQ Size:400 x 300 x 300 mm
- MOQ Weight:5.90 kg
- Shade
- C16872_DAISY-7X1-SHDblack,gloss
- C16876_DAISY-7X1-SHD-WHTwhite,gloss
- C17051_DAISY-7X1-SHD-MATTblack,matt
- C17225_DAISY-7X1-SHD-WHT-MATTwhite,matt
- C18167_DAISY-7X1-SHD-METmetal,gloss
- C18409_DAISY-7X1-SHD-MET-MATTmetal,matt
- C19763_DAISY-7X1-SHD-MATT-REDred,matt
- C19764_DAISY-7X1-SHD-MATT-GRgrey,matt
- C19852_DAISY-7X1-SHD-MATT-GLDgold,matt
- C19853_DAISY-7X1-SHD3-MATT-GRgrey,matt
- C19854_DAISY-7X1-SHD3-MATT-REDred,matt
- C19855_DAISY-7X1-SHD3-MATT-GLDgold,matt
- L20010_DAISY-7X1-SHD2black,gloss
- L20011_DAISY-7X1-SHD2-MATTblack,matt
- L20012_DAISY-7X1-SHD2-WHTwhite,gloss
- L20013_DAISY-7X1-SHD2-MATT-WHTwhite,matt
- L20014_DAISY-7X1-SHD2-METmetal,gloss
- L20015_DAISY-7X1-SHD2-MET-MATTmetal,matt
- Quantity in box:156 pcs
- Box size:595 x 360 x 230 mm
- Box weight:7.10 kg
- MPQ:24 pcs
- MOQ:312 pcs
- MOQ Size:595 x 360 x 230 mm
- MOQ Weight:7.10 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
- PCB drawing
Related Content

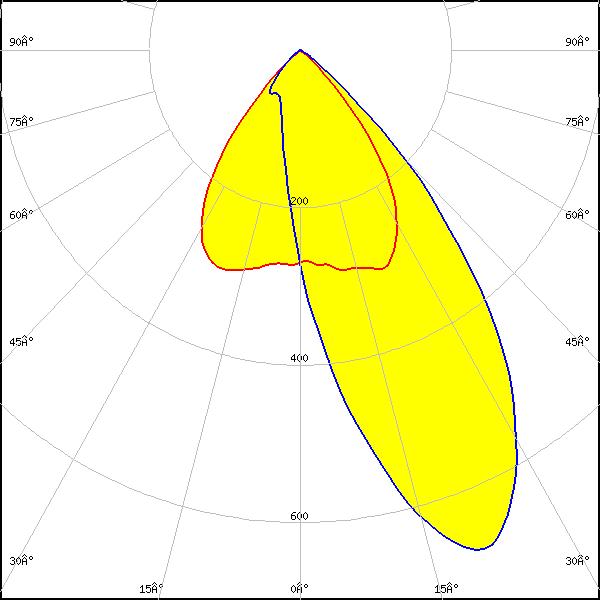

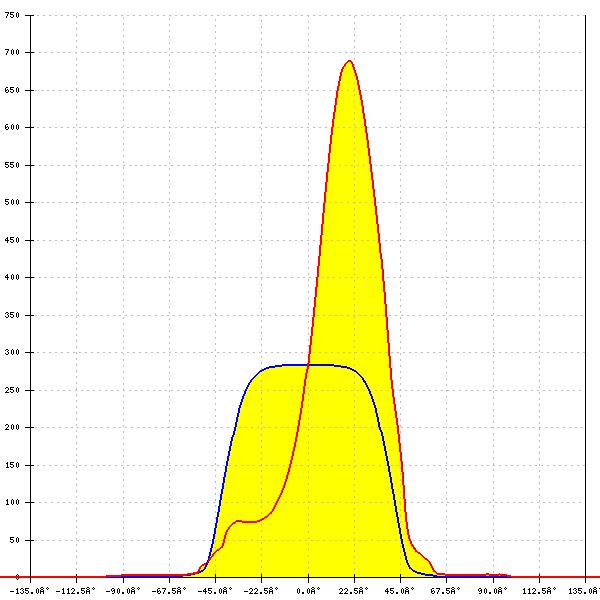

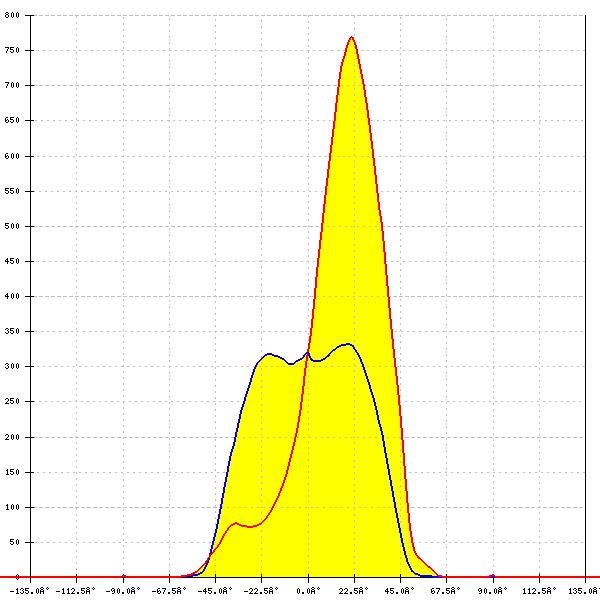

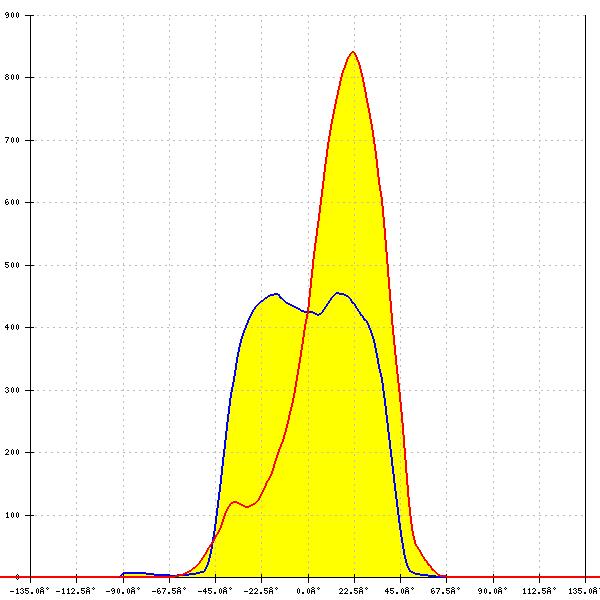

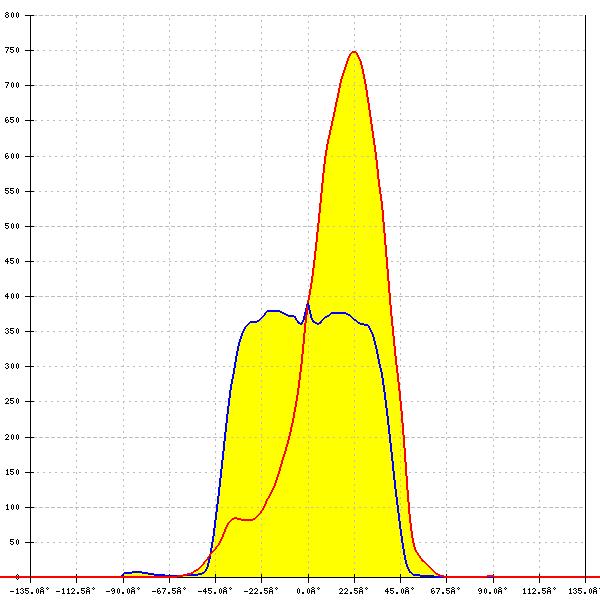

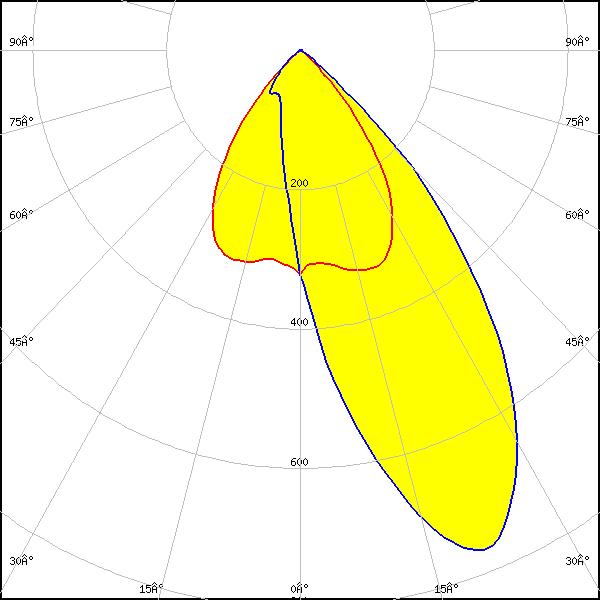

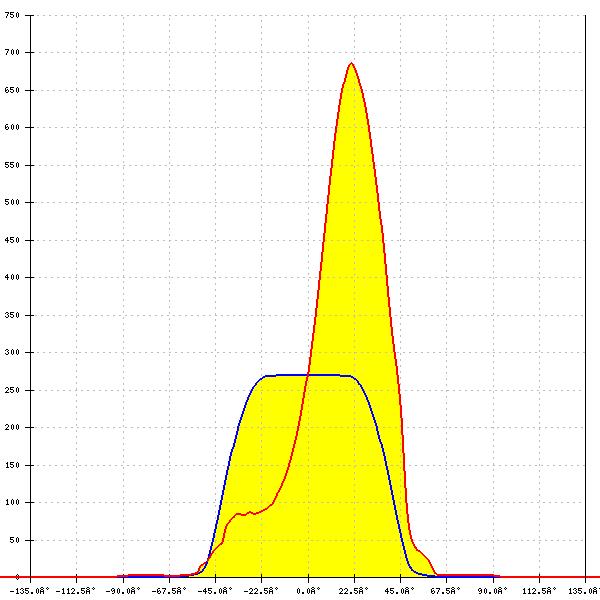

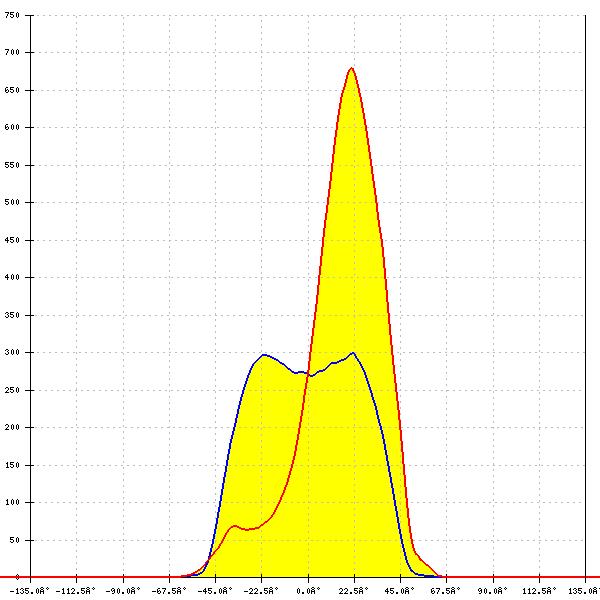

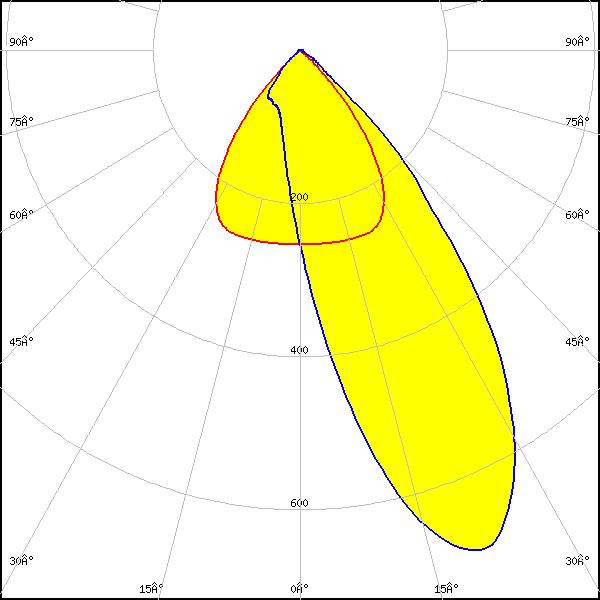

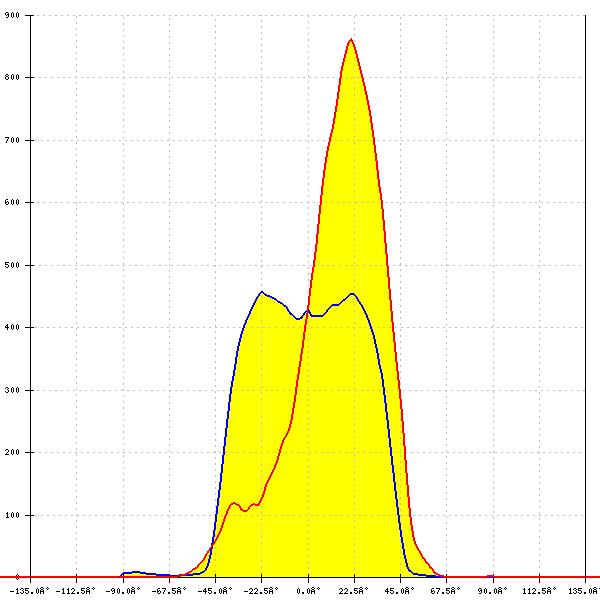

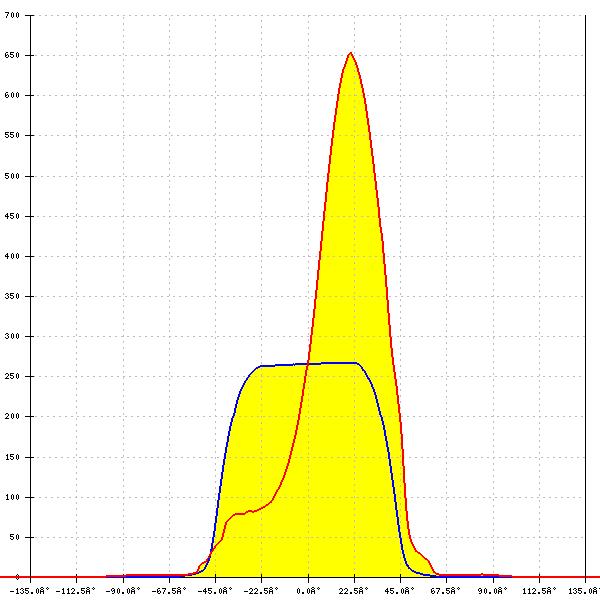

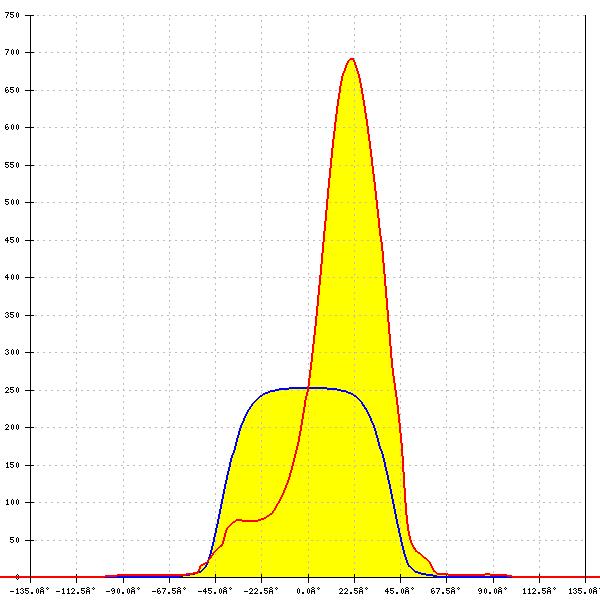

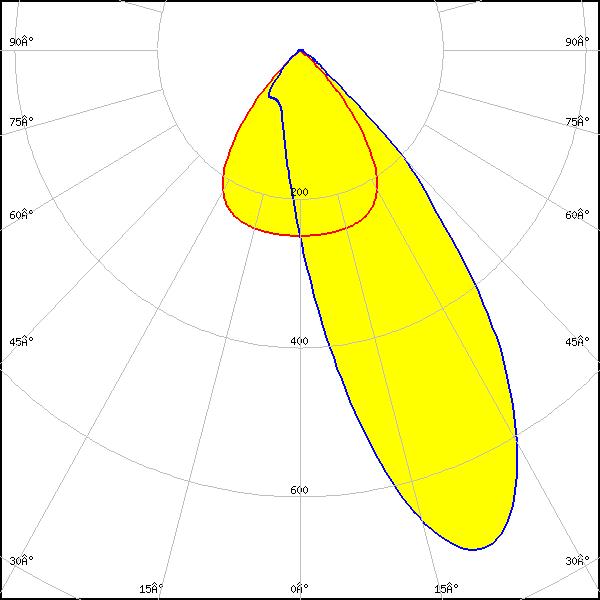

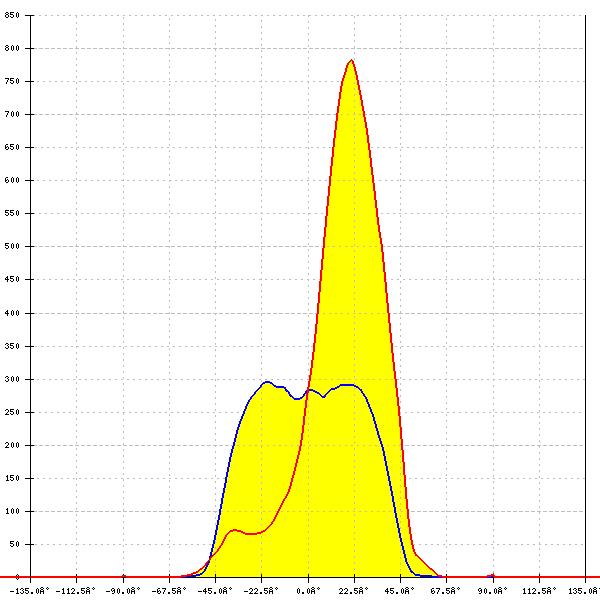

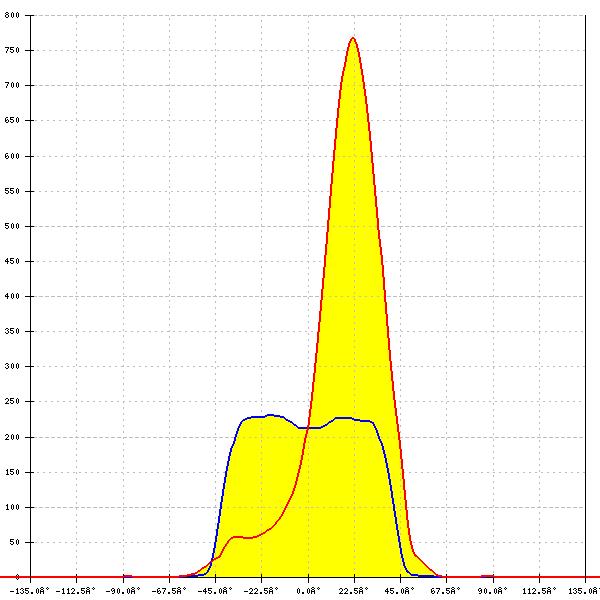

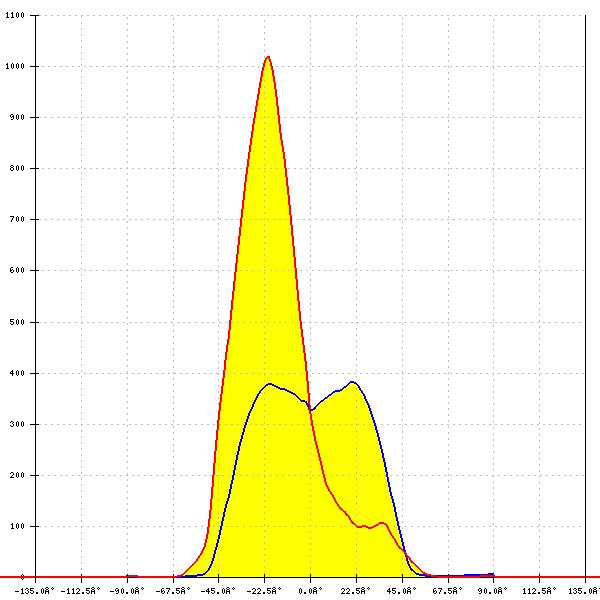

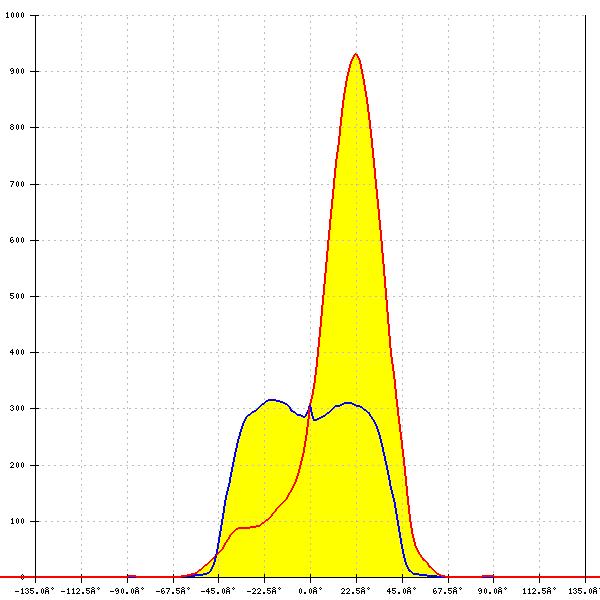

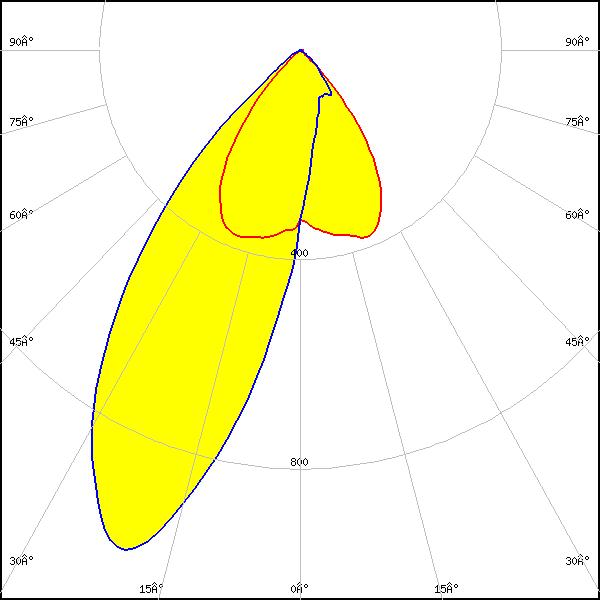

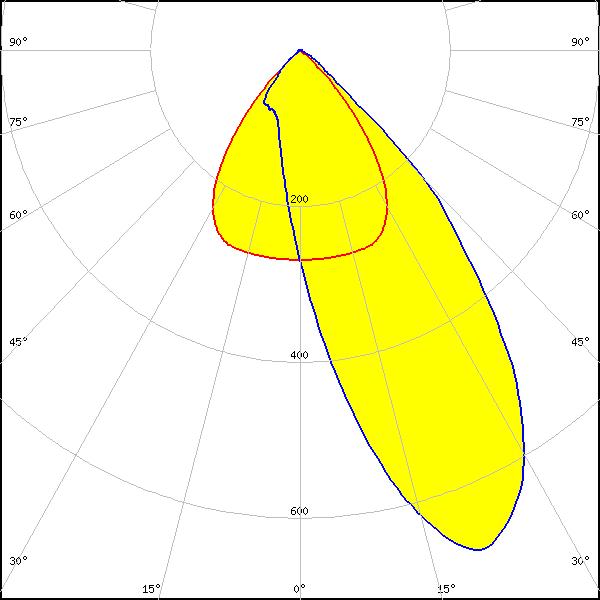

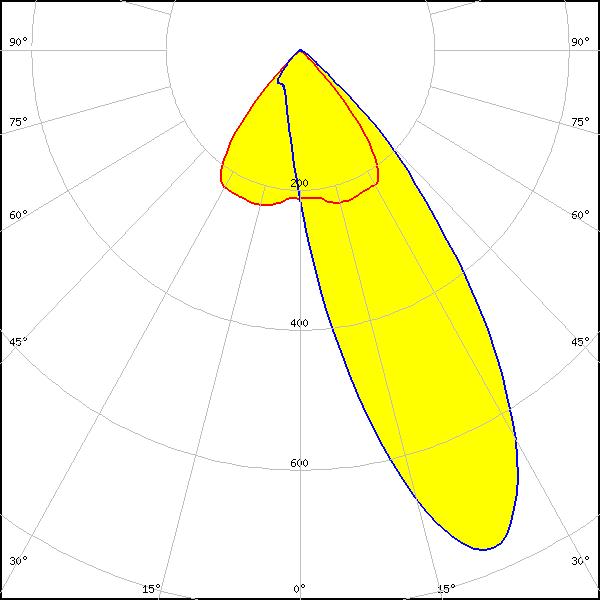

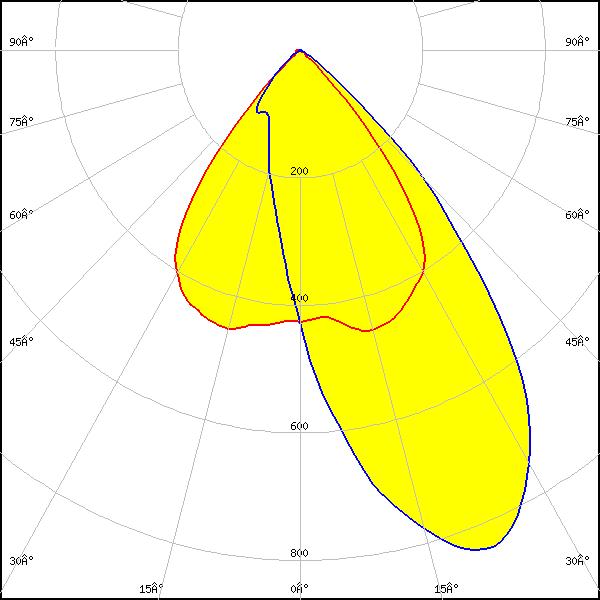

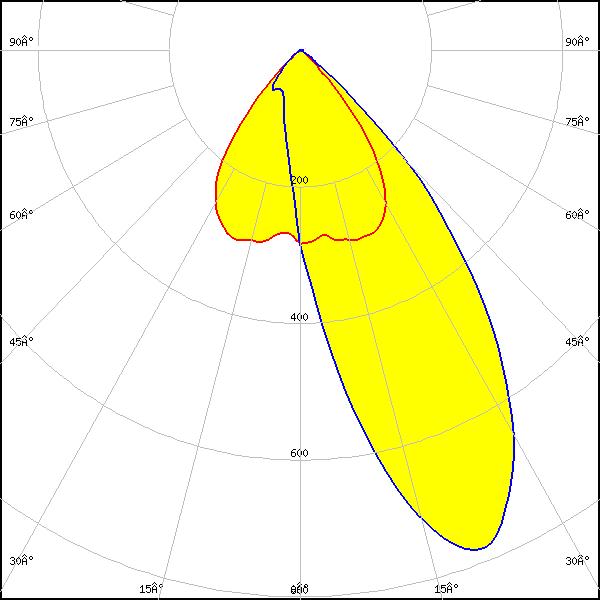

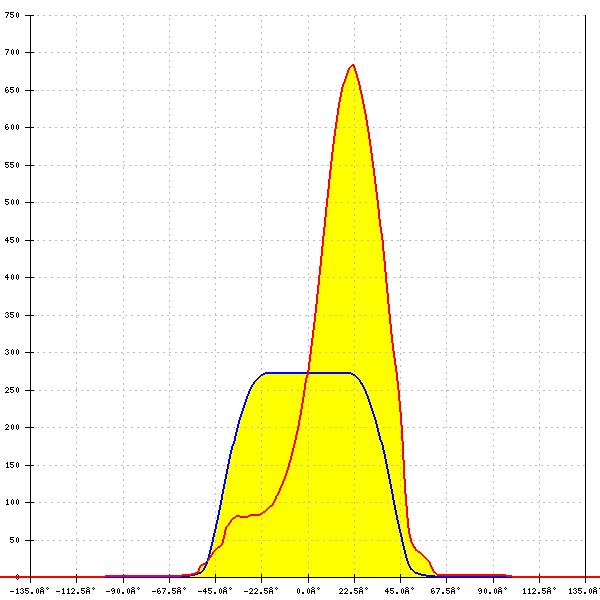

Optical results

LED:
CSP 2727 (BXCP)
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.807 cd/lm
Efficiency:
66 %
LEDs/each optic:
2
Light colour/type:
White

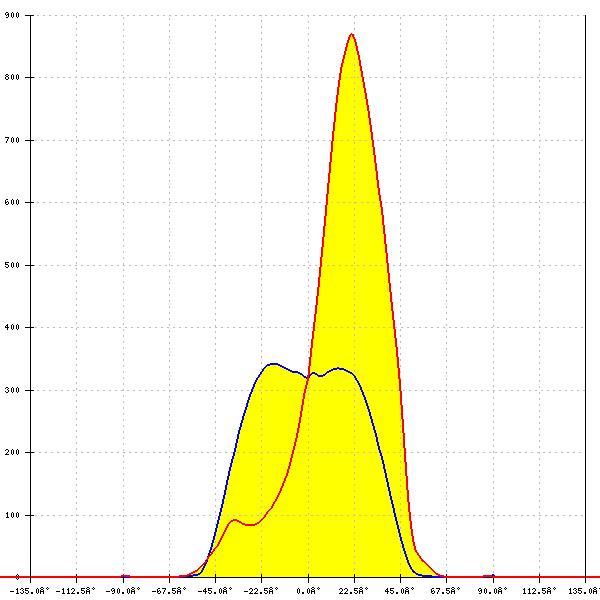

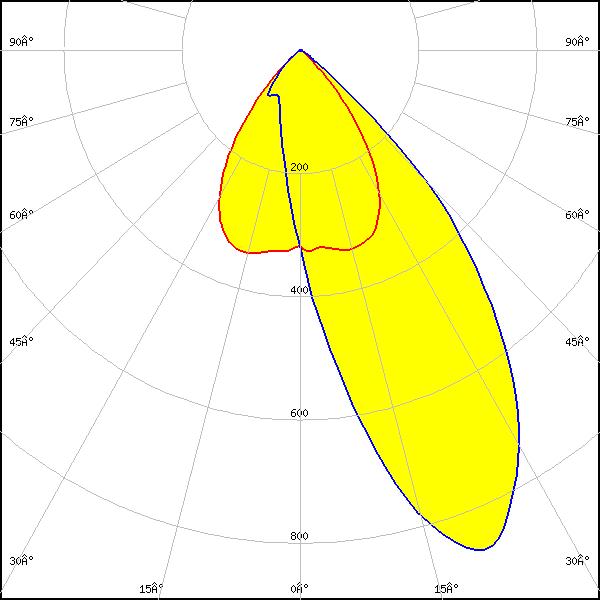

LED:
J Series 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.898 cd/lm
Efficiency:
73 %
LEDs/each optic:
2
Light colour/type:
White

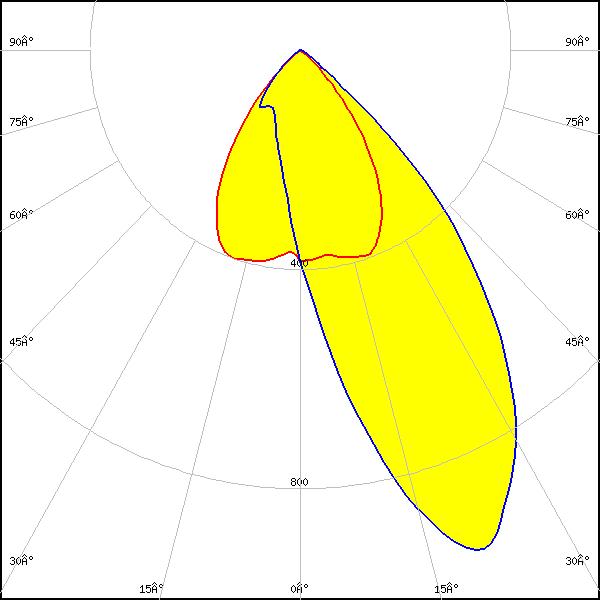

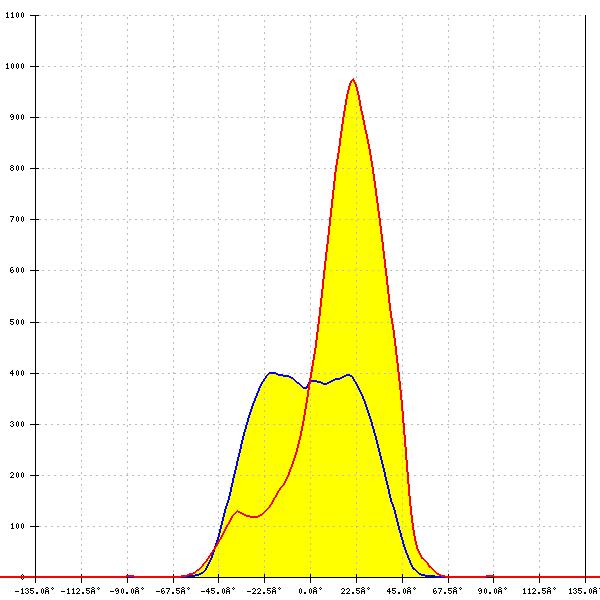

LED:
J Series 2835
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: asymmetric
Peak intensity:
1.028 cd/lm
Efficiency:
84 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
0.726 cd/lm
Efficiency:
61 %
LEDs/each optic:
2
Light colour/type:
Tunable White

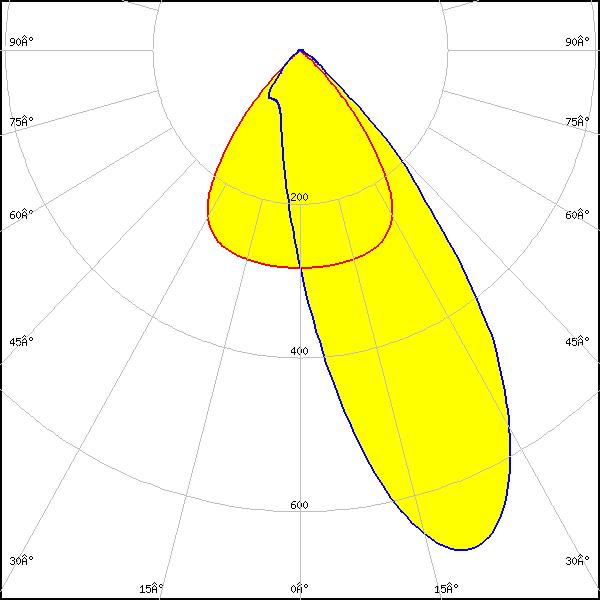

LED:
LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
0.743 cd/lm
Efficiency:
62 %
LEDs/each optic:
2
Light colour/type:
White

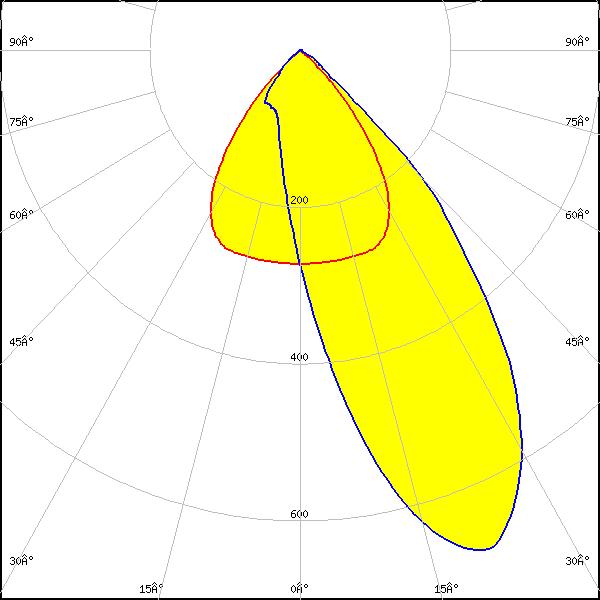

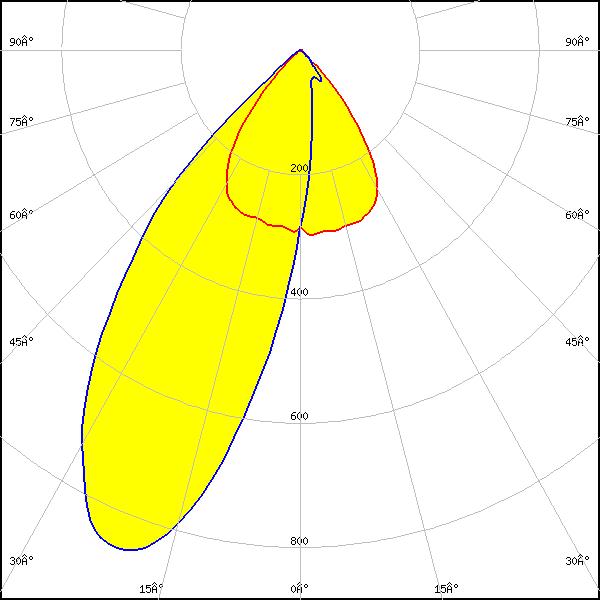

LED:
LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.886 cd/lm
Efficiency:
70 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.745 cd/lm
Efficiency:
63 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON HL2Z
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.826 cd/lm
Efficiency:
66 %
LEDs/each optic:
2
Light colour/type:
White

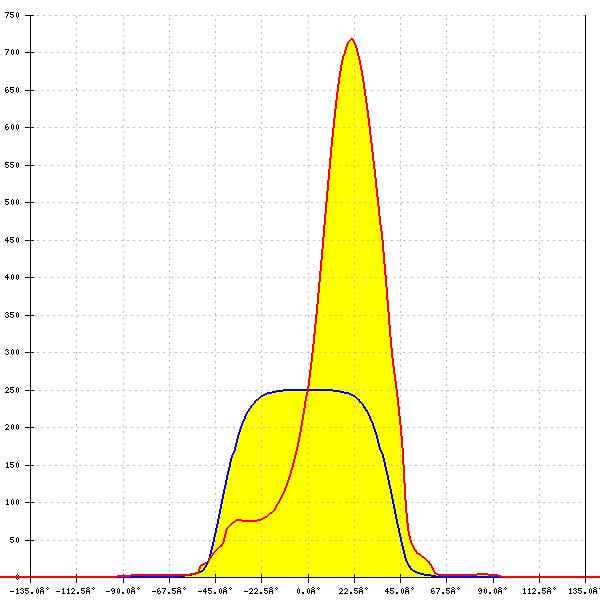

LED:
LUXEON HL2Z
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
0.759 cd/lm
Efficiency:
62 %
LEDs/each optic:
2
Light colour/type:
White

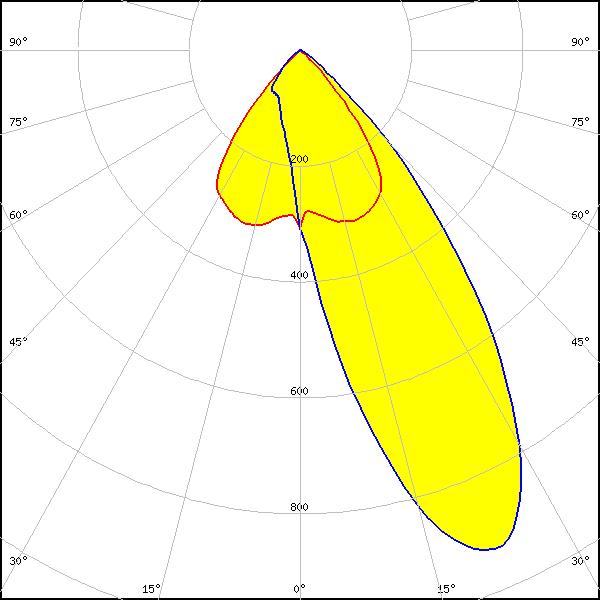

LED:
LinLED 274x24mm 1100lm 840 4C 42V DAISY-7X1 (ZT25) G4
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.741 cd/lm
Efficiency:
63 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.695 cd/lm
Efficiency:
62 %
LEDs/each optic:
1
Light colour/type:
White

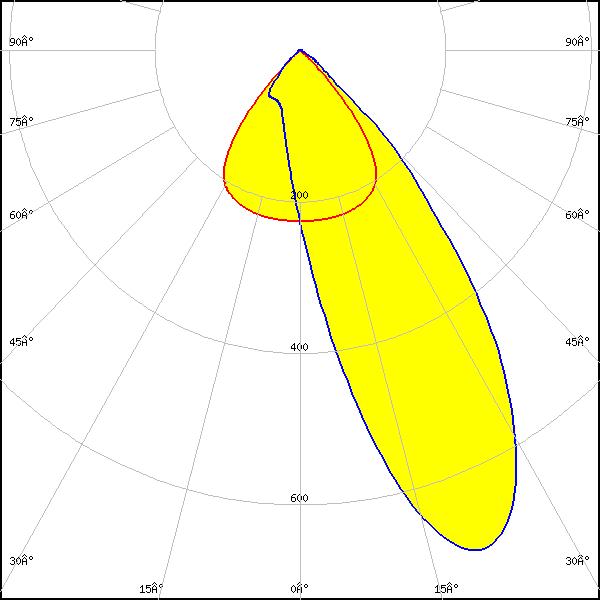

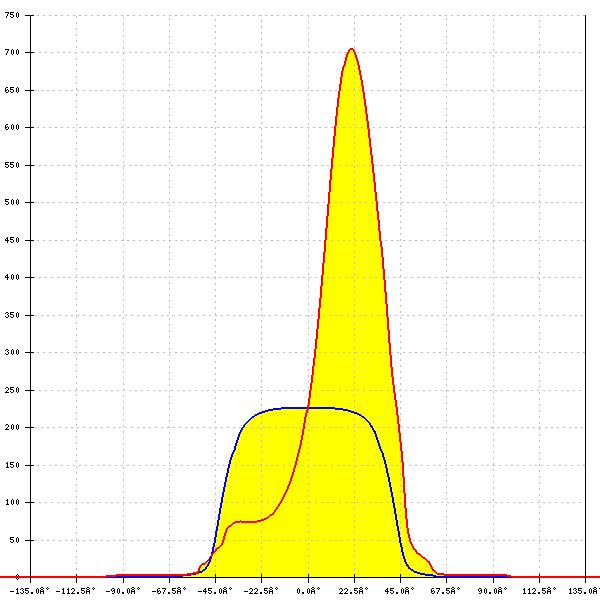

LED:
NCSxE17A
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
0.727 cd/lm
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
White

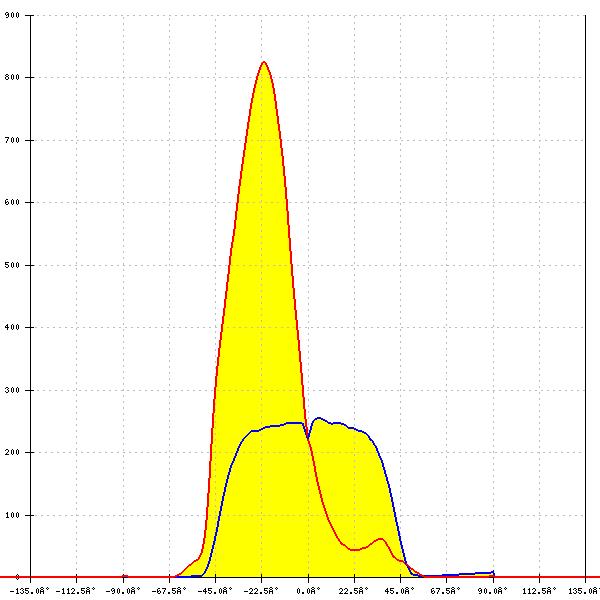

LED:
NVSxE21A
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.825 cd/lm
Efficiency:
68 %
LEDs/each optic:
2
Light colour/type:
White

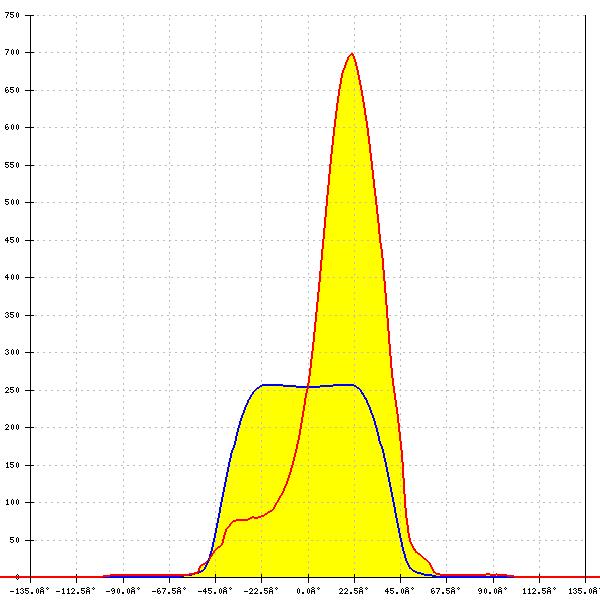

LED:
NVSxE21A
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.782 cd/lm
Efficiency:
62 %
LEDs/each optic:
1
Light colour/type:
White

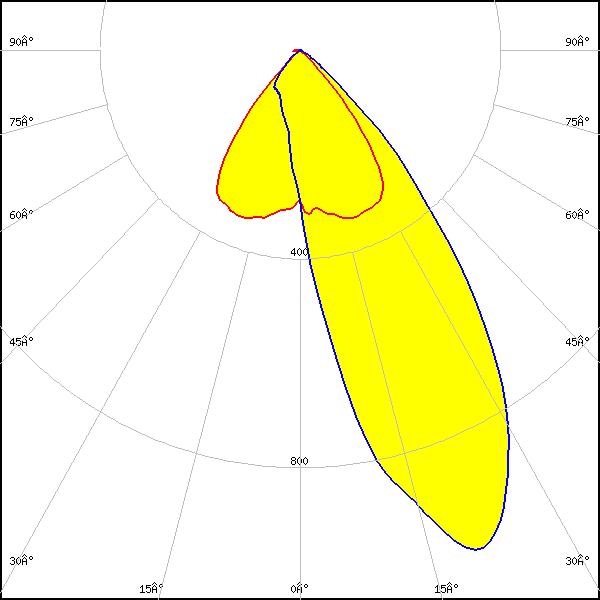

LED:
OSLON PURE 1010
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: asymmetric
Peak intensity:
1.091 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
White

LED:
LH181B
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: asymmetric
Peak intensity:
1.101 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White

LED:
LH231B
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.770 cd/lm
Efficiency:
63 %
LEDs/each optic:
1
Light colour/type:
White

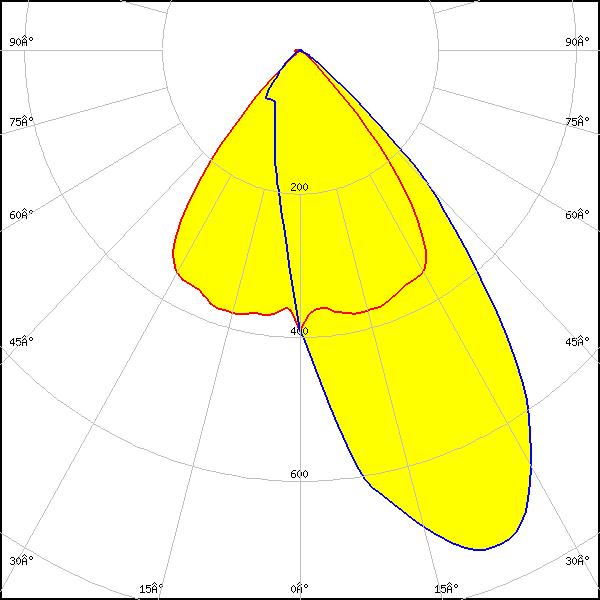

LED:
LM101B
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
0.784 cd/lm
Efficiency:
75 %
LEDs/each optic:
4
Light colour/type:
White

LED:
LM101B
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: asymmetric
Peak intensity:
0.891 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
White

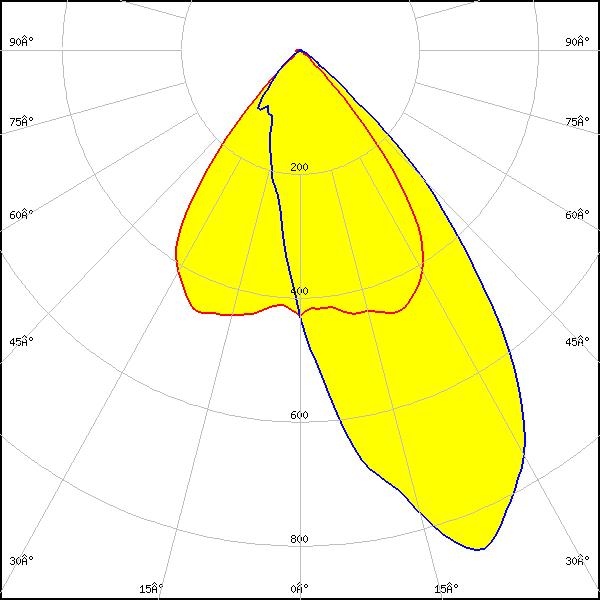

LED:
LM101B
Required components:
C17532_DAISY-7X1-SHD-MET
FWHM: asymmetric
Peak intensity:
0.956 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

LED:
Z8Y22
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.736 cd/lm
Efficiency:
61 %
LEDs/each optic:
2
Light colour/type:
White
