DAISY-7X1-BW

Print

~80° batwing beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    40 x  259 mm
  • Height:
    40.00 mm
  • RoHS and REACH compliant:
    Yes

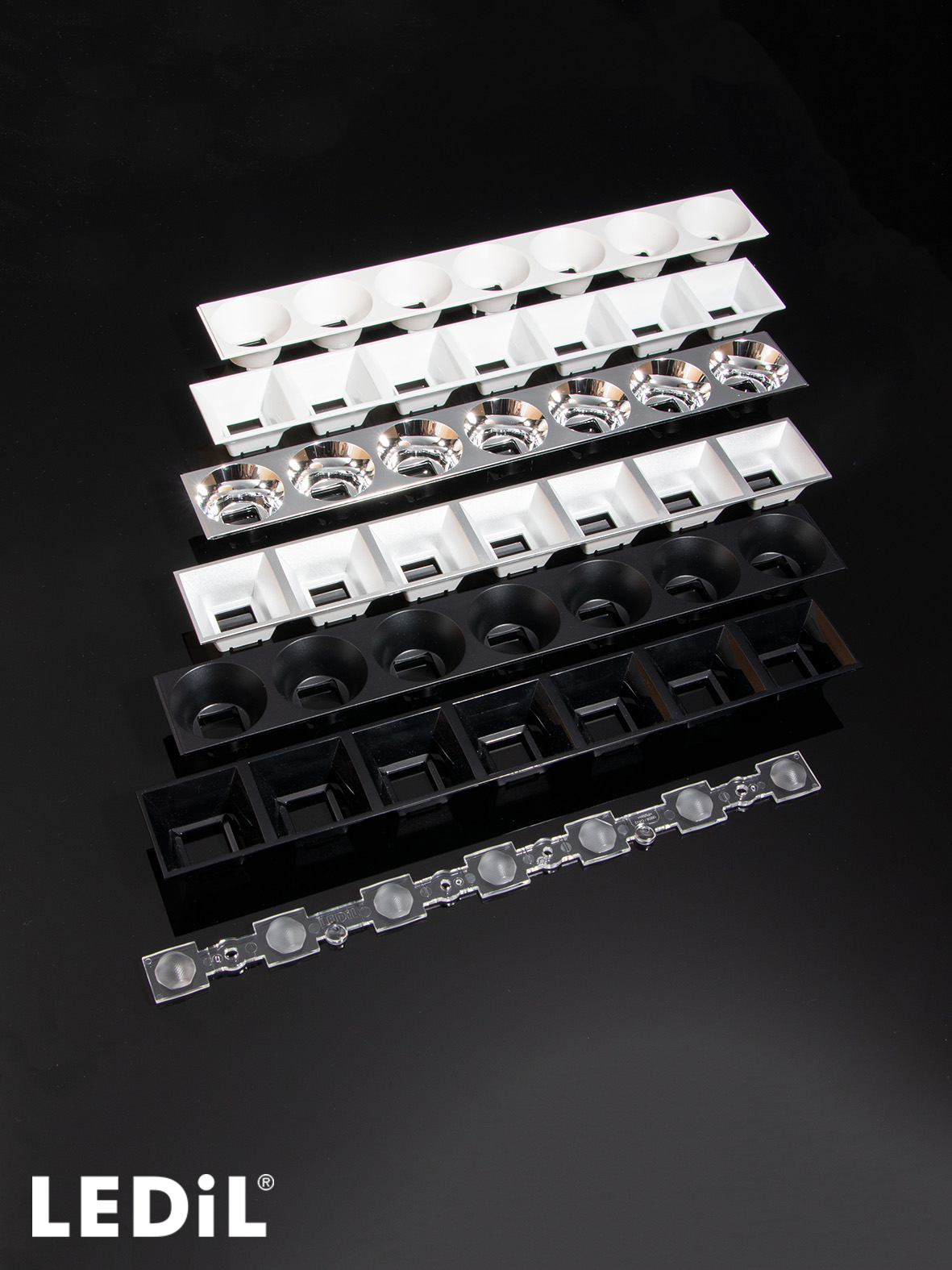

Materials
  • Multi-lens
  • C18806_DAISY-7X1-BW
    PMMA
  • Request material files from Tech Support

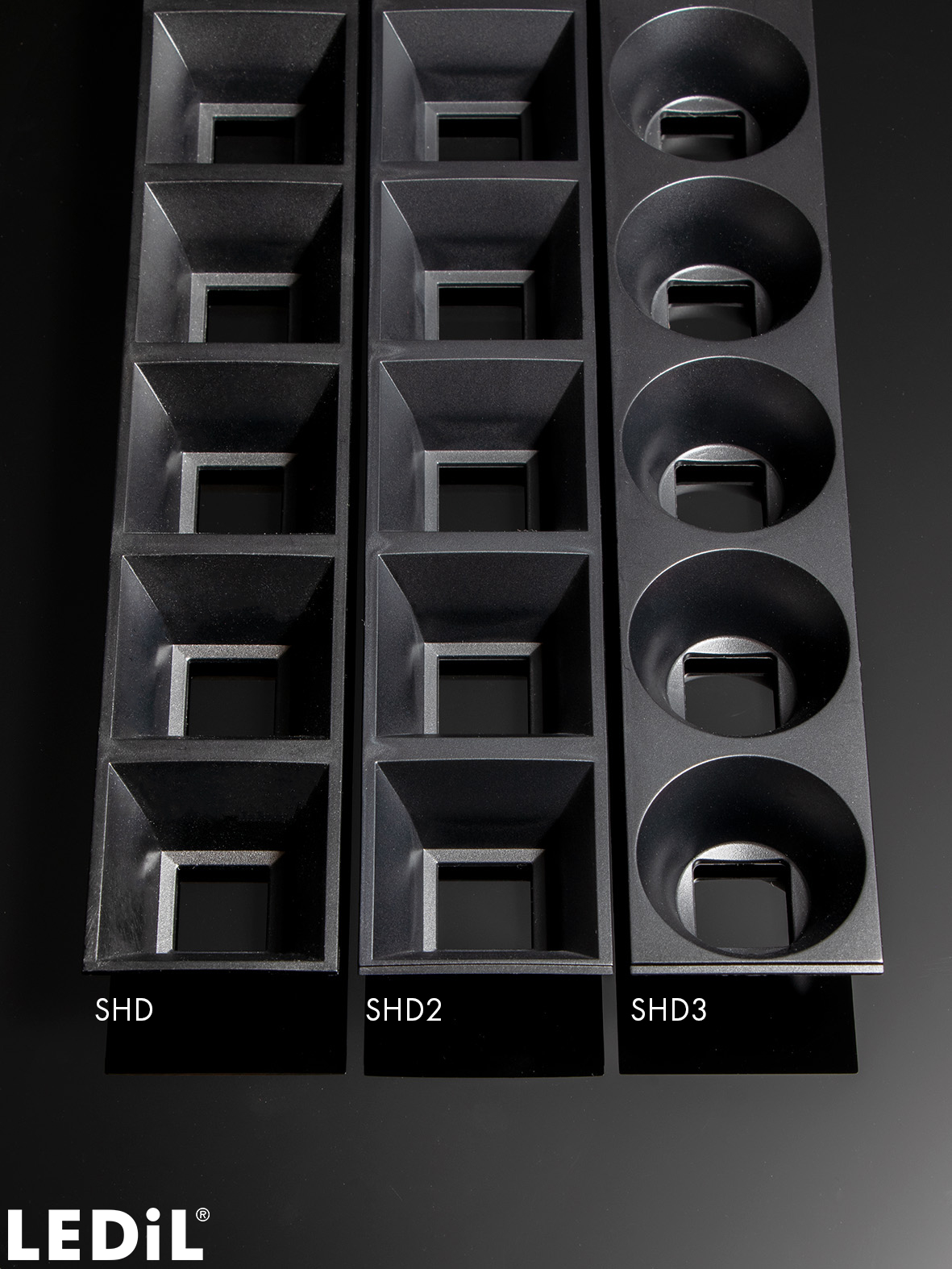

  • Shade
  • C16872_DAISY-7X1-SHD
    PC
  • C16876_DAISY-7X1-SHD-WHT
    PC
  • C17051_DAISY-7X1-SHD-MATT
    PC
  • C17225_DAISY-7X1-SHD-WHT-MATT
    PC
  • C18167_DAISY-7X1-SHD-MET
    PC
  • C18409_DAISY-7X1-SHD-MET-MATT
    PC
  • C19312_DAISY-7X1-SHD3
    PC
  • C19313_DAISY-7X1-SHD3-MATT
    PC
  • C19314_DAISY-7X1-SHD3-WHT
    PC
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    PC
  • C19641_DAISY-7X1-SHD3-MET
    PC
  • C19642_DAISY-7X1-SHD3-MET-MATT
    PC
  • C19763_DAISY-7X1-SHD-MATT-RED
    PC
  • C19764_DAISY-7X1-SHD-MATT-GR
    PC
  • C19852_DAISY-7X1-SHD-MATT-GLD
    PC
  • C19853_DAISY-7X1-SHD3-MATT-GR
    PC
  • C19854_DAISY-7X1-SHD3-MATT-RED
    PC
  • C19855_DAISY-7X1-SHD3-MATT-GLD
    PC
  • Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Multi-lens
    1 pcs
  • Shade
    1 pcs
  • Multi-lens
  • C18806_DAISY-7X1-BW
    clear
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    5.70 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    5.70 kg

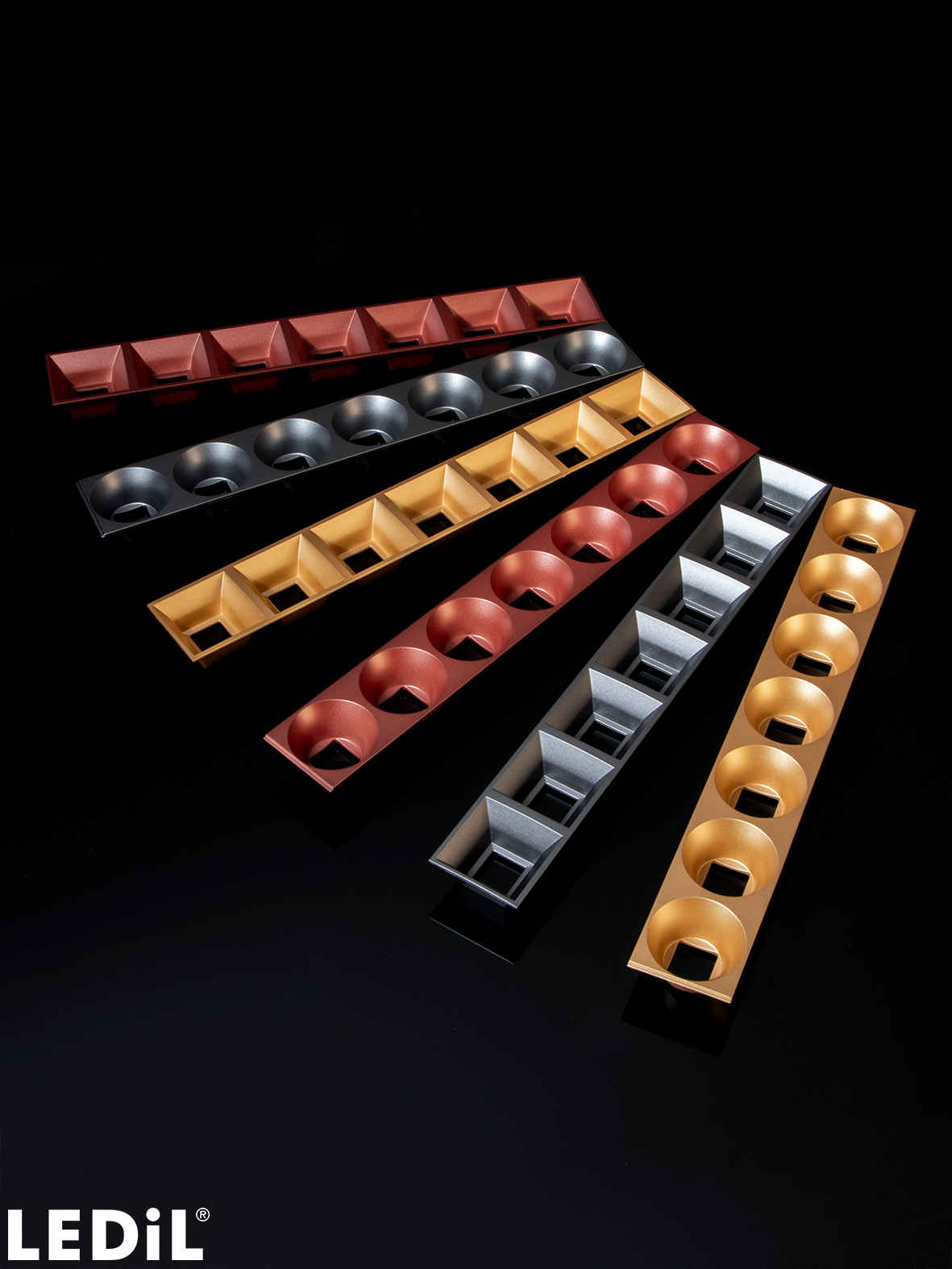

  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • C18409_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • C19312_DAISY-7X1-SHD3
    black,gloss
  • C19313_DAISY-7X1-SHD3-MATT
    black,matt
  • C19314_DAISY-7X1-SHD3-WHT
    white,gloss
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    white,matt
  • C19641_DAISY-7X1-SHD3-MET
    metal,gloss
  • C19642_DAISY-7X1-SHD3-MET-MATT
    metal,matt
  • C19763_DAISY-7X1-SHD-MATT-RED
    red,matt
  • C19764_DAISY-7X1-SHD-MATT-GR
    grey,matt
  • C19852_DAISY-7X1-SHD-MATT-GLD
    gold,matt
  • C19853_DAISY-7X1-SHD3-MATT-GR
    grey,matt
  • C19854_DAISY-7X1-SHD3-MATT-RED
    red,matt
  • C19855_DAISY-7X1-SHD3-MATT-GLD
    gold,matt
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    7.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C18806_DAISY-7X1-BW
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

Optical results

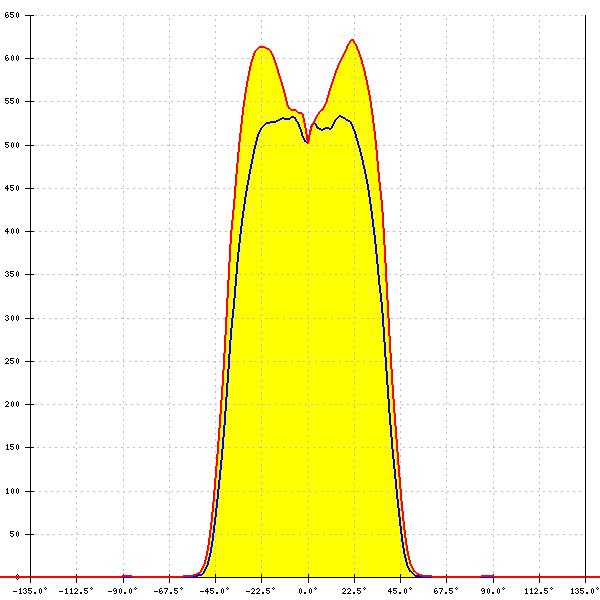

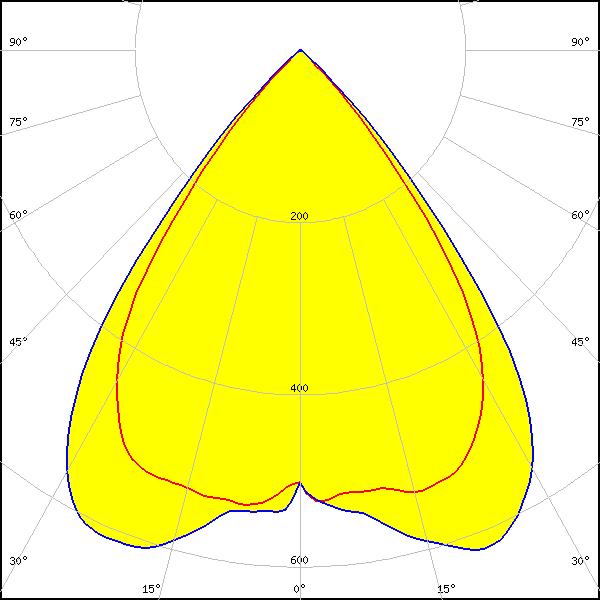

LED: LUXEON 2835 Line
Required components:

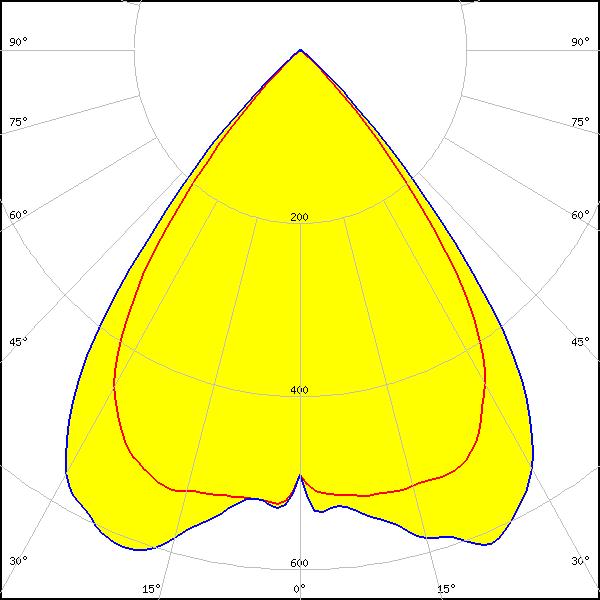

C16872_DAISY-7X1-SHD
FWHM: 75° + 78°
FWTM: 92° + 94°
Peak intensity: 0.637 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

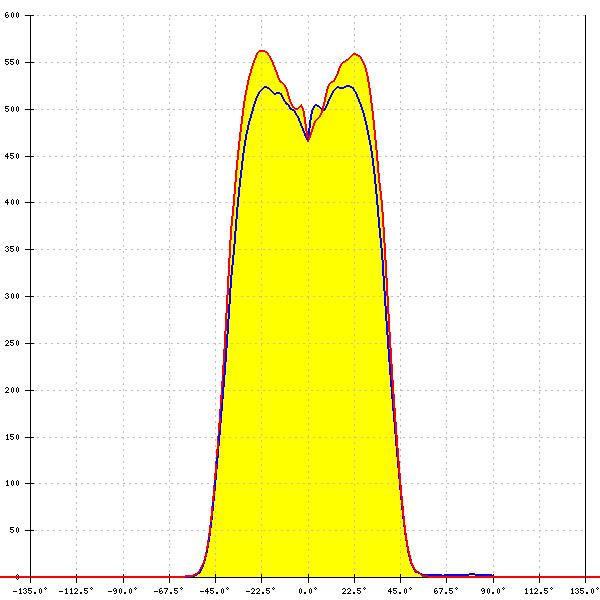

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 78°
FWTM: 94°
Peak intensity: 0.589 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour/type: White

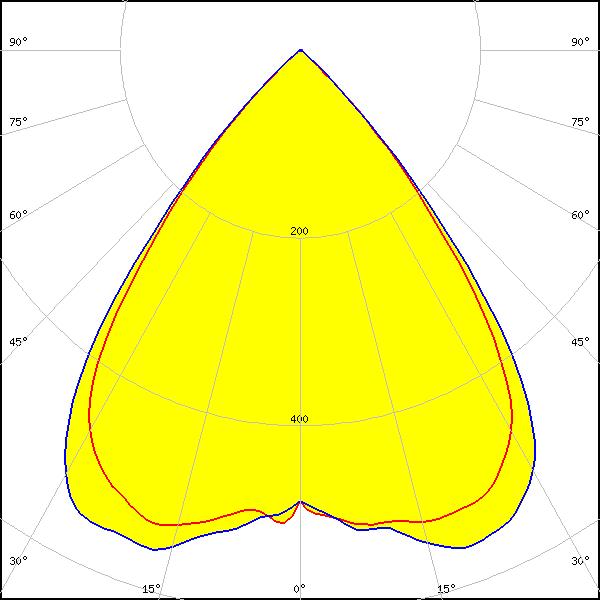

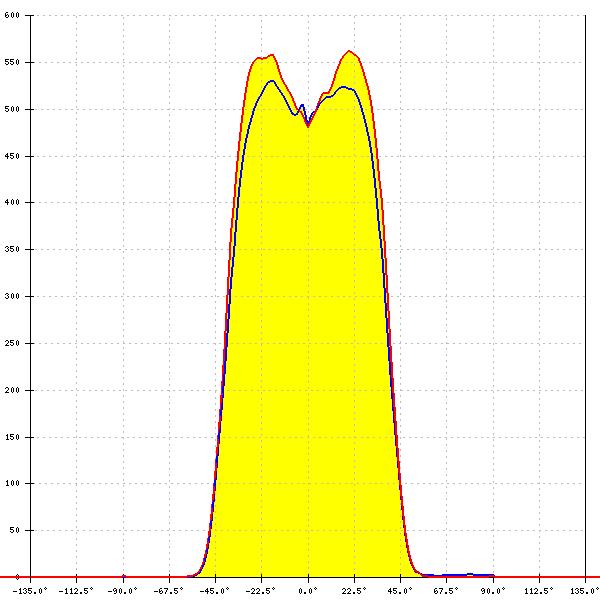

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 78°
FWTM: 94°
Peak intensity: 0.588 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour/type: White

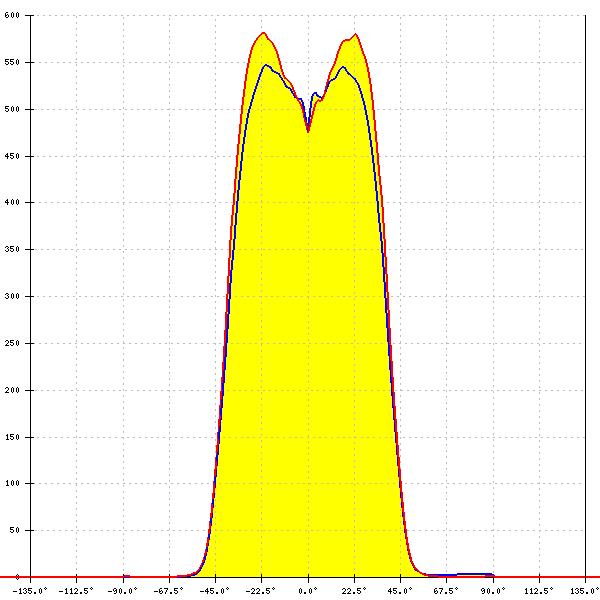

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 78°
FWTM: 94°
Peak intensity: 0.619 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

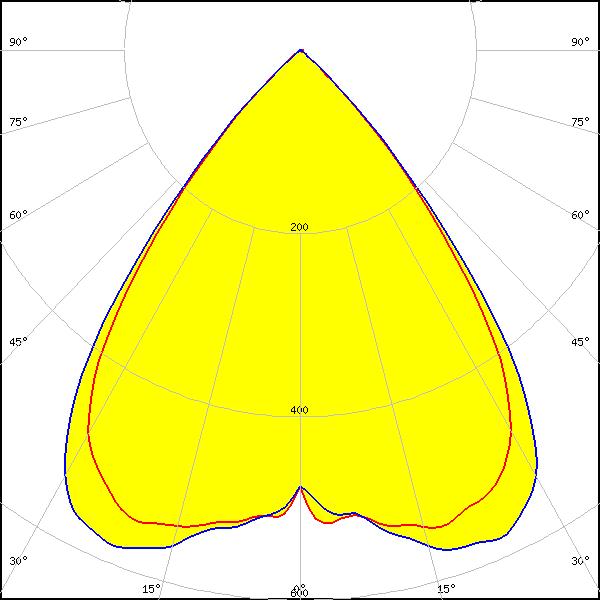

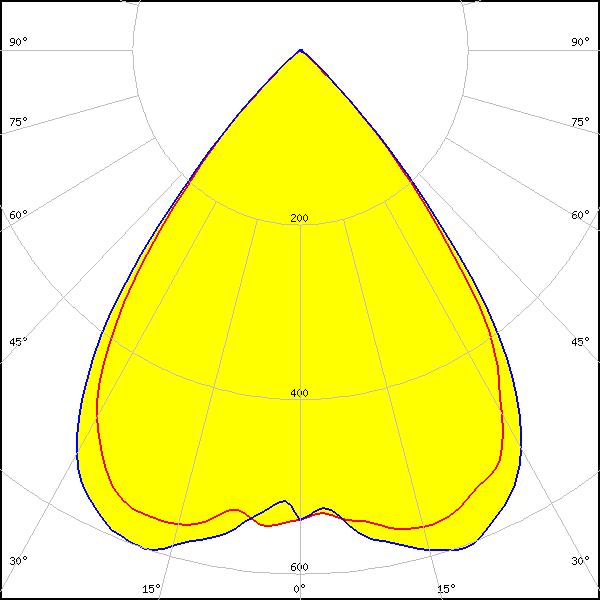

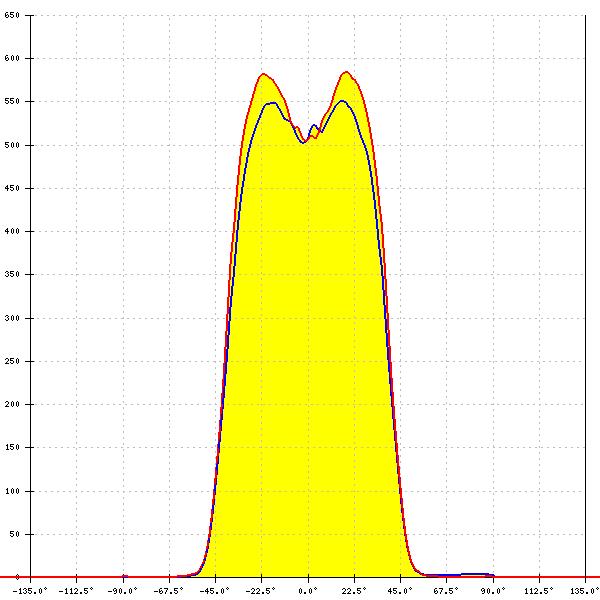

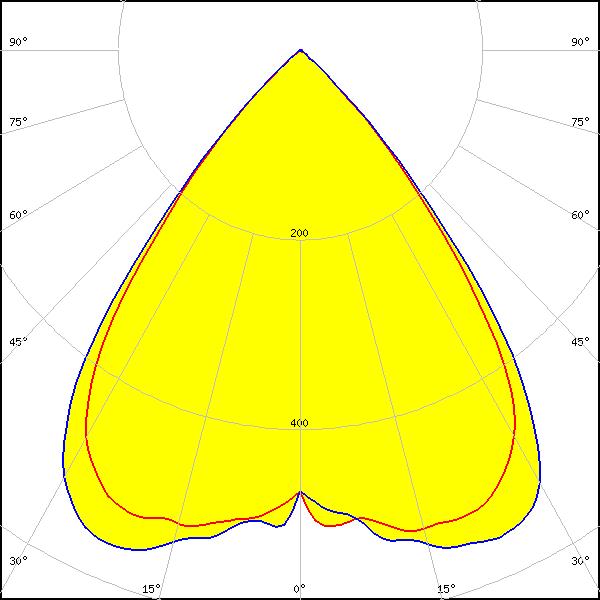

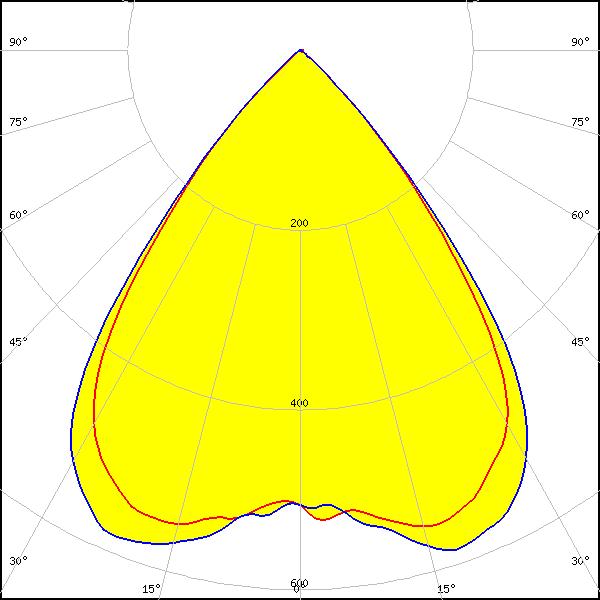

LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 77°
FWTM: 94°
Peak intensity: 0.614 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White

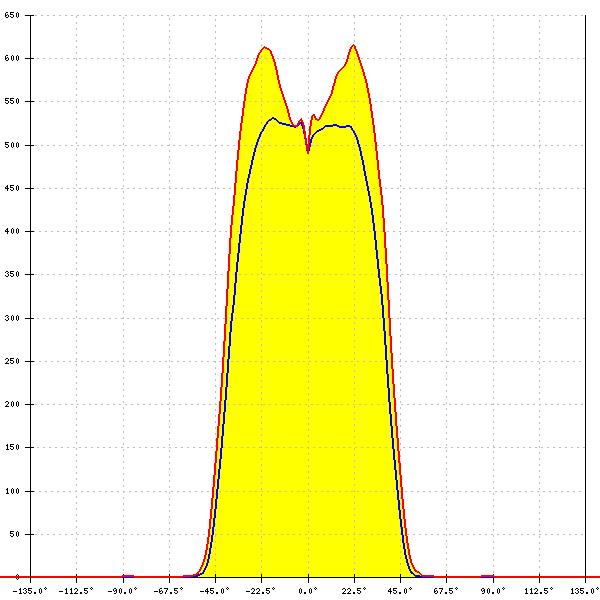

LED: Duris E 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: 76° + 79°
FWTM: 92° + 96°
Peak intensity: 0.620 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

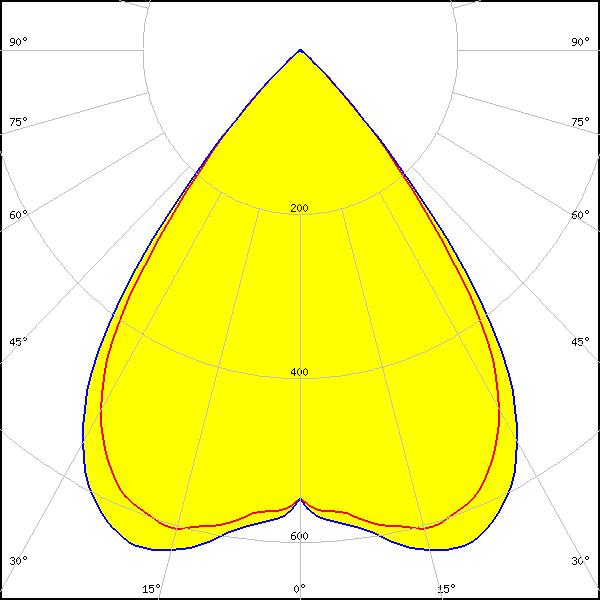

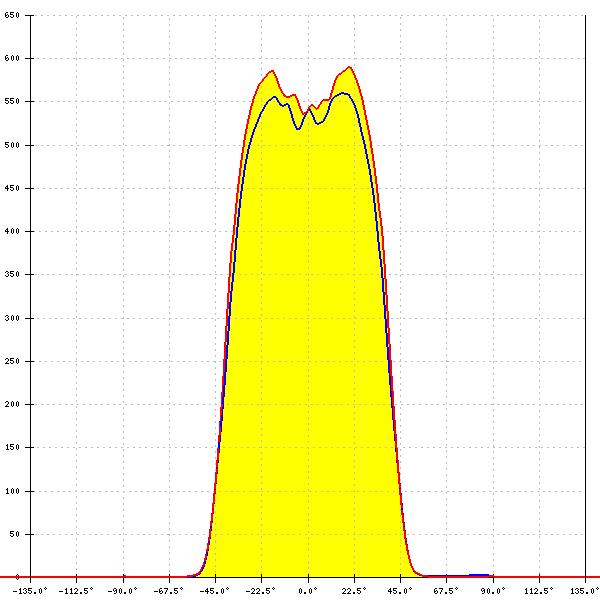

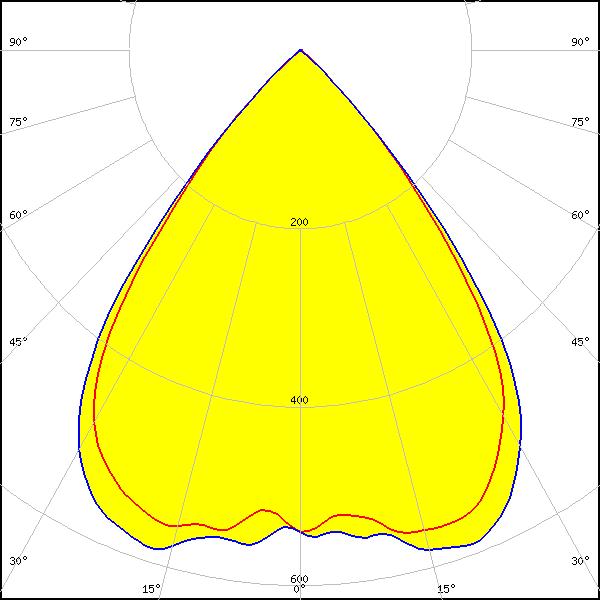

LED: Duris E 2835
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 77°
FWTM: 94°
Peak intensity: 0.612 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

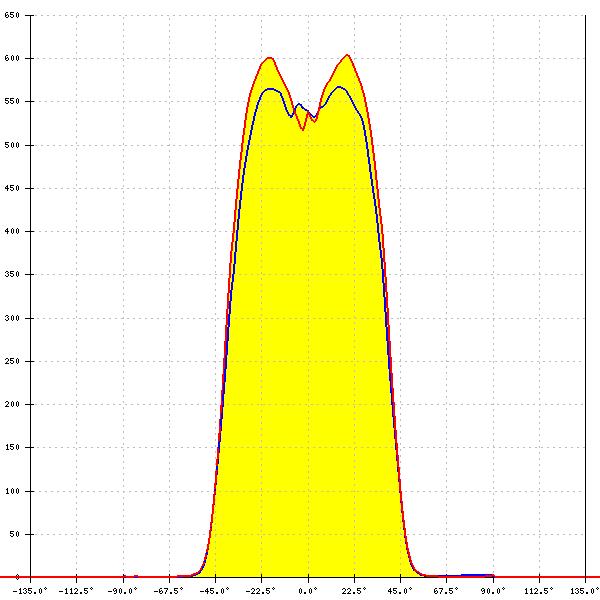

LED: Duris E 2835
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 77°
FWTM: 94°
Peak intensity: 0.631 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White

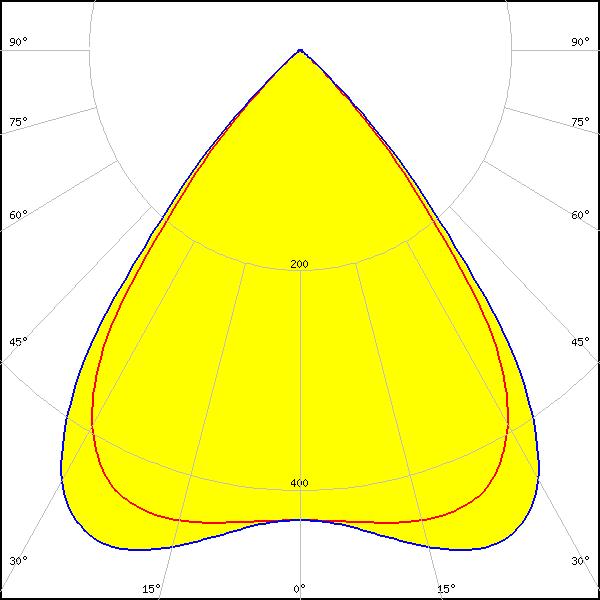

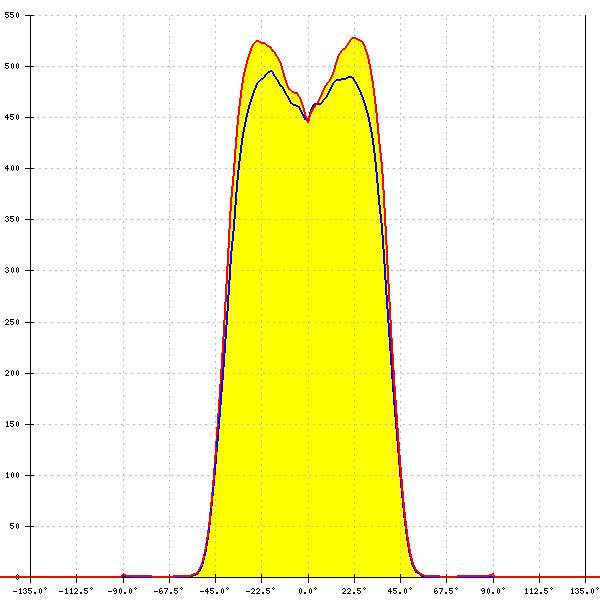

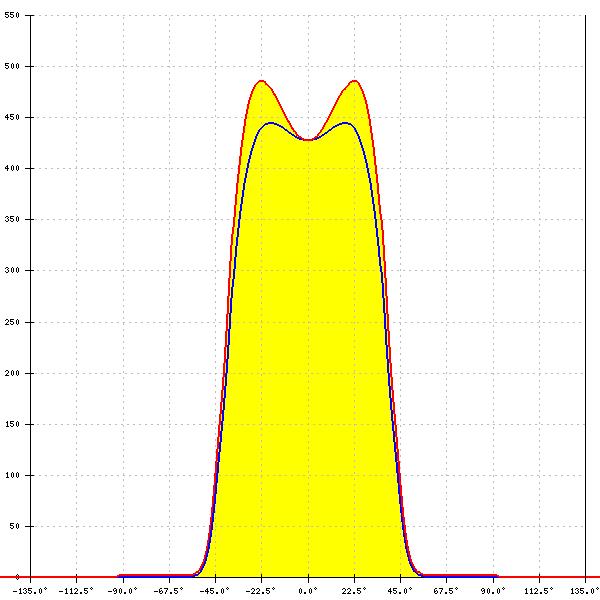

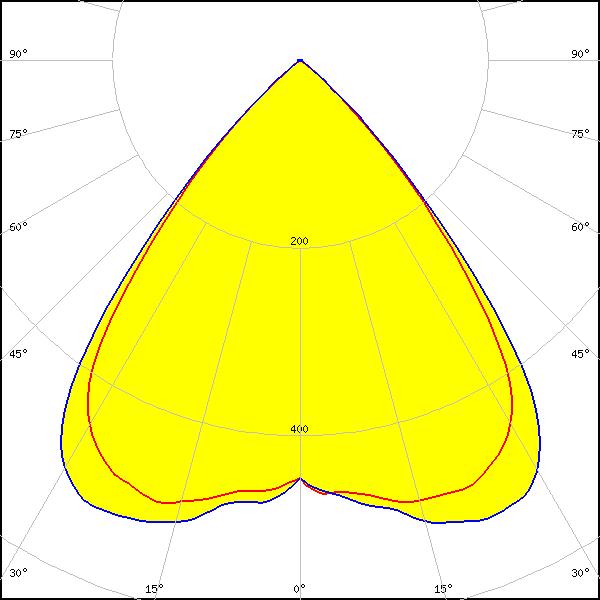

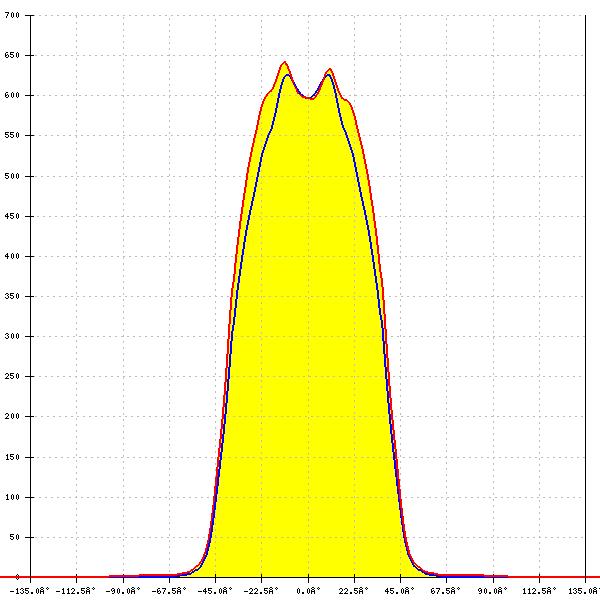

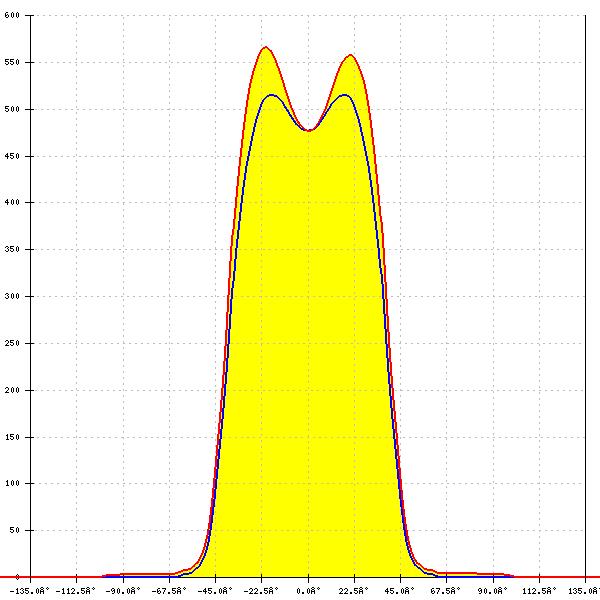

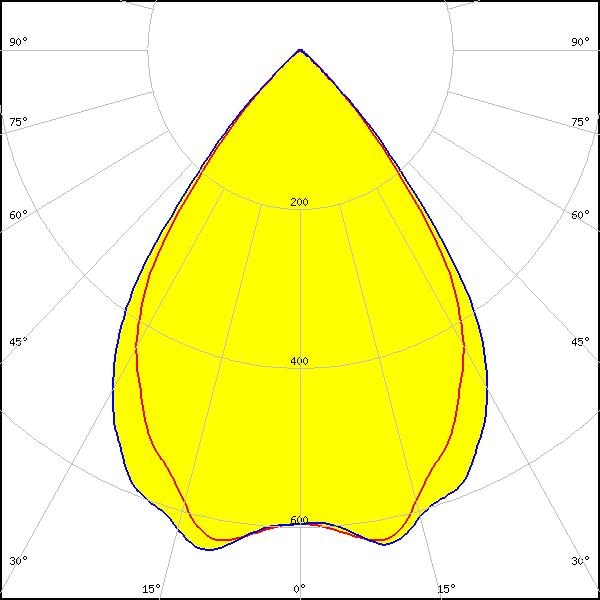

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity: 0.567 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: White

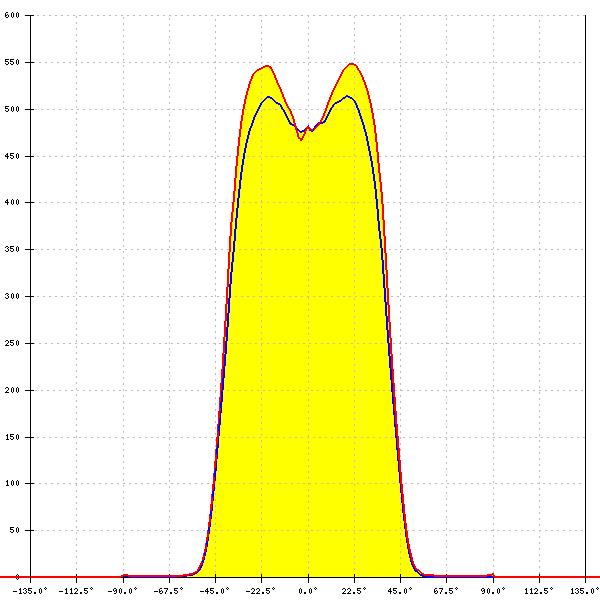

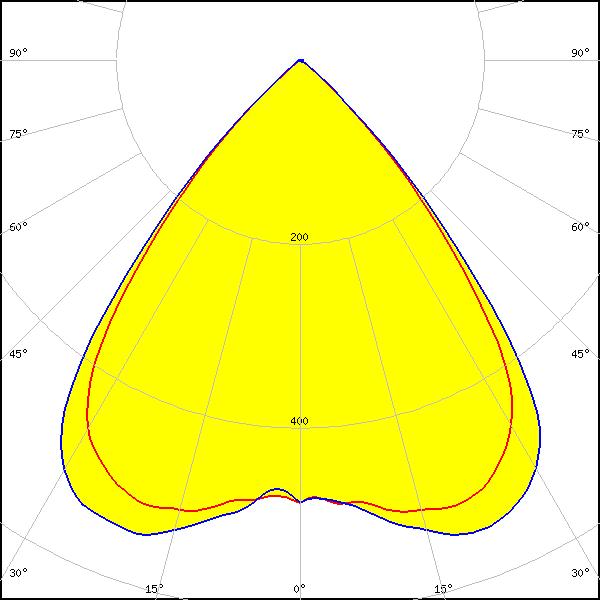

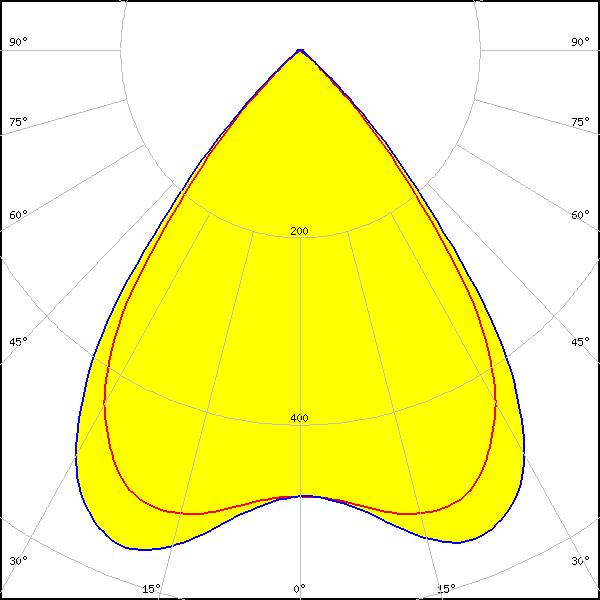

LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: asymmetric
Peak intensity: 0.593 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White
LED: LLE 24x280mm 750lm x27-x65 LVD ADV1
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour/type: Tunable White
